爆炸荷载下钢筋混凝土梁的变形和破坏

李猛深 李杰 李宏 施存程 张宁

李猛深, 李杰, 李宏, 施存程, 张宁. 爆炸荷载下钢筋混凝土梁的变形和破坏[J]. 爆炸与冲击, 2015, 35(2): 177-183. doi: 10.11883/1001-1455(2015)02-0177-07
引用本文: 李猛深, 李杰, 李宏, 施存程, 张宁. 爆炸荷载下钢筋混凝土梁的变形和破坏[J]. 爆炸与冲击, 2015, 35(2): 177-183. doi: 10.11883/1001-1455(2015)02-0177-07
Li Meng-shen, Li Jie, Li Hong, Shi Cun-cheng, Zhang Ning. Deformation and failure of reinforced concrete beams under blast loading[J]. Explosion And Shock Waves, 2015, 35(2): 177-183. doi: 10.11883/1001-1455(2015)02-0177-07
Citation: Li Meng-shen, Li Jie, Li Hong, Shi Cun-cheng, Zhang Ning. Deformation and failure of reinforced concrete beams under blast loading[J]. Explosion And Shock Waves, 2015, 35(2): 177-183. doi: 10.11883/1001-1455(2015)02-0177-07

爆炸荷载下钢筋混凝土梁的变形和破坏

doi: 10.11883/1001-1455(2015)02-0177-07
基金项目: 国家自然科学基金青年科学基金项目(51308543);中国博士后科学基金项目(2014M552688)
详细信息
    作者简介:

    李猛深(1984—), 男, 博士, 工程师

    通讯作者:

    李杰, lijierf@163.com

  • 中图分类号: O383.2

Deformation and failure of reinforced concrete beams under blast loading

  • 摘要: 利用爆炸压力模拟器进行钢筋混凝土简支梁爆炸冲击实验,详细介绍了实验设计,通过实验系统分析了钢筋混凝土(RC)梁变形破坏特征以及钢筋作用机理和对变形破坏的影响,并建立了RC梁的分离式有限元模型,利用LS-DYNA分析了实验过程,对计算结果与实验结果进行了比较,分析了误差产生的原因,得到了爆炸冲击荷载作用下RC梁的损伤破坏特征和机理,可为毁伤评估和结构抗爆设计提供参考。

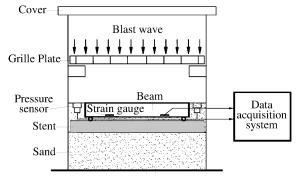

  • 图  1  实验装置示意图

    Figure  1.  Sketch of the experiment system

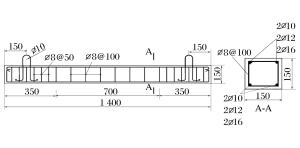

    图  2  钢筋混凝土梁尺寸与配筋

    Figure  2.  Dimension and bar arrangement of RC beams

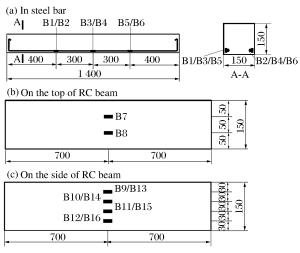

    图  3  应变片布置

    Figure  3.  Strain gauges arrangement

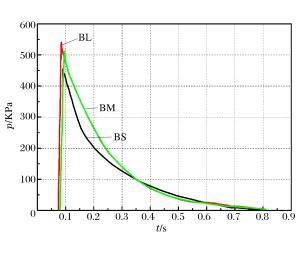

    图  4  实测爆炸荷载曲线

    Figure  4.  Experimental blast loading curves

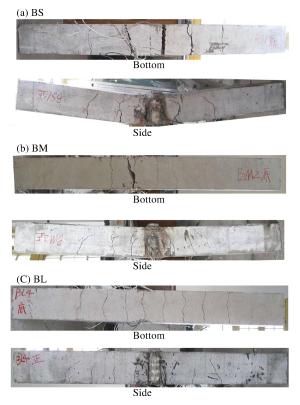

    图  5  RC梁的破坏情况

    Figure  5.  Damaged RC beams

    图  6  低配箍RC梁的破坏形态[5]

    Figure  6.  Failure modes of RC beams with low strrups arrangement

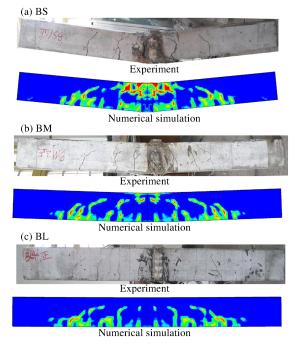

    图  7  RC梁侧面的最终破坏形态

    Figure  7.  Failures modes of RC beam side

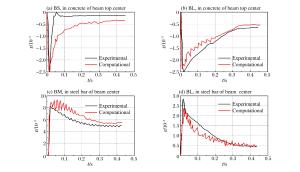

    图  8  实验与数值模拟的应变曲线

    Figure  8.  Strain curves of experimental and numerical simulation

    表  1  破坏现象综合描述

    Table  1.   Description of failure phenomenon

    编号pr/kPape/kPa现象描述
    BS211454严重破坏:横向裂缝集中在跨中,跨中裂缝发展到梁顶处,宽度约2 cm
    BM304500破坏:横向裂缝集中在跨中,跨中裂缝发展到梁顶处,宽度约1.5 cm
    BL541522未破坏:沿梁长出现横向裂缝,裂缝发展到梁高约3/4处
    下载: 导出CSV

    表  2  钢筋计算参数

    Table  2.   Calculation parameters of reinforcing bar

    材料A/MPaB/MPanC
    HPB235329.11190.440.260.016
    HRB335386.70220.020.300.018
    HRB400404.00232.400.310.018
    下载: 导出CSV

    表  3  跨中位移

    Table  3.   Midspan displacements

    编号de/mmdn/mmδ/%
    BS165599.2
    BM220195.0
    BL48712.5
    下载: 导出CSV
  • [1] 高康华, 金丰年, 王德荣, 等.建筑物内爆炸荷载研究综述[J].中国工程科学, 2013, 15(5): 59-64. http://d.wanfangdata.com.cn/Periodical/zggckx201305010

    Gao Kang-hua, Jin Feng-nian, Wang De-rong, et al. Review on internal explosion loading of building[J]. Engineering Science, 2013, 15(5): 59-64. http://d.wanfangdata.com.cn/Periodical/zggckx201305010
    [2] 师燕超, 李忠献.爆炸荷载作用下钢筋混凝土结构破坏倒塌分析研究进展[J].土木工程学报, 2010, 43(增刊): 83-91.

    Shi Yan-chao, Li Zhong-xian. State-of-the-art in damage and collapse analysis of RC structures under blast loading[J]. China Civil Engineering Journal, 2013, 43(suppl): 83-91.
    [3] 陈肇元.钢筋混凝土结构构件在冲击荷载下的性能[M].北京: 清华大学出版社, 1986.
    [4] 张想柏, 杨秀敏, 陈肇元, 等.接触爆炸钢筋混凝土板的震塌效应[J].清华大学学报(自然科学版), 2006, 46(6): 765-768. http://d.wanfangdata.com.cn/Periodical/qhdxxb200606004

    Zhang Xiang-bai, Yang Xiu-min, Chen Zhao-yuan, et al. Explosion spalling of reinforced concrete slabs with contact detonations[J]. Journal of Tsinghua University(Science and Technology), 2006, 46(6): 765-768. http://d.wanfangdata.com.cn/Periodical/qhdxxb200606004
    [5] 匡志平, 杨秋华, 崔满.爆炸荷载下钢筋混凝土梁的实验研究和破坏形态[J].同济大学学报:自然科学版, 2009, 37(9): 1153-1156. http://www.cqvip.com/Main/Detail.aspx?id=31584921

    Kuang Zhi-ping, Yang Qiu-hua, Cui Man. Experiment research and failure modes analyses of RC-beams under blast loading[J]. Journal of Tongji University: Natural Science Edition, 2009, 37(9): 1153-1156. http://www.cqvip.com/Main/Detail.aspx?id=31584921
    [6] Krauthammer T, Shahriar S, Shanaa H M. Response of reinforced concrete elements to severe impulsive loads[J]. Journal of Structural Engineering, 1990, 116(4): 1061-1079. https://trid.trb.org/view/308168
    [7] Krauthammer T, Assadi-Lamouki A, Shanaa H M. Analysis of impulsively loaded reinforced concrete structural elements(Ⅱ): Implementation[J]. Computers and Structures, 1993, 48(5): 851-860. https://www.sciencedirect.com/science/article/pii/004579499390508B
    [8] 方秦, 柳锦春, 张亚栋, 等.爆炸荷载作用下钢筋混凝土梁破坏形态有限元分析[J].工程力学, 2001, 18(2): 1-8.

    Fang Qin, Liu Jin-chun, Zhang Ya-dong, et al. Finite element analysis of failure modes of blast-loading RC beams[J]. Engineering Mechanics, 2001, 18(2): 1-8.
    [9] 柳锦春, 方秦, 龚自明, 等.爆炸荷载作用下钢筋混凝土梁的动力响应及破坏形态分析[J].爆炸与冲击, 2003, 23(1): 25-30. http://www.bzycj.cn/article/id/10014

    Liu Jin-chun, Fang Qin, Gong Zi-ming, et al. Analysis of dynamic responses and failure modes of RC beams under blast loading[J]. Explosion and Shock Waves, 2003, 23(1): 25-30. http://www.bzycj.cn/article/id/10014
    [10] 方秦, 吴平安.爆炸荷载作用下影响RC梁破坏形态的主要因素分析[J].计算力学学报, 2003, 20(1): 39-42.

    Fang Qin, Wu Ping-an. Main factors affecting failure modes of blast loaded RC beams[J]. Chinese Journal of Computational Mechanics, 2003, 20(1): 39-42.
    [11] Barbato M. Efficient finite element modeling of reinforced concrete beams retro fitted with fibre reinforced polymers[J]. Computers and Structures, 2009, 87(3/4): 167-176. https://www.sciencedirect.com/science/article/pii/S0045794908002502
    [12] GB 50038-2005人民防空地下室设计规范[S].北京: 中国建筑工业出版社, 2005.
    [13] Мяновский К М. Механизм трещинообразования железобетонных элементов с дисперсным армирова-нием при растяжении[M]. ВЦП НТЛиД, 1979.
    [14] Malvar L J, Crawford J E, Wesevich J W, et al. A plasticity concrete material model for DYNA3D[J]. International Journal of Impact Engineering, 1997, 19(9): 847-873.
