强爆轰驱动飞片的数值模拟研究

袁帅 文尚刚 李平 董玉斌

袁帅, 文尚刚, 李平, 董玉斌. 强爆轰驱动飞片的数值模拟研究[J]. 爆炸与冲击, 2015, 35(2): 197-202. doi: 10.11883/1001-1455(2015)02-0197-06
引用本文: 袁帅, 文尚刚, 李平, 董玉斌. 强爆轰驱动飞片的数值模拟研究[J]. 爆炸与冲击, 2015, 35(2): 197-202. doi: 10.11883/1001-1455(2015)02-0197-06
Yuan Shuai, Wen Shang-gang, Li Ping, Dong Yu-bin. Simulation of free surface particle velocity of flyer under the strong detonation drive[J]. Explosion And Shock Waves, 2015, 35(2): 197-202. doi: 10.11883/1001-1455(2015)02-0197-06
Citation: Yuan Shuai, Wen Shang-gang, Li Ping, Dong Yu-bin. Simulation of free surface particle velocity of flyer under the strong detonation drive[J]. Explosion And Shock Waves, 2015, 35(2): 197-202. doi: 10.11883/1001-1455(2015)02-0197-06

强爆轰驱动飞片的数值模拟研究

doi: 10.11883/1001-1455(2015)02-0197-06
基金项目: 国防科技工业基础科研项目(A1520070075)
详细信息
    作者简介:

    袁帅(1972—), 男, 硕士, 工程师, yscaep_01@sina.com.cn

  • 中图分类号: O381

Simulation of free surface particle velocity of flyer under the strong detonation drive

  • 摘要: 在一维流体动力学程序中,使用了JWLT状态方程,对强爆轰驱动飞片的实验模型进行了数值模拟研究,得到了炸药爆轰产物的压力和密度分布,验证了强爆轰的存在,同时得到了二级飞片自由面的速度曲线,与实验测量结果符合较好,为解释实验结果和设计新的强爆轰实验提供了计算依据,同时验证了程序的正确性。

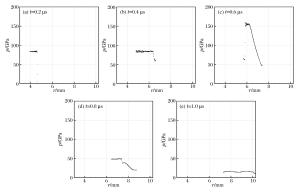

  • 图  1  炸药的压力分布

    Figure  1.  Distribution of pressure in explosion JO-9159

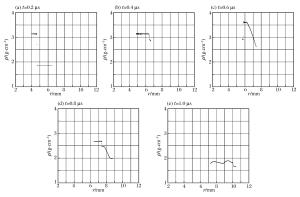

    图  2  炸药的密度分布

    Figure  2.  Distribution of density in explosion JO-9159

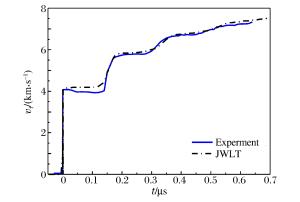

    图  3  实验1的自由面速度

    Figure  3.  Free surface velocity of experiment 1

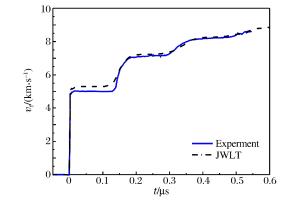

    图  4  实验2的自由面速度

    Figure  4.  Free surface velocity of experiment 2

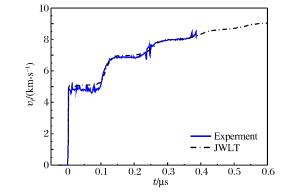

    图  5  实验3的自由面速度

    Figure  5.  Free surface velocity of experiment 3

    表  1  实验模型参数

    Table  1.   The parameter of experiment model

    No.L1/mmv0/(km·s-1)L2/mmL3/mmL4/mm
    12.524.973.990.510.47
    22.526.093.980.500.48
    32.535.894.000.500.36
    下载: 导出CSV

    表  2  材料参数

    Table  2.   The parameter of material

    材料强度参数状态方程参数
    ρ/(g·cm-3)G/GPaY/GPac0/(km·s-1)λΓ
    7.8583.10.603.4492.0871.69
    有机玻璃1.1862.320.152.5661.6240.85
    下载: 导出CSV
  • [1] Tang P K. A study of the overdriven behaviors of PBX-9501 and PBX-9502[C]//11th Symposium(International)on Detonation. Colorado, USA: Office of the Naval Research, 1998: 1058-1064.
    [2] Tang P K. A study of the role of homogeneous process in heterogeneous high explosive[R]. Los Alamoss National Laboratory, 1993.
    [3] Tang P K. A study of the overdriven behaviors of PBX-9501 and PBX-9502[R]. Los Alamoss National Laboratory, 1998.
    [4] 赵峰, 孙承纬, 文尚刚, 等.炸药强爆轰的研究[J].高压物理学报, 2000, 14(1): 47-53.

    Zhao Feng, Sun Cheng-wei, Wen Shang-gang, et al. Researches on strong detonation of high explosives[J]. Chinese Journal of High Pressure Physics, 2000, 14(1): 47-53.
    [5] 文尚刚, 邓文荣, 赵锋, 等.二级装药强爆轰驱动次级飞片的分析[J].高压物理学报, 2005, 19(4): 343-347. http://www.cqvip.com/QK/96553X/20054/20831894.html

    Wen Shang-gang, Deng Wen-rong, Zhao Feng, et al. Analysis of two explosive/flyer system[J]. Chinese Journal of High Pressure Physics, 2005, 19(4): 343-347. http://www.cqvip.com/QK/96553X/20054/20831894.html
    [6] 文尚刚, 赵锋, 王建, 等.气炮加载下炸药强爆轰驱动技术的初步实验研究[J].高压物理学报, 2011, 25(1): 36-40. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gywlxb201101006

    Wen Shang-gang, Zhao Feng, Wang Jian, et al. Primary experimental study on driving technique of strong detonation using gas gun[J]. Chinese Journal of High Pressure Physics, 2011, 25(1): 36-40. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gywlxb201101006
    [7] Kineke J H, West C E. Shocked states of four overdriven explosives[C]//Fifth Symposium(International)on Detonation. Pasadena, CA, 1970: 533-543.
    [8] Green L, Lee E, Mitchell A, et al. Equation of state of PBX9404, LX07, RX26AF detonation products at pressure above detonation pressure[R]. Los Alamoss National Laboratory, 1983.
    [9] AлЬтшулер Л B. Пережатые детонационные волны в кондеироанных В[J]. ФГВ, 1974(16): 728.
    [10] 邓全农, 章冠人, 李良忠.过加载下固体炸药的实验研究和爆轰产物的高压状态方程[C]//第五届全国高压学术讨论会缩编文集. 1990: 64.
    [11] van Thiel M, Lee E L, Cochran S. Effects of overdriven shock states on the equation of state of PBX-9404 explosive[J]. Journal of Applied Physics, 1983, 54(11): 6760-6763. doi: 10.1063/1.331870
    [12] Green L, Lee E, Mitchell A, et al. The supra-compression of LX07, LX17, PBX9404, and RX26AF and the equation of state of the detonation products[C]//Proc of 8th Symp(Int)on Detonation. 1986: 587-595.
    [13] 潘昊, 胡晓棉.钝感炸药的强爆轰与冲击起爆过程的数值模拟[J].爆炸与冲击, 2006, 26(2): 174-178. doi: 10.11883/1001-1455(2006)02-0174-05

    Pan Hao, Hu Xiao-mian. Simulation for overdriven and shocking-detonation transition of insensitive high explosive[J]. Explosion and Shock Waves, 2006, 26(2): 174-178. doi: 10.11883/1001-1455(2006)02-0174-05
    [14] 姚阳, 谭多望, 文尚刚. PBX-9501强爆轰产物状态方程的数值模拟[J].爆炸与冲击, 2009, 29(5): 497-502. doi: 10.11883/1001-1455(2009)05-0497-06

    Yao Yang, Tan Duo-wang, Wen Shang-gang. Simulation of overdriven shock states based on equation of state of PBX-9501 explosive[J]. Explosion and Shock Waves, 2009, 29(5): 497-502. doi: 10.11883/1001-1455(2009)05-0497-06
