Q235钢板对半球形头弹抗侵彻特性

邓云飞 孟凡柱 李剑锋 魏刚

邓云飞, 孟凡柱, 李剑锋, 魏刚. Q235钢板对半球形头弹抗侵彻特性[J]. 爆炸与冲击, 2015, 35(3): 386-392. doi: 10.11883/1001-1455(2015)03-0386-07
引用本文: 邓云飞, 孟凡柱, 李剑锋, 魏刚. Q235钢板对半球形头弹抗侵彻特性[J]. 爆炸与冲击, 2015, 35(3): 386-392. doi: 10.11883/1001-1455(2015)03-0386-07
Deng Yun-fei, Meng Fan-zhu, Li Jian-feng, Wei Gang. The ballistic performance of Q235 metal plates subjected to impact by hemispherically-nosed projectiles[J]. Explosion And Shock Waves, 2015, 35(3): 386-392. doi: 10.11883/1001-1455(2015)03-0386-07
Citation: Deng Yun-fei, Meng Fan-zhu, Li Jian-feng, Wei Gang. The ballistic performance of Q235 metal plates subjected to impact by hemispherically-nosed projectiles[J]. Explosion And Shock Waves, 2015, 35(3): 386-392. doi: 10.11883/1001-1455(2015)03-0386-07

Q235钢板对半球形头弹抗侵彻特性

doi: 10.11883/1001-1455(2015)03-0386-07
基金项目: 国家自然科学基金项目(11072072);中央高校基本科研业务费资助项目(3122014D018);中国民航大学研究生科技创新基金项目(Y15-04)
详细信息
    作者简介:

    邓云飞(1982-), 男, 博士, 讲师, dengyunfei@eyou.com

  • 中图分类号: O381

The ballistic performance of Q235 metal plates subjected to impact by hemispherically-nosed projectiles

  • 摘要: 利用轻气炮进行了半球形头杆弹正撞击单层板和等厚接触式三层板的实验, 得到了这两种结构靶体的初始-剩余速度曲线以及弹道极限。采用ABAQUS/EXPLICIT数值模拟软件对杆弹撞击金属板的过程进行了数值模拟研究, 通过对比数值模拟和实验结果, 验证了数值模拟材料模型和参数的有效性。研究了靶体结构对抗侵彻特性的影响, 并分析了弹体对靶体的撞击过程。研究结果表明:多层板的弹道极限高于等厚单层板。单层板主要失效模式为剪切, 而多层板的主要失效模式为整体的蝶形变形和局部的盘式隆起。对于多层板, 靶板具体的失效模式与其在靶中位置相关。

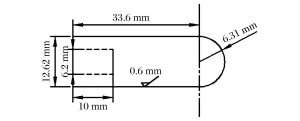

  • 图  1  弹体形状及尺寸

    Figure  1.  Geometry of the projectiles

    图  2  弹体对T4T4T4靶体典型撞击工况

    Figure  2.  Selection of high-speed camera images showing perforation of the T4T4T4 plates

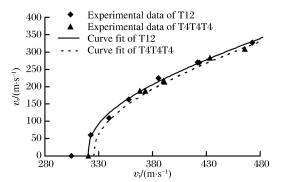

    图  3  半球形头弹贯穿靶体的初始-剩余速度曲线

    Figure  3.  Residual vs. initial velocity for targets impacted by hemispherical-nosed projectiles

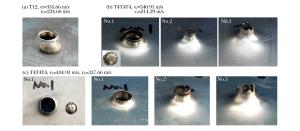

    图  4  半球形头弹撞击T12和T4T4T4靶样件

    Figure  4.  Deformed plates of T12 and T4T4T4 after impacted by hemipherical-nosed projectile

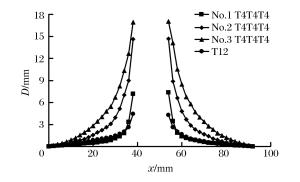

    图  5  半球形头弹撞击靶板变形线对比

    Figure  5.  Comparison of the deformation profiles of layered plates impacted by hemispherical-nosed projectiles

    图  6  靶体的有限元模型

    Figure  6.  Finite element models of the targets and projectiles

    图  7  实验结果与数值模拟结果对比

    Figure  7.  Comparisons of the initial vs. residual velocity between experiments and numerical simulations

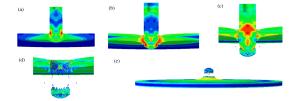

    图  8  数值模拟得到的半球形头弹贯穿T12靶图像

    Figure  8.  Perforation pictures of T12 perforated by hemispherical-nosed projectiles for numerical simulations

    图  9  数值模拟得到的半球形头弹贯穿T4T4T4靶图像

    Figure  9.  Perforation pictures of T4T4T4 perforated by hemispherical-nosed projectiles for numerical simulations

    表  1  Q235钢靶T12侵彻实验结果

    Table  1.   Penetration test result of the Q235 steel target T12

    vi/(m·s-1) vr/(m·s-1)
    254.60 0
    272.70 59.90
    289.5 109.10
    308.05 162.60
    335.66 224.60
    371.90 270.50
    373.20 268.90
    422.70 327.30
    下载: 导出CSV

    表  2  Q235钢靶T4T4T4侵彻实验结果

    Table  2.   Penetration test result of the Q235 steel target T4T4T4

    vi/(m·s-1) vr/(m·s-1)
    270.6 0
    318.2 188.1
    323.2 187.5
    340.3 218.2
    383.2 283.6
    415.6 308.3
    434.9 337.7
    下载: 导出CSV

    表  3  钢靶的弹道极限及模型参数

    Table  3.   Ballistic limit velocityies and model constants of targets

    a p vbl/(m·s-1)
    实验 模拟 实验 模拟 实验 模拟
    T12 0.93 0.94 2.35 2.15 268.5 282.5
    T4T4T4 0.93 0.89 2.30 2.40 275.5 262.5
    下载: 导出CSV
  • [1] Marom I, Bodner S R. Projectile perforation of multi-layered beams[J]. International Journal of Mechanical Sciences, 1979, 21: 489-504.
    [2] 邓云飞, 张伟, 曹宗胜, 等.分层数对Q235钢薄板抗侵彻性能的影响[J].高压物理学报, 2013, 27(4): 550-555.

    Deng Yun-fei, Zhang Wei, Cao Zong-sheng, et al. Influence of the number of layers on the ballistic resistance oflayered thin Q235 steel plates[J]. Chinese Journal of High Pressure Physics, 2013, 27(4): 550-555.
    [3] Dey S, Bϕrvik T, Teng X, et al. On the ballistic resistance of double-layered steel plates: An experimental and numerical investigation[J]. International Journal of Solids and Structures, 2007, 44(20): 6701-6723.
    [4] Børvik T, Dey S, Clausen A H. A preliminary study on the perforation resistance of high-strength steel plates[J]. Journal de Physique IV France, 2006, 134: 1053-1059.
    [5] Gupta N K, Iqbal M A, Sekhon G S. Effect of projectile nose shape, impact velocity and target thickness on the deformation behavior of layered plates[J]. International Journal of Impact Engineering, 2008, 35(1): 37-60.
    [6] Alavi Nia A, Hoseini G R. Experimental study of perforation of multi-layered targets by hemispherical-nosed projectiles[J]. Material and Design, 2011, 32(2): 1057-1065.
    [7] 郭子涛.弹体入水特性及不同介质条件金属靶的抗侵彻性能研究[D].哈尔滨: 哈尔滨工业大学, 2012.
    [8] 邓云飞, 张伟, 曹宗胜.间隙对A3钢薄板抗卵形头弹侵彻性能影响的实验研究[J].振动与冲击, 2013, 32(12): 95-99.

    Deng Yun-fei, Zhang Wei, Cao Zong-sheng. Effect of gap on the ballistic performance of double-layered A3 steel shields against ogival rigid projectiles[J]. Journal of Vibration and Shock, 2013, 32(12): 95-99.
    [9] Recht R F, Ipson T W. Ballistic perforation dynamics[J]. Journal of Applied Mechanics, 1963, 30(3): 384-390.
    [10] Chen X W, Li Q M. Shear plugging and perforation of ductile circular plates struck by a blunt projectile[J]. International Journal of Impact Engineering, 2003, 28(5): 513-536.
    [11] Dey S, Børvik T, Teng X, et al. On the ballistic resistance of double-layered steel plates: An experimental and numerical investigation[J]. International Journal of Solids and Structures, 2007, 44(20): 6701-6723.
    [12] Corran R S J, Shadbolt P J, Ruiz C. Impact loading of plates: An experimental investigation[J]. International Journal of Impact Engineering, 1983, 1(1): 3-22.
    [13] Tiwari G, Iqbal M A, Gupta P K, et al. The ballistic resistance of thin aluminium plates with varying degrees of fixity along the circumference[J]. International Journal of Impact Engineering, 2014, 74: 46-56.
