空气自由场中强爆炸冲击波传播二维数值模拟

姚成宝 李若 田宙 郭永辉

姚成宝, 李若, 田宙, 郭永辉. 空气自由场中强爆炸冲击波传播二维数值模拟[J]. 爆炸与冲击, 2015, 35(4): 585-590. doi: 10.11883/1001-1455(2015)04-0585-06
引用本文: 姚成宝, 李若, 田宙, 郭永辉. 空气自由场中强爆炸冲击波传播二维数值模拟[J]. 爆炸与冲击, 2015, 35(4): 585-590. doi: 10.11883/1001-1455(2015)04-0585-06
Yao Cheng-bao, Li Ruo, Tian Zhou, Guo Yong-hui. Two dimensional simulation for shock wave produced by strong explosion in free air[J]. Explosion And Shock Waves, 2015, 35(4): 585-590. doi: 10.11883/1001-1455(2015)04-0585-06
Citation: Yao Cheng-bao, Li Ruo, Tian Zhou, Guo Yong-hui. Two dimensional simulation for shock wave produced by strong explosion in free air[J]. Explosion And Shock Waves, 2015, 35(4): 585-590. doi: 10.11883/1001-1455(2015)04-0585-06

空气自由场中强爆炸冲击波传播二维数值模拟

doi: 10.11883/1001-1455(2015)04-0585-06
详细信息
    作者简介:

    姚成宝(1984-), 男, 博士研究生, 助理研究员, yaocheng@pku.edu.cn

  • 中图分类号: O381

Two dimensional simulation for shock wave produced by strong explosion in free air

  • 摘要: 编写了适用于模拟具有高密度比、高压力比的强激波问题的二维柱对称多介质流体计算程序。利用有限体积方法求解流体的Euler方程组,采用level set方法捕捉爆炸产物与空气的运动界面,并通过求解物质界面两侧Riemann问题的精确解来计算爆炸产物与空气之间的数值通量。研制了三角形网格自适应技术来实现网格的自动加密和粗化,在保证捕捉激波峰值的前提下有效地提高了计算效率。利用计算程序对1 kt TNT当量的空气自由场强爆炸问题进行数值模拟,计算得到的峰值超压、冲击波到达时间等物理参数与点爆炸理论结果基本一致。

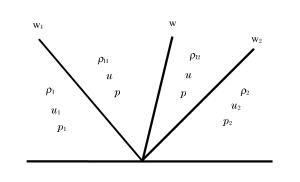

  • 图  1  Riemann问题解的类型

    Figure  1.  Solution type of the Riemann problem

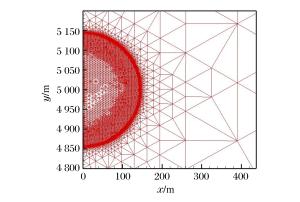

    图  2  网格自适应示意图

    Figure  2.  Mesh adaption

    图  3  不同时刻的冲击波压力等值线图

    Figure  3.  Pressure contours at different time

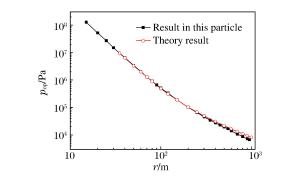

    图  4  峰值超压

    Figure  4.  Peak overpressure

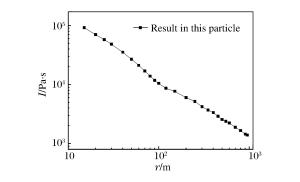

    图  5  正压冲量

    Figure  5.  Overpressure impulse

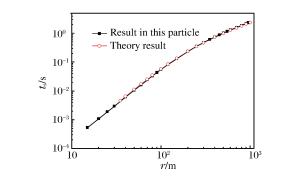

    图  6  冲击波到时

    Figure  6.  Arrival time

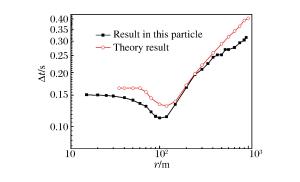

    图  7  正压作用时间

    Figure  7.  Positive time duration

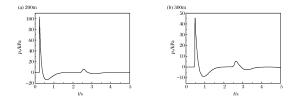

    图  8  不同爆心距的冲击波超压历程曲线

    Figure  8.  Overpressure history at different radius

  • [1] 奥尔连科Л П.爆炸物理学[M].孙承纬, 译.北京: 科学出版社, 2013, 456-463.
    [2] 张洪武, 何扬, 张昌权.空中爆炸冲击波地面载荷的数值模拟[J].爆炸与冲击, 1992, 12(2): 188-198. http://www.bzycj.cn/article/id/10725

    Zhang Hong-wu, He Yang, Zhang Chang-quan. Numerical simulation on ground surface loading of shock wave from air explosion[J]. Explosion and Shock Waves, 1992, 12(2): 188-198. http://www.bzycj.cn/article/id/10725
    [3] 岳鹏涛, 徐胜利, 彭金华. FAE爆炸波对地面目标作用的三维数值模拟[J].爆炸与冲击, 2000, 20(2): 195-201. http://www.bzycj.cn/article/id/10262

    Yue Peng-tao, Xu Sheng-li, Peng Jin-hua. 3D numerical simulations on the interaction between FAE blast waves and ground targets[J]. Explosion and Shock Waves, 2000, 20(2): 195-201. http://www.bzycj.cn/article/id/10262
    [4] 北京工业学院.爆炸及其作用[M].北京: 国防工业出版社, 1979.
    [5] Liu T G, Khoo B C, Yeo K S. Ghost fluid method for strong shock impactingon material interface[J]. Journal of Computational Physics, 2003, 190(2): 651-681. https://www.sciencedirect.com/science/article/pii/S0021999103003012
    [6] Fedkiw R P, Aslam T, Merriman B, et al. A non-oscillatory eulerian approach to interfaces in multimaterial flows: The ghost fluid method[J]. Journal of Computational Physics, 1999, 152(2): 457-492. https://www.sciencedirect.com/science/article/pii/S0021999199962368
    [7] Colella P, Glaz H M. Efficient solution algorithms for the Riemann problem for real gases[J]. Journal of Computational Physics, 1985, 59(2): 264-289. https://www.sciencedirect.com/science/article/pii/0021999185901469
    [8] 乔登江.强爆炸物理概论(上册)[M].北京: 国防工业出版社, 2003: 51-55.
    [9] 杨秀敏.爆炸冲击现象数值模拟[M].合肥: 中国科学技术大学出版社, 2010: 122-125.
    [10] Osher S, Sethian J A. Fronts propagating with curvature dependent speed: Algorithms based on Hamilton-jaccobi formulations[J]. Journal of Computational Physics, 1988, 79(1): 12-49. https://www.sciencedirect.com/science/article/pii/0021999188900022
    [11] Sussman M, Semerka P, Osher S. A level set approach for computing solutions to incompressible two-phase flow[J]. Journal of Computational Physics, 1994, 114(4): 146-159. https://www.sciencedirect.com/science/article/pii/S0021999184711557
    [12] 张军, 赵宁, 任登凤, 等. level set方法在自适应Catersian网格上的应用[J].爆炸与冲击, 2008, 28(5): 156-161.

    Zhang Jun, Zhao Ning, Ren Deng-feng, et al. Application of the level set method on adaptive cartesian grids[J]. Explosion and Shock Waves, 2008, 28(5): 156-161.
    [13] Eleuteuo F T. Riemann solvers and numerical methods for fluid dynamics[M]. First Edition. Springer, 2009: 16-123.
    [14] 刘儒勋, 舒其望.计算流体的若干新方法[M].北京: 科学出版社, 2003: 121-130.
    [15] Di Y N, Li R, Tang T, et al. level set calculations for incompressible two-phase flows on a dynamically adaptive grid[J]. Journal of Scientific Computing, 2007, 31(1/2): 75-98. doi: 10.1007/s10915-006-9119-3
