爆破振动持时分析及微差爆破延期时间优选

钟冬望 何理 操鹏 张奎

钟冬望, 何理, 操鹏, 张奎. 爆破振动持时分析及微差爆破延期时间优选[J]. 爆炸与冲击, 2016, 36(5): 703-709. doi: 10.11883/1001-1455(2016)05-0703-07
引用本文: 钟冬望, 何理, 操鹏, 张奎. 爆破振动持时分析及微差爆破延期时间优选[J]. 爆炸与冲击, 2016, 36(5): 703-709. doi: 10.11883/1001-1455(2016)05-0703-07
Zhong Dongwang, He Li, Cao Peng, Zhang Kui. Analysis of blasting vibration duration and optimizing of delayed time interval for millisecond blasting[J]. Explosion And Shock Waves, 2016, 36(5): 703-709. doi: 10.11883/1001-1455(2016)05-0703-07
Citation: Zhong Dongwang, He Li, Cao Peng, Zhang Kui. Analysis of blasting vibration duration and optimizing of delayed time interval for millisecond blasting[J]. Explosion And Shock Waves, 2016, 36(5): 703-709. doi: 10.11883/1001-1455(2016)05-0703-07

爆破振动持时分析及微差爆破延期时间优选

doi: 10.11883/1001-1455(2016)05-0703-07
基金项目:

国家自然科学基金项目 51574184

湖北省教育厅科学技术研究项目 Q20161101

武汉科技大学青年科技骨干培育计划项目 2016xz018

详细信息
    作者简介:

    钟冬望(1963-),男,教授,博士生导师

    通讯作者:

    何理,emp-heli@hotmail.com

  • 中图分类号: O381

Analysis of blasting vibration duration and optimizing of delayed time interval for millisecond blasting

  • 摘要: 爆破振动持续时间以及微差爆破延期时间分别是爆破振动危害客观评价与主动控制的重要指标,对振动持时影响因素和延期时间优选方法进行深入探究极为必要。结合量纲分析理论,探讨了爆破振动持时影响因素,推导出爆破振动持时预测公式,该公式线性相关性达到89.7%;基于地震波线性叠加原理,通过MATLAB 7.0编程,计算得到毫秒微差爆破不同爆心距处合理延时区间。结果表明,爆破振动信号能量与振动持续时间相关性高,在振动持时预测公式中引入信号能量,可提高预测精度;振动持续时间与比例速度负相关,与比例药量正相关;合理孔间延期时间往往不是某一具体值,而是一个或多个时间区间;不同爆心距处合理延期时间值不同。工程应用表明,给出的爆破振动持时预测公式与微差爆破延时优选方法切实可行。

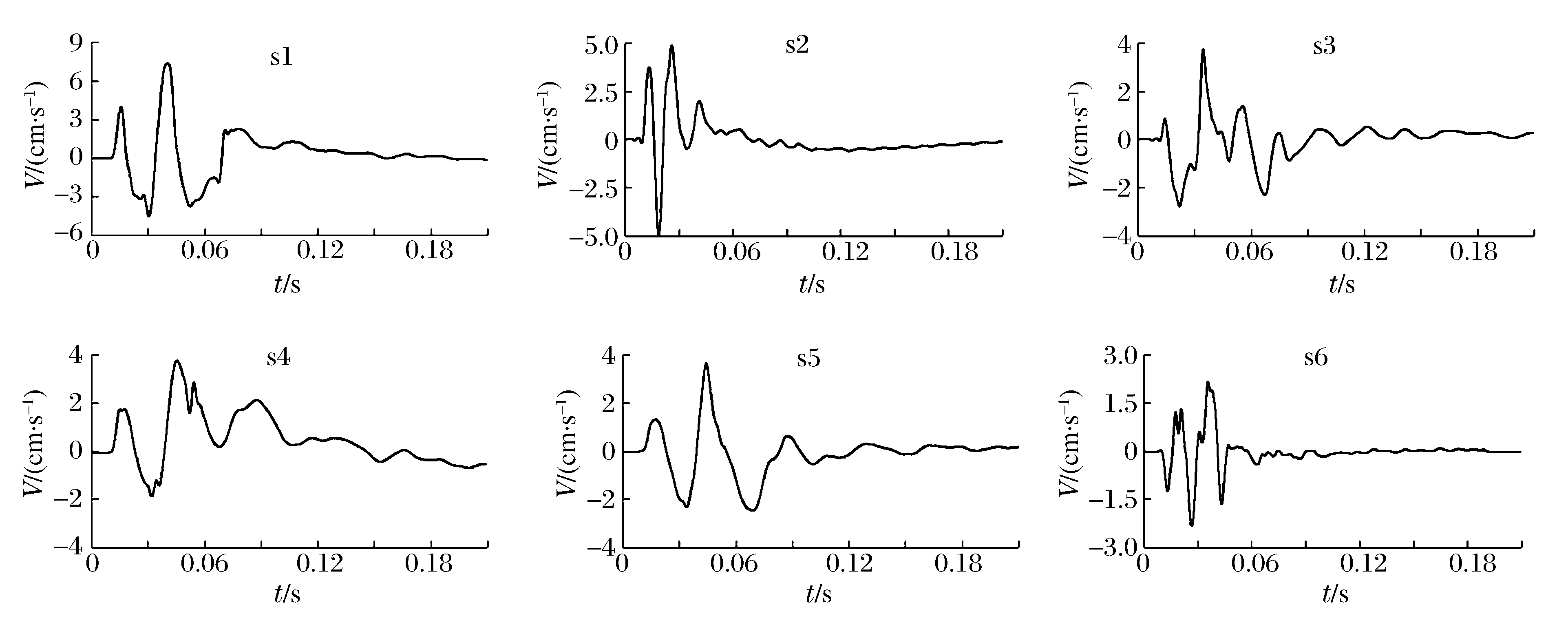

  • 图  1  各测点爆破振动时程曲线

    Figure  1.  Time-history curves of blasting vibration of each measuring point

    图  2  延期时间与振动峰值速度的关系

    Figure  2.  Variation of delayed time interval with peak velocity

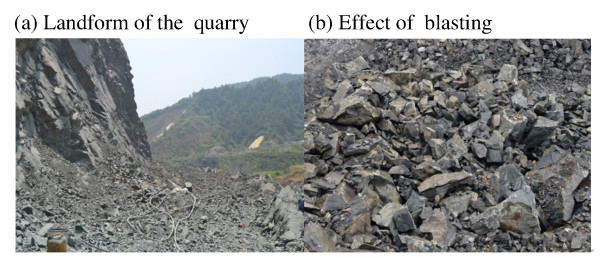

    图  3  采石场图片

    Figure  3.  Picture of the quarry

    表  1  各变量的量纲

    Table  1.   Dimension of variables

    量纲 T ρ R μ Es E Q
    M 0 1 0 0 0 1 1
    L 0 -3 1 0 2 -1 0
    t 1 0 0 0 -2 -2 0
    下载: 导出CSV

    表  2  堰口采石场爆破振动数据

    Table  2.   Blasting vibration of quarry Yankou

    信号编号 R/m Vmax/(cm·s-1) T/ms Es/(J·10-2) Q/kg
    s1 15.5 7.39 50 211.08 35.6
    s2 24.5 4.93 32 96.26 35.6
    s3 29.0 3.74 60 54.27 35.6
    s4 35.5 3.77 86 54.26 35.6
    s5 40.0 3.65 64 71.03 35.6
    s6 46.0 2.31 25 24.09 35.6
    下载: 导出CSV

    表  3  各测点的合理延时区间

    Table  3.   Reasonable range of delayed time interval for each measuring point

    信道编号 R/m ti/ms tI/ms
    s1 15.5 6~11 13~14 - 8
    s2 24.5 22~25 - - 4
    s3 29.0 7~9 11~16 25~38 23
    s4 35.5 - - - 0
    s5 40.0 12~15 18~22 - 9
    s6 46.0 22~28 31~33 39~50 22
    下载: 导出CSV
  • [1] 魏晓林, 郑炳旭.干扰减振控制分析与应用实例[J].工程爆破, 2009, 15(2):1-6, 69. doi: 10.3969/j.issn.1006-7051.2009.02.001

    Wei Xiaolin, Zheng Bingxu. Analysis of control blasting-induced vibration and practice[J]. Engineering Blasting, 2009, 15(2):1-6, 69. doi: 10.3969/j.issn.1006-7051.2009.02.001
    [2] 张光雄, 杨军, 卢红卫.毫秒延时爆破干扰降振作用研究[J].工程爆破, 2009, 15(3):17-21. doi: 10.3969/j.issn.1006-7051.2009.03.004

    Zhang Guangxiong, Yang Jun, Lu Hongwei. Research on seismic wave interference effect of millisecond blasting[J]. Engineering Blasting, 2009, 15(3):17-21. doi: 10.3969/j.issn.1006-7051.2009.03.004
    [3] 傅洪贤, 沈周, 赵勇, 等.隧道电子雷管爆破降振技术试验研究[J].岩石力学与工程学报, 2012, 31(3):597-603. doi: 10.3969/j.issn.1000-6915.2012.03.018

    Fu Hongxian, Shen Zhou, Zhao Yong, et al. Experimental study of decreasing vibration technology of tunnel blasting with digital detonator[J]. Chinese Journal of rock mechanics and Engineering, 2012, 31(3):597-603. doi: 10.3969/j.issn.1000-6915.2012.03.018
    [4] 高富强, 侯爱军, 杨小林, 等.基于量纲理论的爆破振动持续时间分析[J].金属矿山, 2010(9):143-145. http://d.old.wanfangdata.com.cn/Periodical/jsks201009037

    Gao Fuqiang, Hou Aijun, Yang Xiaolin, et al. Analysis of blasting vibration duration based on dimension theory[J]. Metal Mine, 2010(9):143-145. http://d.old.wanfangdata.com.cn/Periodical/jsks201009037
    [5] 杨年华, 张乐.爆破振动波叠加数值预测方法[J].爆炸与冲击, 2012, 32(1):84-90. doi: 10.3969/j.issn.1001-1455.2012.01.015

    Yang Nianhua, Zhang Le. Blasting vibration waveform prediction method based on superposition principle[J]. Explosion and shock waves, 2012, 32(1):84-90. doi: 10.3969/j.issn.1001-1455.2012.01.015
    [6] 李洪涛, 卢文波, 舒大强, 等.爆破地震波的能量衰减规律研究[J].岩石力学与工程学报, 2010, 29(S1):3364-3369. http://d.old.wanfangdata.com.cn/Periodical/yslxygcxb2010z1110

    Li Hongtao, Lu Wenbo, Shu Daqiang, et al. Study of energy attenuation law of blast-induced seismic wave[J]. Chinese Journal of rock mechanics and Engineering, 2010, 29(S1):3364-3369. http://d.old.wanfangdata.com.cn/Periodical/yslxygcxb2010z1110
    [7] 赵明生, 梁开水, 李本伟.段药量对爆破振动信号时频特性的影响研究[J].振动与冲击, 2012, 31(7):85-88. doi: 10.3969/j.issn.1000-3835.2012.07.019

    Zhao Mingsheng, Liang Kaishui, Li Benwei. Influence of deck charge on time-frequency characteristics of a blasting vibration signal[J]. Journal of Vibration and Shock, 2012, 31(7):85-88. doi: 10.3969/j.issn.1000-3835.2012.07.019
    [8] 阳生权, 廖先葵, 刘宝琛.爆破地震安全判据的缺陷与改进[J].爆炸与冲击, 2001, 21(3):223-228. doi: 10.3321/j.issn:1001-1455.2001.03.011

    Yang Shengquan, Liao Xiankui, Liu Baochen.Default of the judging standard of blasting vibration safety abstract[J]. Explosion and shock, 2001, 21(3):223-228. doi: 10.3321/j.issn:1001-1455.2001.03.011
    [9] 凌同华, 李夕兵.单段爆破振动信号频带能量分布特征的小波包分析[J].振动与冲击, 2007, 26(5):41-43. doi: 10.3969/j.issn.1000-3835.2007.05.012

    Ling Tonghua, Li Xibing. Features of energy distribution of single deck blast vibration signals with wavelet packet analysis[J]. Journal of Vibration and Shock, 2007, 26(5):41-43. doi: 10.3969/j.issn.1000-3835.2007.05.012
    [10] 刘敦文, 粟闯, 龚运高.一种基于爆破振动信号小波分析的爆破危害评判新方法[J].中南大学学报, 2010, 41(4):1574-1577. http://d.old.wanfangdata.com.cn/Periodical/zngydxxb201004057

    Liu Dunwen, Su Chuang, Gong Yungao. New method for blasting hazards evaluation based on wavelet analysis of blasting vibration signals[J]. Journal of Central South University, 2010, 41(4):1574-1577. http://d.old.wanfangdata.com.cn/Periodical/zngydxxb201004057
    [11] 徐国元, 中国生, 熊正明.基于小波变换的爆破地震安全能量分析法的应用研究[J].岩土工程学报, 2006, 28(1):24-27. doi: 10.3321/j.issn:1000-4548.2006.01.004

    Xu Guoyuan, Zhong Guosheng, Xiong Zhengming. Study and application of energy analysis method for blasting seismic safety based on wavelet transform[J]. Journal of geotechnical engineering, 2006, 28(1):24-27. doi: 10.3321/j.issn:1000-4548.2006.01.004
    [12] 中国生, 徐国元, 熊正明.基于小波变换的爆破地震信号能量分析法的应用研究[J].爆炸与冲击, 2006, 26(3):222-227. doi: 10.3321/j.issn:1001-1455.2006.03.005

    Zhong Guosheng, Xu Guoyuan, Xiong Zhengming. Application research of the energy analysis method for blasting seismic signals based on wavelet transform[J]. Explosion and shock, 2006, 26(3):222-227. doi: 10.3321/j.issn:1001-1455.2006.03.005
    [13] 何理, 钟冬望, 刘建程, 等.微差爆破试验及爆破振动能量的小波包分析[J].金属矿山, 2014(6):10-15. http://d.old.wanfangdata.com.cn/Periodical/jsks201406002

    He Li, Zhong Dongwang, Liu Jiancheng, et al. Millisecond blasting tests and wavelet packet analysis of blasting vibration energy[J]. Metal Mine, 2014(6):10-15. http://d.old.wanfangdata.com.cn/Periodical/jsks201406002
    [14] 李的林, 高振儒, 朱立新.爆破震动危害中几个重要因素分析[J].工程爆破, 1999, 5(3):64-67. doi: 10.3969/j.issn.1006-7051.1999.03.014

    Li Delin, Gao Zhenru, Zhu Lixin. Analysis on several principal factors of blasting vibration hazards[J]. Engineering Blasting, 1999, 5(3):64-67. doi: 10.3969/j.issn.1006-7051.1999.03.014
    [15] 尹力峰, 祝慧勤, 石钦.喀拉朔克水库坝区场地的设计地震波[J].内陆地震, 2005, 19(3):233-240. http://d.old.wanfangdata.com.cn/Periodical/nldz200503006

    Yin Lifeng, Zhu Huiqin, Shi Qin. Designing seismic vaves at the site of kalashuoke reservir[J]. Inland Earthquake, 2005, 19(3):233-240. http://d.old.wanfangdata.com.cn/Periodical/nldz200503006
    [16] 马行瑞, 陶良.弹性波反演方法及应用[M].北京:科学出版社, 1999.
    [17] 王国华, 段希祥, 杨溢, 等.一起硝酸铵爆炸事故的破坏效应[J].爆破, 2009, 26(3):104-107. doi: 10.3963/j.issn.1001-487X.2009.03.030

    Wang Guohua, Duan Xixiang, Yang Yi, et al. Destructive effect of explosion incident of ammonium nitrate[J]. Blasting, 2009, 26(3):104-107. doi: 10.3963/j.issn.1001-487X.2009.03.030
