气流特征对水平长管内石松子粉尘爆炸火焰结构的影响

高伟 阿部俊太郎 荣建忠 土桥律

高伟, 阿部俊太郎, 荣建忠, 土桥律. 气流特征对水平长管内石松子粉尘爆炸火焰结构的影响[J]. 爆炸与冲击, 2015, 35(3): 372-379. doi: 10.11883/1001-1455-(2015)03-0372-08
引用本文: 高伟, 阿部俊太郎, 荣建忠, 土桥律. 气流特征对水平长管内石松子粉尘爆炸火焰结构的影响[J]. 爆炸与冲击, 2015, 35(3): 372-379. doi: 10.11883/1001-1455-(2015)03-0372-08
Gao Wei, Abe Shuntaro, Rong Jian-zhong, Dobashi Ritsu. Effect of airflow characteristics on flame structure for following lycopodium dust-air mixtures in a long horizontal tube[J]. Explosion And Shock Waves, 2015, 35(3): 372-379. doi: 10.11883/1001-1455-(2015)03-0372-08
Citation: Gao Wei, Abe Shuntaro, Rong Jian-zhong, Dobashi Ritsu. Effect of airflow characteristics on flame structure for following lycopodium dust-air mixtures in a long horizontal tube[J]. Explosion And Shock Waves, 2015, 35(3): 372-379. doi: 10.11883/1001-1455-(2015)03-0372-08

气流特征对水平长管内石松子粉尘爆炸火焰结构的影响

doi: 10.11883/1001-1455-(2015)03-0372-08
基金项目: 国家自然科学基金项目(51406023);中国博士后科学基金项目(2014M560213)
详细信息
    作者简介:

    高伟(1984—), 男, 博士, 讲师, gaowei07@mail.ustc.edu.cn

  • 中图分类号: O383;X932

Effect of airflow characteristics on flame structure for following lycopodium dust-air mixtures in a long horizontal tube

  • 摘要: 为探索气流特征对水平长管内粉尘爆炸火焰结构的影响, 对采用加压送气传输方式形成的石松子粉尘云经静电引燃后其火焰在水平长管内的传播特性进行实验。利用热线风速仪测量不同气流条件下沿管径方向的速度分布和湍流强度分布, 采用高速摄像系统记录了火焰在水平管道内的传播过程。实验观察到, 即使管内石松子粉尘质量分数相同, 仍然会出现2种不同类型的火焰结构:一种类型火焰轮廓规则、清晰, 火焰中心为连续的黄色发光区并由红色边缘火焰包裹; 另一种类型火焰空间离散, 火焰发光区局部存在, 散乱地呈现不规则状态。详细分析不同气流条件对火焰结构的影响。

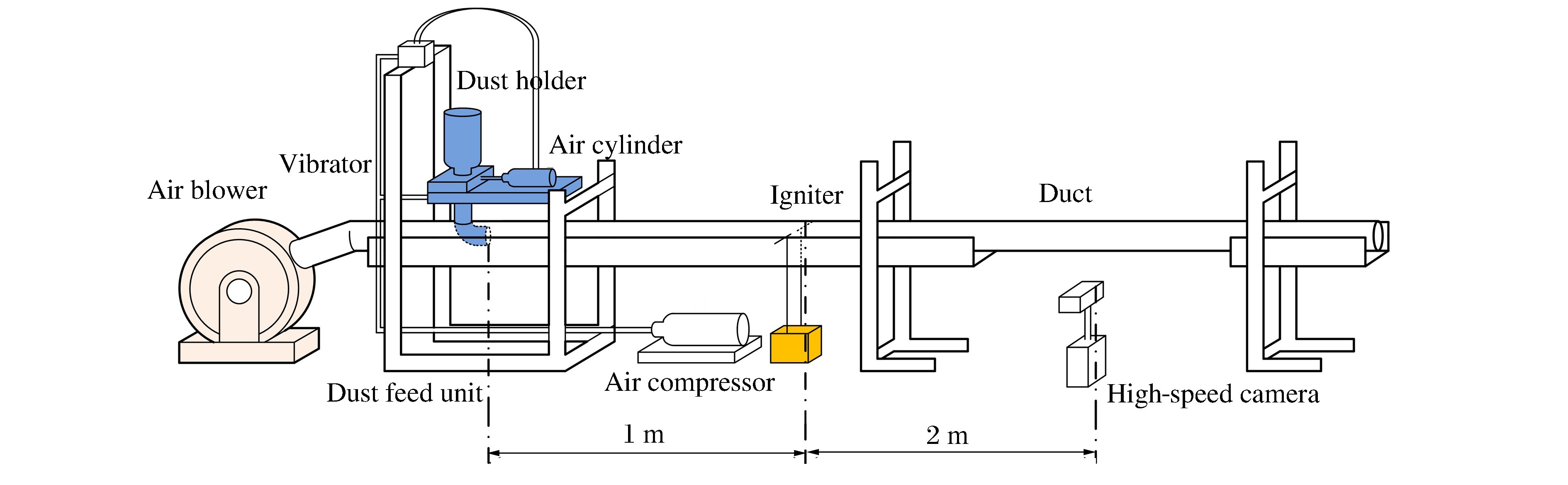

  • 图  1  实验装置示意图

    Figure  1.  Experimental apparatus

    图  2  石松子粒子扫描电镜图像

    Figure  2.  SEM photographs of unburned and burned lycopodium particles

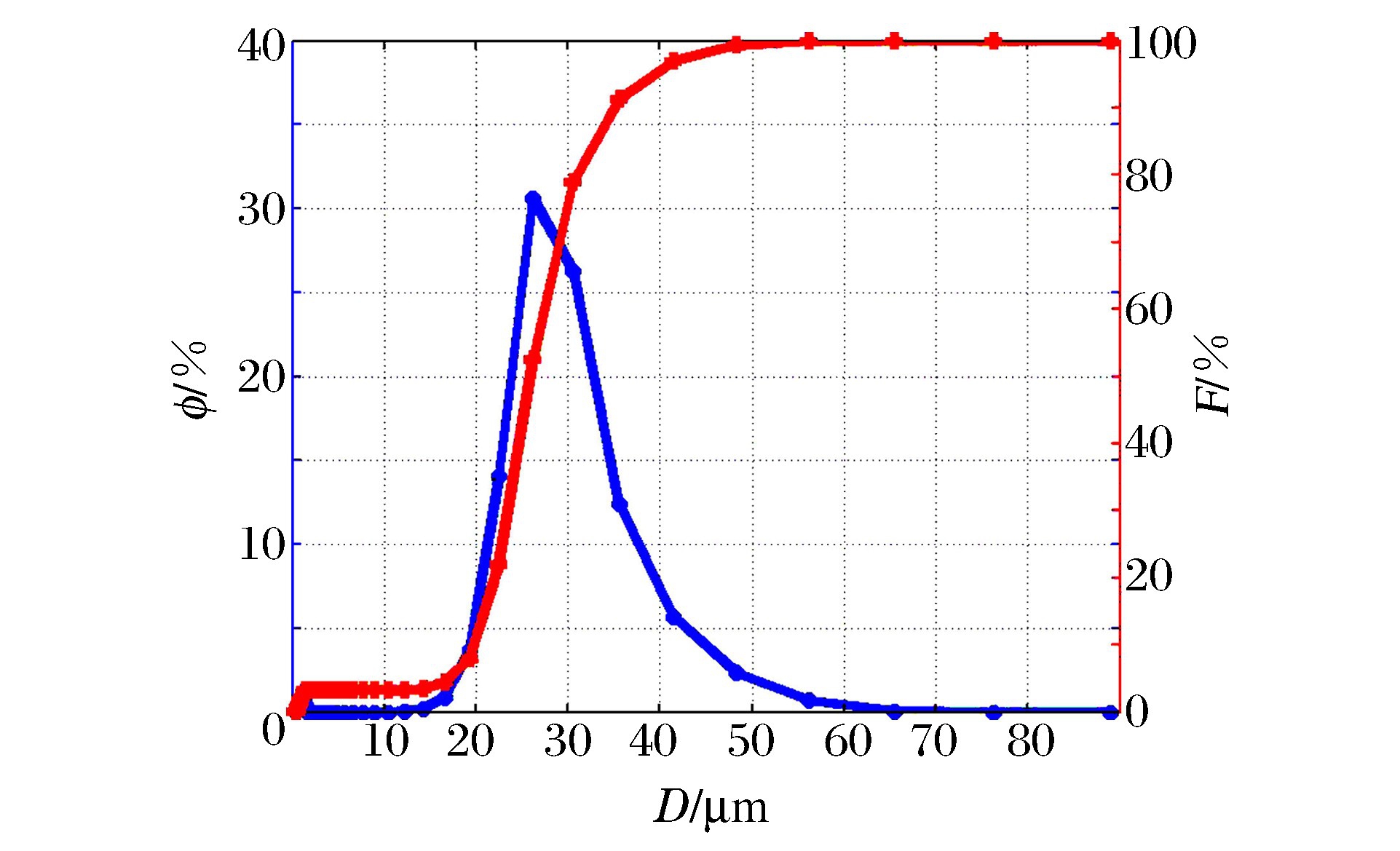

    图  3  石松子粒子粒径分布曲线

    Figure  3.  Diameter distribution of the lycopodium particles

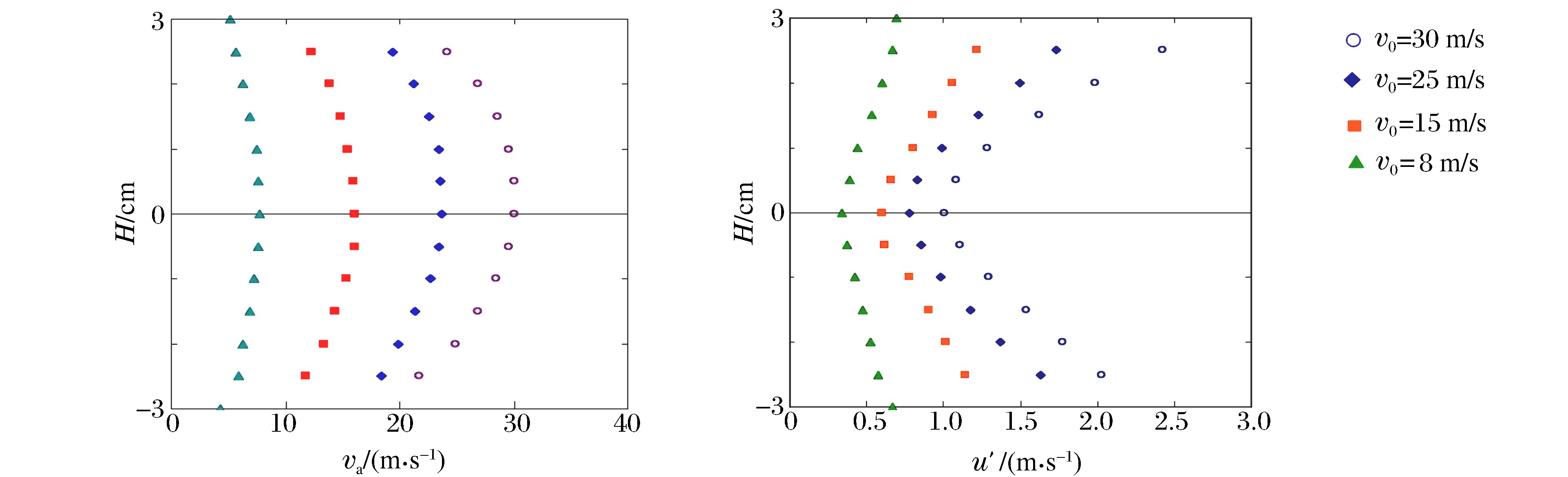

    图  4  不同初始气流速度下沿管径方向的气流速度分布和湍流强度分布

    Figure  4.  Distributions of airflow velocities and turbulent intensities along the diameter under different initial velocities

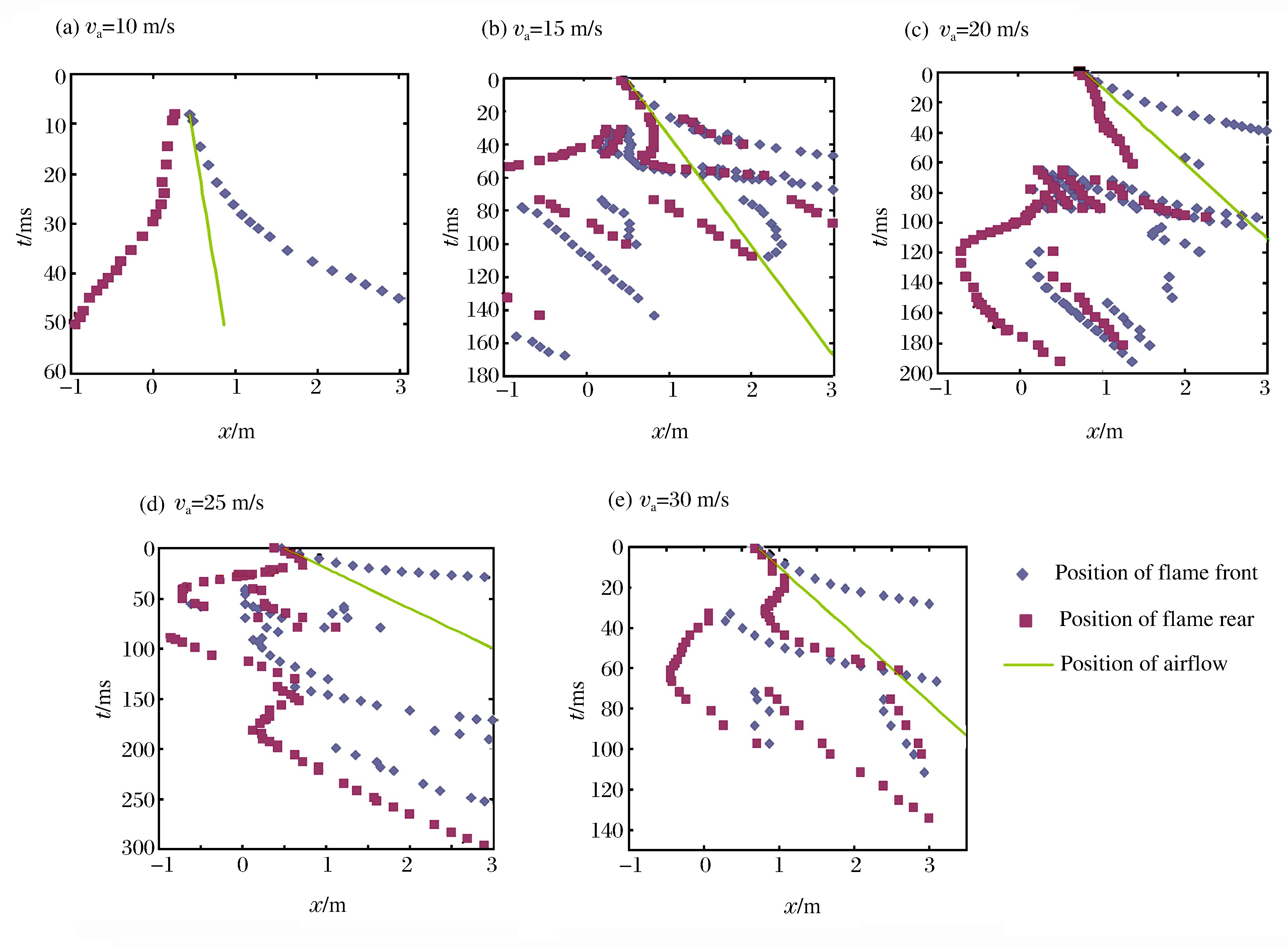

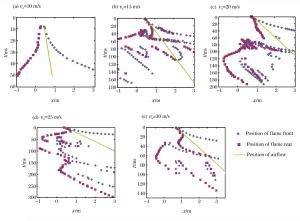

    图  5  不同气流速度下不同时刻的火焰前端、后端位置

    Figure  5.  Flame front, rear positions with time under different airflow velocities

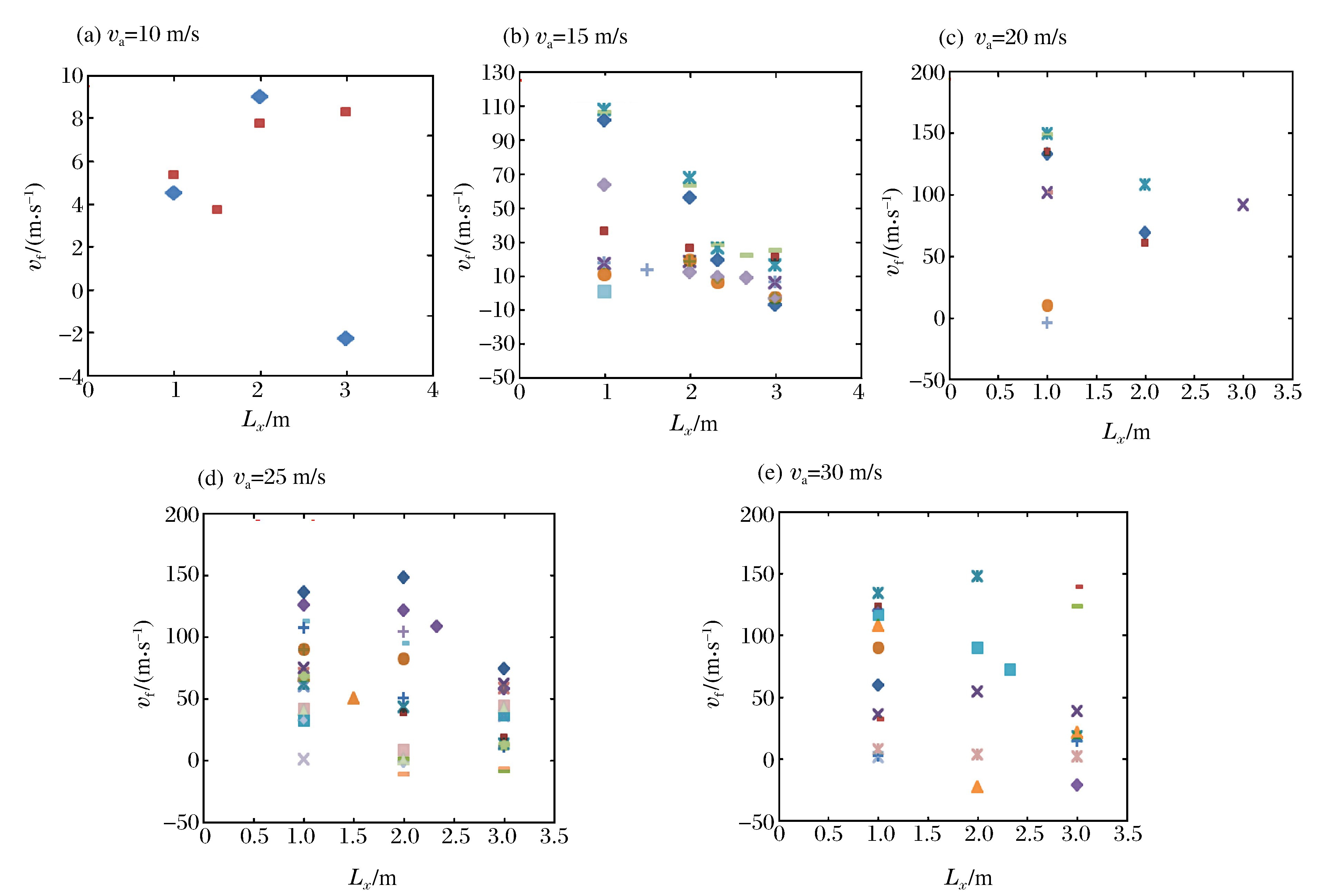

    图  6  不同气流速度下火焰的不同位置传播速度

    Figure  6.  Flame propagation velocities of different positions under different airflow velocities

    图  7  2种类型火焰的形态特征

    Figure  7.  Characteristics of the two types flames

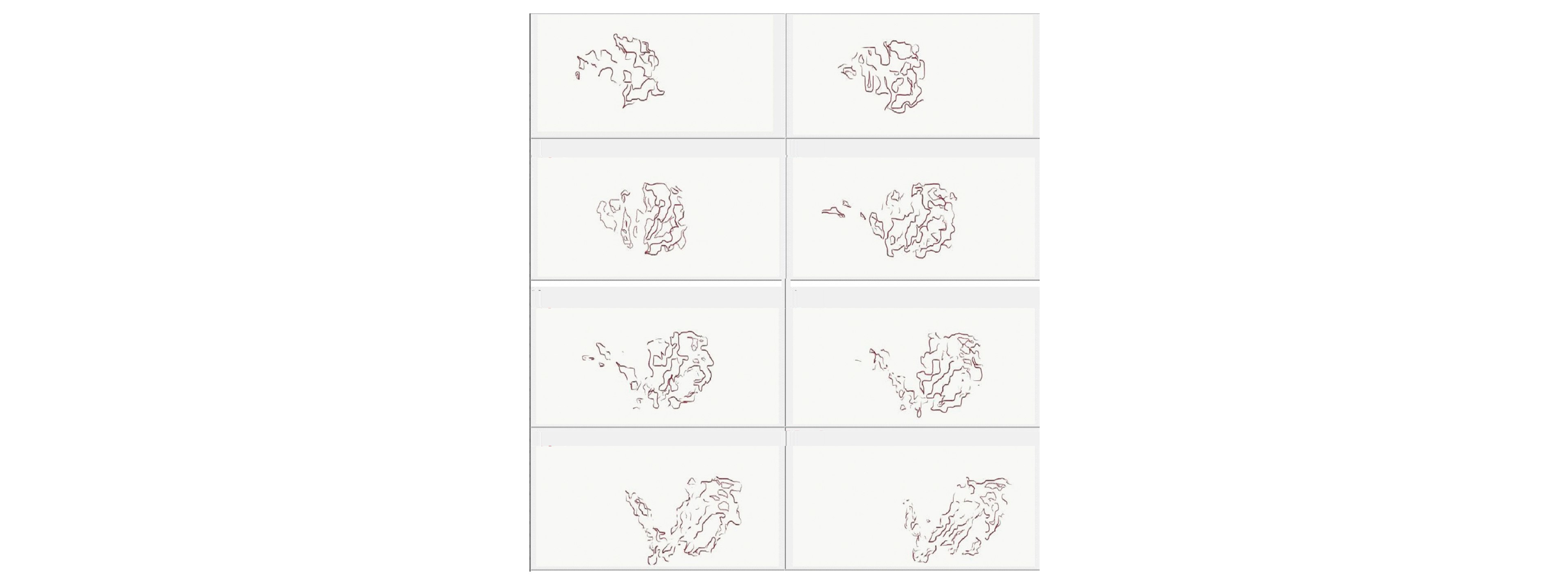

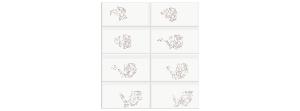

    图  8  A类型火焰的涡旋结构

    Figure  8.  Flame vortex structure of type A

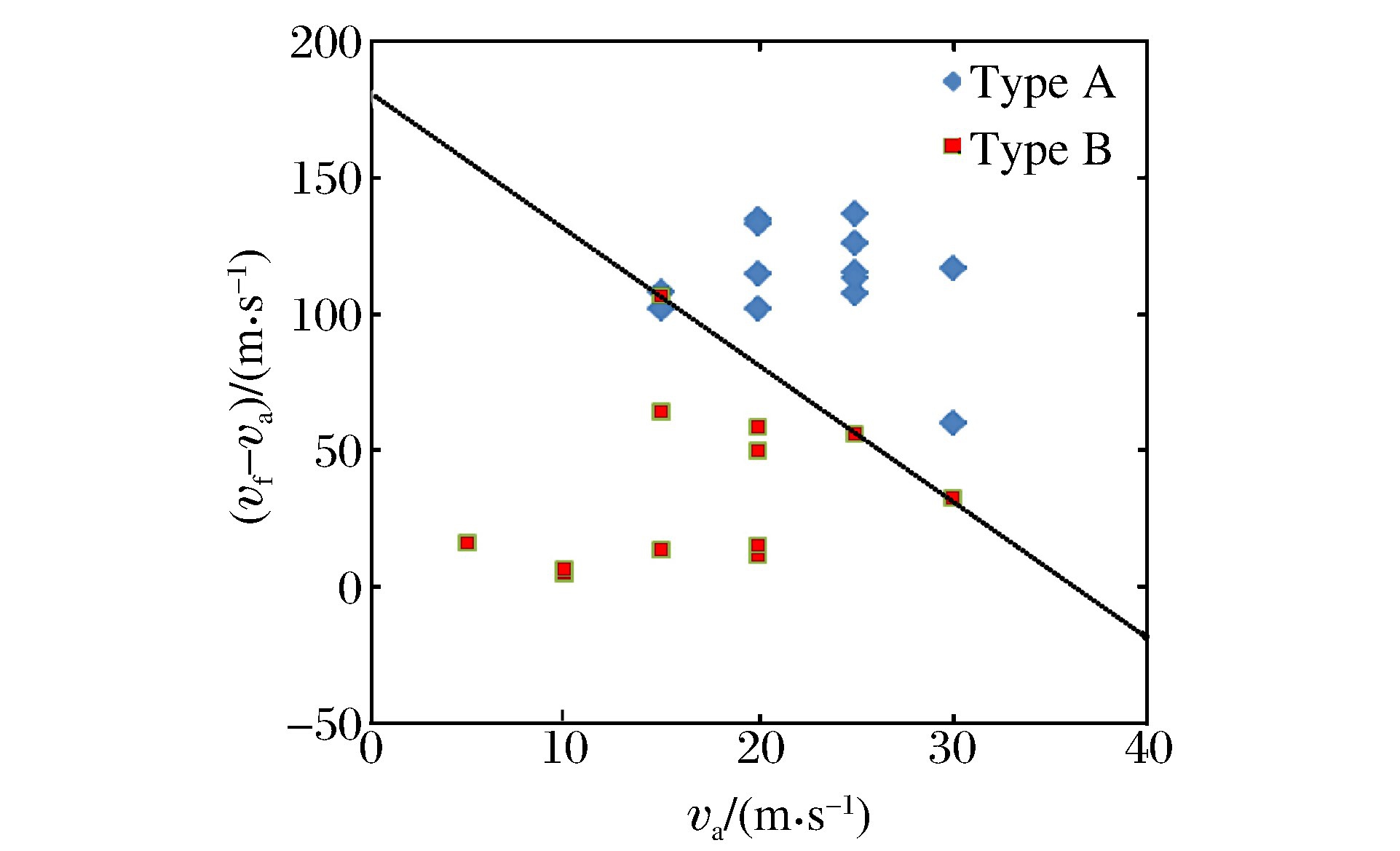

    图  9  2种类型火焰的相对燃烧速度

    Figure  9.  Relative propagation velocities of the two types flames
