CL-20/HMX共晶冲击起爆模拟

刘海; 李毅; 李俊玲; 马兆侠; 陈鸿

doi:10.11883/bzycj-2019-0011

CL-20/HMX共晶冲击起爆模拟

doi: 10.11883/bzycj-2019-0011

中国空气动力研究与发展中心超高速碰撞研究中心，四川绵阳 621000

基金项目: 十三五装备预研领域基金（6140656020204）

详细信息

作者简介:
刘　海（1985－　），男，博士，助理研究员，liumy2016@163.com

中图分类号: O389
计量
- 文章访问数: 5086
- HTML全文浏览量: 1521
- PDF下载量: 71
- 被引次数: 0
出版历程
- 收稿日期: 2019-01-06
- 修回日期: 2019-11-27
- 网络出版日期: 2020-02-25
- 刊出日期: 2020-03-01

Simulations of shock initiation of CL-20/HMX co-crystal

Hypervelocity Impact Research Center, China Aerodynamics Research and Development Center, Mianyang 621000, Sichuan, China

摘要

摘要: 采用非平衡分子动力学方法模拟了CL-20/HMX共晶炸药冲击压缩和化学反应行为，获得了密度以及粒子速度的时空分布、冲击雨贡纽、冲击起爆压力、爆轰压力等数据，以及主要中间产物和稳定产物分布。模拟结果显示，共晶的初始分解路径是CL-20中N—NO₂键断裂，主要稳定产物是N₂、CO₂和H₂O。CL-20和HMX的分解速率随着冲击波速度的增加而增加，并且逐渐接近，但各冲击条件下CL-20分子的衰减速率均大于HMX。
- CL-20/HMX共晶 /
- 冲击波 /
- 冲击雨贡纽 /
- 化学反应
Abstract: The shock compression and chemical reaction behaviors of CL-20/HMX energetic co-crystal explosives were simulated by nonequilibrium molecular dynamics. The spatio-temporal distributions of density, particle velocity, shock hugoniots, shock initiation pressure, and detonation pressure were obtained. The distribution of main intermediate products and the stable products were also investigated. The simulation results show that the initial reaction pathway is N—NO₂ cleavage to form NO₂ from CL-20 in co-crystal, with N₂, CO₂ and H₂O as the main products. The decomposition rate of CL-20 and HMX increases with the increase of shock wave velocity gradually, but the attenuation rate of CL-20 is higher than that of HMX under each shock condition.
- CL-20/HMX co-crystal /
- shock wave /
- shock Huguniot /
- chemical reaction

HTML全文

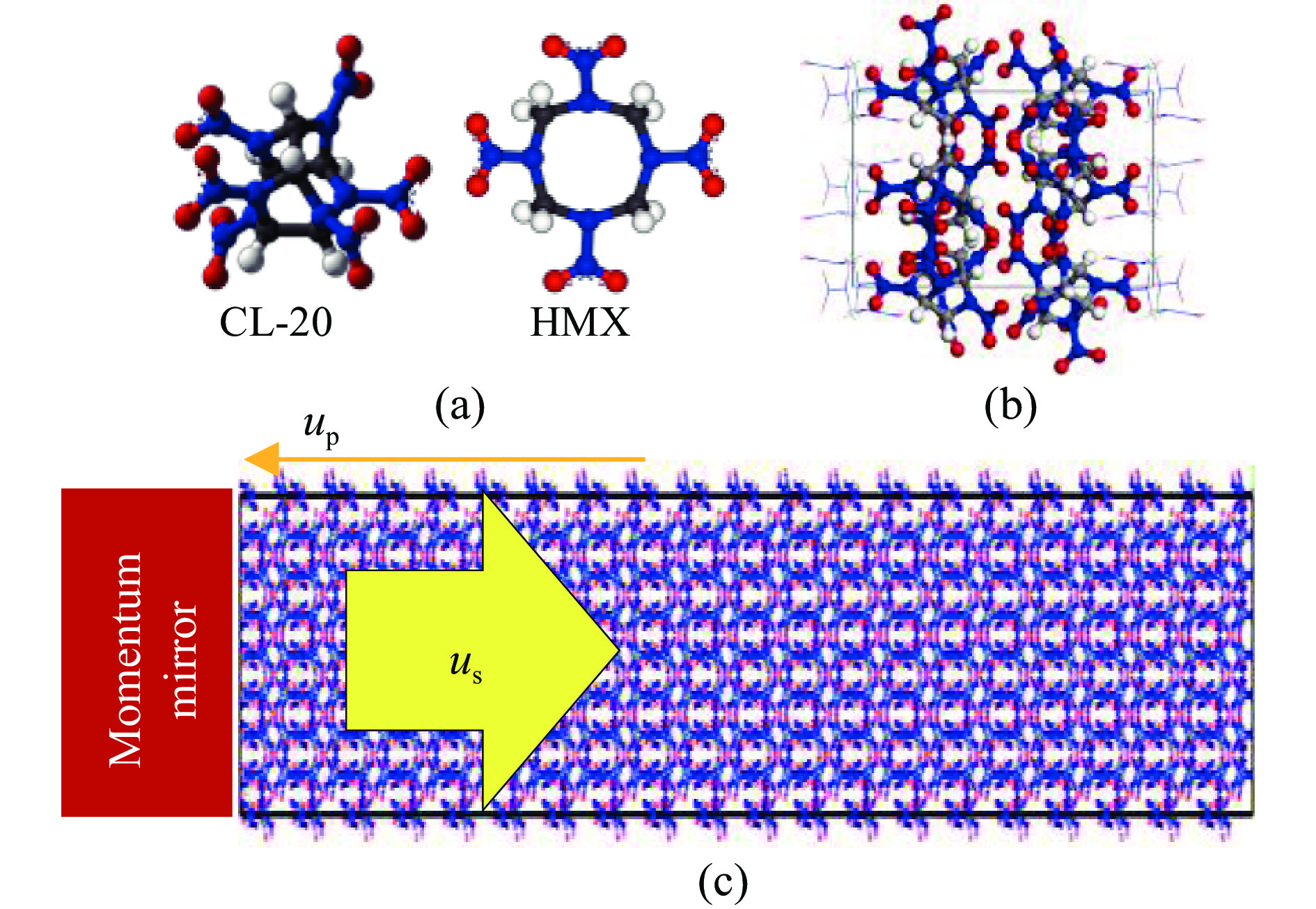

图 1 CL-20/HMX模型以及动量镜激发冲击波传播原理图

Figure 1. CL-20/HMX structure model and schematic diagram of the shock wave propagation induced by momentum mirror

下载: 全尺寸图片幻灯片

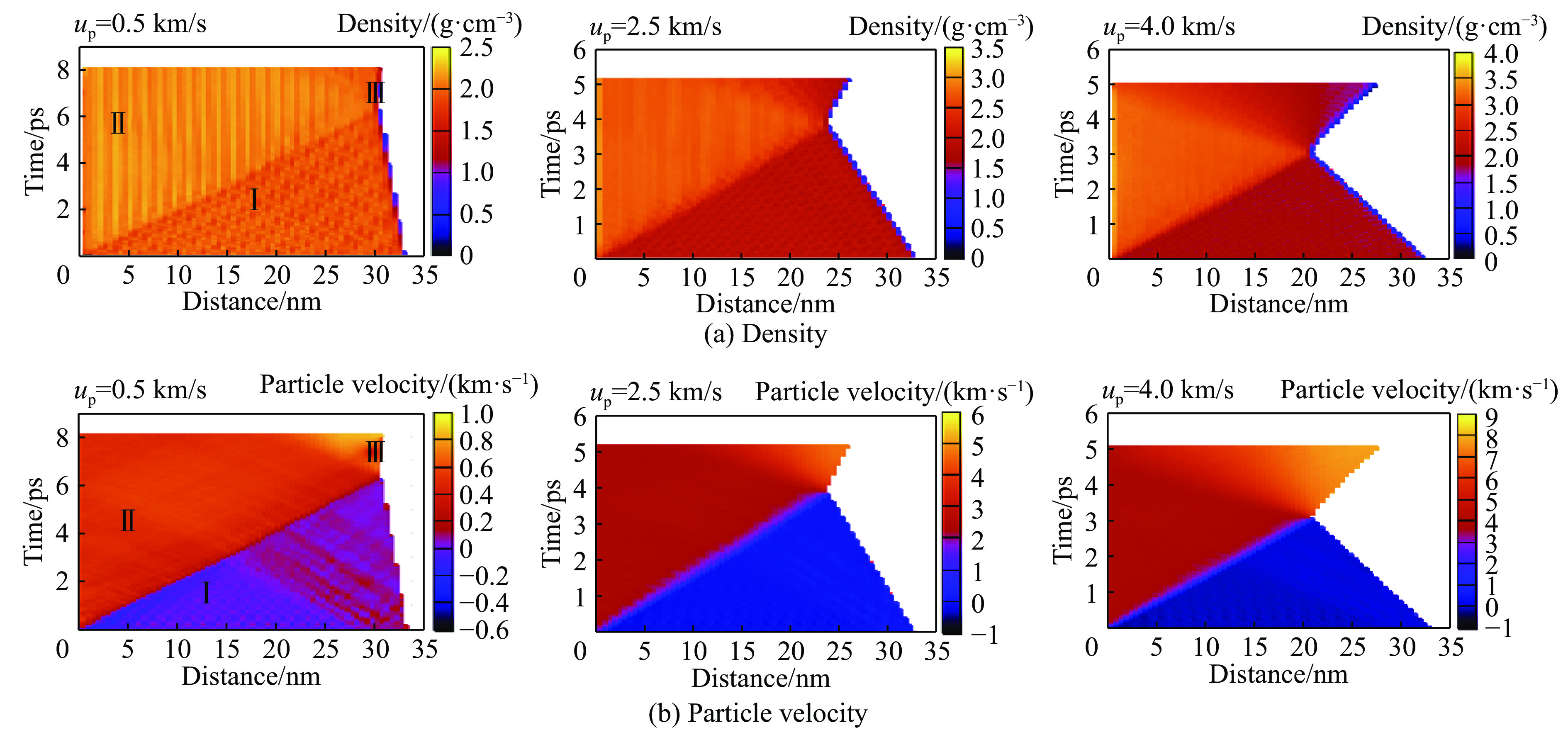

图 2 冲击波传播引发粒子速度和密度变化的x-t图

Figure 2. x-t diagrams of particle velocity and density induced by shock wave propagation

下载: 全尺寸图片幻灯片

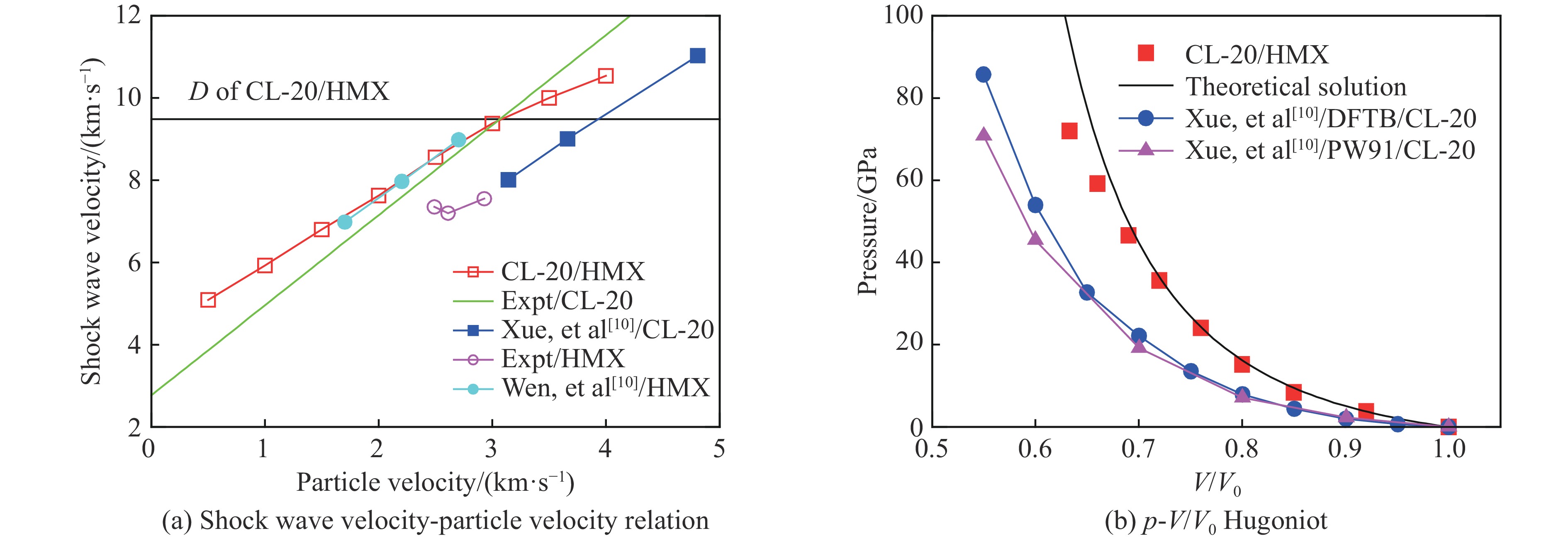

图 3 冲击波速度-粒子速度关系及p-V/V₀雨贡纽

Figure 3. Shock wave velocity-particle velocity relation and p-V/V₀ Hugoniot

下载: 全尺寸图片幻灯片

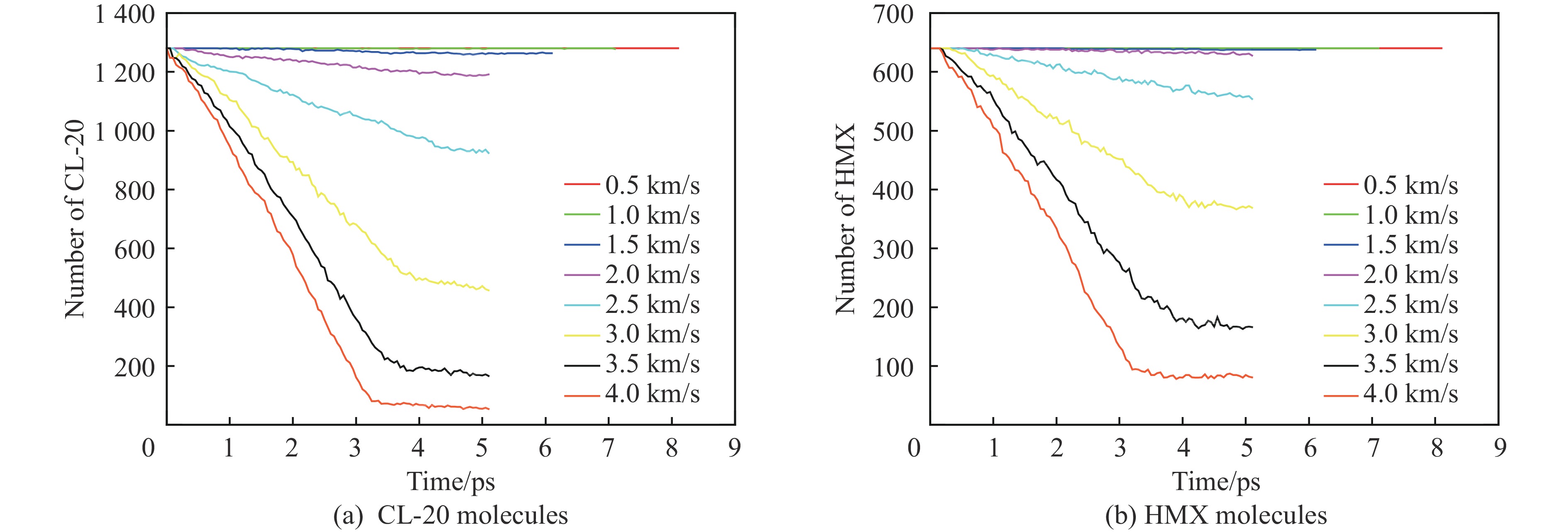

图 4 共晶中CL-20和HMX分子衰减曲线

Figure 4. Decay curves of CL-20 and HMX molecules in co-crystal

下载: 全尺寸图片幻灯片

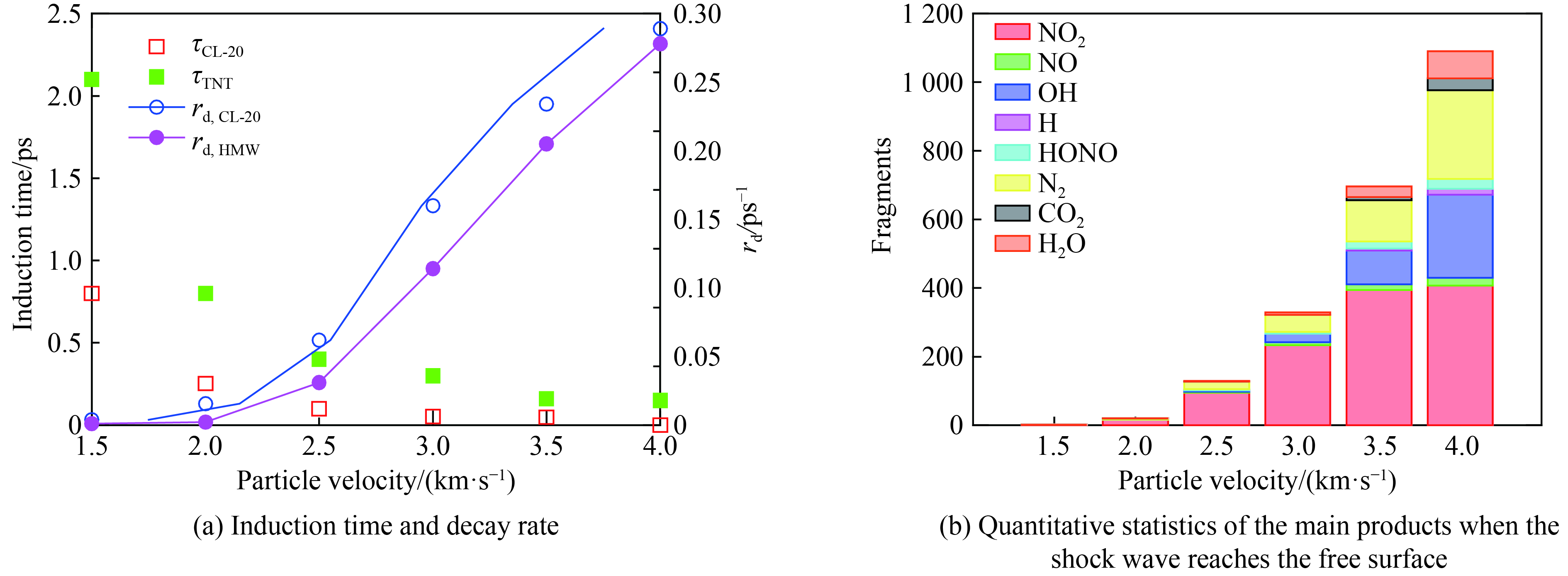

图 5 诱导时间和衰减速率及冲击到达右端自由面时主要产物的数量统计

Figure 5. Induction time and decay rate under different shock conditions and quantitative statistics of the main products when the shock wave reaches the free surface

下载: 全尺寸图片幻灯片

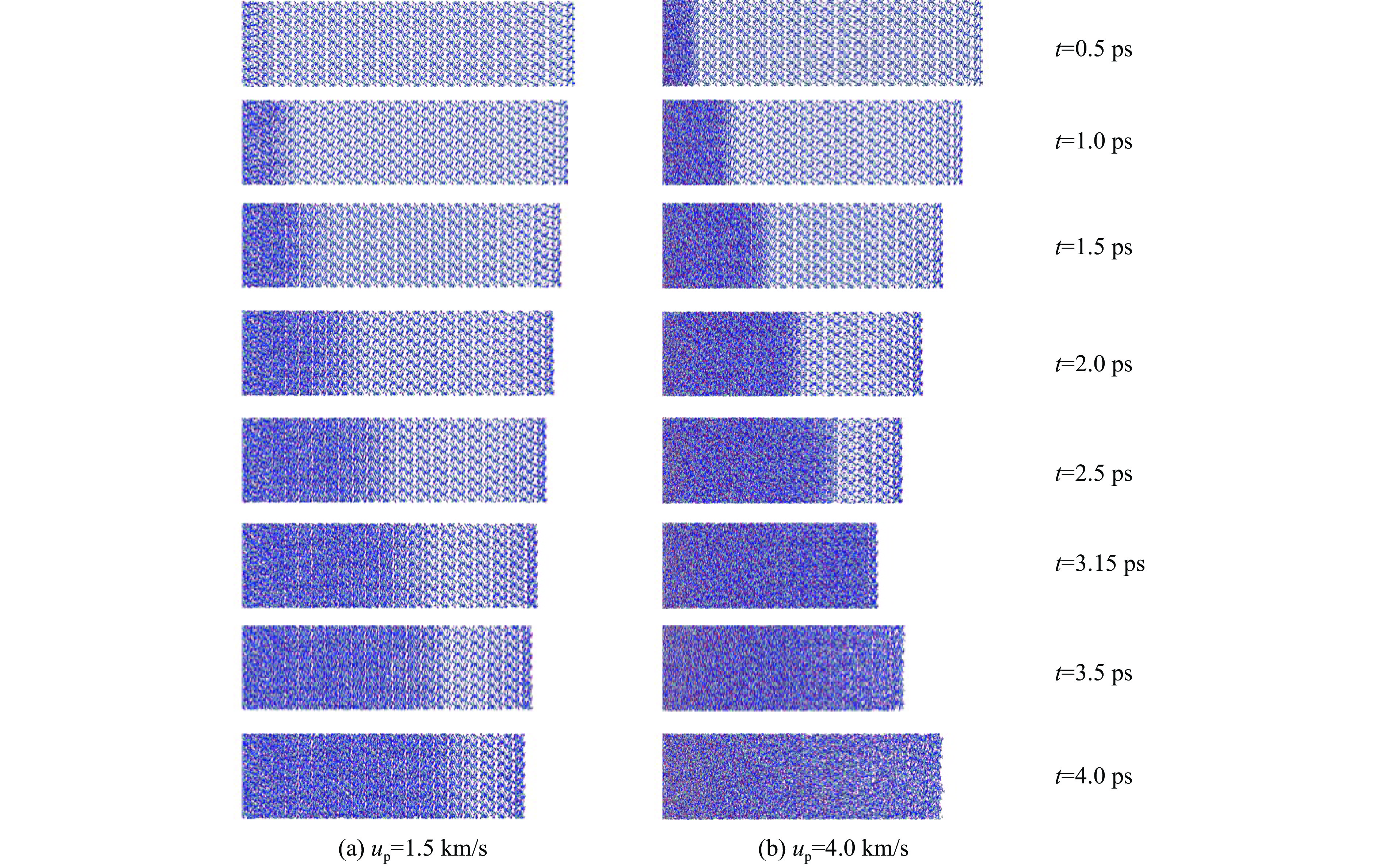

图 6 冲击波传播的序列图像

Figure 6. Sequence images of shock wave propagation

下载: 全尺寸图片幻灯片

表 1 各冲击条件下共晶中CL-20和HMX诱导时间和衰减速率比较

Table 1. Comparison of induction time and decay rate of CL-20 and HMX in co-crystal under different shock conditions

u_p /(km·s⁻¹)	τ_CL-20/ps	τ_HMX/ps	r_{d, CL-20}	r_{d, HMX}	r_{d, CL-20}/r_{d, HMX}
1.5	0.800 0	2.100 0	0.004 0	0.001 1	3.636 4
2.0	0.254 0	0.800 0	0.016 0	0.002 3	6.956 5
2.5	0.100 0	0.400 0	0.062 0	0.031 0	2.000 0
3.0	0.052 0	0.300 0	0.160 0	0.114 0	1.403 5
3.5	0.049 0	0.160 0	0.234 0	0.205 0	1.141 5
4.0	0.001 0	0.150 0	0.289 0	0.278 0	1.039 6

下载: 导出CSV
