基于离散单元法的发射装药挤压破碎模拟实验

张瑞华; 芮筱亭; 赵宏立; 王琼林; 靳建伟

doi:10.11883/bzycj-2020-0157

基于离散单元法的发射装药挤压破碎模拟实验

doi: 10.11883/bzycj-2020-0157

1.
西安近代化学研究所，陕西西安 710065
2.
南京理工大学发射动力学研究所，江苏南京 210094

详细信息

作者简介:
张瑞华（1991－　），女，博士，助理研究员，zhang_njust@163.com

通讯作者:
赵宏立（1972－　），男，研究员，webzhl@126.com

中图分类号: O383
计量
- 文章访问数: 568
- HTML全文浏览量: 291
- PDF下载量: 76
- 被引次数: 0
出版历程
- 收稿日期: 2020-05-21
- 修回日期: 2020-09-16
- 网络出版日期: 2021-04-14
- 刊出日期: 2021-06-05

Simulational experiment on compression and fracture of propellant charge based on the discrete element method

1.
Xi’an Modern Chemistry Research Institute, Xi’an 710065, Shaanxi, China
2.
Institute of Launch Dynamics, Nanjing University of Science and Technology, Nanjing 210094, Jiangsu, China

摘要

摘要: 为了揭示发射装药破碎引起的膛炸现象，急需进行相应装药结构下发射装药挤压破碎数值模拟研究。以硝胺花边十九孔发射药为研究对象，基于离散单元法建立了发射装药挤压破碎模拟系统，同时进行了发射装药动态挤压破碎实验，通过数值模拟与实验获得了不同冲击载荷下的破碎发射装药和挤压应力；分别对获得的破碎发射装药进行了密闭爆发器数值模拟和实验。结果表明：模拟与实验获得的发射装药挤压应力时间历程、密闭爆发器压力时间曲线和起始动态活度比的一致性较好，实验验证了发射装药挤压破碎模拟系统的有效性及合理性。该模拟系统具有重大工程应用价值，为高能发射装药冲击破碎过程和发射装药发射安全性研究奠定了基础。
- 发射装药 /
- 离散单元法 /
- 挤压应力 /
- 发射安全性 /
- 实验验证
Abstract: In order to reveal the mechanisms of gun breech-blow phenomenon caused by the fracture of propellant charge, it is urgent to carry out the simulation research on the compression and fracture of propellant charge under the corresponding charge structure. Through the analysis of the mechanical environment in the gun bore and the fracture progress of propellant charge, the discrete element method was employed to simulate the compression and fracture of propellant charge. The lace 19-hole propellant for the large caliber artillery was taken as the research object, a simulation system of compression and fracture of propellant charge was constructed using the EDEM software. And the Hertz-Mindlin contact model parameters were determined by using the drop hammer impact test of the single propellant at low temperature (–40 ℃). Then the compression andfracture simulation of the propellant charge was verified through the dynamic compression and fracture test of the propellant charge at low temperature (–40 ℃). Under the same impact load, the fracture of propellant charges and the compression stress-time curves of propellant charge were achieved by test and simulation, respectively. Using the obtained fracture propellant charge, the closed bomb simulation and test were carried out respectively. Among them, a combustion function based on the discrete element method was used to represent the gas generation law of the simulation fracture propellant charge. Finally, the initial dynamic vivacity ratio of the fracture propellant charge was processed according to the pressure-time curve. The researchresults show that the time histories of compression stress of propellant charge, the closed bomb pressure-time curves, and the initial dynamic vivacity ratios obtained by simulation and test are in good agreement with each other, indicating the designed simulation system is effective and reasonable. The research method has great engineering application value, which lays a foundation for the study of the impact fracture process of high-energy propellant charge and the launch safety of propellant charge.
- propellant charge /
- discrete element method /
- compression stress /
- launch safety /
- experiment verification

HTML全文

图 1 发射药颗粒替换黏结过程

Figure 1. Replacement and forming bond process of propellant particle

下载: 全尺寸图片幻灯片

图 2 Hertz-Mindlin无滑动接触模型

Figure 2. Hertz-Mindlin non-sliding contact model

下载: 全尺寸图片幻灯片

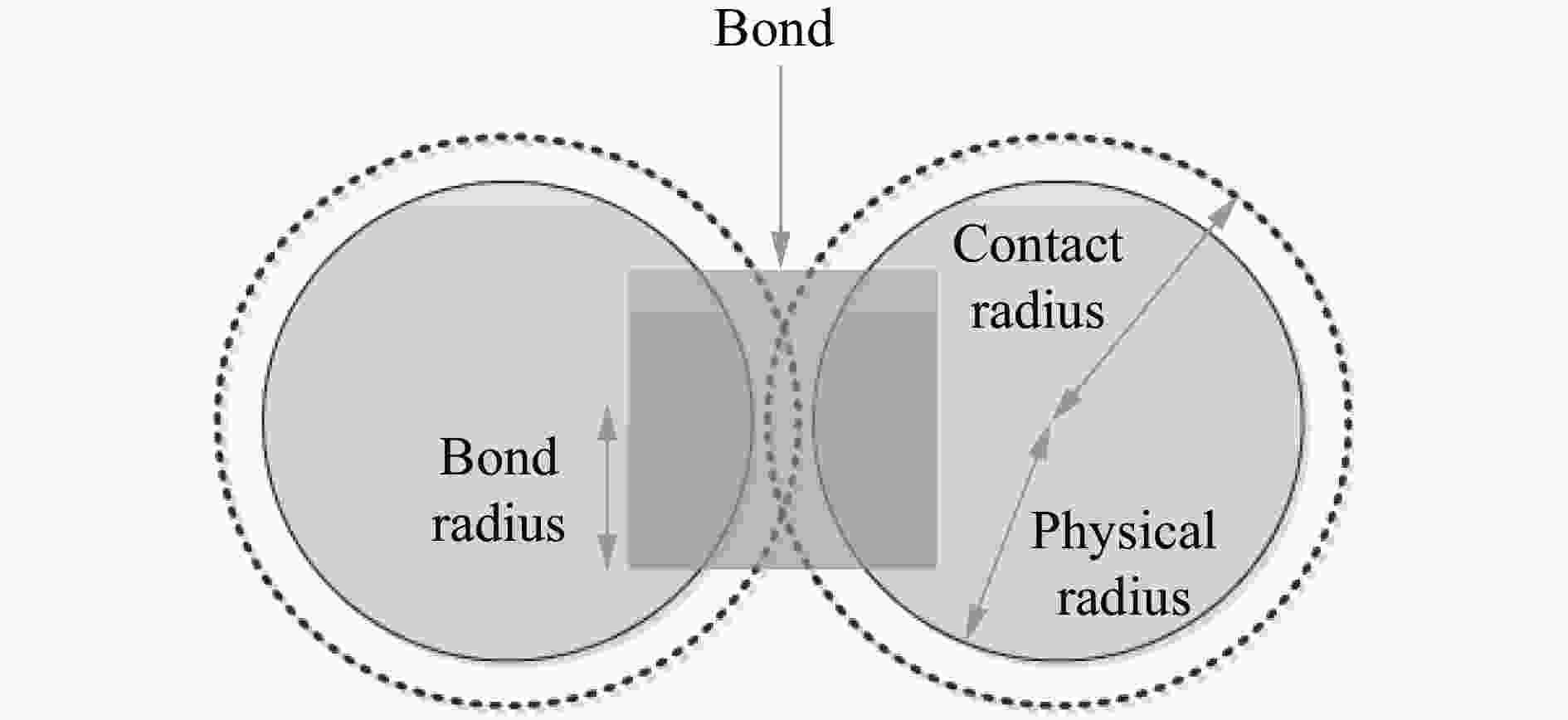

图 3 Hertz-Mindlin黏结接触模型

Figure 3. Hertz-Mindlin bonding contact model

下载: 全尺寸图片幻灯片

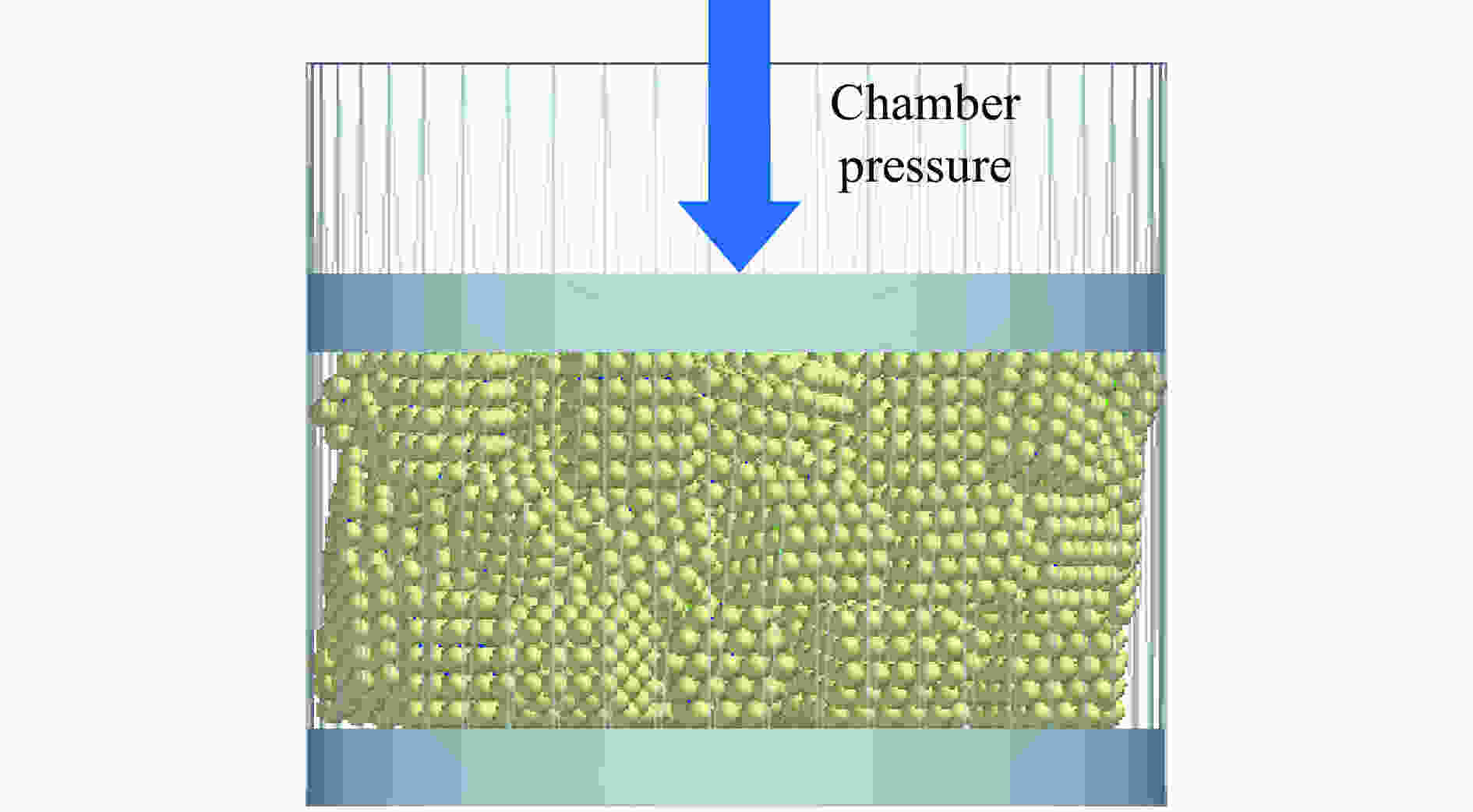

图 4 发射装药离散单元力学模型

Figure 4. Discrete element mechanical model of propellant charge

下载: 全尺寸图片幻灯片

图 5 上盖板压力时间曲线

Figure 5. Pressure-time curve of upper cover plate

下载: 全尺寸图片幻灯片

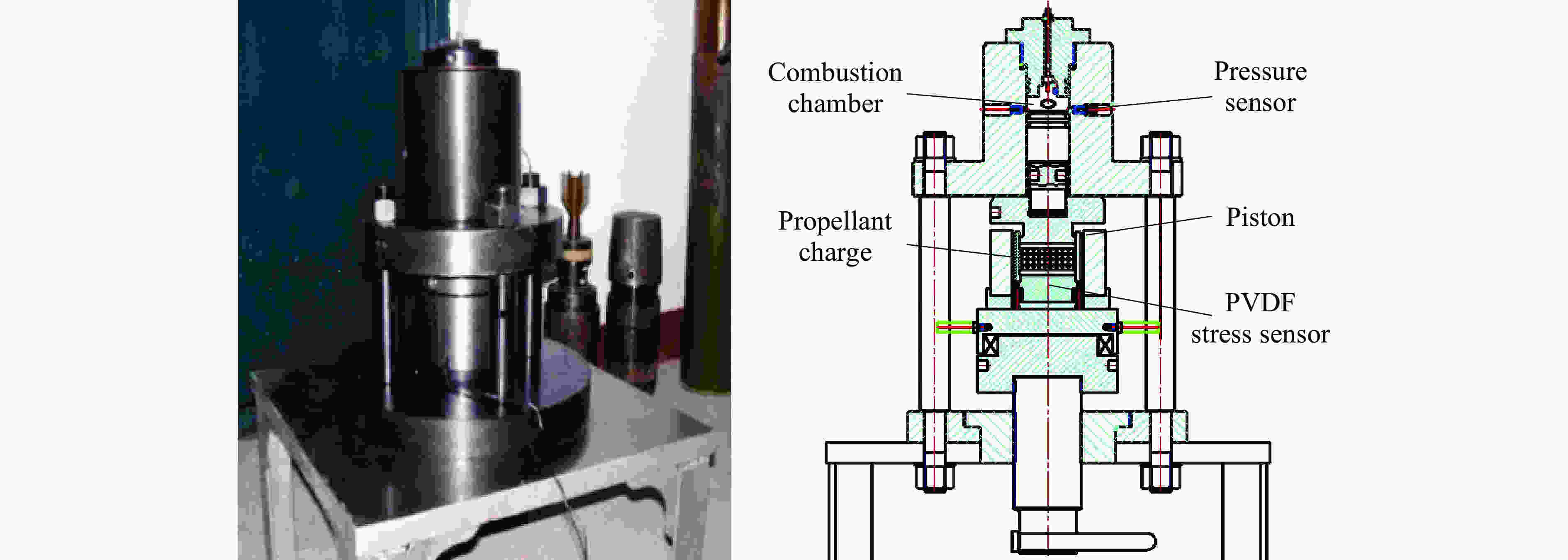

图 6 发射装药动态挤压破碎实验装置及原理图

Figure 6. Experiment device and schematic diagram of the dynamic compression and fracture of propellant charge

下载: 全尺寸图片幻灯片

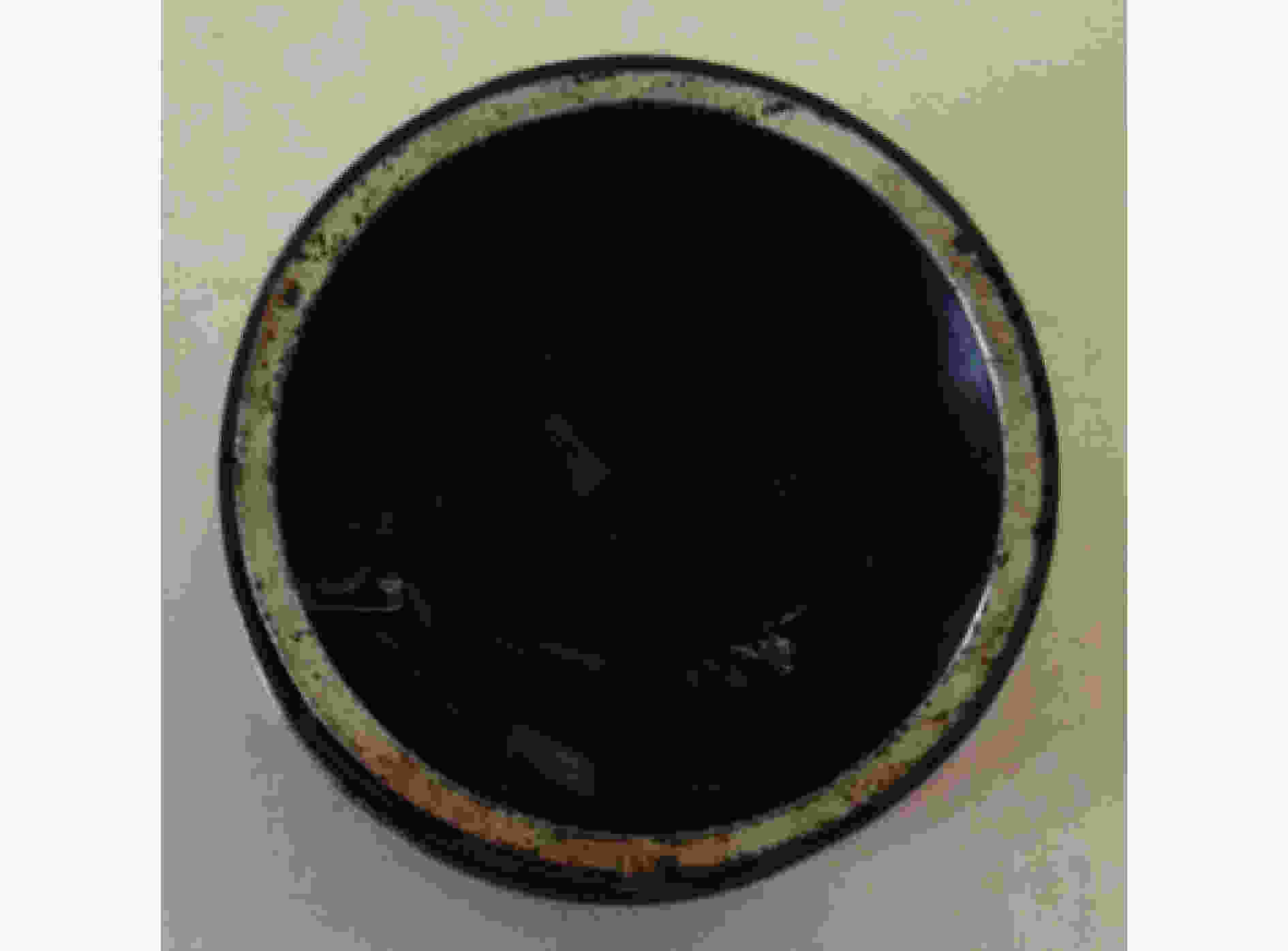

图 7 实验发射装药

Figure 7. Experiment propellant charge

下载: 全尺寸图片幻灯片

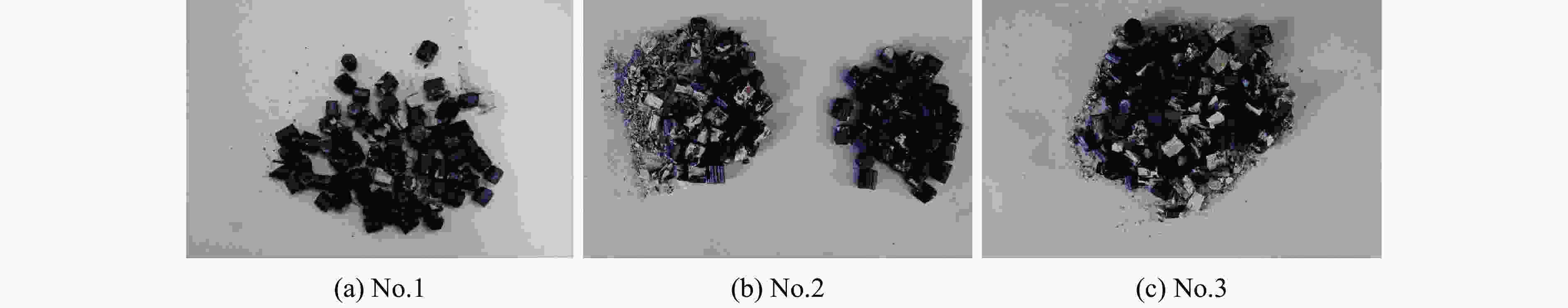

图 8 低温下实验获得的破碎发射装药

Figure 8. Fracture propellant charge obtained by experiments at low temperature

下载: 全尺寸图片幻灯片

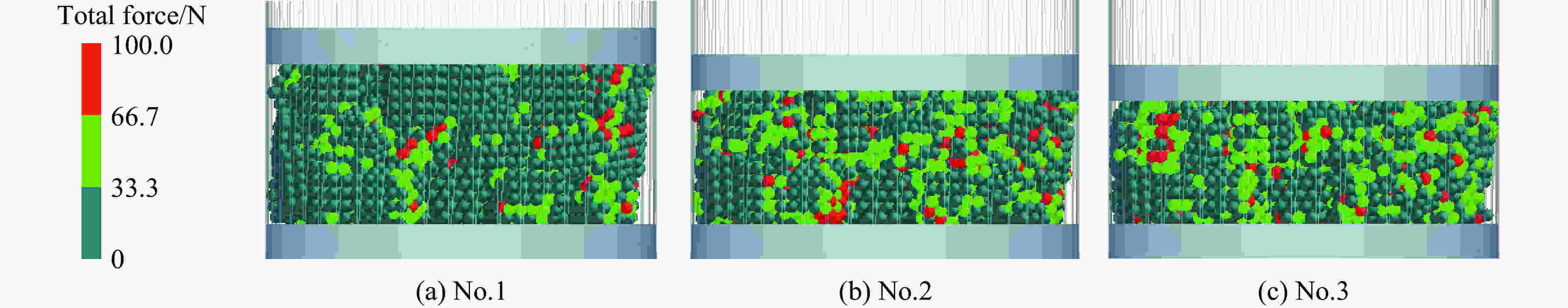

图 9 采用离散单元法模型获得的挤压破碎模拟结果

Figure 9. Compression and fracture simulation results with the discrete element model

下载: 全尺寸图片幻灯片

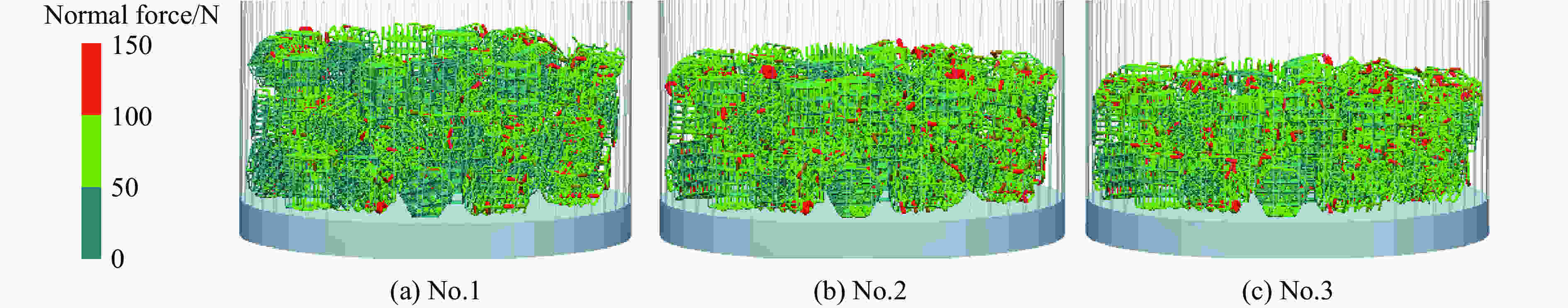

图 10 采用黏结键模型得到的挤压破碎模拟结果

Figure 10. Compression and fracture simulation results with the bond model

下载: 全尺寸图片幻灯片

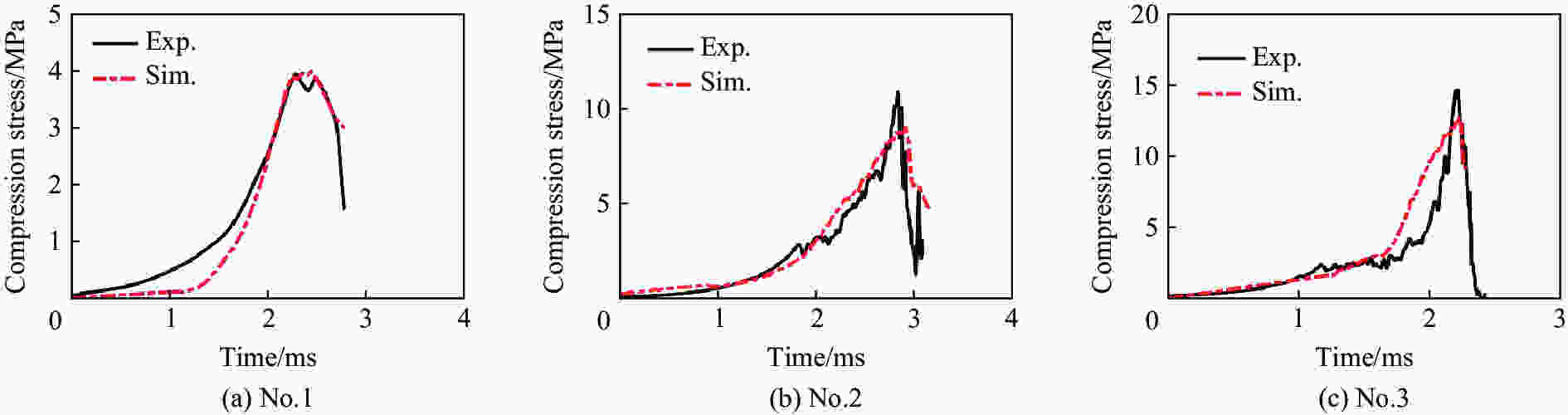

图 11 不同燃烧室压力下模拟与实验挤压应力对比曲线

Figure 11. Comparison of compression stress curves between simulation and experiment under different chamber pressures

下载: 全尺寸图片幻灯片

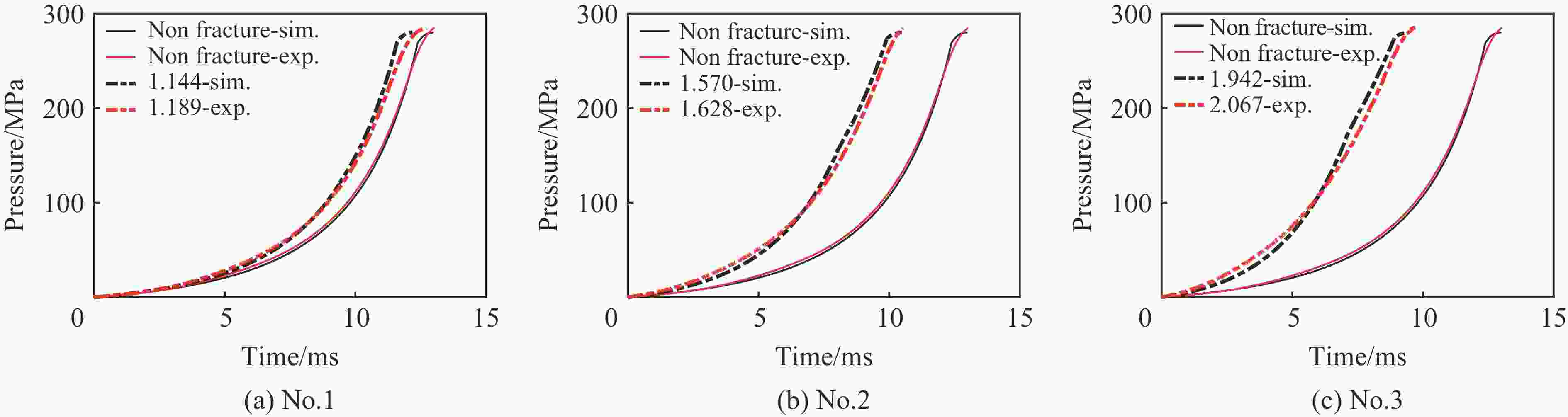

图 12 密闭爆发器数值模拟与实验压力时间对比曲线
