毫秒延时爆破等效单响药量计算及振速预测

何理 杨仁树 钟东望 李鹏 吴春平 陈江伟

何理, 杨仁树, 钟东望, 李鹏, 吴春平, 陈江伟. 毫秒延时爆破等效单响药量计算及振速预测[J]. 爆炸与冲击, 2021, 41(9): 095201. doi: 10.11883/bzycj-2020-0363
引用本文: 何理, 杨仁树, 钟东望, 李鹏, 吴春平, 陈江伟. 毫秒延时爆破等效单响药量计算及振速预测[J]. 爆炸与冲击, 2021, 41(9): 095201. doi: 10.11883/bzycj-2020-0363
HE Li, YANG Renshu, ZHONG Dongwang, LI Peng, WU Chunping, CHEN Jiangwei. Calculation of equivalent charge weight per delay and vibration velocity prediction for millisecond delay blasting[J]. Explosion And Shock Waves, 2021, 41(9): 095201. doi: 10.11883/bzycj-2020-0363
Citation: HE Li, YANG Renshu, ZHONG Dongwang, LI Peng, WU Chunping, CHEN Jiangwei. Calculation of equivalent charge weight per delay and vibration velocity prediction for millisecond delay blasting[J]. Explosion And Shock Waves, 2021, 41(9): 095201. doi: 10.11883/bzycj-2020-0363

毫秒延时爆破等效单响药量计算及振速预测

doi: 10.11883/bzycj-2020-0363
基金项目: 国家自然科学基金(51904210,51934001);湖北省重点研发计划(2020BCA084);长江科学院开放研究基金(CKWV2018473/KY);冶金工业过程系统科学湖北省重点实验室开放研究基金(Z202001)
详细信息
    作者简介:

    何 理(1986- ),男,博士,副教授,emp-heli@hotmail.com

  • 中图分类号: O389

Calculation of equivalent charge weight per delay and vibration velocity prediction for millisecond delay blasting

  • 摘要: 毫秒延时爆破存在同段雷管离散及分段振波叠加效应,对单响药量取值及质点峰值振速的预报带来极大困扰。设计开展毫秒延时爆破试验,建立群孔齐发爆破振速的计算模型,研究并构建炮孔数目对齐发爆破等效药量影响及其取值方法;并基于单孔爆破回归分析结果,提出修正的质点峰值振速与比例距离关系公式。结果表明,群孔齐发爆破等效药量比名义单响药量小,可利用缩比系数和折算炮孔数目进行计算,缩比系数随炮孔数目增加呈指数形式衰减;修正的质点峰值振速与比例距离公式引入的振波叠加因子可反映振波叠加对速度的影响,依据该公式计算得到的质点峰值振速预测值与实测值间平均绝对误差、平均相对误差及均方根误差分别为0.05 cm/s、9.52%、0.059 cm/s,用于现场爆破振动预测切实可行。

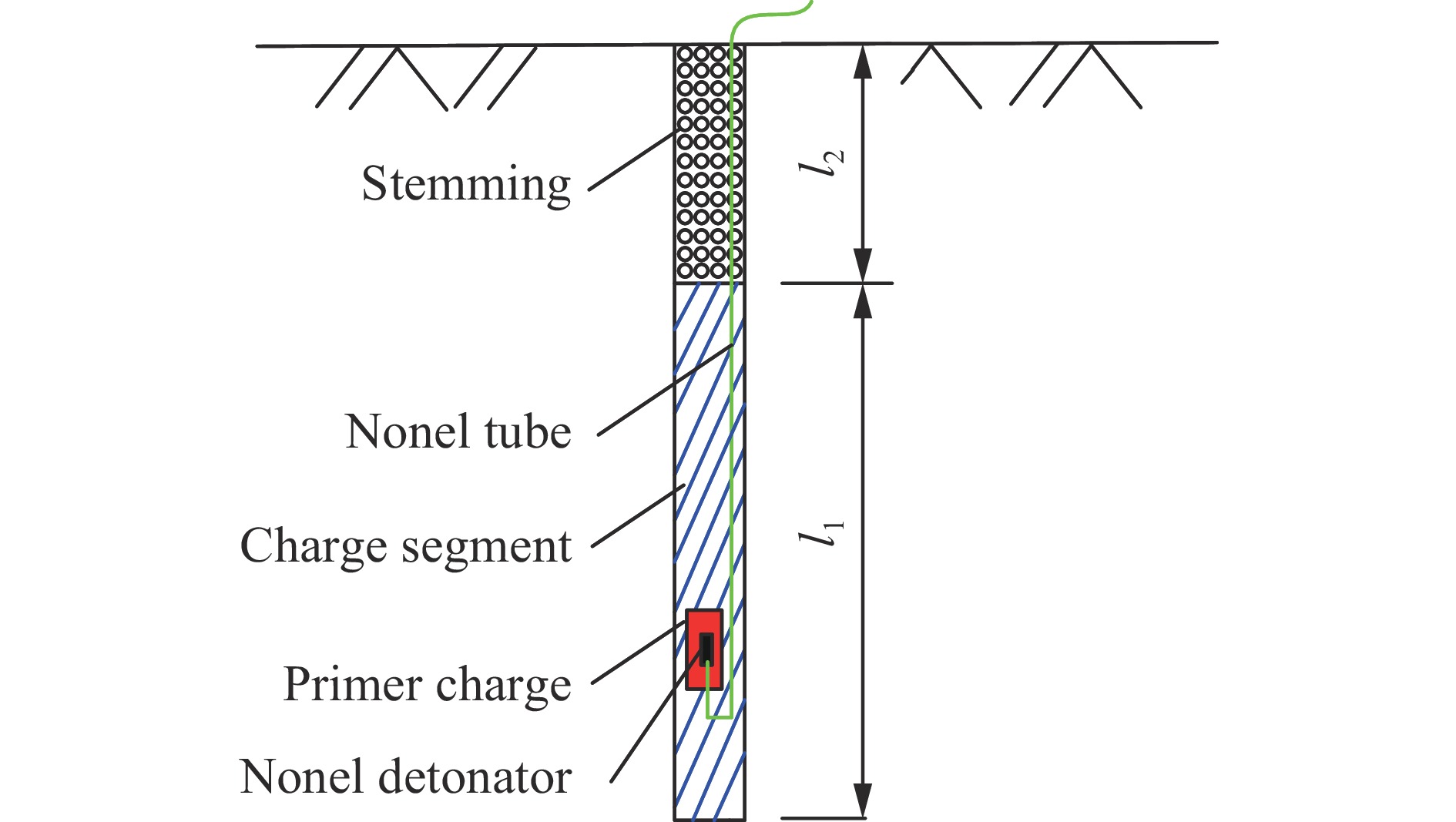

  • 图  1  炮孔装药结构

    Figure  1.  Charge structure of blast-hole

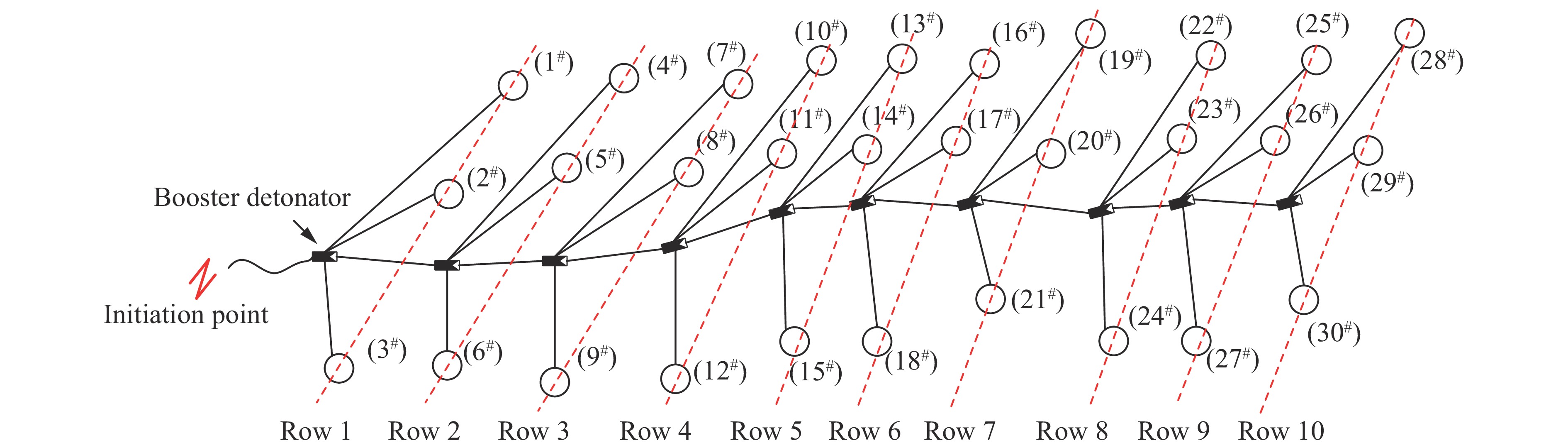

    图  2  毫秒延时起爆网路

    Figure  2.  Initiation network of millisecond delay blasting

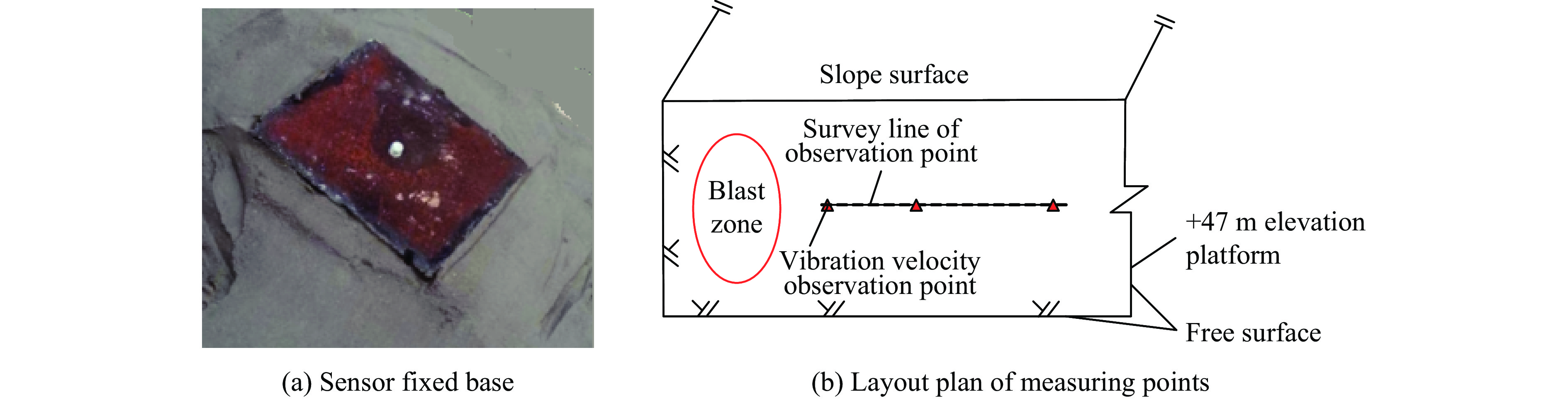

    图  3  振动速度监测方案

    Figure  3.  Monitoring scheme of vibration velocity

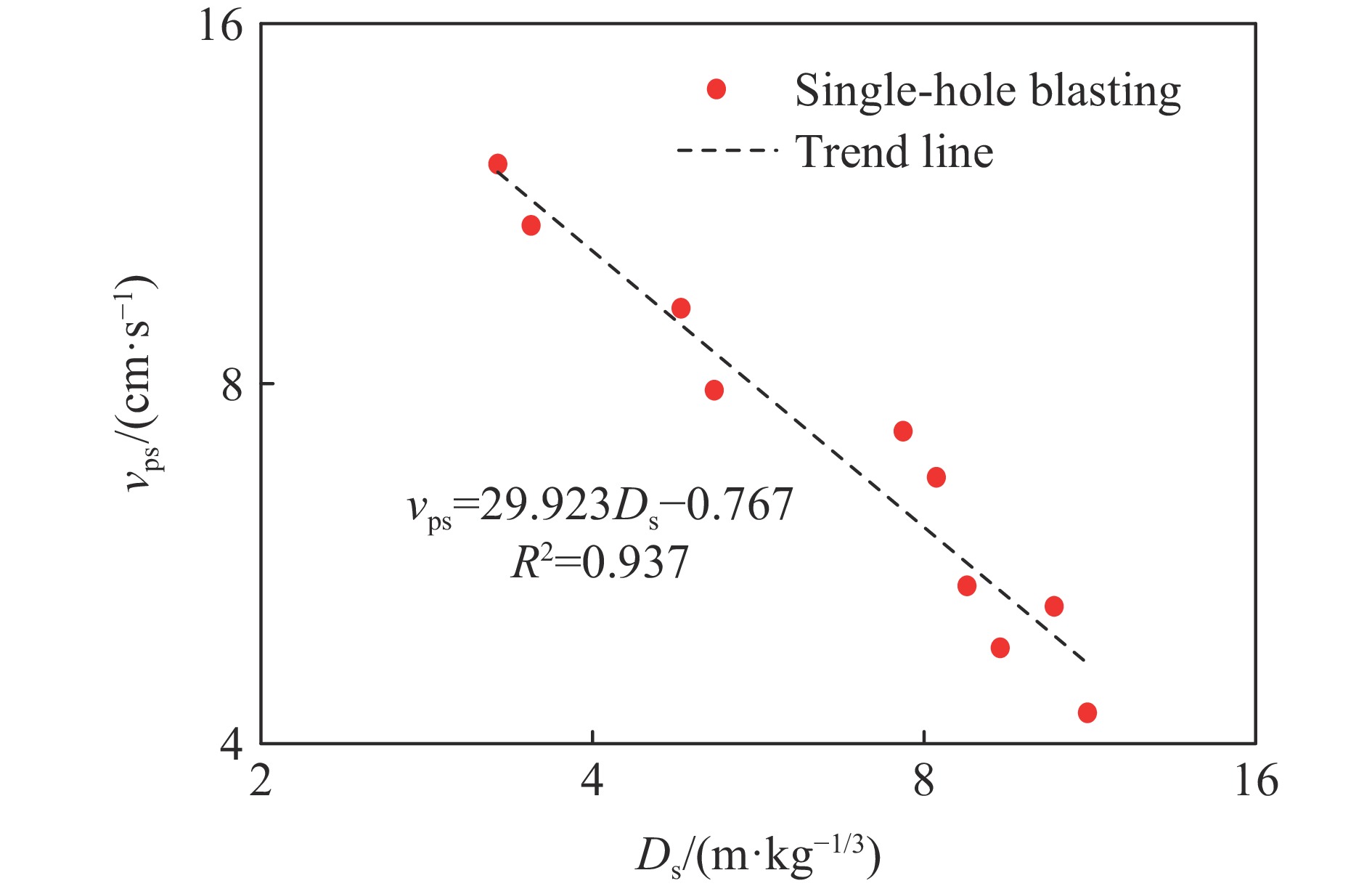

    图  4  单孔爆破振速随比例距离的变化关系

    Figure  4.  Relation between blast vibration velocity for single-hole blasting and scaled distance

    图  5  单孔爆破振速叠加方法示意图

    Figure  5.  Schematic diagram of superposition method for vibration velocity in single-hole blasting

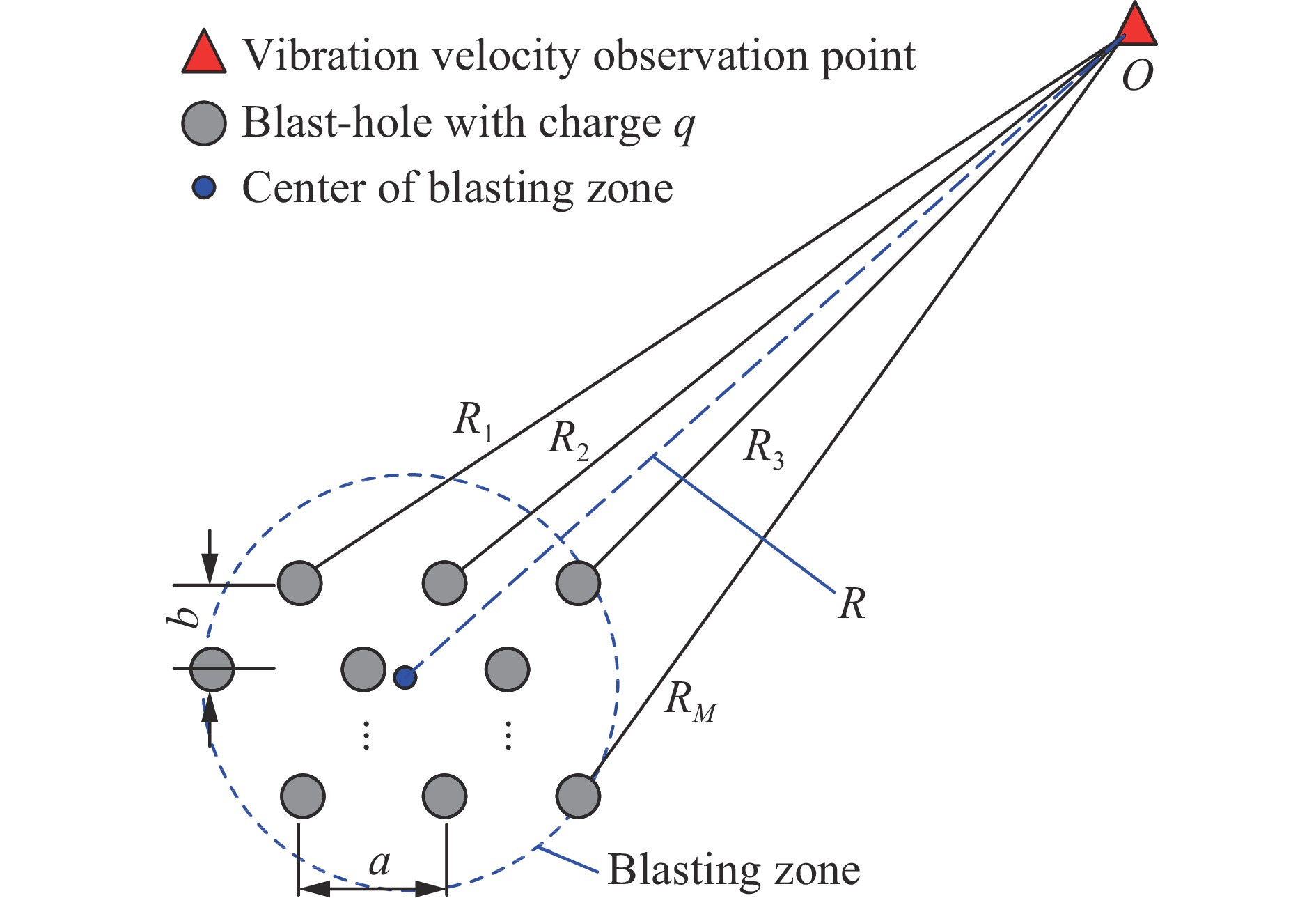

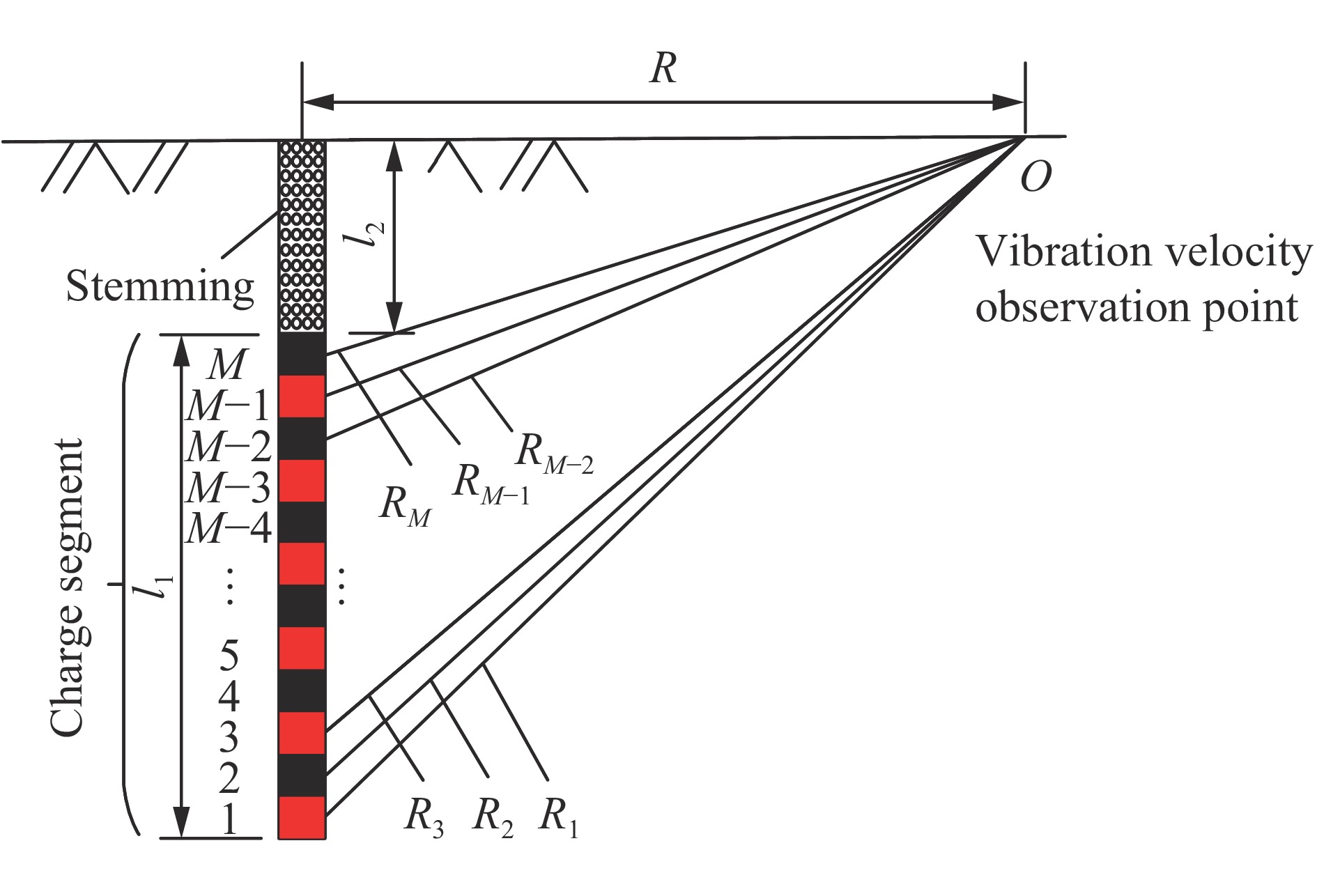

    图  6  群孔分散装药齐发爆破振速计算模型

    Figure  6.  Calculation model of vibration velocity for simultaneous blasting of muti-hole with dispersed charge

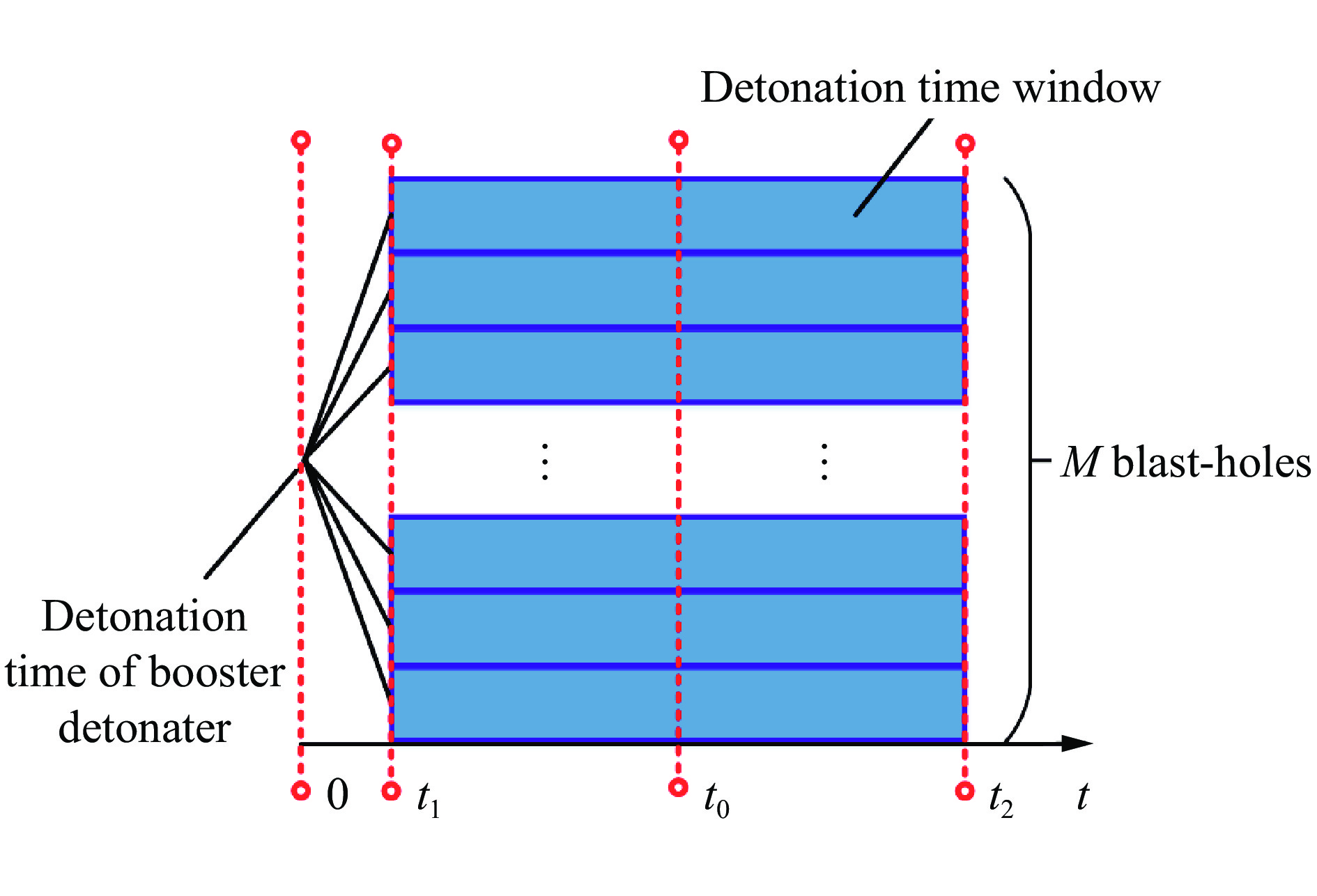

    图  7  各炮孔起爆时间窗

    Figure  7.  Detonation time window for each blast-hole

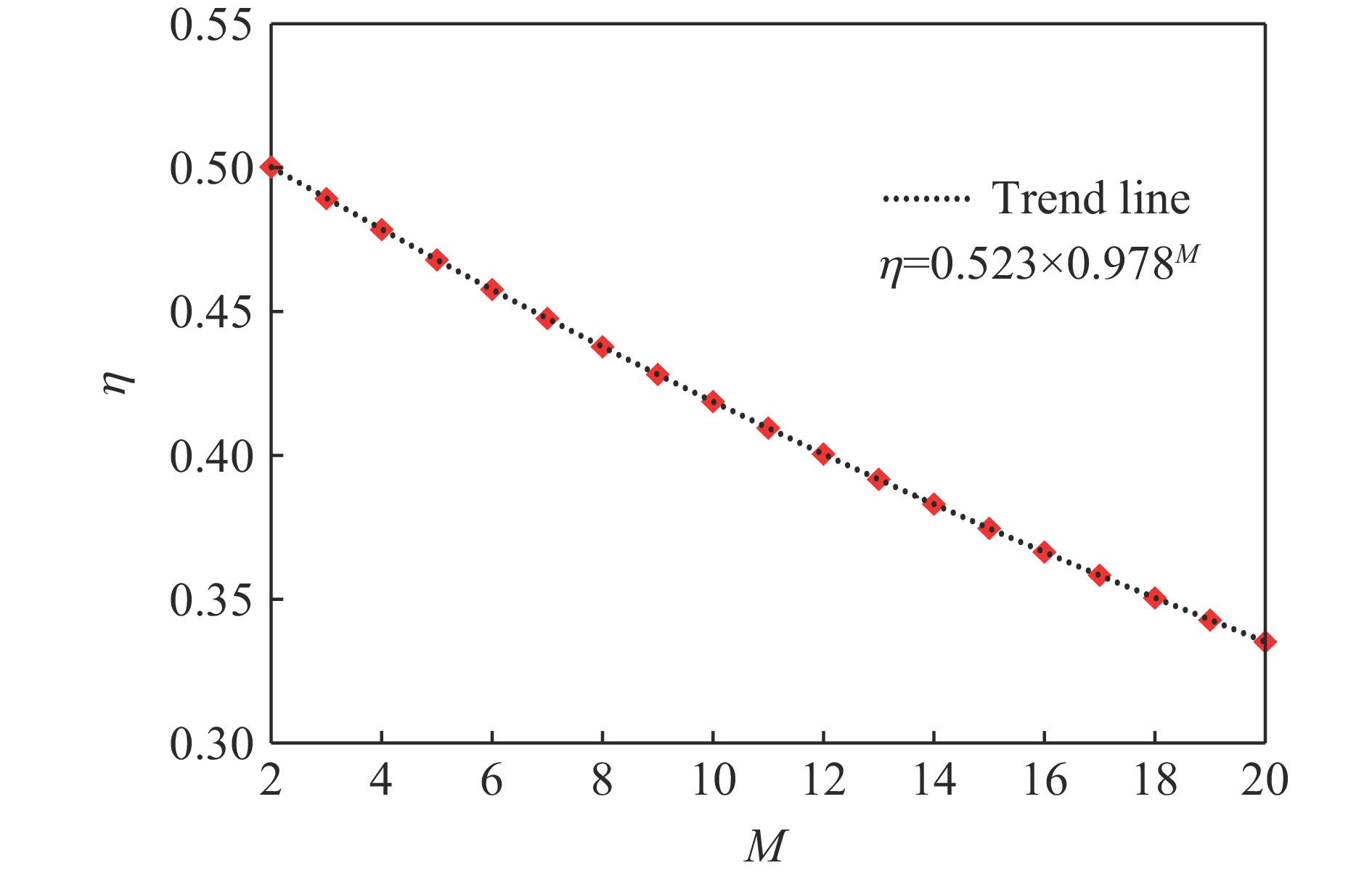

    图  8  缩比系数随炮孔数目的变化关系

    Figure  8.  Variation relationship between the scaling factor and the blast-hole number

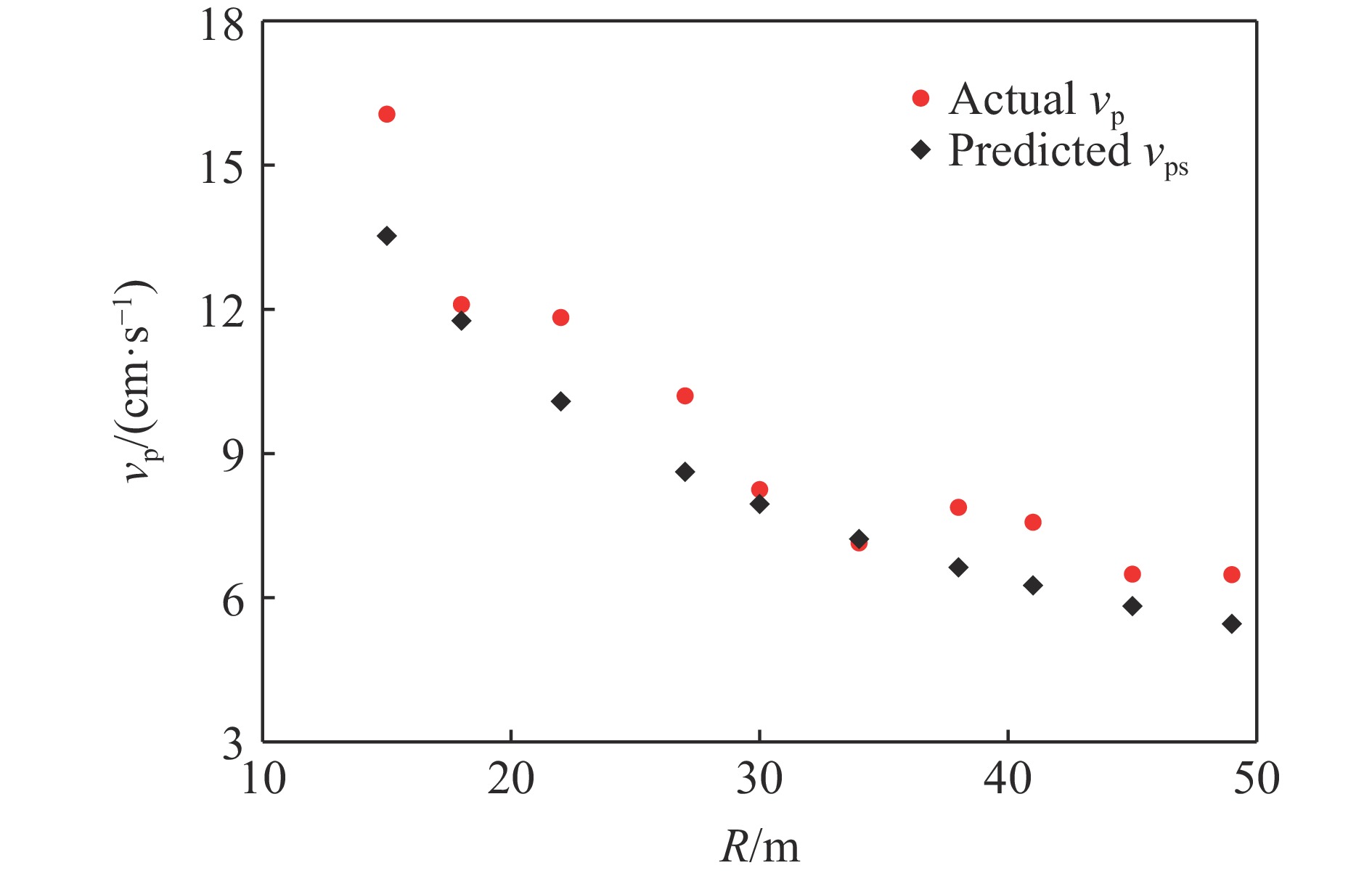

    图  9  毫秒延时爆破各测点峰值振动速度的实测值与预测值

    Figure  9.  Actual and predicted particle peak vibration velocities at each measuring point in millisecond delay blasting

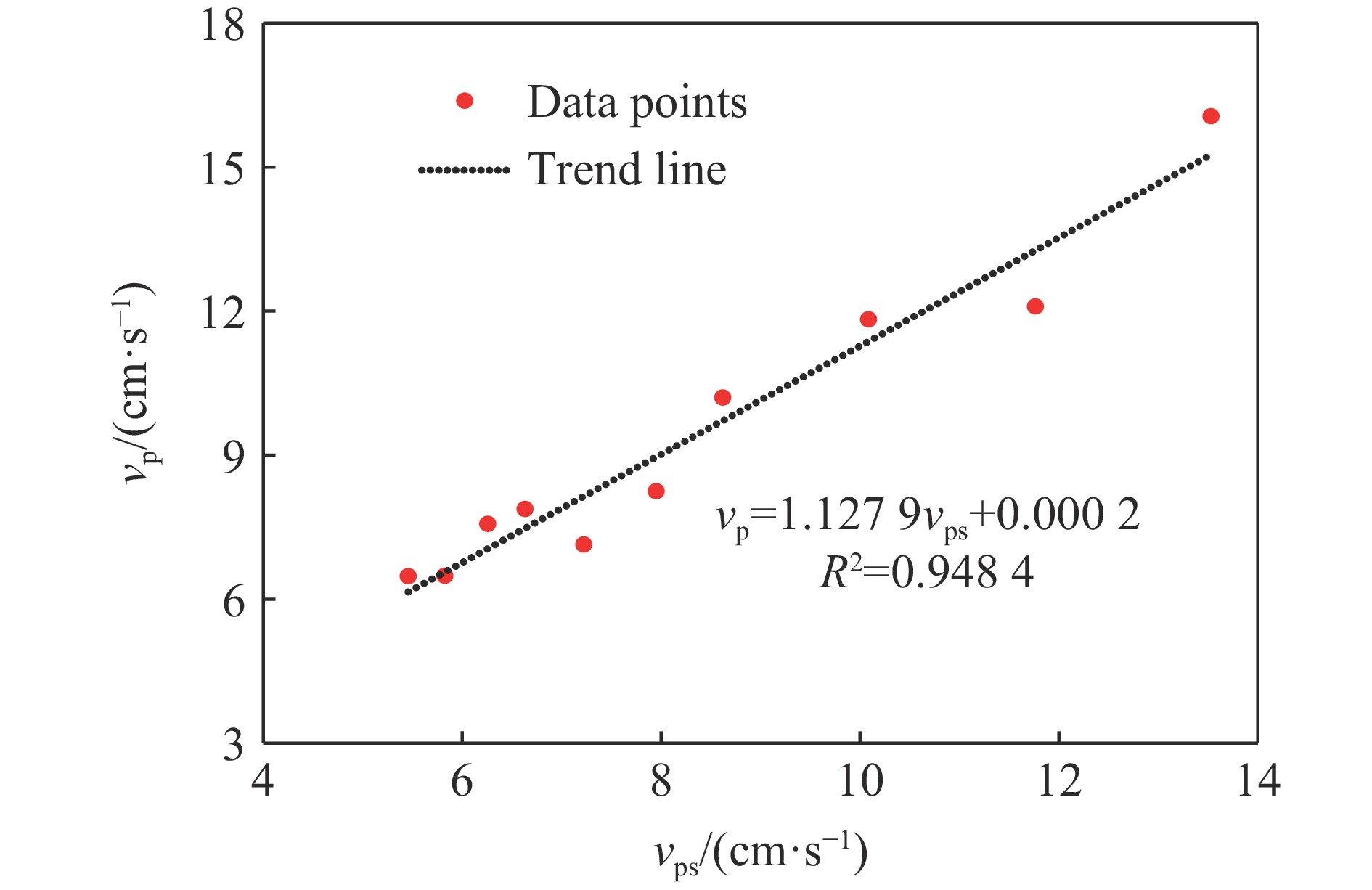

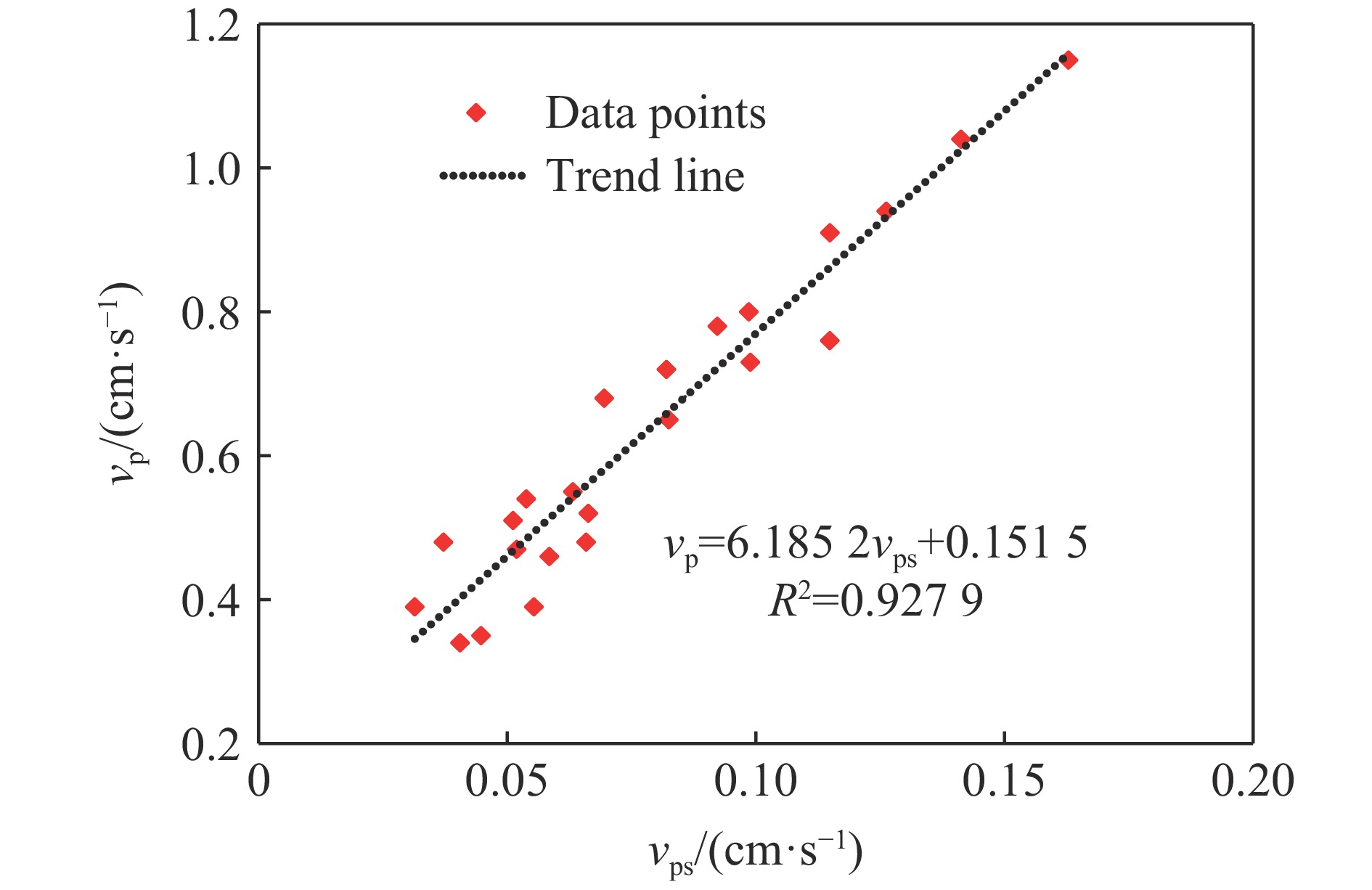

    图  10  实测vp与预测vps变化关系

    Figure  10.  Relationship between actual vp and predicted vps

    图  11  矿区实例中vp实测值与预测值变化关系

    Figure  11.  Relationship between actual and predicted vp values in mining area

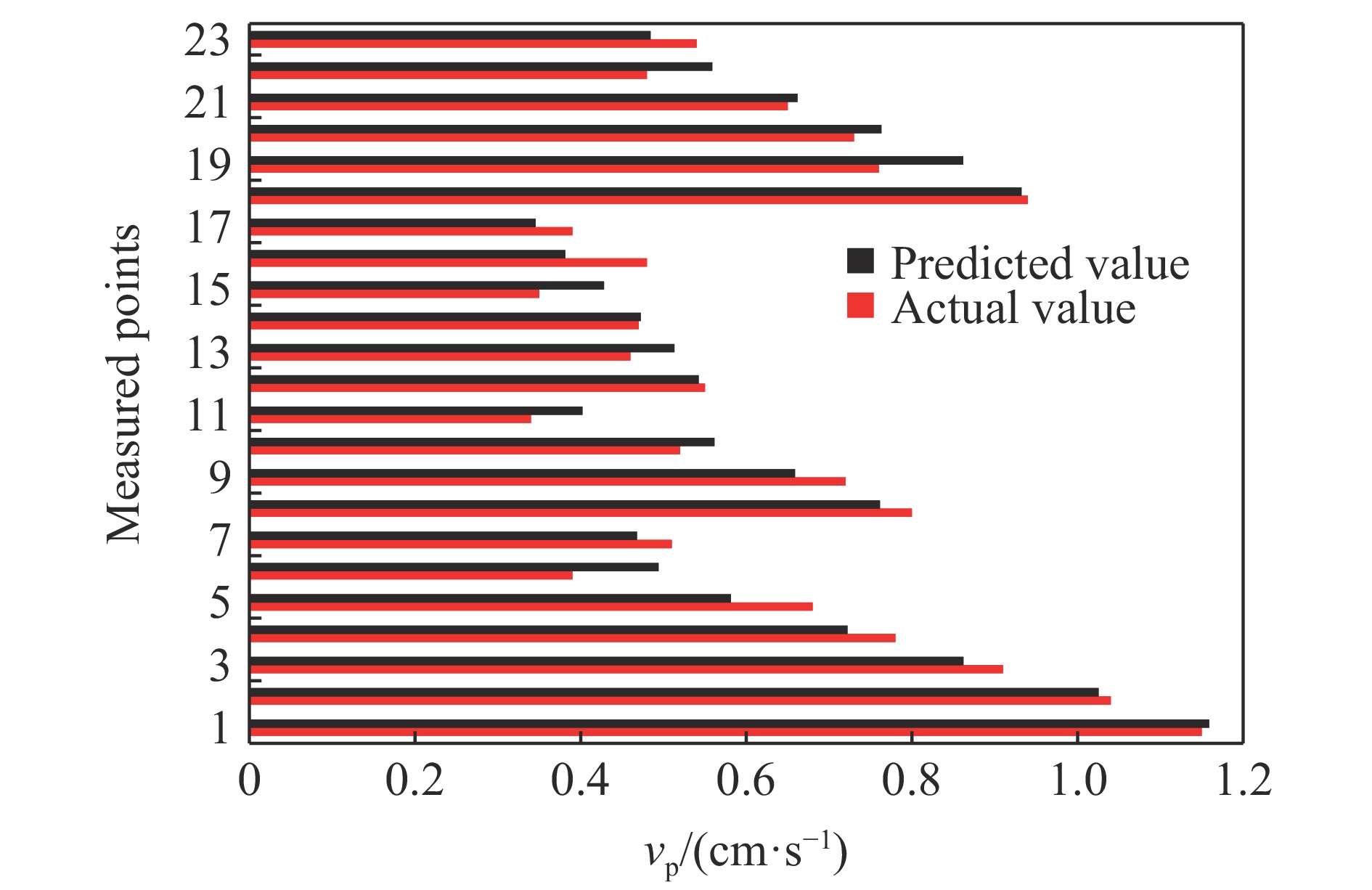

    图  12  不同观测点处vp实测值与预测值的对比情况

    Figure  12.  Comparison of the actual and predicted vp values at different observation points

    表  1  爆破参数

    Table  1.   Blasting parameters

    爆破类型孔径Φ/mm孔距a/m排距b/m孔深l/m装药长度l1/m堵塞长度l2/m单孔药量Q0/kg
    31#孔爆破11514.38.85.581
    32#孔爆破11515.511.04.5100
    毫秒延时爆破1156414.3~16.99.8~10.94.5~689~95
     注:现场爆破试验使用2#岩石乳化炸药,参见文献[29]将炮孔装药量折算为TNT当量.
    下载: 导出CSV

    表  2  毫秒延时爆破药量统计

    Table  2.   Charge statistics of millisecond delay blasting

    炮孔排数i炮孔编号炮孔总药量/kg炮孔平均装药量/kg
    [(i−1)×3+1][(i−1)×3+2][(i−1)×3+3]
    191959327993.0
    289949427792.3
    390929327591.7
    492919227591.7
    591929327692.0
    692919227591.7
    792929227692.0
    891929227591.7
    992929227692.0
    1092929327792.3
     注:现场爆破试验使用2#岩石乳化炸药,参见文献[29]将炮孔装药量折算为TNT当量
    下载: 导出CSV

    表  3  测点布置方案

    Table  3.   Layout scheme of measuring points

    爆破类型测点爆心距R/m
    31#孔爆破1522354048
    32#孔爆破1522354048
    毫秒延时爆破15182227303438414549
    下载: 导出CSV

    表  4  爆破振动测试数据

    Table  4.   Blasting vibration test data

    31#孔爆破32#孔爆破毫秒延时爆破
    R/mvp/(cm·s−1Ds/(m·kg−1/3R/mvp/(cm·s−1Ds/(m·kg−1/3R/mvp/(cm·s−1Ds/(m·kg−1/3
    1510.85 3.521512.21 3.281516.062.82
    1812.103.38
    22 7.90 5.1622 9.25 4.812211.834.13
    2710.205.07
    30 8.255.63
    35 6.68 8.2135 7.30 7.6634 7.146.38
    38 7.887.13
    40 4.81 9.3840 5.42 8.7541 7.577.69
    45 6.498.45
    48 4.2411.2648 5.2110.5049 6.489.20
    下载: 导出CSV

    表  5  单孔爆破振速的实测值与预测值对比

    Table  5.   Comparison of blast vibration velocity for single-hole blasting between measured and predicted values

    实测值/(cm·s−1预测值/(cm·s−1绝对误差/(cm·s−1相对误差/%实测值/(cm·s−1预测值/(cm·s−1绝对误差/(cm·s−1相对误差/%
    10.8511.40−0.55 5.0512.2112.03 0.18 1.46
    7.90 8.50 0.60 7.59 9.25 8.97 0.28 3.03
    6.68 5.95 0.7310.89 7.30 6.28 1.0214.00
    4.81 5.37−0.5611.73 5.42 5.67−0.25 4.59
    4.24 4.67−0.4310.18 5.21 4.93 0.28 5.39
    下载: 导出CSV

    表  6  爆破设计参数及$v_{\rm p} $

    Table  6.   Blasting design parameters and $v_{\rm p} $ values

    爆破次数孔径/mm炮孔数目最大单响药量/kg爆心距/m比例距离/(m·kg−1/3vp/(cm·s−1绝对误差/(cm·s−1相对误差/%
    实测值预测值
    1903248622428.551.151.160.010.77
    903248624130.721.041.030.011.42
    903248626834.160.910.860.055.27
    903248630038.240.780.720.067.43
    903248634744.230.680.580.1014.51
    903248639049.710.390.490.1026.65
    2902131935351.760.510.470.048.24
    902131925236.950.800.760.044.84
    902131927740.620.720.660.068.51
    902131930945.310.520.560.047.99
    902131939858.360.340.400.0618.25
    3903132631946.440.550.540.011.39
    903132633248.330.460.510.0511.55
    903132635351.390.470.470.000.52
    903132638155.470.350.430.0822.32
    903132641961.000.480.380.1020.54
    903132645766.530.390.350.0411.37
    4902852526232.550.940.930.010.83
    902852527534.160.760.860.1013.42
    902852529736.890.730.760.034.54
    902852532640.500.650.660.011.81
    902852536645.460.480.560.0816.43
    902852540650.430.540.480.0610.30
     注:由于生产爆破时使用数码电子雷管实现段间延期,数码电子雷管可确保设计延期时间与实际延期时间高度一致[37],因此表6中最大单响药   量取值为名义最大单响药量
    下载: 导出CSV
