火炮在不同介质中发射的膛口流场特性分析

张旋 余永刚 张欣尉

张旋, 余永刚, 张欣尉. 火炮在不同介质中发射的膛口流场特性分析[J]. 爆炸与冲击, 2021, 41(10): 103901. doi: 10.11883/bzycj-2021-0056
引用本文: 张旋, 余永刚, 张欣尉. 火炮在不同介质中发射的膛口流场特性分析[J]. 爆炸与冲击, 2021, 41(10): 103901. doi: 10.11883/bzycj-2021-0056
ZHANG Xuan, YU Yonggang, ZHANG Xinwei. Analysis of muzzle flow field characteristics of gun fired in different media[J]. Explosion And Shock Waves, 2021, 41(10): 103901. doi: 10.11883/bzycj-2021-0056
Citation: ZHANG Xuan, YU Yonggang, ZHANG Xinwei. Analysis of muzzle flow field characteristics of gun fired in different media[J]. Explosion And Shock Waves, 2021, 41(10): 103901. doi: 10.11883/bzycj-2021-0056

火炮在不同介质中发射的膛口流场特性分析

doi: 10.11883/bzycj-2021-0056
基金项目: 中国博士后科学基金(2020M681596)
详细信息
    作者简介:

    张 旋(1991- ),男,博士研究生,2665933828@qq.com

    通讯作者:

    余永刚(1963- ),男,博士,教授,博士生导师,yygnjust801@163.com

  • 中图分类号: O358

Analysis of muzzle flow field characteristics of gun fired in different media

  • 摘要: 为研究水下炮密封式发射膛口流场及在不同介质中的膛口流场分布特性,建立了水下密封式发射二维轴对称膛口多相流数值模型。采用VOF(volume of fluid)模型、标准 k-$\varepsilon $湍流模型,结合用户自定义函数及动网格技术,分别对水下密封式发射与空气中发射膛口流场演化过程进行了数值模拟与对比。计算结果表明,火炮在水下发射时的膛口流场与空气中发射时有明显差异。水下密封式发射时的最大膛压与空气中基本相同,弹丸初速较空气中发射降低了32 m/s,而膛口压力与温度有明显的升高;水下密封式发射时大约在140 μs初步形成马赫盘,而空气中发射时马赫盘形成较晚,约在320 μs;与空气中发射相比,水下发射时的激波核心区面积更小,且弹丸头部不存在冠状冲击波。水下密封式发射时,马赫盘距离膛口轴向位移随时间变化呈指数增长;空气中发射时,马赫盘距离膛口轴向位移随时间变化呈线性增长。

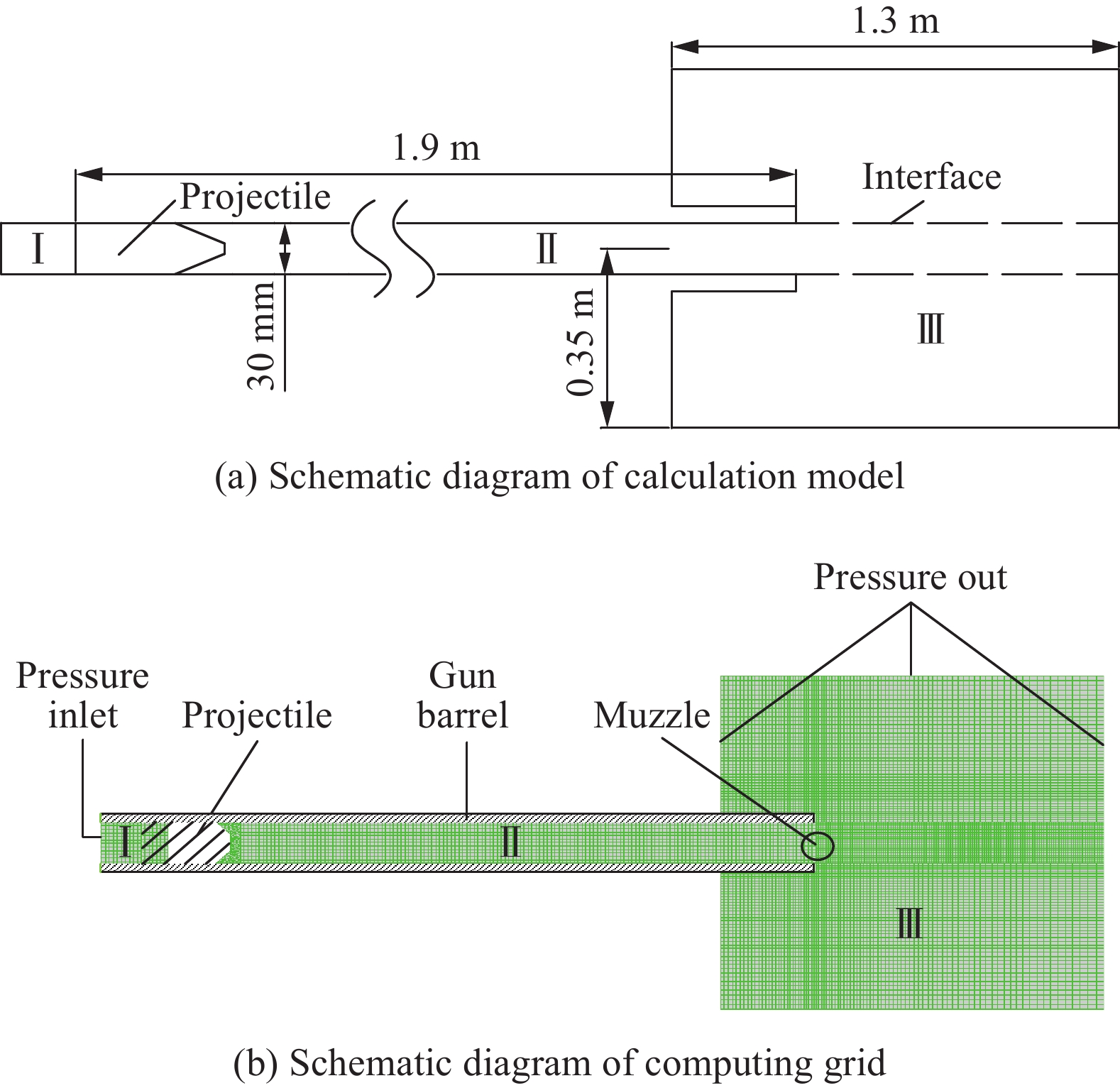

  • 图  1  计算模型

    Figure  1.  Calculation model

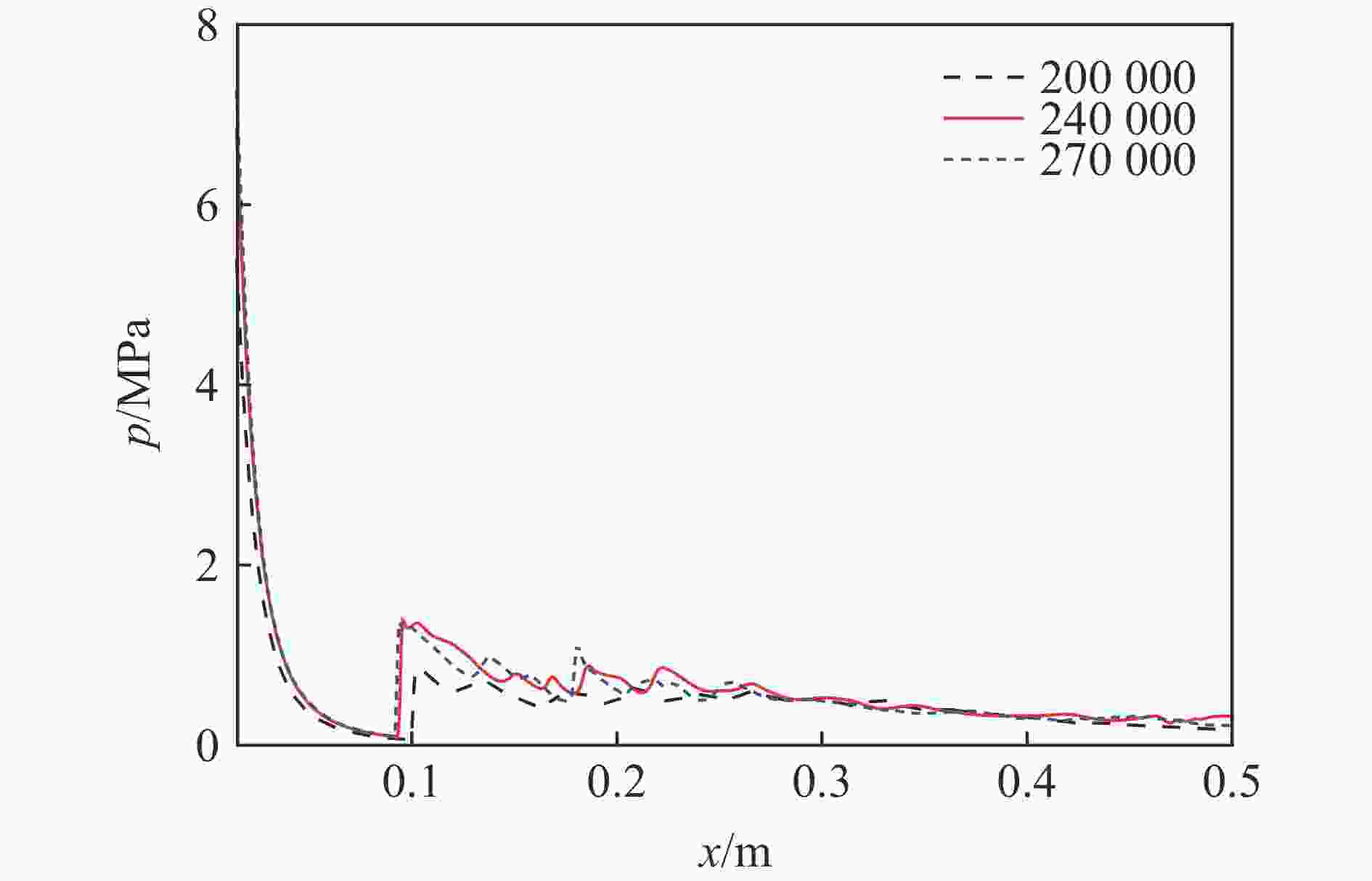

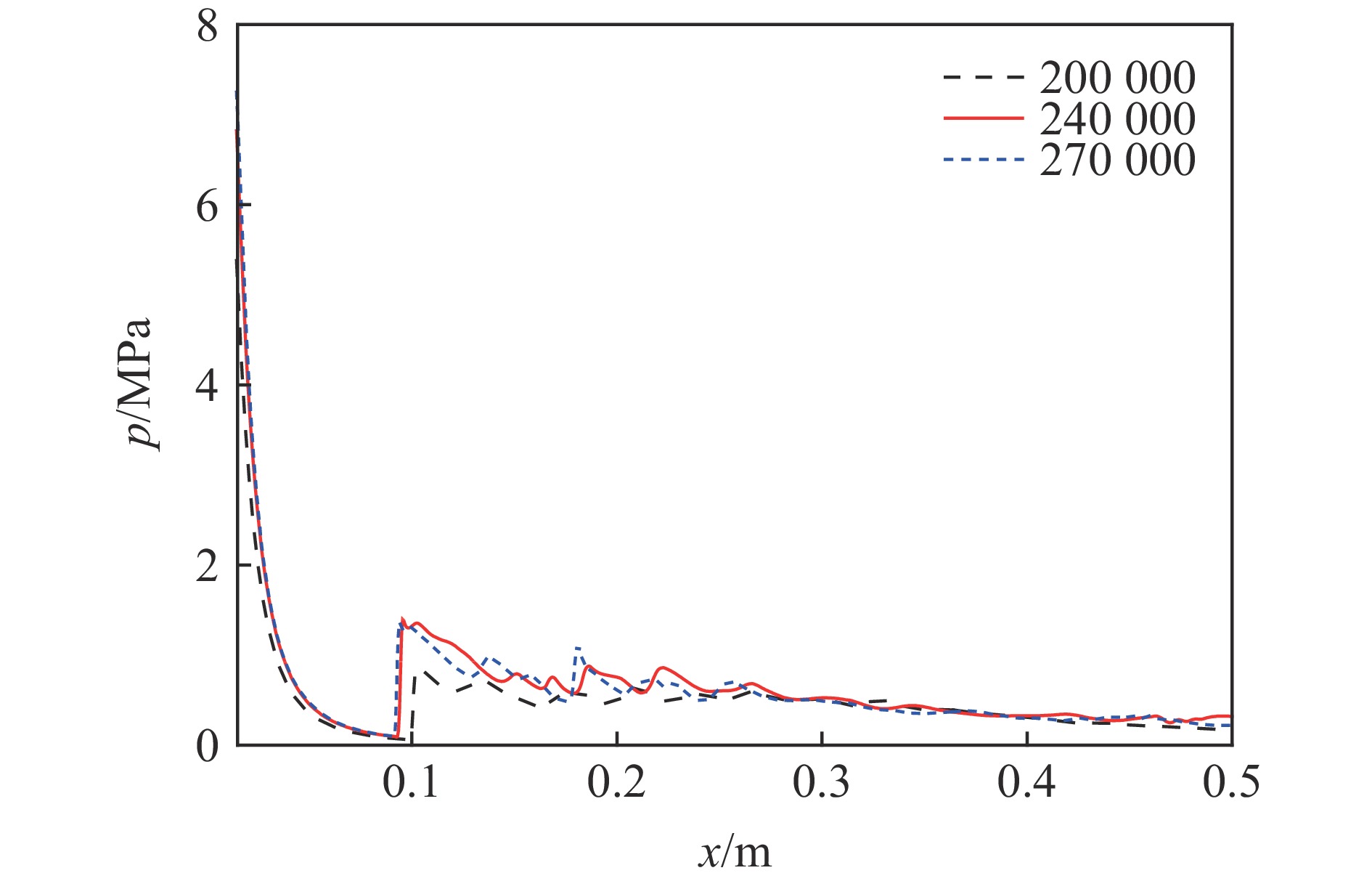

    图  2  膛口到弹底压力沿轴向变化曲线

    Figure  2.  Variation of axial pressure from the muzzleto the projectile bottom

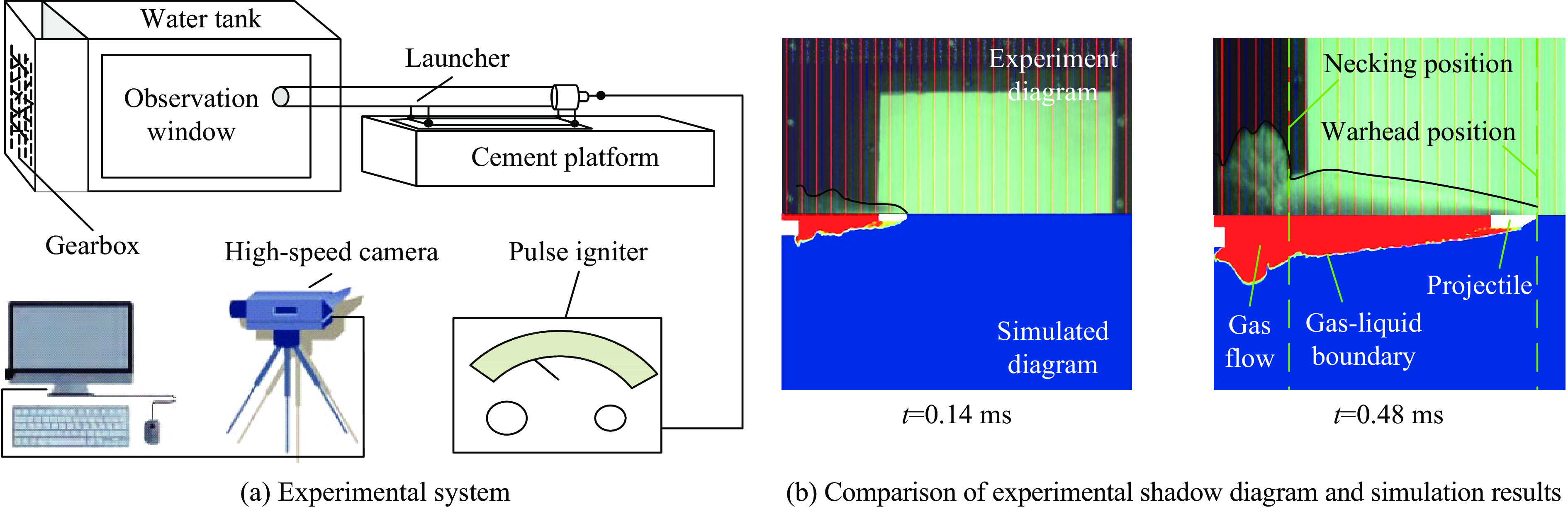

    图  3  实验系统(a)和数值模拟得到相应时刻的模拟相图与实验阴影图对比(b)

    Figure  3.  Experimental system (a) and the comparison of experimental shadow diagram and simulation results (b)

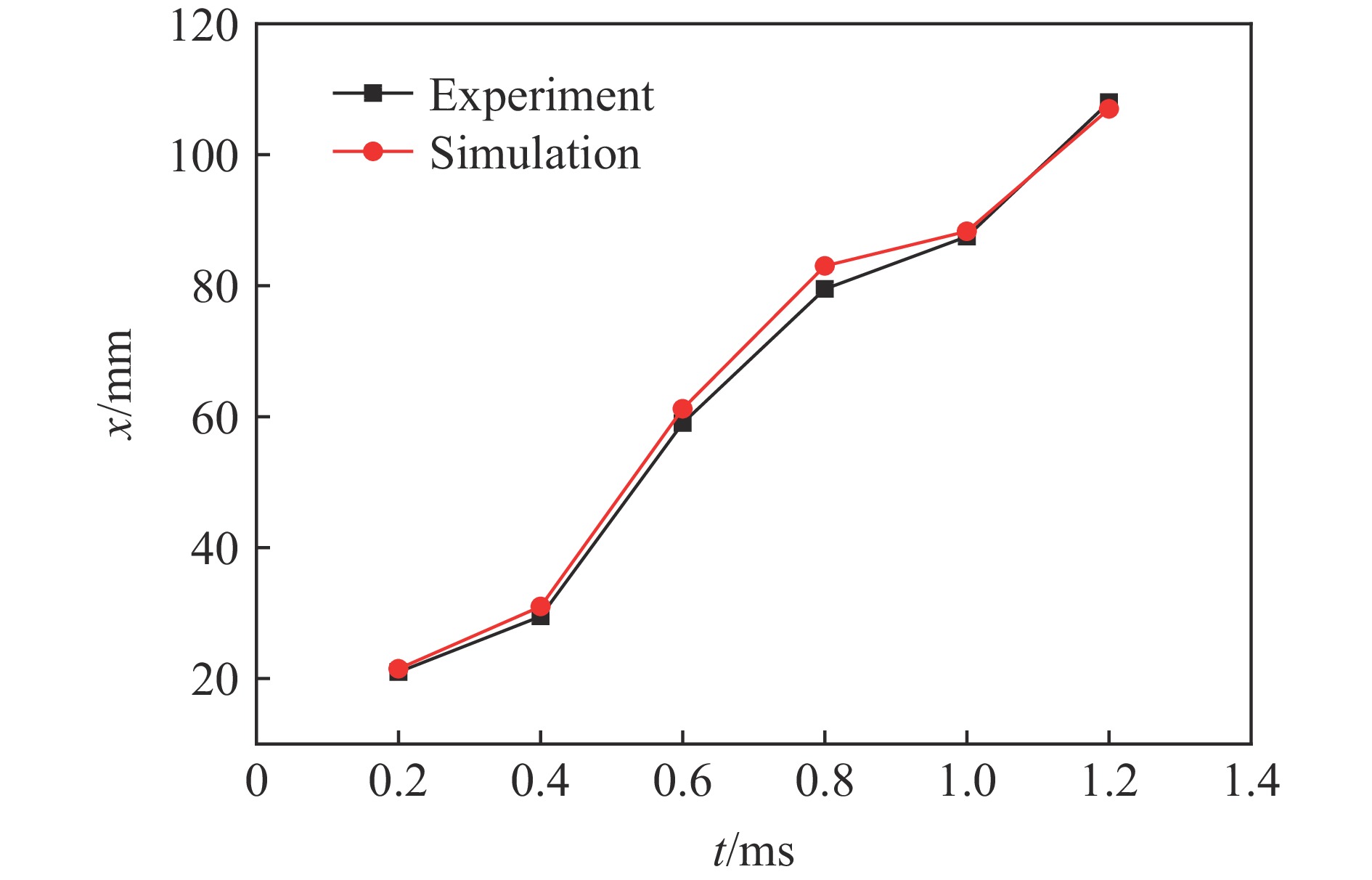

    图  4  射流头部轴向最大位移对比

    Figure  4.  Comparison of maximum axial displacement of jet head

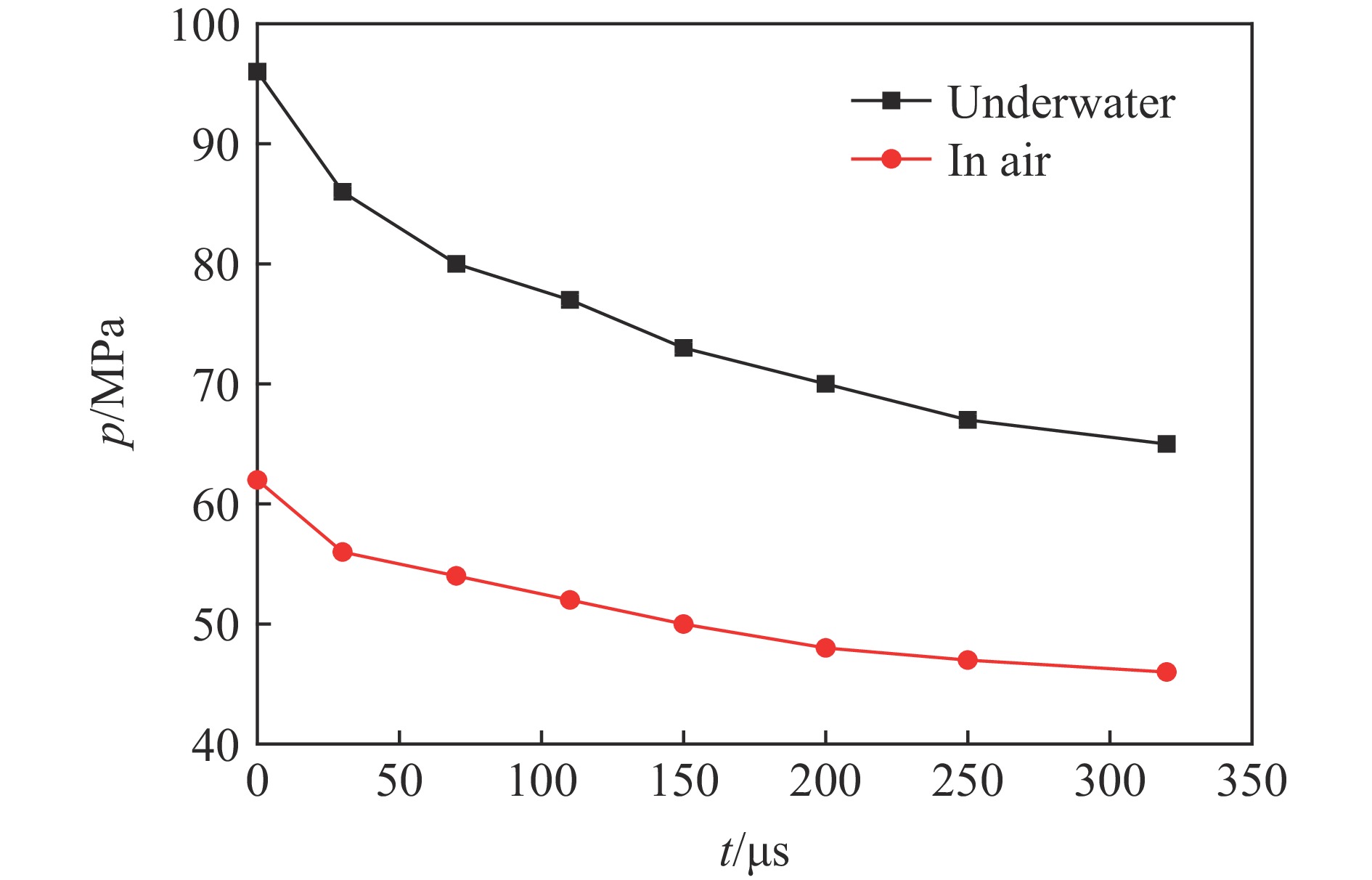

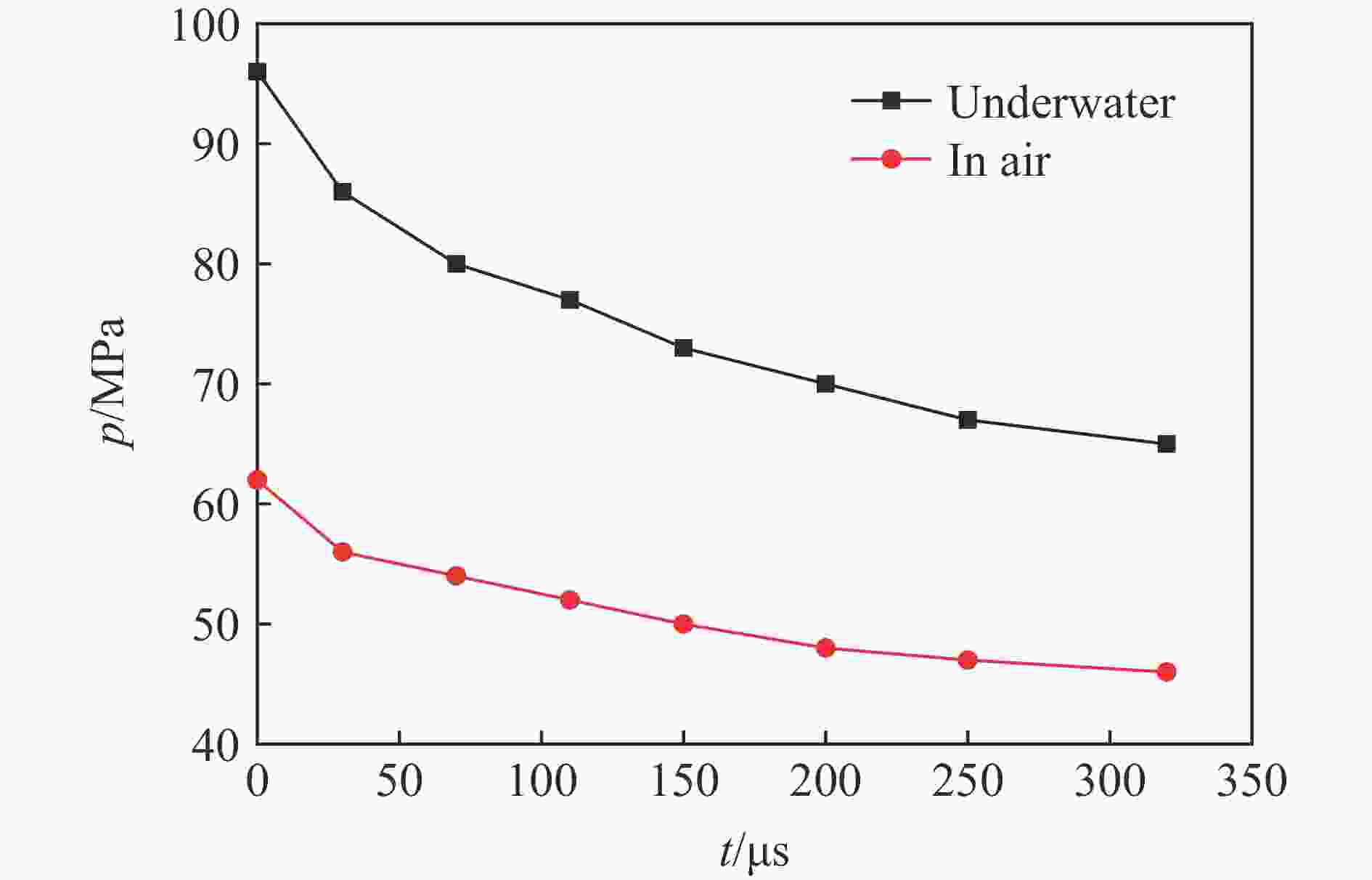

    图  5  膛口燃气压力变化曲线

    Figure  5.  Variation of muzzle gas pressure

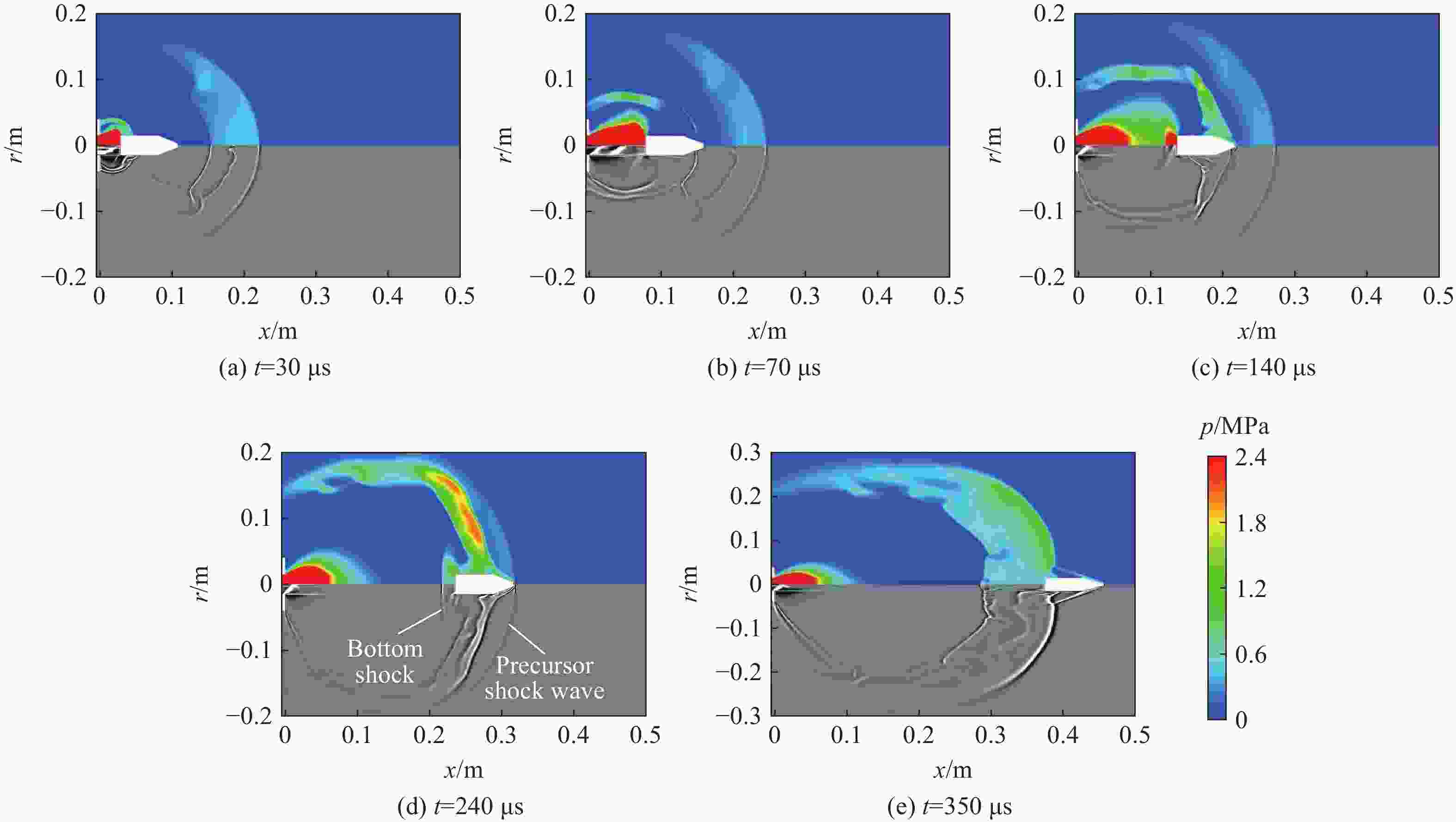

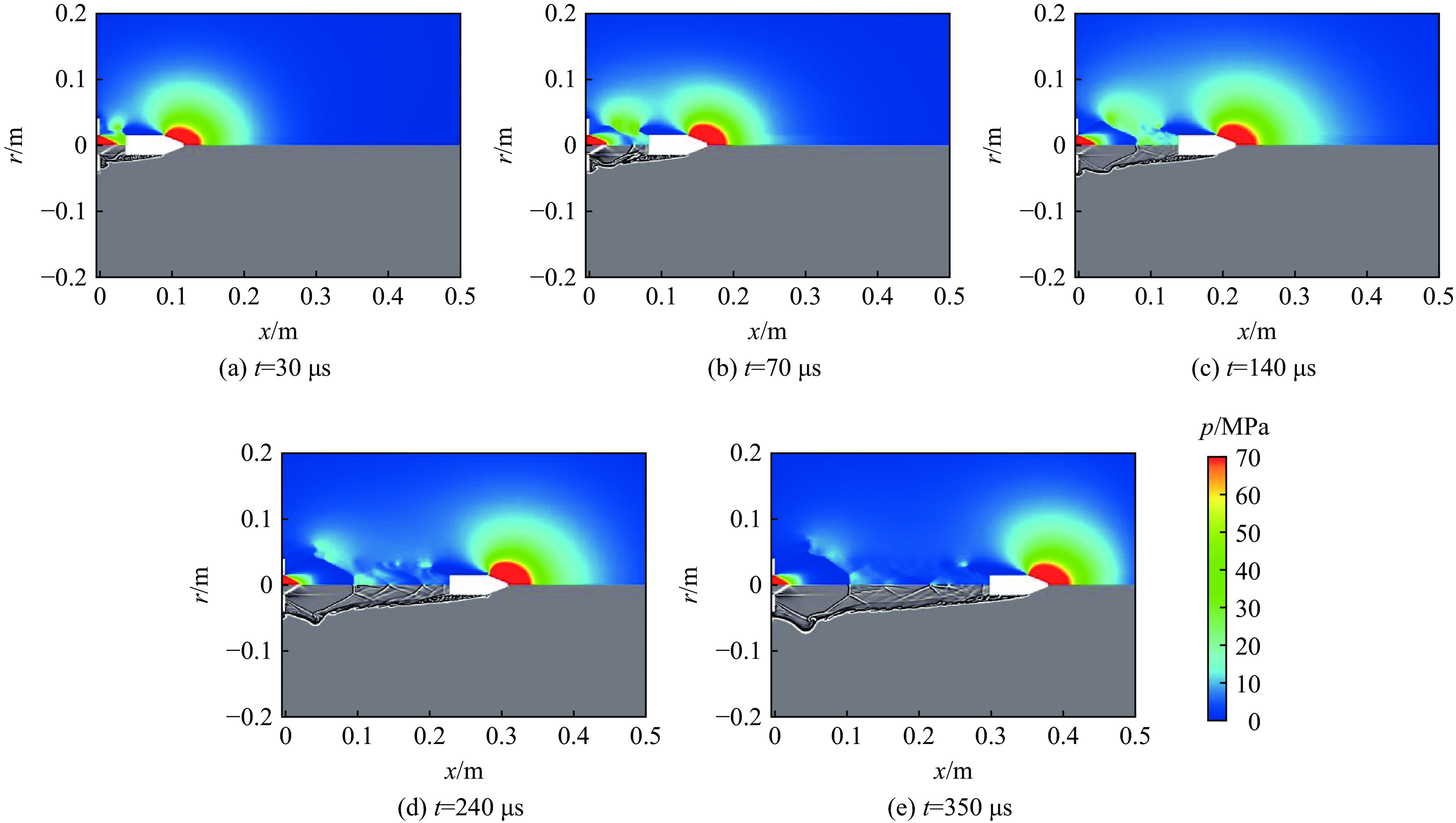

    图  6  空气中膛口压力分布及纹影图

    Figure  6.  Pressure distribution and schlieren diagram at muzzle in air

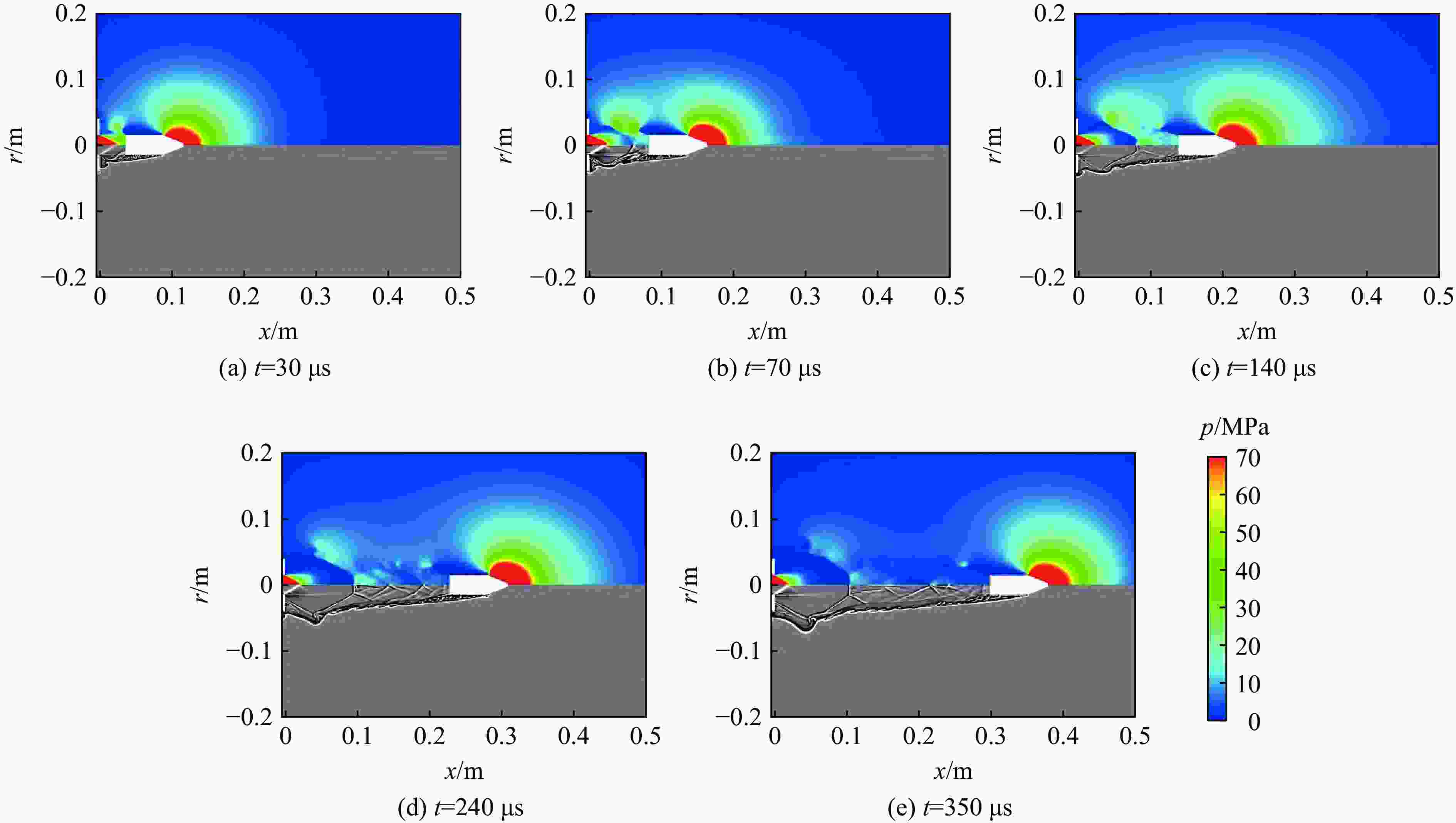

    图  7  水下膛口压力分布及纹影图

    Figure  7.  Pressure distribution and schlieren diagram at muzzle under water

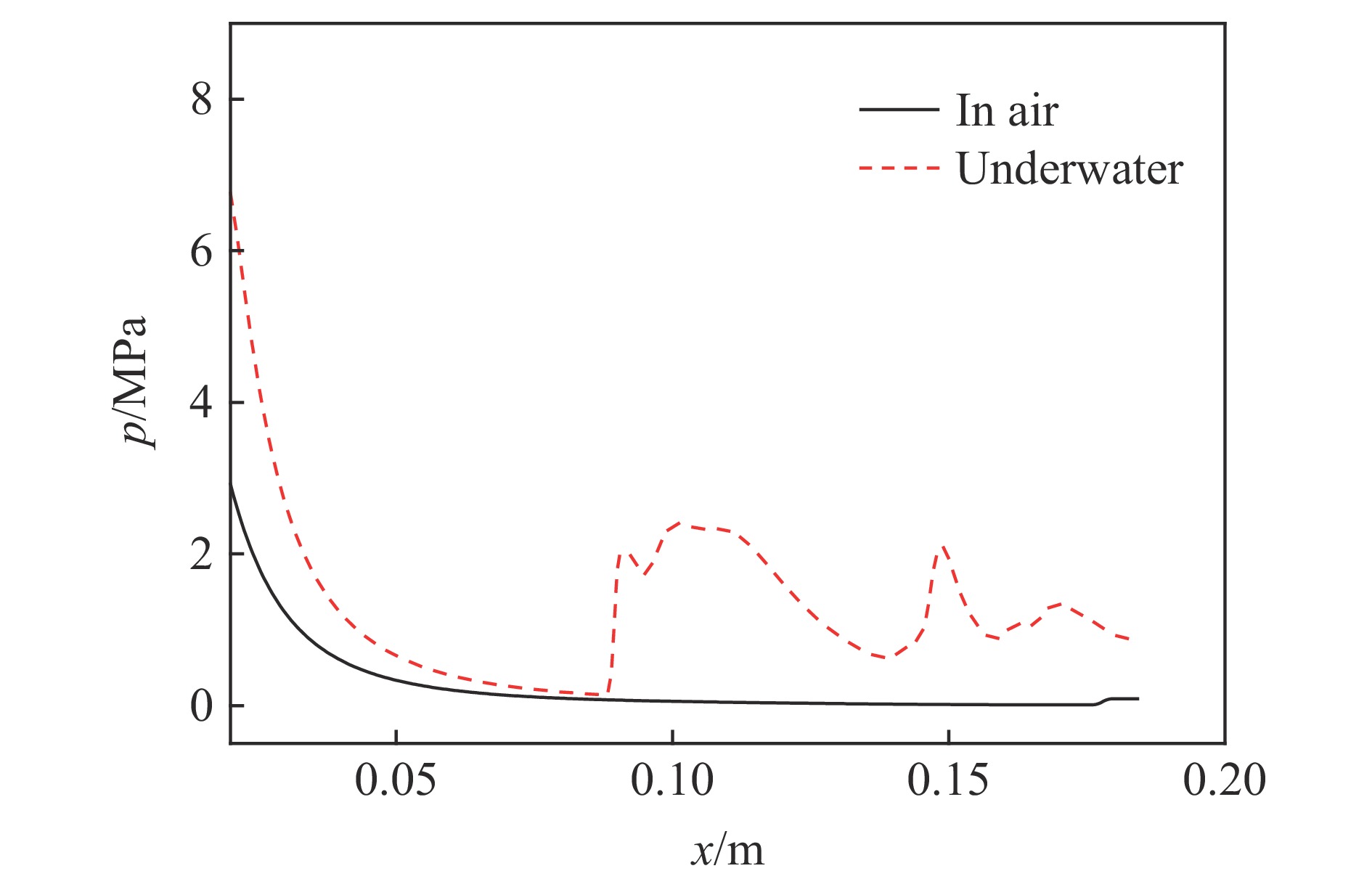

    图  8  200 μs时轴向压力分布曲线

    Figure  8.  Axial pressure distribution curves at 200 μs

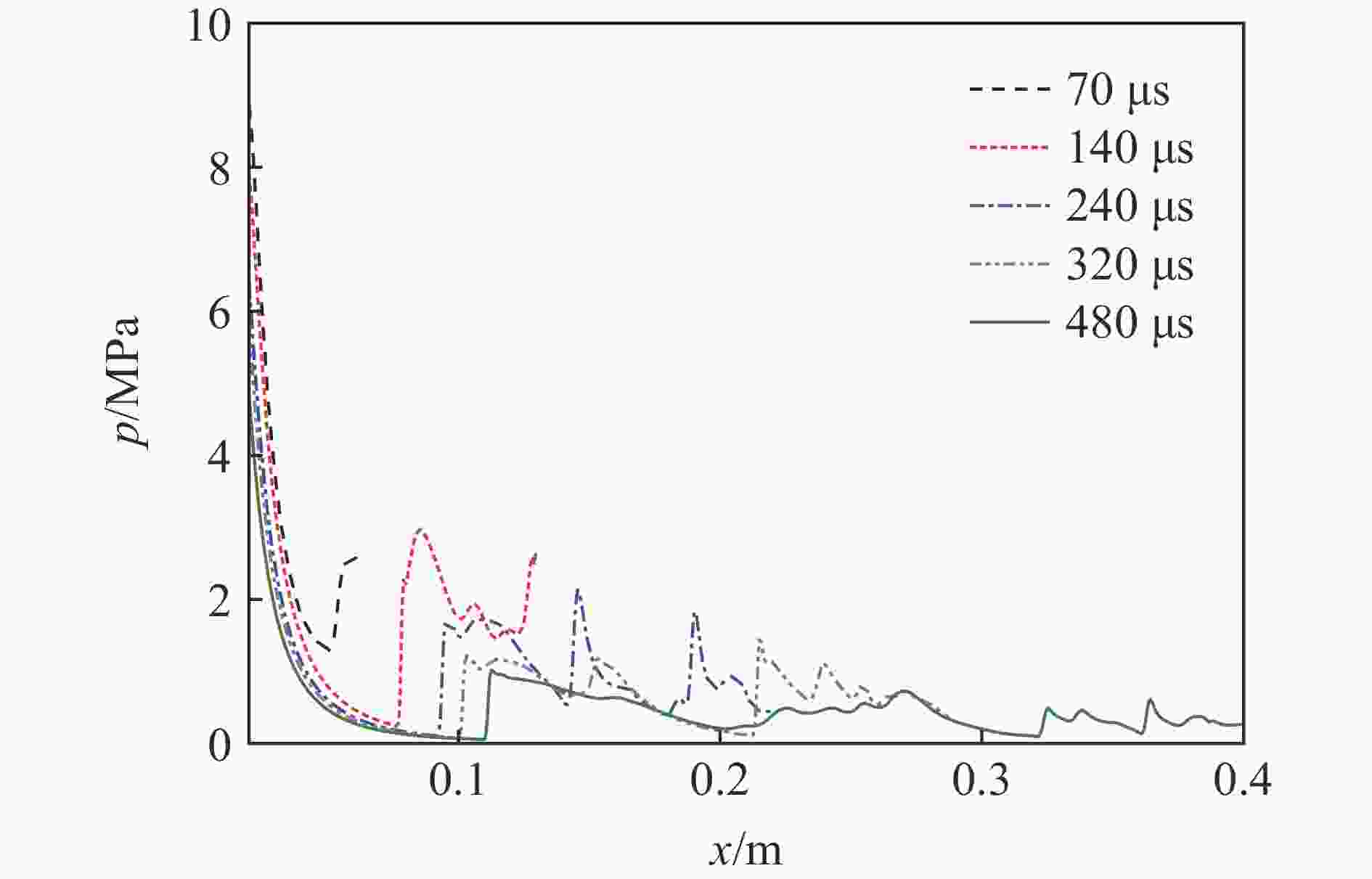

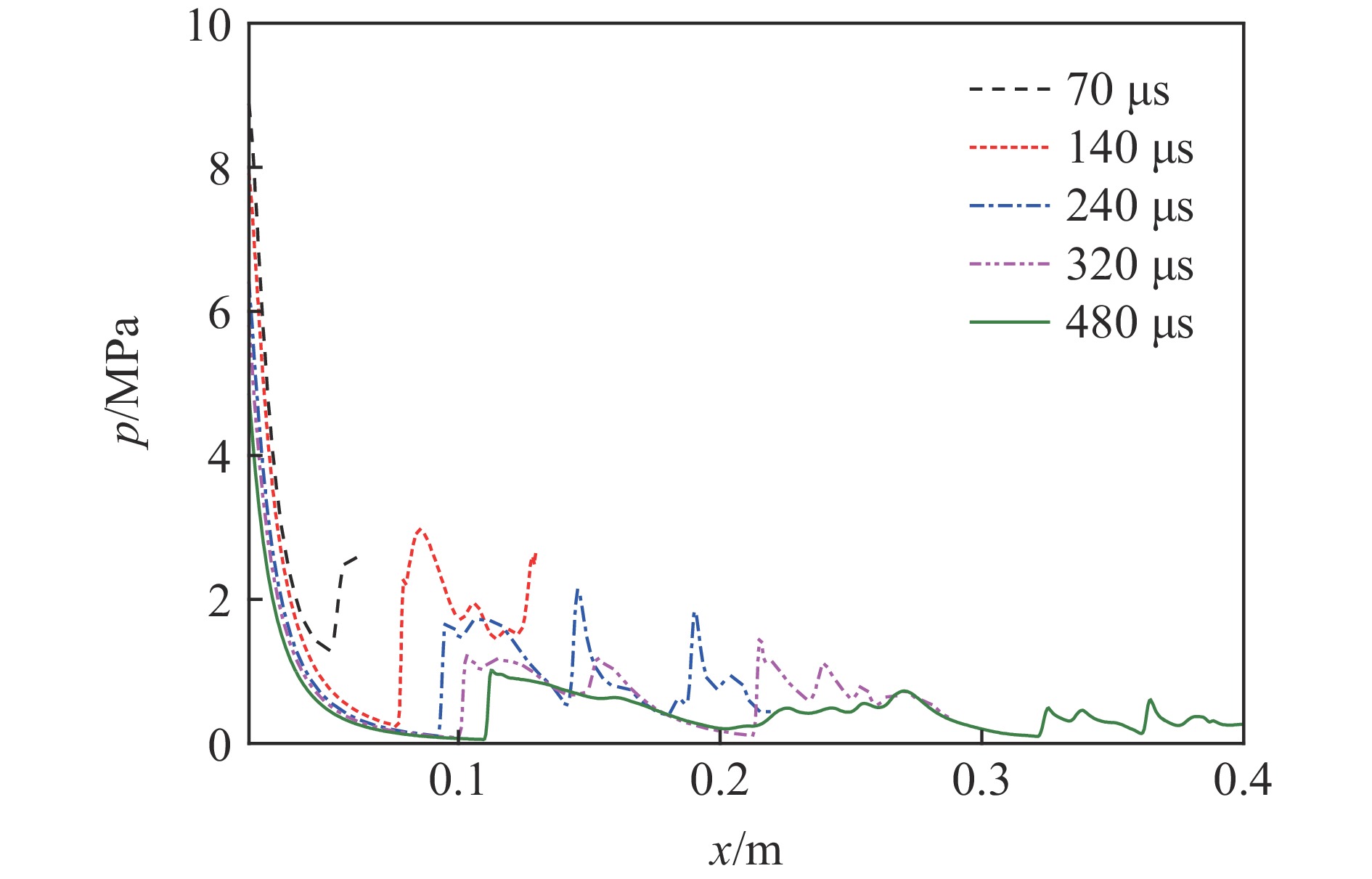

    图  9  水下不同时刻轴向压力分布曲线

    Figure  9.  Distribution curves of underwater axial pressureat different moments

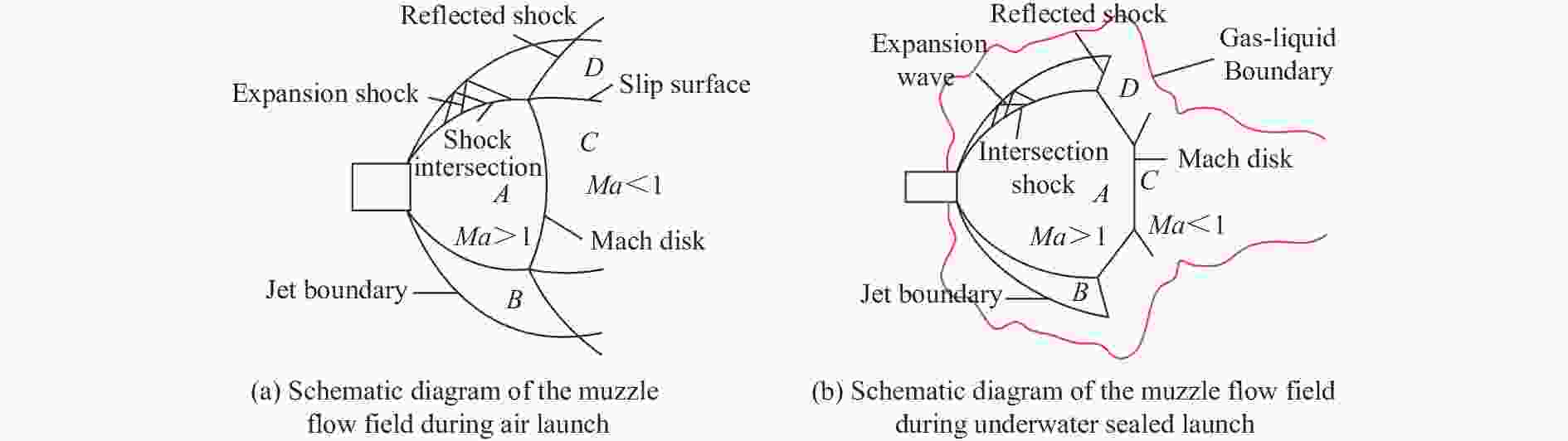

    图  10  两种环境下膛口流场流谱

    Figure  10.  Flow spectrum of muzzle flow field in two environments

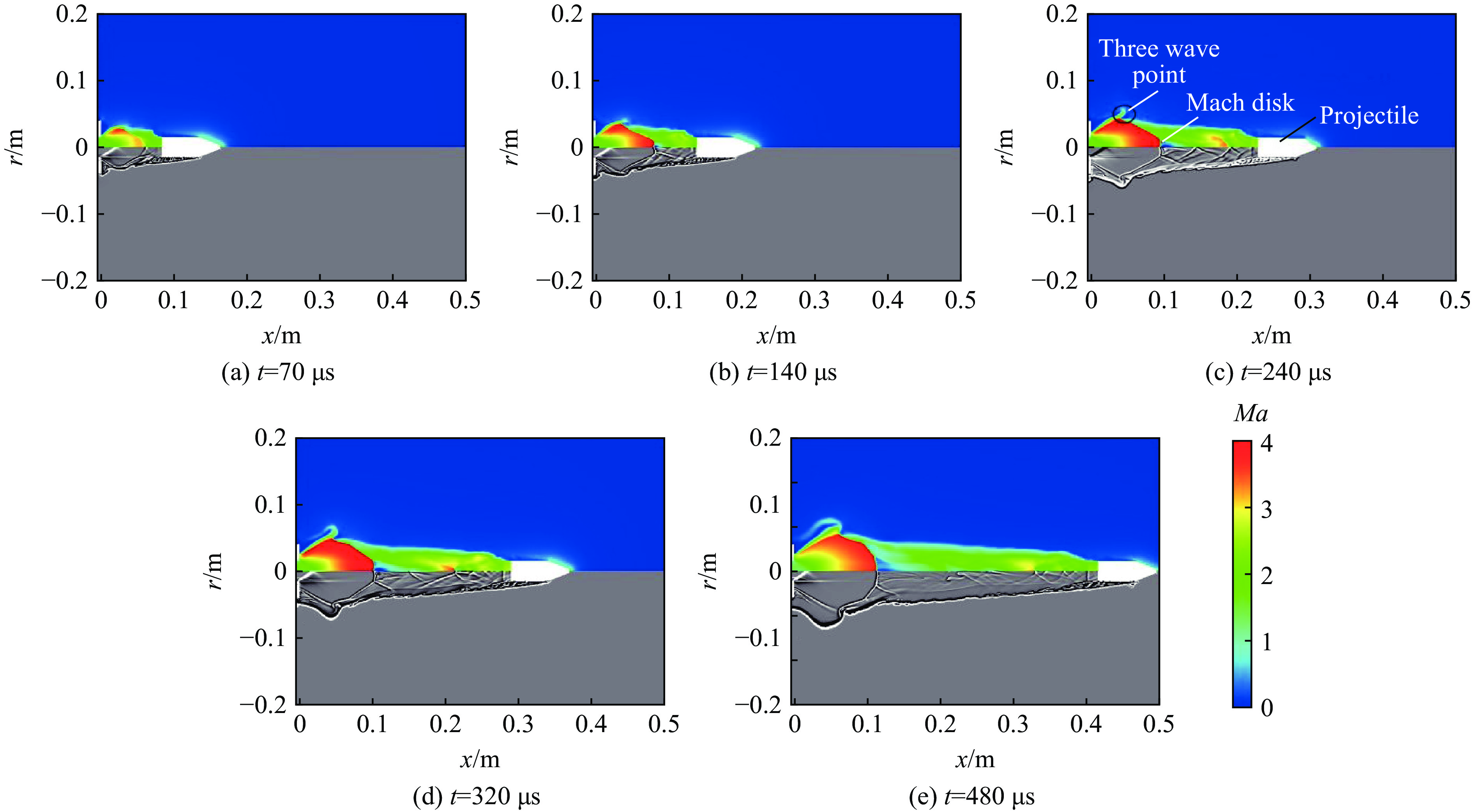

    图  11  水下发射时膛口马赫数分布及纹影图

    Figure  11.  Mach number distribution and schlieren diagram at muzzle under water

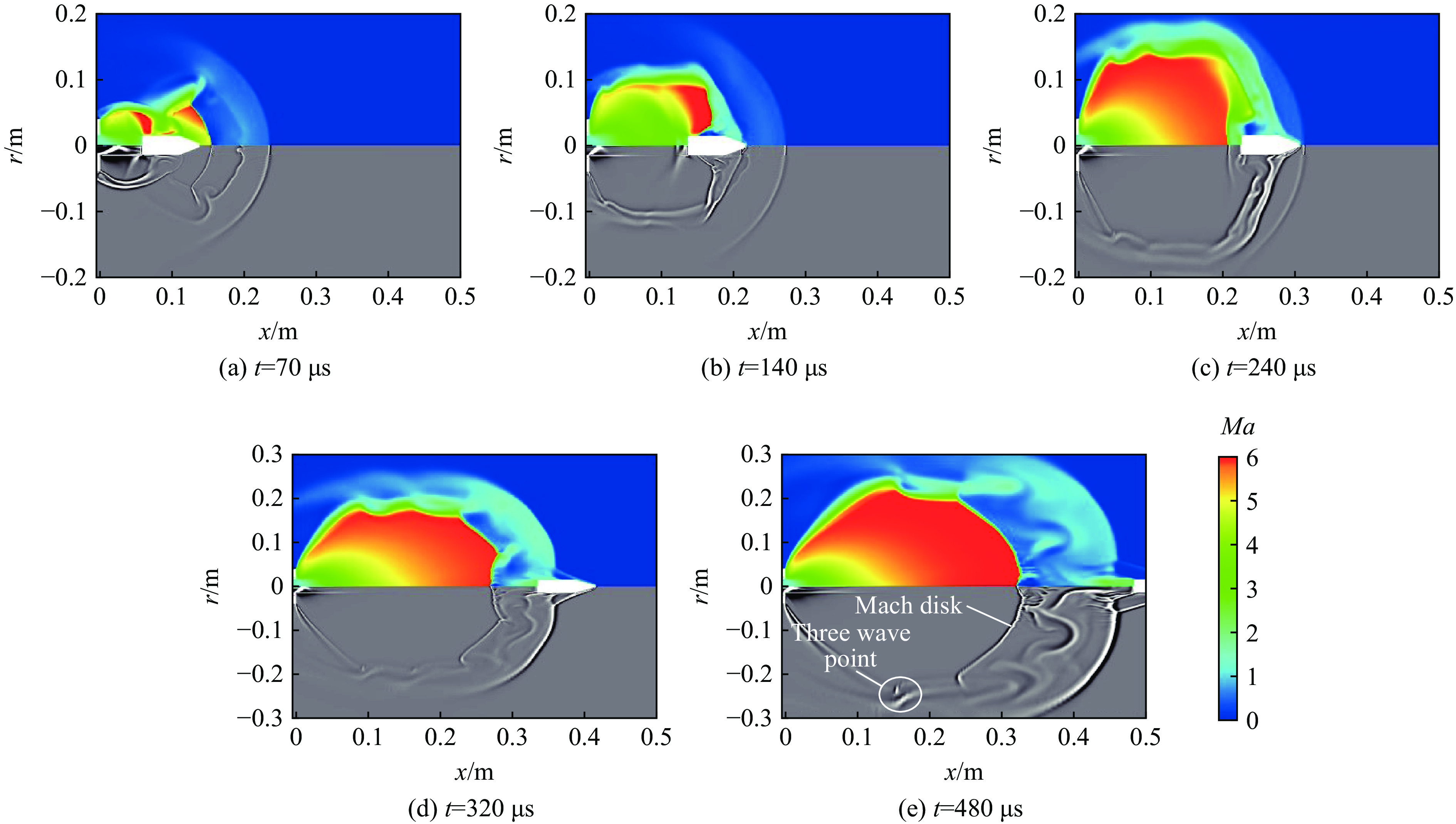

    图  12  空气中发射时膛口马赫数及纹影图

    Figure  12.  Mach number distribution and schlieren diagram at muzzle in air

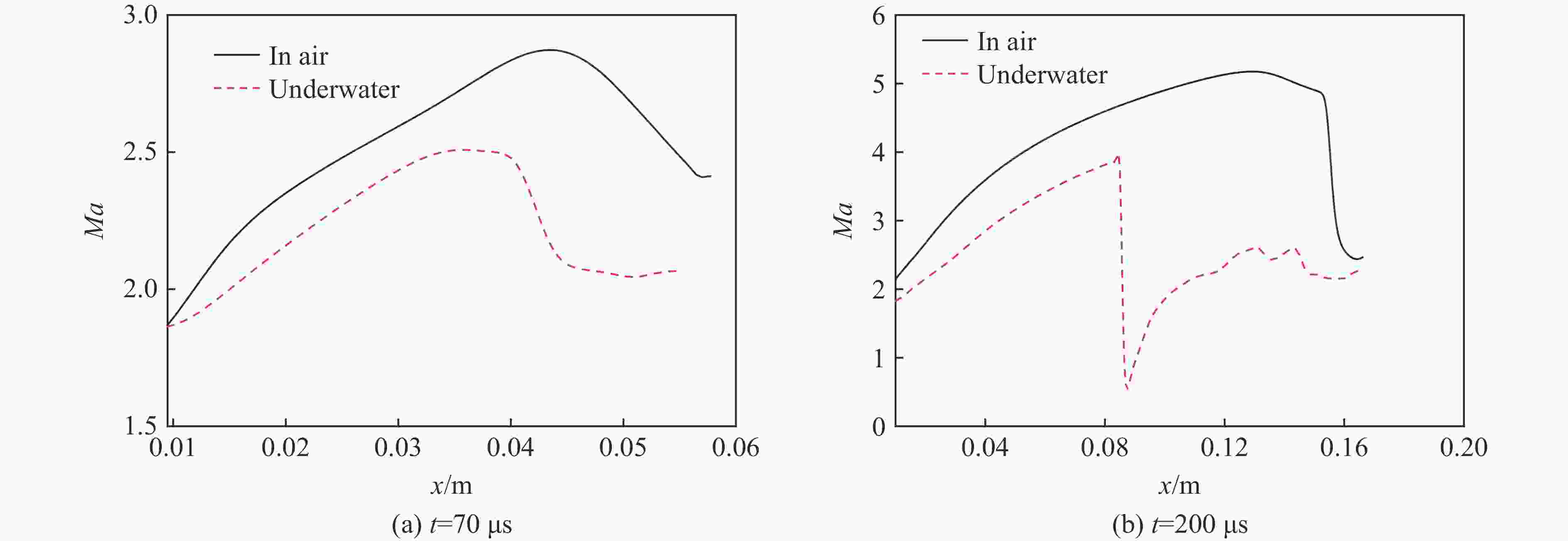

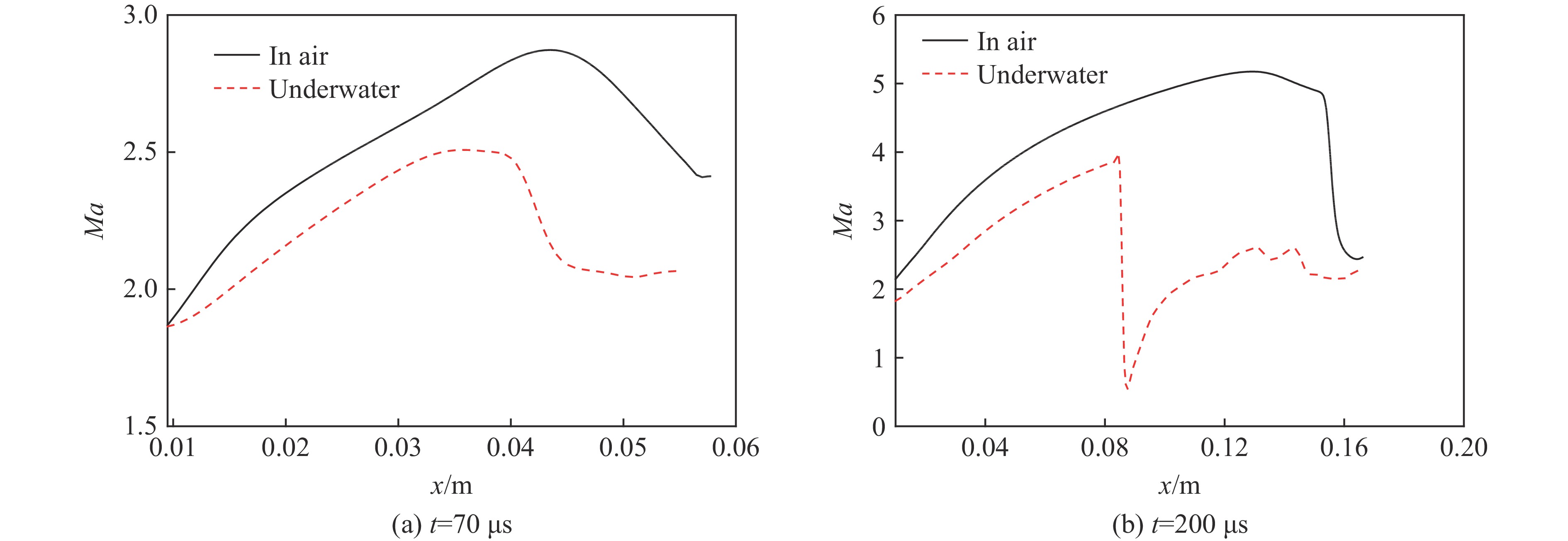

    图  13  马赫数轴向分布曲线

    Figure  13.  Axial distribution of Mach number

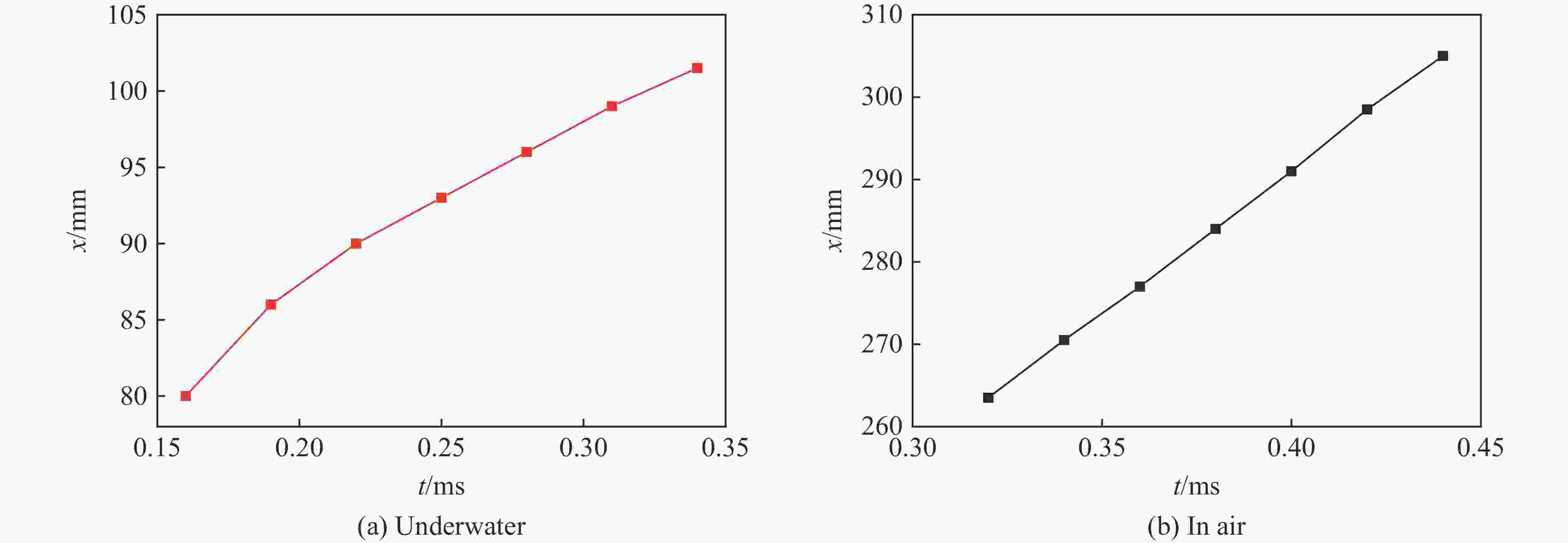

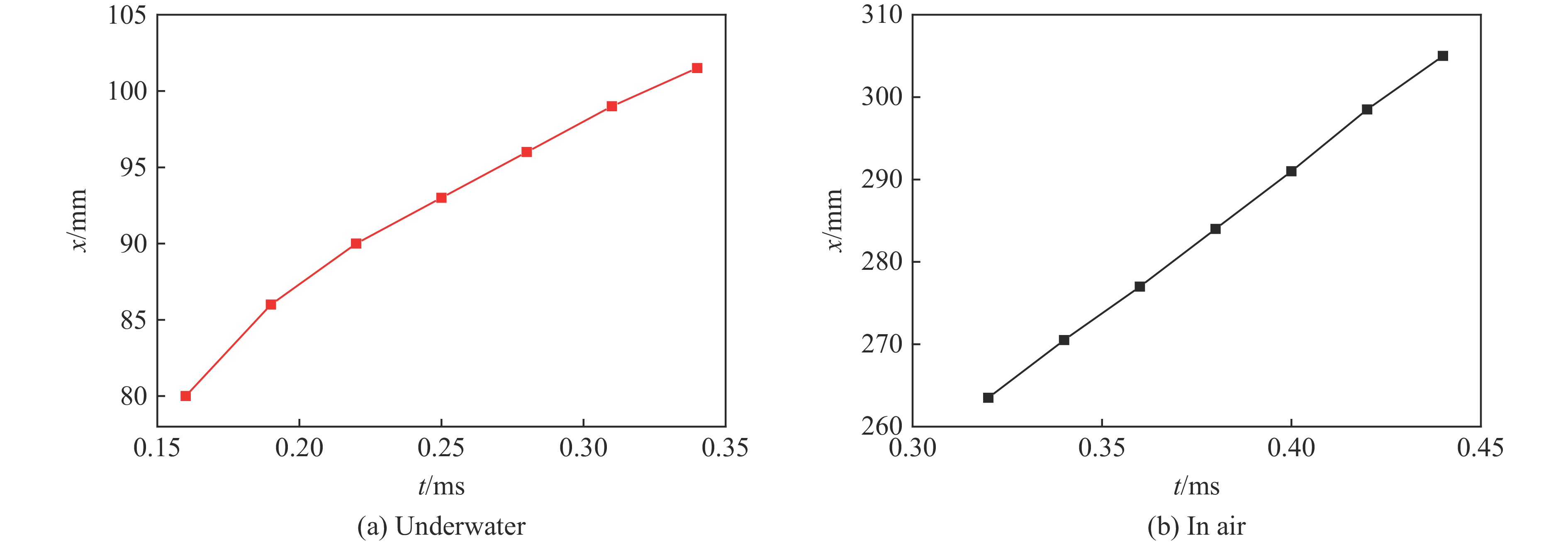

    图  14  两种环境下的马赫盘轴向位移随时间变化曲线

    Figure  14.  Mach disc’s axial displacement with time in two environments

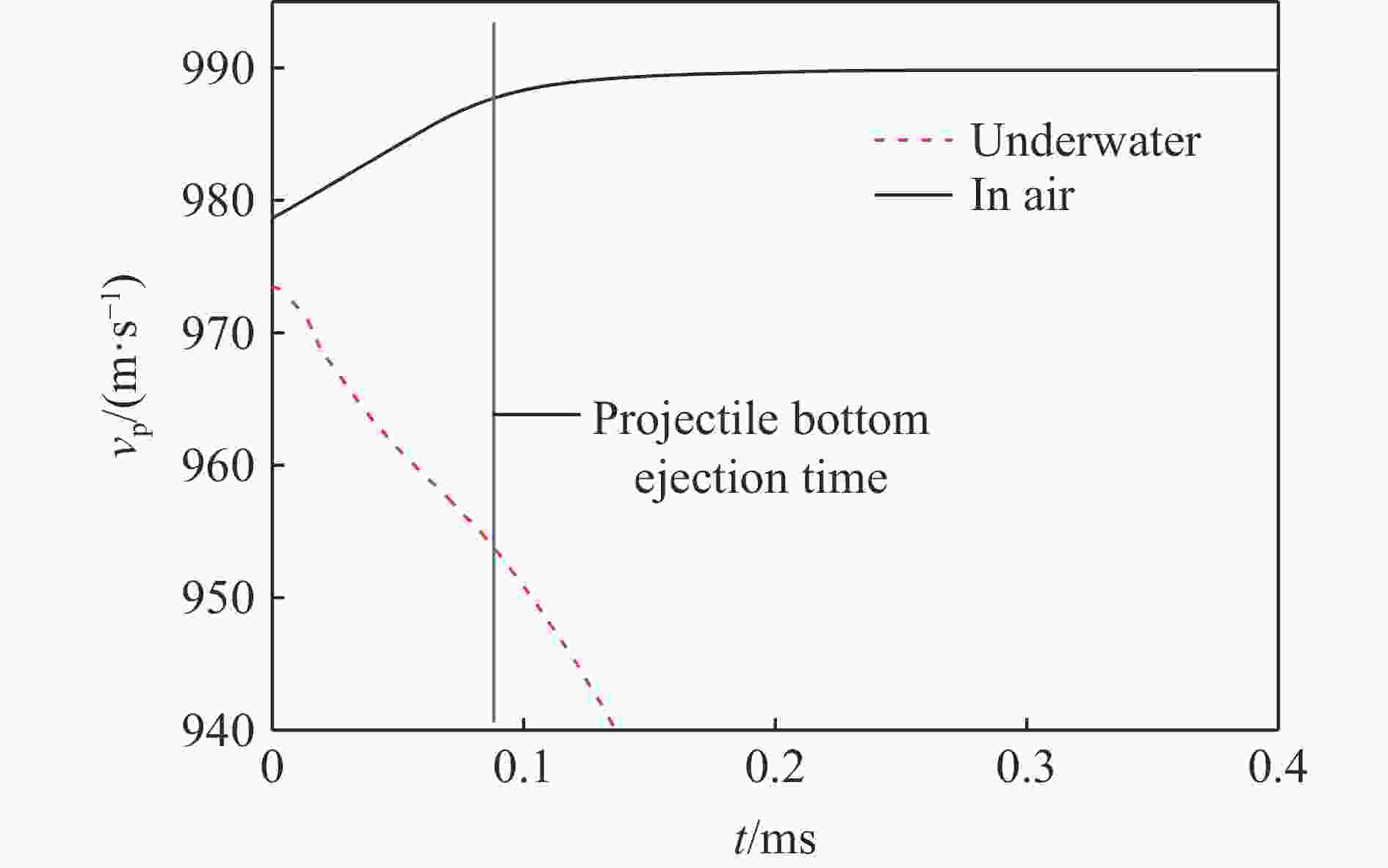

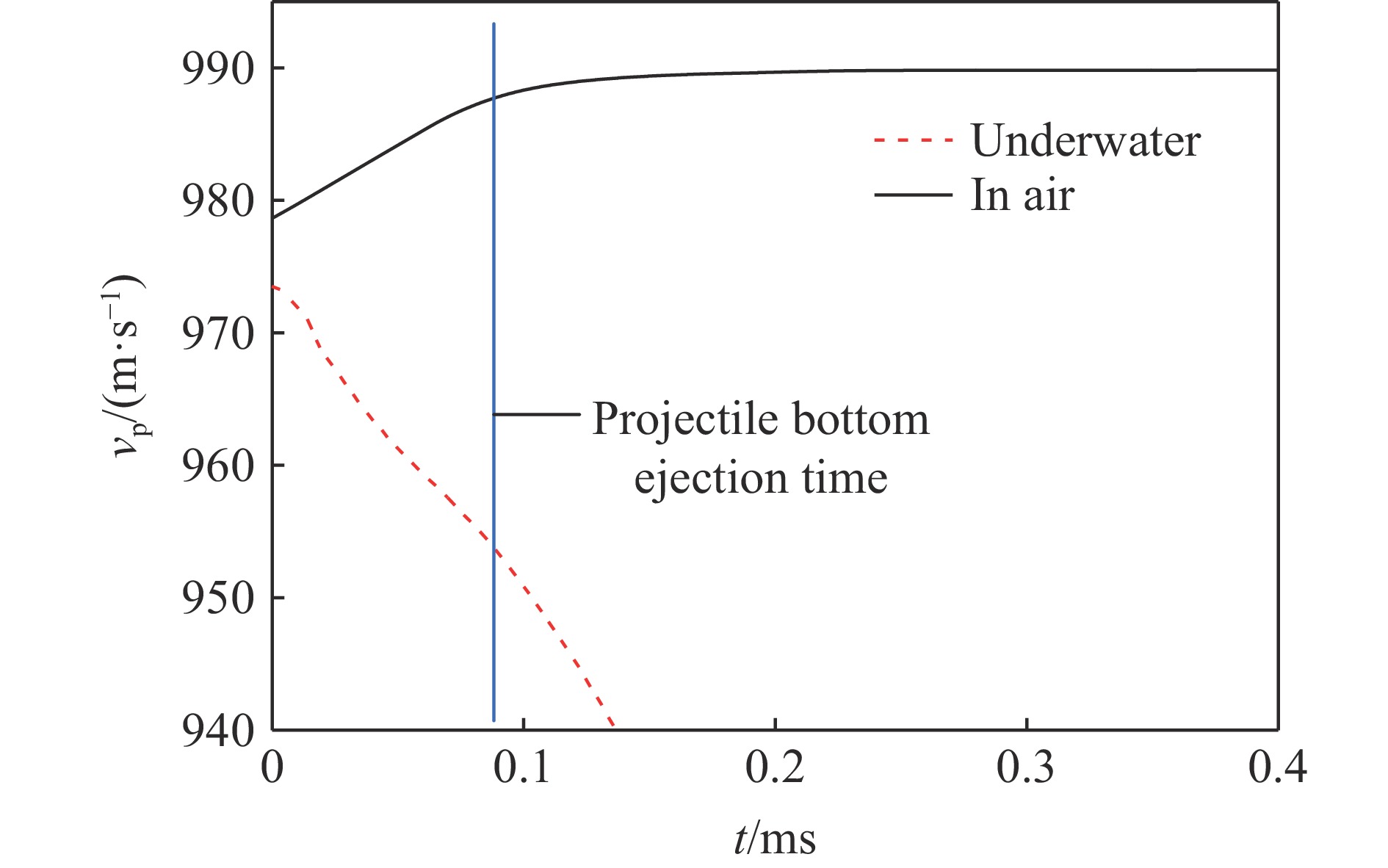

    图  15  不同介质中弹丸速度随时间变化曲线

    Figure  15.  Variation of projectile velocitywith time in different media

    表  1  内弹道及膛口参数

    Table  1.   Interior ballistics and muzzle parameters

    发射环境x/mv0/(m·s−1pm/MPap0/MPaT0/K
    空气中 1.94 985 317 62 2 152
    水下 1.94 953 324 96 2 380
    下载: 导出CSV
