Experimental study and numerical simulation on bubble pulsation and water jet in near-field underwater explosion
-
摘要: 海上作战时，近场水下爆炸形成的水射流能造成水面舰船结构的严重局部毁伤。为了研究近场爆炸时舰船底部水射流的形成机理及规律，开展了TNT当量2.5 g的炸药在固支方板底部不同爆距下起爆的水下爆炸实验。结果表明，气泡坍塌形成水射流的过程随着爆距的增加由吸附式向非吸附式转化。接着，基于ABAQUS软件采用CEL方法开展了系列数值模拟，结果表明：爆距在0.821～0.867倍最大气泡半径时，存在吸附式射流向非吸附式射流转化的临界点；固支方板加快了气泡坍塌的进程，炸药与钢板间的距离越小则射流形成的时间越早；射流形成过程中最大速度和射流击中钢板时速度均随着爆距的增大先增大后减小，并在临界点附近达到最大值，射流速度最大可达621 m/s，射流击中钢板时速度最大可达269 m/s。最后，给出了射流开始形成时间、射流最大速度、射流最大速度出现时间、射流击中钢板速度和射流击中钢板时间与距离参数的函数关系式。Abstract: In marine warfare, the water jets formed by near-field underwater explosions can cause serious local damage to ship structures. With more knowledge on near-field underwater explosions, the phenomenon of water jet has become a hot research topic in recent years. To study the formation mechanism of water jet during near-field explosion under the bottom of a ship, an underwater explosion experiment was carried out, in which 2.5 g of TNT was detonated under the bottom of a clamped square plate at different explosion distances. A high-speed camera was used to record the evolution of the bubble jet. At the same time, a free-field underwater pressure sensor was used to measure the pressure field in the water tank. The experimental results show that with the increase of the burst distance, the process of bubbles evolving to form jets at the bottom of the square plate can be divided into two types; that is, the adsorption type and non-adsorption type. Then, by employing ABAQUS software andusing the CEL method, a series of numerical simulations were carried out for the experiment. The numerical simulation results show that the critical point for the conversion from the adsorption jet to the non-adsorption jet is between 0.821 times the maximum bubble radius and 0.867 times the maximum bubble radius. Because the upper part of the bubble is difficult to expand freely under the barrier of the steel plate, the corresponding burst distance when the bubble is adsorbed is smaller than the maximum bubble radius. By analyzing the velocity cloud diagram at the jet being formed, it is found that with the increase of the burst distance, because the clamped square plate accelerates the process of bubble collapse, the time of jet formation is advanced. The maximum velocity during the formation process of water jet and the velocity when water jet hits the steel plate both increase first and then decrease with the increase of the burst distance, reaching the maximum near the critical point. The maximum jet velocity can reach 621 m/s, the maximum jet velocity when jet hits the steel plate can reach 269 m/s. Because the larger the burst distance, the later the bubble collapses, and the more concentrated the energy in the bubble, which makes the jet velocity larger, but when the burst distance is too large, the Bjerknes effect of the steel plate on the bubble will be weakened, which will reduce the jet velocity. Consequently, a critical point of the burst distance exists, at which the jet velocity renders a maximum.
-
Key words:
- underwater explosion /
- water jet /
- burst distance /
- adsorption jet /
- bubble collapse
-

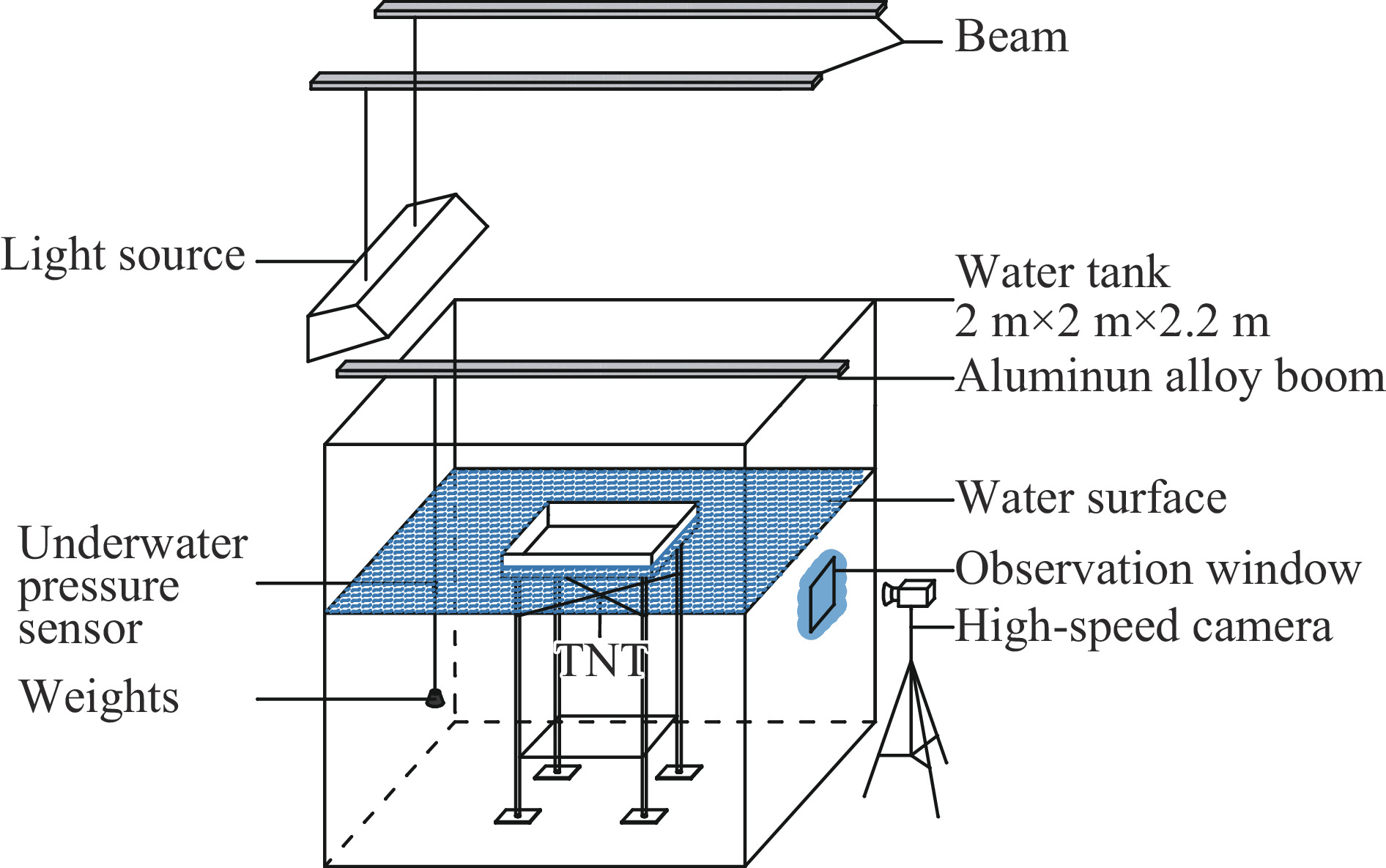

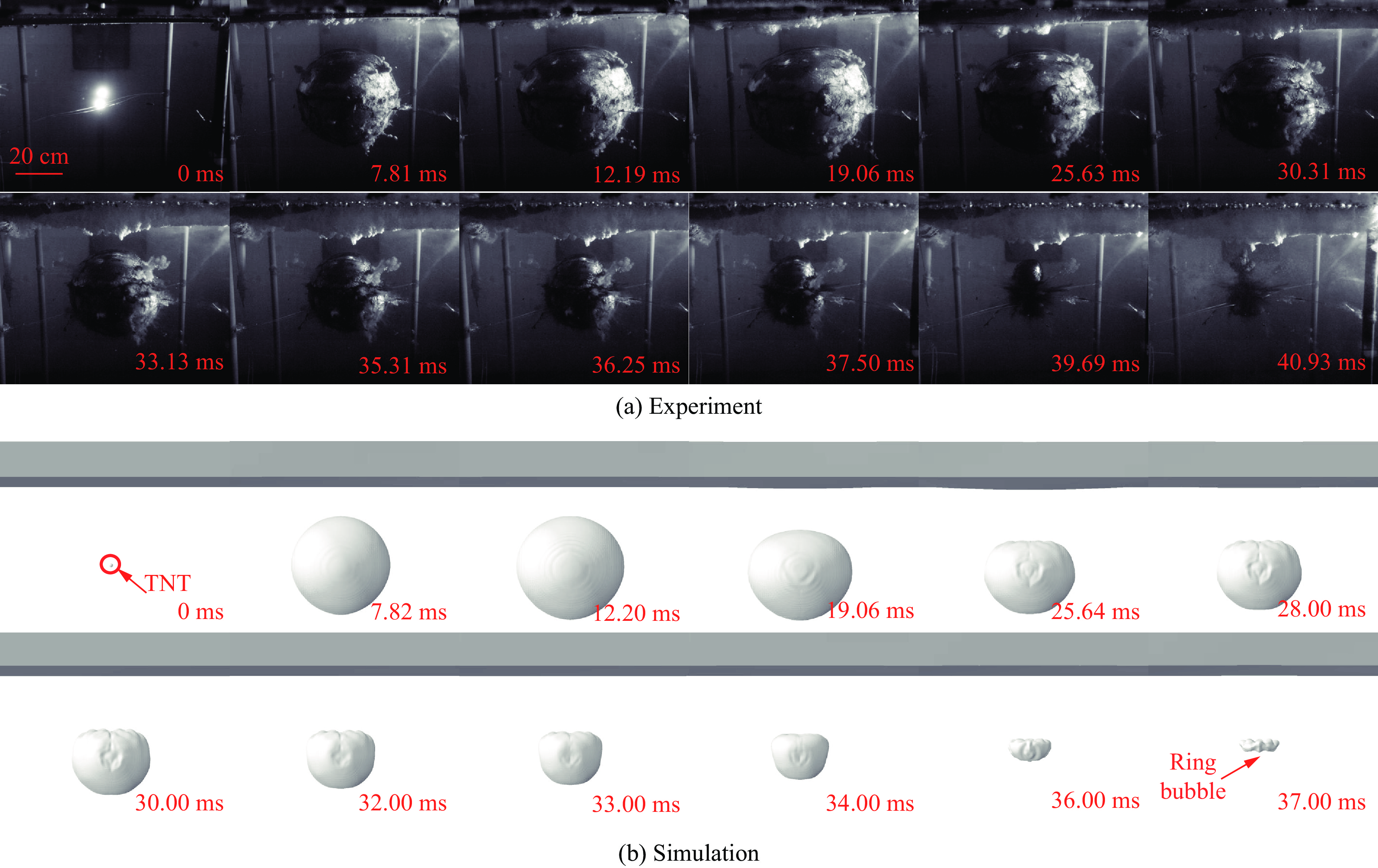

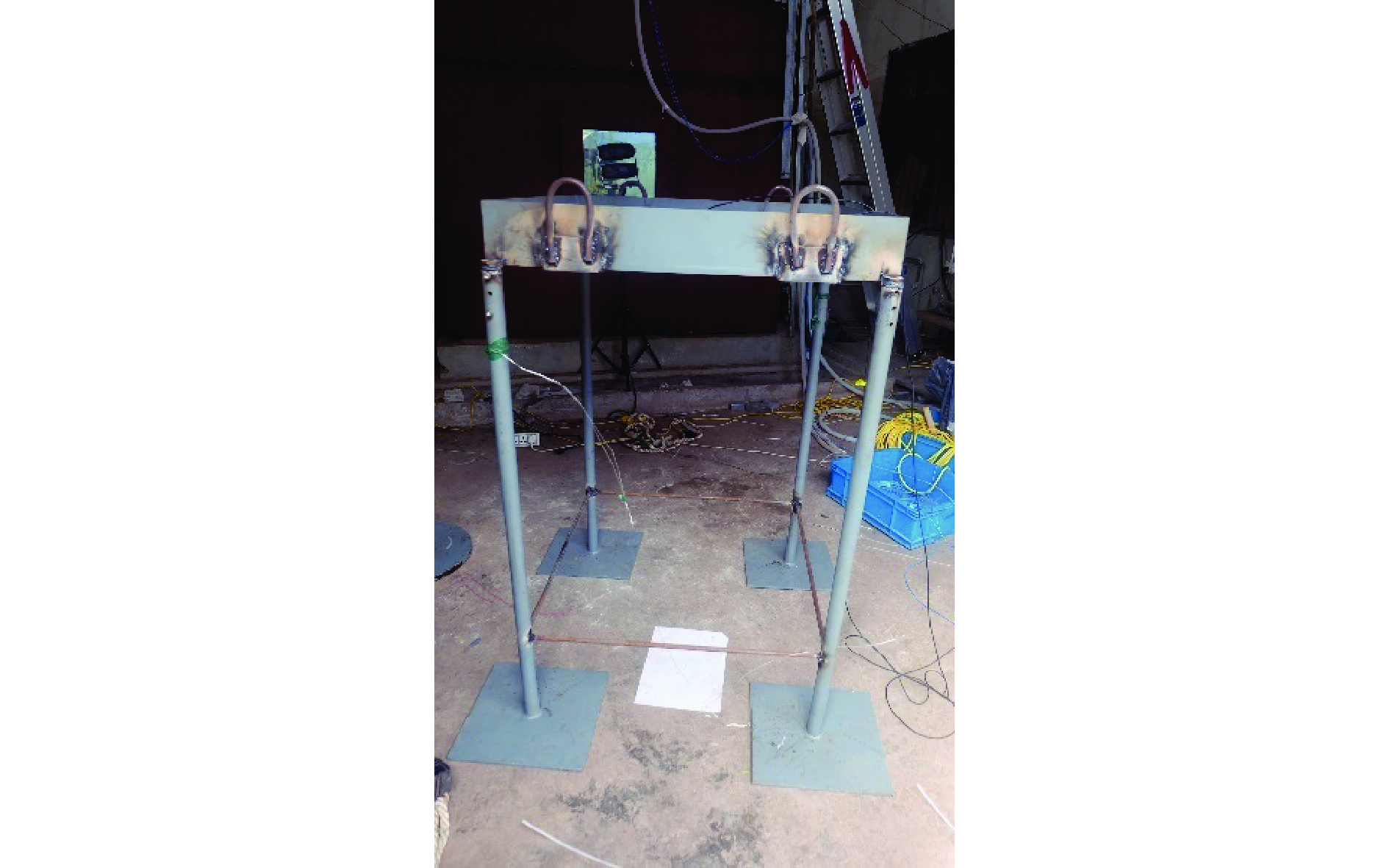

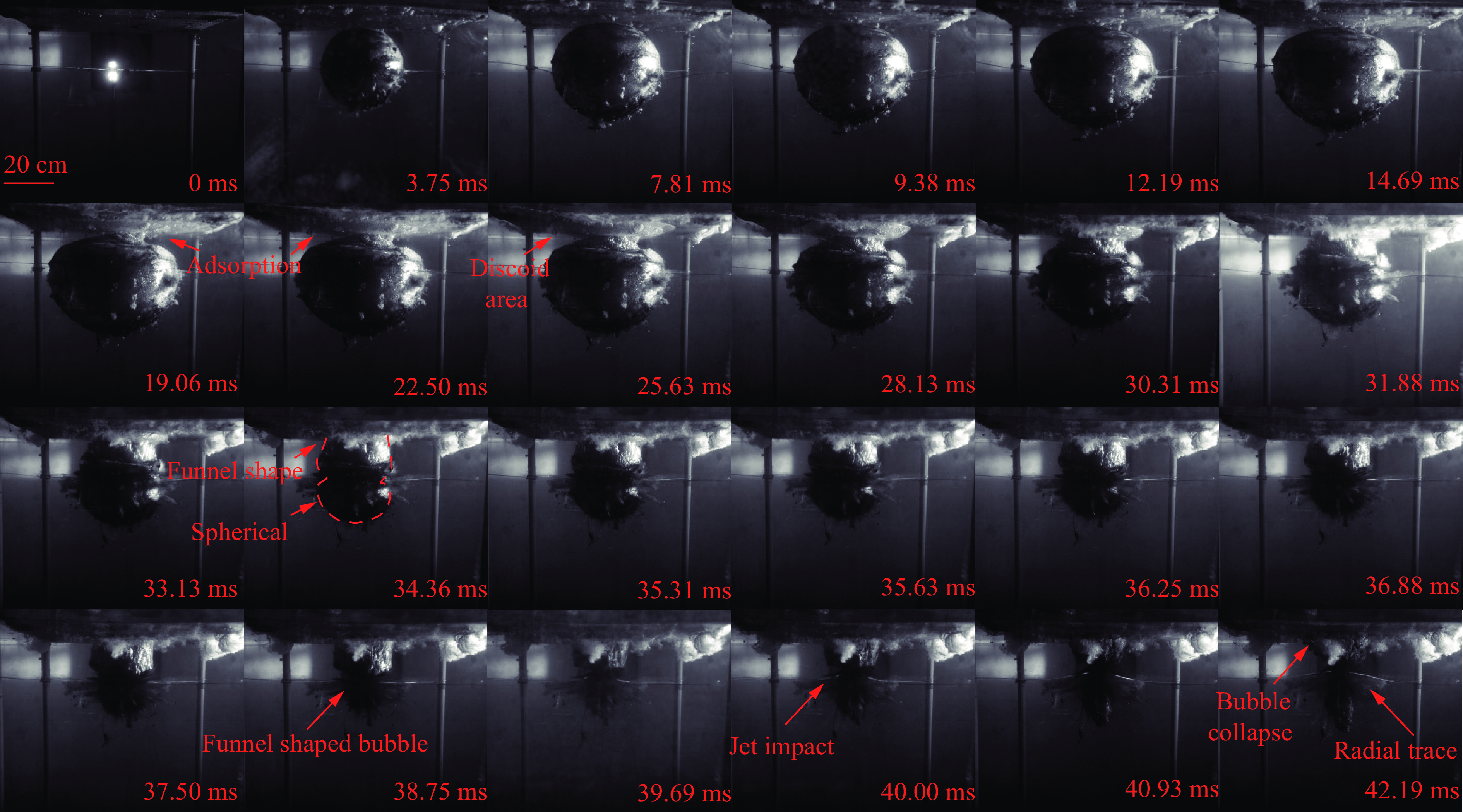

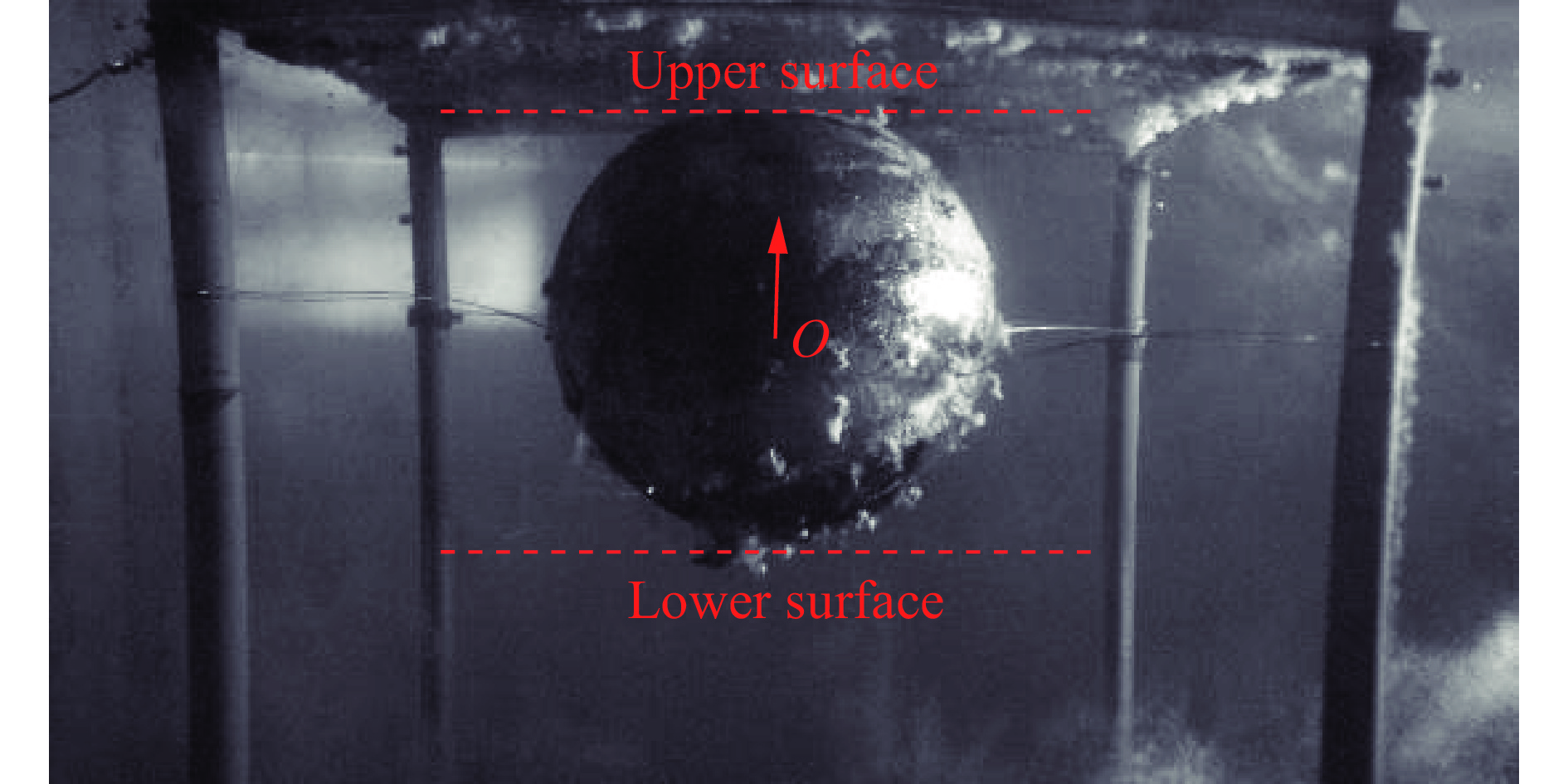

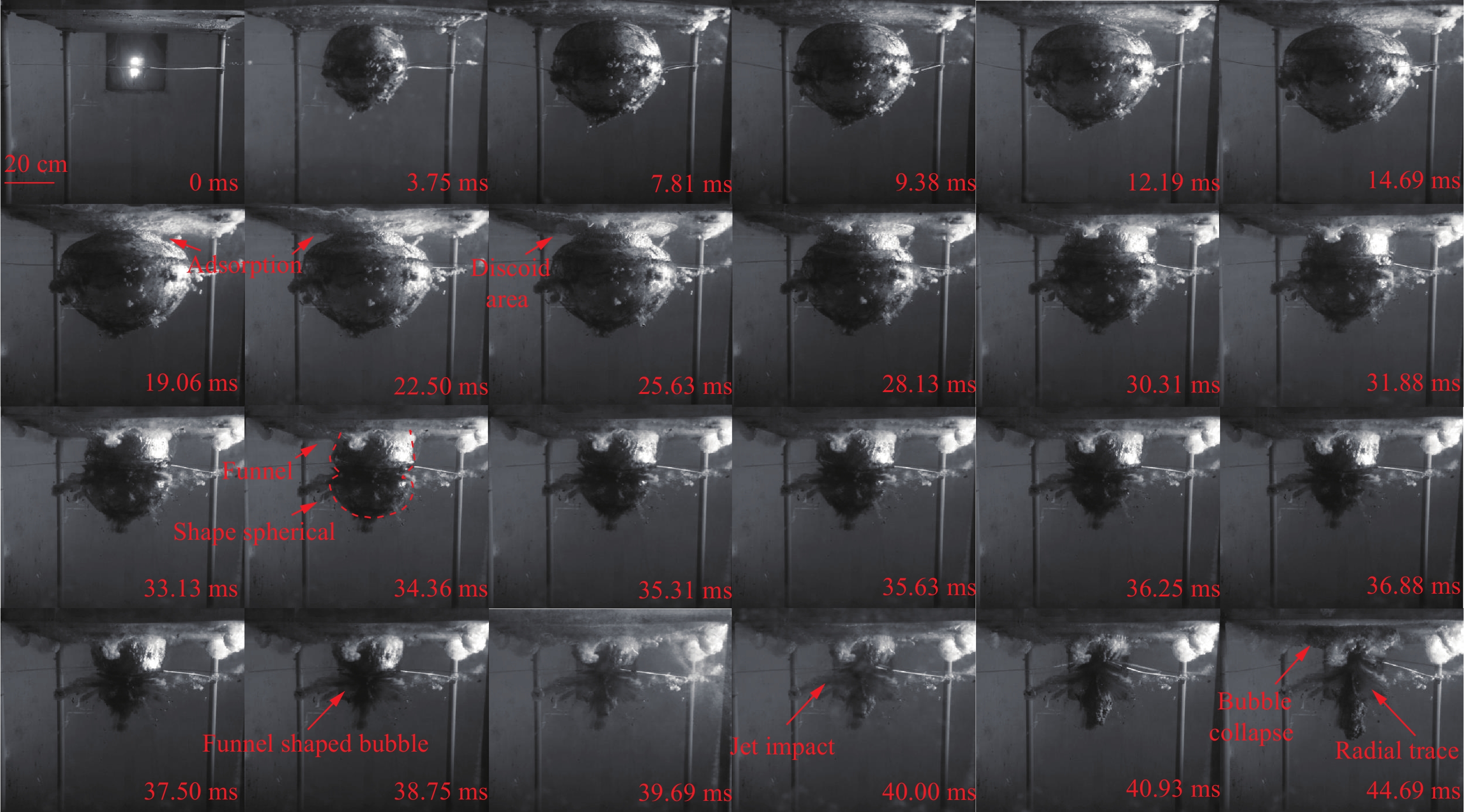

图 4 当γ=0.684时气泡演变过程的实验图像
Figure 4. Experimental images of bubble evolution process when γ=0.684

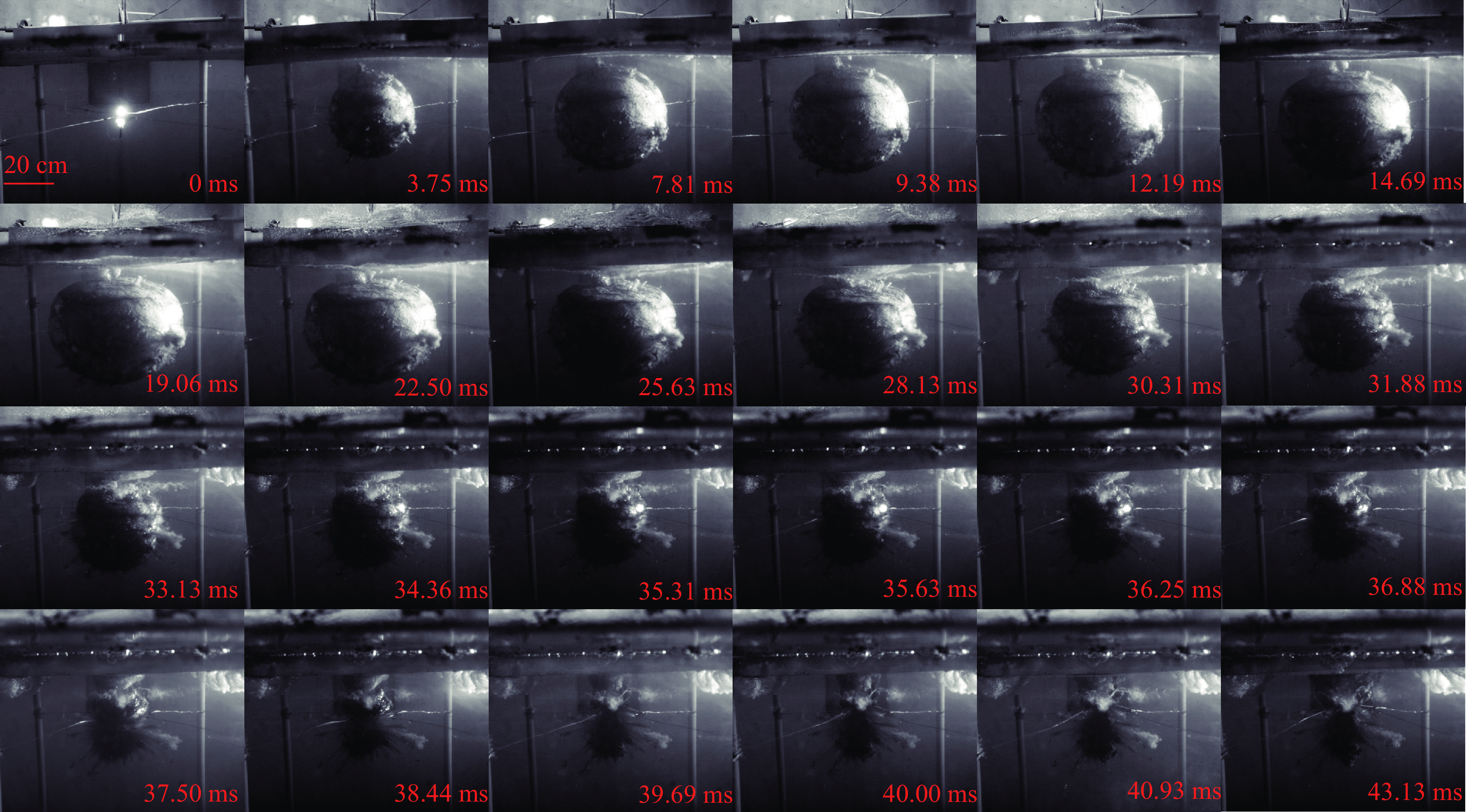

图 5 当γ=0.798时气泡演变过程的实验图像
Figure 5. Experimental images of bubble evolution process when γ=0.798

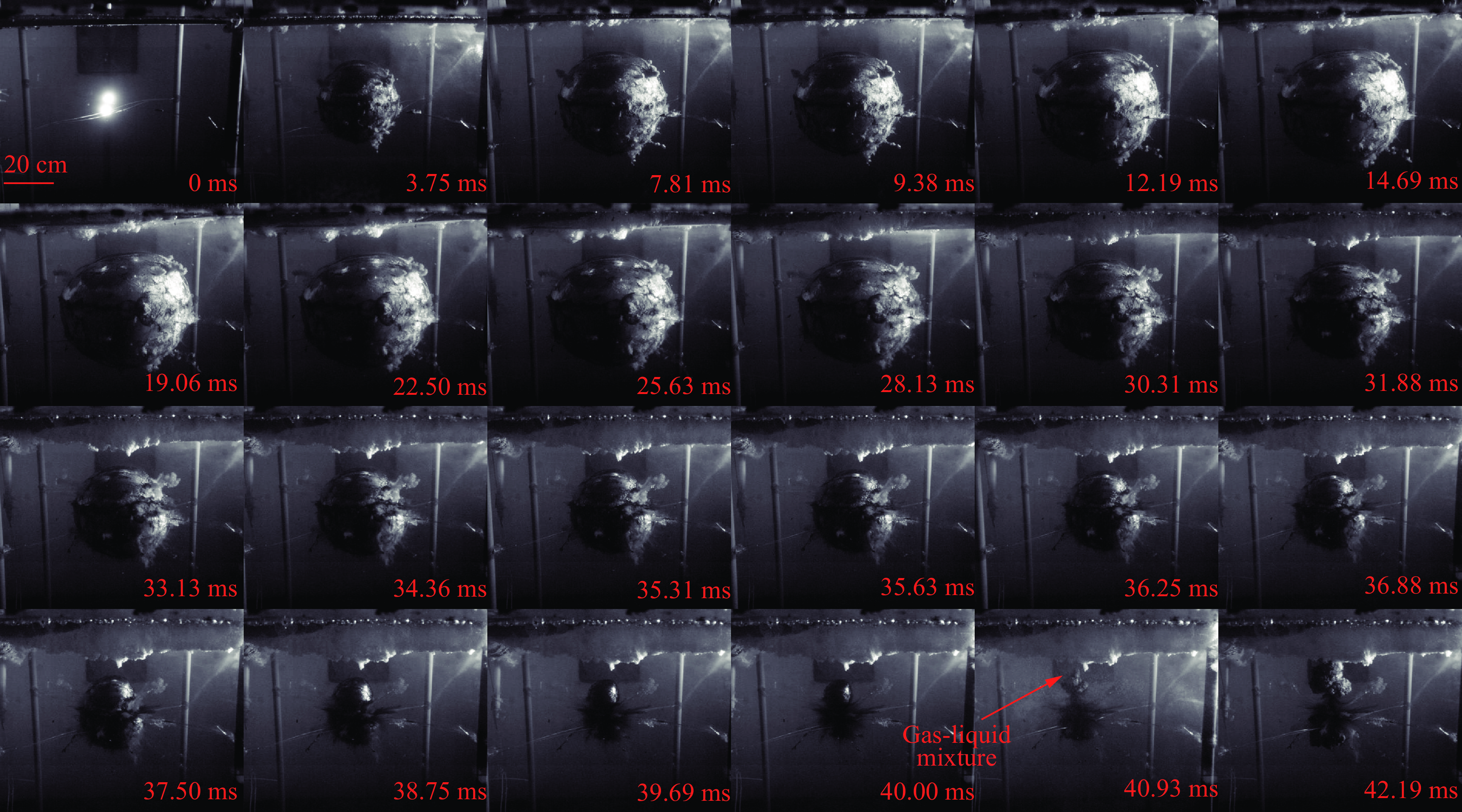

图 6 当γ=0.913时气泡演变过程的实验图像
Figure 6. Experimental images of bubble evolution process when γ=0.913
图 7 当γ=1.282时气泡演变过程的实验图像
Figure 7. Experimental images of bubble evolution process when γ=1.282

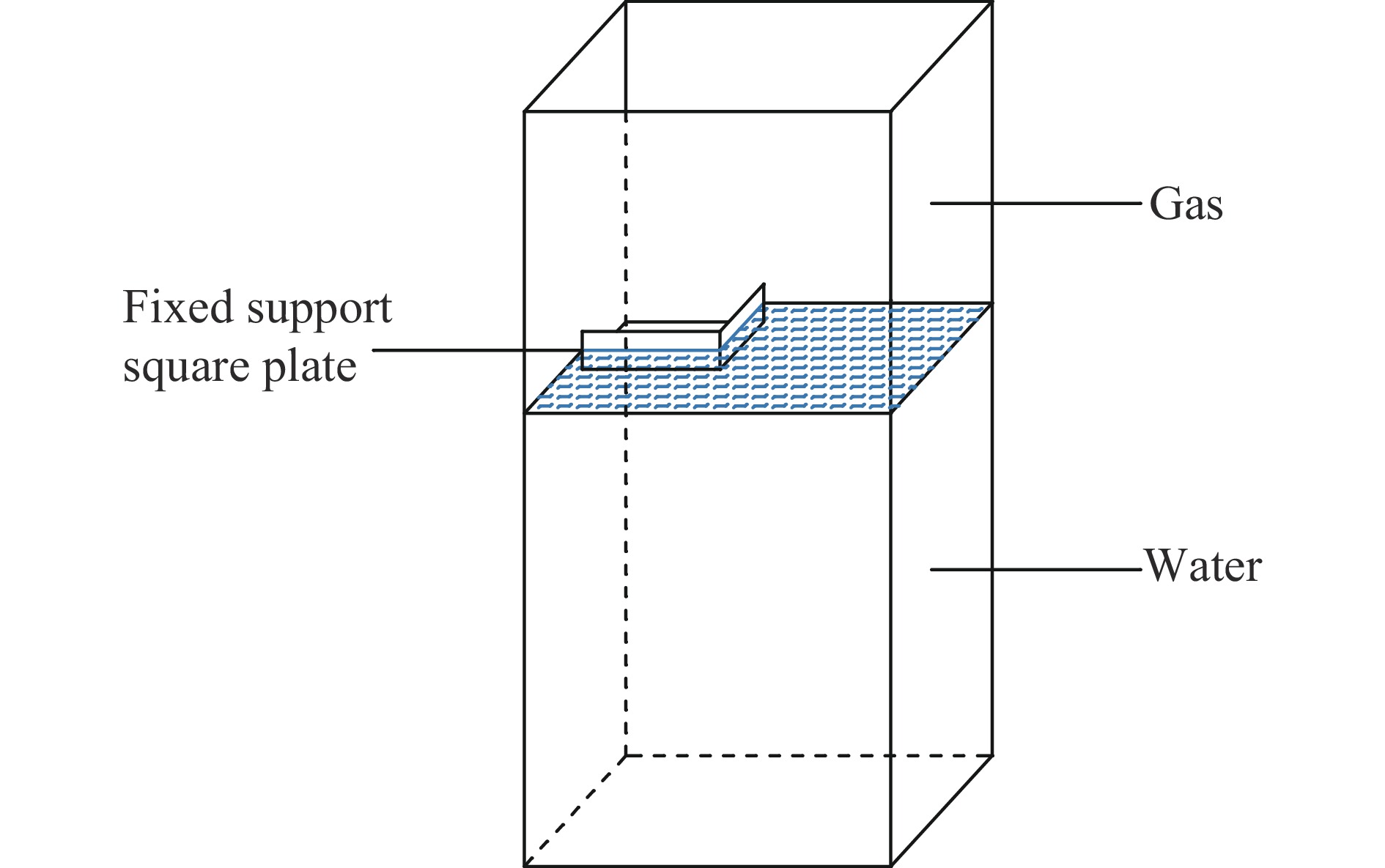

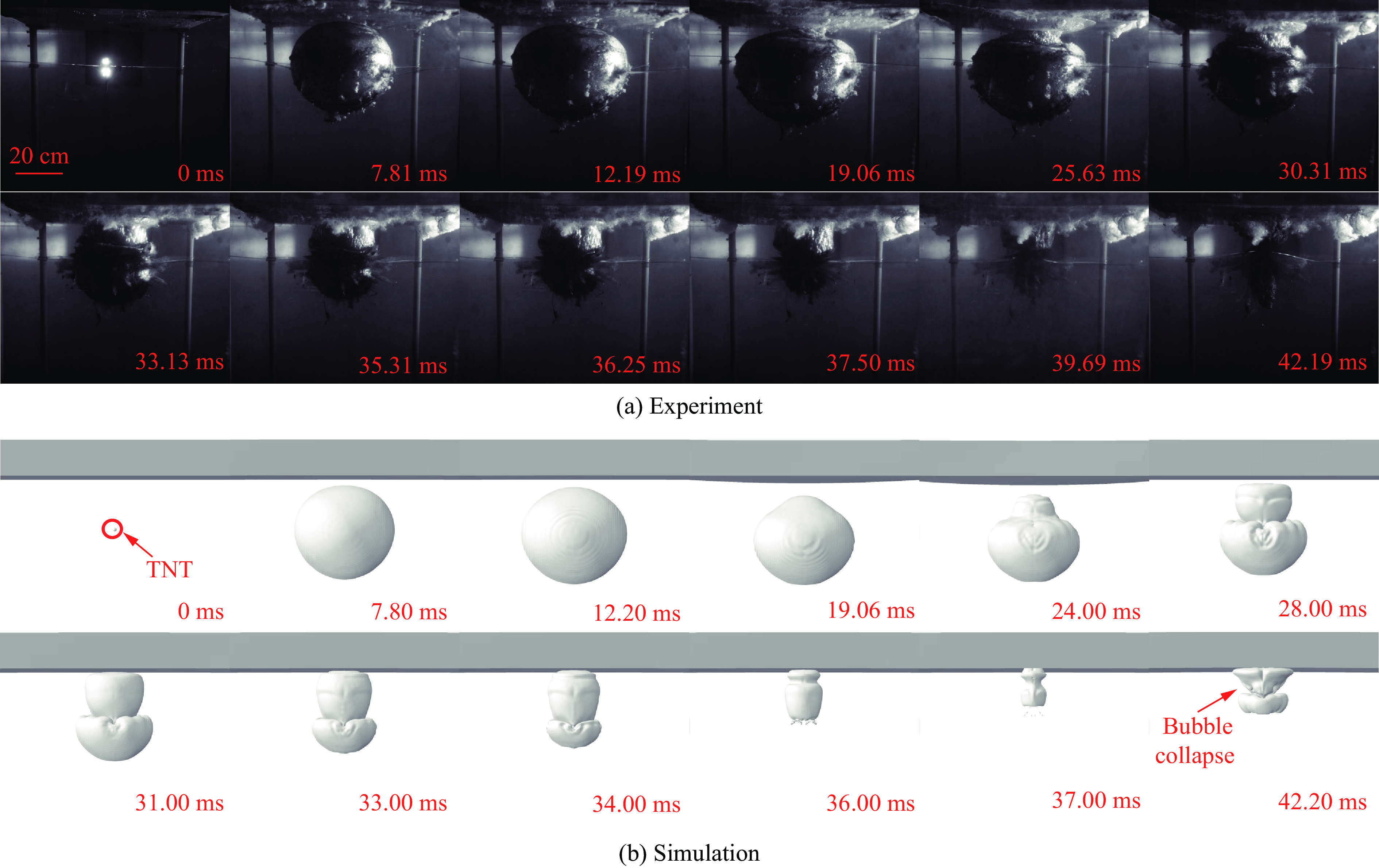

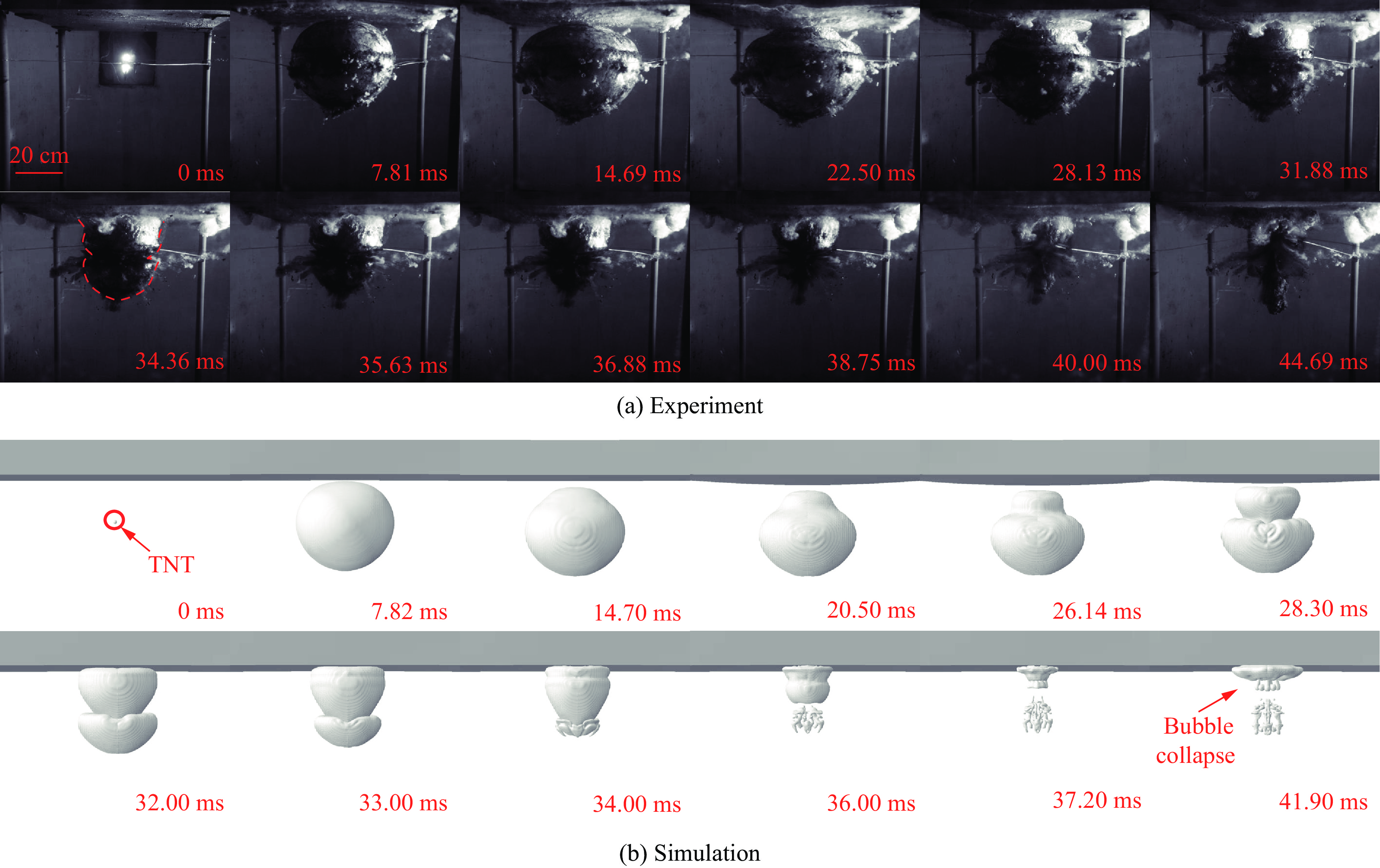

图 9 当γ=0.684时气泡演变过程的实验和数值模拟图像
Figure 9. Experimental and numerical simulation images of bubble evolution process when γ=0.684
图 10 当γ=0.798时气泡演变过程的实验和数值模拟图像
Figure 10. Experimental and numerical simulation images of bubble evolution process when γ=0.798

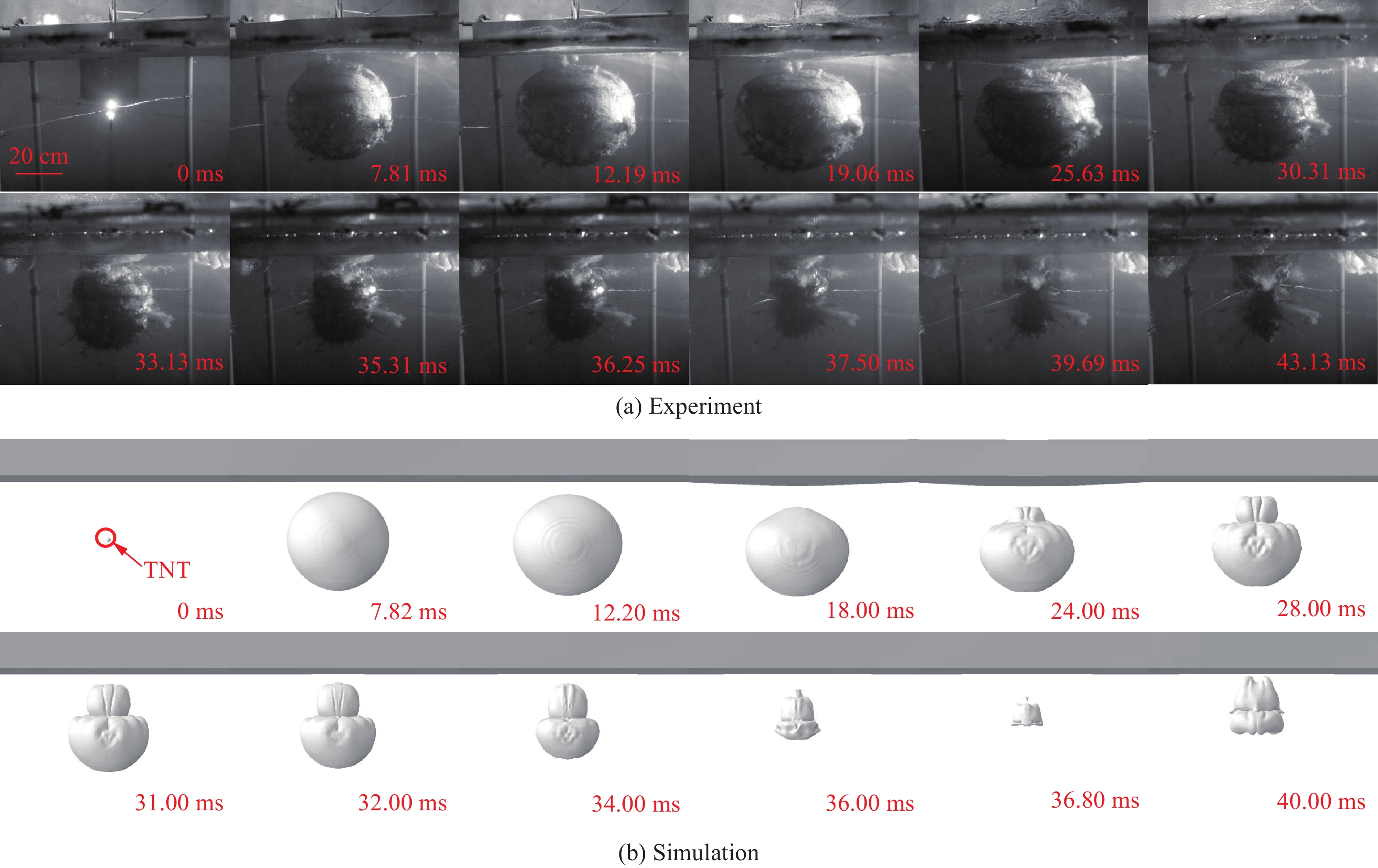

图 11 当γ=0.913时气泡演变过程的实验和数值模拟图像
Figure 11. Experimental and numerical simulation images of bubble evolution process when γ=0.913
图 12 当γ=1.282时气泡演变过程的实验和数值模拟图像
Figure 12. Experimental and numerical simulation images of bubble evolution process when γ=1.282

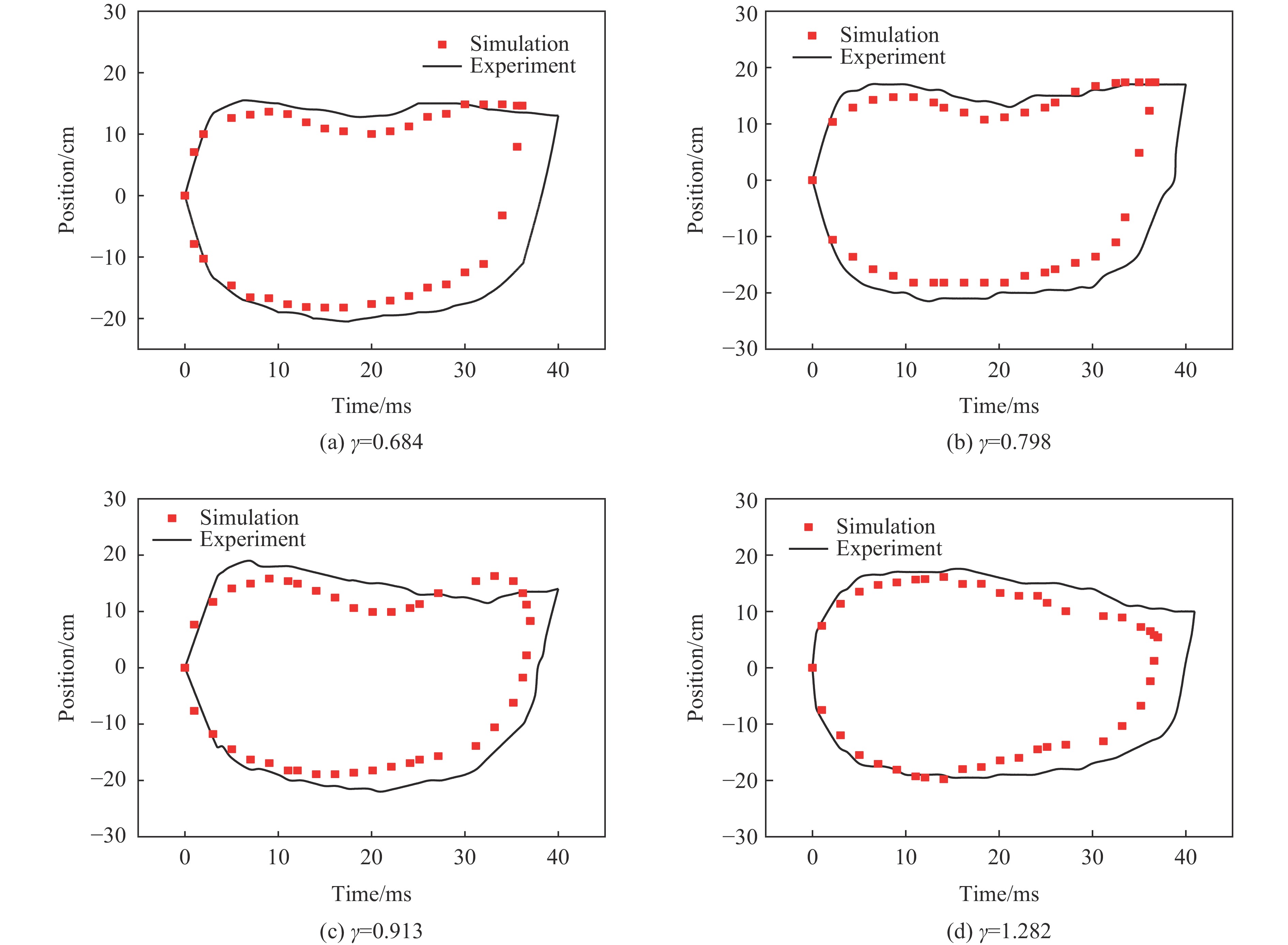

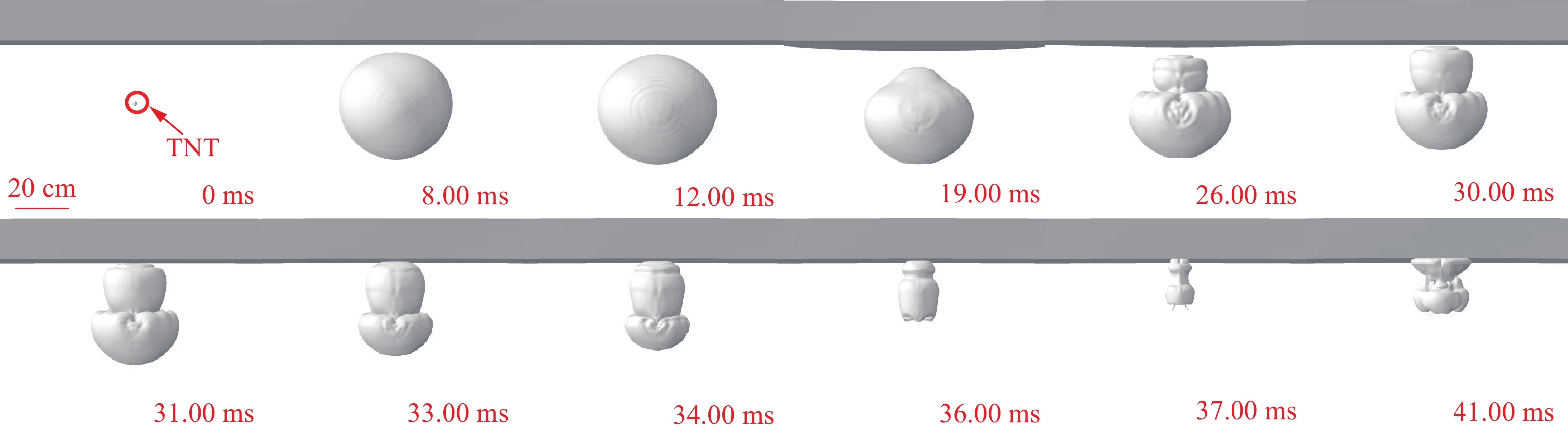

图 15 当γ=0.821时气泡演变过程的数值模拟图像
Figure 15. Numerical simulation images of bubble evolution process when γ=0.821

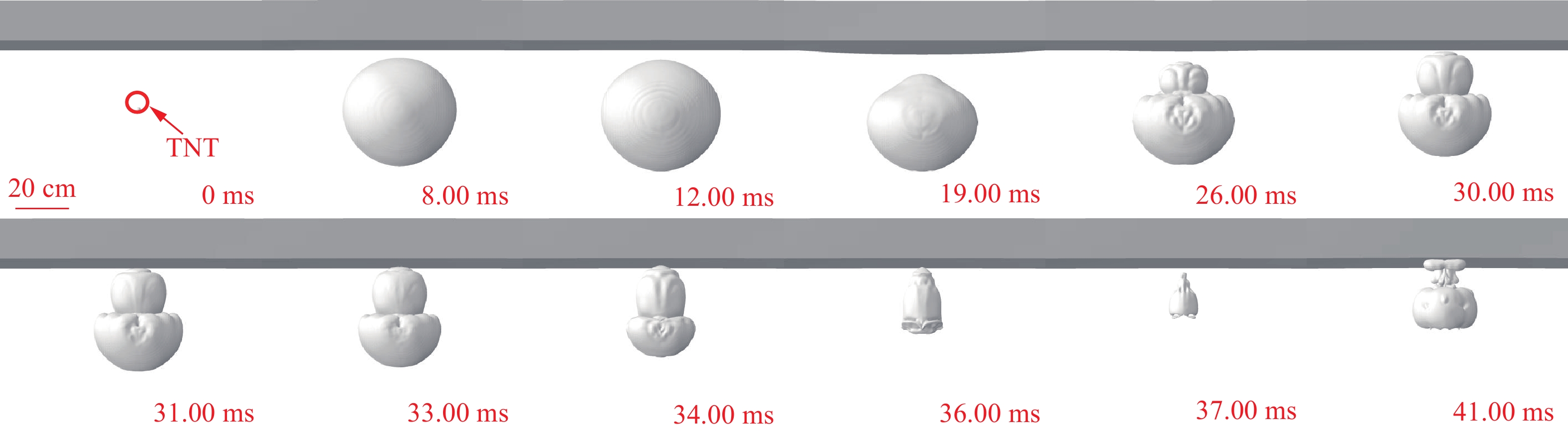

图 16 当γ=0.867时气泡演变过程的数值模拟图像
Figure 16. Numerical simulation images of bubble evolution process when γ=0.867

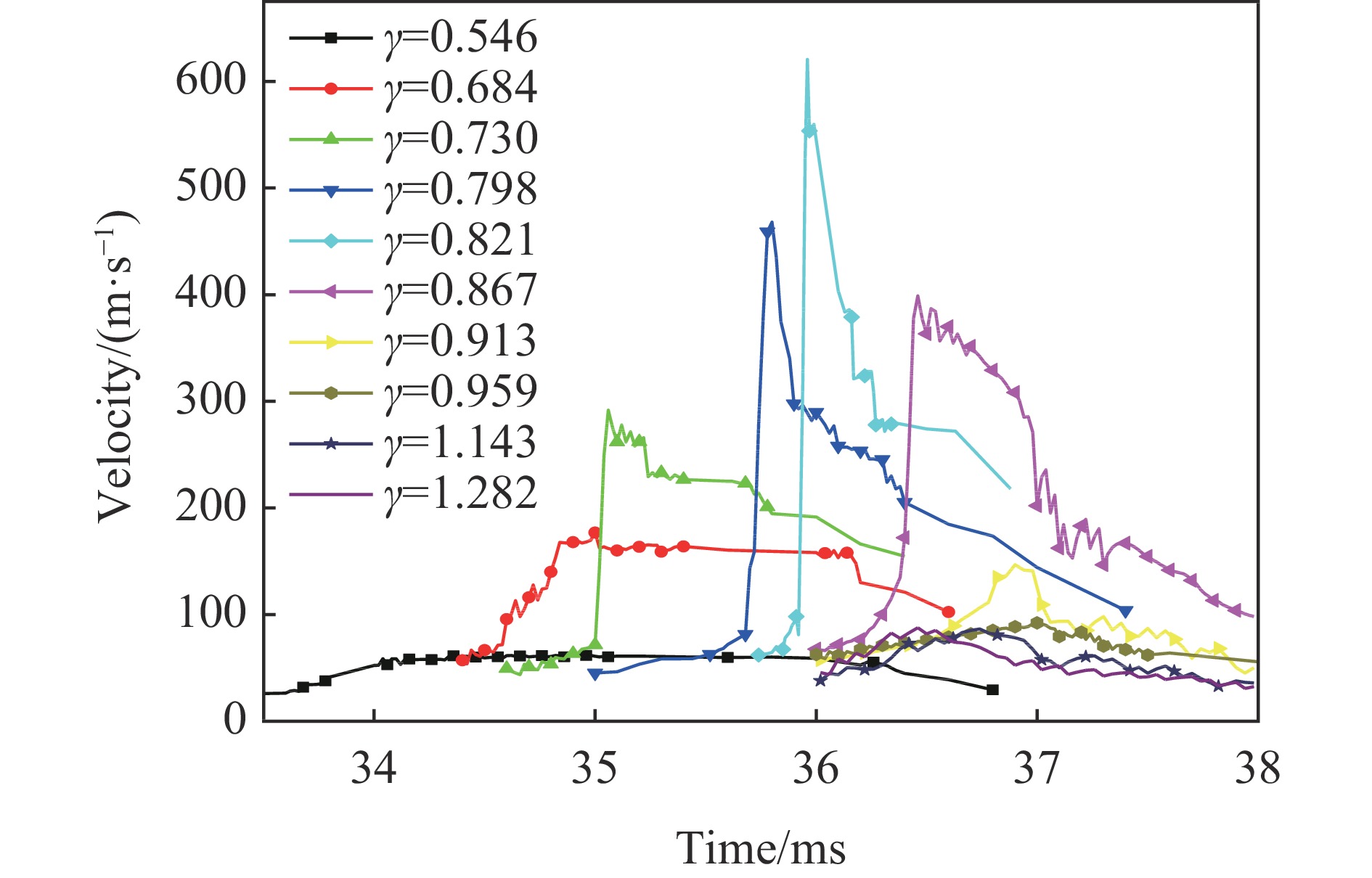

图 17 在不同距离参数下射流顶部节点的速度曲线
Figure 17. Velocity curves of jet top nodes under different burst distances

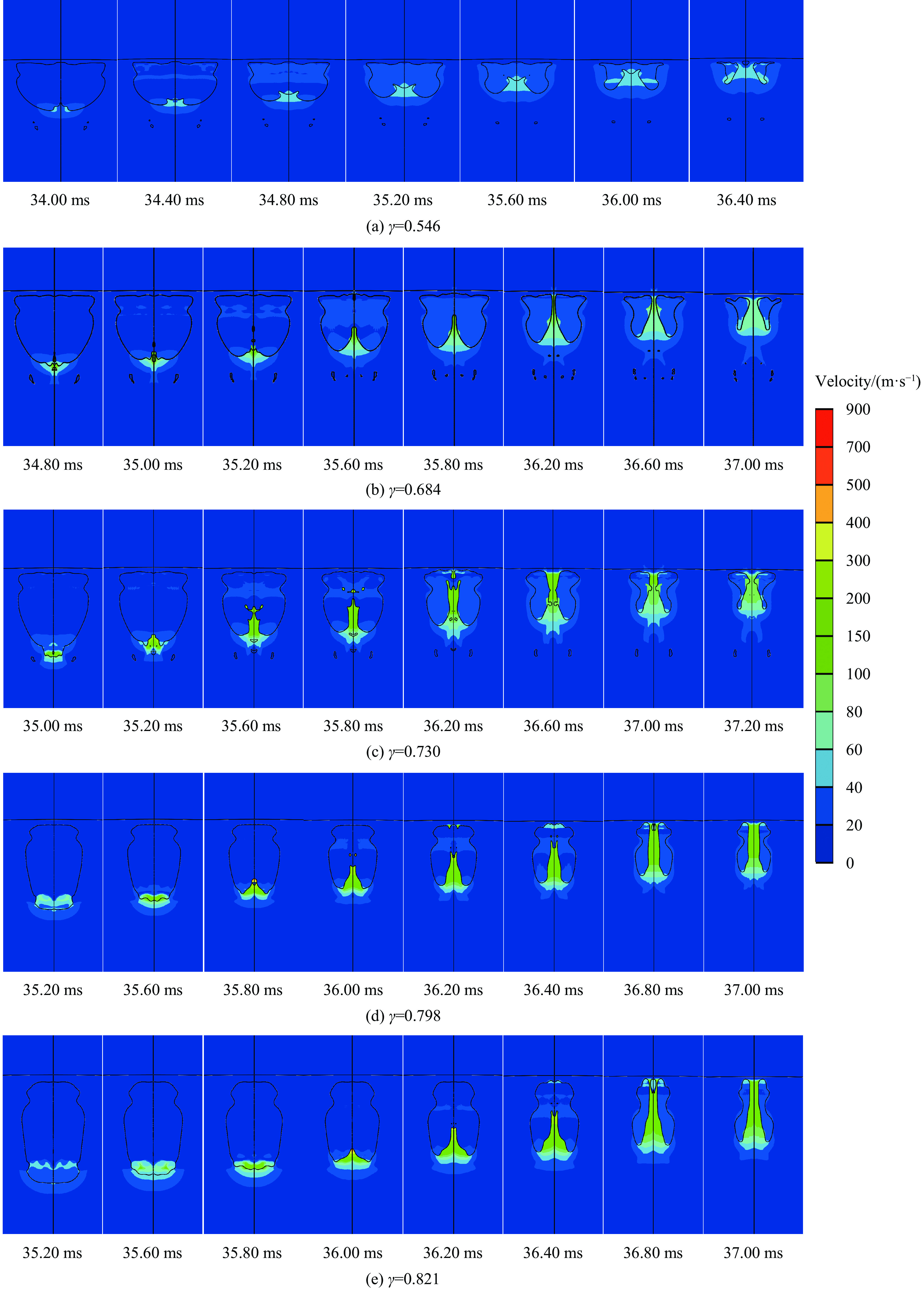

18 在不同距离参数下射流速度演化过程的数值模拟图像
18. Numerical simulation images of jet velocity evolution processes at different burst distances
图 19 射流形成时间与距离参数的关系
Figure 19. Relationship between jet formation time and distance parameter

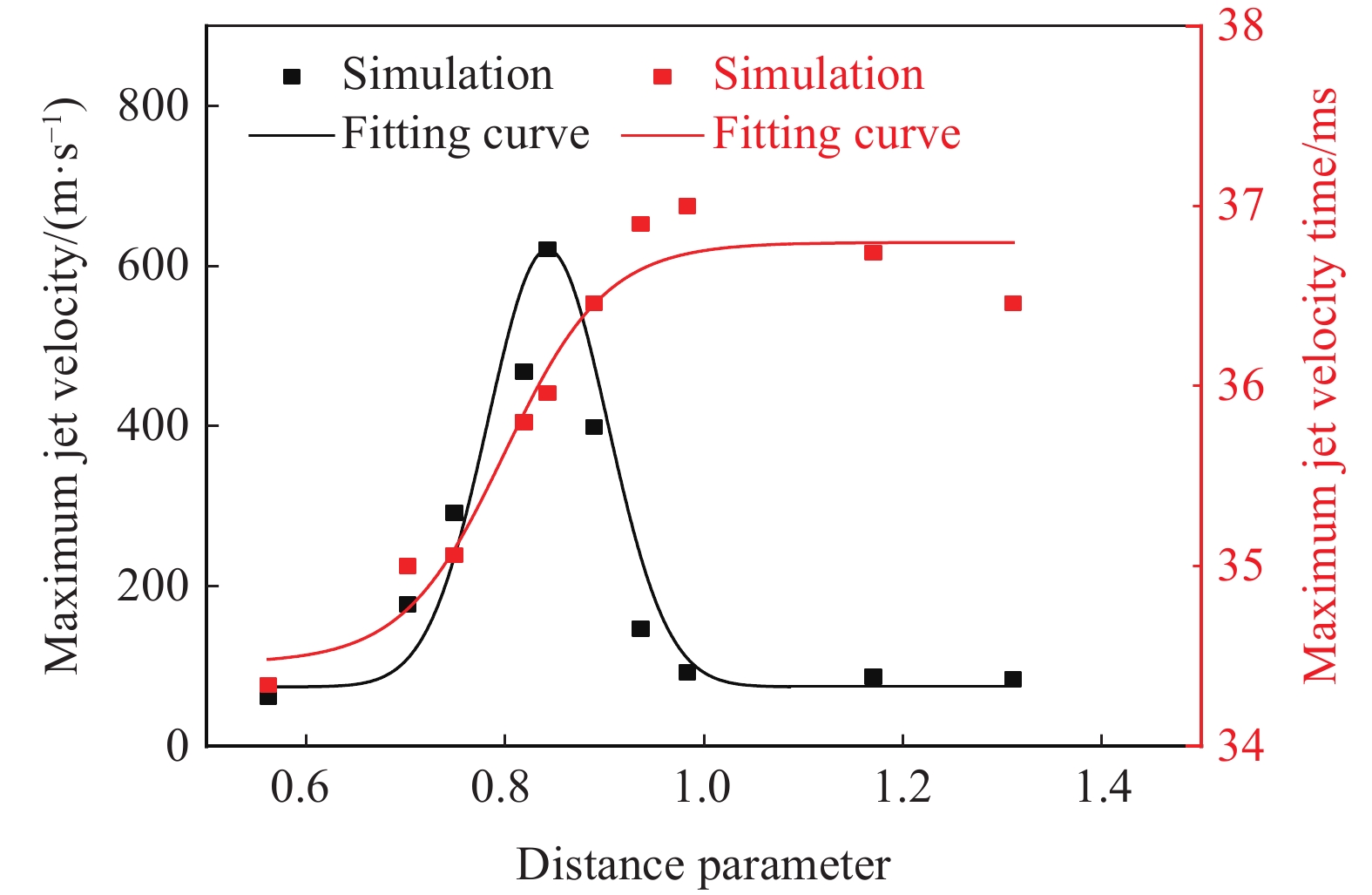

图 20 不同距离参数下最大射流速度和最大射流速度时间
Figure 20. Maximum jet velocities and maximum jet velocity times at different distance parameters

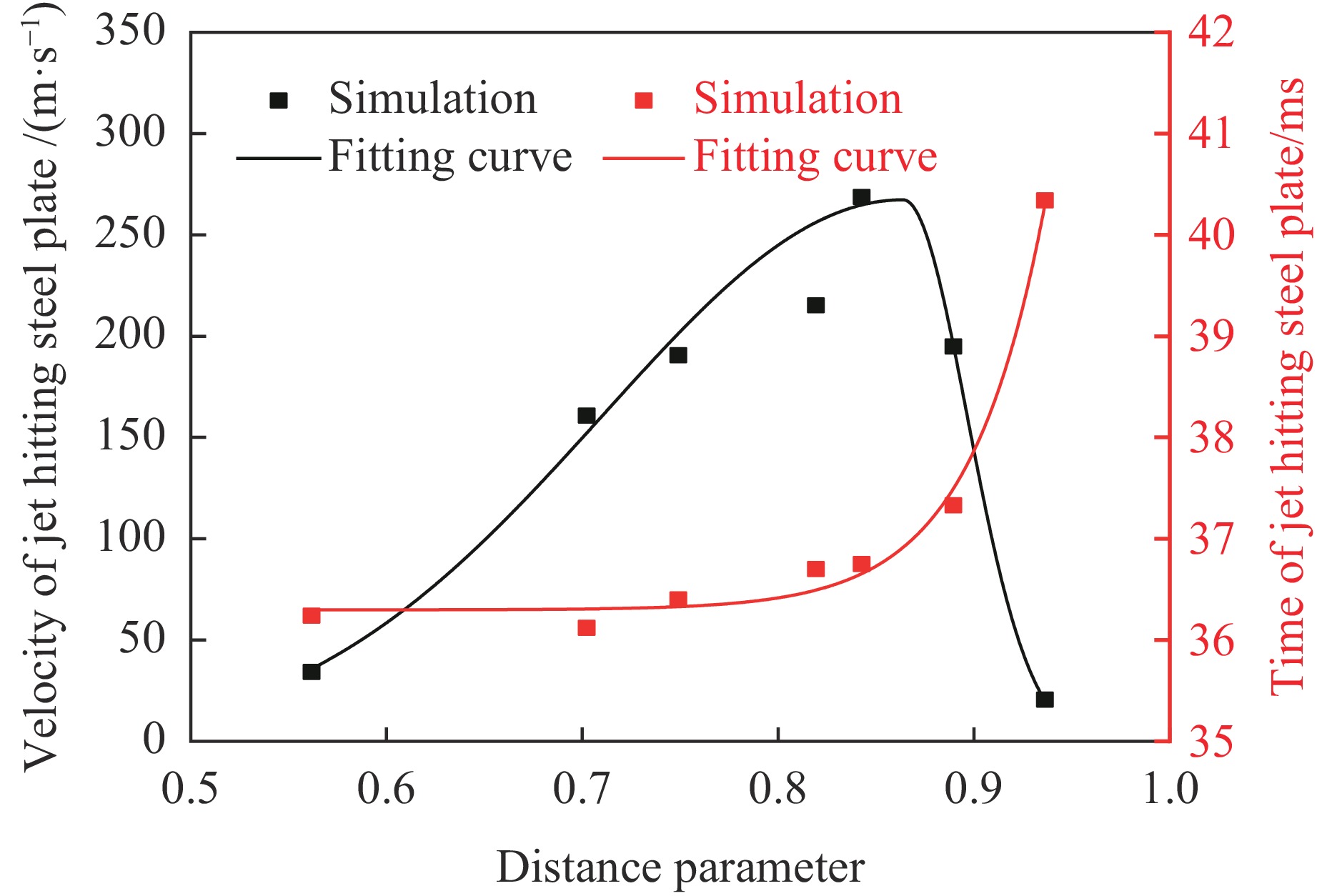

图 21 不同距离参数下射流击中钢板的速度和时间
Figure 21. Velocities and times of jet hitting steel plate at different distance parameters

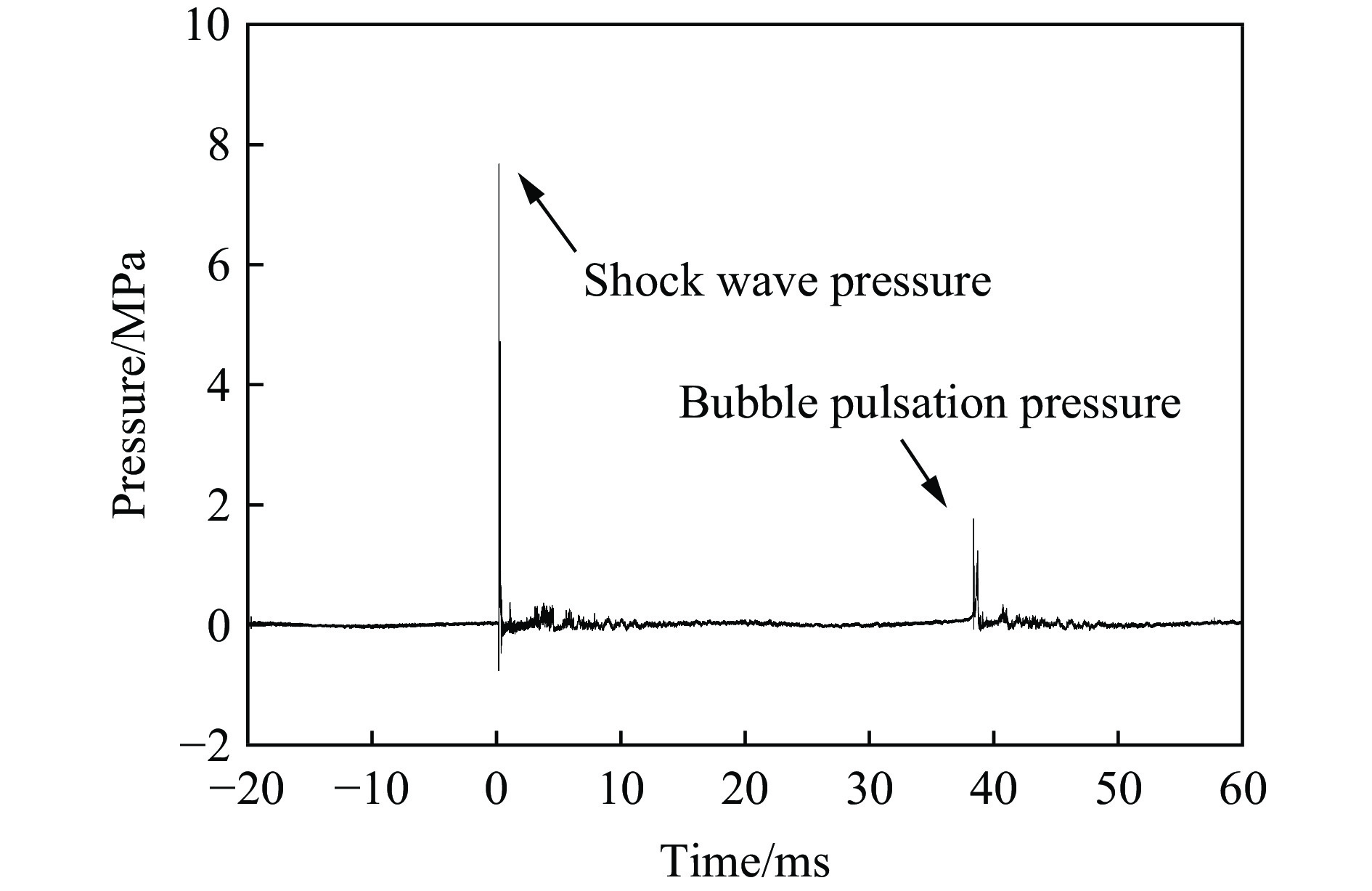

表 1 冲击波峰值压力的实验结果和经验公式结果
Table 1. Experimental results and empirical formula results of shock wave peak pressures
实验 γ pm1/MPa δp/% 实验 经验公式 1 0.684 7.64 8.19 6.72 2 0.684 7.49 8.19 8.55 3 0.798 7.72 8.20 5.85 4 0.798 7.79 8.20 5.00 5 0.913 7.81 8.21 4.87 6 0.913 7.77 8.21 5.36 7 0.913 7.91 8.21 3.65 8 1.282 7.54 8.15 7.49 9 1.282 7.61 8.15 6.63 10 1.282 7.58 8.15 6.99
下载: 导出CSV
表 2 气泡脉动周期和气泡最大半径的实验结果和经验公式结果
Table 2. Experimental results and empirical formula results of bubble pulsation periods and bubble maximum radii
实验 γ T/ms δT/% Rm/cm δR/% 实验 经验公式 实验 经验公式 1 0.684 37.81 41.52 8.94 21.50 21.94 2.01 2 0.684 38.44 41.52 7.42 21.50 21.94 2.01 3 0.798 39.69 41.43 4.20 21.60 21.92 1.46 4 0.798 39.37 41.43 4.97 21.40 21.92 2.37 5 0.913 39.81 41.35 3.72 21.50 21.90 1.83 6 0.913 39.75 41.35 3.87 21.60 21.90 1.37 7 0.913 39.69 41.35 4.01 21.60 21.90 1.37 8 1.282 38.75 41.08 5.67 21.00 21.85 3.89 9 1.282 39.75 41.08 3.24 21.10 21.85 3.43 10 1.282 39.56 41.08 3.70 21.00 21.85 3.89
下载: 导出CSV
表 3 数值模拟的距离参数
Table 3. Distance parameters in numerical simulation
数值模拟 d/cm γ 1 12.0 0.546 2 15.0 0.684 3 16.0 0.730 4 17.5 0.798 5 18.0 0.821 6 19.0 0.867 7 20.0 0.913 8 21.0 0.959 9 25.0 1.143 10 28.0 1.282
下载: 导出CSV
-
