近场水下爆炸气泡脉动及水射流的实验与数值模拟研究

文彦博 胡亮亮 秦健 张延泽 王金相 刘亮涛 黄瑞源

文彦博, 胡亮亮, 秦健, 张延泽, 王金相, 刘亮涛, 黄瑞源. 近场水下爆炸气泡脉动及水射流的实验与数值模拟研究[J]. 爆炸与冲击, 2022, 42(5): 053203. doi: 10.11883/bzycj-2021-0206
引用本文: 文彦博, 胡亮亮, 秦健, 张延泽, 王金相, 刘亮涛, 黄瑞源. 近场水下爆炸气泡脉动及水射流的实验与数值模拟研究[J]. 爆炸与冲击, 2022, 42(5): 053203. doi: 10.11883/bzycj-2021-0206
WEN Yanbo, HU Liangliang, QIN Jian, ZHANG Yanze, WANG Jinxiang, LIU Liangtao, HUANG Ruiyuan. Experimental study and numerical simulation on bubble pulsation and water jet in near-field underwater explosion[J]. Explosion And Shock Waves, 2022, 42(5): 053203. doi: 10.11883/bzycj-2021-0206
Citation: WEN Yanbo, HU Liangliang, QIN Jian, ZHANG Yanze, WANG Jinxiang, LIU Liangtao, HUANG Ruiyuan. Experimental study and numerical simulation on bubble pulsation and water jet in near-field underwater explosion[J]. Explosion And Shock Waves, 2022, 42(5): 053203. doi: 10.11883/bzycj-2021-0206

近场水下爆炸气泡脉动及水射流的实验与数值模拟研究

doi: 10.11883/bzycj-2021-0206
基金项目: 国家自然科学基金(12172178);装备预研基金(614260404021801);中国空气动力研究与发展中心超高速碰撞研究中心开放基金(20200203)
详细信息
    作者简介:

    文彦博(1998-  ),男,硕士研究生,ybwen@njust.edu.cn

    通讯作者:

    黄瑞源(1984-  ),男,博士,副研究员,huangruiyuan1984@163.com

  • 中图分类号: O382.1

Experimental study and numerical simulation on bubble pulsation and water jet in near-field underwater explosion

  • 摘要: 海上作战时,近场水下爆炸形成的水射流能造成水面舰船结构的严重局部毁伤。为了研究近场爆炸时舰船底部水射流的形成机理及规律,开展了TNT当量2.5 g的炸药在固支方板底部不同爆距下起爆的水下爆炸实验。结果表明,气泡坍塌形成水射流的过程随着爆距的增加由吸附式向非吸附式转化。接着,基于ABAQUS软件采用CEL方法开展了系列数值模拟,结果表明:爆距在0.821~0.867倍最大气泡半径时,存在吸附式射流向非吸附式射流转化的临界点;固支方板加快了气泡坍塌的进程,炸药与钢板间的距离越小则射流形成的时间越早;射流形成过程中最大速度和射流击中钢板时速度均随着爆距的增大先增大后减小,并在临界点附近达到最大值,射流速度最大可达621 m/s,射流击中钢板时速度最大可达269 m/s。最后,给出了射流开始形成时间、射流最大速度、射流最大速度出现时间、射流击中钢板速度和射流击中钢板时间与距离参数的函数关系式。

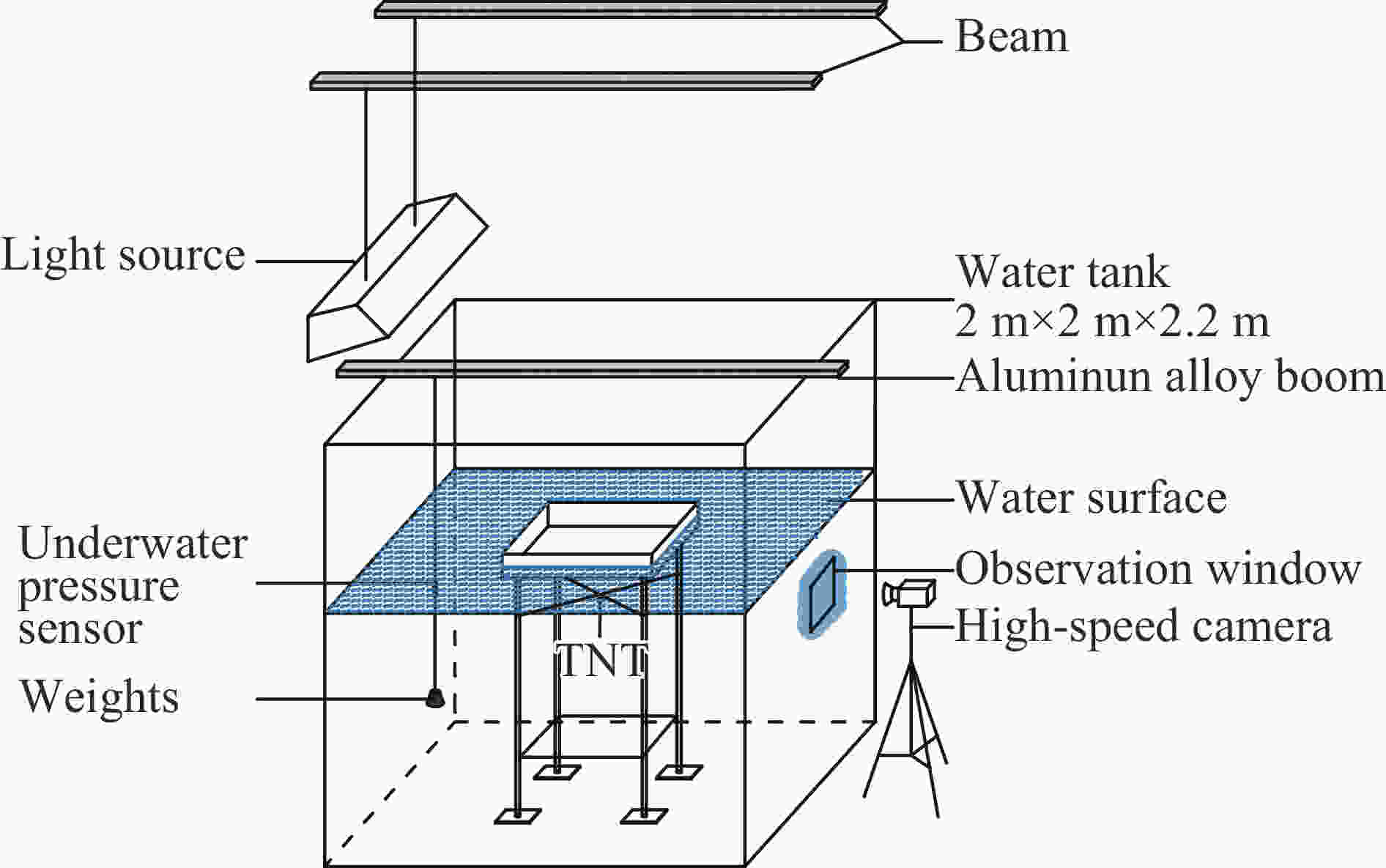

  • 图  1  实验系统

    Figure  1.  The experimental system

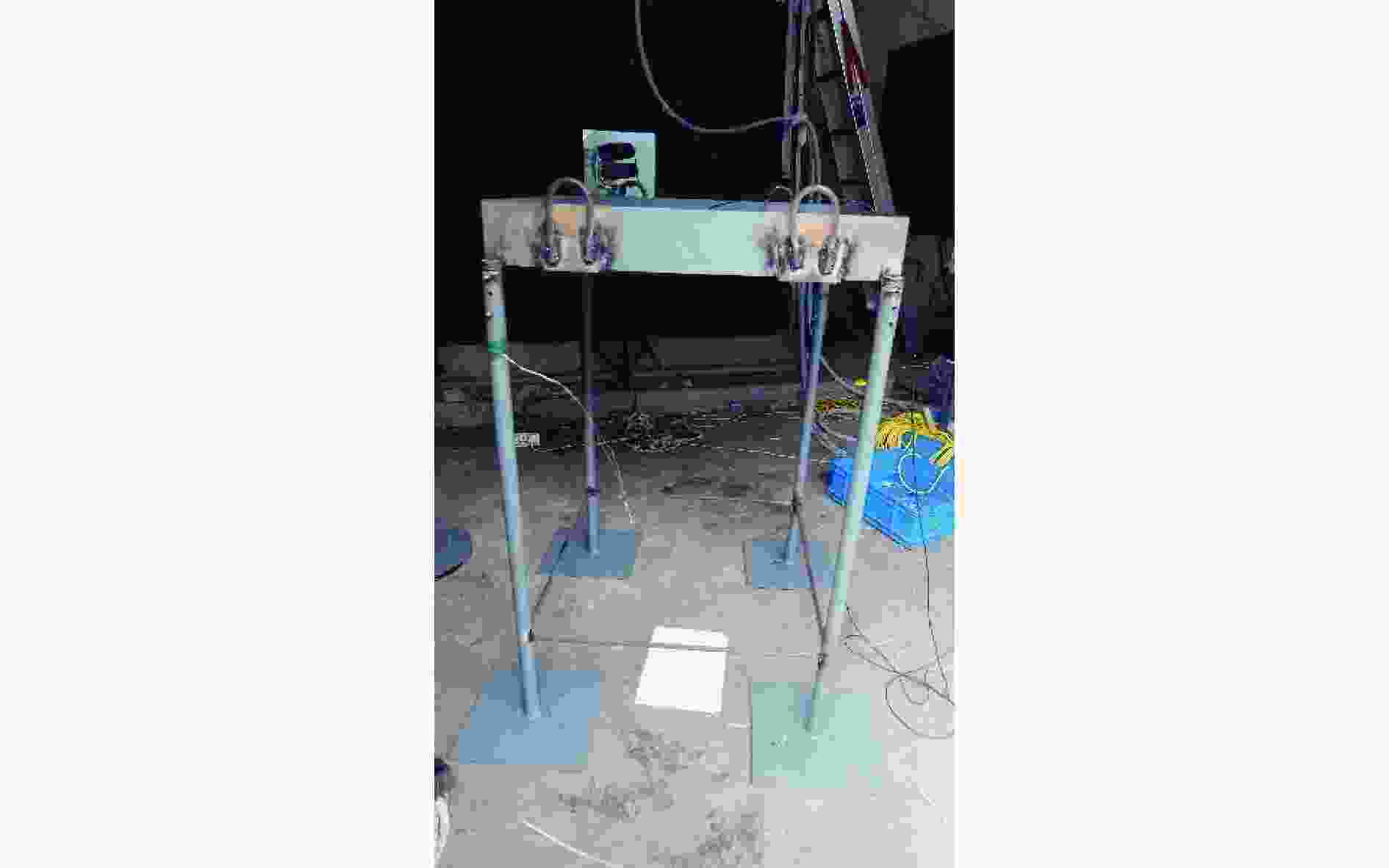

    图  2  固支方板

    Figure  2.  A clamped square plate

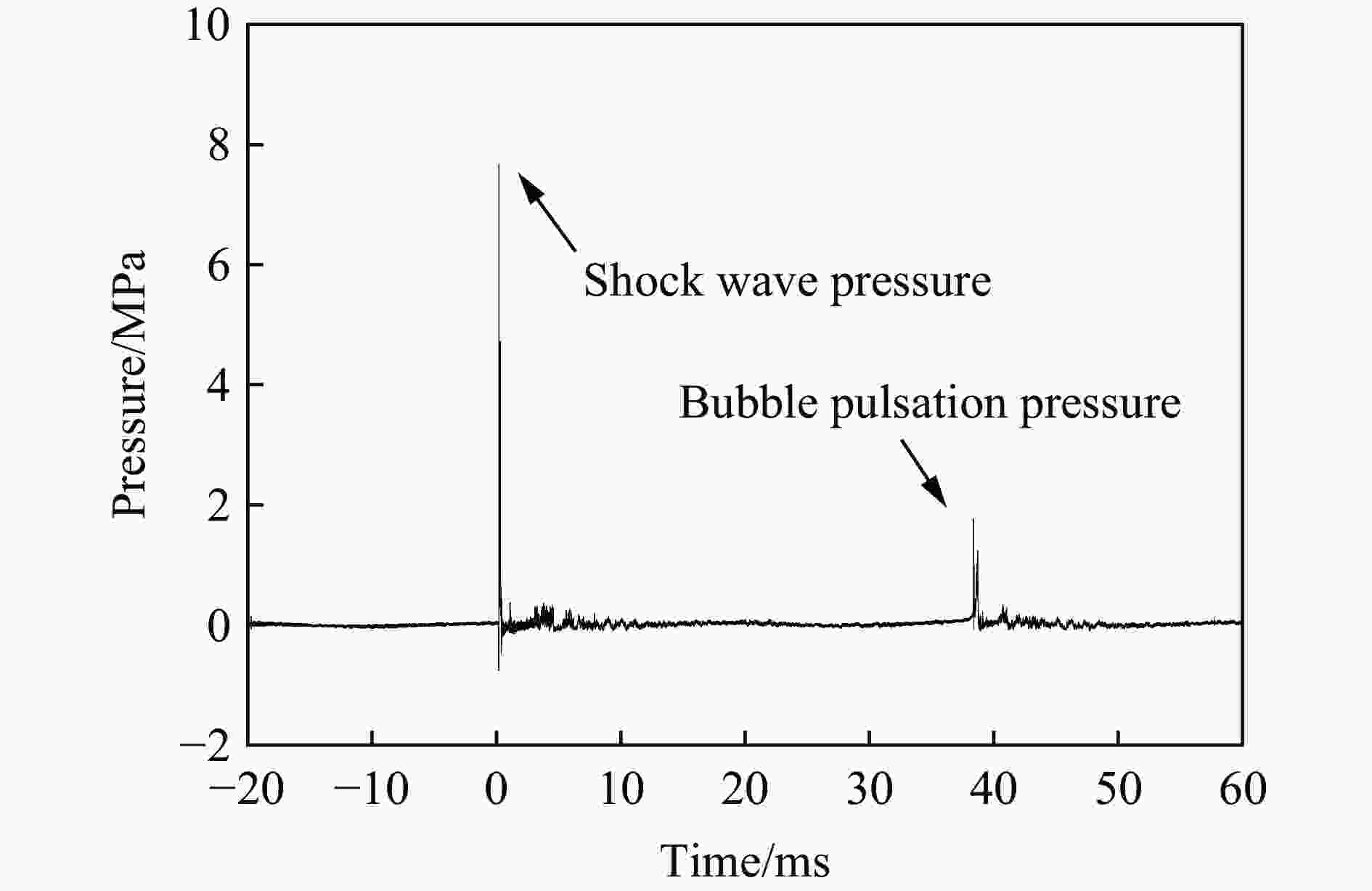

    图  3  实验1的压力曲线

    Figure  3.  The pressure curve in experiment 1

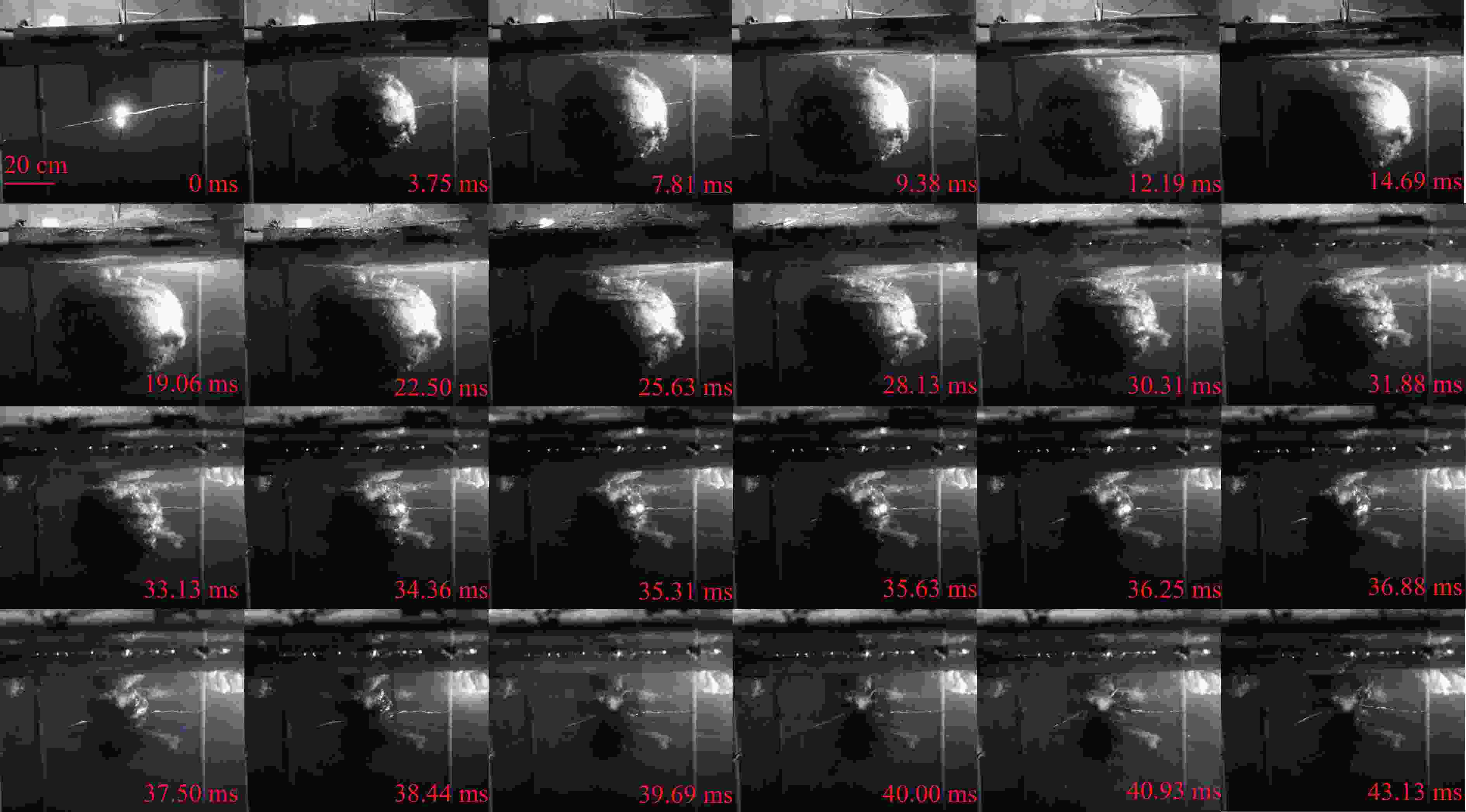

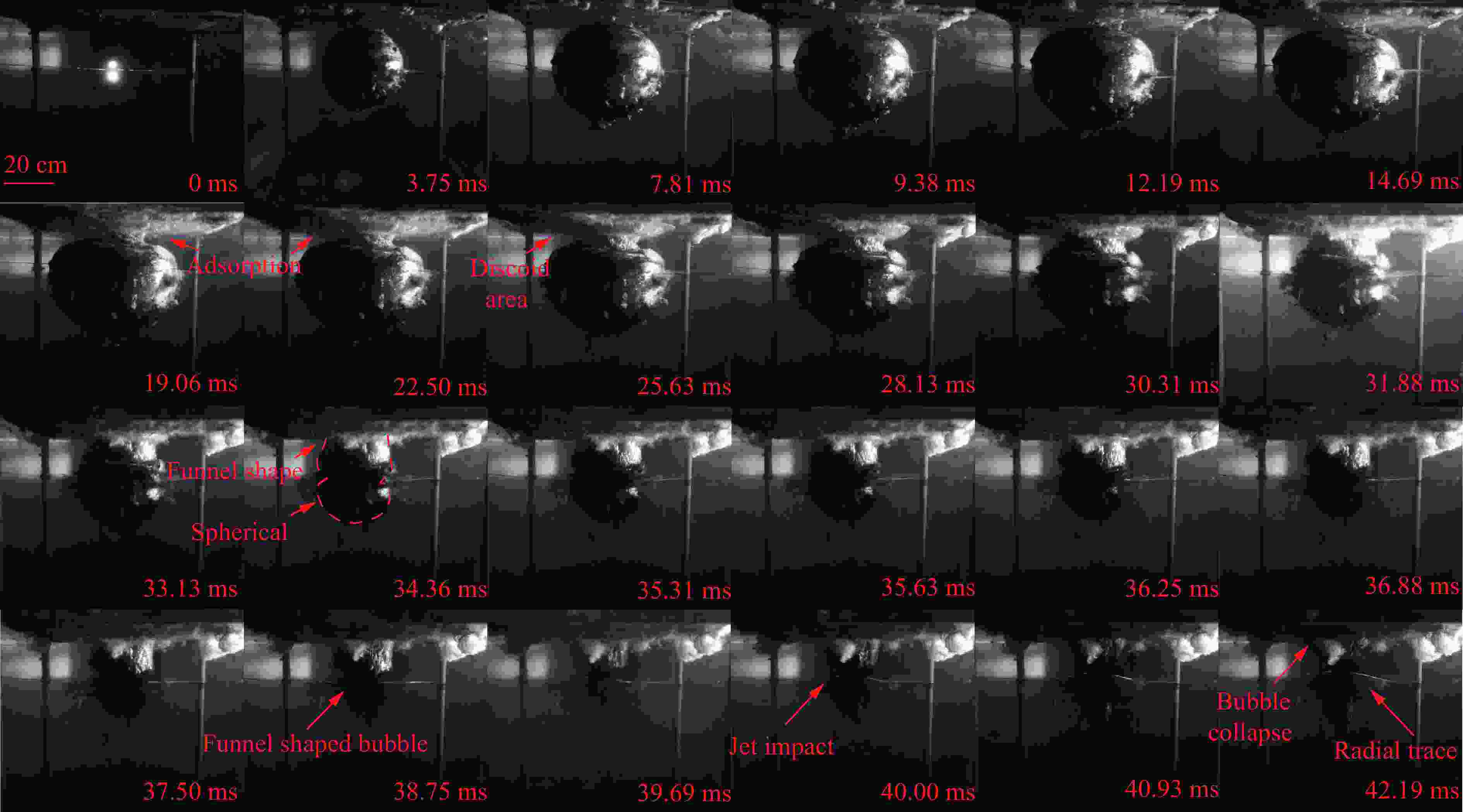

    图  4  γ=0.684时气泡演变过程的实验图像

    Figure  4.  Experimental images of bubble evolution process when γ=0.684

    图  5  γ=0.798时气泡演变过程的实验图像

    Figure  5.  Experimental images of bubble evolution process when γ=0.798

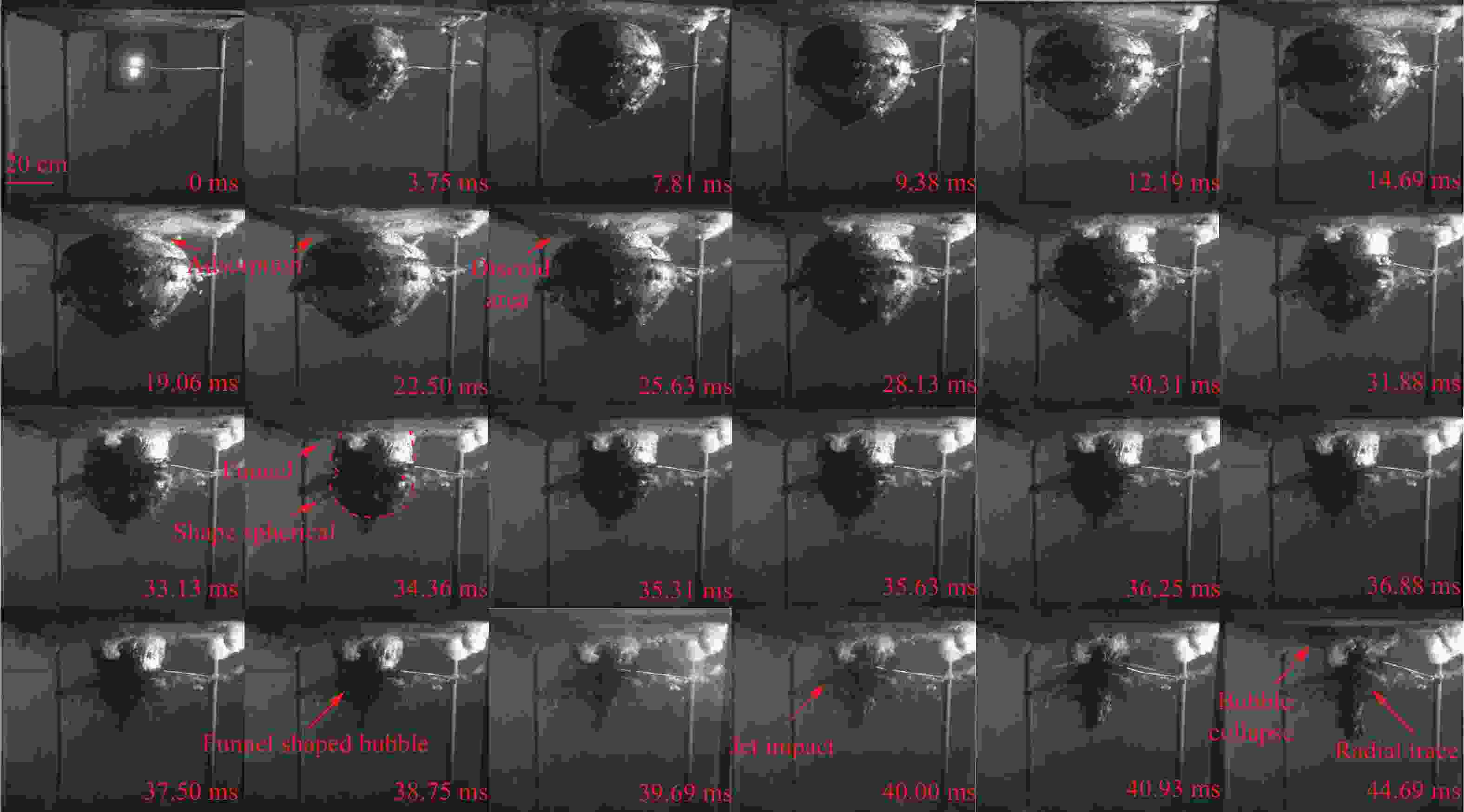

    图  6  γ=0.913时气泡演变过程的实验图像

    Figure  6.  Experimental images of bubble evolution process when γ=0.913

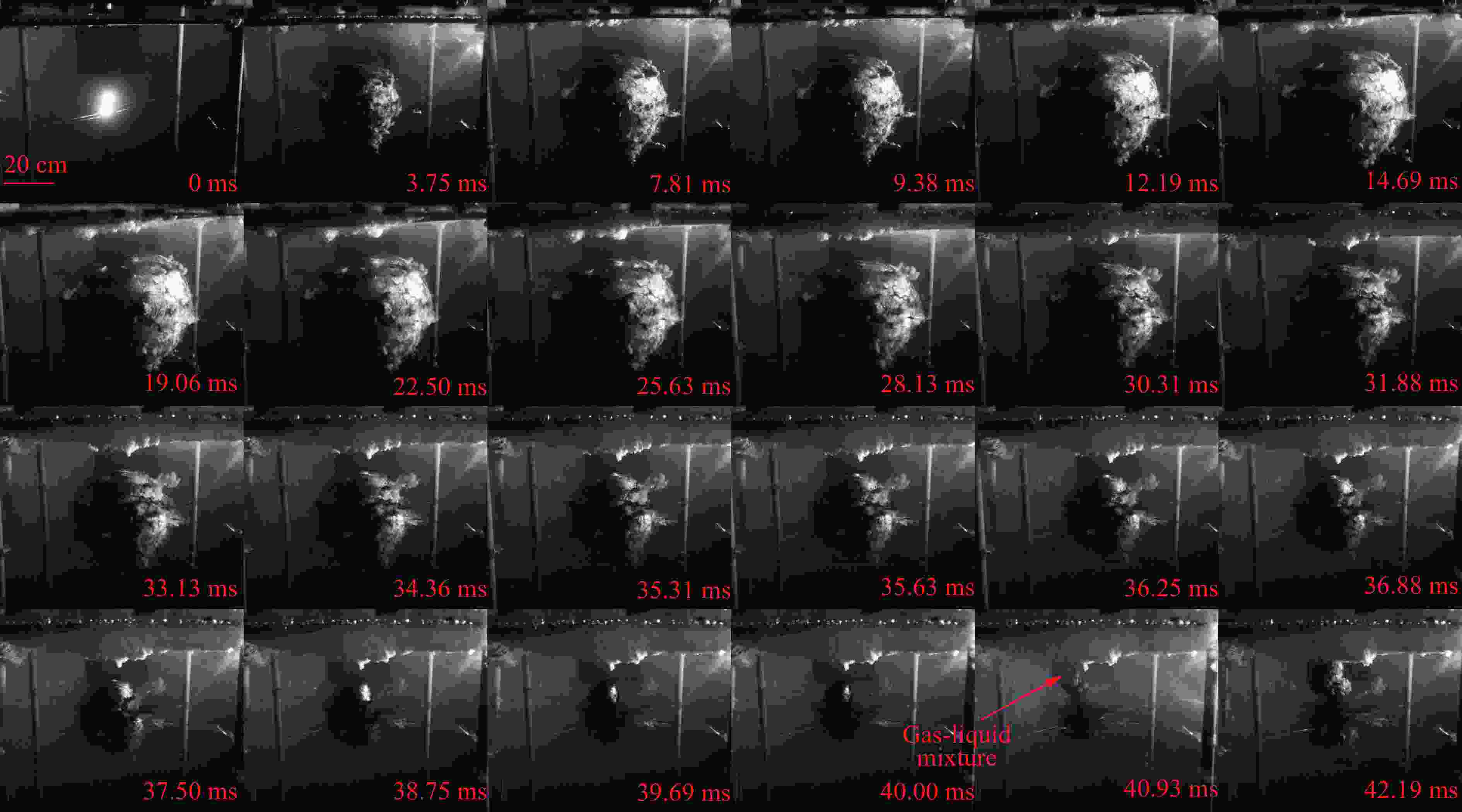

    图  7  γ=1.282时气泡演变过程的实验图像

    Figure  7.  Experimental images of bubble evolution process when γ=1.282

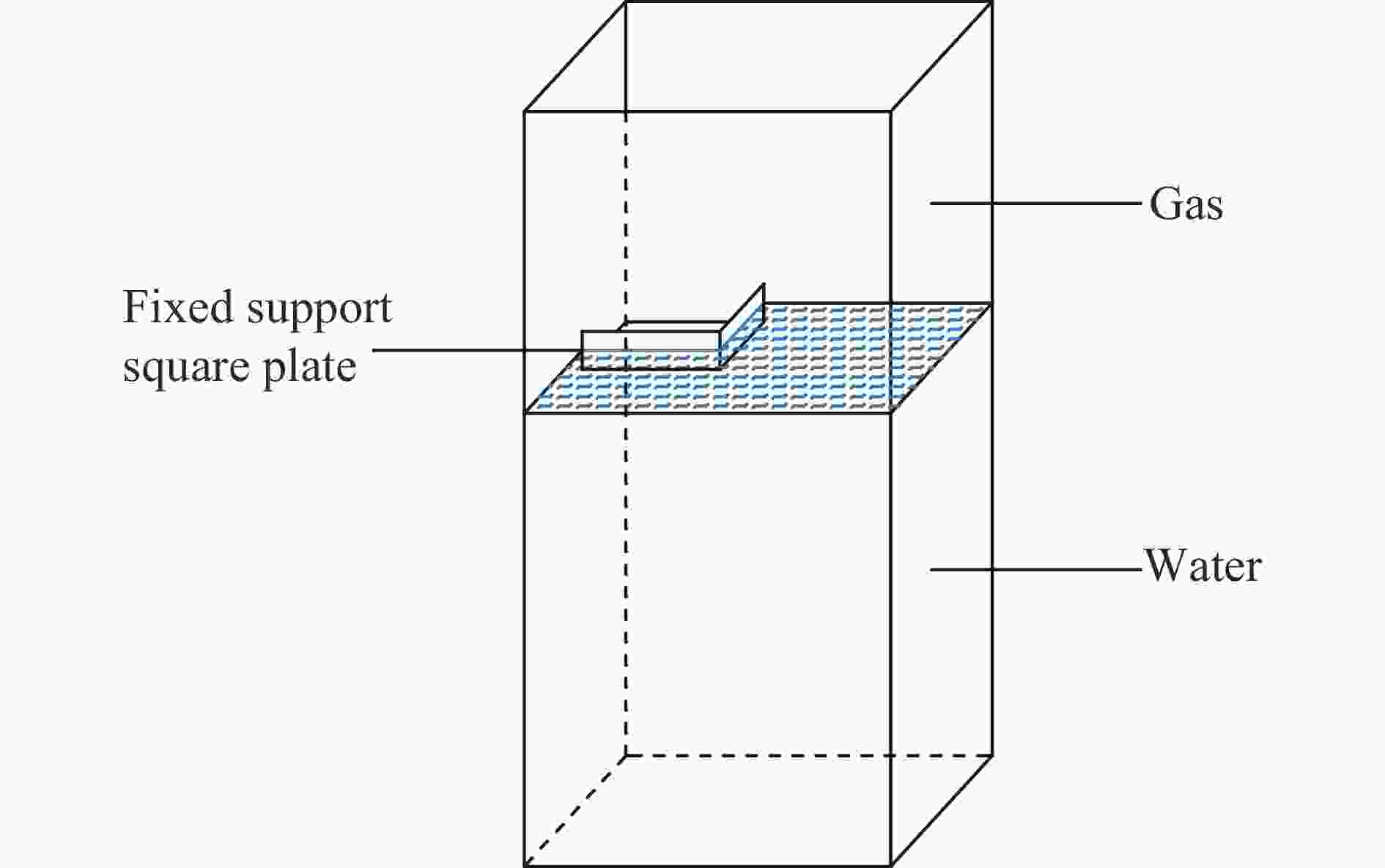

    图  8  数值模拟模型

    Figure  8.  Schematic diagram of numerical simulation model

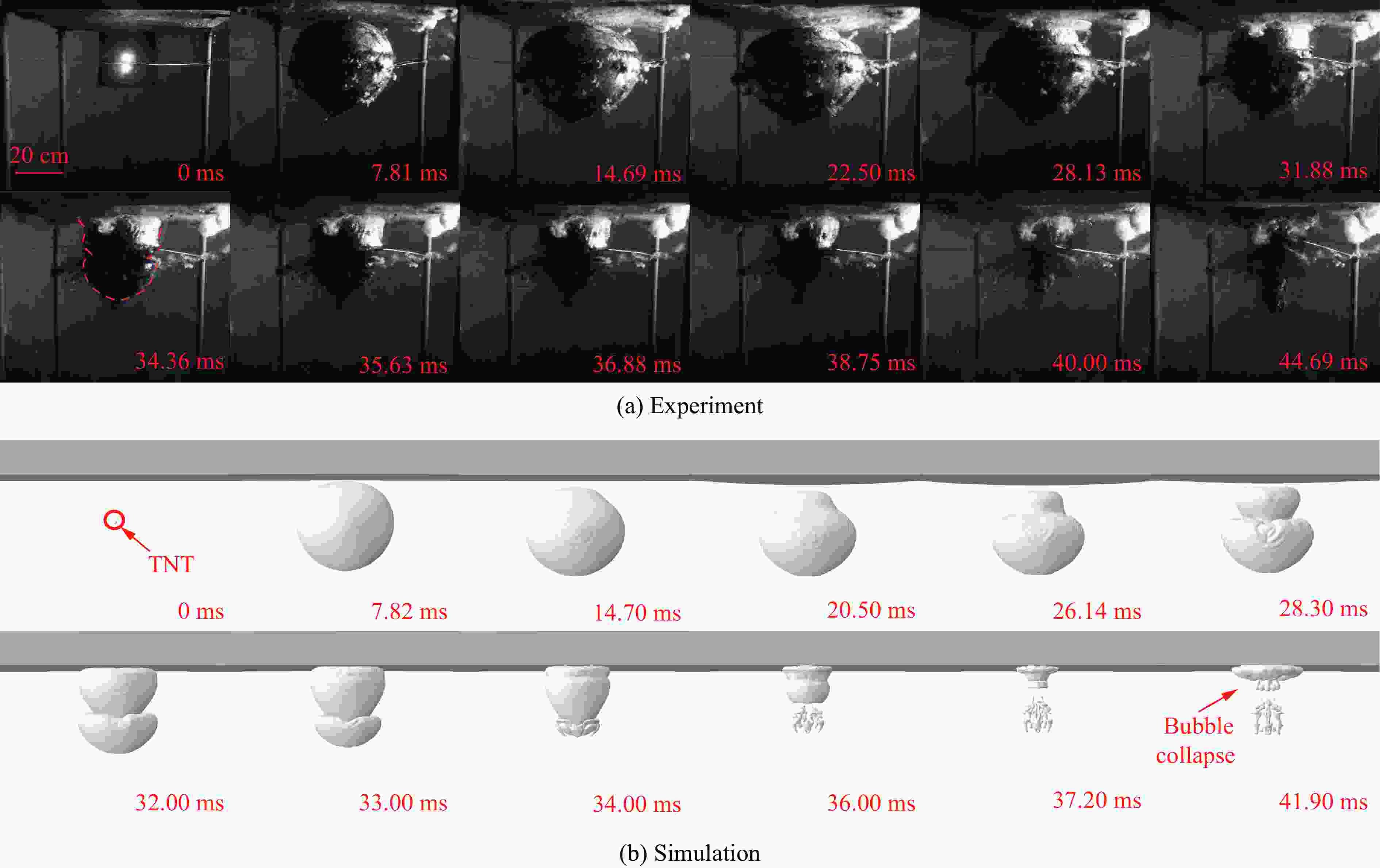

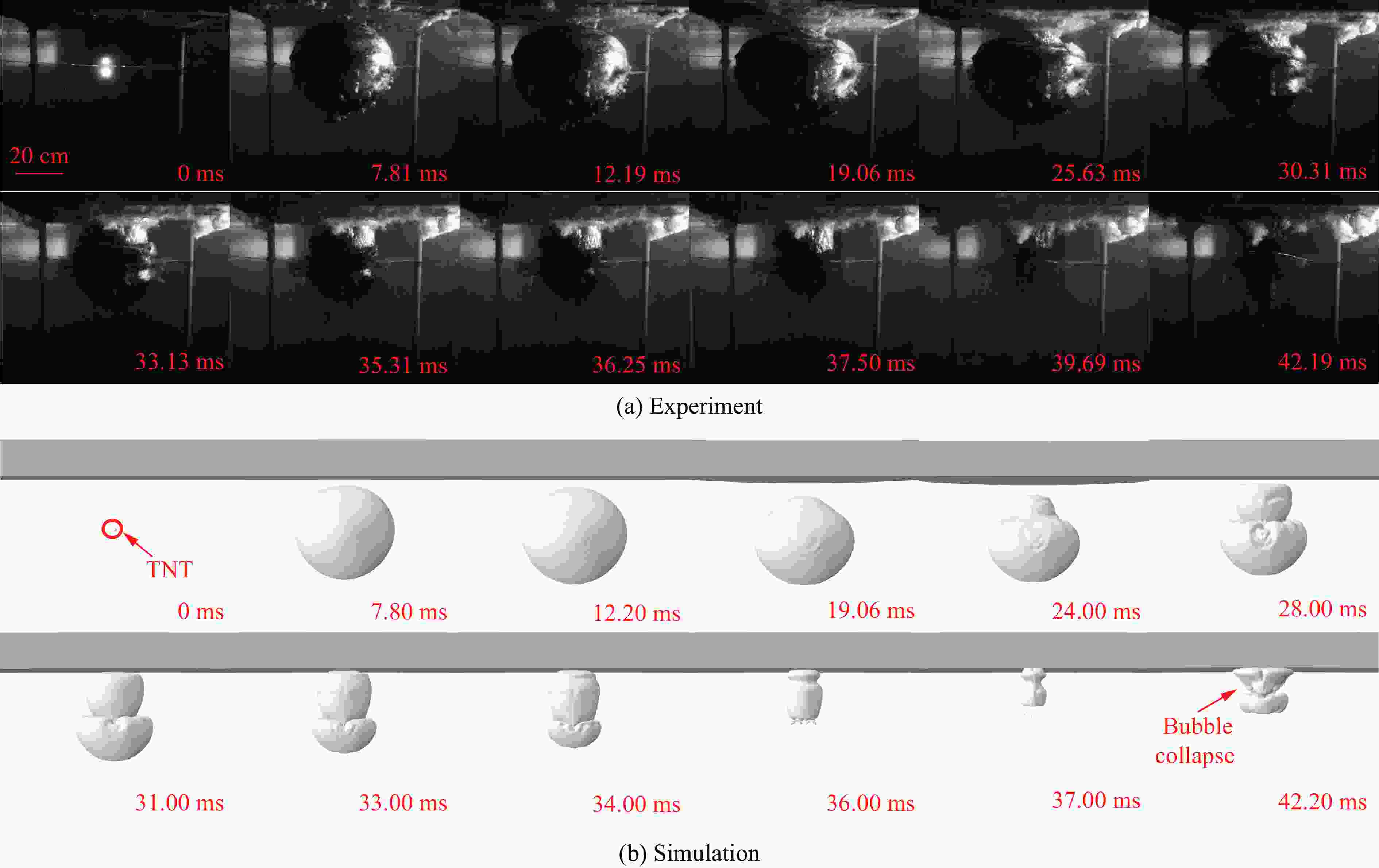

    图  9  γ=0.684时气泡演变过程的实验和数值模拟图像

    Figure  9.  Experimental and numerical simulation images of bubble evolution process when γ=0.684

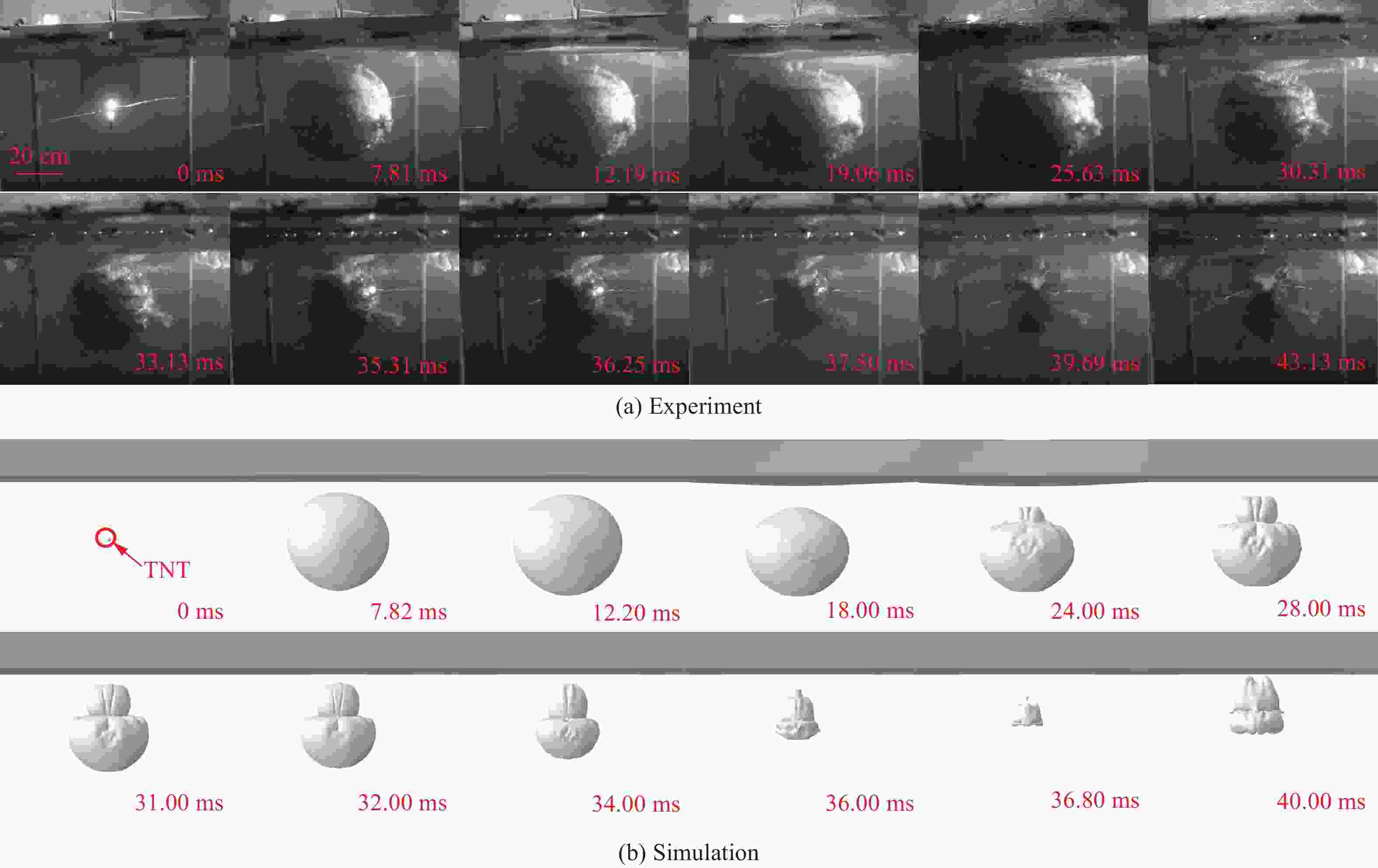

    图  10  γ=0.798时气泡演变过程的实验和数值模拟图像

    Figure  10.  Experimental and numerical simulation images of bubble evolution process when γ=0.798

    图  11  γ=0.913时气泡演变过程的实验和数值模拟图像

    Figure  11.  Experimental and numerical simulation images of bubble evolution process when γ=0.913

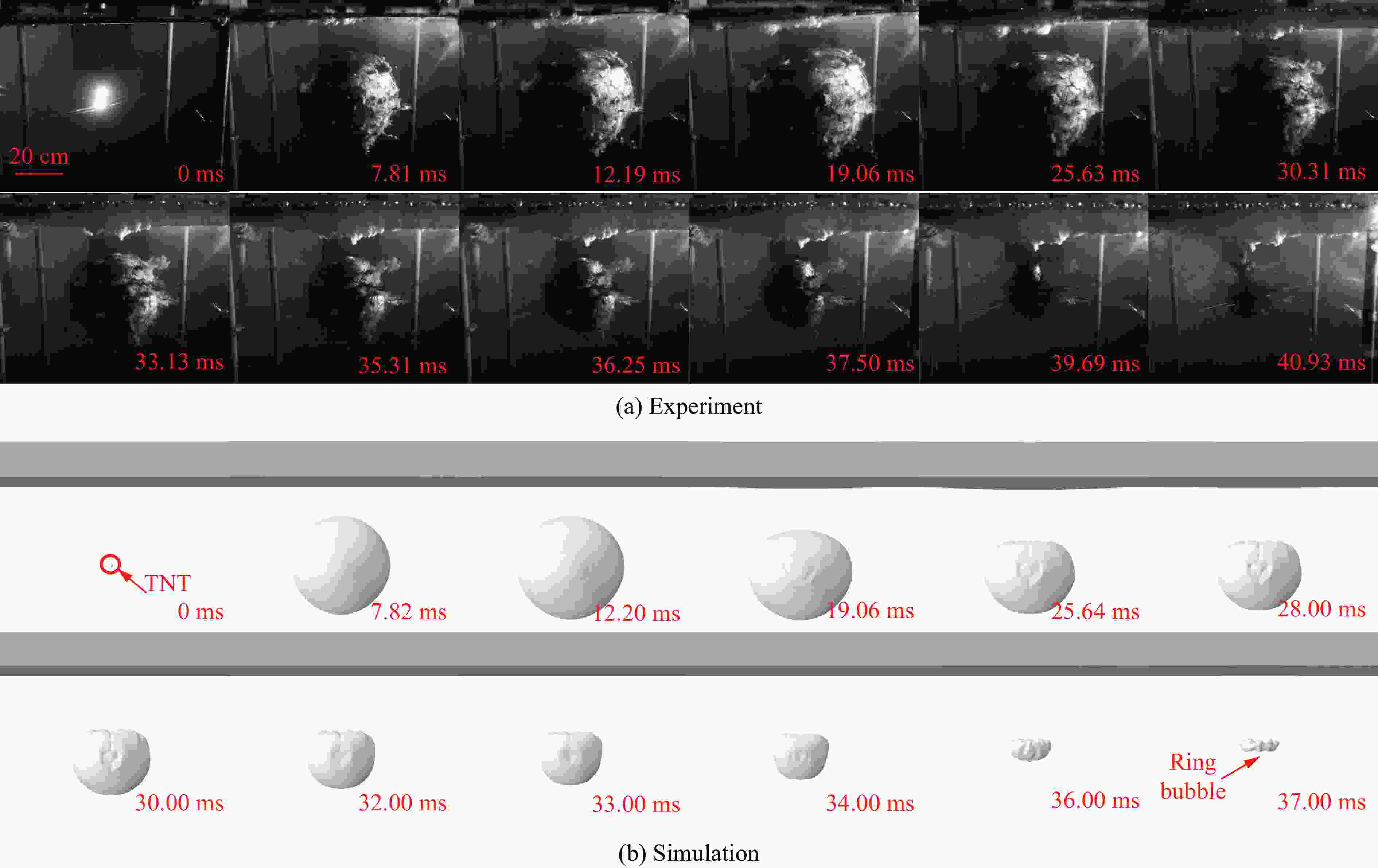

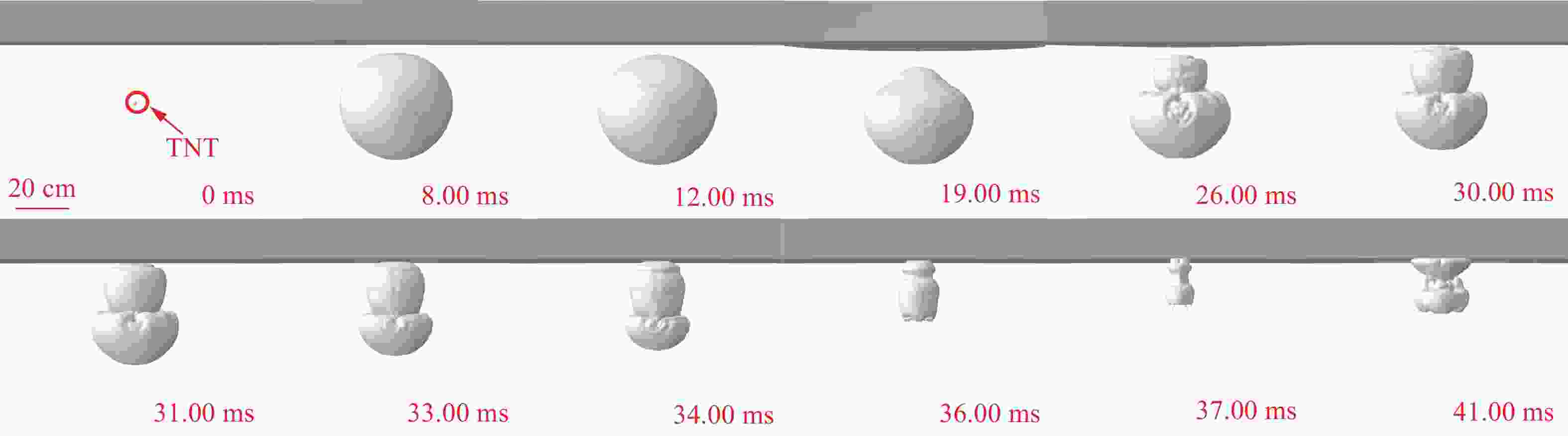

    图  12  γ=1.282时气泡演变过程的实验和数值模拟图像

    Figure  12.  Experimental and numerical simulation images of bubble evolution process when γ=1.282

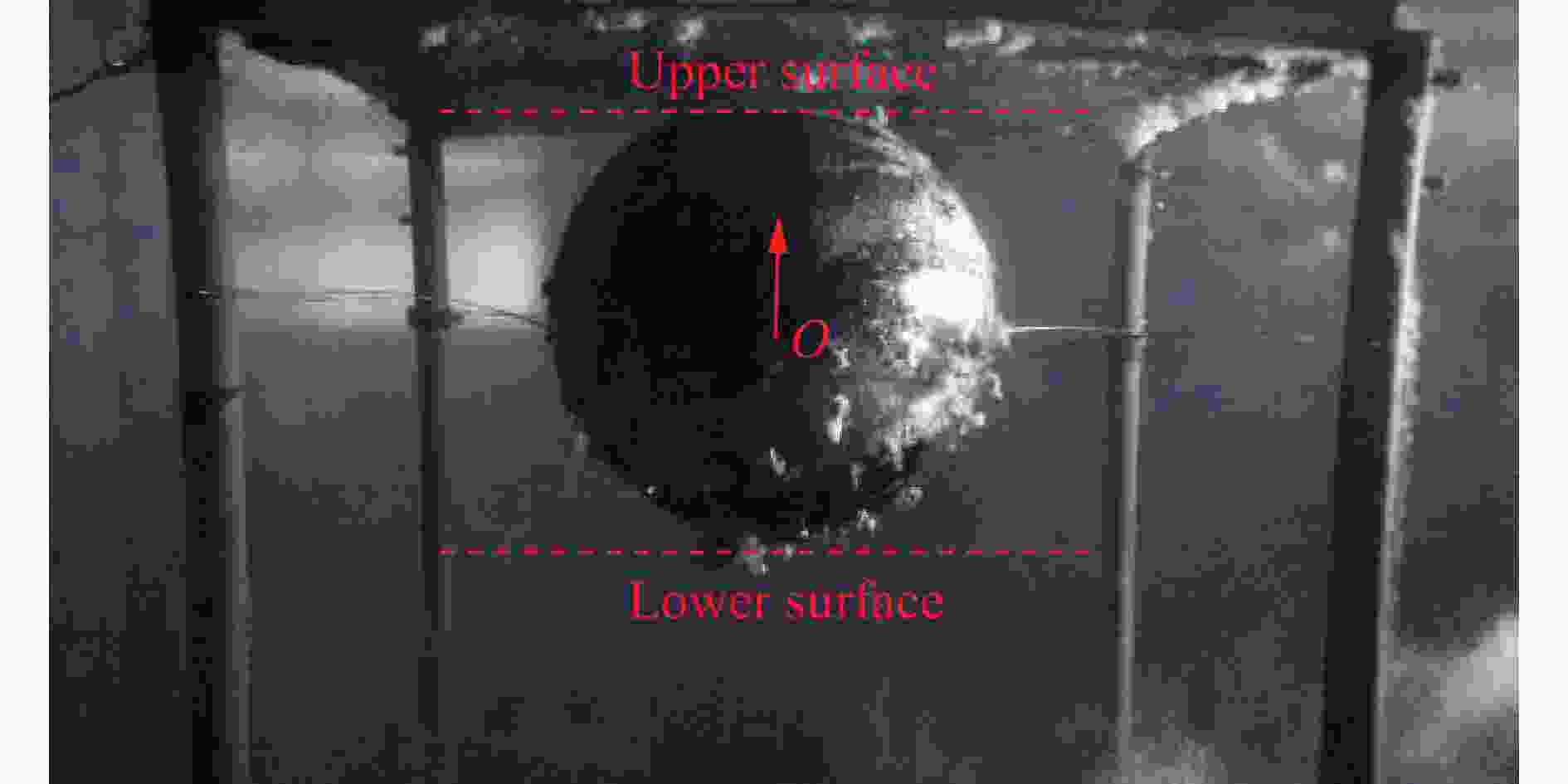

    图  13  气泡上、下表面

    Figure  13.  The upper and lower surfaces of a bubble

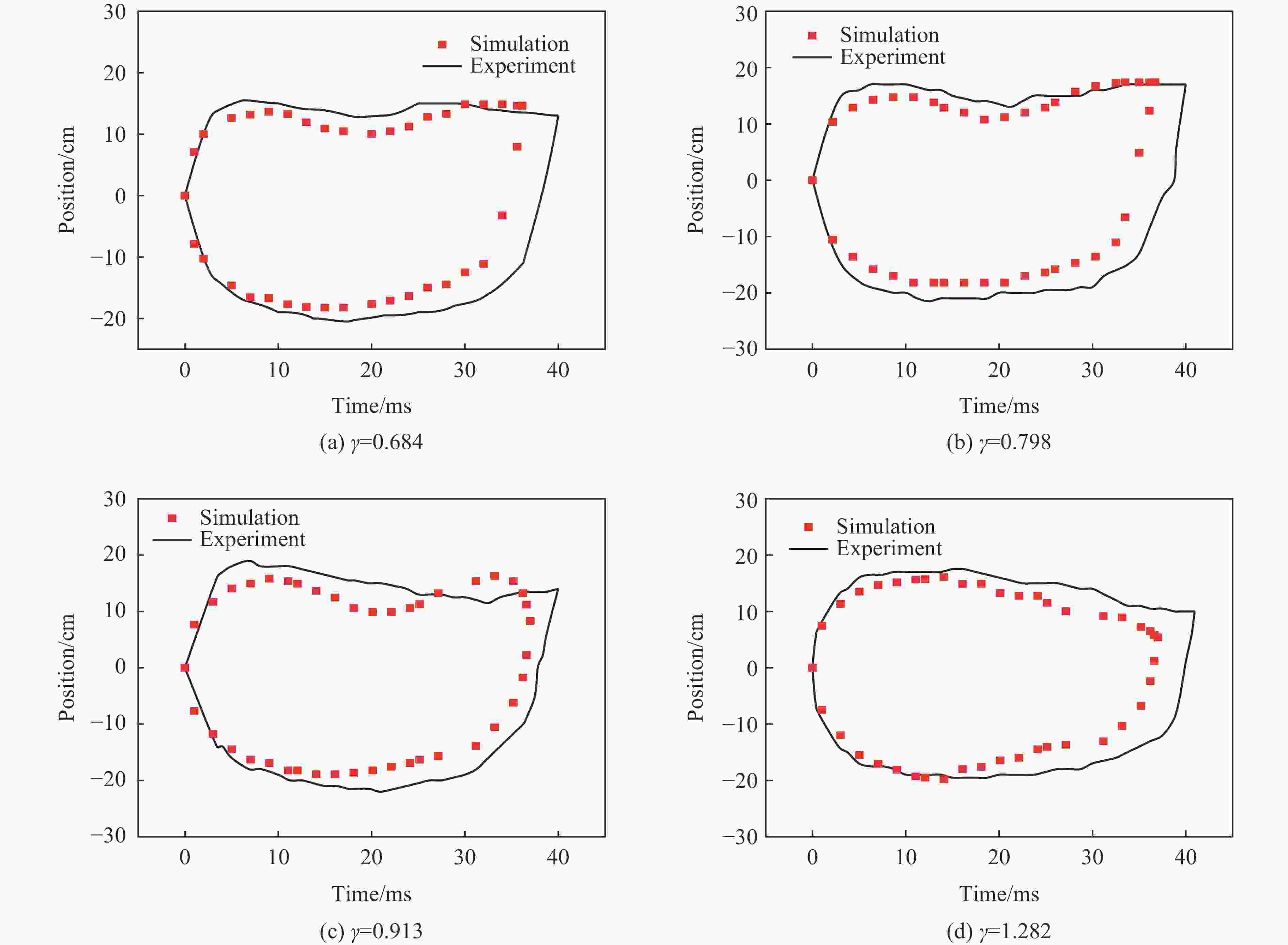

    图  14  气泡上、下表面位置曲线

    Figure  14.  The positions of the upper and lower surfaces of a bubble

    图  15  γ=0.821时气泡演变过程的数值模拟图像

    Figure  15.  Numerical simulation images of bubble evolution process when γ=0.821

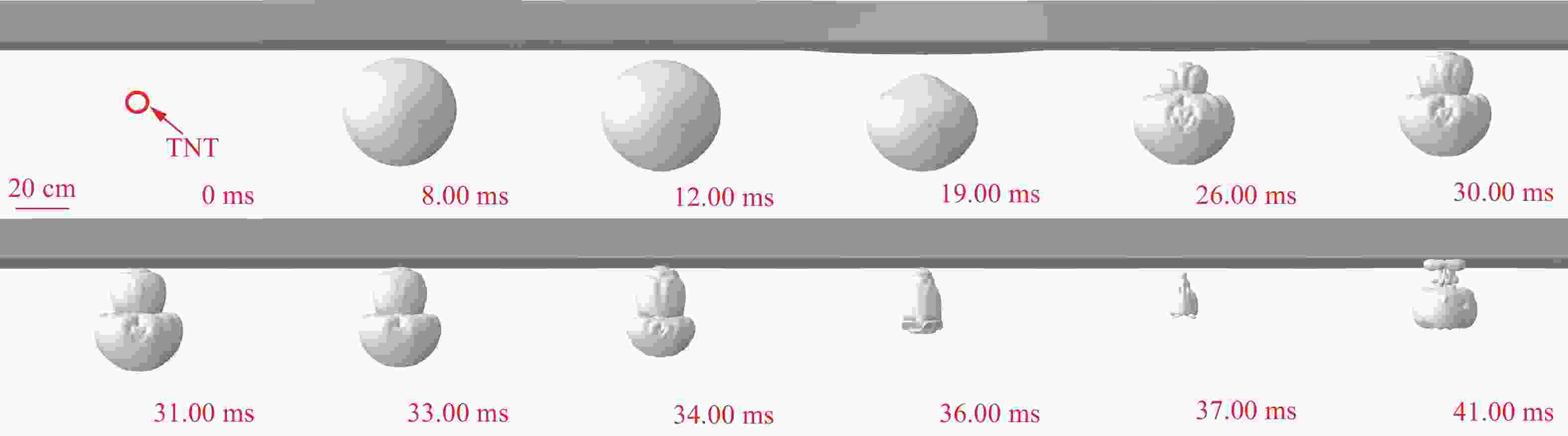

    图  16  γ=0.867时气泡演变过程的数值模拟图像

    Figure  16.  Numerical simulation images of bubble evolution process when γ=0.867

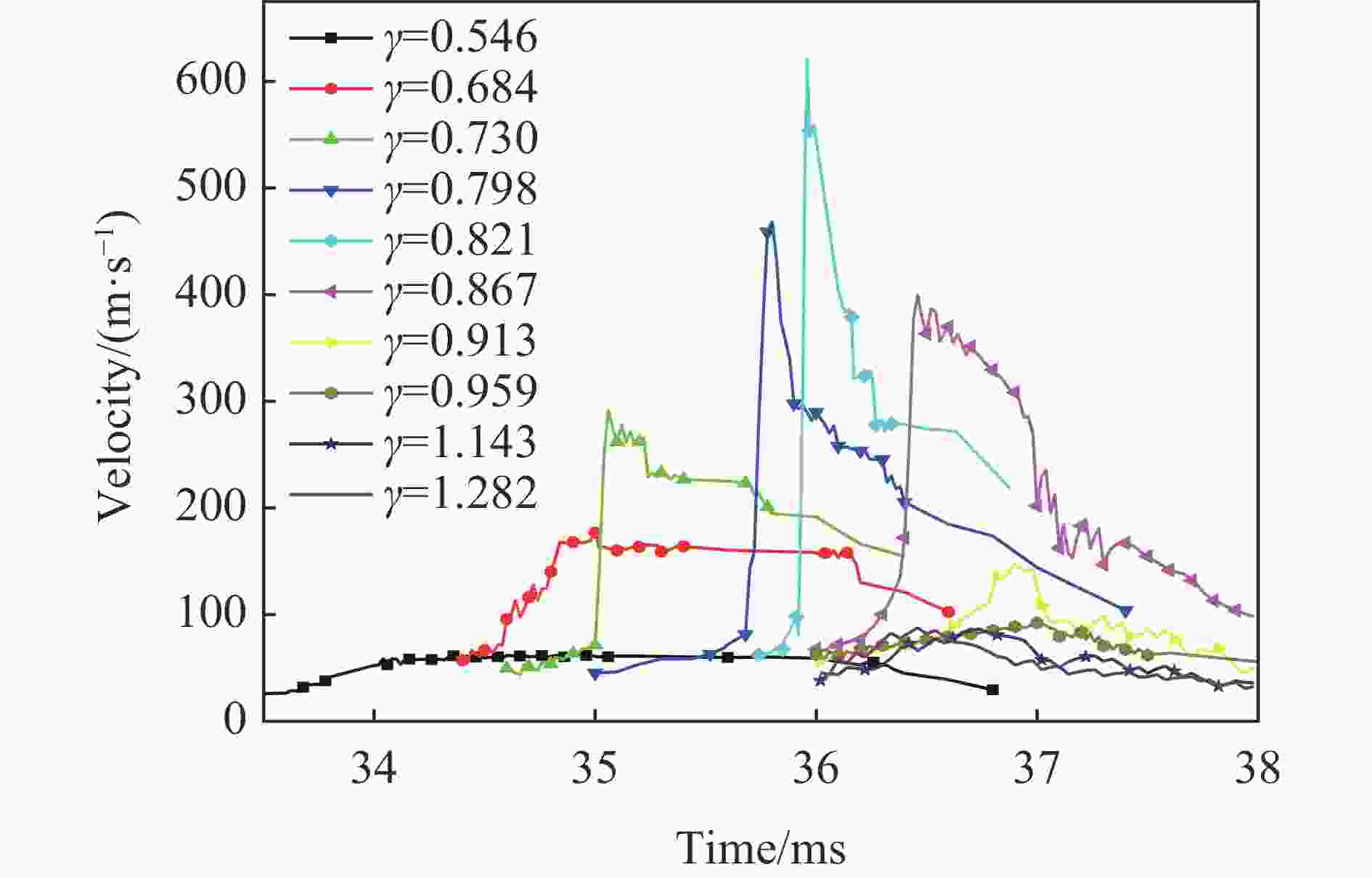

    图  17  在不同距离参数下射流顶部节点的速度曲线

    Figure  17.  Velocity curves of jet top nodes under different burst distances

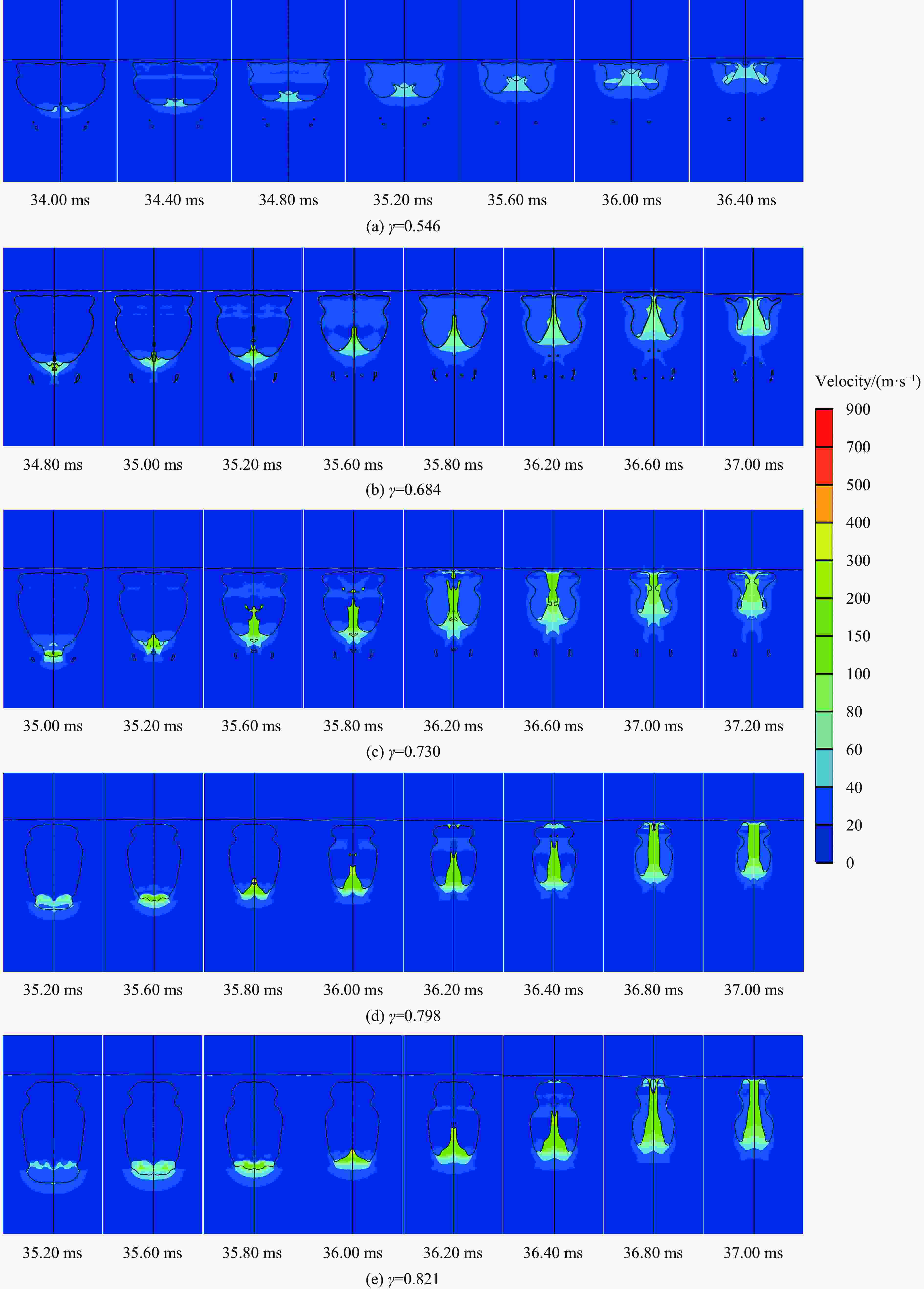

    18  在不同距离参数下射流速度演化过程的数值模拟图像

    18.  Numerical simulation images of jet velocity evolution processes at different burst distances

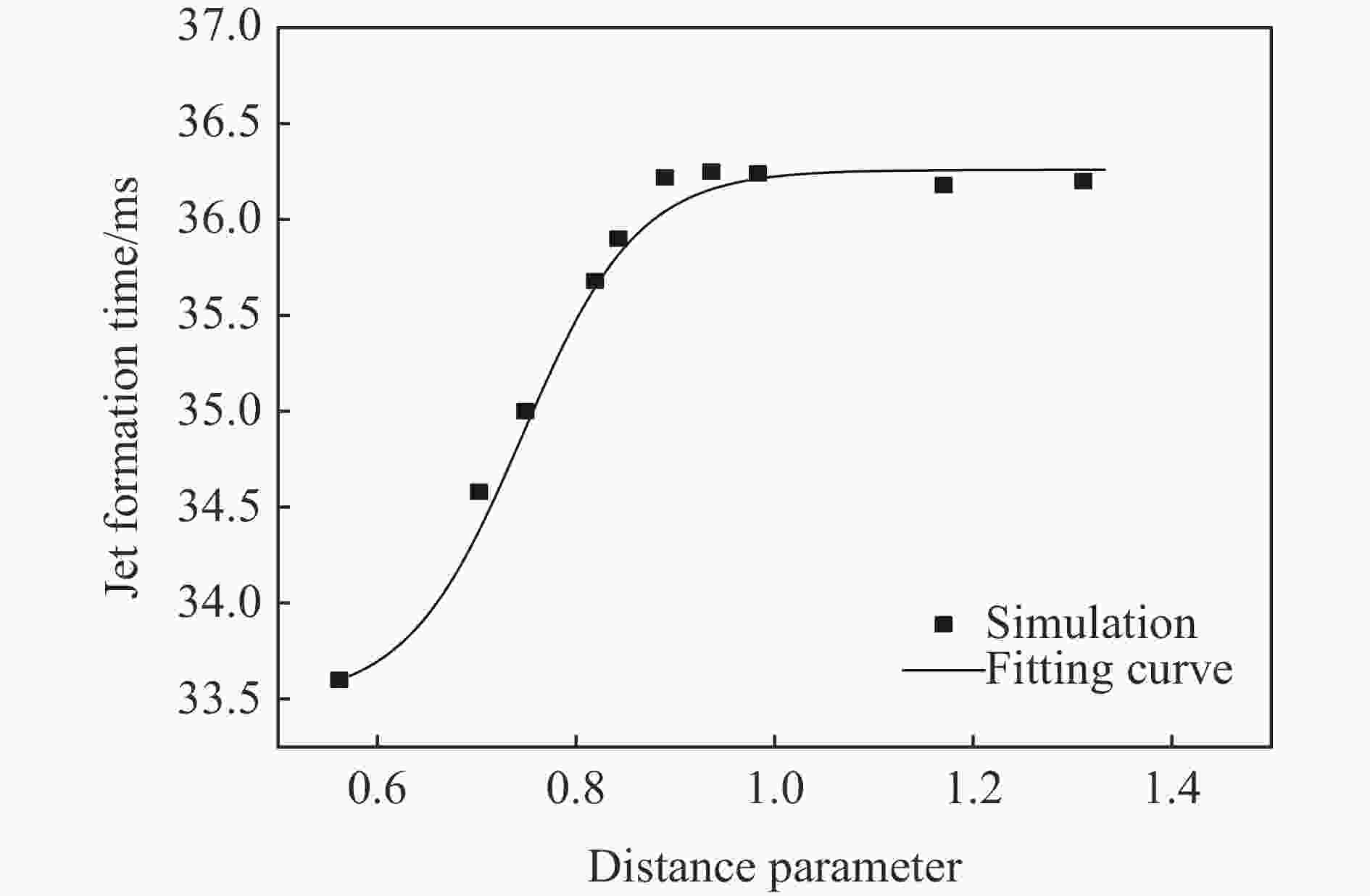

    图  19  射流形成时间与距离参数的关系

    Figure  19.  Relationship between jet formation time and distance parameter

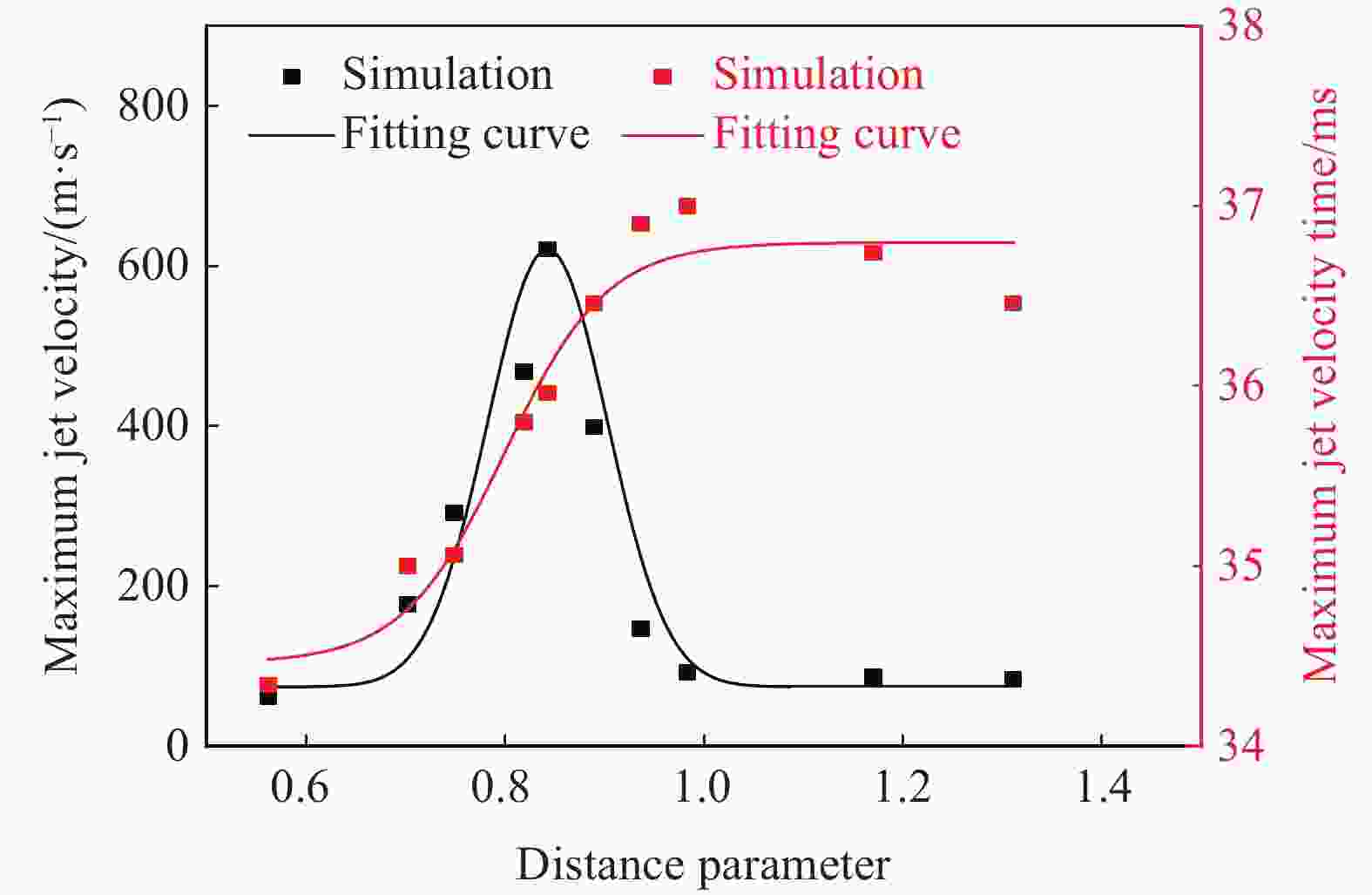

    图  20  不同距离参数下最大射流速度和最大射流速度时间

    Figure  20.  Maximum jet velocities and maximum jet velocity times at different distance parameters

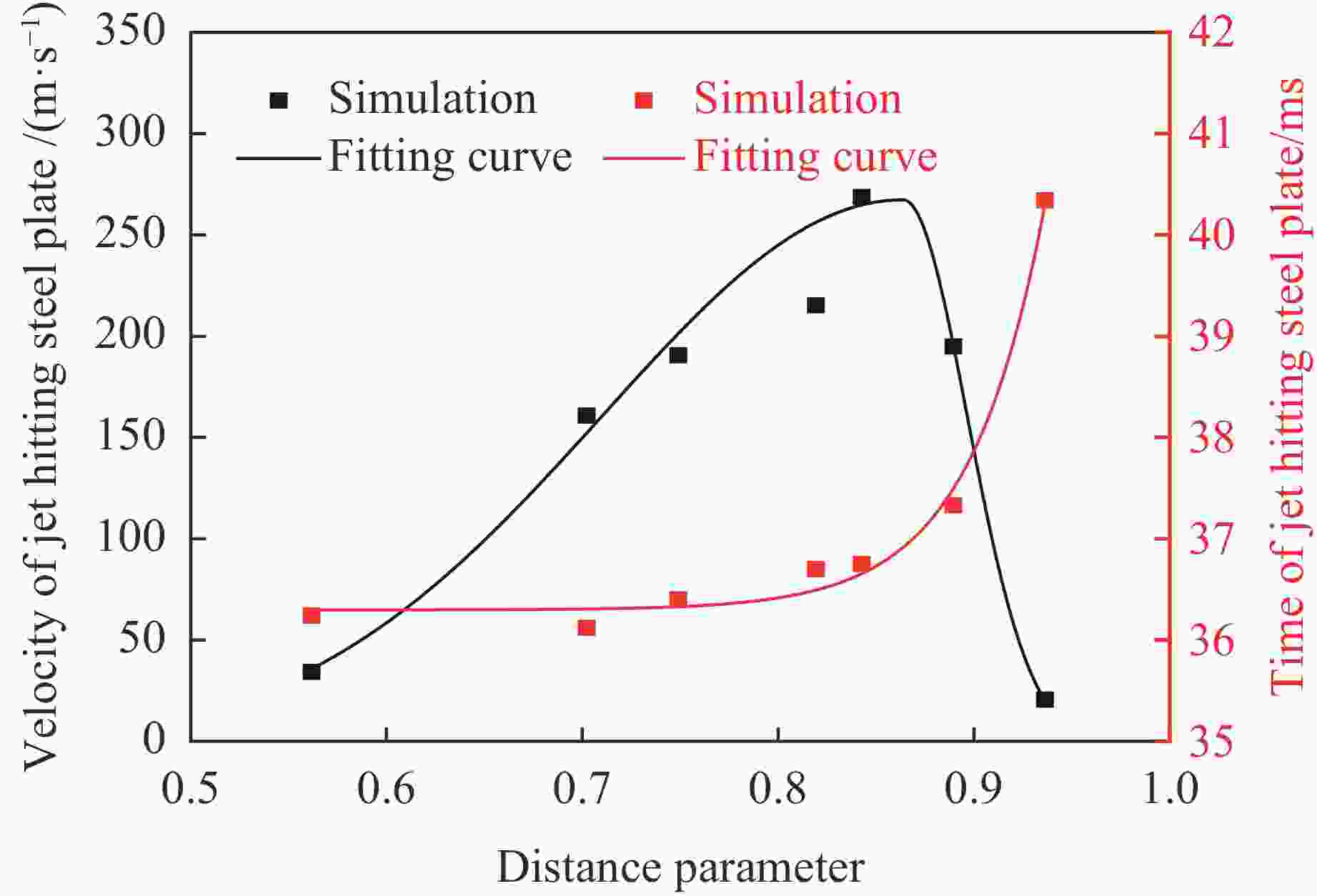

    图  21  不同距离参数下射流击中钢板的速度和时间

    Figure  21.  Velocities and times of jet hitting steel plate at different distance parameters

    表  1  冲击波峰值压力的实验结果和经验公式结果

    Table  1.   Experimental results and empirical formula results of shock wave peak pressures

    实验γpm1/MPaδp/%
    实验经验公式
    10.6847.648.196.72
    20.6847.498.198.55
    30.7987.728.205.85
    40.7987.798.205.00
    50.9137.818.214.87
    60.9137.778.215.36
    70.9137.918.213.65
    81.2827.548.157.49
    91.2827.618.156.63
    101.2827.588.156.99
    下载: 导出CSV

    表  2  气泡脉动周期和气泡最大半径的实验结果和经验公式结果

    Table  2.   Experimental results and empirical formula results of bubble pulsation periods and bubble maximum radii

    实验γT/msδT/%Rm/cmδR/%
    实验经验公式实验经验公式
    10.68437.8141.528.9421.5021.942.01
    20.68438.4441.527.4221.5021.942.01
    30.79839.6941.434.2021.6021.921.46
    40.79839.3741.434.9721.4021.922.37
    50.91339.8141.353.7221.5021.901.83
    60.91339.7541.353.8721.6021.901.37
    70.91339.6941.354.0121.6021.901.37
    81.28238.7541.085.6721.0021.853.89
    91.28239.7541.083.2421.1021.853.43
    101.28239.5641.083.7021.0021.853.89
    下载: 导出CSV

    表  3  数值模拟的距离参数

    Table  3.   Distance parameters in numerical simulation

    数值模拟 d/cm γ
    1 12.0 0.546
    2 15.0 0.684
    3 16.0 0.730
    4 17.5 0.798
    5 18.0 0.821
    6 19.0 0.867
    7 20.0 0.913
    8 21.0 0.959
    9 25.0 1.143
    10 28.0 1.282
    下载: 导出CSV
