传爆药静态压缩力学性能及损伤特性研究

肖向东 肖有才 洪志雄 熊言义 赵慧平 王泽宇 王志军

肖向东, 肖有才, 洪志雄, 熊言义, 赵慧平, 王泽宇, 王志军. 传爆药静态压缩力学性能及损伤特性研究[J]. 爆炸与冲击, 2022, 42(4): 042302. doi: 10.11883/bzycj-2021-0257
引用本文: 肖向东, 肖有才, 洪志雄, 熊言义, 赵慧平, 王泽宇, 王志军. 传爆药静态压缩力学性能及损伤特性研究[J]. 爆炸与冲击, 2022, 42(4): 042302. doi: 10.11883/bzycj-2021-0257
XIAO Xiangdong, XIAO Youcai, HONG Zhixiong, XIONG Yanyi, ZHAO Huiping, WANG Zeyu, WANG Zhijun. Study on mechanical properties and damage characteristics of booster explosives under static compression[J]. Explosion And Shock Waves, 2022, 42(4): 042302. doi: 10.11883/bzycj-2021-0257
Citation: XIAO Xiangdong, XIAO Youcai, HONG Zhixiong, XIONG Yanyi, ZHAO Huiping, WANG Zeyu, WANG Zhijun. Study on mechanical properties and damage characteristics of booster explosives under static compression[J]. Explosion And Shock Waves, 2022, 42(4): 042302. doi: 10.11883/bzycj-2021-0257

传爆药静态压缩力学性能及损伤特性研究

doi: 10.11883/bzycj-2021-0257
基金项目: 国家自然科学基金(11802273);山西省青年科学基金(201901D211279)
详细信息
    作者简介:

    肖向东(1994- ),男,硕士,xxiangdong0@163.com

    通讯作者:

    肖有才(1988- ),男,博士,副教授,xiaoyoucai@nuc.edu.cn

  • 中图分类号: O347.3

Study on mechanical properties and damage characteristics of booster explosives under static compression

  • 摘要: 为研究聚黑-14C(JH-14C)传爆药静态压缩力学性能及损伤特性,开展准静态压缩实验,获得了不同应变率下的应力-应变曲线,建立了描述不同应变率下JH-14C力学行为的非线性本构模型;利用扫描电镜(SEM)对回收试样进行细微形貌观测,获得了准静态压缩JH-14C损伤特性的表征。结果表明:JH-14C压缩强度随应变率的升高而提高;实验与计算结果对照验证了本构模型的有效性;准静态压缩实验中,JH-14C主要损伤模式为脱湿和穿晶断裂。

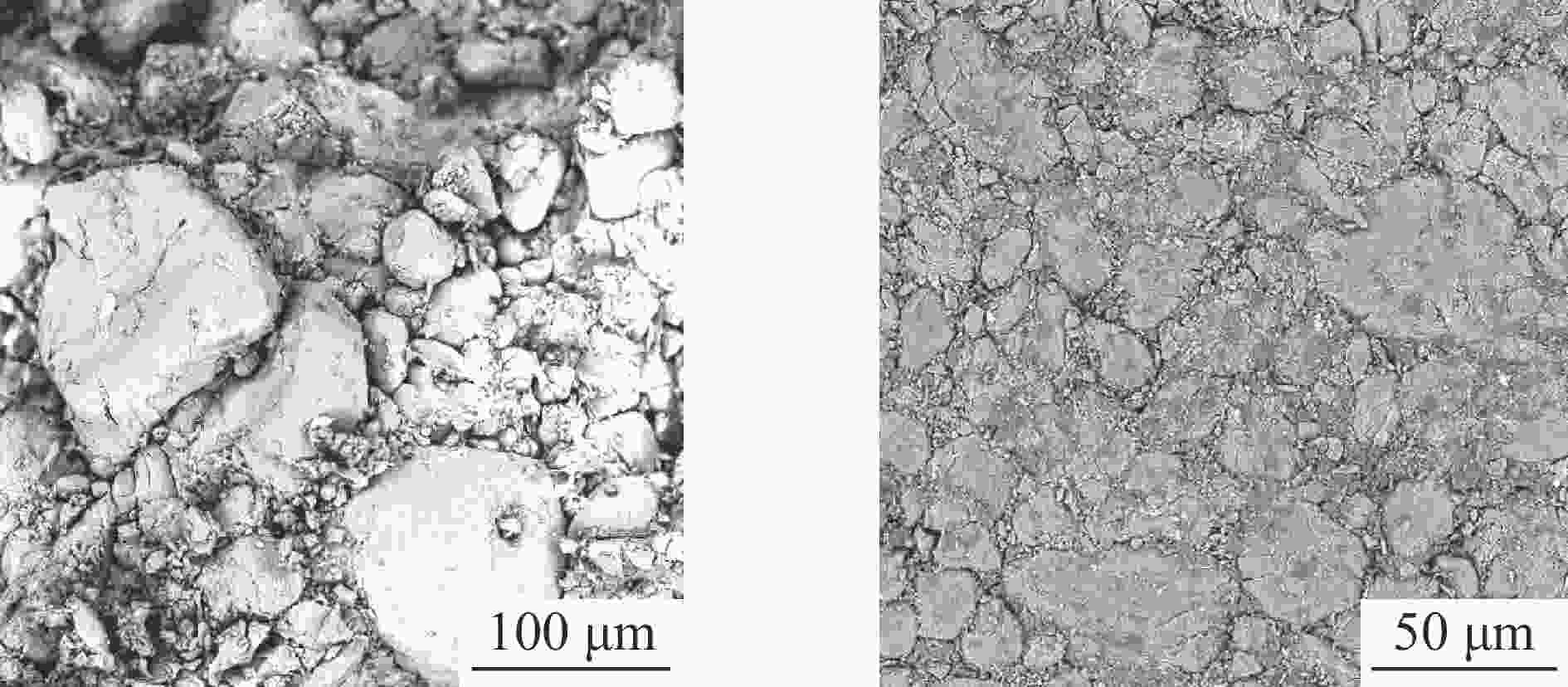

  • 图  1  JH-14C的细观形貌

    Figure  1.  Micrographs of JH-14C

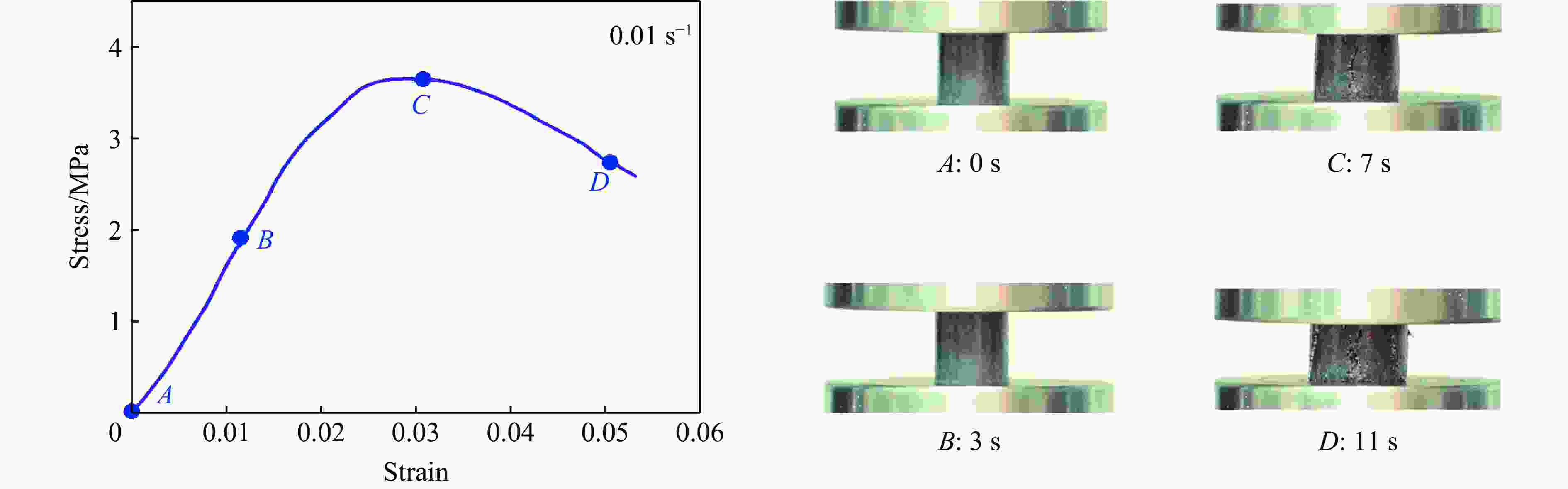

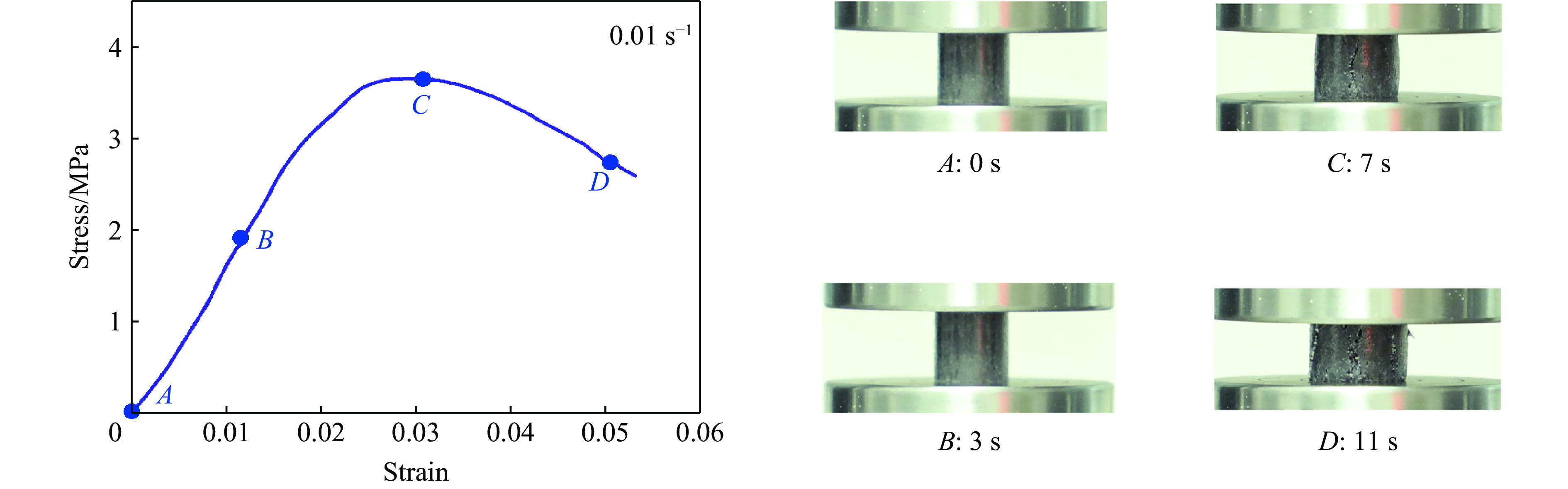

    图  2  应力-应变关系和试件变形过程

    Figure  2.  Stress-strain relationship and the corresponding specimen deformation process

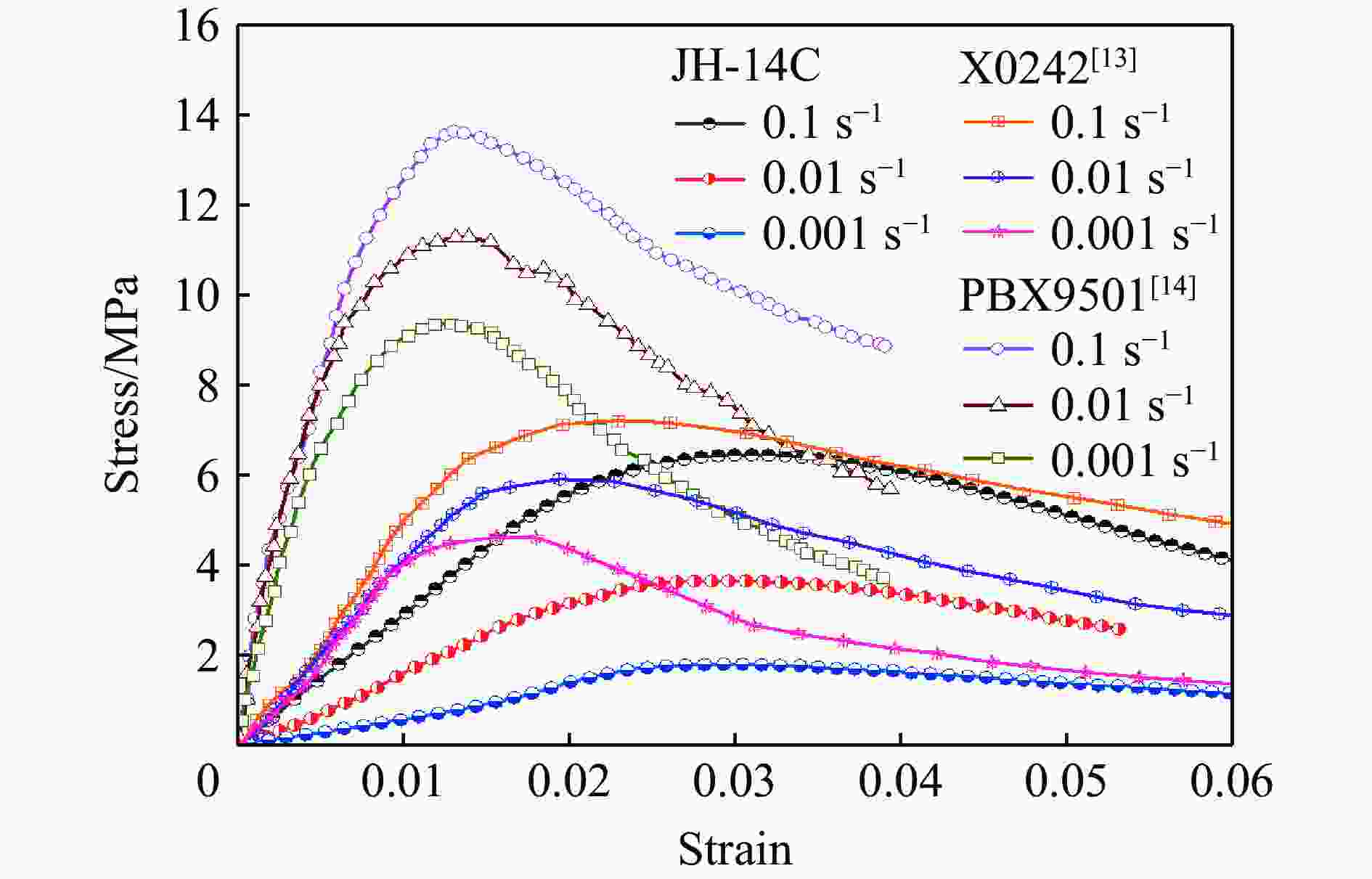

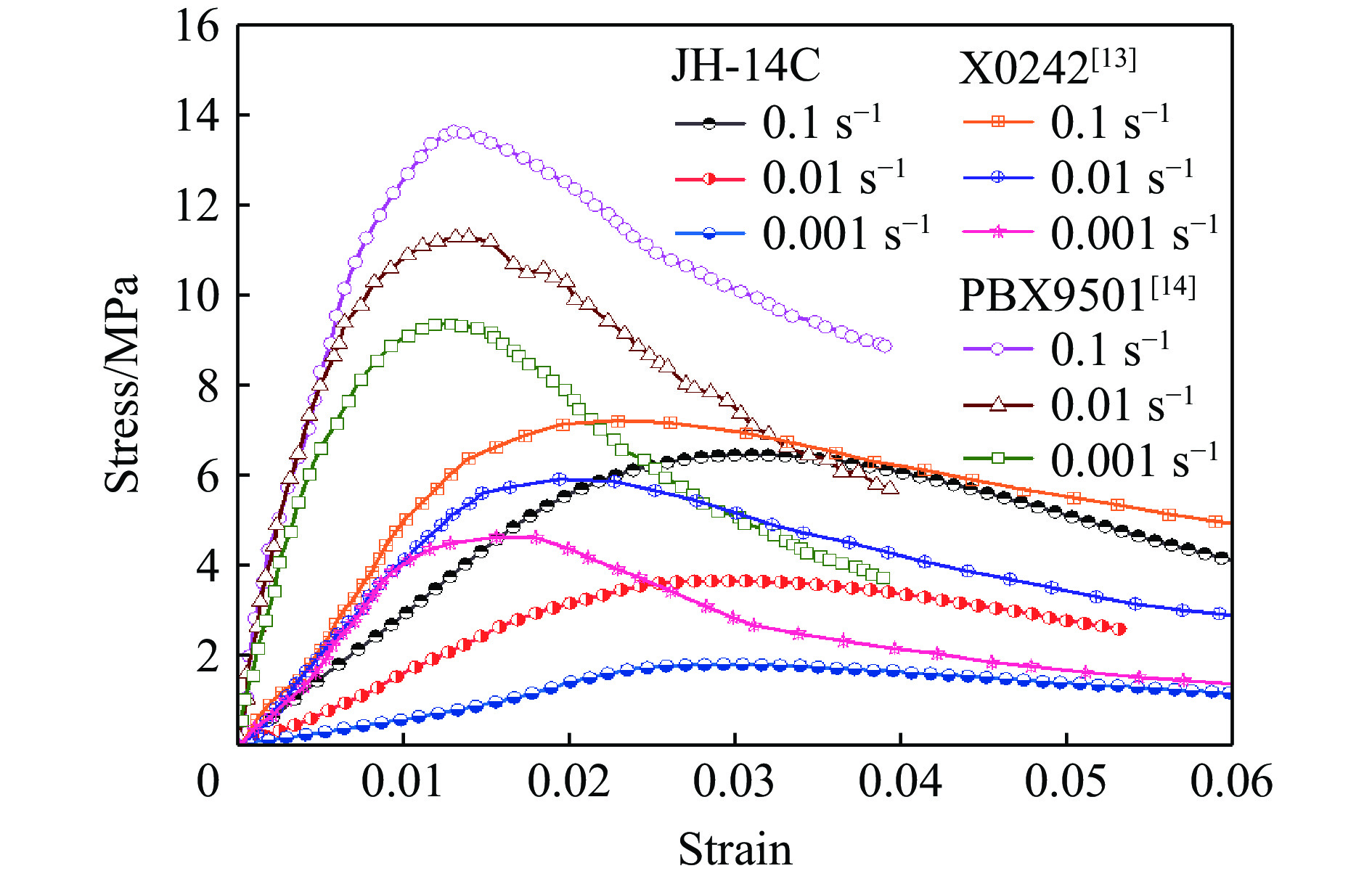

    图  3  不同应变率下JH-14C、PBX9501[14]、X0242[13]的准静态应力-应变曲线

    Figure  3.  Quasi-static stress-strain curves of JH-14C, PBX9501[14], X0242[13] at different strain rates

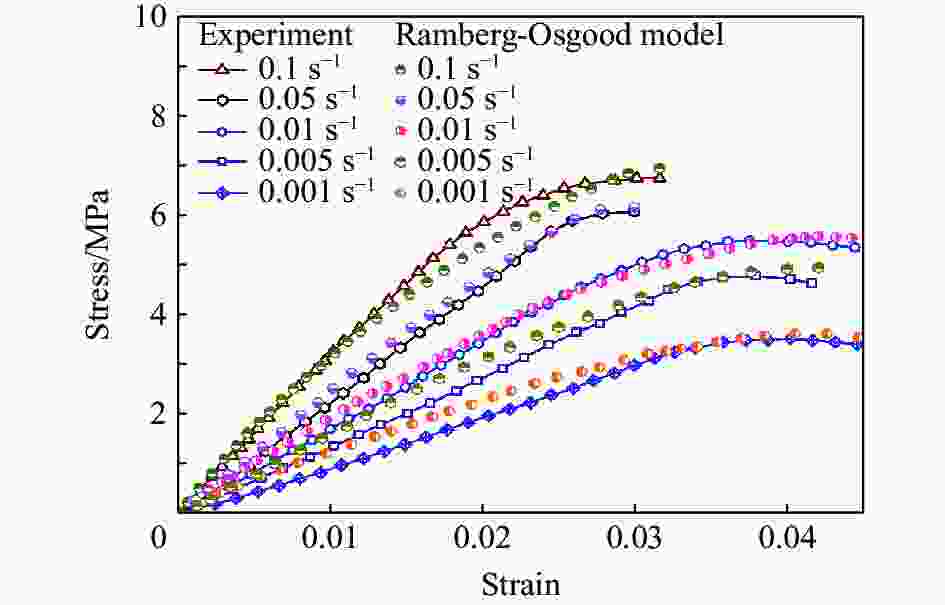

    图  4  理论与实验的准静态压缩应力-应变曲线比较

    Figure  4.  Comparisons between theory and experiment quasi-static stress-strain curves

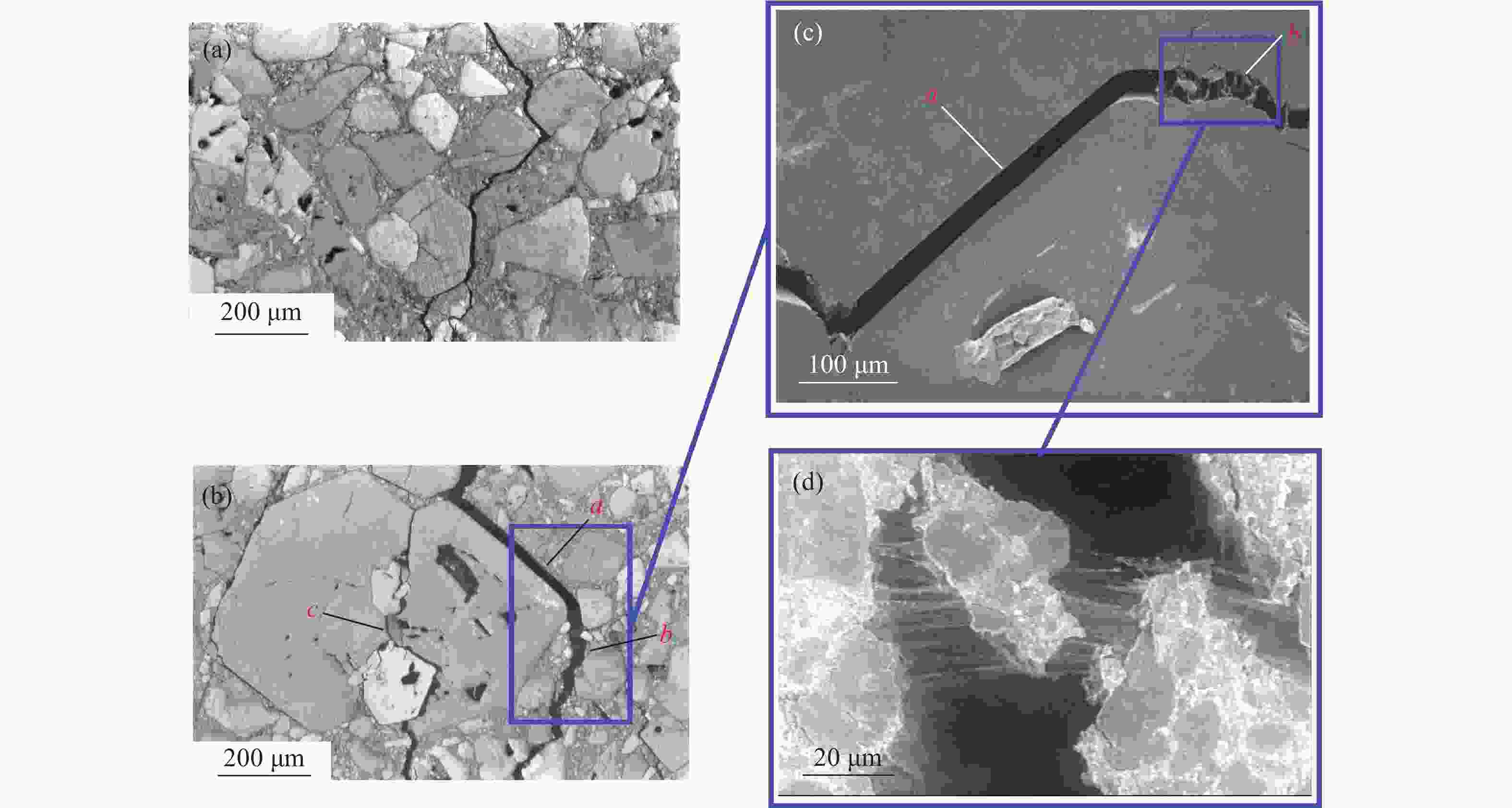

    图  5  试样加载前细观形貌

    Figure  5.  Micrographs of the specimens before loading

    图  6  PBX9501的细观形貌[4]

    Figure  6.  Micrographs of PBX9501[4]

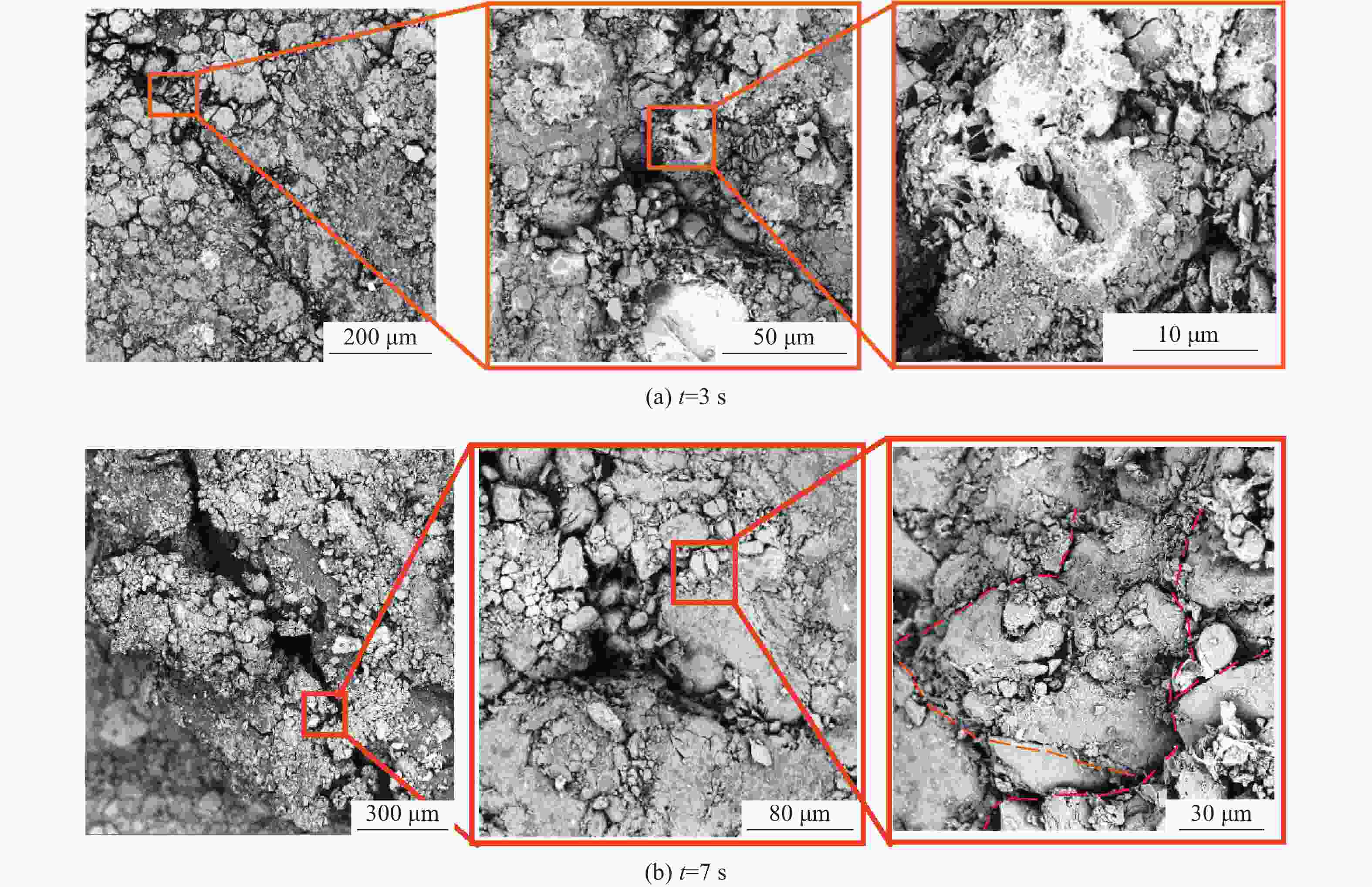

    图  7  JH-14C试样加载时的细观形貌

    Figure  7.  Micrographs of the JH-14C specimen at loading moments

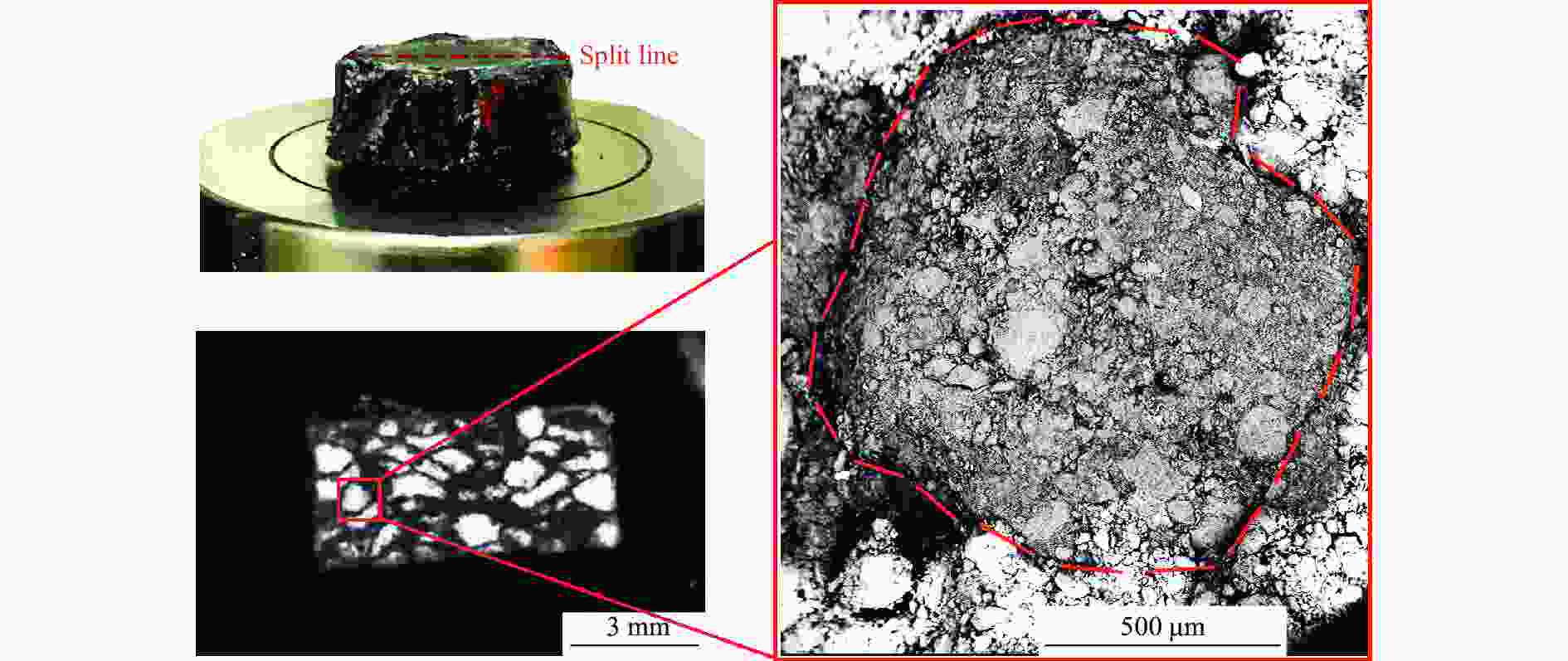

    图  8  JH-14C试样的径向截面细观形貌

    Figure  8.  Micrographs of the radial cross-section of the JH-14C specimen

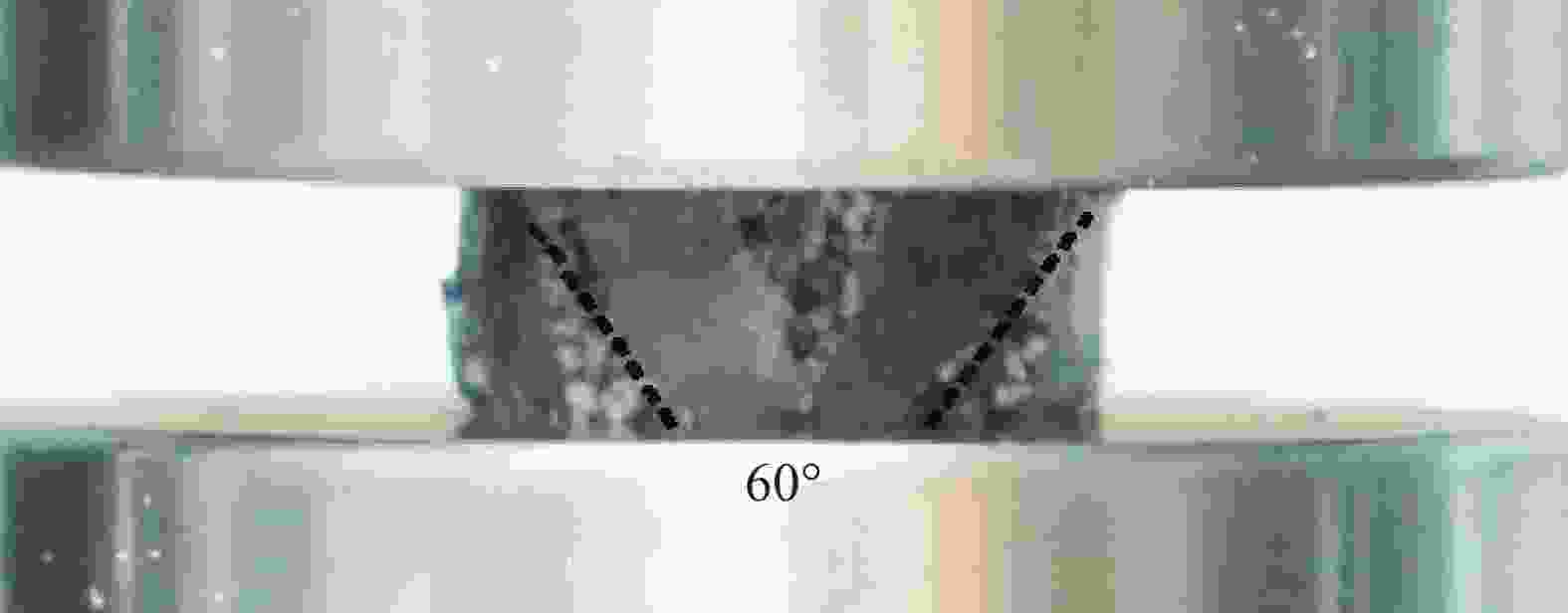

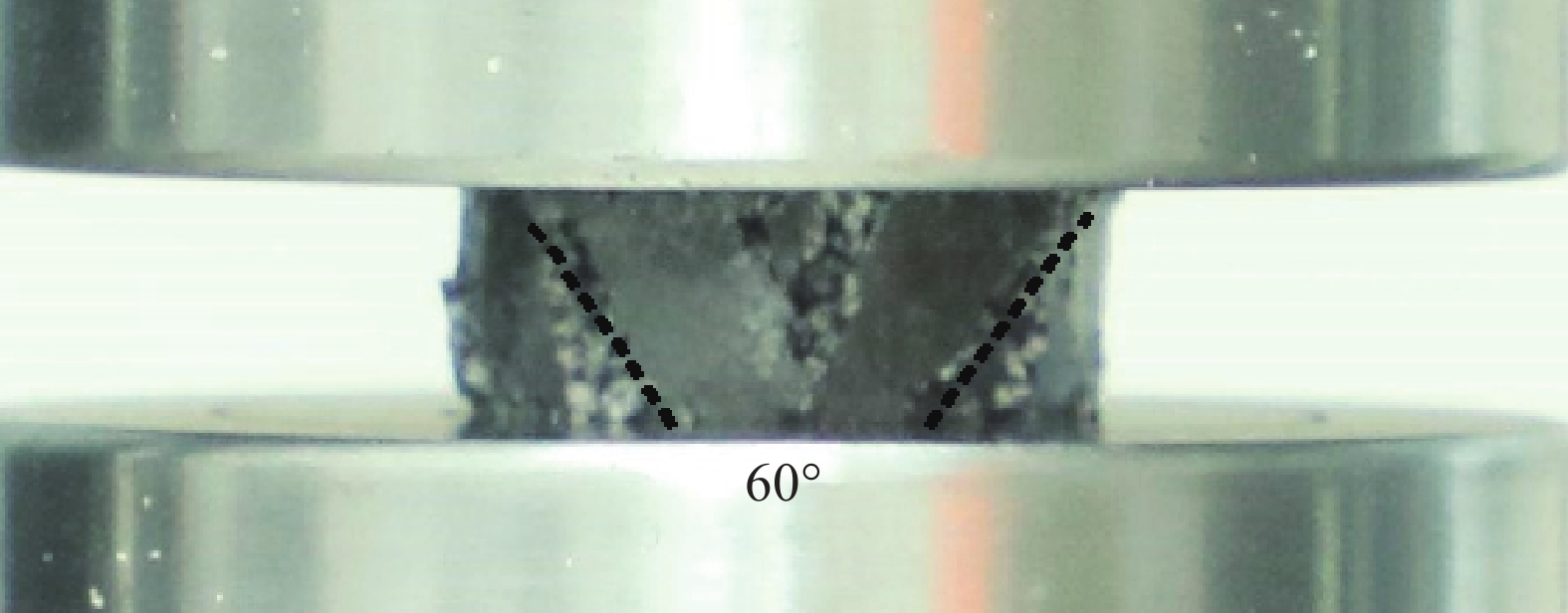

    图  9  JH-14C宏观断裂形貌

    Figure  9.  Macroscopic longitudinal fracture surface of JH-14C

    表  1  模型拟合结果的相关系数

    Table  1.   Correlation coefficients of the model fitting results

    $ \dot \varepsilon$/s−1R2
    0.1 0.990 5
    0.05 0.997 5
    0.01 0.998 7
    0.0050.992 5
    0.0010.984 2
    下载: 导出CSV
