偏心起爆对战斗部装药能量分配增益的影响

邓海 全嘉林 梁争峰

邓海, 全嘉林, 梁争峰. 偏心起爆对战斗部装药能量分配增益的影响[J]. 爆炸与冲击, 2022, 42(5): 052201. doi: 10.11883/bzycj-2021-0280
引用本文: 邓海, 全嘉林, 梁争峰. 偏心起爆对战斗部装药能量分配增益的影响[J]. 爆炸与冲击, 2022, 42(5): 052201. doi: 10.11883/bzycj-2021-0280
DENG Hai, QUAN Jialin, LIANG Zhengfeng. Influence of eccentric initiation on energy distribution gain of a warhead charge[J]. Explosion And Shock Waves, 2022, 42(5): 052201. doi: 10.11883/bzycj-2021-0280
Citation: DENG Hai, QUAN Jialin, LIANG Zhengfeng. Influence of eccentric initiation on energy distribution gain of a warhead charge[J]. Explosion And Shock Waves, 2022, 42(5): 052201. doi: 10.11883/bzycj-2021-0280

偏心起爆对战斗部装药能量分配增益的影响

doi: 10.11883/bzycj-2021-0280
详细信息
    作者简介:

    邓 海(1990- ),男,博士研究生,hai179590@163.com

    通讯作者:

    梁争峰(1972- ),男,博士,研究员,2042lzf@sohu.com

  • 中图分类号: O389

Influence of eccentric initiation on energy distribution gain of a warhead charge

  • 摘要: 为研究不同方式的偏心起爆对炸药装药能量分配及增益的影响,建立了偏心起爆战斗部的计算模型,通过局部装填比这一变量,给出了偏心起爆战斗部破片的初速计算公式。采用数值模拟与试验验证结合的方法,对六分位条件下不同偏心起爆方式的破片速度增益和能量增益进行了对比,得出以中心起爆为基准,分别以邻位双线、连位三线、间位双线、偏心单线方式起爆,定向方位内破片的速度增益依次增大;邻位双线起爆时,目标方向破片速度增益达25.47%,定向区域破片动能占总能量的24.57%,能量增益超过40%。

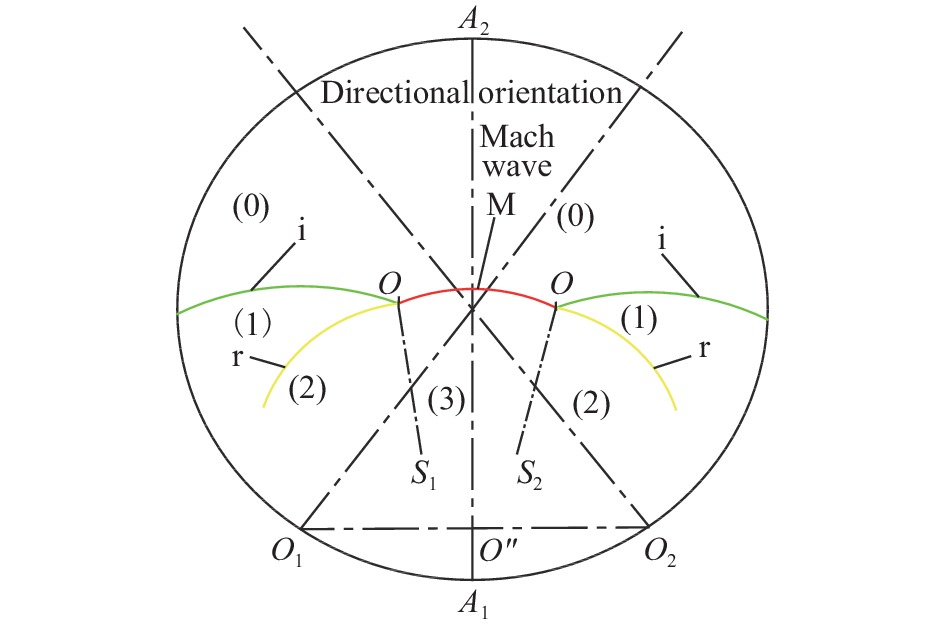

  • 图  1  邻位两点偏心起爆后爆轰波相互作用

    Figure  1.  Interaction between two detonation waves produced by two-point eccentric initiation with an interval of 60°

    图  2  偏心起爆弹轴中心截面示意图

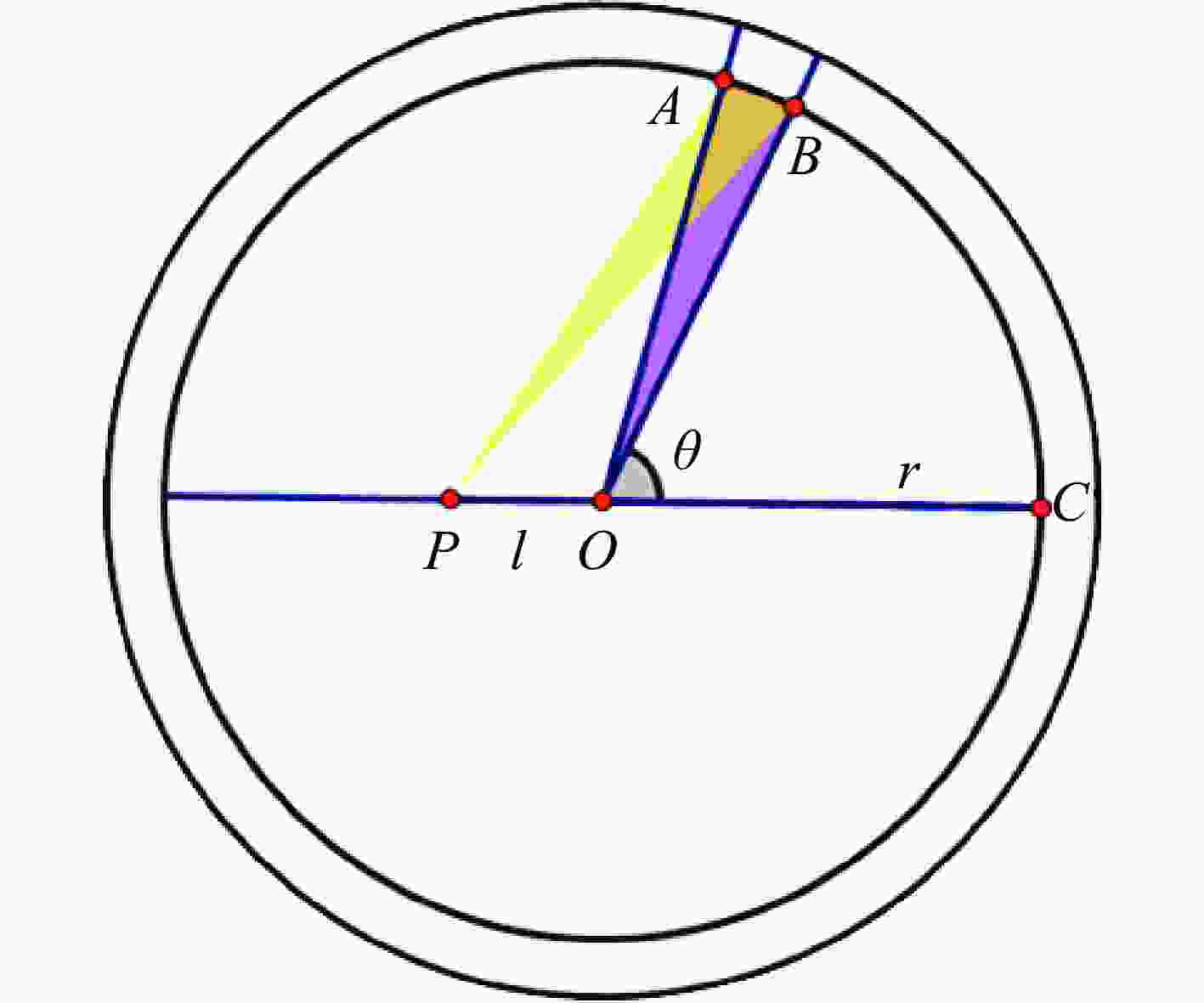

    Figure  2.  Schematic diagram of the eccentric detonator shaft center section

    图  3  战斗部模型

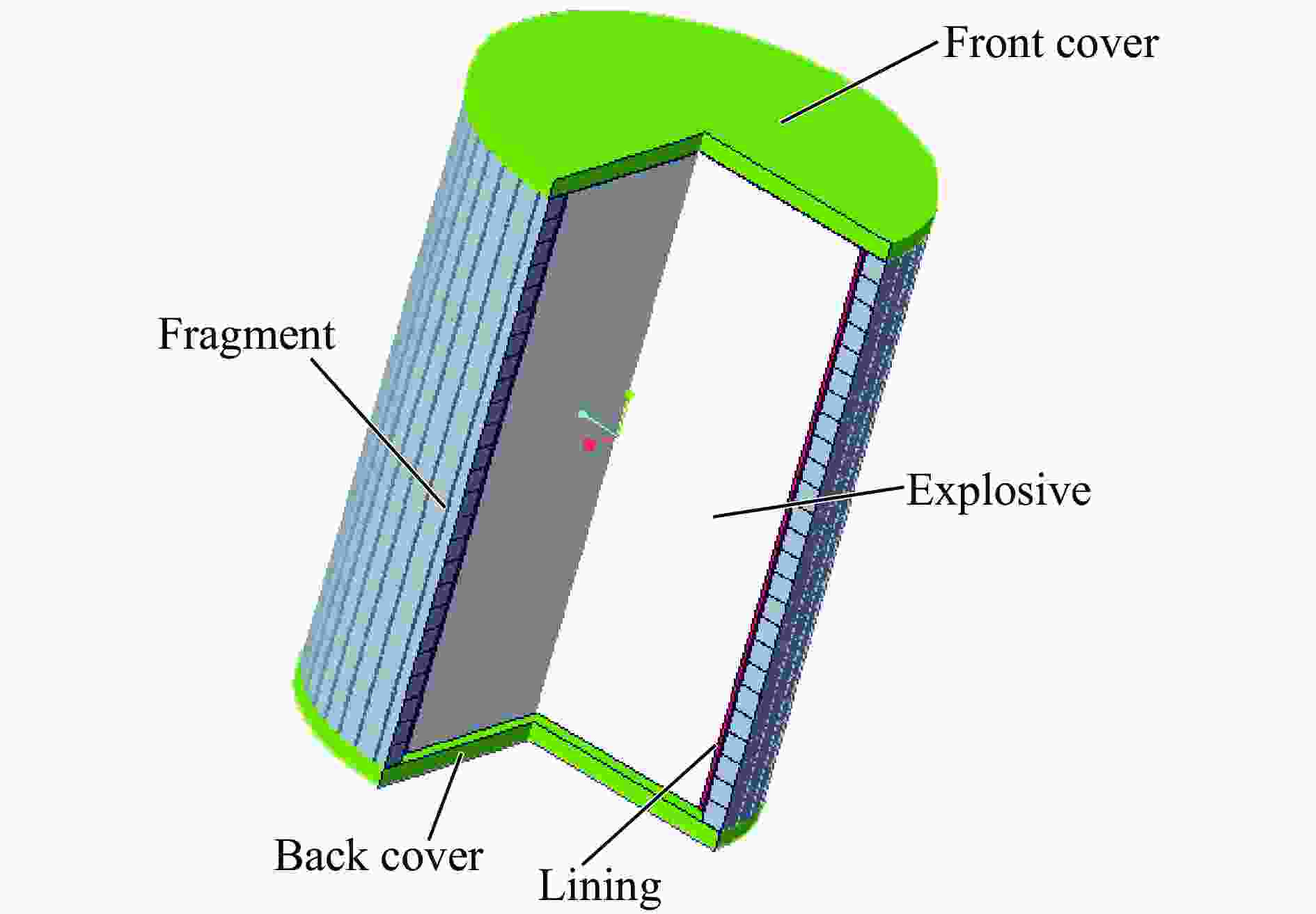

    Figure  3.  The warhead model

    图  4  六分圆起爆方式

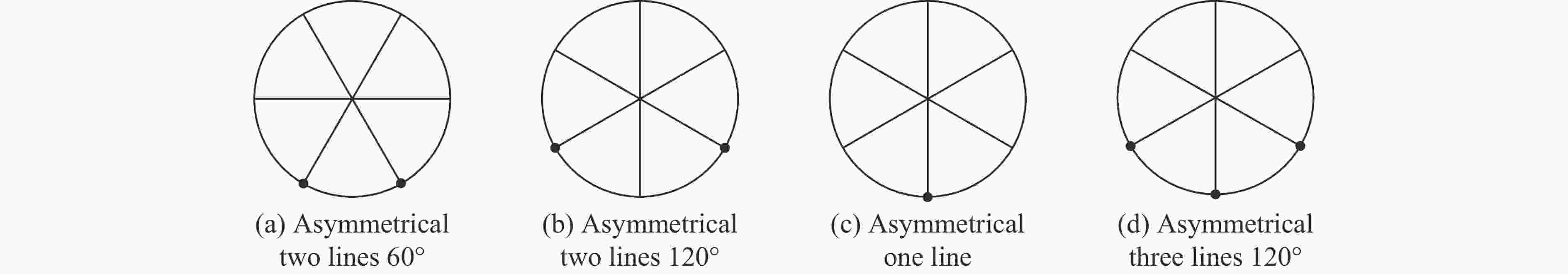

    Figure  4.  Initiation modes of sextant circle

    图  5  不同起爆方式下爆轰波的传播过程

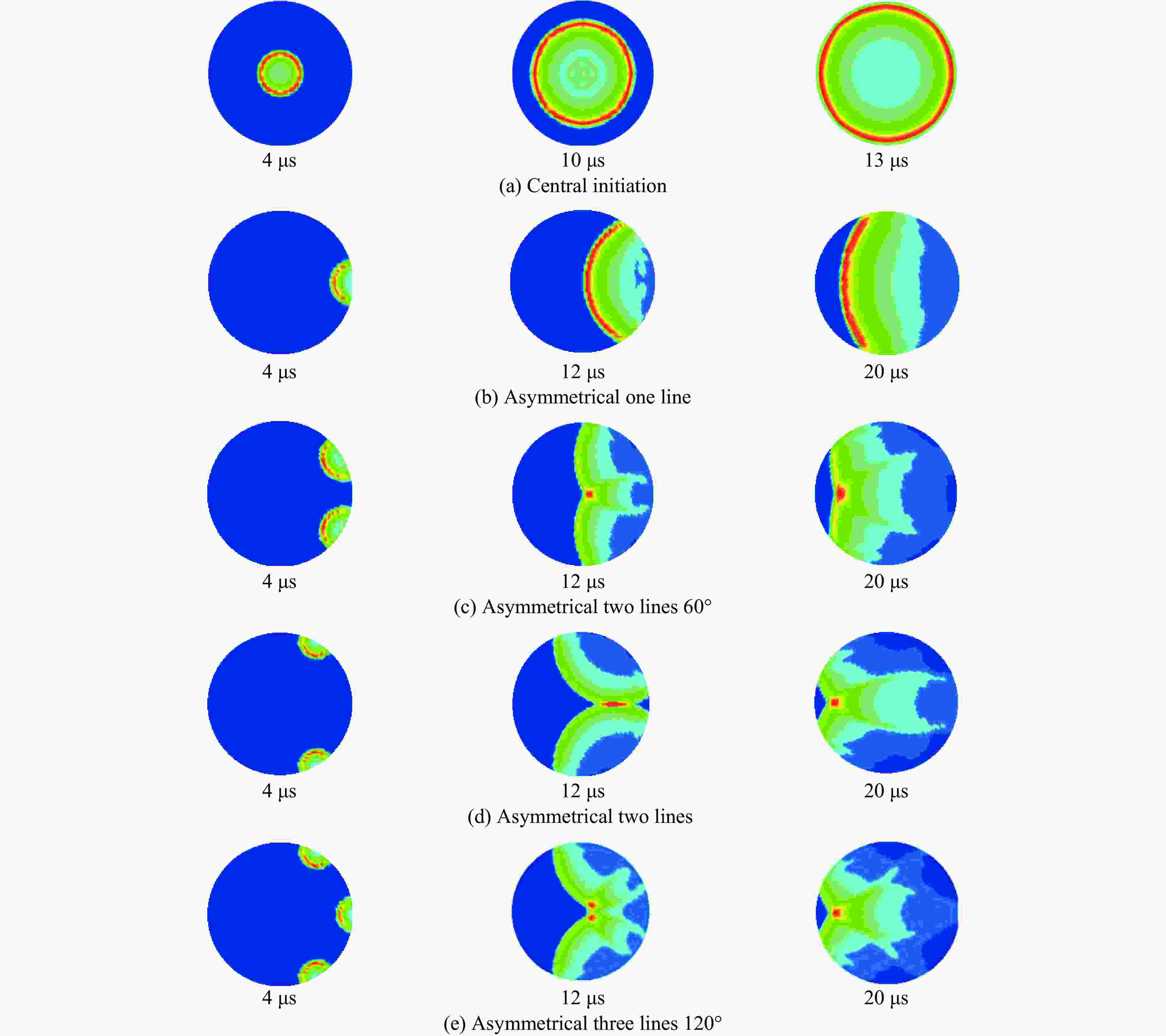

    Figure  5.  Propagation processes of detonation waves with different initiation modes

    图  6  不同起爆方式下,爆轰波压力峰值随方位角分布曲线

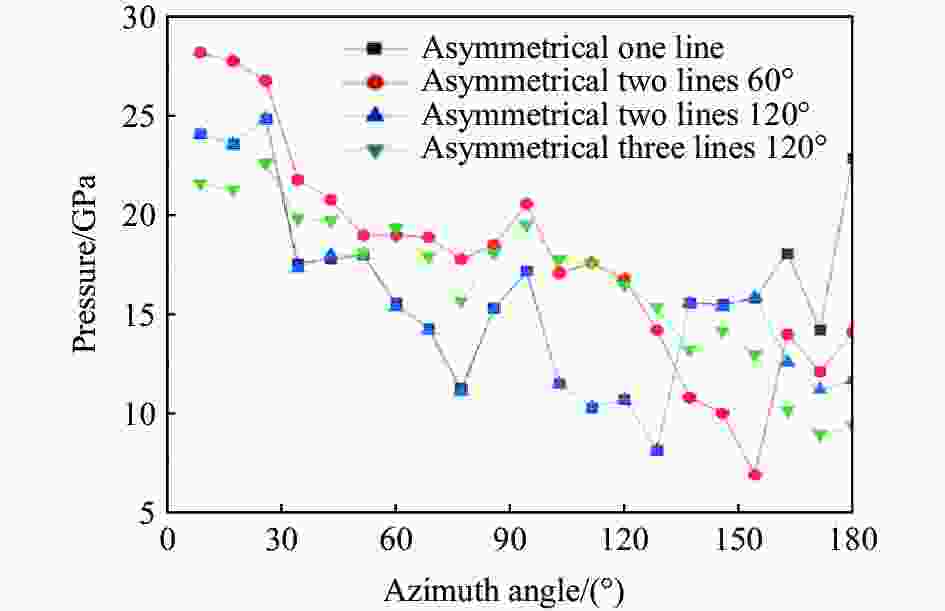

    Figure  6.  Detonation wave pressure peak varying with azimuth angle under different initiation modes

    图  7  不同起爆方式下破片速度随方位角的分布

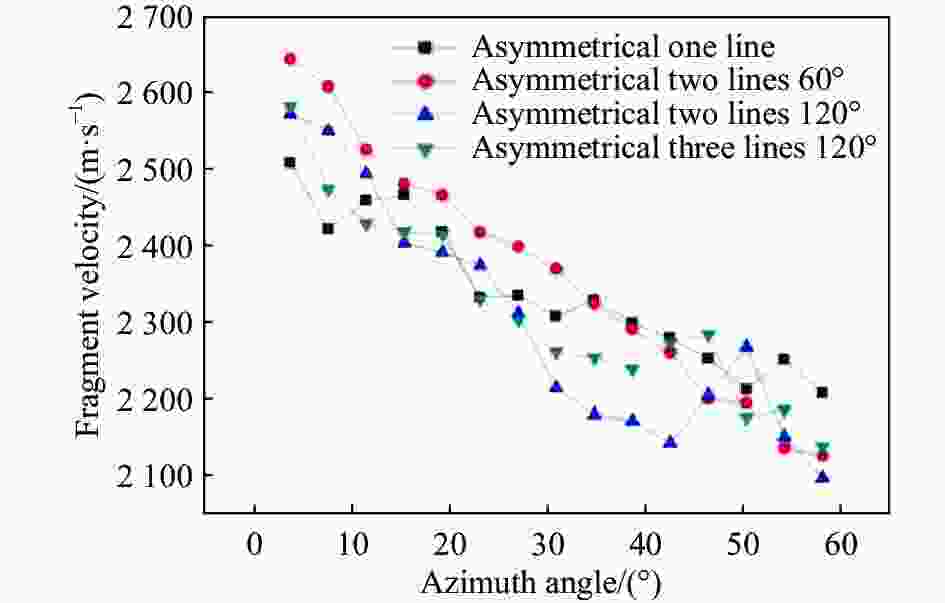

    Figure  7.  Fragment velocity varying with azimuth angle under different initiation modes

    图  8  不同起爆方式下动能分配比随破片方位角的变化

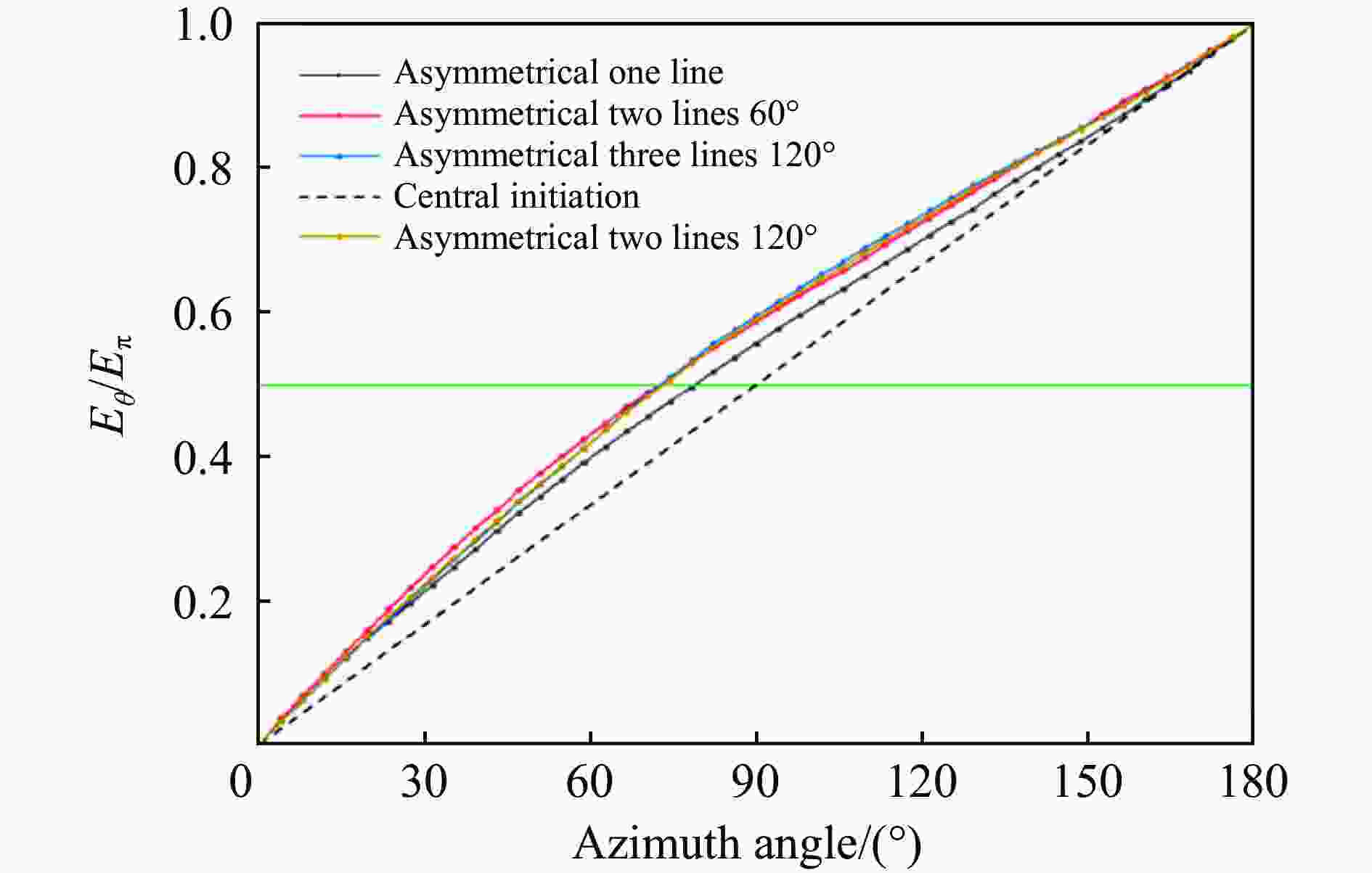

    Figure  8.  Kinetic energy distribution ratio varying with azimuth angle under different initiation modes

    图  9  试验样弹的结构设计

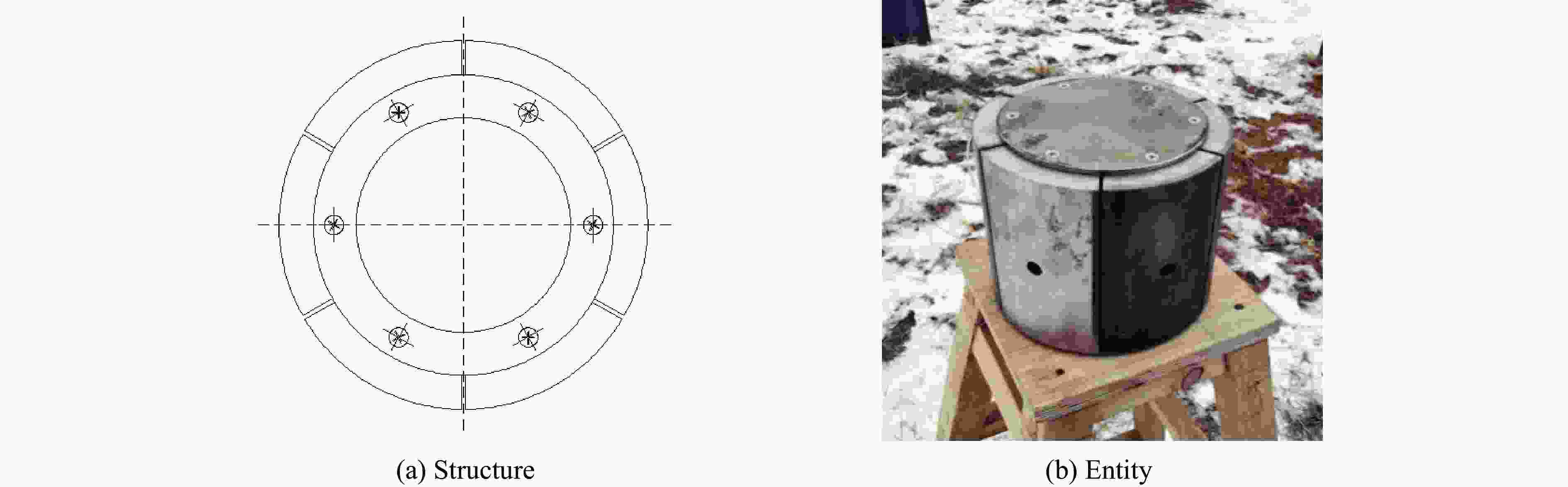

    Figure  9.  Structure design of test sample projectile

    图  10  靶场布局

    Figure  10.  Shooting range layout

    图  11  样弹1爆轰过程的高速摄影

    Figure  11.  High-speed photography of detonation process of test bomb 1

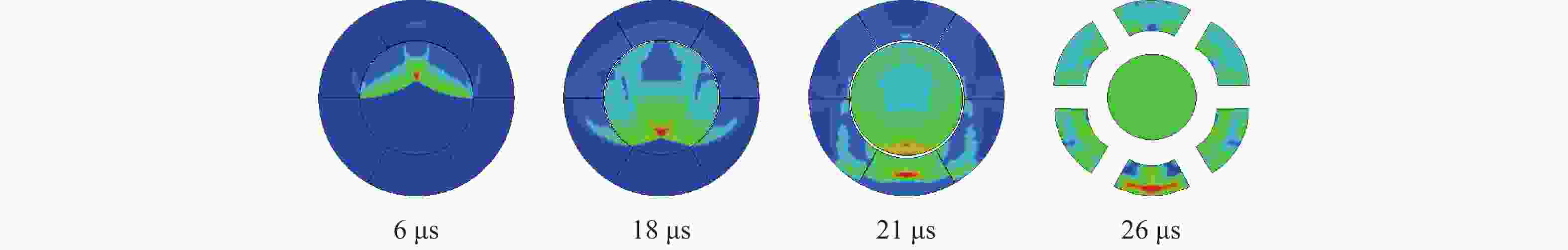

    图  12  邻位双线起爆过程的状态
