考虑尺寸效应的典型钻地弹侵彻混凝土深度分析

程月华 姜鹏飞 吴昊 谭可可 方秦

程月华, 姜鹏飞, 吴昊, 谭可可, 方秦. 考虑尺寸效应的典型钻地弹侵彻混凝土深度分析[J]. 爆炸与冲击, 2022, 42(6): 063302. doi: 10.11883/bzycj-2021-0373
引用本文: 程月华, 姜鹏飞, 吴昊, 谭可可, 方秦. 考虑尺寸效应的典型钻地弹侵彻混凝土深度分析[J]. 爆炸与冲击, 2022, 42(6): 063302. doi: 10.11883/bzycj-2021-0373
CHENG Yuehua, JIANG Pengfei, WU Hao, TAN Keke, FANG Qin. On penetration depth of typical earth-penetrating projectilesinto concrete targets considering the scaling effect[J]. Explosion And Shock Waves, 2022, 42(6): 063302. doi: 10.11883/bzycj-2021-0373
Citation: CHENG Yuehua, JIANG Pengfei, WU Hao, TAN Keke, FANG Qin. On penetration depth of typical earth-penetrating projectilesinto concrete targets considering the scaling effect[J]. Explosion And Shock Waves, 2022, 42(6): 063302. doi: 10.11883/bzycj-2021-0373

考虑尺寸效应的典型钻地弹侵彻混凝土深度分析

doi: 10.11883/bzycj-2021-0373
基金项目: 国家自然科学基金(52078379)
详细信息
    作者简介:

    程月华(1994- ),女,博士研究生,yhcheng@tongji.edu.cn

    通讯作者:

    吴 昊(1981- ),男,博士,教授,wuhaocivil@tongji.edu.cn

  • 中图分类号: O385

On penetration depth of typical earth-penetrating projectilesinto concrete targets considering the scaling effect

  • 摘要: 准确评估精确制导武器的侵彻深度可为防护工程设计提供重要参考。已有研究工作大多集中于中、小口径弹体和普通强度混凝土靶体,且由于尺寸效应的影响使得现有计算方法对预测大口径典型钻地弹侵彻深度的适用性值得商榷。首先,综合分析了已有弹体侵彻试验数据,发现引起侵彻深度尺寸效应的主要原因是混凝土粗骨料粒径未随弹体尺寸进行同比缩放;其次,开展了5发100.0和203.0 mm口径缩比钻地弹侵彻C40和C100混凝土的试验和数值模拟分析,提出并验证了大口径弹体侵彻混凝土深度的实用化有限元计算方法;然后,确定了美军5种典型钻地弹在不同侵彻速度(100~600 m/s)下对上述2种强度混凝土靶体的侵彻深度,并对现有7种计算公式的适用性进行了评估;最后,基于已有大量试验数据拟合确定了侵彻深度随混凝土强度的衰减规律,并计算得到340 m/s侵彻速度下5种典型钻地弹对C40~C200混凝土的侵彻深度。

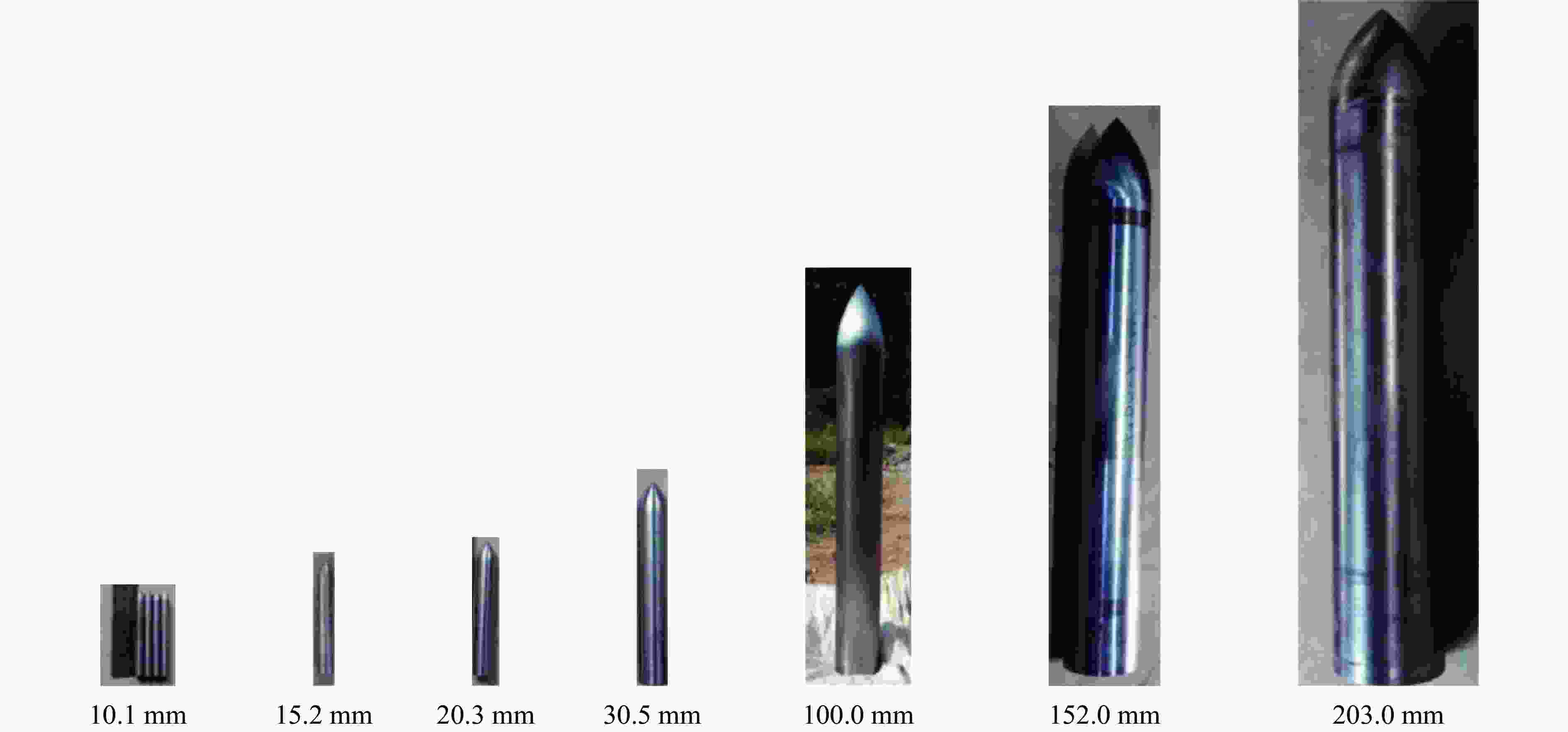

  • 图  1  试验弹体[28]

    Figure  1.  Test projectiles[28]

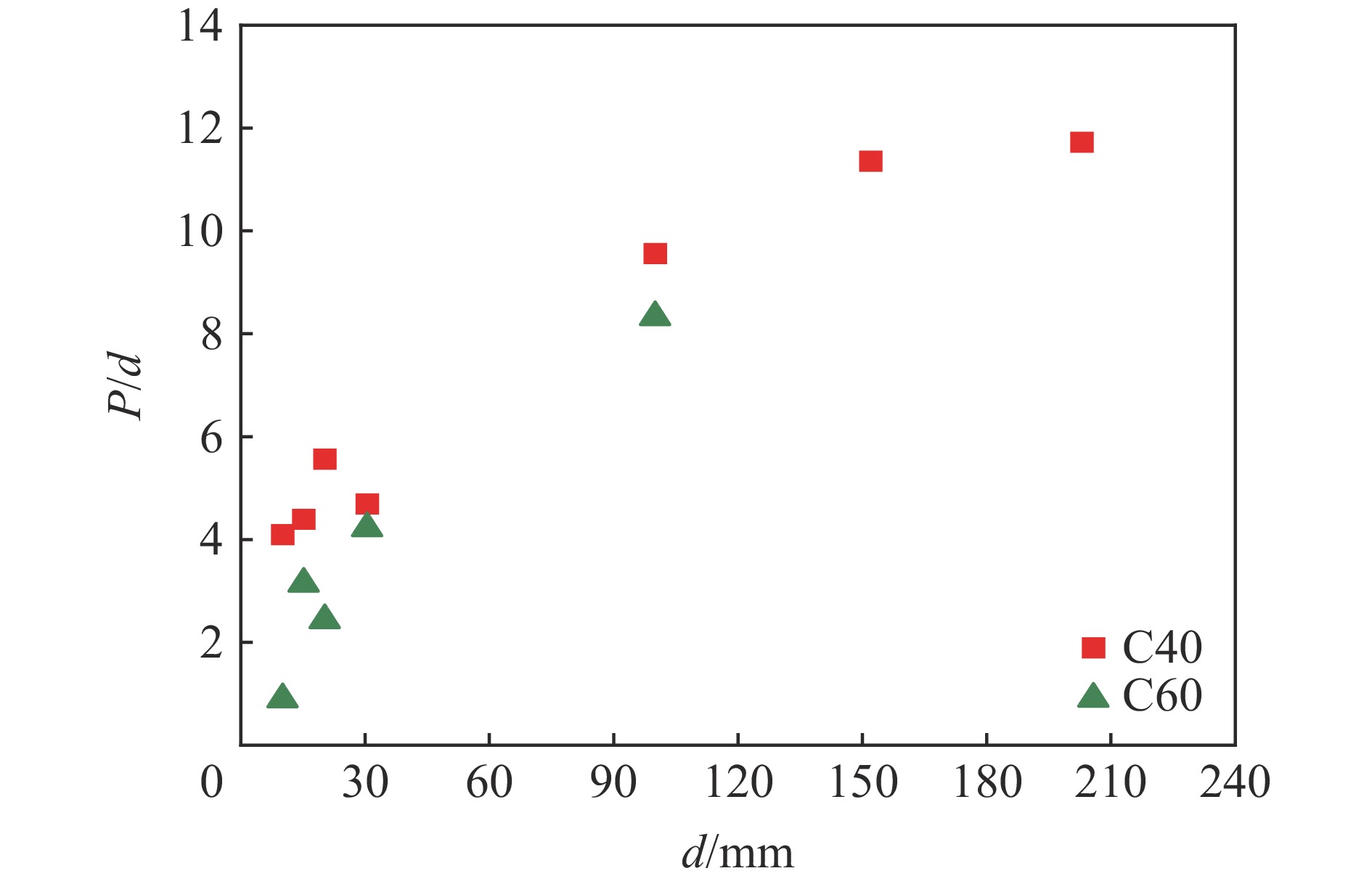

    图  2  几何相似弹体无量纲侵彻深度随弹径的变化[28]

    Figure  2.  Non-dimensional penetration depths of geometrically similar projectiles varying with projectile diameter[28]

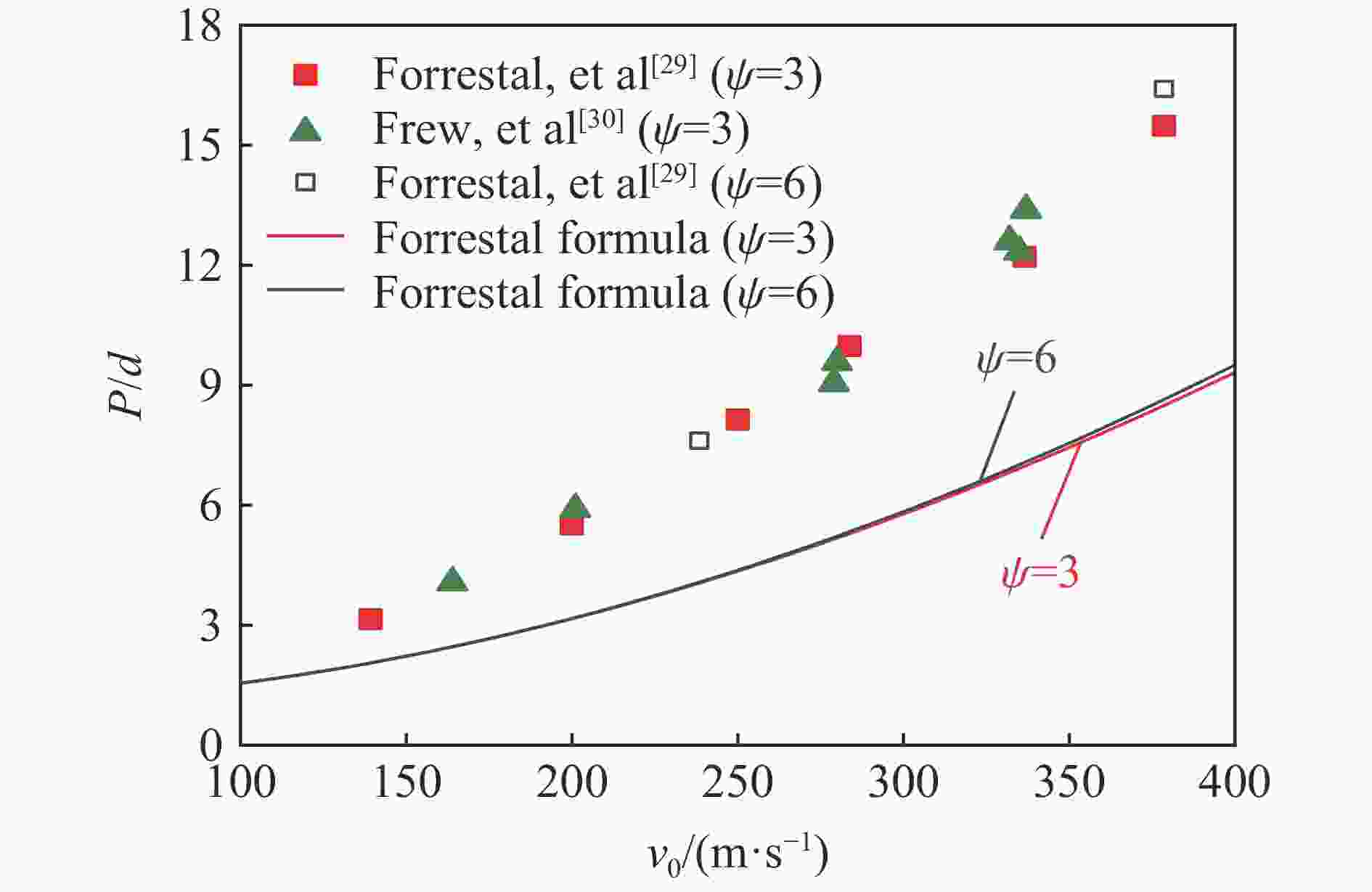

    图  3  试验数据[29-30]与Forrestal公式[15]对比结果

    Figure  3.  Comparisons of test data[29-30] and Forrestal formula[15]

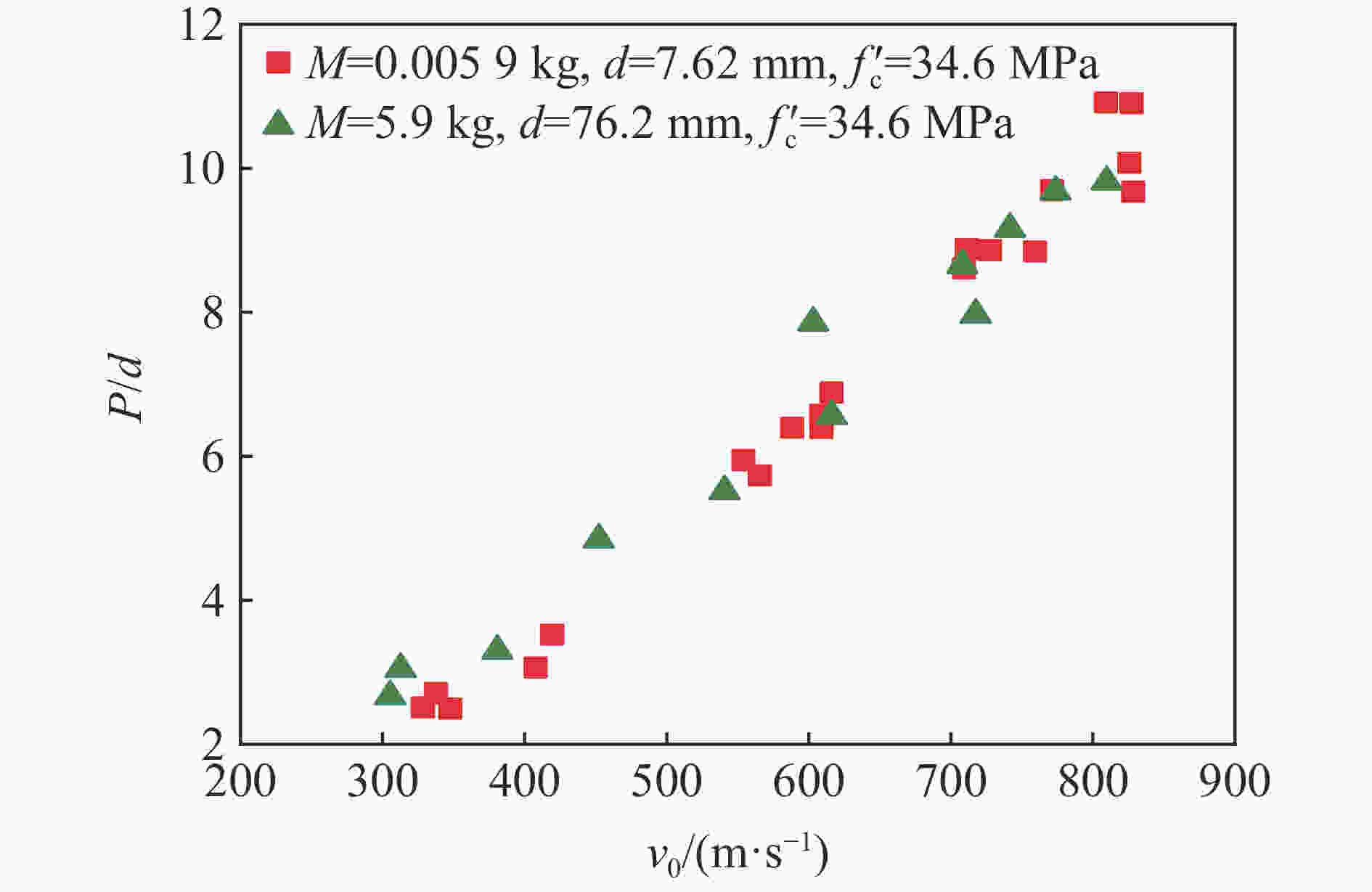

    图  4  Canfield等[31]侵彻试验数据

    Figure  4.  Penetration test data by Canfield, et al[31]

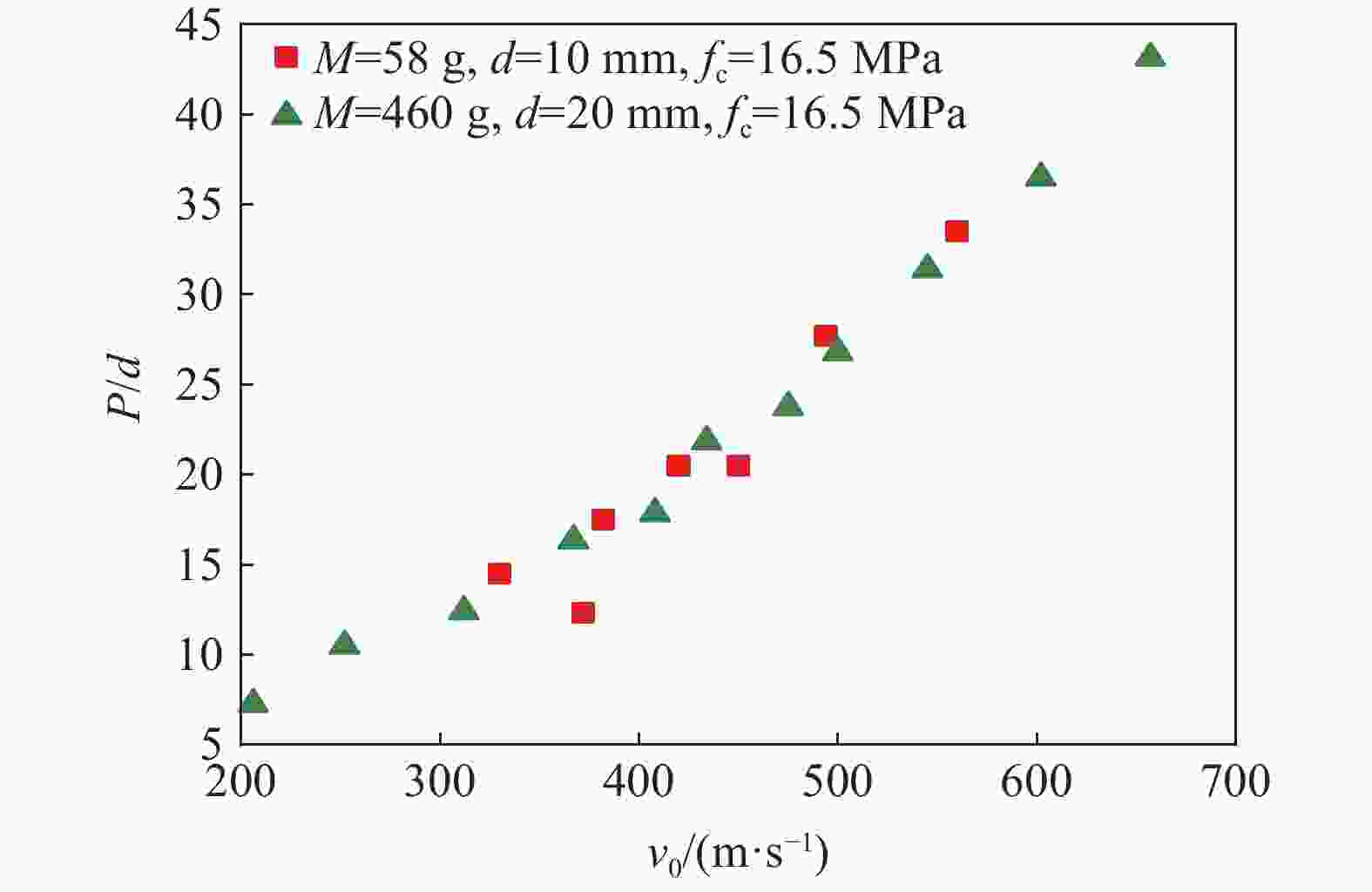

    图  5  徐建波[32]侵彻试验数据

    Figure  5.  Penetration test data by Xu Jianbo[32]

    图  6  试验弹体[26-27]

    Figure  6.  Test projectiles[26-27]

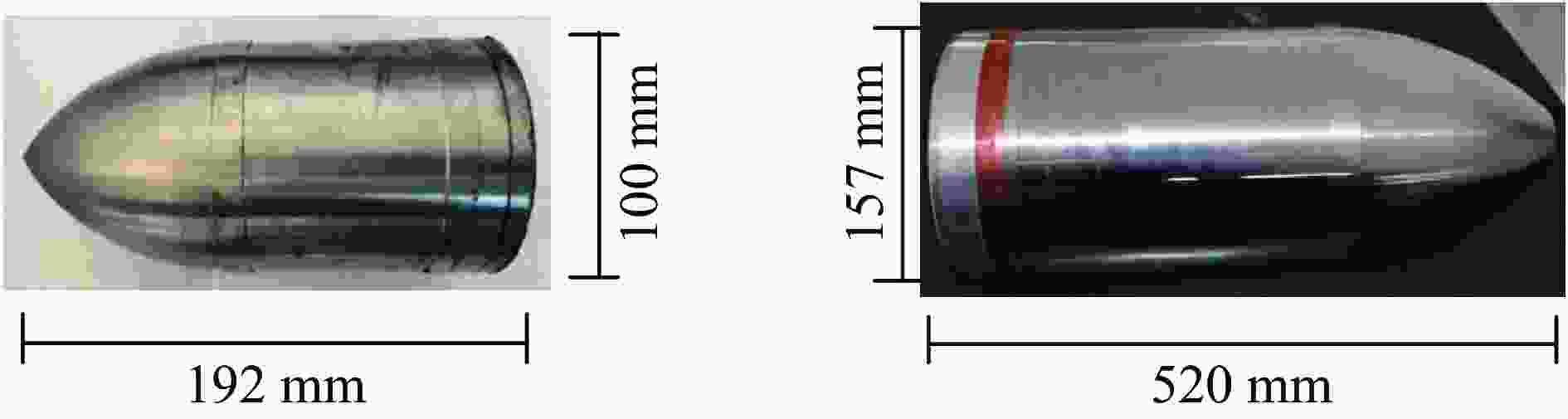

    图  7  弹体几何尺寸(单位:mm)

    Figure  7.  Geometrical sizes of the projectiles (unit: mm)

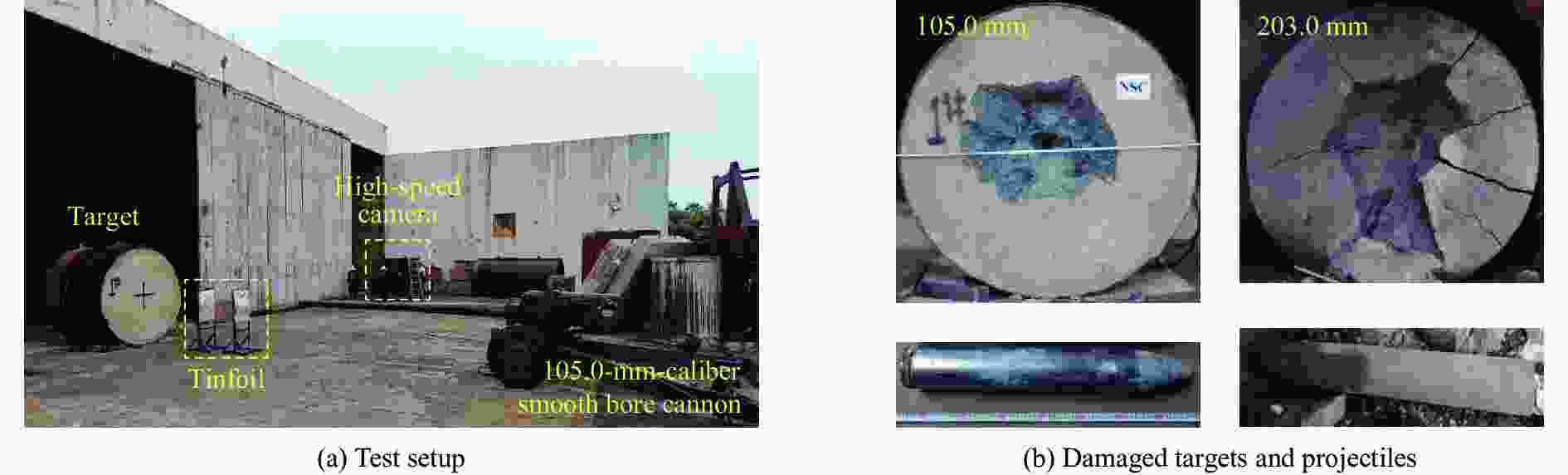

    图  8  典型的试验布置及弹靶损伤

    Figure  8.  Typical test setup, and damaged targets and projectiles

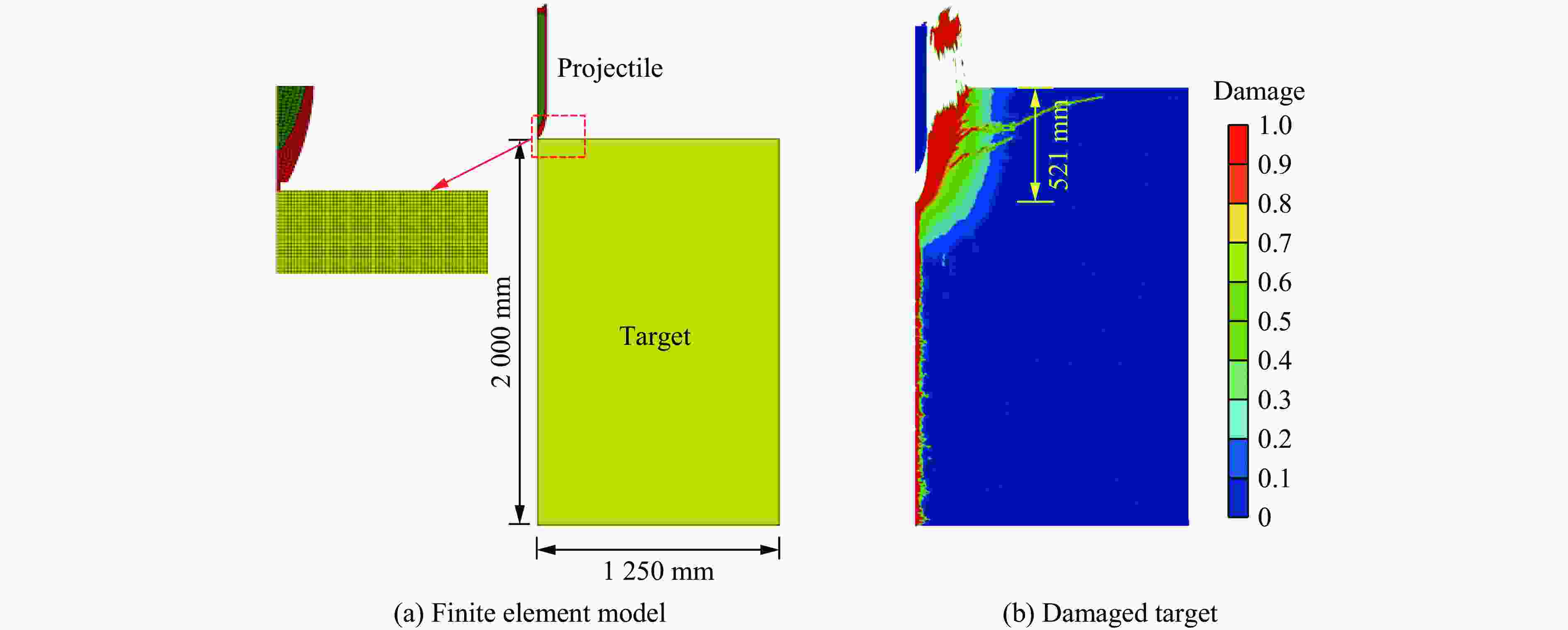

    图  9  二维轴对称有限元模型

    Figure  9.  Two-dimensional axisymmetric finite element model

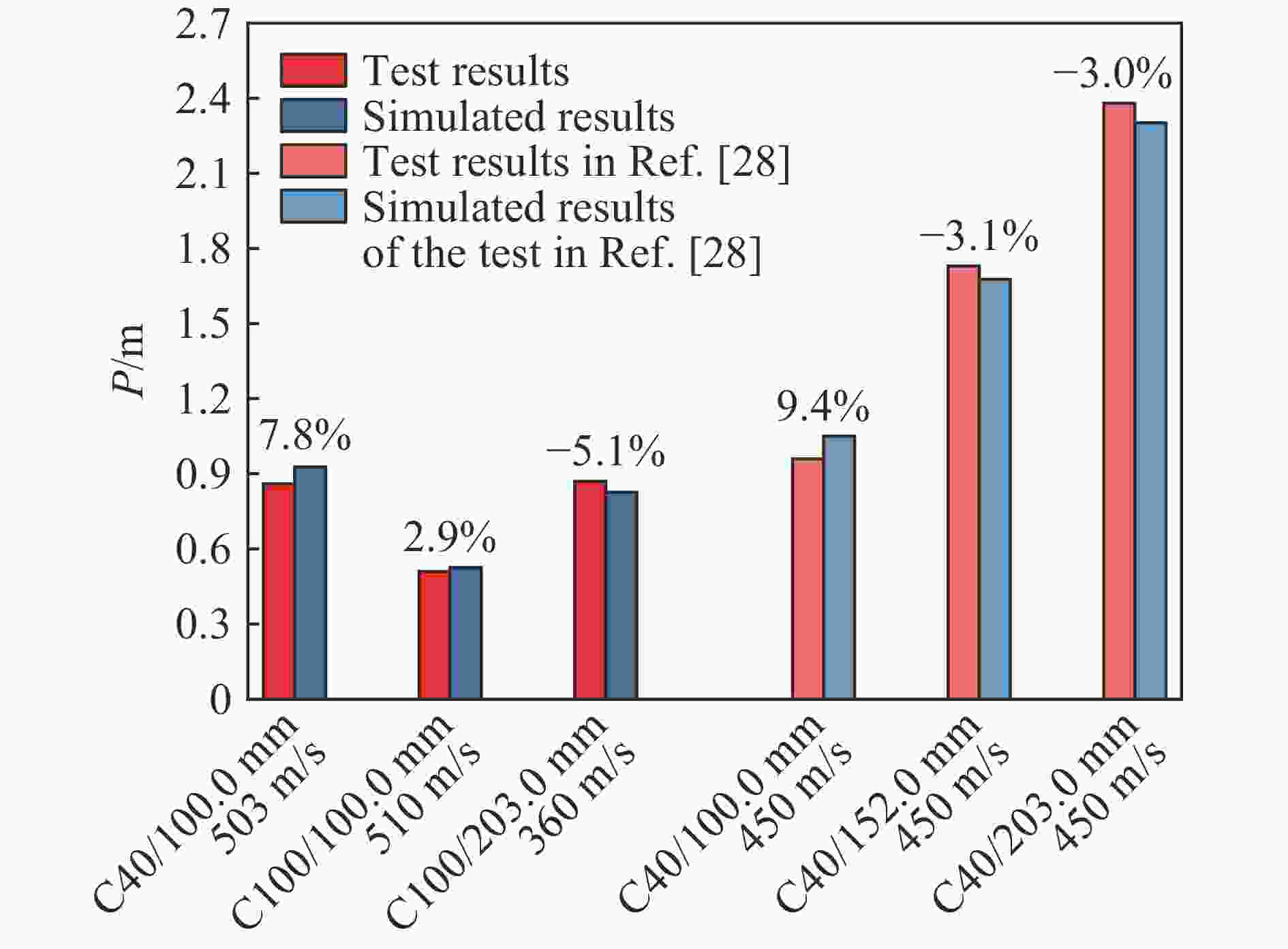

    图  10  数值模拟结果与试验结果对比

    Figure  10.  Comparison of the numerical simulation and test results

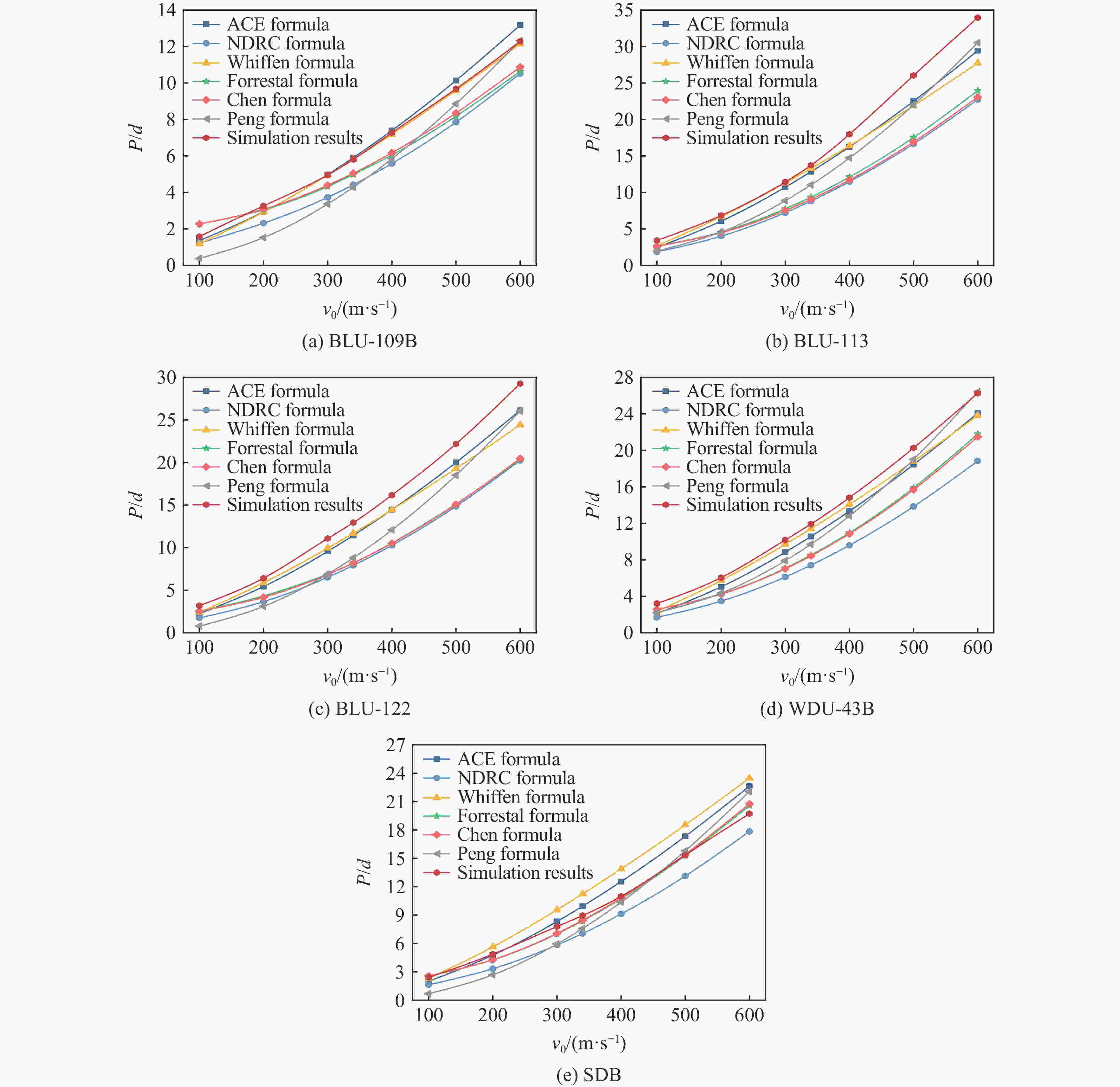

    图  11  C40混凝土中5种战斗部的无量纲侵彻深度

    Figure  11.  Non-dimensional penetration depths of five warheads into C40 concrete

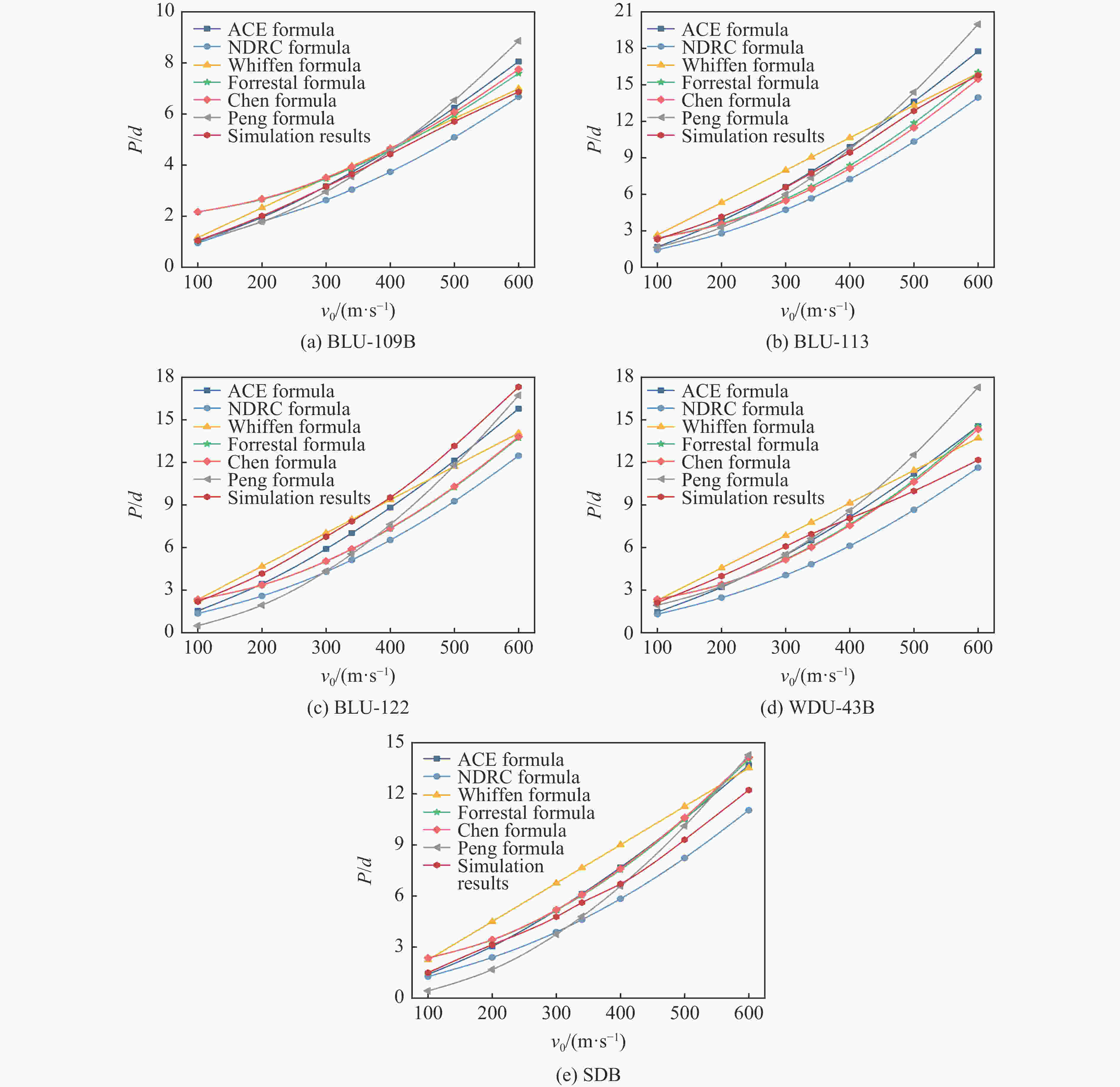

    图  12  C100混凝土中5种战斗部无量纲侵彻深度

    Figure  12.  Non-dimensional penetration depths of five warheads into C100 concrete

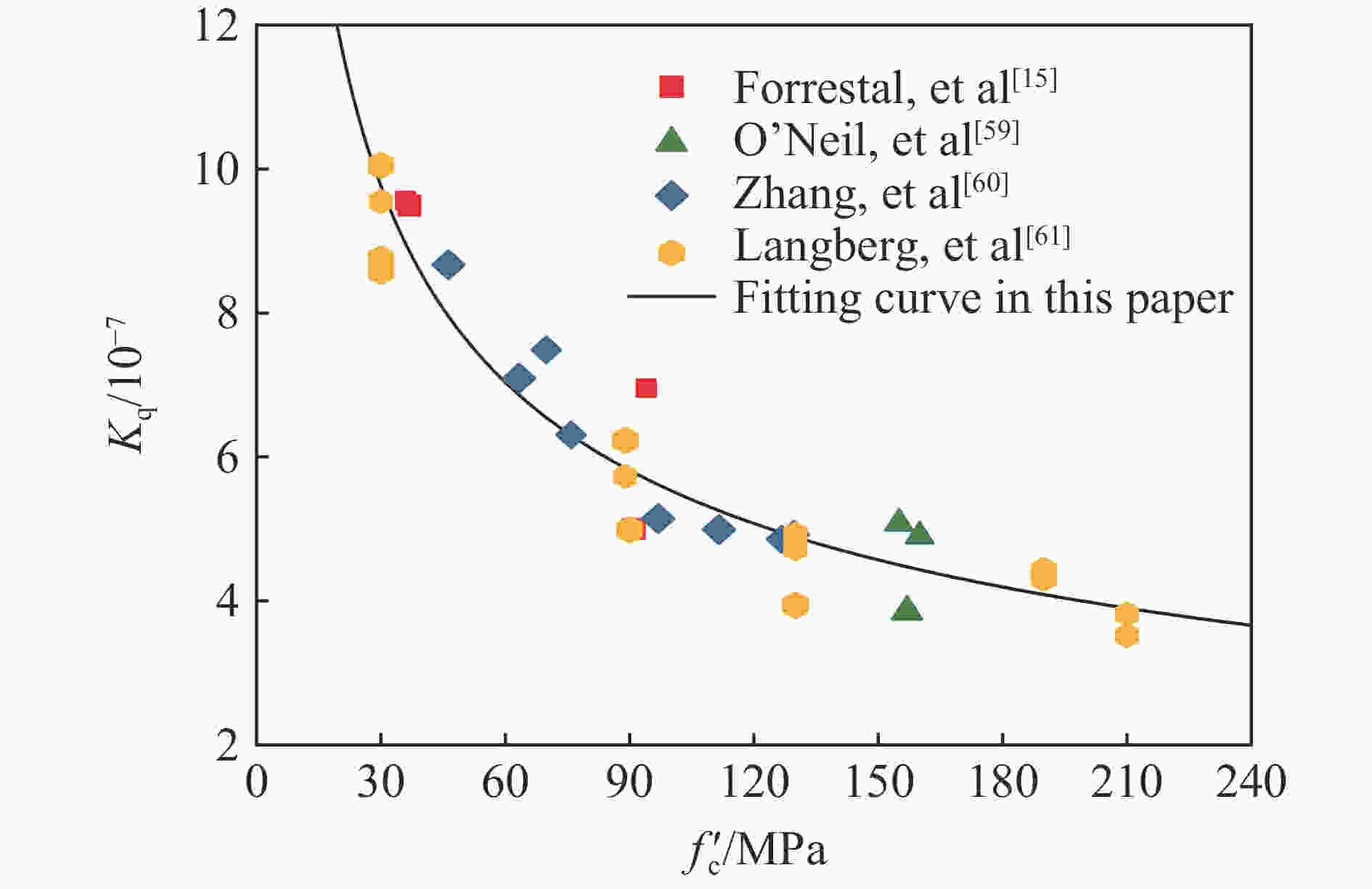

    图  13  Kq$ {f'_{\text{c}}} $之间的关系

    Figure  13.  Relationship between Kq and$ {f'_{\text{c}}} $

    图  14  不同混凝土强度等级下5种战斗部的侵彻深度

    Figure  14.  Penetration depths of five warheads into the concrete of different strengths

    表  1  试验结果

    Table  1.   Test results

    试验编号f/MPad/mmM/kgv0/(m·s−1P/m
    1 40100.017.35030.86
    2 40105.020.13250.52
    3100100.017.33570.35
    4100100.017.35100.51
    5100203.0145.0 3600.87
    下载: 导出CSV

    表  2  5种战斗部参数

    Table  2.   Parameters of five warheads

    战斗部d/mmM/kgL/mmw/mmψ
    BLU-109B368.38742 40025.43
    BLU-113368.31 9963 88658.03
    BLU-122389.02 0184 03844.5
    WDU-43B234.04542 40041.59
    SDB150.01291 80010.83
    下载: 导出CSV
