高速列车车轮踏面剥离引起的轮轨冲击力学响应有限元模拟

王金能; 郭鑫; 敬霖; 王开云

doi:10.11883/bzycj-2021-0374

高速列车车轮踏面剥离引起的轮轨冲击力学响应有限元模拟

doi: 10.11883/bzycj-2021-0374

王金能^1,,
郭鑫^{1, 2},
敬霖^1, ,,
王开云¹

1.
西南交通大学牵引动力国家重点实验室，四川成都 610031
2.
中车戚墅堰机车车辆工艺研究所有限公司，江苏常州 213011

基金项目: 国家自然科学基金（11772275, 12122211）；西南交通大学牵引动力国家重点实验室自主课题（2019TPL-T11）

详细信息

作者简介:
王金能（1997－　），男，硕士研究生，wangjinneng_tpl@163.com

通讯作者:
敬　霖（1984－　），男，博士，研究员，博士生导师，jinglin@swjtu.edu.cn

中图分类号: O347.2; U211.5
计量
- 文章访问数: 276
- HTML全文浏览量: 171
- PDF下载量: 86
- 被引次数: 0
出版历程
- 收稿日期: 2021-09-07
- 修回日期: 2021-10-21
- 网络出版日期: 2022-03-11
- 刊出日期: 2022-05-09

Finite element simulations of wheel-rail impact response induced by wheel tread spalling of high-speed trains

WANG Jinneng^1
,,
GUO Xin^{1, 2},
JING Lin^{1
, ,},
WANG Kaiyun¹

1.
State Key Laboratory of Traction Power, Southwest Jiaotong University, Chengdu 610031, Sichuan, China
2.
CRRC Qishuyan Institute Co. Ltd., Changzhou 213011, Jiangsu, China

摘要

摘要: 车轮踏面剥离是轨道车辆车轮非圆化损伤的常见形式之一。轮轨滚动接触过程中，车轮踏面剥离会循环冲击钢轨，诱发异常大的轮轨动态相互作用，严重影响高速列车运行平稳性和安全性。基于三维轮轨滚动接触有限元模型，模拟了高速列车车轮踏面剥离引起的轮轨冲击力学响应，分析了轮轨冲击过程中的轮轨接触力/压力、接触斑及黏/滑特性、钢轨表面节点速度分布和应力/应变状态等响应特征，讨论了列车速度、剥离长度和剥离深度等关键参数对轮轨冲击响应的影响。结果发现，车轮踏面剥离引起的轮轨动态垂向接触力随列车速度的提高呈现出先增大后减小的变化趋势，并在列车速度为300 km/h出现最大值，约为轮轨准静态垂向接触力的1.35倍；随着剥离长度的增大，轮轨动态接触力、轮/轨von Mises应力和等效塑性应变均显著增大；随着剥离深度的增大，仅车轮von Mises应力和等效塑性应变显著增大。
- 车轮踏面剥离 /
- 冲击响应 /
- 轮轨滚动接触 /
- 高速列车 /
- 有限元分析
Abstract: Wheel tread spalling is one of the common forms of wheel out-of-roundness damage of railway vehicles. During the wheel-rail rolling contact process, the wheel tread spalling will circularly impact the rail, inducing an abnormal large dynamic wheel-rail interaction, which has a serious effect on the stability and safety of high-speed trains. In order to reveal the mechanism of dynamic wheel-rail interaction induced by wheel tread spalling of high-speed trains, a three-dimensional finite element model for the wheel-rail rolling contact was built using the commercial software LS-DYNA. The mechanical responses of the wheel-rail impact caused by the wheel tread spalling of high-speed trains were simulated via the implicit-to-explicit sequential solution. The response characteristics of the wheel-rail vertical/longitudinal contact forces, contact pressure, contact patch, adhesion-slip areas, speed distribution of rail surface nodes, and the stress/strain states during the wheel-rail impact process were analyzed. Meanwhile, the effects of key parameters such as train speed, spalling length and spalling depth on the wheel-rail impact responses were discussed. The results indicate that the wheel-rail vertical dynamic contact force caused by the wheel tread spalling first increases with the train speed and then decreases, and the maximum value appears at a train speed of 300 km/h, which can reach 1.35 times the quasi-static wheel-rail vertical contact force. The maximum wheel-rail longitudinal force fluctuates slightly with the increase of the train speed, and is about 1.25 times the steady wheel-rail longitudinal contact force. The maximum wheel-rail vertical contact force, tangential contact force, the maximum von Mises stress, and equivalent plastic strain of the wheel-rail are monotonically increase with the spalling length. The spalling depth has almost no effect on the wheel-rail contact force, the maximum von Mises stress and equivalent plastic strain of the rail, but has a significant effect on the maximum von Mises stress and equivalent plastic strain of the wheel. The obtained results can provide technical support for the optimal design of the wheel-rail system and the safety of the train operation.
- wheel tread spalling /
- impact response /
- wheel-rail rolling contact /
- high-speed train /
- finite element simulation

HTML全文

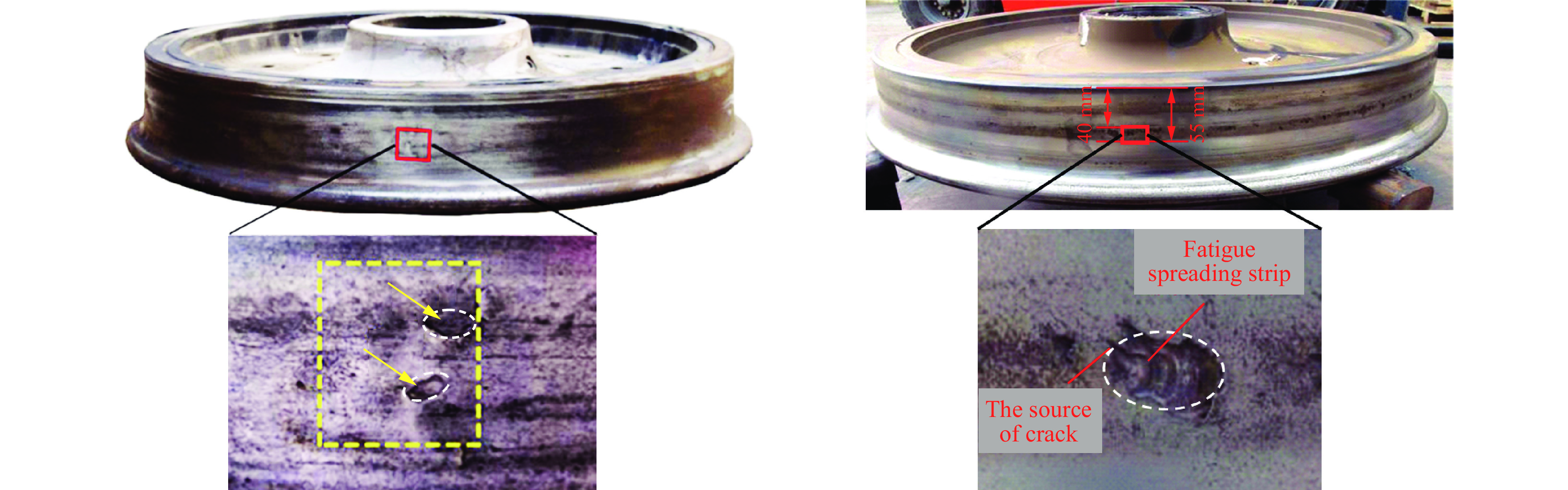

图 1 车轮踏面剥离现场图片（左图^[6]，右图^[7]）

Figure 1. Pictures of wheel tread spalling (left picture^[6], right picture^[7])

下载: 全尺寸图片幻灯片

图 2 三维轮轨滚动接触有限元模型

Figure 2. Three dimention finite element model of wheel-rail rolling contact

下载: 全尺寸图片幻灯片

图 3 隐式-显式序列求解示意图

Figure 3. Schematic diagram of the implicit-explicit sequence solution method

下载: 全尺寸图片幻灯片

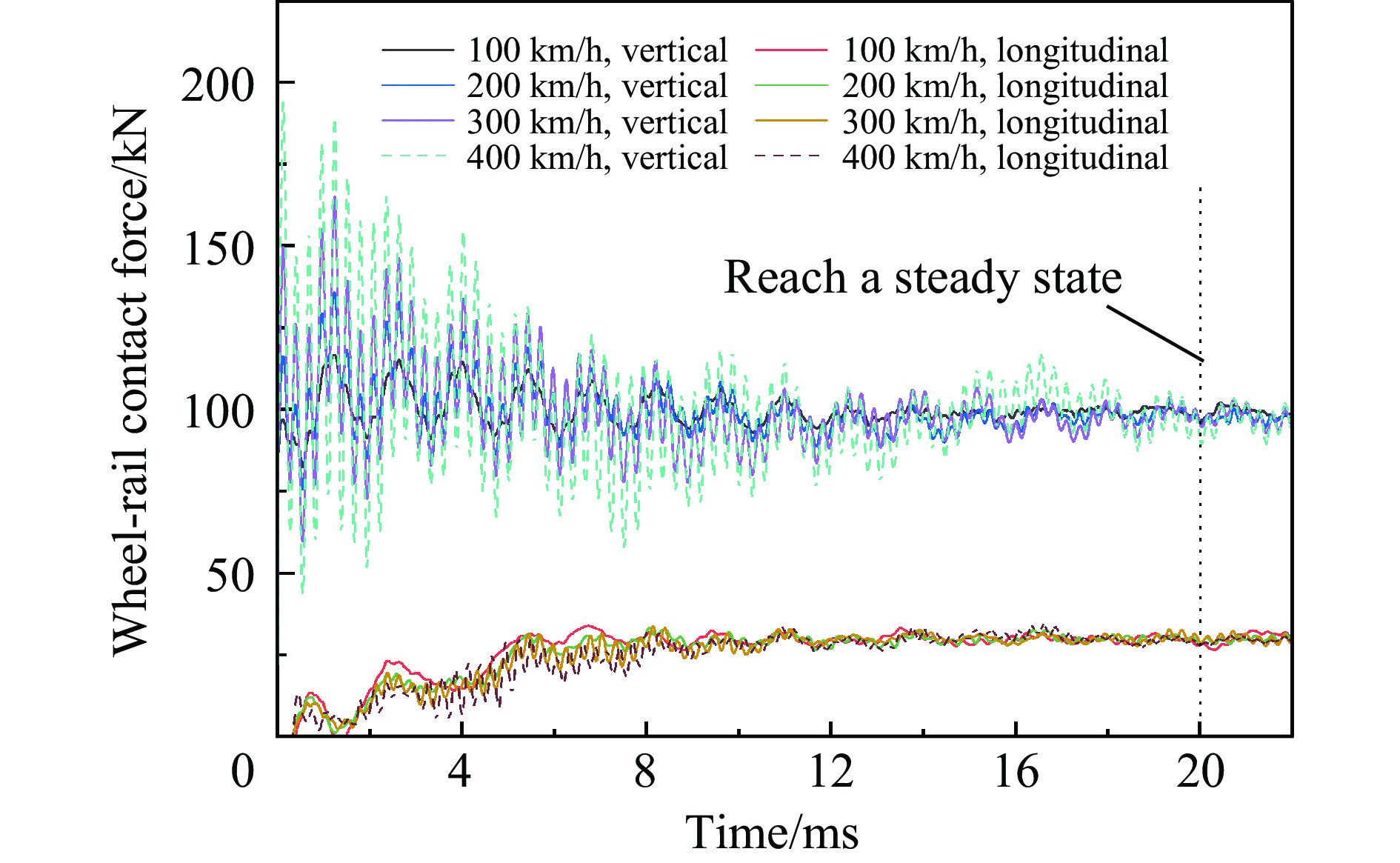

图 4 不同列车速度下的轮轨接触力时程曲线

Figure 4. Time history curves of the wheel-rail contact forcesat different train speeds

下载: 全尺寸图片幻灯片

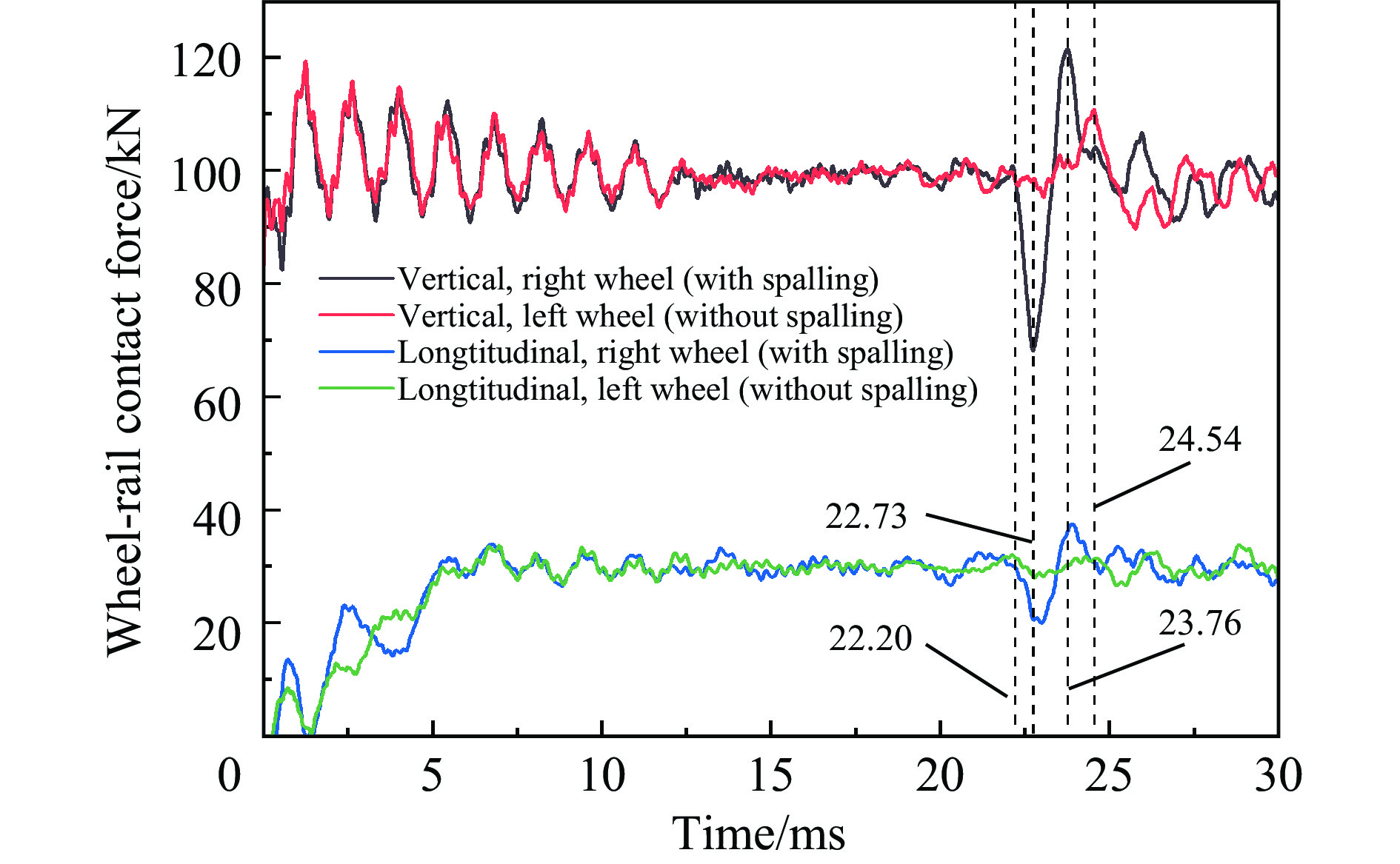

图 5 轮轨接触力时程曲线

Figure 5. Time history curves of the wheel-rail contact forces

下载: 全尺寸图片幻灯片

图 6 轮轨沿z向的瞬态速度分布

Figure 6. Wheel-rail velocity distribution along the z direction

下载: 全尺寸图片幻灯片

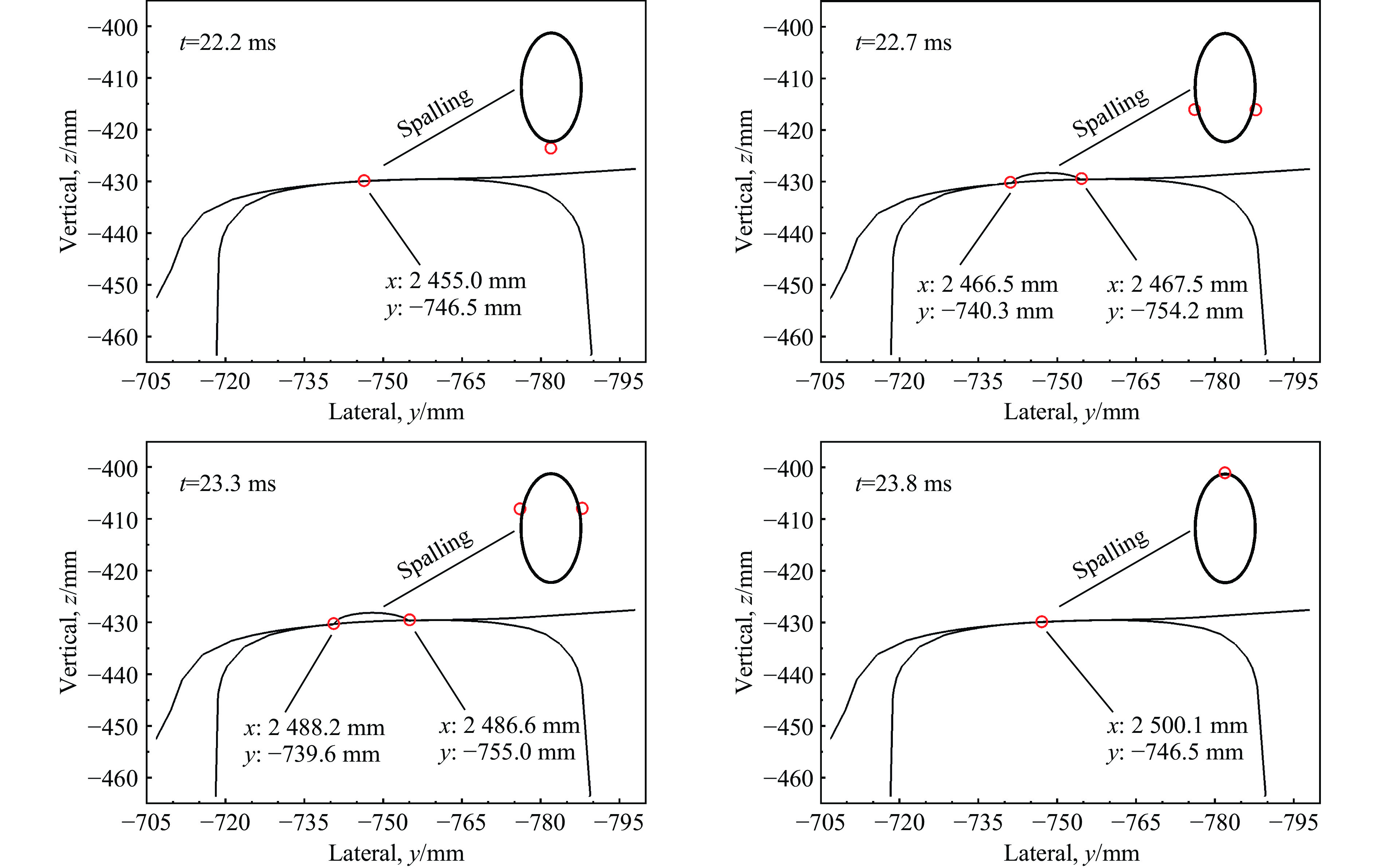

图 7 不同时刻的轮轨接触状态

Figure 7. Wheel-rail contact states at different times

下载: 全尺寸图片幻灯片

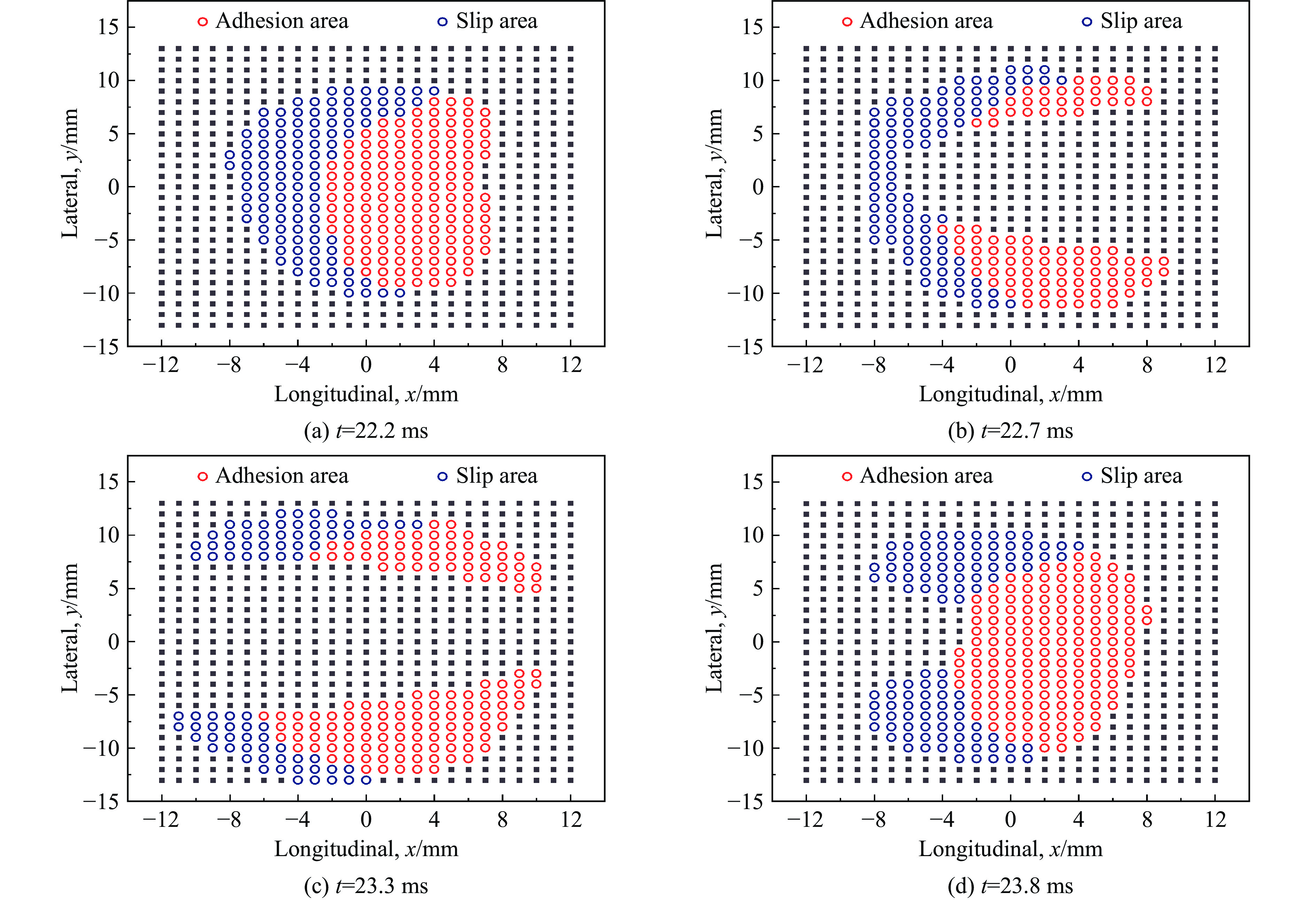

图 8 接触斑内不同时刻的黏/滑状态分布

Figure 8. Distributions of the adhesion-slip areas at different times

下载: 全尺寸图片幻灯片

图 9 钢轨表面节点沿xy平面的速度分布

Figure 9. Velocity distributions of rail surface nodes in the xy plane

下载: 全尺寸图片幻灯片

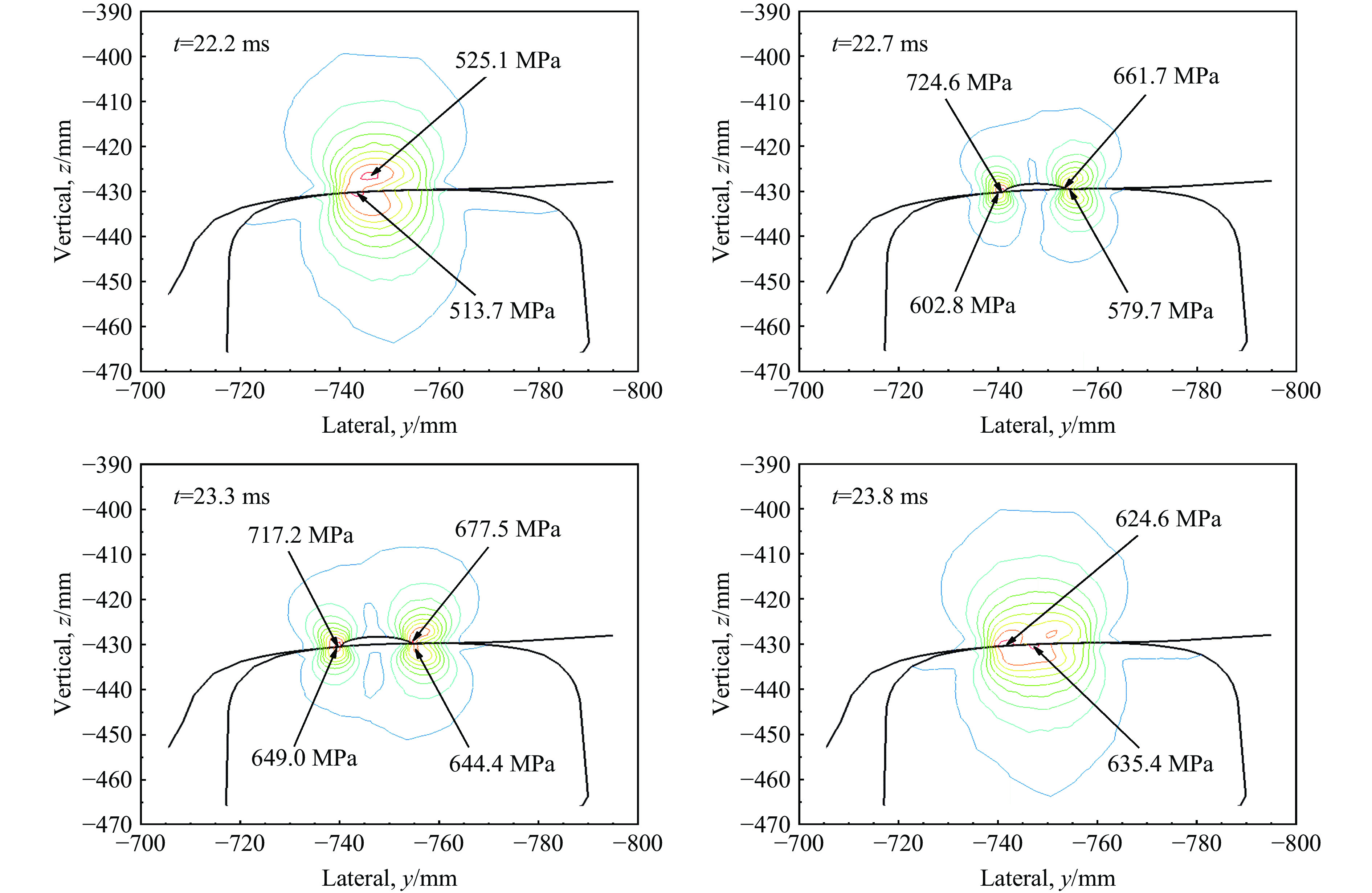

图 10 不同时刻轮/轨von Mises应力等值线图

Figure 10. Contours of the von Mises stresses of the wheel-rail at different times

下载: 全尺寸图片幻灯片

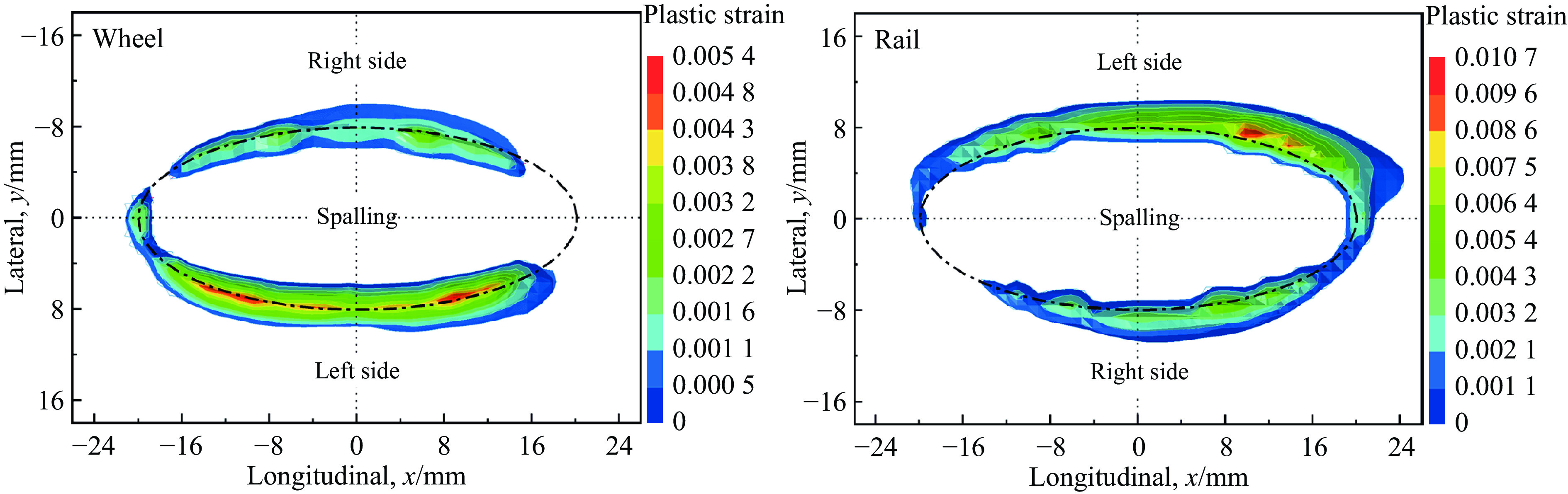

图 11 轮轨等效塑性应变云图

Figure 11. Contours of the equivalent plastic strain of the wheel-rail

下载: 全尺寸图片幻灯片

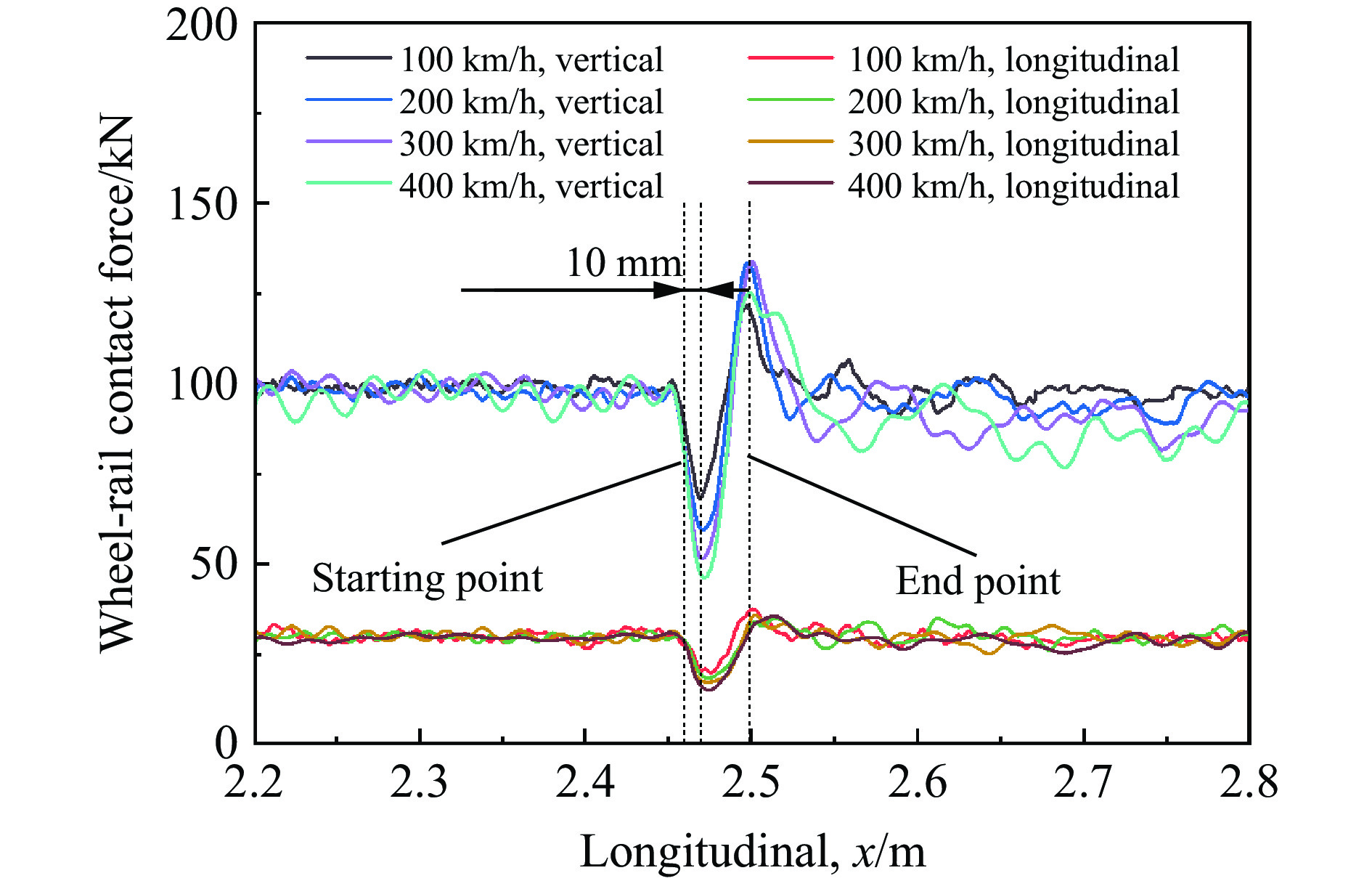

图 12 不同列车速度下含剥离侧的轮轨接触力

Figure 12. Wheel-rail contact forces on the spalling side at different train speeds

下载: 全尺寸图片幻灯片

图 13 最大轮轨接触力与列车速度的关系

Figure 13. Relationships between the maximum wheel-rail contact forces and train speed

下载: 全尺寸图片幻灯片

图 14 轮轨最大von Mises应力和最大等效塑性应变与列车速度的关系

Figure 14. Relationships between the maximum von Mises stress and maximum equivalent plastic strain of the wheel-rail vs. the train speed

下载: 全尺寸图片幻灯片

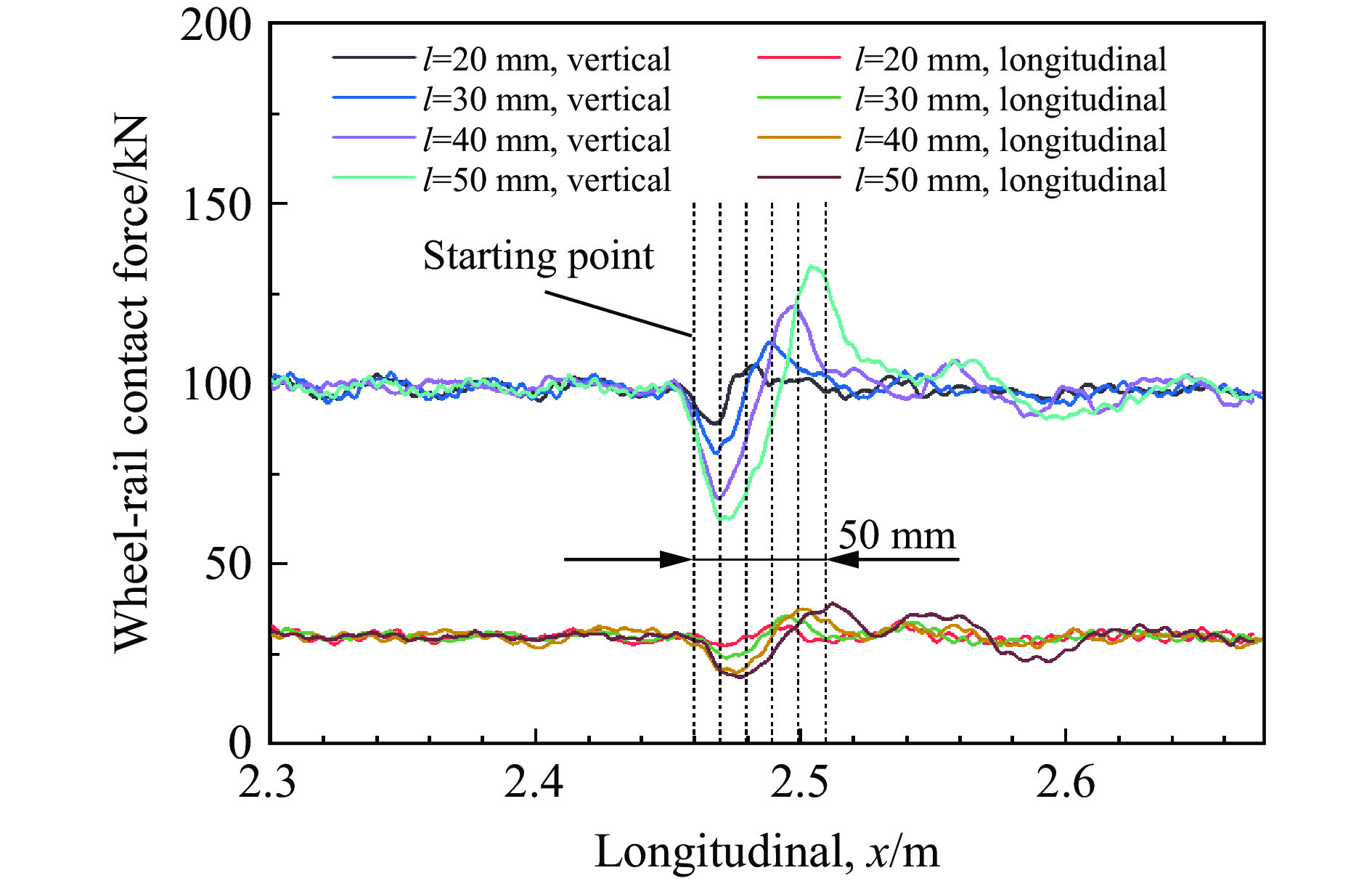

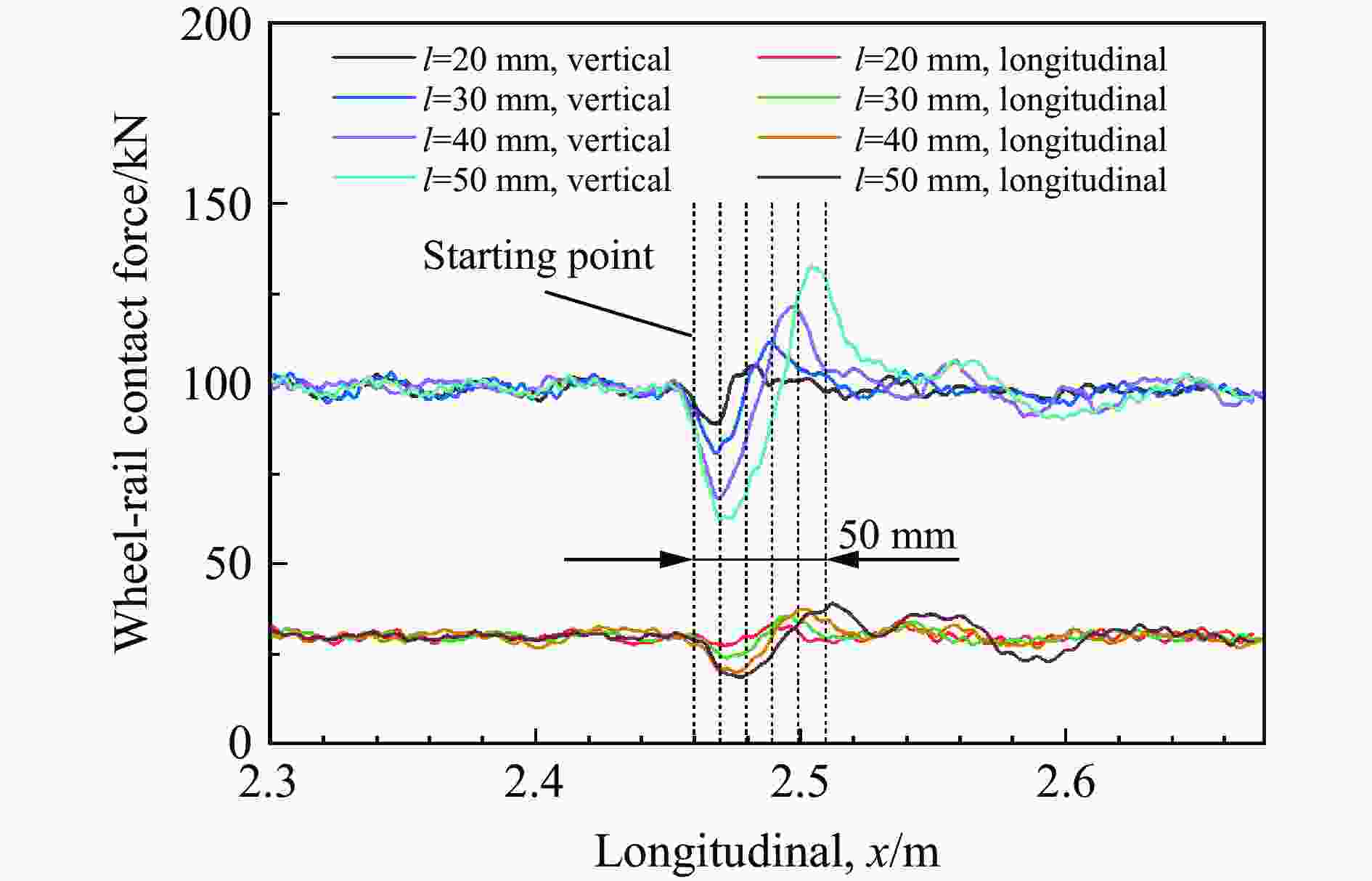

图 15 不同剥离长度下含剥离侧轮轨接触力

Figure 15. Wheel-rail contact forces on the spalling side at different spalling lengths

下载: 全尺寸图片幻灯片

图 16 最大轮轨接触力与剥离长度的关系

Figure 16. Relationships between the maximum wheel-rail contact forces vs. the spalling length

下载: 全尺寸图片幻灯片

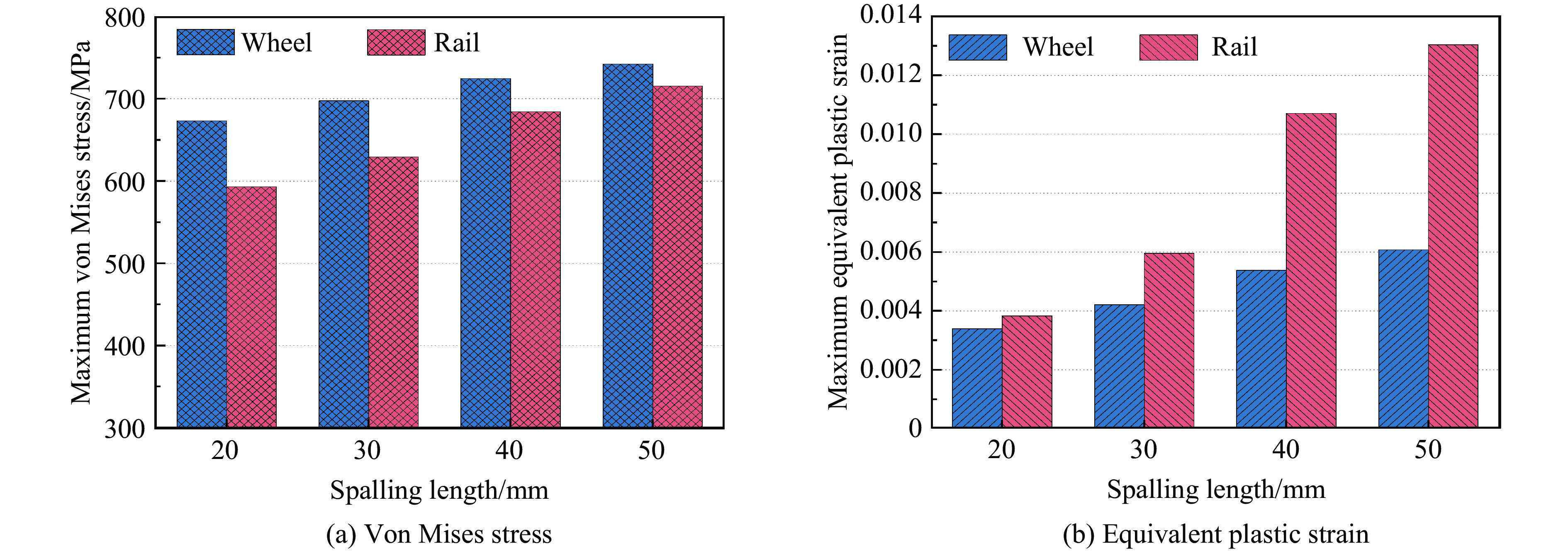

图 17 轮轨最大von Mises应力和最大等效塑性应变与剥离长度的关系

Figure 17. Relationships between the maximum von Mises stress and maximum equivalent plastic strain of the wheel-rail vs. the spalling length

下载: 全尺寸图片幻灯片

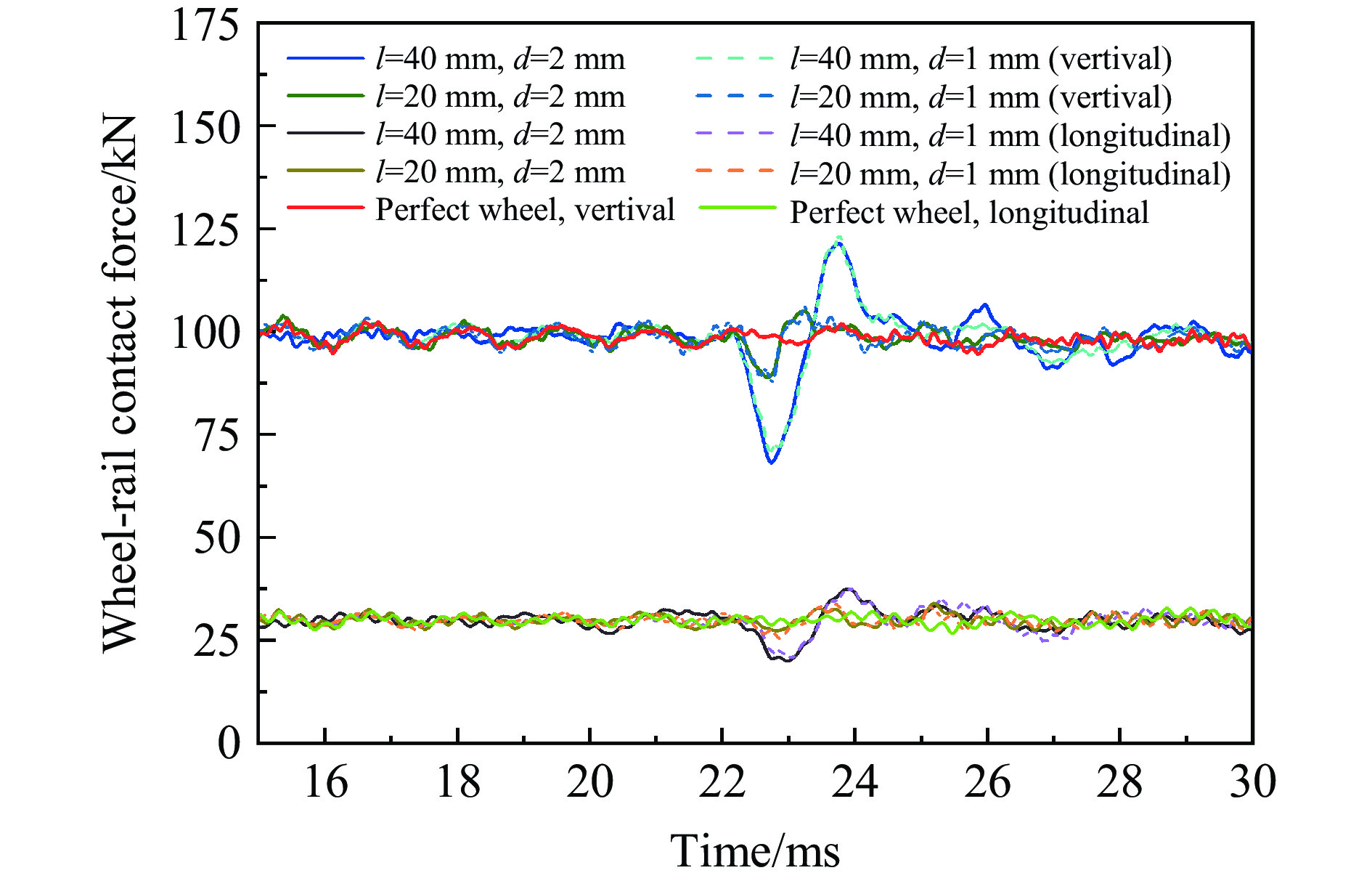

图 18 不同工况下轮对右侧轮轨接触力时程曲线

Figure 18. Time history curves of the wheel-rail contact forces on the right side of wheelset under different conditions

下载: 全尺寸图片幻灯片

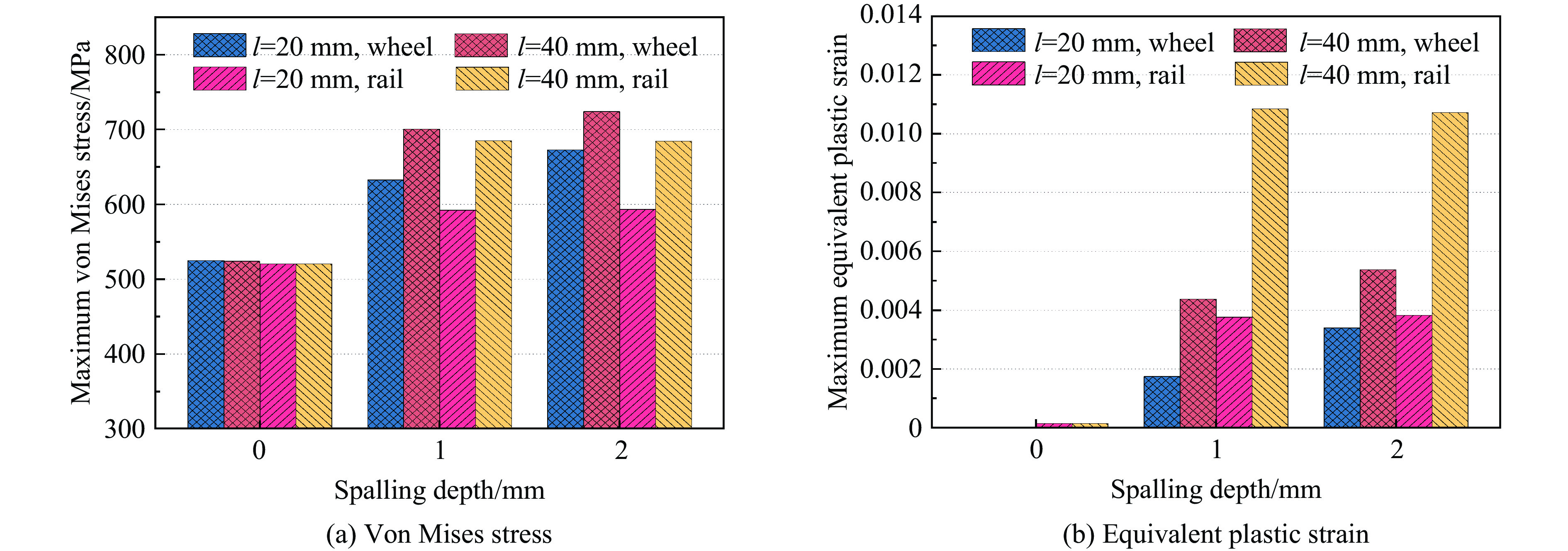

图 19 轮轨最大von Mises应力和最大等效塑性应变与剥离深度的关系

Figure 19. Relationships between the maximum von Mises stress and maximum equivalent plastic strainof the wheel-rail vs. the spalling depth

下载: 全尺寸图片幻灯片

表 1 CRH系列各型动车组车轮踏面剥离镟修限度^[20]

Table 1. Damage tolerances of wheel tread spalling of various types of CRH series EMUs^[20]

一级修程			二级修程			适用车型	备注
长度/mm	深度/mm	面积/mm²	长度/mm	深度/mm	面积/mm²	适用车型	备注
≤25	≤1.5	−	＜25	＜1.5	−	CRH1A/B/E	−
≤20	−	−	≤20	−	−	CRH2A/B/E/C1	一处剥离
≤10	−	−	≤10	−	−	CRH2A/B/E/C1	二处剥离
≤30	≤0.25	−	≤30	≤0.25	−	CRH2C2/2G/380AL/6A/6F	车轮直径＞840 mm
≤25	≤0.25	−	≤25	≤0.25	−	CRH2C2/2G/380AL/6A/6F	车轮直径≤840 mm
≤20	≤0.5	≤200	≤20	≤0.5	≤200	CRH3C/380B/380BL/380CL	−
≤20	≤0.75	≤150	≤20	≤0.75	≤150
≤20	≤1.0	≤100	≤20	≤1.0	≤100
≤20	≤1.5	≤100	≤20	≤1.5	≤100	CRH5A/5G/5E	−

下载: 导出CSV

表 2 轮轨系统各部件的力学性能参数^[25]

Table 2. Material parameters of the wheel-rail system components^[25]

部位	弹性模量 E/GPa	密度 ρ/（kg·m⁻³）	泊松比 ν	屈服强度 σ_s/MPa	切线模量 E_t/GPa
轮辋	213.00	7800	0.300	561	21
轮辐	216.00	7800	0.300	395	21
轮毂	213.00	7800	0.300	417	21
车轴	206.00	7800	0.300	560	20
钢轨	193.00	7800	0.300	525	19
轨道板	36.50	2500	0.167	−	−
砂浆层	7.00	1800	0.200	−	−
底座	34.00	2400	0.200	−	−
路基	0.19	2250	0.200	−	−

下载: 导出CSV

表 3 轮轨系统相关参数^[22]

Table 3. Parameters related to the wheel-rail system^[22]

参数	簧上质量 M/kg	一系悬挂刚度系数 K_c/（kN·m⁻¹）	一系悬挂阻尼 C_c/（kN·s·m⁻¹）	扣件刚度系数 K_f/（MN·m⁻¹）	扣件阻尼 C_f/（kN·s·m⁻¹）	轮轨阻尼常数 β/ms	摩擦因数 f	牵引系数 μ
数值	9580	880	4	22	200	0.1	0.5	0.3

下载: 导出CSV

表 4 不同时刻的轮轨接触响应

Table 4. Wheel-rail contact responses at different times

t/ms	轮轨接触力/kN		接触位置	轮轨接触斑/mm²			轮轨最大接触压力/MPa
t/ms	垂向	纵向	接触位置	黏着区	滑动区	总面积	车轮	钢轨
22.2	99.6	30.1	−	146	111	257	685.0	576.3
22.7	68.9	21.3	左侧	29	49	78	759.5	759.9
22.7	68.9	21.3	右侧	66	44	110	848.6	785.1
23.3	97.2	24.7	左侧	50	40	90	897.9	951.8
23.3	97.2	24.7	右侧	92	37	129	989.8	1005.9
23.8	121.0	37.0	−	159	106	265	817.9	890.7

下载: 导出CSV
