基于双折线抗力模型的空爆荷载梁式构件振动位移研究

耿少波 陈佳龙 赵洲 牛艳伟

耿少波, 陈佳龙, 赵洲, 牛艳伟. 基于双折线抗力模型的空爆荷载梁式构件振动位移研究[J]. 爆炸与冲击. doi: 10.11883/bzycj-2021-0524
引用本文: 耿少波, 陈佳龙, 赵洲, 牛艳伟. 基于双折线抗力模型的空爆荷载梁式构件振动位移研究[J]. 爆炸与冲击. doi: 10.11883/bzycj-2021-0524
GENG Shaobo, CHEN Jialong, ZHAO Zhou, NIU Yanwei. A study on displacements of beam members subjected to air blast loading by the bilinear resistance model[J]. Explosion And Shock Waves. doi: 10.11883/bzycj-2021-0524
Citation: GENG Shaobo, CHEN Jialong, ZHAO Zhou, NIU Yanwei. A study on displacements of beam members subjected to air blast loading by the bilinear resistance model[J]. Explosion And Shock Waves. doi: 10.11883/bzycj-2021-0524

基于双折线抗力模型的空爆荷载梁式构件振动位移研究

doi: 10.11883/bzycj-2021-0524
基金项目: 国家自然科学基金(51408558);旧桥检测与加固技术交通运输行业重点实验室(长安大学)开放基金(300102212516)
详细信息
    作者简介:

    耿少波(1982- ),男,博士,副教授,gengshaobo@nuc.edu.cn

    通讯作者:

    牛艳伟(1981- ),男,博士,副教授,niuyanwei@chd.edu.cn

  • 中图分类号: O383.2

A study on displacements of beam members subjected to air blast loading by the bilinear resistance model

  • 摘要: 为研究双折线抗力模型对空爆荷载梁式构件振动位移的影响,提出了柔性、刚性两类梁式构件正向弹塑性振动及回弹阶段弹塑性振动的分析法。应用等效单自由度法建立了各阶段振动方程并依据不同的初始条件推导出了各阶段的理论解。采用此理论解和代表性塑性强化系数,开展了双折线抗力模型中不同塑性强化程度对两类梁式构件正向弹塑性振动及回弹阶段弹塑性振动位移的典型工况验证。研究结果表明:基于双折线抗力模型位移理论解的适用范围更广;随着双折线抗力模型塑性强化系数的增大,两类梁式构件的最大弹塑性位移、残余变形均逐渐减小,且残余变形降低程度高于最大弹塑性位移;塑性强化系数增大到一定程度,梁式构件回弹阶段将出现塑性振动位移,进一步降低残余变形,无塑性回弹位移的理想弹塑性抗力模型会高估空爆荷载下梁式构件的残余变形。

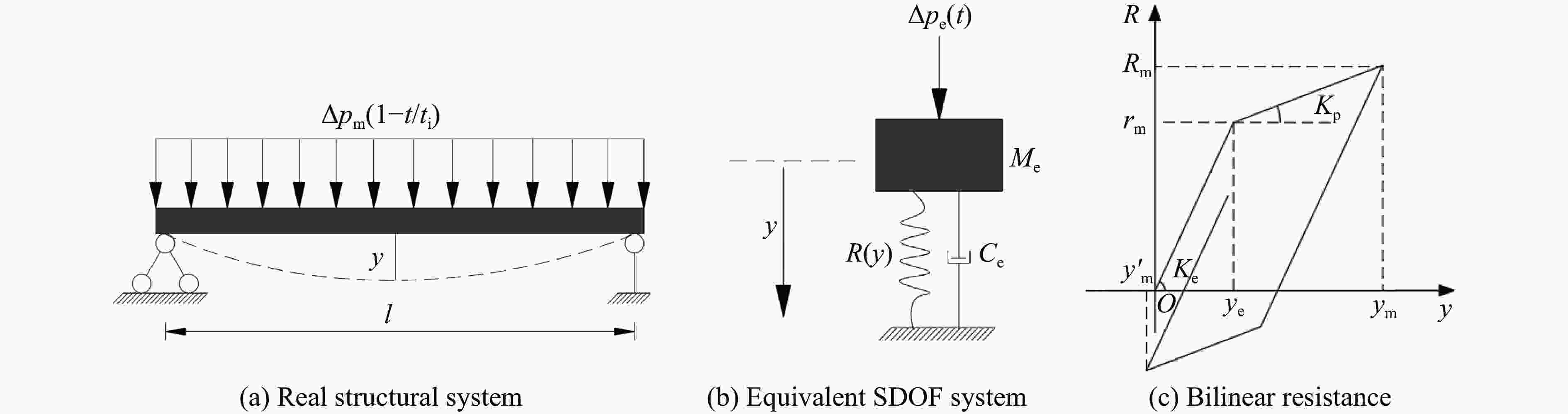

  • 图  1  双折线抗力模型等效单自由度体系

    Figure  1.  Equivalent single degree of freedom system of bilinear resistance model

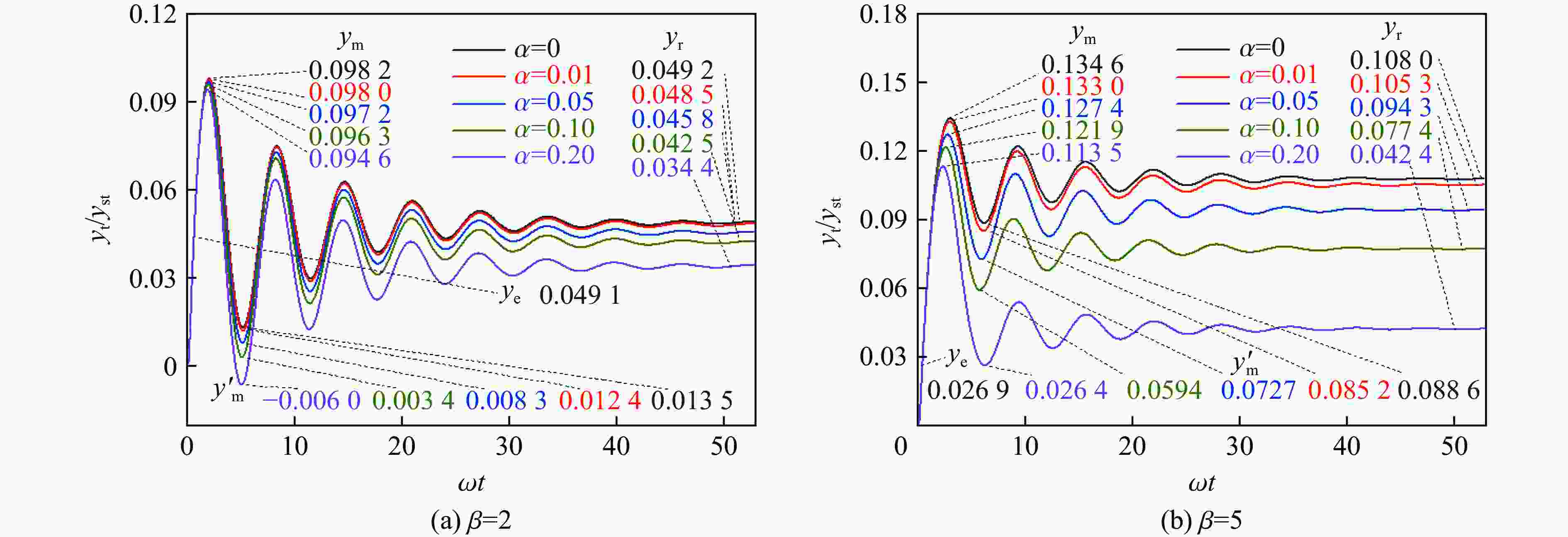

    图  2  柔性构件(ωti=0.2)弹塑性振动时程曲线

    Figure  2.  Time history curves of elastoplastic vibration for flexible members (ωti=0.2)

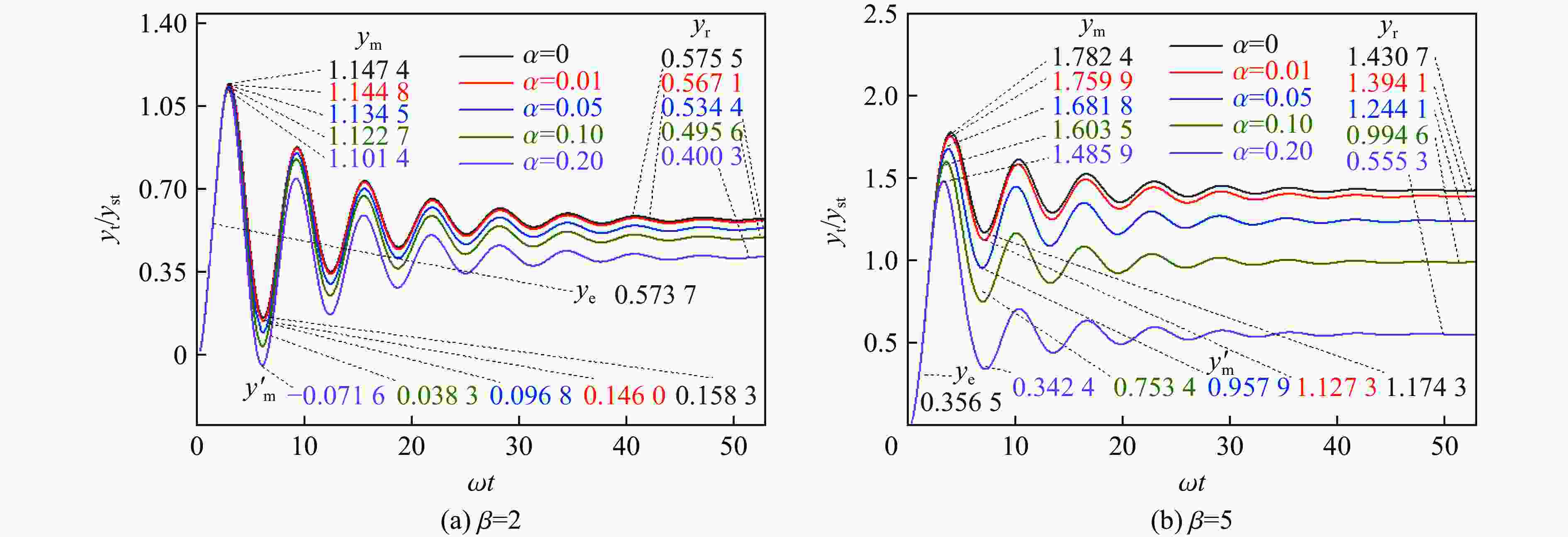

    图  3  刚性构件(ωti=2.0)弹塑性振动时程曲线

    Figure  3.  Time history curves of elastoplastic vibration for rigid members (ωti=2.0)

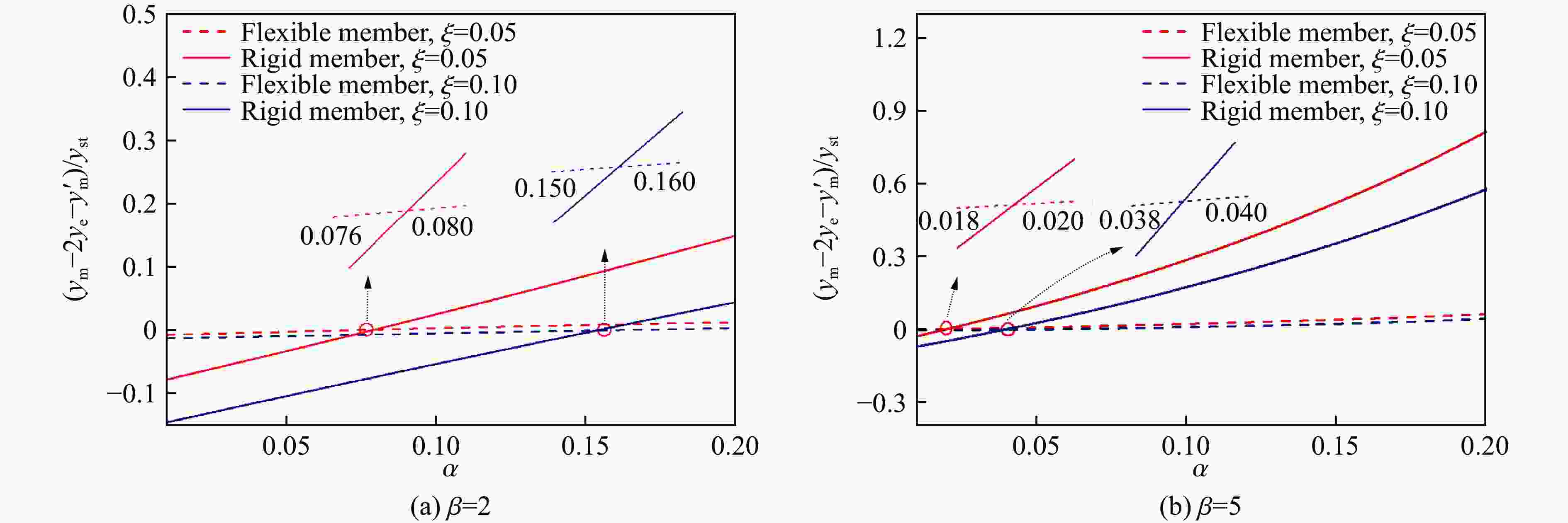

    图  4  塑性回弹状态与塑性强化系数的关系

    Figure  4.  Relationship between plastic rebound state and plastic hardening coefficient

    表  1  相对于理想弹塑性抗力模型的差异性结果

    Table  1.   Difference results relative to ideal elastoplastic resistance model

    α柔性构件刚性构件
    β=2β=5β=2β=5
    γβ/%γr/%γβ/%γr/%γβ/%γr/%γβ/%γr/%
    0.01−0.5−1.4−1.2−2.5−0.5−1.5−1.2−2.6
    0.05−1.0−6.9−5.2−12.7−1.5−7.1−5.6−13.0
    0.1−2.0−13.6−9.4−31.1−2.5−13.9−10.0−30.5
    0.2−3.5−30.1−15.6−60.7−4.0−30.4−16.6−61.2
    下载: 导出CSV
  • [1] 中华人民共和国建设部, 中华人民共和国国家质量监督检验检疫总局. 人民防空地下室设计规范: GB 50038—2005 [S]. 北京: 国标图集出版社, 2006.
    [2] US Army Corps of Engineers. Structures to resist the effects of accidental explosions: TM 5-1300 [S]. Washington, USA: US Department of the Army, 1990.
    [3] Canadian Standards Association. Design and assessment of buildings subjected to blast loads: CSA S850-12 [S]. Toronto, Canada: Canadian Standards Association, 2012.
    [4] 中华人民共和国住房和城乡建设部. 建筑结构荷载规范: GB 50009—2012 [S]. 北京: 中国建筑工业出版社, 2012.
    [5] NASSR A A, YAGI T, MARUYAMA T, et al. Damage and wave propagation characteristics in thin GFRP panels subjected to impact by steel balls at relatively low-velocities [J]. International Journal of Impact Engineering, 2018, 111: 21–33. DOI: 10.1016/j.ijimpeng.2017.08.007.
    [6] NAGATA M, BEPPU M, ICHINO H, et al. Method for evaluating the displacement response of RC beams subjected to close-in explosion using modified SDOF model [J]. Engineering Structures, 2018, 157: 105–118. DOI: 10.1016/j.engstruct.2017.11.067.
    [7] RITCHIE C B, PACKER J A, SEICA M V, et al. Behaviour and analysis of concrete-filled rectangular hollow sections subject to blast loading [J]. Journal of Constructional Steel Research, 2018, 147: 340–359. DOI: 10.1016/j.jcsr.2018.04.027.
    [8] RIEDEL W, FISCHER K, KRANZER C, et al. Modeling and validation of a wall-window retrofit system under blast loading [J]. Engineering Structures, 2012, 37: 235–245. DOI: 10.1016/j.engstruct.2011.12.015.
    [9] SYED Z I, RAMAN S N, NGO T, et al. The failure behaviour of reinforced concrete panels under far-field and near-field blast effects [J]. Structures, 2018, 14: 220–229. DOI: 10.1016/j.istruc.2018.03.009.
    [10] 陈万祥, 郭志昆, 罗立胜, 等. 考虑面力效应的HFR-LWC梁抗爆理论模型与试验验证 [J]. 工程力学, 2021, 38(2): 77–91. DOI: 10.6052/j.issn.1000-4750.2020.03.0200.

    CHEN W X, GUO Z K, LUO L S, et al. Theoretical model for HFR-LWC beam under blast loading accompanying membrane action and its experimental validation [J]. Engineering Mechanics, 2021, 38(2): 77–91. DOI: 10.6052/j.issn.1000-4750.2020.03.0200.
    [11] LI Z X, ZHONG B, SHI Y C. An effective model for analysis of reinforced concrete members and structures under blast loading [J]. Advances in Structural Engineering, 2016, 19(12): 1815–1831. DOI: 10.1177/1369433216649393.
    [12] STOCHINO F, TABANDEH A, GARDONI P, et al. Physics-based probabilistic demand model and reliability analysis for reinforced concrete beams under blast loads [J]. Engineering Structures, 2021, 248: 112932. DOI: 10.1016/J.engstruct.2021.112932.
    [13] ZHANG D, YAO S J, LU F Y. Experimental study on scaling of RC beams under close-in blast loading [J]. Engineering Failure Analysis, 2013, 33: 497–504. DOI: 10.1016/j.engfailanal.2013.06.020.
    [14] ROKAYA A, KIM J. An accurate analysis for sandwich steel beams with graded corrugated core under dynamic impulse [J]. International Journal of Steel Structures, 2018, 18(5): 1541–1559. DOI: 10.1007/s13296-018-0062-6.
    [15] BRUHL J C, VARMA A H. Analysis and design of one-way steel-plate composite walls for far-field blast effects [J]. Journal of Structural Engineering, 2021, 147(1): 04020288. DOI: 10.1061/(ASCE)ST.1943-541X.0002868.
    [16] FALLAH A S, LOUCA L A. Pressure-impulse diagrams for elastic-plastic-hardening and softening single-degree-of-freedom models subjected to blast loading [J]. International Journal of Impact Engineering, 2007, 34(4): 823–842. DOI: 10.1016/j.ijimpeng.2006.01.007.
    [17] 方秦, 杜茂林. 爆炸荷载作用下弹性与阻尼支承梁的动力响应 [J]. 力学与实践, 2006, 28(2): 53–56. DOI: 10.3969/j.issn.1000-0879.2006.02.012.

    FANG Q, DU M L. Dynamic responses of an elastically supported beams with damping subjected to blast loads [J]. Mechanics in Engineering, 2006, 28(2): 53–56. DOI: 10.3969/j.issn.1000-0879.2006.02.012.
    [18] 方秦, 陈力, 杜茂林. 端部设置弹簧和阻尼器提高防护门抗力的理论与数值分析 [J]. 工程力学, 2008, 25(3): 194-199, 221.

    FANG Q, CHEN L, DU M L. Theoretical and numerical investigations in effects of end-supported springs and dampers on increasing resistance of blast doors [J]. Engineering Mechanics, 2008, 25(3): 194-199; 221.
    [19] 耿少波, 李洪, 葛培杰. 考虑跃迁的指数型炸药空爆荷载等效静载动力系数 [J]. 爆炸与冲击, 2019, 39(3): 032201. DOI: 10.11883/bzycj-2018-0048.

    GENG S B, LI H, GE P J. Equivalent static load dynamical coefficient for exponential air blast loading with transition [J]. Explosion and Shock Waves, 2019, 39(3): 032201. DOI: 10.11883/bzycj-2018-0048.
    [20] 耿少波, 罗干, 陈佳龙, 等. 阻尼对空爆荷载等效静载动力系数的影响 [J]. 爆炸与冲击, 2022, 42(2): 023201. DOI: 10.11883/bzycj-2021-0036.

    GENG S B, LUO G, CHEN J L, et al. Effect of damping on equivalent static load dynamic factor of air blast load [J]. Explosion and Shock Waves, 2022, 42(2): 023201. DOI: 10.11883/bzycj-2021-0036.
    [21] 郭东, 刘晶波, 闫秋实. 爆炸荷载作用下梁板结构反弹机理分析 [J]. 建筑结构学报, 2012, 33(2): 64–71. DOI: 10.14006/j.jzjgxb.2012.02.009.

    GUO D, LIU J B, YAN Q S. Rebound mechanism analysis in beams and slabs subjected to blast loading [J]. Journal of Building Structures, 2012, 33(2): 64–71. DOI: 10.14006/j.jzjgxb.2012.02.009.
    [22] 陈万祥, 郭志昆, 叶均华. 爆炸荷载作用下柔性边界钢筋混凝土梁的动力响应与破坏模式分析 [J]. 兵工学报, 2011, 32(10): 1271–1277.

    CHEN W X, GUO Z K, YE J H. Dynamic responses and failure modes of reinforced concrete beams with flexible supports under blast loading [J]. Acta Armamentarii, 2011, 32(10): 1271–1277.
    [23] BIGGS J M. Introduction to structural dynamics [M]. New York, USA: McGraw-Hill Book Company, 1964: 315–327.
