一种新型危险品仓库结构设计及其安全距离

刘明君 李展 谢伟 尹青 曾丹 张亚栋 周亭

刘明君, 李展, 谢伟, 尹青, 曾丹, 张亚栋, 周亭. 一种新型危险品仓库结构设计及其安全距离[J]. 爆炸与冲击, 2023, 43(4): 045901. doi: 10.11883/bzycj-2022-0224
引用本文: 刘明君, 李展, 谢伟, 尹青, 曾丹, 张亚栋, 周亭. 一种新型危险品仓库结构设计及其安全距离[J]. 爆炸与冲击, 2023, 43(4): 045901. doi: 10.11883/bzycj-2022-0224
LIU Mingjun, LI Zhan, XIE Wei, YIN Qing, ZENG Dan, ZHANG Yadong, ZHOU Ting. A novel hazard warehouse and its safety separation distance[J]. Explosion And Shock Waves, 2023, 43(4): 045901. doi: 10.11883/bzycj-2022-0224
Citation: LIU Mingjun, LI Zhan, XIE Wei, YIN Qing, ZENG Dan, ZHANG Yadong, ZHOU Ting. A novel hazard warehouse and its safety separation distance[J]. Explosion And Shock Waves, 2023, 43(4): 045901. doi: 10.11883/bzycj-2022-0224

一种新型危险品仓库结构设计及其安全距离

doi: 10.11883/bzycj-2022-0224
详细信息
    作者简介:

    刘明君(1995- ),男,硕士研究生,982366436@qq.com

    通讯作者:

    谢 伟(1973- ),男,硕士,高级工程师,tougao0906@163.com

  • 中图分类号: O382;TU375

A novel hazard warehouse and its safety separation distance

  • 摘要: 安全距离是危险品仓库建设和研究中重点关注的问题之一。为减小危险品仓库的安全距离,结合现行规范和危险品仓库建设现状,针对一种由浅埋式库房主体、顶部堆土和钢筋混凝土分配板组成的新型危险品仓库形式开展了3组缩尺模型野外爆炸试验,记录了各组试验的爆炸过程,统计了冲击波超压峰值和爆炸破片的飞散范围,给出了爆炸冲击波的安全距离,分析了分配板、库房强度等因素对冲击波传播和破片飞散的影响。研究表明,这种新型危险品仓库可实现定向泄爆,有效限制库房两侧及后方爆炸冲击波的传播和爆炸破片的飞散,使库房两侧及后方的安全距离最大减小77%;与覆土库相比,库房后方的安全距离可减小约50%。钢筋混凝土分配板是新型危险品仓库的重要组成部分,同无分配板库房相比,最大可使后方安全距离减小30%。与波纹钢库房主体相比,强度较高的钢筋混凝土库房主体可使库房后方的安全距离最大减小38%。

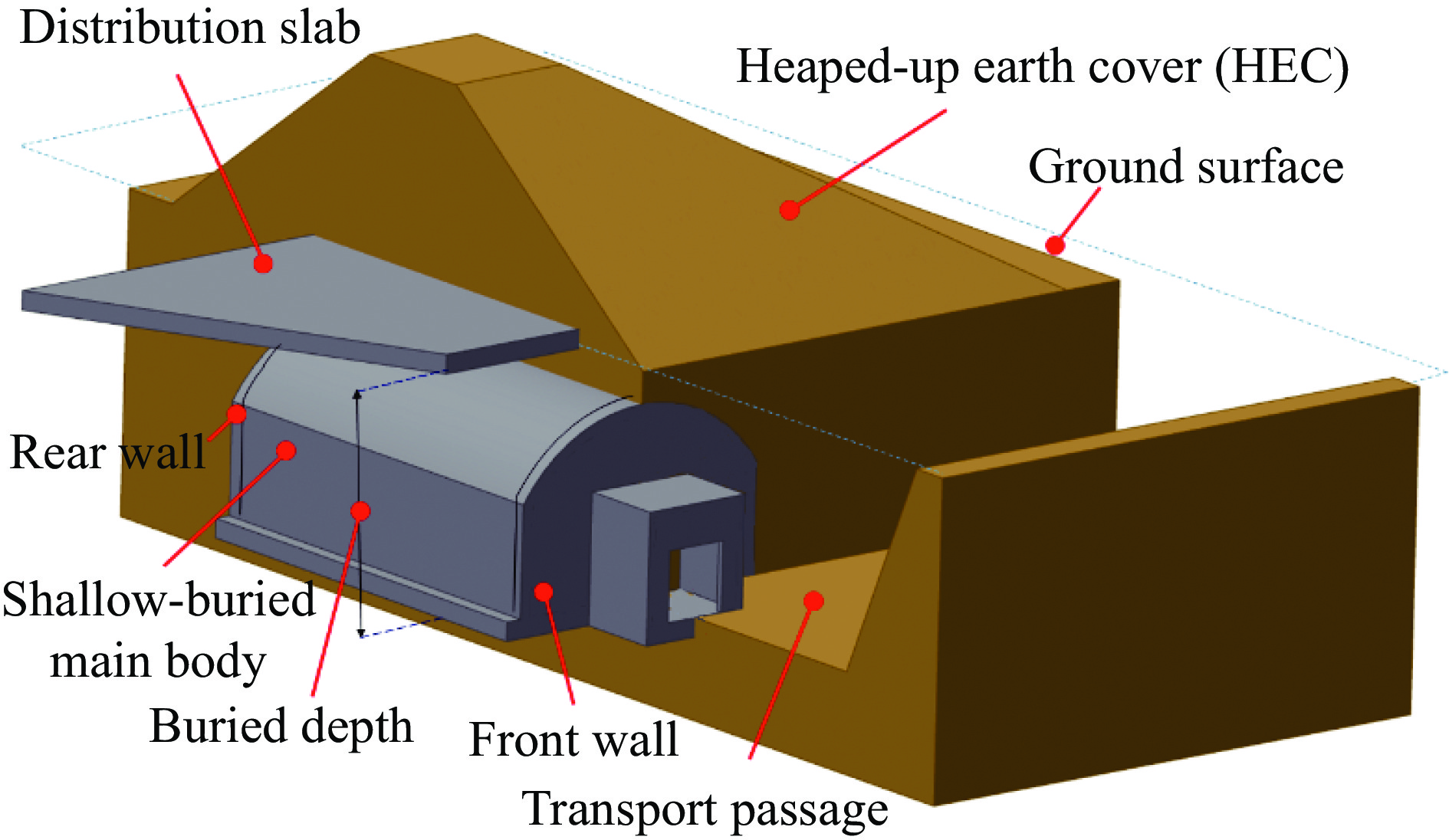

  • 图  1  新型危险品仓库的结构形式

    Figure  1.  Structure of a novel hazards warehouse

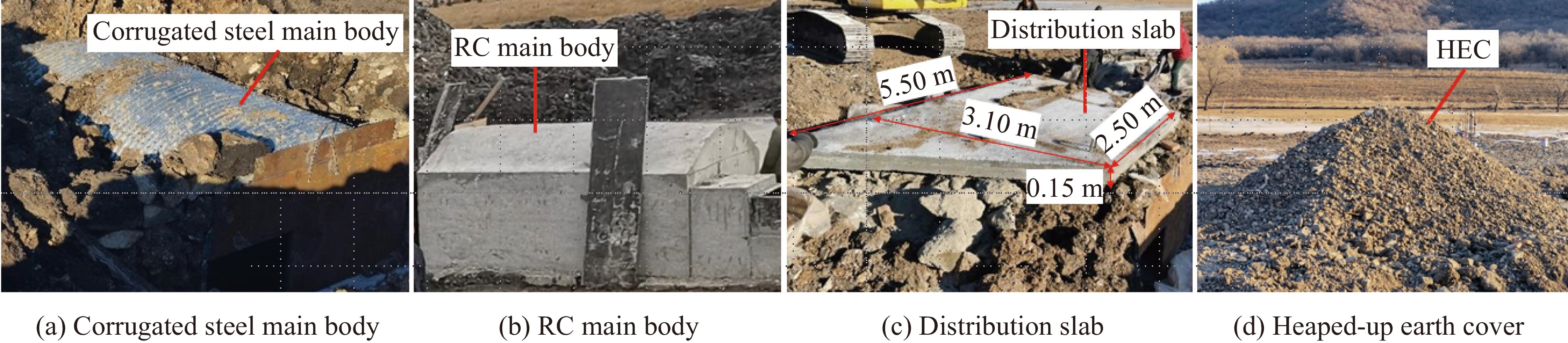

    图  2  试验模型各组成部分

    Figure  2.  Components of test models

    图  3  试验模型及顶部堆土尺寸(单位:m)

    Figure  3.  Size of the test models and heaped-up earth cover (unit: m)

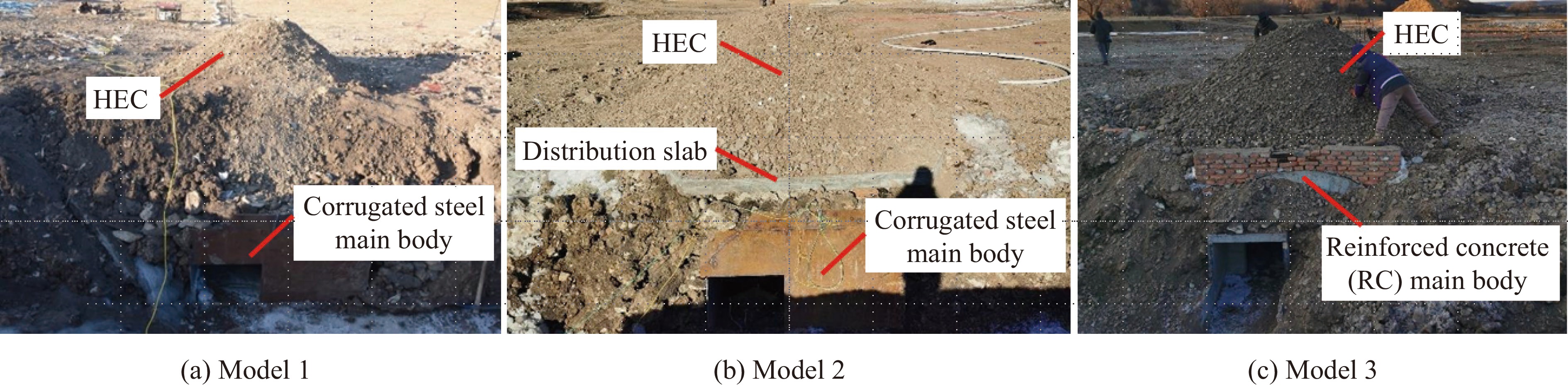

    图  4  试验模型现场照片

    Figure  4.  Photos of the test models

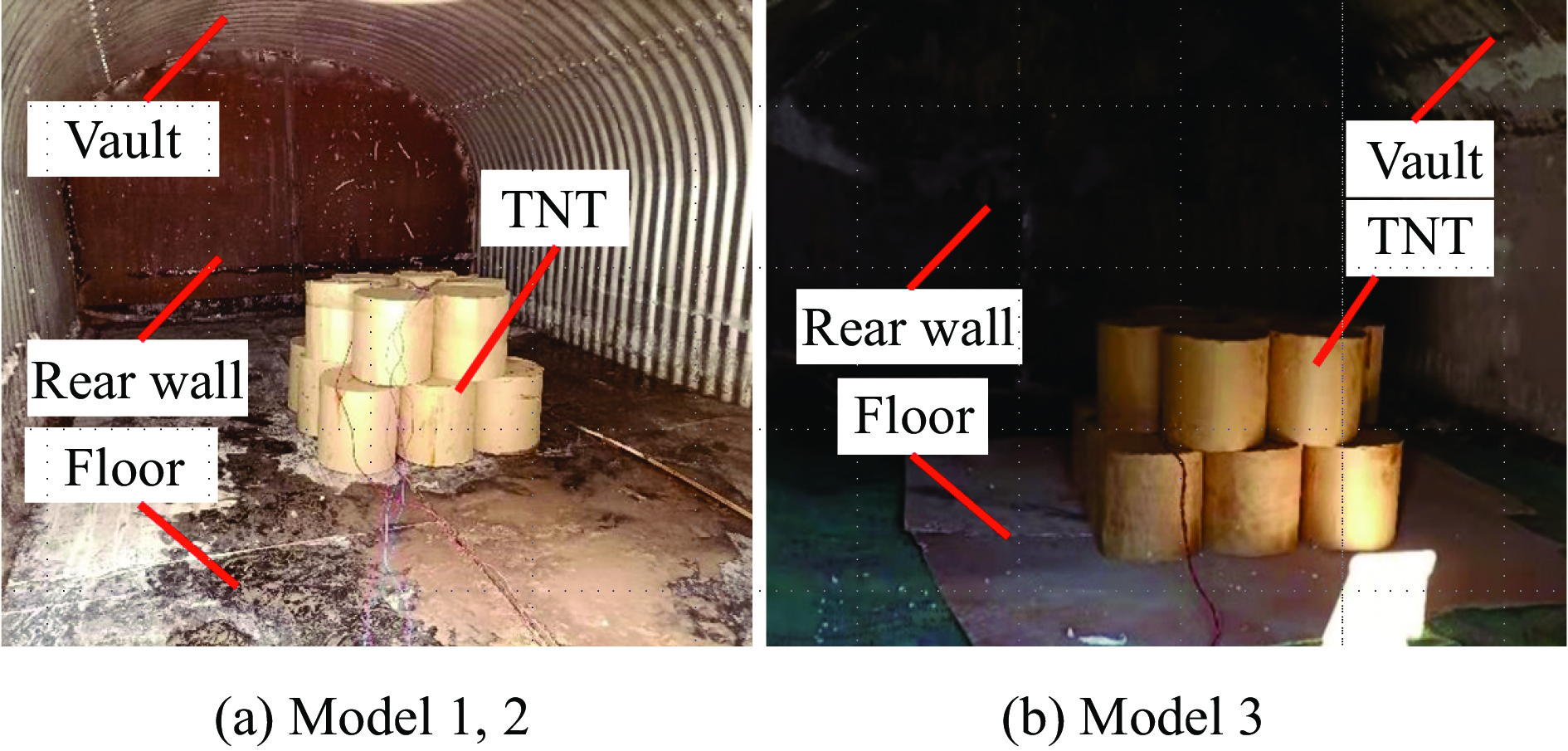

    图  5  试验模型装药情况

    Figure  5.  Charging of test models

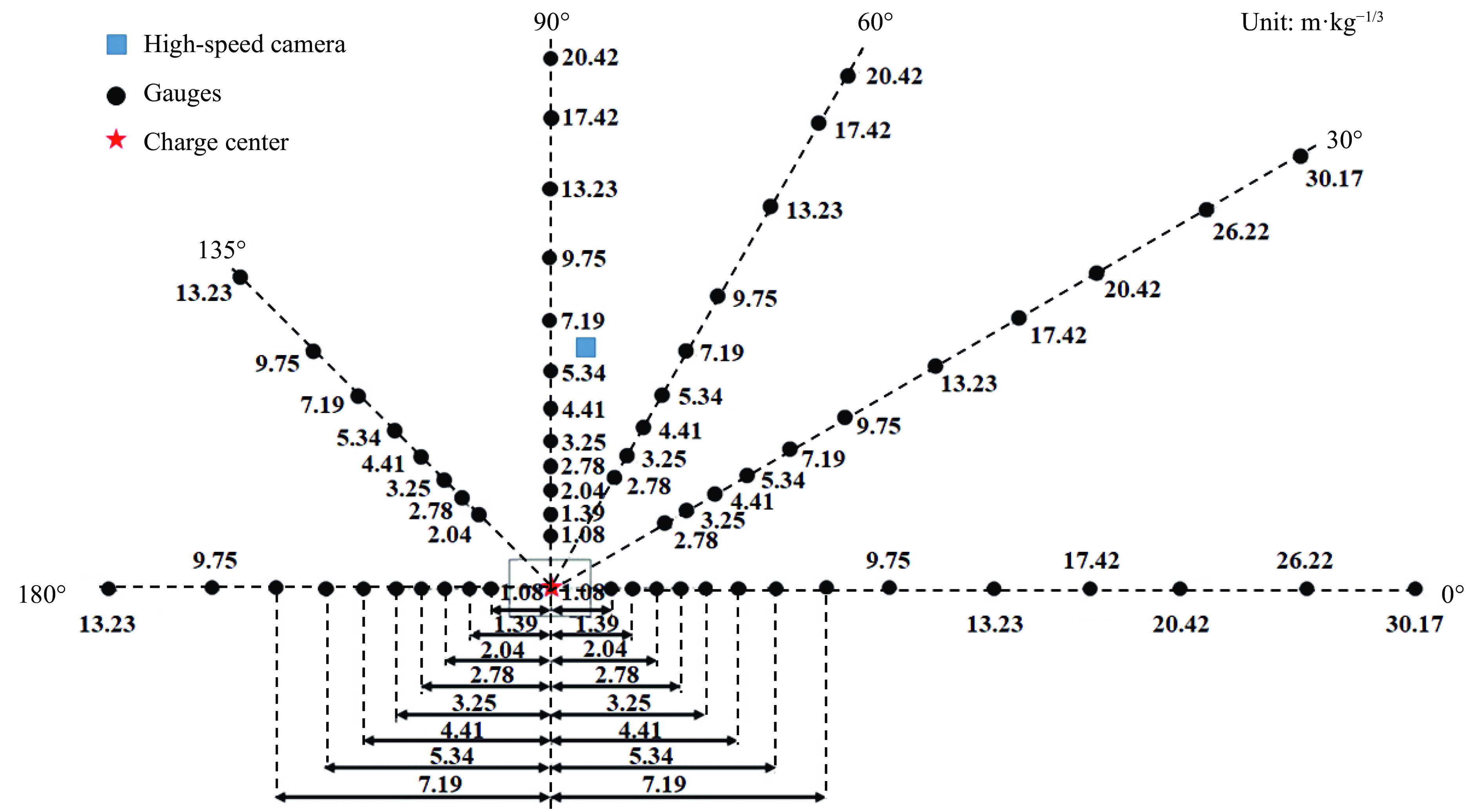

    图  6  测点和高速摄像机布置

    Figure  6.  Locations of gauges and high-speed camera

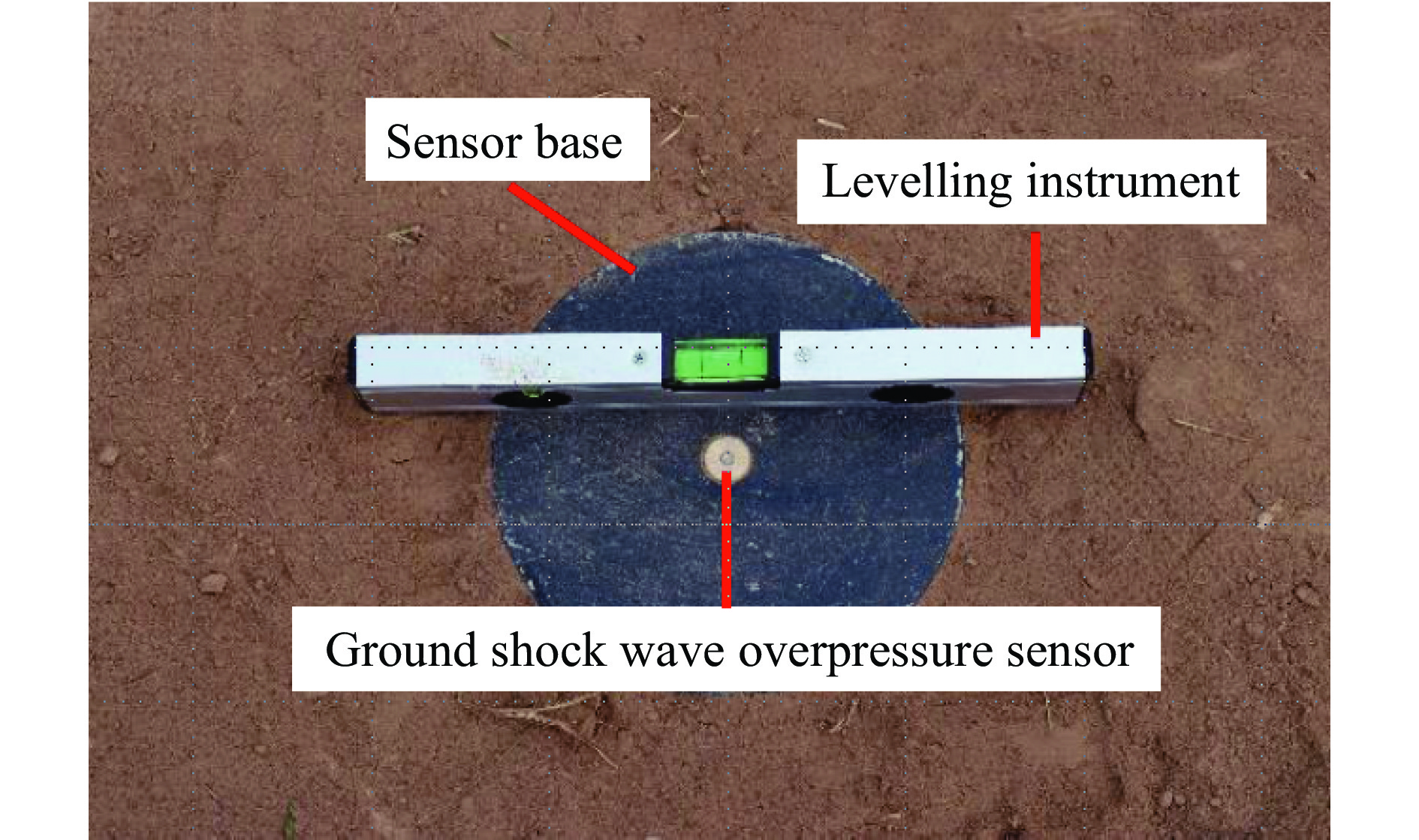

    图  7  冲击波超压传感器

    Figure  7.  Setup of shock wave overpressure sensor

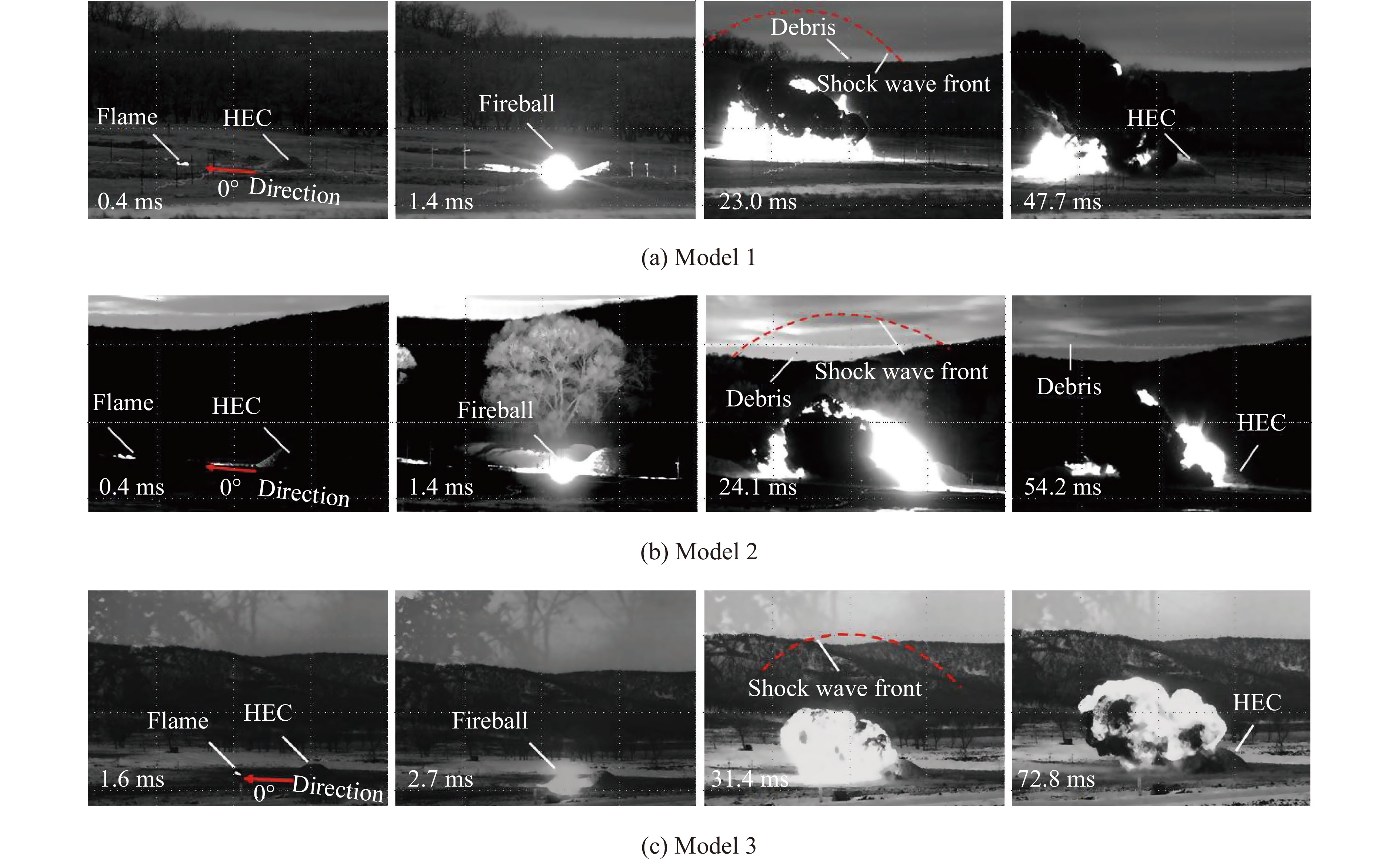

    图  8  各试验模型高速摄像图像

    Figure  8.  High-speed camera photos of the three tests

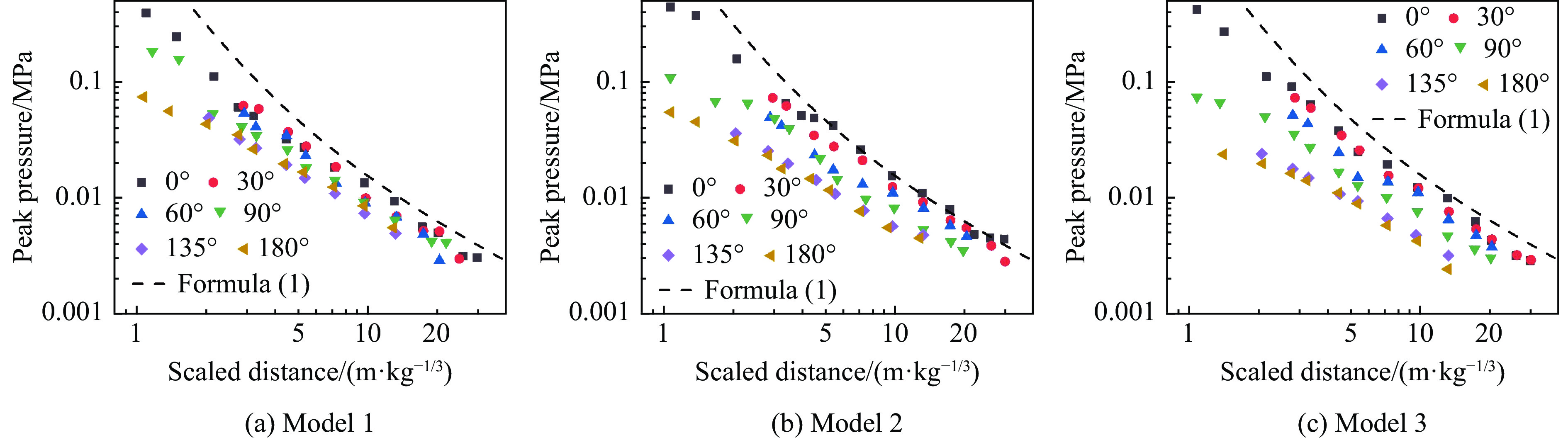

    图  9  各试验模型超压峰值

    Figure  9.  Peak pressure of the three tests

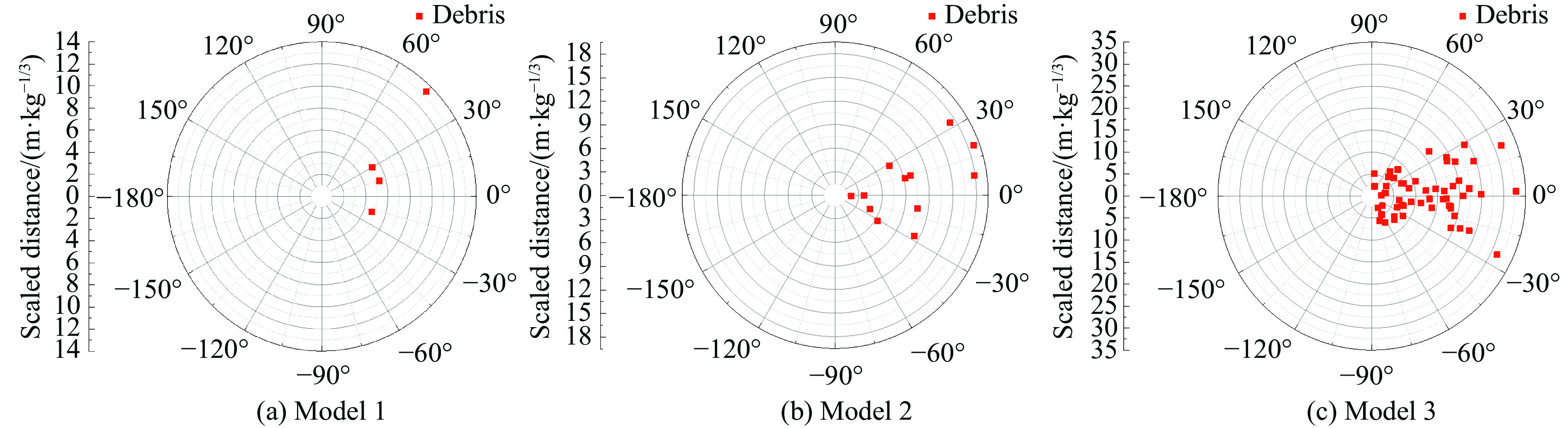

    图  10  爆炸破片分布图

    Figure  10.  Distribution of explosion debris

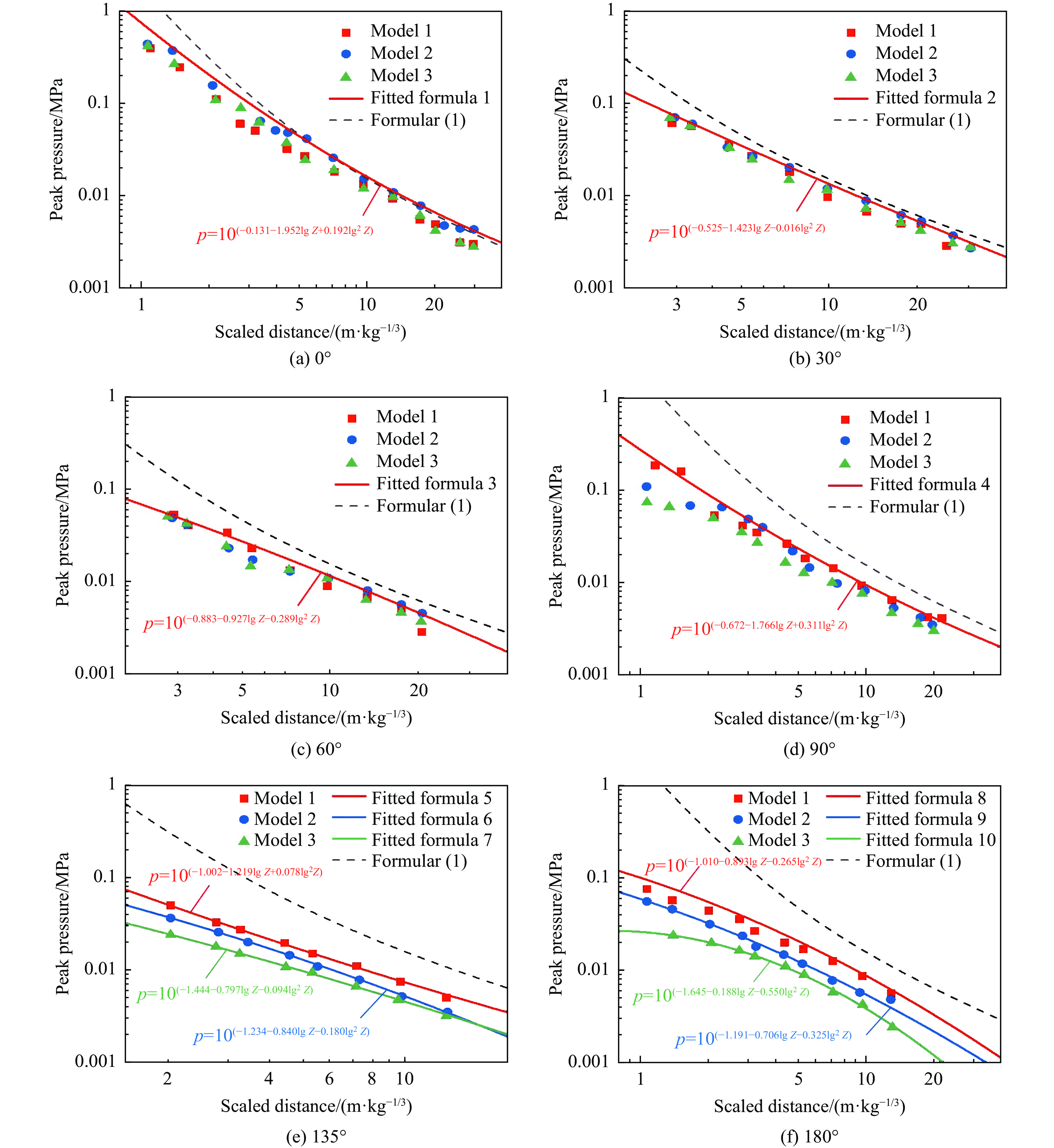

    图  11  冲击波超压峰值、地面爆炸经验公式及拟合公式

    Figure  11.  Peak pressures, empirical formula and fitting functions of shock waves

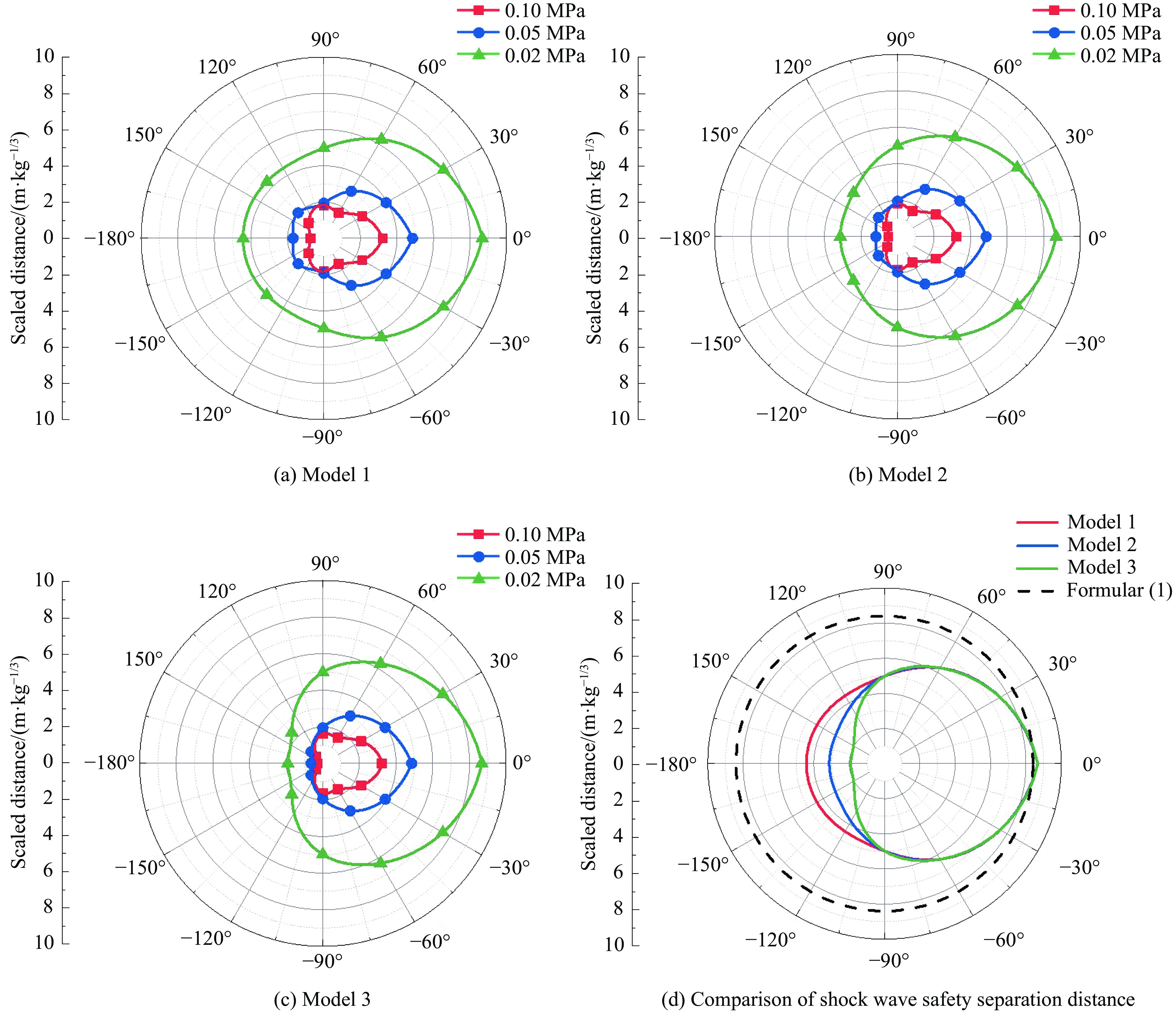

    图  12  各试验模型冲击波超压峰值等值线及对比
