前抛体对弹体入水载荷影响数值模拟研究

肖睿 魏继锋 吉耿杰 冯宇浪

肖睿, 魏继锋, 吉耿杰, 冯宇浪. 前抛体对弹体入水载荷影响数值模拟研究[J]. 爆炸与冲击, 2023, 43(4): 043201. doi: 10.11883/bzycj-2022-0431
引用本文: 肖睿, 魏继锋, 吉耿杰, 冯宇浪. 前抛体对弹体入水载荷影响数值模拟研究[J]. 爆炸与冲击, 2023, 43(4): 043201. doi: 10.11883/bzycj-2022-0431
XIAO Rui, WEI Jifeng, JI Gengjie, FENG Yulang. Numerical research on the effect of front body on water-entry load of a projectile[J]. Explosion And Shock Waves, 2023, 43(4): 043201. doi: 10.11883/bzycj-2022-0431
Citation: XIAO Rui, WEI Jifeng, JI Gengjie, FENG Yulang. Numerical research on the effect of front body on water-entry load of a projectile[J]. Explosion And Shock Waves, 2023, 43(4): 043201. doi: 10.11883/bzycj-2022-0431

前抛体对弹体入水载荷影响数值模拟研究

doi: 10.11883/bzycj-2022-0431
详细信息
    作者简介:

    肖 睿(1997- ),女,硕士研究生,xr1xiaorui@163.com

    通讯作者:

    魏继锋(1977- ),男,博士,副教授,weijifeng@bit.edu.cn

  • 中图分类号: O359; TJ630

Numerical research on the effect of front body on water-entry load of a projectile

  • 摘要: 弹体穿过气-液界面时因密度突变会遭受强冲击载荷,出现结构损伤或破坏。为降低弹体入水的冲击载荷,基于Rabbi降载思想,提出了一种在主弹体前附加前抛体的结构形式。运用S-ALE (structured arbitrary Lagrange-Euler)算法和罚函数流固耦合方法进行空泡形态和弹体运动状态数值模拟,数值模拟结果与弹体入水实验图像吻合,验证了数值模拟算法的有效性;随后研究了前抛弹体的入水角度、主弹体与前抛体的无量纲入水时间间隔参数、前抛体尺寸、主弹体与前抛体的入水初速度对降载效果的影响。研究结果表明,前抛体垂直入水时存在前抛体和主弹体碰撞现象,不利于降载,甚至可能给主弹体带来更大的载荷;前抛体斜入水时可避免两弹体间的碰撞,具有良好的降载效果,最大降载率可达90%。在此基础上获得了降载效果最佳的无量纲入水时间间隔范围为0.8~0.9,在此范围内主弹体的降载效果随前抛体尺寸的增大和入水初速度增加而提高。

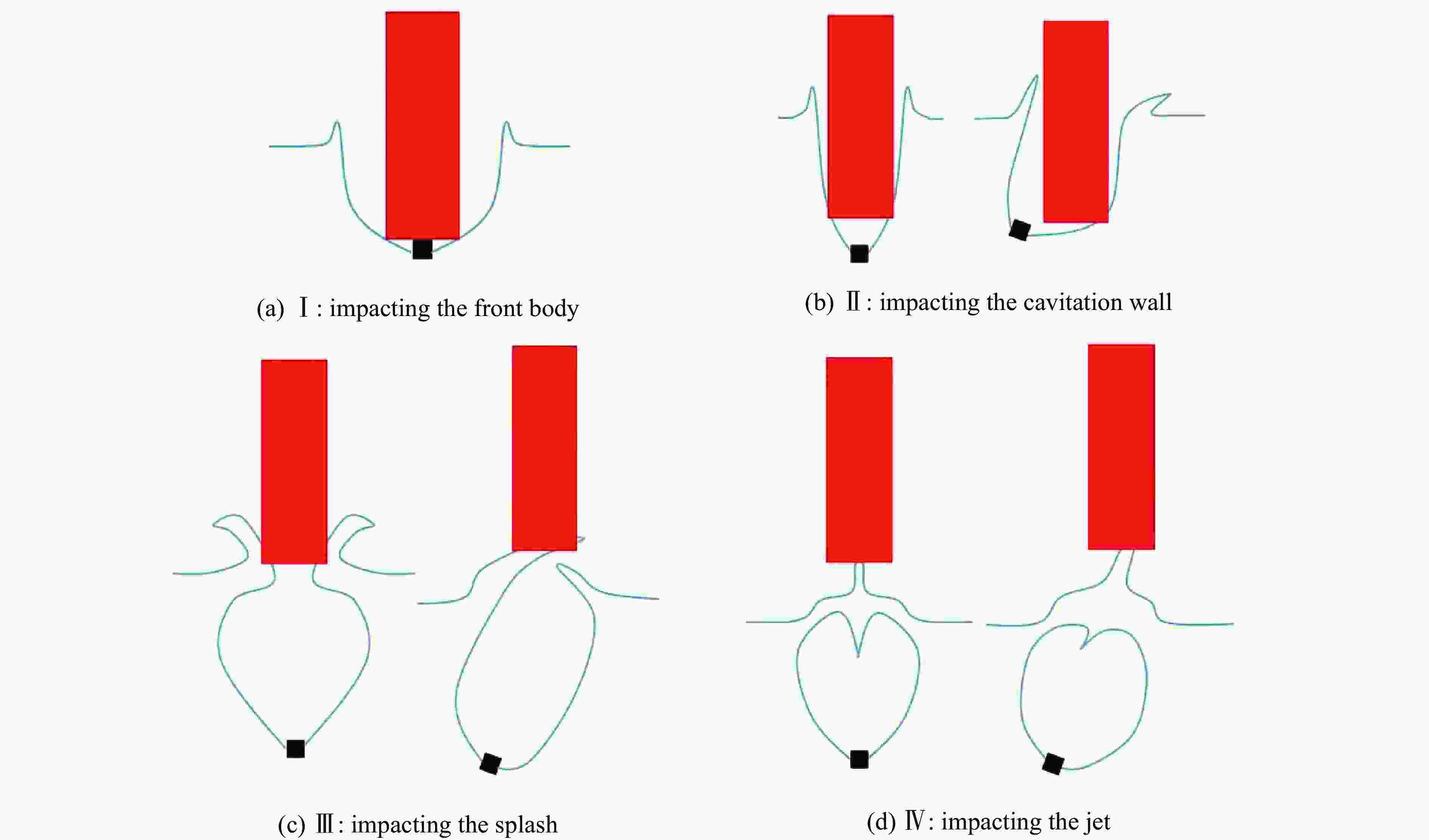

  • 图  1  含前抛体弹体入水情况示意图

    Figure  1.  Projectile with front projectile entering the water

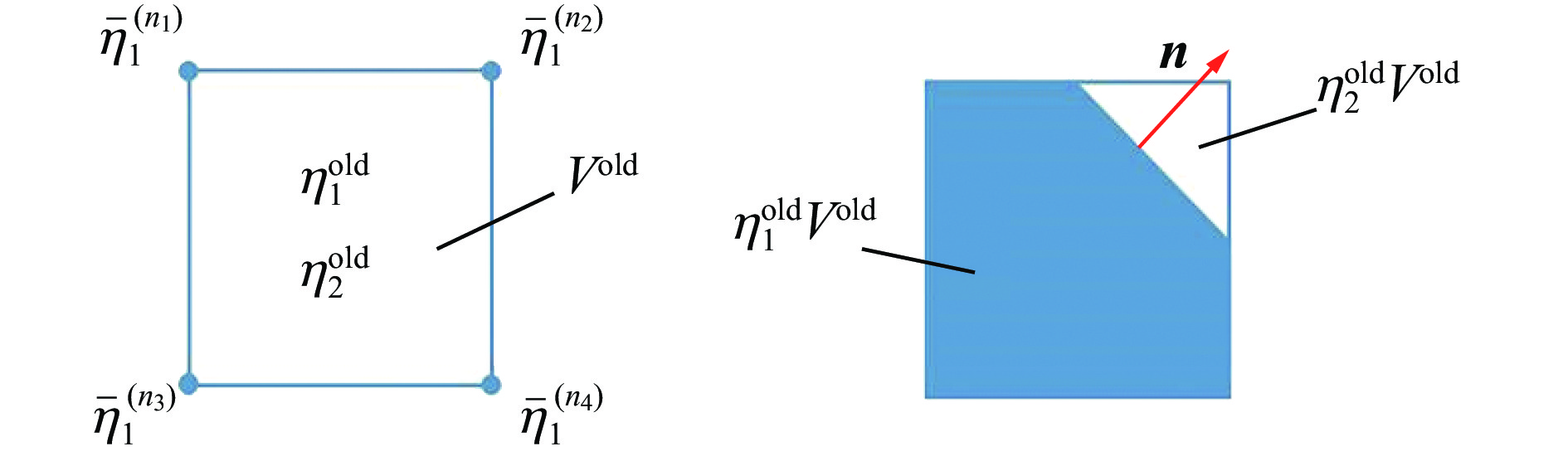

    图  2  S-ALE的界面捕捉法

    Figure  2.  Surface capturing method of S-ALE

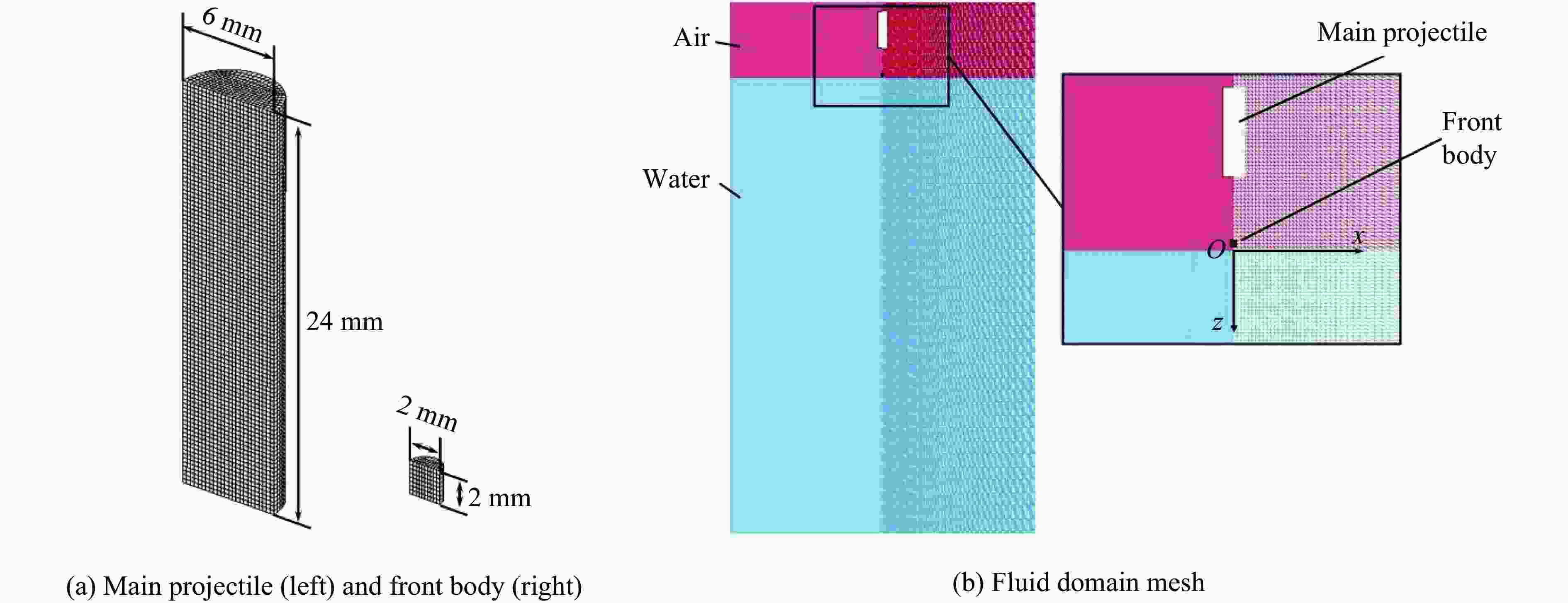

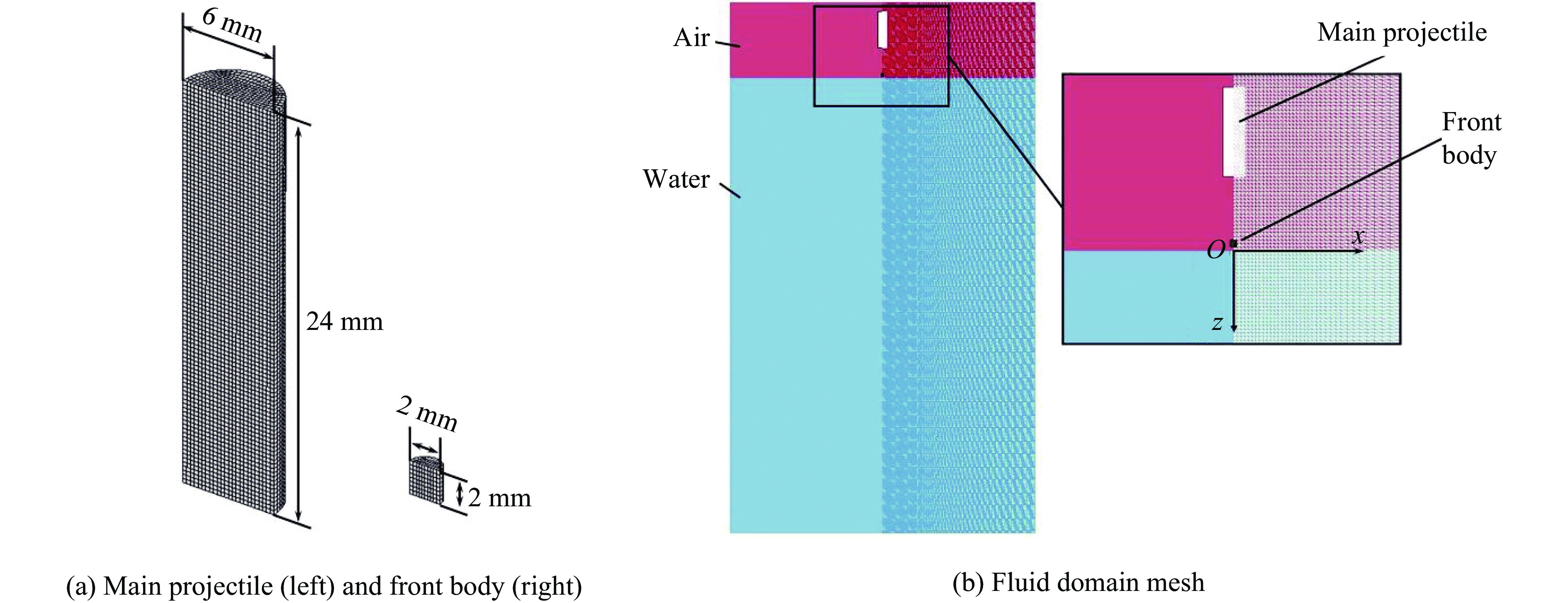

    图  3  弹体模型与流体域网格

    Figure  3.  Projectile models and fluid domain mesh

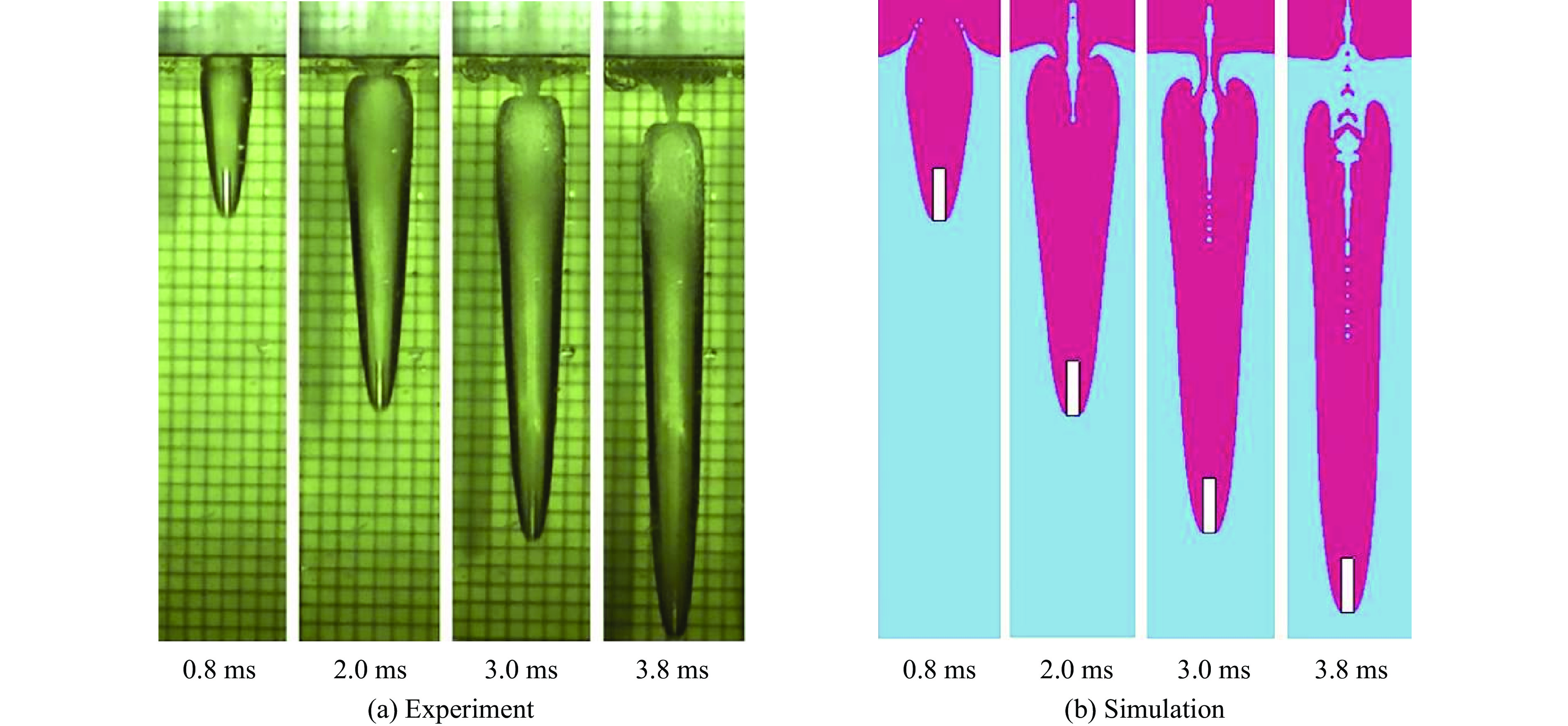

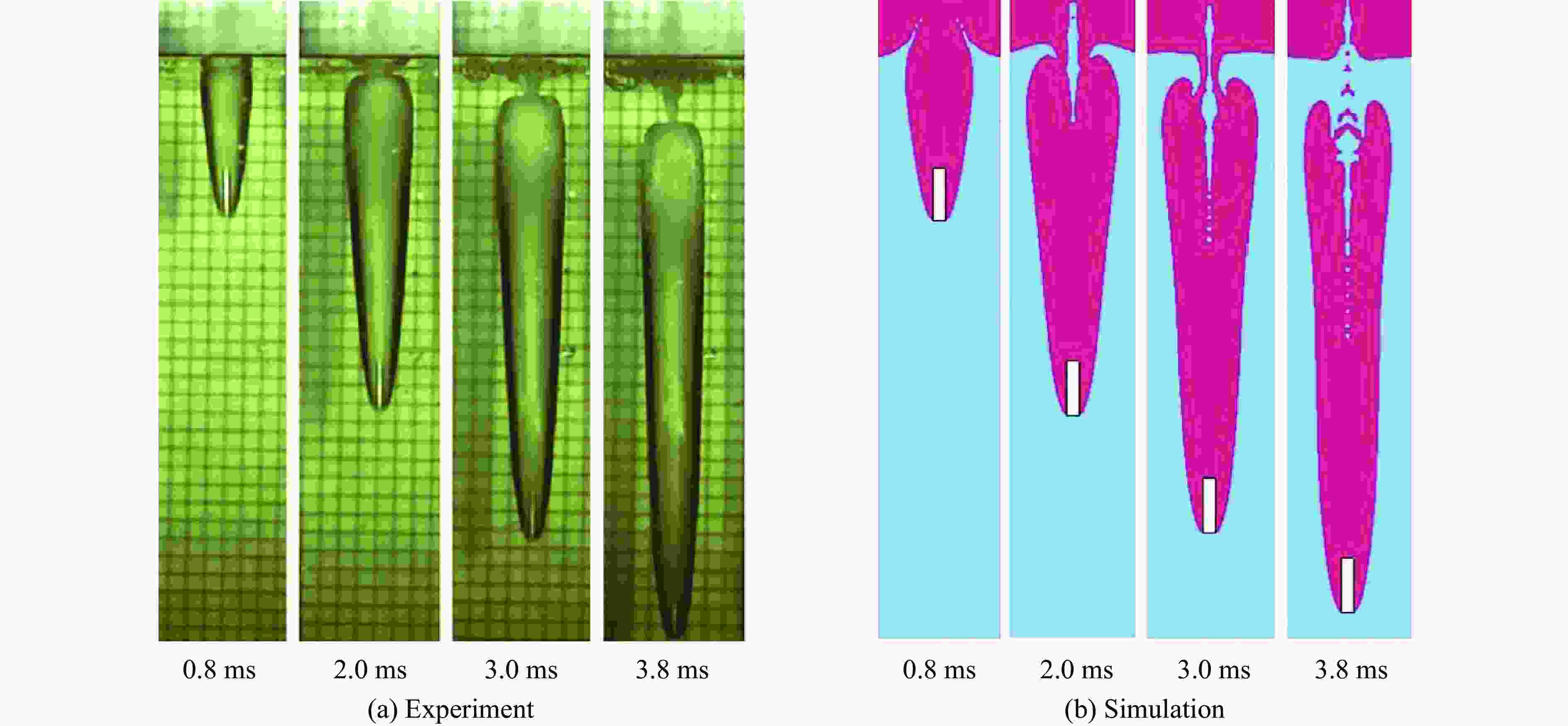

    图  4  弹体入水运动状态和空泡形态

    Figure  4.  Projectile entering water motion state and cavitation shape

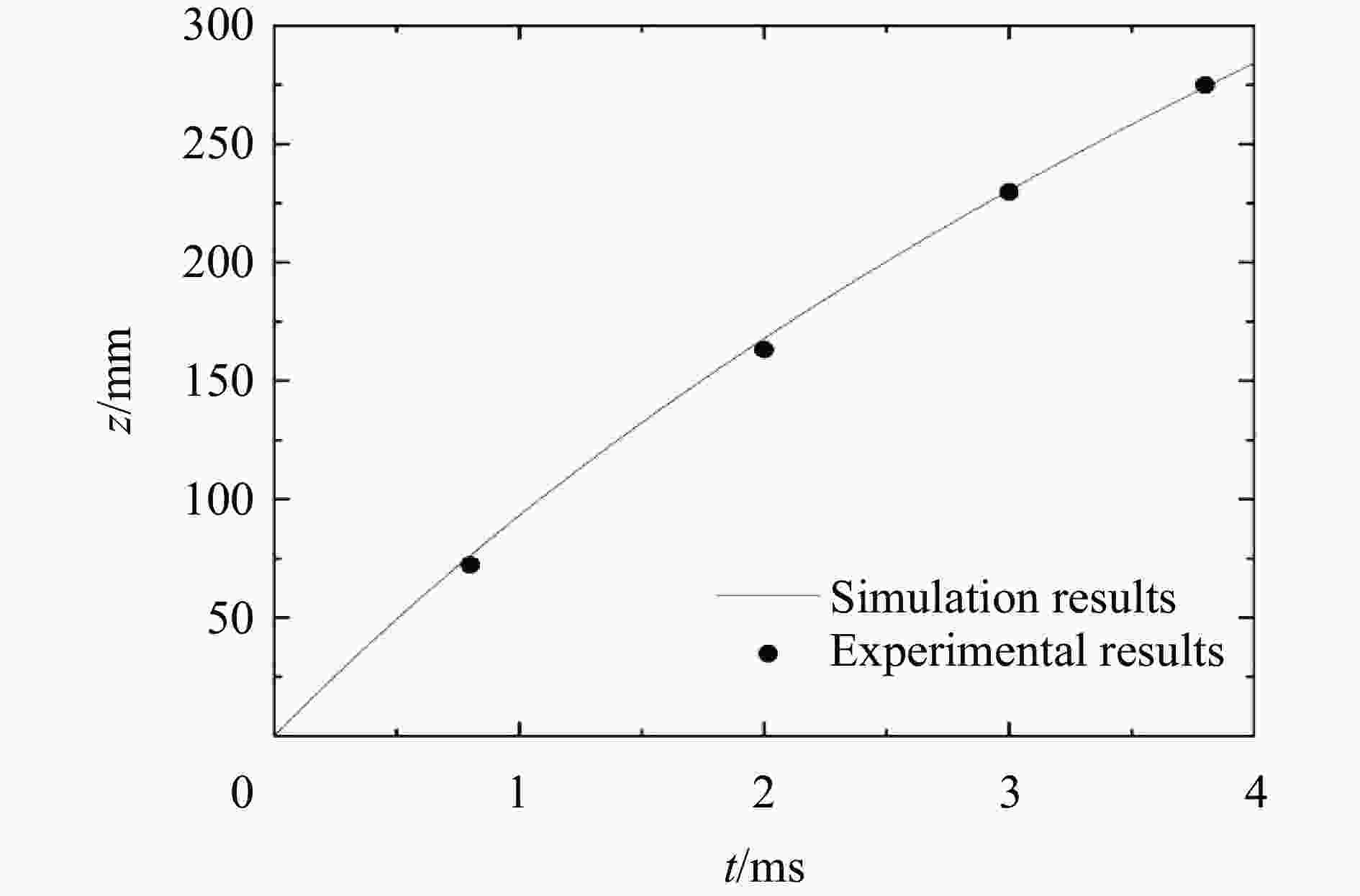

    图  5  弹体入水深度(z)

    Figure  5.  Projectile water entry depth (z)

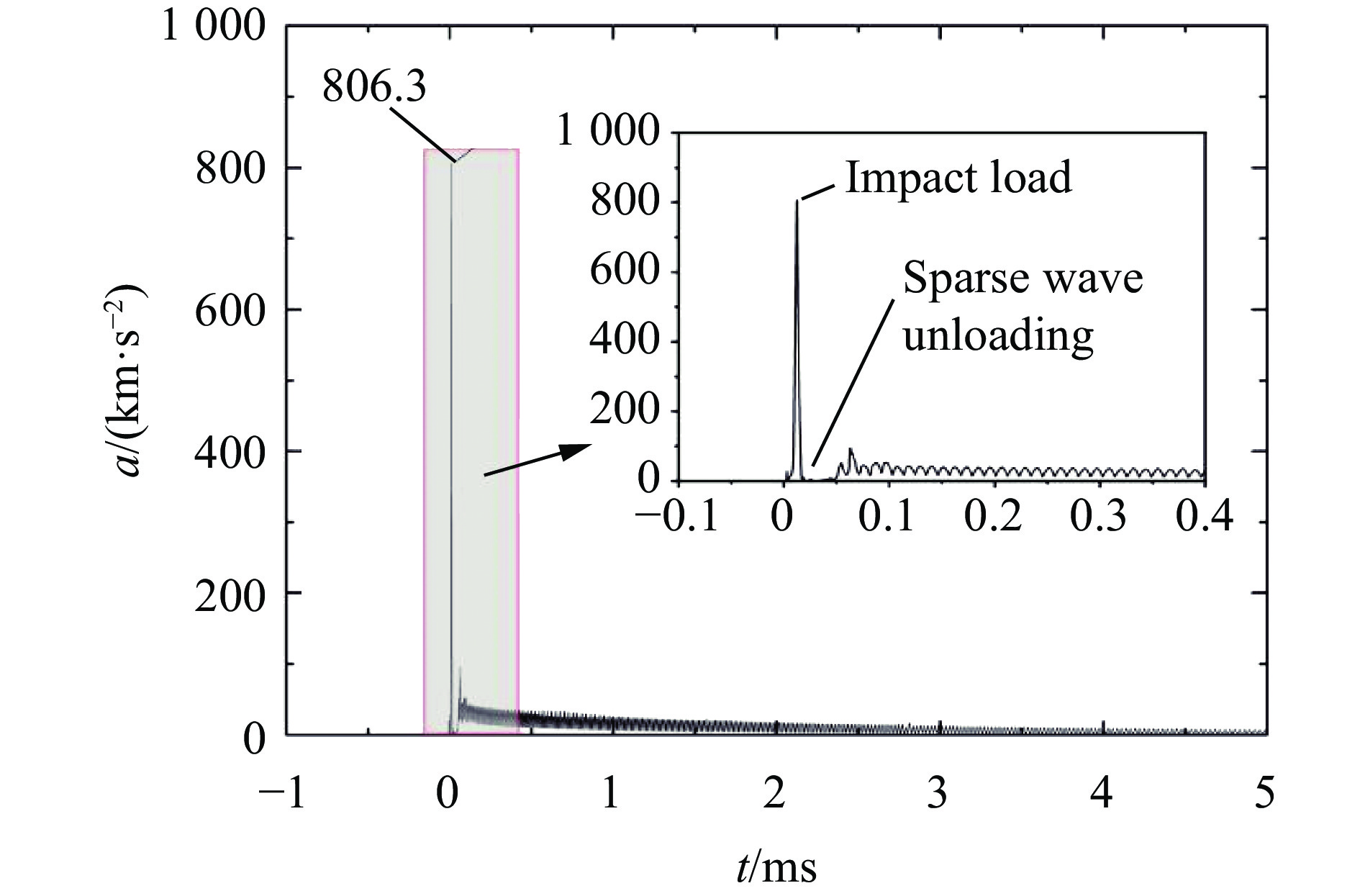

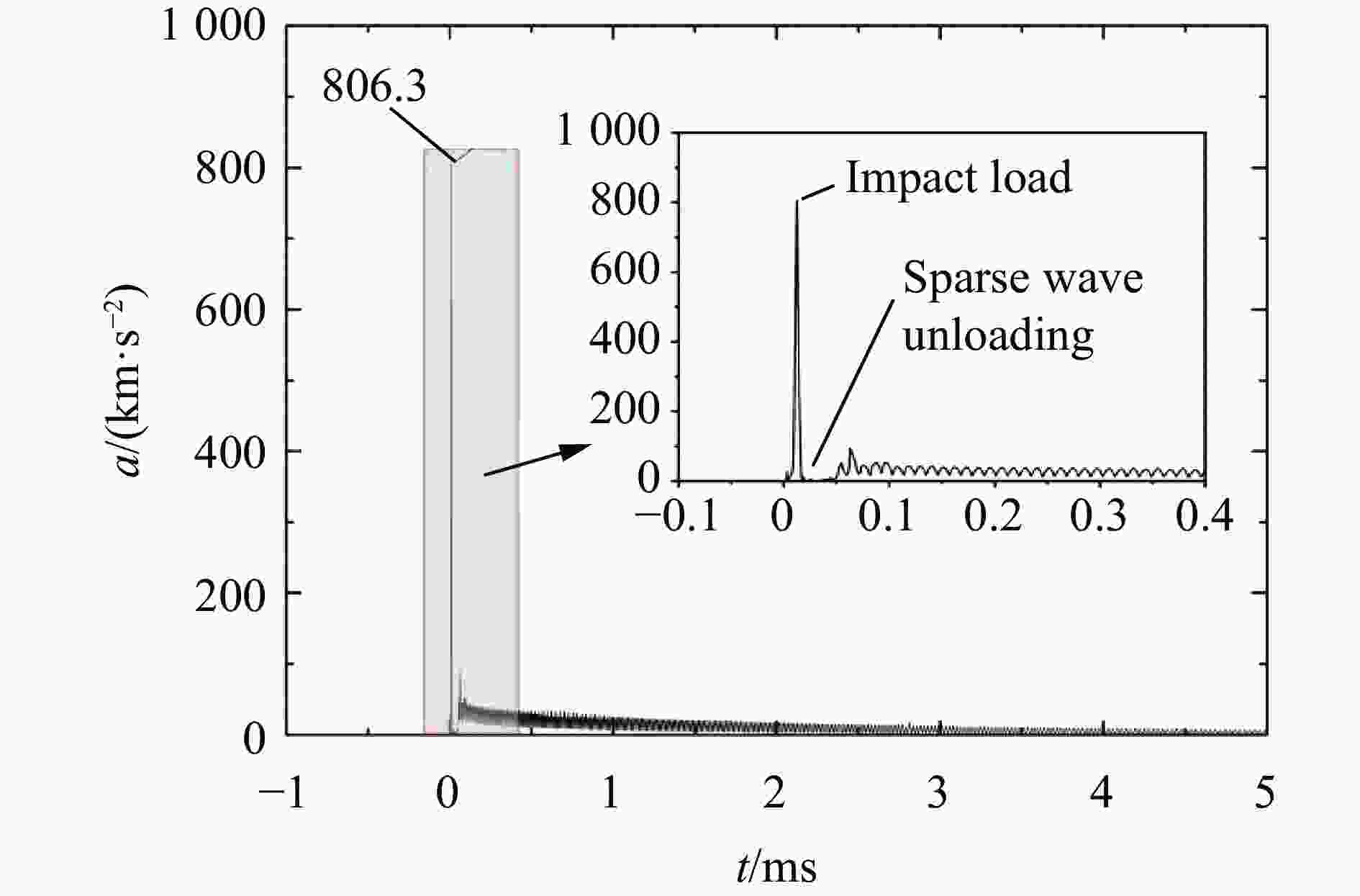

    图  6  主弹体的加速度(a)

    Figure  6.  The accelerationof the main projectile (a)

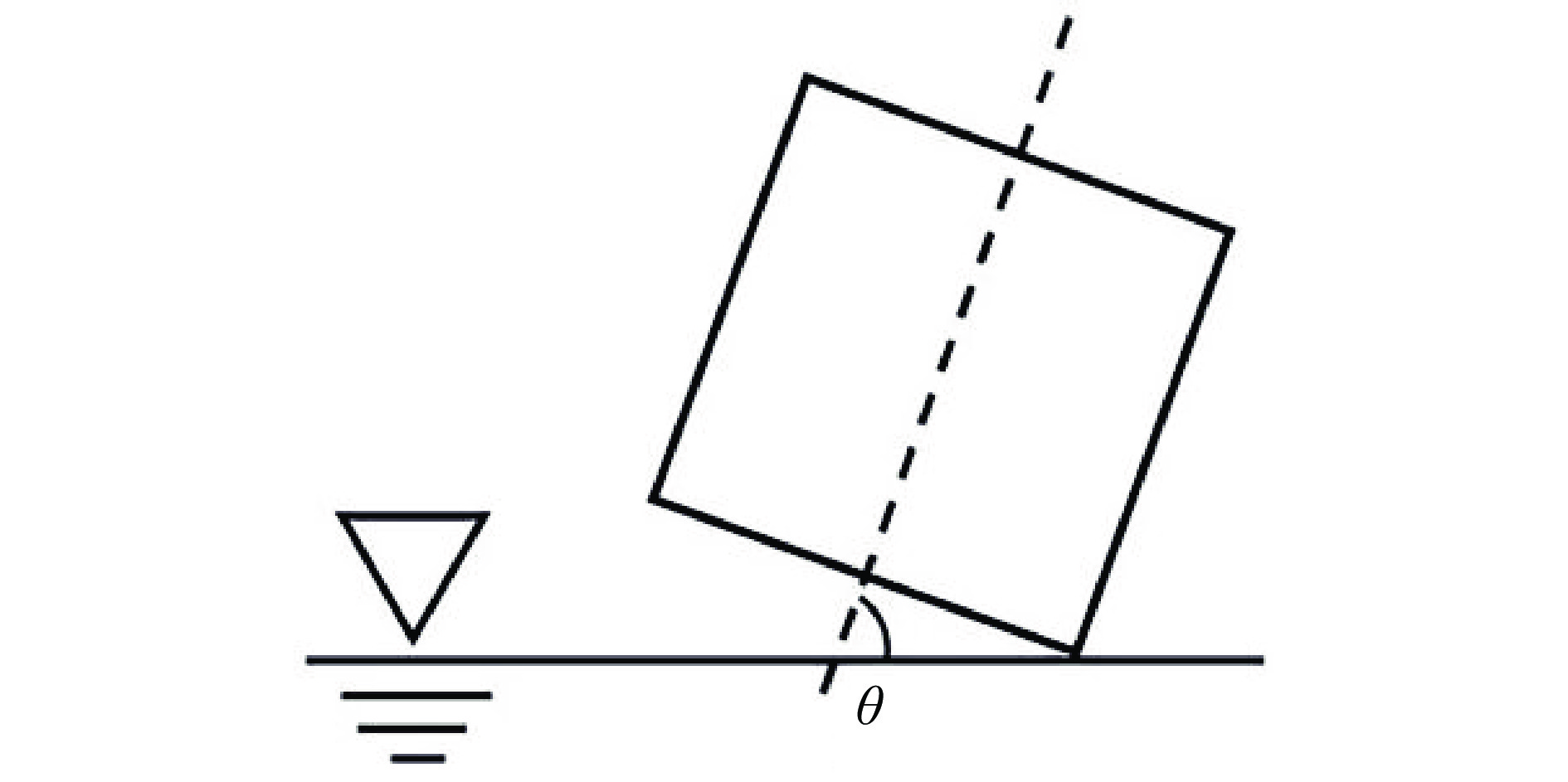

    图  7  前抛体初始入水角示意

    Figure  7.  Schematic of the initial water entry angle of front body

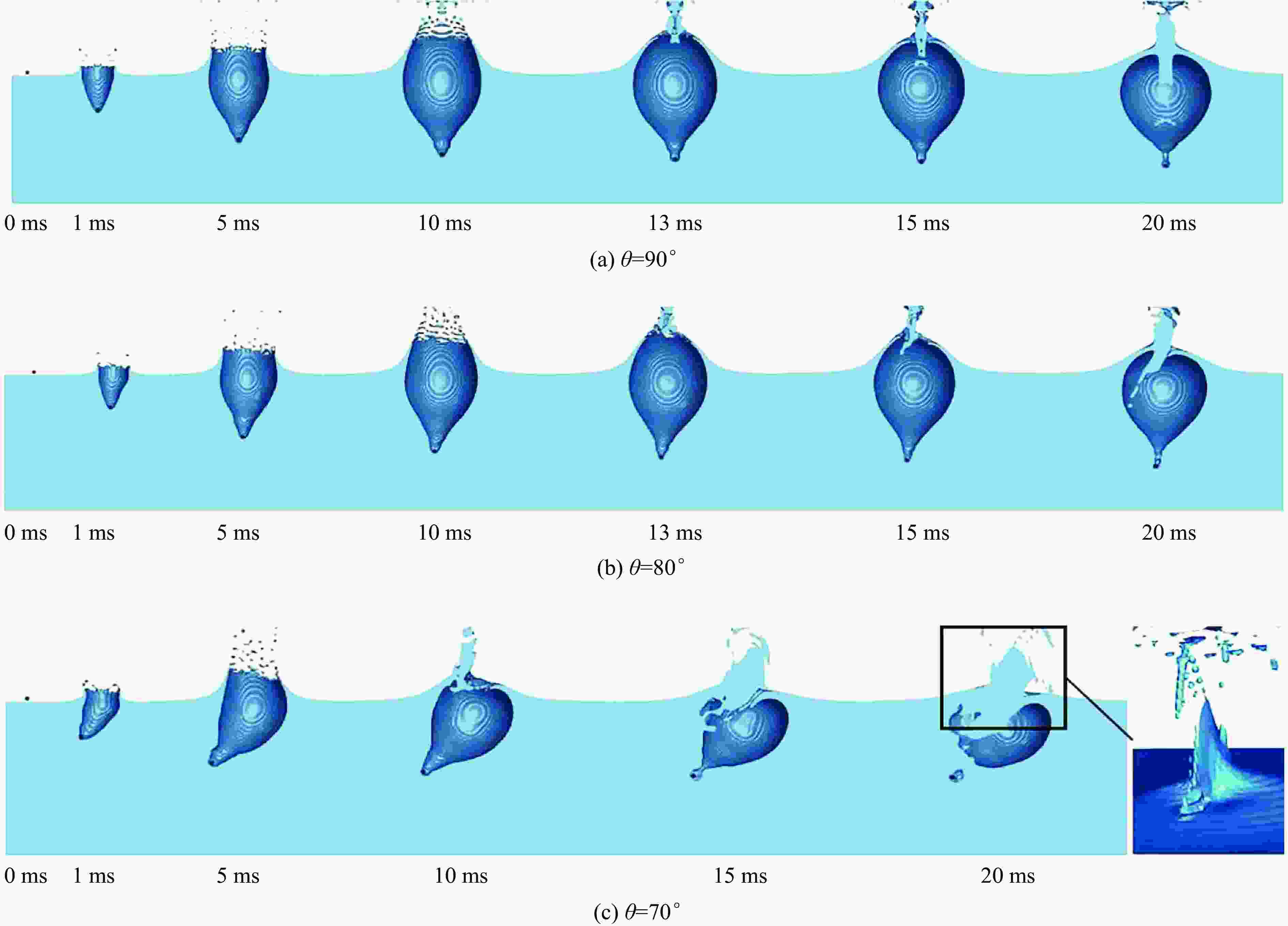

    图  8  前抛体以不同角度入水形成的空泡演化过程

    Figure  8.  The evolution process of the cavitation formed by the front body entering the water at different angles

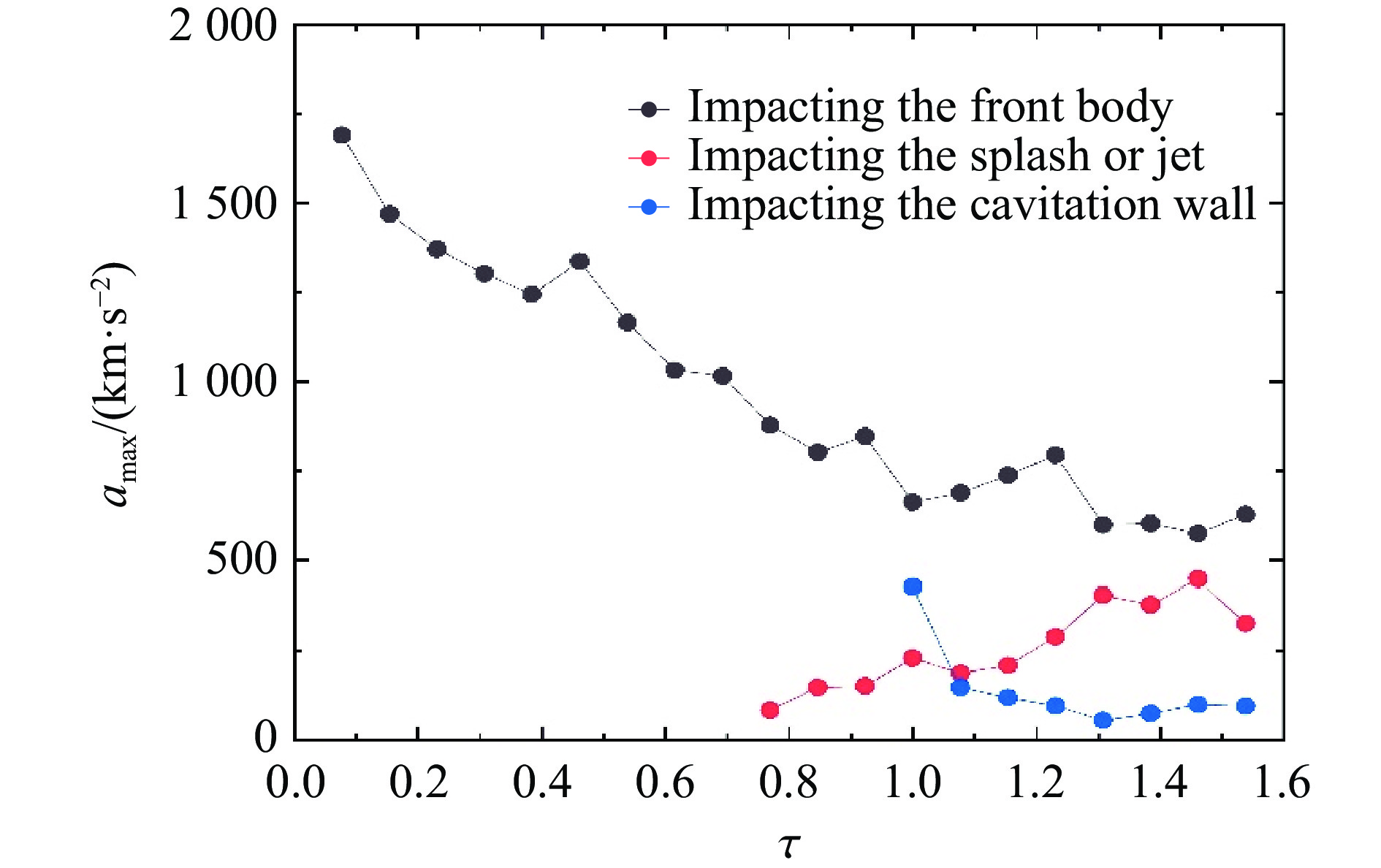

    图  9  前抛体垂直入水时的主弹体载荷峰值曲线

    Figure  9.  Load peak curves of the main projectile when the front body enters water vertically

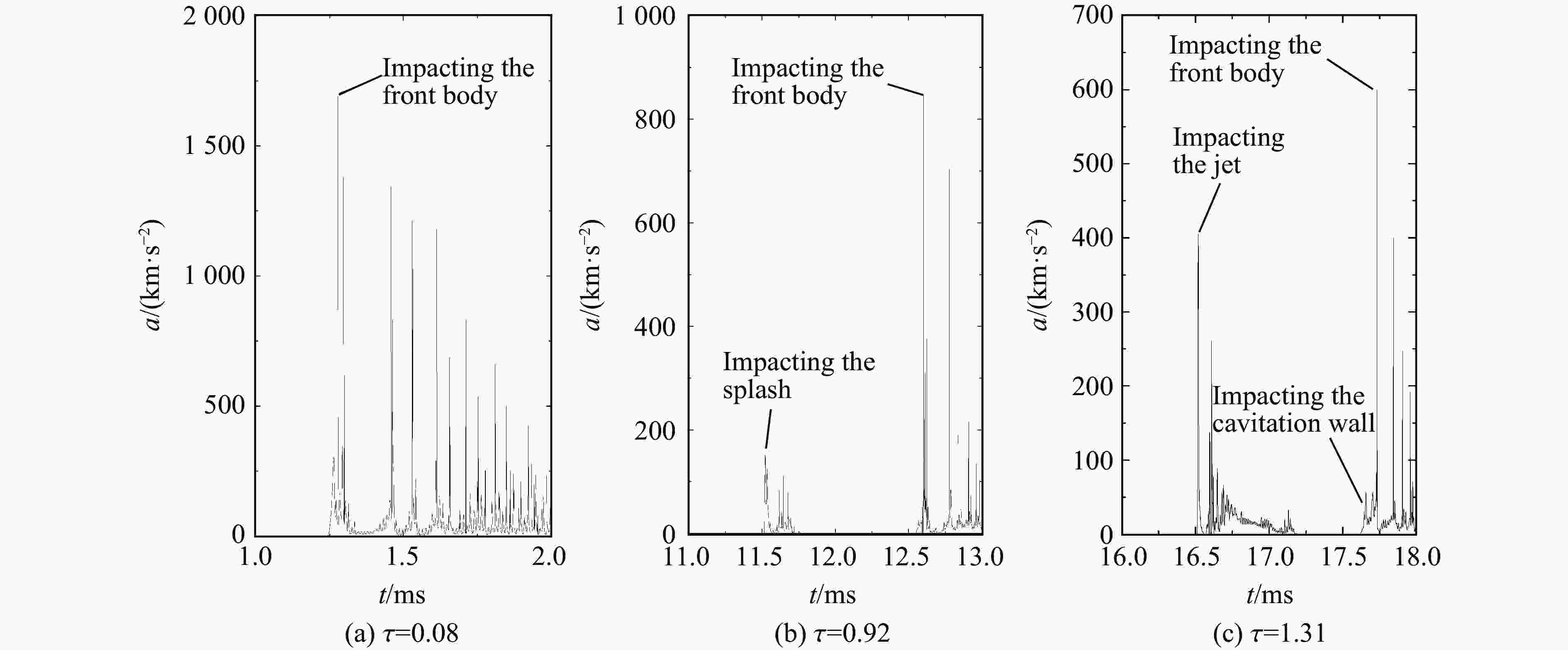

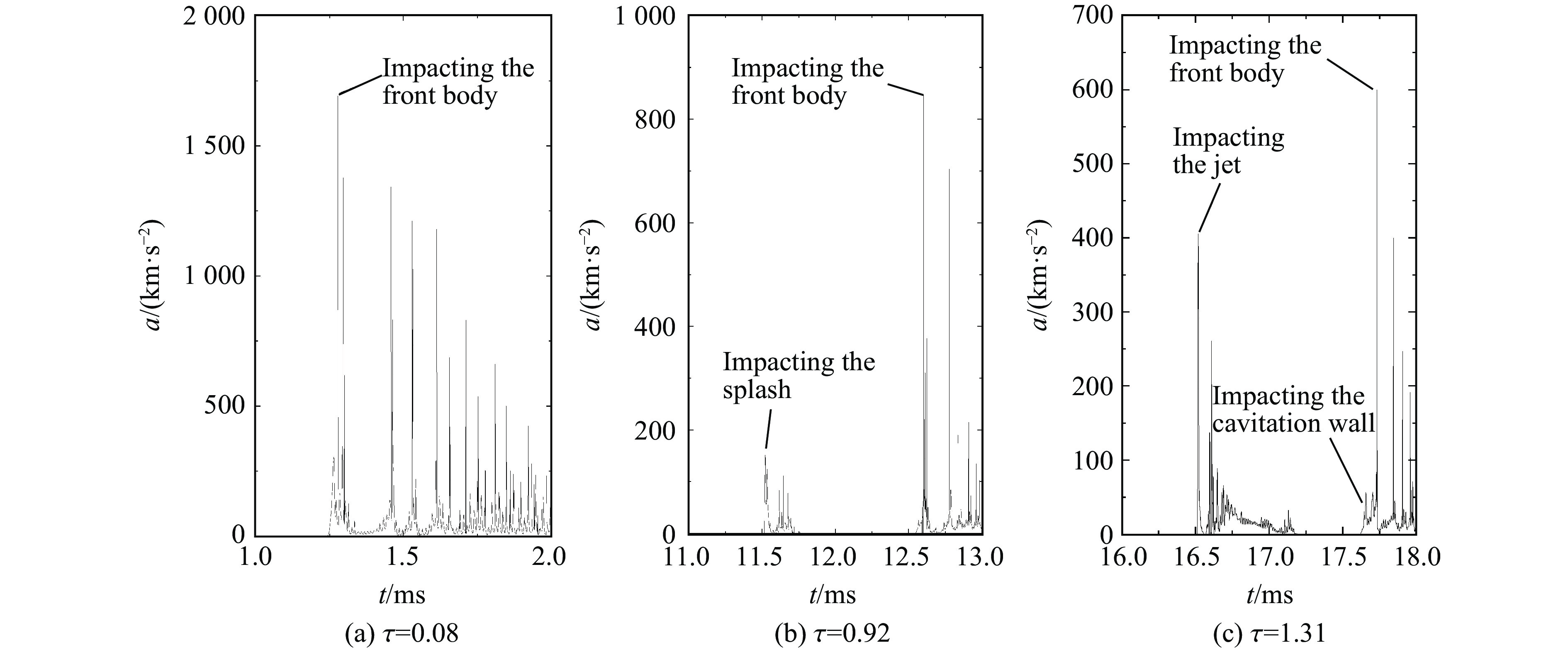

    图  10  不同τ时前抛体垂直入水时的主弹体载荷

    Figure  10.  Load of the main projectile when the front body vertically enters the water while τ is different

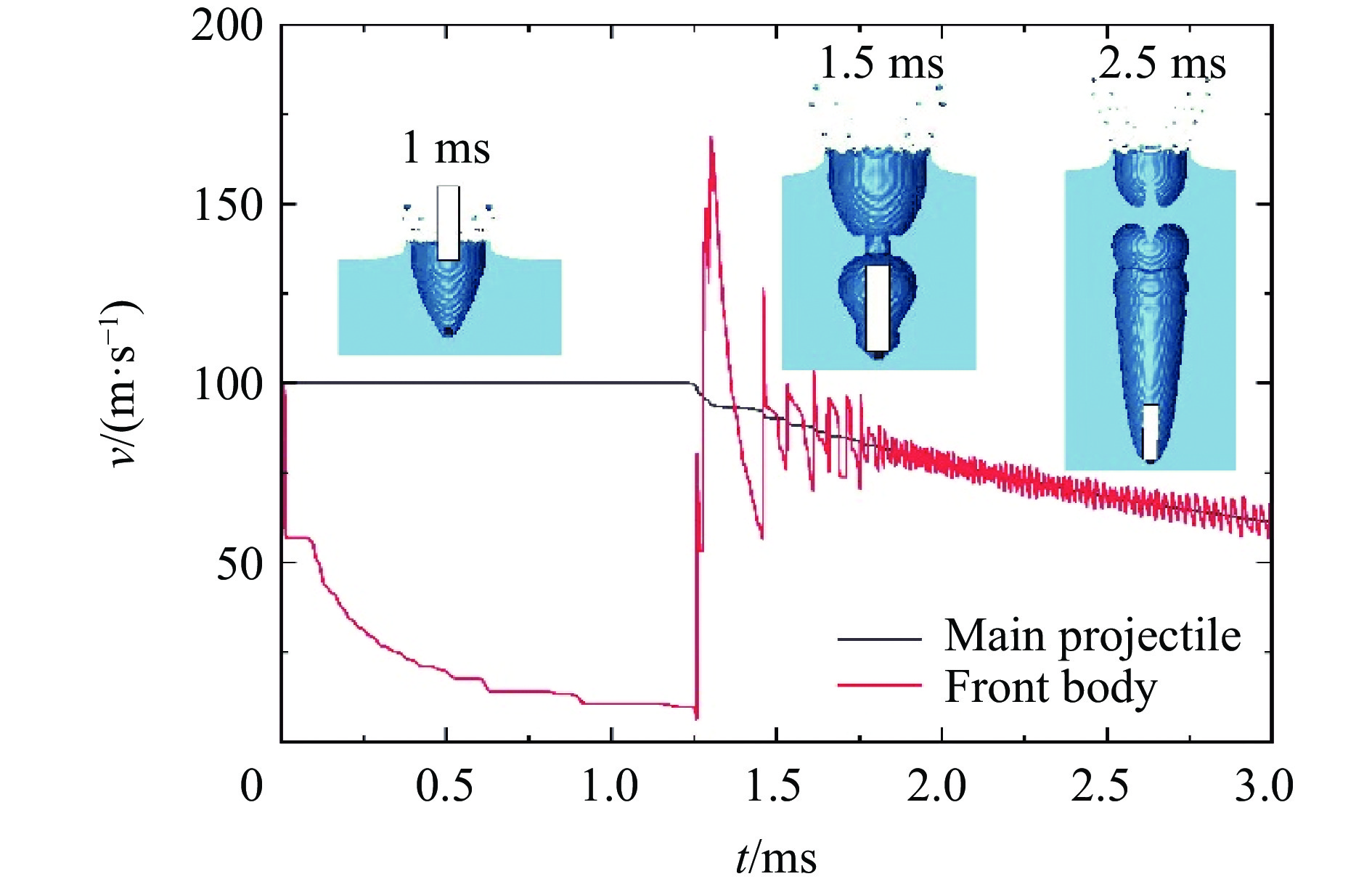

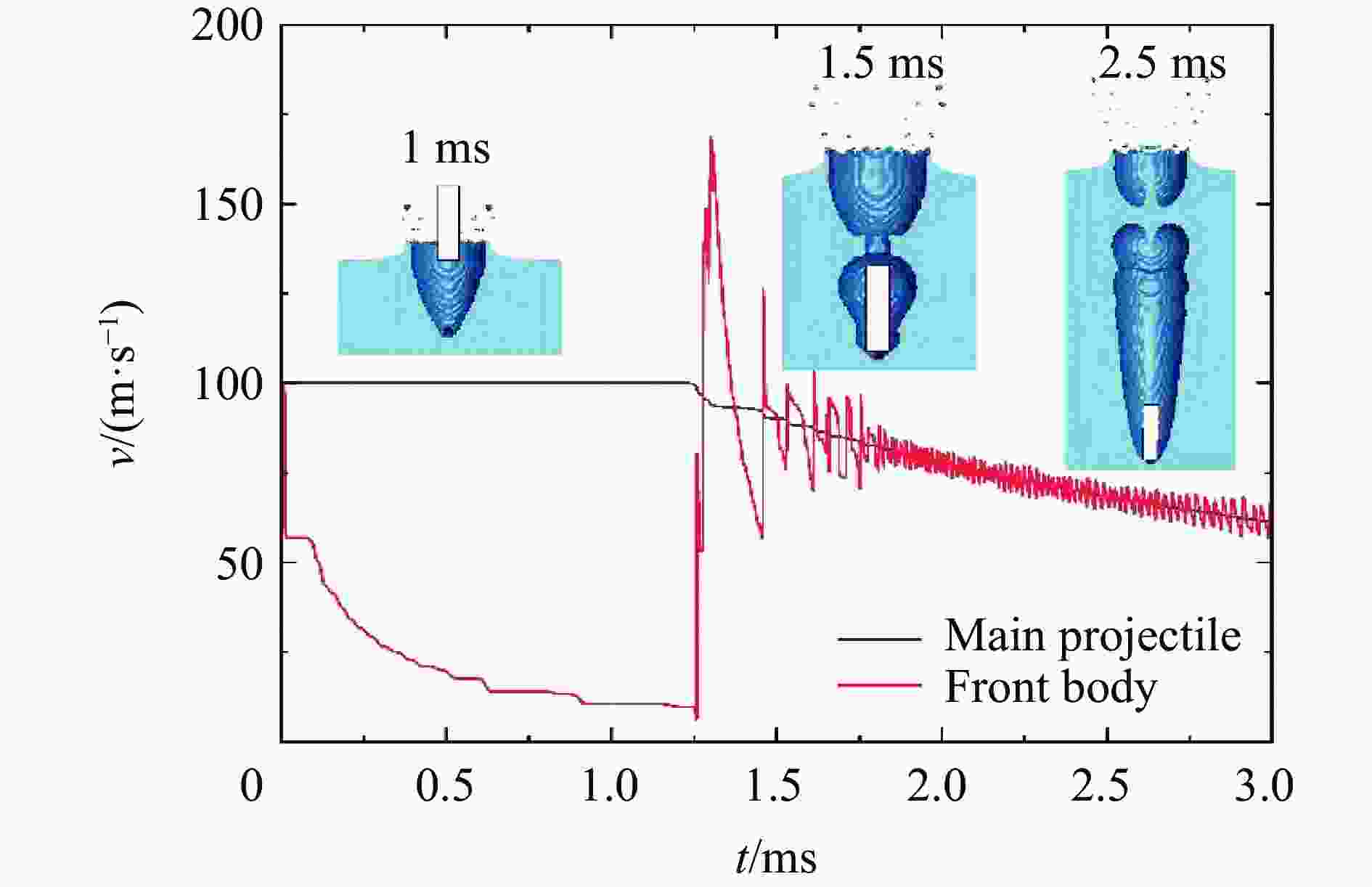

    图  11  τ=0.08时主弹体与前抛体的速度曲线

    Figure  11.  Velocity curves of main projectile and front body when τ=0.08

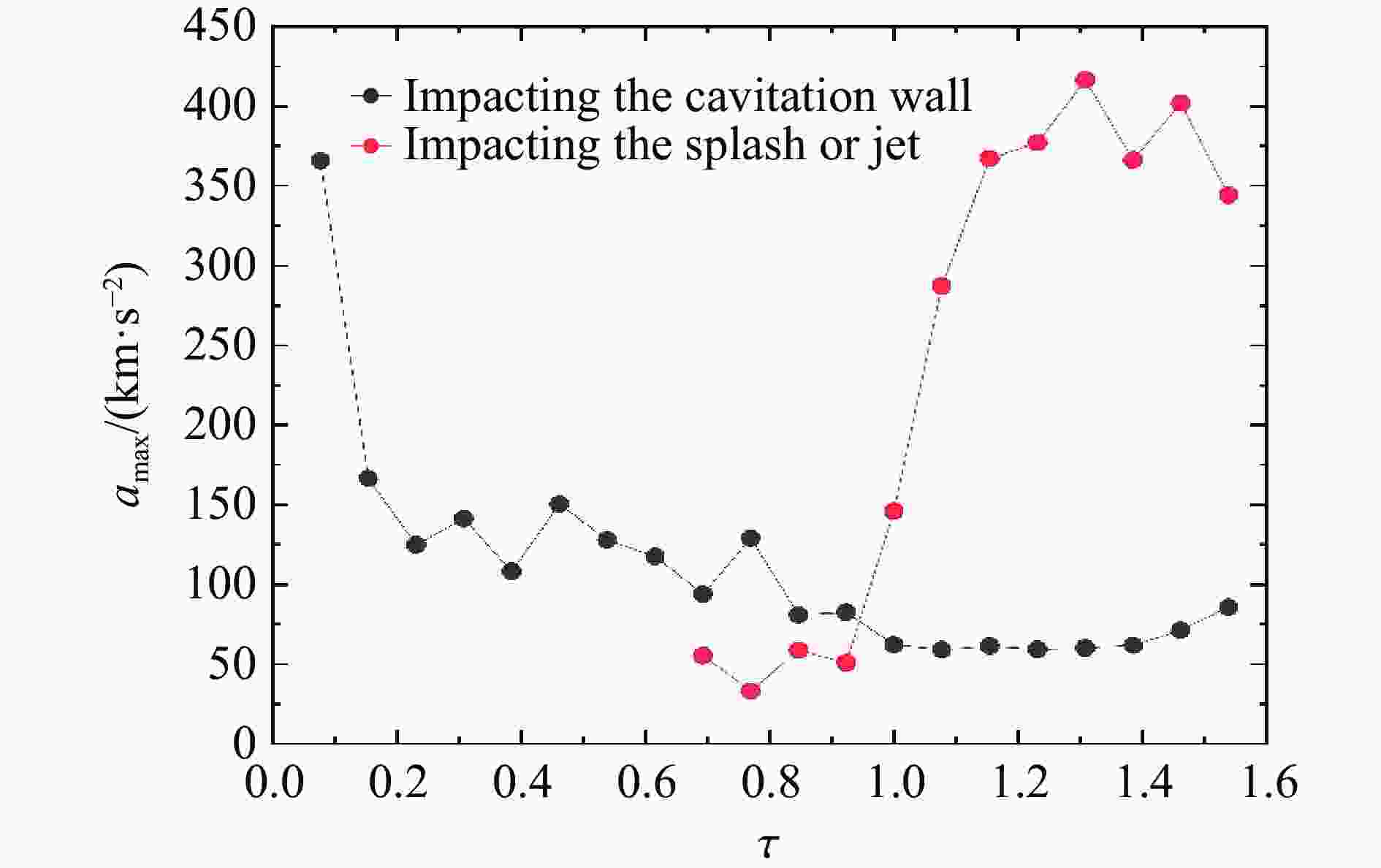

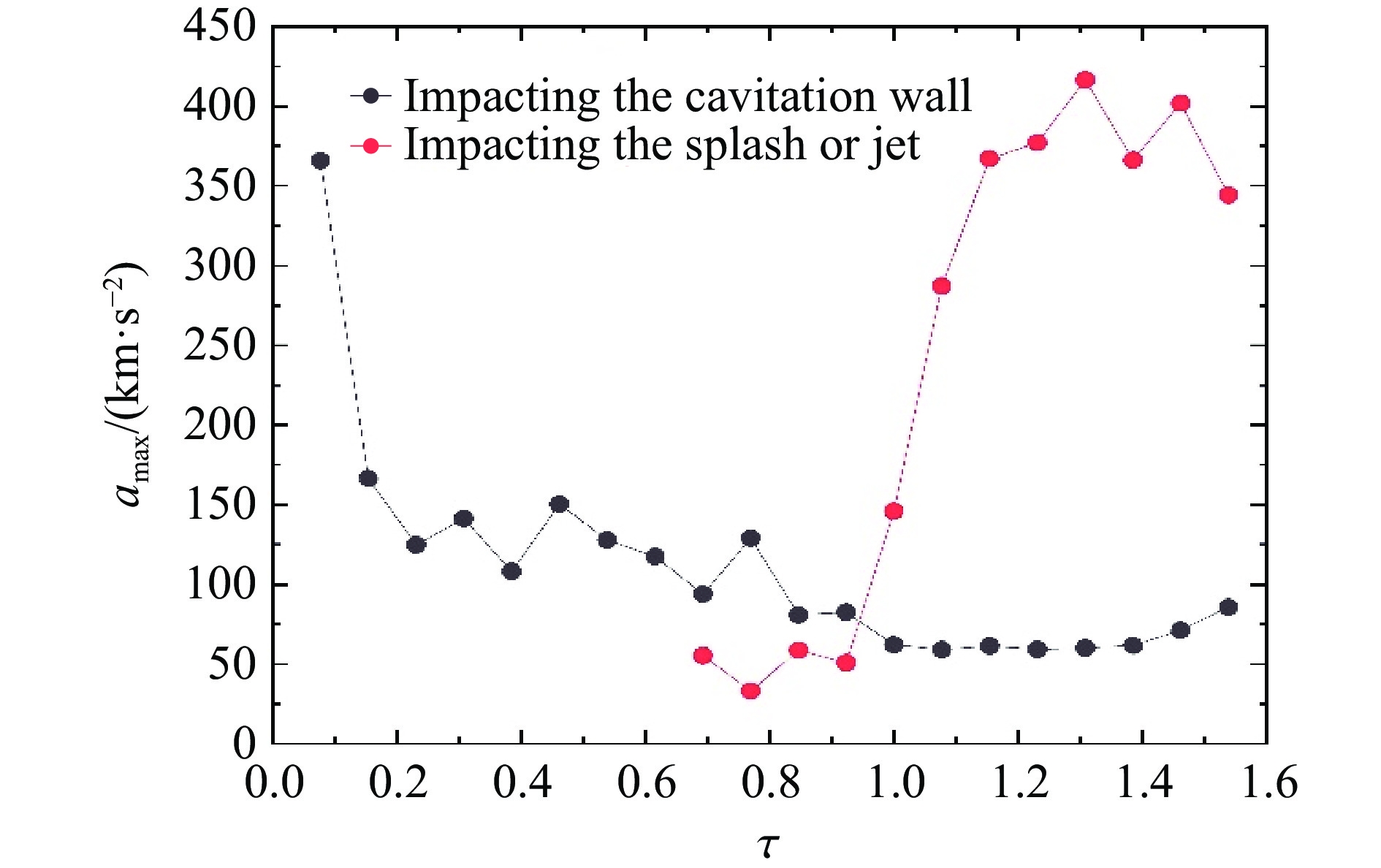

    图  12  前抛体80°入水时的主弹体载荷峰值曲线

    Figure  12.  Load peak curves of the main projectile when the front body enters the water at 80°

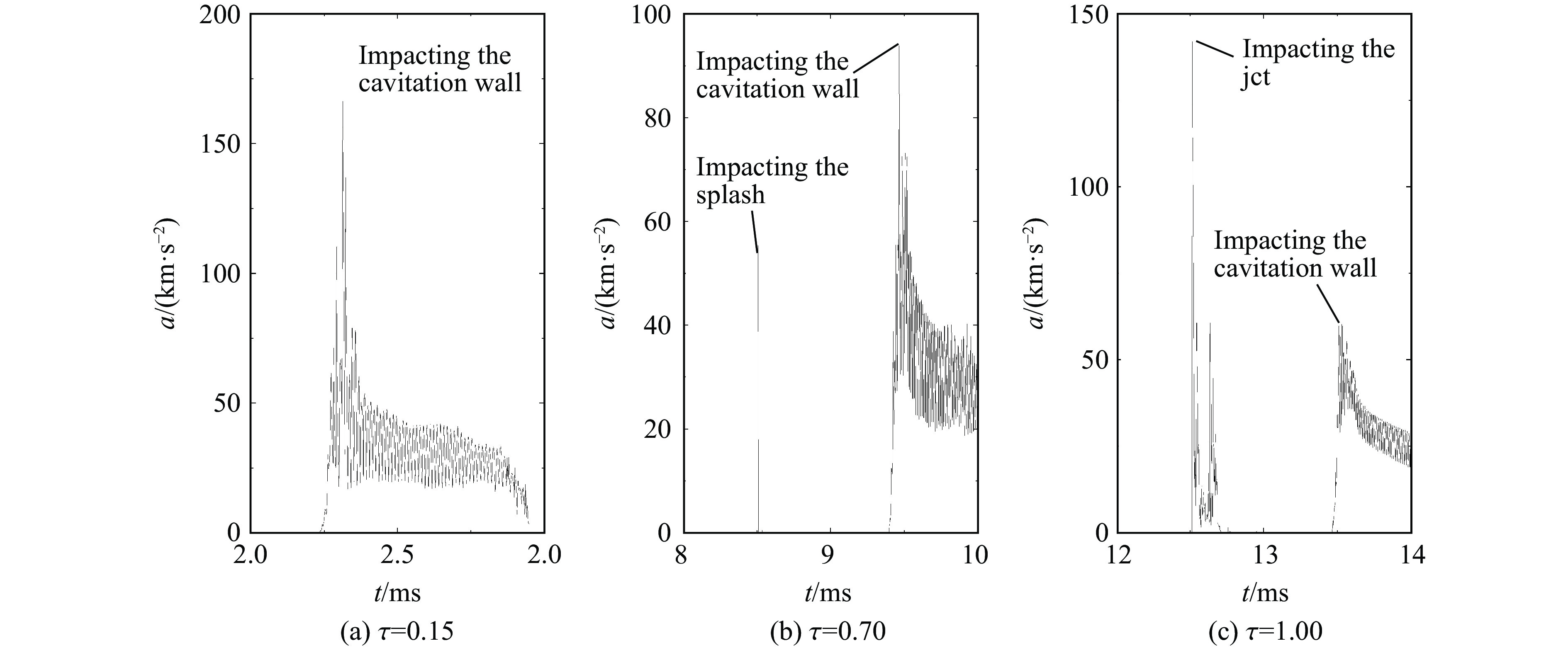

    图  13  不同τ时前抛体80°入水时的主弹体载荷

    Figure  13.  Load of main projectile when the front body enters the water at 80° while τ is different

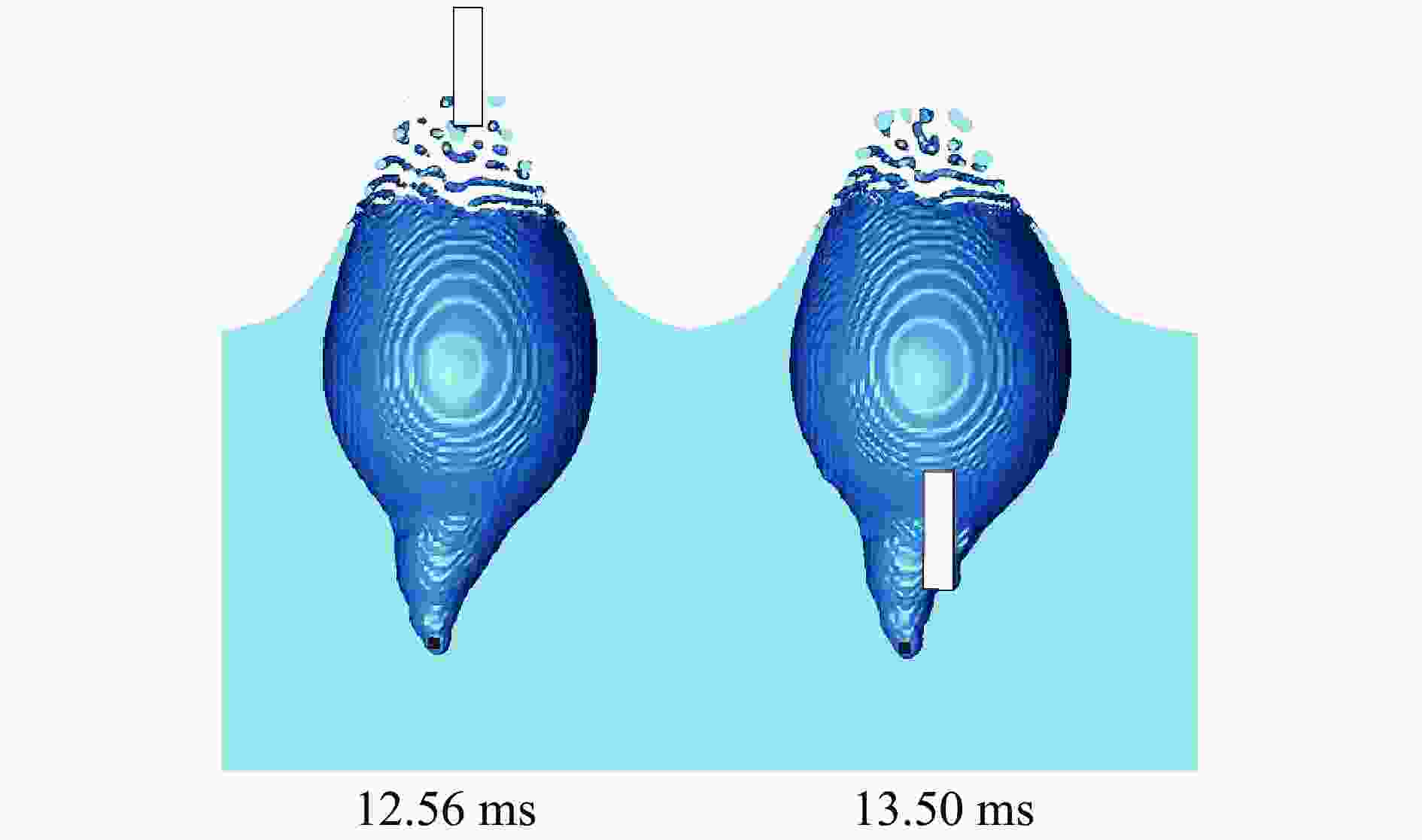

    图  14  前抛体80°入水,τ=1时的两次砰击过程

    Figure  14.  Two slamming processes when the front body enters the water at 80 ° and τ=1

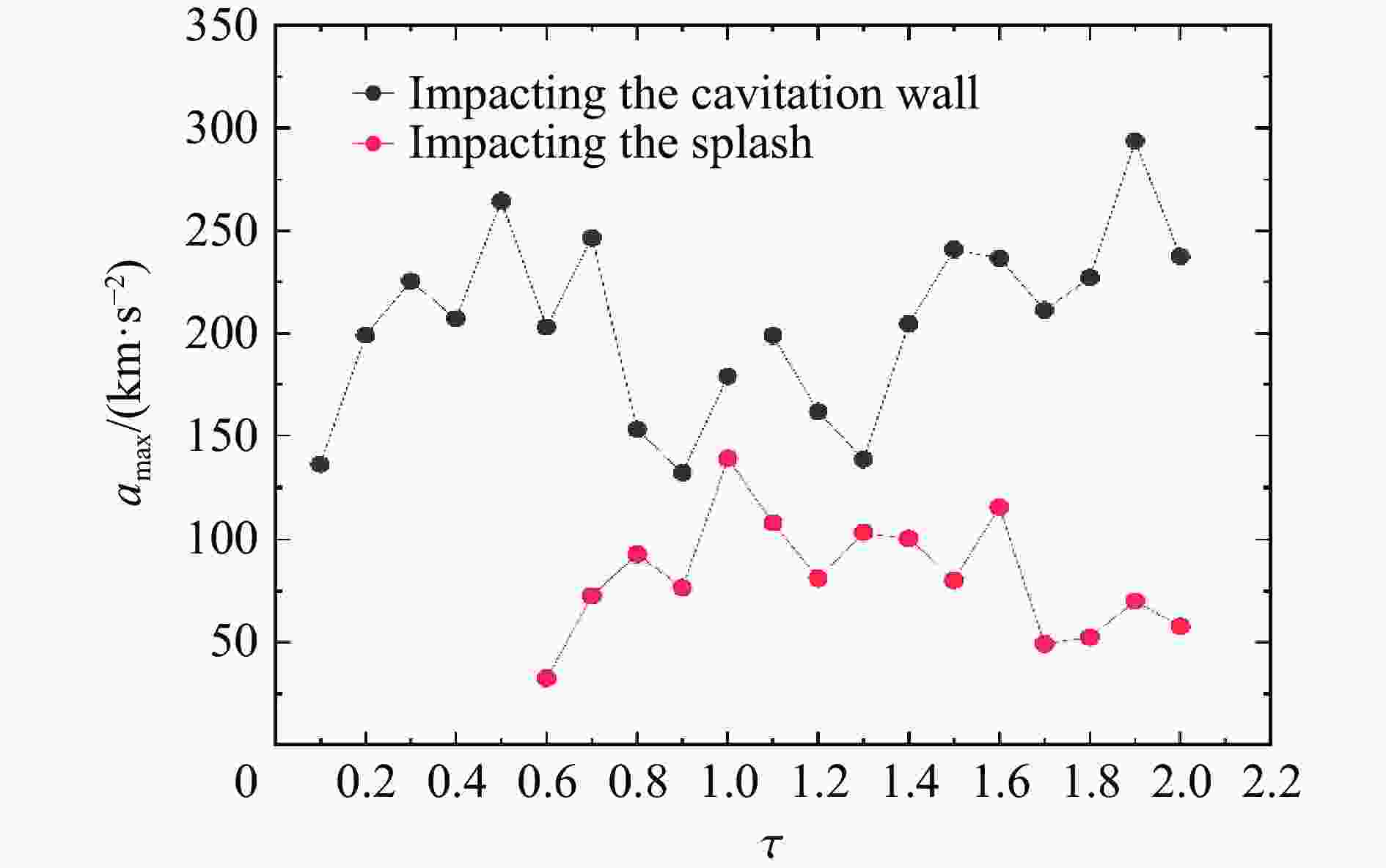

    图  15  前抛体70°入水时的主弹体载荷峰值曲线

    Figure  15.  The load peak curves of the main projectile when the front body enters the water at 70°

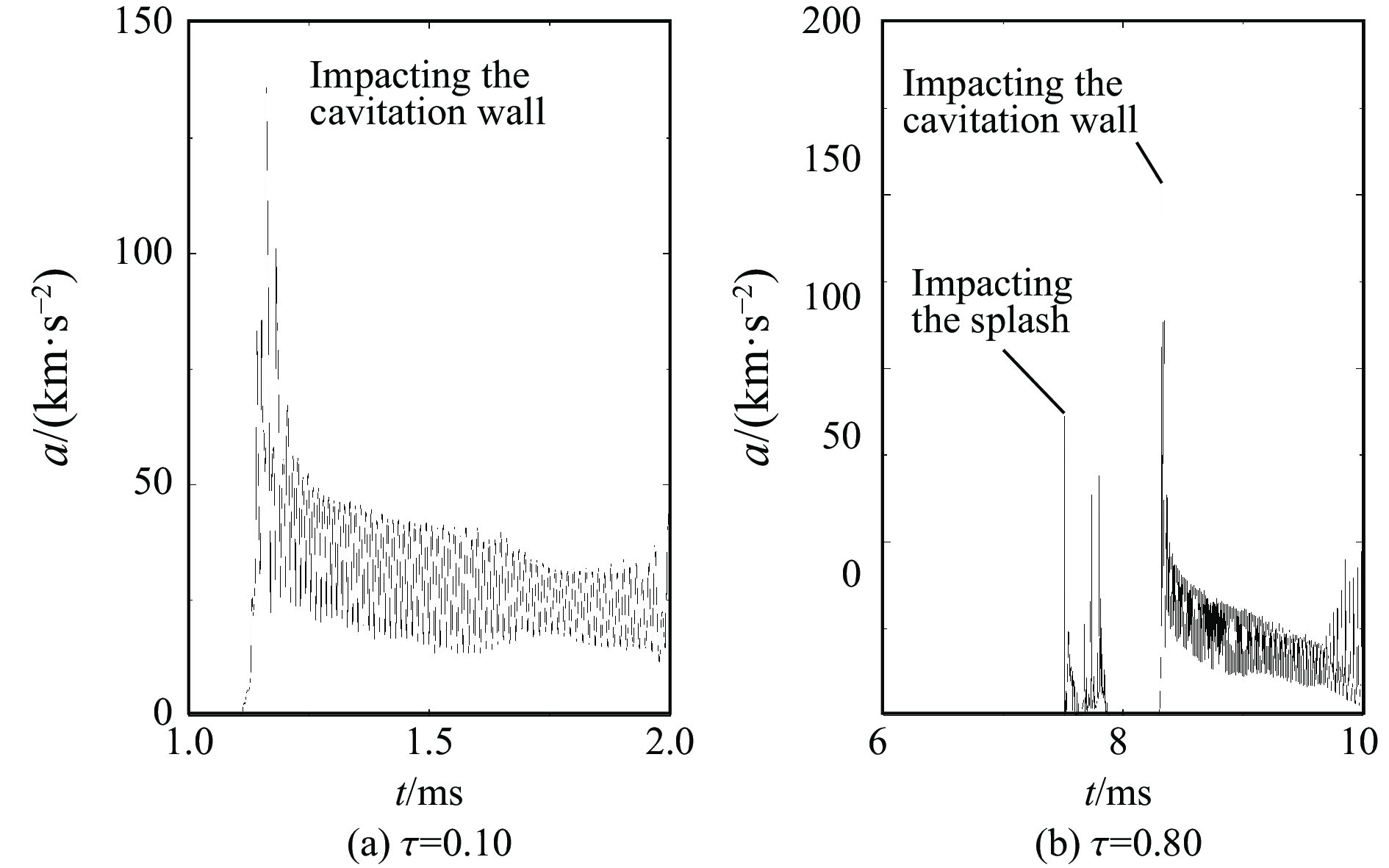

    图  16  不同τ时前抛体70°入水时的主弹体载荷

    Figure  16.  The load of the main projectile when the front body enters the water at 70° while τ is different

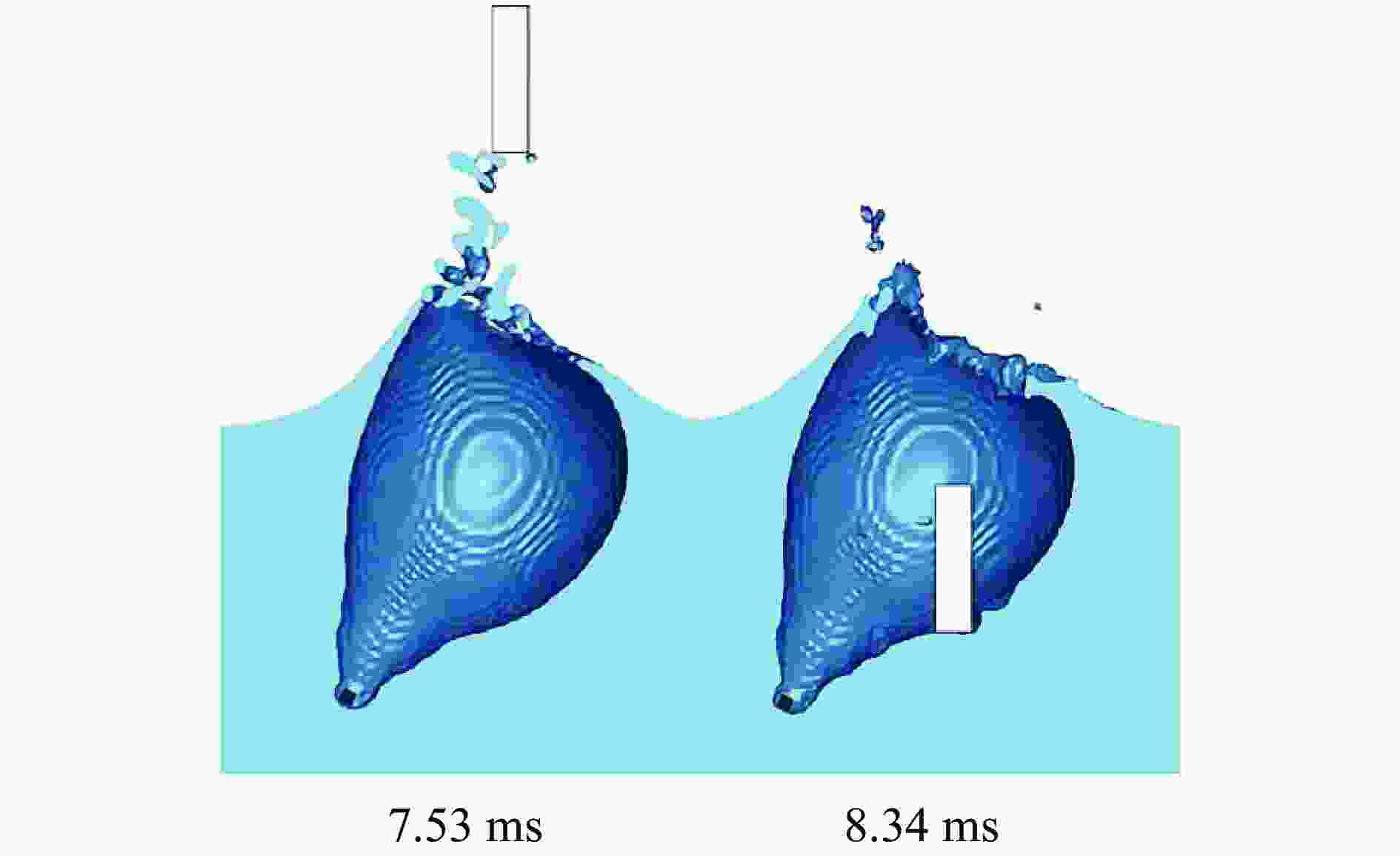

    图  17  前抛体70°入水,τ=0.8时的两次砰击过程

    Figure  17.  Two slamming processes when the front body enters the water at 70° and τ=0.8

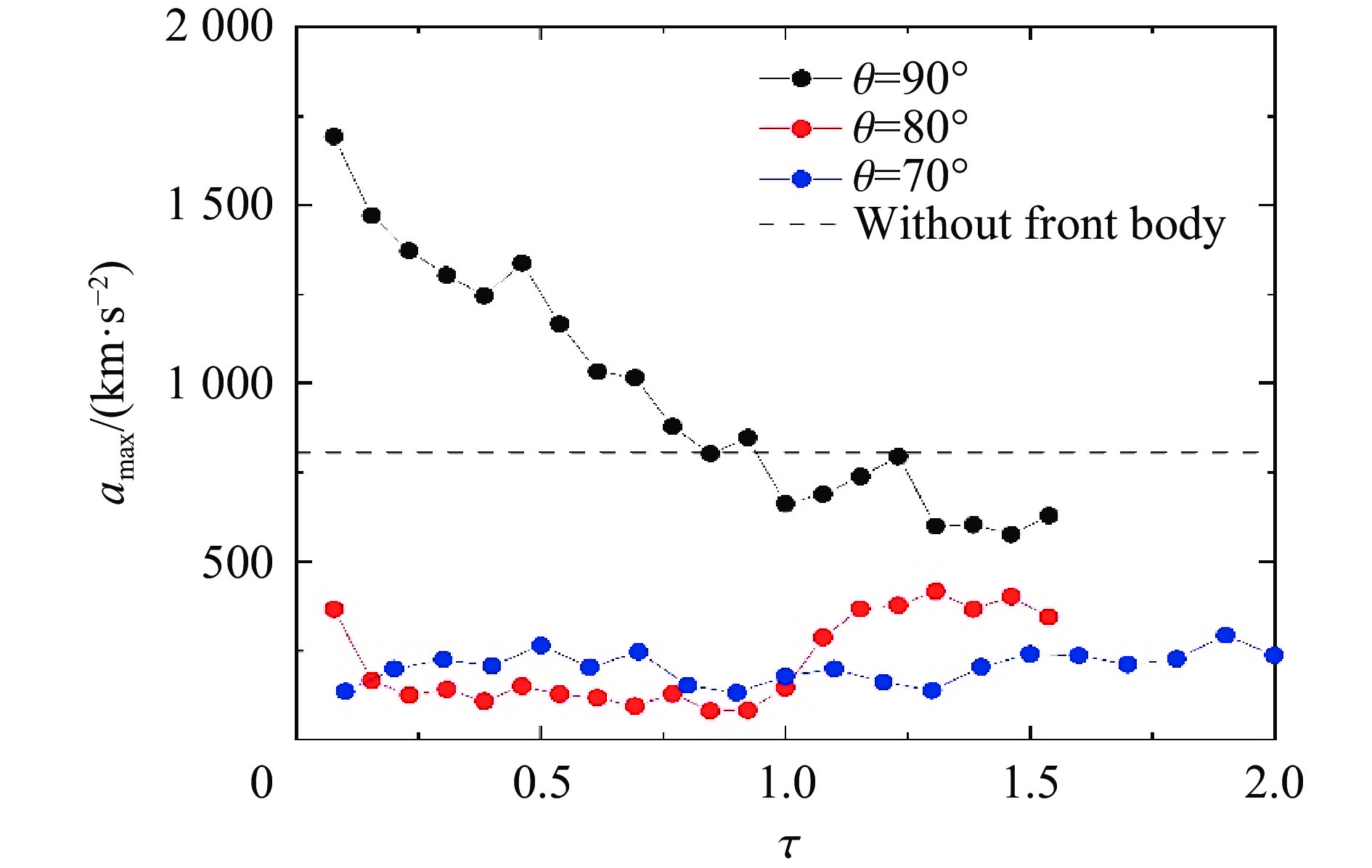

    图  18  前抛体入水角度变化时主弹体载荷峰值随τ的变化曲线

    Figure  18.  Curves of the main projectile load peak with τ when the water-entry angle of the front body changes

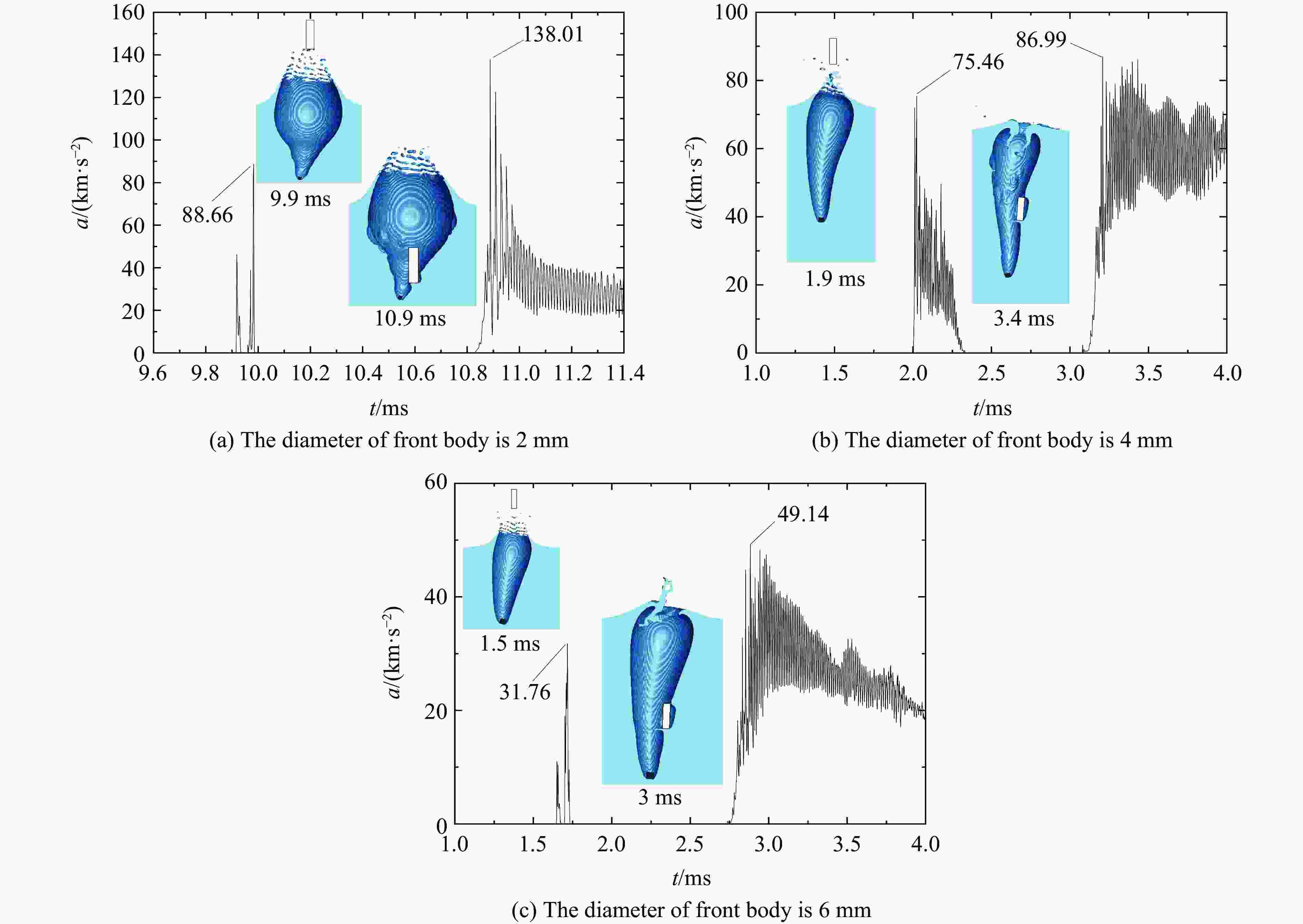

    图  19  τ=0.8时前抛体不同尺寸下的主弹体入水载荷曲线

    Figure  19.  Water-entry load curve of the main projectile under different sizes of the front body while τ=0.8

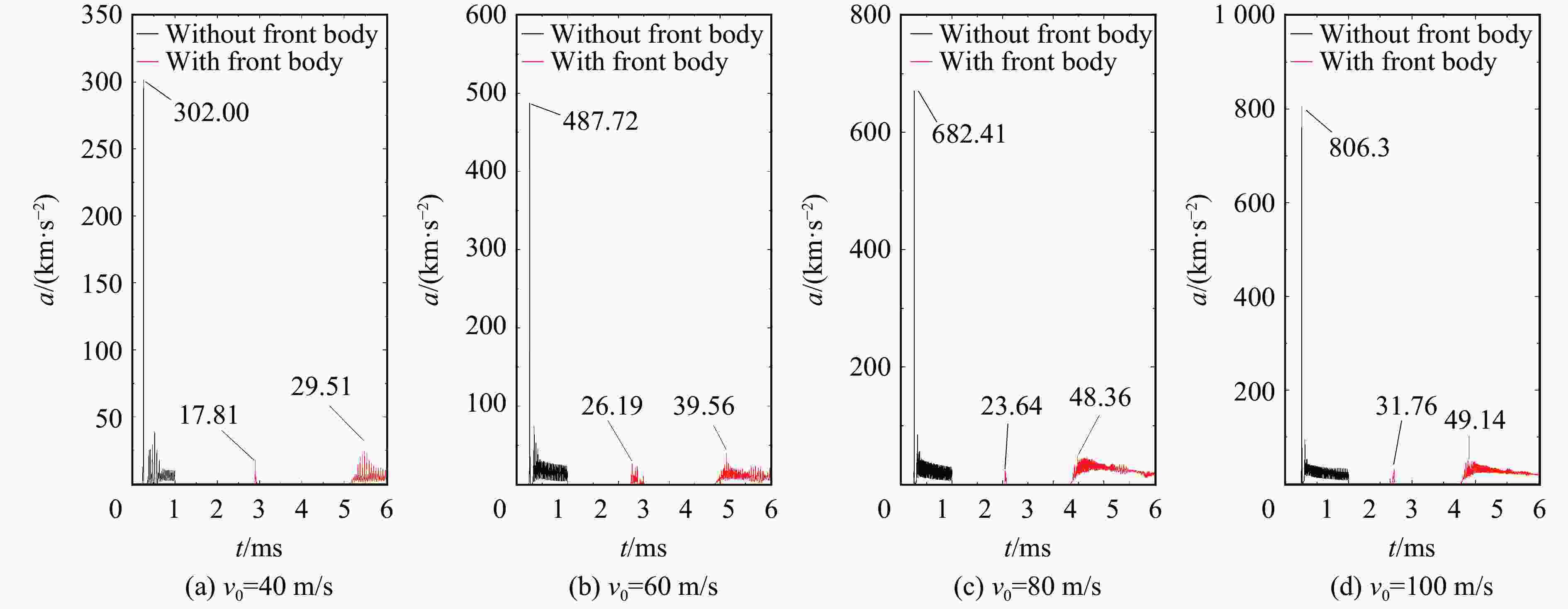

    图  20  不同入水初速度下的主弹体载荷

    Figure  20.  The main projectile load at different initial velocities

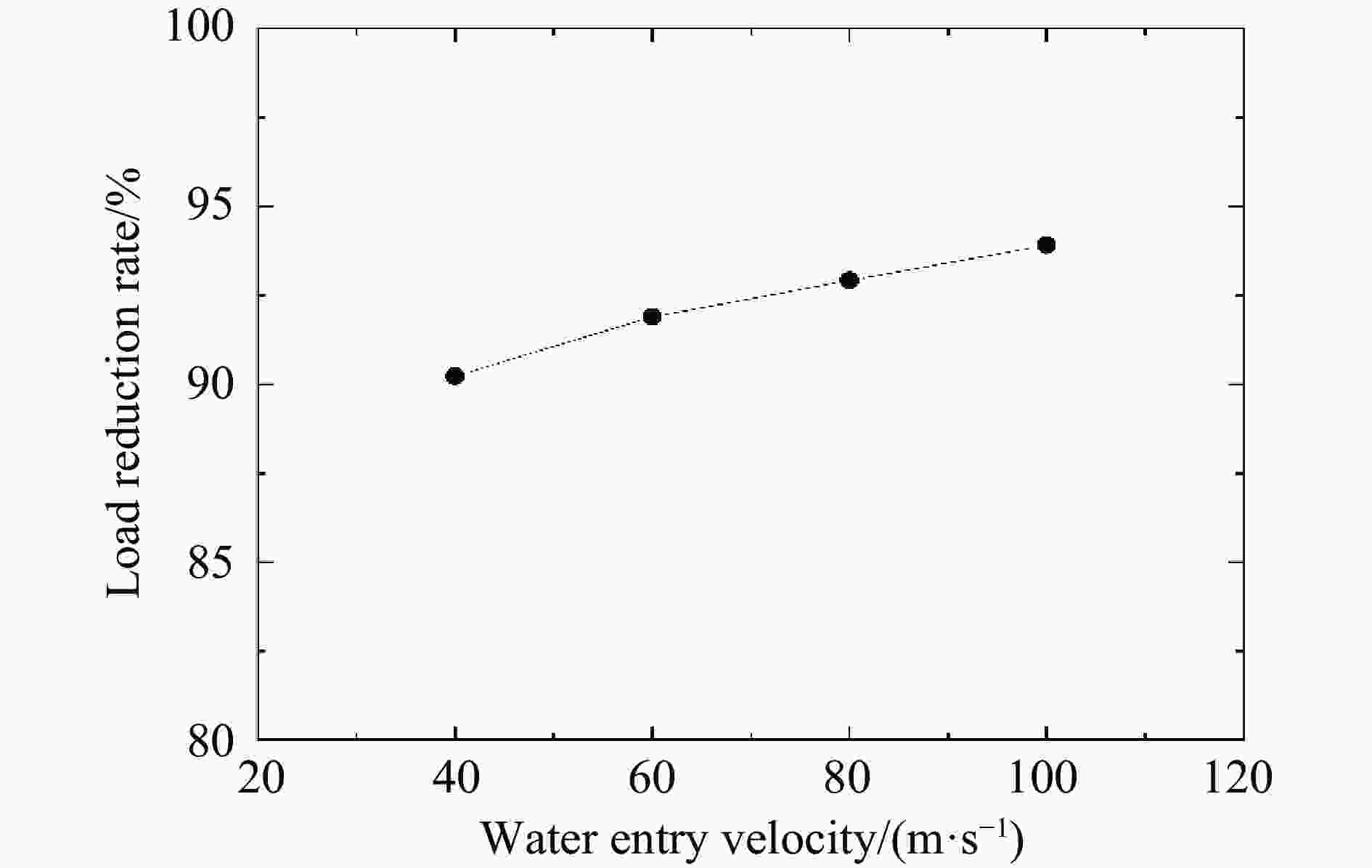

    图  21  主弹体降载率随入水初速度的变化
