细观非连续介质的应力波传播研究

袁良柱 陈美多 谢雨珊 陆建华 王鹏飞 徐松林

袁良柱, 陈美多, 谢雨珊, 陆建华, 王鹏飞, 徐松林. 细观非连续介质的应力波传播研究[J]. 爆炸与冲击. doi: 10.11883/bzycj-2023-0365
引用本文: 袁良柱, 陈美多, 谢雨珊, 陆建华, 王鹏飞, 徐松林. 细观非连续介质的应力波传播研究[J]. 爆炸与冲击. doi: 10.11883/bzycj-2023-0365
YUAN Liangzhu, CHEN Meiduo, XIE Yushan, LU Jianhua, WANG Pengfei, XU Songlin. Investigation on stress wave propagation in mesoscopic discontinuous medium[J]. Explosion And Shock Waves. doi: 10.11883/bzycj-2023-0365
Citation: YUAN Liangzhu, CHEN Meiduo, XIE Yushan, LU Jianhua, WANG Pengfei, XU Songlin. Investigation on stress wave propagation in mesoscopic discontinuous medium[J]. Explosion And Shock Waves. doi: 10.11883/bzycj-2023-0365

细观非连续介质的应力波传播研究

doi: 10.11883/bzycj-2023-0365
基金项目: 国家自然科学基金 (11672286, 11872361);高压物理与地震科技联合实验室室开放基金 (2019HPPES01);中石油与中科院重大战略合作项目(2015A-4812);中央高校基本科研业务费专项资金(WK2480000008)
详细信息
    作者简介:

    袁良柱(1998- ),男,博士研究生,ylzustcedu@mail.ustc.edu.cn

    通讯作者:

    徐松林(1971- ),男,博士,研究员,博士生导师,slxu99@ustc.edu.cn

  • 中图分类号: O347.3

Investigation on stress wave propagation in mesoscopic discontinuous medium

  • 摘要: 固体介质,如岩石、混凝土、贝壳和多孔材料等均具有细观非连续、宏观连续的特性,揭示这种细观非连续性对材料动力学响应的影响规律,对于材料设计、安全防护等具有重要意义。本文从广义Taylor公式出发,推导了分数阶定义下的非连续介质的一维波动方程,引入等效分数阶简化了控制方程。利用有限差分法得到了控制方程的数值解,结果表明:当控制方程中的等效分数阶阶数越小,计算得到的波形衰减的程度越大。为了验证方程的可靠性,并进一步研究非连续介质的波传播规律,在考虑多孔材料、岩石等介质的结构特征的基础上,基于Abaqus软件建立了随机多孔介质模型。分析发现:多孔介质的波传播受到介质细观非连续程度、材料属性和输入波脉宽的影响,但对应的等效分数阶阶数只与介质细观非连续程度相关,因此其可以作为评价非连续介质动态响应的一个依据。等效分数阶阶数随着孔隙率的增加而减小,孔洞相对数量分布大致相同的情况下,其统计关系近似呈线性关系。研究结果可为研究多孔材料、贝壳等细观非连续介质的波动传播提供新思路。

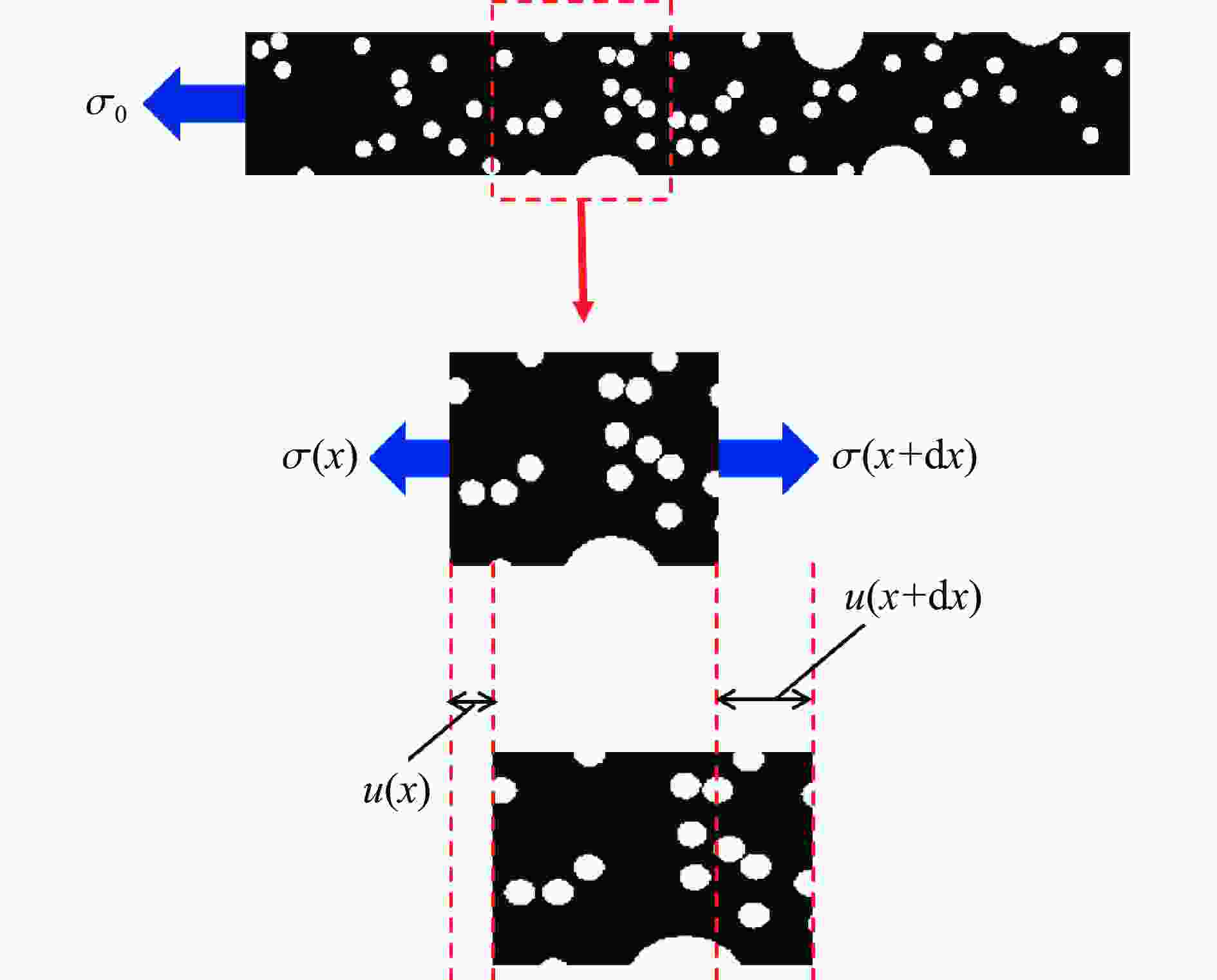

  • 图  1  非连续介质微元体受力和变形的示意图

    Figure  1.  Schematic diagram of force and deformation of discontinuous medium

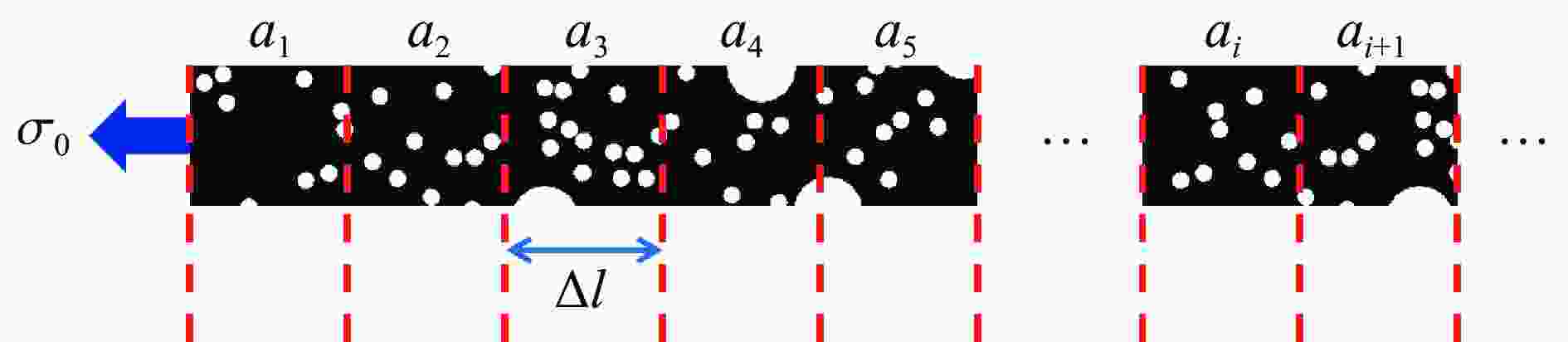

    图  2  非连续介质的非均质性

    Figure  2.  Heterogeneity of discontinuous medium

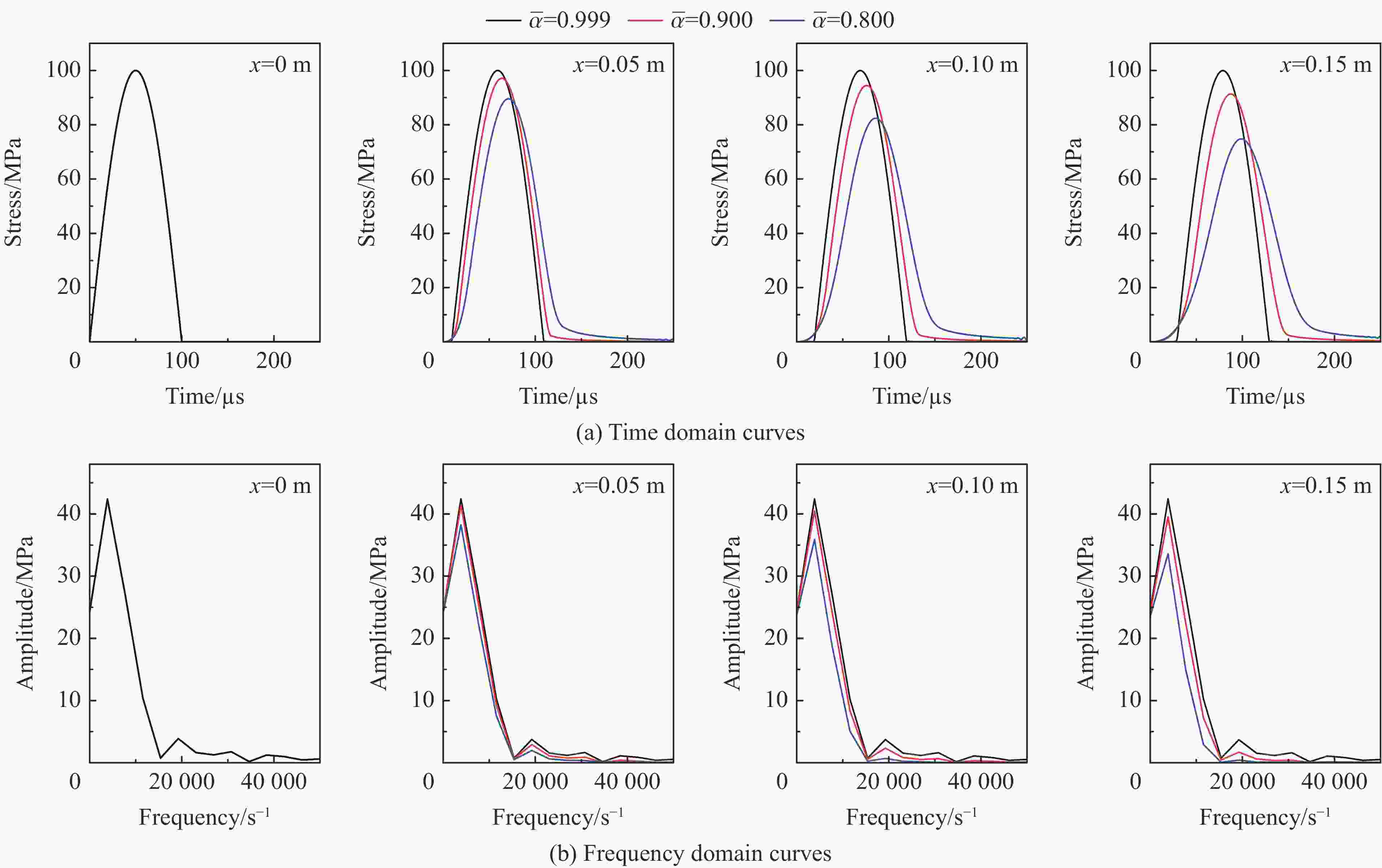

    图  3  不同分数阶阶数对应的波传播

    Figure  3.  Wave propagation with different fractional order

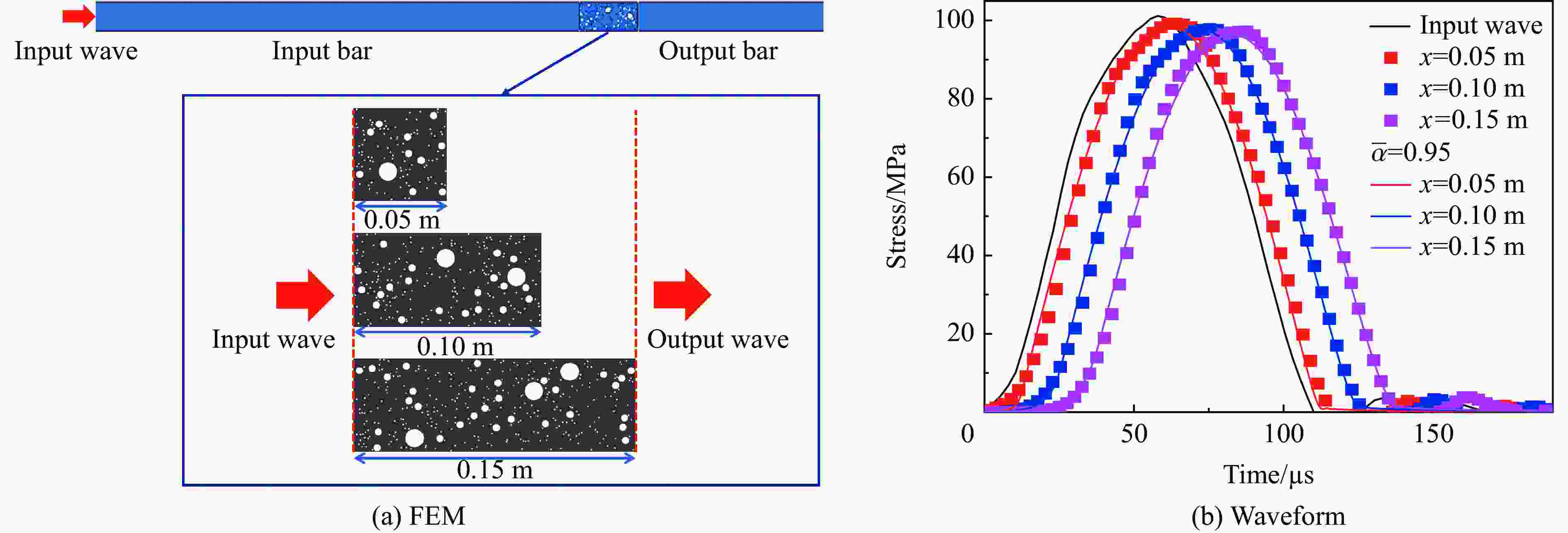

    图  4  细观多孔介质有限元模型及相应的波形

    Figure  4.  FEM of porous medium and corresponding wave form

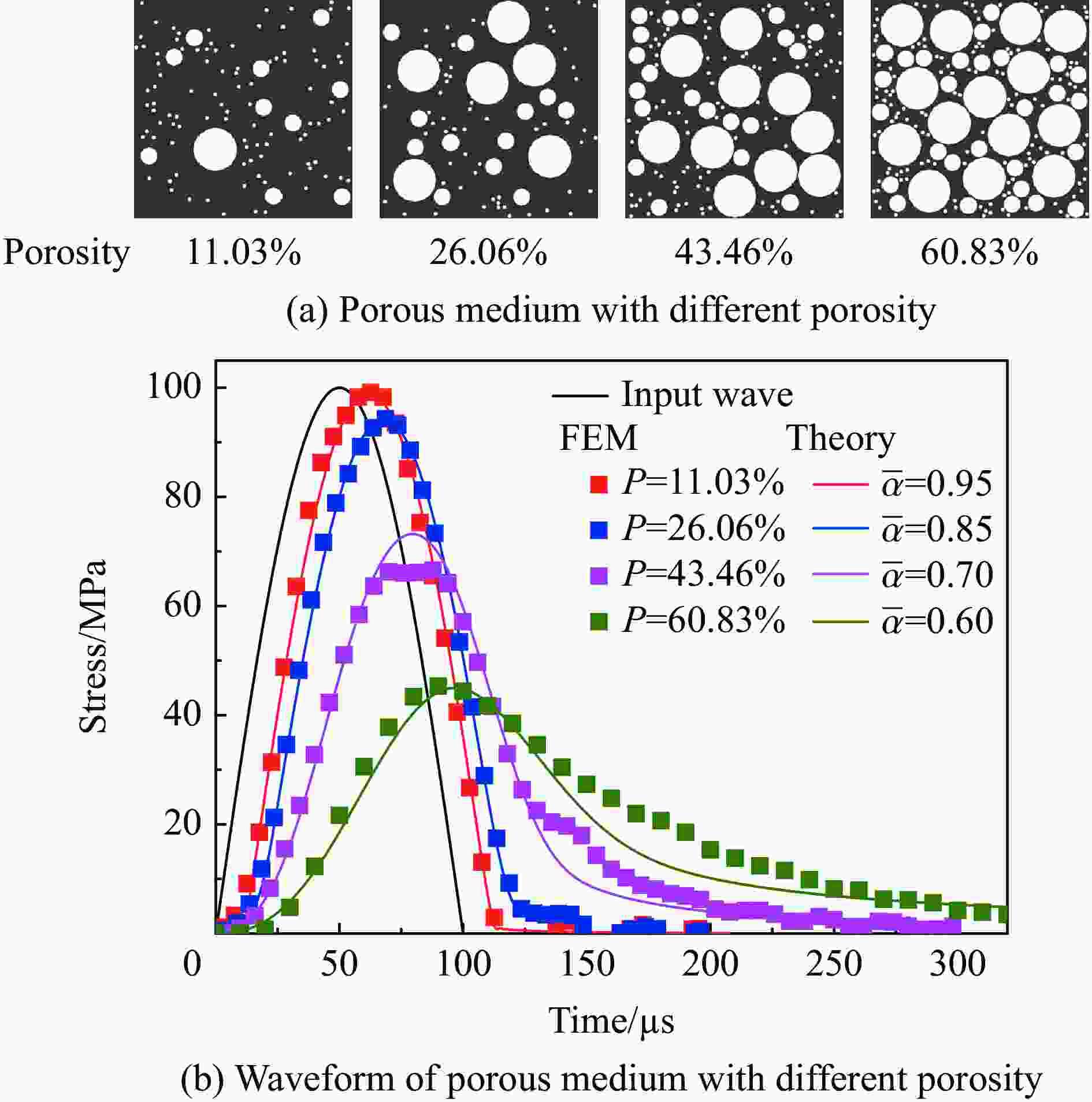

    图  5  不同孔隙率的细观多孔介质的波传播及对应的分数阶阶数

    Figure  5.  Wave propagation of porous medium with different porosities and corresponding fractional order

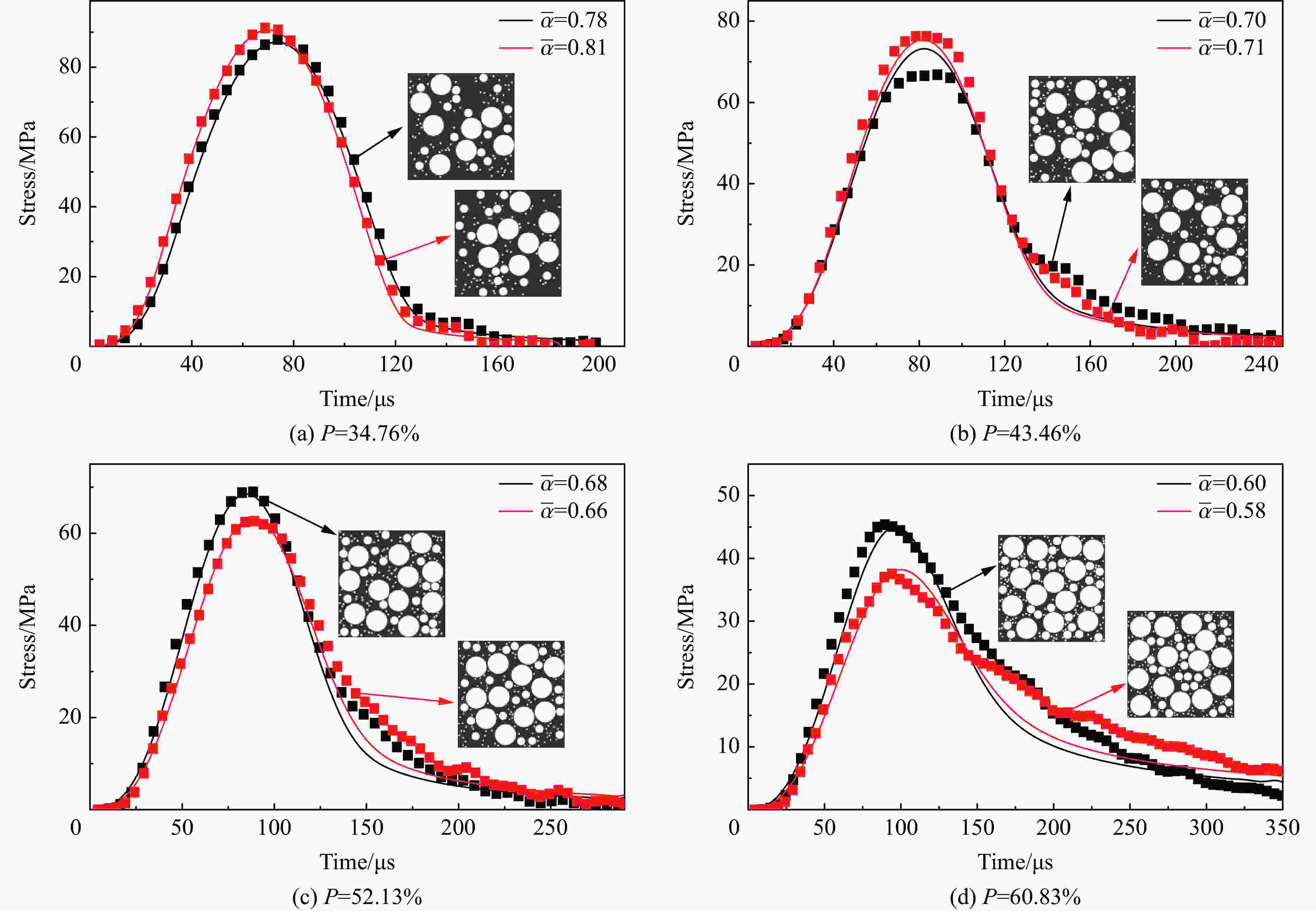

    图  6  各孔隙率下不同孔洞分布的波形

    Figure  6.  Waveforms of different hole distribution under different porosity

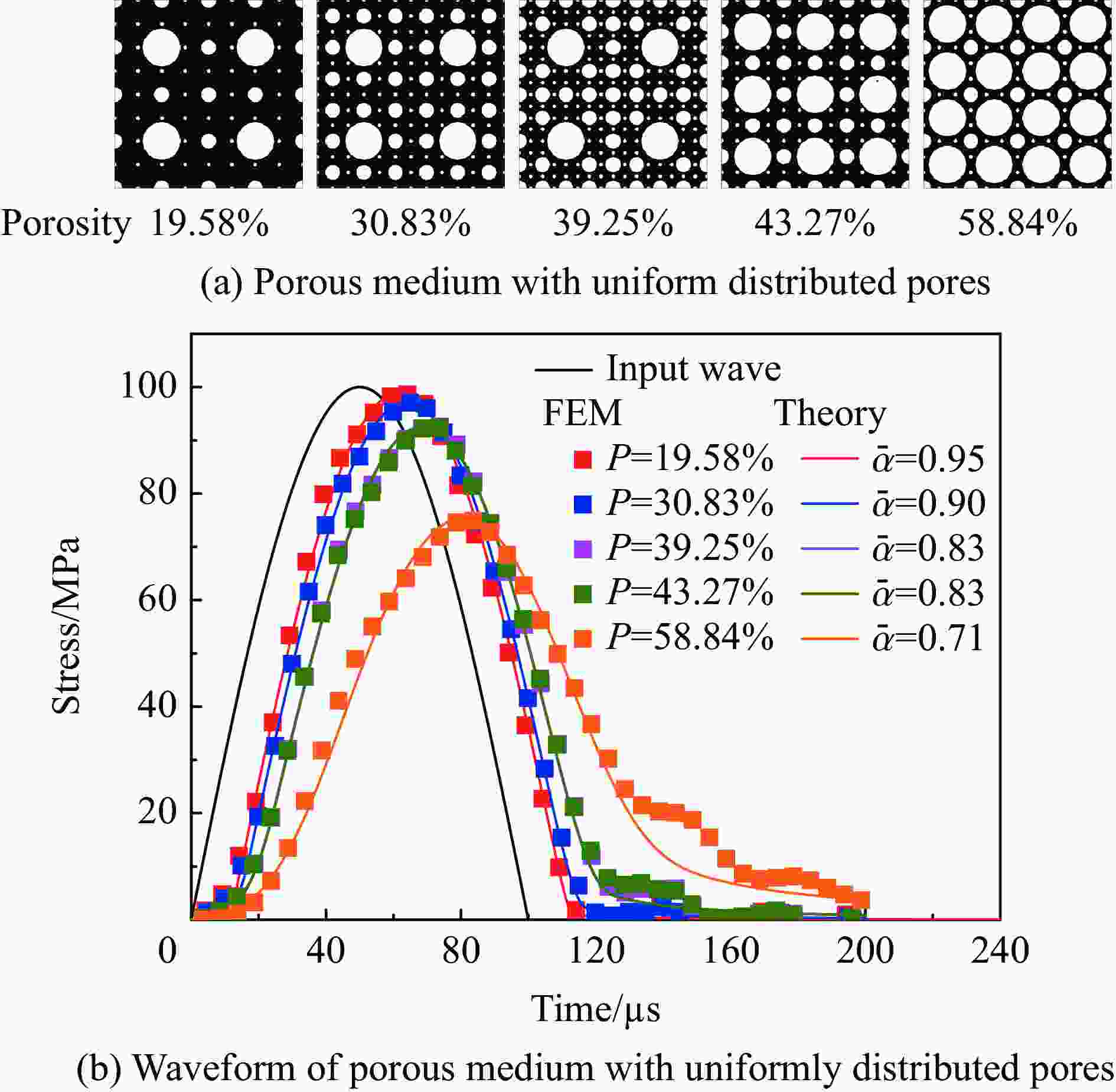

    图  7  均匀分布的细观多孔介质的波传播及对应的分数阶阶数

    Figure  7.  Wave propagation of porous medium with uniformly distributed pores and corresponding fractional order

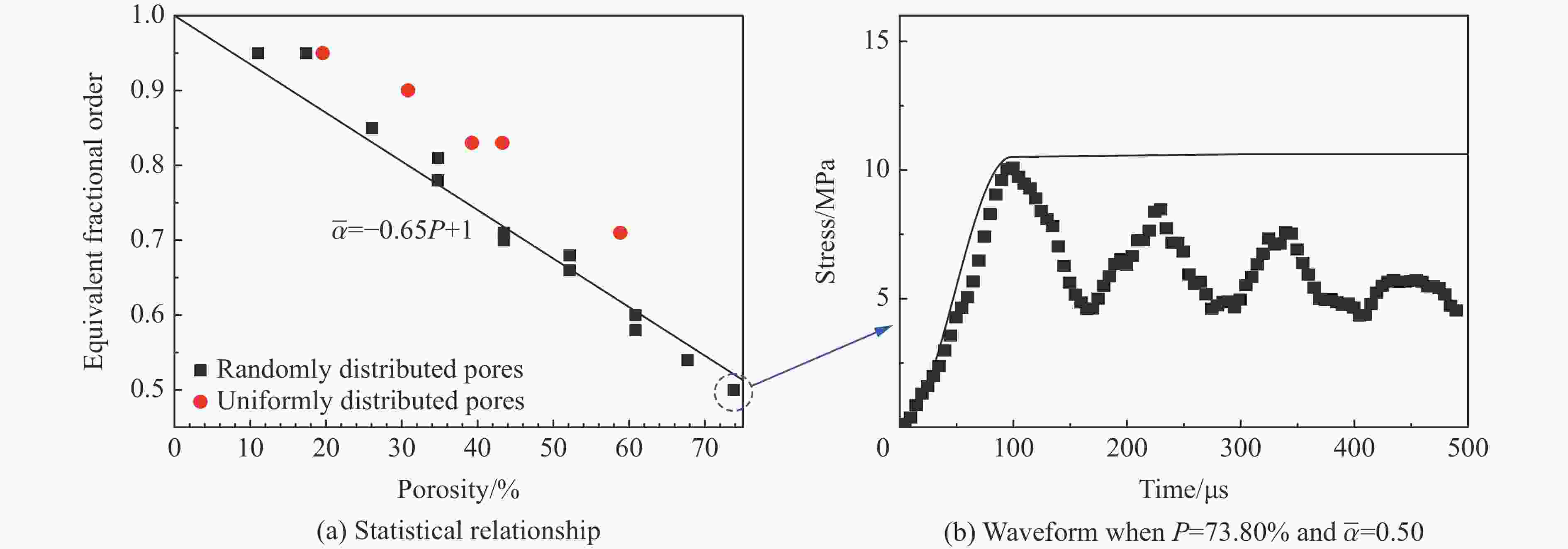

    图  8  等效分数阶阶数与细观多孔介质孔隙率之间的统计关系

    Figure  8.  The statistical relationship between the equivalent fractional order and the porosity of the porous medium

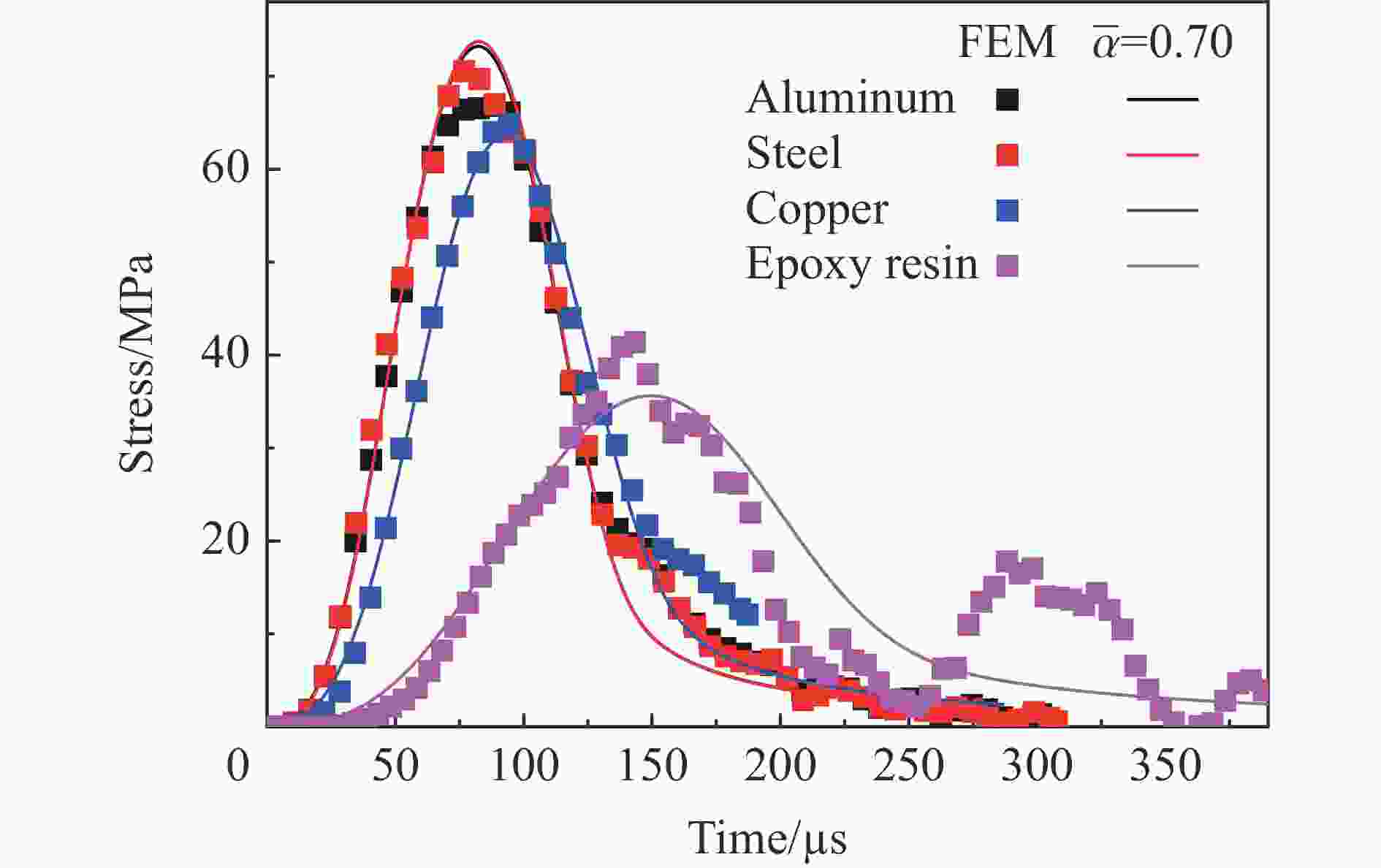

    图  9  材料属性对波传播的影响

    Figure  9.  Effect of material properties on wave propagation

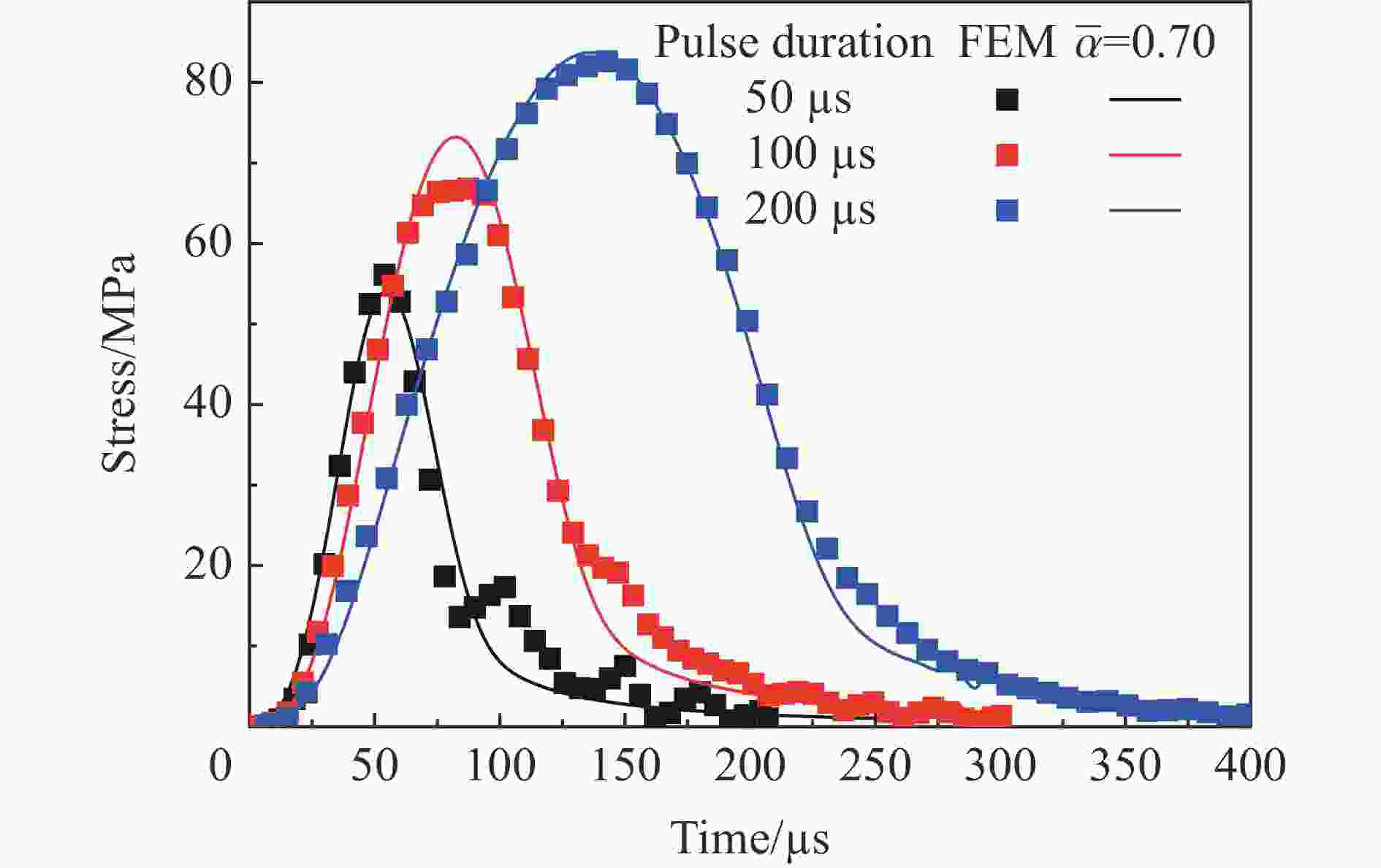

    图  10  输入波脉宽对波传播的影响

    Figure  10.  Effect of pulse duration of input wave on wave propagation

    表  1  不同孔隙率的细观多孔介质对应的等效分数阶阶数

    Table  1.   The equivalent fractional order of porous medium with different porosity

    编号 孔隙率/% 等效分数阶阶数 编号 孔隙率/% 等效分数阶阶数 编号 孔隙率/% 等效分数阶阶数
    1 11.02 0.95 8 34.77 0.81 15 67.69 0.54
    2 17.37 0.95 9 43.46 0.70 16 73.8 0.50
    3 17.37 0.95 10 43.46 0.71 17 19.58 0.95
    4 26.06 0.85 11 52.13 0.68 18 30.83 0.90
    5 26.07 0.85 12 52.13 0.66 19 39.25 0.83
    6 34.76 0.78 13 60.83 0.60 20 43.27 0.83
    7 34.77 0.78 14 60.83 0.58 21 58.84 0.71
    下载: 导出CSV

    表  2  不同材料的物理参数

    Table  2.   Physical parameters of different materials

    材料密度/kg·m−3弹性模量/GPa波速/(m·s−1
    78002105189
    2700705092
    89601203660
    环氧树脂120031581
    下载: 导出CSV
