Study on hydrogen-oxygen detonation process and the growth of carbon-iron nanomaterials in the detonation tube
-
摘要: 为研究气相爆轰合成碳-铁纳米材料的爆炸过程，采用氢氧爆炸试验与数值模拟相结合的方式研究了不同氢氧摩尔比（2∶1、3∶1和4∶1）对爆轰参数（爆速、爆温、爆压）峰值时程曲线与碳-铁纳米材料形貌的影响。研究表明：爆轰管内氢氧爆炸包括爆轰波的传播与燃烧波的衰减两个过程，且氢氧摩尔比对爆速、爆温、爆压的峰值时程曲线影响十分显著。随着氢氧摩尔比的提高，爆轰波的爆速、爆温、爆压及其衰减速率均呈减小趋势。氢氧摩尔比通过影响爆轰波的传播与衰减而作用于碳-铁纳米材料形貌的生长。零氧平衡时，样品为碳包铁纳米颗粒，随着氢氧摩尔比的提高，样品中碳纳米管的数量逐渐增多。调整氢氧摩尔比可实现对爆轰波传播与衰减过程的控制，达到气相爆轰控制性制备特定形貌的碳-铁纳米材料目的。Abstract: To study the explosion process of carbon-iron nanomaterials synthesized by gaseous detonation, the effects of different molar ratios of hydrogen-oxygen (2∶1, 3∶1, 4∶1) on the peak value time-history curve of detonation parameters (detonation velocity, detonation temperature, and detonation pressure) and the morphology of carbon-iron nanomaterials were studied by combination of hydrogen-oxygen experiments and numerical simulations. The explosion experiments used hydrogen and oxygen with a purity of 99.999% in a closed detonation tube. The precursor was ferrocene with a purity of 99%. A high-speed camera was used to observe in the middle of the tube. After the experiments, the samples were collected and characterized by transmission electron microscopy. The numerical simulation used ICEM software for modeling and meshing and then used FLUENT software to verify the rationality of the mesh size, and then performed simulation calculations after confirming the optimal mesh size. The results indicate that hydrogen-oxygen explosion inside a detonation tube involves two processes: the propagation of detonation waves and the attenuation of combustion waves, and the hydrogen-oxygen molar ratio has a significant impact on the peak time history curves of detonation velocity, detonation temperature, and detonation pressure. With the increase of the molar ratio of hydrogen to oxygen, the detonation velocity, detonation temperature, detonation pressure, and attenuation rate of the detonation wave all decrease. The molar ratio of hydrogen to oxygen affects the morphology growth of carbon-iron nanomaterials by influencing the propagation and attenuation of detonation waves. At zero oxygen balance, the sample consists of carbon-coated iron nanoparticles. As the hydrogen-oxygen molar ratio increases, the number of carbon nanotubes in the sample gradually increases. Adjusting the molar ratio of hydrogen to oxygen can achieve control over the propagation and attenuation process of detonation waves, and also achieve the goal of controlling the preparation of carbon iron nanomaterials with specific morphologies through gaseous detonation.
-

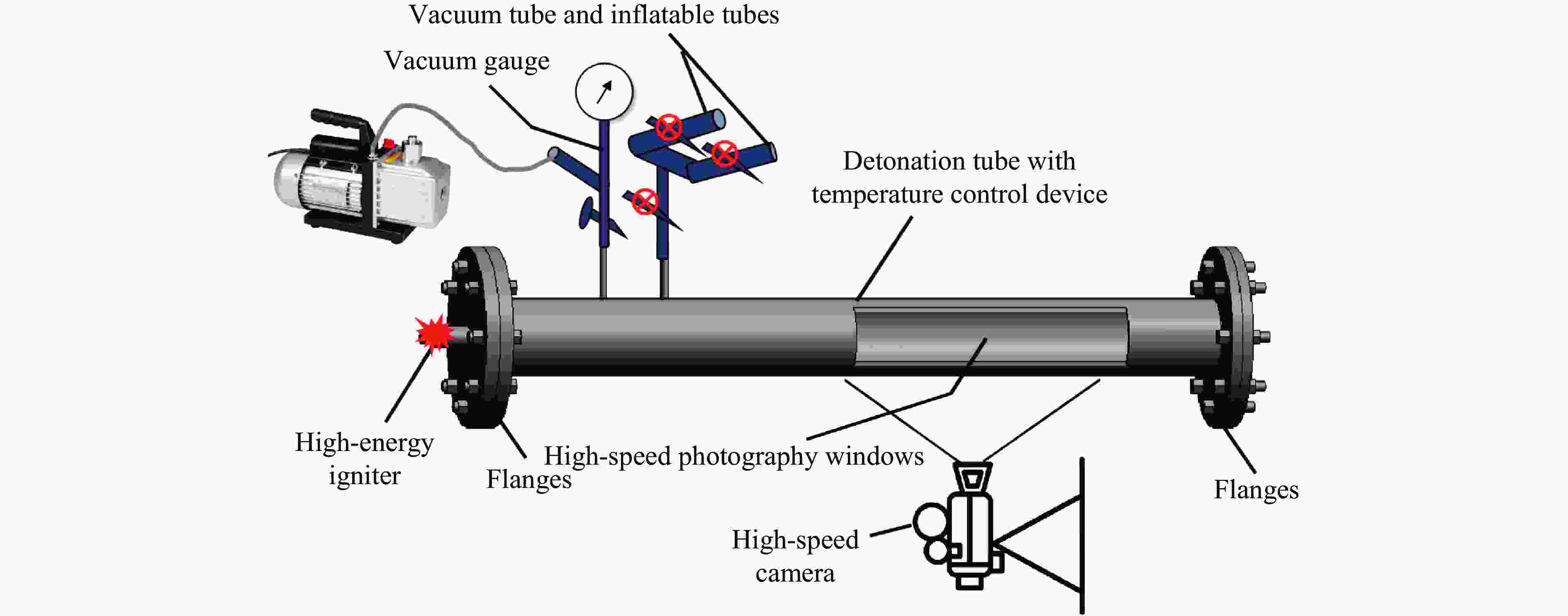

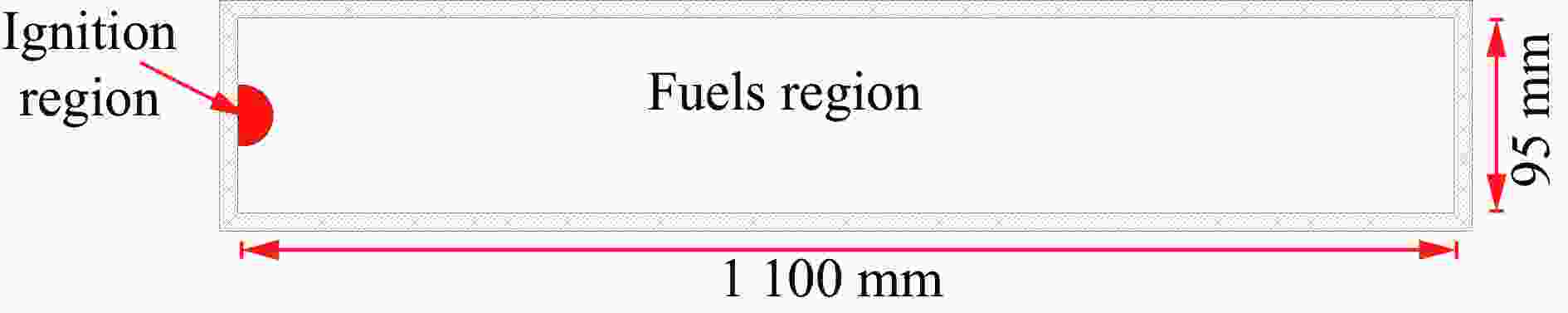

图 1 气体爆炸合成碳-铁纳米材料所用爆轰管示意图
Figure 1. Schematic diagram of the detonation tube used in the synthesis of carbon-iron nanomaterials by gas explosion

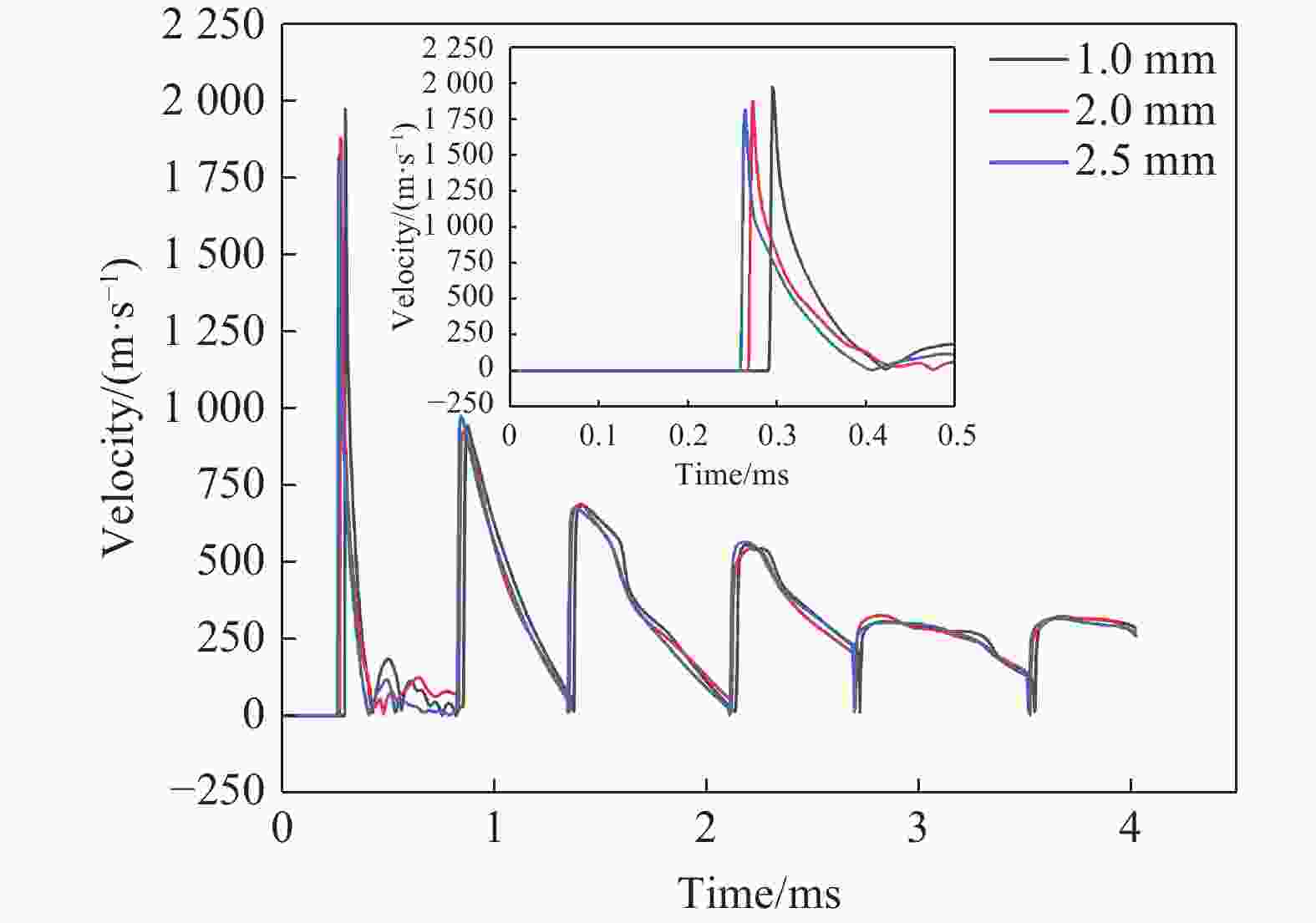

图 4 氢氧摩尔比为2∶1条件下网格尺寸对速度时程曲线的影响
Figure 4. Effect of mesh size on the time-history curves of velocity when molar ratios of hydrogen-oxygen is 2∶1

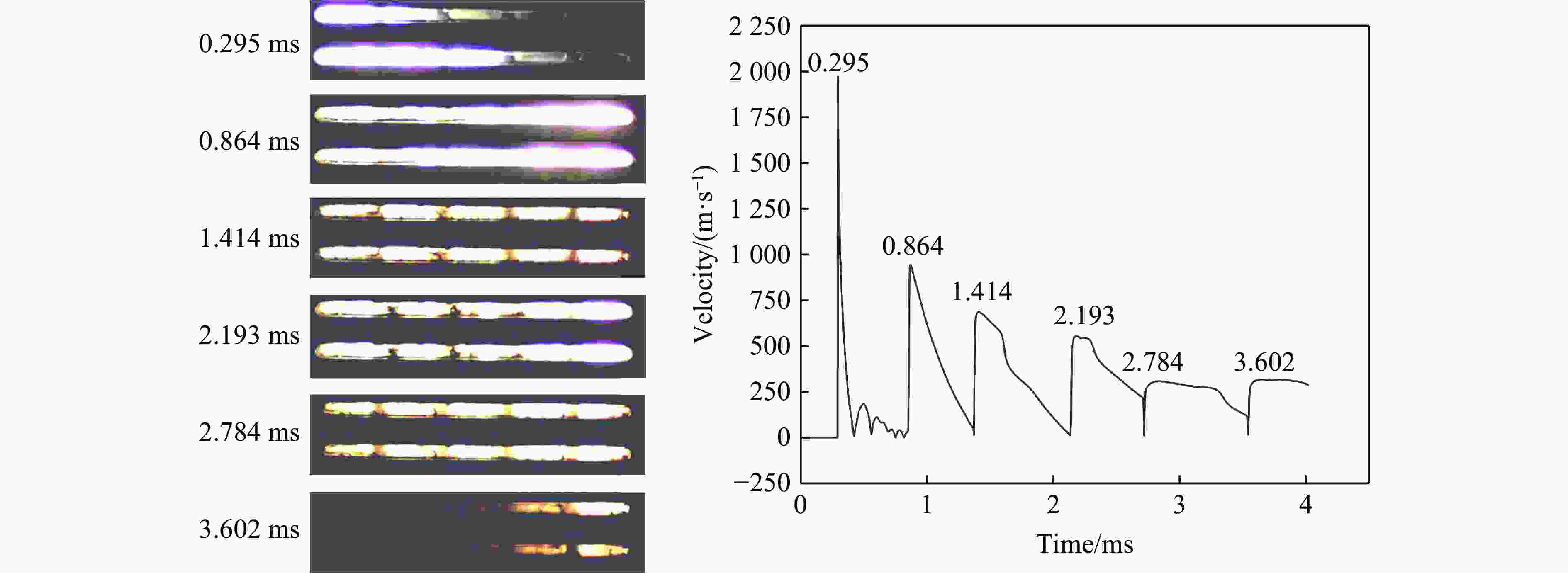

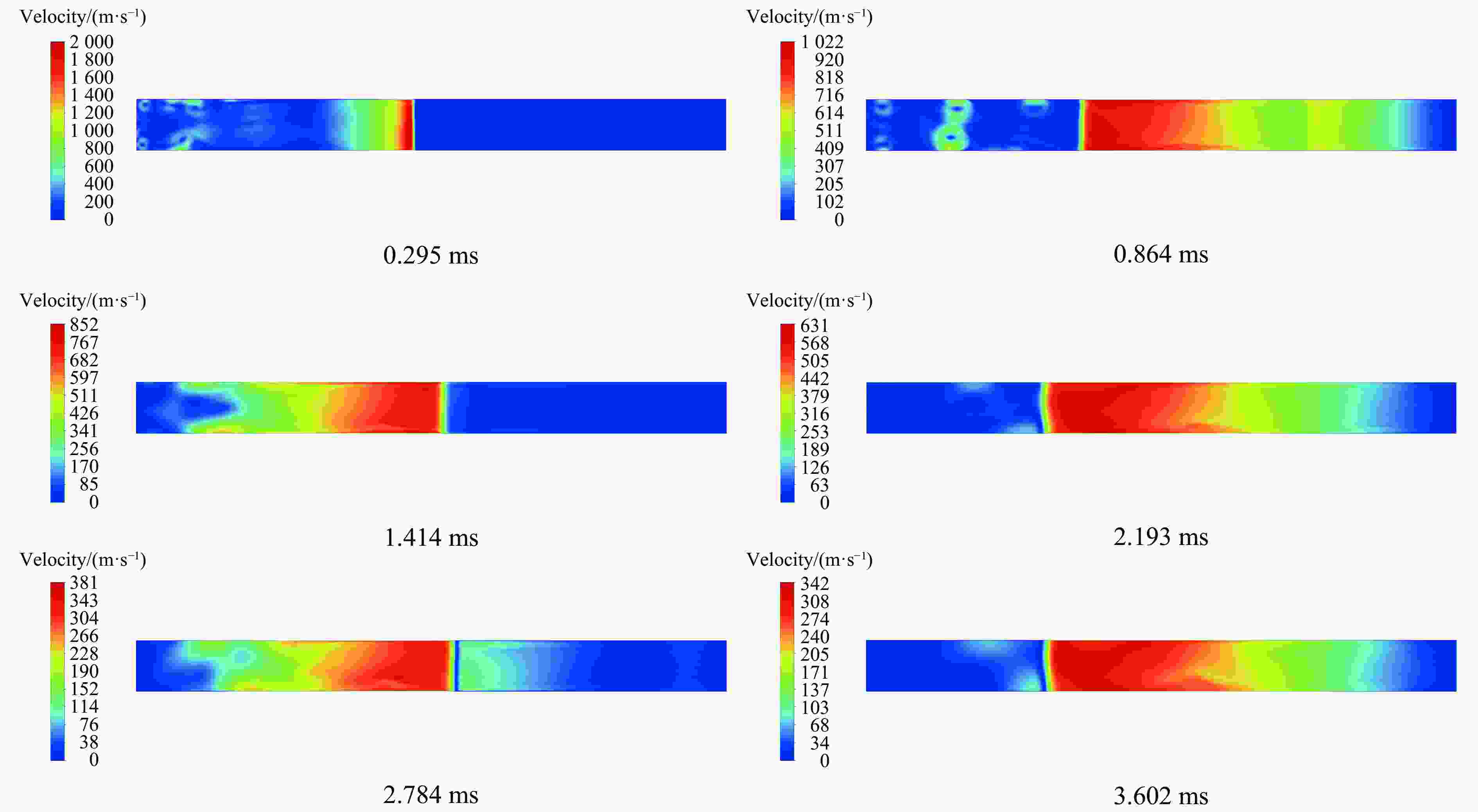

图 5 工况1下爆轰波的传播衰减高速摄影图像与爆速时程曲线
Figure 5. The propagation attenuation of the detonation wave, the high-speed photographic image and the time history curve of the detonation velocity under the working condition S1,

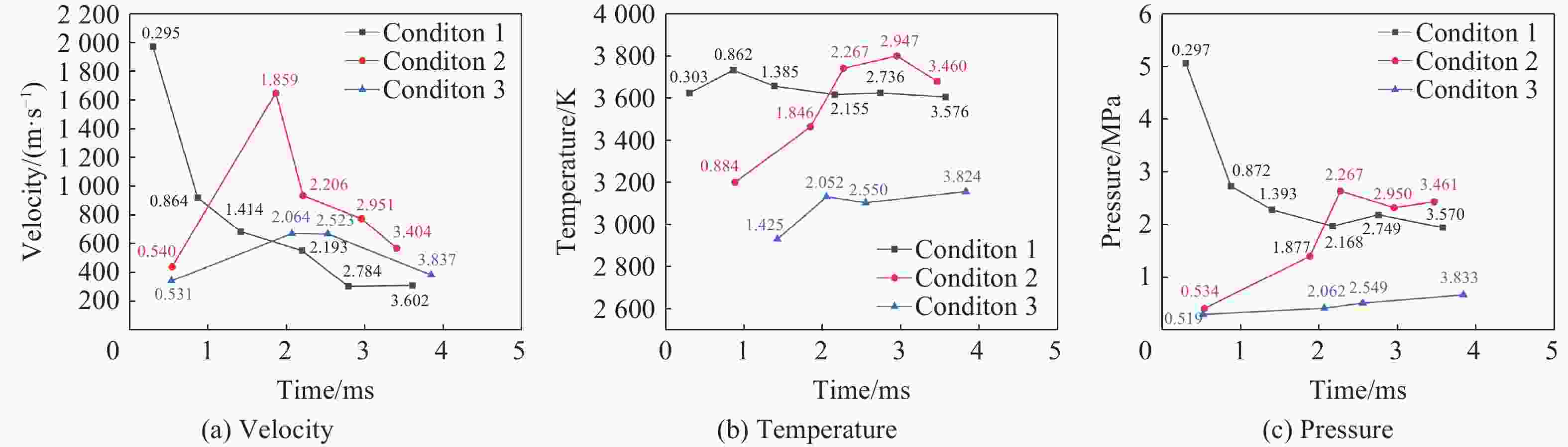

图 7 不同工况下观测点速度、温度和压强的峰值时程曲线
Figure 7. Velocity, temperature and pressure history curves at observation points under different working conditions
图 8 不同工况下样品的 TEM 图像
Figure 8. TEM image of the sample under different working conditions

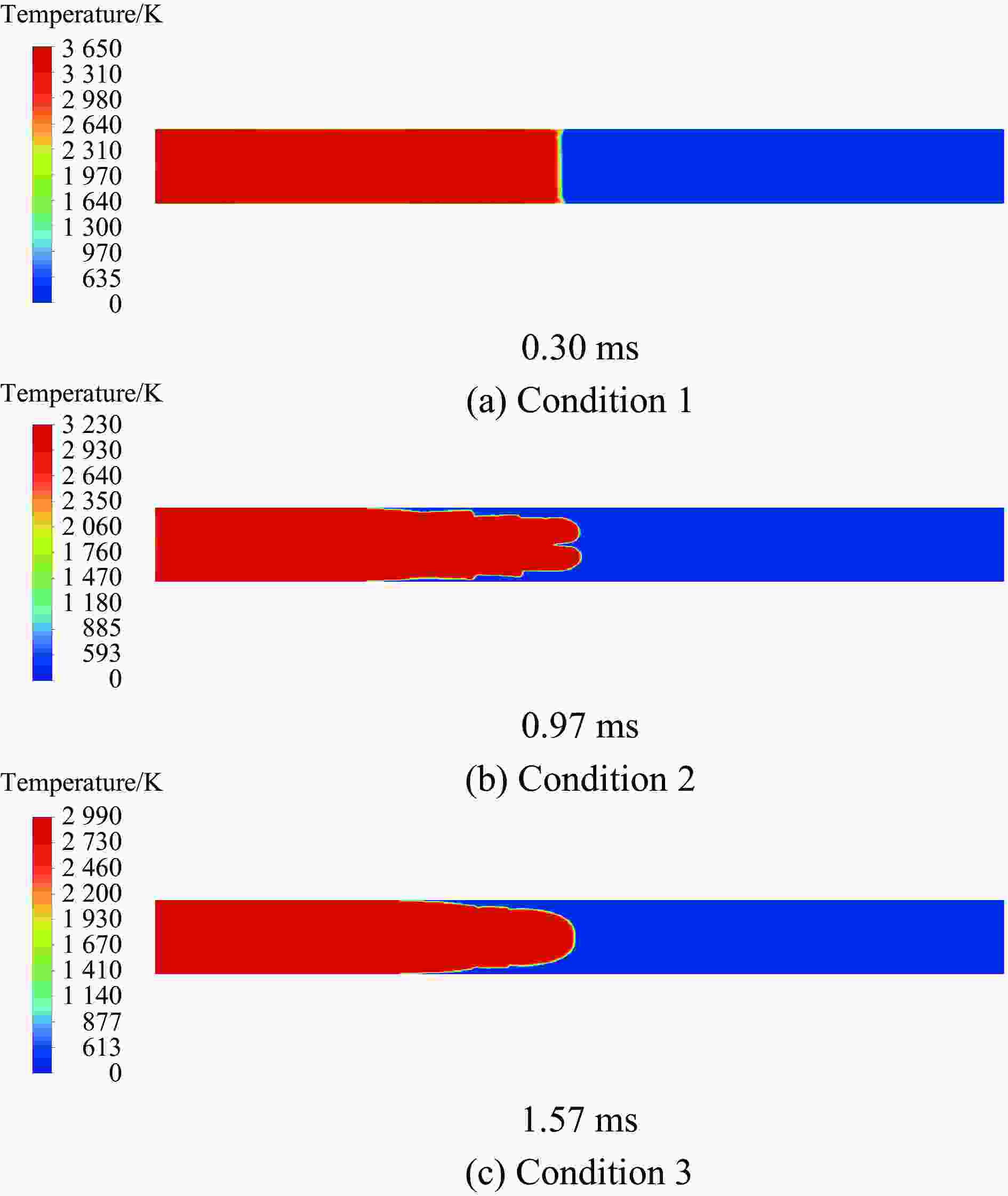

图 9 不同工况下爆轰波传播到管道中心位置的时间
Figure 9. The time required for the detonation wave to propagate to the center of the tube under different working conditions

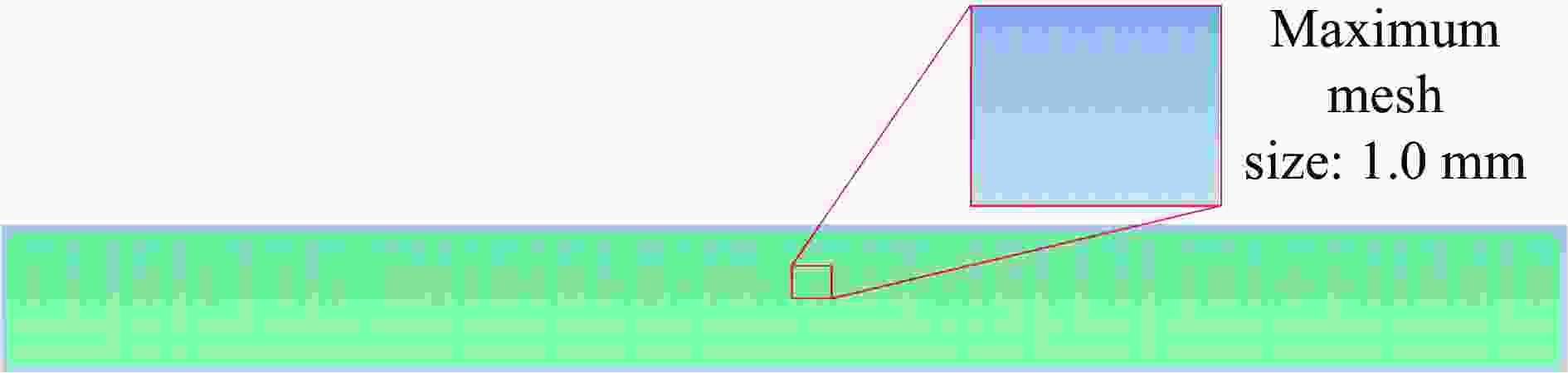

表 1 不同网格尺寸的网格数量及其爆速和误差
Table 1. The number of meshes of different mesh sizes and their detonation velocity and error
最大网格尺寸/mm 网格数量 爆速/（m∙s−1） 误差/% 1.0 104 492 1972 10.36 2.0 27 596 1876 14.73 2.5 17 676 1820 17.27 注：爆速为爆轰波第1次经过观测点时的速度。
下载: 导出CSV
-
[1] WANG X S, VASILEFF A, JIAO Y, et al. Electronic and structural engineering of carbon-based metal-free electrocatalysts for water splitting [J]. Advanced Materials, 2019, 31(13): 1803625. DOI: 10.1002/adma.201803625. [2] YANG Z F, TIAN J R, YIN Z F, et al. Carbon nanotube- and graphene-based nanomaterials and applications in high-voltage supercapacitor: a review [J]. Carbon, 2019, 141: 467–480. DOI: 10.1016/j.carbon.2018.10.010. [3] LU F, ASTRUC D. Nanocatalysts and other nanomaterials for water remediation from organic pollutants [J]. Coordination Chemistry Reviews, 2020, 408: 213180. DOI: 10.1016/j.ccr.2020.213180. [4] CHARINPANITKUL T, TANTHAPANICHAKOON W, SANO N. Carbon nanostructures synthesized by arc discharge between carbon and iron electrodes in liquid nitrogen [J]. Current Applied Physics, 2009, 9(3): 629–632. DOI: 10.1016/j.cap.2008.05.018. [5] WANG X, XU B, LIU X, et al. Synthesis of Fe-included onion-like Fullerenes by chemical vapor deposition [J]. Diamond and Related Materials, 2006, 15(1): 147–150. DOI: 10.1016/j.diamond.2005.09.005. [6] 徐斌, 楼白杨, 曹小海, 等. 纳米铜修饰多壁碳纳米管/石蜡相变驱动复合材料的制备及热性能 [J]. 复合材料学报, 2015, 32(2): 427–434. DOI: 10.13801/j.cnki.fhclxb.20140723.001.XU B, LOU B Y, CAO X H, et al. Preparation and thermal properties of copper modified multi-walled carbon nanotubes/paraffin phase transition-driven composites [J]. Journal of Composite Materials, 2015, 32(2): 427–434. DOI: 10.13801/j.cnki.fhclxb.20140723.001. [7] 张宏, 赵俊峰, 张锡兰, 等. ZnO/CNTs复合材料吸附脱除H2S的性能研究 [J]. 化学研究, 2017, 28(5): 612–616. DOI: 10.14002/j.hxya.2017.05.014.ZHANG H, ZHAO J F, ZHANG X L, et al. Study on the adsorption and removal of H2S by ZnO/CNTs composites [J]. Chinese Journal of Chemical Research, 2017, 28(5): 612–616. DOI: 10.14002/j.hxya.2017.05.014. [8] NEPAL A, SINGH G P, FLANDERS B N, et al. One-step synthesis of graphene via catalyst-free gas-phase hydrocarbon detonation [J]. Nanotechnology, 2013, 24(24): 245602. DOI: 10.1088/0957-4484/24/24/245602. [9] SHTERTSER A A, RYBIN D K, YU V Y, et al. Characterization of nanoscale detonation carbon produced in a pulse gas-detonation device [J]. Diamond and Related Materials, 2020, 101: 107553. DOI: 10.1016/j.diamond.2019.107553. [10] XIANG J X, LUO N, YAN H H, et al. Preparation and formation mechanism of spherical Cu nanoparticles by gaseous detonation [J]. Rare Metal Materials and Engineering, 2019, 48(10): 3113–3117. [11] ZHAO T J, WANG X H, LI X J, et al. Gaseous detonation synthesis of Co@C nanoparticles/CNTs materials [J]. Materials Letters, 2019, 236: 179–182. DOI: 10.1016/j.matlet.2018.10.105. [12] ZHAO T J, LI X J, JOHN L, et al. The effects of hydrogen proportion on the synthesis of carbon nanomaterials with gaseous detonation (deflagration) method [J]. Materials Research Express, 2018, 5(2). DOI: 10.1088/2053-1591/aaadd6. [13] ZHAO T J, LI X J, WANG Y, et al. Growth mechanism and wave-absorption properties of multiwalled carbon nanotubes fabricated using a gaseous detonation method [J]. Materials Research Bulletin, 2018, 102: 153–159. DOI: 10.1016/j.materresbull.2018.02.033. [14] HE C, YAN H H, LI X J, et al. Ultrafast preparation of polymer carbon dots with solid-state fluorescence for white light-emitting diodes [J]. Materials Research Express, 2019, 6(6): 065609. DOI: 10.1088/2053-1591/ab0c42. [15] SHTERTSER A A, ULIANITSKY V Y, BATRAEV I S, et al. Production of nanoscale detonation carbon using a pulse gas-detonation device [J]. Technical Physics Letters, 2018, 44: 395–397. DOI: 10.1134/S1063785018050139. [16] 闫鸿浩, 赵铁军, 孙贵磊, 等. 气相爆轰合成碳包铁的影响因素 [J]. 无机材料学报, 2016, 31(5): 542–546. DOI: 10.15541/jim20150544.YAN H H, ZHAO T J, SUN G L, et al. Influencing factors of carbon-clad iron synthesis by gas-phase detonation [J]. Journal of Inorganic Materials, 2016, 31(5): 542–546. DOI: 10.15541/jim20150544. [17] YAN H H, ZHANG X F, LI X J, et al. The influence of ar on the synthesis of carbon-coated copper nanoparticles in gaseous detonation [J]. Current Nanoscience, 2018, 14(5): 360–365. DOI: 10.2174/1573413714666180502130314. [18] 杨瑞, 李晓杰, 闫鸿浩, 等. 初始温度及碳源对碳纳米管气相爆轰法合成的影响 [J]. 强激光与粒子束, 2017, 29(2): 56–60. DOI: 10.11884/HPLPB201729.160402.YANG R, LI X J, YAN H H, et al. Effects of initial temperature and carbon source on the synthesis of carbon nanotubes by vapor phase detonation [J]. High Power Laser and Particle Beams, 2017, 29(2): 56–60. DOI: 10.11884/HPLPB201729.160402. [19] FRY D, CHAKRABARTI A, KIM W, et al. Structural crossover in dense irreversibly aggregating particulate systems [J]. Physical Review E, 2004, 69(6): 061401. DOI: 10.1103/PhysRevE.69.061401. [20] DHAUBHADEL R, PIERCE F, CHAKRABARTI A, et al. Hybrid superaggregate morphology as a result of aggregation in a cluster-dense aerosol [J]. Physical Review E, 2006, 73(1): 011404. DOI: 10.1103/PhysRevE.73.011404. [21] KIM K, SORENSEN C M, CHAKRABARTI A. Universal occurrence of soot superaggregates with a fractal dimension of 2.6 in heavily sooting laminar diffusion flames [J]. Langmuir : the ACS journal of surfaces and colloids, 2004, 20(10): 3969-3973. DOI: 10.1021/la036085%2B. [22] 李晓杰, 杨瑞, 闫鸿浩. 氧气浓度对气相爆轰合成纳米碳球的影响 [J]. 高压物理学报, 2017, 31(1): 15–20. DOI: 10.11858/gywlxb.2017.01.003.LI X J, YANG R, YAN H H. Effect of oxygen concentration on synthesis of carbon nanospheres by gas-phase detonation [J]. Chinese Journal of High Pressure Physics, 2017, 31(1): 15–20. DOI: 10.11858/gywlxb.2017.01.003. [23] LUO N, XIANG J X, SHEN T, et al. One-step gas-liquid detonation synthesis of carbon nano-onions and their tribological performance as lubricant additives [J]. Diamond and Related Materials, 2019, 97: 107448. DOI: 10.1016/j.diamond.2019.107448. [24] HE C, YAN H H, LI X J, et al. One-step rapid fabrication of high-purity onion-like carbons as efficient lubrication additives [J]. Journal of Materials Science, 2021, 56(2): 1286–1297. DOI: 10.1007/s10853-020-05311-0. [25] XIANG J X, LUO N, SHEN T, et al. Rapid synthesis of carbon/graphite encapsulated iron-based composite nanoparticles by a gaseous-liquid detonation [J]. Diamond and Related Materials, 2018, 90: 1–6. DOI: 10.1016/j.diamond.2018.09.017. [26] ZHAO T J, LI X J, YAN H H. Metal catalyzed preparation of carbon nanomaterials by hydrogen-oxygen detonation method [J]. Combustion and Flame, 2018, 196: 108–115. DOI: 10.1016/j.combustflame.2018.06.011. [27] 赵铁军, 王自法, 闫鸿浩, 等. 气相爆轰反应中纳米TiO2颗粒的动态收集及微观生长机制 [J]. 高压物理学报, 2021, 35(5): 42–47.ZHAO T J, WANG Z F, YAN H H, et al. Dynamic collection and microscopic growth mechanism of nano TiO2 articles in gas-phase detonation reaction [J]. Chinese Journal of High Pressure Physics, 2021, 35(5): 42–47. [28] ZHAO T J, WU L S, WANG Z F, et al. Insight on the growth mechanism of TiO2 nanoparticles via gaseous detonation intercepting collection [J]. Ceramics International, 2023, 49(6): 9857–9861. DOI: 10.1016/j.ceramint.2022.11.160. [29] YAN H H, ZHAO T J, LI X J, et al. Hydrogen and air detonation (deflagration) synthesis of carbon-encapsulated iron nanoparticles [J]. Combustion Explosion and Shock Waves, 2015, 51(4): 495–501. DOI: 10.1134/S0010508215040152. [30] YAN H H, HUN C H, LI X J, et al. Synthesis of carbon-encapsulated iron nanoparticles by gaseous detonation of hydrogen and oxygen at different temperatures within detonation tube [J]. Rare Metal Materials and Engineering, 2015, 44(9): 2152–2155. DOI: 10.1016/S1875-5372(16)30015-7. [31] 闫鸿浩, 赵铁军, 李晓杰, 等. 碳包覆铁纳米颗粒的气相爆轰合成 [J]. 高压物理学报, 2016, 30(3): 207–212. DOI: 10.11858/gywlxb.2016.03.005.YAN H H, ZHAO T J, LI X J, et al. Vapor phase detonation synthesis of carbon-coated iron nanoparticles [J]. Chinese Journal of High Pressure Physics, 2016, 30(3): 207–212. DOI: 10.11858/gywlxb.2016.03.005. [32] 潘训岑, 李雪琪, 李晓杰, 等. 气相爆轰法合成超细碳包铁纳米颗粒 [J]. 稀有金属材料与工程, 2019, 48(3): 981–986.PAN X C, LI X Q, LI X J, et al. Synthesis of ultrafine carbon-clad iron-clad nanoparticles by gas phase detonation method [J]. Rare Metal Materials and Engineering, 2019, 48(3): 981–986. -
