地聚物超高性能混凝土复合板抗接触爆炸试验与数值模拟

曾浩; 袁鹏程; 杨婷; 徐慎春; 吴成清

doi:10.11883/bzycj-2023-0432

地聚物超高性能混凝土复合板抗接触爆炸试验与数值模拟

doi: 10.11883/bzycj-2023-0432

曾浩^1,,
袁鹏程¹,
杨婷¹,
徐慎春^1, ,,
吴成清²

1.
广州大学工程抗震研究中心，广东广州 510006
2.
悉尼科技大学土木与环境工程学院，澳大利亚悉尼 NSW2007

基金项目: 国家自然科学基金（51908155）；广州市科技计划项目（202102020565）

详细信息

作者简介:
曾　浩（1997－　），男，硕士研究生，2112116042@e.gzhu.edu.cn

通讯作者:
徐慎春（1986－　），男，博士，讲师，shenchun_xu@gzhu.edu.cn

中图分类号: O382.2; TU352.1
计量
- 文章访问数: 56
- HTML全文浏览量: 7
- PDF下载量: 19
- 被引次数: 0
出版历程
- 收稿日期: 2023-11-30
- 修回日期: 2024-03-18
- 网络出版日期: 2024-03-25

Experimental and numerical study of G-UHPC composite slab against contact blast

1.
Earthquake Engineering Research & Test Center, Guangzhou University, Guangzhou 510006, Guangdong, China
2.
School of Civil and Environmental Engineering, University of Technology Sydney, Sydney NSW2007, Australia

摘要

摘要: 为提升工程结构抗爆安全性，同时降低水泥基超高性能混凝土高水泥用量对环境的不利影响，提出了一种基于地聚物超高性能混凝土的新型复合板，通过现场爆炸试验和数值模拟研究了其在接触爆炸荷载作用下的动态响应与破坏机理。共测试了1块普通混凝土板和3块地聚物超高性能混凝土复合板，其中地聚物超高性能混凝土复合板由地聚物超高性能混凝土、钢丝网和吸能层制备而成。研究结果表明：采用地聚物超高性能混凝土代替普通混凝土能够有效提升混凝土板的抗爆性能；吸能层材料的高可压缩性和低抗剪强度是造成冲切破坏的主要原因；随着聚氨酯泡沫板层数的增加，复合板的爆坑深度增加，板底跨中位移增大；对复合板进行抗爆设计时，必须考虑吸能泡沫材料的可压缩性及其与地聚物超高性能混凝土之间的波阻抗匹配问题，才能有效提升复合板的抗爆性能。
- 地聚物超高性能混凝土 /
- 吸能泡沫材料 /
- 接触爆炸 /
- 抗爆性能
Abstract: In order to improve the blast resistance performance of engineering structures to ensure the safety of important targets and reduce the adverse effects of high cement content on the environment of cement-based ultra-high performance concrete, a new type of composite slab based on geopolymer ultra-high performance concrete(G-UHPC) is proposed. Three G-UHPC composite slabs were prepared with G-UHPC, steel wire mesh and energy absorbing foam materials, and one ordinary concrete slab was prepared with C40 concrete. In order to verify the blast resistance performance of the new G-UHPC composite slab, the explosion test was carried out in the field. The diameter and depth of the crater and spalling of each specimen under the 0.4 kg TNT contact explosion were analyzed, and the blast resistance performance and failure mode were discussed. The effects of G-UHPC, steel wire mesh and energy absorbing foam materials on the blast resistance performance of concrete slabs were discussed. Based on the explosion test results, a refined finite element model was established using LS-DYNA finite element analysis software and numerical simulation analysis was conducted. The effectiveness of the numerical model was verified by comparing the experimental results with the simulation analysis results. On this basis, the model is used to further analyze the impact of G-UHPC and steel wire mesh on the blast resistance performance of concrete slabs, and the failure process of composite slabs is analyzed by simulating the propagation of explosive waves in energy absorbing foam reinforced G-UHPC composite slabs, revealing the failure mechanism of G-UHPC composite slabs. In order to further study the blast resistance performance of G-UHPC composite slab, the parameter analysis was carried out. Based on the damage morphology of G-UHPC composite plate, the mid-span displacement of the plate bottom and the energy absorption of the energy absorbing layer, the influence of the energy absorbing foam material layout on the blast resistance performance of G-UHPC composite slab was discussed. The research results indicate that replacing ordinary concrete with G-UHPC can effectively improve the blast resistance of concrete slab, and steel wire mesh can reduce the degree of blast pits and peeling damage of concrete slabs. The blast resistance design of composite slab must consider the compressibility of energy absorbing foam material and its matching with the wave impedance of G-UHPC, so as to have a favorable impact on the blast resistance performance of composite slab. The high compressibility and low shear strength of energy absorbing foam are the main reasons for punching failure of concrete slab. The increase of the number of polyurethane foam plates will lead to the reduction of the blast resistance performance of the concrete slab, which is specifically reflected in the increase of the depth of the explosion pit and the increase of the displacement of the bottom span of the slab.
- geopolymer based ultra-high performance concrete /
- energy absorbing foam material /
- contact blast /
- blast resistance performance

HTML全文

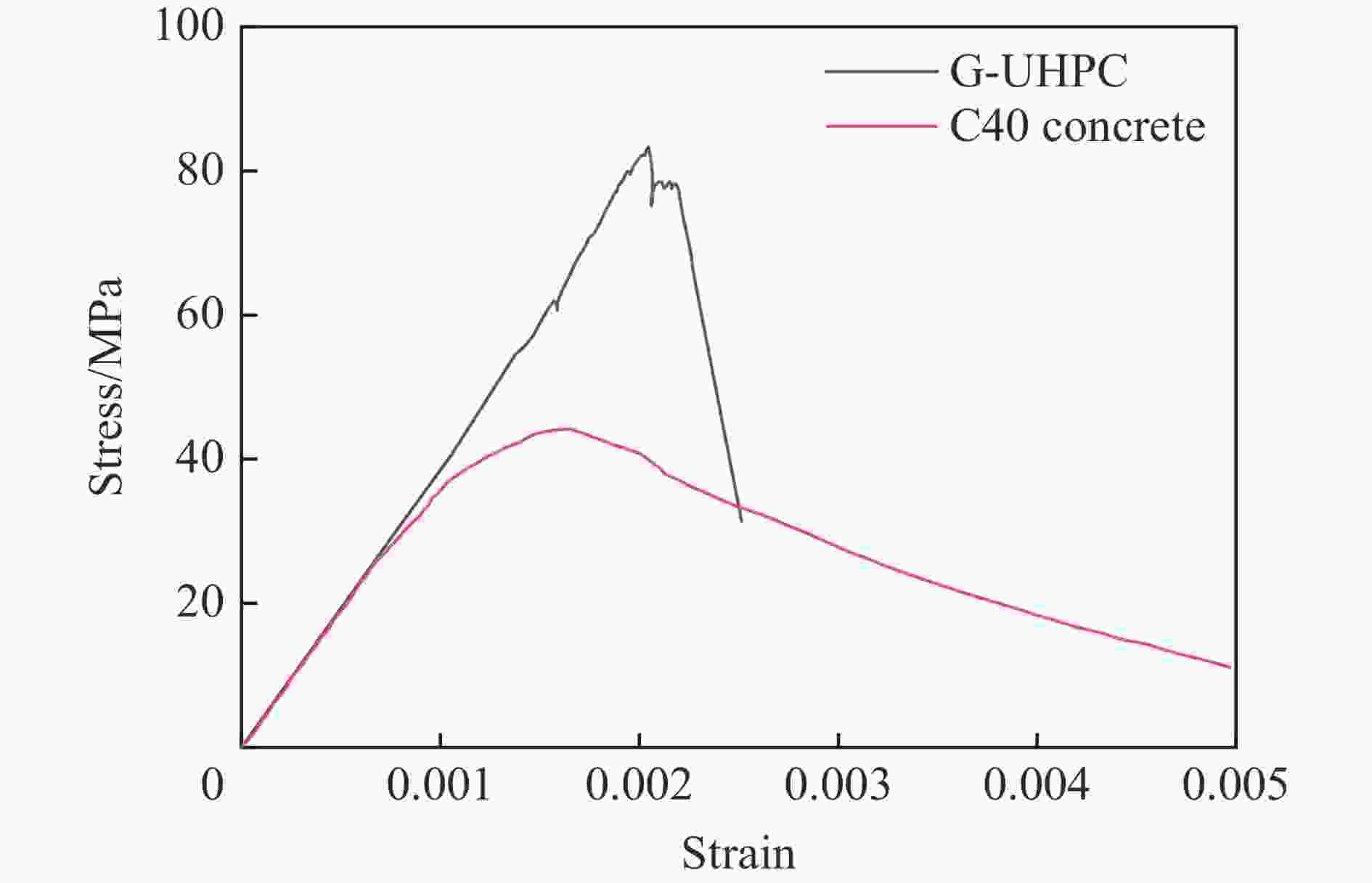

图 1 G-UHPC和C40混凝土的应力-应变曲线

Figure 1. Stress-strain relationships of G-UHPC and C40 concrete

下载: 全尺寸图片幻灯片

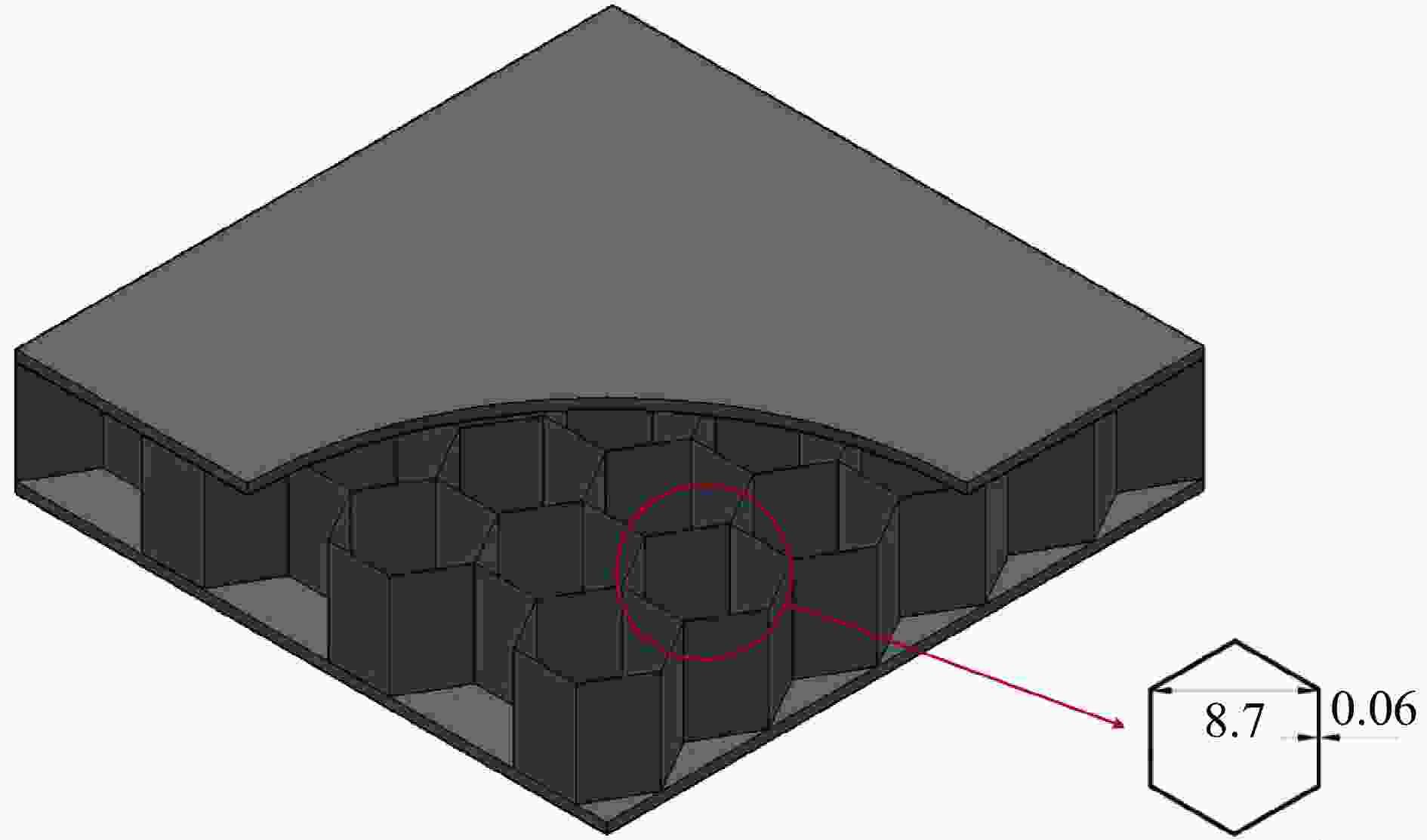

图 2 蜂窝铝板示意图（单位：mm）

Figure 2. Diagram of honeycomb aluminum (unit: mm)

下载: 全尺寸图片幻灯片

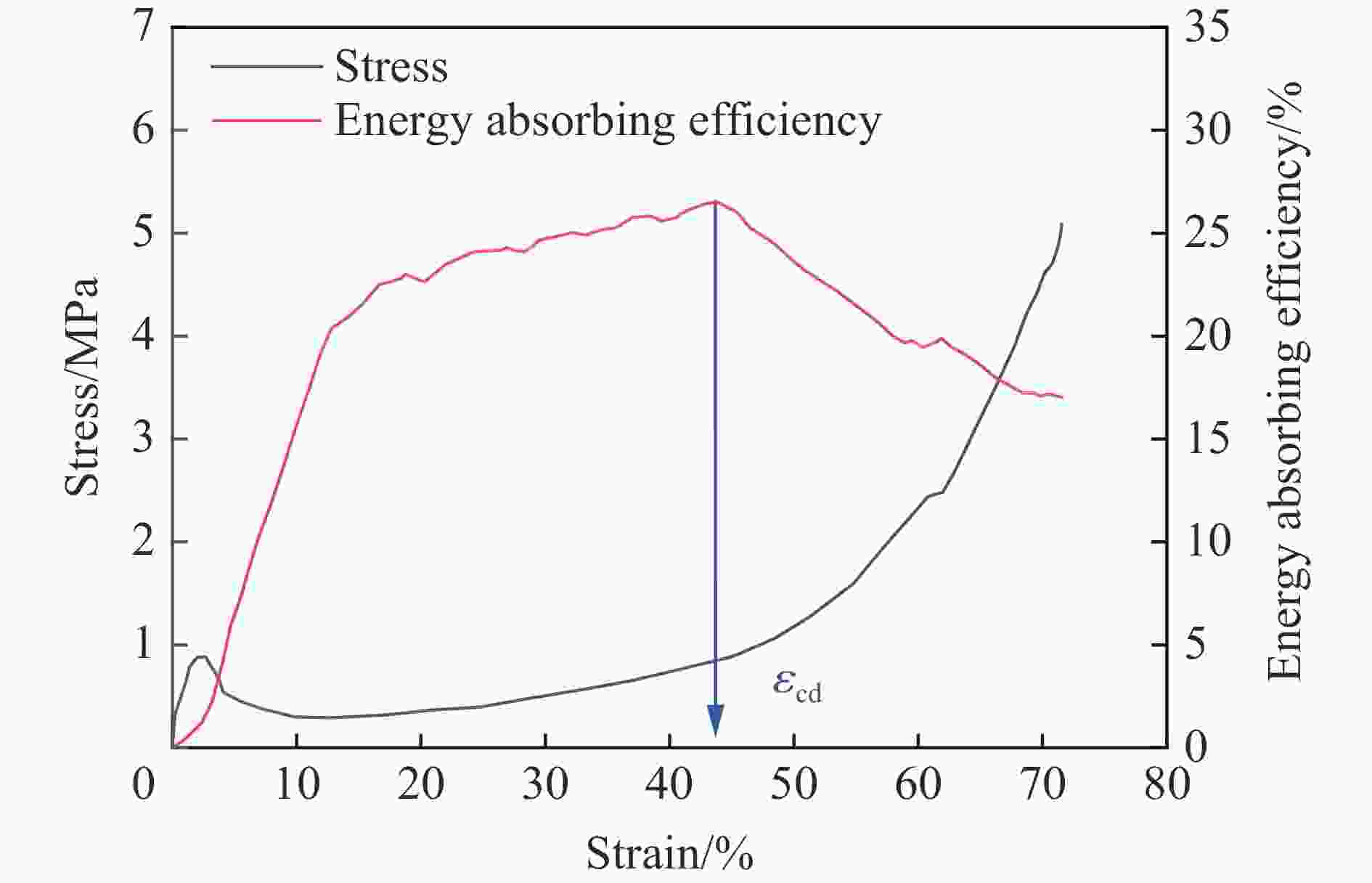

图 3 蜂窝铝的应力-应变曲线和吸能效率-应变曲线

Figure 3. Stress-strain and energy absorbing efficiency-strain curves of HAP

下载: 全尺寸图片幻灯片

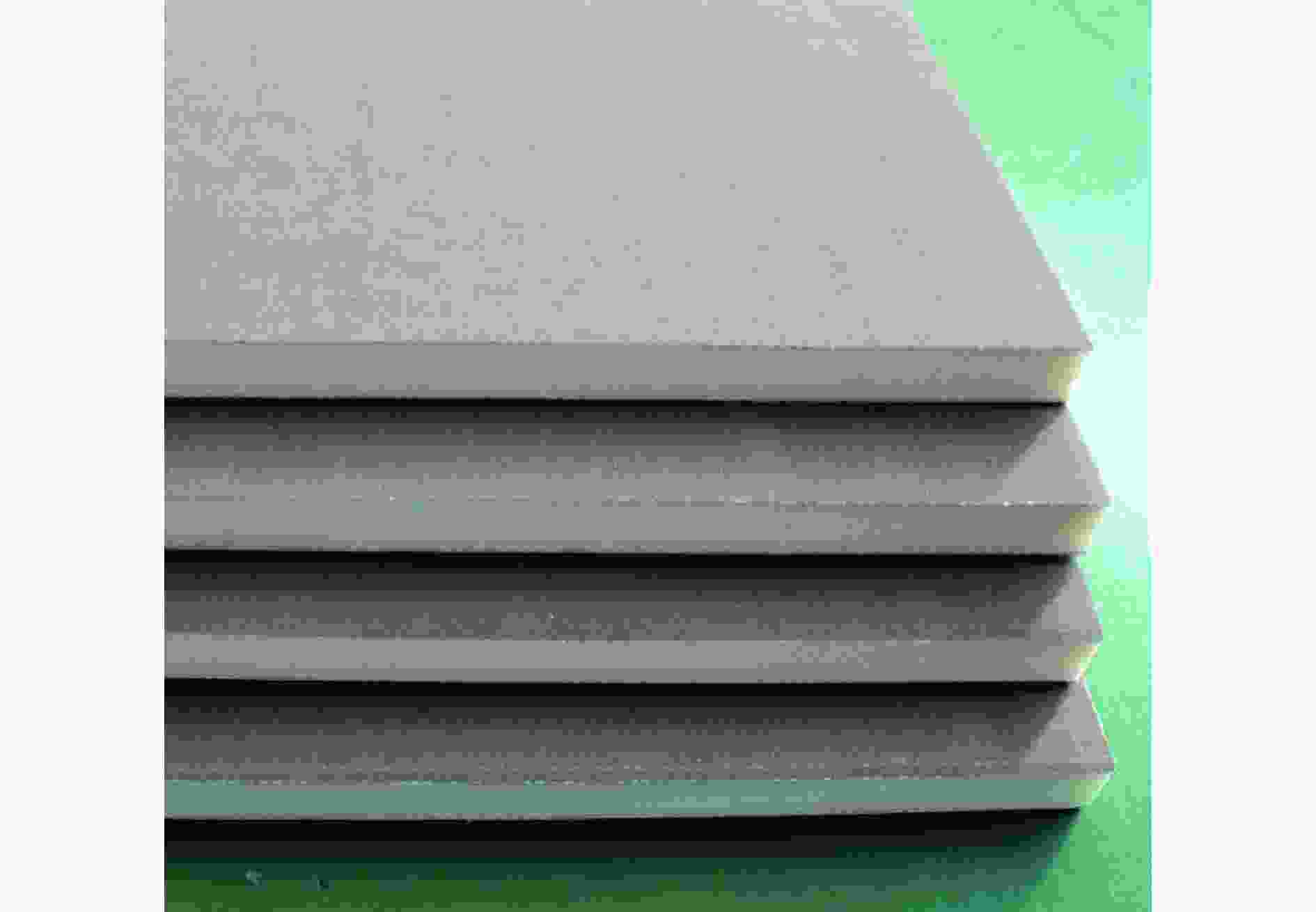

图 4 聚氨酯泡沫板

Figure 4. Polyurethane foam plates

下载: 全尺寸图片幻灯片

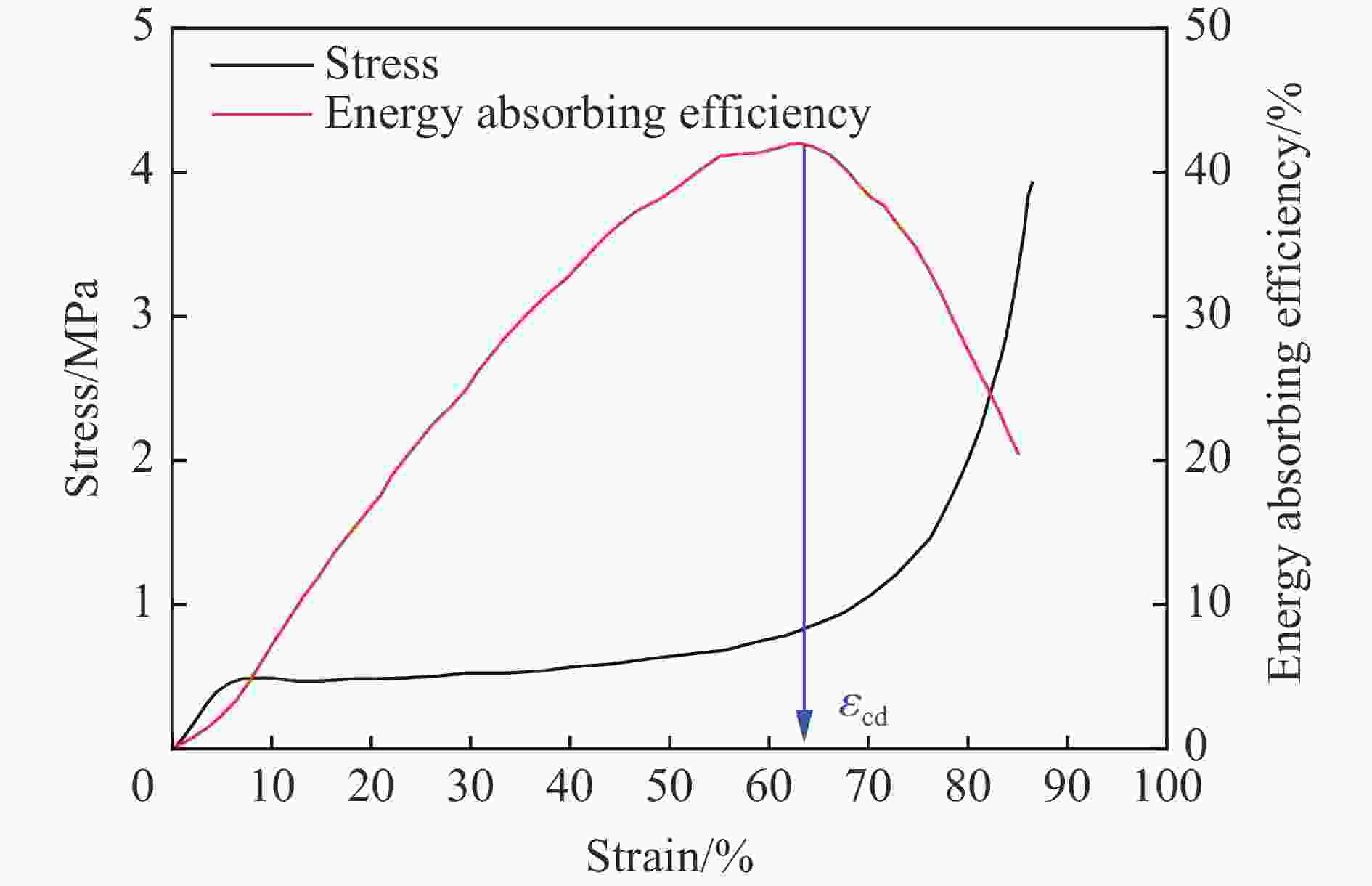

图 5 聚氨酯泡沫的应力-应变曲线和吸能效率-应变曲线

Figure 5. Stress-strain and energy absorbing efficiency-strain curves of PFP

下载: 全尺寸图片幻灯片

图 6 试件构造详图（单位：mm）

Figure 6. Detail of specimen structure (unit: mm)

下载: 全尺寸图片幻灯片

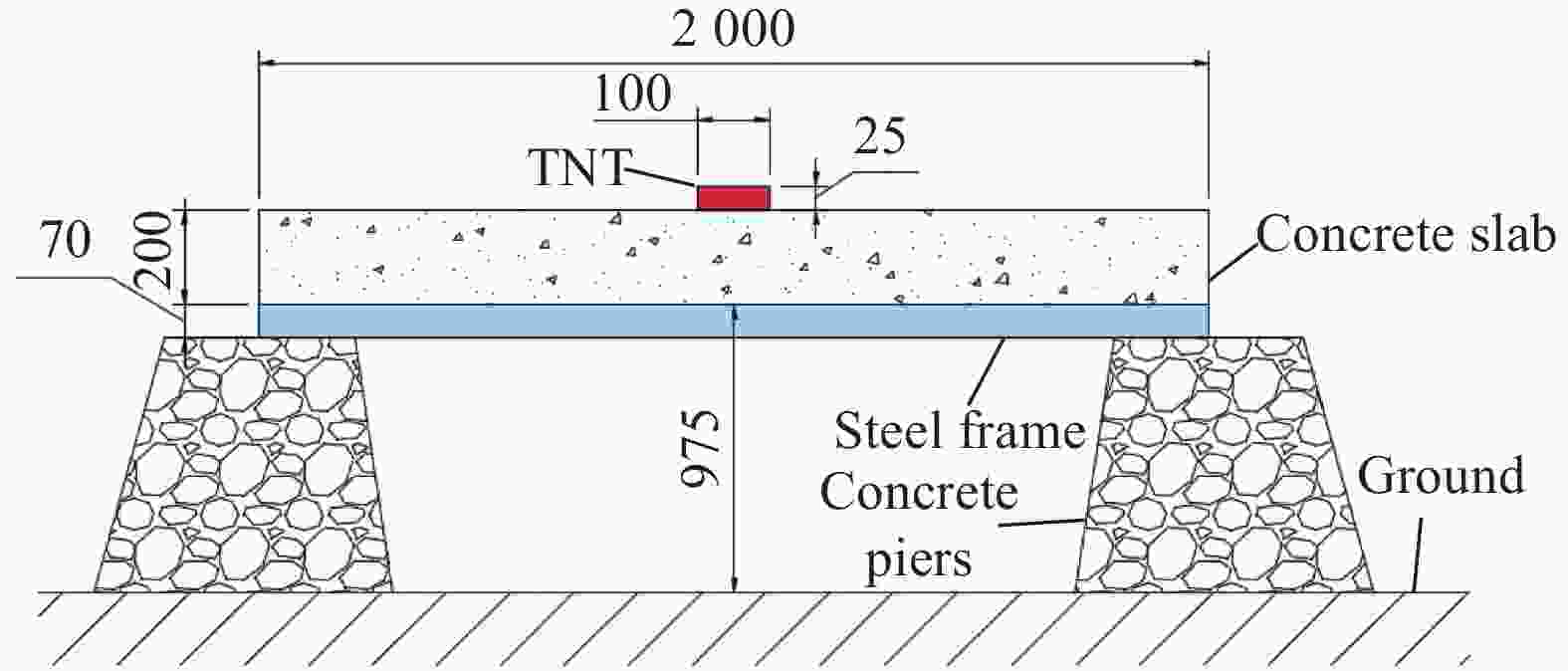

图 7 接触爆炸试验布局（单位：mm）

Figure 7. Contact blast test layout (unit: mm)

下载: 全尺寸图片幻灯片

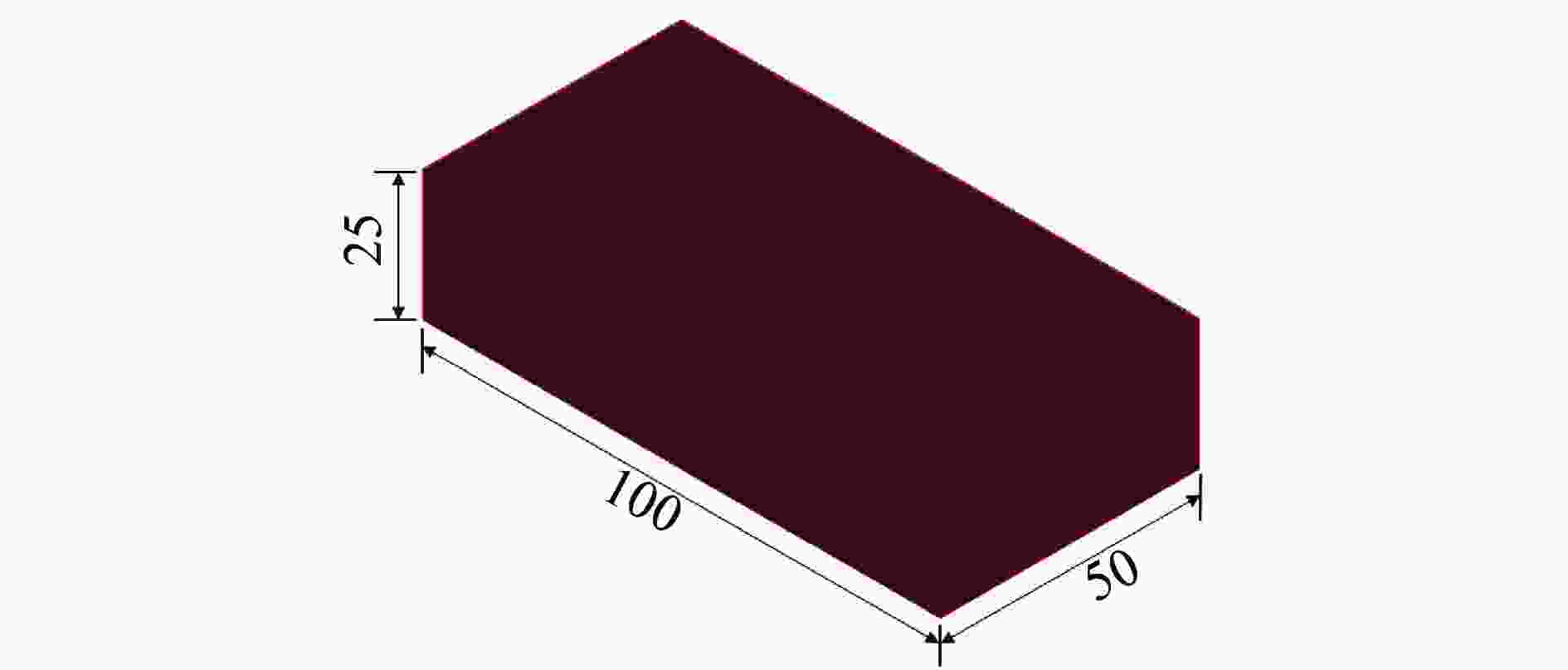

图 8 0.2 kg条形TNT炸药示意图（单位：mm）

Figure 8. Schematic diagram of 0.2 kg TNT (unit: mm)

下载: 全尺寸图片幻灯片

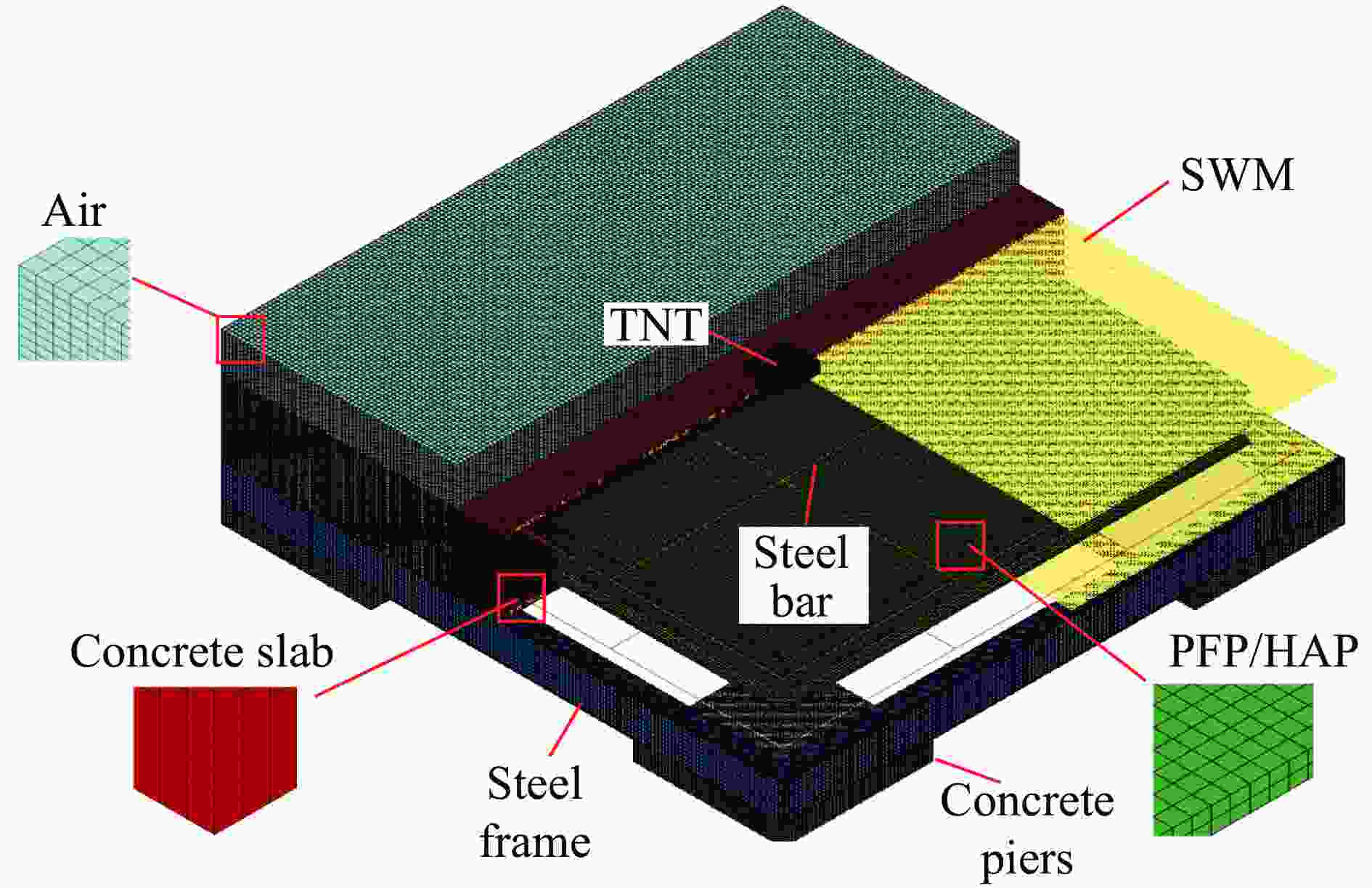

图 9 有限元模型

Figure 9. Finite element model

下载: 全尺寸图片幻灯片

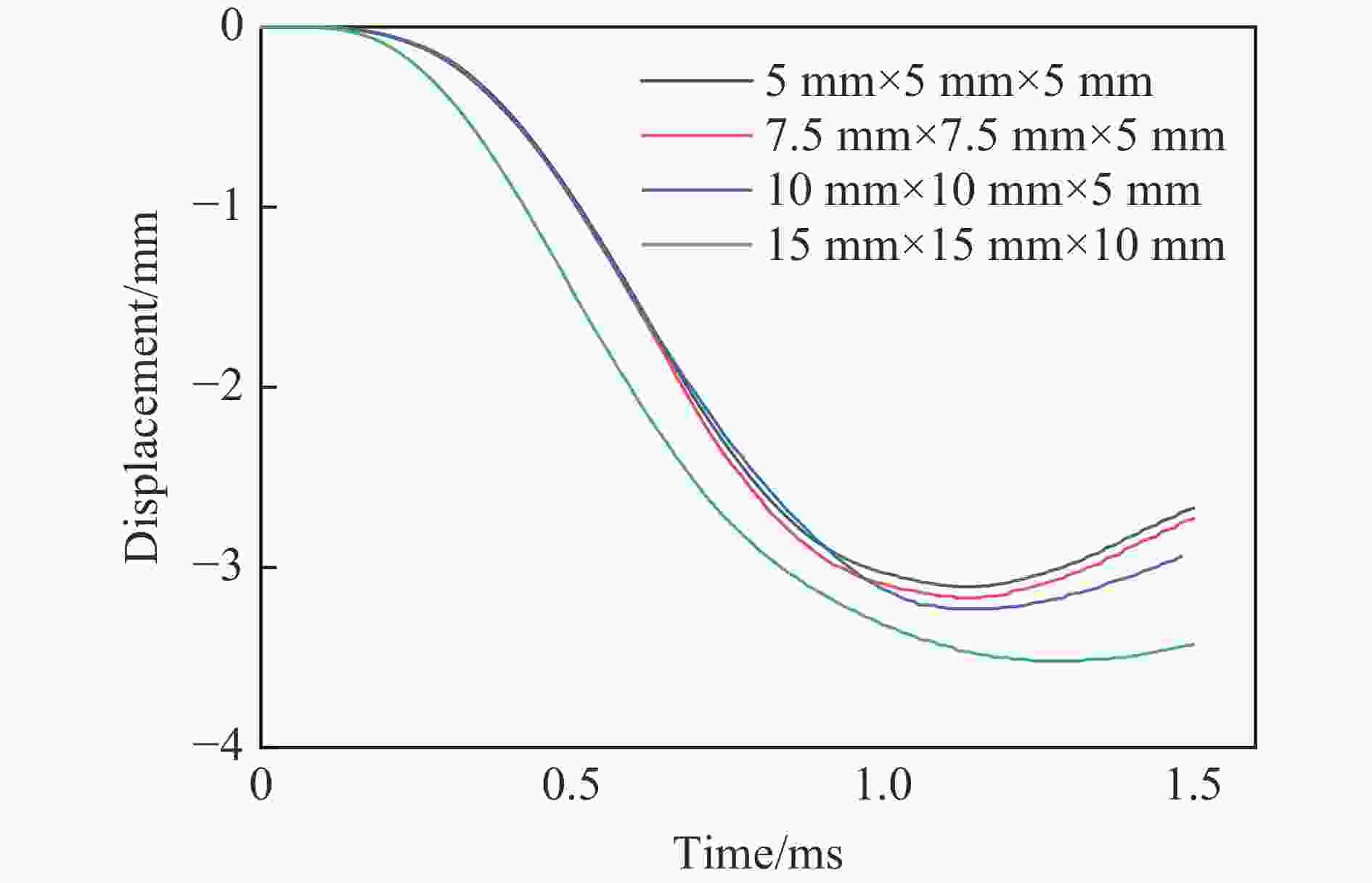

图 10 不同网格尺寸下板底的跨中位移

Figure 10. Plate bottom mid-span displacement with different mesh sizes

下载: 全尺寸图片幻灯片

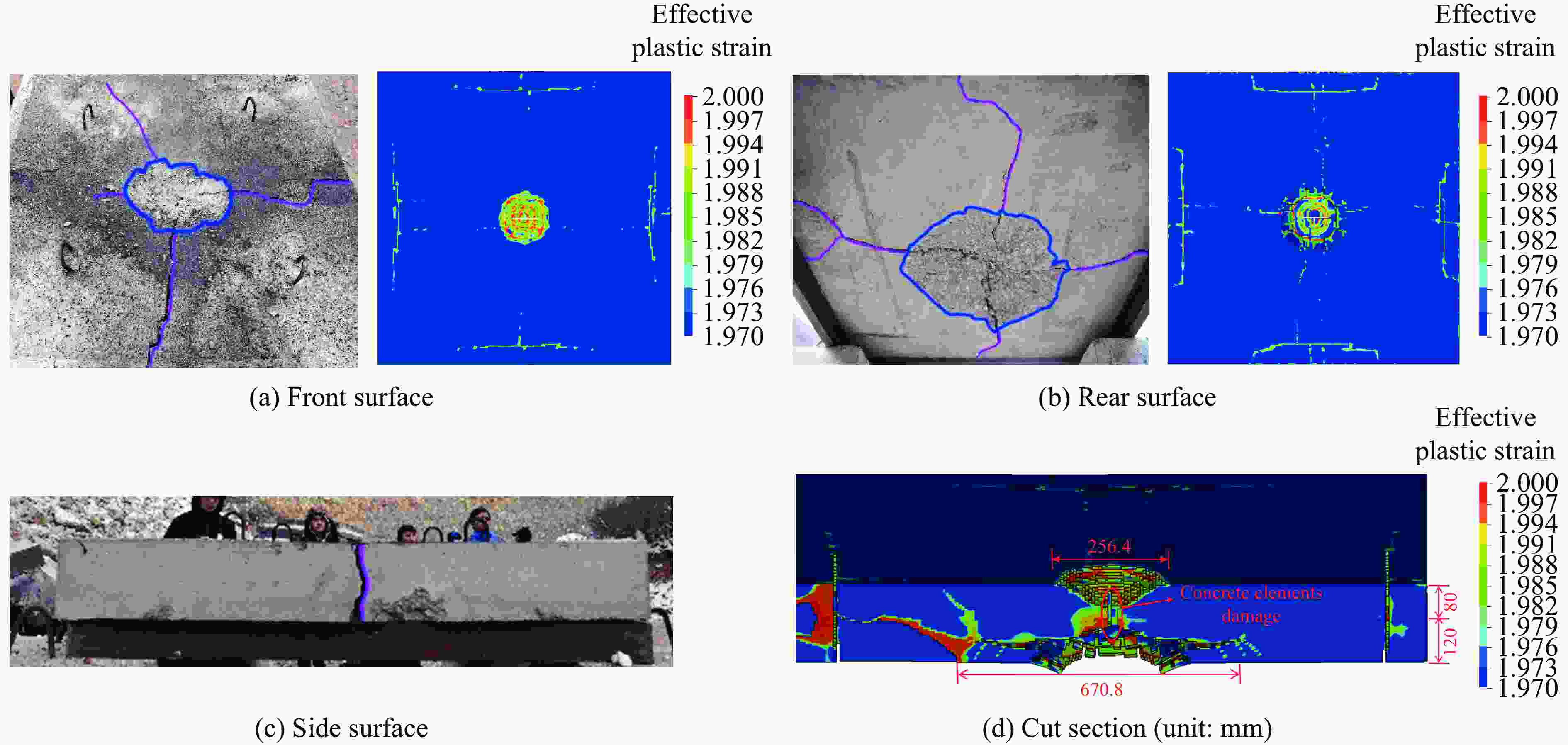

图 11 试件NC的破坏形态

Figure 11. Failure mode of specimen NC

下载: 全尺寸图片幻灯片

图 12 试件G-10S的破坏形态

Figure 12. Failure mode of specimen G-10S

下载: 全尺寸图片幻灯片

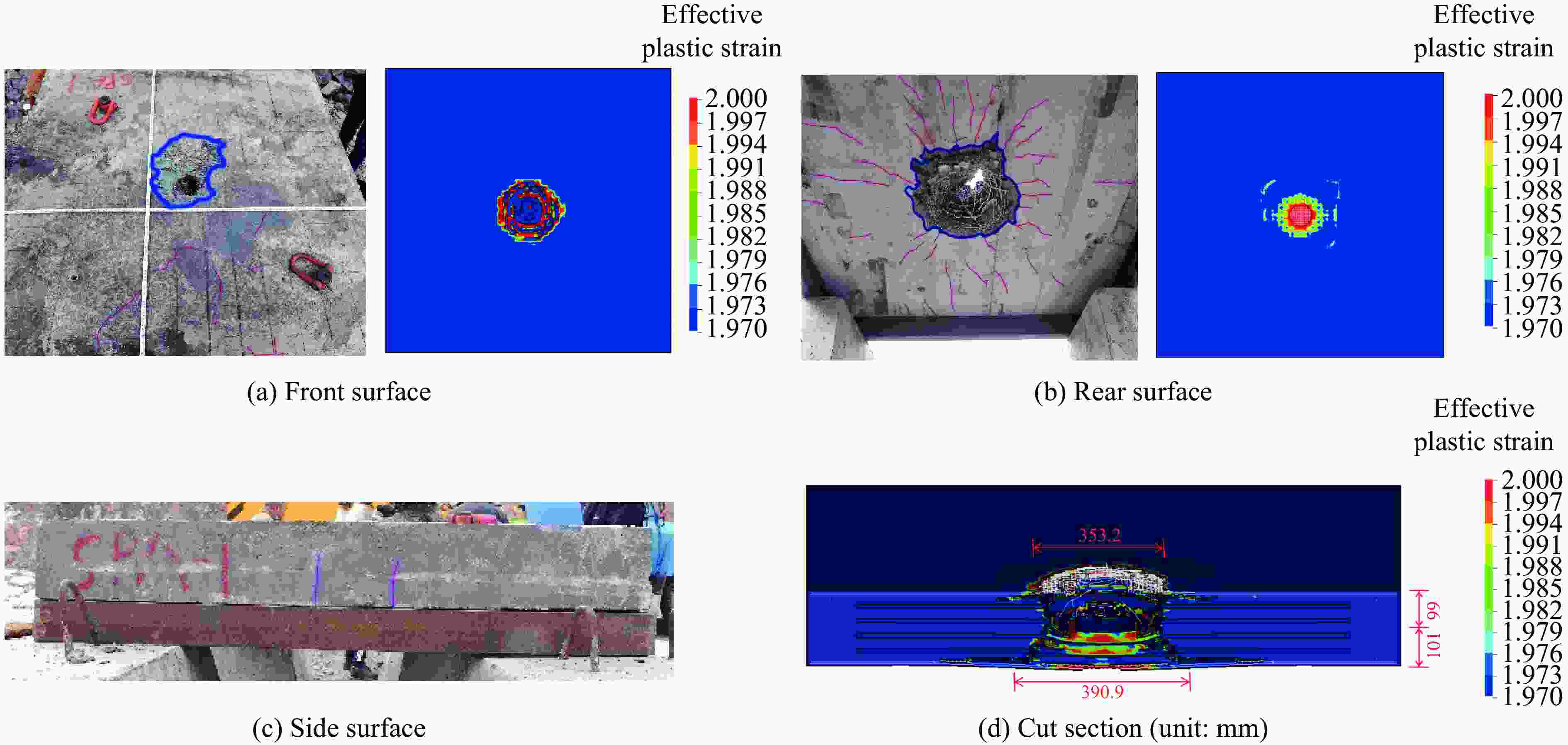

图 13 试件G-4P的破坏形态

Figure 13. Failure mode of specimen G-4P

下载: 全尺寸图片幻灯片

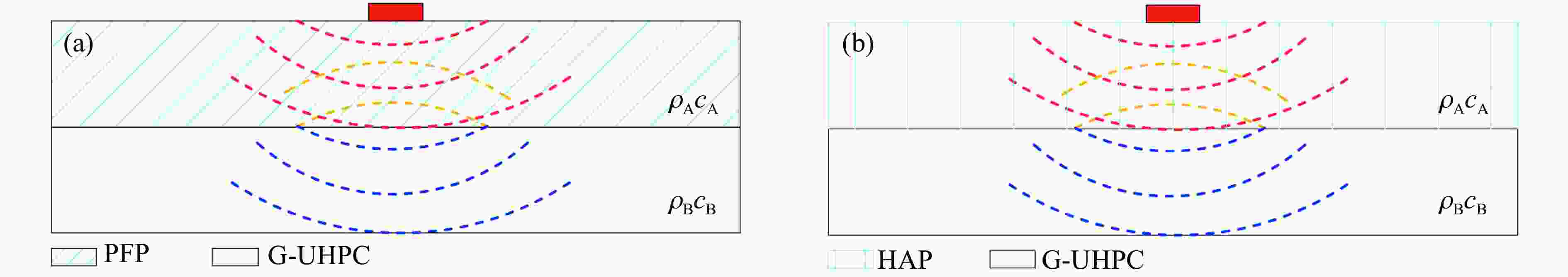

图 14 爆炸波在混凝土板中传播示意图

Figure 14. Schematic diagram of explosion wave propagation in concrete slab

下载: 全尺寸图片幻灯片

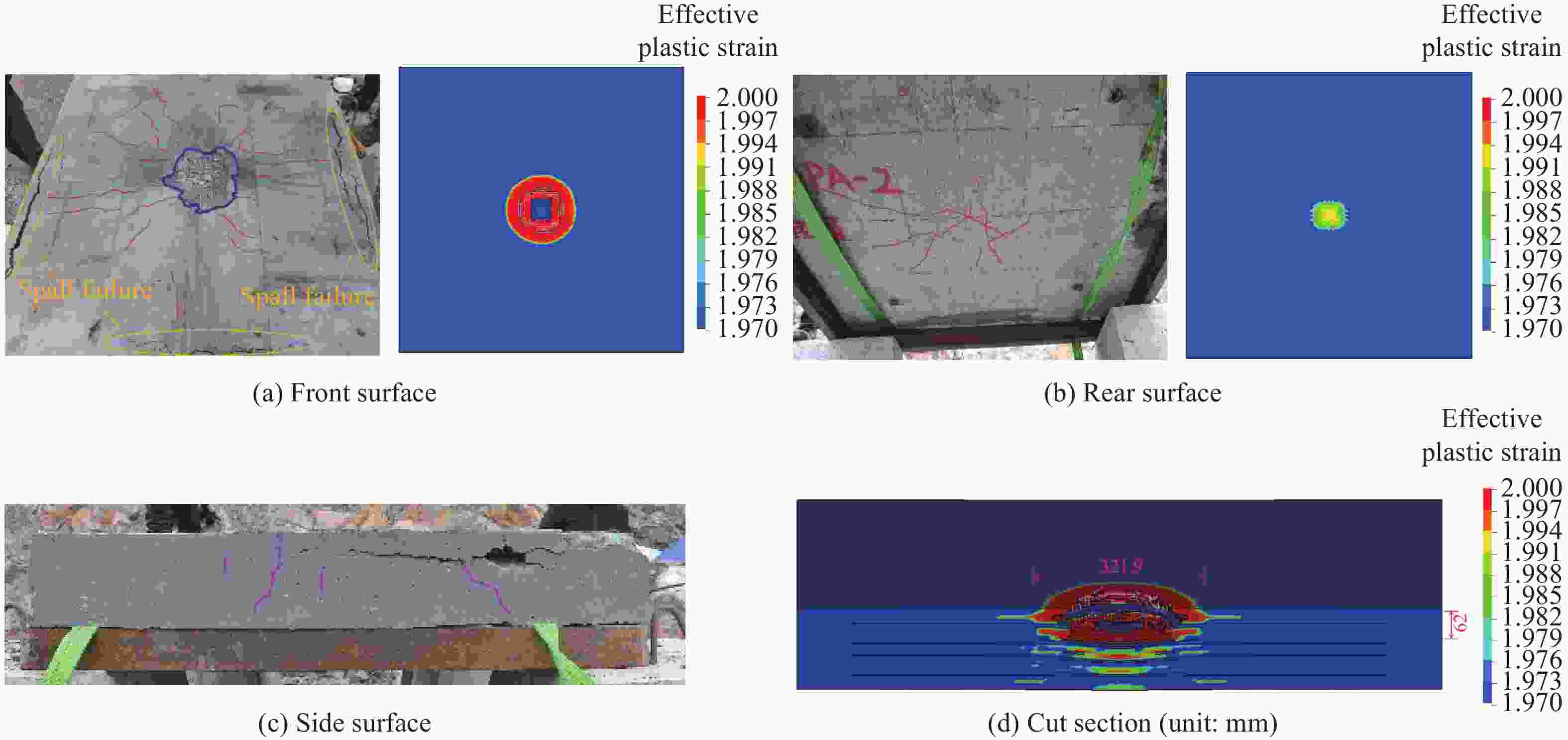

图 15 试件G-2A2P的破坏形态

Figure 15. Failure mode of specimen G-2A2P

下载: 全尺寸图片幻灯片

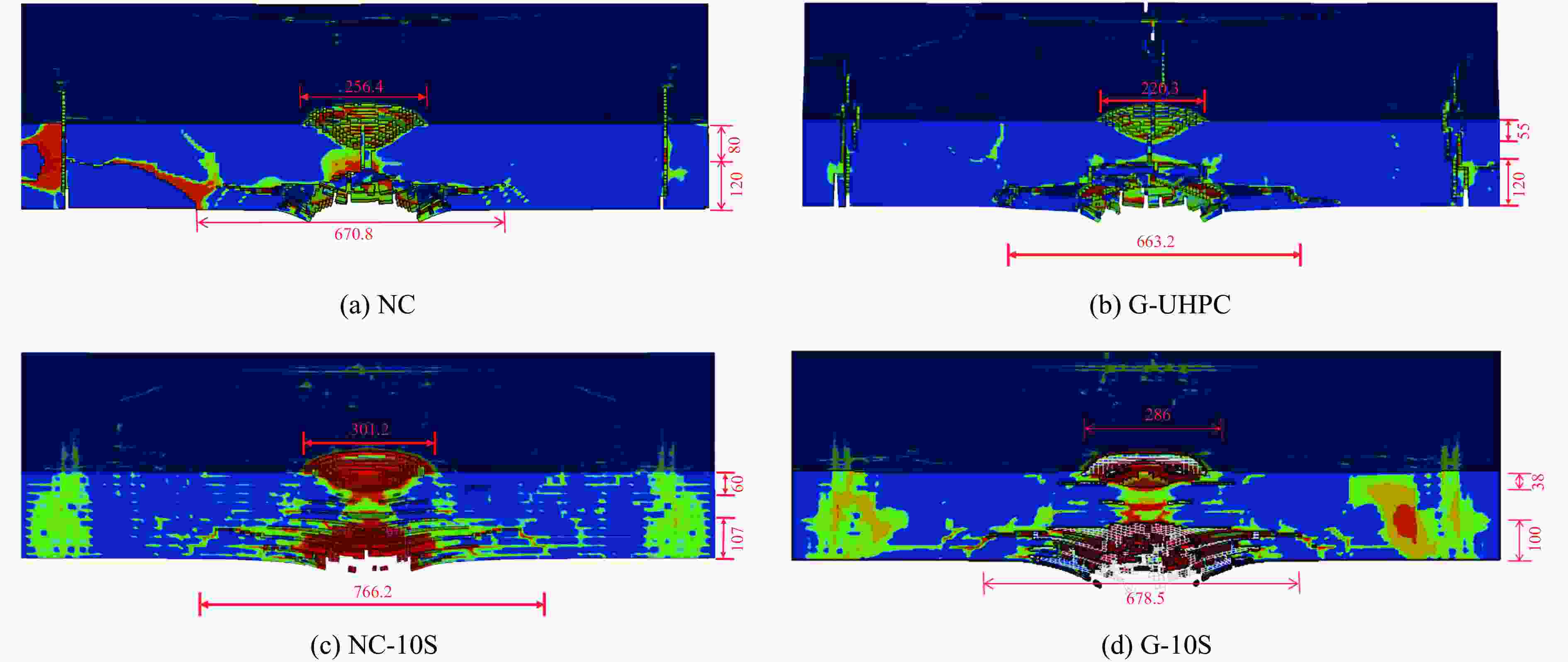

图 16 试件NC、G-UHPC、NC-10S、G-10S的破坏模式（单位：mm）

Figure 16. Failure modes of specimens NC, G-UHPC, NC-10S and G-10S (unit: mm)

下载: 全尺寸图片幻灯片

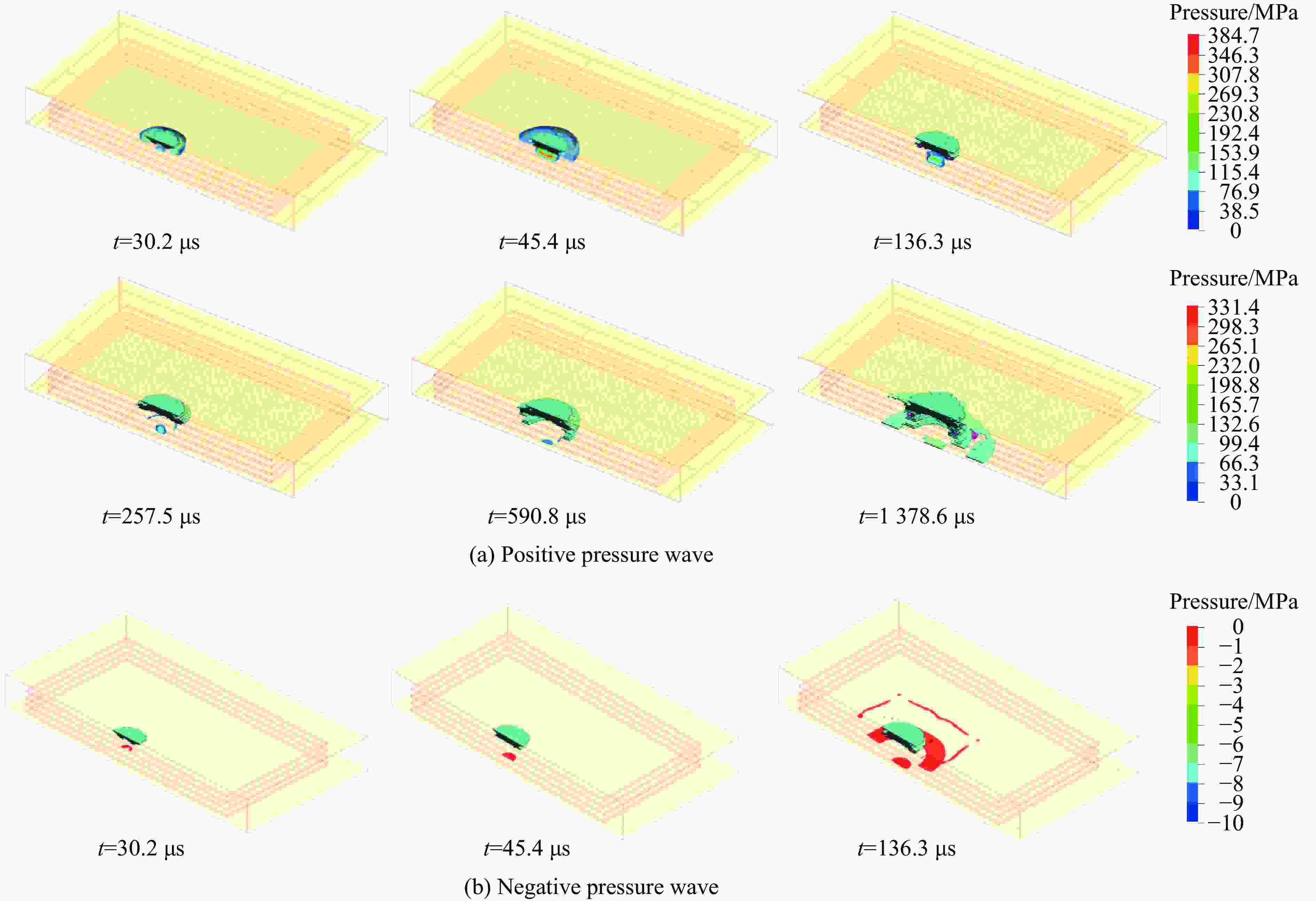

图 17 试件G-4P的爆炸应力波传播过程

Figure 17. Process of explosion stress wave propagation in specimen G-4P

下载: 全尺寸图片幻灯片

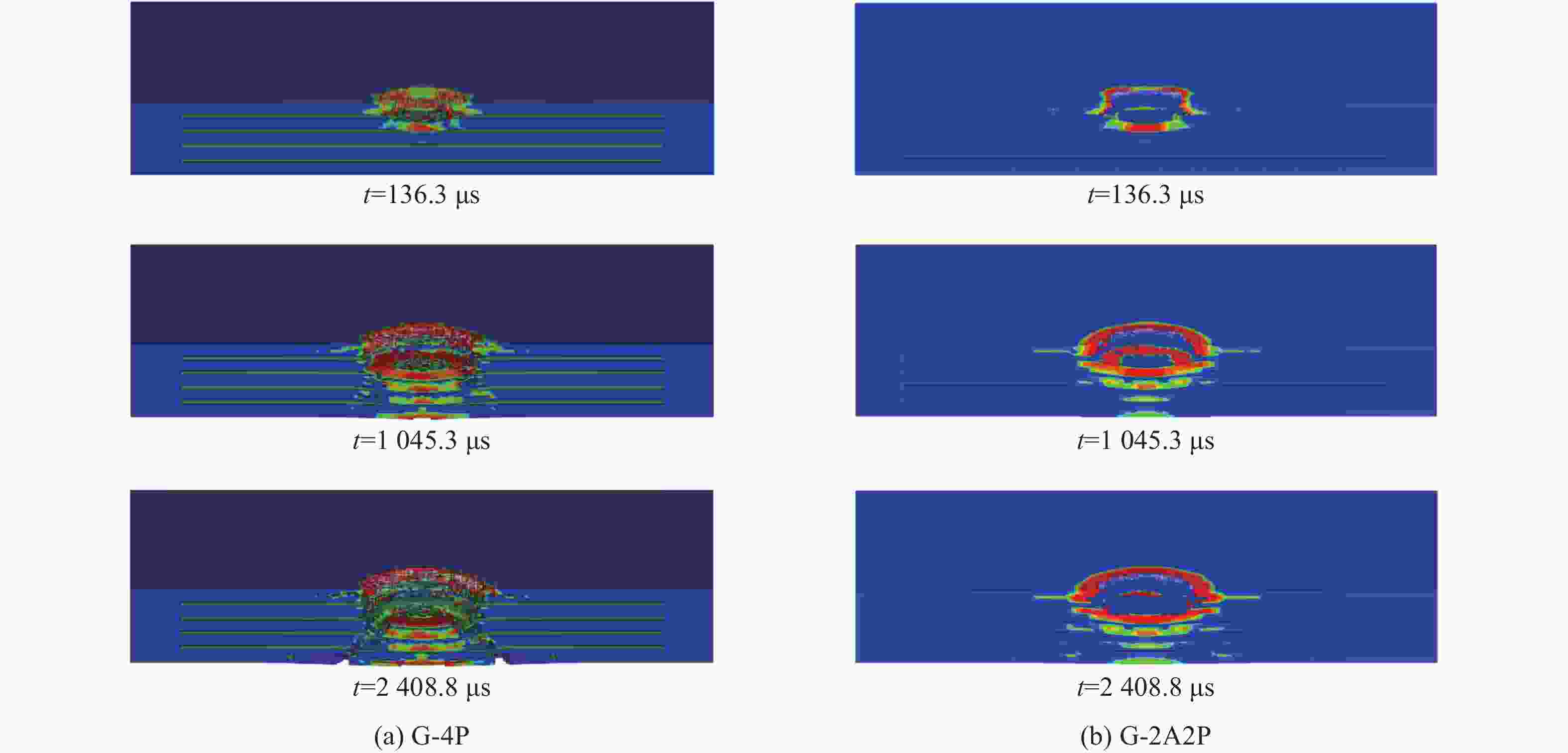

图 18 数值模拟得到的试件G-4P和G-2A2P的破坏过程

Figure 18. Numerical failure process of G-4P and G-2A2P

下载: 全尺寸图片幻灯片

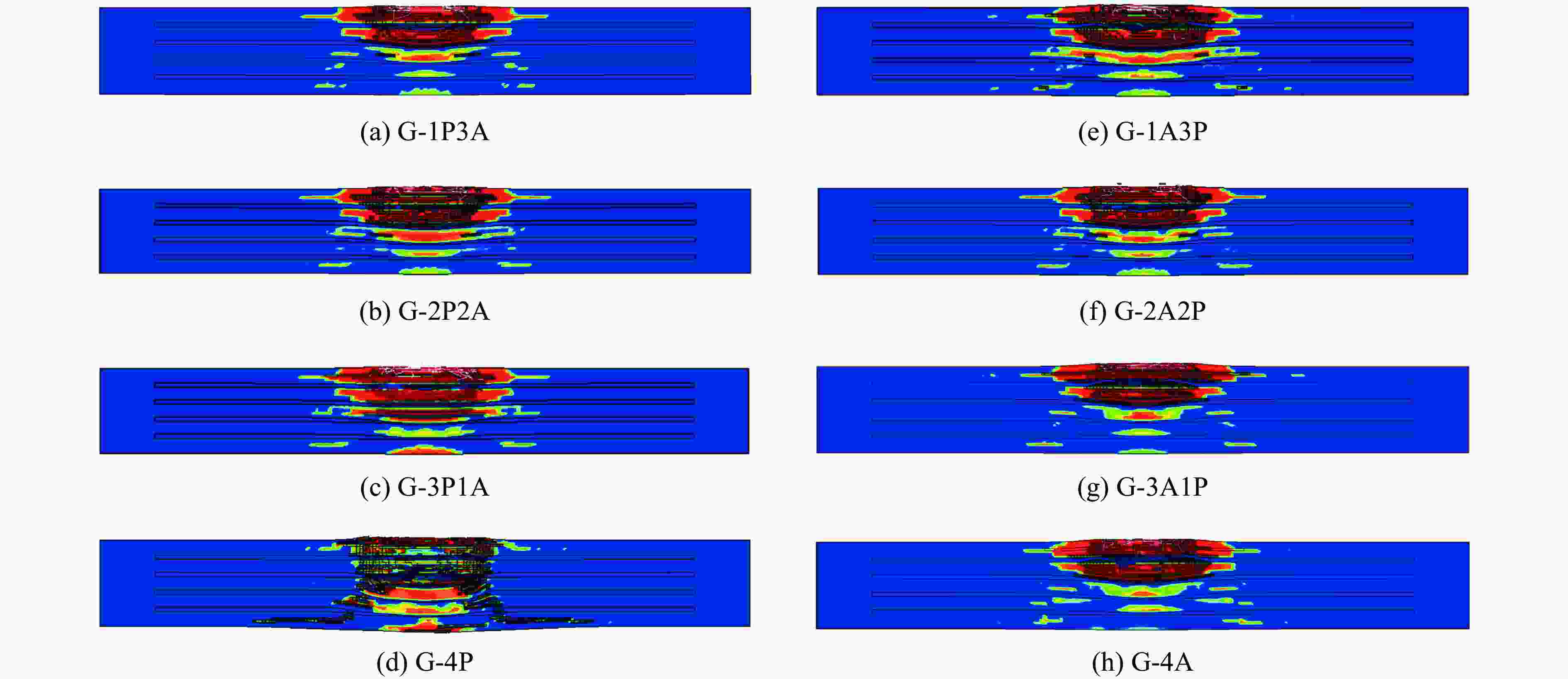

图 19 吸能材料布置不同时试件的破坏形态

Figure 19. Failure modes of specimen with different energy absorbing materials arrangement

下载: 全尺寸图片幻灯片

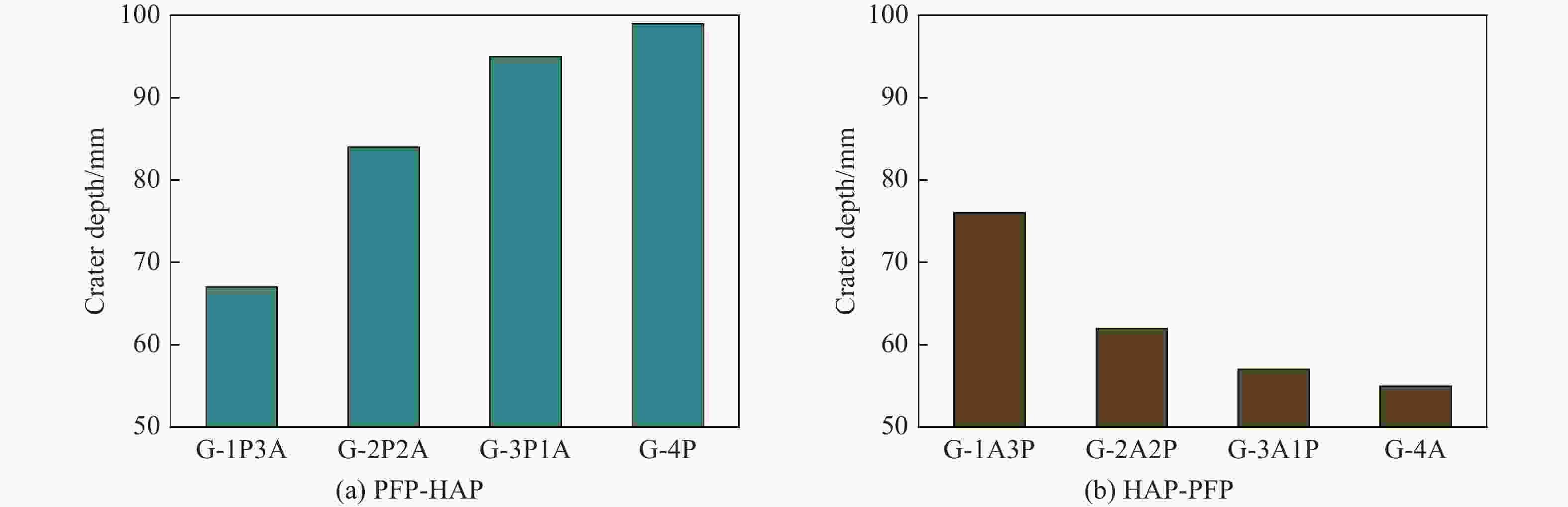

图 20 试件的爆坑深度

Figure 20. Crater depth of specimens

下载: 全尺寸图片幻灯片

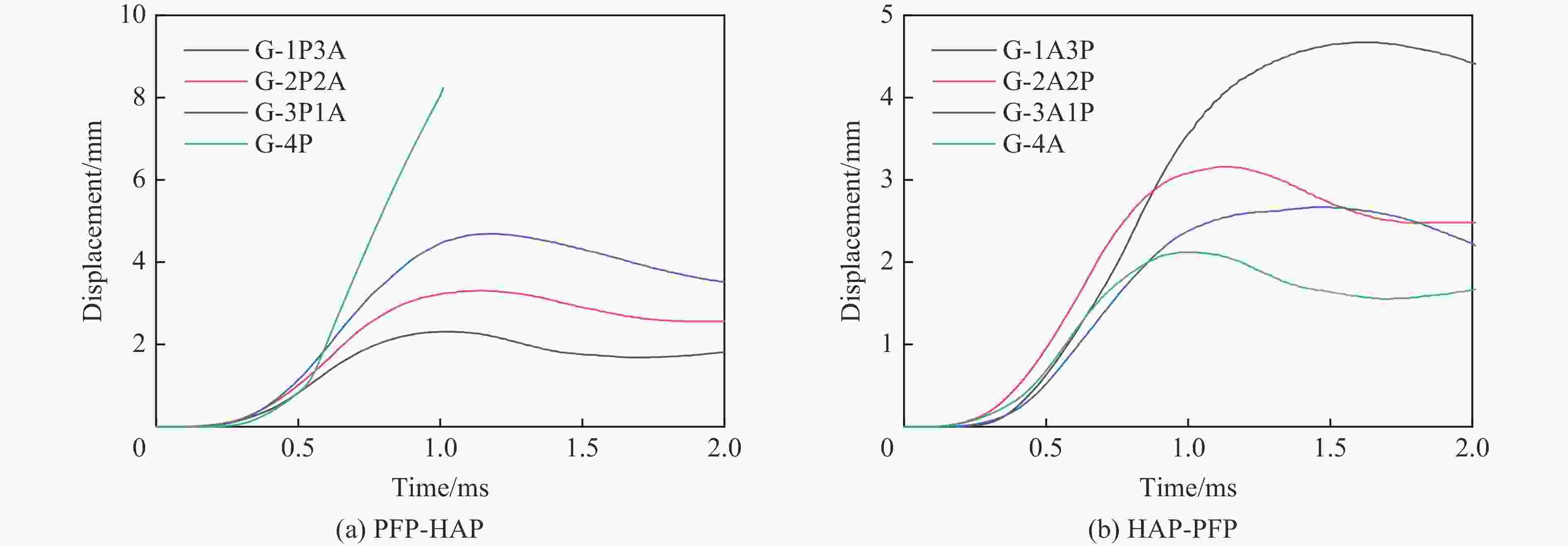

图 21 试件跨中位移时程曲线

Figure 21. Time-history of mid-span displacement of specimens

下载: 全尺寸图片幻灯片

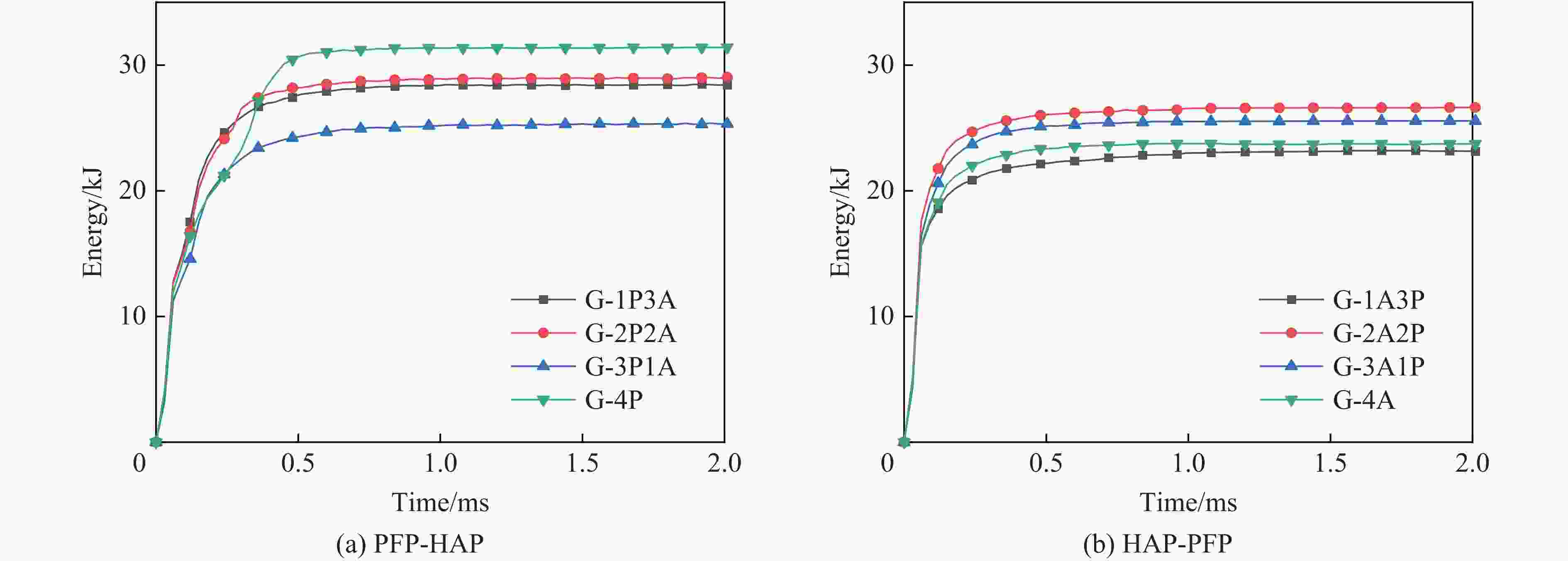

图 22 吸能层的能量时程曲线

Figure 22. Energy-history curve of the absorbing layer

下载: 全尺寸图片幻灯片

表 1 高炉矿渣、F级粉煤灰和硅灰的化学成分（质量分数）

Table 1. Chemical composition of blast furnace slag, F grade fly ash and silica fume (mass fraction)

材料	CaO	SiO₂	Al₂O₃	MgO	K₂O	Fe₂O₃	Na₂O	SO₃	Others	LOI
矿渣	43.739	25.318	13.076	7.539	0.343	0.362	0.401	2.373	6.485	1.40
粉煤灰	11.02	52.87	22.14	4.23	2.90	4.23	0.96	0.08	2.05	1.24
硅灰	0.3	94.7	1.2	0.7	0.9	0.9	1.3			3.45
注：LOI指在材料在1000℃时的烧失量。

下载: 导出CSV

表 2 G-UHPC的配合比

Table 2. Mix ratio of G-UHPC

矿渣	粉煤灰	硅灰	细砂	中砂	氢氧化钠	硅酸钠溶液	水
1.000	0.100	0.160	0.602	0.458	0.0743	0.312	0.384
注：表中数据为各组分的质量比，细砂的粒径范围为5.2 μm~0.212 mm，中砂的粒径范围为0.212~0.830 mm。

下载: 导出CSV

表 3 3003级铝合金的力学性能参数

Table 3. Mechanical properties of 3003 grade aluminum alloy

屈服强度/MPa	杨氏模量/GPa	泊松比	剪切模量/GPa
175	69	0.3	25.9

下载: 导出CSV

表 4 铝蜂窝芯的几何参数与平台应力

Table 4. Geometrical parameters and platform stress of aluminum honeycomb

材料	边长/mm	胞元长度/mm	壁厚/mm	平台应力/MPa
3003级铝合金	5	8.7	0.06	0.5

下载: 导出CSV

表 5 聚氨酯泡沫材料性能

Table 5. Material properties of polyurethane foam plates

密度/(kg·m⁻³)	压实应变	屈服应变	平台应力/MPa
70	0.64	0.082	0.59

下载: 导出CSV

表 6 钢筋和钢丝网的材料性能参数

Table 6. Material parameters of steel bar and wire mesh

材料	密度/（kg·m⁻³）	泊松比	屈服强度/MPa	抗拉强度/MPa	弹性模量/GPa
钢筋	7850	0.28	428.3	615.8	208
钢丝网	7850	0.28	800	1400	205

下载: 导出CSV

表 7 接触爆炸试验工况

Table 7. Contact explosion test condition

序号	试件编号	材料	TNT装药量/kg
1	NC	普通混凝土板	0.4
2	G-10S	10层钢丝网（SWM）增强G-UHPC板
3	G-4P	4层聚氨酯泡沫板（PFP）增强G-UHPC板
4	G-2A2P	2层蜂窝铝板（HAP）+2层聚氨酯泡沫板（PFP）增强G-UHPC板

下载: 导出CSV

表 8 接触爆炸下高强钢纤维混凝土板的破坏模式^[30]

Table 8. Failure mode of high strength steel fiber reinforced concrete slab under contact explosion

破坏模式	破坏图像	特点
爆炸成坑		在爆炸处形成爆炸坑，其他部分无宏观破坏现象，板背面无可视裂纹，锤击实声。
临界震塌		爆炸处不仅形成爆炸坑，在背面爆心投影点附近可以看到放射状微小裂纹，锤击实声。
爆炸震塌		爆炸坑加重，以背面爆心投影点为中心出现严重的震塌破坏，有环形裂缝，裂缝边有掉块。
临界贯穿		爆坑和震塌相互搭接，清理前看不到贯穿孔，但可看到贯穿孔被混凝土碎片堵住，清理后爆坑与震塌坑贯穿。
爆炸贯穿		迎爆面爆坑和背爆面震塌相互贯通，在不清理的情况下贯穿口无任何混凝土碎片残留。

下载: 导出CSV

表 9 试验和数值模拟结果汇总

Table 9. Summary of experimental and numerical results

研究方式	试件编号	爆坑直径/mm	爆坑深度/mm	剥落直径/mm	剥落深度/mm	破坏模式
试验	NC	357.5	85	667.5	100	临界贯穿
	G-10S	327.5	30	675.0	10	爆炸震塌
	G-4P	311.3	120	377.5	80	爆炸贯穿
	G-2A2P	311.3	55	0	0	临界震塌
模拟	NC	256.4	80	670.8	120	临界贯穿
	G-UHPC	220.3	55	663.2	120	爆炸震塌
	G-10S	286.6	38	678.5	100	爆炸震塌
	NC-10S	301.2	60	766.2	107	爆炸震塌
	G-4P	353.2	99	390.9	101	爆炸贯穿
	G-2A2P	321.9	62	0	0	临界震塌

下载: 导出CSV

表 10 数值模拟参数分析说明

Table 10. Numerical simulation parameter analysis description

布置顺序（由上往下）	试件编号	备注
PFP-HAP	G-1P3A	1层泡沫板+3层铝板增强G-UHPC板
	G-2P2A	2层泡沫板+2层铝板增强G-UHPC板
	G-3P1A	3层泡沫板+1层铝板增强G-UHPC板
	G-4P	4层泡沫板增强G-UHPC板
HAP-PFP	G-1A3P	1层铝板+3层泡沫板增强G-UHPC板
	G-2A2P	2层铝板+2层泡沫板增强G-UHPC板
	G-3A1P	3层铝板+1层泡沫板增强G-UHPC板
	G-4A	4层铝板增强G-UHPC板

下载: 导出CSV
