基于Tersoff势的晶格中波动传播

周子清; 王鹏飞; 徐松林

doi:10.11883/bzycj-2024-0007

基于Tersoff势的晶格中波动传播

doi: 10.11883/bzycj-2024-0007

中国科学技术大学中国科学院材料力学行为和设计重点实验室，安徽合肥 230027

基金项目: 国家自然科学基金（12372372，11672286，11872361）；高压物理与地震科技联合实验室开放基金（2019HPPES01）；中石油与中科院重大战略合作项目（2015A-4812）；中央高校基本科研业务费专项资金（WK2480000008）

详细信息

作者简介:
周子清（1997－　），男，硕士研究生，zhzqing@mail.ustc.edu.cn

通讯作者:
王鹏飞（1985－　），男，博士，副研究员，pfwang5@ustc.edu.cn

中图分类号: O347.4
计量
- 文章访问数: 66
- HTML全文浏览量: 14
- PDF下载量: 21
- 被引次数: 0
出版历程
- 收稿日期: 2024-01-02
- 修回日期: 2024-03-13
- 网络出版日期: 2024-04-23

Wave propagation in lattices based on Tersoff potential

CAS Key Laboratory for Mechanical Behavior and Design of Materials, University of Science and Technology of China, Hefei 230027, Anhui, China

摘要

摘要: 在晶格间的Tersoff势作用下分别研究了单晶体系和多晶体系中的波动传播特性。首先，在微振动的情况下，分别基于晶格间线性作用、Tersoff势作用以及含缺陷的Tersoff势作用3种势能函数研究了单晶体系中格波的传播，得到了晶格中的色散关系以及格波波速的表达式。其次，分别以碳晶格和硅晶格为例，应用有限差分方法，研究了3种势能作用下单晶体系中的波动传播过程，对比了压缩和拉伸冲击下晶格的运动差异，并讨论了入射速度对位移峰值和受力峰值的影响，揭示了单晶体系中波动传播与连续介质中波动传播的差异。最后，分别以金刚石和碳化硅为例，采用分子动力学模拟方法，研究了多晶体系中的波动传播特性，讨论了不同空间位置原子的运动差异。结果表明：多晶体系中晶格结构更复杂，其中的波动传播特性与单晶体系存在差异；缺陷的存在对波动传播规律影响显著，这种影响在多晶体系中表现得更加突出。
- 晶格动力学 /
- 微振动 /
- Tersoff势 /
- 缺陷 /
- 分子动力学
Abstract: The propagation characteristics of waves are the basis for studying the dynamic behavior of materials, and the theoretical study of waves in continuous media at the macro scale has been well developed. With the widespread application of materials and structures at the micro and nano scales, the study of wave propagation characteristics at the lattice scale is receiving increasing attention. In this article, the Tersoff potential interaction between lattices is applied to study the wave propagation characteristics in single-crystal and polycrystalline systems. Firstly, in the case of micro-vibration, the propagation of lattice waves in a single-crystal system is studied based on three potential energy functions between lattices: linear interaction, Tersoff potential, and Tersoff potential with defects. The dispersion relationship in the lattice and the expression of lattice wave velocity are obtained. Secondly, taking carbon lattice and silicon lattice as examples, the finite difference method is applied to study the wave propagation process in the single-crystal system under three potential energies. The differences in lattice motion under compressive and tensile impacts are compared, and the influence of incident velocity on the displacement peak and force peak is discussed, which reveals the difference in wave propagation between single-crystal systems and continuous media. Finally, taking diamond and silicon carbide as examples, molecular dynamics simulations are used to study the wave propagation characteristics in polycrystalline systems, and the differences in atomic motion at different spatial positions are discussed. The results indicate that the lattice structure in polycrystalline systems is more complex, and the wave propagation characteristics in polycrystalline systems are different from those in single-crystal systems. The existence of defects has a significant impact on the propagation law of waves, which is more prominent in polycrystalline systems. This study has good reference significance for the study of material dynamics performance at the micro and nano scales.
- lattice dynamics /
- micro-vibration /
- Tersoff potential /
- defect /
- molecular dynamics

HTML全文

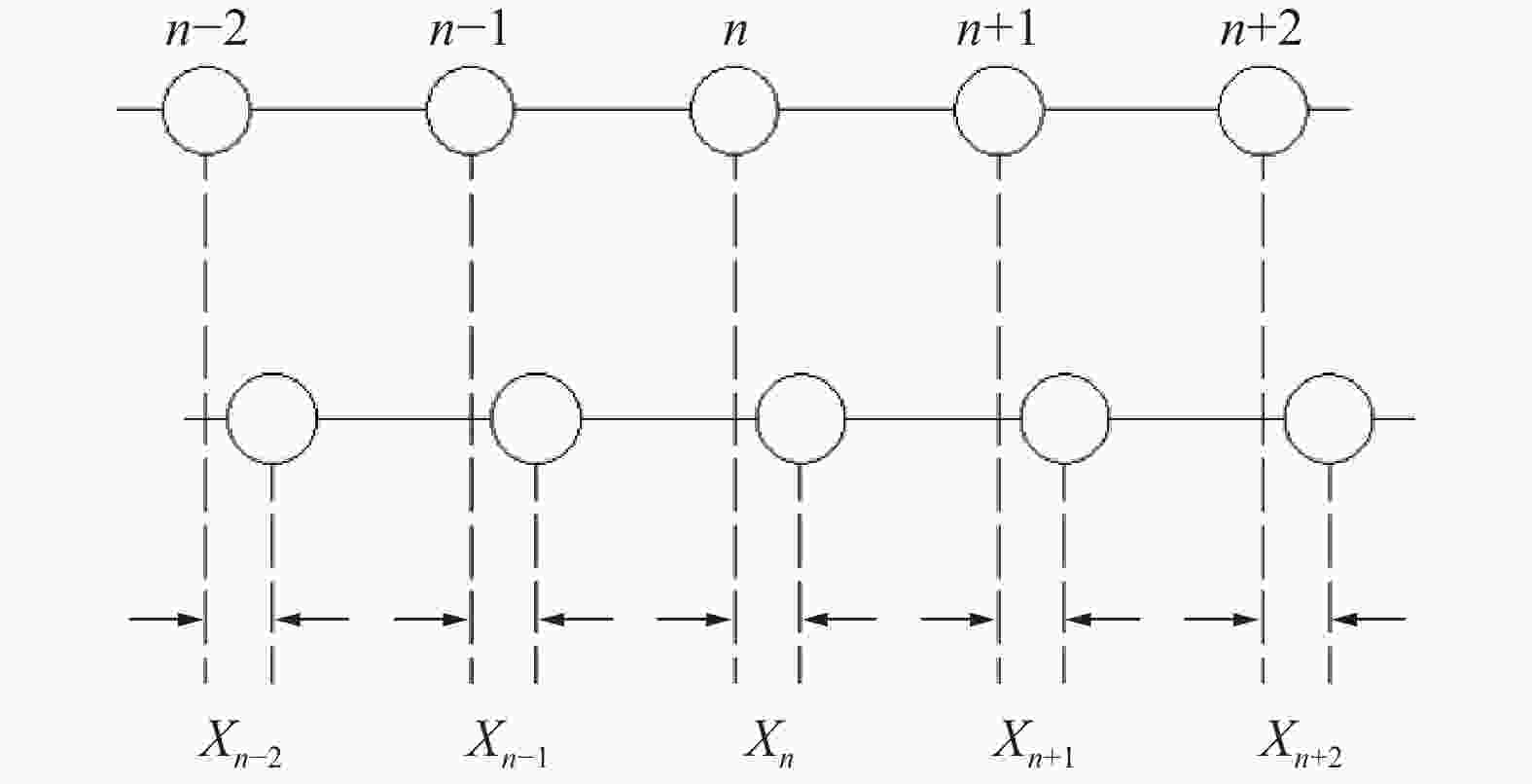

图 1 一维原子链振动模型^[27]

Figure 1. Vibration model of one-dimensional atomic chain^[27]

下载: 全尺寸图片幻灯片

图 2 Tersoff势下角频率与波数的关系

Figure 2. Relationship between angular frequency and wavenumber under Tersoff potential

下载: 全尺寸图片幻灯片

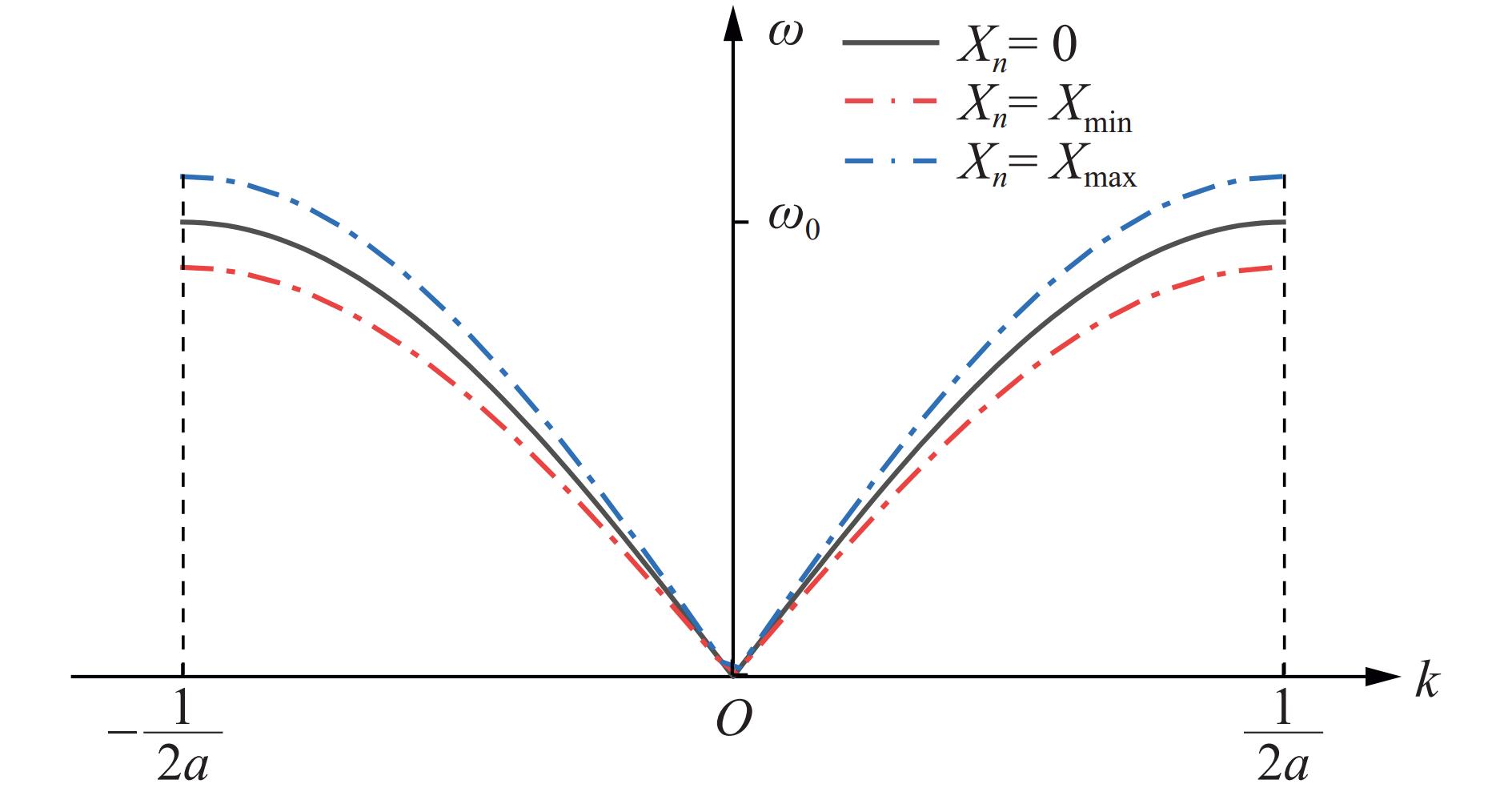

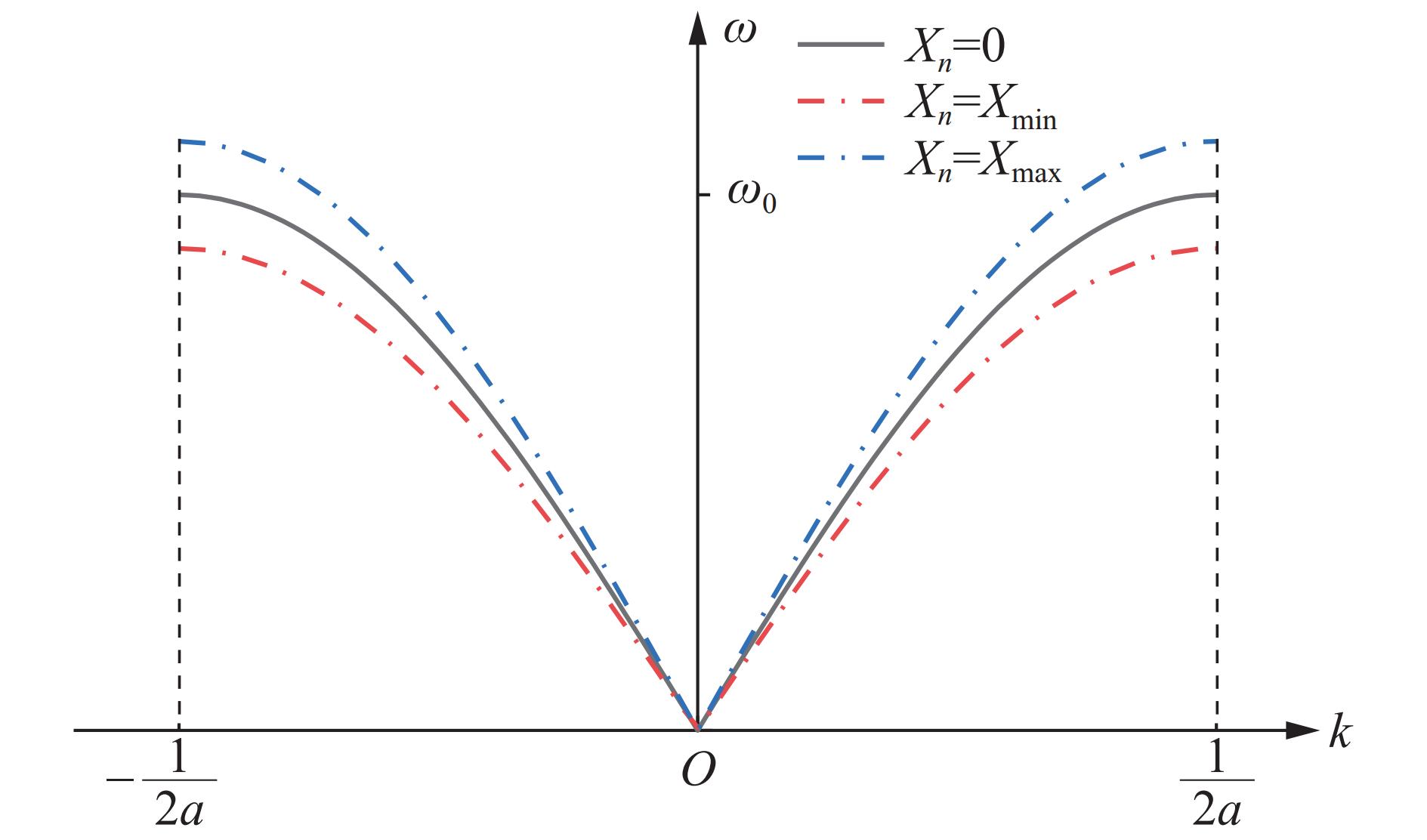

图 3 含缺陷的Tersoff势下角频率与波数的关系

Figure 3. Relationship between angular frequency and wavenumber under Tersoff potential with defects

下载: 全尺寸图片幻灯片

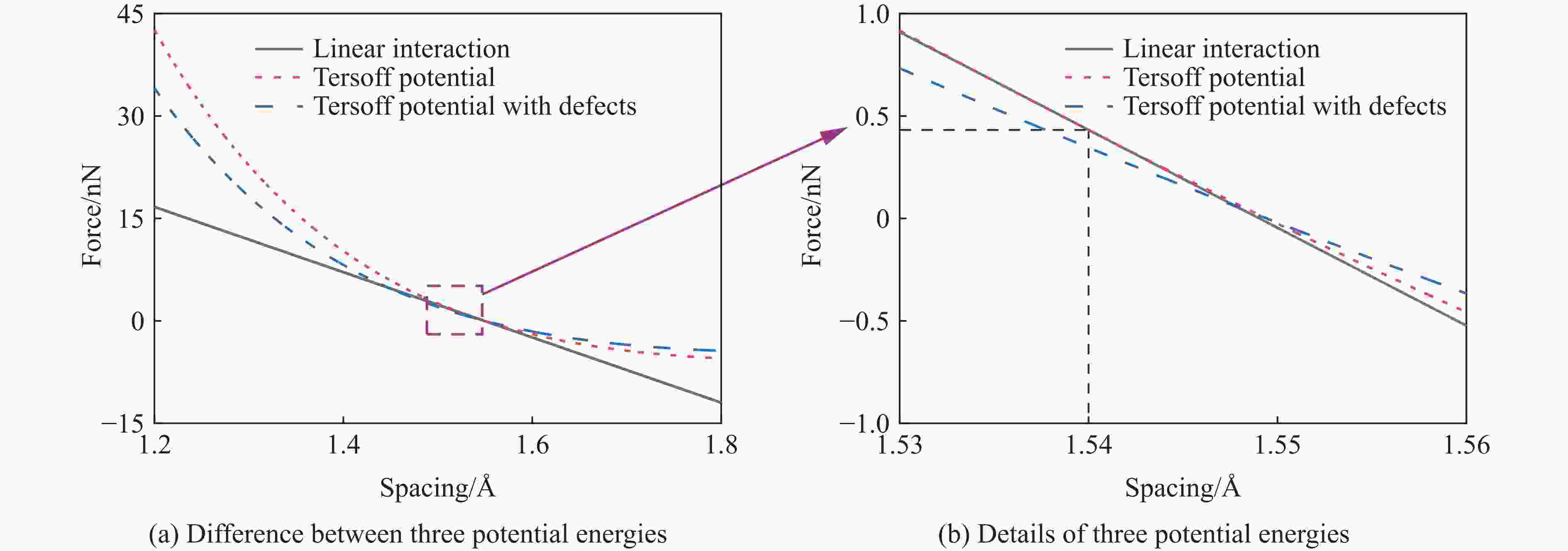

图 4 碳晶格中势力与晶格间距的关系

Figure 4. Relationship between force and lattice spacing in carbon lattice

下载: 全尺寸图片幻灯片

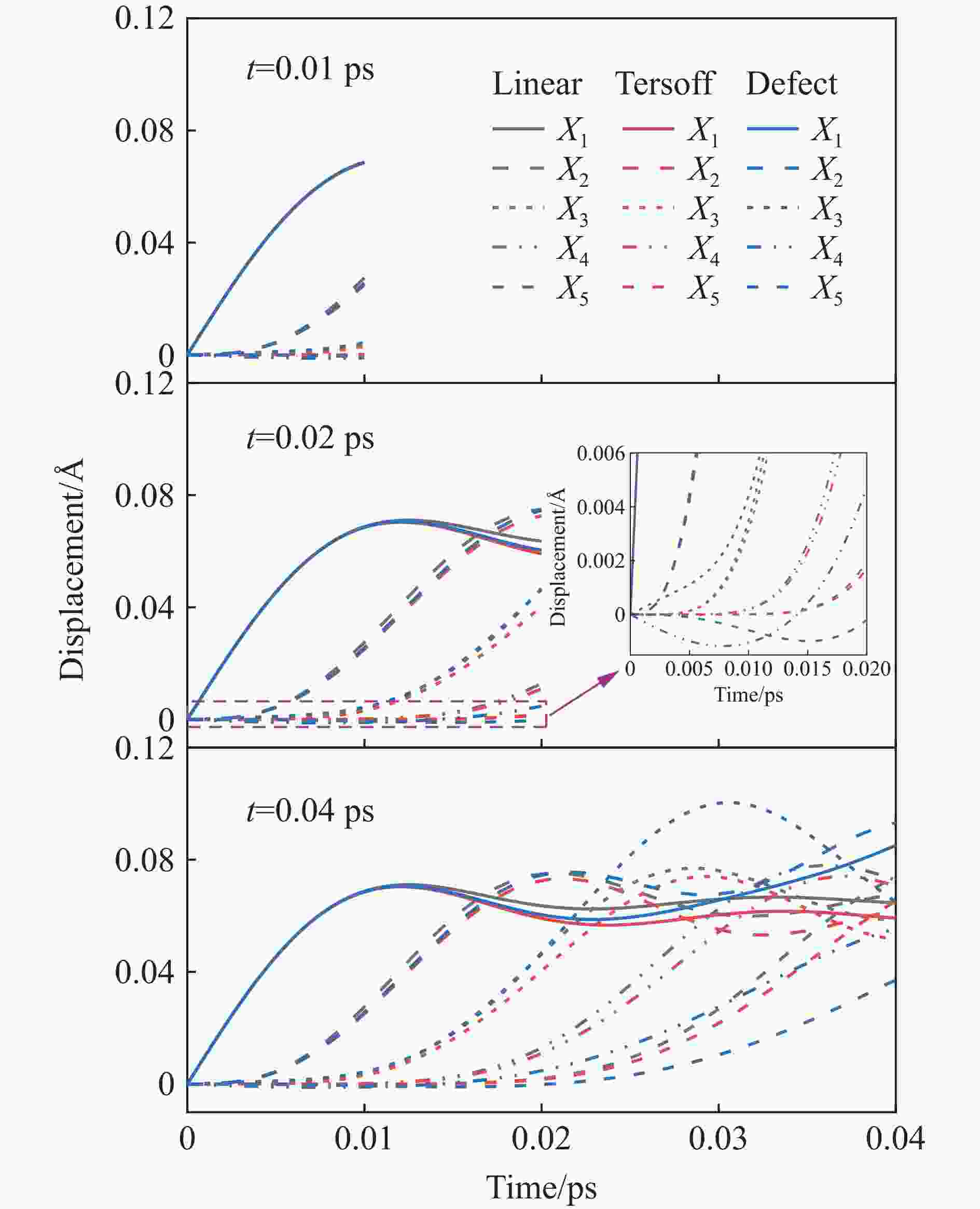

图 5 不同势作用下碳晶格中波的传播特性

Figure 5. Propagation characteristics of waves in carbon lattice under different potentials

下载: 全尺寸图片幻灯片

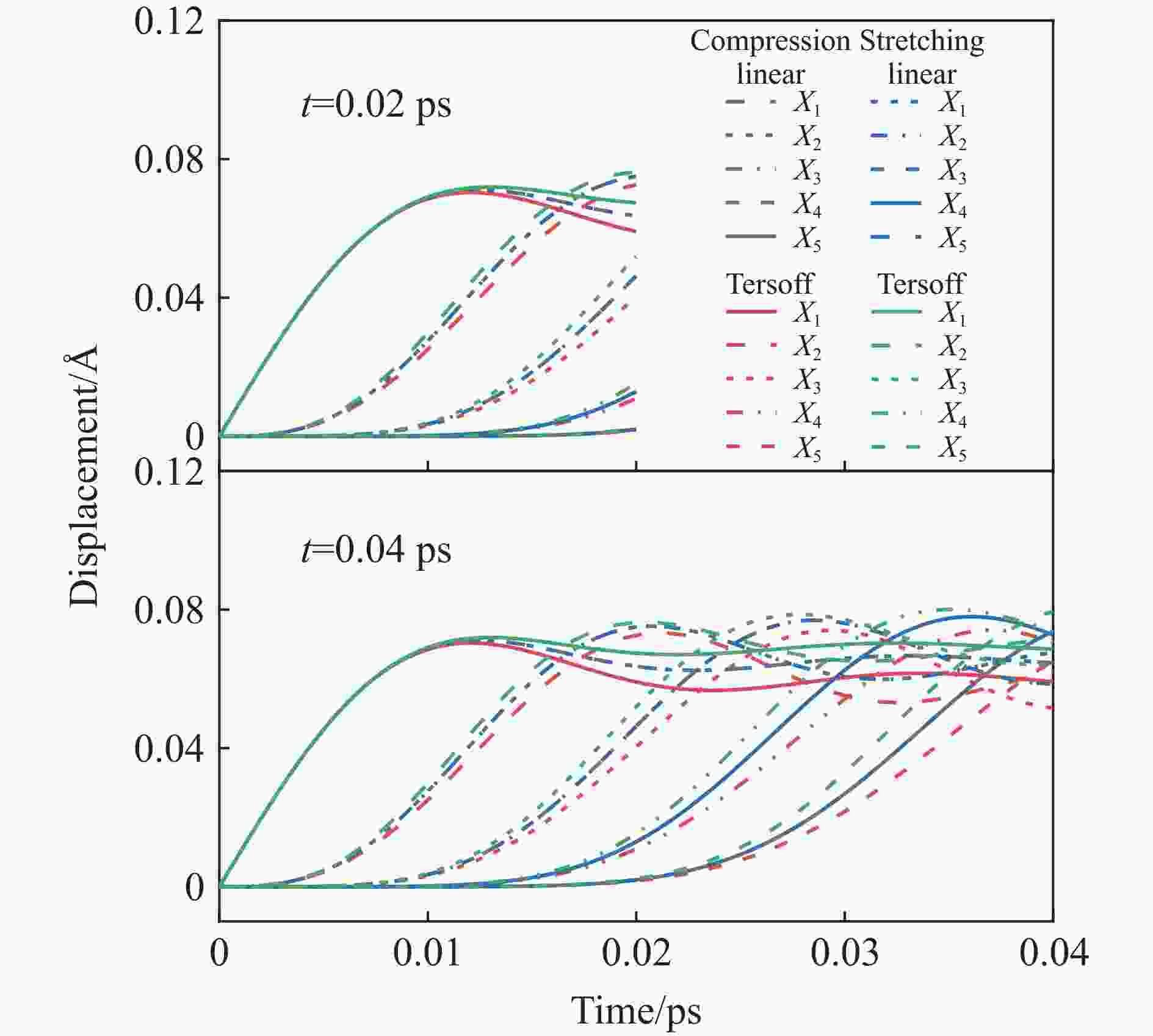

图 6 压缩和拉伸过程中波形的对比

Figure 6. Comparison of waveforms during compression and stretching processes

下载: 全尺寸图片幻灯片

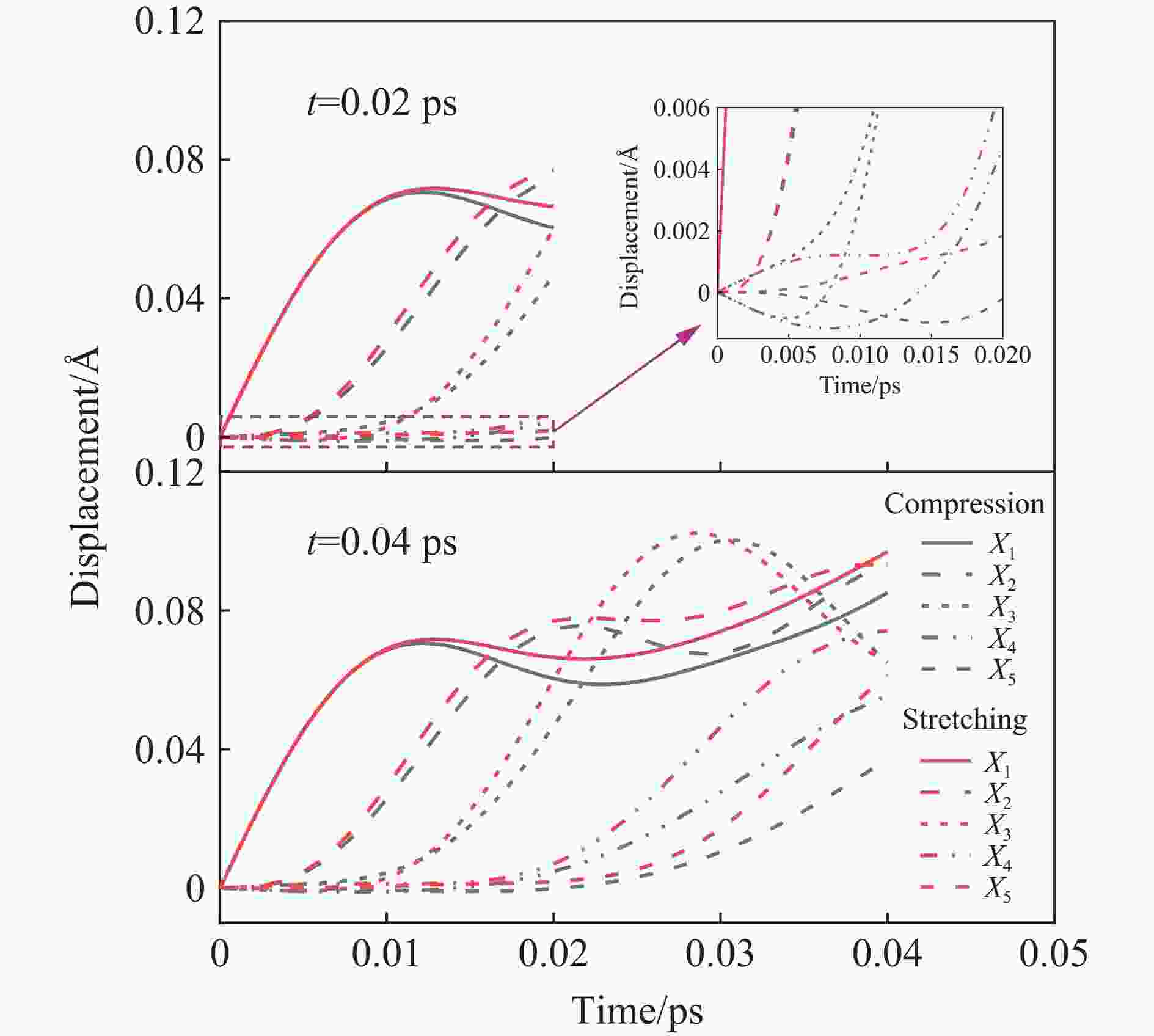

图 7 含缺陷时压缩和拉伸过程中波形的对比

Figure 7. Comparison of waveforms during compression and stretching processes with defects

下载: 全尺寸图片幻灯片

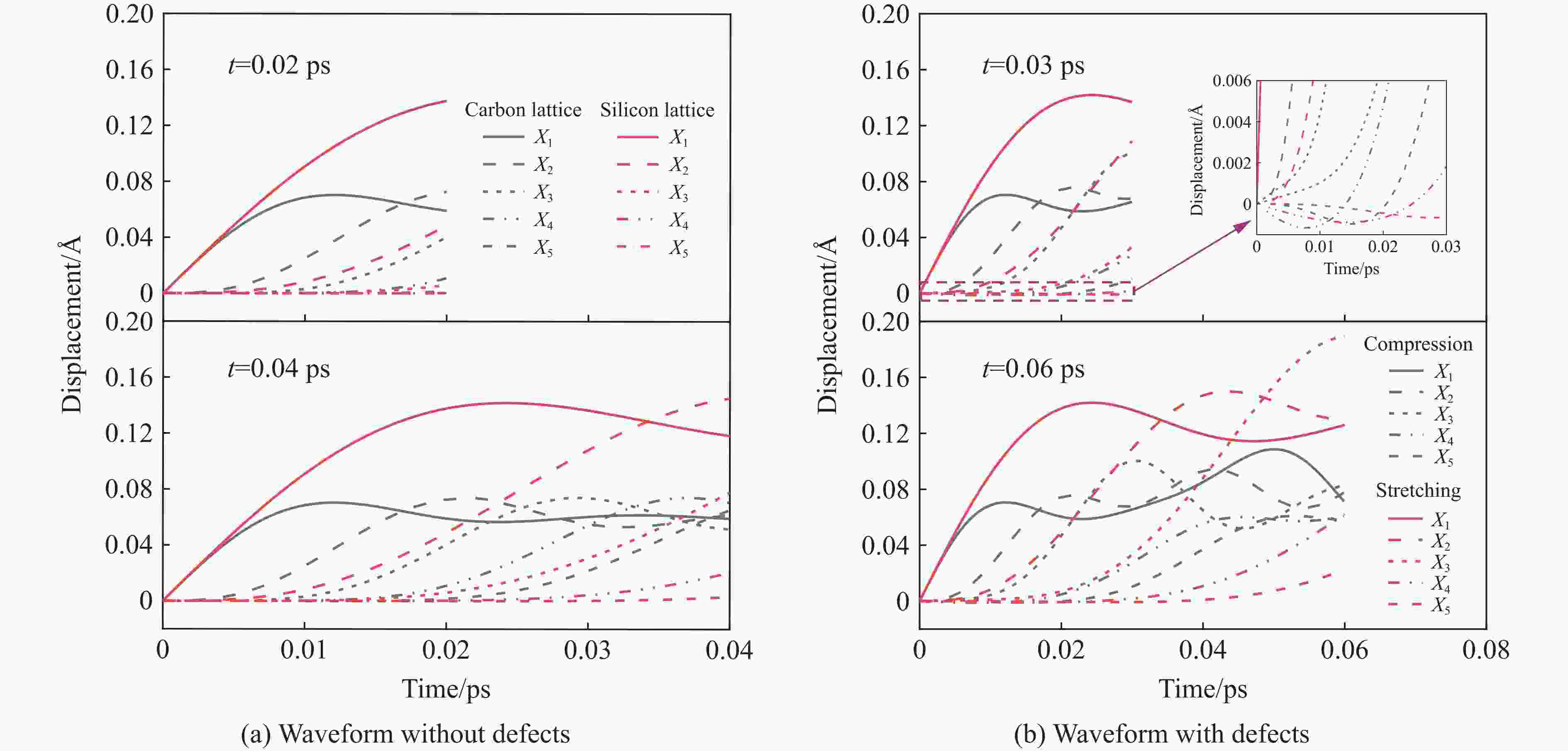

图 8 C晶格和Si晶格中波的传播特性

Figure 8. Propagation characteristics of waves in carbon lattice and silicon lattice

下载: 全尺寸图片幻灯片

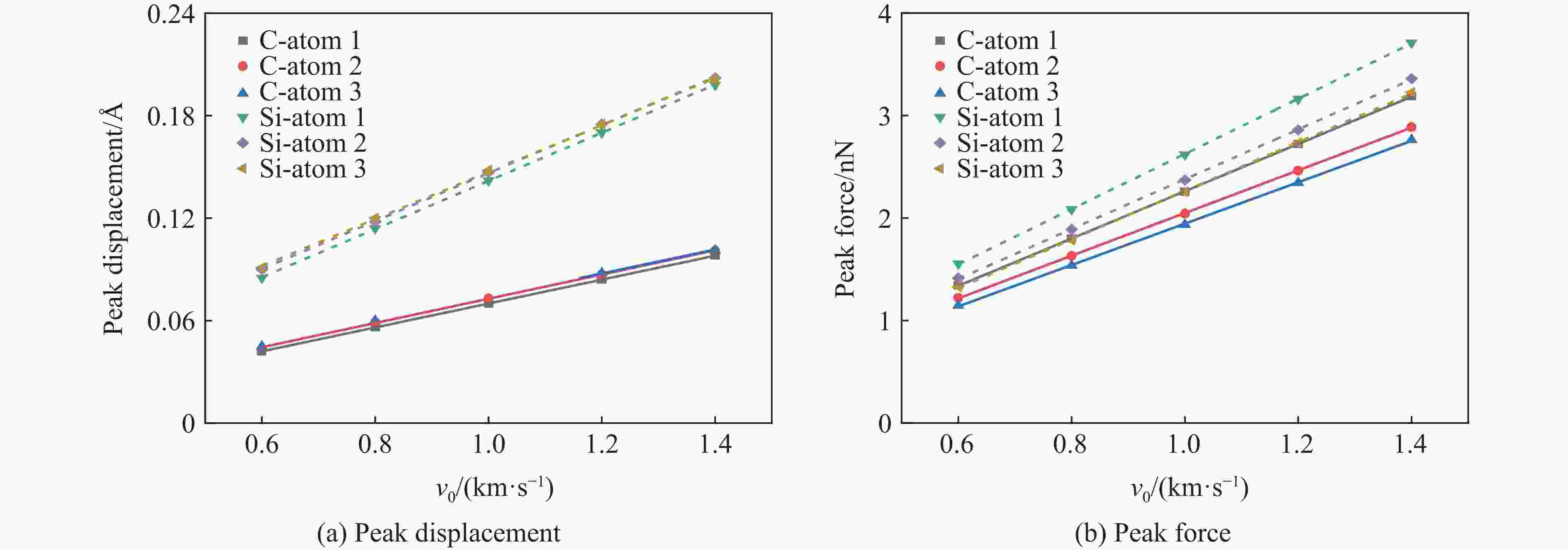

图 9 单晶中入射速度的影响

Figure 9. Influence of incident velocity in single crystals

下载: 全尺寸图片幻灯片

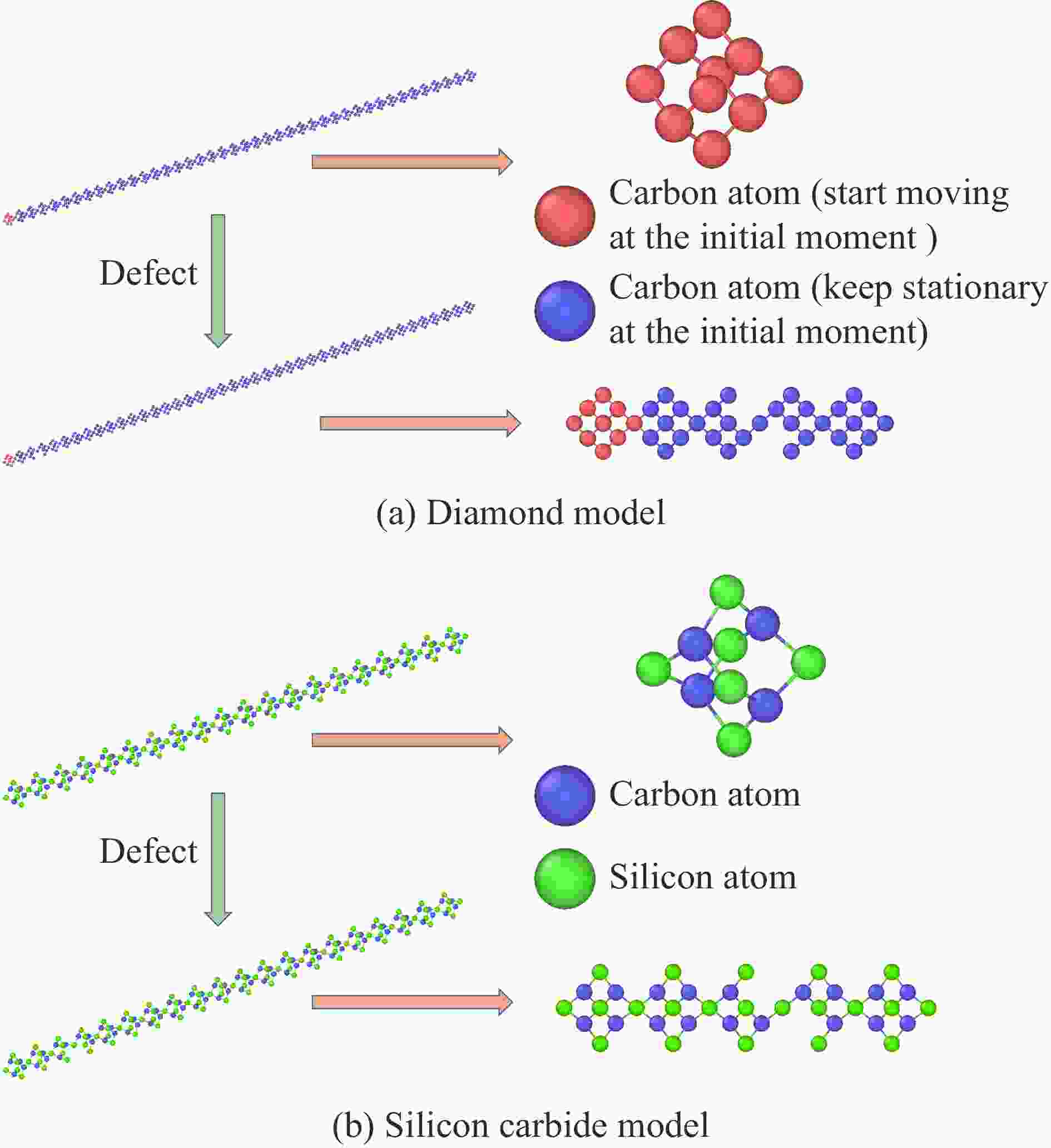

图 10 金刚石和碳化硅的分子动力学模型

Figure 10. Molecular dynamics models of diamond and silicon carbide

下载: 全尺寸图片幻灯片

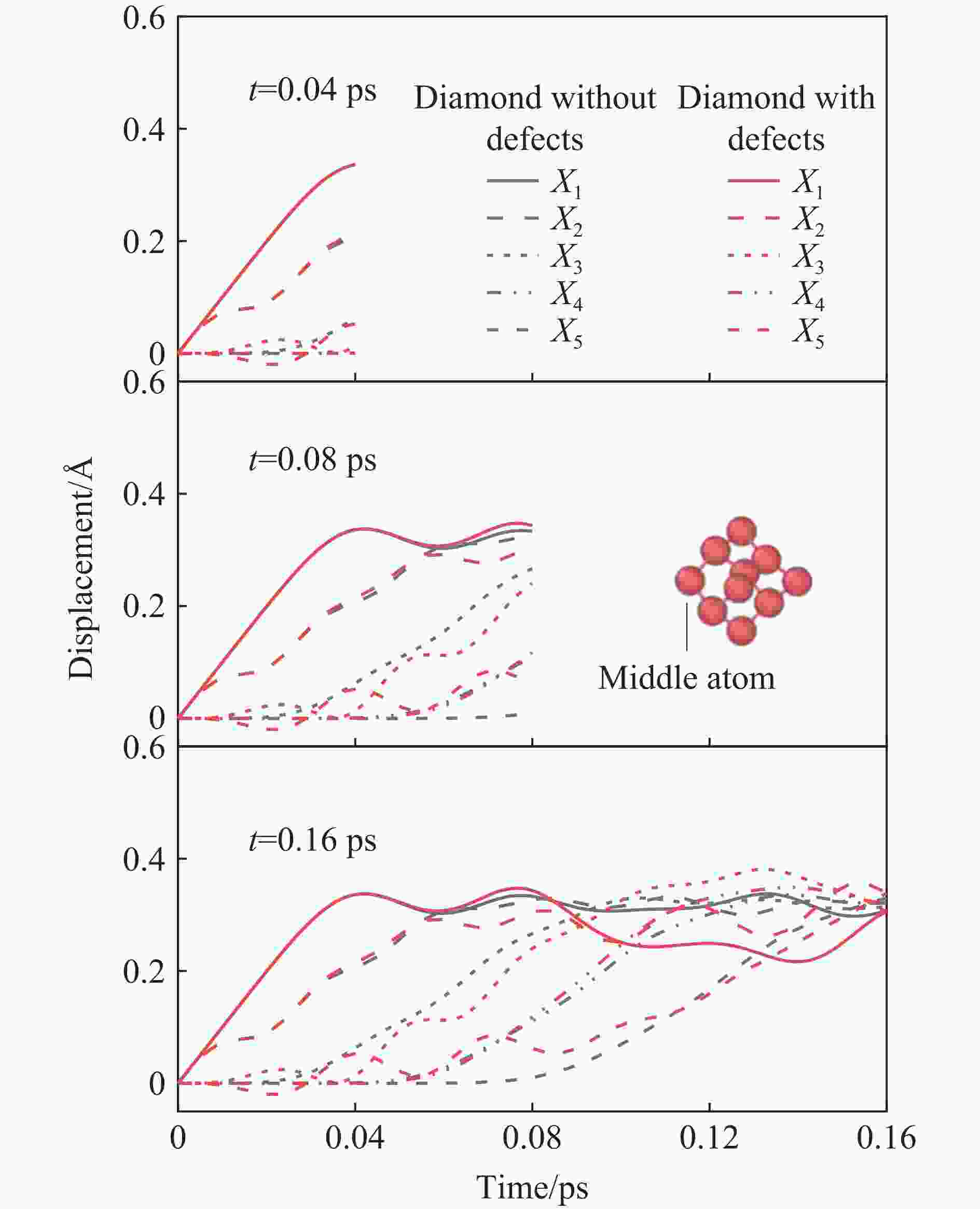

图 11 金刚石中波的传播特性

Figure 11. Propagation characteristics of waves in diamond

下载: 全尺寸图片幻灯片

图 12 金刚石中间与顶端原子的运动过程

Figure 12. Motion process of the middle and top atoms in diamond

下载: 全尺寸图片幻灯片

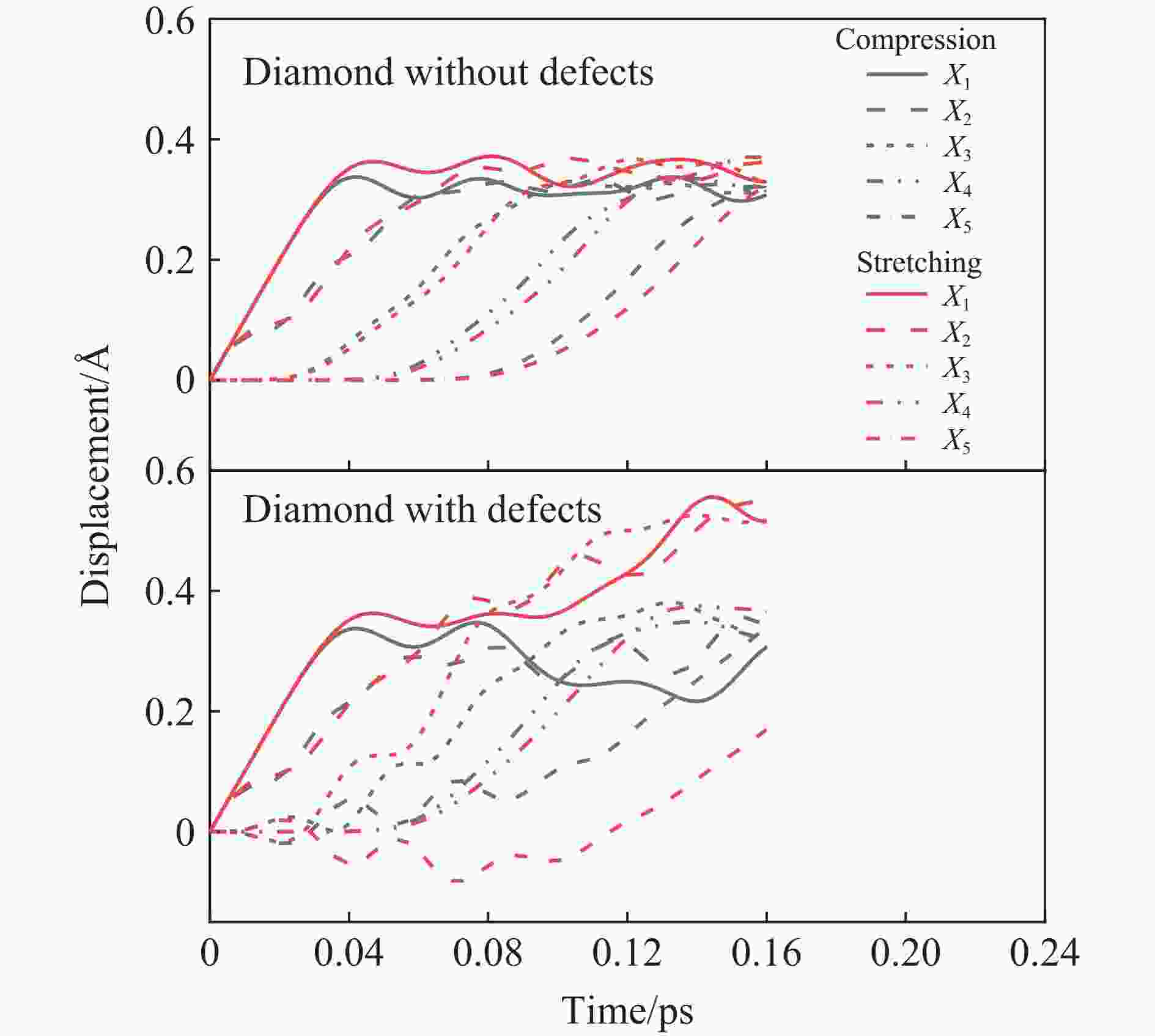

图 13 压缩和拉伸过程中金刚石中的波传播特性

Figure 13. Wave propagation characteristics of diamond during compression and stretching processes

下载: 全尺寸图片幻灯片

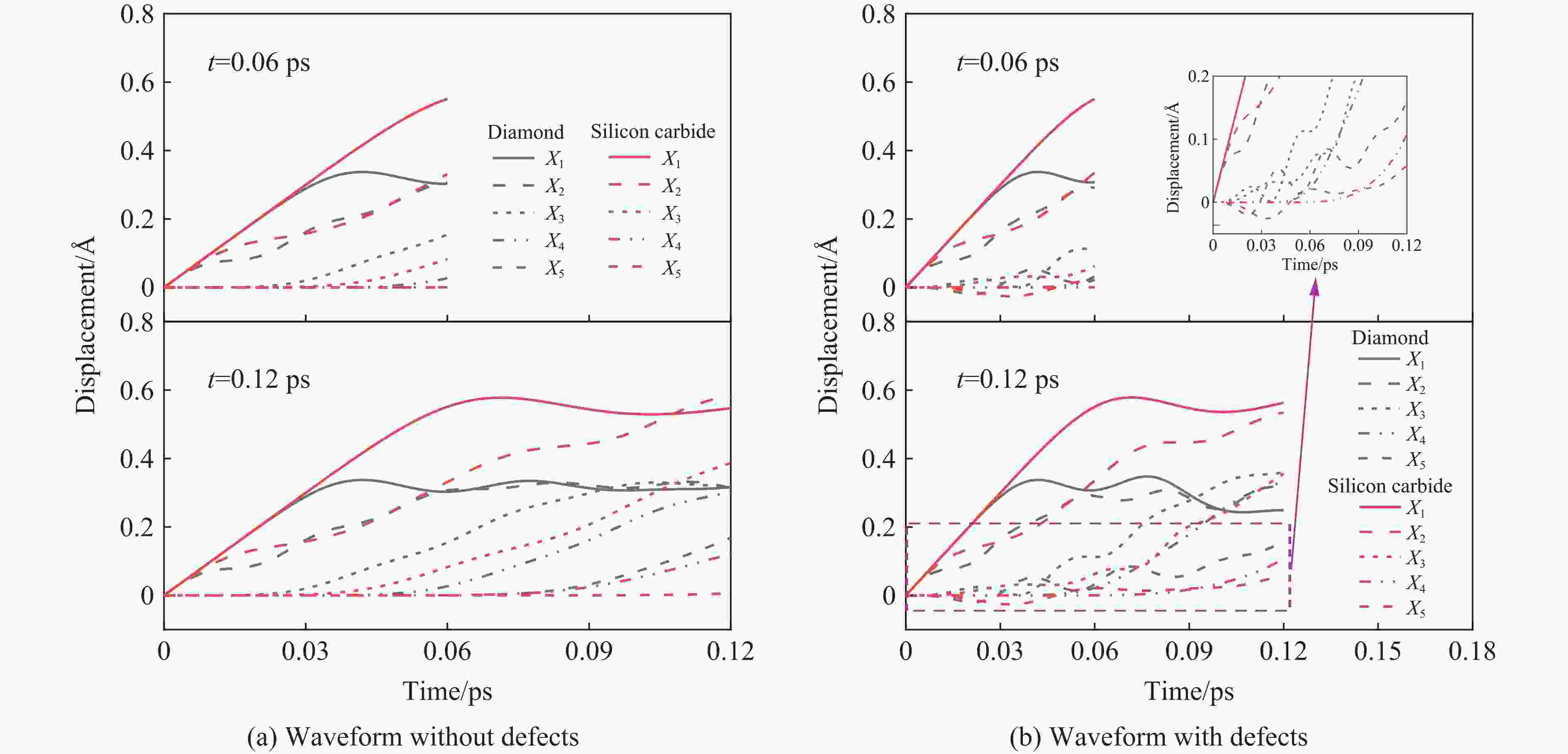

图 14 金刚石与碳化硅中波传播过程的对比

Figure 14. Comparison of wave propagation processes in diamond and silicon carbide

下载: 全尺寸图片幻灯片

图 15 多晶体系中入射速度的影响

Figure 15. Influence of incident velocity in polycrystalline systems

下载: 全尺寸图片幻灯片

表 1 Tersoff势函数中的材料参数^[30]

Table 1. Material parameters in Tersoff potential^[30]

共价键种类	m₁	γ	λ₃/Å^–1	c	d	cosθ₀	n₁
C―C	3.0	1.0	0	38 049	4.348 4	–0.570 58	0.727 51
Si―Si	3.0	1.0	0	100 390	16.217 0	–0.598 25	0.787 34

共价键种类	β	λ₂/Å^–1	B/eV	R/Å	D/Å	λ₁/Å^–1	A₁/eV
C―C	1.572 4×10^–7	2.211 90	346.70	1.95	0.15	3.487 9	1 393.6
Si―Si	1.100 0×10^–6	1.732 22	471.18	2.85	0.15	2.479 9	1 830.8

下载: 导出CSV

表 2 2种晶格在平衡位置处的参数

Table 2. Parameters of two types of lattices at equilibrium positions

原子种类	摩尔质量/(g·mol⁻¹)	平衡距离/Å	晶格常数/Å
C	12	1.54	3.57
Si	28	2.35	5.43

下载: 导出CSV
