大尺度复杂环境下的强爆炸冲击波传播数值模拟技术研究

寿列枫; 祝文军; 李秦超; 马龙; 姚成宝

doi:10.11883/bzycj-2024-0511

大尺度复杂环境下的强爆炸冲击波传播数值模拟技术研究

doi: 10.11883/bzycj-2024-0511

寿列枫^{1, 2,},
祝文军³,
李秦超²,
马龙²,
姚成宝^2, ,

1.
北京理工大学，北京 100081
2.
西北核技术研究所强脉冲辐射环境模拟与效应全国重点实验室，陕西西安 710024
3.
中国工程物理研究院流体物理研究所，四川绵阳 621999

详细信息

作者简介:
寿列枫（1980－　），男，博士研究生，副研究员，shouliefeng@nint.ac.cn

通讯作者:
姚成宝（1984－　），男，博士，副研究员，yaocheng@pku.edu.cn

中图分类号: O382.1
计量
- 文章访问数: 41
- HTML全文浏览量: 17
- PDF下载量: 23
- 被引次数: 0
出版历程
- 收稿日期: 2024-12-30
- 修回日期: 2025-06-04
- 网络出版日期: 2025-05-26

Numerical schemes of intensive blast wave propagation in large scale complex enviroments

SHOU Liefeng^{1, 2
,},
ZHU Wenjun³,
LI Qinchao²,
MA Long²,
YAO Chengbao^{2
, ,}

1.
Beijing Institute of Technology, Beijing 100081, China
2.
National Key Laboratory of Intense Pulsed Radiation Simulation and Effect, Northwest Institute of Nuclear Technology, Xi'an, Shaanxi 710024, China
3.
Institude of Fluid Physics, China Academy of Engineering Physics, Mianyang, Sichuan 621999, China

摘要

摘要: 为实现大尺度复杂空间范围内强爆炸冲击波的高效数值模拟。基于扩散界面多组分模型，建立适用于极端条件、任意多介质相互作用的可压缩多相流数值方法，并结合人工智能技术，提出一种具有MUSCL-THINC-BVD特征的且兼具鲁棒性、低耗散、高效率重构方法。该方法能够在激波、接触间断和物质界面等关键区域自适应选择最优重构方式，实现全局数值耗散最小化，同时较传统BVD（boundary variation diminishing）框架下的格式具有更高的计算效率。进一步结合全球地理信息系统，发展了自动化几何建模与网格剖分技术、网格自适应及大规模并行计算方法，从而能够高效处理网格规模达数十亿、压力范围覆盖10³~10¹⁵ Pa、模拟区域不小于10 km的大尺度复杂城市环境中的强爆炸冲击波问题。通过对复杂地形及真实城市建筑条件下冲击波传播过程的完整数值模拟，验证了数值方法可靠性。
- 多相流 /
- 重构方法 /
- 爆炸冲击波 /
- 真实地形 /
- 局部城市
Abstract: A compressible multiphase flow numerical scheme, induced from the multi- component diffuse interface model with arbitrary number of materials, is established to simulate the interaction between distinct materials under extreme conditions. A robust, low dissipation and high efficiency reconstruction method, the MTBVD (muscl thinc boundary variation diminishing), is proposed with the aid of artificial intelligence technology, which can adaptively select the most suitable reconstruction method in the essential regions such as shock wave, contact discontinuity and material interface, and can achieve the minimum global numerical dissipation. Furthermore, it has a higher computational efficiency than the traditional BVD (boundary variation diminishing) scheme. The automatic geometric modeling and grid meshing based on global geographic information system, adaptive mesh refinement and large-scale parallel computing method are established to realize the whole numerical simulation of shock wave propagation in complex terrain and real urban environments. Our schemes allows for the effective simulation of intense blast wave scenarios on a large scale within intricate urban settings, employing billions of meshes, a pressure spectrum ranging from 10³ Pa to 10¹⁵ Pa, and a minimum spacing size of 10 km. We have conducted multiple numerical simulations that demonstrate the propagation of blast waves through complex landscapes and urban areas, which corroborate our methodologies.
- multiphase flow /
- reconstruction scheme /
- blast wave /
- real terrain /
- local urban

HTML全文

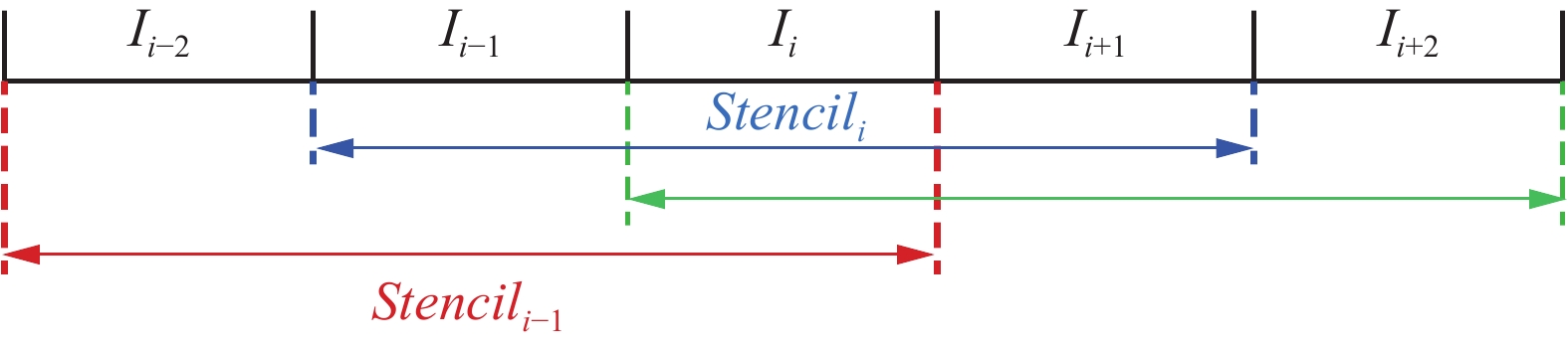

图 1 deepMTBVD模板示意图

Figure 1. Schematic diagram of deepMTBVD stencils

下载: 全尺寸图片幻灯片

图 2 网格自适应的悬点情况及解决策略

Figure 2. Hanging nodes in adaptive mesh refinement and solution strategy

下载: 全尺寸图片幻灯片

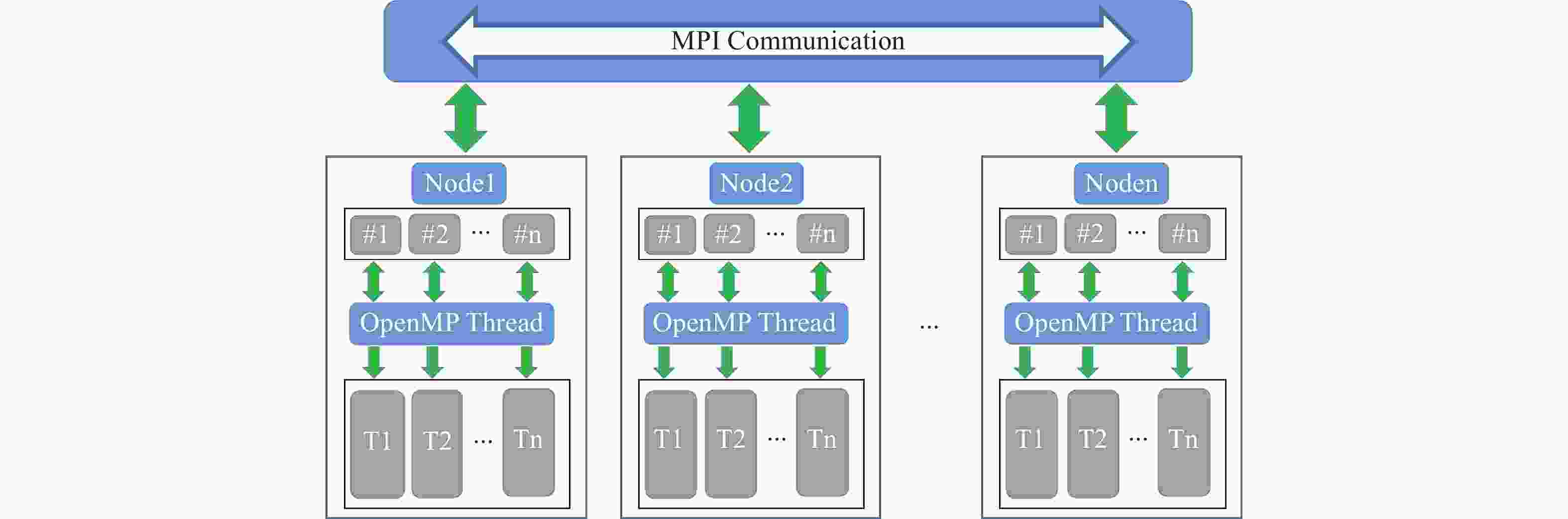

图 3 MPI+OpenMP混合并行编程模式

Figure 3. Hybrid parallel programming model of MPI+OpenMP

下载: 全尺寸图片幻灯片

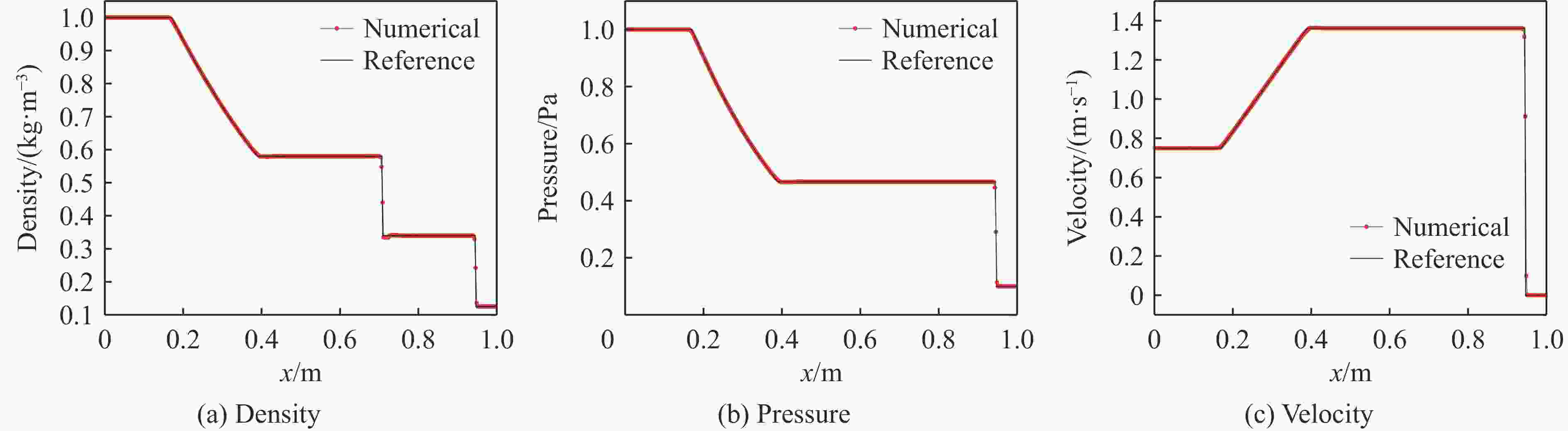

图 4 工况1的数值解与参考解的对比

Figure 4. The Comparison of condition 1 between numerical solution and reference data

下载: 全尺寸图片幻灯片

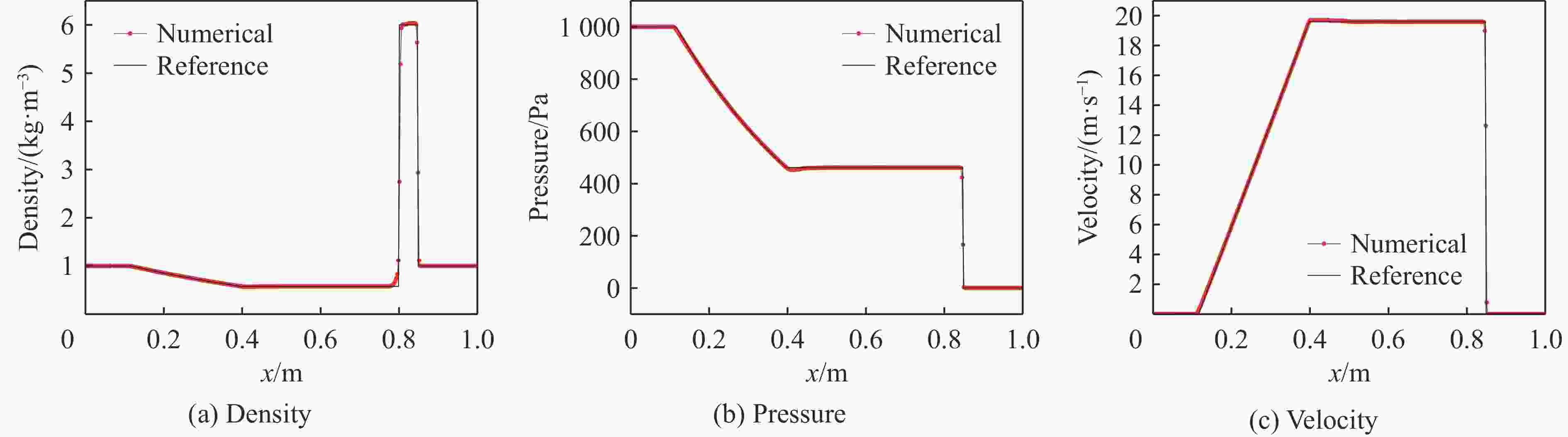

图 5 工况2的数值解与参考解的对比

Figure 5. The Comparison of condition 2 between numerical solution and reference data

下载: 全尺寸图片幻灯片

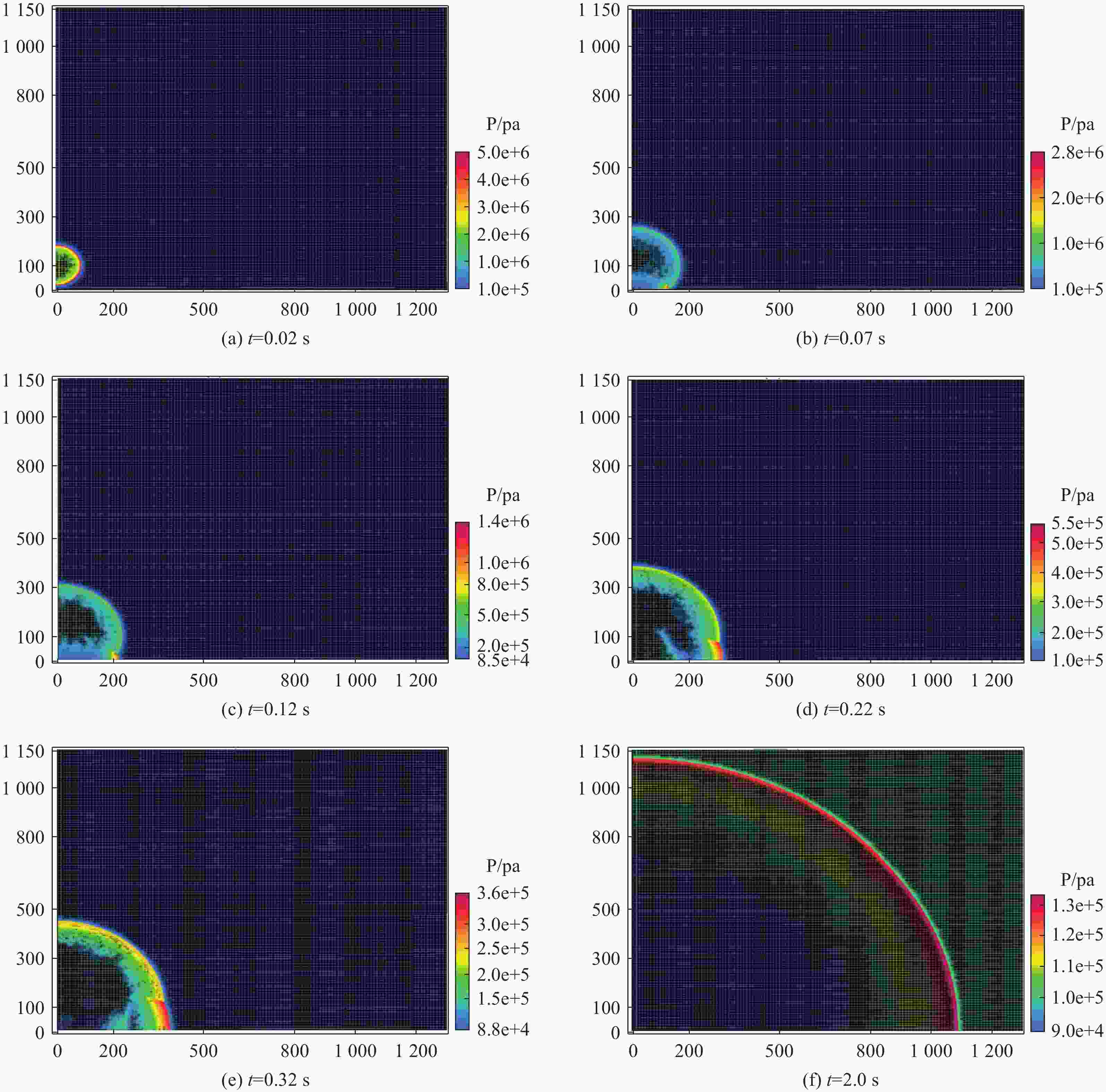

图 6 空中强爆炸典型时刻的压力云图

Figure 6. Pressure contours of air blast at typical time

下载: 全尺寸图片幻灯片

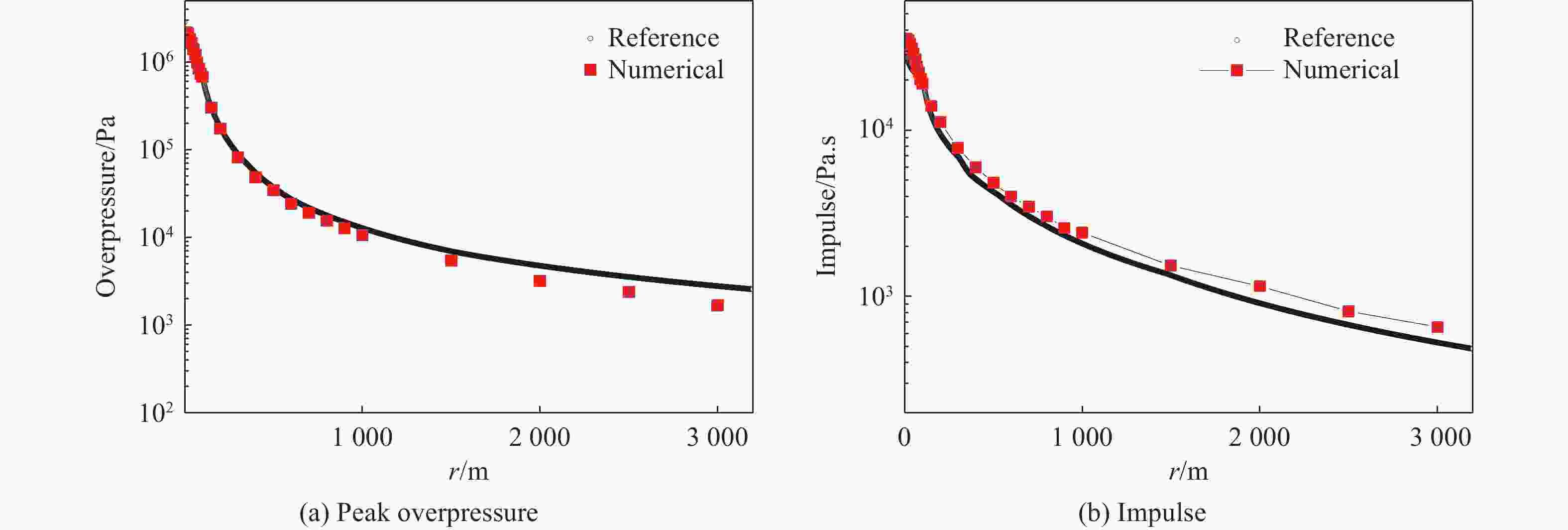

图 7 地面不同距离处的冲击波参数

Figure 7. Blast wave parameters on the ground at different radii

下载: 全尺寸图片幻灯片

图 8 空中强爆炸冲击波在复杂地形传播典型时刻的压力云图(压力单位：Pa)

Figure 8. Typical pressure contours of blast wave in complex grounds

下载: 全尺寸图片幻灯片

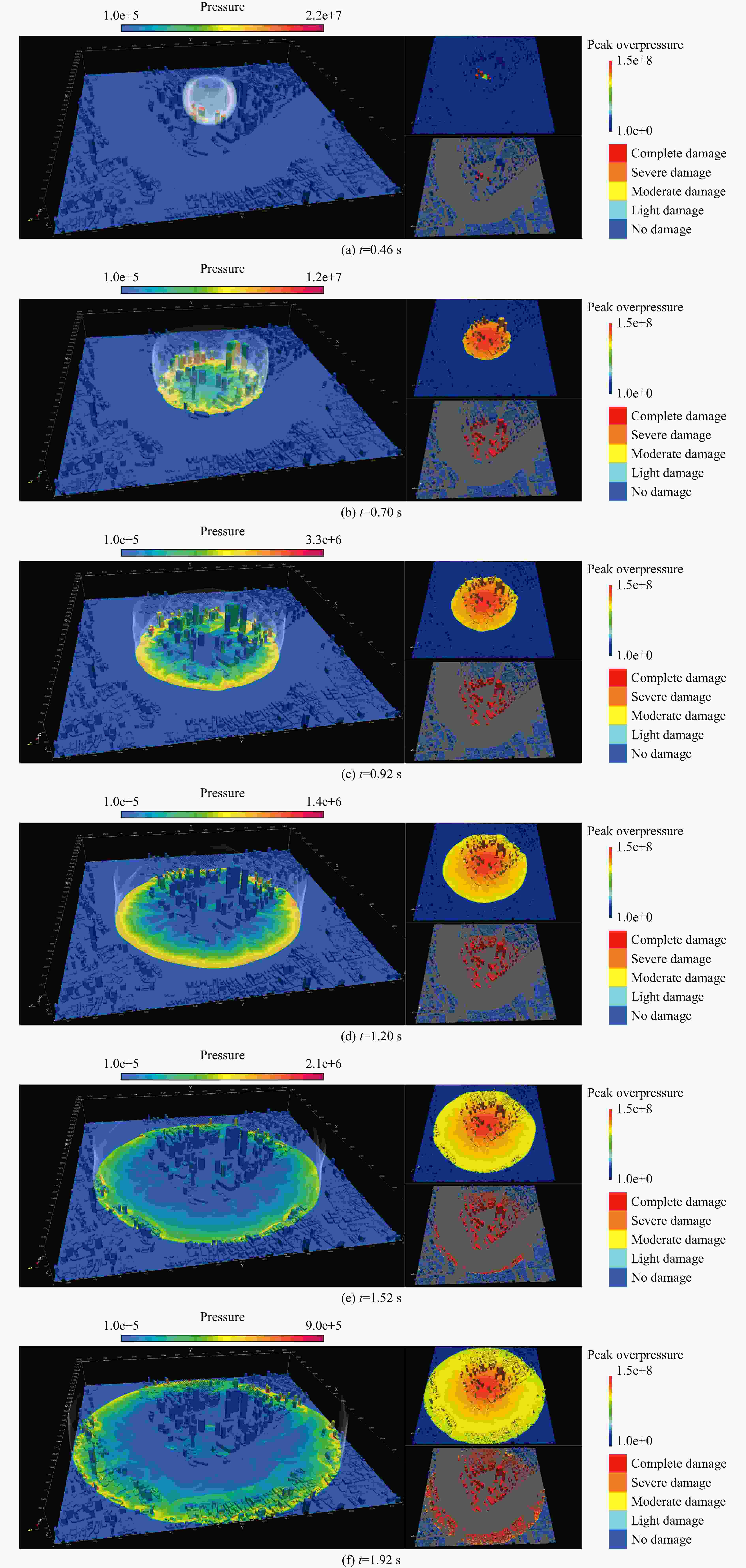

图 9 空中强爆炸冲击波在城市环境传播典型时刻的压力云图(压力单位：Pa)

Figure 9. Typical pressure contours of blast wave in urban enviroments

下载: 全尺寸图片幻灯片

表 1 一维激波管数值算例的初值条件

Table 1. Initial conditions of one-dimensional shock tube problems

工况 ρ_l/(kg·m⁻³) u_l/(m·s⁻¹) p_l/Pa ρ_r/(kg·m⁻³) u_r/(m·s⁻¹) p_r/Pa

1 1.0 0.75 1.0 0.125 0.0 0.1

2 1.0 0.0 1000 0.0 0.0 0.01

下载: 导出CSV
