Dynamic mechanical properties and constitutive model of ultra-high performance concrete subjected to coupled high-temperature and impact loading
-

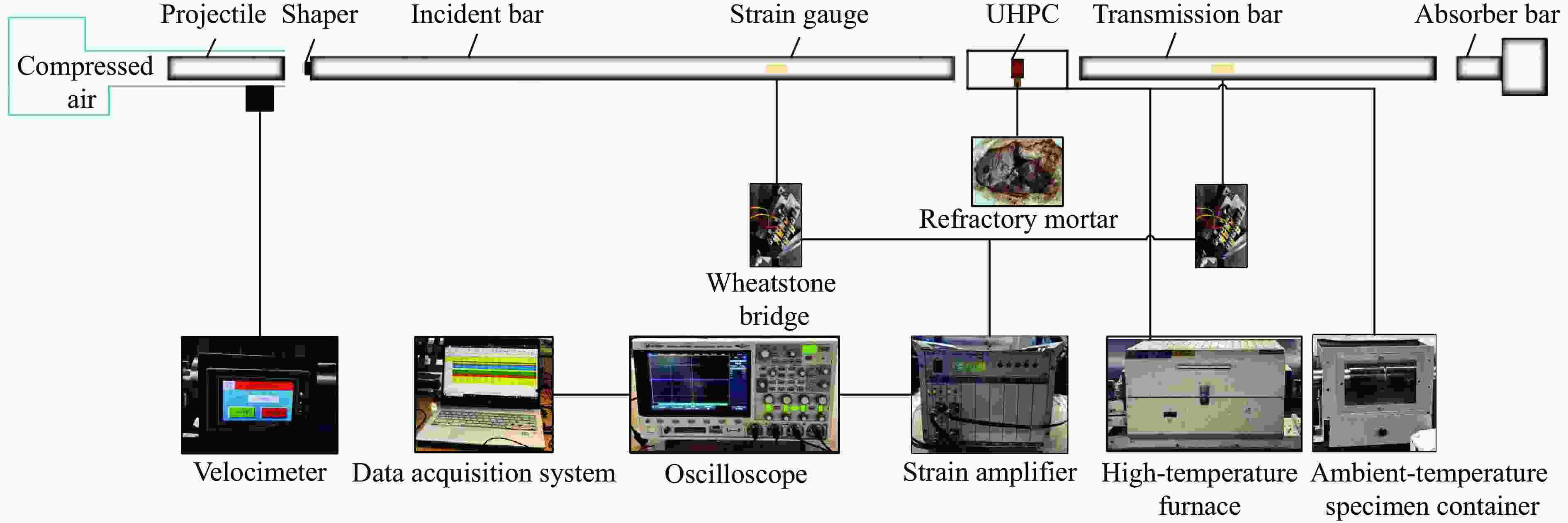

摘要: 为研究超高性能混凝土（ultra-high performance concrete, UHPC）在高温-爆炸冲击耦合作用下的动态力学特性，采用高温分离式霍普金森压杆（split Hopkinson pressure bar, SHPB）实验系统，开展了25~600 ℃温度及90~200 s−1应变率范围内C140 UHPC单轴压缩实验，系统分析了高温与冲击耦合作用下材料的强度、应变、韧性、应力-应变关系及破坏形态，揭示了温度与应变率效应对其动态力学性能的影响规律，并基于温度效应修正了Holmquist-Johnson-Cook（HJC）本构模型屈服面。结果表明：UHPC在高温动态压缩下表现出显著的应变率强化效应，但高温同时劣化其力学性能；材料应变能力与韧性演化规律源于温度效应与应变率效应的协同作用；在相同温度下，提高应变率可加剧UHPC的破坏程度。当温度超过400 ℃时，UHPC基体劣化及钢纤维氧化致使材料整体呈现脆性破坏特征，然而其局部芯部仍保持完整并具有显著残余承载能力；修正后的HJC屈服面适用于该类材料在高温与冲击耦合作用下的动态力学性能研究。Abstract: In order to investigate the dynamic mechanical properties of ultra-high performance concrete (UHPC) under coupled high-temperature and explosive impact effects, a 75 mm-diameter high-temperature split Hopkinson pressure bar (SHPB) apparatus was employed. Uniaxial compression tests were conducted on C140 UHPC specimens in the temperatures ranging from 25 ℃ to 600 ℃ and the strain rate ranging from 90 s−1 to 200 s−1. A systematic analysis was performed on the strength, strain, toughness, stress-strain relationship, and failure modes of the material under the combined condition of high temperature and impact loading. The influence of temperature and strain rate on the dynamic mechanical properties was revealed, and the yield surface of the Holmquist-Johnson-Cook (HJC) constitutive model was modified by incorporating thermal effects. The results indicate that UHPC exhibits a significant strain rate strengthening effect under high-temperature dynamic compression, while elevated temperatures simultaneously degrade its mechanical properties. The evolution of material strain capacity and toughness stems from the synergistic interaction between thermal and strain rate effects. At identical temperatures, increased strain rates exacerbate the damage of UHPC. When temperatures exceed 400 ℃, matrix degradation and steel fiber oxidation cause the material to exhibit overall brittle failure characteristics; however, its local core region remains integrity and retains notable residual load-bearing capacity. The modified HJC yield surface is suitable for describing the dynamic mechanical behavior of this material under coupled high-temperature and impact conditions. These findings provide theoretical foundations and data support for the safety design and evaluation of military and civil protective engineering.
-

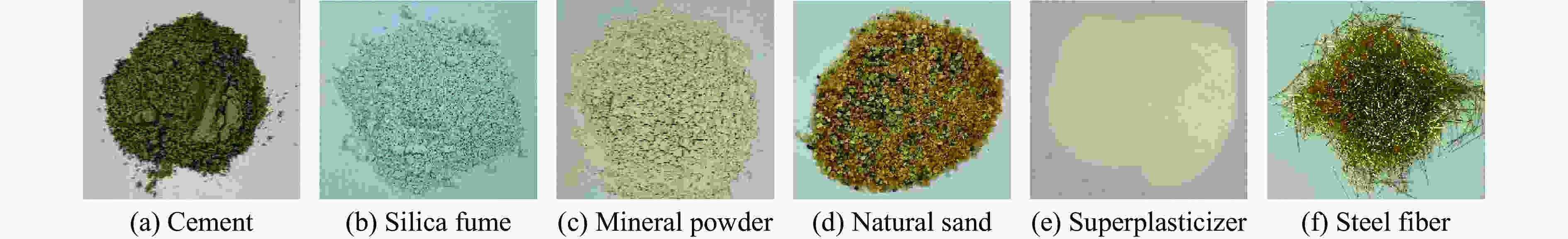

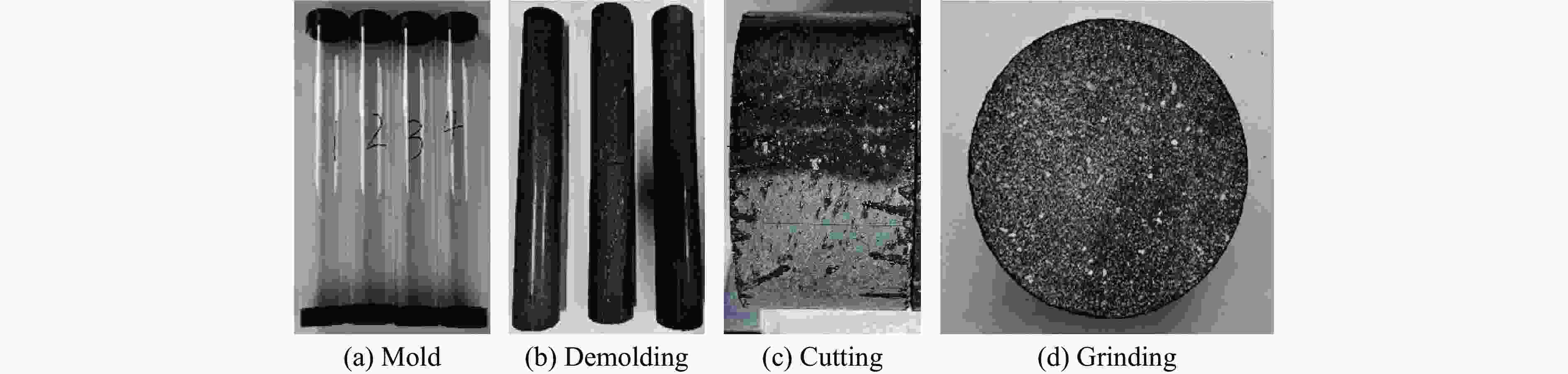

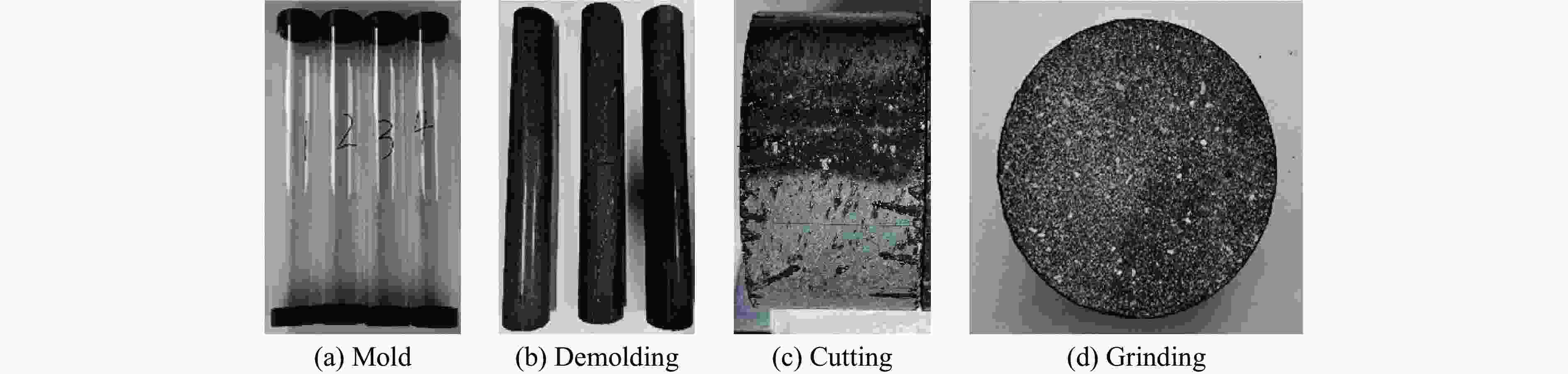

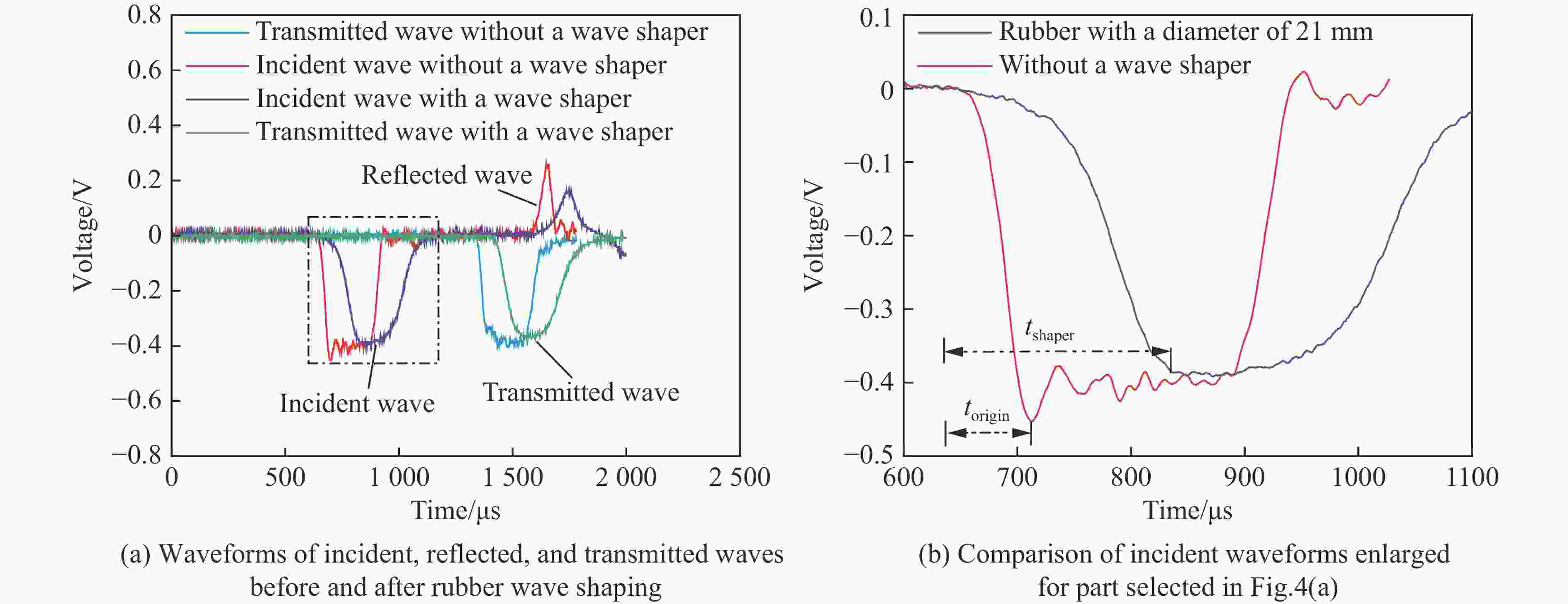

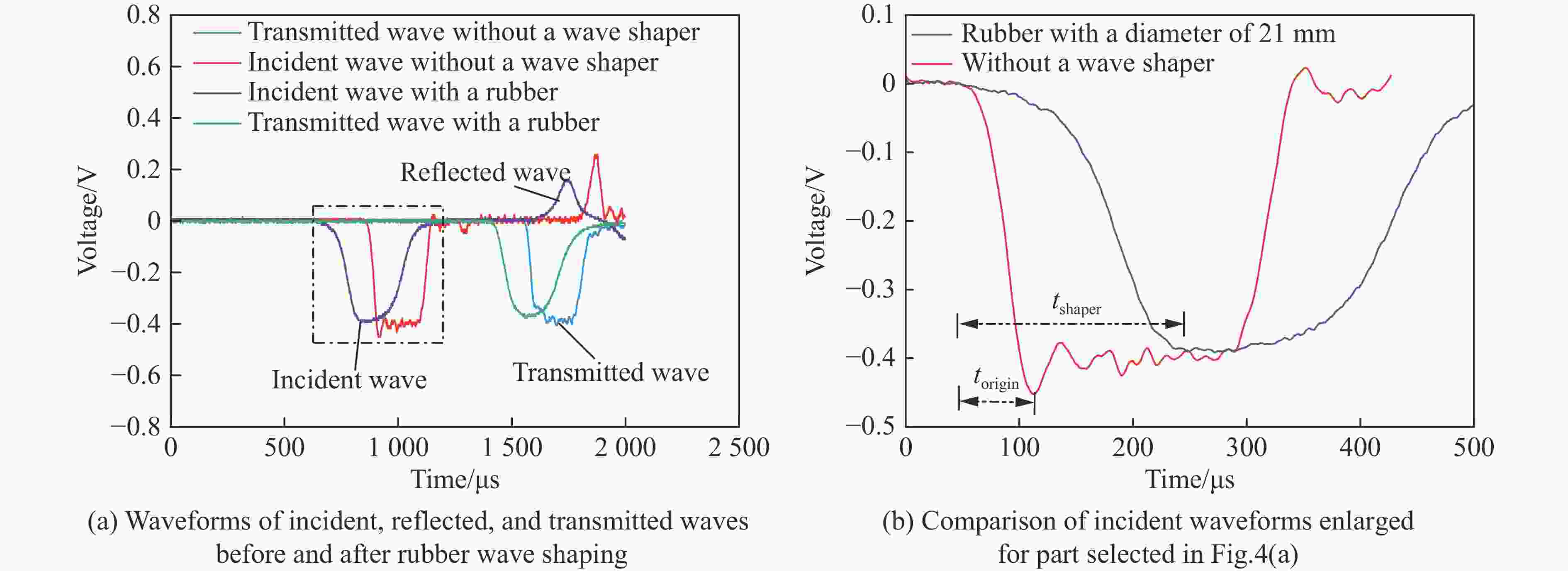

图 4 橡胶整形器修整入射波高频振荡部分
Figure 4. high-frequency oscillations of the incident wave shaped by using a pulse shaper

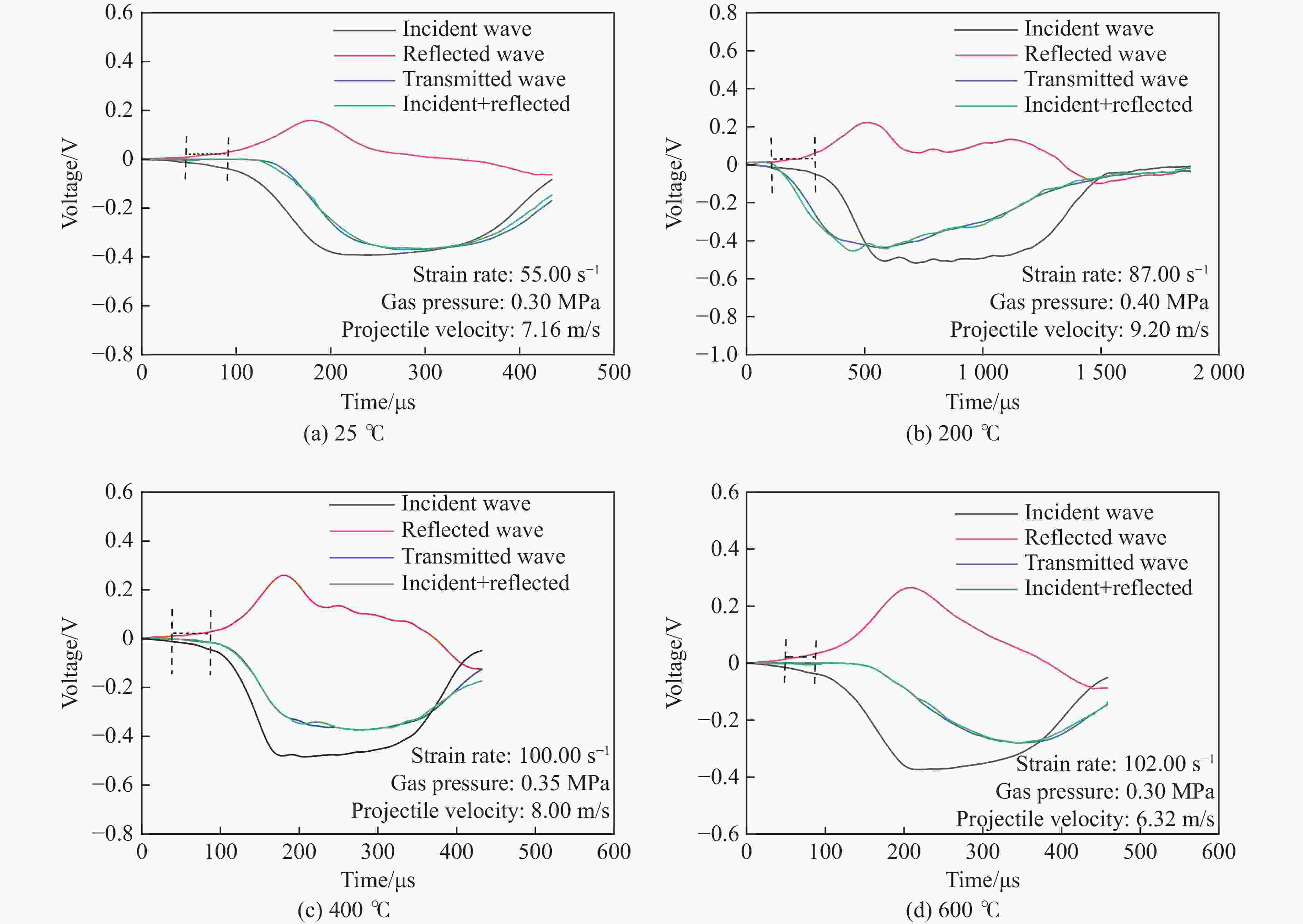

图 5 25～600 ℃下0.30～0.40 MPa气压冲击试样的应力平衡图
Figure 5. Digrams of stress equilibrium in the specimens tested by a gun with 0.30–0.40 MPa gas pressure at 25–600 ℃
图 6 程序控温箱升温曲线

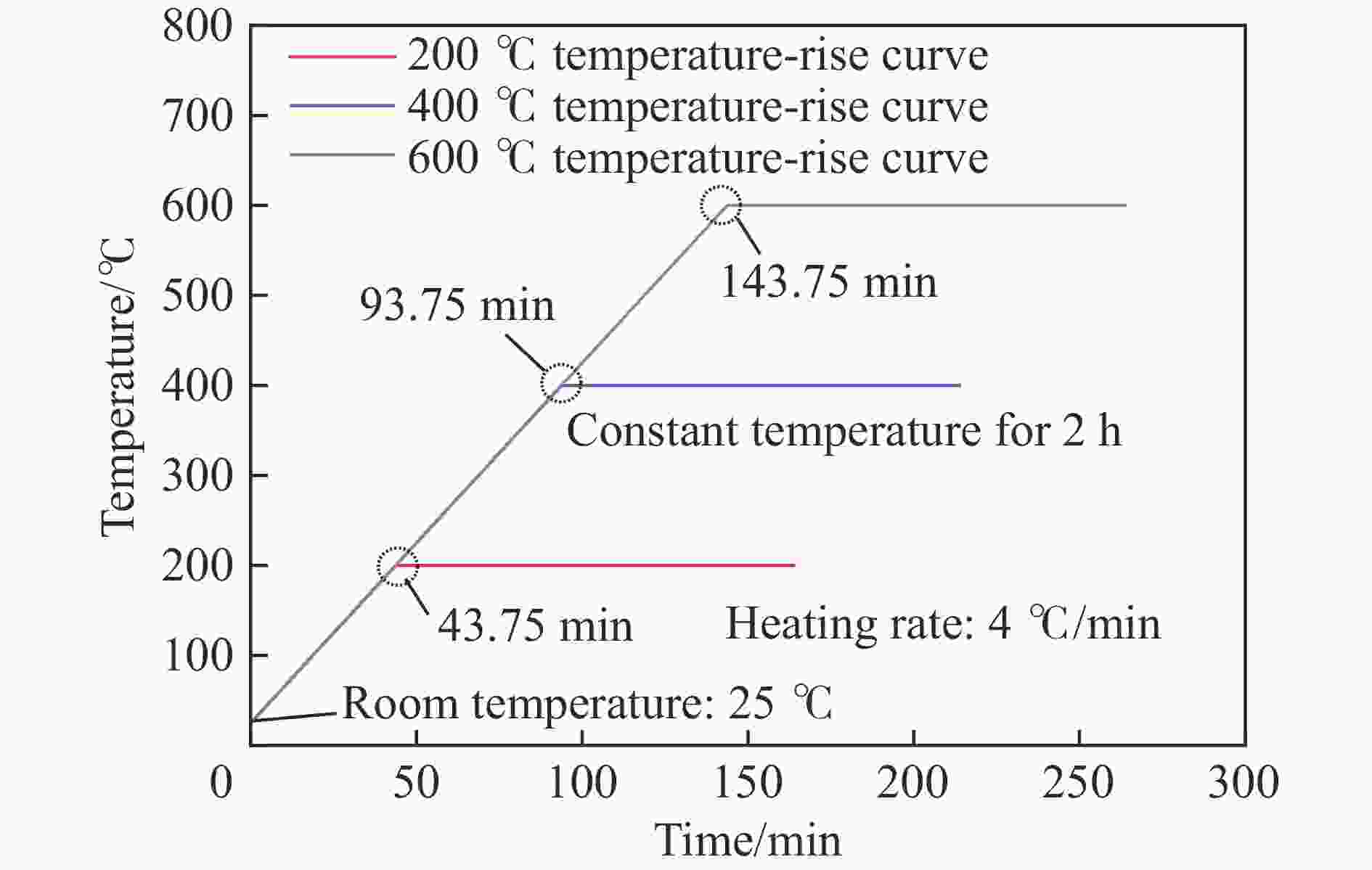

Figure 6. The heating curves for the program-controlled temperature chamber

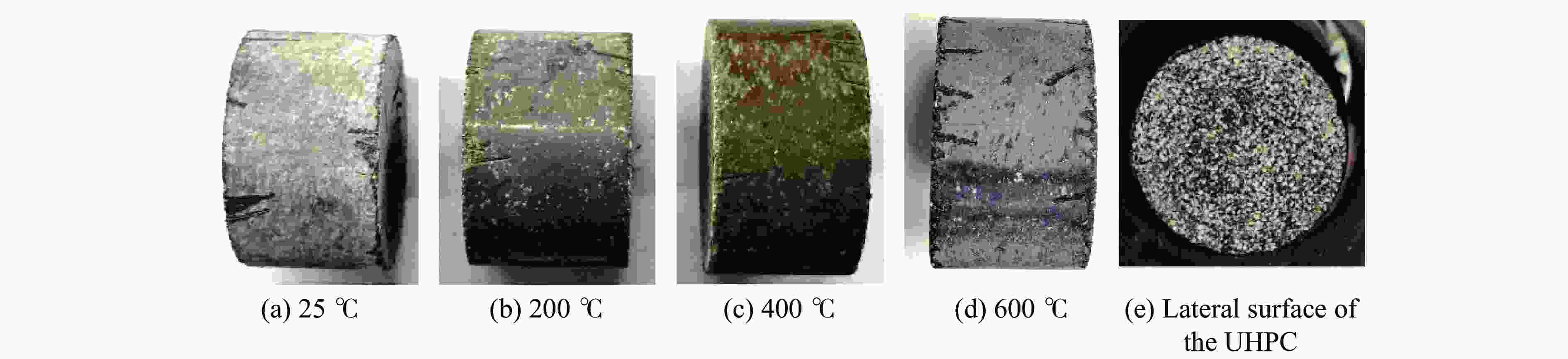

图 7 UHPC试样在不同温度下的宏观形貌
Figure 7. Macroscopic morphology of UHPC specimens under different temperatures
图 8 不同温度下SHPB冲击UHPC后的试样形貌

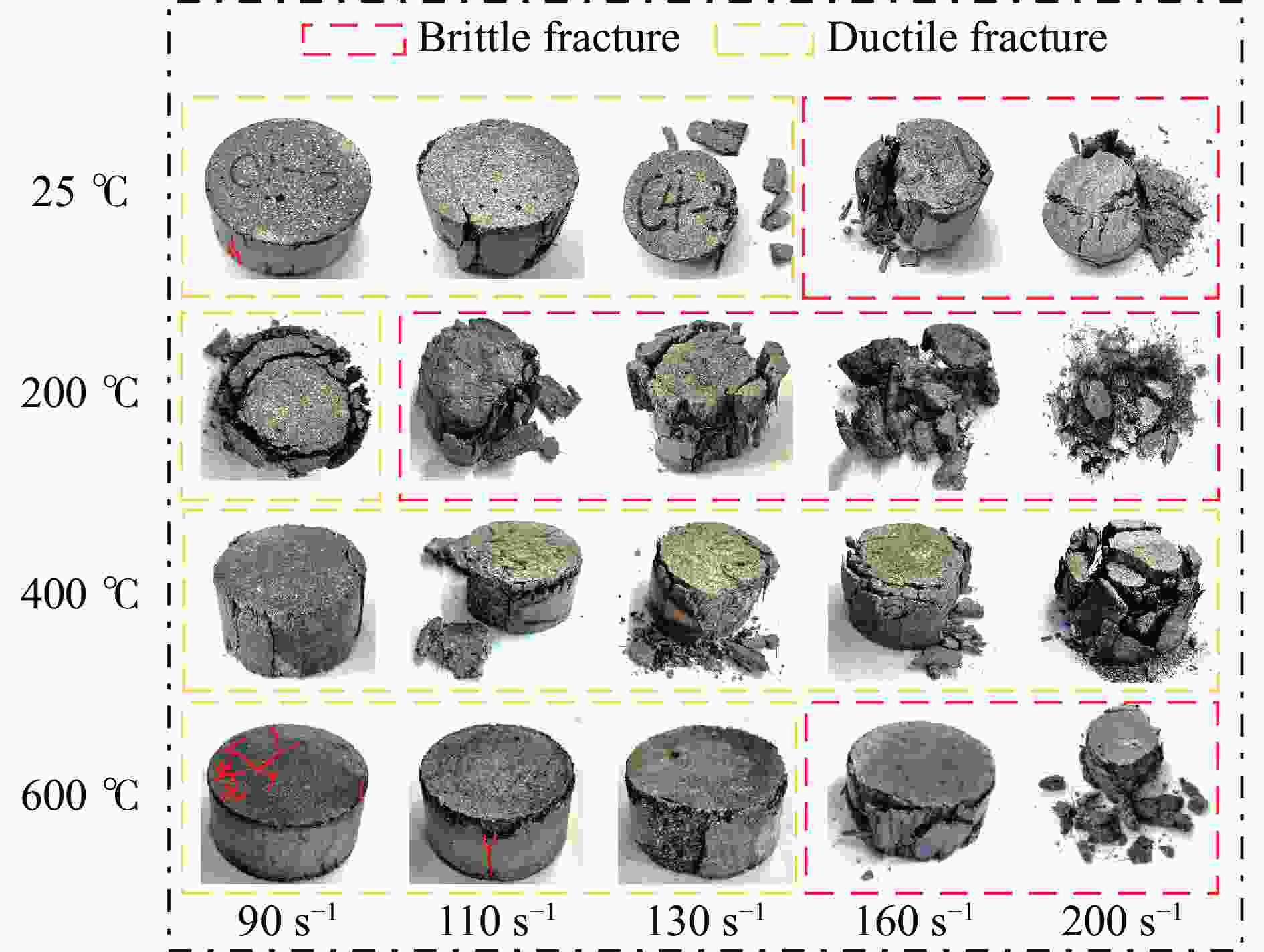

Figure 8. Specimen morphology of UHPC after SHPB impact under different temperatures

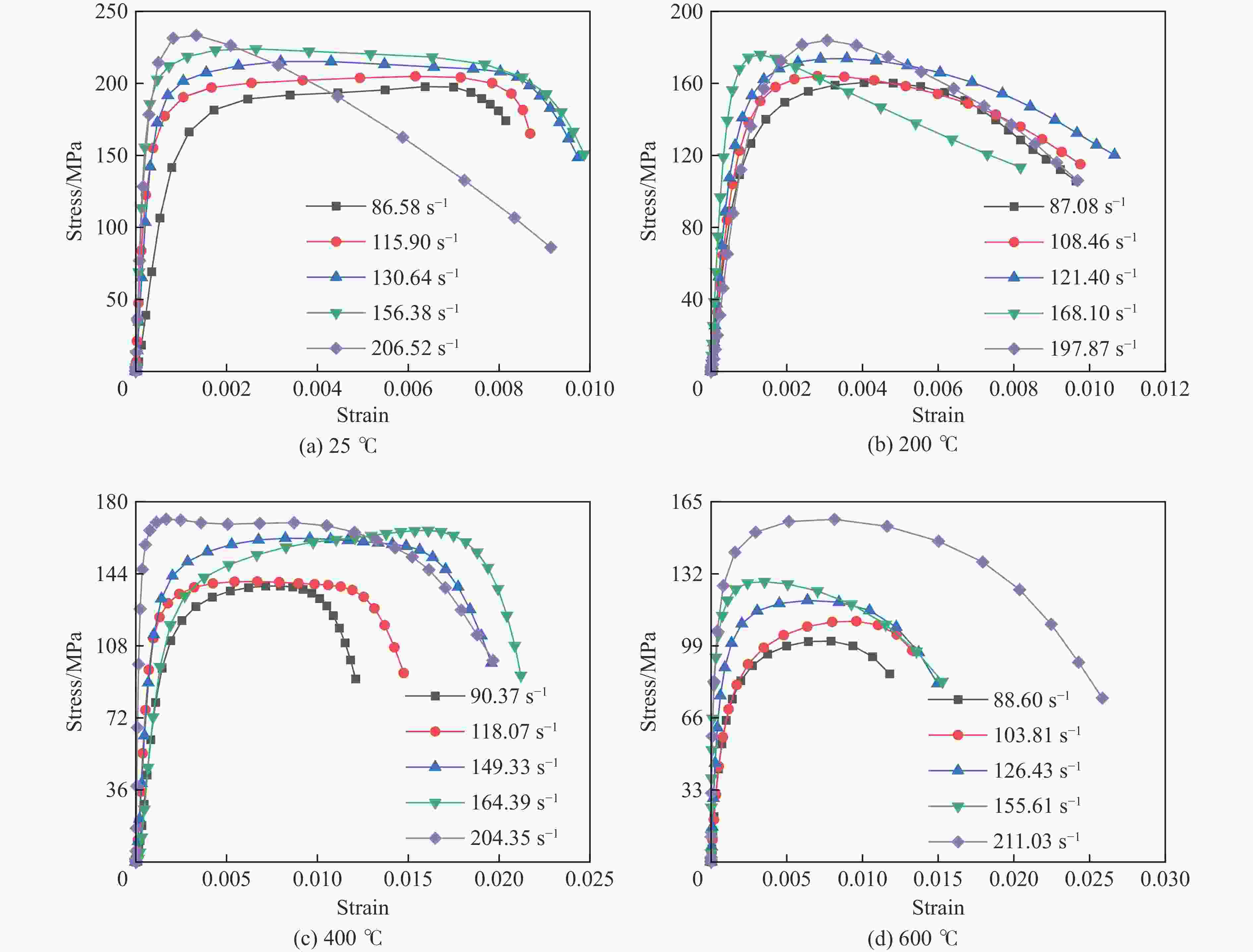

图 9 不同温度下UHPC的动态应力-应变曲线
Figure 9. Dynamic stress-strain curves of UHPC at different temperatures

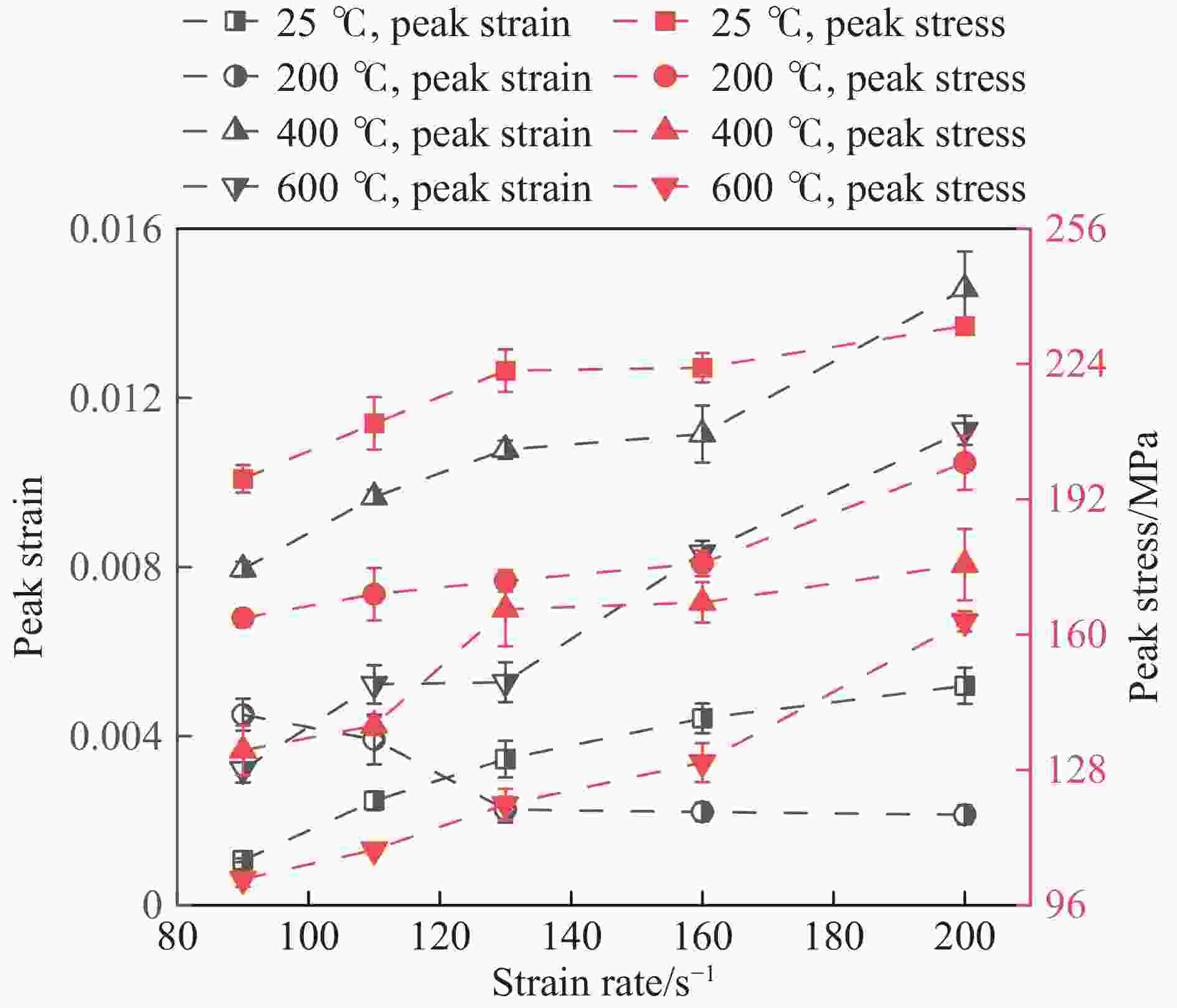

图 10 UHPC的动态抗压强度和峰值应变与应变率的关系
Figure 10. Dynamic compressive strength and peak strain of UHPC against strain rate

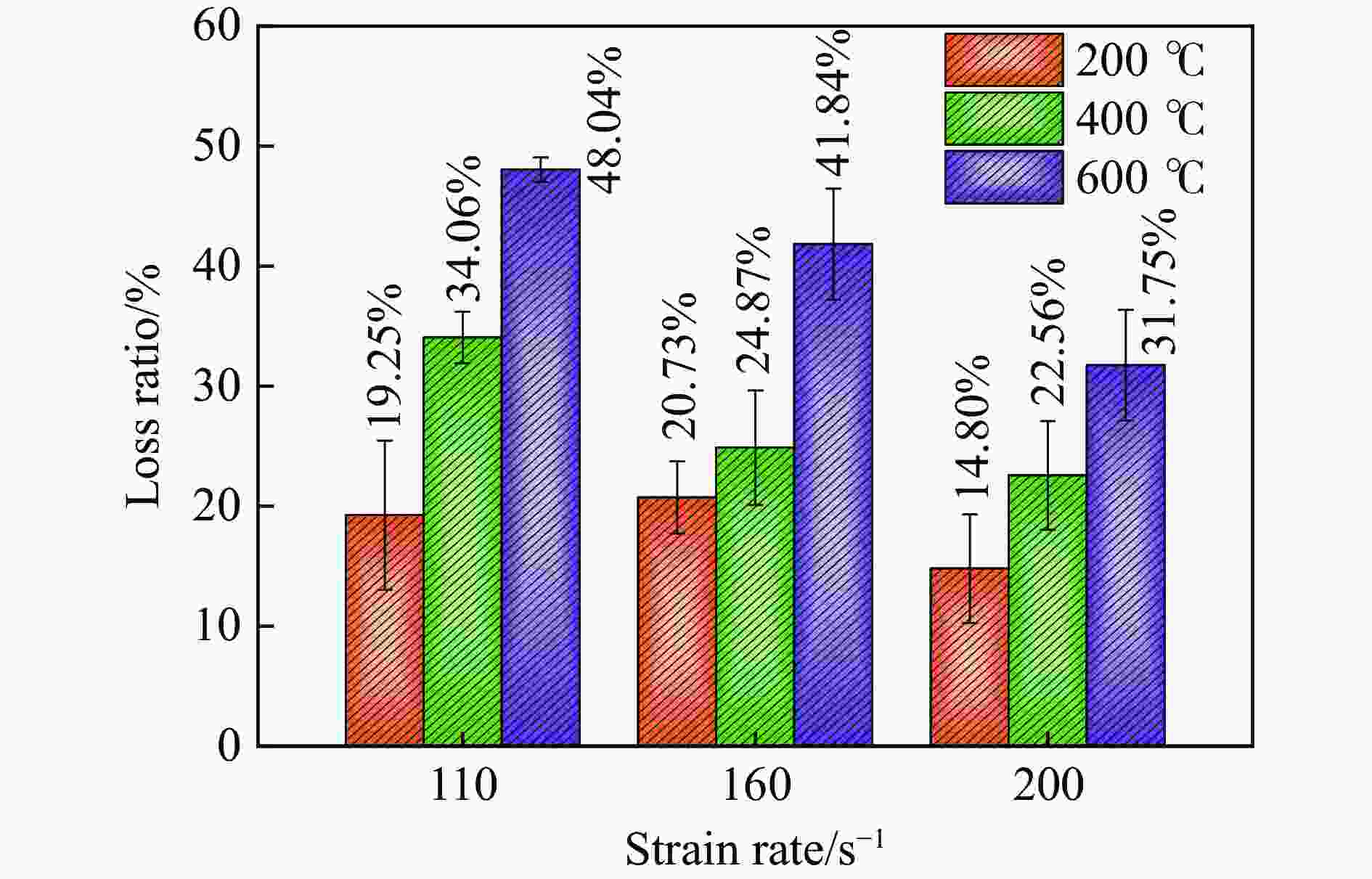

图 11 不同温度、相同应变率下超高性能混凝土动态抗压强度损失率
Figure 11. UHPC dynamic compressive strength loss ratios at different temperatures and constant strain rates

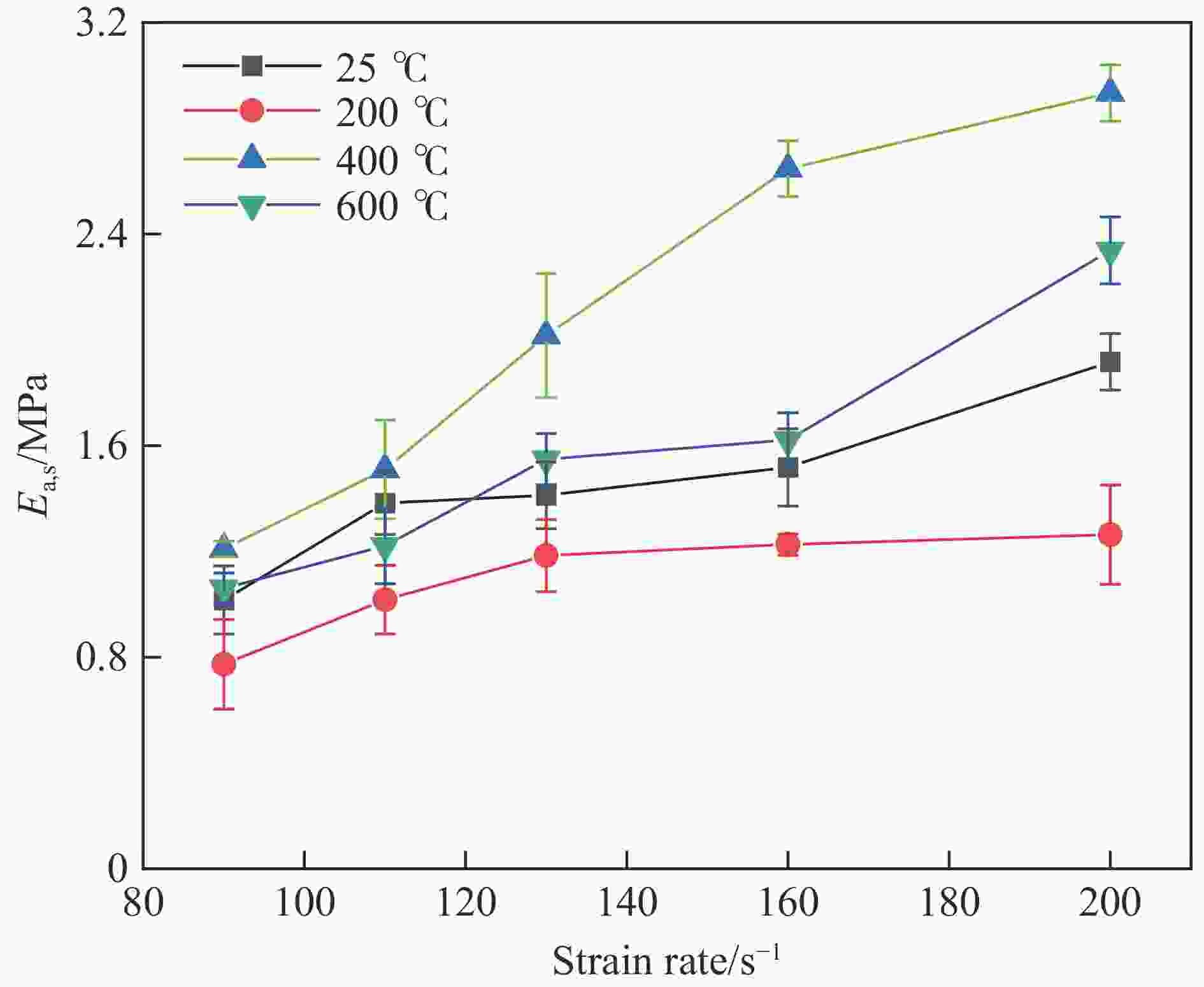

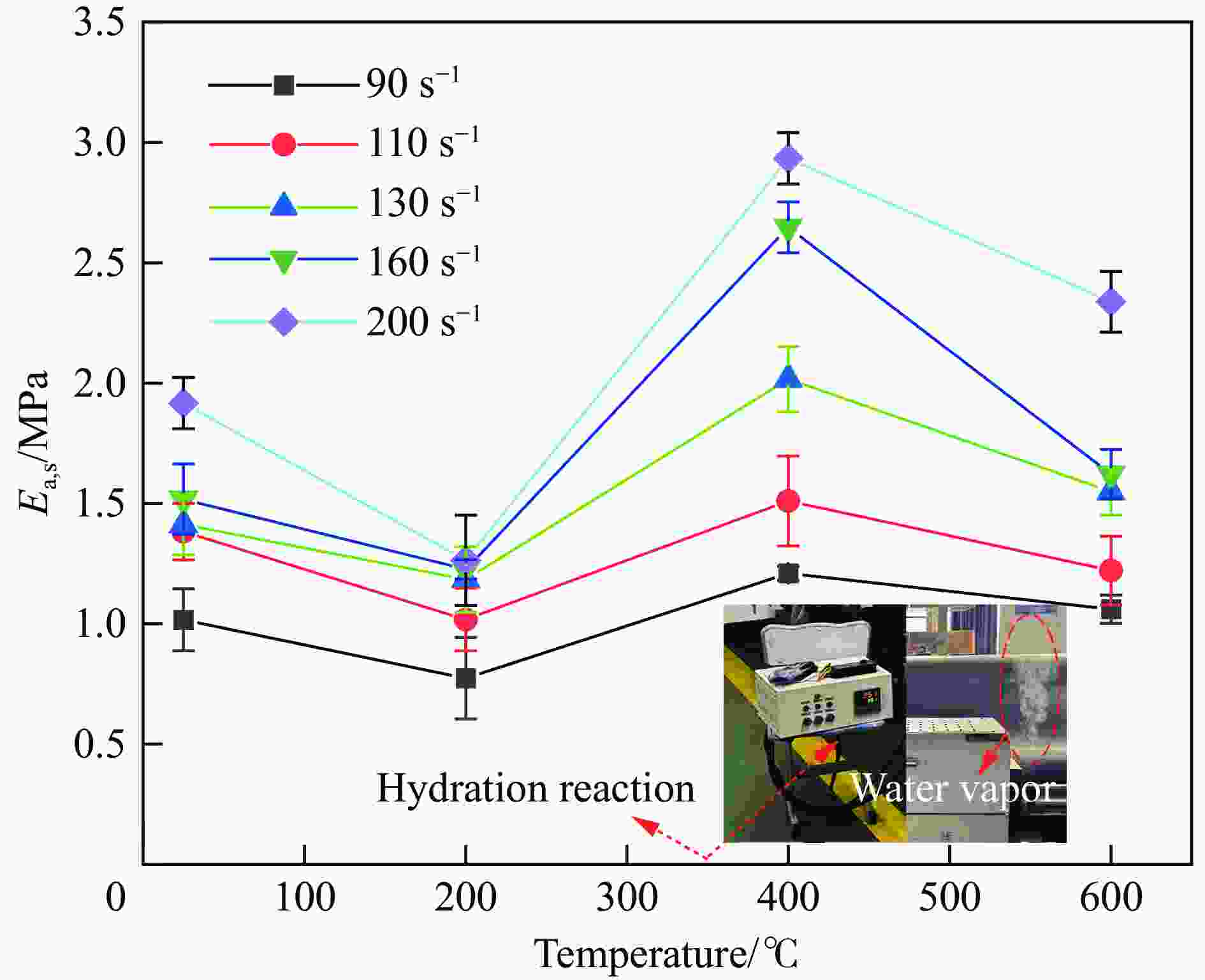

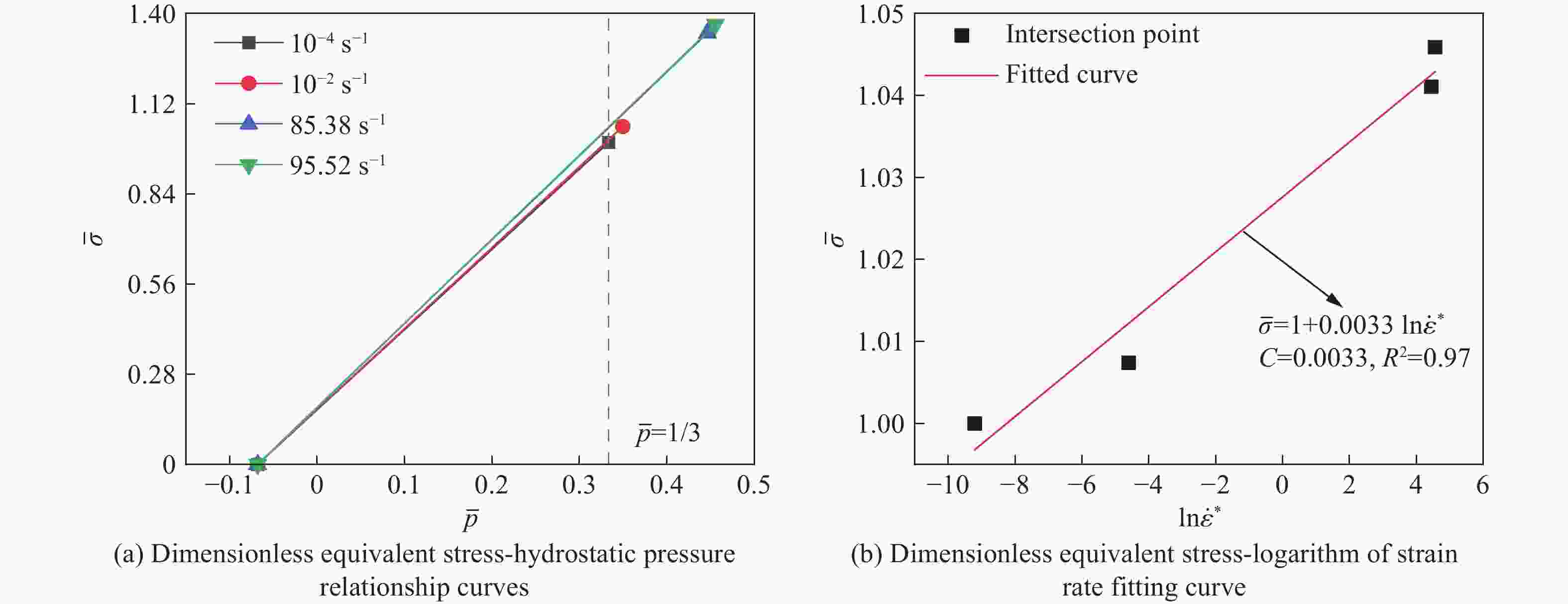

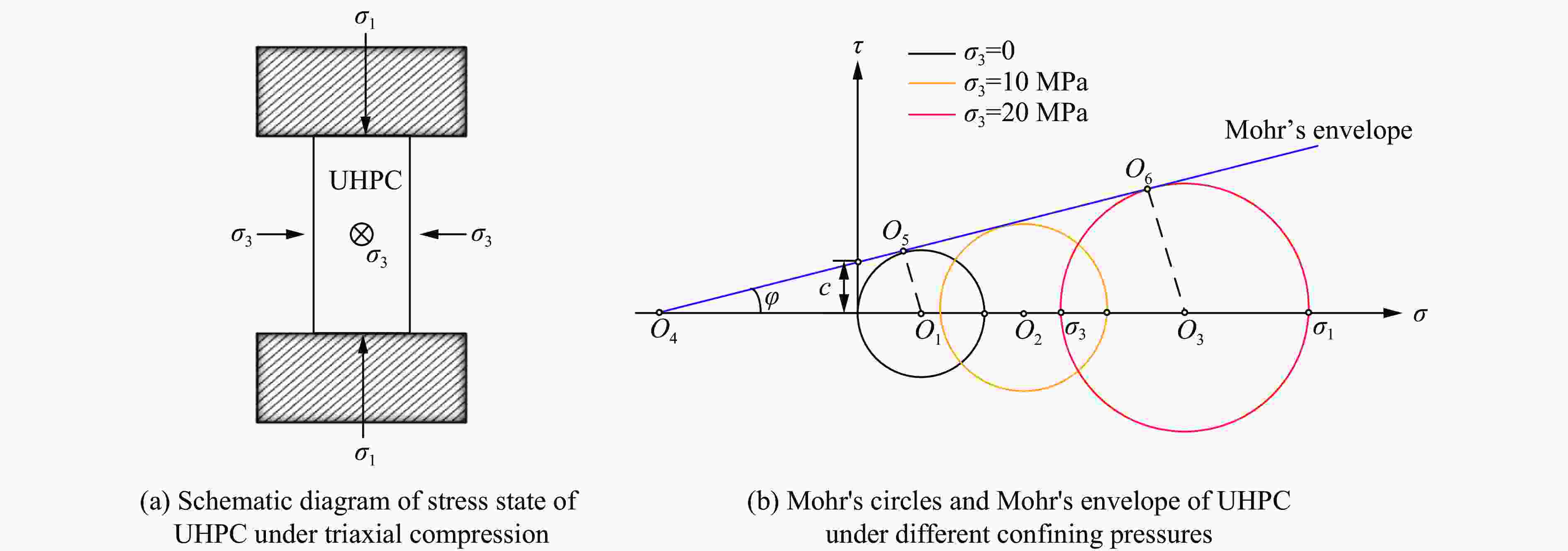

图 15 UHPC三轴围压实验确定HJC屈服面参数$ A $

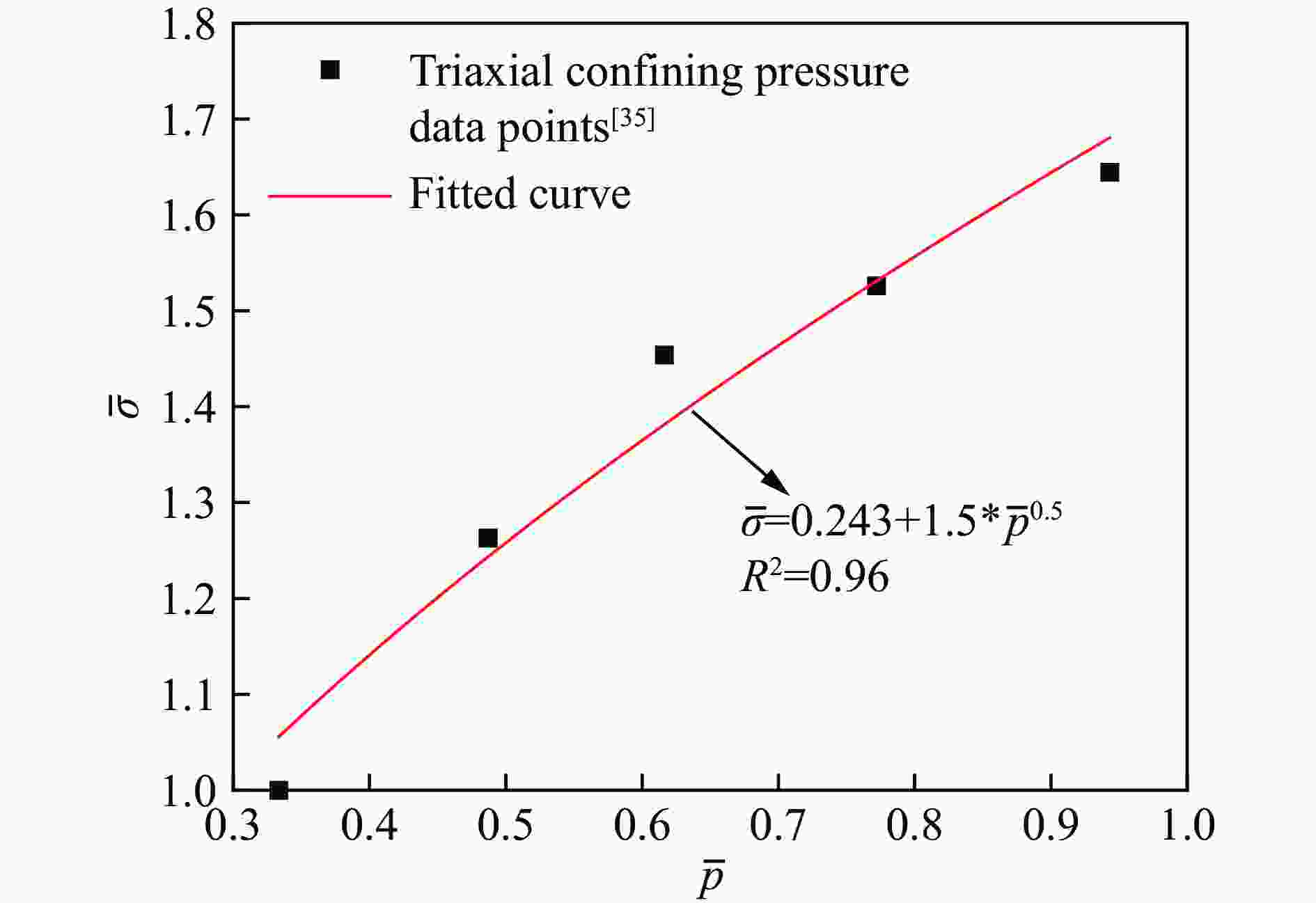

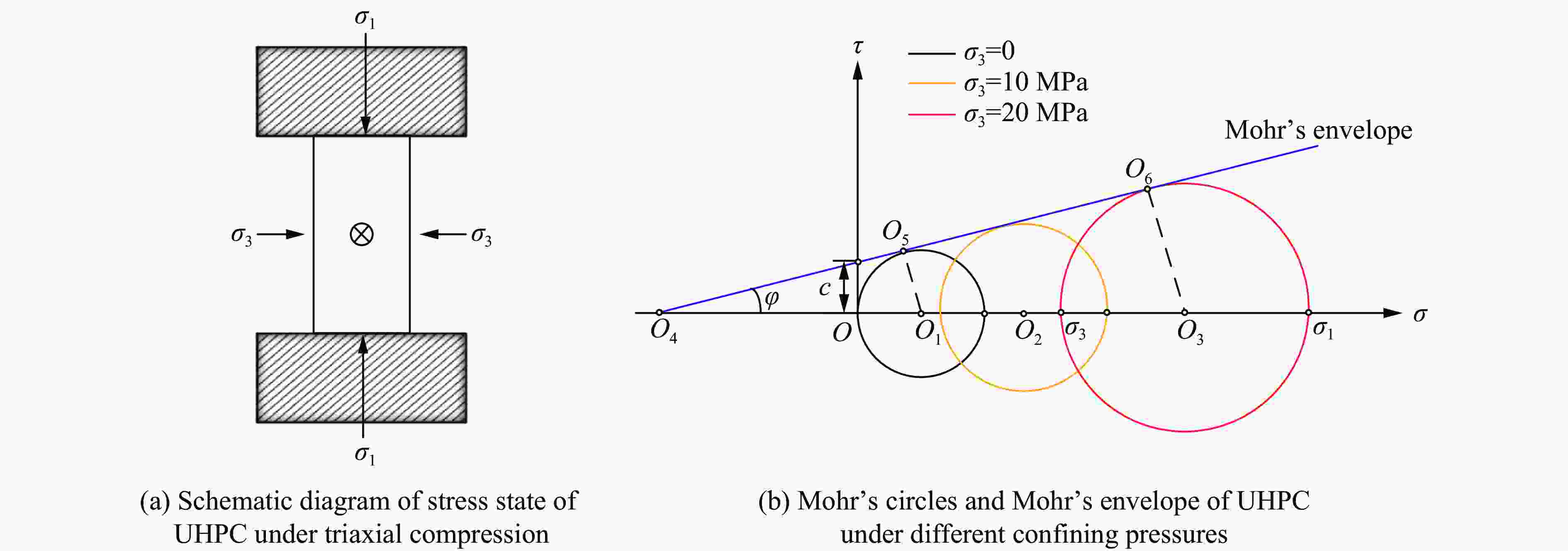

Figure 15. Determination of HJC yield surface parameter A by UHPC triaxial confining pressure experiment

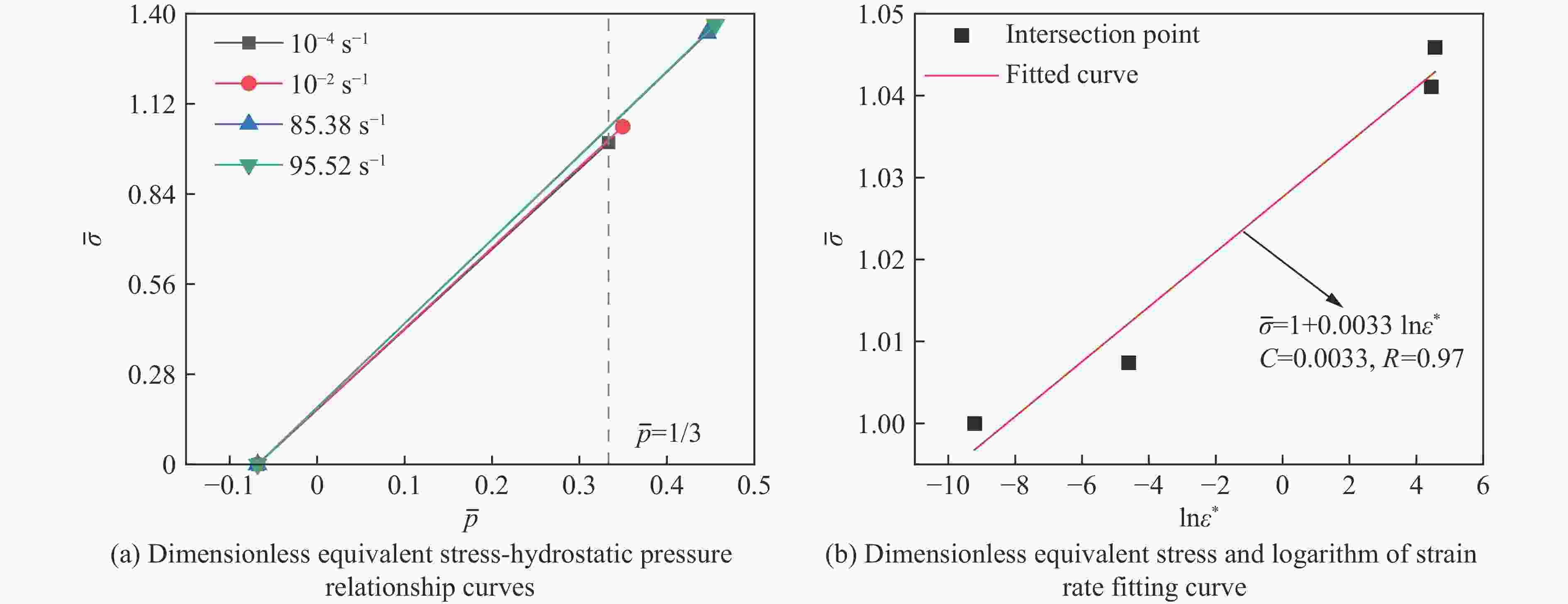

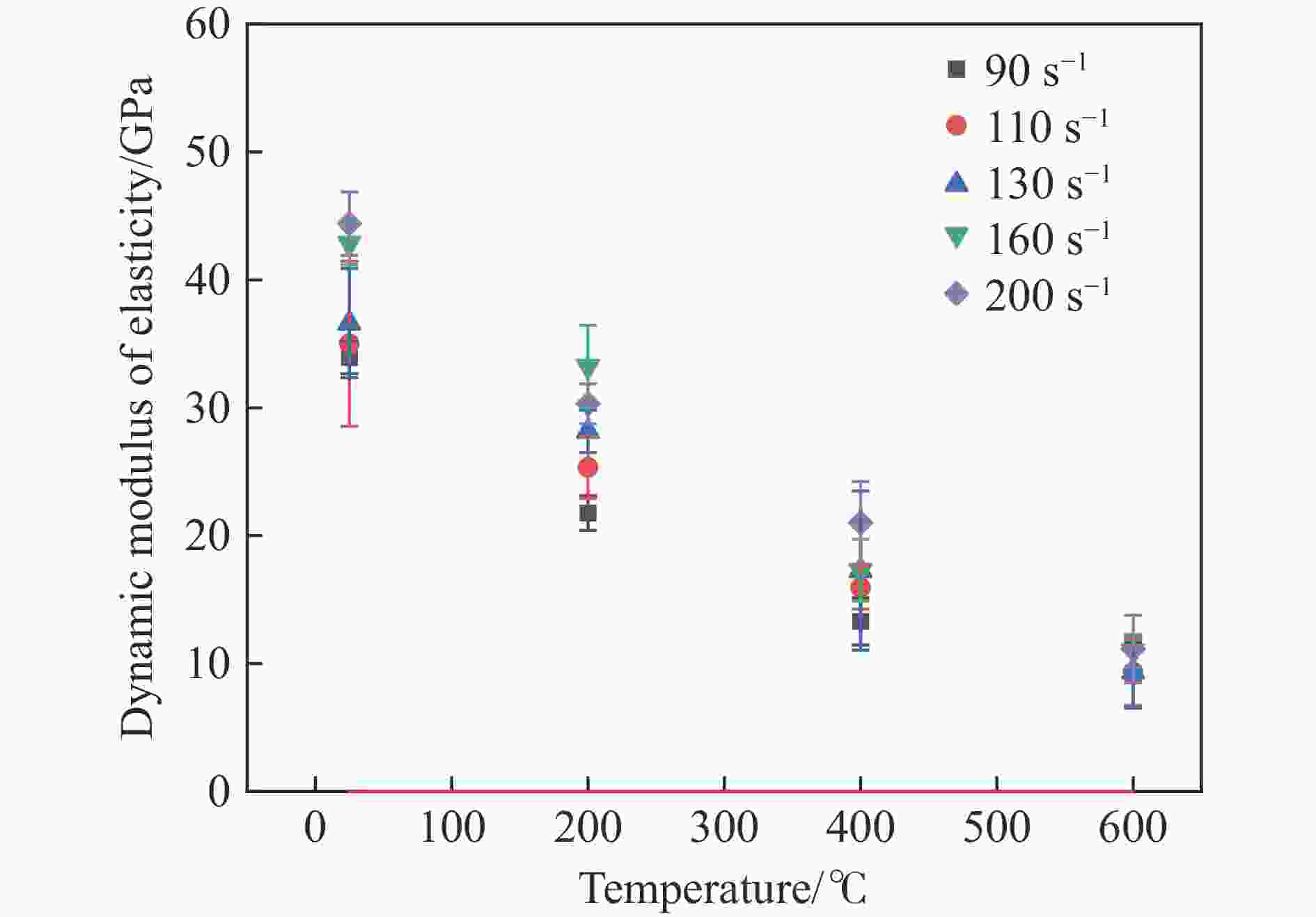

图 17 动态弹性模量与温度的关系
Figure 17. Relationship between dynamic elastic modulus and temperature

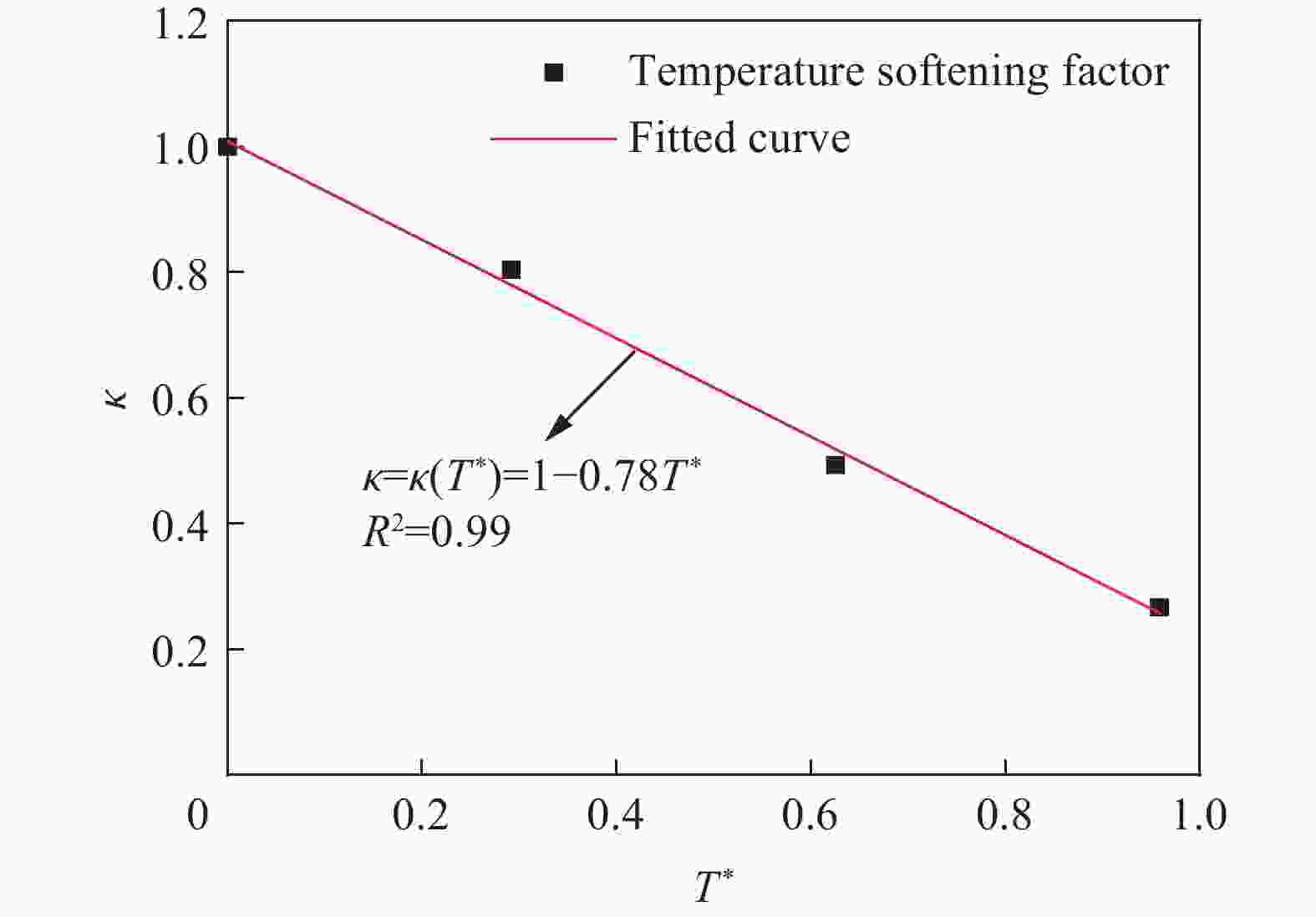

图 18 温度软化因子与温度的关系

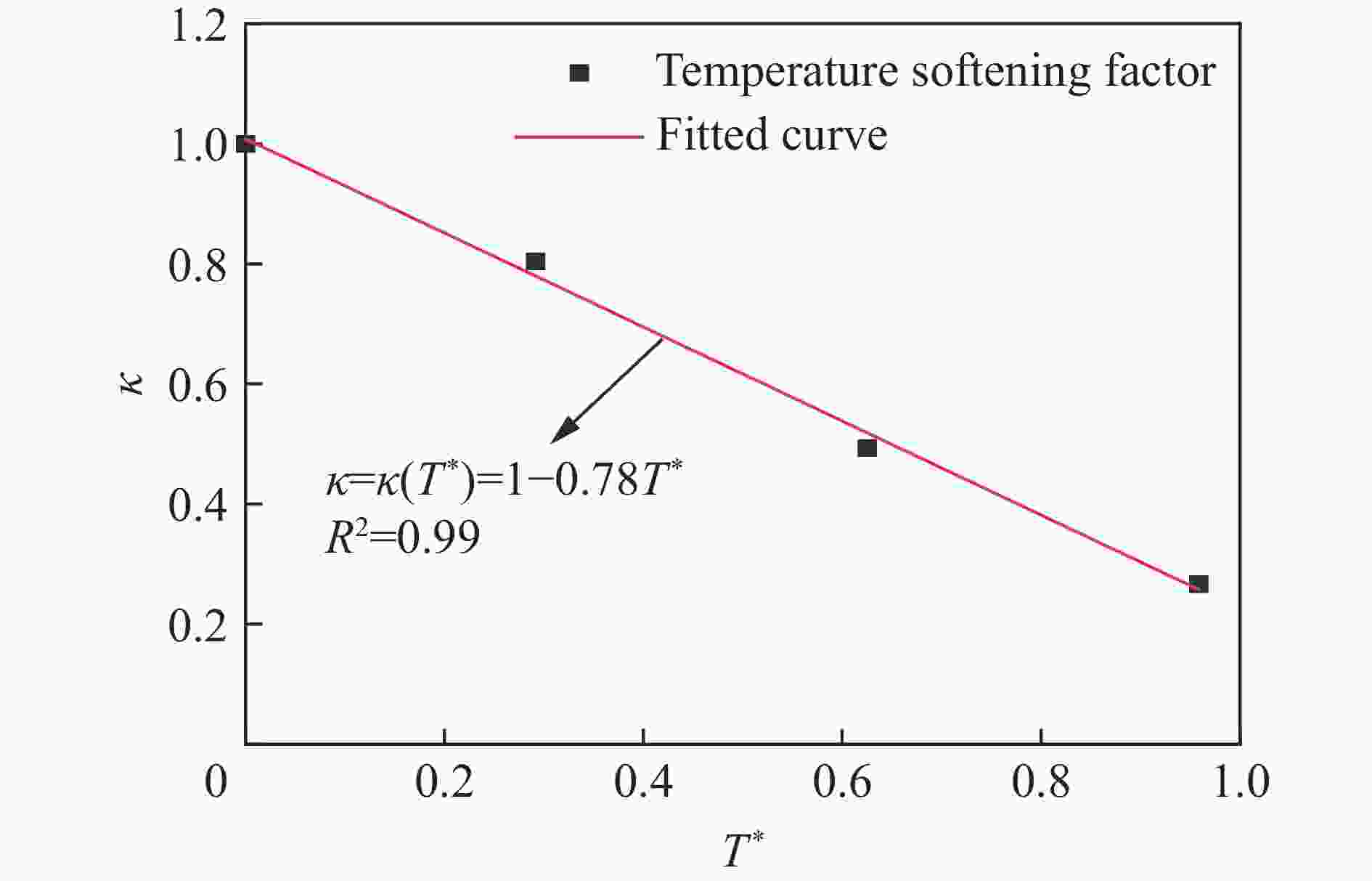

Figure 18. Relationship between temperature softening factor and temperature

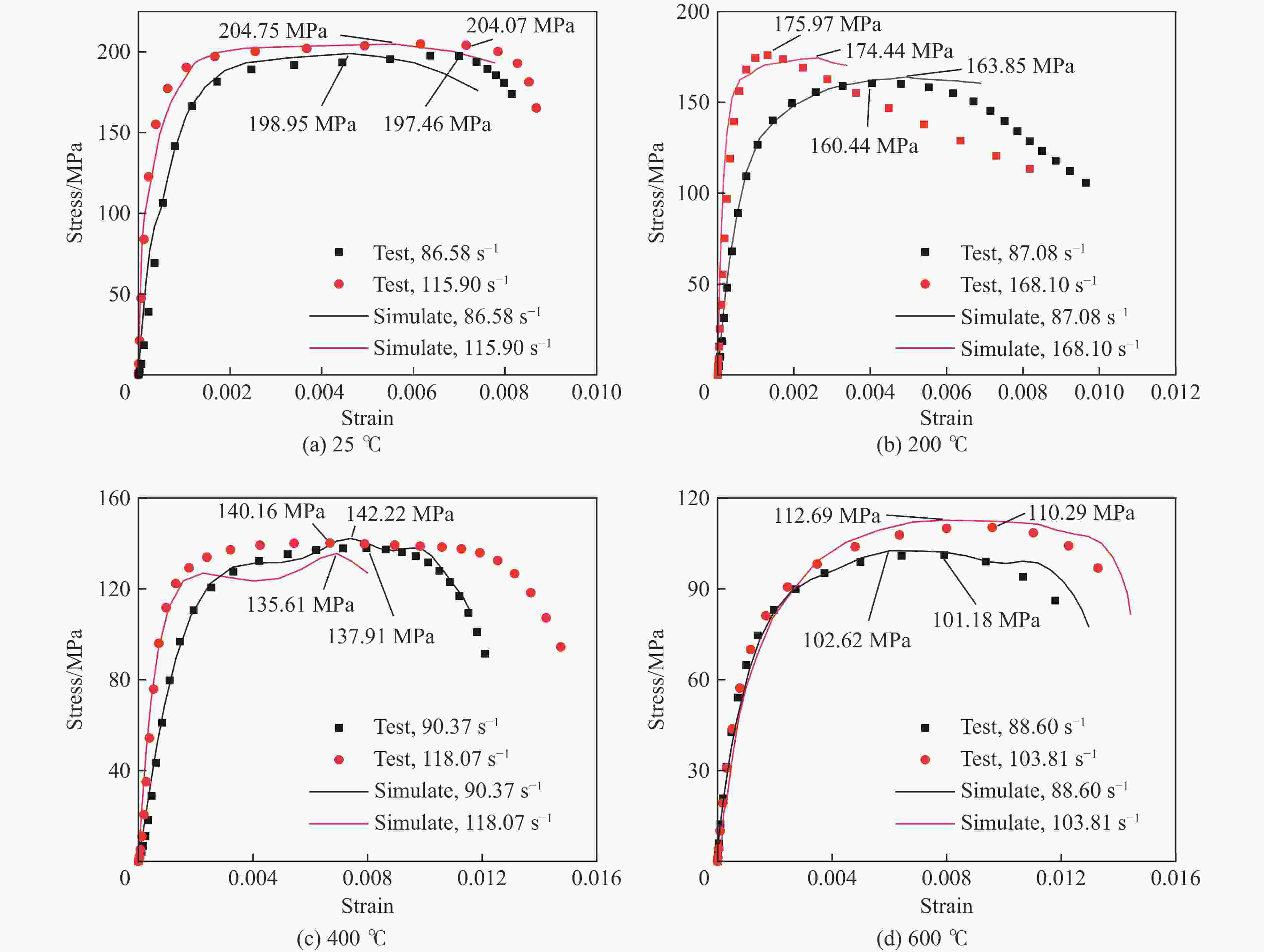

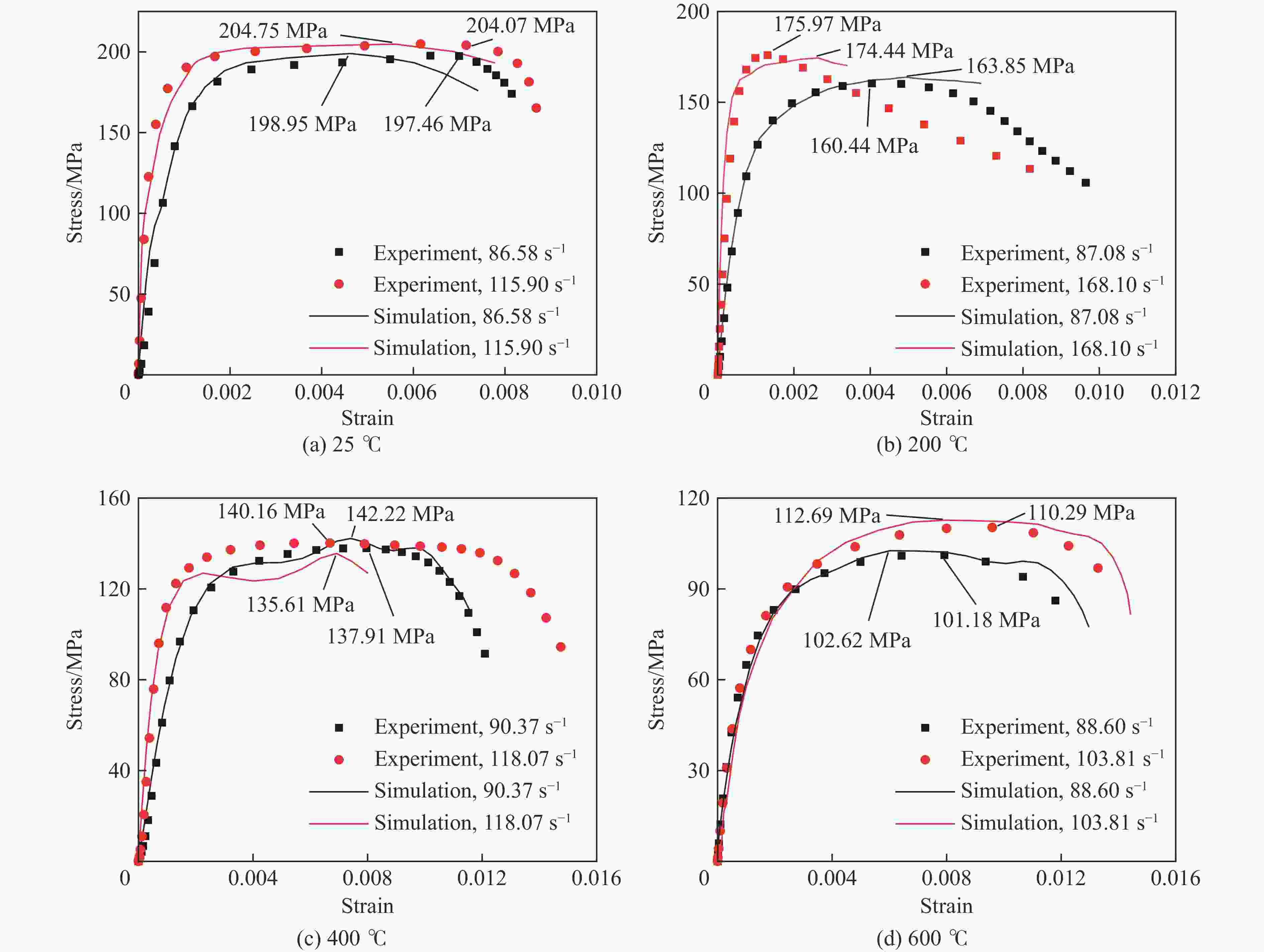

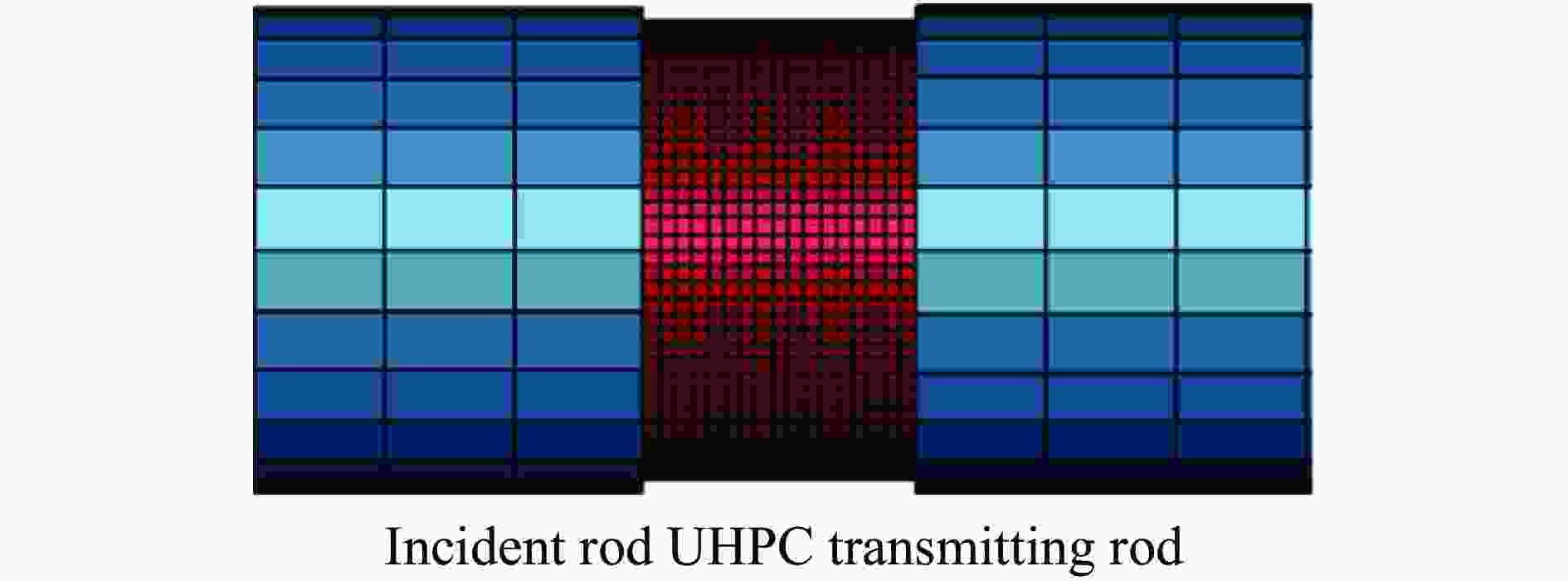

图 20 不同温度下UHPC的动态应力-应变曲线数值模拟结果与实验结果的对比
Figure 20. Comparison between numerical simulated and experimental results for dynamic stress-strain curves of UHPC at different temperatures
表 1 静、动态实验数据
Table 1. Static and dynamic experimental data
应变率/s−1 抗压强度/MPa $ \overline{\sigma } $ $ \overline{p} $ 10−4 147.10 1.00 0.33 10−2 148.20 1.05 0.35 85.38 153.10 1.34 0.45 95.52 153.90 1.37 0.46
