砂砾土中爆炸模型试验相似材料性能测试及配制方法海

王海生; 管龙华; 朱斌; 卢强; 丁洋; 李俊超; 汪玉冰; 李伟俊; 逄铮

doi:10.11883/bzycj-2025-0290

砂砾土中爆炸模型试验相似材料性能测试及配制方法海

doi: 10.11883/bzycj-2025-0290

王海生^{1, 2, 3,},
管龙华¹,
朱斌^{1, 3},
卢强²,
丁洋²,
李俊超^{1, 3},
汪玉冰¹,
李伟俊^1, ,,
逄铮¹

1.
浙江大学超重力科学与技术研究院，浙江杭州 310058
2.
西北核技术研究所，陕西西安 710024
3.
浙江大学岩土工程研究所，浙江杭州 310058

基金项目: 国家自然科学基金卓越研究群体项目（52588202）

详细信息

作者简介:
王海生（1988－　），男，硕士，工程师，22312001@zju.edu.cn

通讯作者:
李俊超（1988－　），男，博士，高级实验师，lijunchao@zju.edu.cn

中图分类号: O389
计量
- 文章访问数: 127
- HTML全文浏览量: 23
- PDF下载量: 30
- 被引次数: 0
出版历程
- 收稿日期: 2025-09-04
- 修回日期: 2025-11-03
- 网络出版日期: 2025-11-04

Performance testing and preparation methods of similitude materials for explosion modeling in gravelly soil

WANG Haisheng^{1, 2, 3
,},
GUAN Longhua¹,
ZHU Bin^{1, 3},
LU Qiang²,
DING Yang²,
LI Junchao^{1, 3},
WANG Yubing¹,
LI Weijun^{1
, ,},
PANG Zheng¹

1.
Institute of Hypergravity Science and Technology, Zhejiang University, Hangzhou 310058, Zhejiang, China
2.
Northwest Institute of Nuclear Technology, Xi’an 710024, Shanxi, China
3.
Institute of Geotechnical Engineering, Zhejiang University, Hangzhou 310058, Zhejiang, China

摘要

摘要: 超重力离心模型试验是模拟原型爆炸效应的有效手段，其成功应用依赖于能够复现原状土动力响应的相似土样。针对砂砾土爆炸离心模拟中存在的粒径效应与材料相似性难题，建立一套系统的相似土样配制与验证方法。通过理论分析，将影响爆炸地冲击效应的关键土性参数聚焦于密度和波速（波阻抗），而控制这些参数的核心是土体的级配特征。采用剔除法、等量替代法、相似级配法和混合法4种缩尺方法制备了12种不同最大粒径的相似土样，通过孔隙比试验和有效围压下的弯曲元测试，揭示了砂砾土极孔隙比与细粒含量、平均粒径的量化关系，进而建立了小应变弹性模量的经验预测模型。通过对比模型预测的波速与原位实测数据，结果表明：不均匀系数、细粒含量和平均粒径是实现砂砾土爆炸动力相似的关键控制指标；采用等量替代法配制的最大粒径为10 mm的相似土样，在上述指标上与原状土最等效。基于此相似土样的超重力离心爆炸试验进一步证实，爆源平面内的归一化峰值加速度衰减规律与原位数据高度一致。通过控制关键级配指标并采用等量替代法，可成功配制出在爆炸动力响应上与原状砂砾土等效的相似材料，从而为相关领域的离心机模型试验提供切实可行的技术途径。
- 砂砾土 /
- 爆炸效应 /
- 波阻抗 /
- 相似土样 /
- 孔隙比 /
- 弹性模量 /
- 弹性波速 /
- 离心模型试验
Abstract: Hypergravity centrifuge model testing serves as an effective method for simulating prototype explosion effects, whose successful application relies on soil simulants capable of replicating the dynamic response of in-situ soil. To address the challenges of particle size effects and material similarity in centrifuge modeling of explosions in sandy gravel, this study aims to establish a systematic methodology for the preparation and validation of such simulants. Through theoretical analysis, the soil key parameters governing ground shock effects under explosions were identified as density and wave velocity (wave impedance), which are fundamentally controlled by the soil's gradation characteristics. Based on this premise, twelve types of simulants with varying maximum particle sizes were systematically prepared using four scaling methods: the removal method, equal quantity replacement method, similar gradation method, and hybrid method. Through void ratio tests and bender element testing under effective confining pressure, quantitative relationships were revealed between the extreme void ratios of sandy gravel and its fines content and mean particle size. Based on this, an empirical predictive model for the small strain elastic modulus was established. Comparison of the model-predicted wave velocities with in-situ measured data indicates that the coefficient of uniformity, fines content, and mean particle size are the key controlling indices for achieving dynamic similarity in sandy gravel under explosion loading. Among these, the simulant prepared by the equal quantity replacement method, with a maximum particle size of 10 mm, demonstrated the closest equivalence to the in-situ soil in terms of the aforementioned indices. Hypergravity centrifuge explosion tests using this equivalent simulant further verified that the attenuation law of normalized peak accelerations within the source plane corresponds highly consistently with the in-situ data. This research confirms that by controlling key gradation indices and employing the equal quantity replacement method, it is possible to successfully prepare simulants that are equivalent to in-situ sandy gravel in their dynamic response to explosions. This provides a practical and effective technical pathway for centrifuge model testing in related fields.
- gravel soil /
- explosion effect /
- wave impedance /
- analogue soil material /
- void ratio /
- elastic modulus /
- elastic wave velocity /
- centrifuge model test

HTML全文

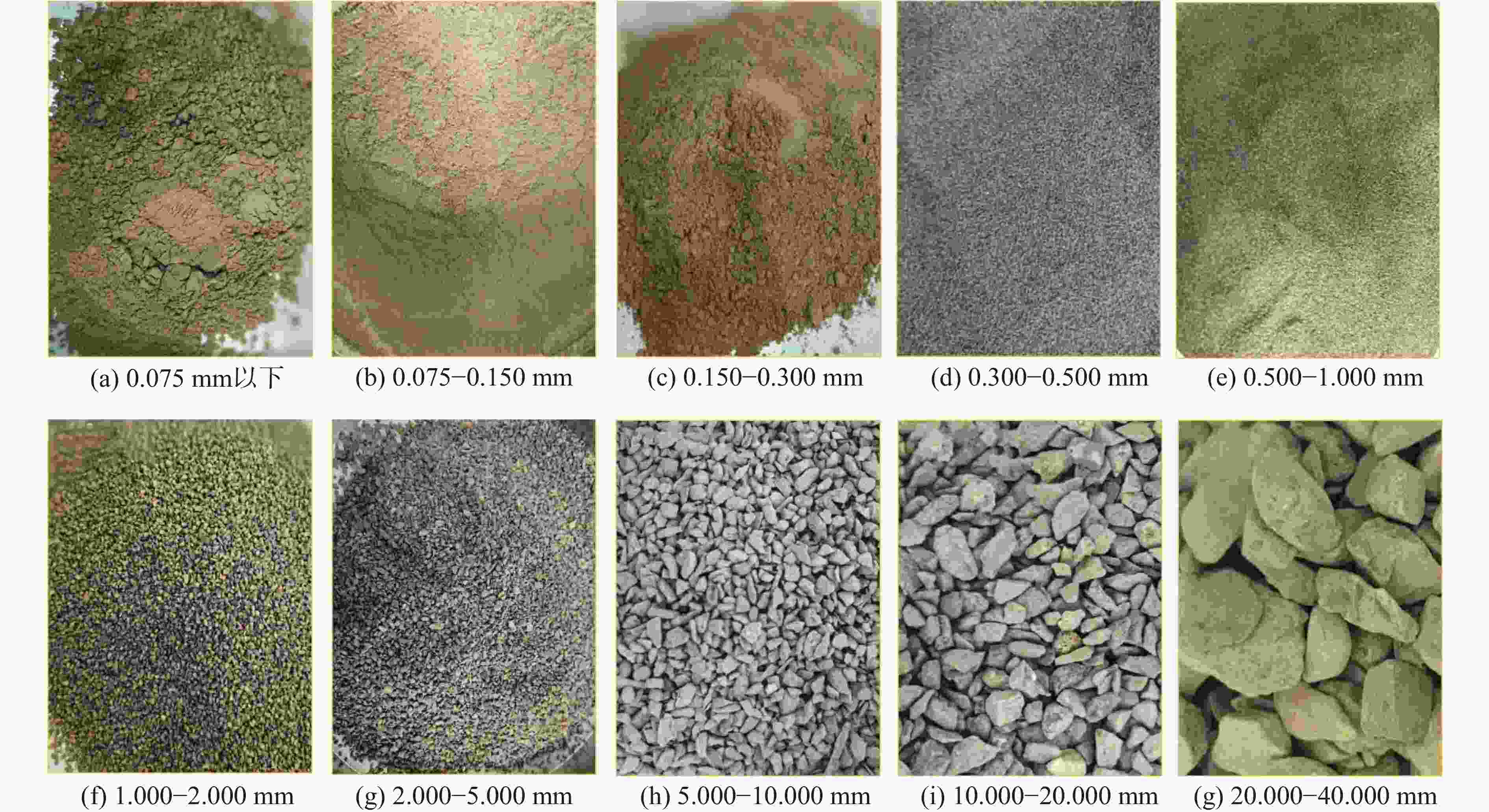

图 1 原状土筛分后的颗粒照片

Figure 1. Photos of particles after sieving undisturbed soil

下载: 全尺寸图片幻灯片

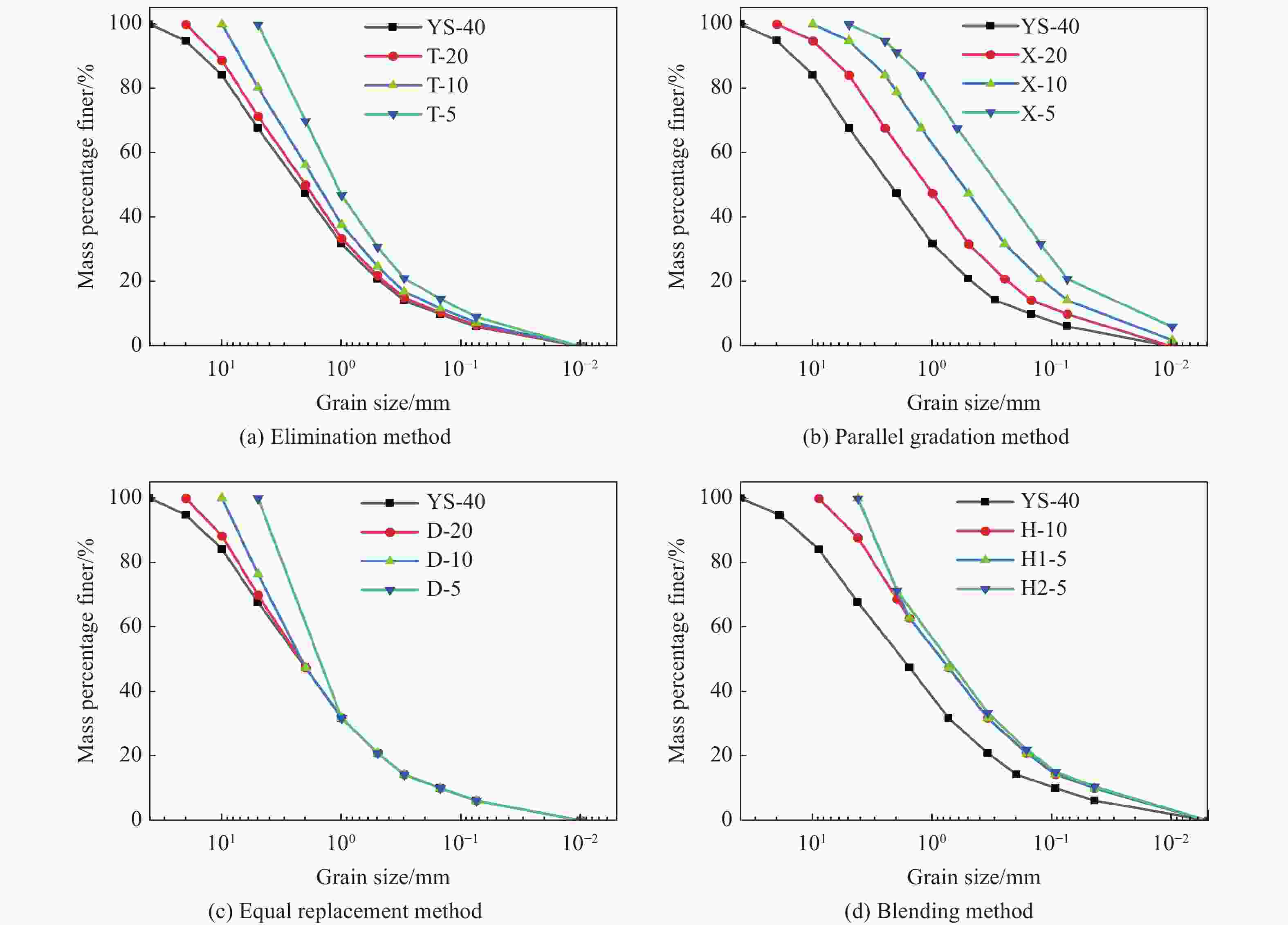

图 2 各缩尺试样及原状土的级配曲线

Figure 2. Grading curves of each scale sample and undisturbed soil

下载: 全尺寸图片幻灯片

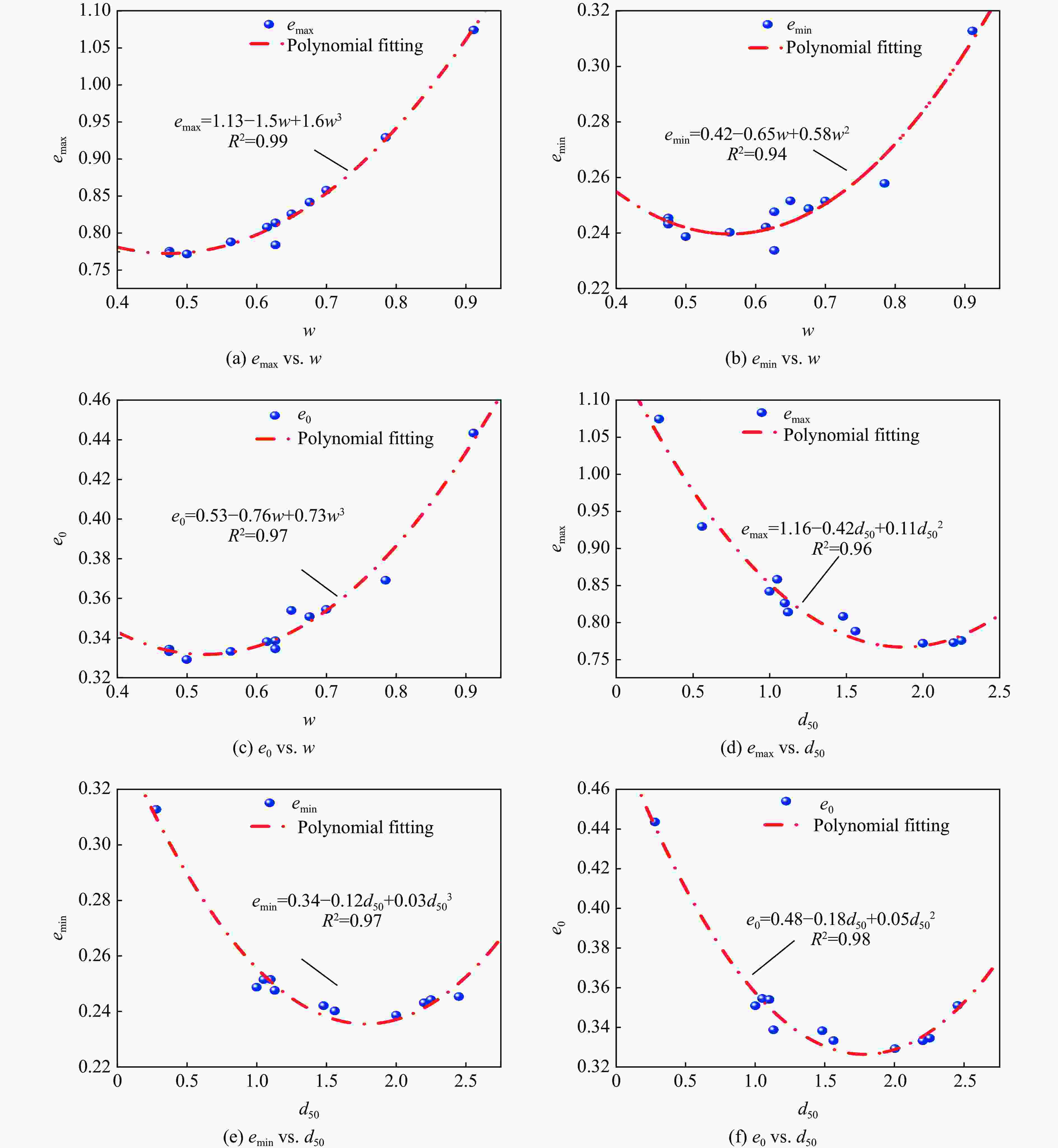

图 3 e_max、e_min、e₀与w、d₅₀的拟合关系

Figure 3. Fitting relationship between e_max, e_min, e₀ and w, d₅₀

下载: 全尺寸图片幻灯片

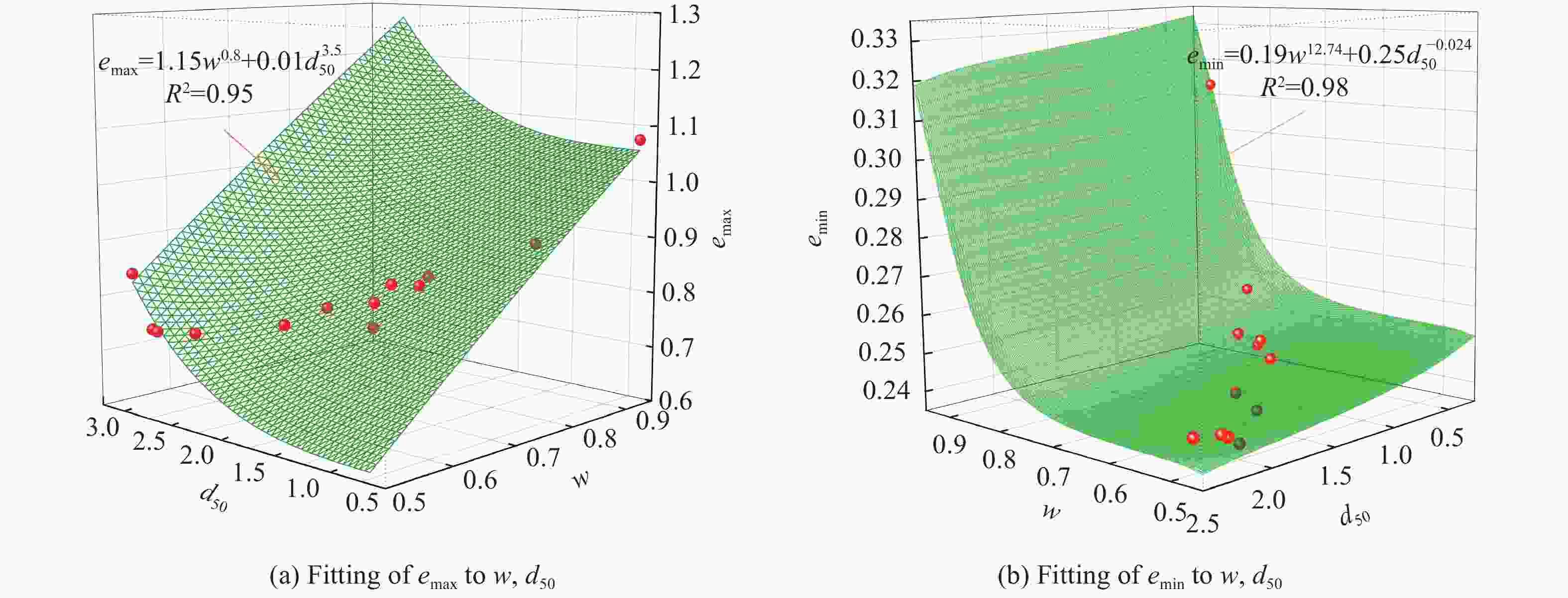

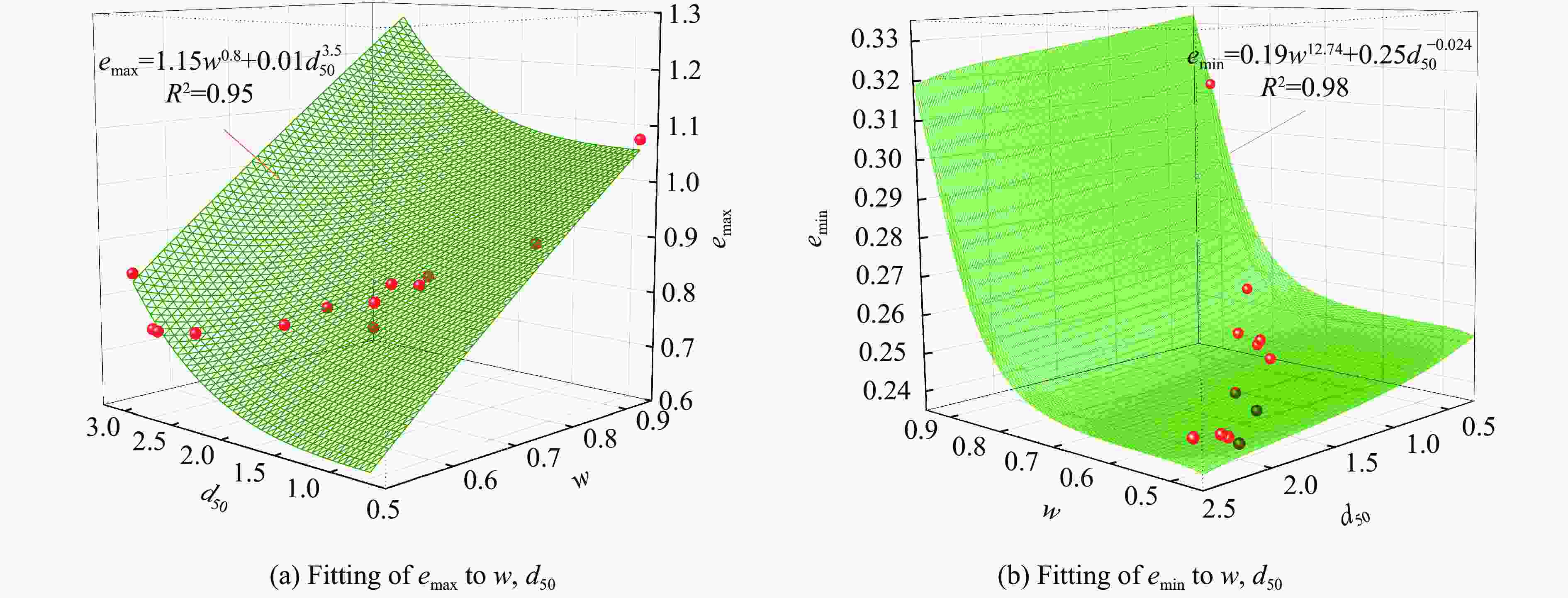

图 4 e_max、e_min与w、d₅₀的拟合关系

Figure 4. Fitting relationship between e_max, e_min and w, d₅₀

下载: 全尺寸图片幻灯片

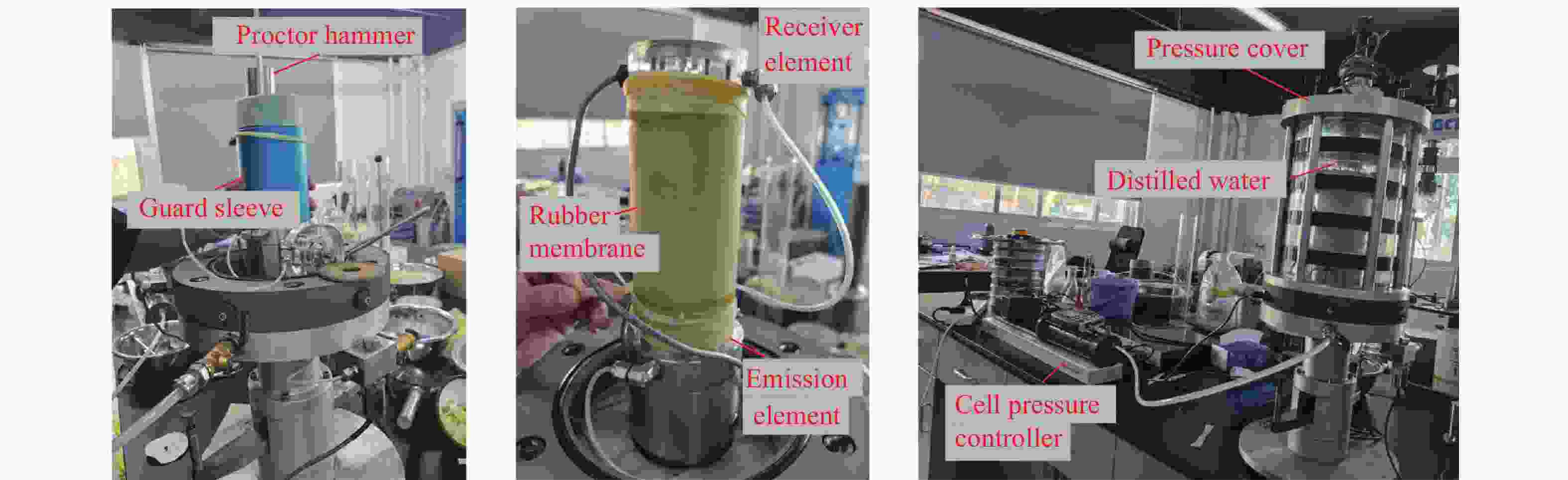

图 5 GDSTTS静三轴仪试验系统和弯曲元测试系统

Figure 5. GDSTTS static triaxial test system and bending element test system

下载: 全尺寸图片幻灯片

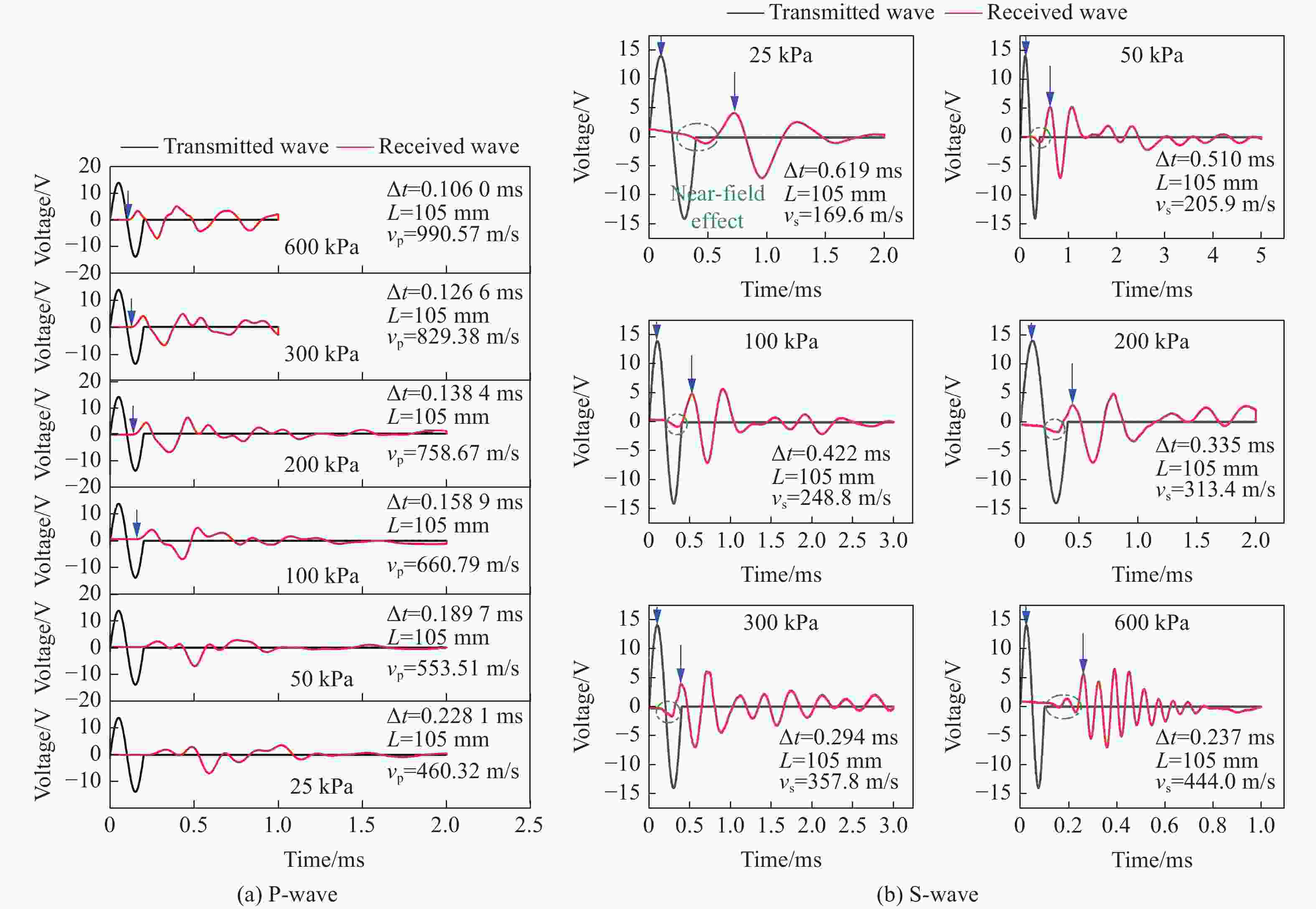

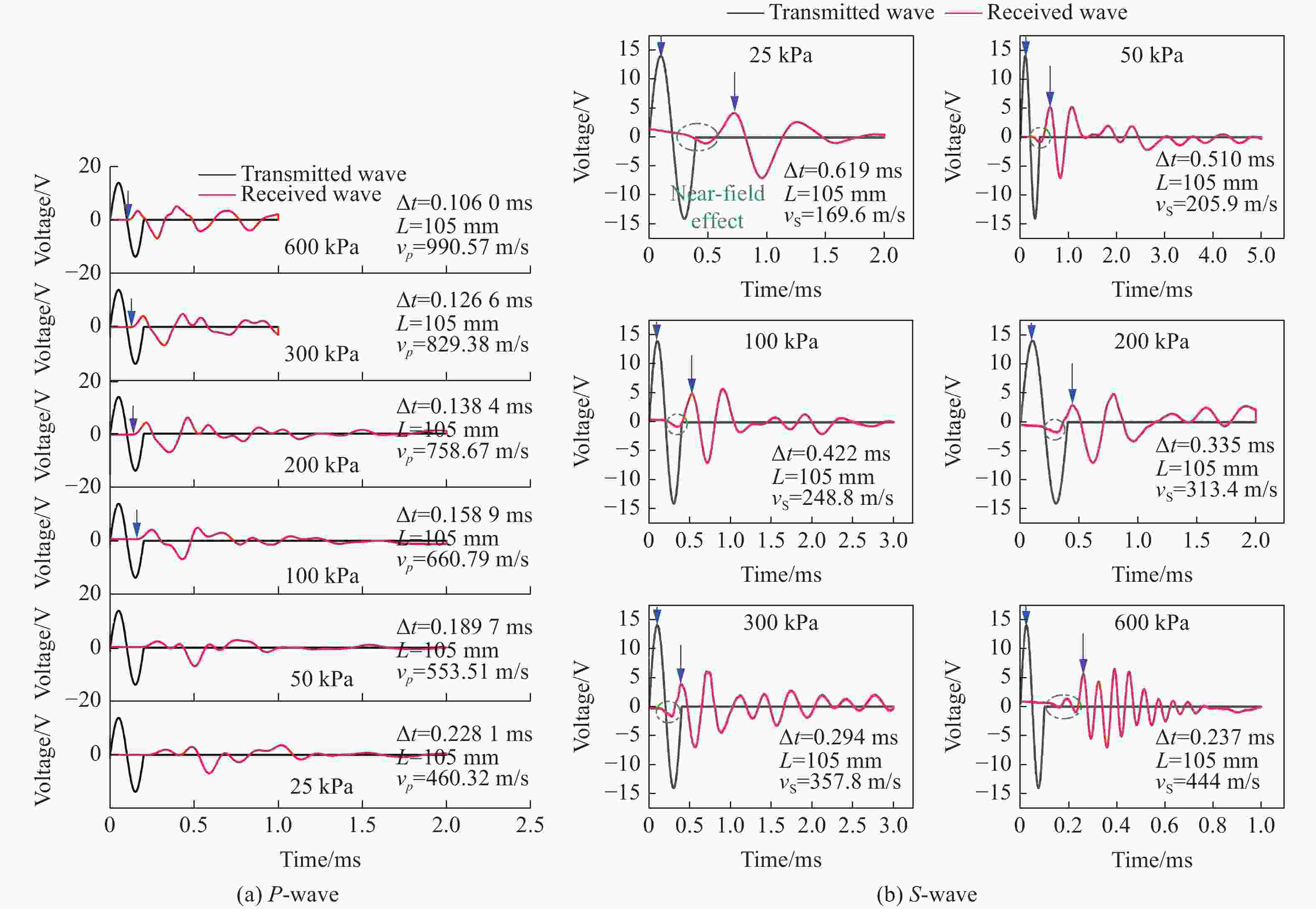

图 6 试样D-10的P波、S波测试时程曲线

Figure 6. P-wave and S-wave test time-history curves of specimen D-10

下载: 全尺寸图片幻灯片

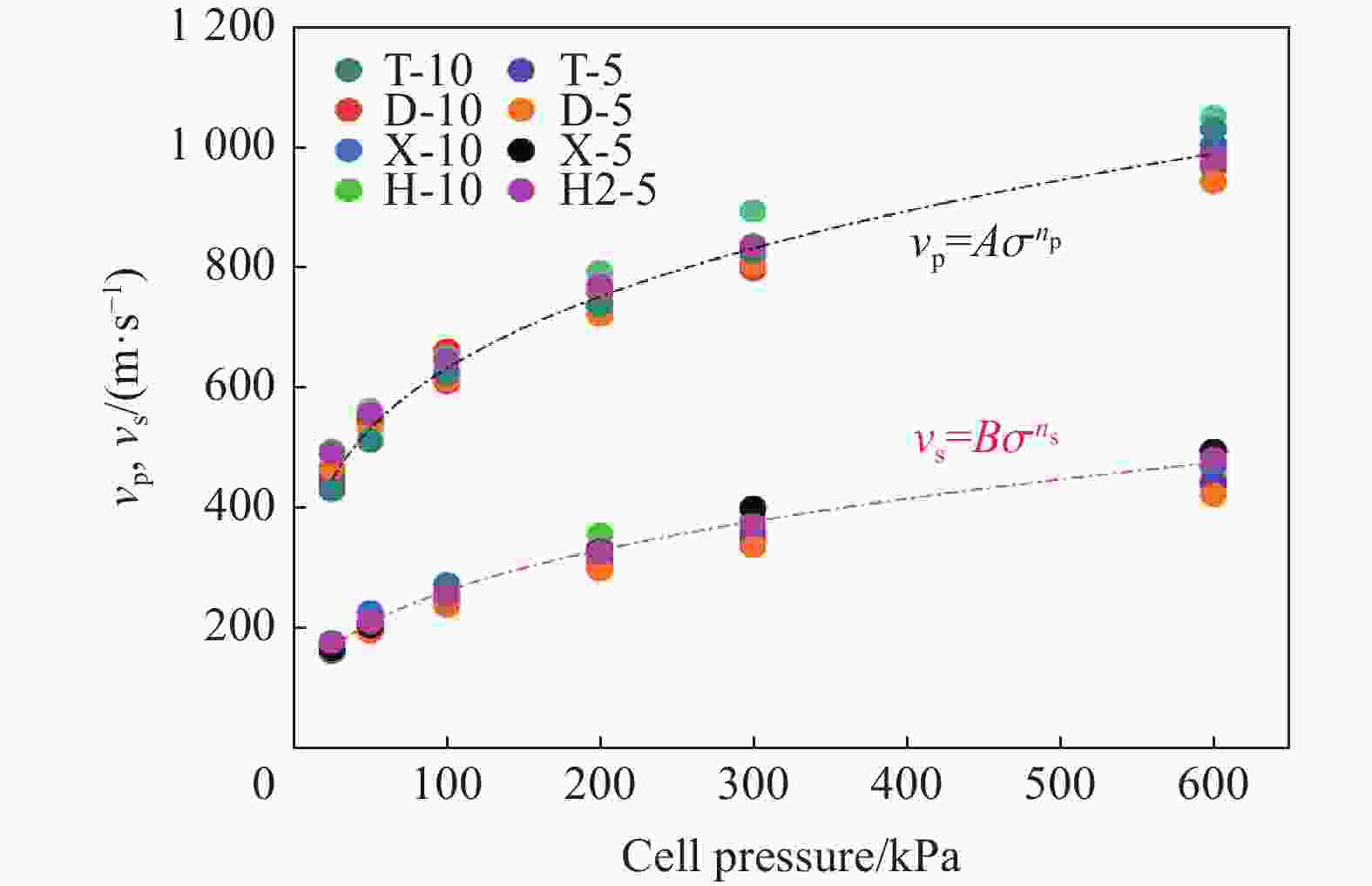

图 7 P波、S波与围压的关系

Figure 7. Wave velocity of P- and S-wave as a function of confining pressure

下载: 全尺寸图片幻灯片

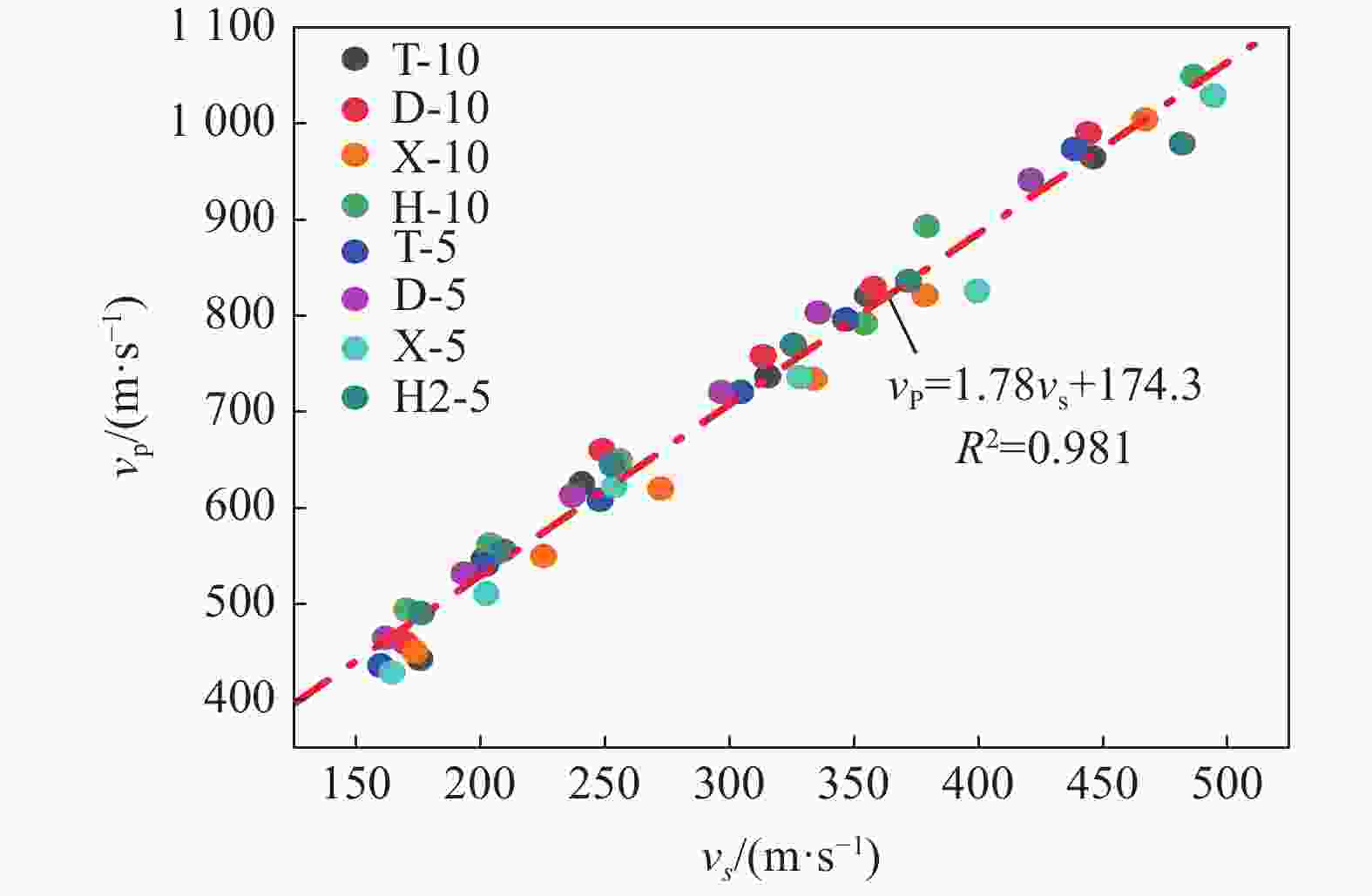

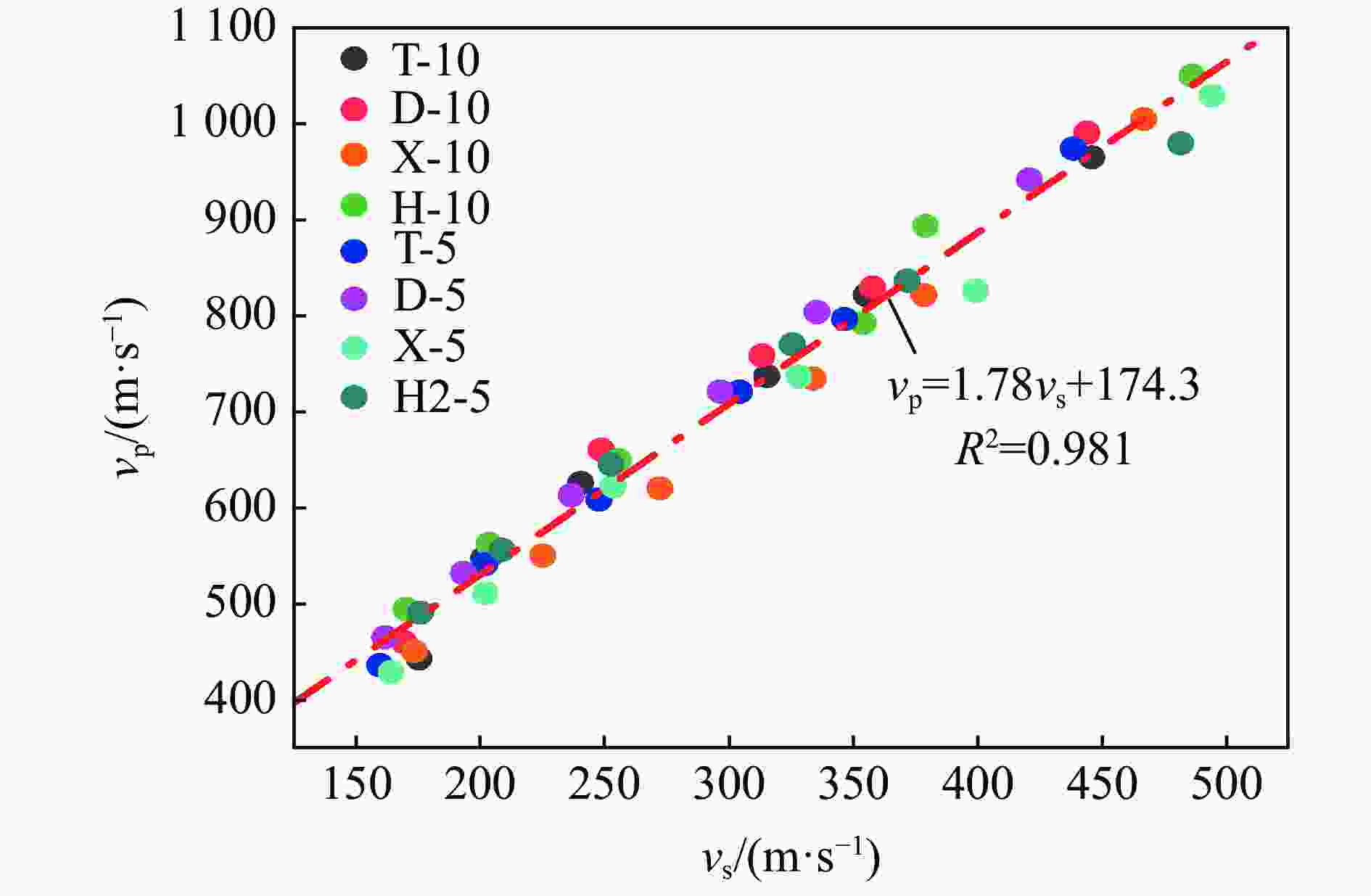

图 8 v_p与v_s关系拟合曲线

Figure 8. Fitting curve of the relationship between v_p and v_s

下载: 全尺寸图片幻灯片

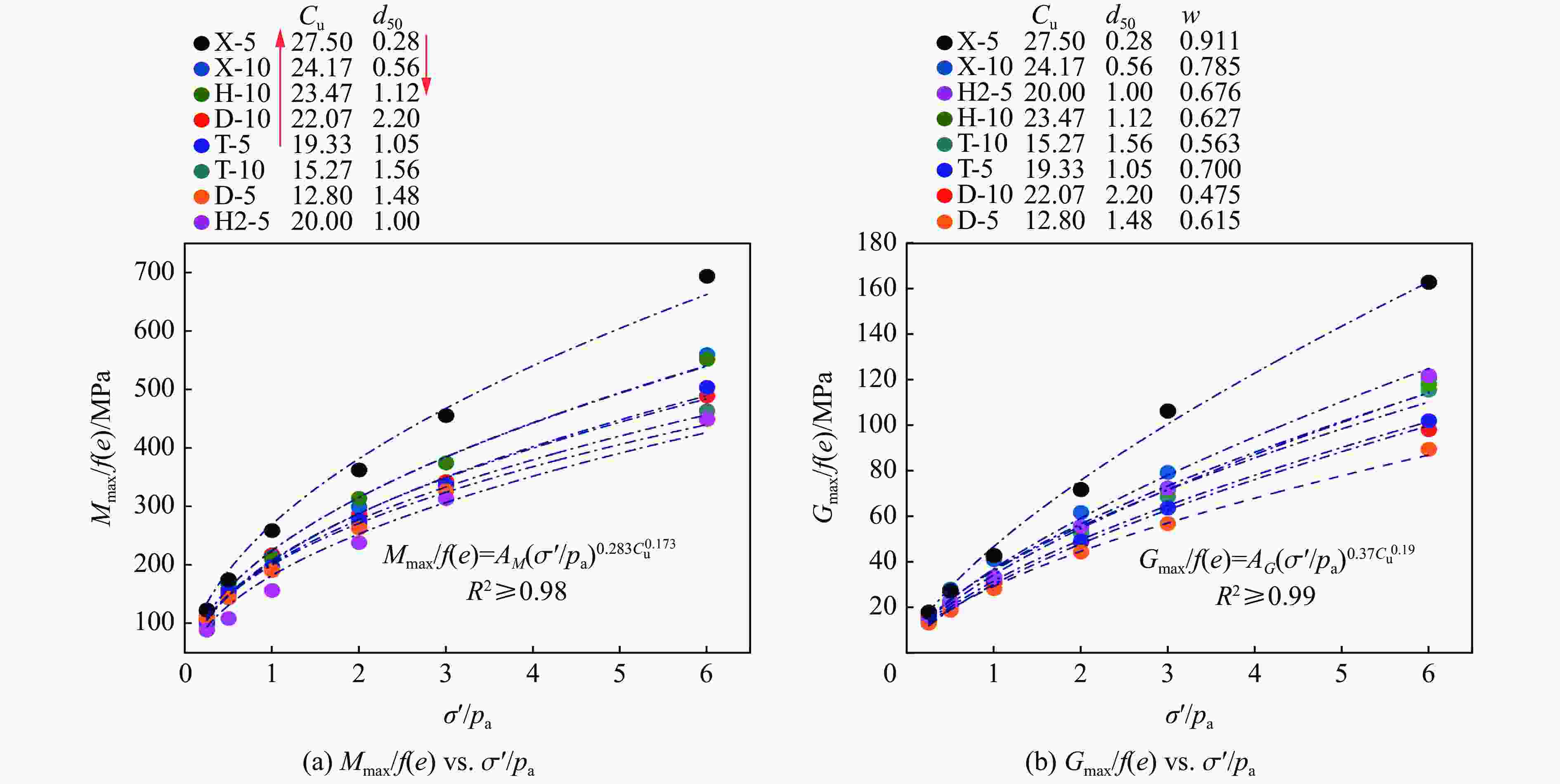

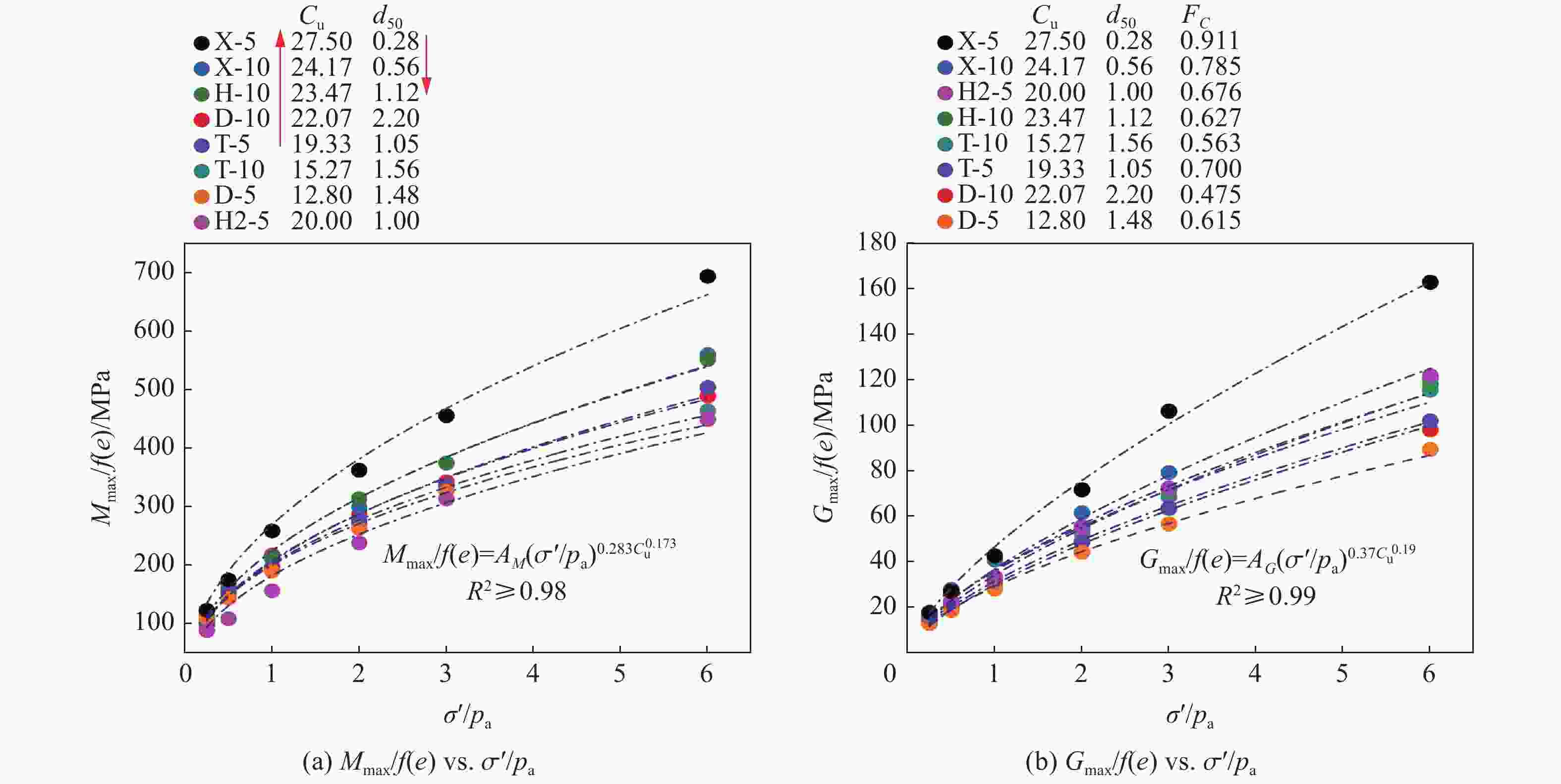

图 9 归准化M_max/f(e)、G_max/f(e)与有效围压σ'/p_a的关系

Figure 9. Relationship between double normalized M_max/f(e), G_max/f(e) and effective confining pressure σ'/p_a

下载: 全尺寸图片幻灯片

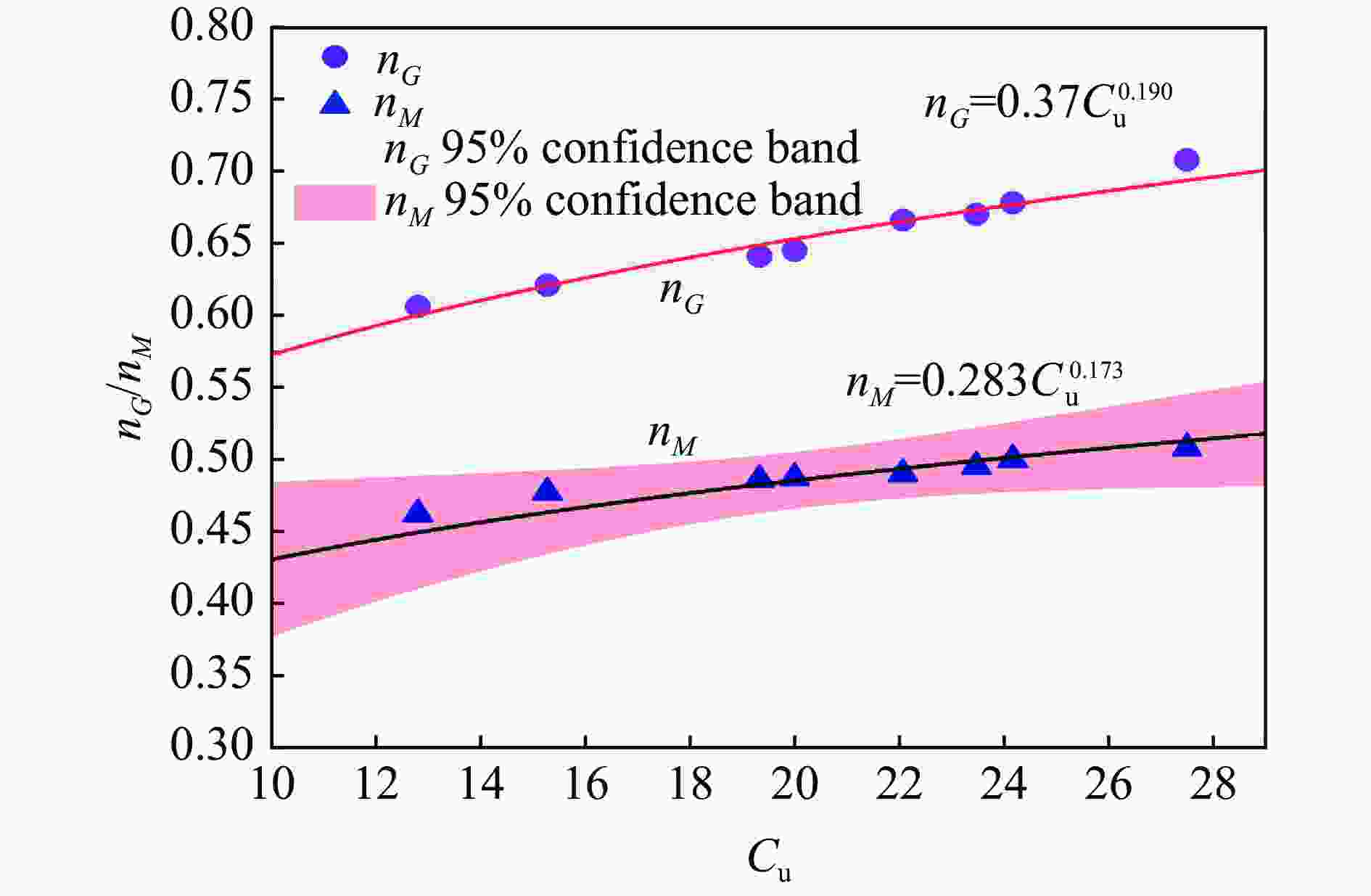

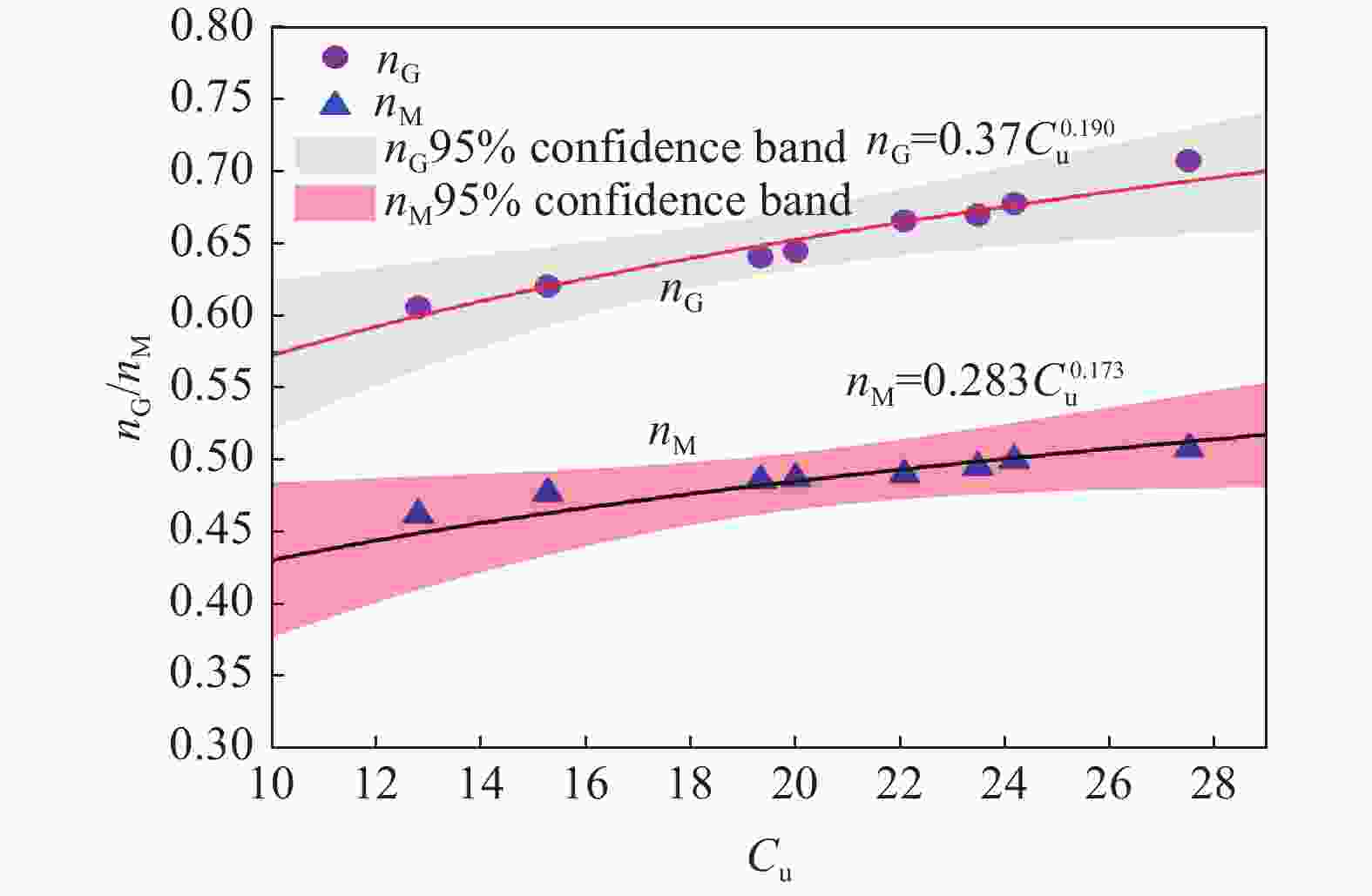

图 10 应力指数n_G、n_M与C_u的关系

Figure 10. Relationship between stress index n_G, n_M and C_u

下载: 全尺寸图片幻灯片

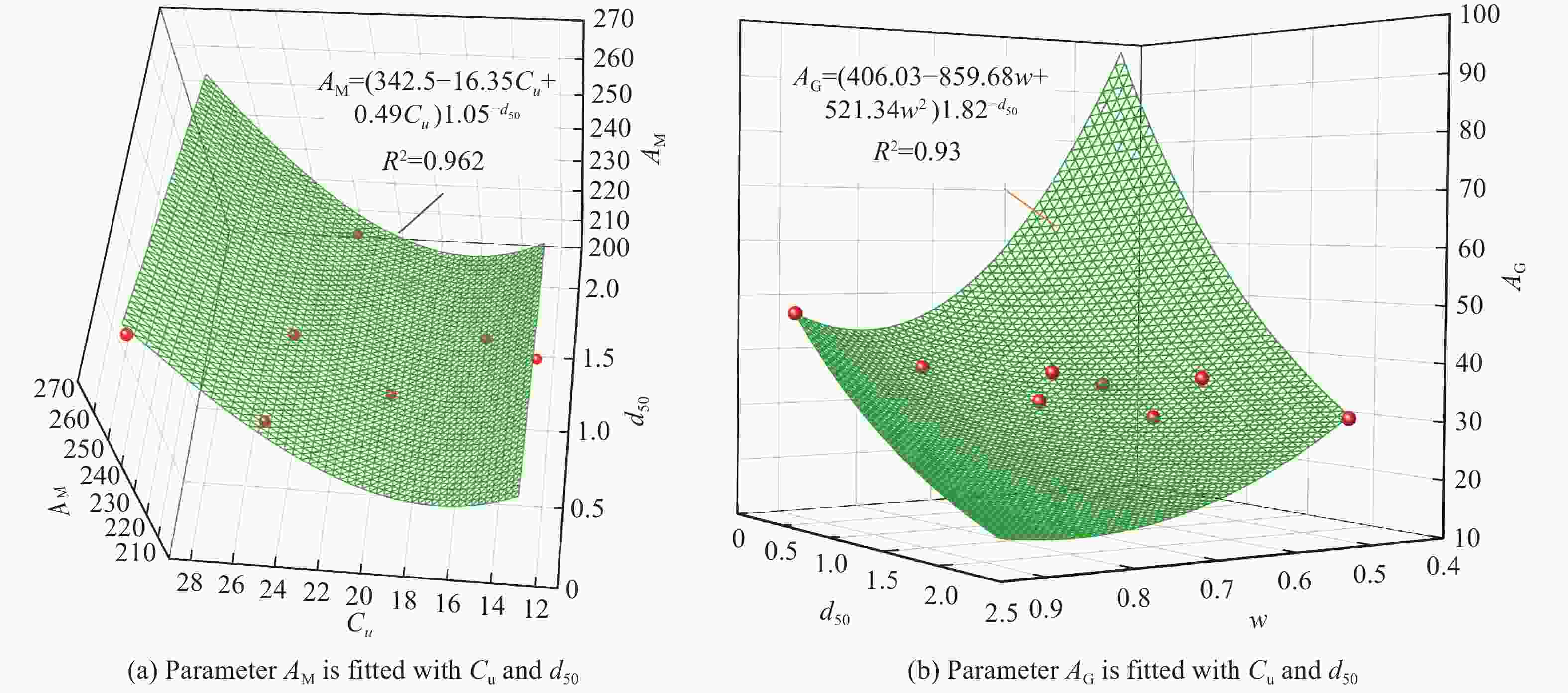

图 11 参数A_M和A_G与C_u、d₅₀的拟合

Figure 11. Parameters A_M and A_Gare fitted with C_u and d₅₀

下载: 全尺寸图片幻灯片

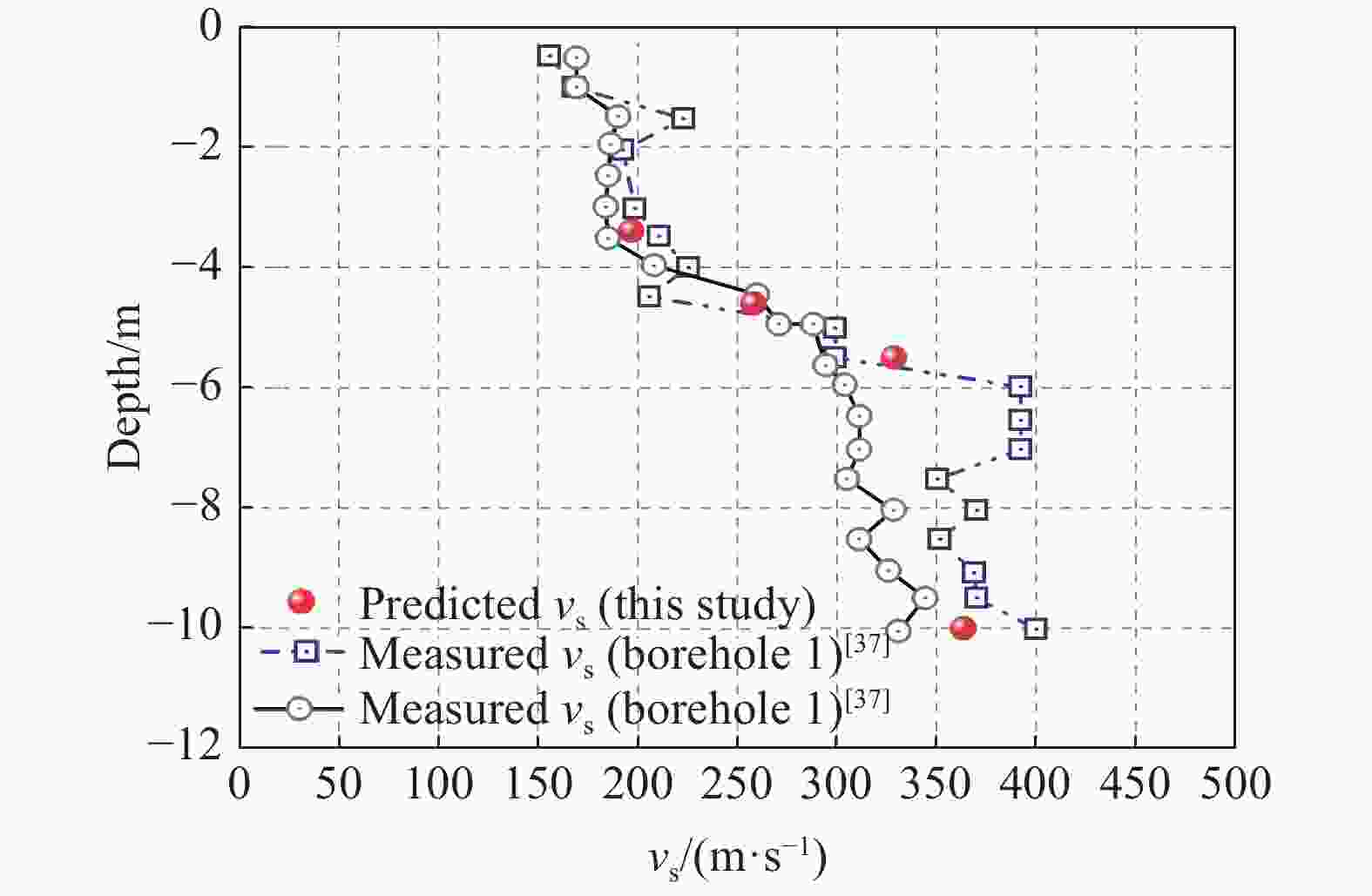

图 12 v_s的实测值^[37]与预测结果的对比

Figure 12. Comparison of measured v_s^[37] and predicted wave velocity

下载: 全尺寸图片幻灯片

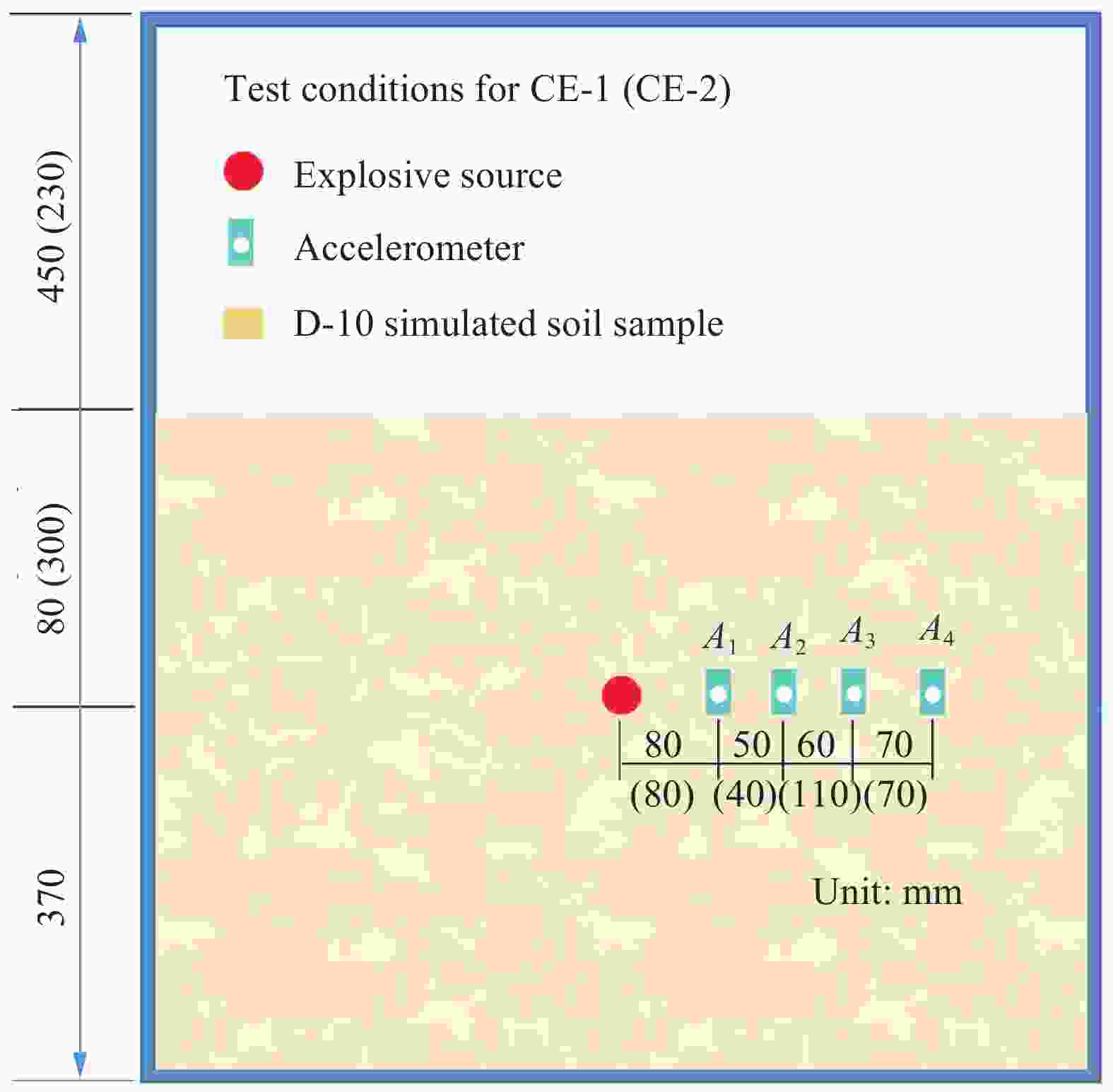

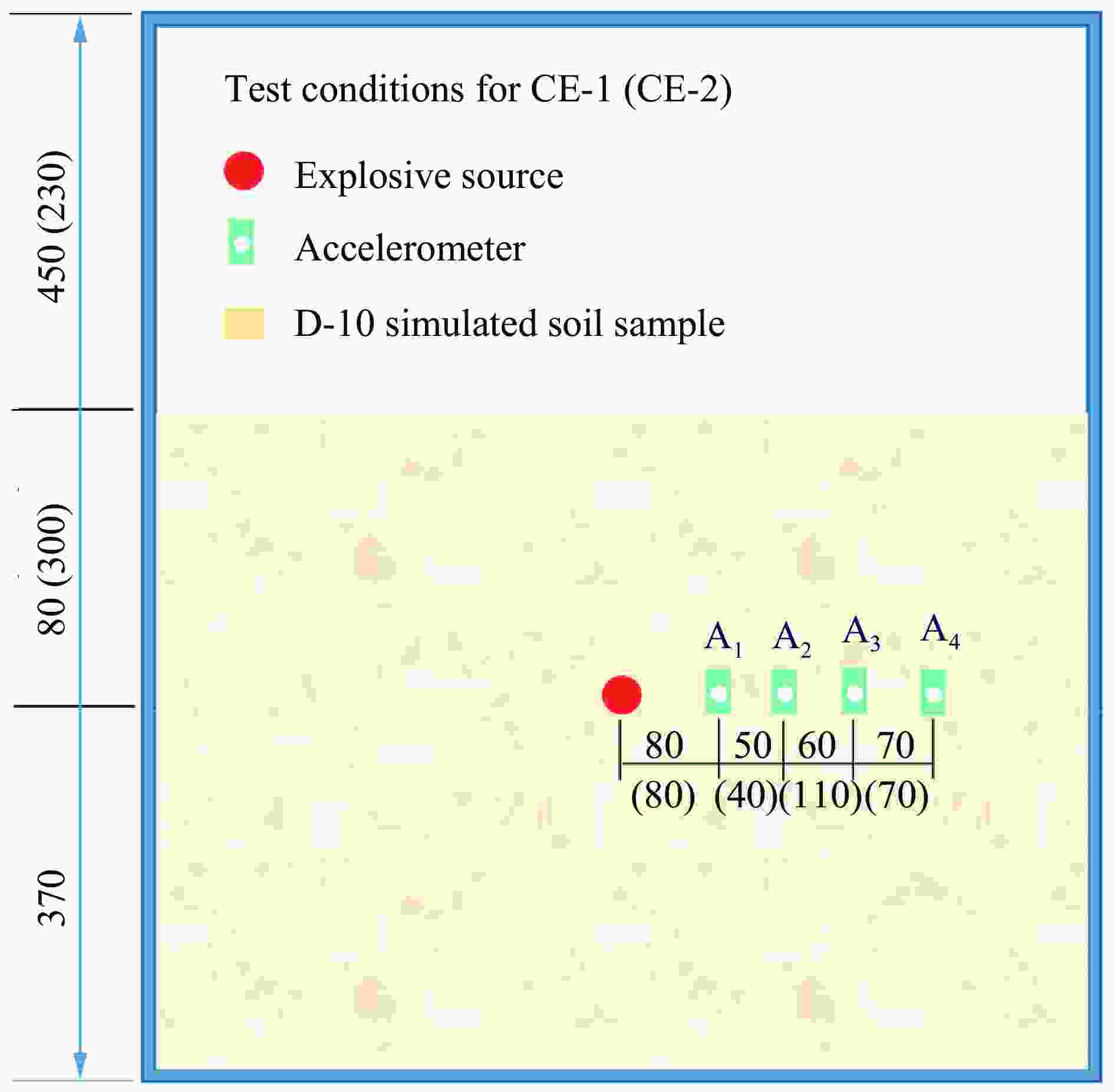

图 13 离心模型布置

Figure 13. Centrifugal test model layout

下载: 全尺寸图片幻灯片

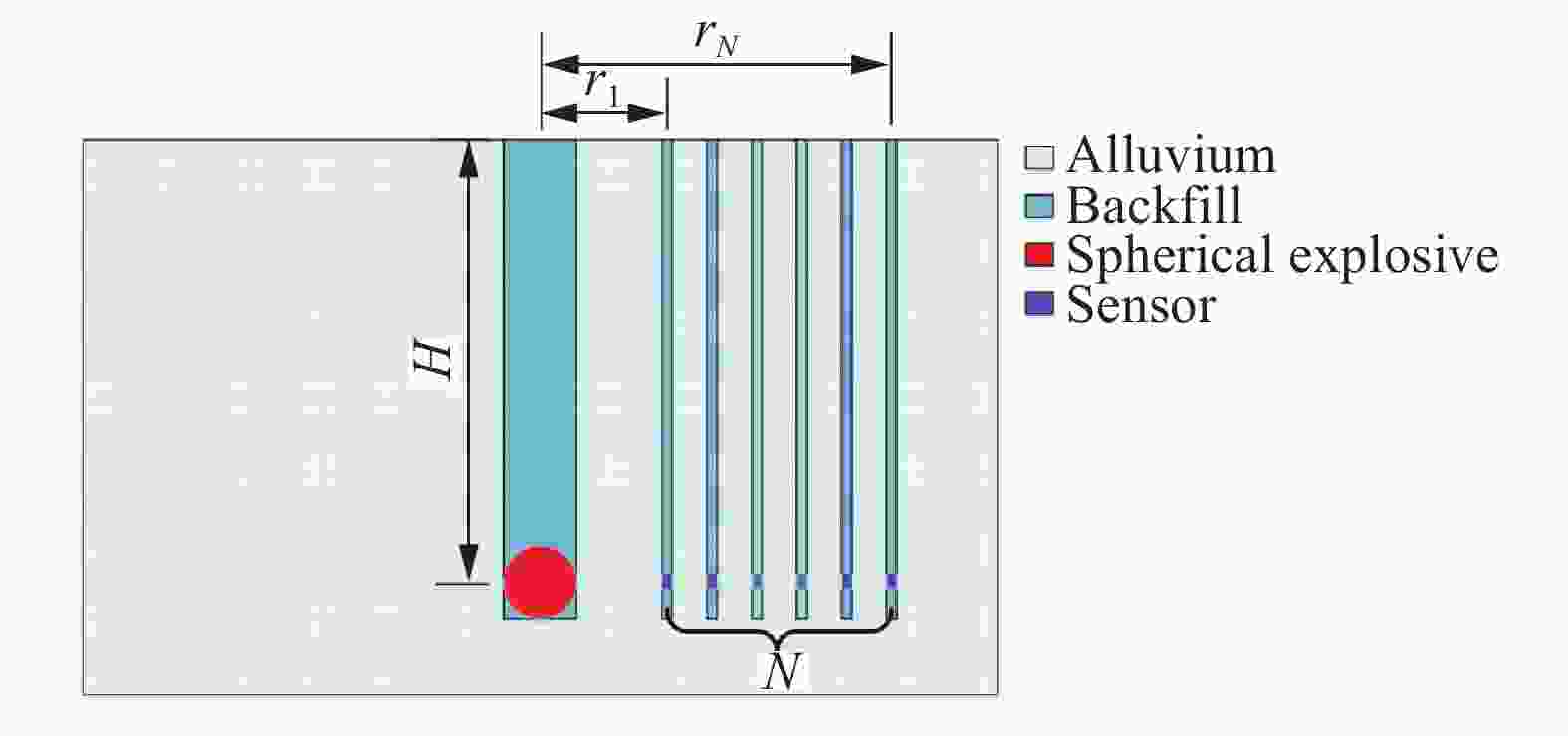

图 14 原位现场试验传感器及爆源布置^[31]

Figure 14. In-situ instrumentation and charge layout^[31]

下载: 全尺寸图片幻灯片

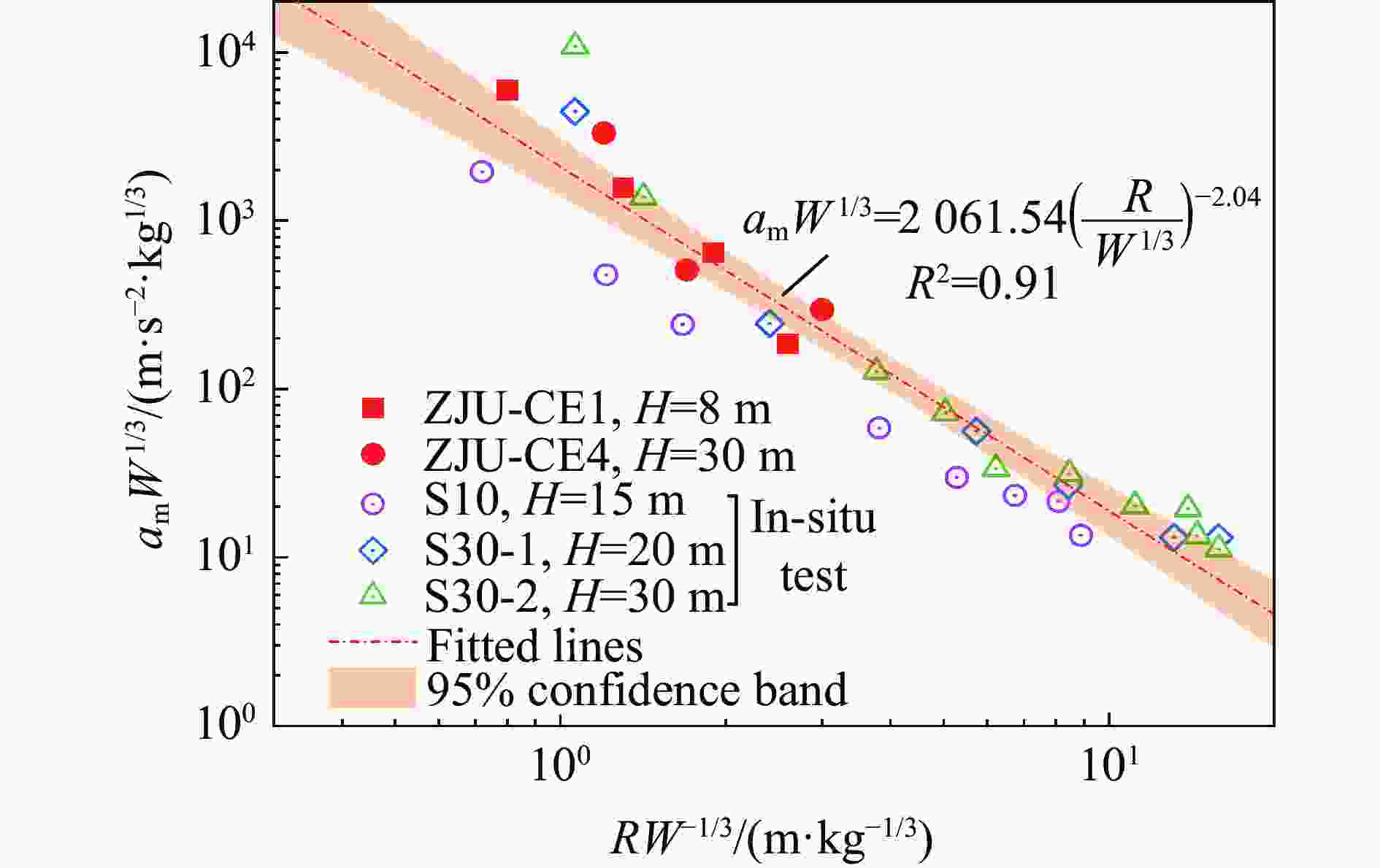

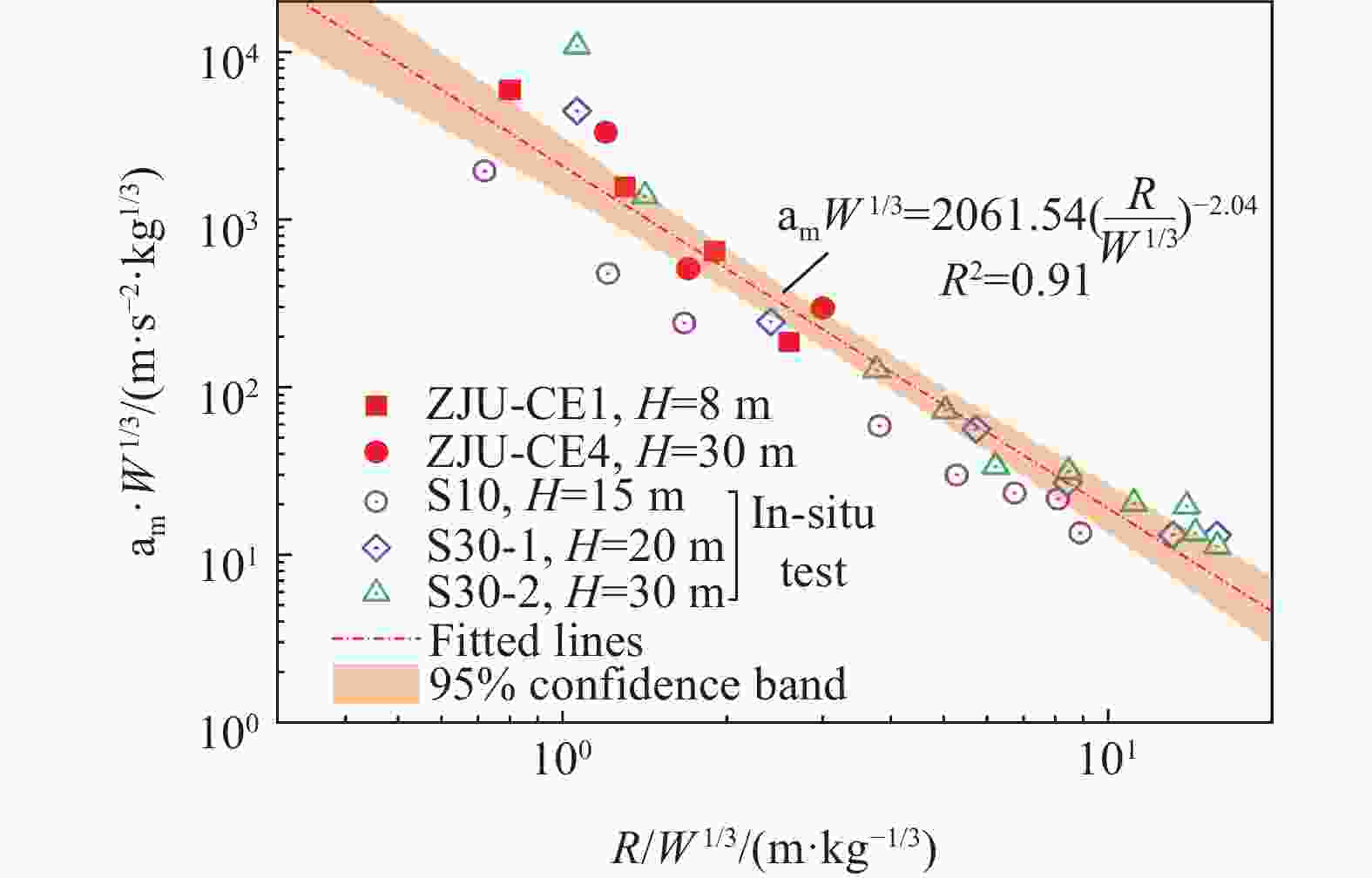

图 15 原位^[31]与离心模型试验的比加速度衰减关系

Figure 15. Relationship between scaled acceleration attenuation from in-situ^[31] and centrifuge model tests

下载: 全尺寸图片幻灯片

表 1 原状土及相似土参数

Table 1. Parameters of undisturbed soil and similar soil

试样	d_max/mm	w/%	ρ_max/(g·cm^-3)	ρ_min/(g·cm⁻³)	d₅₀/mm	C_u	C_c	D_r	ρ_s/(g·cm⁻³)	e_max	e_min	e₀
YS-40	40	47.50	2.224	1.485	2.45	23.53	1.40	0.83	2.05	0.865	0.246	0.351
T-20	20	50.00	2.236	1.563	2.00	20.40	1.33	0.83	2.084	0.772	0.239	0.329
D-20	20	47.50	2.226	1.560	2.25	23.53	1.40	0.83	2.075	0.776	0.244	0.335
X-20	20	62.70	2.22	1.552	1.13	23.47	1.34	0.83	2.069	0.784	0.248	0.339
T-10	10	56.30	2.233	1.549	1.56	15.27	1.19	0.83	2.077	0.788	0.240	0.334
D-10	10	47.50	2.228	1.562	2.20	22.07	1.46	0.83	2.077	0.774	0.243	0.333
X-10	10	78.50	2.202	1.448	0.56	24.17	1.41	0.83	2.023	0.913	0.258	0.369
H-10	10	62.70	2.245	1.515	1.12	23.47	1.34	0.83	2.075	0.828	0.234	0.335
T-5	5	70.00	2.213	1.491	1.05	19.33	2.03	0.83	2.045	0.858	0.252	0.355
D-5	5	61.50	2.230	1.532	1.48	12.80	2.22	0.83	2.070	0.808	0.242	0.338
X-5	5	91.10	2.110	1.331	0.28	27.50	1.72	0.83	1.919	1.082	0.313	0.444
H1-5	5	65.00	2.213	1.493	1.10	22.13	1.42	0.83	2.045	0.855	0.252	0.354
H2-5	5	67.60	2.218	1.497	1.00	20.00	1.35	0.83	2.050	0.850	0.249	0.351

下载: 导出CSV

表 2 不同试样模型参数A_G、A_M与R²

Table 2. Model parameters A_G, A_M and R² of different styles

试样	A_G	n_G	R²	A_M	n_M	R²
T-10	36.29	0.621	0.99	202.62	0.477	0.99
D-10	30.33	0.666	0.99	206.11	0.490	0.99
X-10	37.15	0.678	0.99	224.62	0.500	0.99
H-10	34.49	0.67	0.99	224.85	0.495	0.99
T-5	31.78	0.641	0.99	207.93	0.486	0.99
D-5	29.45	0.606	0.99	200.15	0.462	0.99
X-5	46.98	0.708	0.99	269.72	0.508	0.99
H2-5	36.72	0.645	0.99	182.22	0.487	0.98

下载: 导出CSV

表 3 台湾花莲地区场地土参数^[37]

Table 3. Soil parameters of the Hualien site in Taiwan^[37]

试样	深度/m	ρ_d	e	w/%	d₅₀/mm	C_u	σ'/kPa	G/MPa	v_s/(m·s⁻¹)	v_s0/(m·s⁻¹)
S2-1a	3.19～3.39	1 500	0.832	100.00	0.16	1.8	49	58.20	196.9	185～211
S1-2a	4.49～4.69	2 340	0.159	65.00	2.00	147.0	69	156.10	258.2	226～263
S1-2c	5.38～5.58	2 450	0.100	40.00	4.00	300.0	88	230.20	328.7	294～327
S2-5a	9.90～10.10	2 240	0.214	57.80	0.94	141.2	137	295.86	363.4	331～400

下载: 导出CSV

表 5 离心模型试验工况

Table 5. Test conditions

试验	爆源当量/g	爆源埋深/mm	模型高度/mm	重力加速度	备注
CE-1	1.0	80	450	100g	浅埋
CE-2	1.0	300	670	100g	深埋

下载: 导出CSV

表 4 离心模型比尺

Table 4. Centrifugal model scales

物理量	量纲	相似比尺（原型/模型）
重力加速度	LT⁻²	1/N
线性尺寸	L	N
应力/压强	ML⁻¹T⁻²	1
密度	ML⁻³	1
质量	M	N³
能量	ML²T⁻²	N³

下载: 导出CSV
