椭圆截面战斗部爆轰驱动壳体的断裂及毁伤特性

邓宇轩 张先锋 刘闯 刘均伟 李鹏程 盛强 肖川

邓宇轩, 张先锋, 刘闯, 刘均伟, 李鹏程, 盛强, 肖川. 椭圆截面战斗部爆轰驱动壳体的断裂及毁伤特性[J]. 爆炸与冲击, 2023, 43(9): 091412. doi: 10.11883/bzycj-2023-0135
引用本文: 邓宇轩, 张先锋, 刘闯, 刘均伟, 李鹏程, 盛强, 肖川. 椭圆截面战斗部爆轰驱动壳体的断裂及毁伤特性[J]. 爆炸与冲击, 2023, 43(9): 091412. doi: 10.11883/bzycj-2023-0135
DENG Yuxuan, ZHANG Xianfeng, LIU Chuang, LIU Junwei, LI Pengcheng, SHENG Qiang, XIAO Chuan. Casing fracture and damage characteristics of an elliptical cross-section warhead under explosive loading[J]. Explosion And Shock Waves, 2023, 43(9): 091412. doi: 10.11883/bzycj-2023-0135
Citation: DENG Yuxuan, ZHANG Xianfeng, LIU Chuang, LIU Junwei, LI Pengcheng, SHENG Qiang, XIAO Chuan. Casing fracture and damage characteristics of an elliptical cross-section warhead under explosive loading[J]. Explosion And Shock Waves, 2023, 43(9): 091412. doi: 10.11883/bzycj-2023-0135

椭圆截面战斗部爆轰驱动壳体的断裂及毁伤特性

doi: 10.11883/bzycj-2023-0135
基金项目: 国家自然科学基金(12141202,12202205)
详细信息
    作者简介:

    邓宇轩(1998- ),男,博士研究生,dengyuxuan103@163.com

    通讯作者:

    肖 川(1966- ),男,研究员,hll8611@126.com

  • 中图分类号: O385

Casing fracture and damage characteristics of an elliptical cross-section warhead under explosive loading

  • 摘要: 为研究椭圆截面战斗部爆轰驱动下壳体破片的形成机制和毁伤特性,设计了5种装药质量和壳体质量比相同而短长轴比不同的战斗部,开展了静爆威力试验,获得了椭圆截面战斗部破片径向速度分布规律,并结合细观观测方法分析了爆轰驱动下壳体断裂过程及破片损伤特性,通过测量破片对Q235钢板的侵彻开坑参数,量化了椭圆截面战斗部破片的侵彻毁伤能力。研究结果表明:椭圆截面战斗部破片速度由短轴至长轴方向呈对数趋势增长,相较于圆形截面战斗部存在明显的速度增益,短长轴比为0.40时,增益达到83%;靠近长轴处,由于壳体受到滑移爆轰为主导的驱动作用,壳体内部环向拉应力导致破片内表面出现拉伸裂纹,随着短长轴比增大,破片表面裂纹逐渐消失,而在战斗部短轴处,散心爆轰占据主导地位,壳体主要受到径向压应力作用,并未出现裂纹损伤;受端面稀疏波影响,战斗部轴向最大毁伤威力出现在距离非起爆端1/4处,而在战斗部径向方向,短长轴比为0.40时,短轴毁伤威力达到长轴的1.83倍,且该差异随着短长轴比增大逐渐减小。

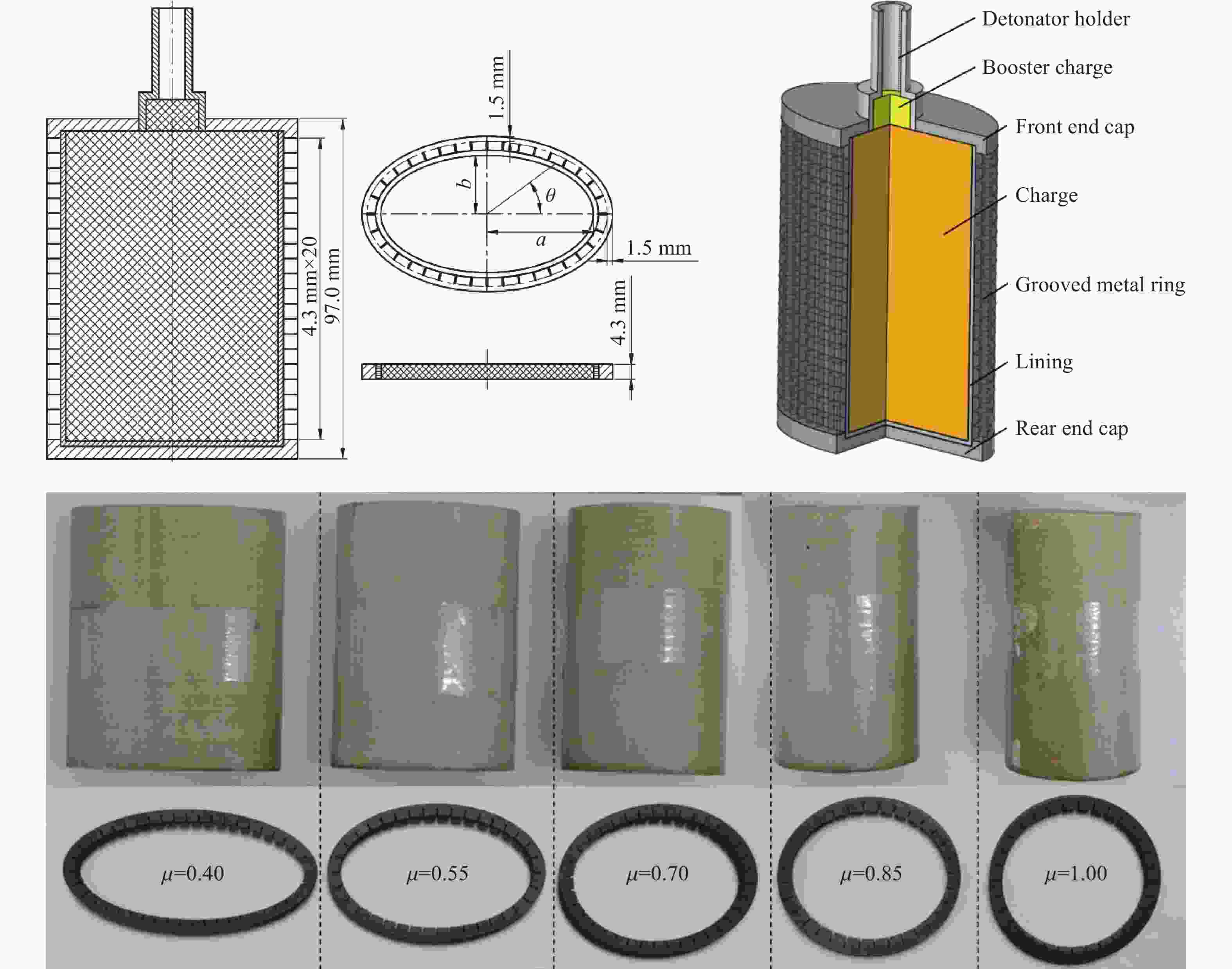

  • 图  1  战斗部结构

    Figure  1.  Warhead structure

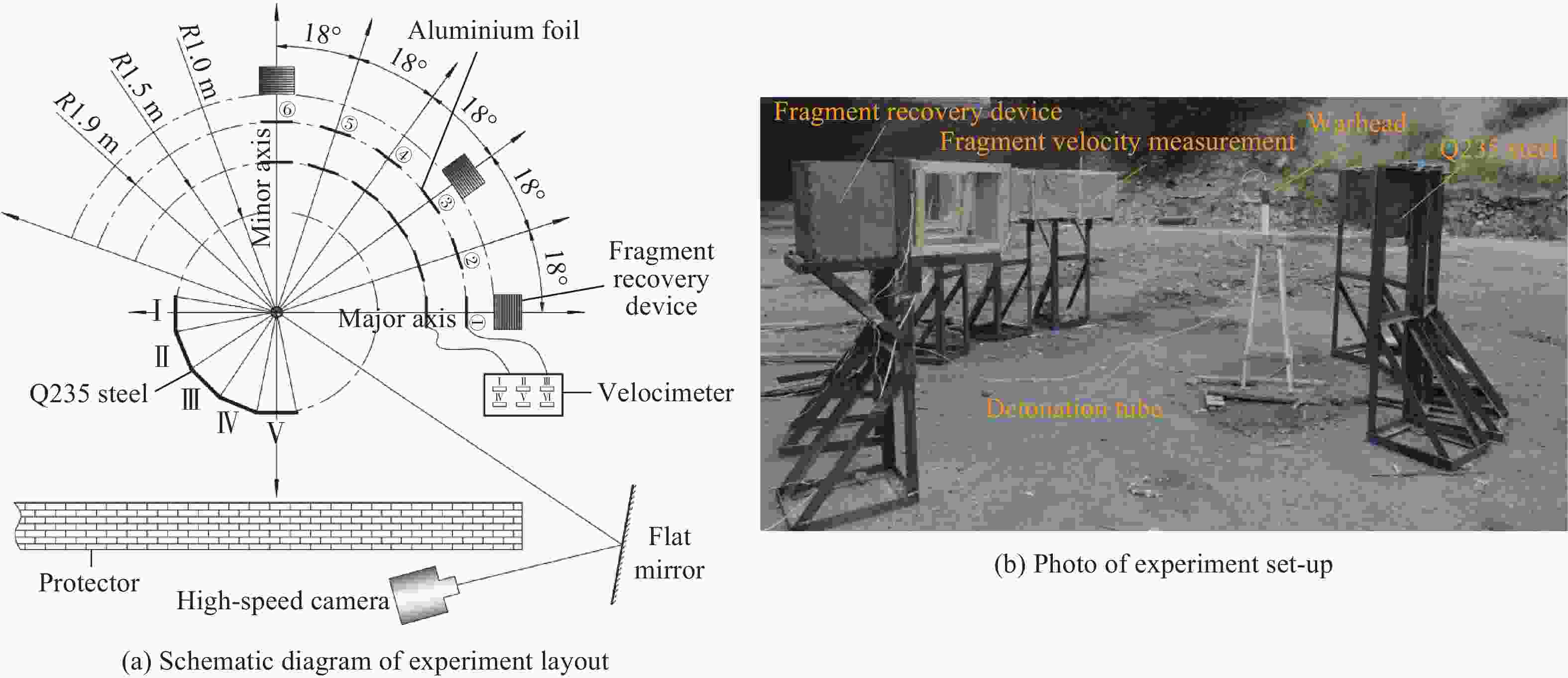

    图  2  试验布局

    Figure  2.  Layout of explosion experiments

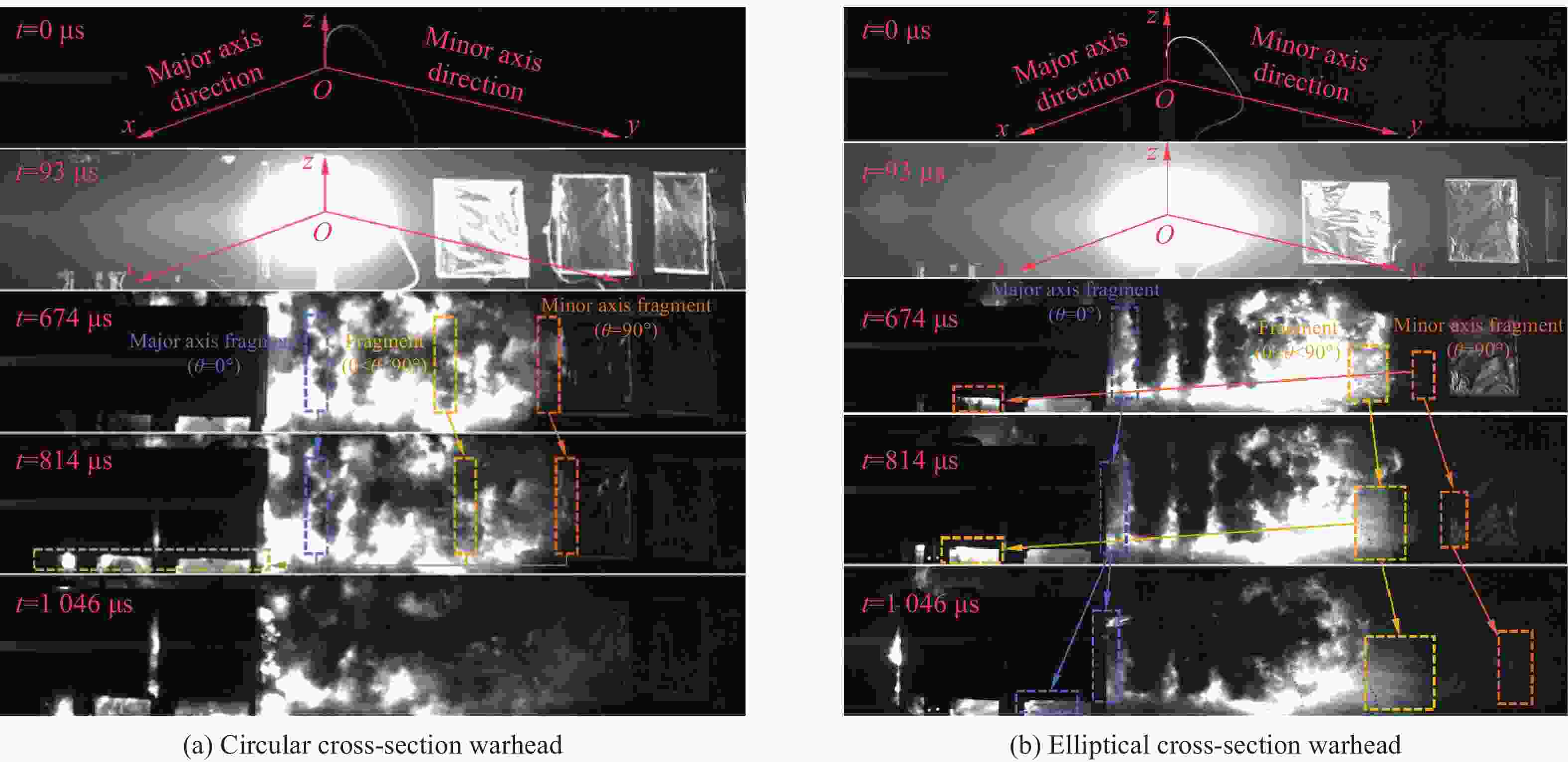

    图  3  不同截面战斗部破片飞散撞击过程

    Figure  3.  Different cross-sectional warhead fragments scattering impact process

    图  4  不同短长轴比战斗部轴向破片飞散过程

    Figure  4.  Axial fragment scattering process of warhead with different minor to major axis ratios

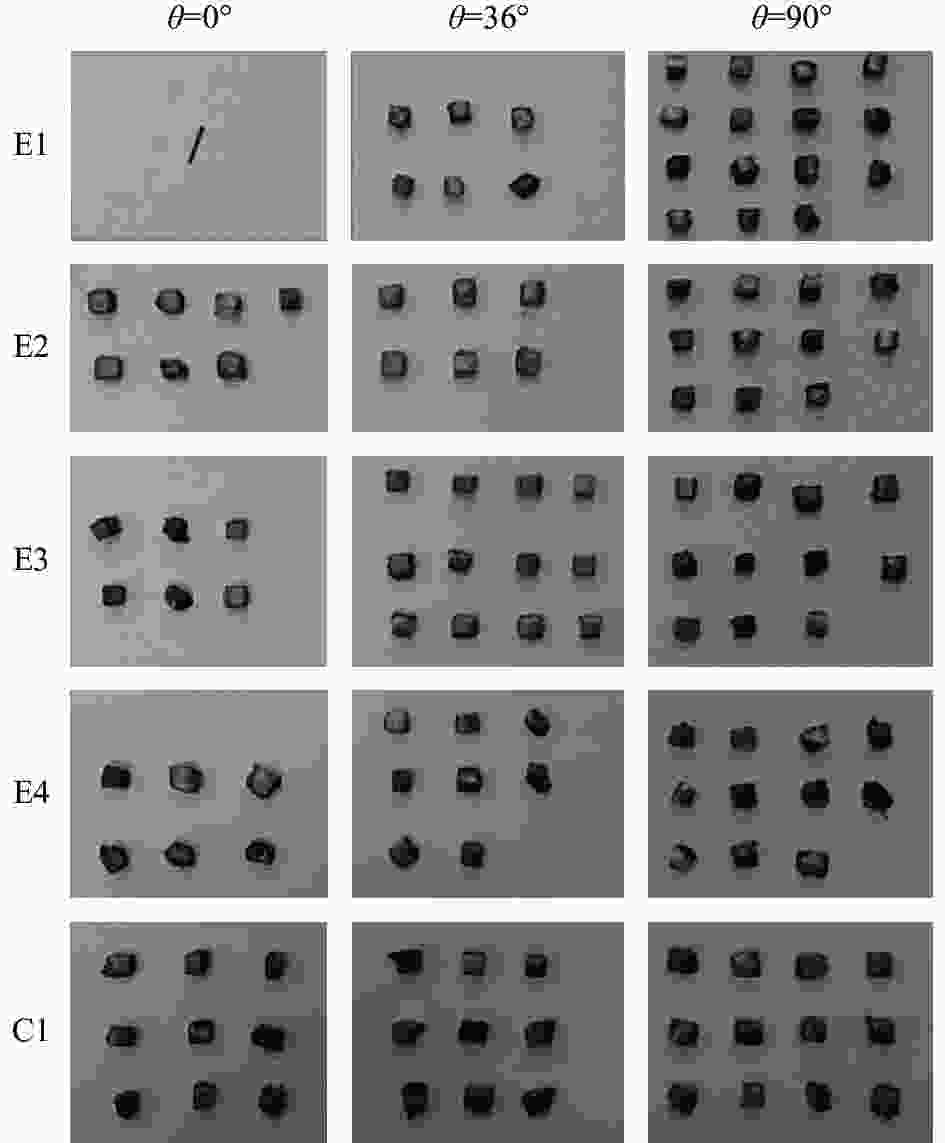

    图  5  回收破片照片(μ=0.40)

    Figure  5.  Photos of recycle fragments (μ=0.40)

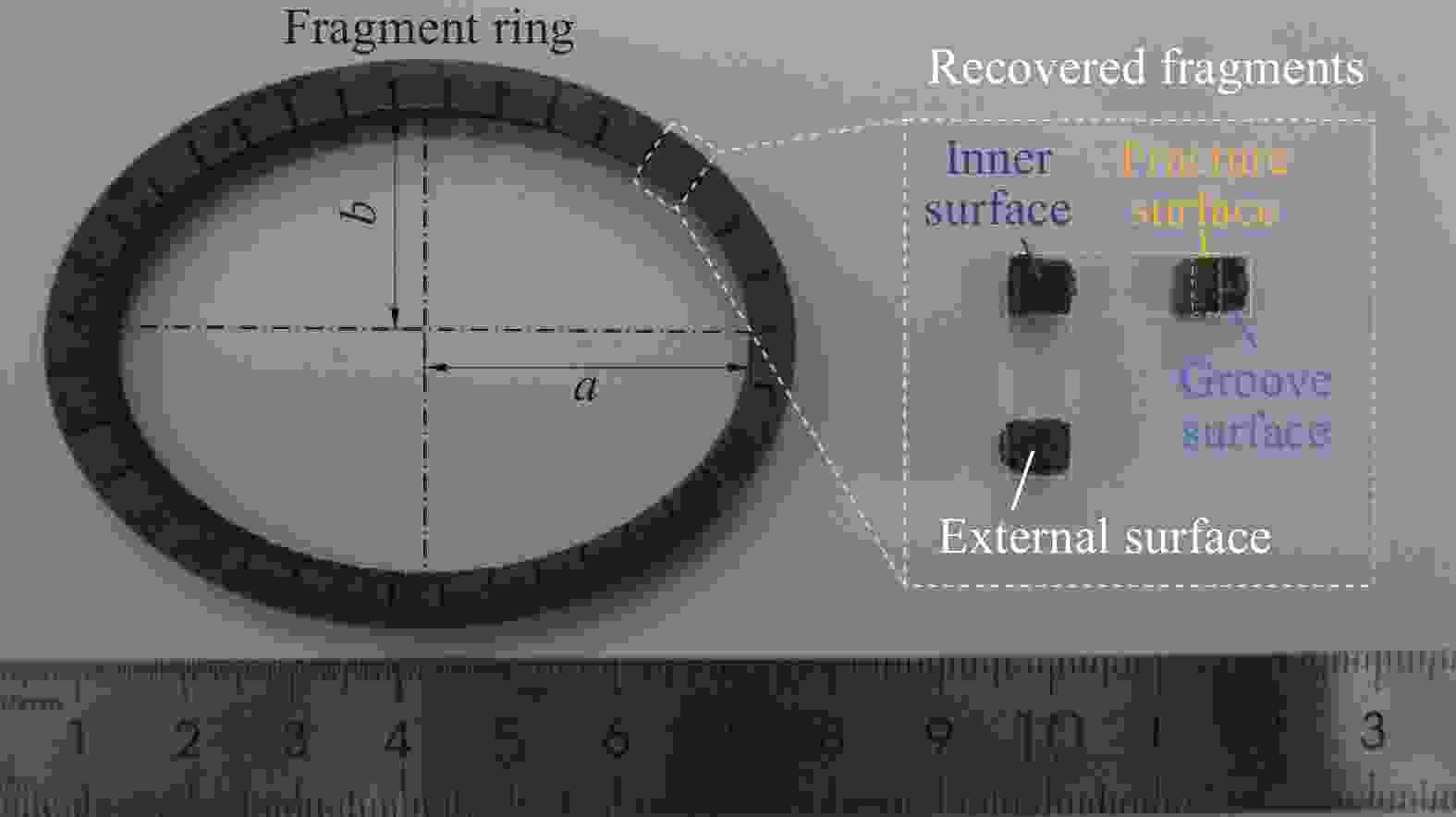

    图  6  破片表面区域划分示意图

    Figure  6.  Schematic diagram of fragment surface area division

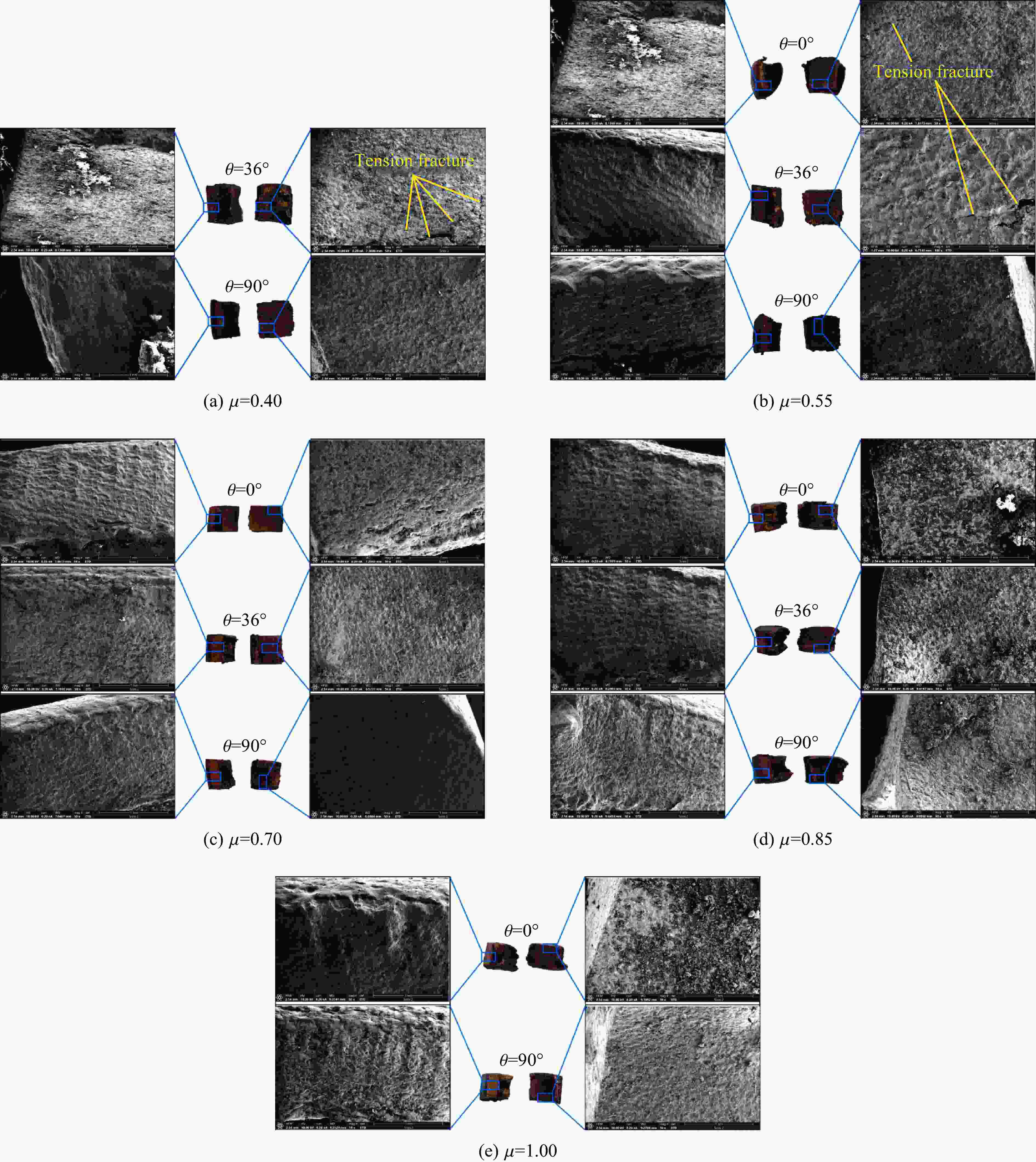

    图  7  爆轰驱动后不同短长轴比战斗部不同位置回收破片的细观照片

    Figure  7.  Mesoscopic photos of fragments at different positions of warhead with different minor to major axis ratios

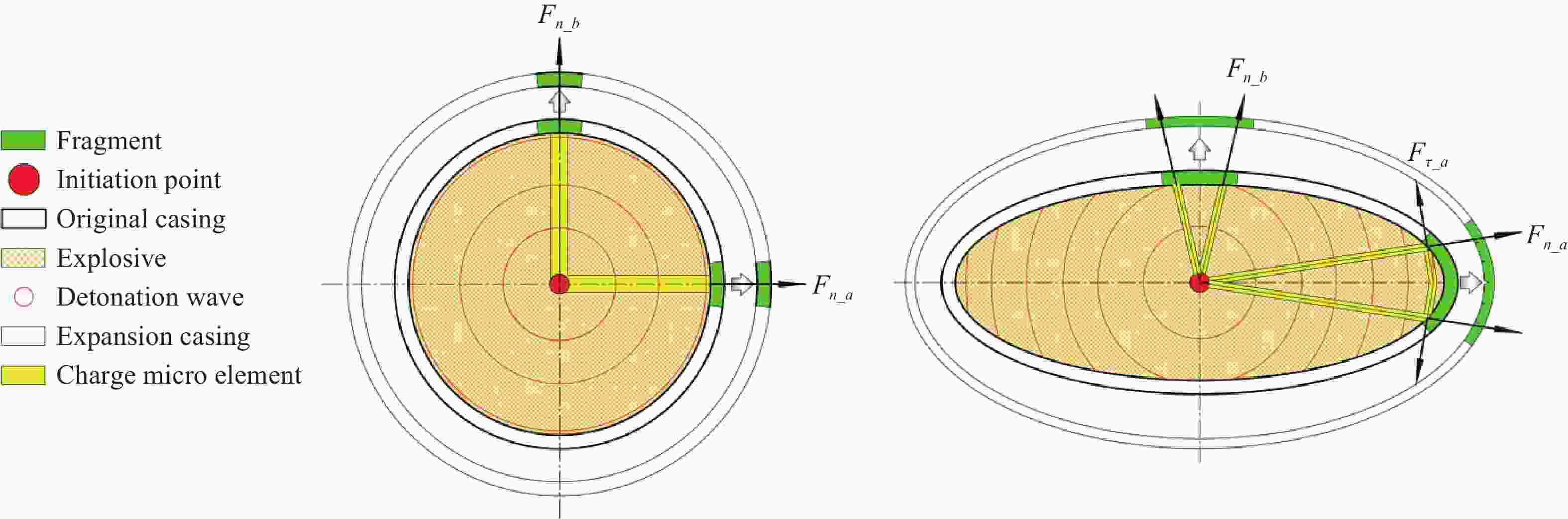

    图  8  爆轰驱动破片损伤过程示意图

    Figure  8.  Schematic diagram of detonation driven fragment damage process

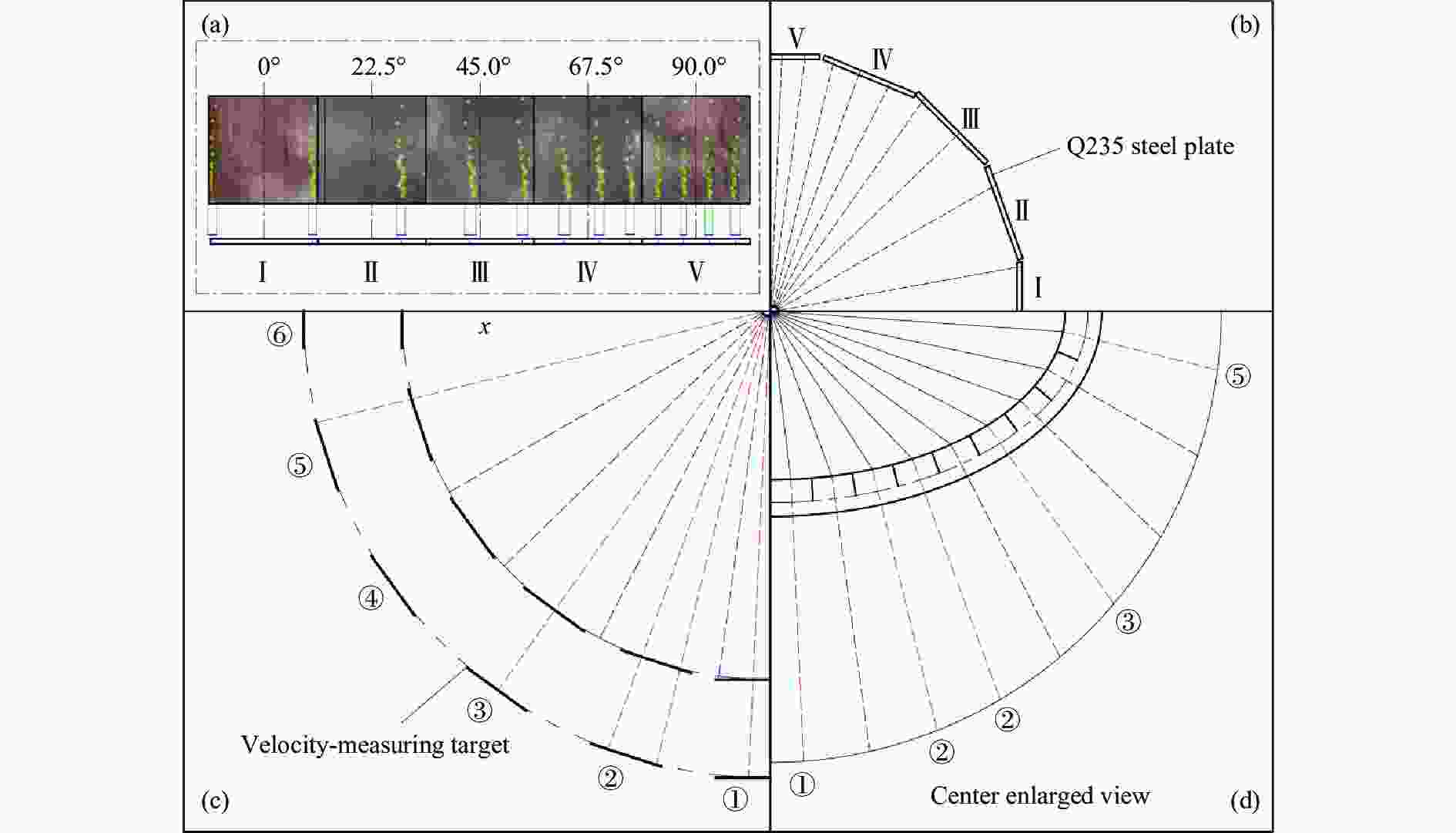

    图  9  测速靶与椭圆截面战斗部破片位置对应关系处理过程

    Figure  9.  Corresponding relationship between velocity-measuring target and fragment position of elliptical section warhead

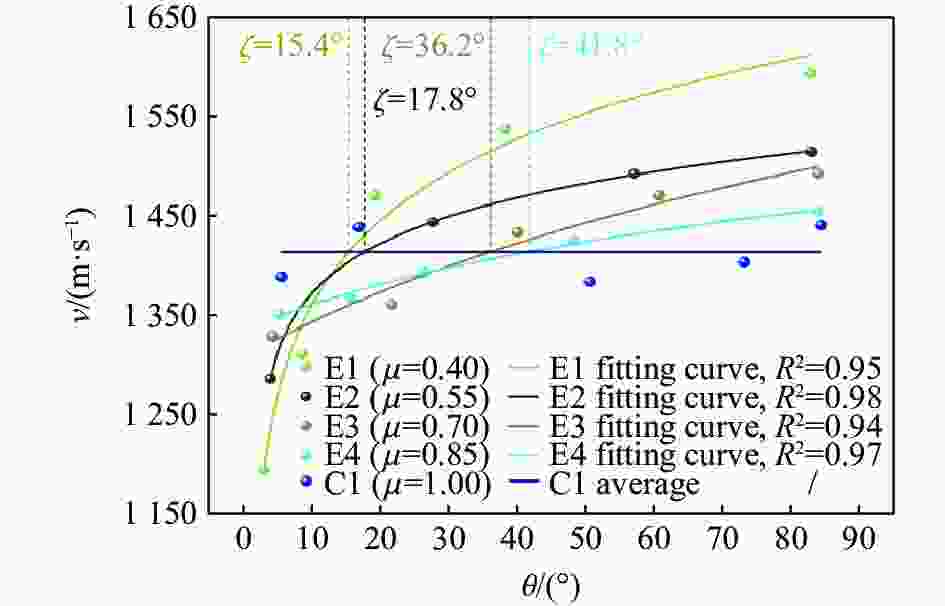

    图  10  不同短长轴比战斗部破片速度分布拟合结果

    Figure  10.  Fragment velocity and fitting results of warhead with different minor to major axis ratios

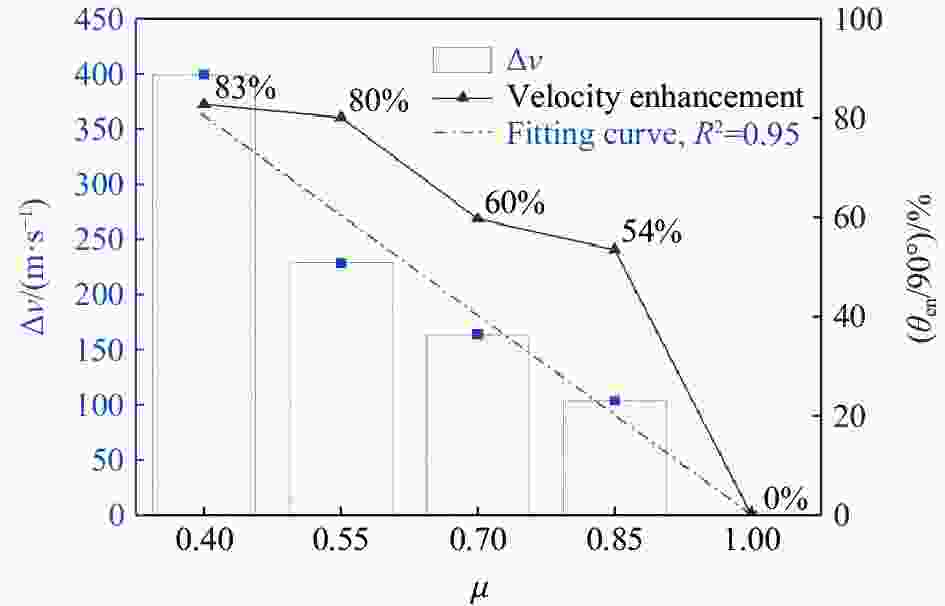

    图  11  破片速度增益及短长轴速度差值

    Figure  11.  Gain of fragment velocity and the difference of minor and major axis velocity

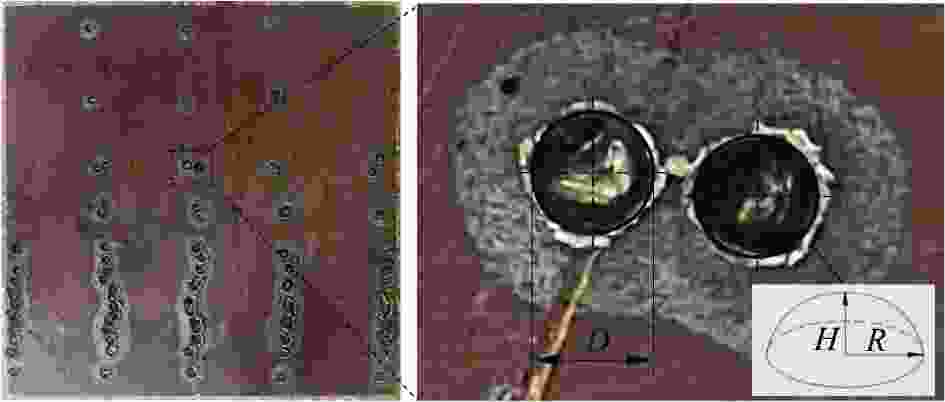

    图  12  破片开坑形状处理

    Figure  12.  Equivalent diagram of pit shape

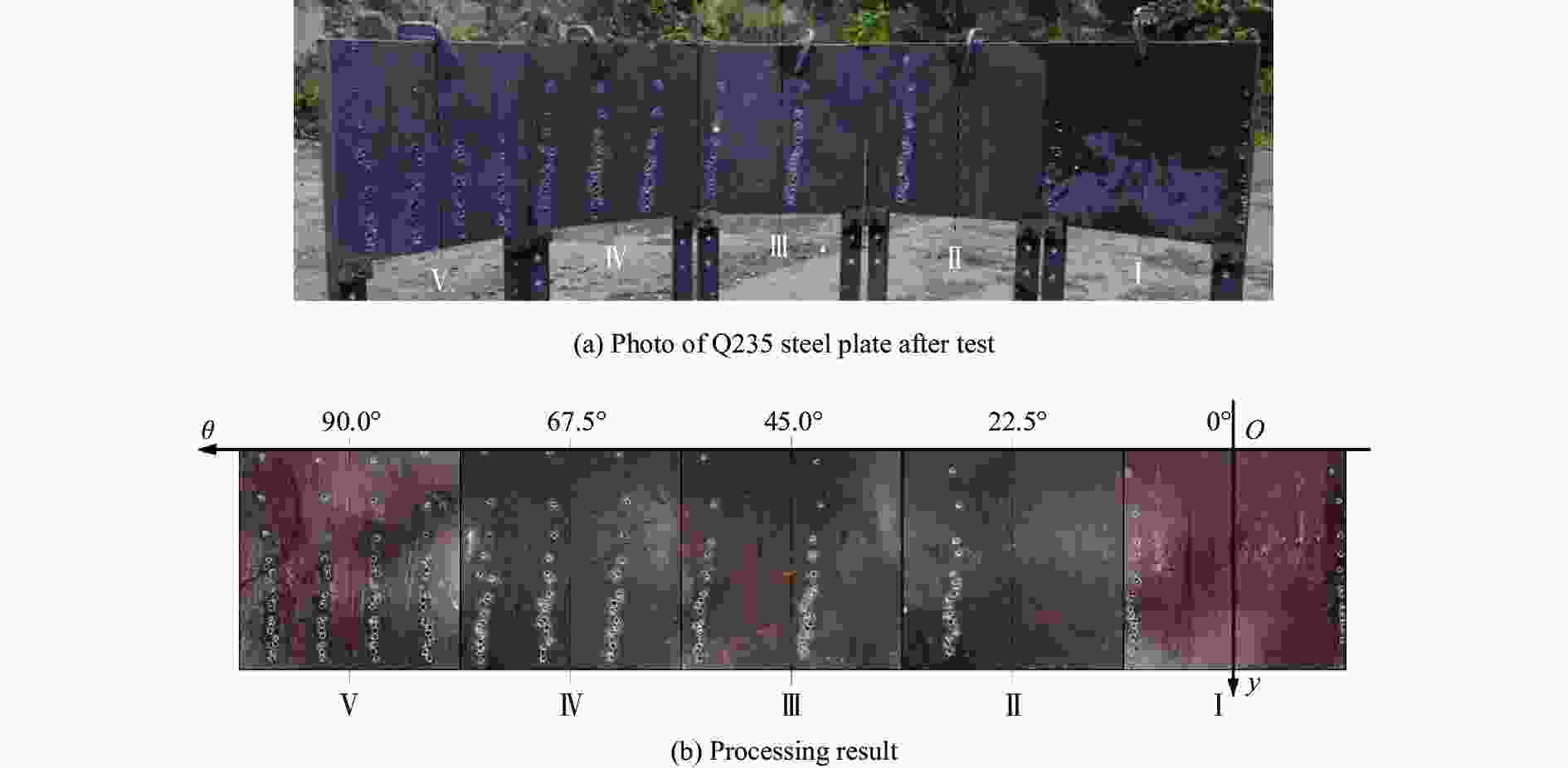

    图  13  破片开坑坐标系建立过程

    Figure  13.  Establishment process of fragment pit coordinate system

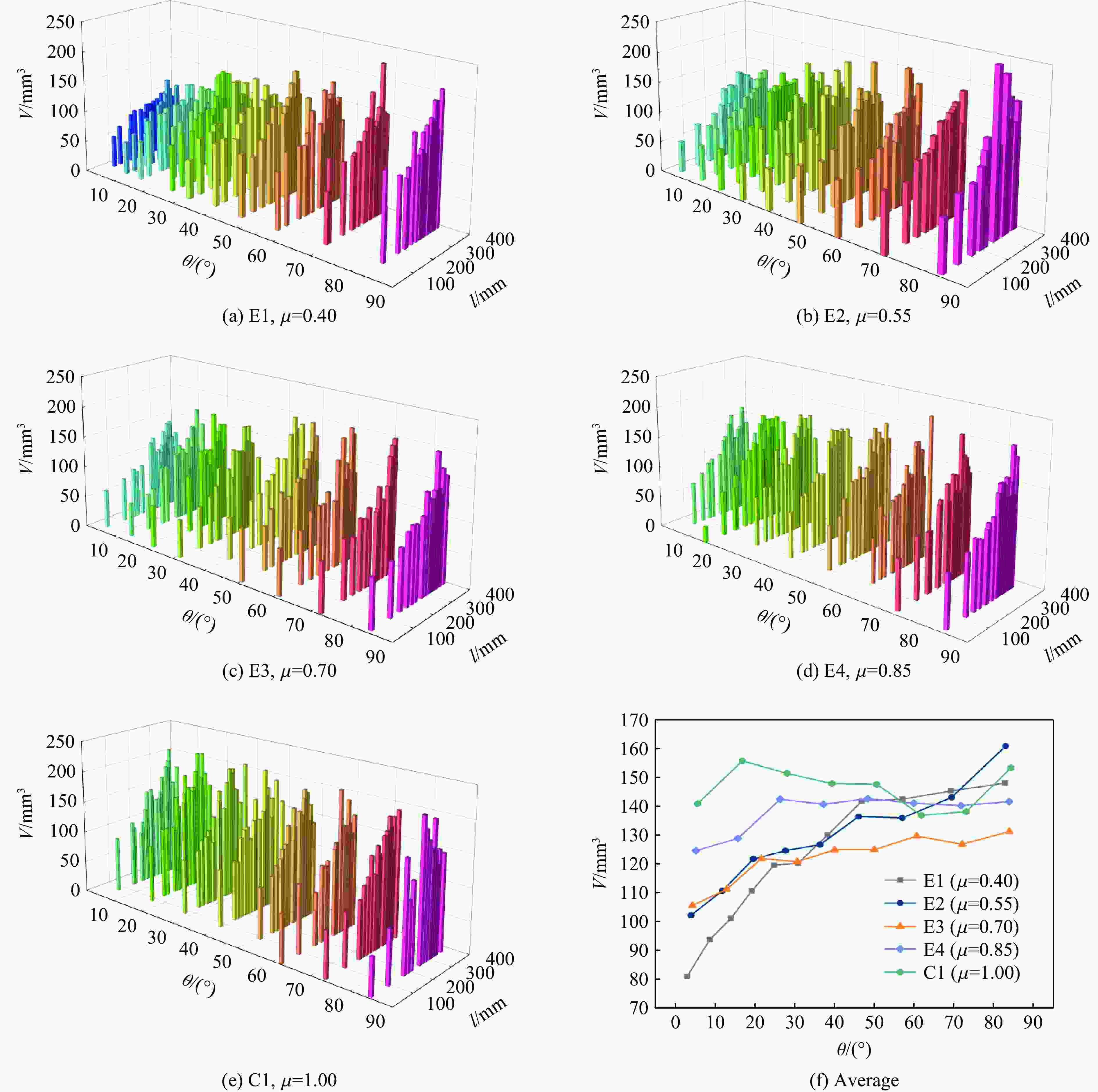

    图  14  不同短长轴比战斗部破片开坑体积变化规律

    Figure  14.  Variation law of crater volume of warhead fragment with different minor to major axis ratios

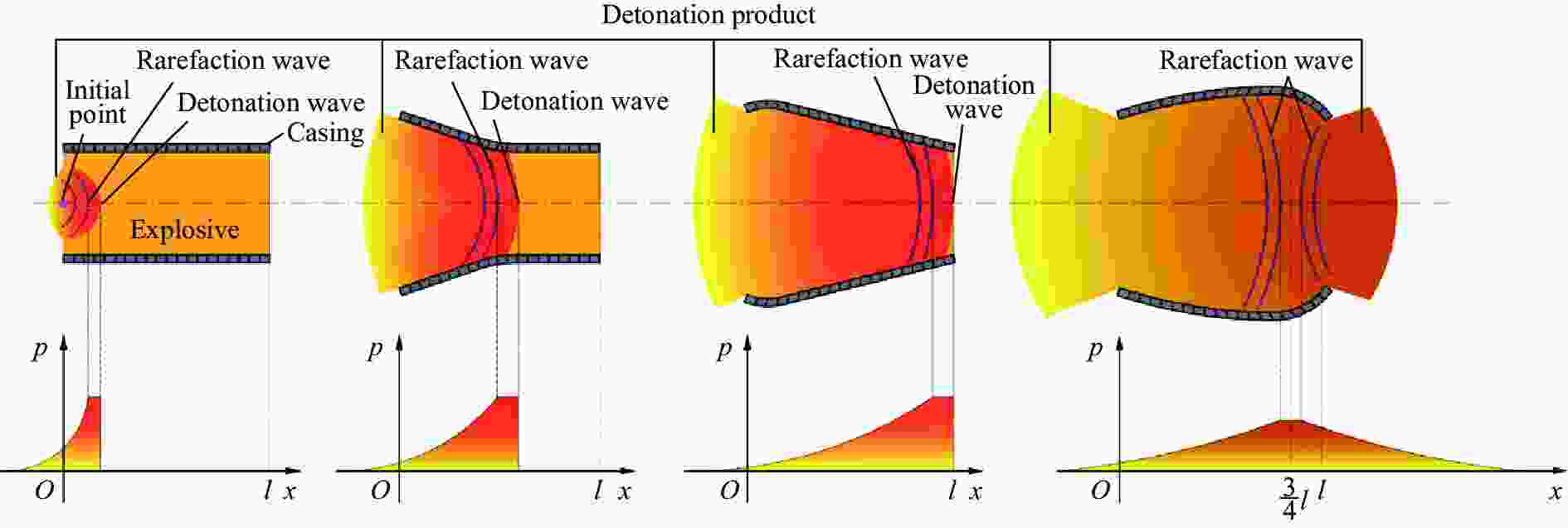

    图  15  端面点起爆后爆轰波与稀疏波的作用过程

    Figure  15.  Interaction process of detonation wave and rarefaction wave under end-face point initiation

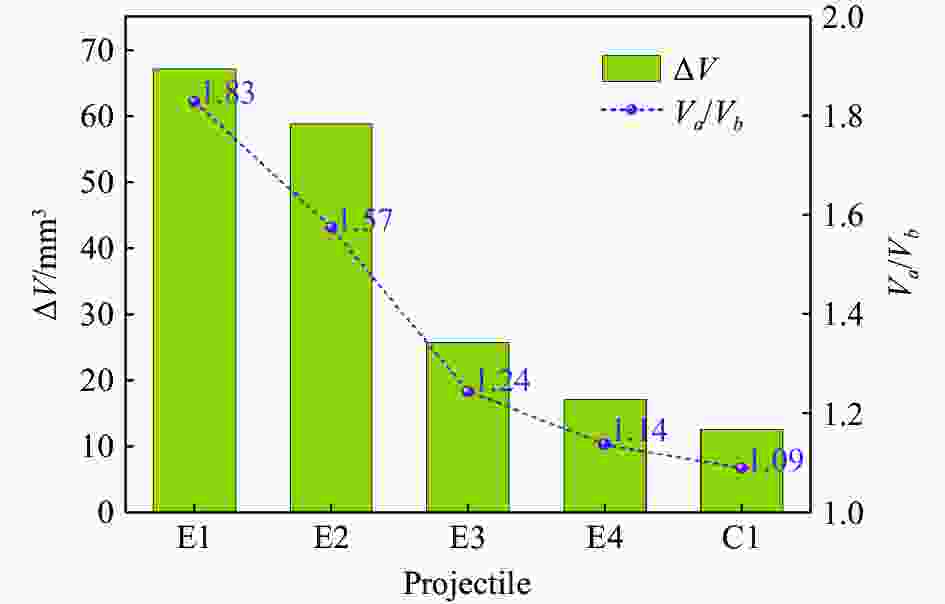

    图  16  不同短长轴比战斗部短长轴方向破片开坑体积的差异

    Figure  16.  Difference of crater volumes of fragments in the minor and major axis directions of warheads with different minor to major axis ratios

    表  1  战斗部参数

    Table  1.   Parameters of warhead

    编号a/mmb/mmμd/mmM/gC/gβ
    E135.5814.230.403.763431.3225.50.523
    E230.3416.690.553.956434.7228.10.525
    E326.8918.820.704.053435.5225.30.517
    E424.4020.740.854.096438.2224.90.513
    C122.5022.501.004.108437.4224.00.512
    下载: 导出CSV

    表  2  战斗部破片方位角与测速度对应关系的处理结果

    Table  2.   Relationship between azimuthal angle of the fragment impacting the velocity-measuring target

    弹体θ/(°)
    E1 3.01 8.6919.2530.89/38.3382.88
    E2 3.9927.7146.09/57.0983.01
    E34.3221.7040.0760.7483.97
    E45.2415.7526.3948.4371.8183.91
    C15.6316.8828.1350.6373.1384.38
    下载: 导出CSV

    表  3  测速靶测试结果与破片速度

    Table  3.   Velocity-measuring target test results and fragment velocity

    测速靶E1E2E3E4C1
    Δt/μsv/(m·s−1)Δt/μsv/(m·s−1)Δt/μsv/(m·s−1)Δt/μsv/(m·s−1)Δt/μsv/(m·s−1)
    3011 3292961 3512881 389
    3351 1943111 2862921 3702781 439
    3051 3112941 3612871 394
    2721 4712771 4442791 4342811 4232891 384
    2601 5382681 4932721 4712851 404
    2511 5942641 5152681 4932751 4652781 441
    下载: 导出CSV

    表  4  破片设计参数

    Table  4.   Fragment design parameters

    弹体径向刻槽数量壳体厚度/mm单个破片设计质量/g
    E1443.7630.51
    E2363.9560.61
    E3364.0530.62
    E4324.0960.70
    C1324.1080.71
    下载: 导出CSV
