A constitutive model for ceramic materials including microstructural features and damage factor

  • 摘要: 为了研究不同微结构陶瓷材料的冲击破坏特征,以从微结构角度出发、描述陶瓷材料非弹性变形和断裂行为的Deshpande-Evan模型为基础构建本构模型,计算了无约束条件下材料的应力状态。为了验证改进模型的有效性,将VUMAT子程序编程方法将与ABAQUS有限元软件相结合,并将其应用于典型陶瓷材料(YAG透明陶瓷)冲击破坏过程的分析模拟。采用改进模型分析应变率、应力三轴度、晶粒尺寸及初始缺陷分布密度对YAG透明陶瓷动态力学行为和损伤演化机制的影响规律。结果表明:随着晶粒尺寸和裂纹分布密度的增加,YAG透明陶瓷破坏程度随之加剧,完全损伤区域面积也随之增加,晶粒尺寸对YAG透明陶瓷宏观破坏特征的影响程度要大于裂纹分布密度;YAG透明陶瓷失效强度以及断裂应变随着晶粒尺寸以及初始缺陷分布密度的增大而减小;随着应变率不断增加,YAG透明陶瓷在不同晶粒尺寸以及初始缺陷分布密度下的峰值应力和断裂应变均随之增加;裂纹扩展速度会随着晶粒尺寸的增加呈现出先增加而后平缓的趋势,裂纹扩展速度与初始缺陷分布密度系数成线性关系。改进模型可以描述YAG透明陶瓷微结构对其宏观破坏特征的影响,为进一步分析微结构对陶瓷材料宏观破坏特征的影响提供支撑。
  • 图  1  陶瓷的典型微结构特征及缺陷

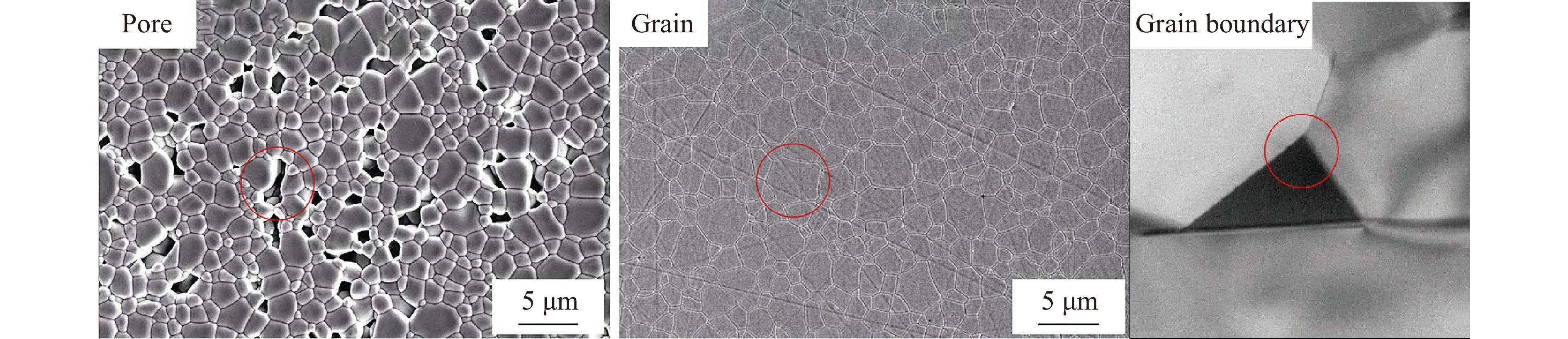

    Figure  1.  Typical microstructure characteristics and defects of ceramics

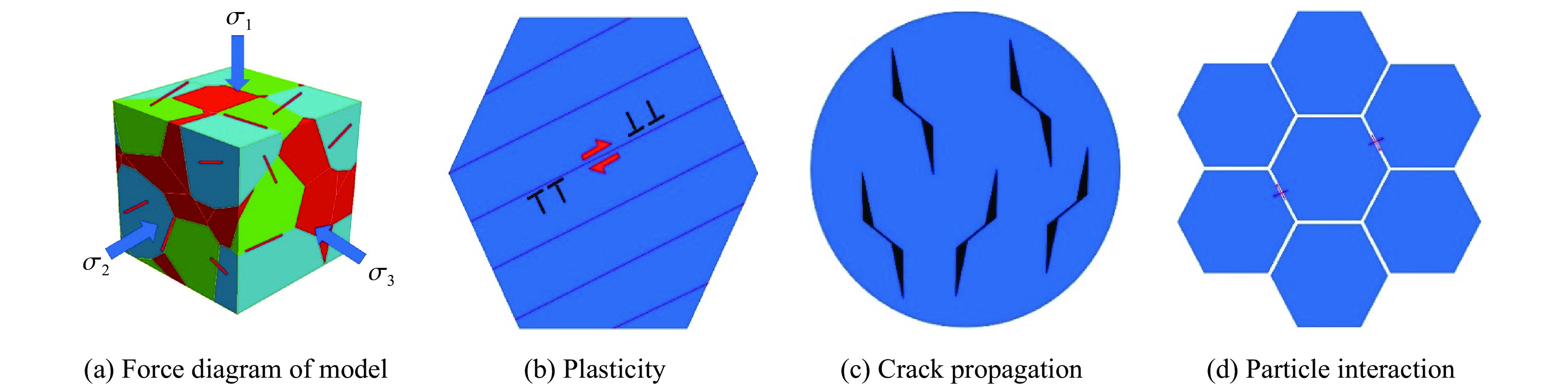

    图  2  考虑微结构特征的陶瓷材料本构模型理论体系

    Figure  2.  Constitutive model theory system of ceramic materials considering microstructure characteristics

    图  3  裂纹受力示意图

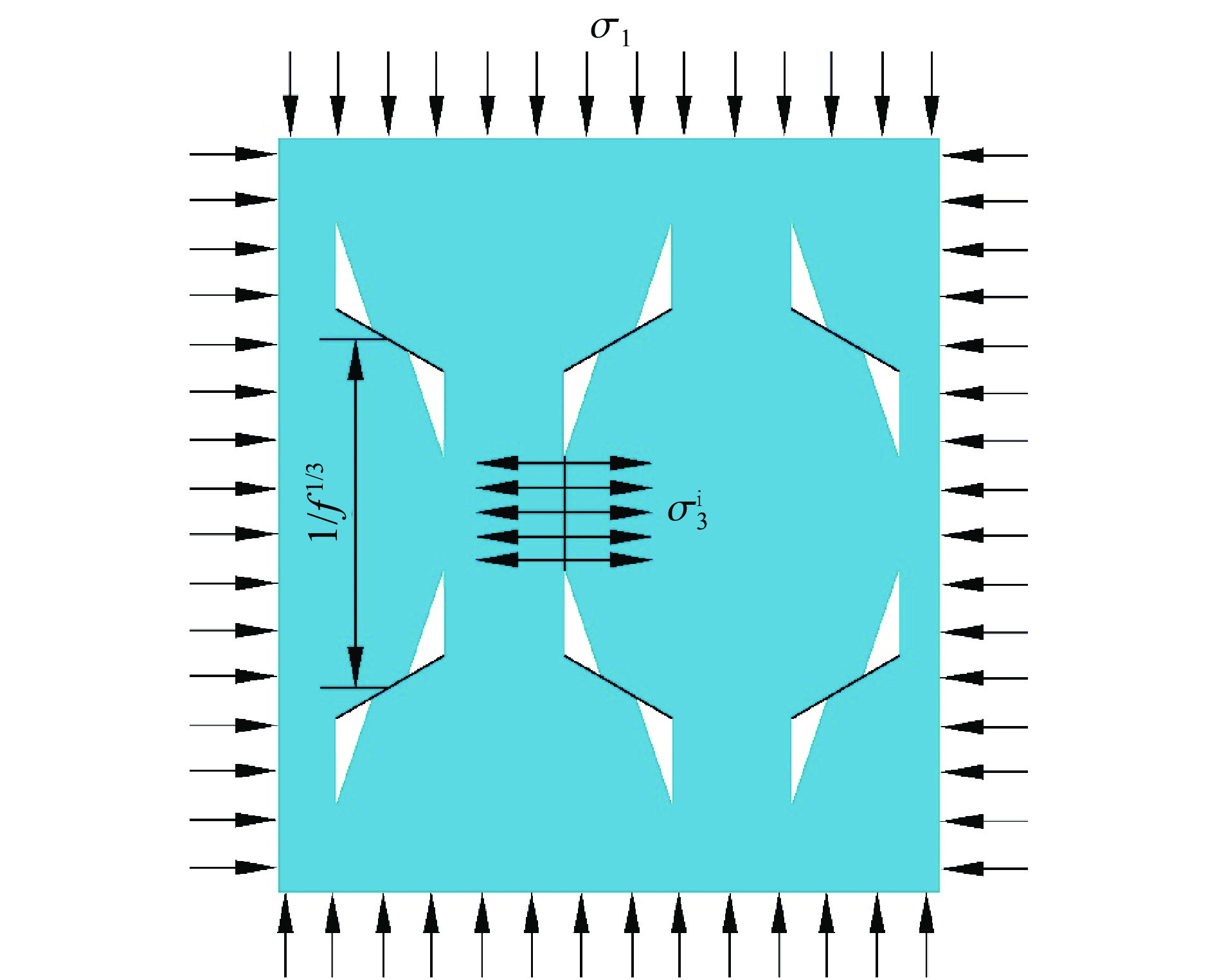

    Figure  3.  Stress diagram of crack

    图  4  裂纹相互作用

    Figure  4.  Crack interaction

    图  5  程序计算流程

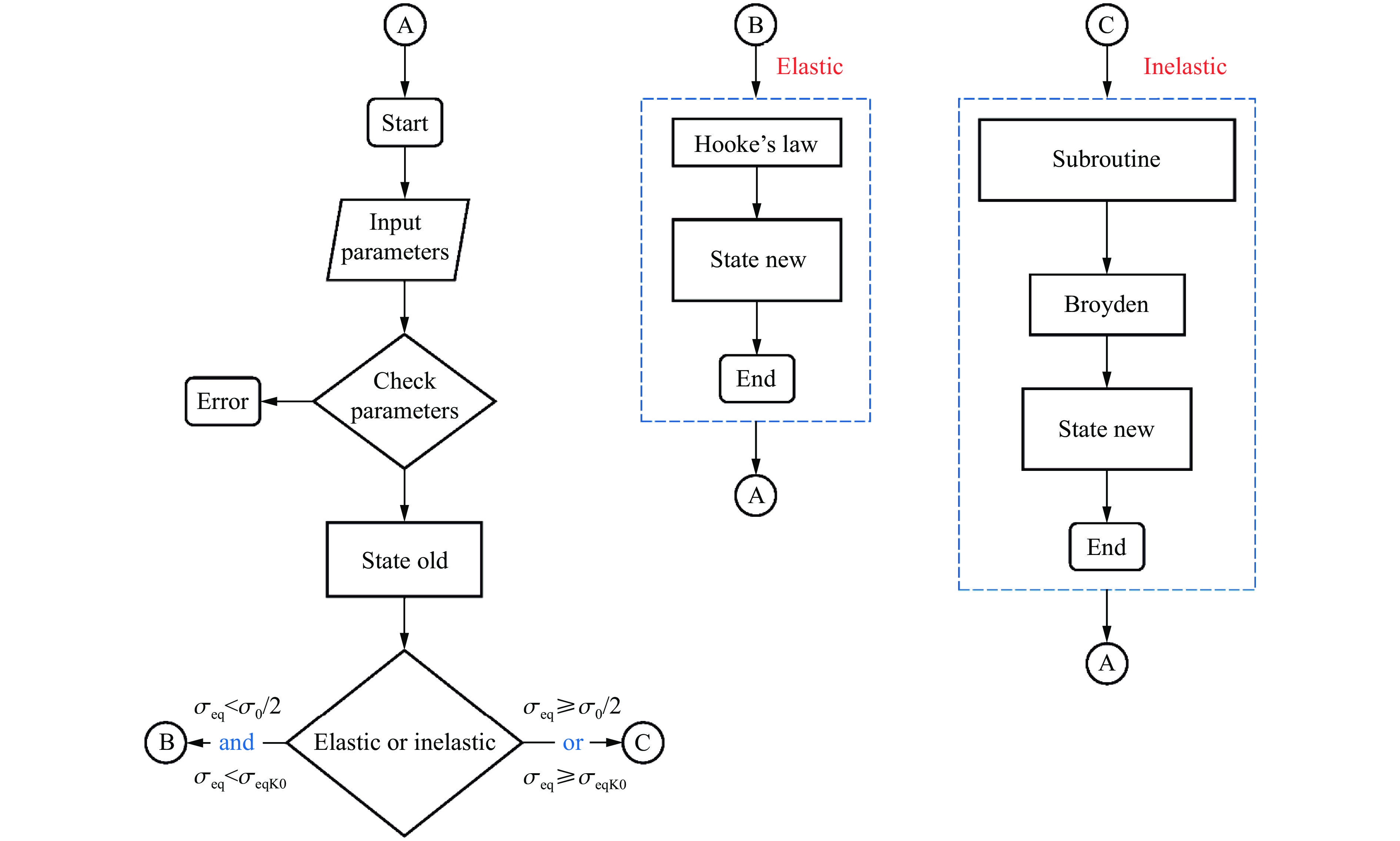

    Figure  5.  Program calculation flowts

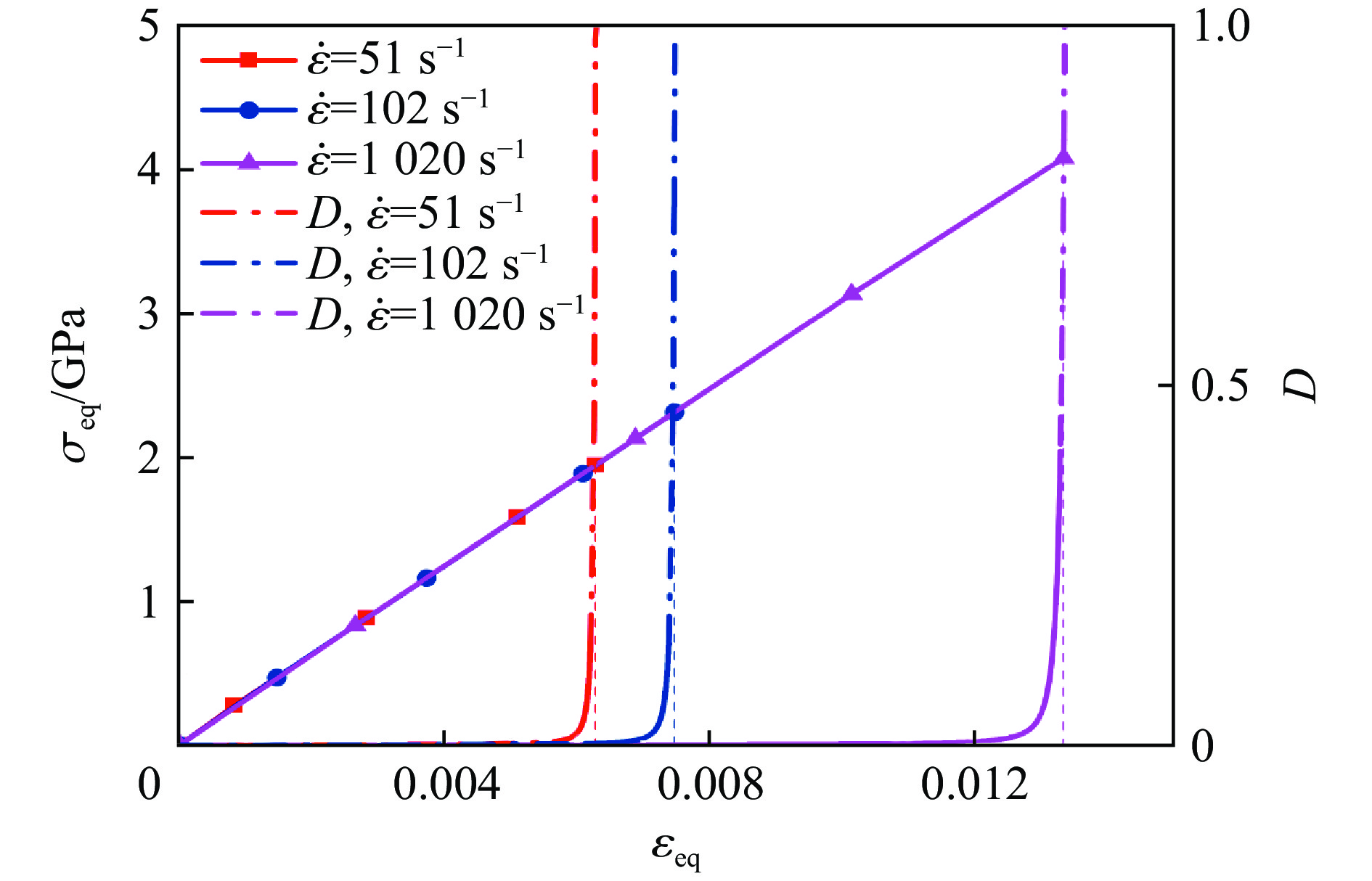

    图  6  不同应变率下YAG透明陶瓷的应力-应变响应及损伤演化过程

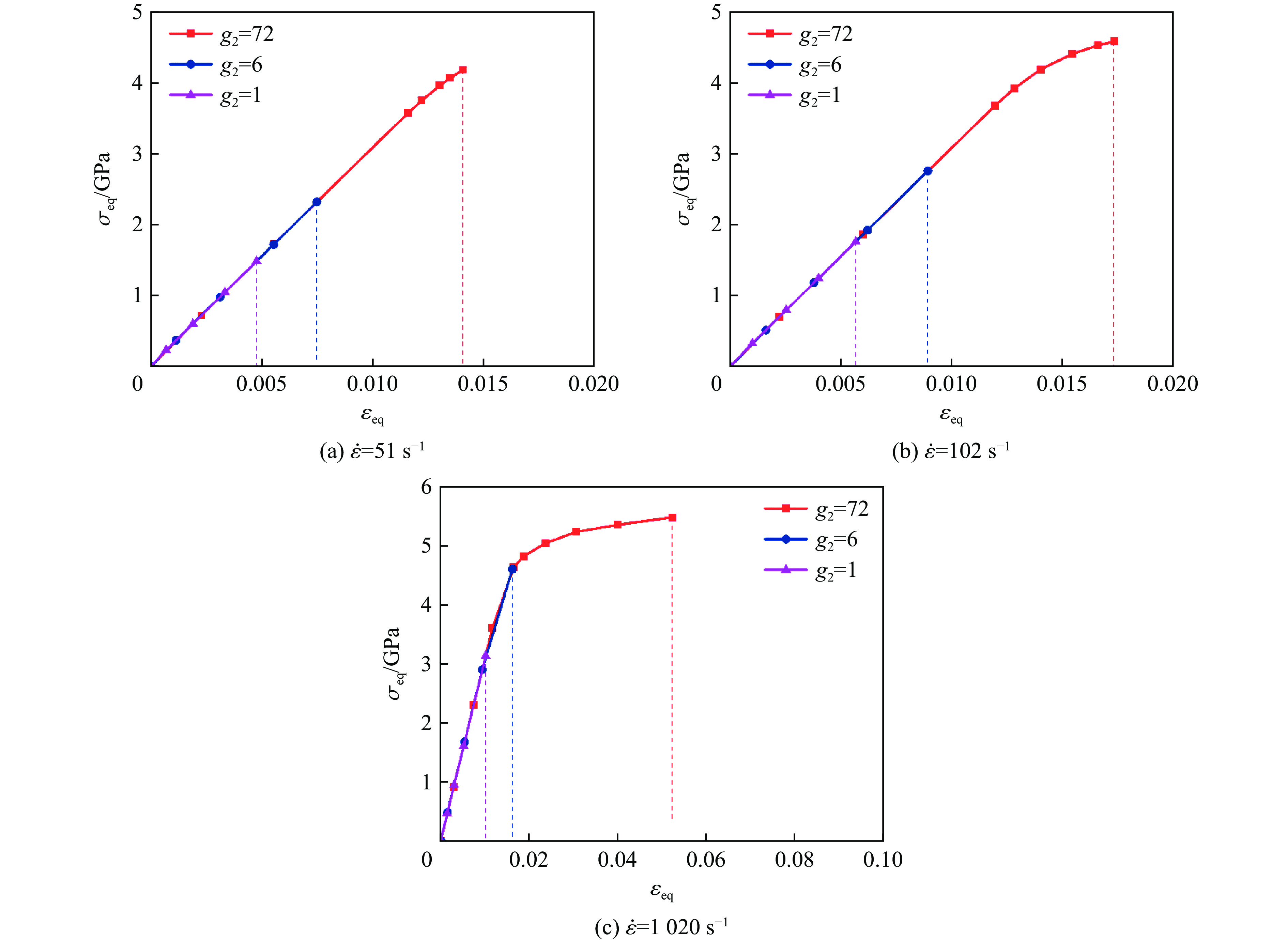

    Figure  6.  Stress-strain response and damage evolution of YAG transparent ceramics at different strain rates

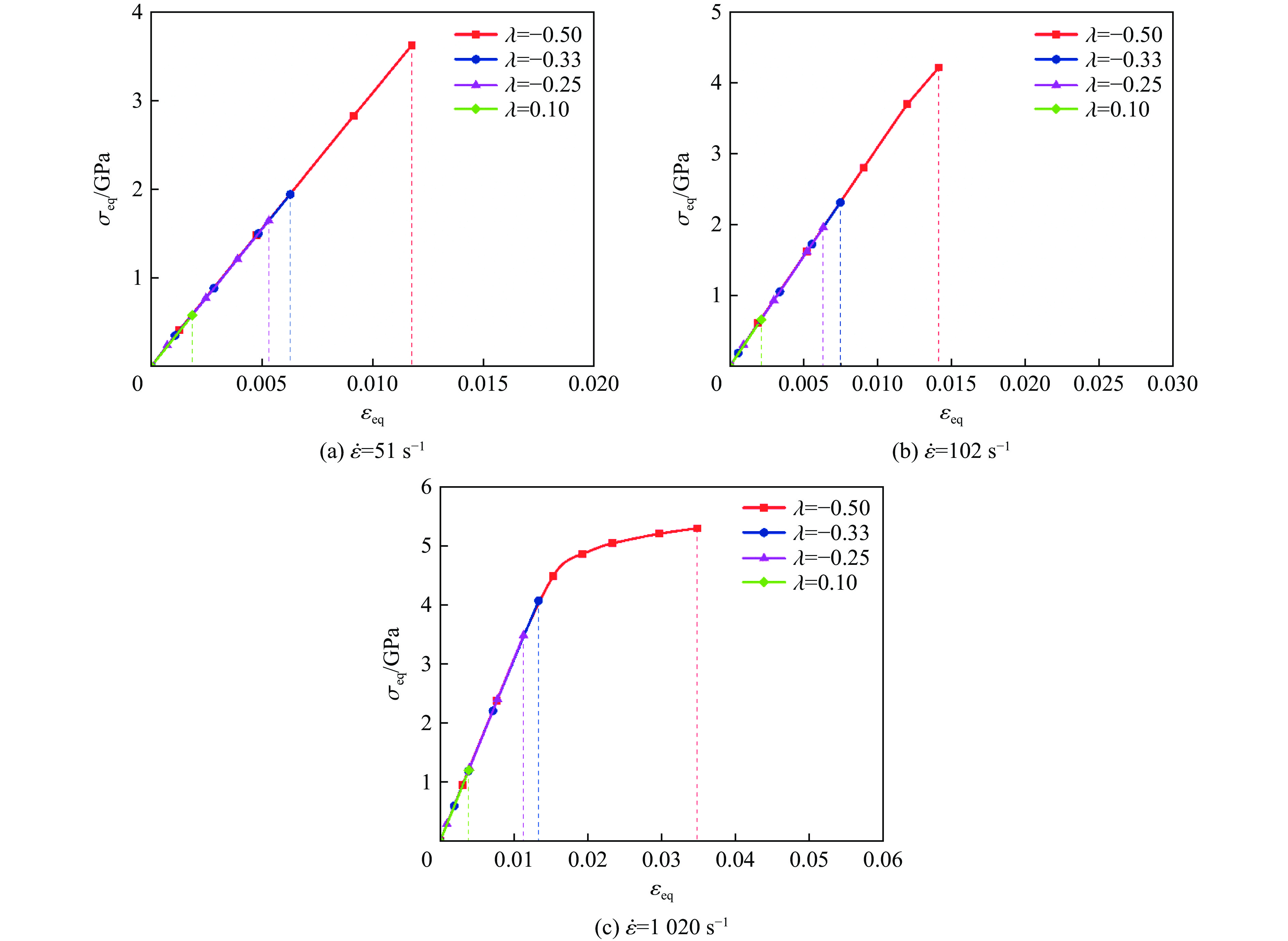

    图  7  不同应力三轴度下YAG透明陶瓷的应力应变响应

    Figure  7.  Stress-strain response of YAG transparent ceramics under different stress triaxialities

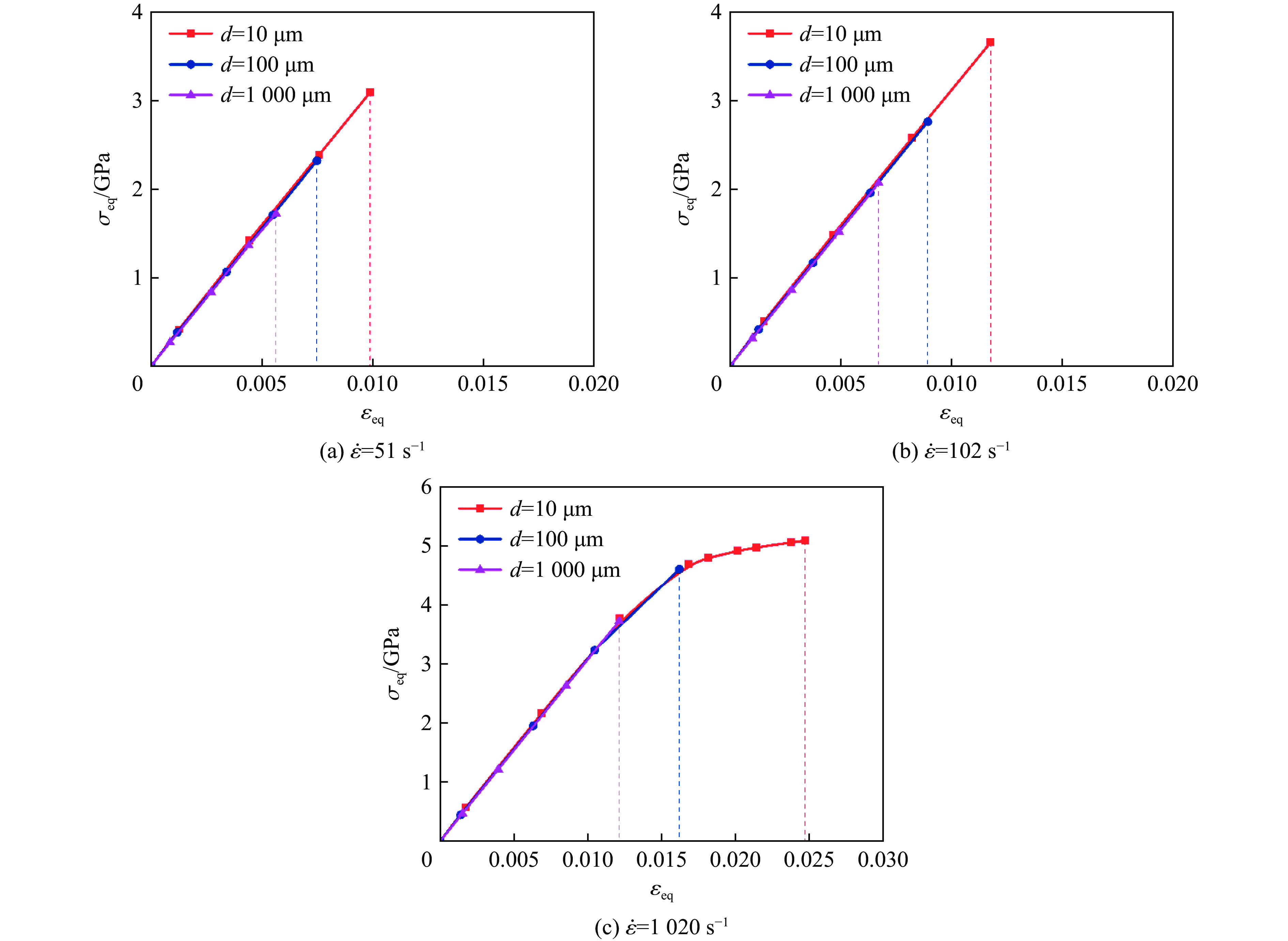

    图  8  不同晶粒度下YAG透明陶瓷的应力应变曲线

    Figure  8.  Stress-strain curves of YAG transparent ceramics with different grain sizes

    图  9  不同裂纹分布密度下YAG透明陶瓷的应力应变曲线

    Figure  9.  Stress-strain curves of YAG transparent ceramics with different crack distribution densities

    图  10  边缘冲击试验照片[26]

    Figure  10.  Edge impact test photos[26]

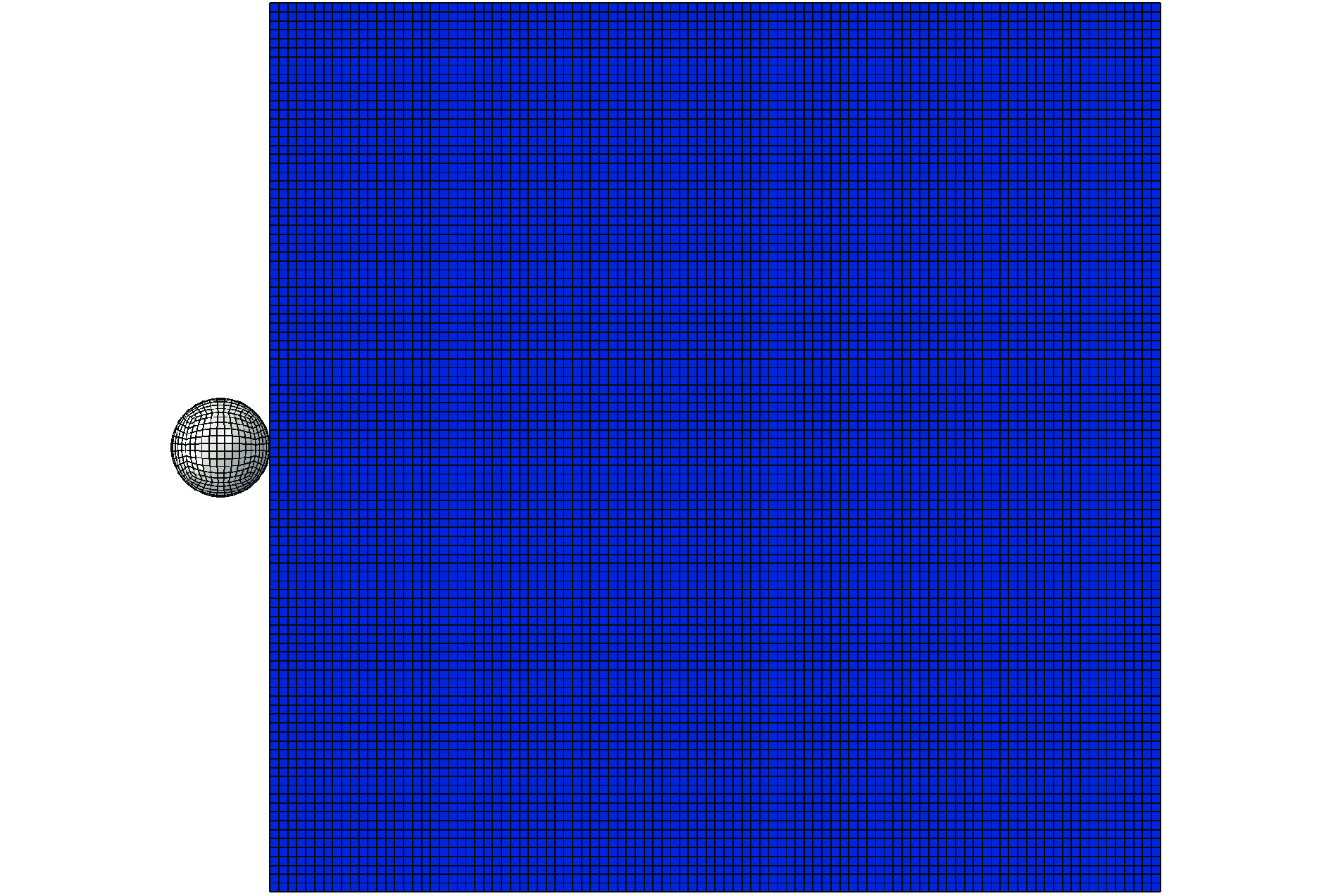

    图  11  边缘冲击试验仿真模型

    Figure  11.  Simulation model of edge impact test

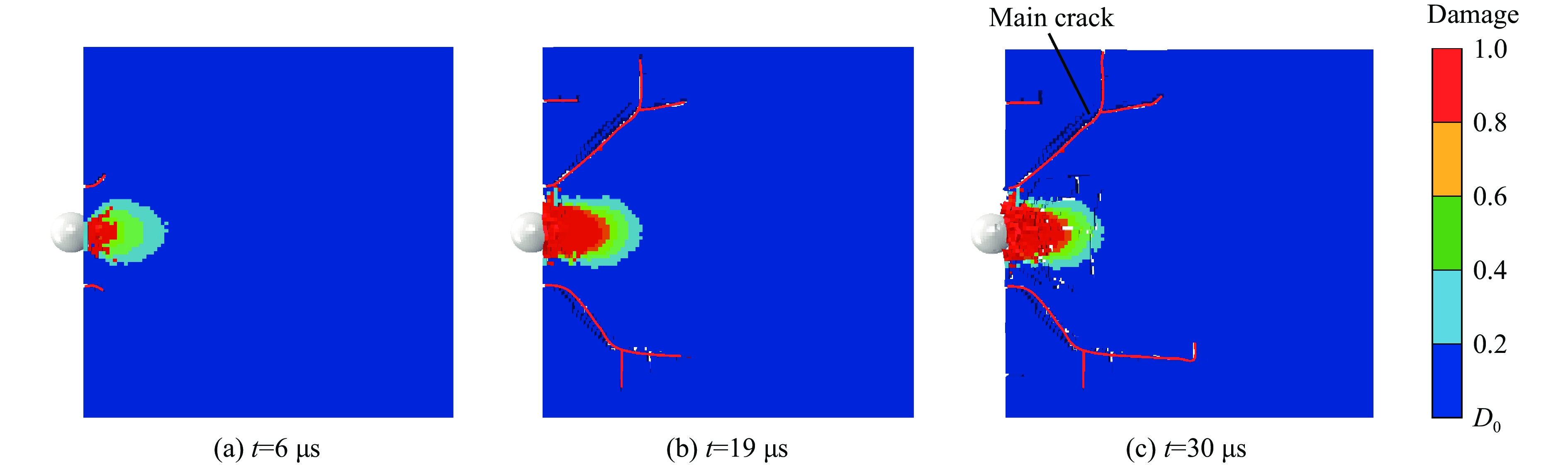

    图  12  YAG透明陶瓷损伤演化过程

    Figure  12.  Damage evolution process of YAG transparent ceramics

    图  13  主裂纹扩展长度模拟结果与试验对比图

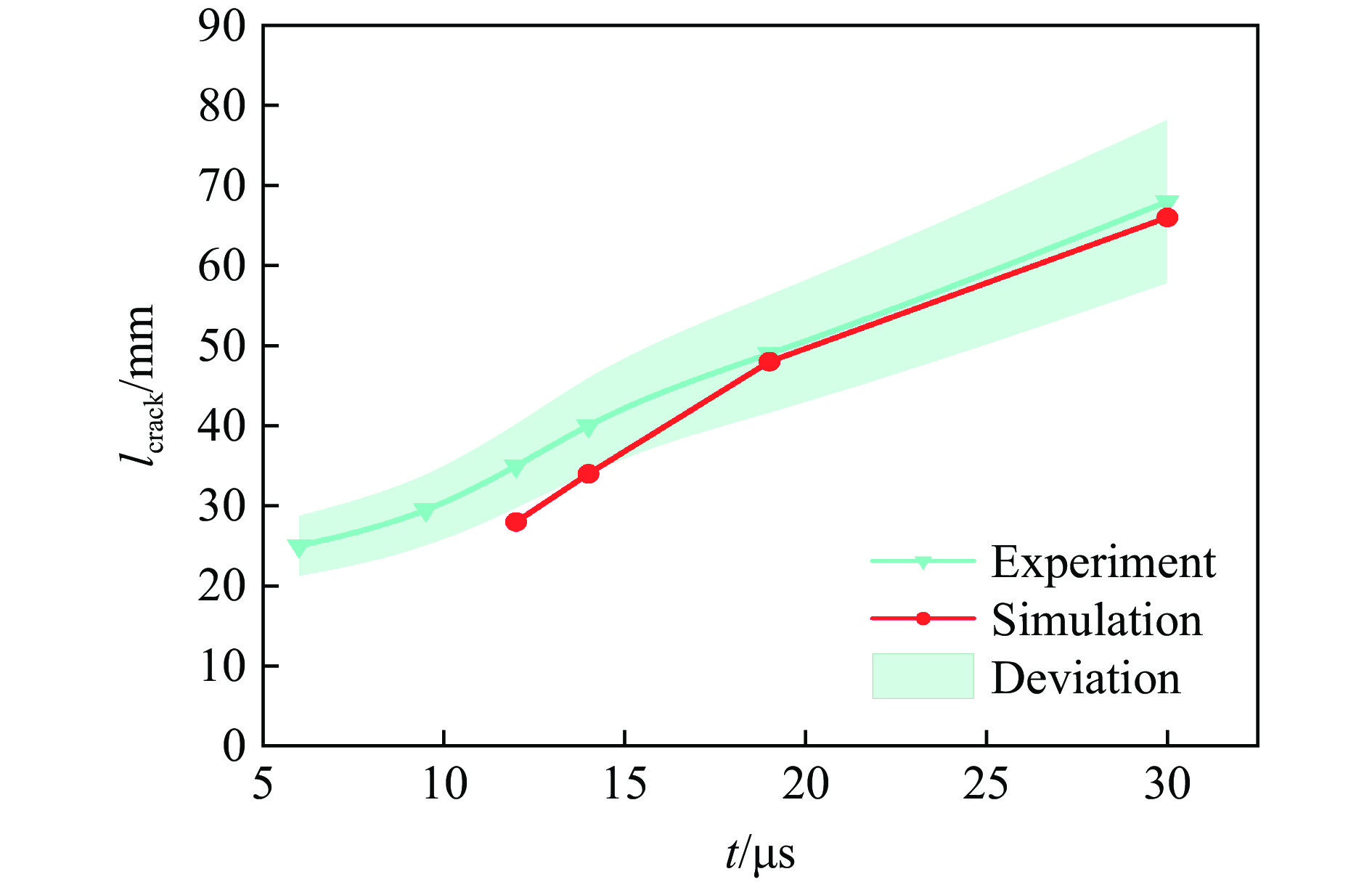

    Figure  13.  Comparison between simulation and test results of main crack propagation length

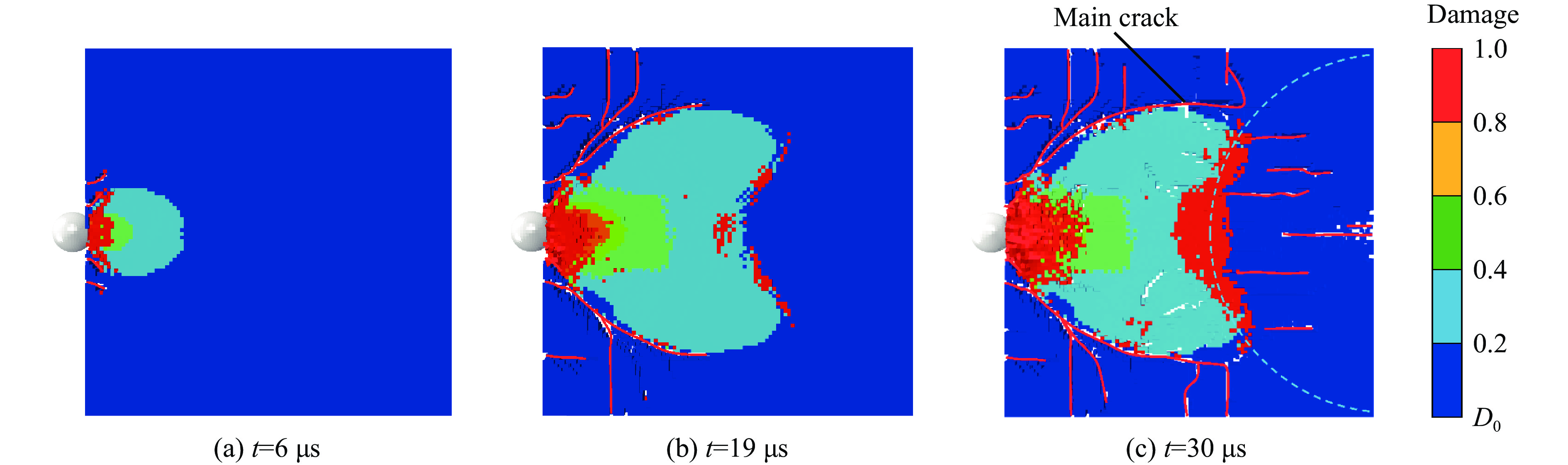

    图  14  YAG透明陶瓷破坏特征,d=40 μm

    Figure  14.  Damage characteristics of YAG transparent ceramics while d=40 μm

    图  15  YAG透明陶瓷破坏特征,d=100 μm

    Figure  15.  Damage characteristics of YAG transparent ceramics while d=100 μm

    图  16  YAG透明陶瓷破坏特征,d=150 μm

    Figure  16.  Damage characteristics of YAG transparent ceramics while d=150 μm

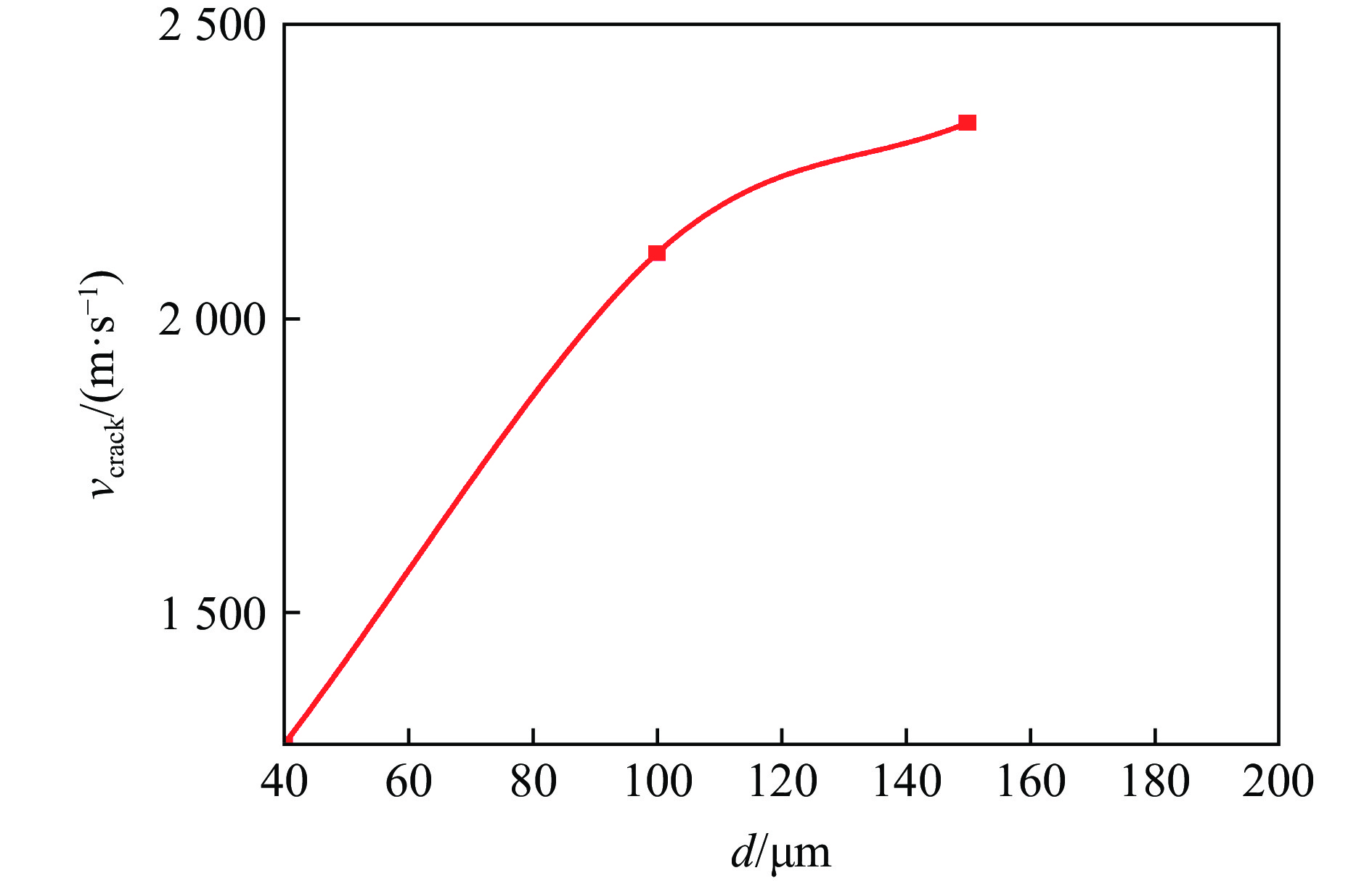

    图  17  裂纹扩展速度随晶粒度变化

    Figure  17.  Variation of crack propagation velocity with grain size

    图  18  YAG透明陶瓷破坏特征,g2=6

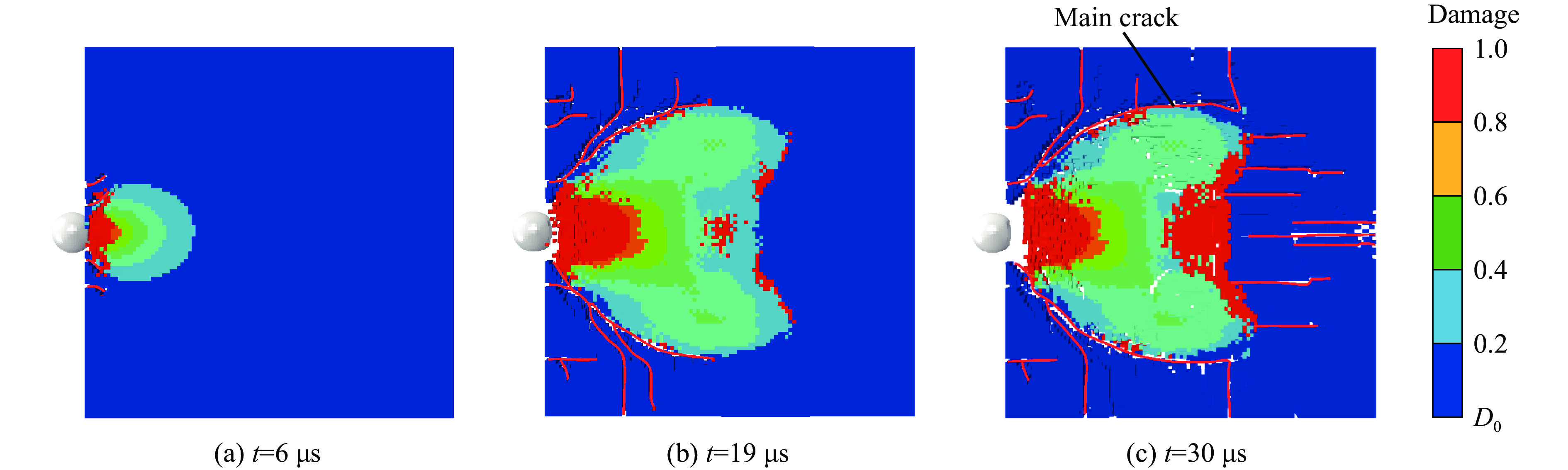

    Figure  18.  Damage characteristics of YAG transparent ceramics, g2=6

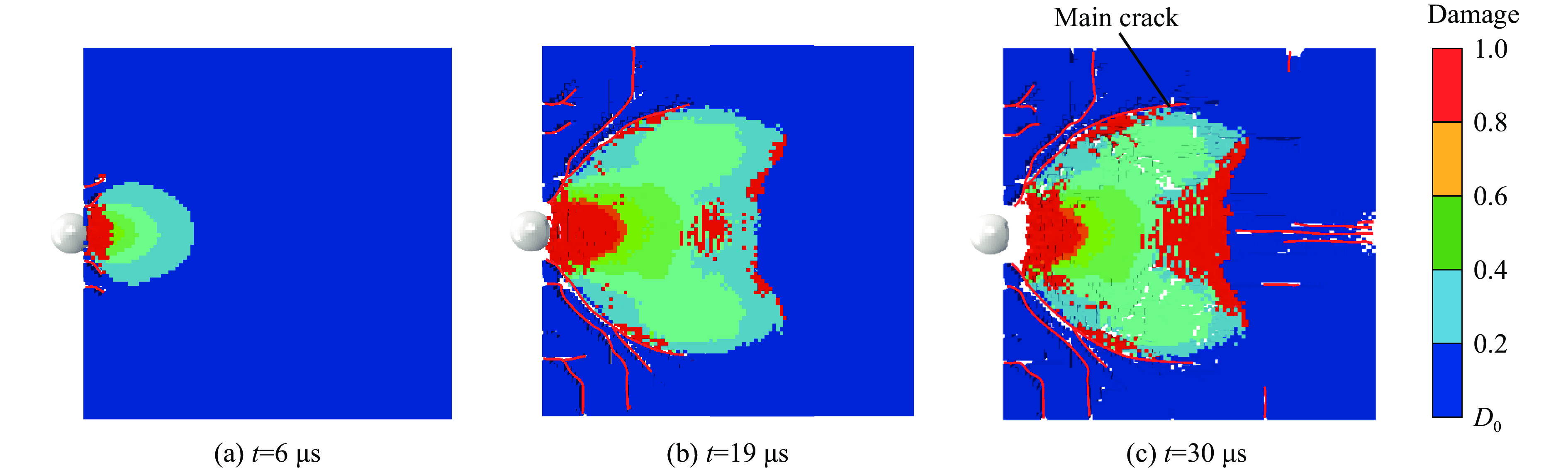

    图  19  YAG透明陶瓷破坏特征,g2=10

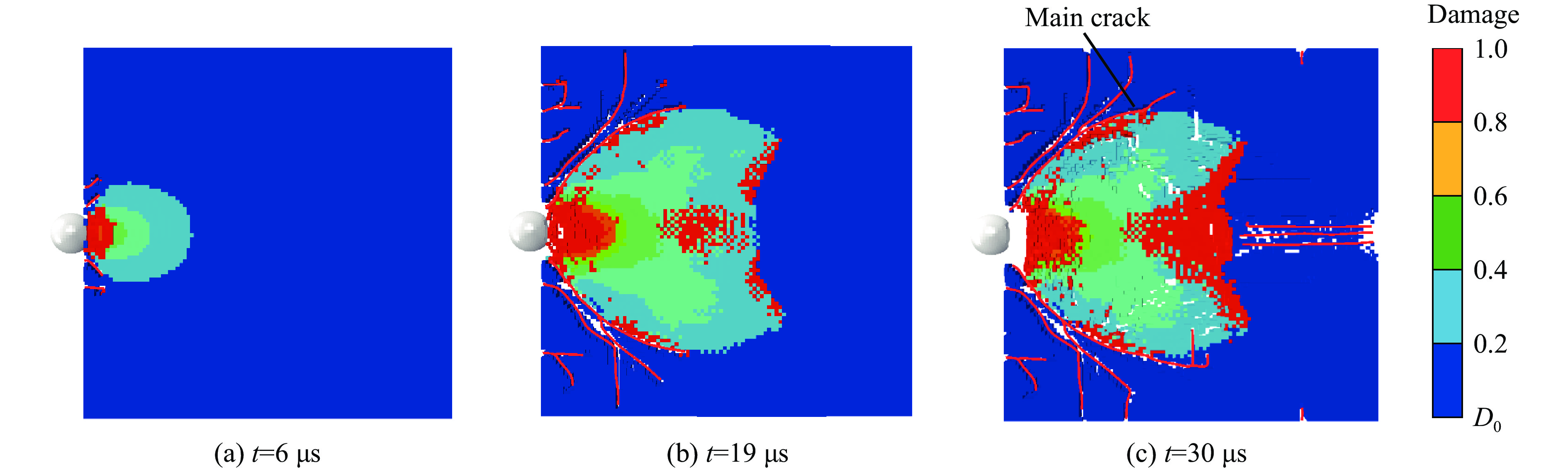

    Figure  19.  Damage characteristics of YAG transparent ceramics, g2=10

    图  20  YAG透明陶瓷破坏特征,g2=12

    Figure  20.  Damage characteristics of YAG transparent ceramics, g2=12

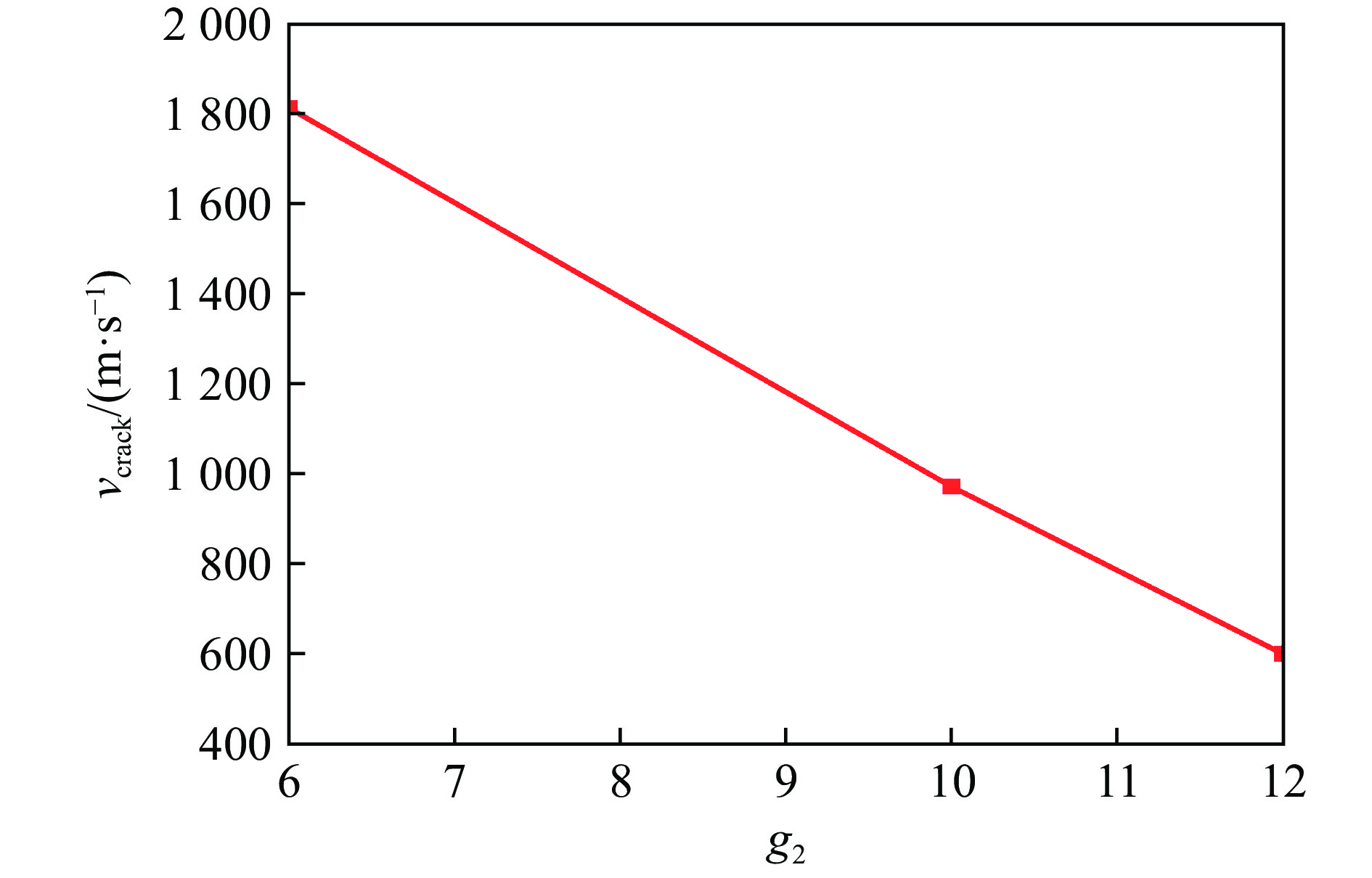

    图  21  裂纹扩展速度与裂纹密度系数的关系
