密闭空间中复合装药的能量释放特性

张学瑞 周涛

张学瑞, 周涛. 密闭空间中复合装药的能量释放特性[J]. 爆炸与冲击, 2024, 44(6): 062302. doi: 10.11883/bzycj-2023-0381
引用本文: 张学瑞, 周涛. 密闭空间中复合装药的能量释放特性[J]. 爆炸与冲击, 2024, 44(6): 062302. doi: 10.11883/bzycj-2023-0381
ZHANG Xuerui, ZHOU Tao. Energy release characteristics of composite charge in confined space[J]. Explosion And Shock Waves, 2024, 44(6): 062302. doi: 10.11883/bzycj-2023-0381
Citation: ZHANG Xuerui, ZHOU Tao. Energy release characteristics of composite charge in confined space[J]. Explosion And Shock Waves, 2024, 44(6): 062302. doi: 10.11883/bzycj-2023-0381

密闭空间中复合装药的能量释放特性

doi: 10.11883/bzycj-2023-0381
基金项目: 国防科技卓越青年科学基金(J-JK-ZQ-2101)
详细信息
    作者简介:

    张学瑞(1998- ),男,硕士研究生,zhangxuerui1998@163.com

    通讯作者:

    周 涛(1979- ),男,博士,研究员,sflantian@163.com

  • 中图分类号: O381; TQ560.7

Energy release characteristics of composite charge in confined space

  • 摘要: 为研究密闭空间中复合装药能量的释放特性,设计了一种同轴复合装药,其内层为温压炸药,外层为不同组分的混合燃料,混合燃料主要由铝/聚四氟乙烯(Al/PTFE)活性材料或硼基燃料组成,利用密闭爆炸装置开展了复合装药的内爆炸试验,获取了壁面冲击波超压和准静态压力。试验结果表明:相同质量、不同硼基燃料含量的复合装药在密闭空间内爆炸,产生的准静态压力随着硼基燃料含量的增加呈现先升高后降低的趋势,硼基燃料分解产物参与二次反应的最佳体积分数在1.0%左右;对于复合装药,密闭空间中氧气含量有限,当参与二次反应的物质浓度达到一定阈值时,无论是提高点火能量还是提高反应物浓度,准静态压力都无法获得高效提升,能量利用率没有提高。

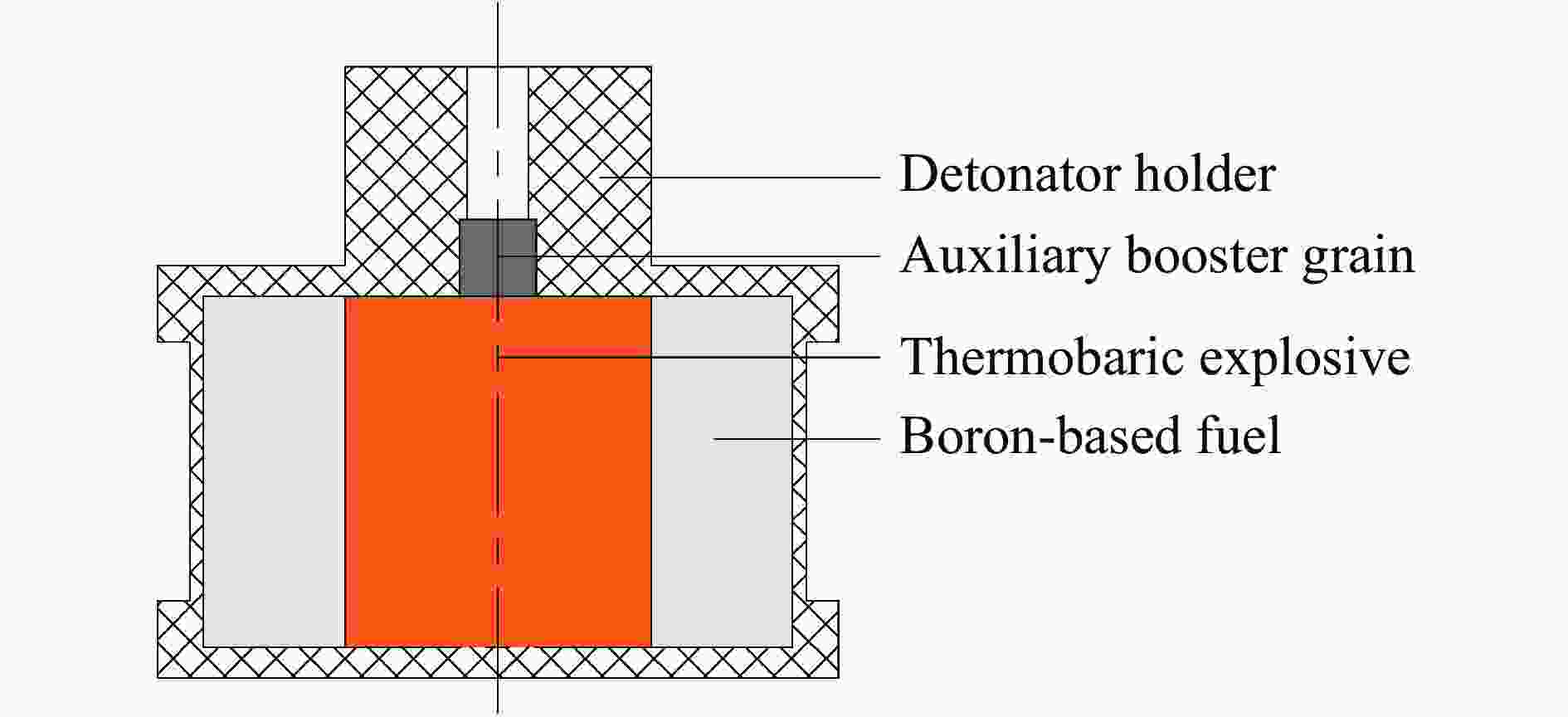

  • 图  1  复合装药结构示意图

    Figure  1.  Structure diagram of composite charge

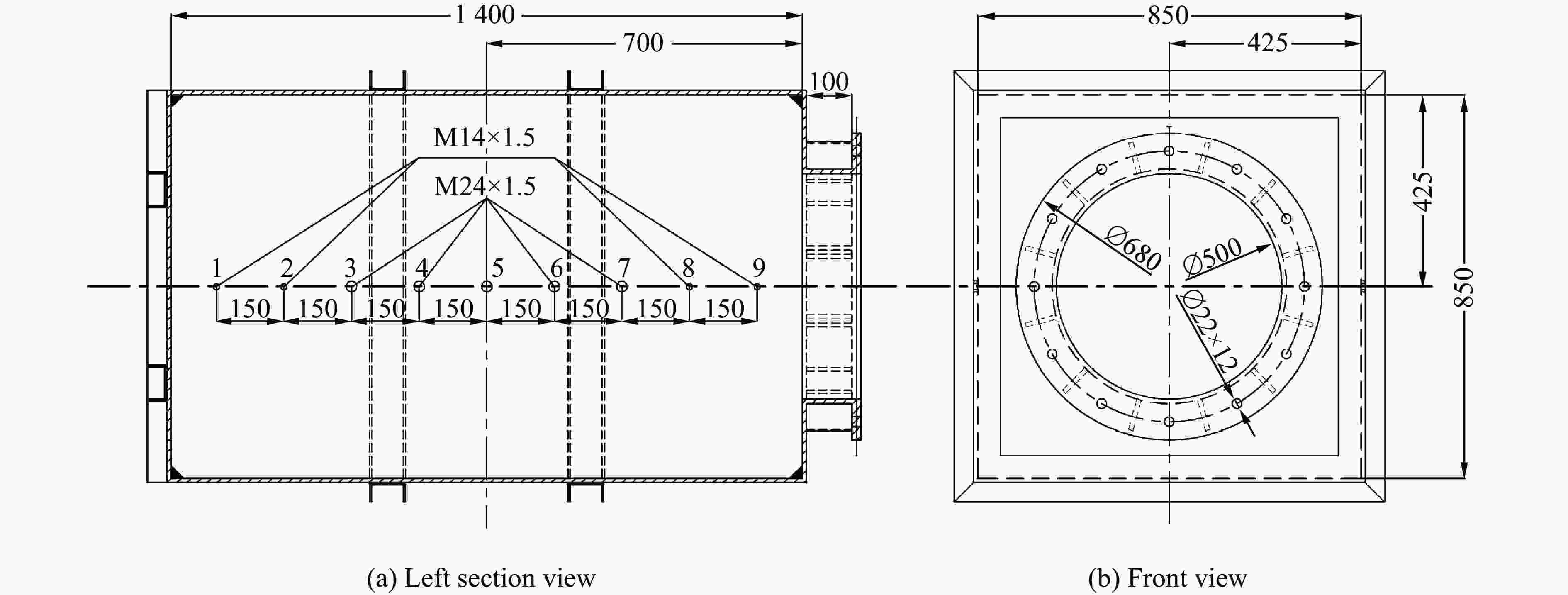

    图  2  爆炸装置示意图(单位:mm)

    Figure  2.  Schematic diagrams of the explosive device (unit: mm)

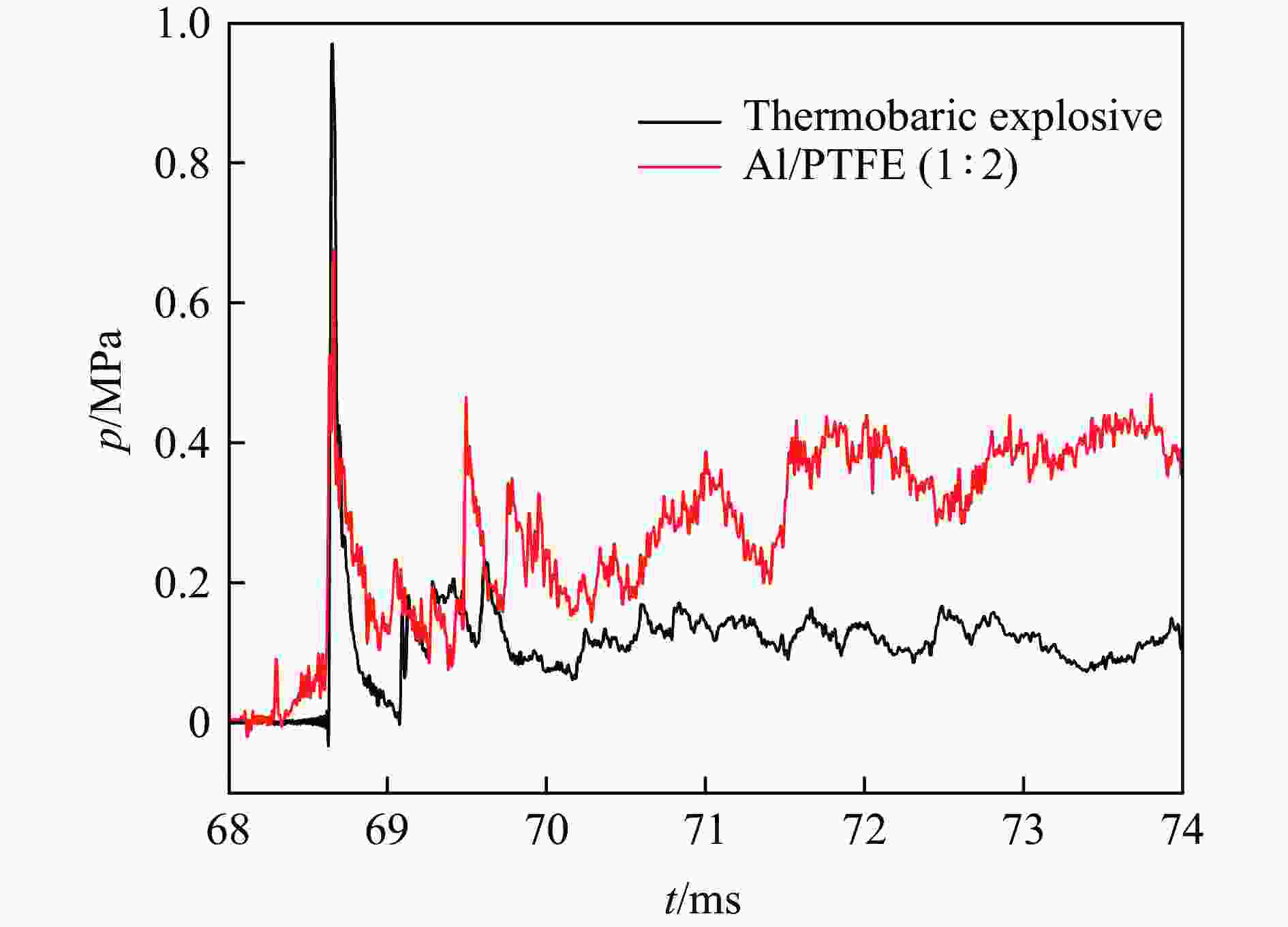

    图  3  温压炸药和Al/PTFE复合装药的冲击波超压时程曲线

    Figure  3.  Shock wave overpressure time-history curves of thermobaric explosive and composite charge

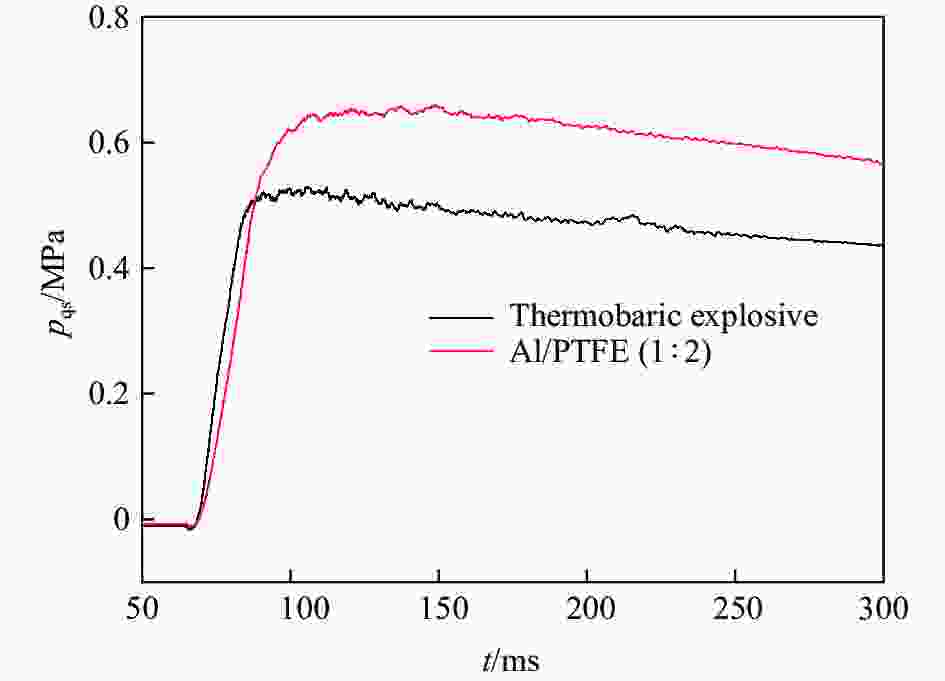

    图  4  温压炸药和Al/PTFE复合装药的准静态压力时程曲线

    Figure  4.  Quasi-static pressure time-history curves of thermobaric explosive and composite charge

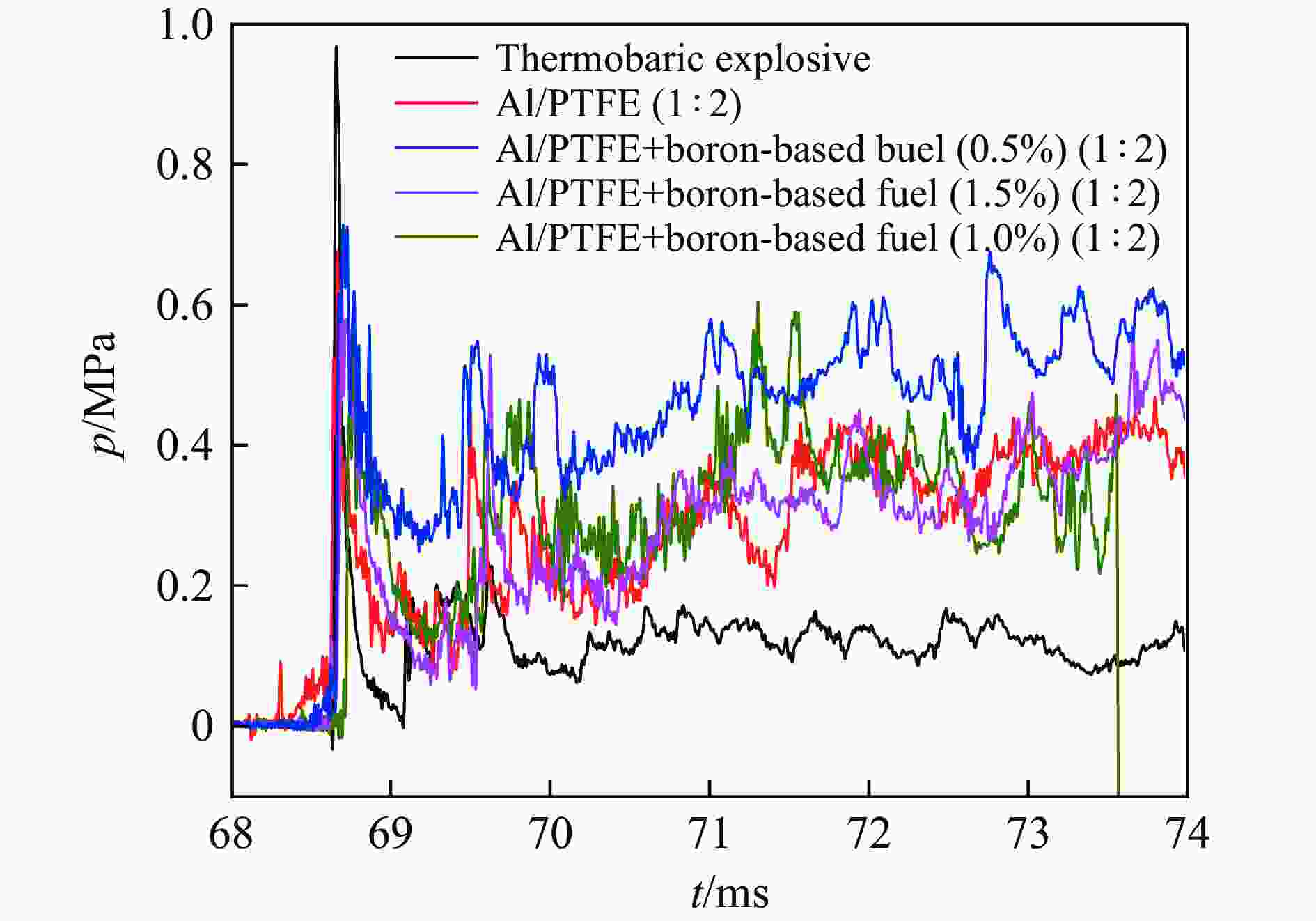

    图  5  不同硼基燃料含量的复合装药冲击波超压时程曲线

    Figure  5.  Shock wave overpressure-time curves of composite charges with different boron-based fuel contents

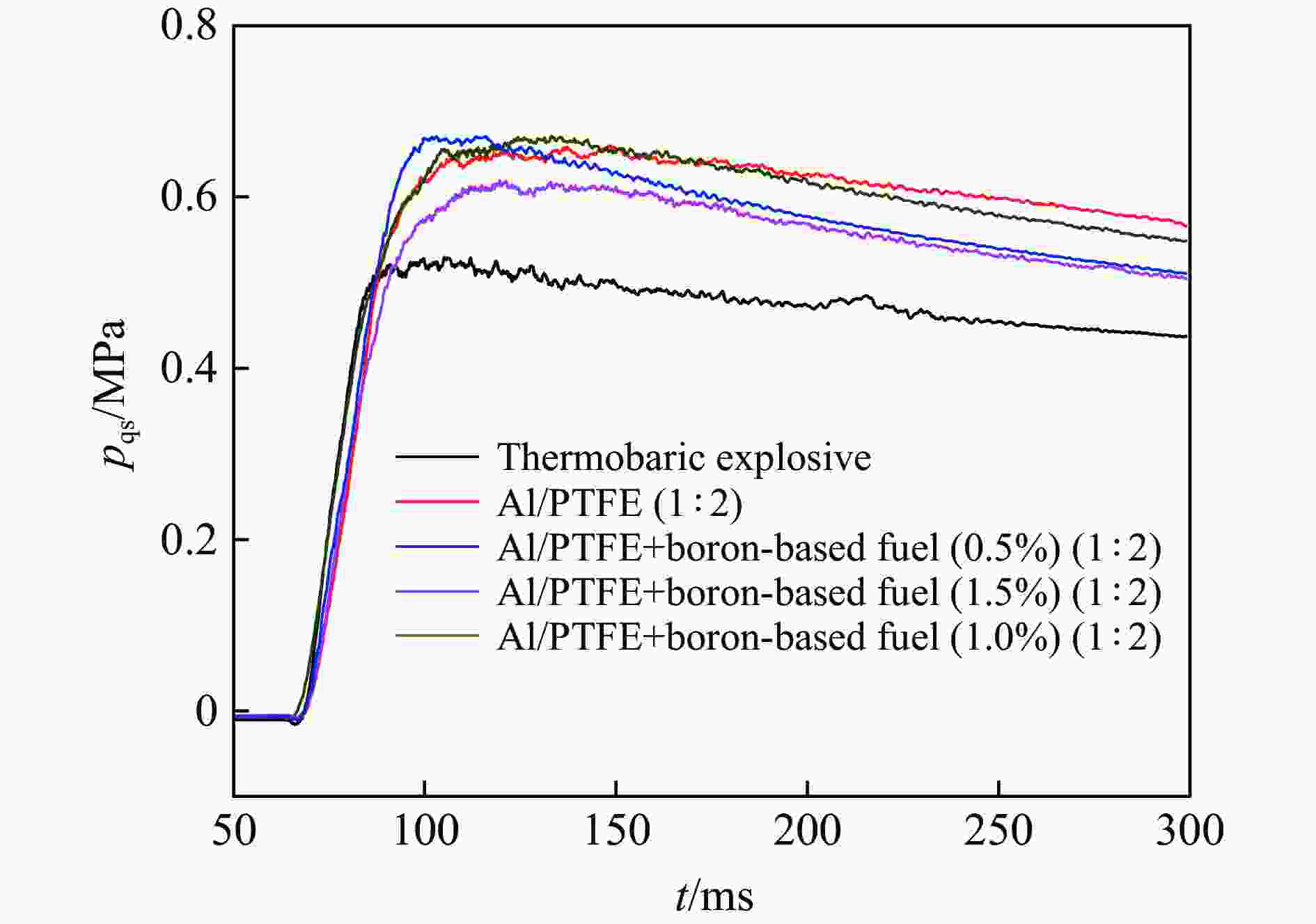

    图  6  不同硼基燃料含量的复合装药准静态压力时程曲线

    Figure  6.  Quasi-static pressure-time curves of composite charges with different boron-based fuel contents

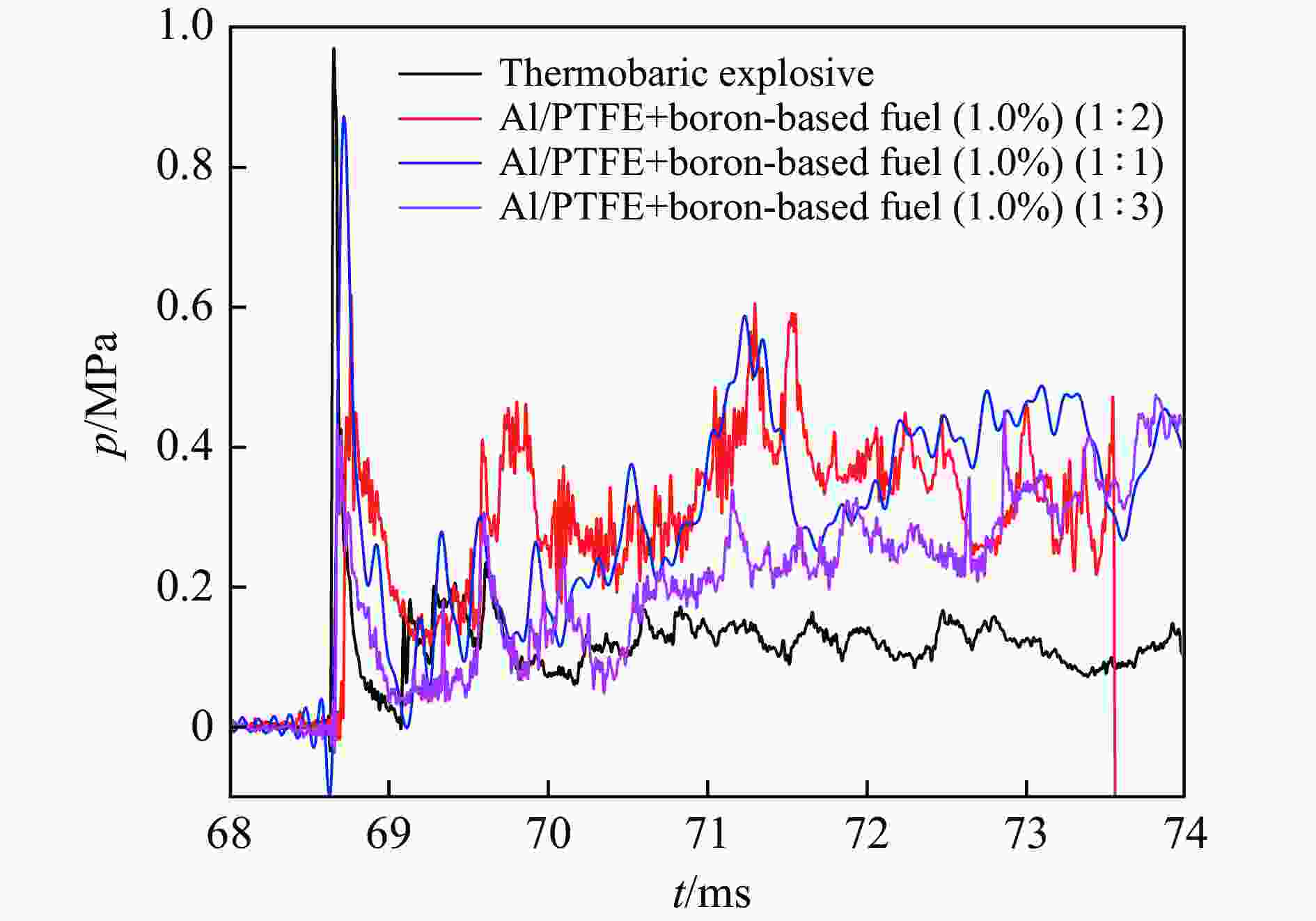

    图  7  不同内外层材料比的复合装药冲击波超压时程曲线

    Figure  7.  Shock wave overpressure-time curves of composite charges with different mass ratios of inner and outer layer materials

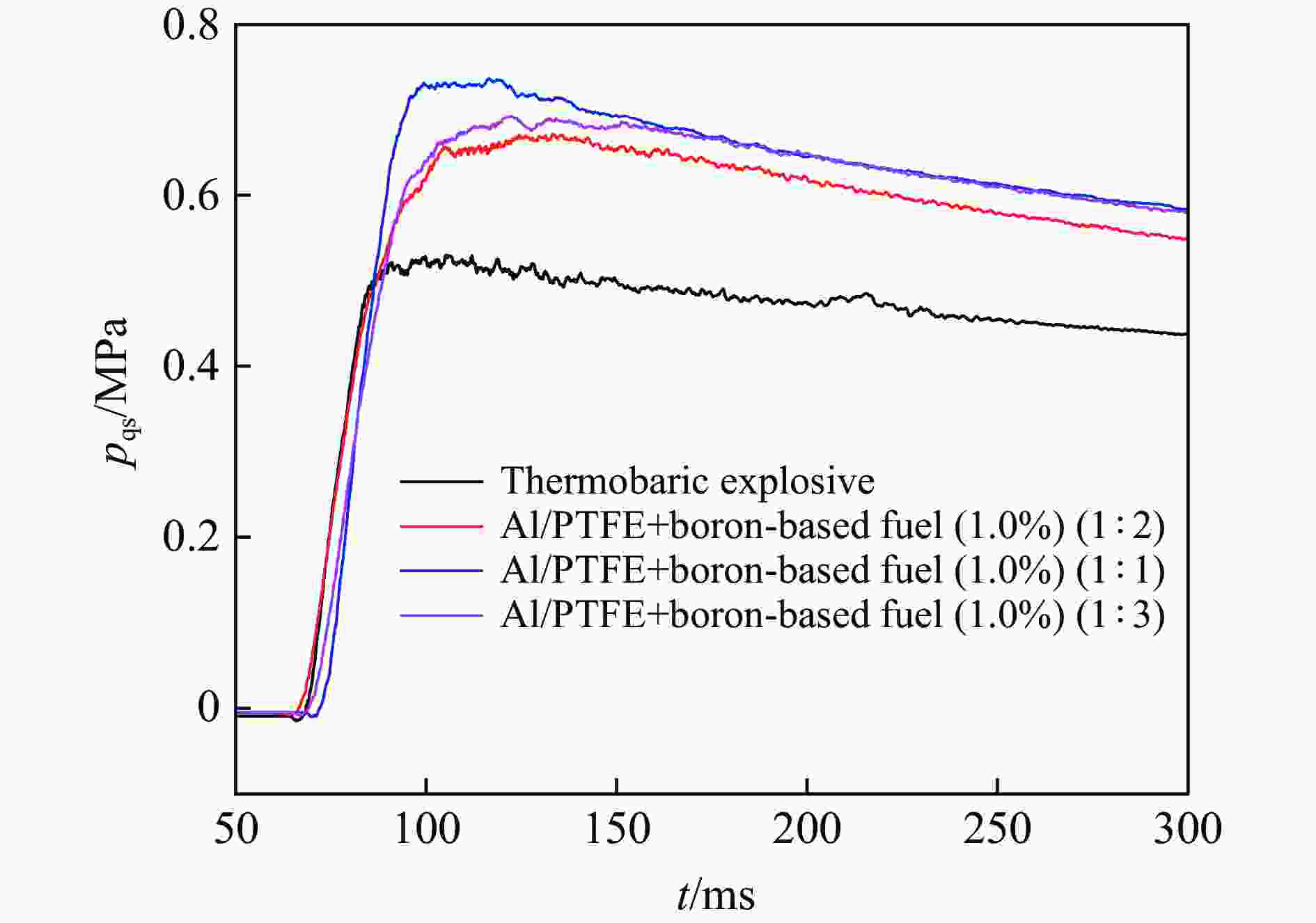

    图  8  不同内外层材料质量比的复合装药准静态压力时程曲线

    Figure  8.  Quasi-static pressure-time curves of composite charges with different mass ratios of inner and outer layer materials

    表  1  试验样品状态

    Table  1.   Test sample status

    试样内层材料内层质量/g外层材料外层质量/g内外层质量比总质量/g
    1温压炸药50温压炸药1001∶2150
    2温压炸药50Al/PTFE1001∶2150
    3温压炸药50Al/PTFE+硼基燃料(0.5%)1001∶2150
    4温压炸药50Al/PTFE+硼基燃料(1.5%)1001∶2150
    5温压炸药50Al/PTFE+硼基燃料(1.0%)1001∶2150
    6温压炸药100Al/PTFE+硼基燃料(1.0%)1001∶1200
    7温压炸药50Al/PTFE+硼基燃料(1.0%)1501∶3200
     注:表中的0.5%、1.5%和1.0%为硼基燃料的分解产物在爆炸装置内爆炸产物中的体积分数,在后文中能够以此推算硼基燃料的质量。
    下载: 导出CSV

    表  2  内爆试验结果

    Table  2.   Internal explosion test results

    试样外层材料冲击波超压峰值/
    MPa
    冲击波冲量/
    (MPa·s)
    准静态压力峰值/
    MPa
    准静态压力/
    MPa
    准静压上升速率/
    (MPa·s−1
    1温压炸药0.9700.00060.5290.50120.95
    2Al/PTFE(1∶2)0.6770.00150.6590.64215.77
    3Al/PTFE+硼基燃料(0.5%)(1∶2)0.7150.00230.6700.62719.62
    4Al/PTFE+硼基燃料(1.5%)(1∶2)0.6300.00140.6190.59313.42
    5Al/PTFE+硼基燃料(1.0%)(1∶2)0.6180.00150.6710.64617.35
    6Al/PTFE+硼基燃料(1.0%)(1∶1)0.8730.00160.7360.69325.59
    7Al/PTFE+硼基燃料(1.0%)(1∶3)0.4320.00100.6920.66714.63
    下载: 导出CSV
  • [1] 胡宏伟, 宋浦, 赵省向, 等. 有限空间内部爆炸研究进展 [J]. 含能材料, 2013, 21(4): 539–546. DOI: 10.3969/j.issn.1006-9941.2013.04.026.

    HU H W, SONG P, ZHAO S X, et al. Progress in explosion in confined space [J]. Chinese Journal of Energetic Materials, 2013, 21(4): 539–546. DOI: 10.3969/j.issn.1006-9941.2013.04.026.
    [2] 焦晓龙, 赵鹏铎, 姚养无, 等. 基于仿真与量纲分析的不同药量TNT内爆下多舱室结构毁伤规律研究 [J]. 爆炸与冲击, 2020, 40(8): 085101. DOI: 10.11883/bzyjc-2019-0438.

    JIAO X L, ZHAO P D, YAO Y W, et al. Regulation of different quantity TNT blasting in multi-cabin structure based on simulation and dimensional analysis [J]. Explosion and Shock Waves, 2020, 40(8): 085101. DOI: 10.11883/bzyjc-2019-0438.
    [3] 李芝绒, 张玉磊, 袁建飞, 等. 内部爆炸薄圆板的变形及有效载荷 [J]. 爆炸与冲击, 2020, 40(11): 113101. DOI: 10.11883/bzycj-2020-0045.

    LI Z R, ZHANG Y L, YUAN J F, et al. Deformation and payload of thin circular plates subjected to internal explosion [J]. Explosion and Shock Waves, 2020, 40(11): 113101. DOI: 10.11883/bzycj-2020-0045.
    [4] WEIBULL H R W. Pressures recorded in partially closed chambers at explosion of TNT charges [J]. Annals of the New York Academy of Sciences, 1968, 152(1): 357–361. DOI: 10.1111/j.1749-6632.1968.tb11987.x.
    [5] CARLSON R W. Confinement of an explosion by a steel vessel: LA-390 [R]. Los Alamos: LANL, 1945.
    [6] MOIR D C. Safety analysis of the M-2 confinement systems: LA-TM-264 [R]. Los Alamos: LANL, 1979.
    [7] 钟巍, 田宙. 等压假设下考虑化学反应动力学影响的约束爆炸准静态压力的计算 [J]. 爆炸与冲击, 2013, 33(4): 375–380.

    ZHONG W, TIAN Z. Calculation of quasi-static pressures for confined explosions considering chemical reactions under isobaric assumption [J]. Explosion and Shock Waves, 2013, 33(4): 375–380.
    [8] AMES R G, DROTAR J T, SILBER J, et al. Quantitative distinction between detonation and after burn energy deposition using pressure-time histories in enclosed explosions [C]//Proceedings of the 13th International Detonation Symposium. Norfolk, Virginia: Office of Naval Research, 2006: 253–262.
    [9] 张玉磊, 李芝绒, 蒋海燕, 等. 温压炸药内爆炸压力特性及威力试验研究 [J]. 兵工学报, 2018, 39(7): 1333–1338. DOI: 10.3969/j.issn.1000-1093.2018.07.011.

    ZHANG Y L, LI Z R, JIANG H Y, et al. Experimental study of the characteristics of internal explosion pressure and power of thermobaric explosive [J]. Acta Armamentarii, 2018, 39(7): 1333–1338. DOI: 10.3969/j.issn.1000-1093.2018.07.011.
    [10] 王梓昂, 翟红波, 李芝绒, 等. 不同炸药在圆筒装置内爆炸冲击波载荷传播规律与分布特性 [J]. 弹箭与制导学报, 2019, 39(1): 11–14, 20. DOI: 10.15892/j.cnki.djzdxb.2019.01.003.

    WANG Z A, ZHAI H B, LI Z R, et al. Study on propagation rules and distribution characteristics of explosion shock wave loading on different explosives inside cylindrical device [J]. Journal of Projectiles, Rockets, Missiles and Guidance, 2019, 39(1): 11–14, 20. DOI: 10.15892/j.cnki.djzdxb.2019.01.003.
    [11] 金朋刚, 郭炜, 王建灵, 等. 不同粒度铝粉在HMX基炸药中的能量释放特性 [J]. 含能材料, 2015, 23(10): 989–993. DOI: 10.11943/j.issn.1006-9941.2015.10.013.

    JIN P G, GUO W, WANG J L, et al. Energy releasing characteristics of aluminum powder in HMX-based explosives [J]. Chinese Journal of Energetic Materials, 2015, 23(10): 989–993. DOI: 10.11943/j.issn.1006-9941.2015.10.013.
    [12] 陈昊, 陶钢, 蒲元. 温压药在有限空间内爆炸冲击波的实验研究及数值模拟 [J]. 火炸药学报, 2009, 32(5): 41–45, 57. DOI: 10.3969/j.issn.1007-7812.2009.05.012.

    CHEN H, TAO G, PU Y. Experiment study and numerical simulation of shock wave generated by thermobaric column exploding in limited space [J]. Chinese Journal of Explosives and Propellants, 2009, 32(5): 41–45, 57. DOI: 10.3969/j.issn.1007-7812.2009.05.012.
    [13] 刘欣, 顾文彬, 蔡星会, 等. 圆柱形爆炸容器的内壁爆炸载荷 [J]. 爆炸与冲击, 2022, 42(2): 022201. DOI: 10.11883/bzycj-2021-0209.

    LIU X, GU W B, CAI X H, et al. Blast loads on the inner wall of cylindrical explosion containment vessel [J]. Explosion and Shock Waves, 2022, 42(2): 022201. DOI: 10.11883/bzycj-2021-0209.
    [14] 李芝绒, 翟红波, 闫潇敏, 等. 一种温压内爆炸准静态压力测量方法研究 [J]. 传感技术学报, 2016, 29(2): 208–212. DOI: 10.3969/j.issn.1004-1699.2016.02.010.

    LI Z R, ZHAI H B, YAN X M, et al. Test method research for the quas-static pressure on inside-explosive [J]. Chinese Journal of Sensors and Actuators, 2016, 29(2): 208–212. DOI: 10.3969/j.issn.1004-1699.2016.02.010.
    [15] 李尚青, 李芝绒, 张玉磊, 等. 炸药在预制条形孔圆筒装置内爆炸威力的评价方法 [J]. 火炸药学报, 2020, 43(3): 341–344, 350. DOI: 10.14077/j.issn.1007-7812.201902015.

    LI S Q, LI Z R, ZHANG Y L, et al. An evaluation method of internal blast power in a perforated cylinder device [J]. Chinese Journal of Explosives and Propellants, 2020, 43(3): 341–344, 350. DOI: 10.14077/j.issn.1007-7812.201902015.
    [16] 陈坤, 肖伟, 韩志伟, 等. 铝粉粒径对HMX基温压炸药在密闭空间爆炸参数的影响 [J]. 火炸药学报, 2020, 43(3): 298–302, 307. DOI: 10.14077/j.issn.1007-7812.201909018.

    CHEN K, XIAO W, HAN Z W, et al. Effect of aluminum particle size on the explosion parameters of HMX-based thermobaric explosives in confined space [J]. Chinese Journal of Explosives and Propellants, 2020, 43(3): 298–302, 307. DOI: 10.14077/j.issn.1007-7812.201909018.
    [17] 李凌峰, 王辉, 韩秀凤, 等. Al/PTFE与炸药组合装药的爆炸释能特性 [J]. 火炸药学报, 2023, 46(1): 69–75. DOI: 10.14077/j.issn.1007-7812.202205006.

    LI L F, WANG H, HAN X F, et al. Explosive energy release characteristics of composite charges with Al/PTFE and explosives [J]. Chinese Journal of Explosives and Propellants, 2023, 46(1): 69–75. DOI: 10.14077/j.issn.1007-7812.202205006.
    [18] 陶俊, 王晓峰. 金属-氟聚物机械活化含能材料的研究进展 [J]. 火炸药学报, 2017, 40(5): 8–14. DOI: 10.14077/j.issn.1007-7812.2017.05.022.

    TAO J, WANG X F. Research progress in metal-fluoropolymer mechanical activation energetic composites [J]. Chinese Journal of Explosives and Propellants, 2017, 40(5): 8–14. DOI: 10.14077/j.issn.1007-7812.2017.05.022.
    [19] 张玉磊, 苏健军, 李芝绒, 等. TNT内爆炸准静态压力特性 [J]. 爆炸与冲击, 2018, 38(6): 1429–1434. DOI: 10.11883/bzycj-2017-0170.

    ZHANG Y L, SU J J, LI Z R, et al. Quasi-static pressure characteristic of TNT’s internal explosion [J]. Explosion and Shock Waves, 2018, 38(6): 1429–1434. DOI: 10.11883/bzycj-2017-0170.
