深部大理岩真三轴力学特性离散元和有限差分耦合分析

王志亮 余浪浪

王志亮, 余浪浪. 深部大理岩真三轴力学特性离散元和有限差分耦合分析[J]. 爆炸与冲击, 2024, 44(7): 074202. doi: 10.11883/bzycj-2023-0394
引用本文: 王志亮, 余浪浪. 深部大理岩真三轴力学特性离散元和有限差分耦合分析[J]. 爆炸与冲击, 2024, 44(7): 074202. doi: 10.11883/bzycj-2023-0394
WANG Zhiliang, YU Langlang. Analysis on true triaxial mechanical properties of deep marbleby using a discrete element-finite difference coupling method[J]. Explosion And Shock Waves, 2024, 44(7): 074202. doi: 10.11883/bzycj-2023-0394
Citation: WANG Zhiliang, YU Langlang. Analysis on true triaxial mechanical properties of deep marbleby using a discrete element-finite difference coupling method[J]. Explosion And Shock Waves, 2024, 44(7): 074202. doi: 10.11883/bzycj-2023-0394

深部大理岩真三轴力学特性离散元和有限差分耦合分析

doi: 10.11883/bzycj-2023-0394
基金项目: 国家自然科学基金(12272119,U1965101)
详细信息
    作者简介:

    王志亮(1969- ),男,博士,教授,博士生导师,cvewzL@hfut.edu.cn

  • 中图分类号: O347

Analysis on true triaxial mechanical properties of deep marbleby using a discrete element-finite difference coupling method

  • 摘要: 为了研究深部大理岩的动态力学特性,首先基于离散元PFC (particle flow code)和有限差分FLAC (fast Lagrangian analysis of continua)耦合法,对大理岩的细观参数进行标定。接着,对三维分离式霍普金森压杆(split Hopkinson pressure bar, SHPB)冲击模拟中的动态应力平衡条件及均匀性假设进行数值验证。最后,对真三轴应力环境下大理岩的应力-应变响应、破碎特征及能量演化机理等问题进行深入分析。结果表明:基于PFC-FLAC耦合理论的真三轴SHPB试验数值结果满足应力均匀性假设,模拟得到的应力-应变曲线与室内试验数据高度一致。峰值应力、峰值应变随着冲击方向上预压(下称“轴向压力”)的增大呈下降趋势。在轴向压力相同时,试样峰值应力增幅随入射应力的提高逐渐变小;当入射应力固定时,轴向压力对试样峰值应力有削弱作用,垂直于冲击方向的侧压则会提升试样的抗压强度。加载过程中声发射事件爆发期整体上发生在应力峰后段,并在此阶段试样内形成较明显的宏观破碎带。在真三轴动态压缩下,大理岩试样主要以拉伸裂纹居多,在总裂纹数中占比超过80%。试样从加载至破坏的过程伴随有能量的变化,达到应力峰值点时试样的应变储能达到极限,之后转化为以耗散能为主、颗粒动能等为辅的能量形式。

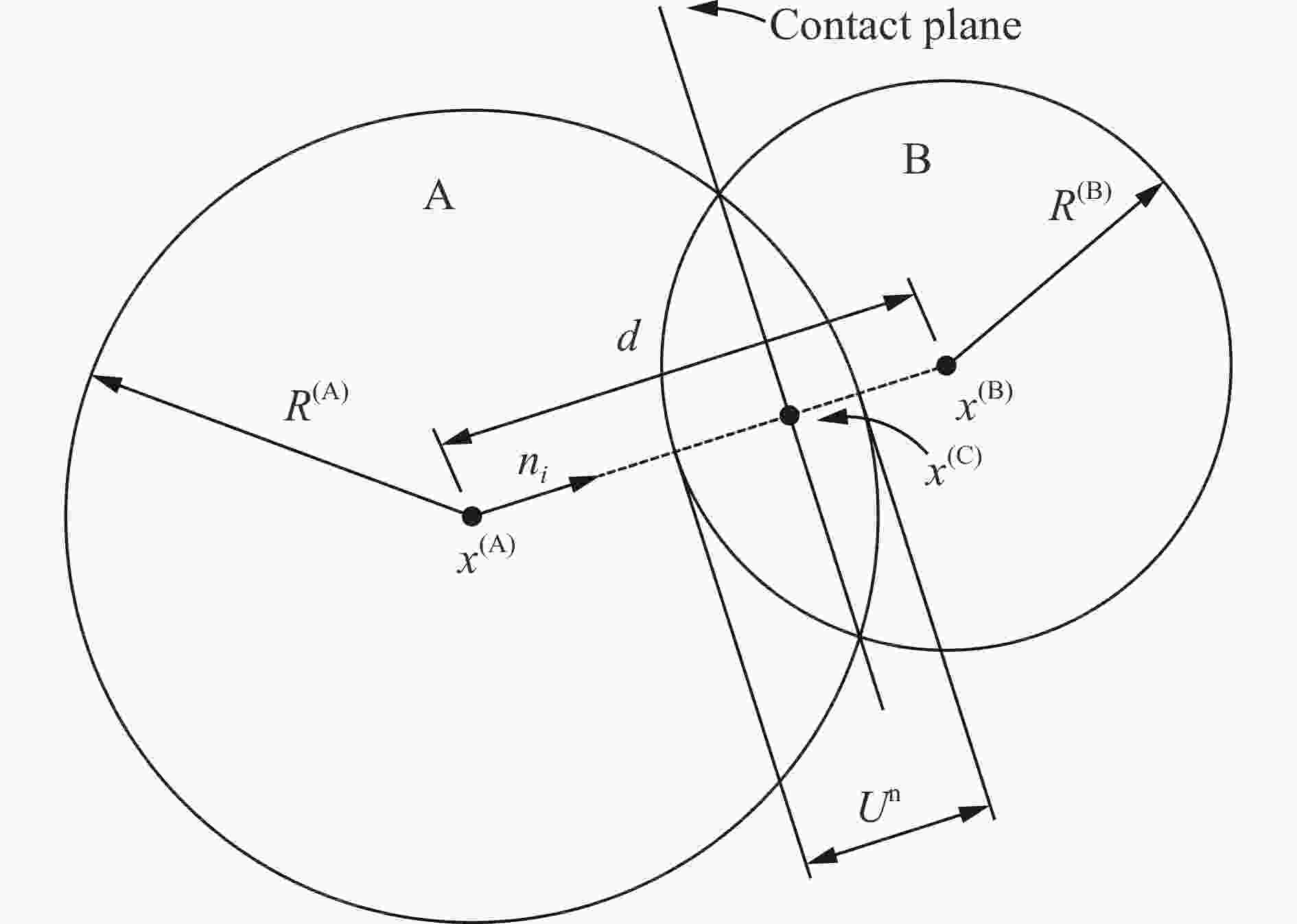

  • 图  1  颗粒接触模型

    Figure  1.  Particle contact model

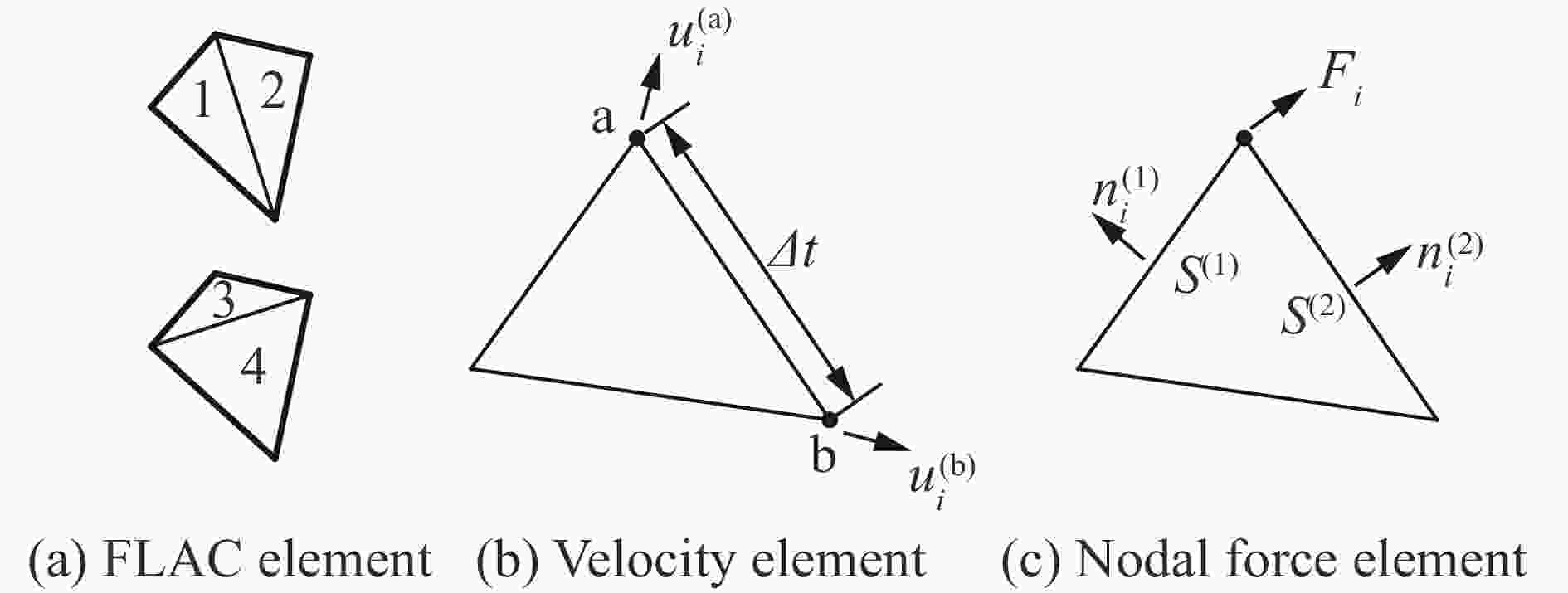

    图  2  单元示意图

    Figure  2.  Diagrams of elements

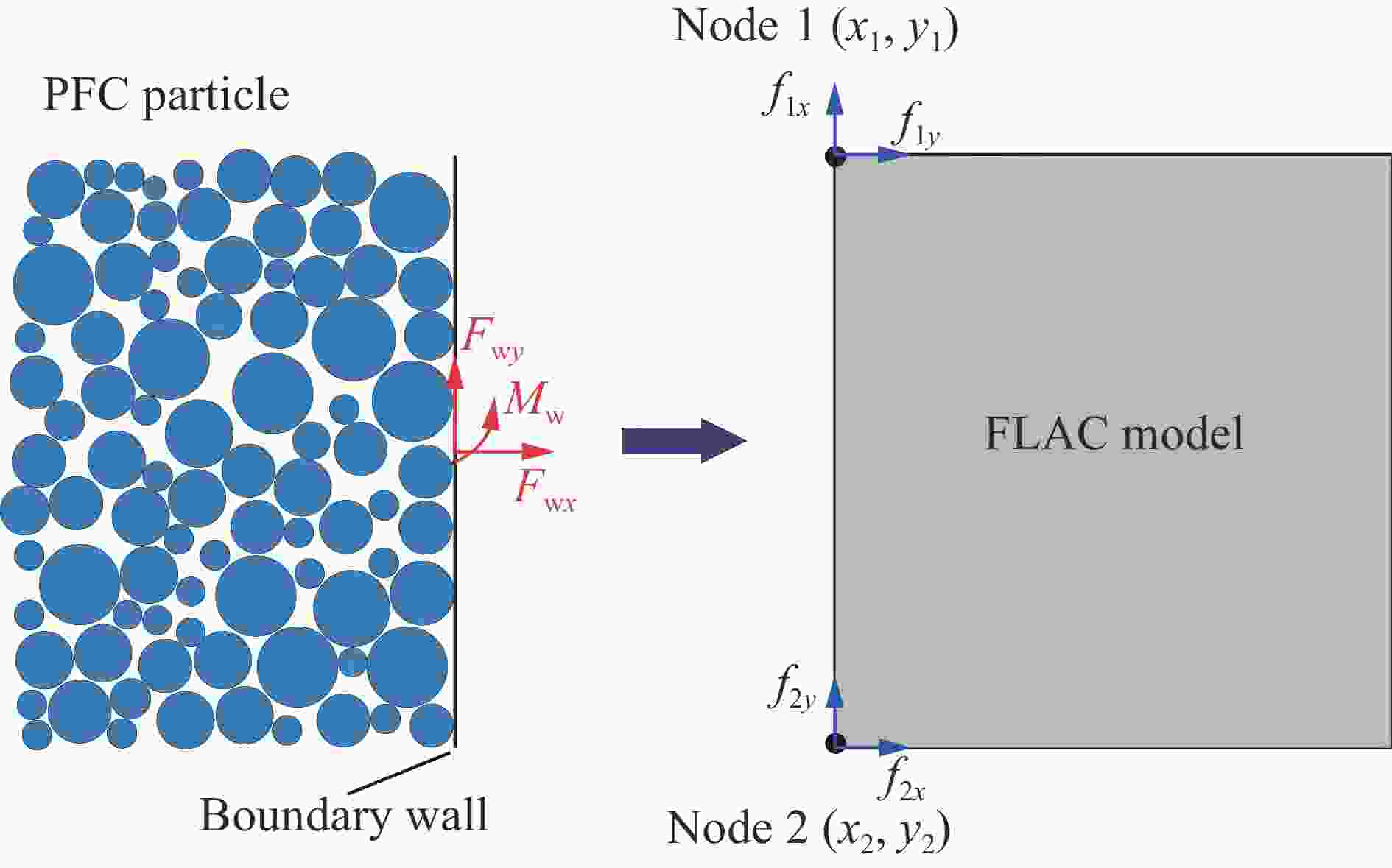

    图  3  耦合边界节点力传递模型

    Figure  3.  The force transfer model of coupling boundary nodes

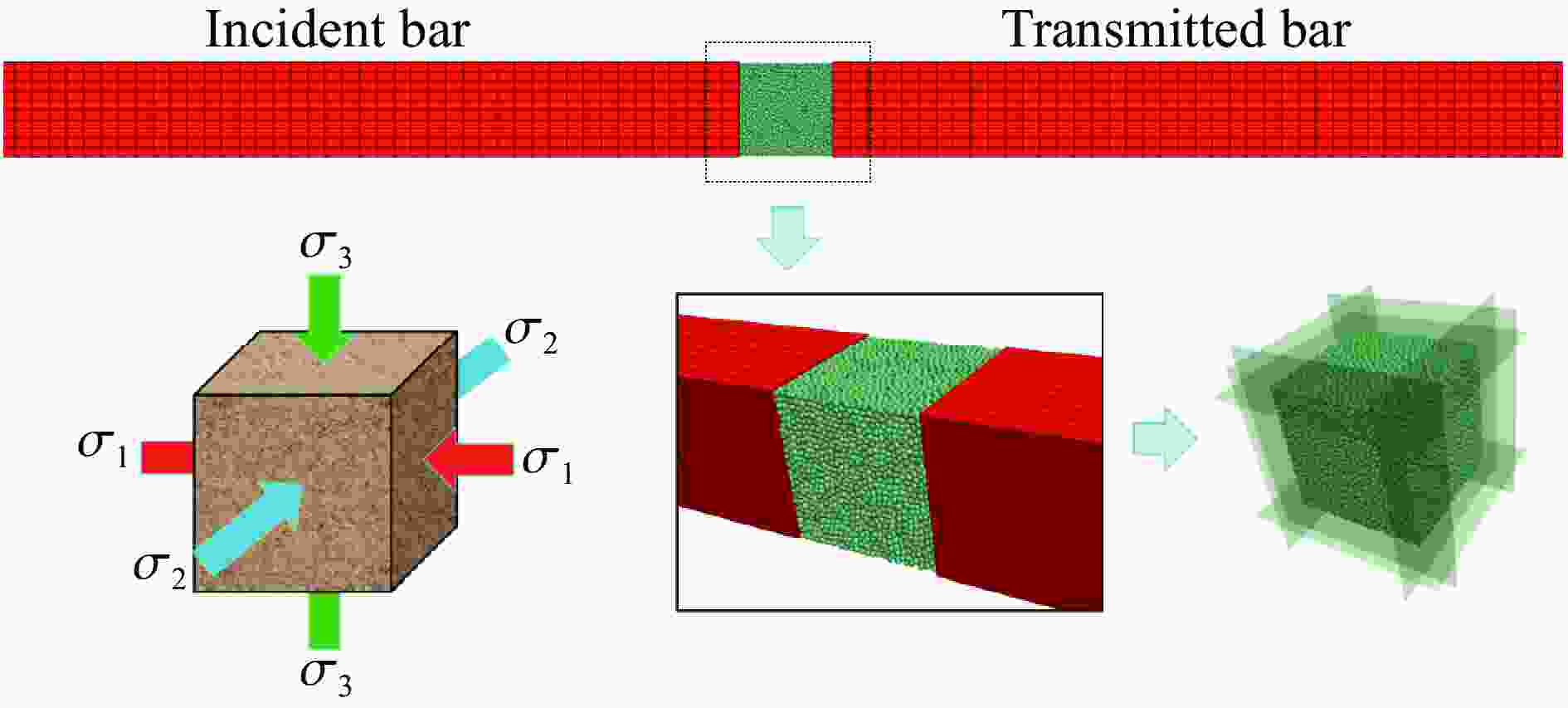

    图  4  耦合数值模型

    Figure  4.  Modelling for coupling simulation

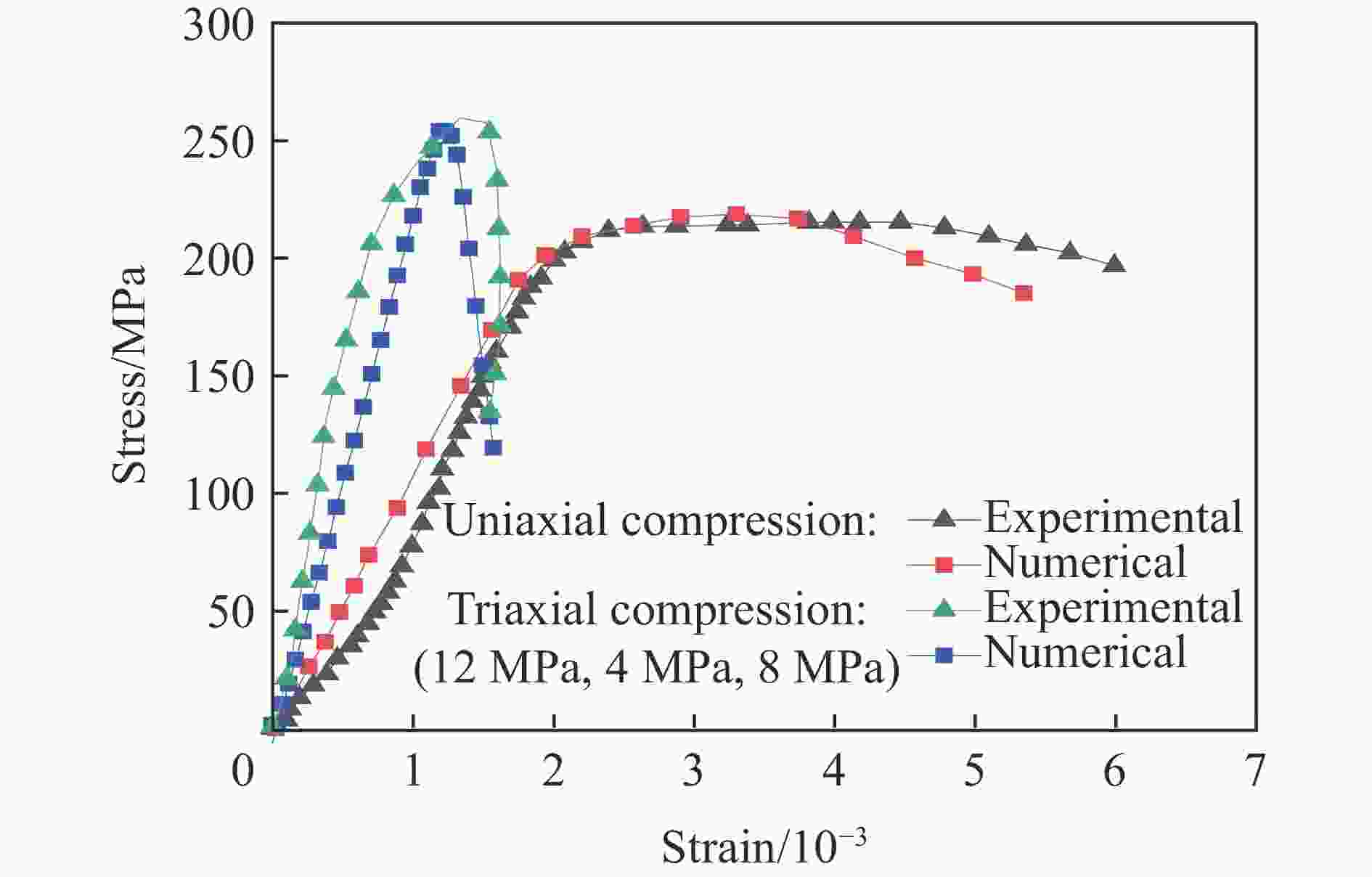

    图  5  不同压缩条件下试件的应力-应变曲线对比

    Figure  5.  Comparison of stress-strain curves of specimens under different compression conditions

    图  6  不同压缩条件下试件的破碎形态对比

    Figure  6.  Comparison of failure modes of specimens under different compression conditions

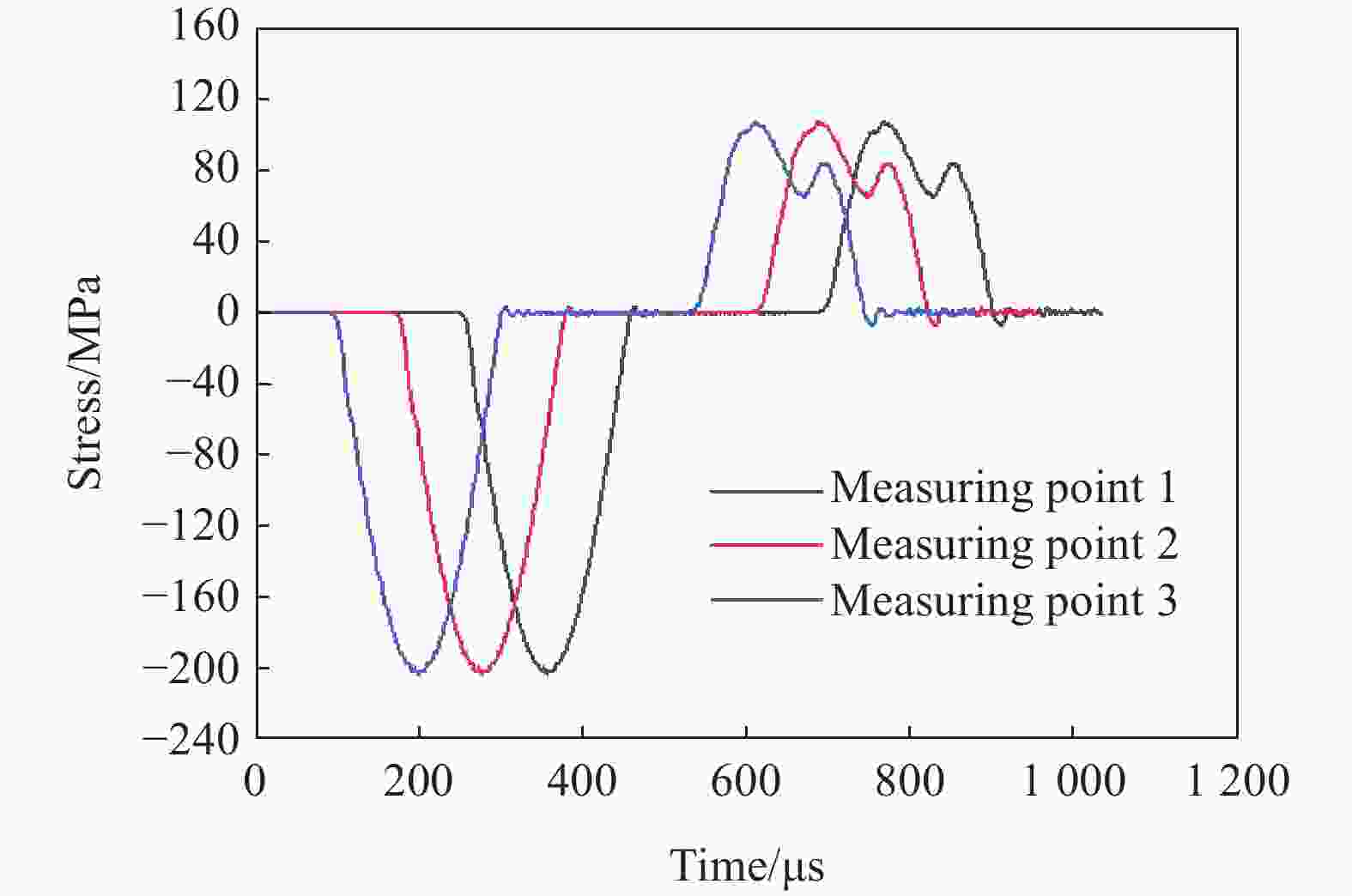

    图  7  3个测点应力信号记录

    Figure  7.  Recorded stress signals at three measuring points

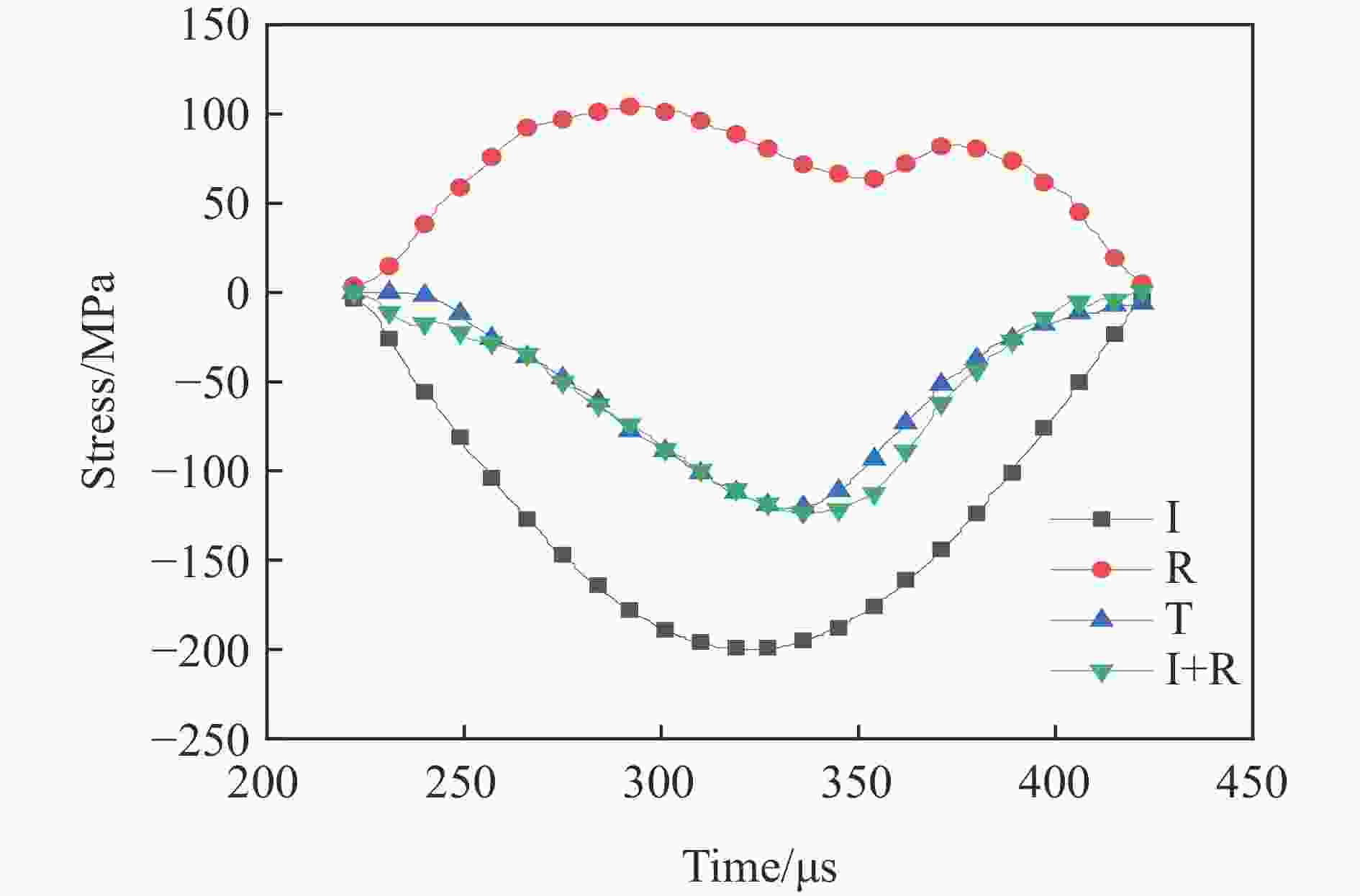

    图  8  动态应力平衡图

    Figure  8.  Diagram of dynamic stress balance

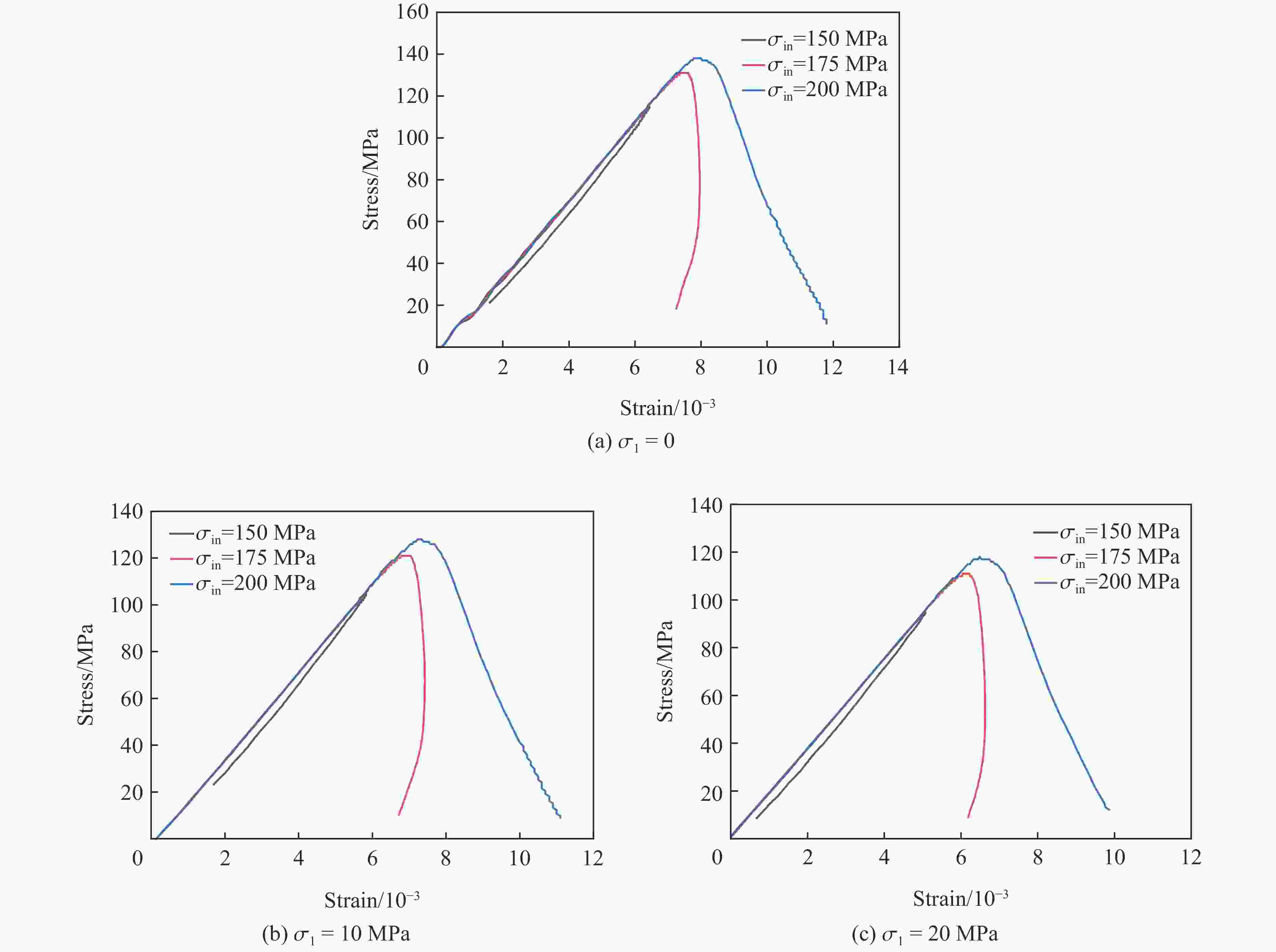

    图  9  不同轴压试样在不同入射应力下的应力-应变曲线

    Figure  9.  Stress-strain curves of the specimens in different axial compression states (σ1, 5 MPa, 10 MPa) under different incident pressures

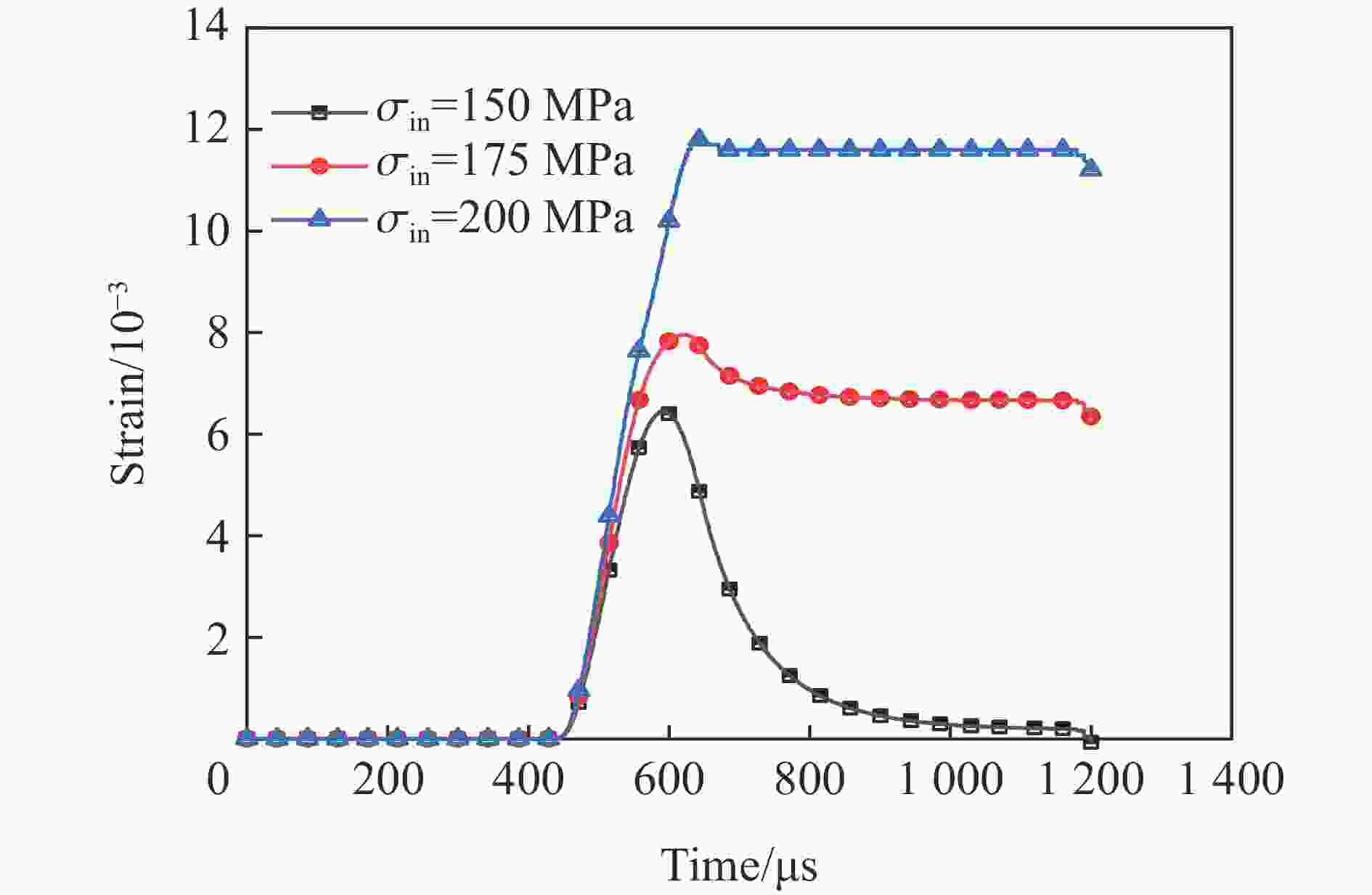

    图  10  三轴围压(0 MPa, 5 MPa, 10 MPa)试样在3种入射应力下的应变时程曲线

    Figure  10.  Strain-time histories of specimens in triaxial compression (0 MPa, 5 MPa, 10 MPa) under three different incident pressures

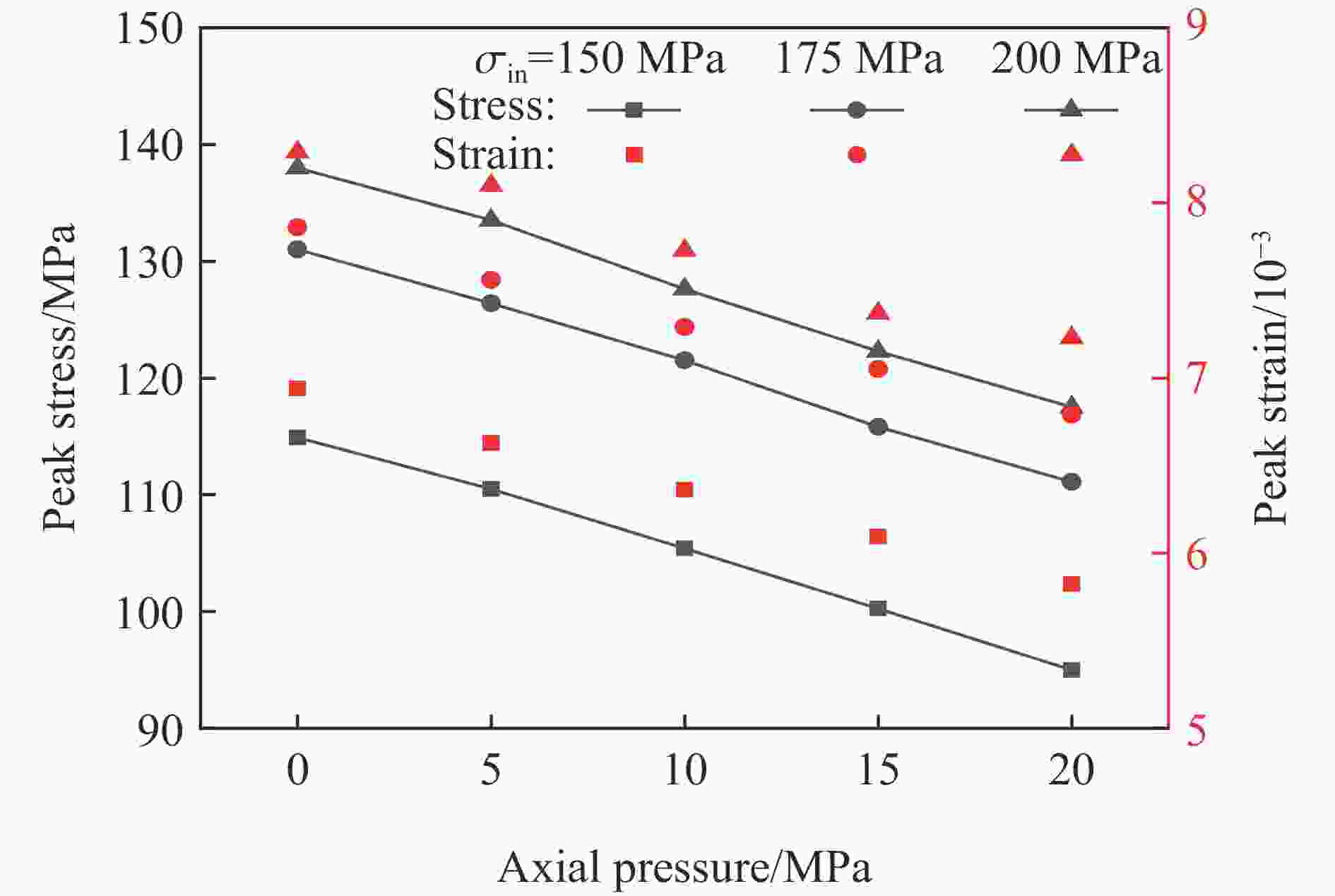

    图  11  不同入射压力下试样的峰值应力和峰值应变随轴压的变化

    Figure  11.  Vairations of peak stresses and peak strains of specimens under different incident pressures with axial pressure

    图  12  不同方向预压力对岩样峰值强度的影响

    Figure  12.  Effect of pre-pressures in different directions on the peak strength of specimens

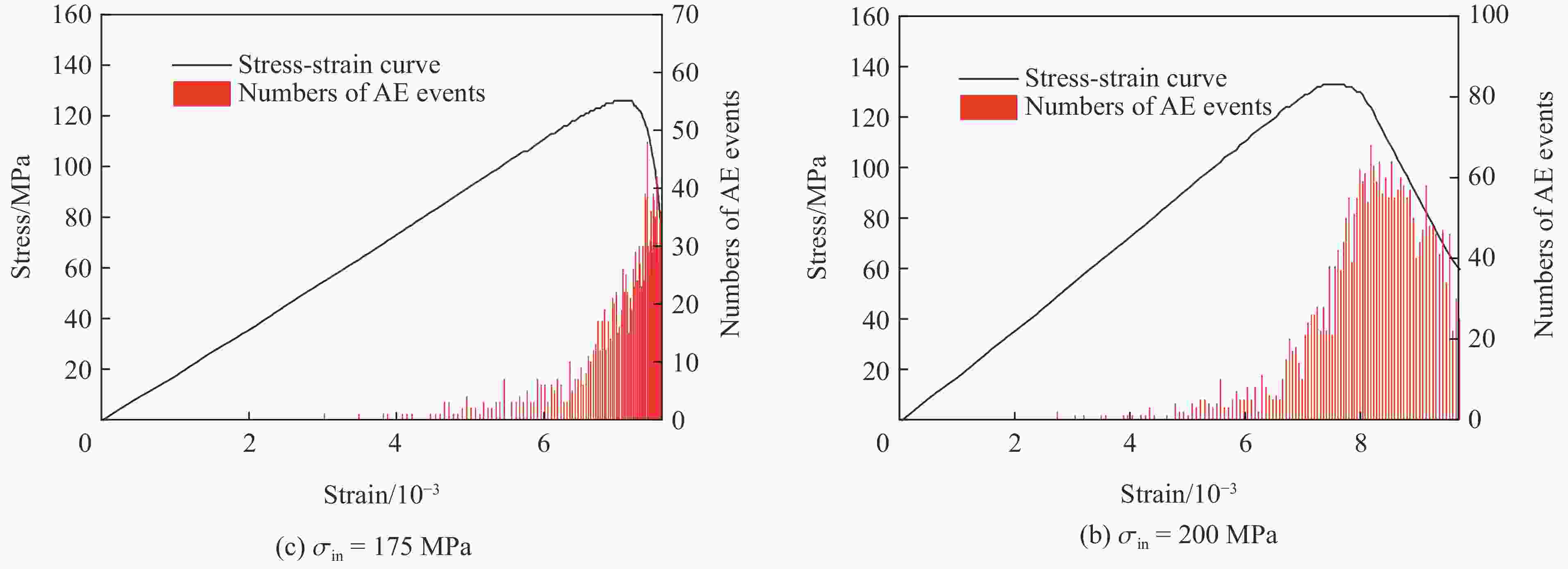

    图  13  不同入射应力下大理岩试样内部声发射事件数量和应力-应变曲线关系

    Figure  13.  Numbers of acoustic emission events in specimens and stress-strain curves under different incident stresses

    图  14  不同时刻的岩样破坏形貌

    Figure  14.  Failure morphologies of rock specimens at different times

    图  15  岩样破坏正视图

    Figure  15.  Front views of failed specimens

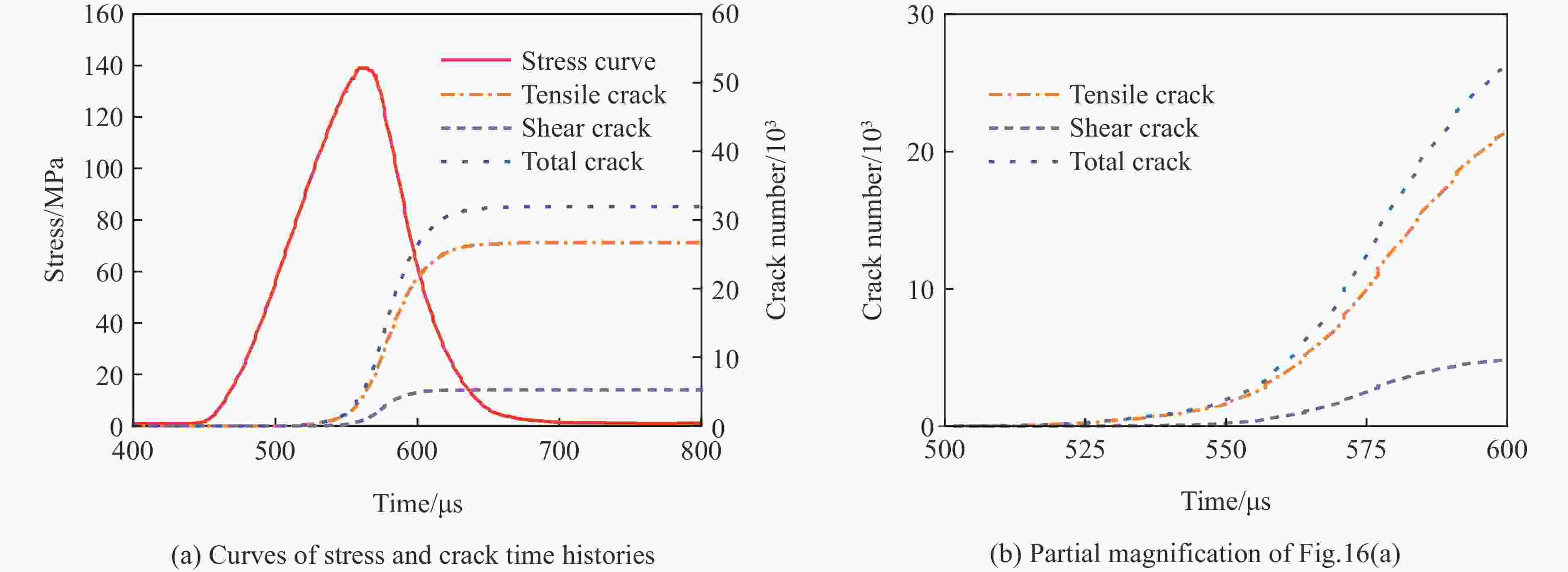

    图  16  不同类型裂纹演化曲线

    Figure  16.  Evolution curves of different types of cracks

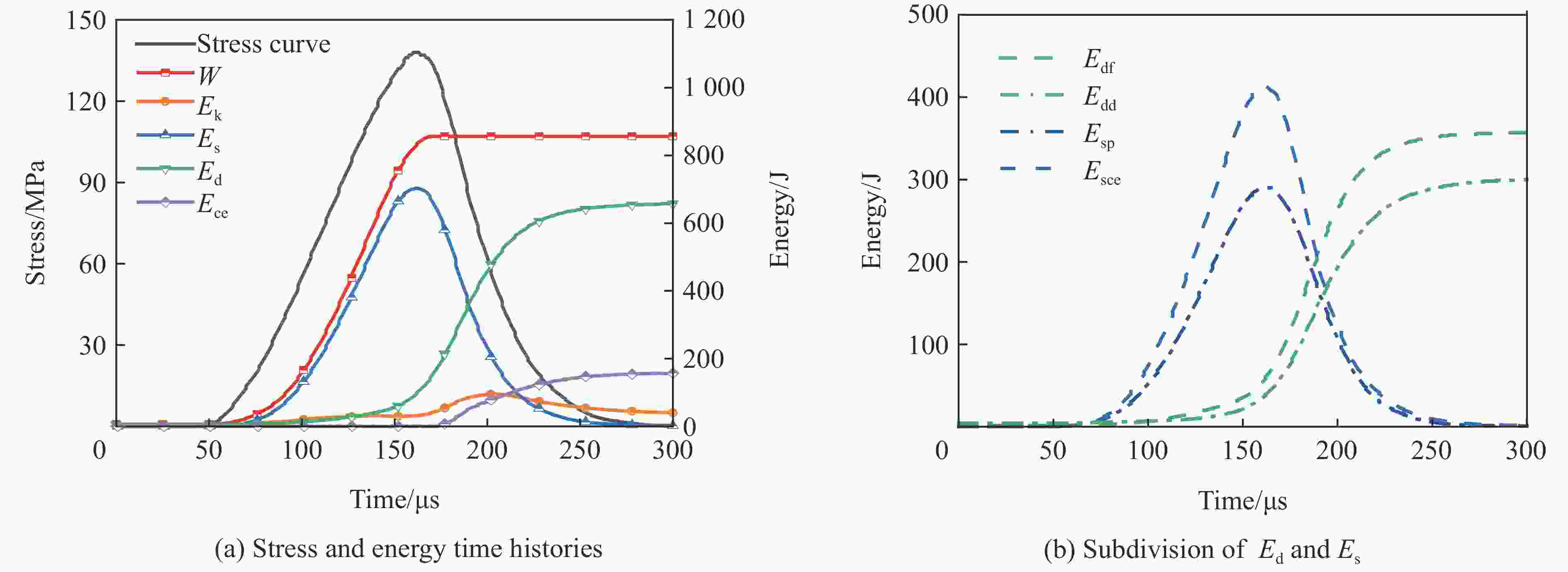

    图  17  应力和能量时程曲线

    Figure  17.  Curves of stress and energy time histories

    表  1  大理岩细观参数

    Table  1.   Microscopic parameters of marble

    细观参数 含义 标定值
    Rmin/mm 最小颗粒半径 0.9
    Rmax/Rmin 最大、最小颗粒半径比 1.4
    Ec/GPa 颗粒接触模量 30
    kn/ks 颗粒刚度比 1.5
    ${ \overline{{E}_{\mathrm{c}}}} $/GPa 平行黏结接触模量 10
    $ {\overline{{k}_{\mathrm{n}}}/\overline{{k}_{\mathrm{s}}}} $ 平行黏结刚度比 1.5
    μ 颗粒摩擦因数 0.5
    ${ \overline{{\sigma }_{\mathrm{c}}}} $/MPa 黏结法向强度 70
    ${ \overline{{\tau }_{\mathrm{c}}} }$/MPa 黏结切向强度 44
    λ 黏结半径乘子 1
    下载: 导出CSV
  • [1] MA T H, TANG C A, TANG S B, et al. Rockburst mechanism and prediction based on microseismic monitoring [J]. International Journal of Rock Mechanics and Mining Sciences, 2018, 110: 177–188. DOI: 10.1016/j.ijrmms.2018.07.016.
    [2] SI X F, LI X B, GONG F Q, et al. Experimental investigation on rockburst process and characteristics of a circular opening in layered rock under three-dimensional stress conditions [J]. Tunnelling and Underground Space Technology, 2022, 127: 104603. DOI: 10.1016/j.tust.2022.104603.
    [3] ZHENG G Q, TANG Y H, ZHANG Y, et al. Study on failure difference of hard rock based on a comparison between the conventional triaxial test and true triaxial test [J]. Frontiers in Earth Science, 2022, 10: 923611. DOI: 10.3389/feart.2022.923611.
    [4] HAN Z Y, LI D Y, ZHOU T, et al. Experimental study of stress wave propagation and energy characteristics across rock specimens containing cemented mortar joint with various thicknesses [J]. International Journal of Rock Mechanics and Mining Sciences, 2020, 131: 104352. DOI: 10.1016/j.ijrmms.2020.104352.
    [5] SUN B, CHEN R, PING Y, et al. Dynamic response of rock-like materials based on SHPB pulse waveform characteristics [J]. Materials, 2021, 15(1): 210. DOI: 10.3390/ma15010210.
    [6] 刘晓辉, 张茹, 刘建锋. 不同应变率下煤岩冲击动力试验研究 [J]. 煤炭学报, 2012, 37(9): 1528–1534. DOI: 10.13225/j.cnki.jccs.2012.09.022.

    LIU X H, ZHANG R, LIU J F. Dynamic test study of coal rock under different strain rates [J]. Journal of China Coal Society, 2012, 37(9): 1528–1534. DOI: 10.13225/j.cnki.jccs.2012.09.022.
    [7] 刘晓辉, 薛洋, 郑钰, 等. 冲击荷载下煤岩破碎过程能量释放研究 [J]. 岩石力学与工程学报, 2021, 40(S2): 3201–3211. DOI: 10.13722/j.cnki.jrme.2021.0214.

    LIU X H, XUE Y, ZHENG Y, et al. Research on energy release in coal rock fragmentation process under impact load [J]. Chinese Journal of Rock Mechanics and Engineering, 2021, 40(S2): 3201–3211. DOI: 10.13722/j.cnki.jrme.2021.0214.
    [8] LI D Y, HAN Z Y, SUN X L, et al. Dynamic mechanical properties and fracturing behavior of marble specimens containing single and double flaws in SHPB tests [J]. Rock Mechanics and Rock Engineering, 2019, 52(6): 1623–1643. DOI: 10.1007/s00603-018-1652-5.
    [9] 徐松林, 王鹏飞, 赵坚, 等. 基于三维Hopkinson杆的混凝土动态力学性能研究 [J]. 爆炸与冲击, 2017, 37(2): 180–185. DOI: 10.11883/1001-1455(2017)02-0180-06.

    XU S L, WANG P F, ZHAO J, et al. Dynamic behavior of concrete under static triaxial loading using 3D-Hopkinson bar [J]. Explosion and Shock Waves, 2017, 37(2): 180–185. DOI: 10.11883/1001-1455(2017)02-0180-06.
    [10] LUO Y, GONG H L, HUANG J H, et al. Dynamic cumulative damage characteristics of deep-buried granite from Shuangjiangkou hydropower station under true triaxial constraint [J]. International Journal of Impact Engineering, 2022, 165: 104215. DOI: 10.1016/j.ijimpeng.2022.104215.
    [11] 袁良柱, 苗春贺, 单俊芳, 等. 冲击下混凝土试样应变率效应和惯性效应探讨 [J]. 爆炸与冲击, 2022, 42(1): 013101. DOI: 10.11883/bzycj-2021-0114.

    YUAN L Z, MIAO C H, SHAN J F, et al. On strain-rate and inertia effects of concrete samples under impact [J]. Explosion and Shock Waves, 2022, 42(1): 013101. DOI: 10.11883/bzycj-2021-0114.
    [12] XU S L, SHAN J F, ZHANG L, et al. Dynamic compression behaviors of concrete under true triaxial confinement: an experimental technique [J]. Mechanics of Materials, 2020, 140: 103220. DOI: 10.1016/j.mechmat.2019.103220.
    [13] CHEN M D, XU S L, YUAN L Z, et al. Influence of stress state on dynamic behaviors of concrete under true triaxial confinements [J]. International Journal of Mechanical Sciences, 2023, 253: 108399. DOI: 10.1016/j.ijmecsci.2023.108399.
    [14] HAERI H, SARFARAZI V, ZHU Z M, et al. The effect of particle size on the edge notched disk (END) using particle flow code in three dimension [J]. Smart Structures and Systems, 2018, 22(6): 663–673. DOI: 10.12989/sss.2018.22.6.663.
    [15] CHANG L F, KONIETZKY H. Application of the Mohr-Coulomb yield criterion for rocks with multiple joint sets using fast Lagrangian analysis of continua 2D (FLAC2D) software [J]. Energies, 2018, 11(3): 614. DOI: 10.3390/en11030614.
    [16] JIA M C, YANG Y, LIU B, et al. PFC/FLAC coupled simulation of dynamic compaction in granular soils [J]. Granular Matter, 2018, 20(4): 76. DOI: 10.1007/s10035-018-0841-y.
    [17] 丛怡, 丛宇, 张黎明, 等. 大理岩加、卸荷破坏过程的三维颗粒流模拟 [J]. 岩土力学, 2019, 40(3): 1179–1186, 1212. DOI: 10.16285/j.rsm.2018.0262.

    CONG Y, CONG Y, ZHANG L M, et al. 3D particle flow simulation of loading-unloading failure process of marble [J]. Rock and Soil Mechanics, 2019, 40(3): 1179–1186, 1212. DOI: 10.16285/j.rsm.2018.0262.
    [18] 牛林新, 辛酉阳. 基于正交设计的颗粒流模型宏细观参数相关分析: 以岩石单轴压缩数值试验为例 [J]. 人民长江, 2015, 46(16): 53–57, 71. DOI: 10.16232/j.cnki.1001-4179.2015.16.013.

    NIU L X, XIN Y Y. Analysis on relationship between macro-parameters and micro-parameters in PFC2D model based on orthogonal design: case of rock uniaxial compression numerical test [J]. Yangtze River, 2015, 46(16): 53–57, 71. DOI: 10.16232/j.cnki.1001-4179.2015.16.013.
    [19] 丛宇, 王在泉, 郑颖人, 等. 基于颗粒流原理的岩石类材料细观参数的试验研究 [J]. 岩土工程学报, 2015, 37(6): 1031–1040. DOI: 10.11779/CJGE201506009.

    CONG Y, WANG Z Q, ZHENG Y R, et al. Experimental study on microscopic parameters of brittle materials based on particle flow theory [J]. Chinese Journal of Geotechnical Engineering, 2015, 37(6): 1031–1040. DOI: 10.11779/CJGE201506009.
    [20] ZHAO R, TAO M, WU C Q, et al. Study on size and load rate effect of dynamic fragmentation and mechanical properties of marble sphere [J]. Engineering Failure Analysis, 2022, 142: 106814. DOI: 10.1016/j.engfailanal.2022.106814.
    [21] LIU K, ZHANG Q B, WU G, et al. Dynamic mechanical and fracture behaviour of sandstone under multiaxial loads using a triaxial Hopkinson bar [J]. Rock Mechanics and Rock Engineering, 2019, 52(7): 2175–2195. DOI: 10.1007/s00603-018-1691-y.
    [22] QI C Z, WANG M Y, WANG Z F, et al. Study on the coupling effect of sample size and strain rate on rock compressive strength [J]. Rock Mechanics and Rock Engineering, 2023, 56(7): 5103–5114. DOI: 10.1007/s00603-023-03309-z.
    [23] HU W R, LIU K, POTYONDY D O, et al. 3D continuum-discrete coupled modelling of triaxial Hopkinson bar tests on rock under multiaxial static-dynamic loads [J]. International Journal of Rock Mechanics and Mining Sciences, 2020, 134: 104448. DOI: 10.1016/j.ijrmms.2020.104448.
    [24] 许东俊, 耿乃光. 岩石强度随中间主应力变化规律 [J]. 固体力学学报, 1985, 6(1): 72–80. DOI: 10.19636/j.cnki.cjsm42-1250/o3.1985.01.007.

    XU D J, GENG N G. The variation law of rock strength with increase of intermediate principal stress [J]. Acta Mechanica Solida Sinica, 1985, 6(1): 72–80. DOI: 10.19636/j.cnki.cjsm42-1250/o3.1985.01.007.
    [25] 周喻, 吴顺川, 许学良, 等. 岩石破裂过程中声发射特性的颗粒流分析 [J]. 岩石力学与工程学报, 2013, 32(5): 951–959. DOI: 10.3969/j.issn.1000-6915.2013.05.013.

    ZHOU Y, WU S C, XU X L, et al. Particle flow analysis of acoustic emission characteristics during rock failure process [J]. Chinese Journal of Rock Mechanics and Engineering, 2013, 32(5): 951–959. DOI: 10.3969/j.issn.1000-6915.2013.05.013.
    [26] SONG B, CHEN W. Energy for specimen deformation in a split Hopkinson pressure bar experiment [J]. Experimental Mechanics, 2006, 46(3): 407–410. DOI: 10.1007/s11340-006-6420-x.
