大口径锥头弹体高速倾斜入水偏转规律数值模拟

陈建良 杨璞 李继承 陈刚 邓宏见 范志庚

陈建良, 杨璞, 李继承, 陈刚, 邓宏见, 范志庚. 大口径锥头弹体高速倾斜入水偏转规律数值模拟[J]. 爆炸与冲击, 2024, 44(7): 073301. doi: 10.11883/bzycj-2023-0398
引用本文: 陈建良, 杨璞, 李继承, 陈刚, 邓宏见, 范志庚. 大口径锥头弹体高速倾斜入水偏转规律数值模拟[J]. 爆炸与冲击, 2024, 44(7): 073301. doi: 10.11883/bzycj-2023-0398
CHEN Jianliang, YANG Pu, LI Jicheng, CHEN Gang, DENG Hongjian, FAN Zhigeng. Numerical simulation on the deflection behavior of large caliber conical nose projectile at oblique high-speed water entry[J]. Explosion And Shock Waves, 2024, 44(7): 073301. doi: 10.11883/bzycj-2023-0398
Citation: CHEN Jianliang, YANG Pu, LI Jicheng, CHEN Gang, DENG Hongjian, FAN Zhigeng. Numerical simulation on the deflection behavior of large caliber conical nose projectile at oblique high-speed water entry[J]. Explosion And Shock Waves, 2024, 44(7): 073301. doi: 10.11883/bzycj-2023-0398

大口径锥头弹体高速倾斜入水偏转规律数值模拟

doi: 10.11883/bzycj-2023-0398
基金项目: 四川省自然科学基金杰出青年科学基金(2023NSFSC1913)
详细信息
    作者简介:

    陈建良(1991- ),男,硕士,工程师,chen729@caep.cn

    通讯作者:

    陈 刚(1971- ),男,博士,研究员,chengang@caep.cn

  • 中图分类号: O353.4

Numerical simulation on the deflection behavior of large caliber conical nose projectile at oblique high-speed water entry

  • 摘要: 结合某大口径锥头弹体高速倾斜入水试验,采用任意拉格朗日-欧拉(arbitrary Lagrange-Euler,ALE)流固耦合方法对弹体倾斜入水偏转行为进行数值模拟,研究了弹体以500 m/s高速倾斜入水过程中不同受力模式、载荷变化特征以及弹体发生偏转的力学机理,分析了入水角度对弹体偏转规律的影响。结果表明:在俯仰力矩作用下,弹体均发生抬头方向偏转,且偏转速度呈现先增大后减小的趋势,偏转程度在不同入水角度范围内呈现不同的变化趋势。当入水角度小于15°时,弹体会发生“跳弹”现象;当入水角度为30°~60°时,弹体偏转趋势基本一致,均由初始倾斜状态逐渐转动至水平状态、竖直状态并最终以弹头入水反方向的“出水”姿态向水下运动;当入水角度为75°时,弹体转动至水平状态后,并未继续偏转至竖直状态,弹头以朝斜上方的姿态向水下运动;弹体的入水侵深随入水角度的增大而增大,且增大趋势近似满足指数函数关系。

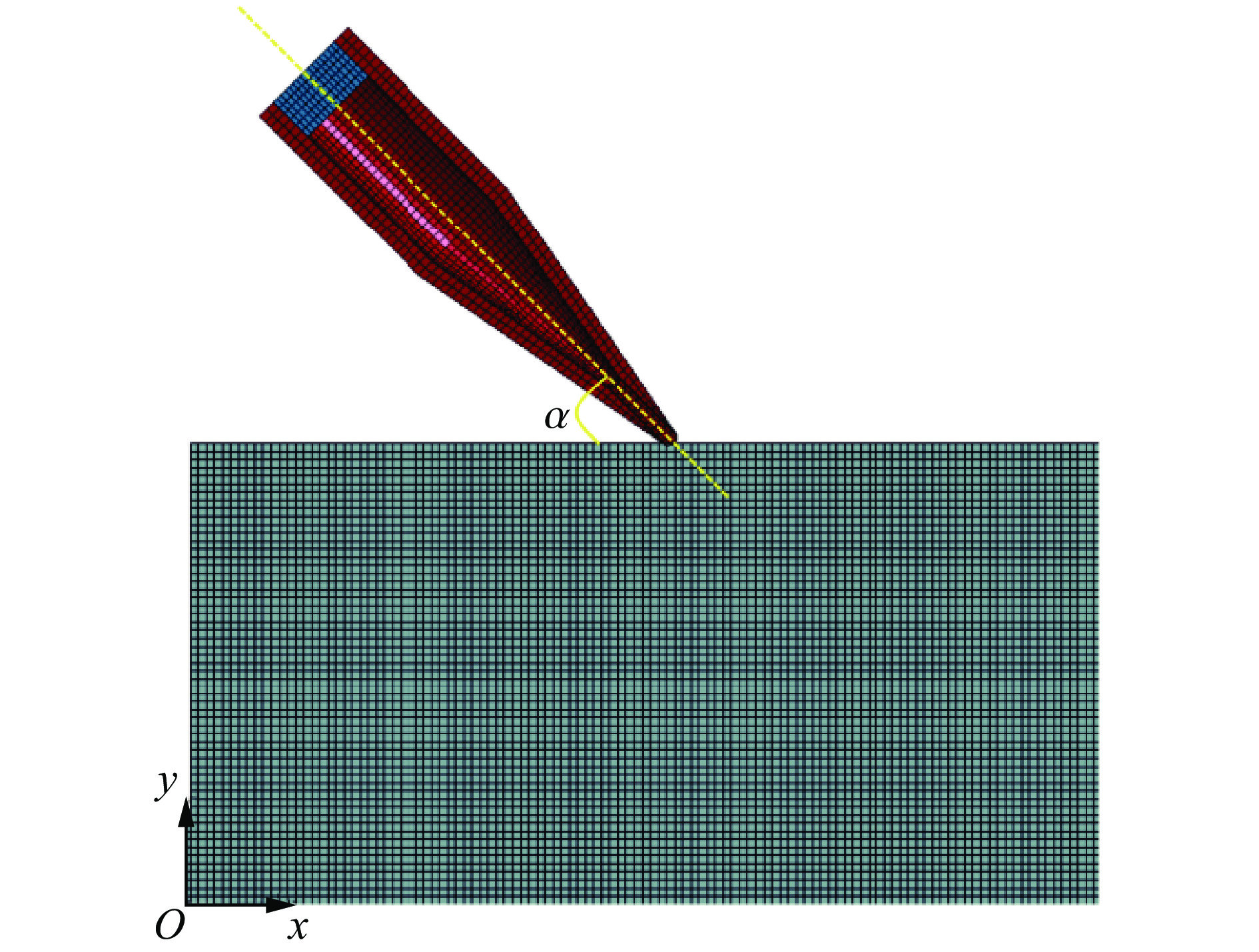

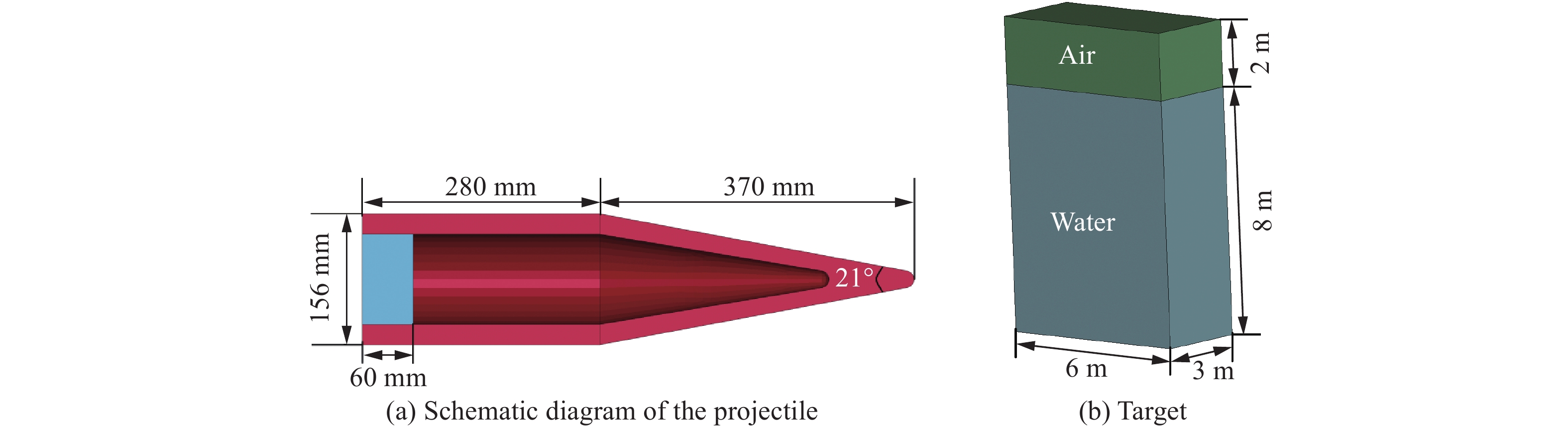

  • 图  1  弹体和靶体有限元几何模型

    Figure  1.  Finite element models of the projectile and target

    图  2  弹体斜入水角度定义

    Figure  2.  Definition of inclined angle for oblique water entry of projectile

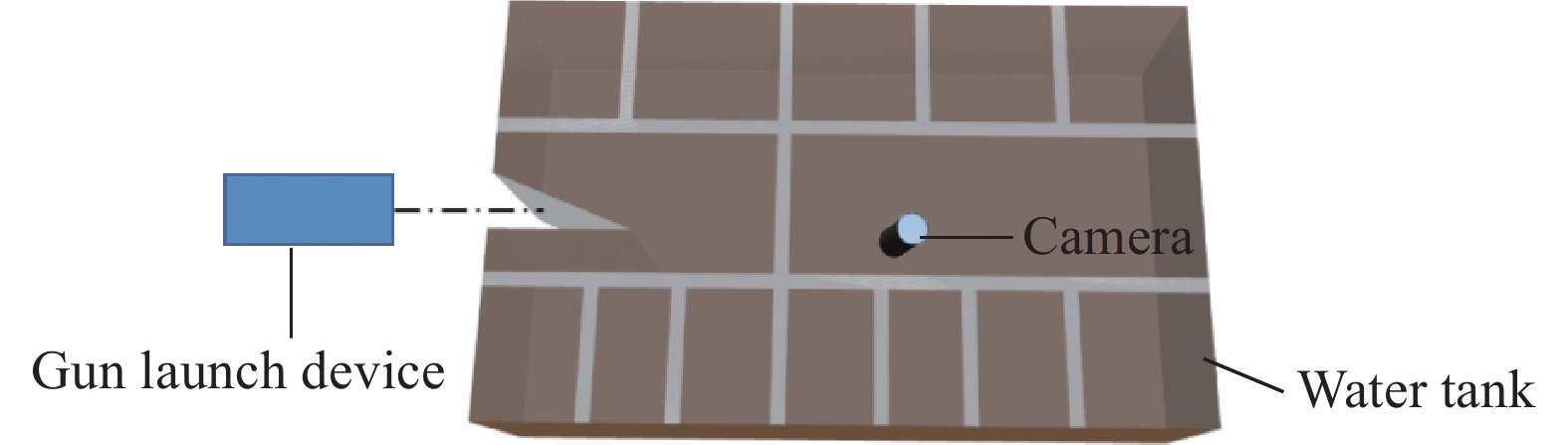

    图  3  试验系统示意图(正视图)

    Figure  3.  Schematic diagram of the test system (front view)

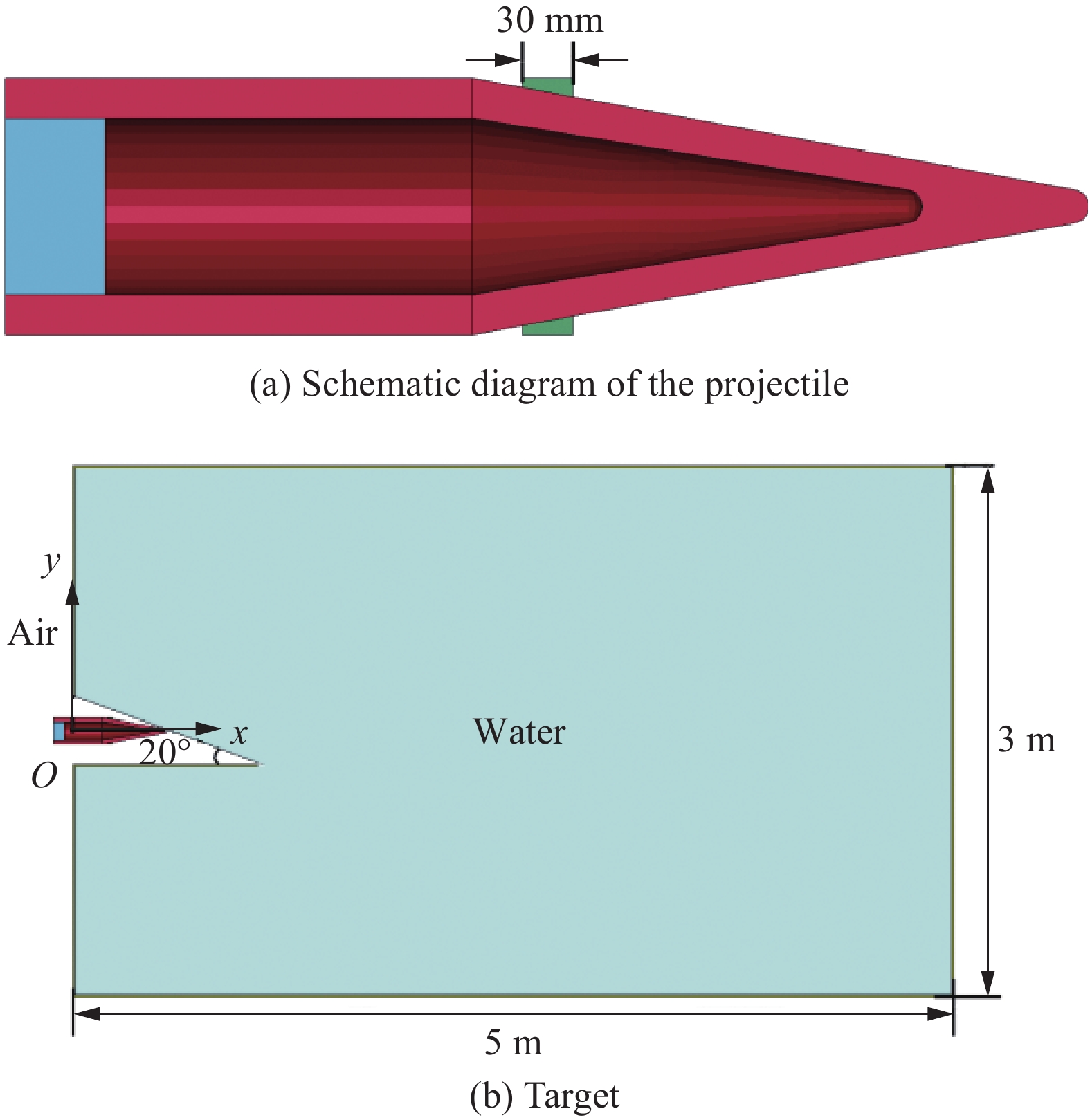

    图  4  试验弹体及水箱的有限元模型(正视图)

    Figure  4.  Finite element models of the projectile and water tank (front view)

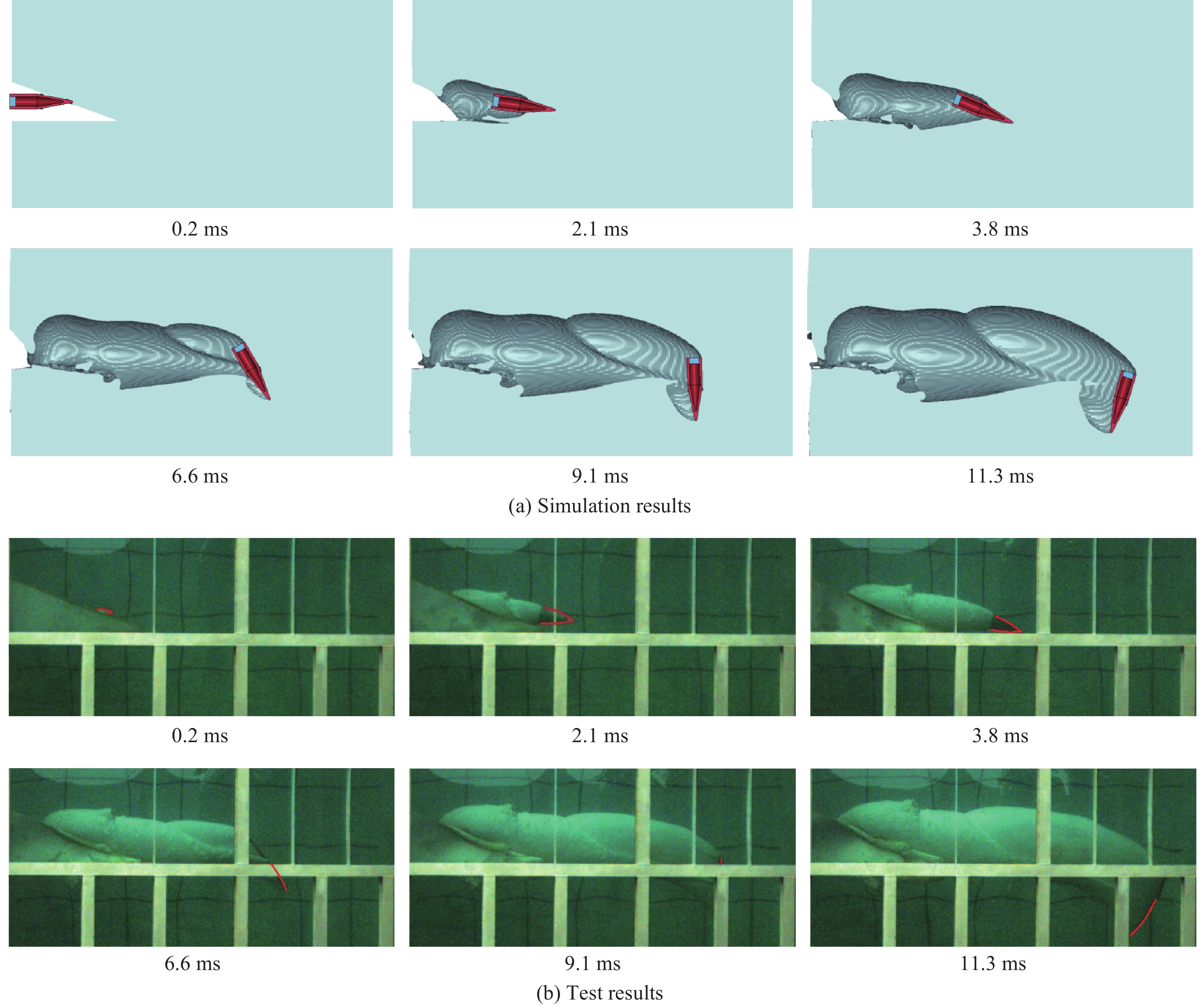

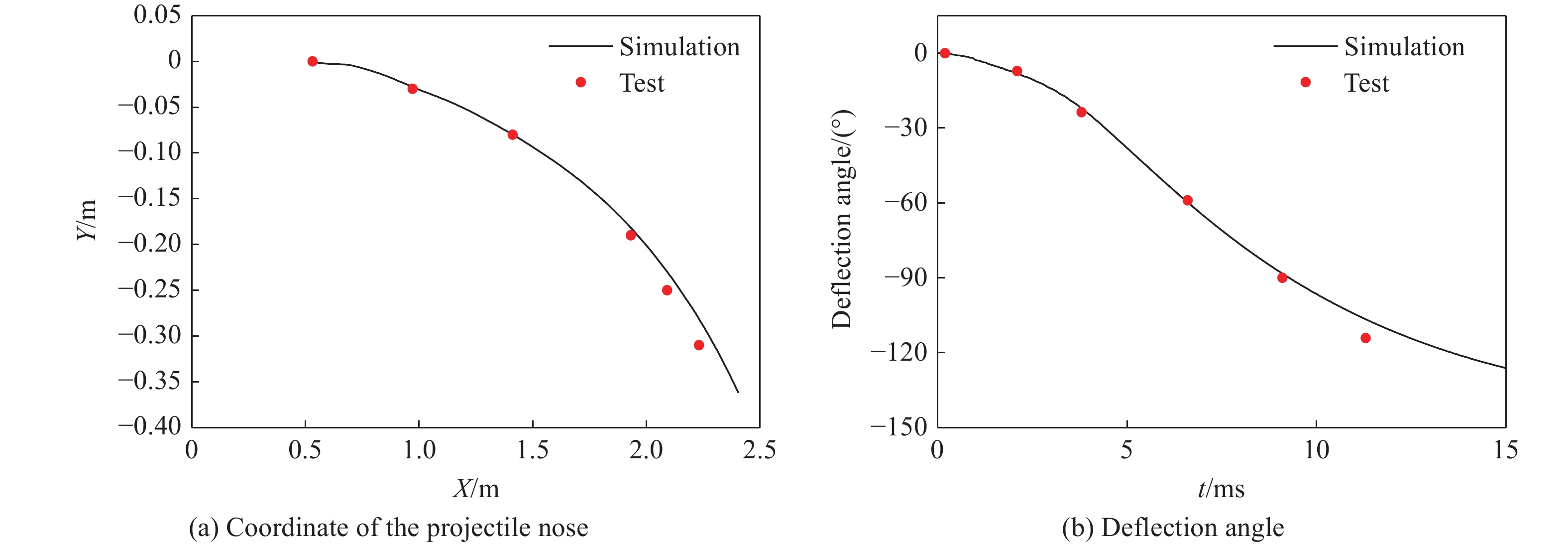

    图  5  弹体入水偏转过程的数值模拟与试验结果的对比

    Figure  5.  Comparison of deflection processes between numerical simulation and test results

    图  6  弹体水中姿态对比

    Figure  6.  Comparison of simulated and test attitudes of a projectile in water

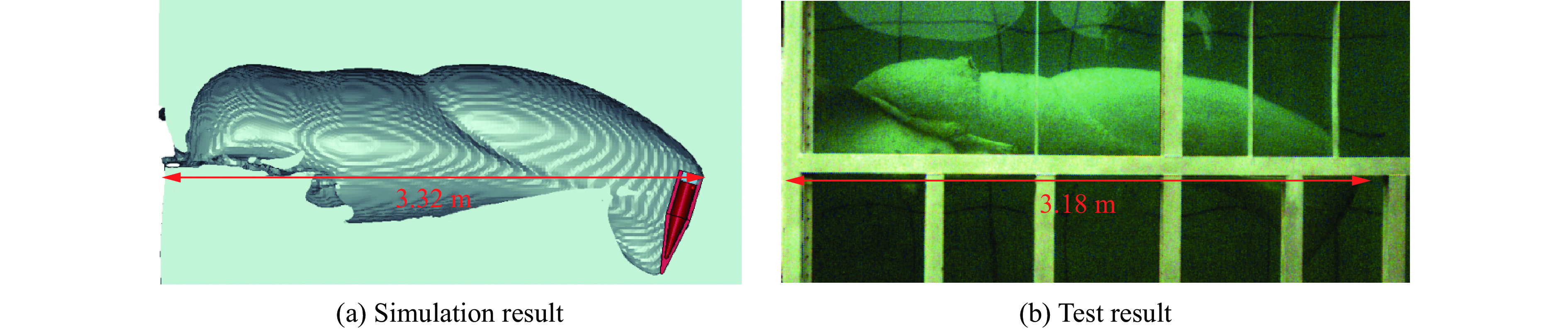

    图  7  水中空泡形态对比

    Figure  7.  Comparison of simulated and test cavity shapes in water

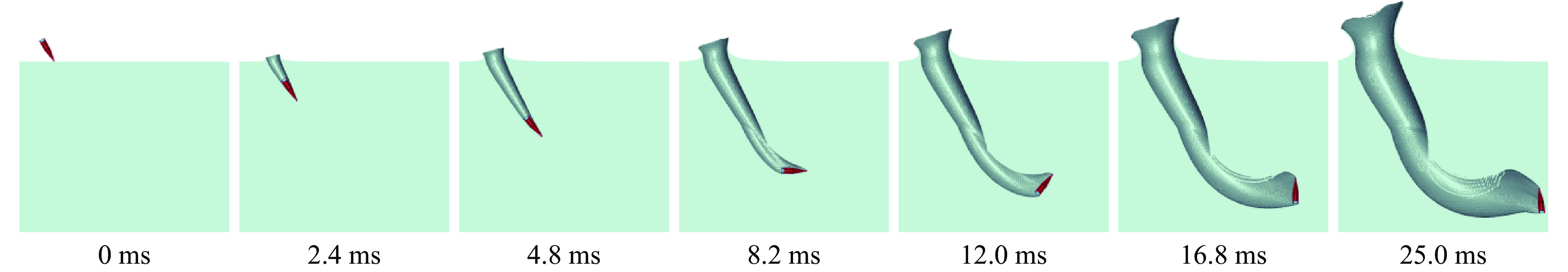

    图  8  60°入水角度时弹体入水偏转过程

    Figure  8.  Trajectory deflection process of the projectile entering the water at a 60° angle

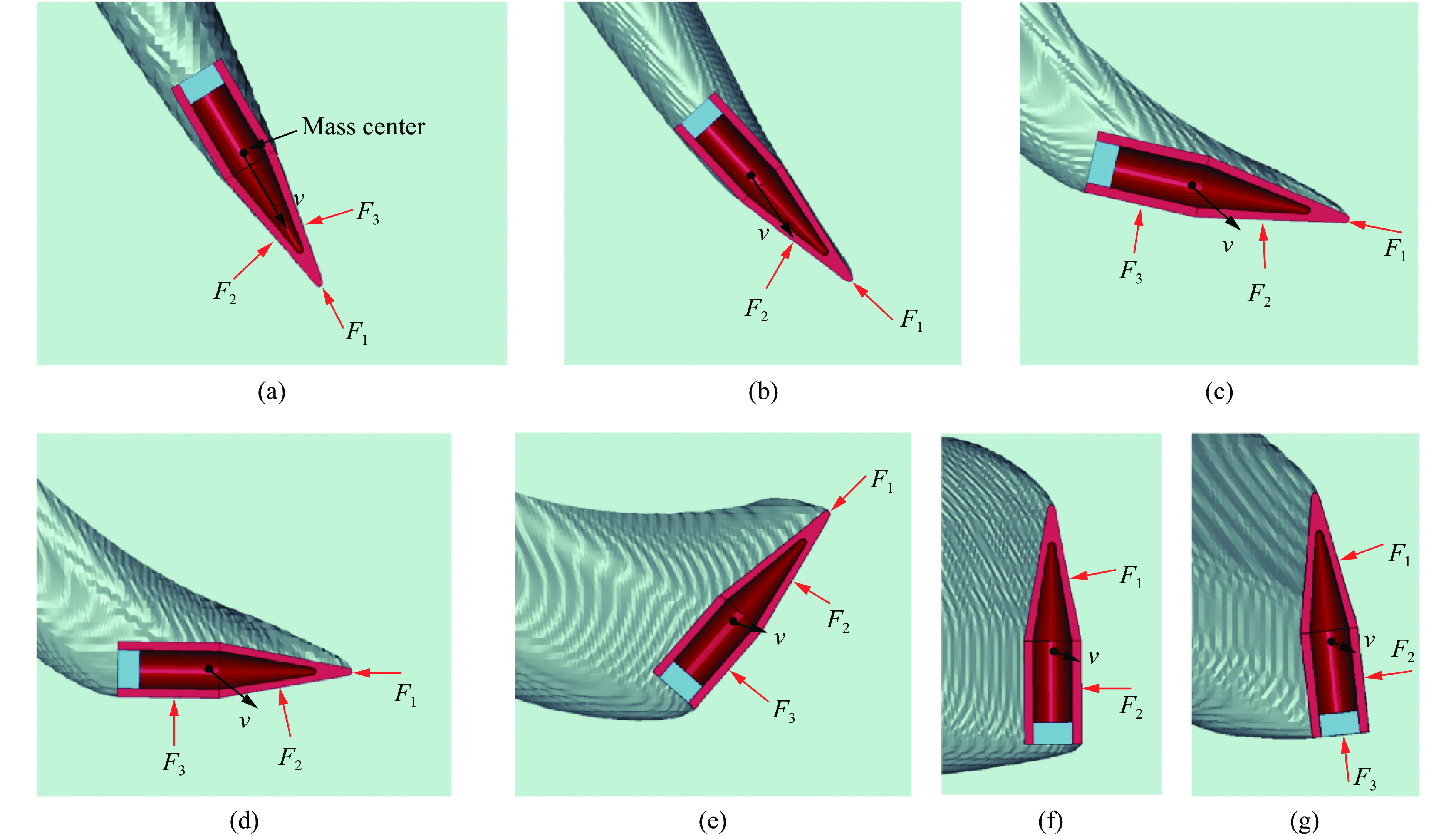

    图  9  弹体受力模式变化示意图

    Figure  9.  Variation of contact force mode on the projectile during penetration

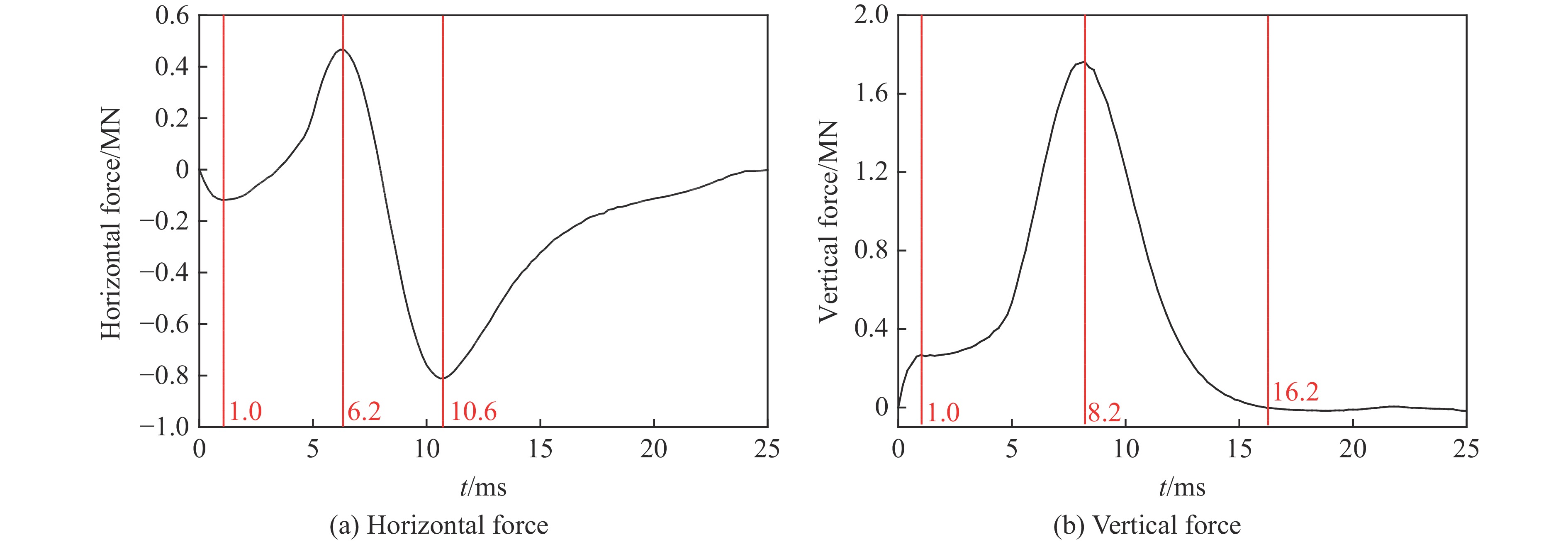

    图  10  60°入水角度时弹体水平和竖直方向的载荷时程曲线

    Figure  10.  Variation of horizontal and vertical forces on the projectile at a 60° entry angle

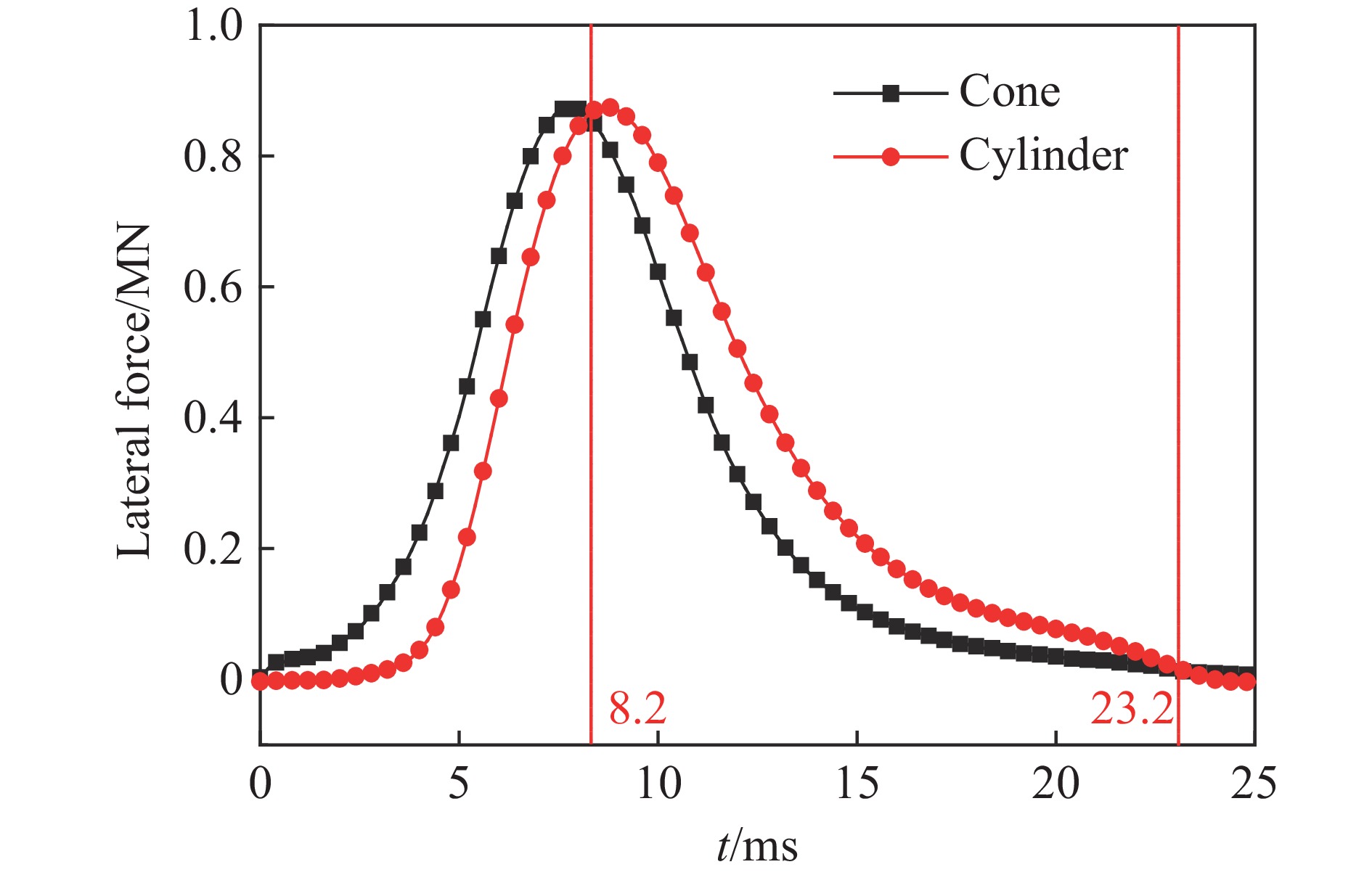

    图  11  60°入水角度时弹体锥段和柱段的横向载荷时程曲线

    Figure  11.  Variation of lateral forces of the cone head and cylinder at a 60° entry angle

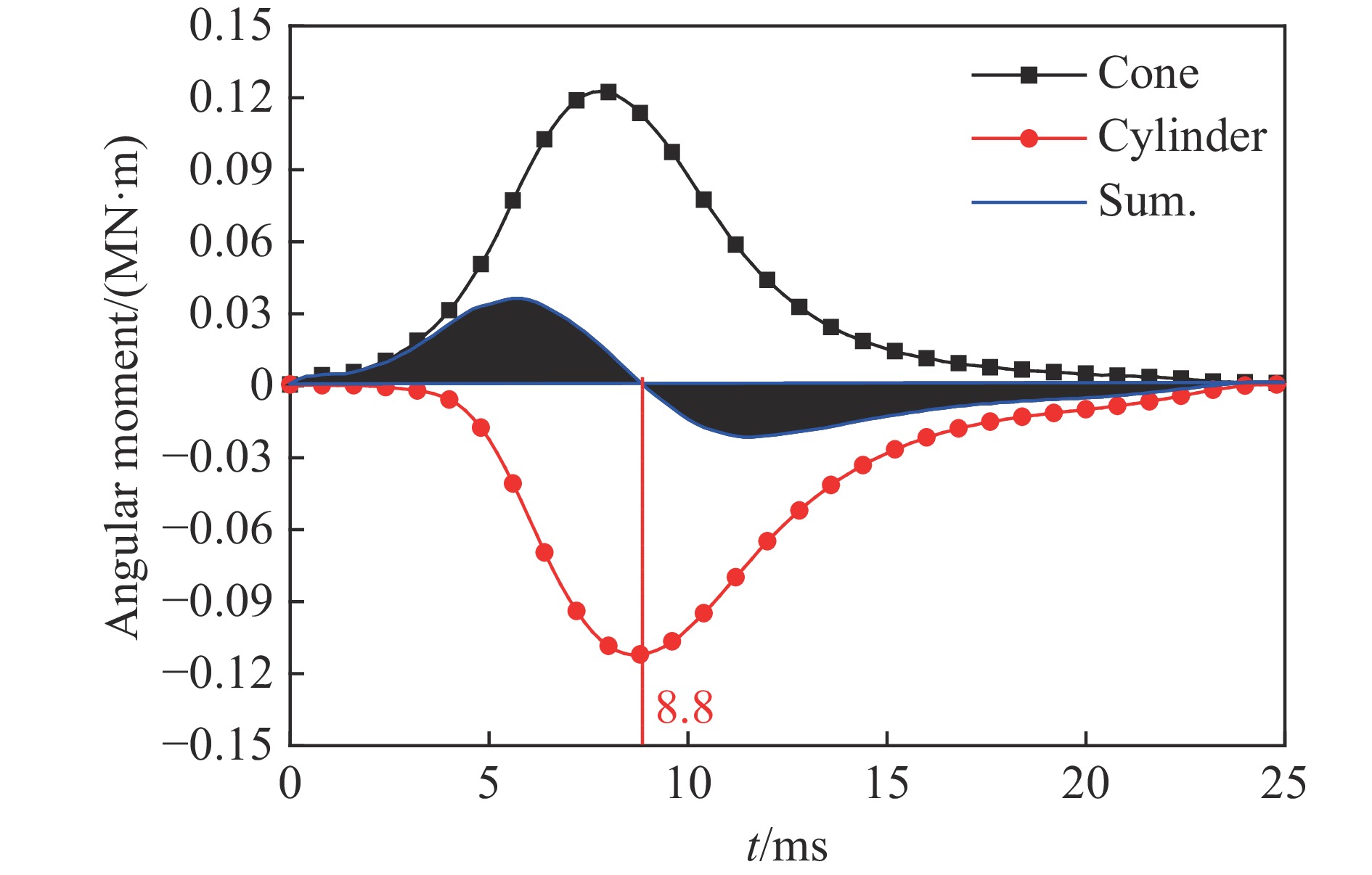

    图  12  60°入水角度时弹体锥段和柱段载荷引起的俯仰力矩时程曲线

    Figure  12.  Variation of pitch moments of the cone head and cylinder at a 60° entry angle

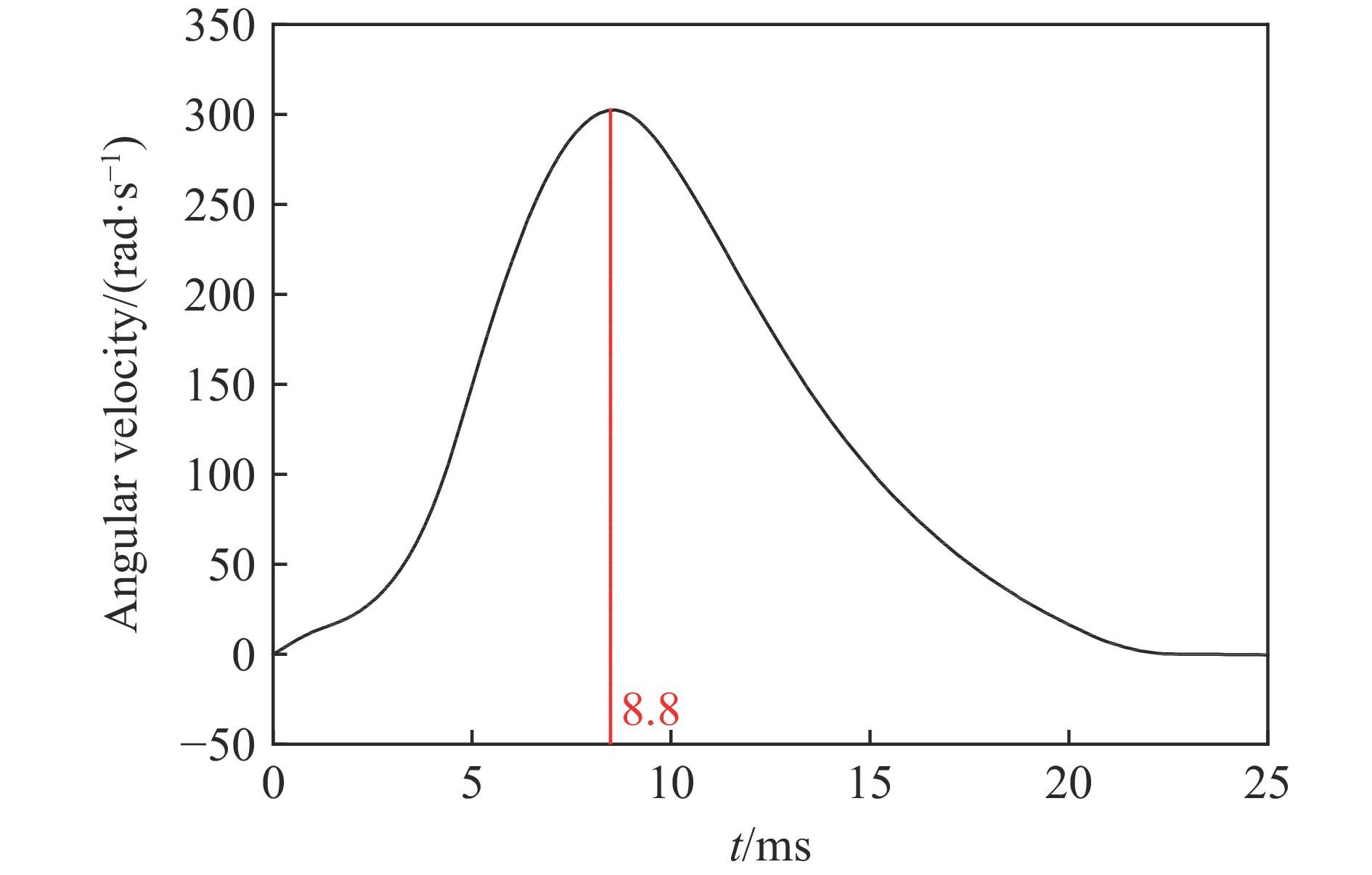

    图  13  60°入水角度时弹体偏转角速度时程曲线

    Figure  13.  Variation of deflection angular velocity at a 60° entry angle

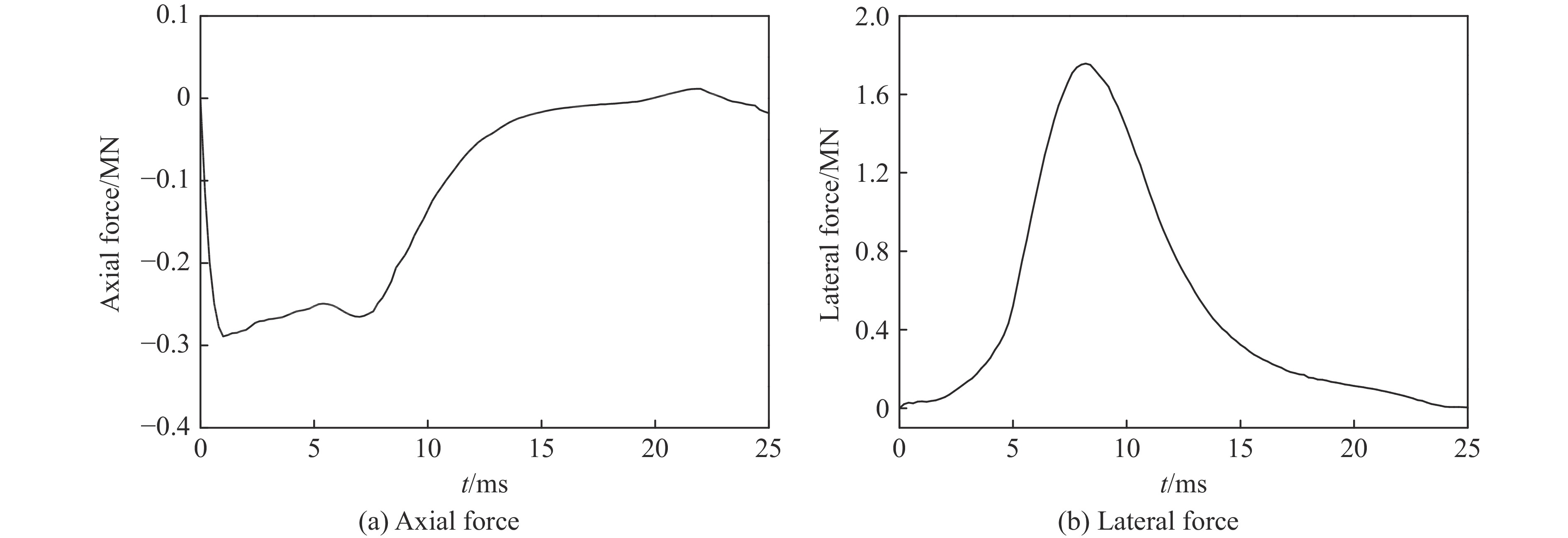

    图  14  60°入水角度时弹体轴向和横向载荷时程曲线

    Figure  14.  Variation of axial and lateral forces on the penetrator at a 60° entry angle

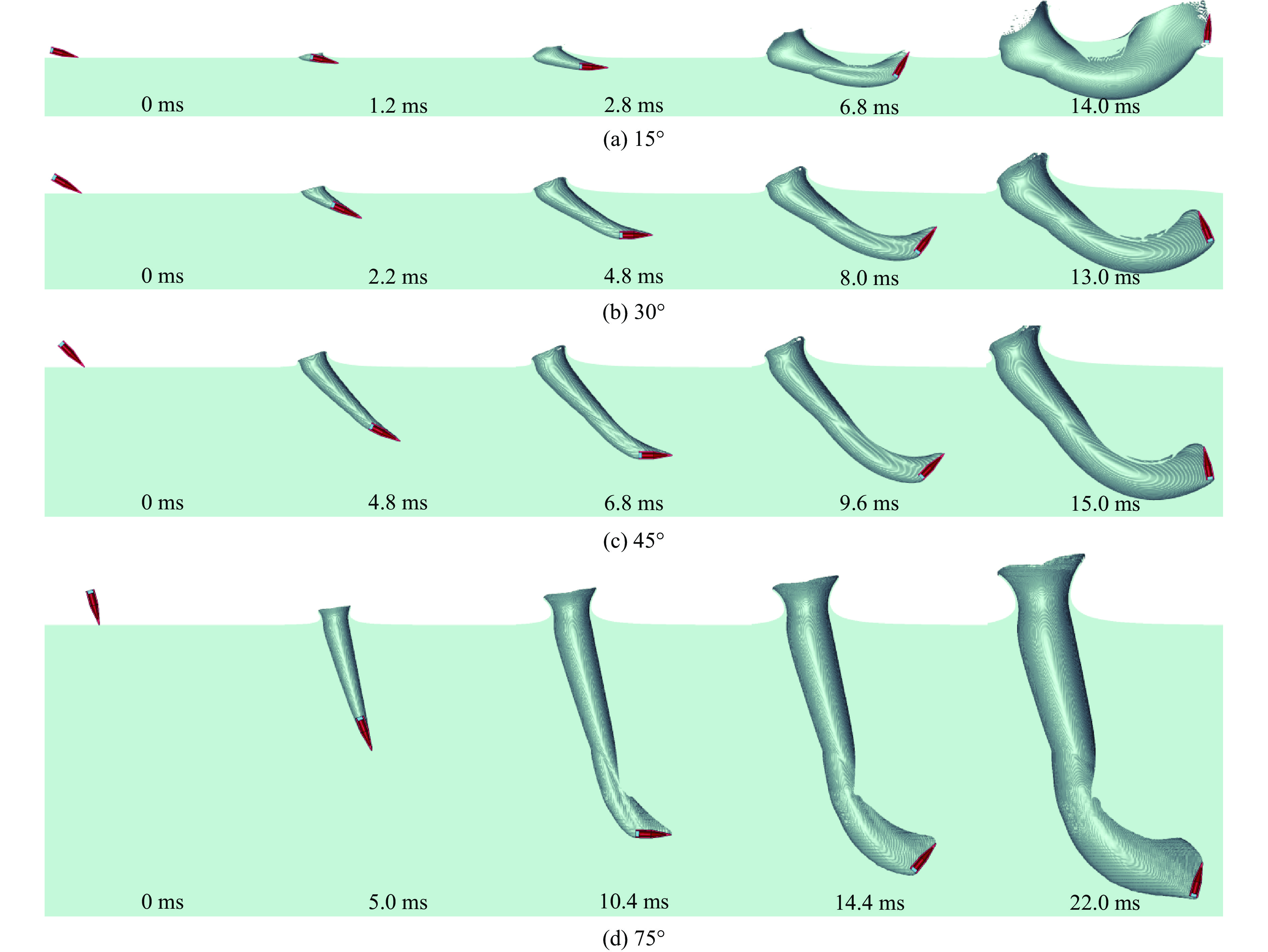

    图  15  不同入水角度时弹体的运动轨迹

    Figure  15.  Trajectory deflection processes of projectiles at different entry angles

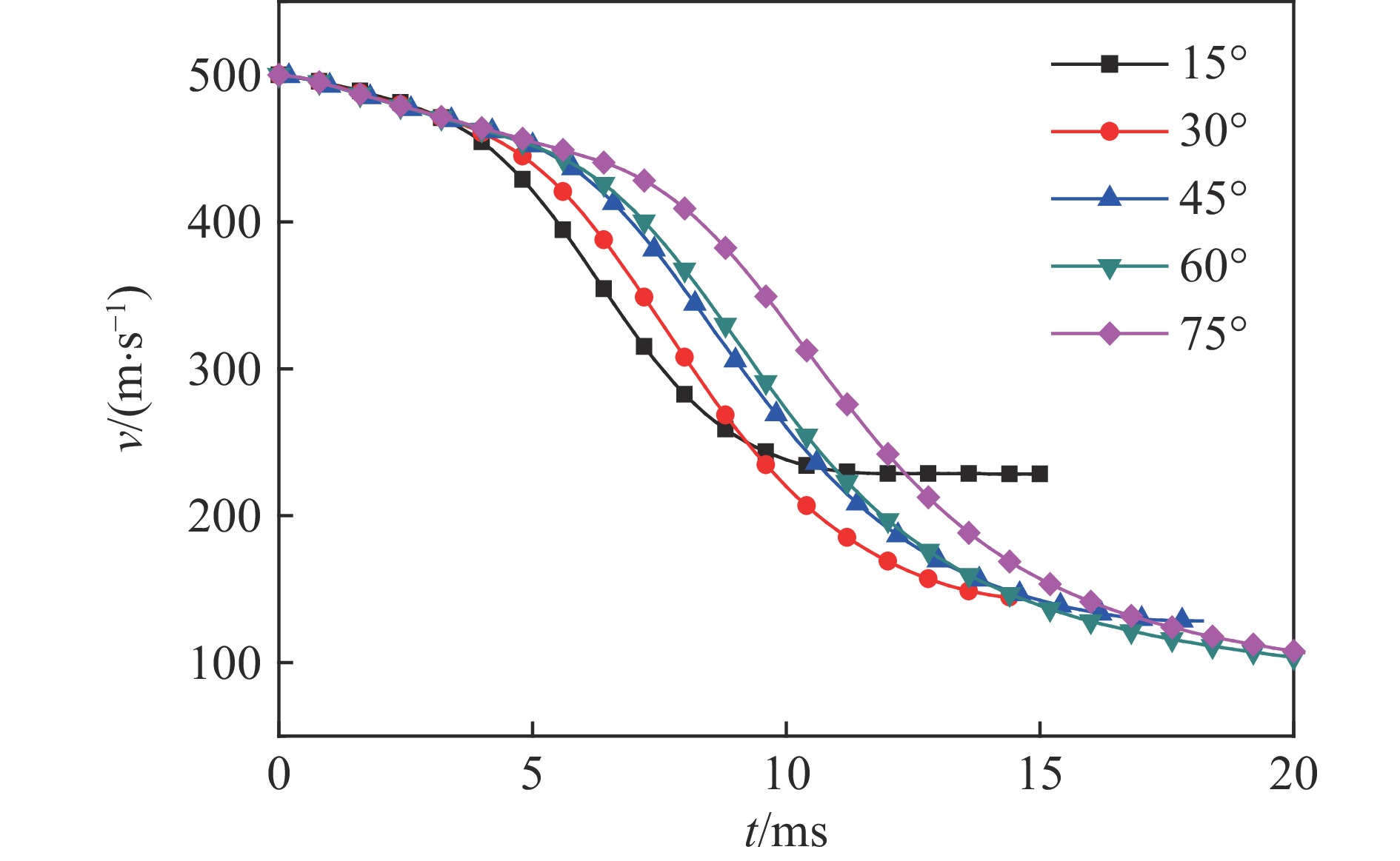

    图  16  不同入水角度时弹体的速度变化时程曲线

    Figure  16.  Variations of the velocities of the projectiles at different entry angles

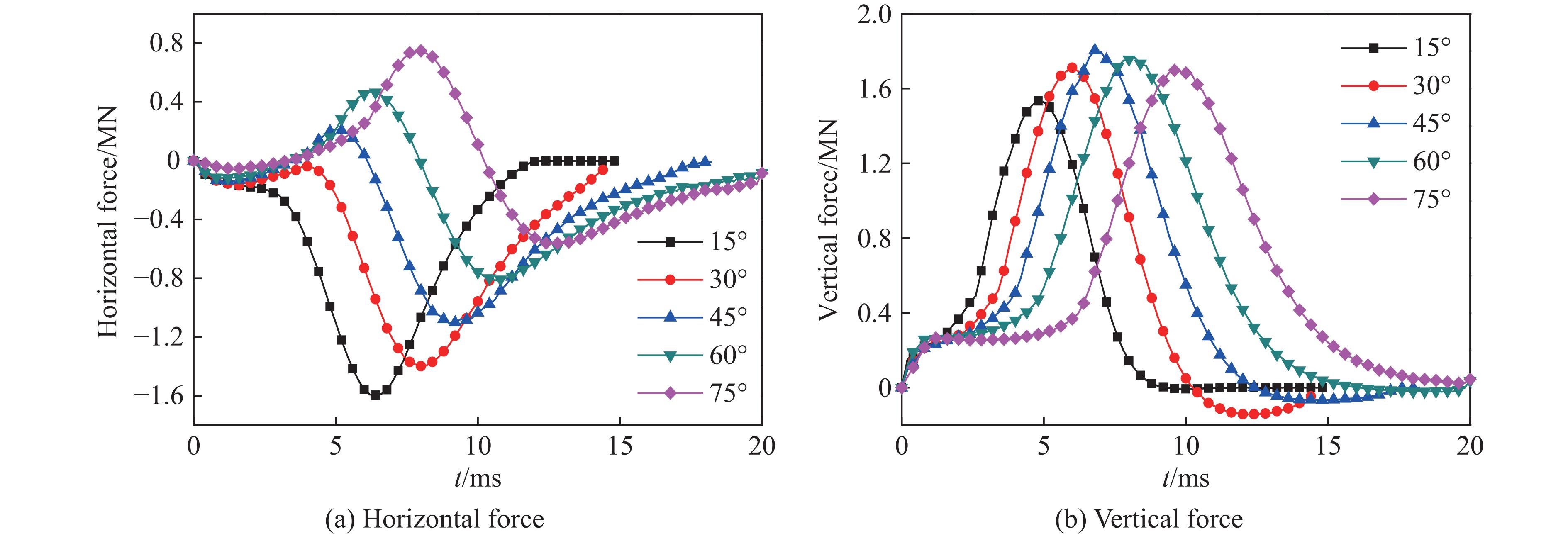

    图  17  不同入水角度时弹体水平和竖直方向载荷时程曲线

    Figure  17.  Variations of horizontal and vertical forces on the projectiles at different entry angles

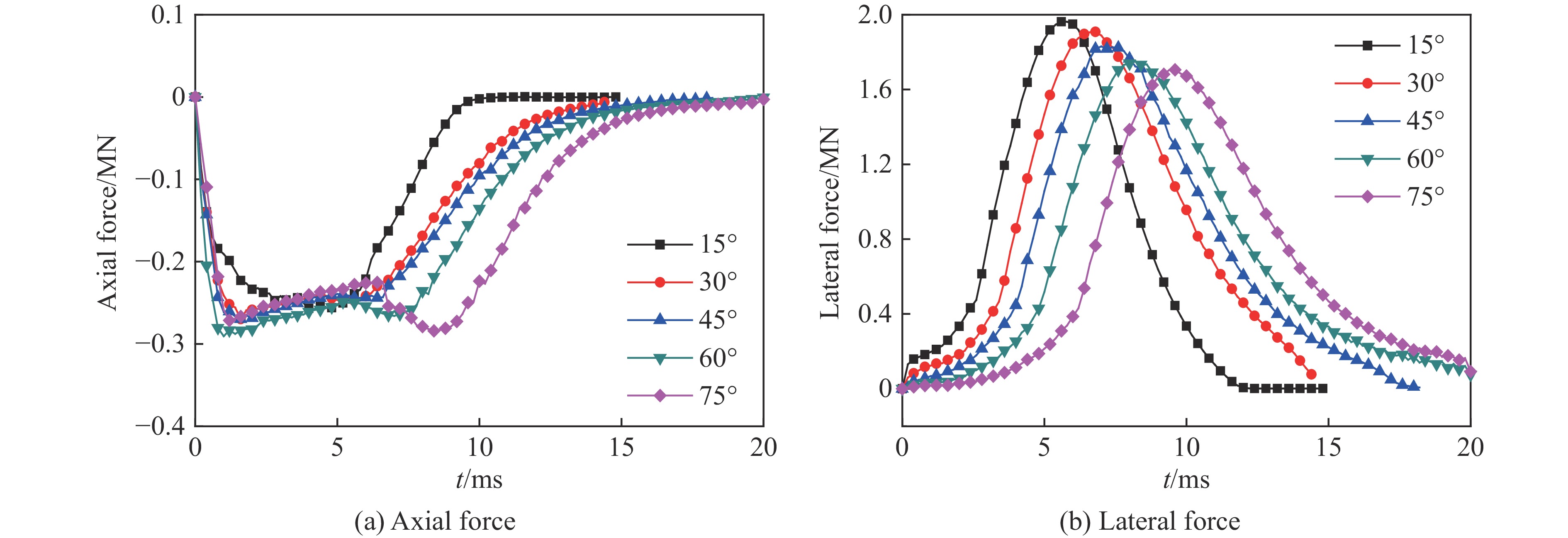

    图  18  不同入水角度时弹体轴向和横向载荷时程曲线

    Figure  18.  Variations of axial and lateral forces on the projectiles at different entry angles

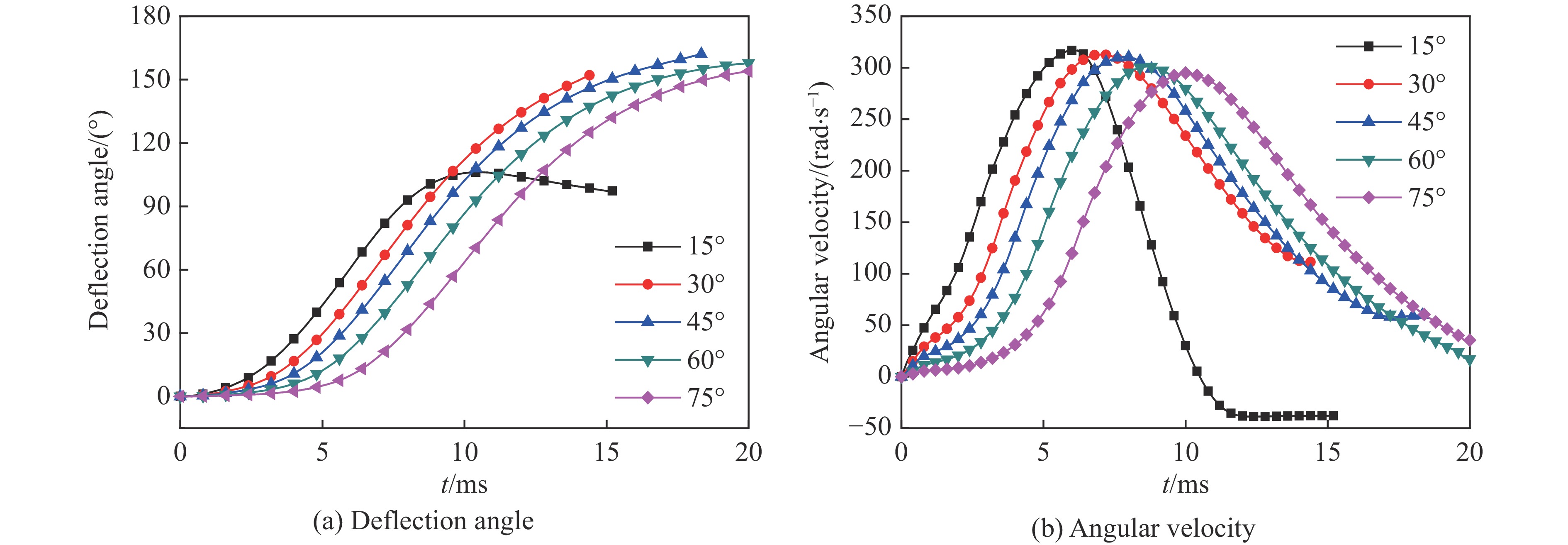

    图  19  弹体偏转角和偏转角速度时程曲线

    Figure  19.  Variations of deflection angles and deflection angular velocities at different entry angles

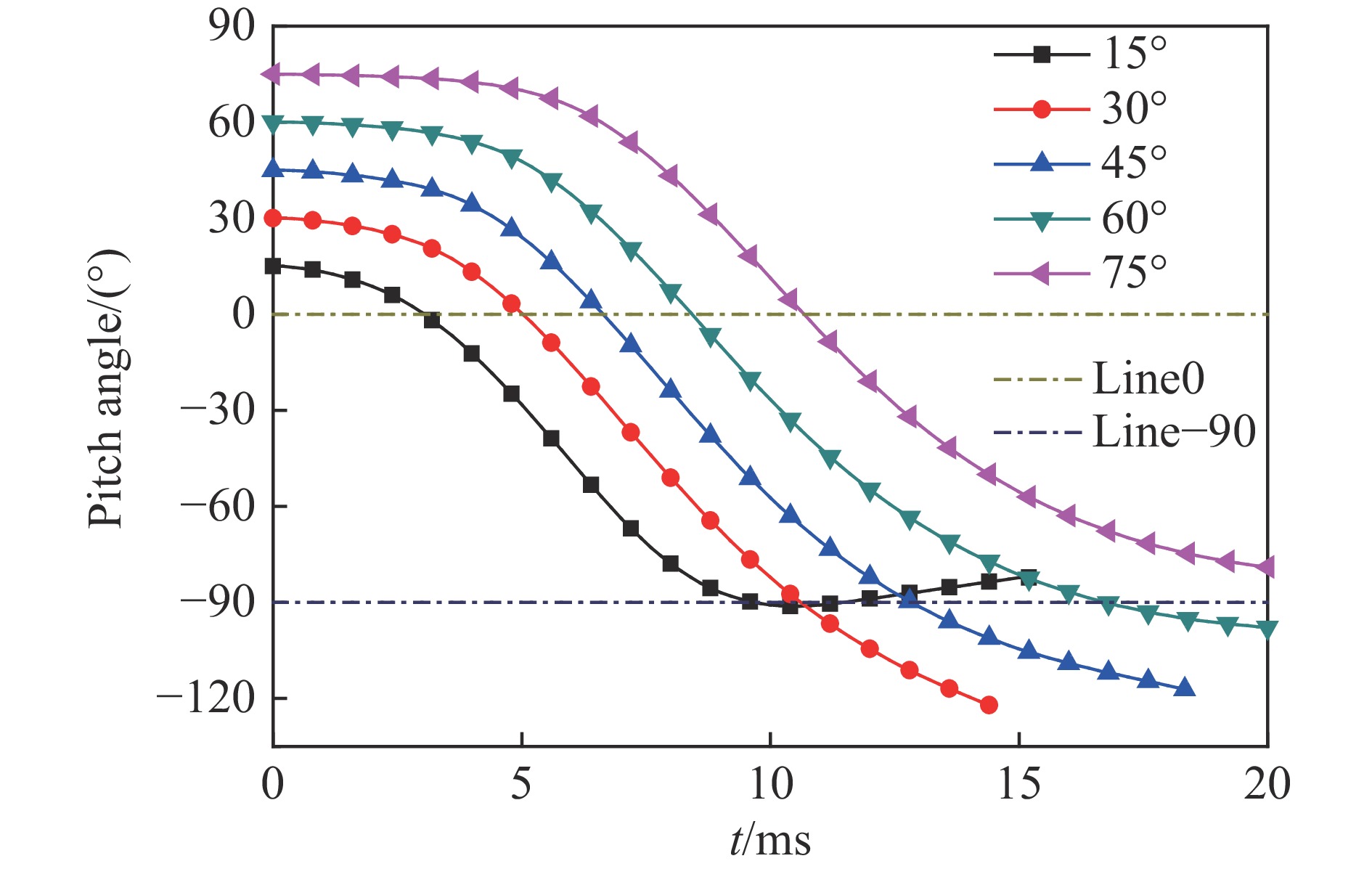

    图  20  弹体俯仰角变化时程曲线

    Figure  20.  Variations of pitch angles at different entry angles

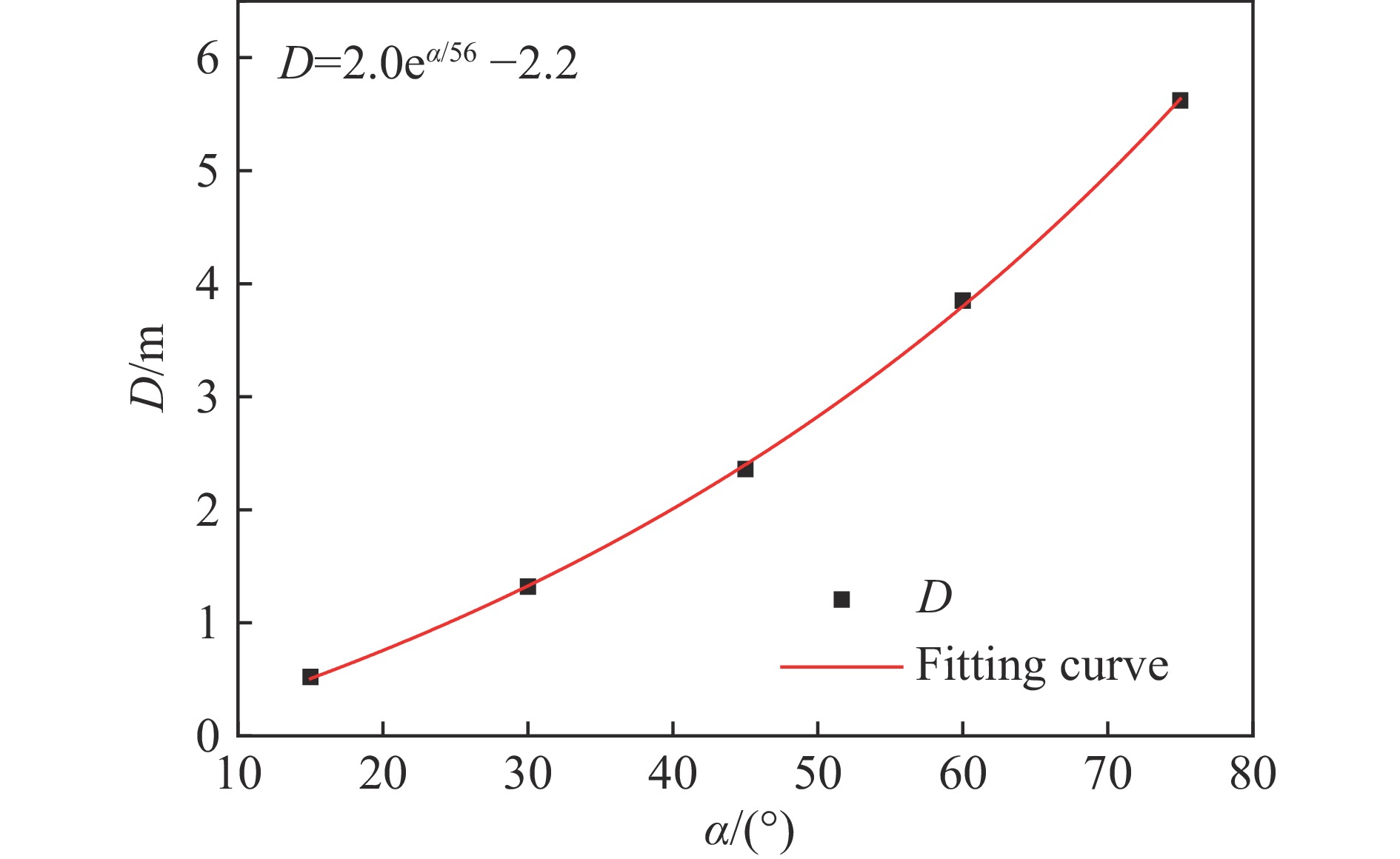

    图  21  弹体侵深与入水角度的关系
