冲击波在水土交界面透射和反射压力的计算

严富怀 岳松林 邱艳宇 王明洋 何勇

严富怀, 岳松林, 邱艳宇, 王明洋, 何勇. 冲击波在水土交界面透射和反射压力的计算[J]. 爆炸与冲击, 2024, 44(11): 112201. doi: 10.11883/bzycj-2023-0440
引用本文: 严富怀, 岳松林, 邱艳宇, 王明洋, 何勇. 冲击波在水土交界面透射和反射压力的计算[J]. 爆炸与冲击, 2024, 44(11): 112201. doi: 10.11883/bzycj-2023-0440
YAN Fuhuai, YUE Songlin, QIU Yanyu, WANG Mingyang, HE Yong. Calculation of shock wave transmission and reflection pressures at water-soil interface[J]. Explosion And Shock Waves, 2024, 44(11): 112201. doi: 10.11883/bzycj-2023-0440
Citation: YAN Fuhuai, YUE Songlin, QIU Yanyu, WANG Mingyang, HE Yong. Calculation of shock wave transmission and reflection pressures at water-soil interface[J]. Explosion And Shock Waves, 2024, 44(11): 112201. doi: 10.11883/bzycj-2023-0440

冲击波在水土交界面透射和反射压力的计算

doi: 10.11883/bzycj-2023-0440
基金项目: 爆炸冲击防灾减灾全国重点实验室基金(LGD-SKL-202201)
详细信息
    作者简介:

    严富怀(2000- ),男,博士研究生,13101890239@163.com

    通讯作者:

    岳松林(1987- ),男,博士,副教授,硕士生导师,yuesonglin163@163.com

  • 中图分类号: O382.1

Calculation of shock wave transmission and reflection pressures at water-soil interface

  • 摘要: 冲击波在水土交界面的透射、反射压力计算尚缺乏可靠的计算理论,利用质量守恒方程、动量守恒方程以及水、土的状态方程,分别推导得到冲击波在水、土介质中传播的Hugoniot关系以及p-u曲线,进而从理论上解析得到冲击波在水土交界面处的透射和反射压力。分别建立了水中自由场、水-土分层介质场的二维数值计算模型,其中水、土参数与理论推导时采用的三相介质饱和土计算模型中的参数保持一致。计算结果表明,水土交界面透射、反射压力的理论解与数值解具有高度的一致性。采用80 g TNT炸药,距离水土交界面0.1~0.9 m(比例爆距为0.232~2.089 m/kg1/3)爆炸时,得到的透射、反射压力的理论解与数值解误差均小于7%,根据解析解得出反射压力与水中入射压力之比,反射压力系数在1.6~1.8范围内;距离水土交界面0.5 m时,饱和土的含气量在0~10%范围内变化,得到的透射、反射压力的范围为63.8~70.0 MPa,此时其反射压力系数在1.55~1.70范围内。推导得出的冲击波在水土交界面透射、反射压力的计算方法,物理意义明确、计算精度高,可为开展水下爆炸对水底土中工程结构的毁伤评估提供理论基础。

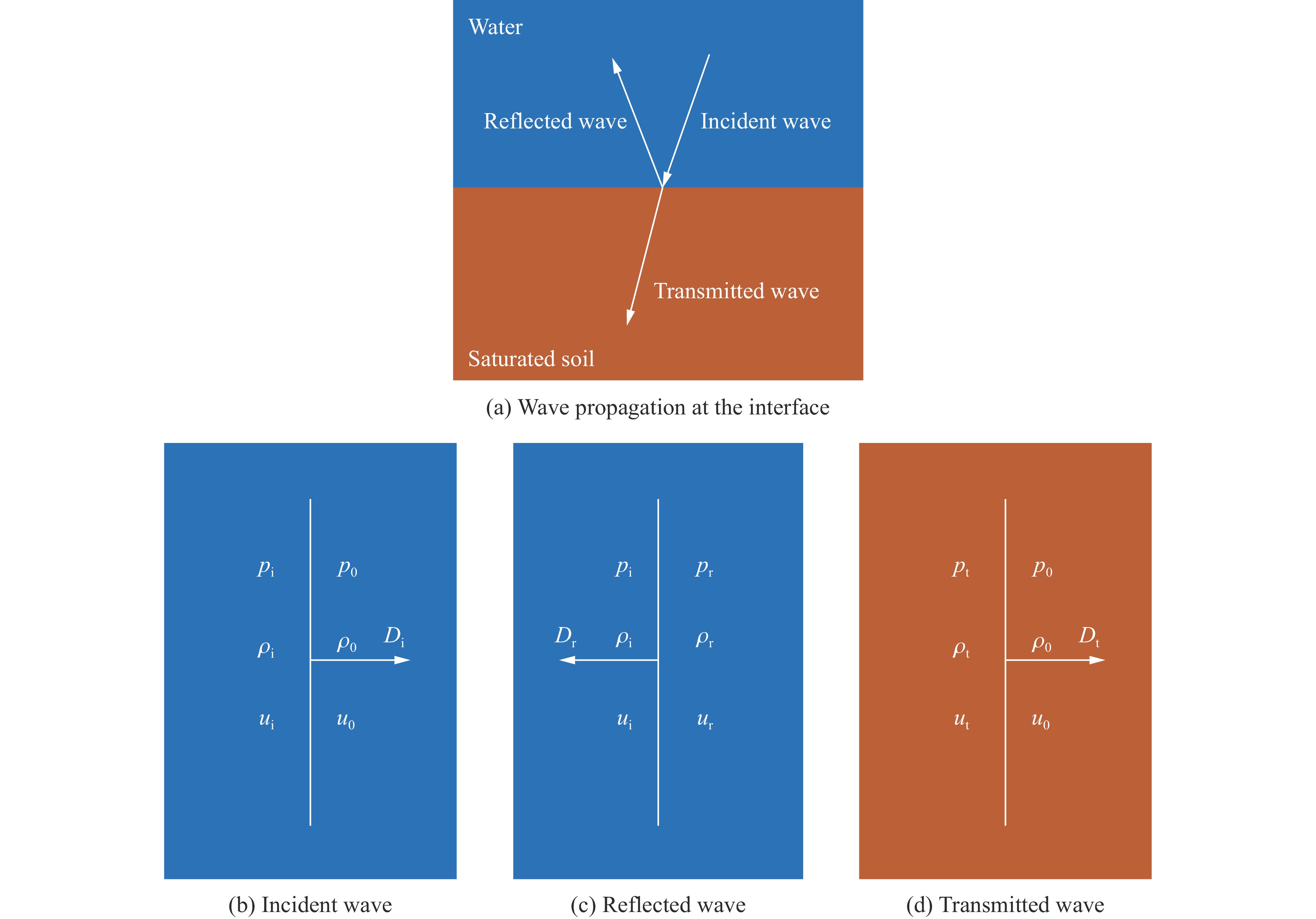

  • 图  1  爆炸波在水土交界面的透射和反射示意图

    Figure  1.  Schematic diagrams of ransmission and reflection of blast wave at the water-soil interface

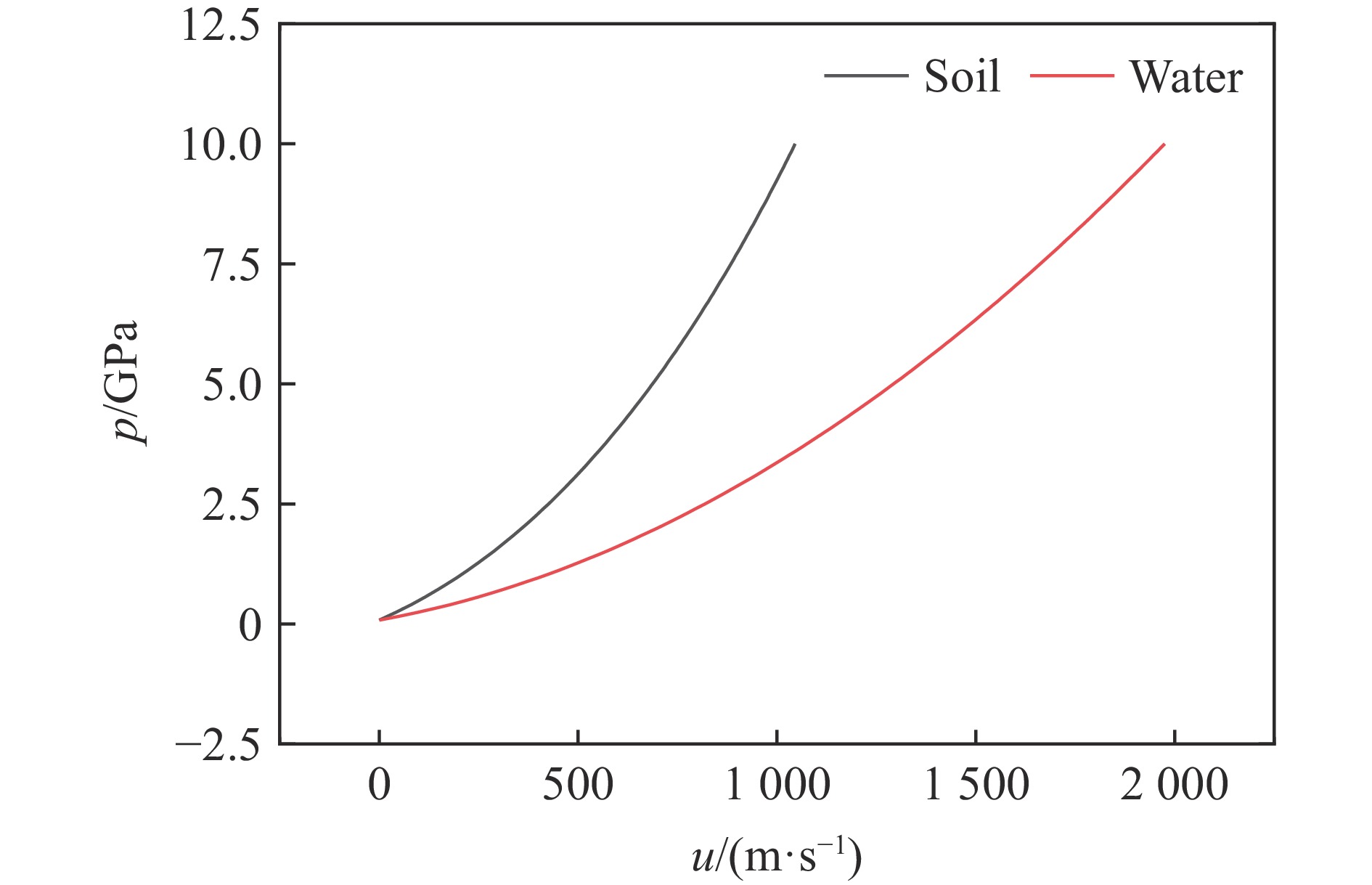

    图  2  土和水的u-p曲线

    Figure  2.  u-p curves for soil and water

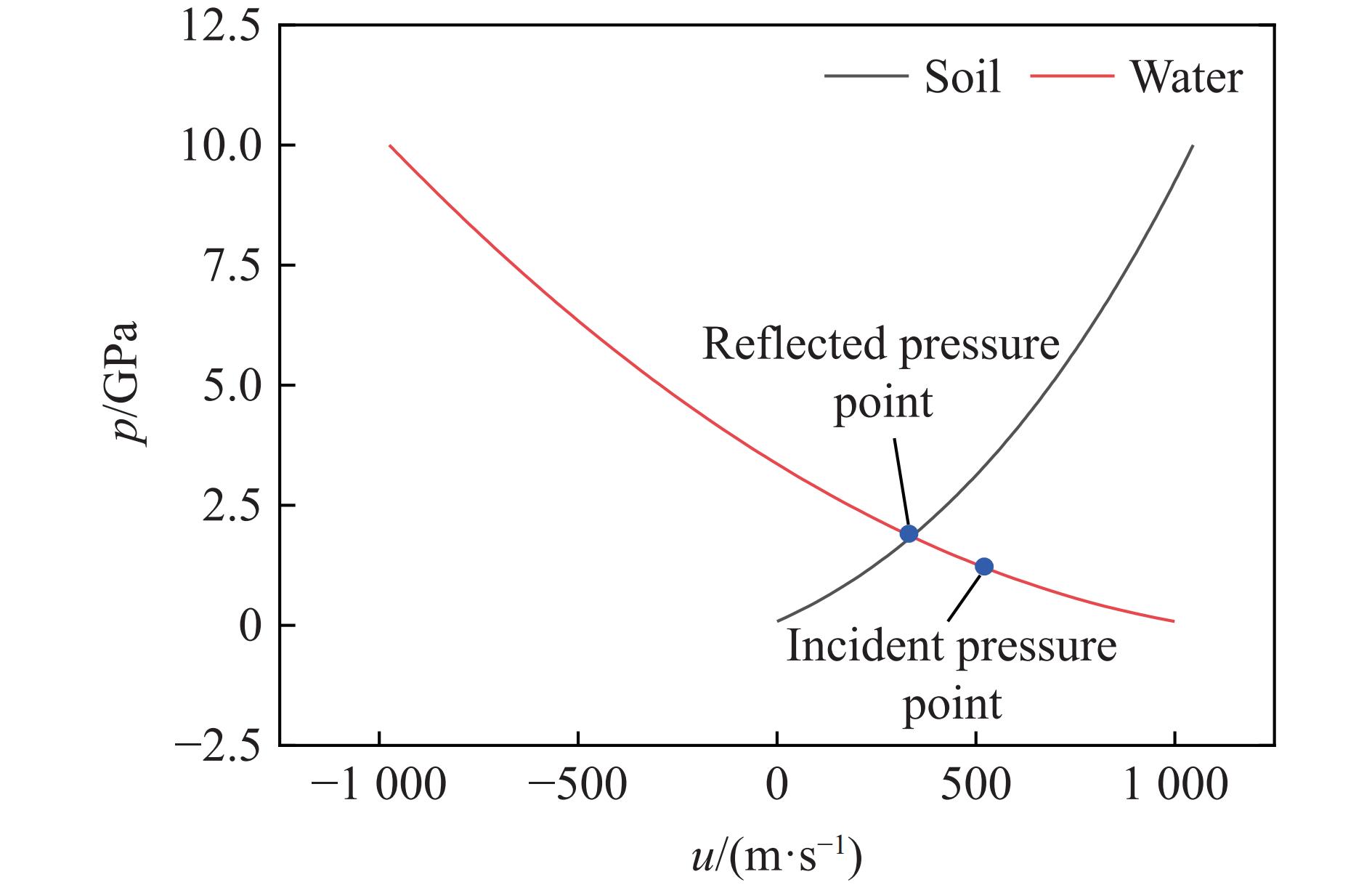

    图  3  水土交界面的反射压力

    Figure  3.  Reflected pressure at the water-soil interface

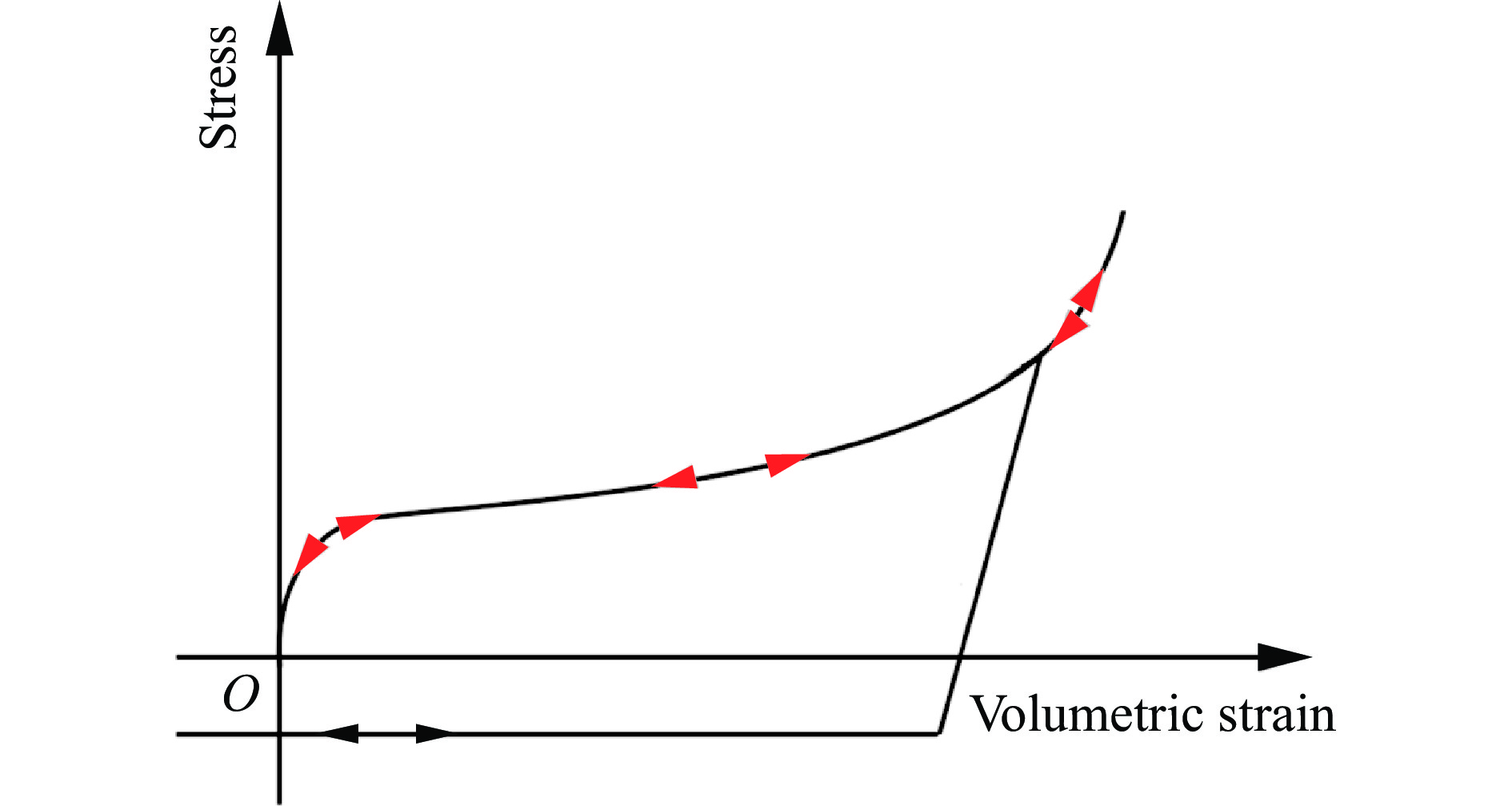

    图  4  应力-体积应变曲线[22]

    Figure  4.  Stress-volumetric strain curve[22]

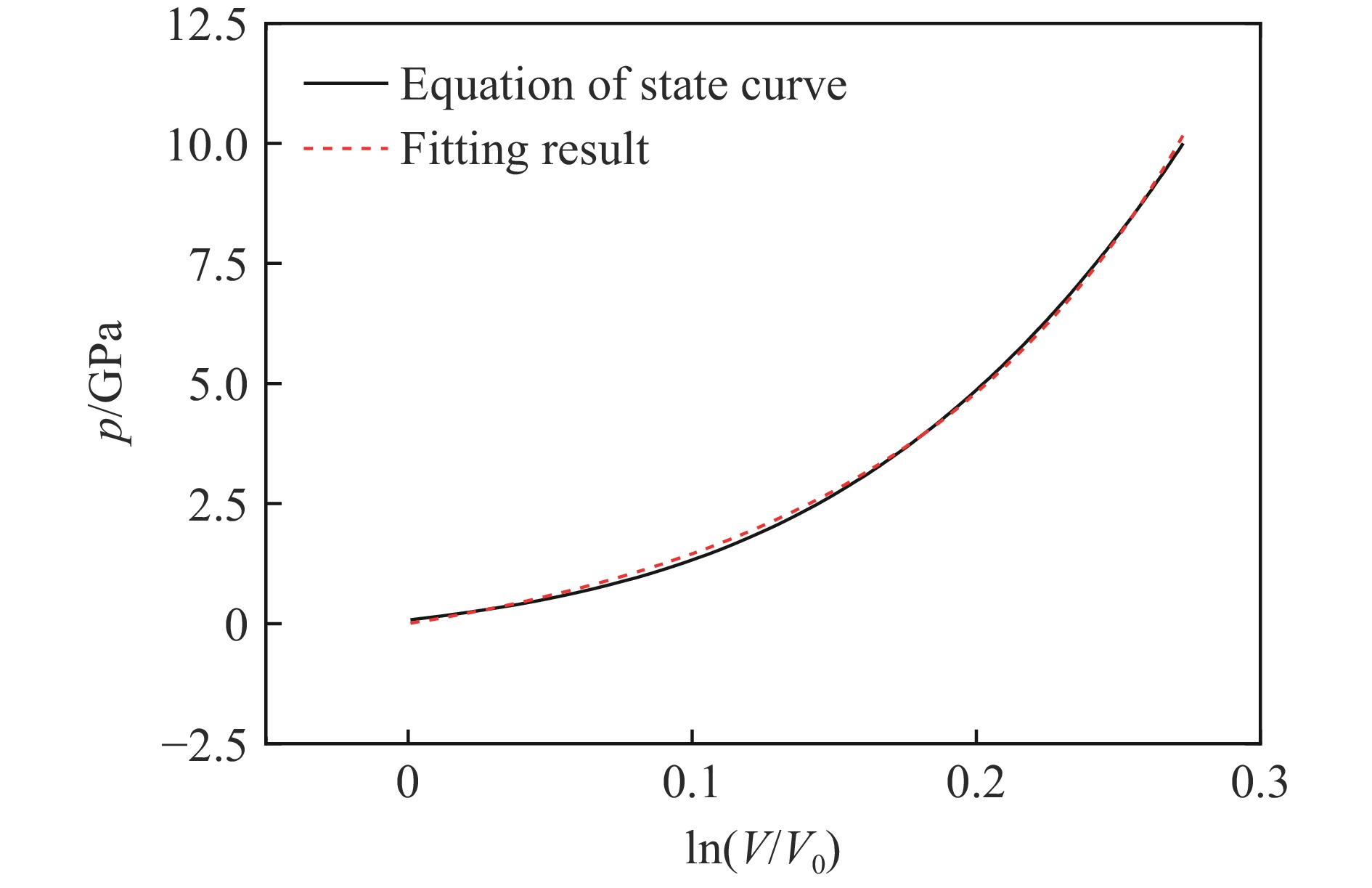

    图  5  饱和土的应力-体积应变曲线

    Figure  5.  Stress-volume strain curves of saturated soil

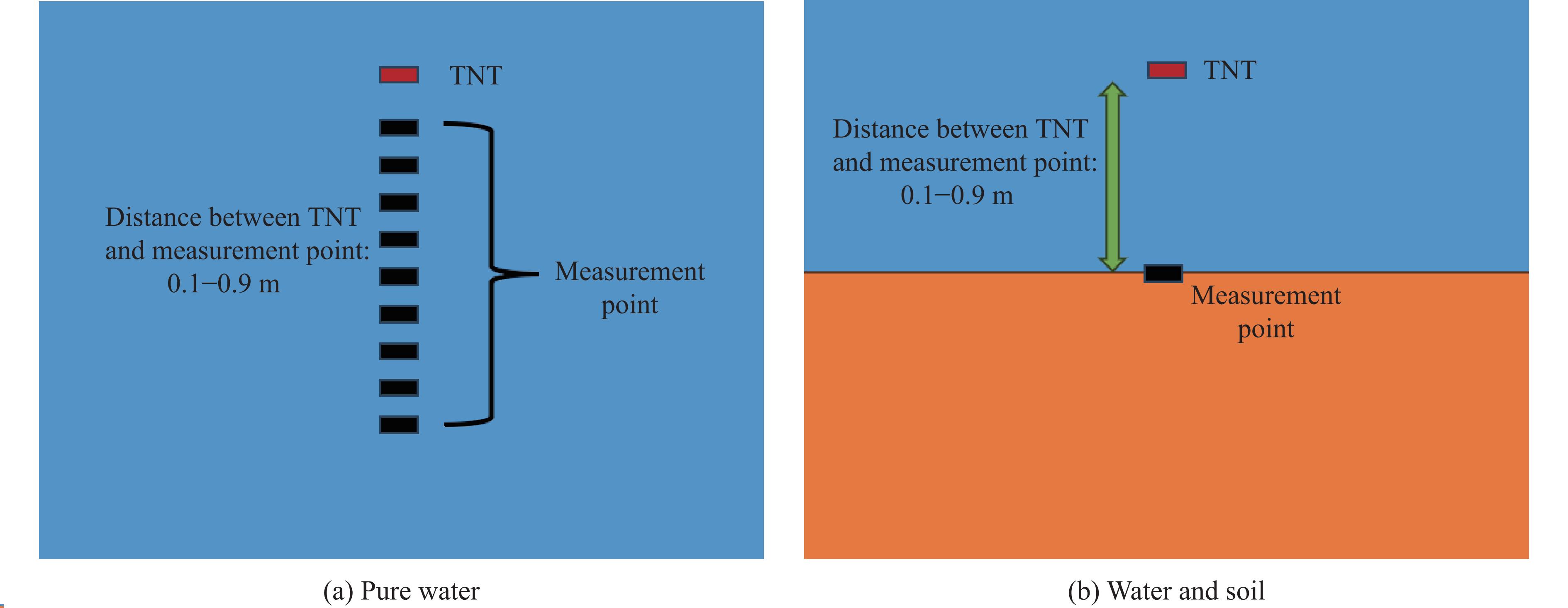

    图  6  纯水和水土交界面模型及测点布置

    Figure  6.  Pure water and water-soil interface models and measurement point layout

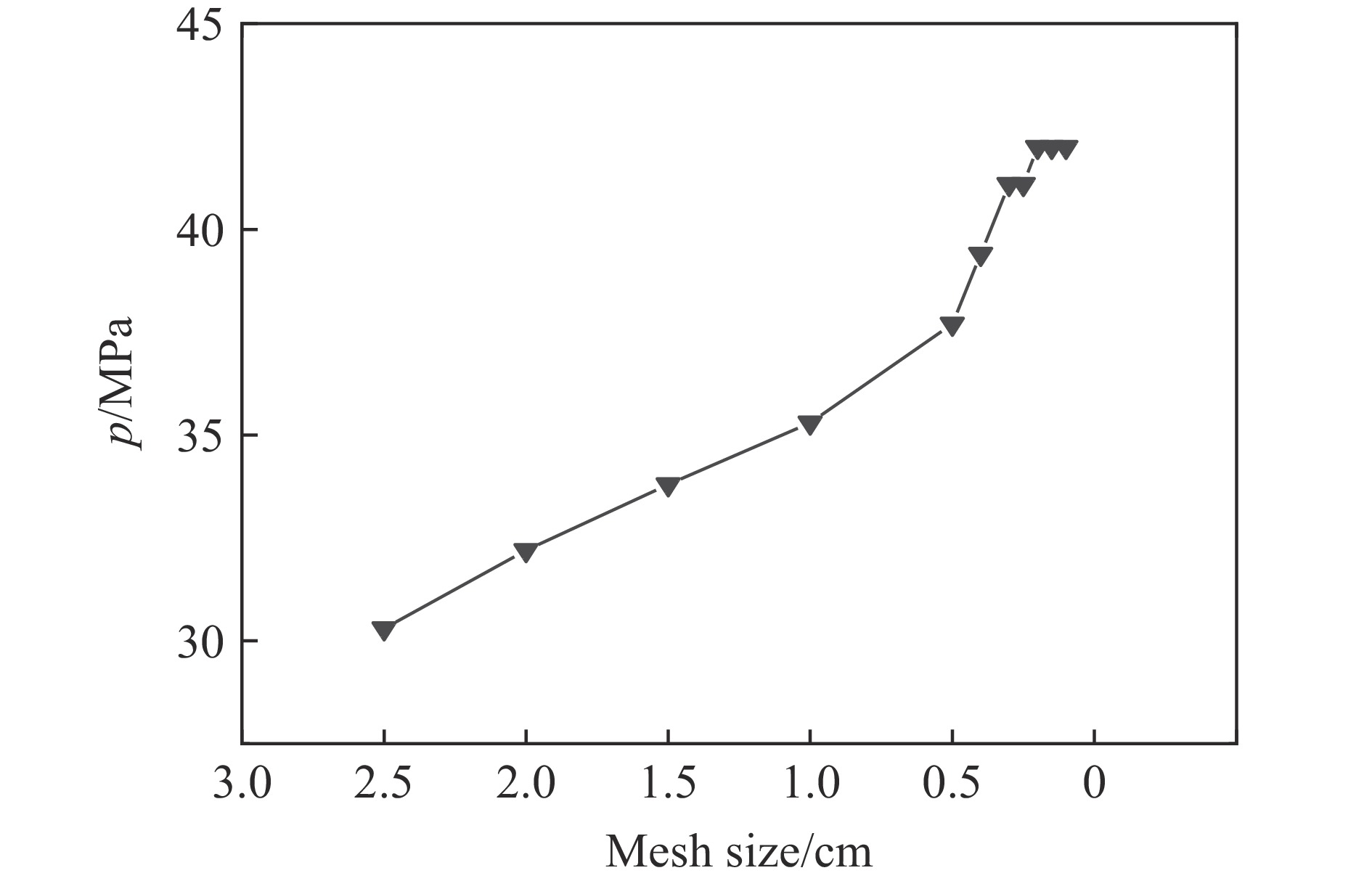

    图  7  网格敏感性分析

    Figure  7.  Grid sensitivity analysis

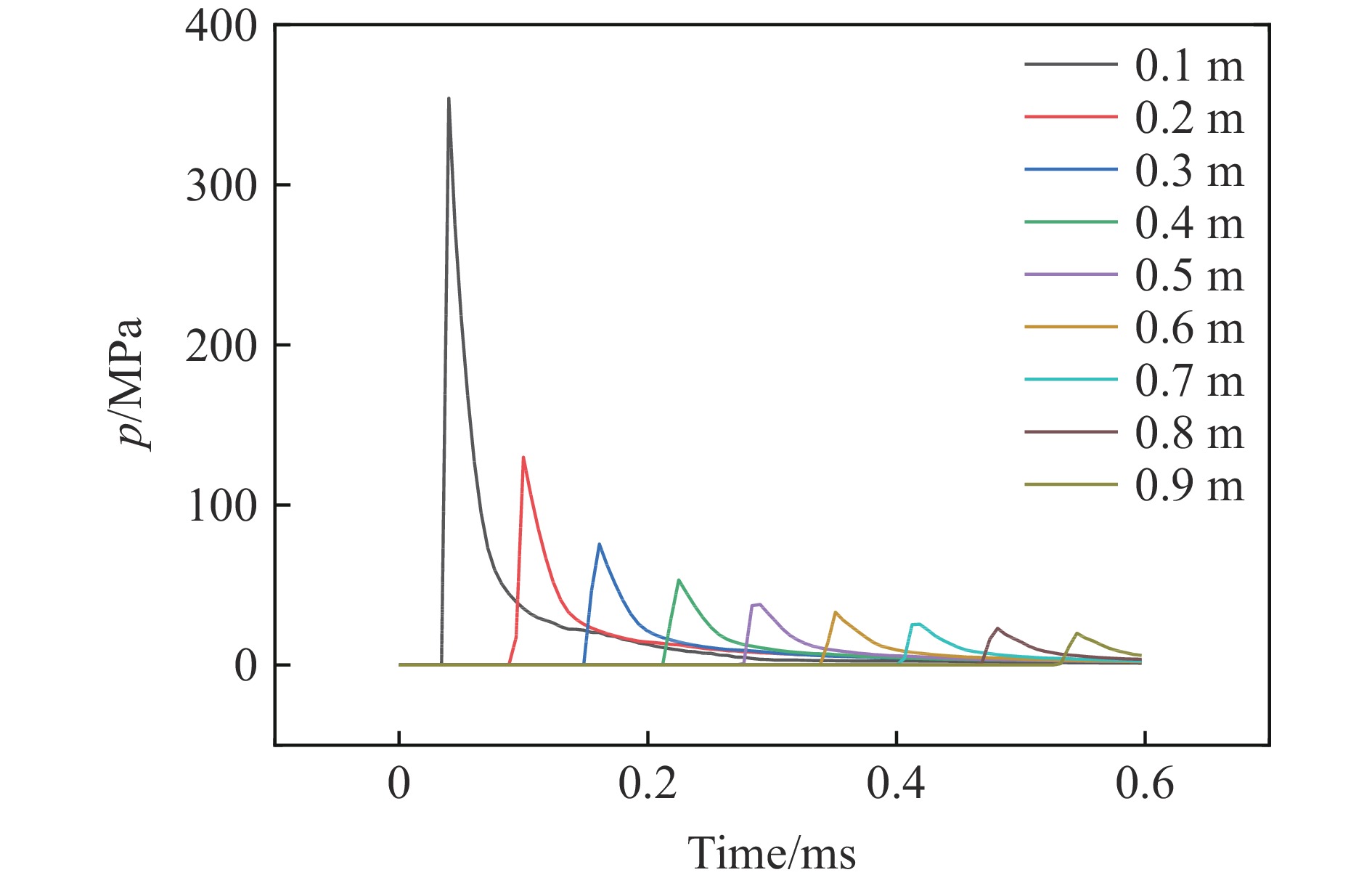

    图  8  水中自由场应力-时间曲线

    Figure  8.  Free-field stress-time curves in water

    图  9  水土交界面的反射压力

    Figure  9.  Reflected pressure at the water-soil interface

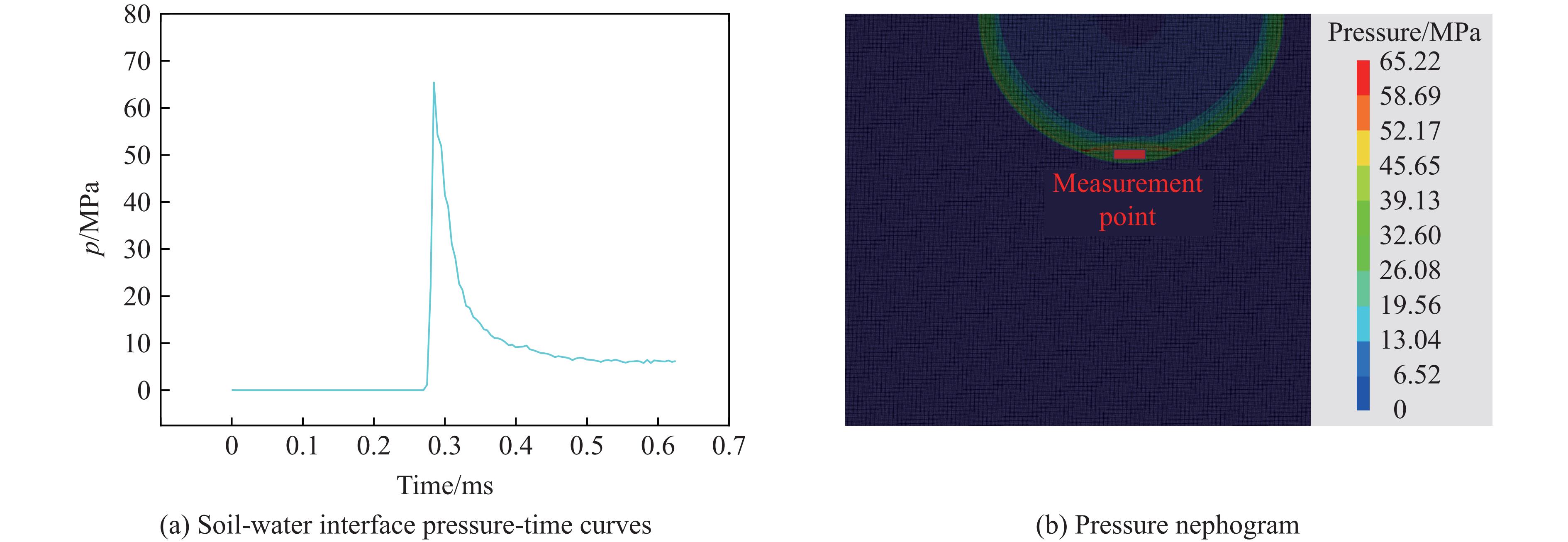

    图  10  水土交界面压力时程曲线及压力云图

    Figure  10.  Soil-water interface pressure-time curves and pressure nephogram

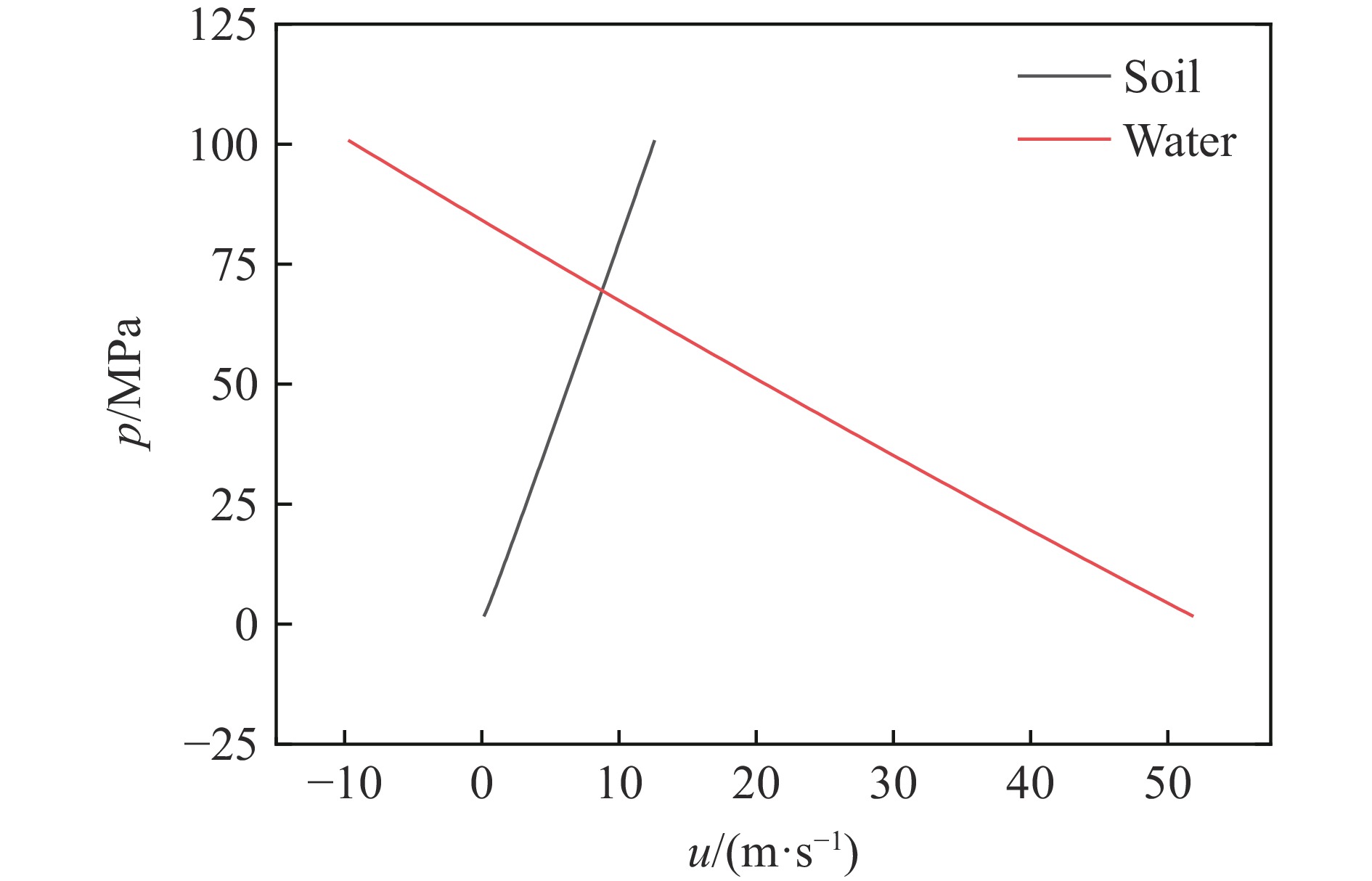

    图  11  气体体积分数对水土交界面透射、反射压力的影响

    Figure  11.  Effect of gas volune fraction on transmission and reflection pressures at the water-soil interface

    表  1  土的状态方程参数

    Table  1.   Equation of state parameters of the soil

    c1/(m·s−1 c2/(m·s−1 c3/(m·s−1 ρ0/(kg·m−3 ρ1/(kg·m−3 ρ2/(kg·m−3 ρ3/(kg·m−3
    340 1 500 4 500 2 210 1.2 1 000 2 650
    α1 α2 α3 k1 k2 k3 S0
    0.001 0.3 0.699 1.4 3.0 3.0 1.92
    下载: 导出CSV

    表  2  水的参数

    Table  2.   Parameters of water

    ρ/(kg·m−3 c/(m·s−1 γ0 α S1 S2 S3 E0/Pa
    1025 1520 0.28 0 1.92 0 0 0
    下载: 导出CSV

    表  3  炸药参数

    Table  3.   Parameters of the explosive

    ρ/(kg·m–3 pCJ/GPa A/GPa B/GPa R1 R2 ω E0/GPa
    1 583 19.4 307 3.898 4.485 0.79 0.3 6.968 4
    下载: 导出CSV

    表  4  饱和土参数

    Table  4.   Saturated soil parameters

    ρ/(kg·m−3) G/MPa K/MPa a0/MPa2 a1/MPa a2 pc/MPa ε1 ε2
    2 210 2 693 9 659 3.339×10−7 0.2251 3.794 –6.9×10−3 0 –0.001 868
    ε3 ε4 ε5 ε6 ε7 ε8 ε9 ε10 p1/MPa
    –0.003 276 –0.004 649 –0.005 887 –0.008 206 –0.009 398 –0.010 043 –0.012 787 –0.014 439 0
    p2/MPa p3/MPa p4/MPa p5/MPa p6/MPa p7/MPa p8/MPa p9/MPa p10/MPa
    7.2 16.8 26.4 35.2 52 60.8 65.6 86.4 99.2
    下载: 导出CSV

    表  5  80 g TNT对应不同爆距下的水中自由场峰值压力及偏差

    Table  5.   Free-field peak pressures and their deviations in water at different burst distances for 80 g TNT

    爆距/m 计算结果/MPa 模拟结果/MPa 偏差/%
    0.1 394.44 354.01 –10.3
    0.2 124.74 132.66 6.3
    0.3 78.73 78.90 0.2
    0.4 56.88 54.44 –4.3
    0.5 44.20 41.24 –6.7
    0.6 35.97 32.98 –8.3
    0.7 30.22 27.27 –9.8
    0.8 25.99 23.05 –11.3
    0.9 22.75 19.88 –12.6
    下载: 导出CSV

    表  6  不同爆距下的理论和模拟反射压力、偏差及反射系数

    Table  6.   Theoretical and simulated reflection pressures, deviations, and reflection coefficients at different blast distances

    爆距/m 比例爆距/(m·kg–1/3 入射压力/MPa 反射压力 反射系数
    理论值/MPa 模拟值/MPa 相对偏差/%
    0.1 0.232 354.01 632.8 589.90 –6.8 1.788
    0.2 0.464 132.66 228.8 229.50 0.3 1.730
    0.3 0.696 78.90 133.6 133.60 0 1.693
    0.4 0.928 54.44 91.6 91.21 –0.4 1.683
    0.5 1.160 41.24 68.8 68.82 0.2 1.668
    0.6 1.392 32.98 54.4 53.49 –1.7 1.649
    0.7 1.625 27.27 45.1 43.79 –3.0 1.654
    0.8 1.857 23.05 37.6 36.75 –2.3 1.631
    0.9 2.089 19.88 32.4 31.42 –3.1 1.630
    下载: 导出CSV
  • [1] 钱七虎, 王明洋. 三相介质饱和土自由场中爆炸波的传播规律 [J]. 爆炸与冲击, 1994, 14(2): 97–104.

    QIAN Q H, WANG M Y. Propagation of explosive wave in the free-field of three-phase saturated soil [J]. Explosion and Shock Waves, 1994, 14(2): 97–104.
    [2] 钱七虎, 王明洋, 赵跃堂. 三相饱和水土中爆炸波在障碍物上的反射荷载(Ⅰ) [J]. 爆炸与冲击, 1994, 14(3): 225–230.

    QIAN Q H, WANG M Y, ZHAO Y T. Reflecting loading from the obstacle for explosive wave in three-phase saturated soil (Ⅰ) [J]. Explosion and Shock Waves, 1994, 14(3): 225–230.
    [3] 穆朝民, 任辉启, 李永池, 等. 爆炸波在高饱和度饱和土中传播规律的研究 [J]. 岩土力学, 2010, 31(3): 875–880. DOI: 10.16285/j.rsm.2010.03.051.

    MU C M, REN H Q, LI Y C, et al. Propagation laws of blast wave in saturated soils with high saturation degree [J]. Rock and Soil Mechanics, 2010, 31(3): 875–880. DOI: 10.16285/j.rsm.2010.03.051.
    [4] 穆朝民, 齐娟, 辛凯. 高饱和度饱和土中结构对爆炸波反射规律的实验研究 [J]. 振动与冲击, 2010, 29(5): 224–227. DOI: 10.13465/j.cnki.jvs.2010.05.045.

    MU C M, QI J, XIN K. Exoerimental studies on reflection law of blast wave on structuerin saturated soil with high degree of saturation [J]. Journal of Vibration and Shock, 2010, 29(5): 224–227. DOI: 10.13465/j.cnki.jvs.2010.05.045.
    [5] 穆朝民, 齐娟, 辛凯. 高饱和度饱和砂中爆炸波传播规律的自由场实验研究 [J]. 弹箭与制导学报, 2010, 30(5): 87–86, 96. DOI: 10.15892/j.cnki.djzdxb.2010.05.001.

    MU C M, QI J, XIN K. The Free-field experimental study on blast wave propagation in saturated sand with high degree of saturation [J]. Journal of Projectiles, Rockets, Missiles and Guidance, 2010, 30(5): 87–86, 96. DOI: 10.15892/j.cnki.djzdxb.2010.05.001.
    [6] 穆朝民, 齐娟, 辛凯. 高饱和度饱和土中爆炸波的传播特性 [J]. 土木建筑与环境工程, 2010, 32(1): 18–23. DOI: 10.3969/j.issn.1674-4764.2010.01.004.

    MU C M, QI J, XIN K. Characteristics of blast wave propagation in saturated soil with high degree of saturation [J]. Journal of Civil, Architectural & Environmental Engineering, 2010, 32(1): 18–23. DOI: 10.3969/j.issn.1674-4764.2010.01.004.
    [7] COLE R H. Underwater explosions [M]. New Jersey: Princeton University Press, 1948.
    [8] 王爱兴. 水下爆炸冲击波近区传播规律及防护方法研究 [D]. 武汉: 长江科学院, 2010: 13–33.
    [9] KEDRINSKII V K. Negative pressure profile in cavitation zone at underwater explosion near free surface [J]. Acta Astronaut, 1976, 3(7): 623–632.
    [10] 赵凯. 分层防护层对爆炸波的衰减和弥散作用研究 [D]. 合肥: 中国科学技术大学, 2008: 19–35.
    [11] 张涛, 庄铁栓, 伍俊, 等. 冲击波在不同物态介质界面传播的理论分析 [J]. 防护工程, 2023, 45(5): 28–35. DOI: 10.3969/j.issn.1674-1854.2023.05.005.

    ZHANG T, ZHUANG T S, WU J, et al. Theoretical analysis of shock wave propagation at different medium interfaces [J]. Protective Engineering, 2023, 45(5): 28–35. DOI: 10.3969/j.issn.1674-1854.2023.05.005.
    [12] WANG G H, ZHUANG S R, YU M, et al. Investigation of the shock wave propagation characteristics and cavitation effects of underwater explosion near boundaries [J]. Applied Ocean Research, 2014, 46: 40–53. DOI: 10.1016/j.apor.2014.02.003.
    [13] 顾文彬, 叶序双, 张朋祥, 等. 浅层水中爆炸水底影响的试验研究 [J]. 解放军理工大学学报(自然科学版), 2001, 2(2): 55–58. DOI: 10.3969/j.issn.1009-3443.2001.02.013.

    GU W B, YE X S, ZHANG P X, et al. Experimental studies of bottom influence in shallow-layer water explosion [J]. Journal of PLA University of Science and Technology, 2001, 2(2): 55–58. DOI: 10.3969/j.issn.1009-3443.2001.02.013.
    [14] 顾文彬, 阳天海, 叶序双, 等. 单个装药浅层水中沉底爆炸的数值模拟 [J]. 解放军理工大学学报(自然科学版), 2000, 1(3): 51–55. DOI: 10.3969/j.issn.1009-3443.2000.03.011.

    GU W B, YANG T H, YE X S, et al. Numerical simulation of single charge explosion on seabed in shallow water [J]. Journal of PLA University of Science and Technology, 2000, 1(3): 51–55. DOI: 10.3969/j.issn.1009-3443.2000.03.011.
    [15] 顾文彬, 叶序双, 刘文华, 等. 界面对浅层水中爆炸冲击波峰值压力影响的研究 [J]. 解放军理工大学学报(自然科学版), 2001, 2(5): 61–63. DOI: 10.3969/j.issn.1009-3443.2001.05.015.

    GU W B, YE X S, LIU W H, et al. Peak pressure investigation of exploding wave influenced by interfaces in shallow -layer water [J]. Journal of PLA University of Science and Technology, 2001, 2(5): 61–63. DOI: 10.3969/j.issn.1009-3443.2001.05.015.
    [16] 顾文彬, 马海洋, 唐勇, 等. 水底对浅水中装药爆炸效果的影响 [J]. 爆破, 2003, 20(4): 88–92. DOI: 10.3963/j.issn.1001-487X.2003.04.029.

    GU W B, MA H Y, TANG Y, et al. Influence of water bottom on the explosion effect of shallow-layer water charging [J]. Blasting, 2003, 20(4): 88–92. DOI: 10.3963/j.issn.1001-487X.2003.04.029.
    [17] 顾文彬, 孙百连, 阳天海, 等. 浅层水中沉底爆炸冲击波相互作用数值模拟 [J]. 解放军理工大学学报(自然科学版), 2003, 4(6): 64–68. DOI: 10.3969/j.issn.1009-3443.2003.06.015.

    GU W B, SUN B L, YANG T H, et al. Numerical simulation of explosive shockwave interaction in shallow-layer water [J]. Journal of PLA University of Science and Technology, 2003, 4(6): 64–68. DOI: 10. 3969/j.issn.1009-3443.2003.06.015. DOI: 10.3969/j.issn.1009-3443.2003.06.015.
    [18] 杨莉, 汪玉, 杜志鹏, 等. 沉底装药水下爆炸冲击波传播规律 [J]. 兵工学报, 2013, 34(1): 100–104. DOI: 10.3969/j.issn.1000-1093.2013.01.018.

    YANG L, WANG Y, DU Z P, et al. Research on shock wave propagation of underwater explosion of bottom charge [J]. Acta Armamentarii, 2013, 34(1): 100–104. DOI: 10.3969/j.issn.1000-1093.2013.01.018.
    [19] WARDLAW A B, LUTON J A. Fluid-structure interaction mechanisms for close-in explosions [J]. Shock and Vibration, 2015, 7(1): 265–275. DOI: 10.1155/2000/141934.
    [20] 严泽臣, 岳松林, 邱艳宇, 等. 水下爆炸冲击波反射压力计算方法的改进 [J]. 兵工学报, 2024, 45(4): 1196–1207. DOI: 10.12382/bgxb.2022.1037.

    YAN Z C, YUE S L, QIU Y Y, et al. Improvement on the calculation method of shock wave reflected pressure in underwater explosion [J]. Acta Armamentarii, 2024, 45(4): 1196–1207. DOI: 10.12382/bgxb.2022.1037.
    [21] 辛春亮, 薛再清, 涂建, 等. TrueGrid和LS-DYNA动力学数值计算详解 [M]. 北京: 机械工业出版社, 2019: 251–260.
    [22] LS-DYNA keyword user’s manual [Z]. LSTC, 2017.
    [23] 文祝, 邱艳宇, 紫民, 等. 钙质砂的准一维应变压缩试验研究 [J]. 爆炸与冲击, 2019, 39(3): 033101. DOI: 10.11883/bzycj-2018-0015.

    WEN Z, QIU Y Y, ZI M, et al. Experimental study on quasi-one-dimensional strain compression of calcareous sand [J]. Explosion and Shock Waves, 2019, 39(3): 033101. DOI: 10.11883/bzycj-2018-0015.
    [24] ZAMYSHLYAEV B V, YAKOVLEV Y S. Dynamic loads in underwater explosion: AD 757183 [R]. Washington DC: Naval Intelligence Support Center, 1973.
