Ductile-brittle transition behavior of nodular cast iron under low temperature and impact loading
-

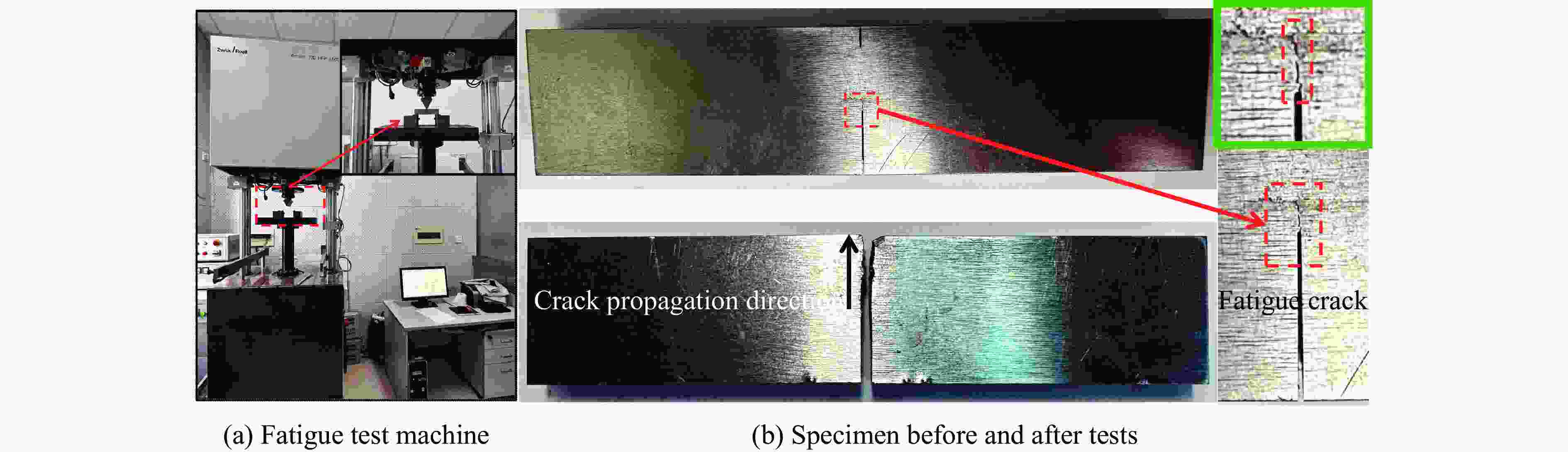

摘要: 为了解核乏燃料储运容器等球墨铸铁结构在低温、冲击环境下的动态断裂特性，本文通过改进的霍普金森压杆技术对球墨铸铁材料在不同温度（20℃、−40℃、−60℃和−80℃）下的Ⅰ型动态断裂韧性进行了测试，并着重研究了材料的韧脆转变行为。试样的起裂时间由应变法确定，采用实验-数值方法确定了裂尖动态应力强度因子和材料的Ⅰ型动态断裂韧性。结果表明，在相同冲击速度加载下，球墨铸铁的Ⅰ型动态断裂韧性随温度的降低而明显降低，起裂时间也随温度降低而减少。通过对断口的微观分析，发现在不同温度下材料存在失效机理的转变。随着温度的降低，断口韧窝减少，河流花样以及解理台阶增多。通过对韧性与脆性微观形貌特征进行量化统计，表明了材料在低温下存在延性特征变弱、脆性增强的规律，这种韧脆转变现象与材料断裂韧性的测试结果相吻合。Abstract: To understand the dynamic fracture characteristics of nodular cast iron structures, such as the spent nuclear fuel storage and transportation vessel, under low temperature and dynamic loads, the mode Ⅰ dynamic fracture toughness (DFT) of nodular cast iron was experimentally investigated at different temperatures (20℃, −40℃, −60℃ and −80℃) using an improved split Hopkinson pressure bar technique. The ductile-brittle transition behavior of the material was specially investigated. The standard three-point bending specimens with fatigue crack were pre-fabricated before the experiment. A special fixture was used to replace the transmitter bar during the experiment, while the temperature was controlled by a specially designed environmental chamber. The crack initiation time of the specimens was determined by the strain gage method. The experimental-numerical method was used to determine the dynamic stress intensity factor (DSIF) at the crack tip. Mesh refinement and element transition was used at the crack tip region to ensure a high-accuracy result of displacement field. On this basis, the mode Ⅰ DFT of the material was finally determined. The results show that under the same impact velocity, the DFT and fracture initiation time of nodular cast iron decrease significantly with the decrease in temperature. The macroscopic fracture surface of nodular cast iron changes from rough to relatively flat with the decrease of temperature, which indicates the change in the failure modes of the material. The effect of temperature on the failure mode is further verified by the quantitative microscopic analysis of the fracture. As the temperature decreases, the number of dimples on the fracture surface decreases, while the river patterns as well as cleavage steps increase. It means that the ductility of the material is weakened but the brittleness is enhanced at low temperatures. This ductile-brittle transition phenomenon is consistent with the tendency of the measured toughness of the material.
-
图 1 标准三点弯曲试样几何尺寸（单位：mm）
Figure 1. The geometric dimensions of standard three-point bending specimen (unit: mm)
图 8 起裂时刻的确定（20℃, 2.2 TPa·m1/2/s）
Figure 8. The crack initiation time (20℃, 2.2 TPa·m1/2/s )
图 9 高速摄影捕捉的试样裂纹扩展过程
Figure 9. Crack propagation process of specimen captured by high-speed photography
图 10 加载速率与动态断裂韧性、起裂时间的关系（红色正方形，5 m/s；其余，13.5m/s）
Figure 10. The relationship between loading rate and DFT, and crack initiation time (red square, 5m/s. rest, 13.5m/s)
图 11 不同温度下的宏观断口及断口表面分区（13.5m/s）
Figure 11. The macroscopic fracture and fracture surface partition at different temperatures (13.5 m/s)
图 12 疲劳裂纹的起裂位置及扩展区的断口形貌
Figure 12. The microscopic morphology of fatigue crack initiation and propagation region
图 13 动态裂纹扩展区的微观形貌（20 ℃）
Figure 13. The microscopic morphology of dynamic crack propagation region at 20 ℃
图 14 动态裂纹扩展区的微观形貌
Figure 14. The microscopic morphology of dynamic crack propagation region
图 15 动态裂纹扩展区的微观形貌（−80℃）
Figure 15. The microscopic morphology of dynamic crack propagation region at −80℃
图 16 温度与不同微观特征面积占比的关系
Figure 16. Relation between temperature and area proportion of different morphologies
表 1 不同材料的力学性能参数
Table 1. Mechanical properties of materials
部件 材料 ρ/(kg·m−3) E/GPa μ 入射杆 60Si2Mn 7850 210 0.3 试样 球墨铸铁 7300 164 0.3 夹具 40Cr 7820 199 0.3
下载: 导出CSV
表 2 常温下球墨铸铁的动态断裂参数
Table 2. Dynamic fracture parameters of nodular cast iron at room temperature
温度/℃ 加载速率/(TPa·m1/2·s−1) 起裂时刻/μs 起裂时刻区间/μs 动态断裂韧性/(MPa·m1/2) 20 2.20 53 [50，70] 116.6 20 2.22 50 [50，70] 110.9 20 1.85 62 [50，70] 115.0 20 2.04 50 [50，60] 101.8
下载: 导出CSV
表 3 低温下球墨铸铁的动态断裂参数
Table 3. Dynamic fracture parameters of nodular cast iron at low temperatures
温度/℃ 加载速率/(TPa·m1/2·s−1) 起裂时间/μs 动态断裂韧性/(MPa·m1/2) 平均值/(MPa·m1/2) −40 1.00 36 36.1 33.0 0.93 35 32.6 0.96 43 41.4 0.71 31 22.0 −60 0.55 25 13.71 13.3 0.43 26 11.12 0.58 22 12.85 0.62 25 15.38 −80 0.34 14 4.70 4.2 0.32 7 2.27 0.44 11 4.86 0.43 12 5.10
下载: 导出CSV
-
