Zr基活性壳体对爆炸增强及燃油引燃效应研究

杜宁; 任师超; 付华萌; 王金贺

doi:10.11883/bzycj-2024-0252

Zr基活性壳体对爆炸增强及燃油引燃效应研究

doi: 10.11883/bzycj-2024-0252

1.
沈阳理工大学装备工程学院，辽宁沈阳 110159
2.
中国科学院金属研究所师昌绪先进材料创新中心，辽宁沈阳 110016

基金项目: 国家自然科学基金（12202285）；辽宁省教育厅基本科研项目（JYTMS20230182）；省博士科研启动基金计划项目（2022-BS-182）；沈阳理工大学引进高层次人才科研支持计划资金资助

详细信息

作者简介:
杜　宁（1990－　），男，博士，副教授，duning521519@126.com

中图分类号: O381
计量
- 文章访问数: 267
- HTML全文浏览量: 19
- PDF下载量: 82
- 被引次数: 0
出版历程
- 收稿日期: 2024-07-22
- 修回日期: 2024-11-18
- 网络出版日期: 2024-11-20

Study on the effect of Zr-based reactive casing on explosion enhancement and fuel ignition

1.
School of Equipment and Engineering, Shenyang Ligong University, Shenyang 110159, Liaoning, China
2.
Shi-changxu Innovation Center for Advanced Materials, Institute of Metal Research, Chinese Academy of Sciences, Shenyang 110016, Liaoning, China

摘要

摘要: 为探究Zr基活性壳体的爆炸释能及对油盒的毁伤效果，采用合金熔炼浇铸方式制备了Zr基活性材料壳体，通过爆炸驱动试验，并结合高速摄影记录结果，对比等质量45钢壳体，对爆炸火球参数、冲击波波速进行了观测，研究了不同材料壳体产生的破片对油盒的冲击效应。结果表明：与等质量钢壳体相比，爆炸驱动下Zr基活性材料壳体火光持续时间更长、冲击波波速更快，Zr基活性材料壳体在爆炸驱动下对空气冲击波具有强化作用；活性材料击穿油盒后引燃盒内燃油，具备引燃燃油能力，而等质量钢壳体未引燃盒内燃油。
- 活性材料壳体 /
- 爆炸驱动 /
- 冲击诱发化学反应 /
- 能量释放特性 /
- 燃油引燃
Abstract: To investigate the explosive energy release of Zr-based reactive material (Zr-RM) casings and the ignition effect of fragments driven by the explosion on fuel, casings composed primarily of zirconium (Zr), copper (Cu), nickel (Ni), aluminum (Al), and ytterbium (Y) were fabricated using alloy melting and casting techniques. The casings mentioned above had an outer diameter of 40 mm, a height of 80 mm, and a wall thickness of 5 mm. For comparison of subsequent damage effects, steel casings made of 45 steel with the same dimensions and mass were also prepared. Both types of casings were filled with JH-2 explosive charges. The charged structures were placed on a polyvinyl chloride pipe stand 1.5 m above the ground, and a fuel box containing 2.5 L of gasoline was positioned 2.0 m away from the explosion center. During the explosion-driven tests, a high-speed camera was utilized to capture the formation and propagation of the explosion fireball, the shockwave, and the impact process of casing fragments on the fuel tank. The fireball duration, shockwave velocity, and fragment impact effects were measured and analyzed. Additionally, the ignition and destruction effects of the fragments on the fuel were observed and recorded. The experimental results demonstrate that, when compared to steel casings of equal mass, Zr-RM casings under explosion-driven conditions exhibit a longer duration of firelight and faster shockwave velocities. Specifically, the fireball duration of Zr-RM casings is approximately 25.80 times that of steel casings, and the shockwave velocity is roughly 1.17 times faster. Zr-RM casings exhibit an enhancement effect on air shockwaves under explosion-driven conditions. Fragments of different materials cause structural damage to fuel tanks, including perforation and plastic deformation. After piercing the fuel tank, the reactive material ignites the fuel inside, demonstrating the ability to ignite gasoline. On the contrary, steel casings of equal mass do not ignite the fuel within the tank. This research provides a reference for the application of Zr-RM casing warheads.
- reactive material casing /
- explosive loading /
- shock-induced chemical reaction /
- energy-release characteristic /
- fuel ignition

HTML全文

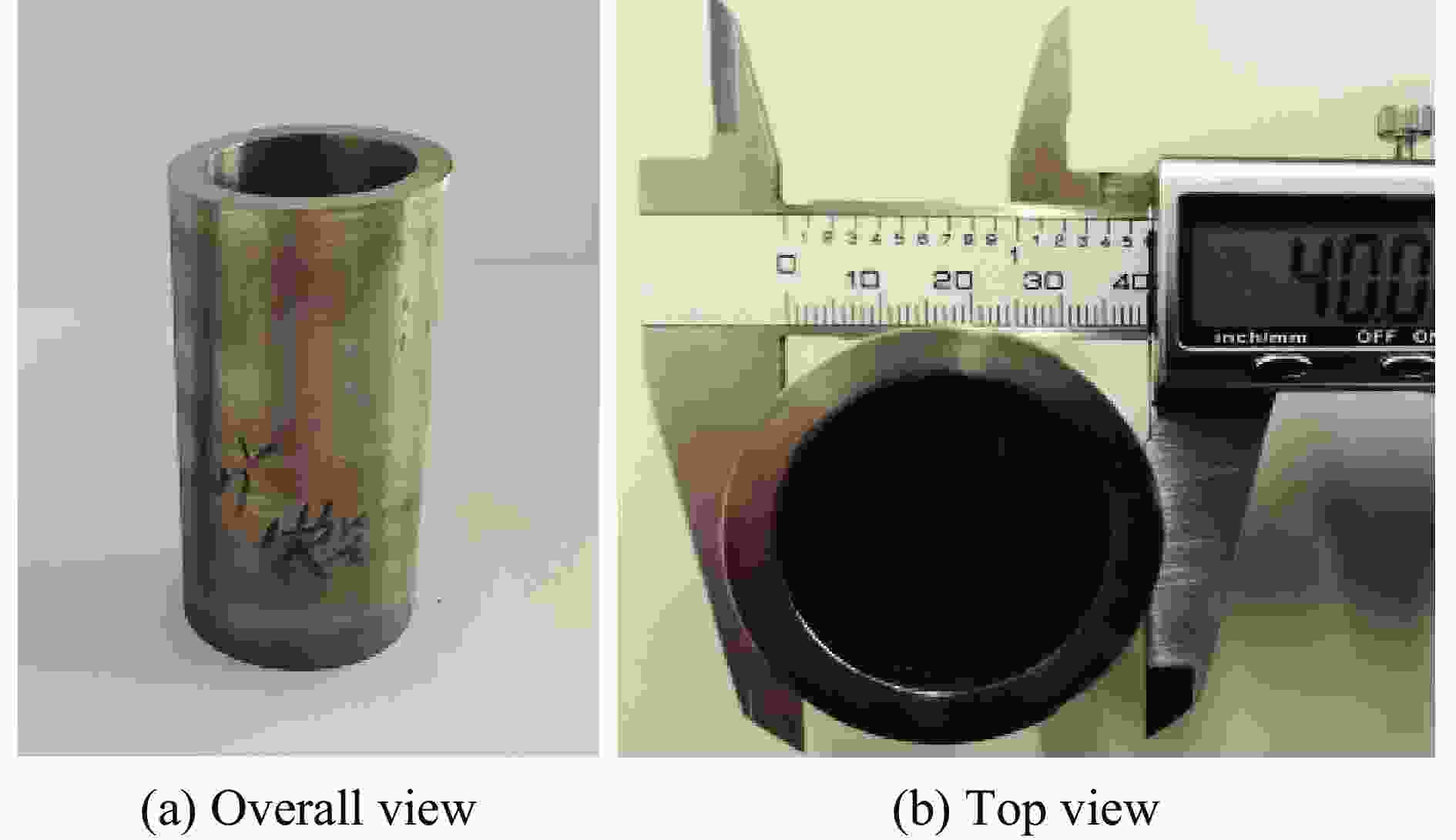

图 1 Zr基活性材料壳体

Figure 1. Zr-based reactive material casing

下载: 全尺寸图片幻灯片

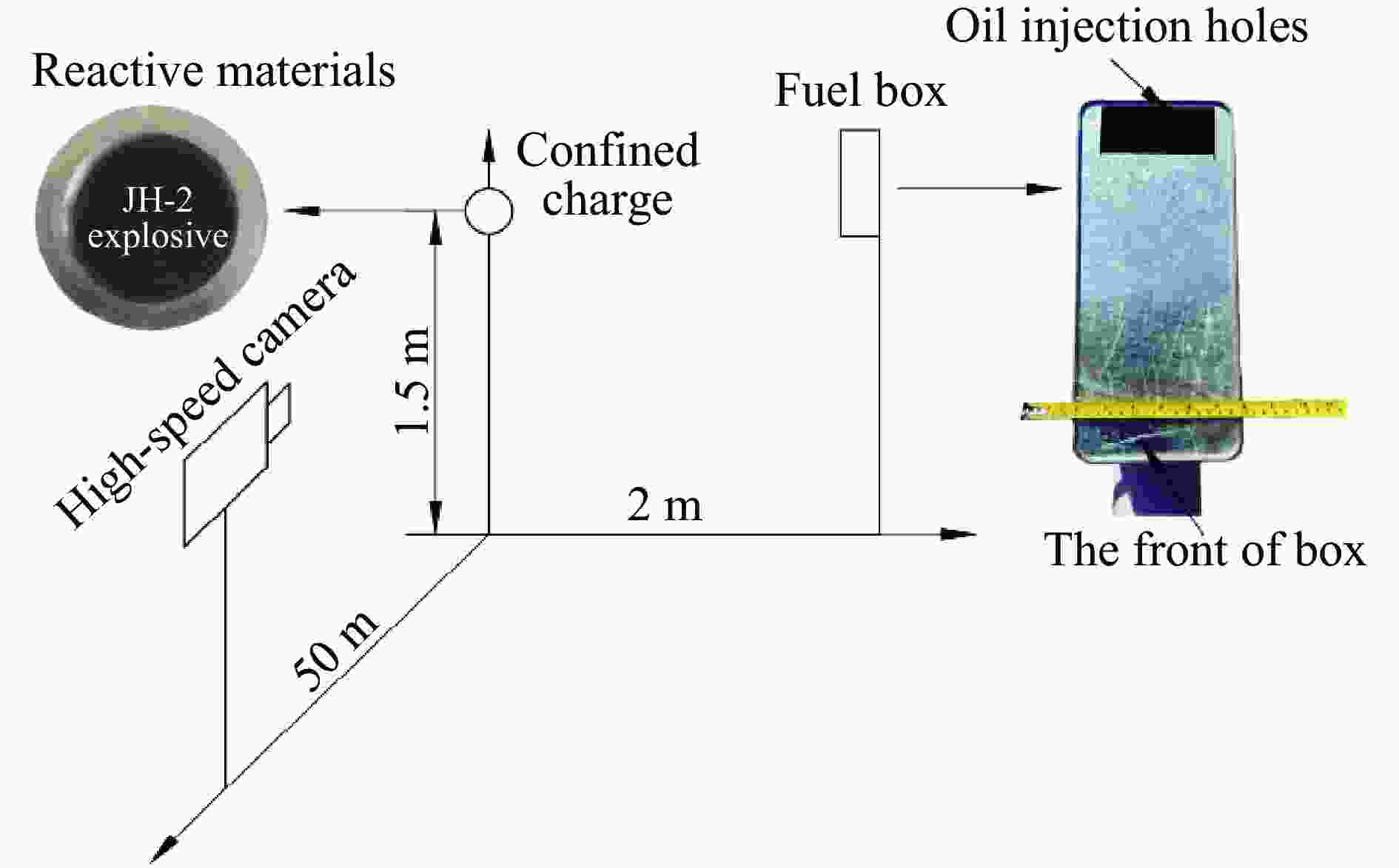

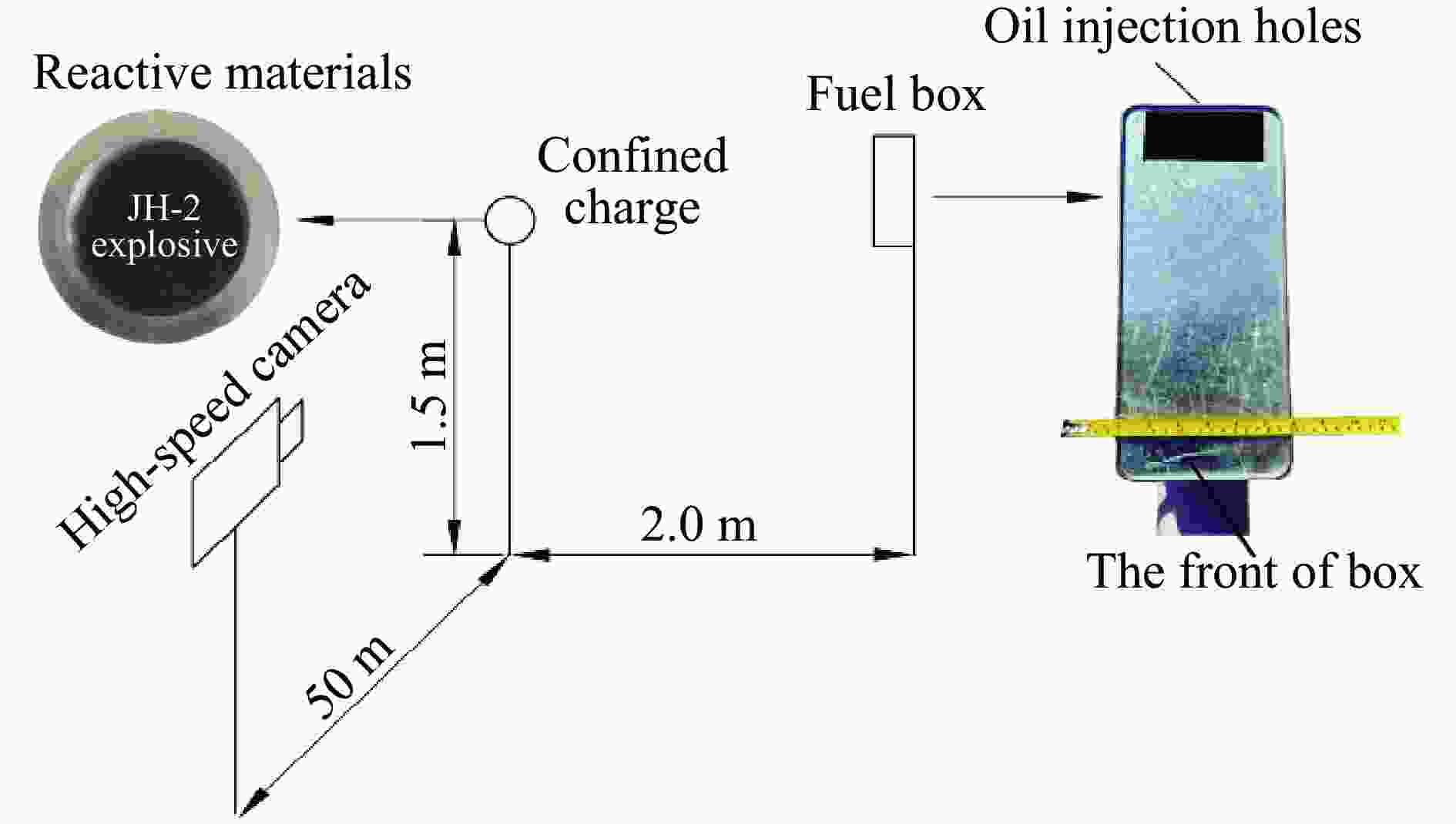

图 2 试验布场

Figure 2. Test layout

下载: 全尺寸图片幻灯片

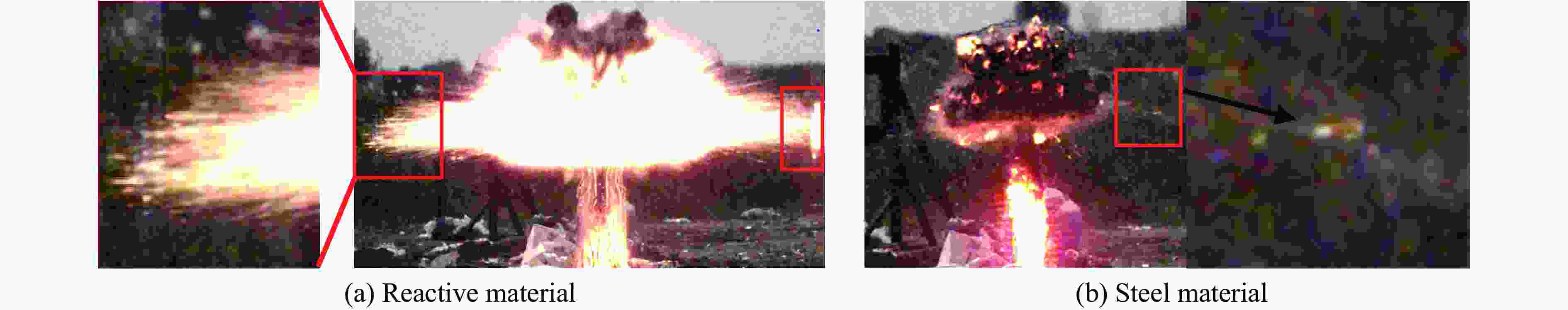

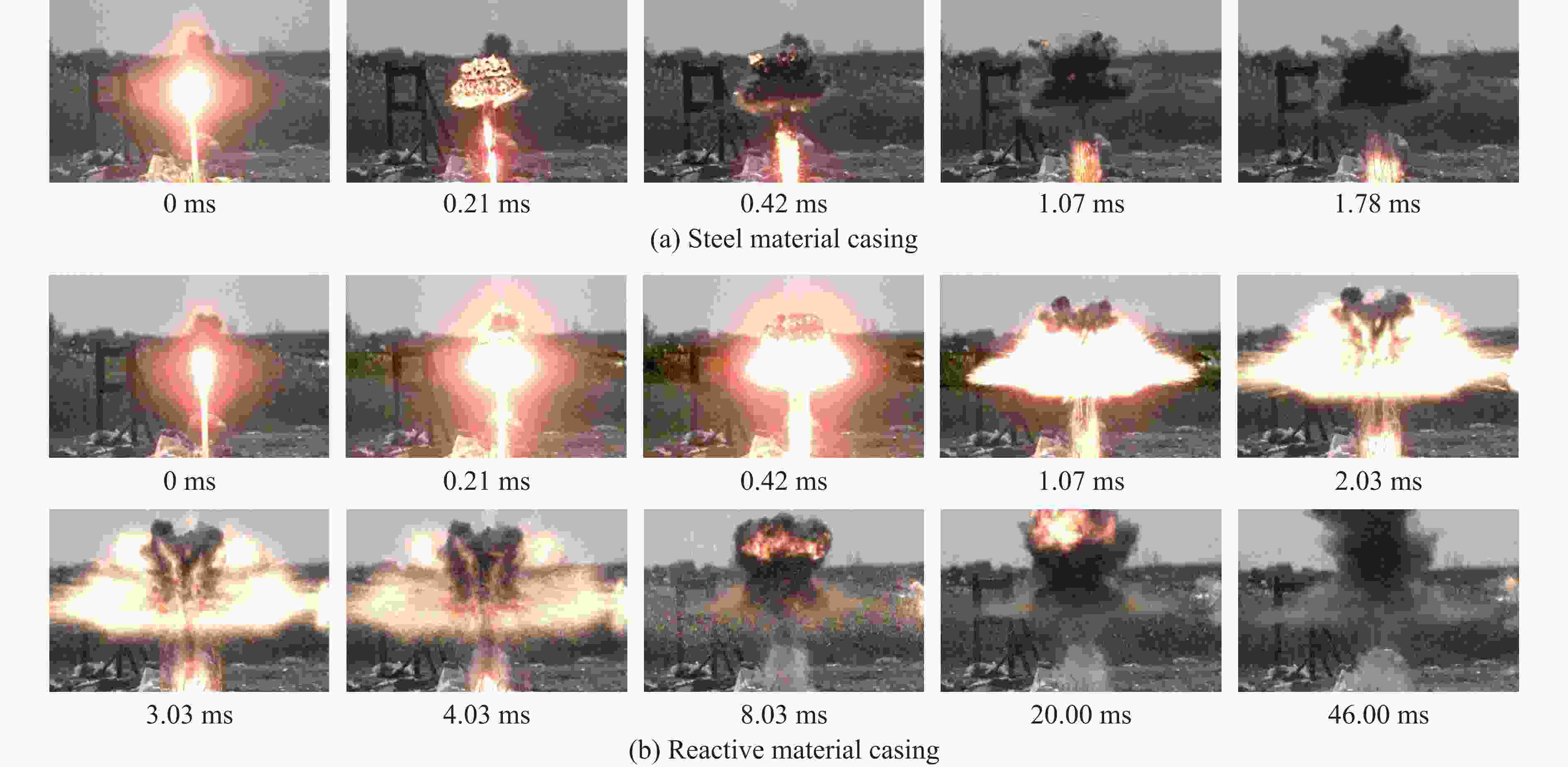

图 3 爆炸驱动不同材料壳体火球成形情况

Figure 3. Explosion-driven formation of fireballs with casings of different materials

下载: 全尺寸图片幻灯片

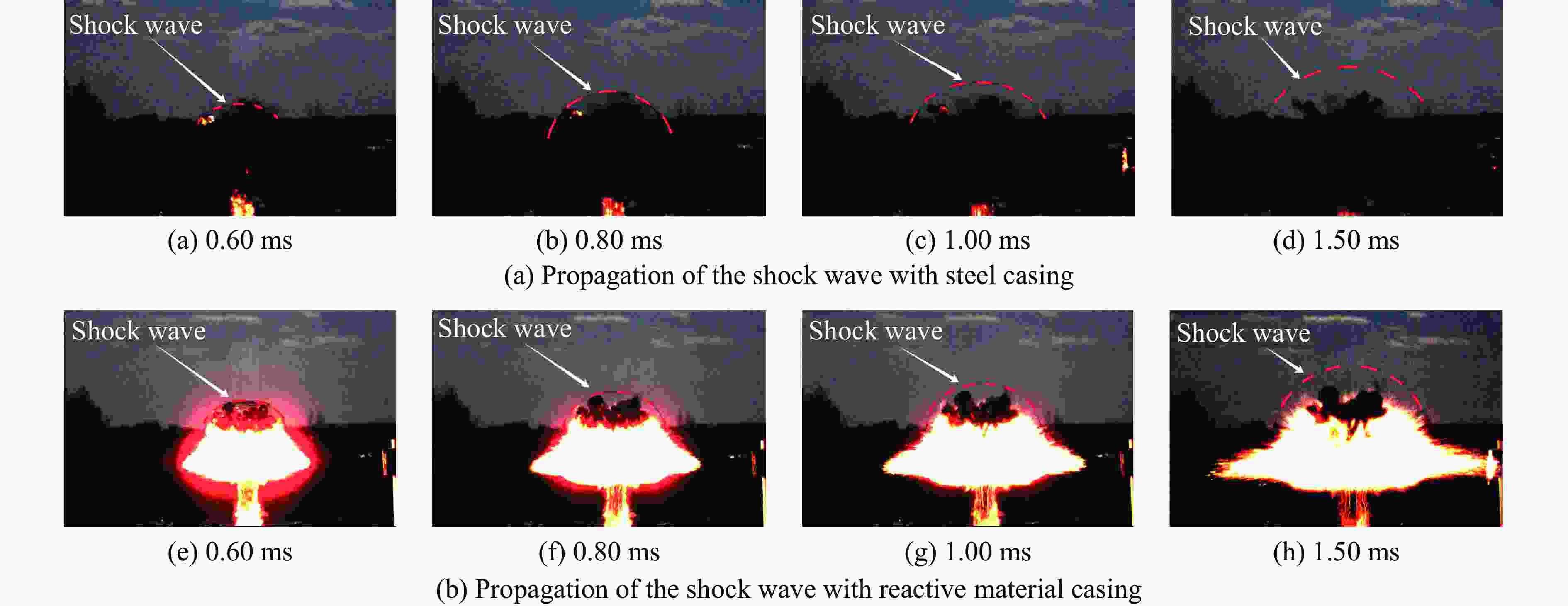

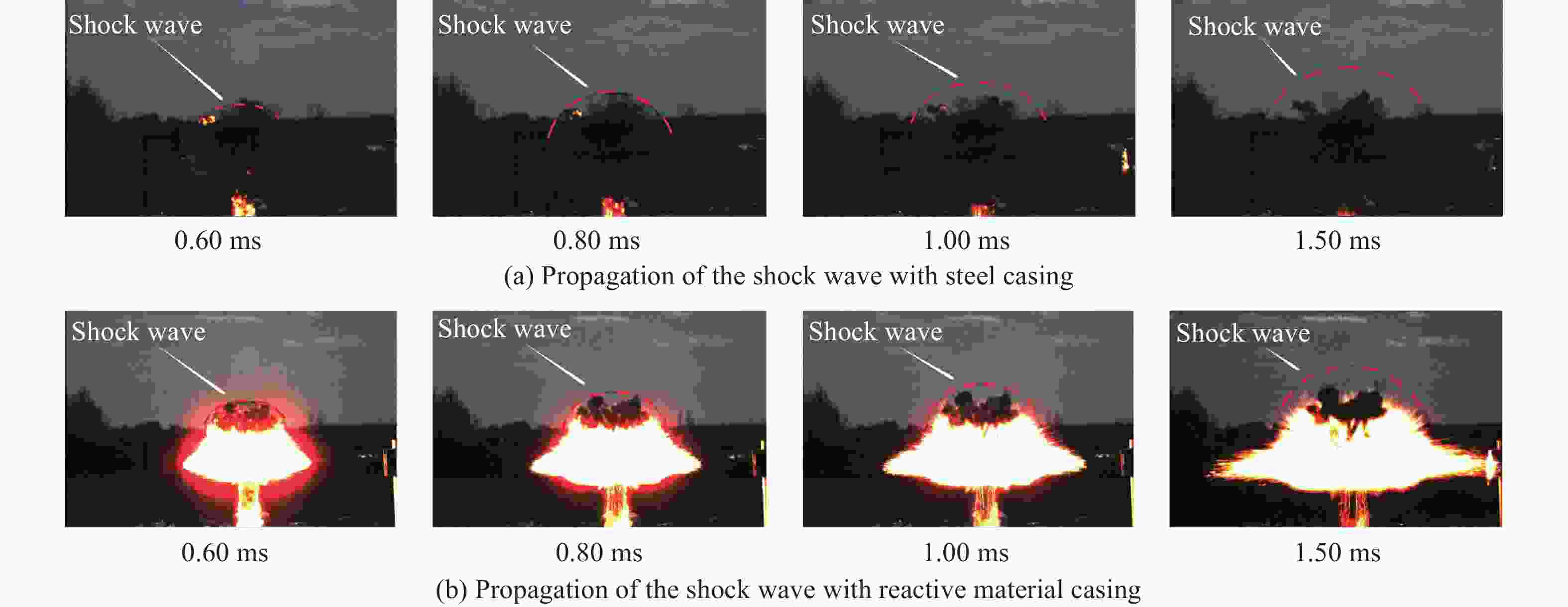

图 4 爆炸驱动不同材料壳体形成空气冲击波演变情况

Figure 4. Evolution of shock waves in casings of different materials driven by explosions

下载: 全尺寸图片幻灯片

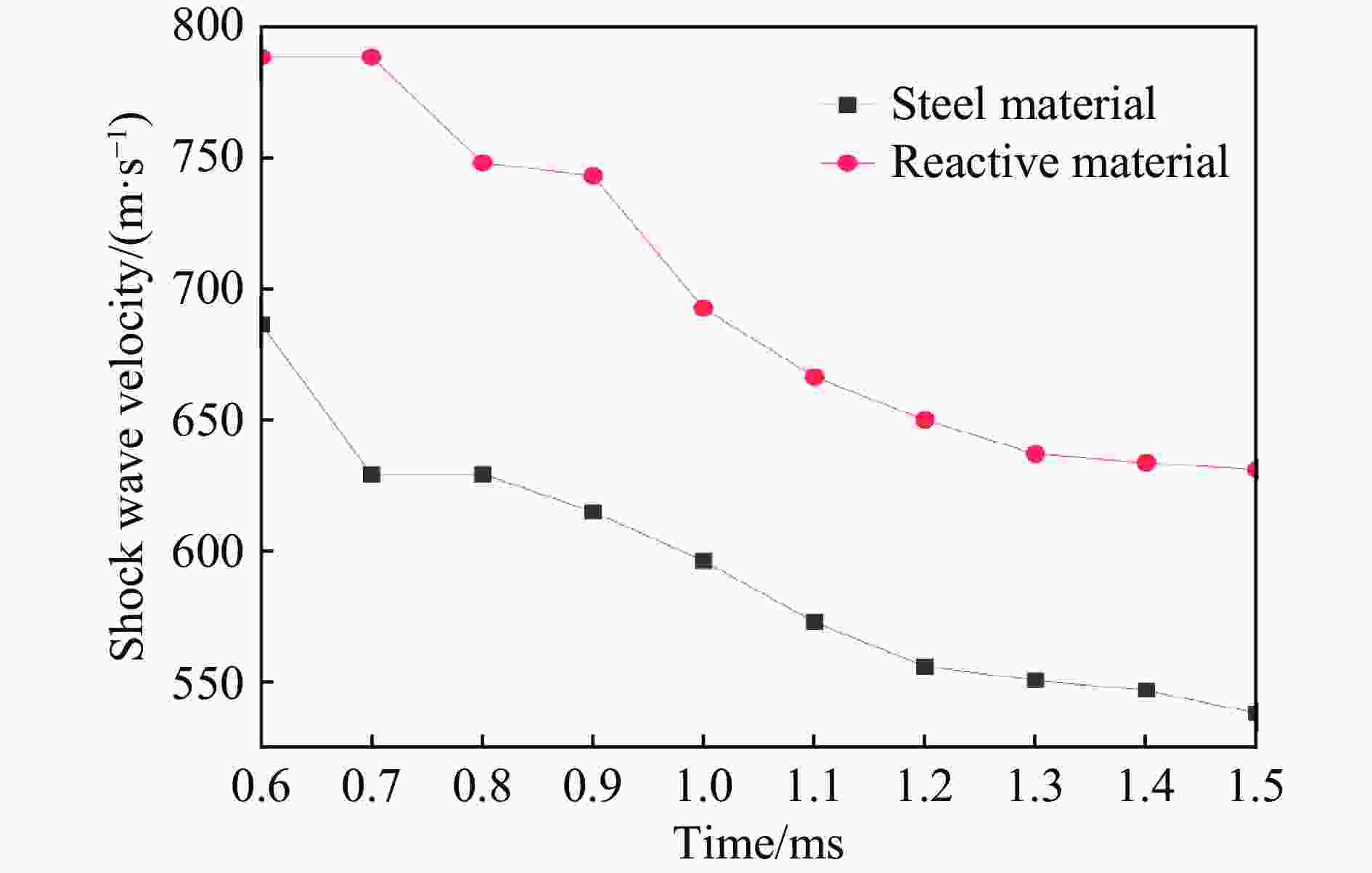

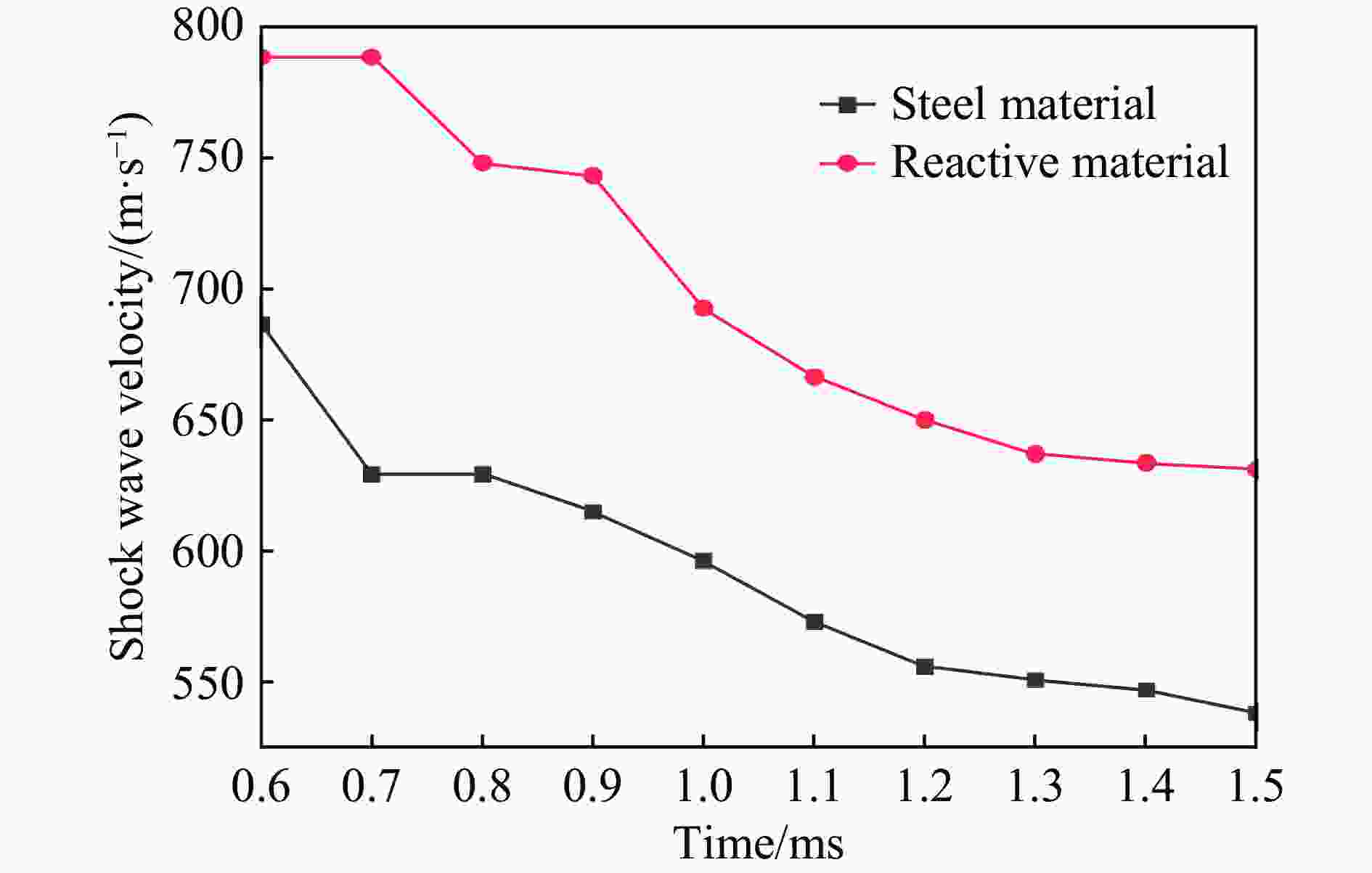

图 5 波速随时间变化曲线

Figure 5. Temporal variation curves of shock wave velocity

下载: 全尺寸图片幻灯片

图 6 不同材料破片飞散试验结果

Figure 6. Fragment scattering test results of different materials

下载: 全尺寸图片幻灯片

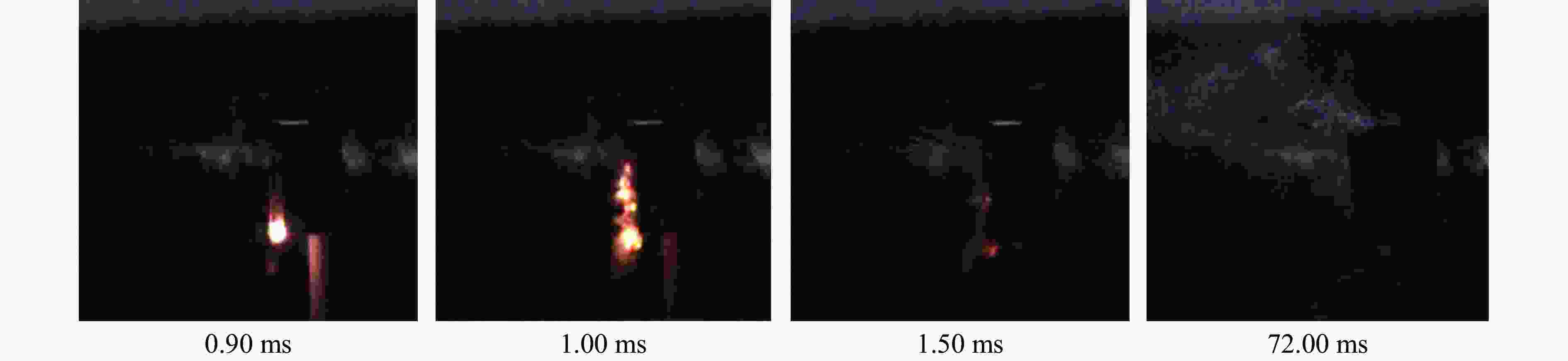

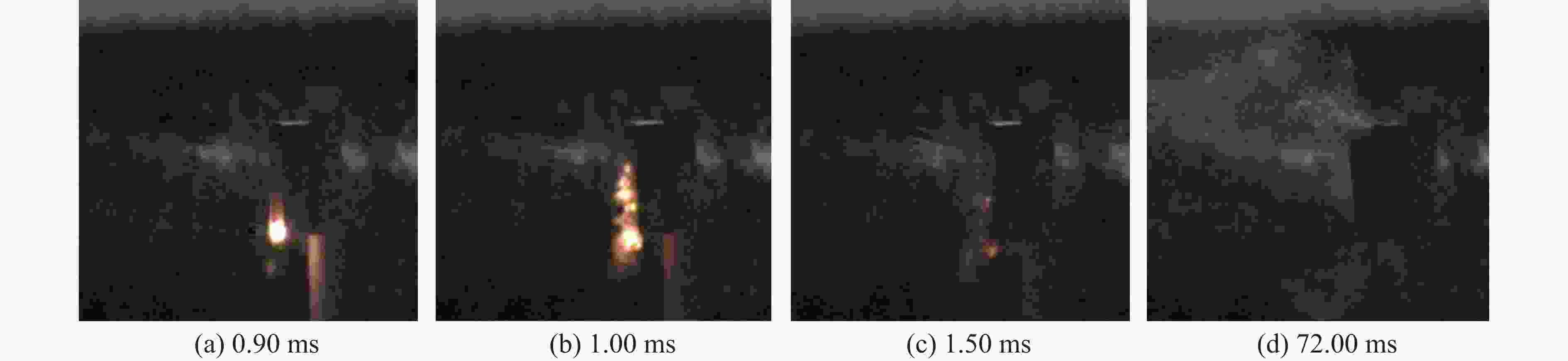

图 7 爆炸驱动45钢壳体形成破片撞击油盒过程

Figure 7. Process of explosion-driving 45 steel casing fragments hitting the fuel box

下载: 全尺寸图片幻灯片

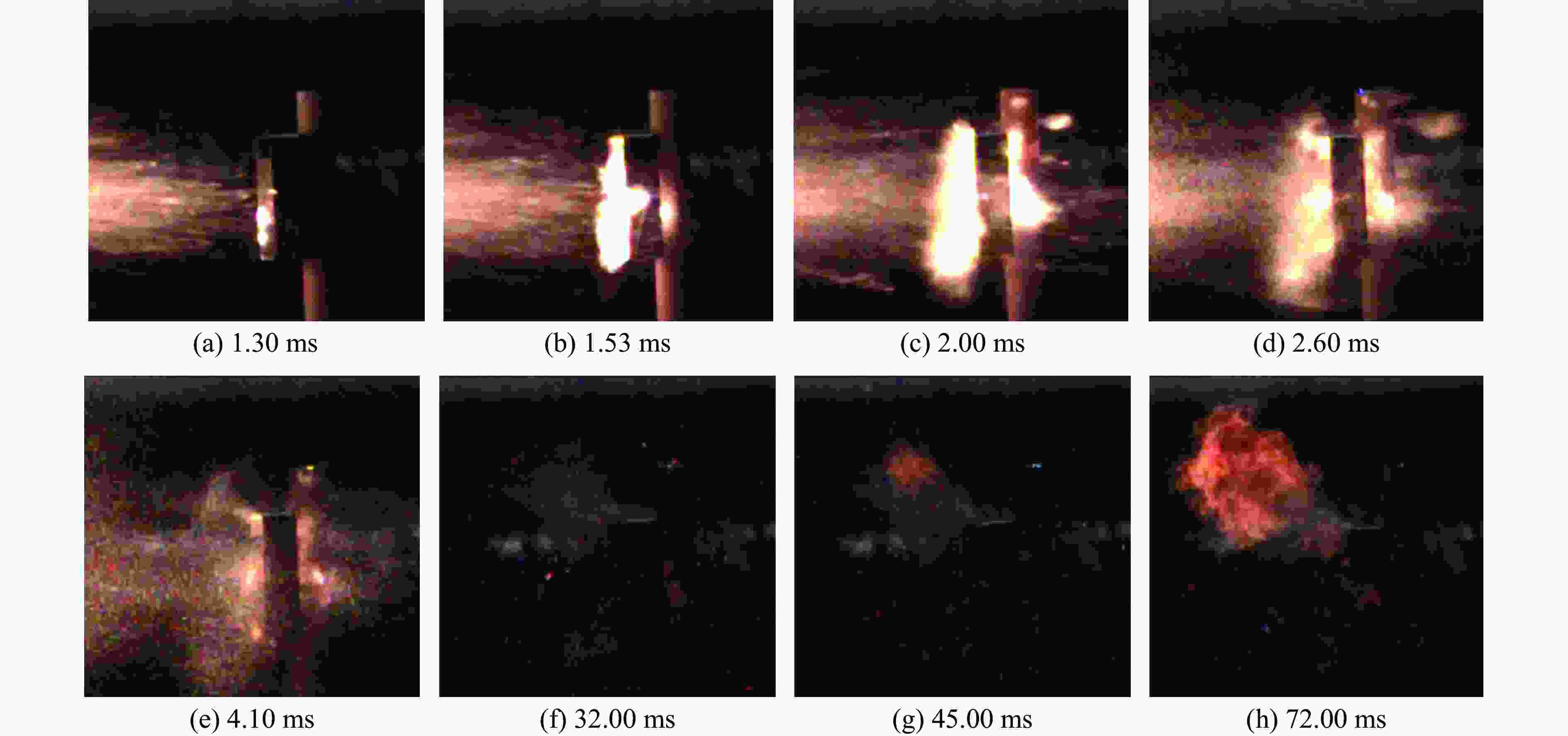

图 8 爆炸驱动活性壳体形成破片撞击油盒高速摄影照片

Figure 8. High-speed photograph of the reactive fragments striking the fuel box

下载: 全尺寸图片幻灯片

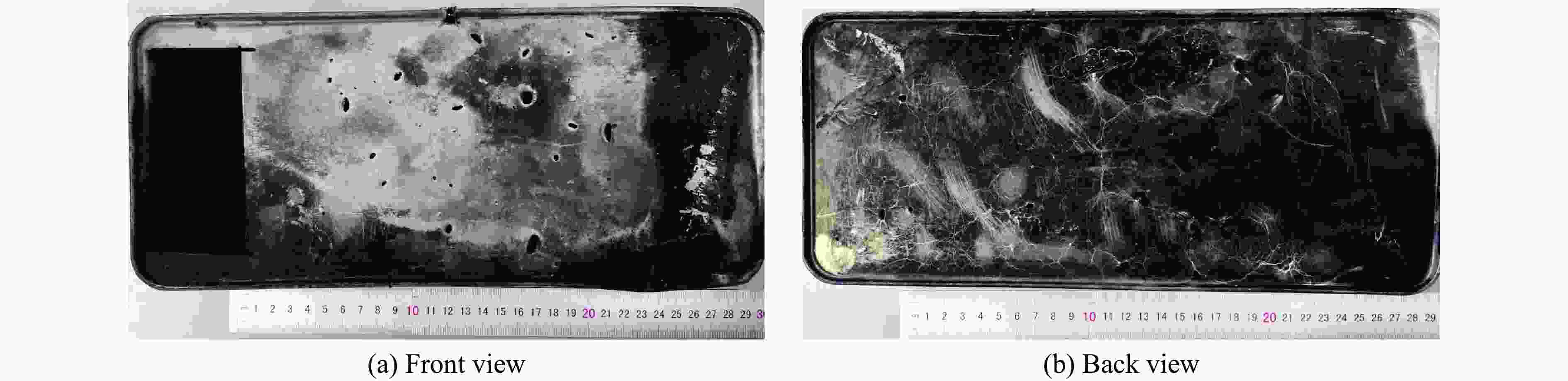

图 9 活性材料壳体破片对油盒的毁伤效果

Figure 9. Damage effect of the casing fragments of the reactive material on the fuel box

下载: 全尺寸图片幻灯片

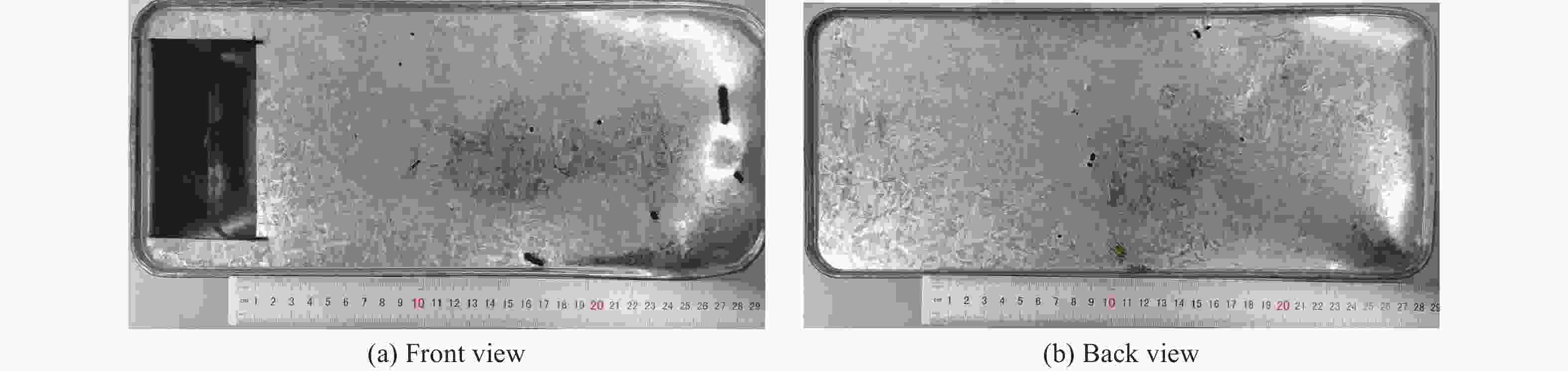

图 10 钢壳体破片对油盒的毁伤效果

Figure 10. Damage effect of the steel casing fragments on the fuel box

下载: 全尺寸图片幻灯片

表 1 战斗部结构参数

Table 1. Warhead structural parameters

壳体材料	壳体密度/(g·cm⁻³)	壳体质量/g	壳体壁厚/mm	装药质量/g	装药高度/mm
45钢	7.8	330	4.82	106	80
Zr基活性材料	6.8	330	5.00	106	80

下载: 导出CSV

表 2 爆炸驱动不同材料壳体形成空气冲击波与爆心距离及波速参数

Table 2. Shock wave distance and velocity of different material casings driven by explosions

时间/ms	活性壳体		钢壳体
时间/ms	爆心距/mm	波速/(m·s⁻¹)	爆心距/mm	波速/(m·s⁻¹)
0.50	781.74		617.11
0.60	860.52	787.8	685.68	685.7
0.70	939.30	787.8	748.53	628.5
0.80	1 014.04	747.4	811.39	628.6
0.90	1 088.28	742.4	872.81	614.2
1.00	1 157.46	691.8	932.36	595.5
1.10	1 224.02	665.6	989.57	572.1
1.20	1 288.95	649.3	1 045.08	555.1
1.30	1 352.58	636.3	1 100.07	549.9
1.40	1 415.87	632.9	1 154.67	546.0
1.50	1 478.90	630.3	1 208.39	537.2

下载: 导出CSV
