马蹄形隧道拱脚周边孔爆破围岩的损伤特征

徐帮树 杜念伟 王帅帅 周韧 高轩 张万志

徐帮树, 杜念伟, 王帅帅, 周韧, 高轩, 张万志. 马蹄形隧道拱脚周边孔爆破围岩的损伤特征[J]. 爆炸与冲击. doi: 10.11883/bzycj-2024-0254
引用本文: 徐帮树, 杜念伟, 王帅帅, 周韧, 高轩, 张万志. 马蹄形隧道拱脚周边孔爆破围岩的损伤特征[J]. 爆炸与冲击. doi: 10.11883/bzycj-2024-0254
XU Bangshu, DU Nianwei, WANG Shuaishuai, ZHOU Ren, GAO Xuan, ZHANG Wanzhi. Blasting damage characteristics of surrounding rock around the arch foot of horseshoe tunnel[J]. Explosion And Shock Waves. doi: 10.11883/bzycj-2024-0254
Citation: XU Bangshu, DU Nianwei, WANG Shuaishuai, ZHOU Ren, GAO Xuan, ZHANG Wanzhi. Blasting damage characteristics of surrounding rock around the arch foot of horseshoe tunnel[J]. Explosion And Shock Waves. doi: 10.11883/bzycj-2024-0254

马蹄形隧道拱脚周边孔爆破围岩的损伤特征

doi: 10.11883/bzycj-2024-0254
基金项目: 国家自然科学基金(50909056,52379102);山东省自然科学基金(ZR2014EEM014)
详细信息
    作者简介:

    徐帮树(1974- ),男,博士,副教授,xubangshu@sdu.edu.cn

    通讯作者:

    杜念伟(2000- ),男,硕士研究生,1070735015@qq.com

  • 中图分类号: U455.41

Blasting damage characteristics of surrounding rock around the arch foot of horseshoe tunnel

  • 摘要: 为解决隧道拱脚周边孔爆破难成形以致超挖和掌子面底部欠挖问题,研究了马蹄形隧道拱脚周边孔爆破围岩的损伤特征。依托方山隧道,建立了拱脚周边孔的三维数值模型,模拟了拱脚处围岩的损伤情况,分析了爆破效果与自由面形状、装药量以及空孔偏转角的映射关系,并通过现场试验进行了验证。结果表明:自由面形状显著影响围岩的损伤范围和炸药的能量利用率,相较于平直自由面,凹形自由面的损伤范围小,岩石的夹制作用更大,炸药爆破难以有效破碎围岩,能量利用率仅为78%;爆破效果随着装药量的增加呈先增大后减小的趋势,当拱脚周边孔的线装药密度为0.624 kg/m时,爆破效果最佳;此外,通过布设空孔和调整空孔偏转角,可以改善拱脚周边孔的爆破效果。采用优化后的爆破参数,拱脚处最大线性超挖量降低了53.1%,隧道轮廓成型平整。

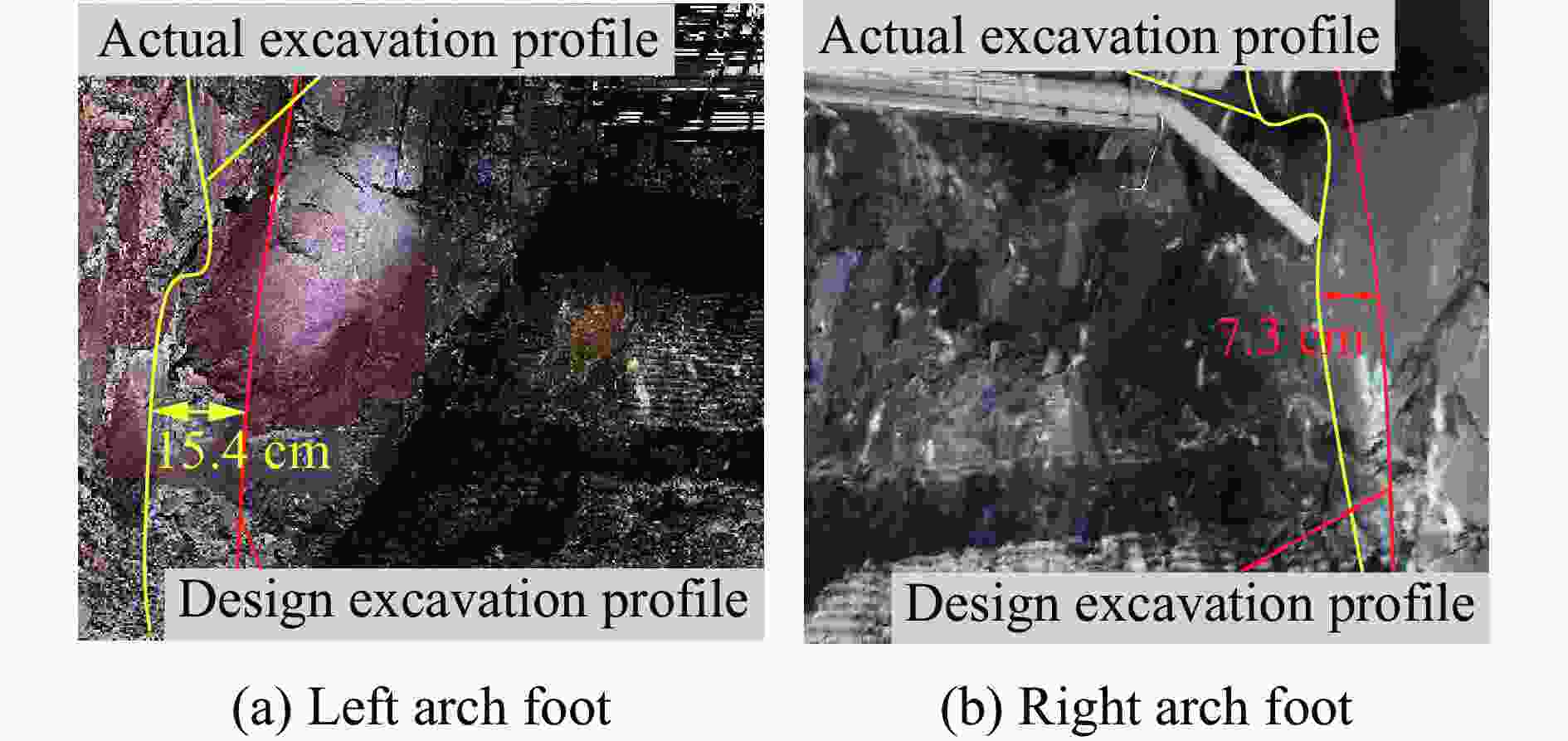

  • 图  1  原爆破方案下隧道爆后围岩特征分布

    Figure  1.  Tunnel surrounding rock characteristics under original blasting scheme

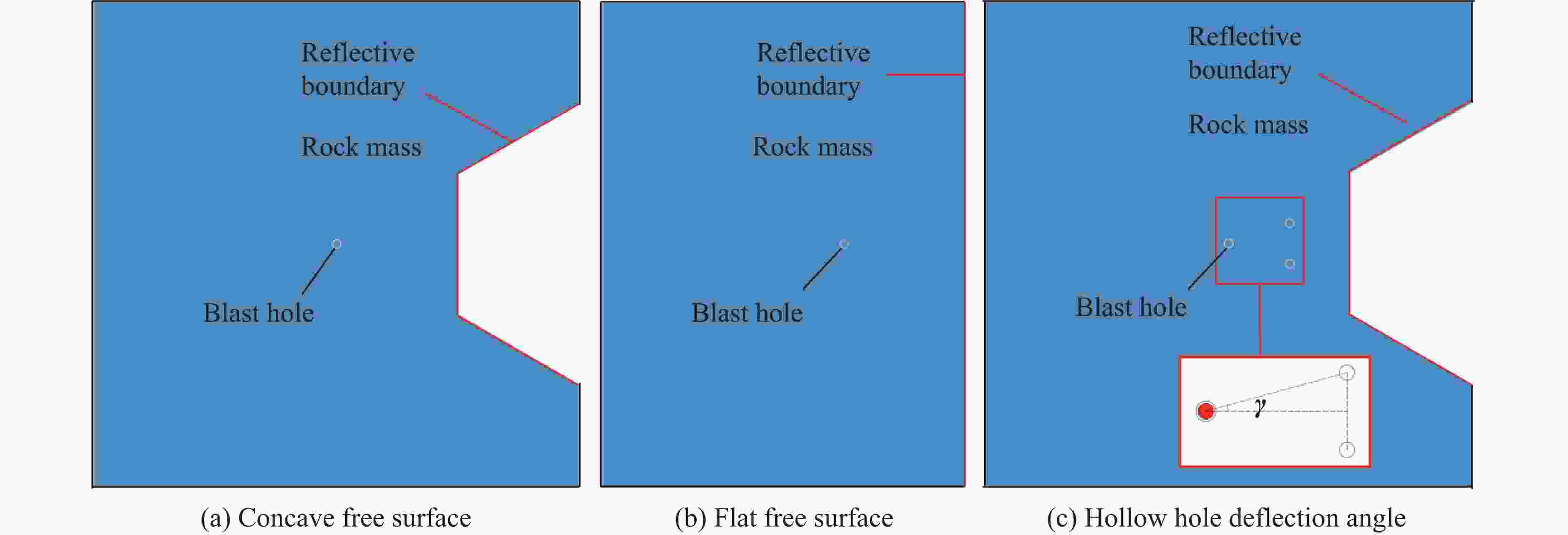

    图  2  爆破的数值模型

    Figure  2.  Numerical models of blasting

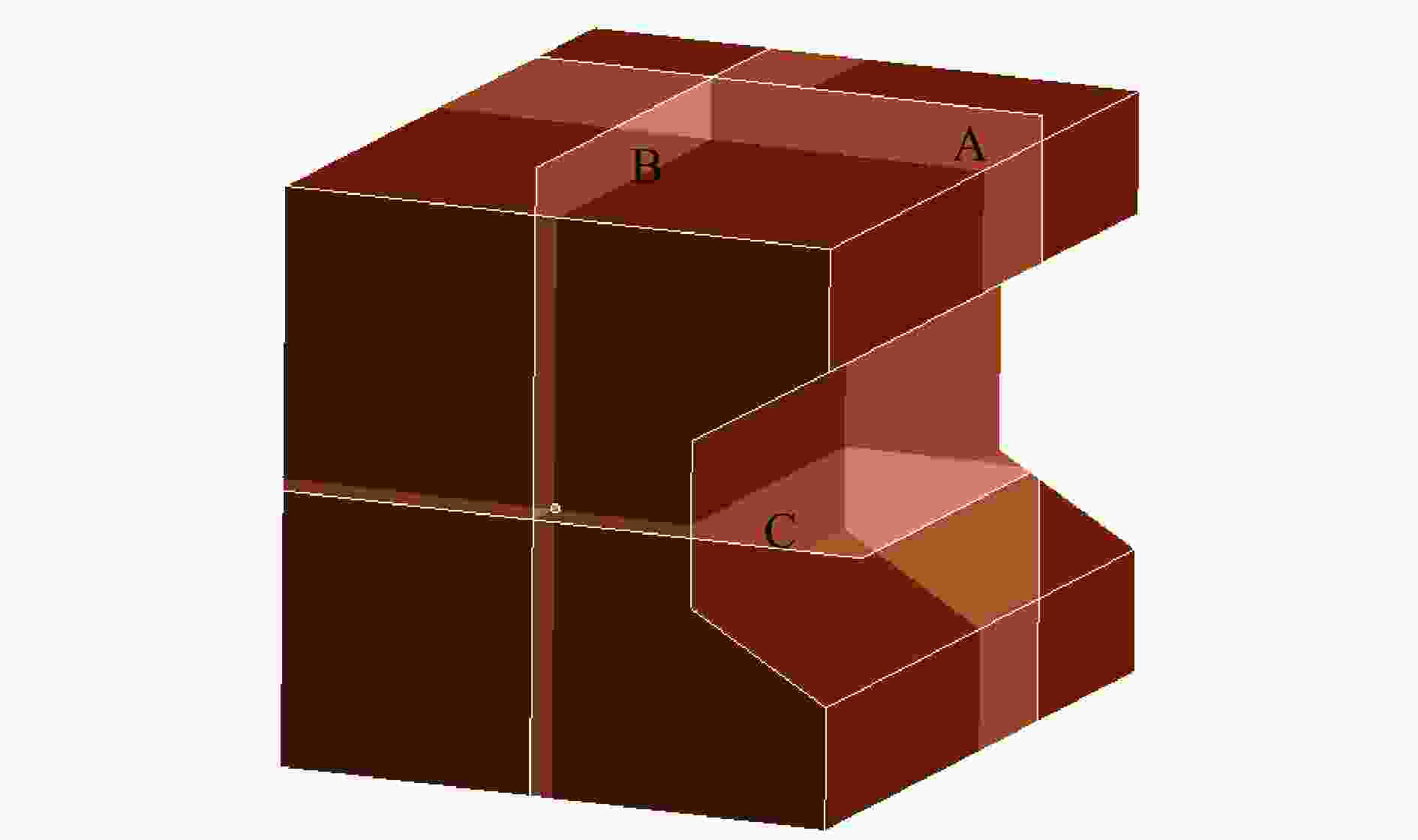

    图  3  切片截面

    Figure  3.  Sliced cross-section

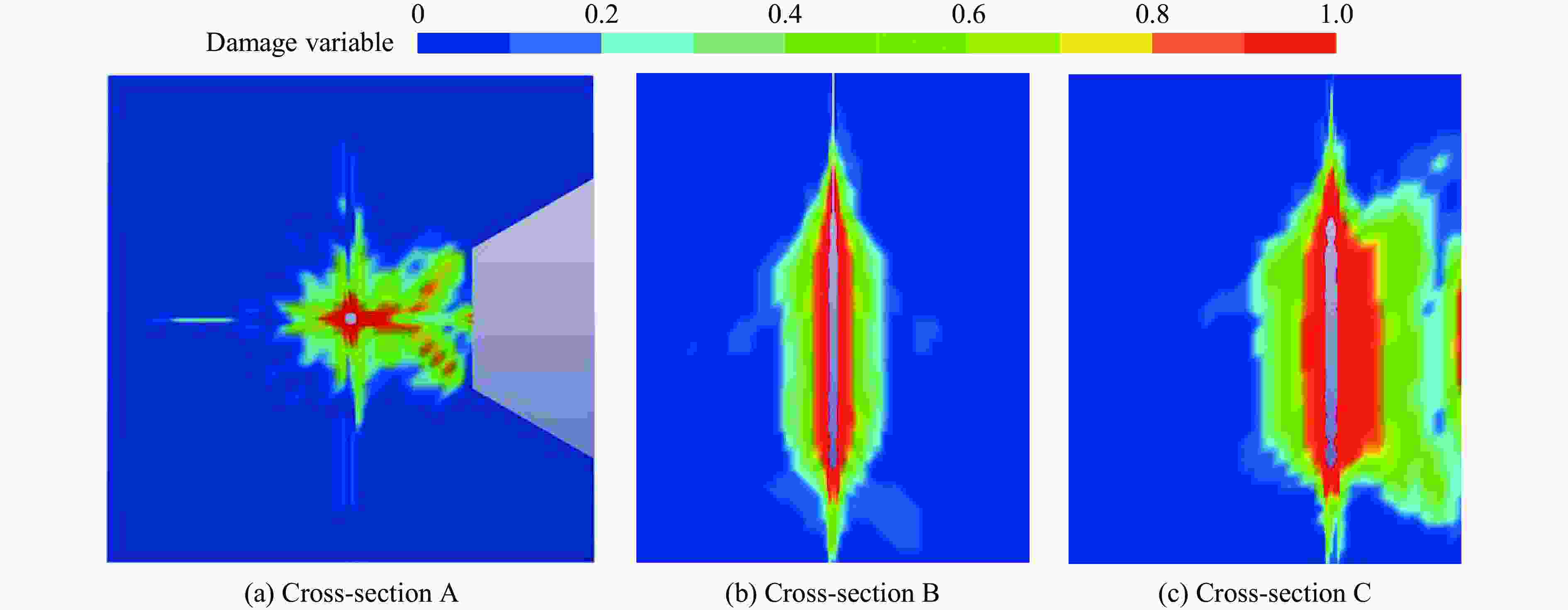

    图  4  凹形自由面条件下不同截面损伤云图

    Figure  4.  Damage nephogram of different sections under concave free surface condition

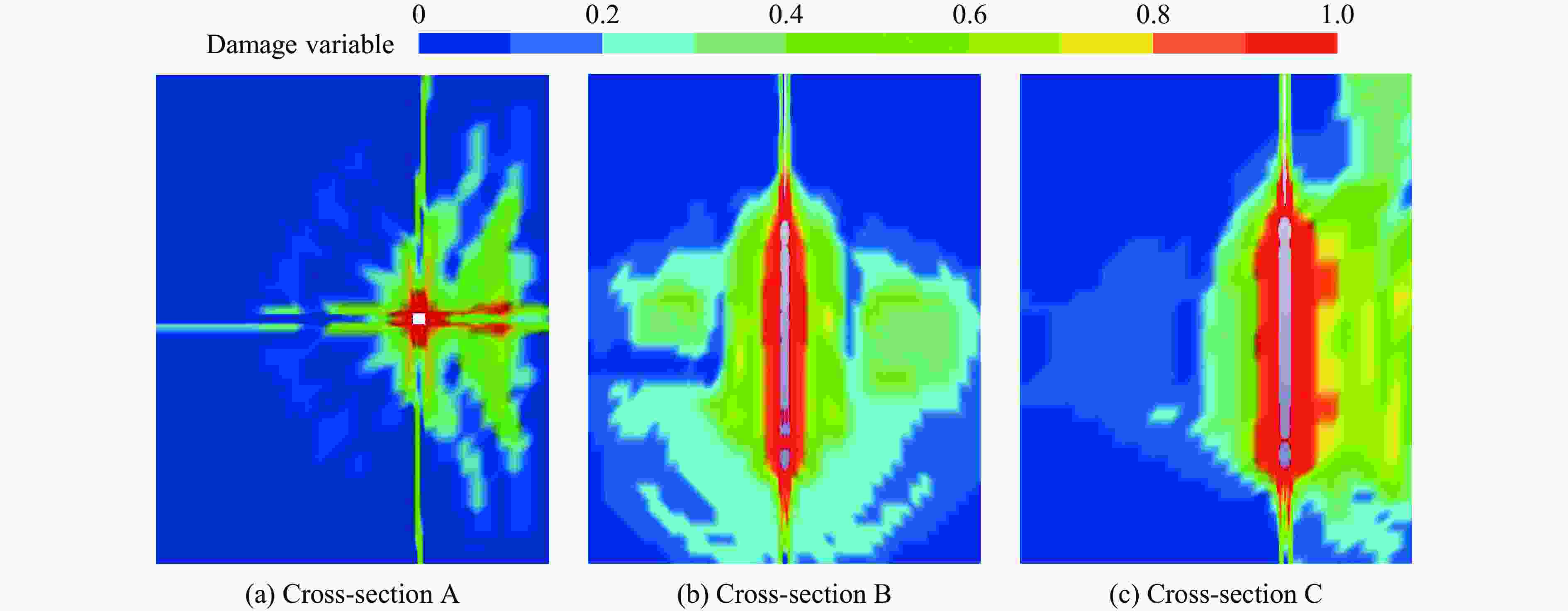

    图  5  平直自由面条件下不同截面损伤云图

    Figure  5.  Damage nephogram of different sections under flat free surface condition

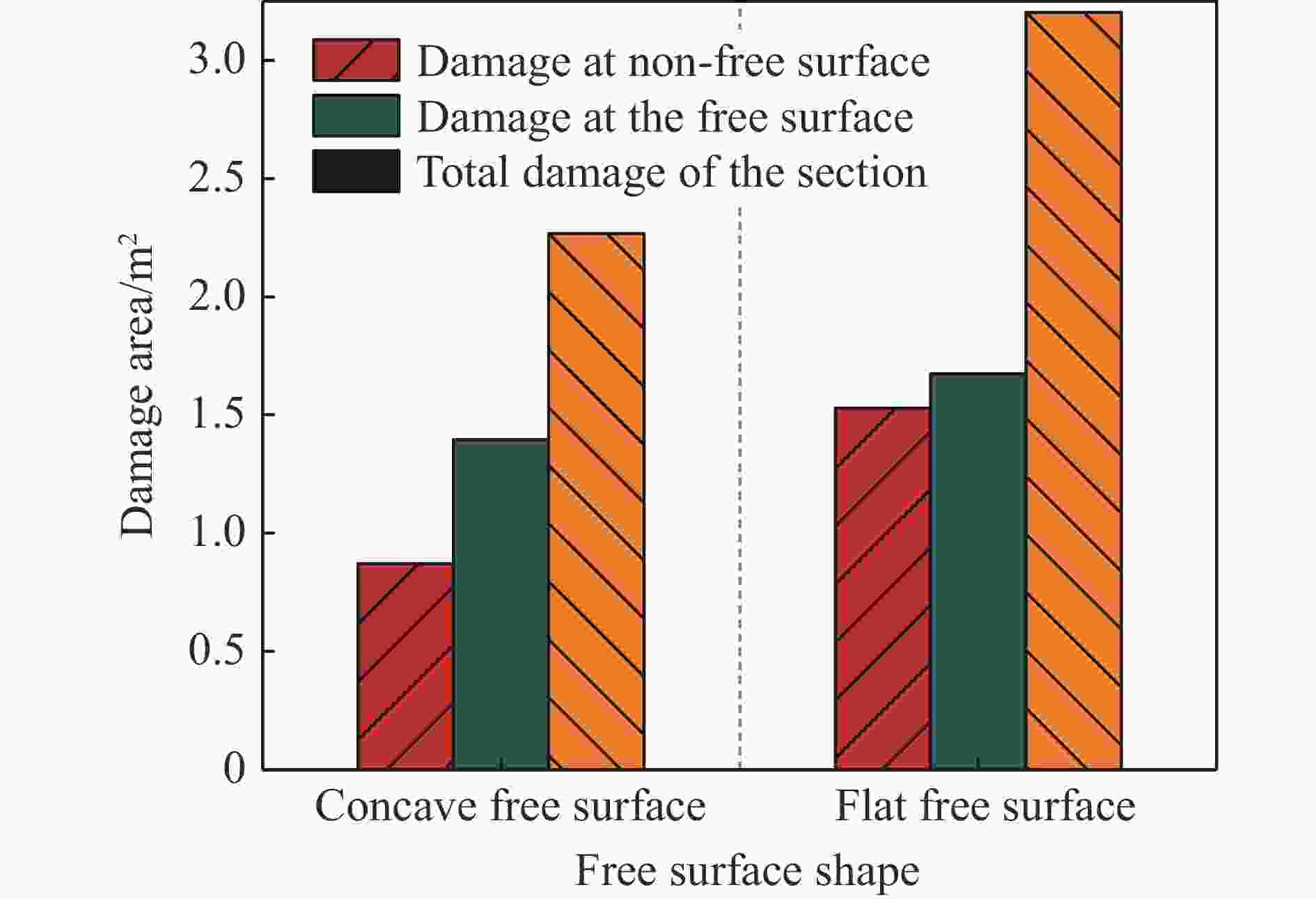

    图  6  不同自由面条件下的损伤面积

    Figure  6.  Damage area under different free face conditions

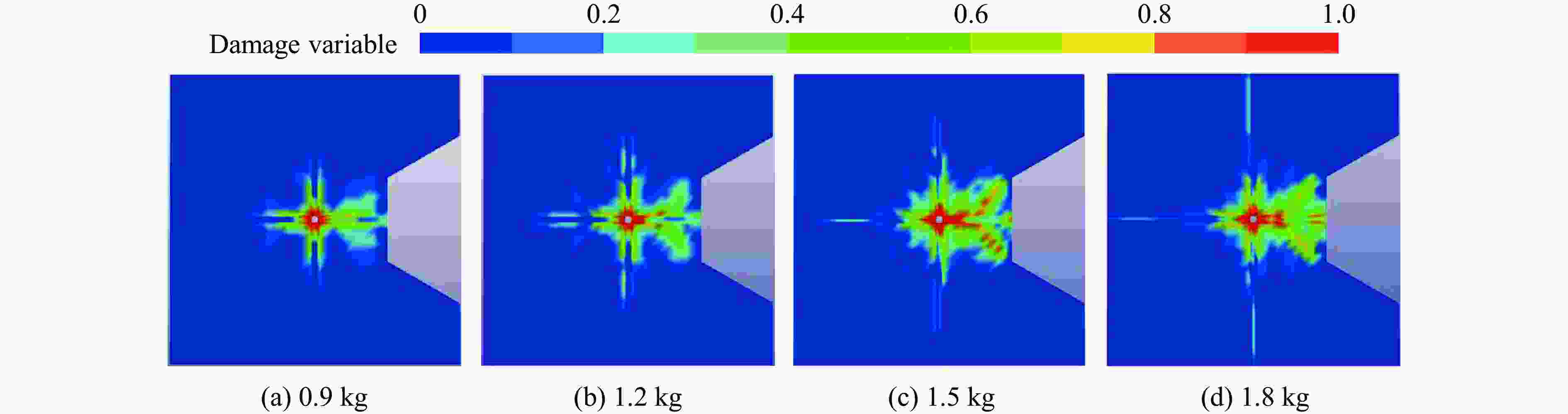

    图  7  不同装药量条件下截面A的损伤云图

    Figure  7.  Damage nephogram of cross-section A under different charge conditions

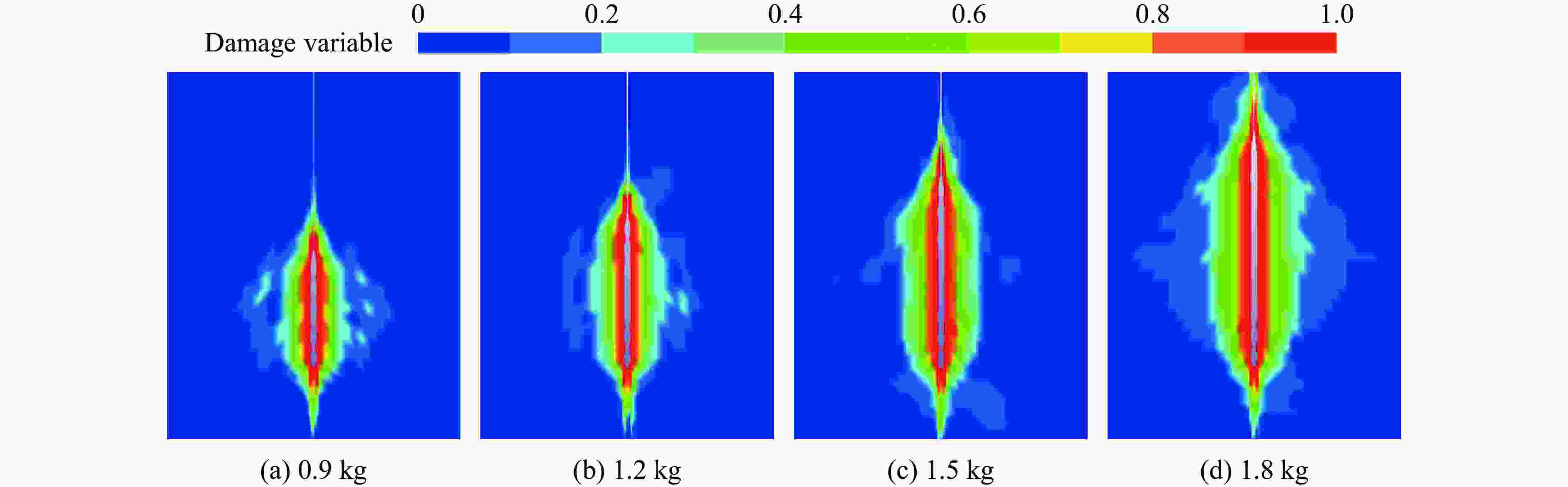

    图  8  不同装药量条件下截面B的损伤云图

    Figure  8.  Damage nephogram of cross-section B under different charge conditions

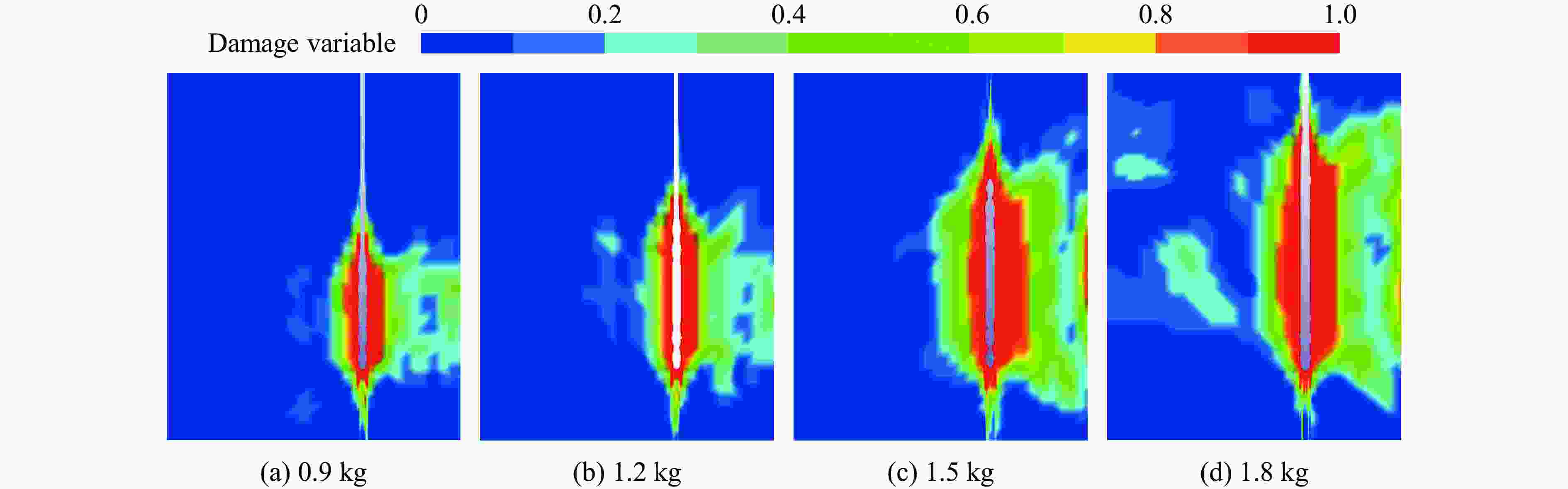

    图  9  不同装药量条件下截面C的损伤云图

    Figure  9.  Damage nephogram of cross-section C under different charge conditions

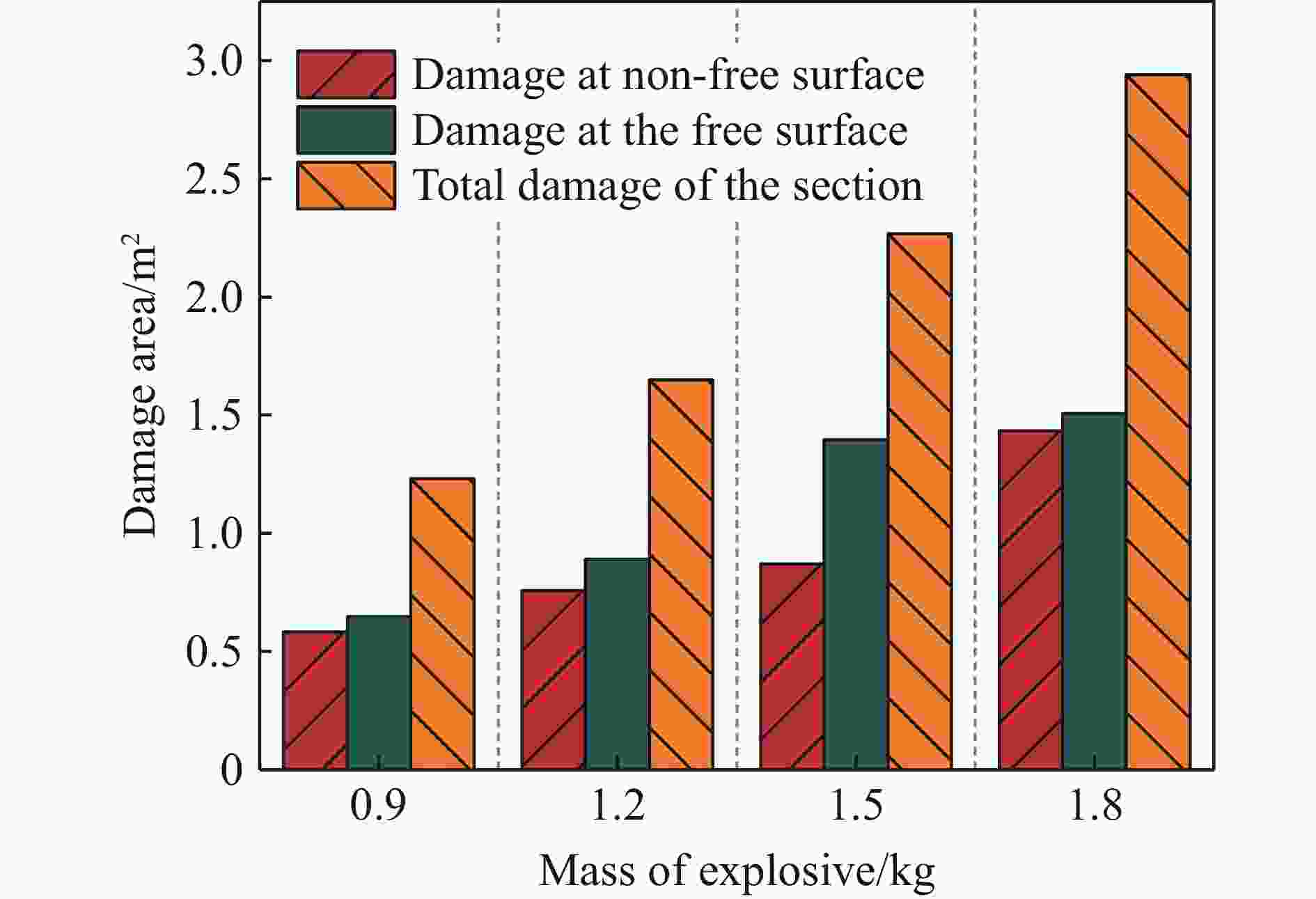

    图  10  不同装药量条件下的损伤面积

    Figure  10.  Damage area under different charge conditions

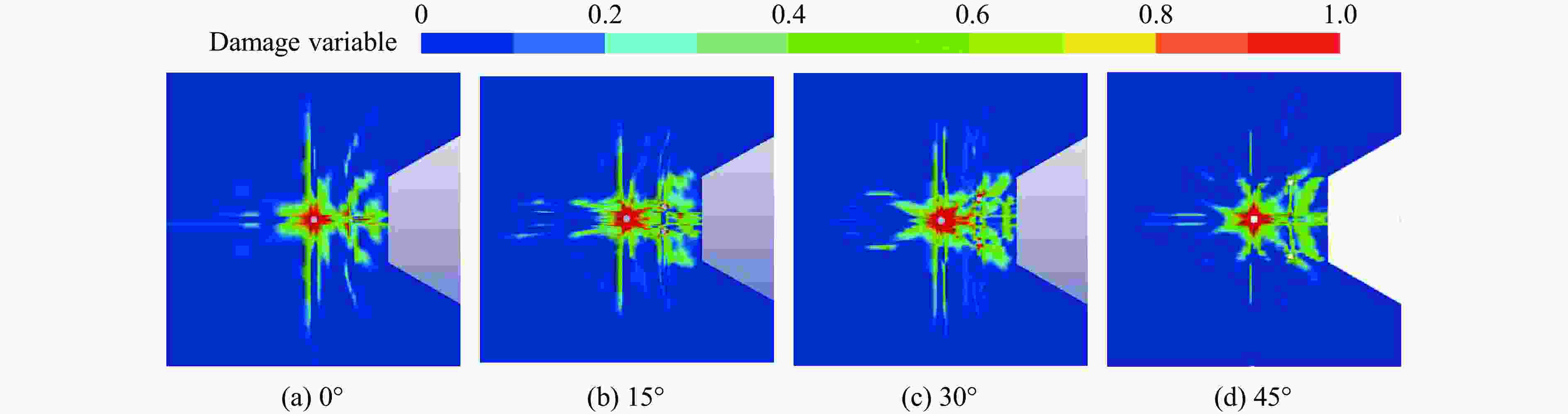

    图  11  不同空孔偏转角条件下截面A的损伤云图

    Figure  11.  Damage nephogram of section A under various hollow hole deflection angle conditions

    图  12  不同空孔偏转角条件下截面B的损伤云图

    Figure  12.  Damage nephogram of section B under various hollow hole deflection angle conditions

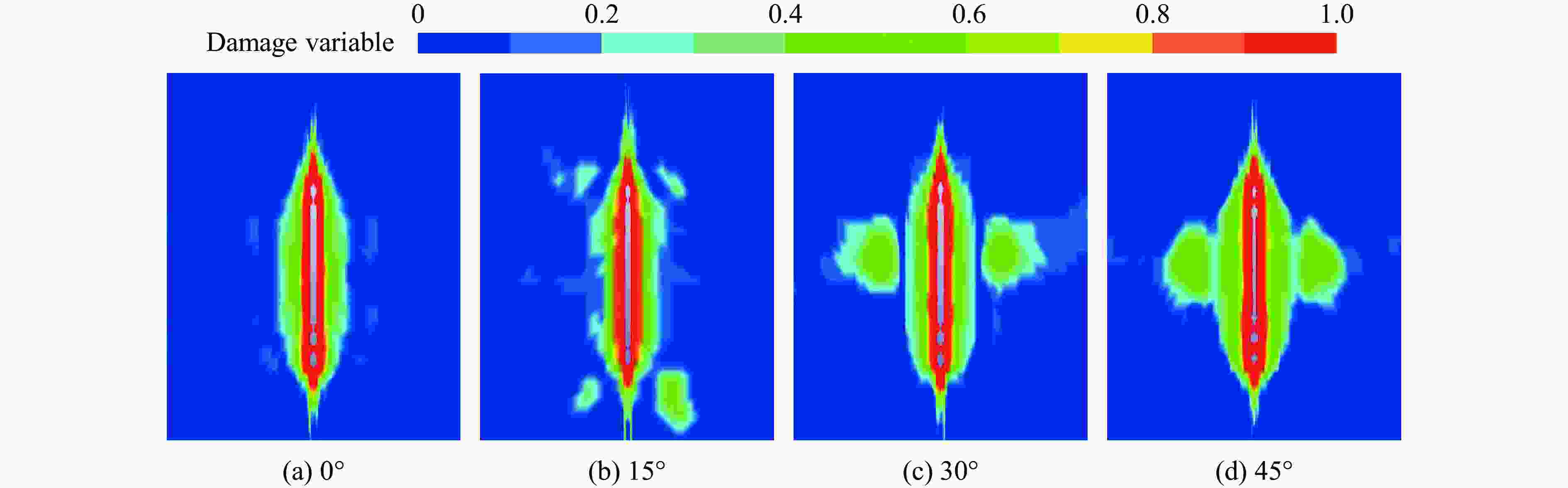

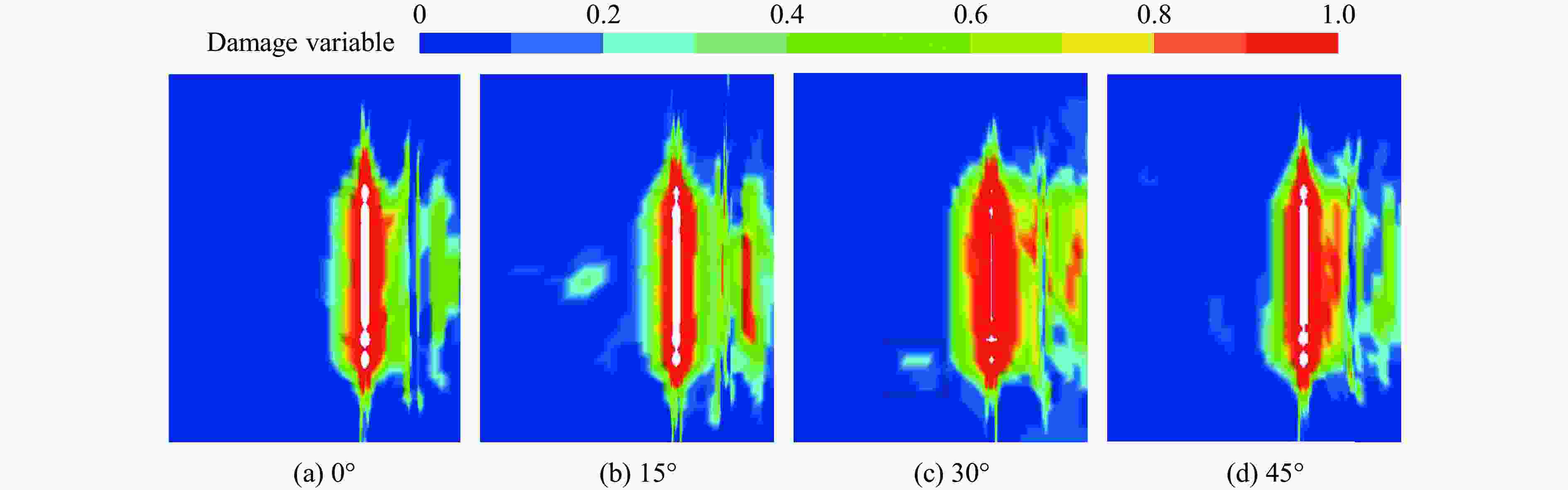

    图  13  不同空孔偏转角条件下截面C的损伤云图

    Figure  13.  Damage nephogram of section C under various hollow hole deflection angle conditions

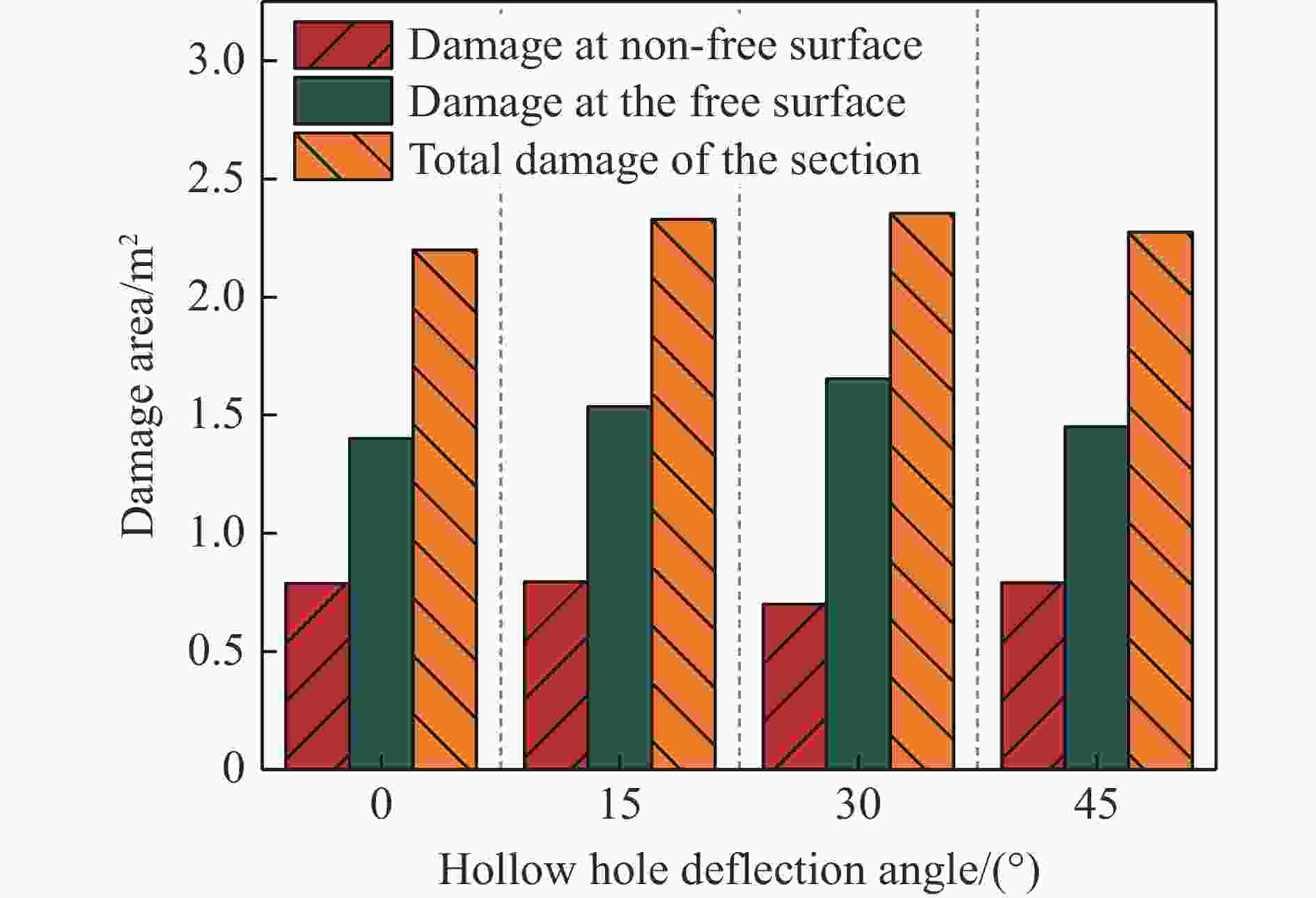

    图  14  不同空孔偏转角条件下的损伤面积

    Figure  14.  Damage area under different hole deflection angle conditions

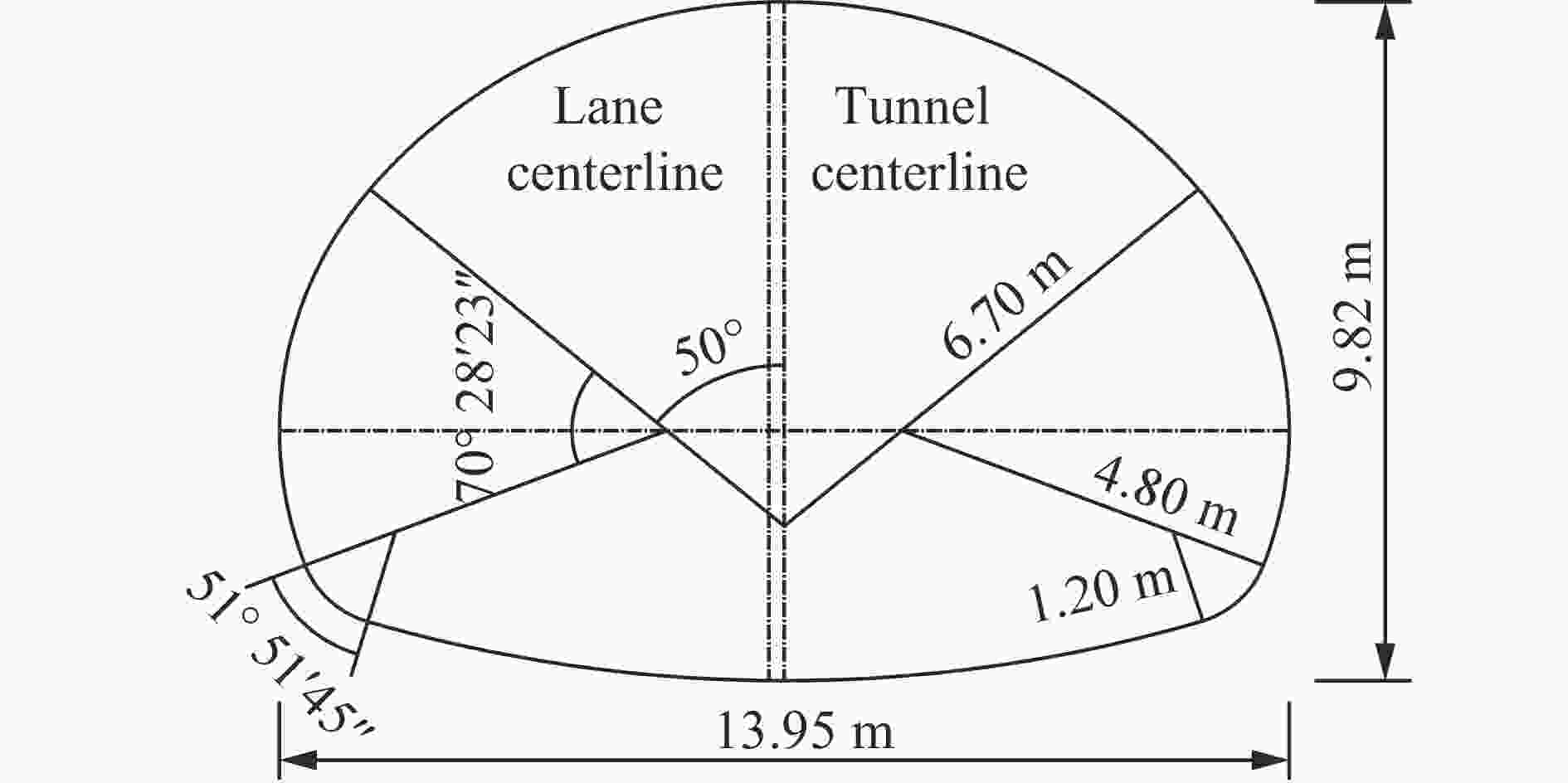

    图  15  Ⅳ级围岩隧道标准断面(单位:m)

    Figure  15.  The standard cross section of tunnel in class Ⅳ rock mass (unit: m)

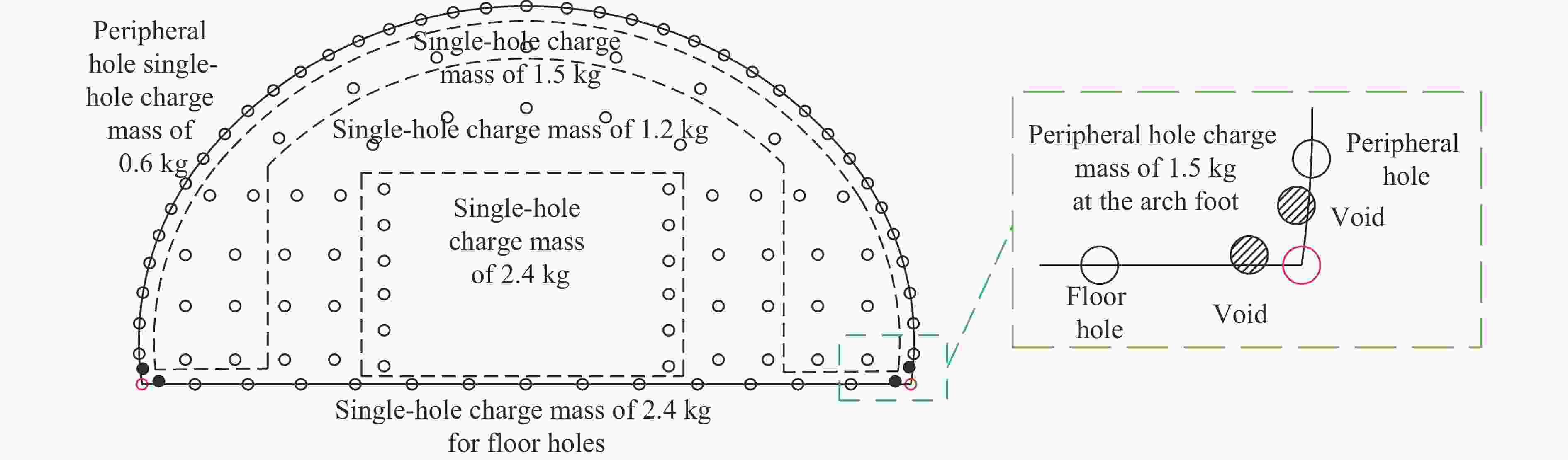

    图  16  炮孔布置

    Figure  16.  Layout of blasthole

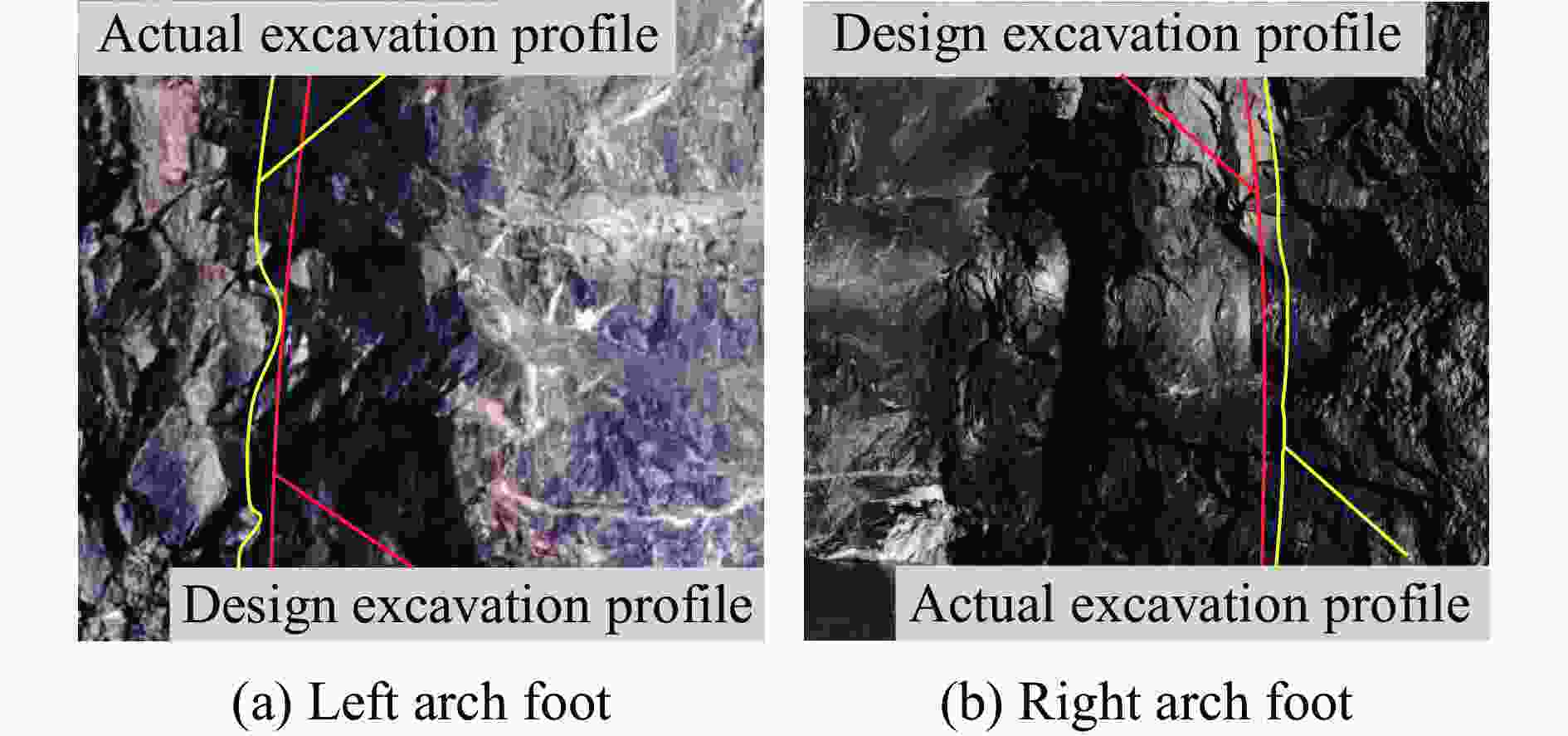

    图  17  爆后围岩情况

    Figure  17.  Surrounding rock condition after blasting

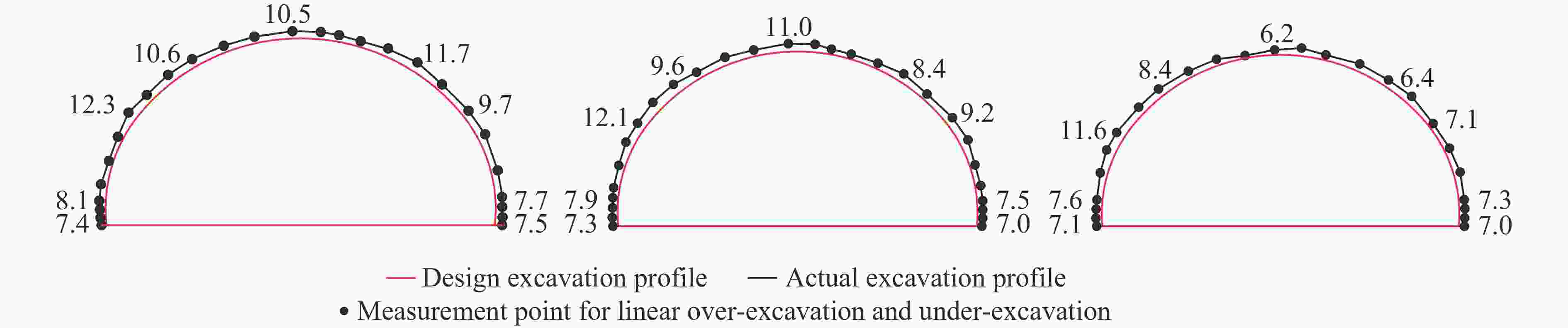

    图  18  爆后断面的超欠挖(单位:cm)

    Figure  18.  Over-excavation of the blasting face (unit: cm)

    表  1  隧道的爆破参数

    Table  1.   Tunnel blasting parameters

    炮孔分类 段别/段 孔距/m 孔数 单孔装药量/kg
    周边孔 11 0.6 30 0.60
    拱脚周边孔 13 0.6 2 1.65
    下载: 导出CSV

    表  2  岩石的材料参数

    Table  2.   Material parameters of rock

    密度/(kg·m−3) 初始裂隙度 压碎压力/MPa 压实压力/GPa 弹性剪切模量/GPa 静态抗压强度/GPa 拉压强度比 剪压强度比
    2600 0 125 6 21.9 167.8 0.04 0.21
    压缩屈服面
    参数
    拉伸屈服面
    参数
    参考压缩应
    变率/s−1
    参考拉伸应
    变率/s−1
    失效压缩应
    变率/s−1
    失效拉伸应
    变率/s−1
    压缩应变
    指数
    拉伸应变
    指数
    0.53 0.7 3×10−5 3×10−6 3×1025 3×1025 0.026 0.007
    下载: 导出CSV

    表  3  炸药的材料参数

    Table  3.   Material parameters of explosive

    ρ/(kg·m−3)D/(m·s−1)A/GPaB/GPaR1R2ωE0/(MJ·m−3)
    120030003733.744.150.90.154.192
    下载: 导出CSV

    表  4  空气的材料参数

    Table  4.   Material parameters of air

    C0 C1 C2 C3 C4 C5 C6 ρ/(kg·m−3) E0/(MJ·m−3)
    0 0 0 0 0.4 0.4 0 1.29 2500
    下载: 导出CSV

    表  5  工况的设计参数

    Table  5.   Design parameters of working conditions

    工况 孔深/m 装药量/kg 自由面形式 γ/(°)
    1 2.4 1.5 平直自由面
    2 2.4 1.5 凹形自由面
    3 2.4 0.9 凹形自由面
    4 2.4 1.2 凹形自由面
    5 2.4 1.8 凹形自由面
    6 2.4 1.5 凹形自由面 0
    7 2.4 1.5 凹形自由面 15
    8 2.4 1.5 凹形自由面 30
    9 2.4 1.5 凹形自由面 45
    下载: 导出CSV
