碎化炸药缝隙挤压点火模拟实验

胡秋实; 何杨; 仲苏洋; 傅华; 廖深飞

doi:10.11883/bzycj-2024-0269

碎化炸药缝隙挤压点火模拟实验

doi: 10.11883/bzycj-2024-0269

中国工程物理研究院流体物理研究所，四川绵阳 621999

基金项目: 中国工程物理研究院院长基金自立项目（YZJJZL2023014）

详细信息

作者简介:
胡秋实（1984－　），男，博士，助理研究员，qiushihu@126.com

通讯作者:
廖深飞（1985－　），男，博士，副研究员，sfliao@foxmail.com

中图分类号: O381; TJ55
计量
- 文章访问数: 175
- HTML全文浏览量: 16
- PDF下载量: 44
- 被引次数: 0
出版历程
- 收稿日期: 2024-08-11
- 修回日期: 2024-12-13
- 网络出版日期: 2024-12-17

Simulation experiment of ignition response of fragmented explosive under gap extrusion loading

Institute of Fluid Physics, China Academy of Engineering Physics, Mianyang 621999, Sichuan, China

摘要

摘要: 采用造型粉模拟因碰撞过程极度碎化的压装炸药，研究了PBX造型粉缝隙挤压点火行为。基于射弹撞击的方式设计实验，为保证样品在设计的缝隙之外无其他流动空间，在样品表面覆盖垫层及涂抹油脂进行密封，采用高速摄影记录了造型粉挤入缝隙的运动及反应情况。改变缝隙面积和样品截面积的比例，研究了压实效应对点火的影响。结果表明，对于无油脂密封的情况，加载开始后PBX造型粉先历经颗粒破碎和压实，随后压实的造型粉从垫层附近的间隙挤出，挤出过程中发生点火，点火位置在炸药与垫层界面。对于有油脂密封的情况，PBX造型粉在压实后的一段时间内未发生点火，当压头行进到一半行程时，“楔形”滑移区形成，高速相机照片可见明显的滑移区-死区界面，随后变形模式从“单楔形”滑移区向“双楔形”滑移区演化，滑移区-死区界面剪切效应未引发点火。加载后期压头行进到接近缝隙表面，“楔形”滑移区消失，炸药在压头与缝隙发生碰撞的前后时刻分别发生一次点火，第1次点火发生在缝隙入口处，第2次点火发生在压头边角处。压实效应对点火行为有重要影响，造型粉压实后点火速度阈值明显降低，撞击速度仅4.5 m/s即可导致点火。
- 碎化 /
- 造型粉 /
- 高聚物黏结炸药 /
- 缝隙挤压 /
- 点火
Abstract: Modeling powder is used to simulate the highly fragmented state of pressed explosives resulting from collisions, and the gap extrusion ignition behavior of PBX modeling powder is studied. Experiments were designed based on the way of projectile impact method. To ensure that no flow space exists except the designed gap, the surface of the sample was covered with cushion and coated with grease for sealing. The movement and reaction of molding powder squeezing into the gap were recorded by high-speed photography. By changing the ratio of gap area to sample cross-sectional area, the influence of compaction on ignition was studied. The results show that in the absence of grease seal, PBX molding powder undergoes particle crushing and compaction, and then the compacted molding powder is extruded from the clearance near the cushion, and ignition occurs in the extrusion process. The ignition position is at the interface between explosive and cushion. In the case of grease seal, PBX molding powder does not ignite for a period of time after compaction. When the indenter moves halfway, a “wedge-shaped” slip zone is formed, and a slip-dead zone interface could be seen in high-speed camera photos. Then the deformation mode evolves from “single wedge” slip zone to “double wedge” slip zone, and the shear effect of slip-dead zone interface does not cause ignition. At the later stage of loading, the indenter travels close to the gap surface, and the “wedge-shaped” slip zone disappears. Before and after the collision between the indenter and the gap, the explosive ignites once in each instance. The first ignition occurs at the entrance of the gap, and the second ignition occurs at the corner of the indenter. Compaction effect has an important influence on ignition behavior. After compaction, the threshold value of ignition speed is obviously reduced, with the impact speed required to cause ignition being merely 4.5 m/s.
- fragmentation /
- molding powder /
- polymer bonded explosive /
- gap extrusion /
- ignition

HTML全文

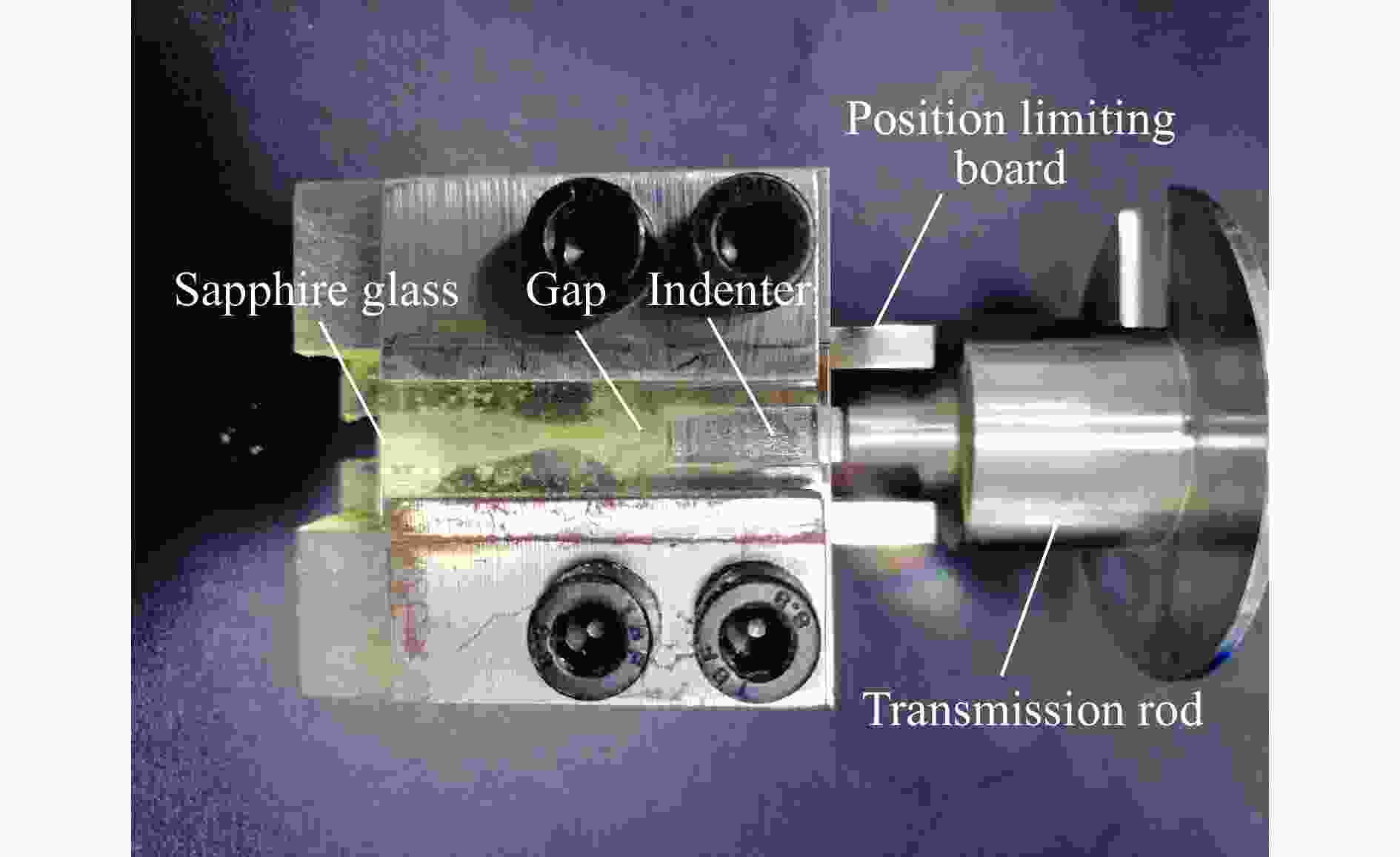

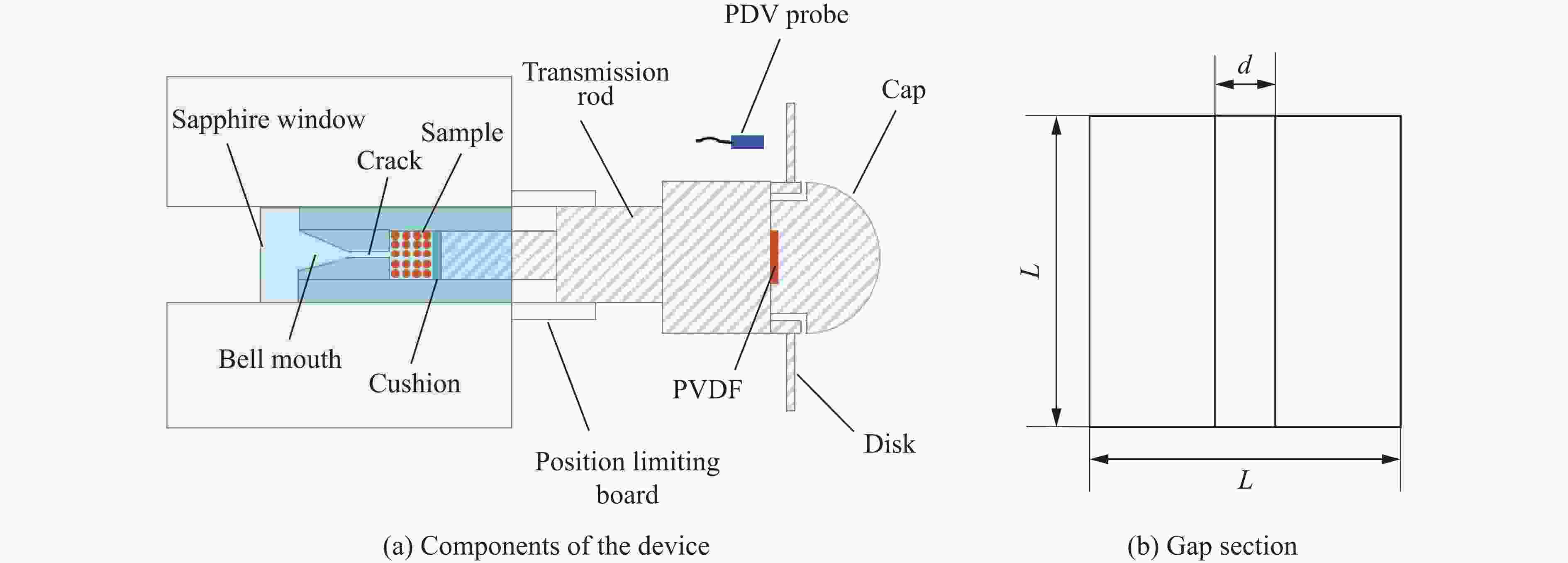

图 1 实验装置

Figure 1. Experimental device

下载: 全尺寸图片幻灯片

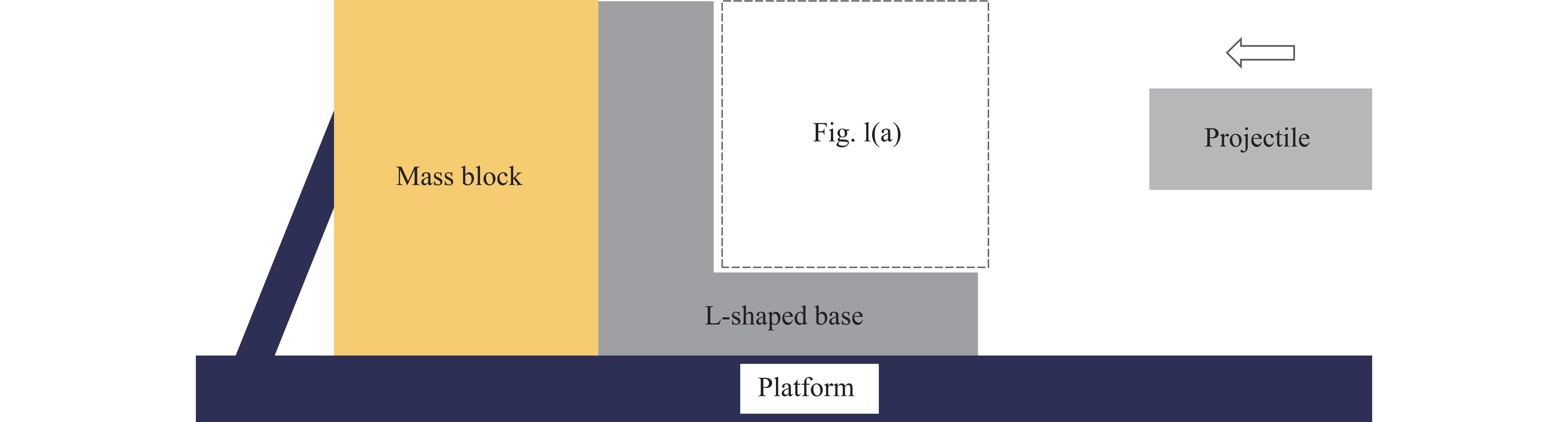

图 2 加载方法示意图

Figure 2. Schematic diagram of loading method

下载: 全尺寸图片幻灯片

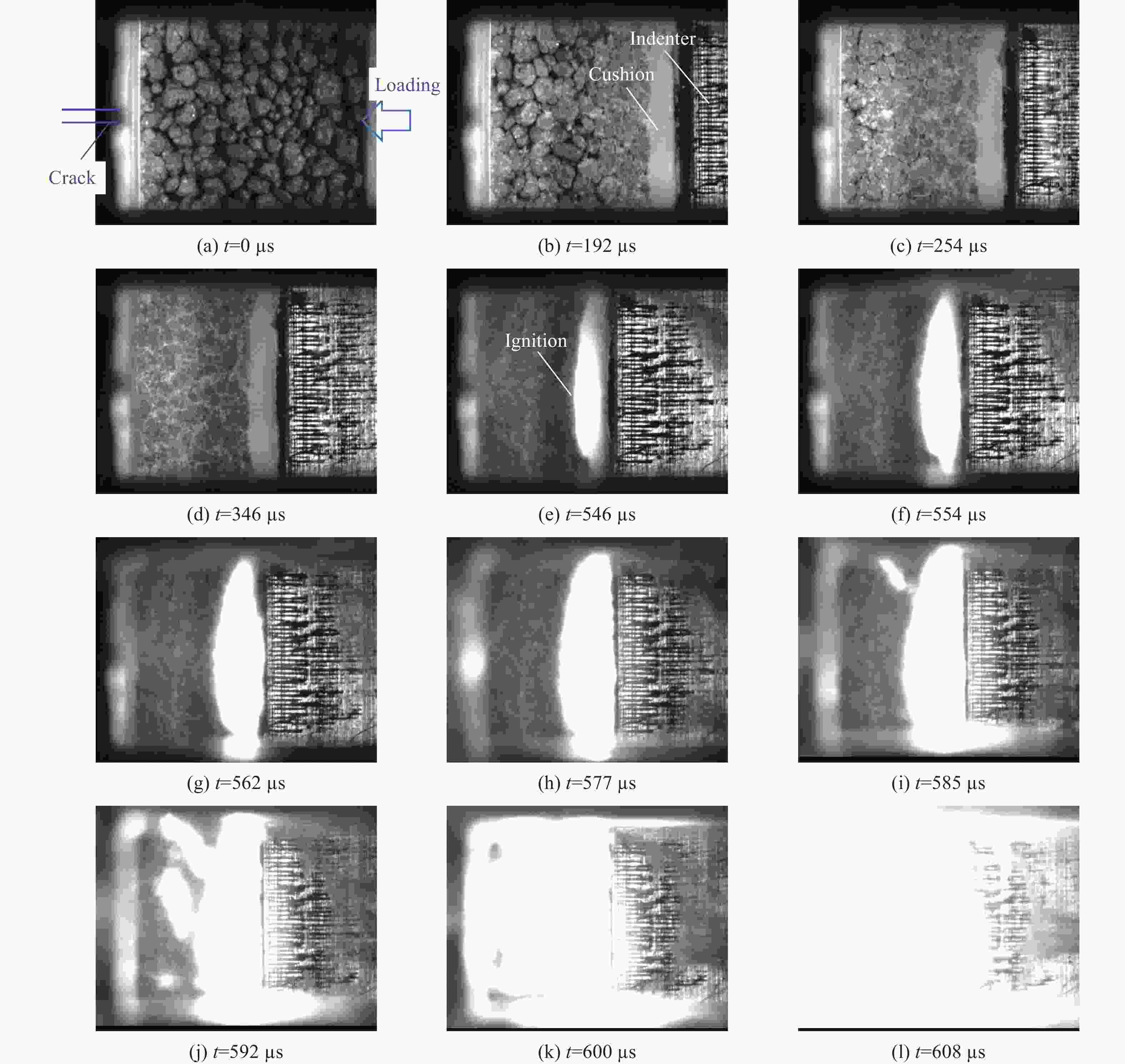

图 3 第1发实验的高速摄影图像

Figure 3. High-speed photographies of Exp. 1

下载: 全尺寸图片幻灯片

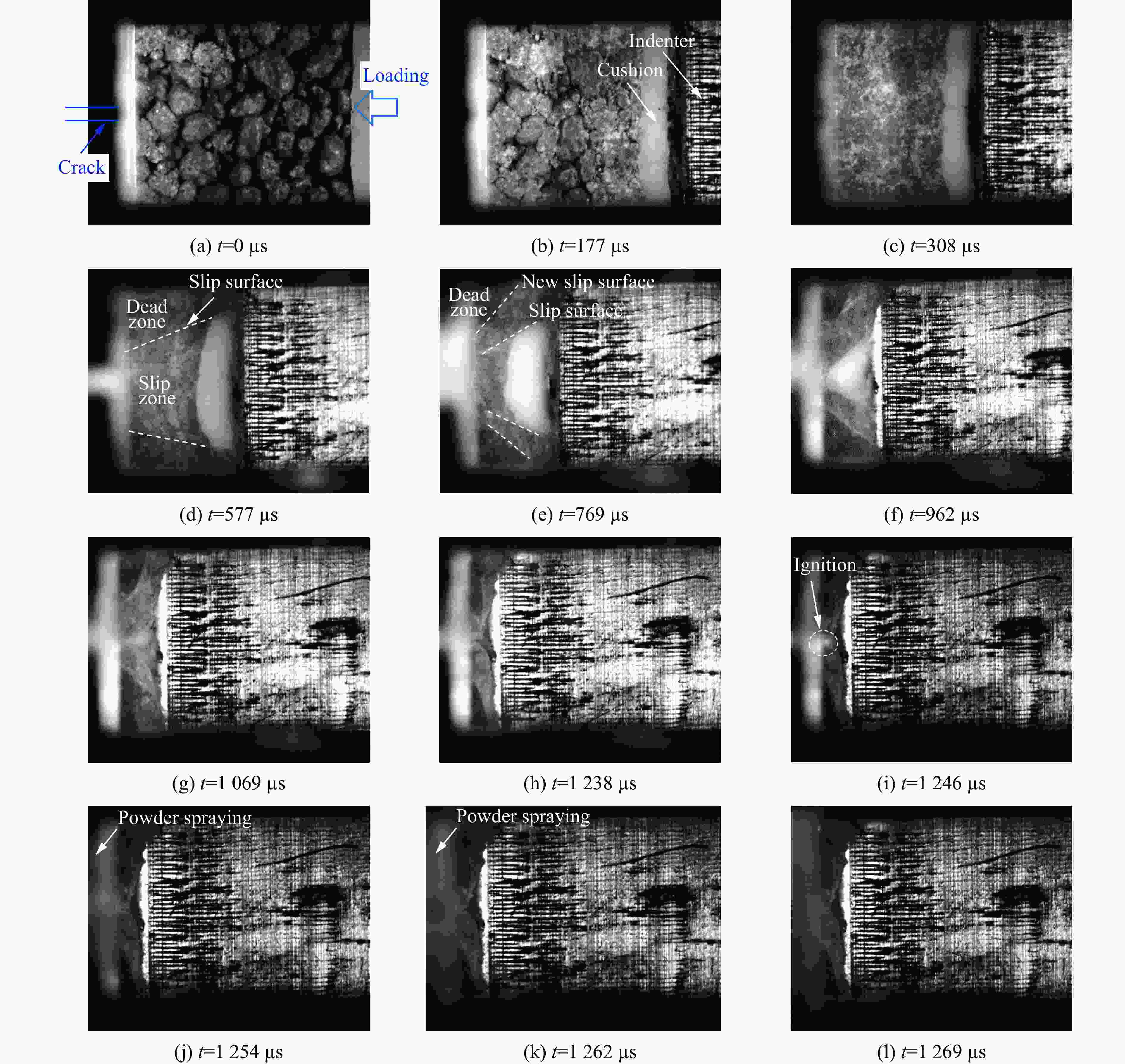

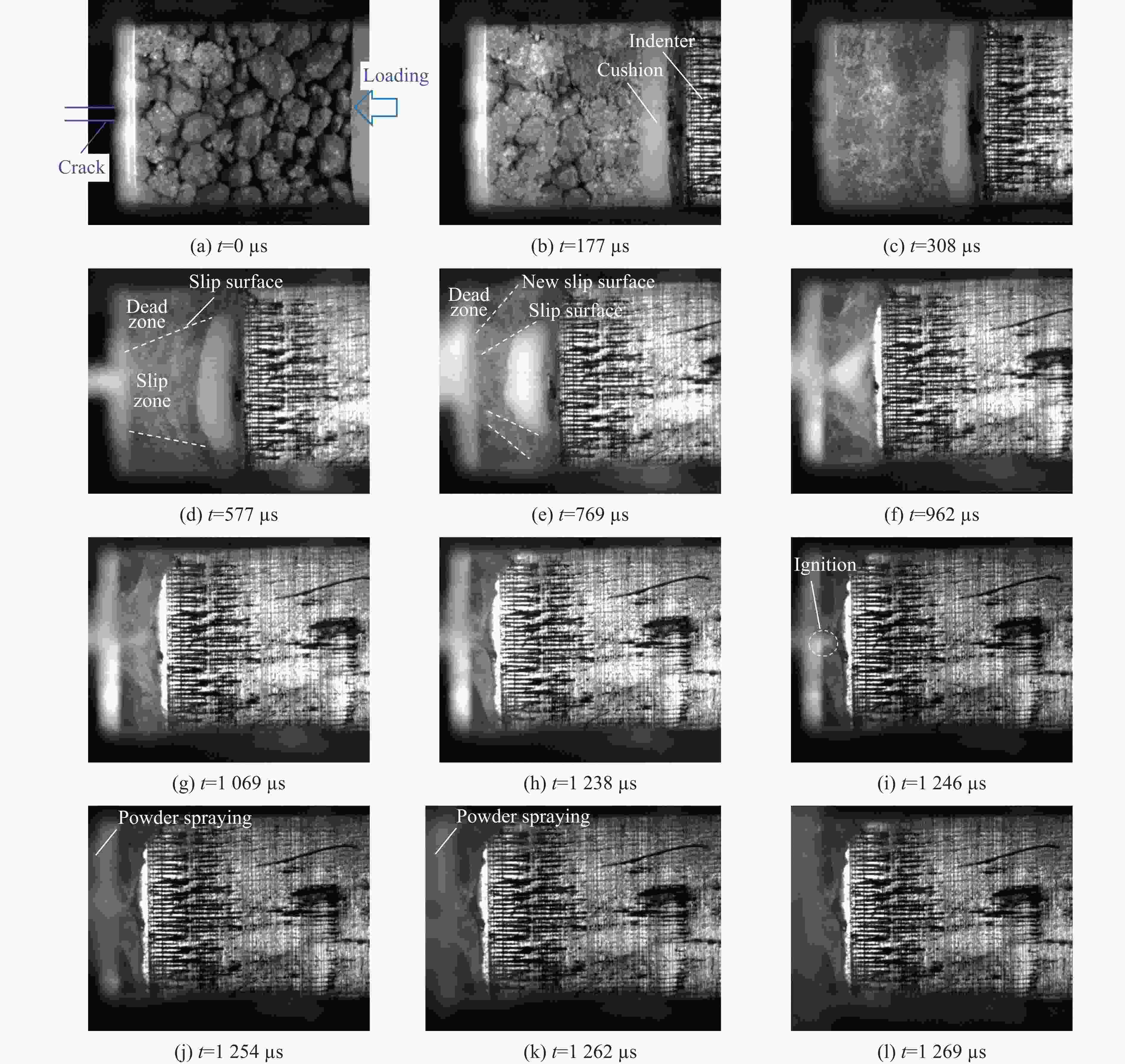

图 4 第2发实验一次点火高速摄影

Figure 4. High-speed photographies of first ignition in Exp. 2

下载: 全尺寸图片幻灯片

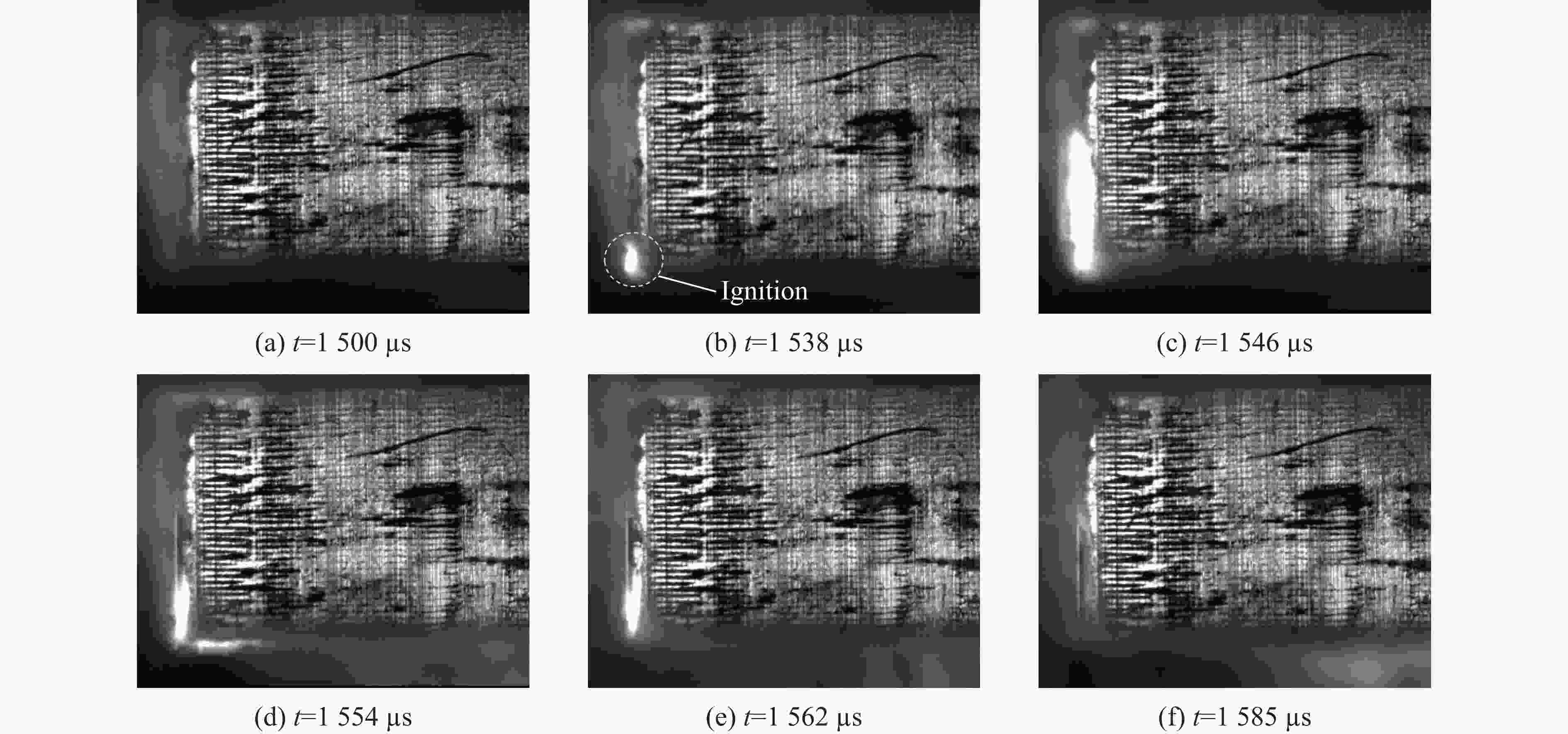

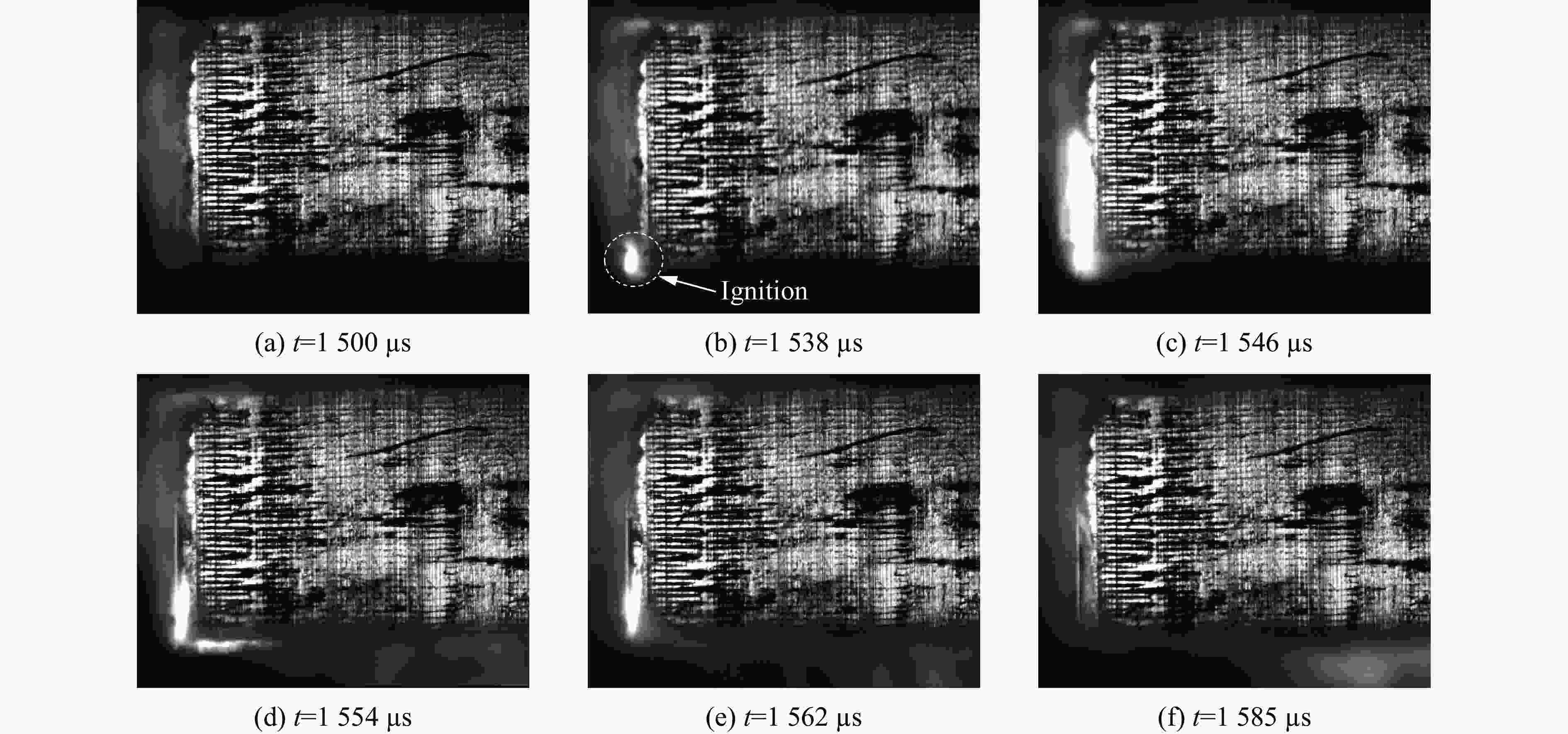

图 5 第2发实验二次点火高速摄影

Figure 5. High-speed photographies of second ignition in Exp. 2

下载: 全尺寸图片幻灯片

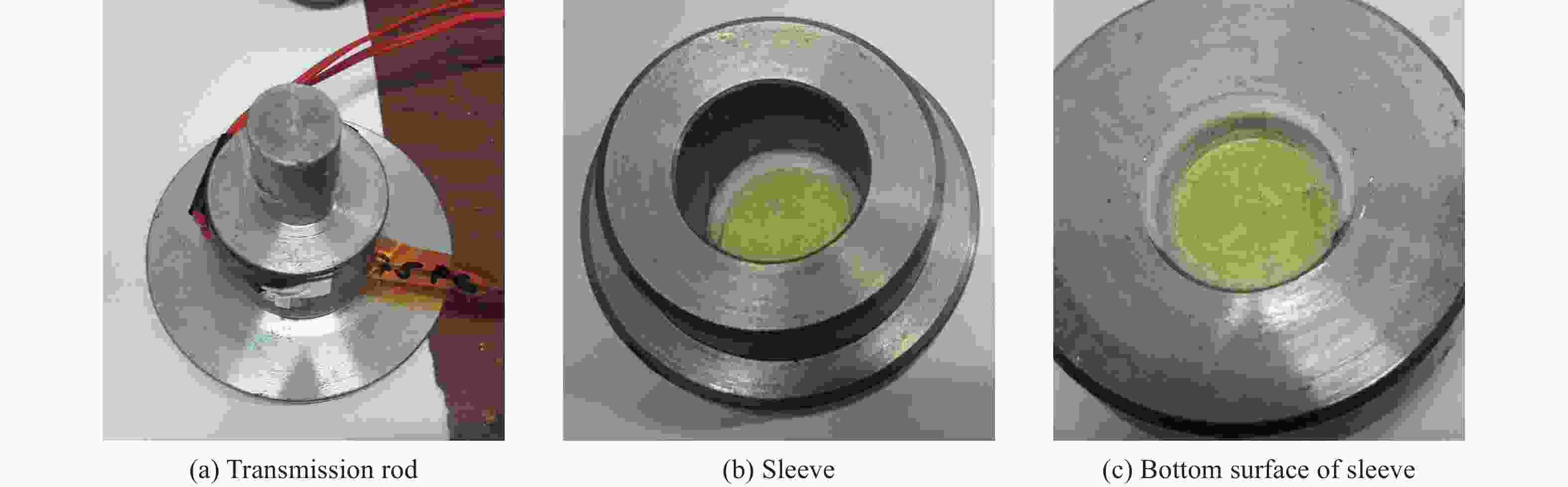

图 6 回收实验装置

Figure 6. Recovery device

下载: 全尺寸图片幻灯片

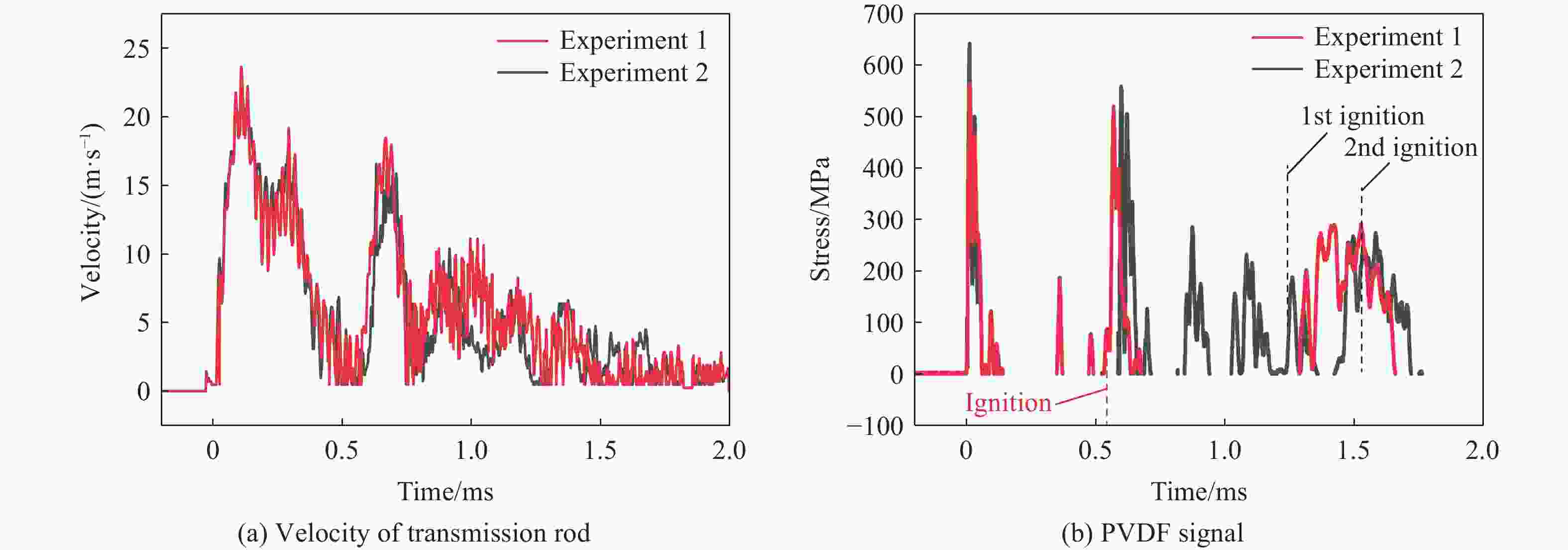

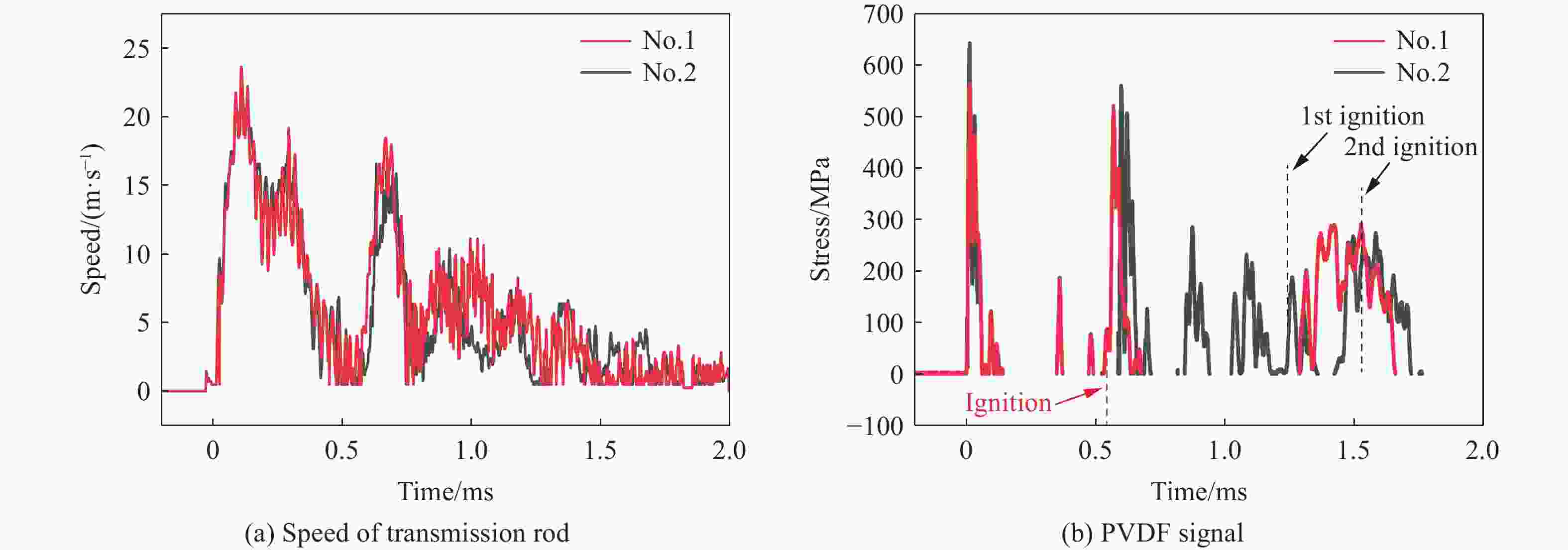

图 7 实验中的速度和压力信号

Figure 7. Velocity and stress signals in experiments

下载: 全尺寸图片幻灯片

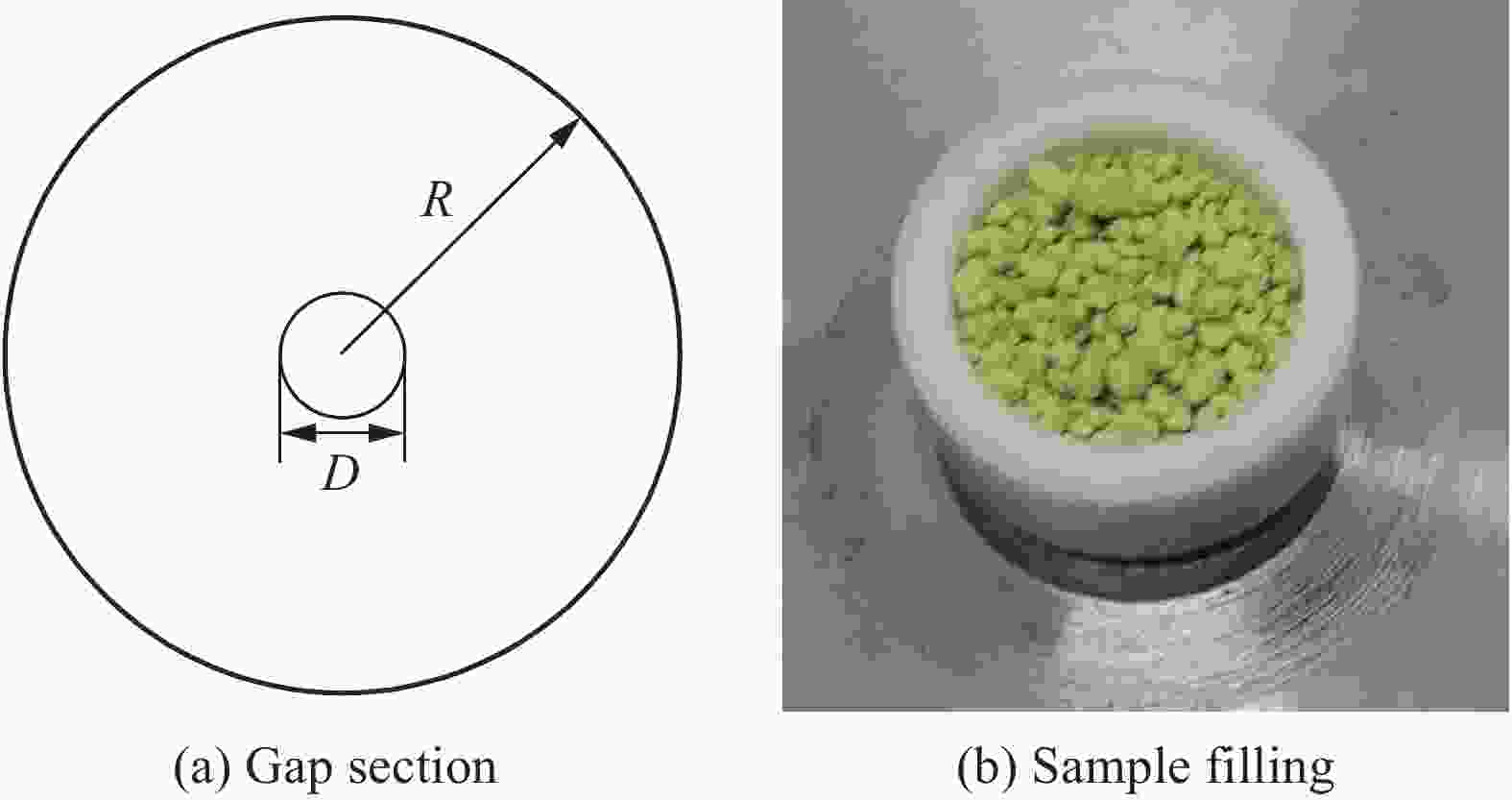

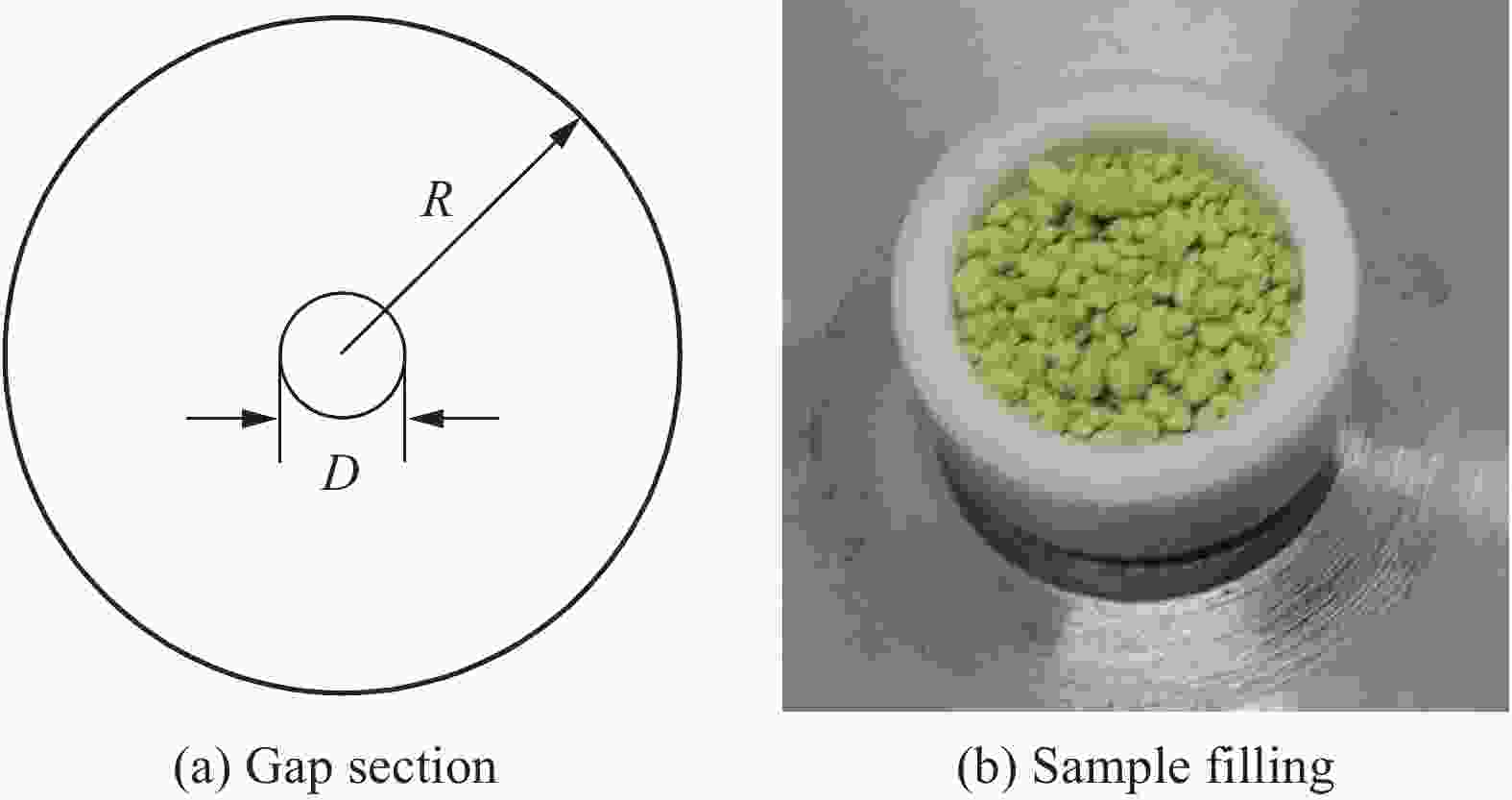

图 8 样品安装情况

Figure 8. Sample installation

下载: 全尺寸图片幻灯片

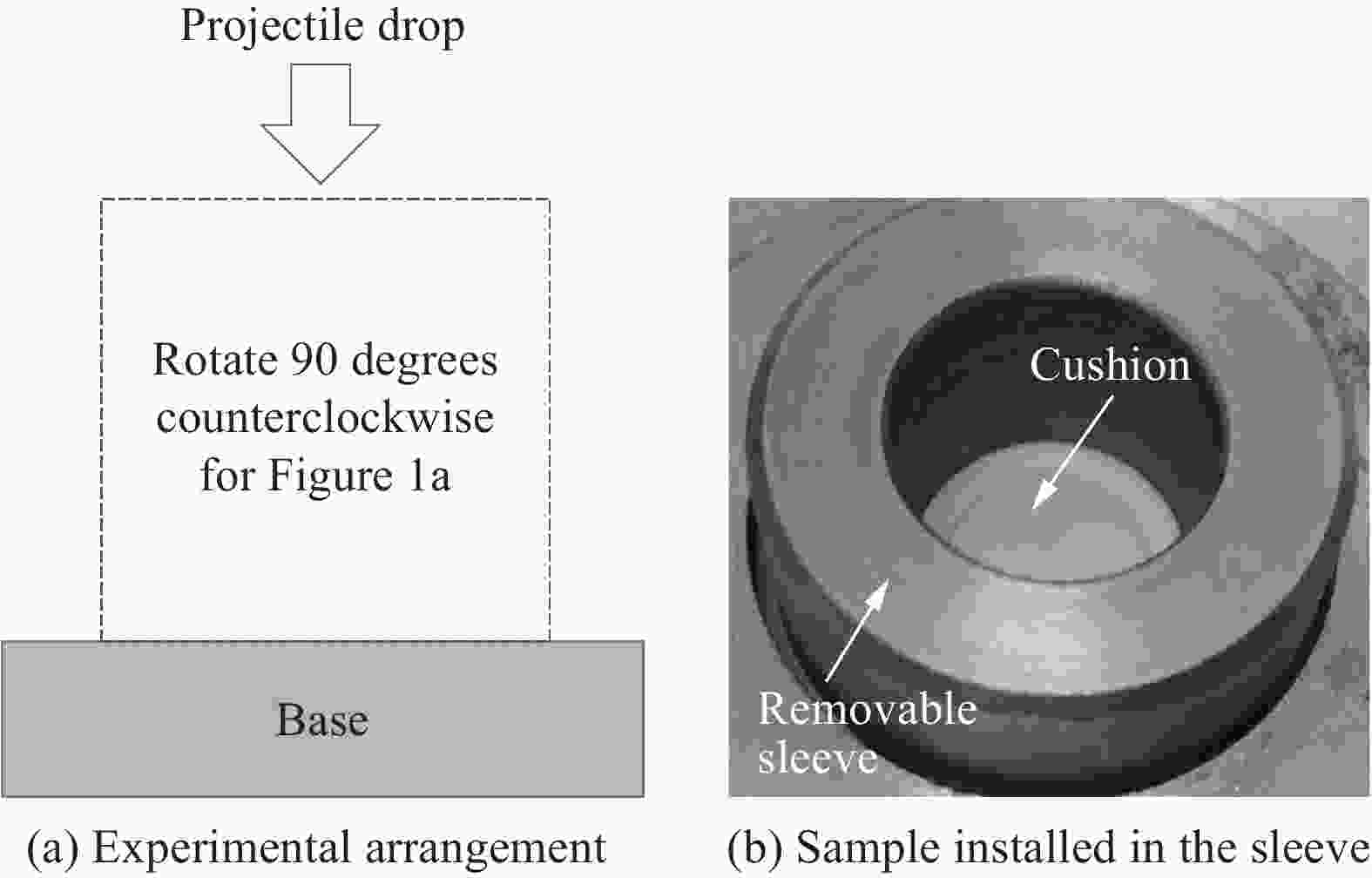

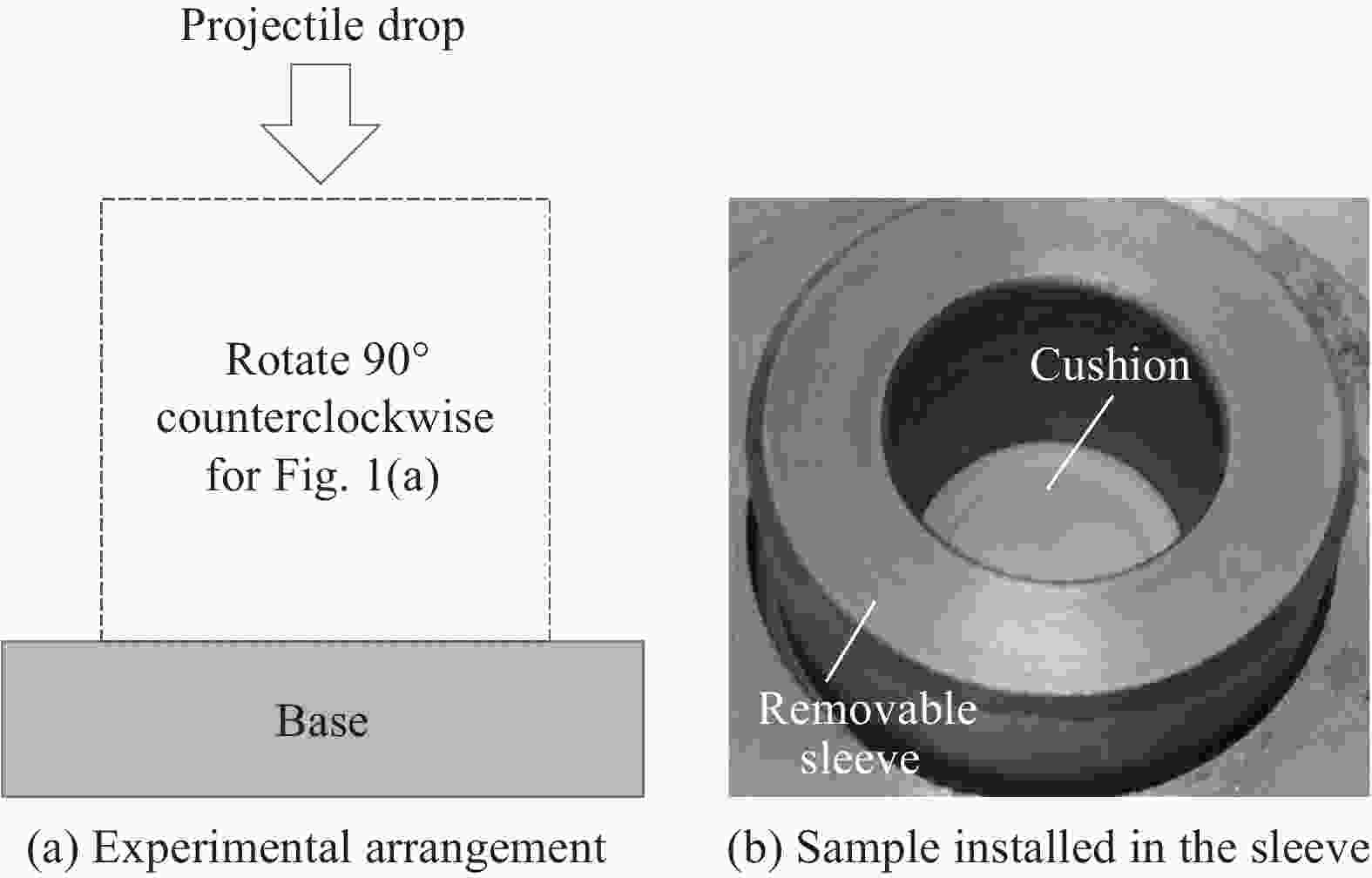

图 9 射弹跌落加载实验

Figure 9. Projectile drop loading experiment

下载: 全尺寸图片幻灯片

图 10 实验回收情况

Figure 10. Recovery of experiment

下载: 全尺寸图片幻灯片

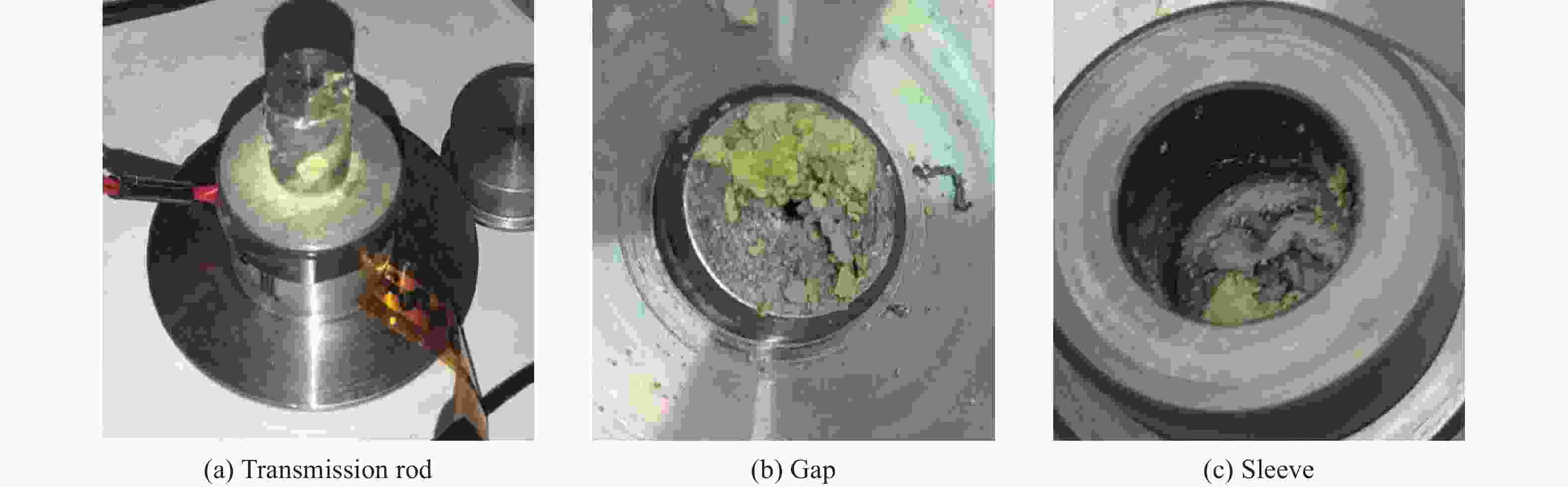

图 11 样品二次加载回收情况

Figure 11. Sample recovery after secondary loading

下载: 全尺寸图片幻灯片
