摘要:

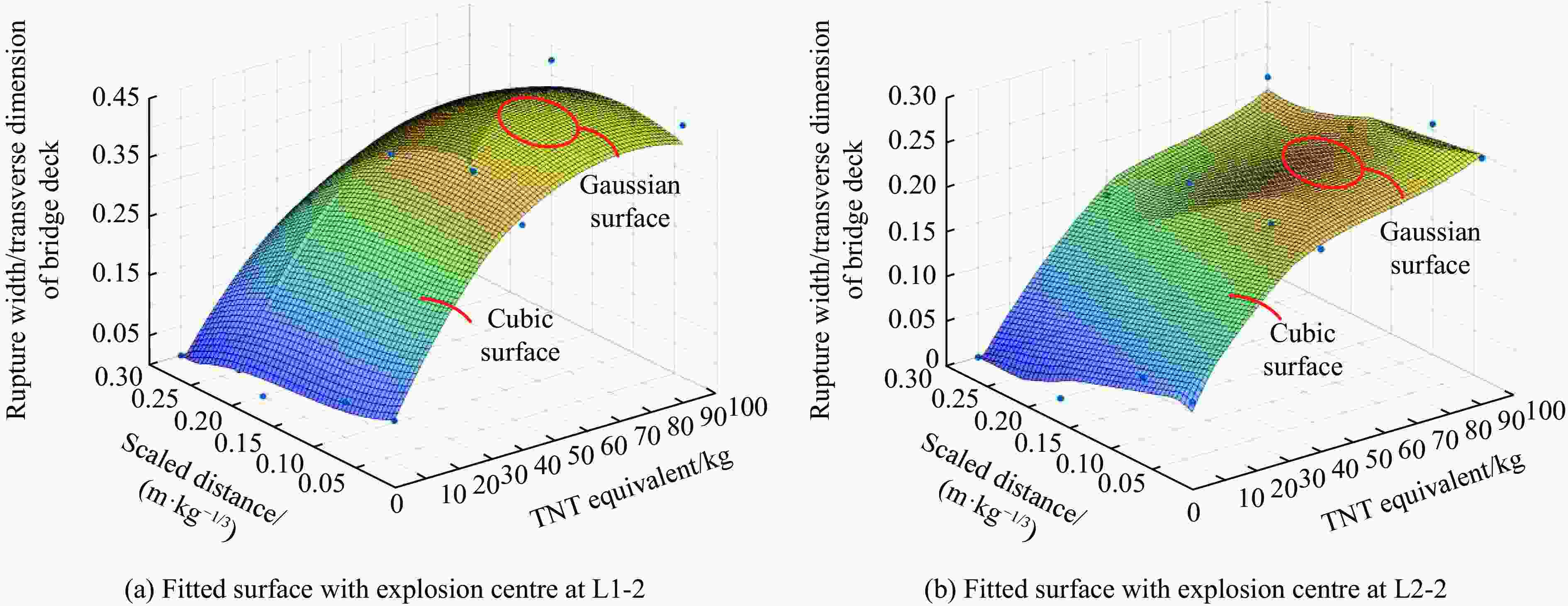

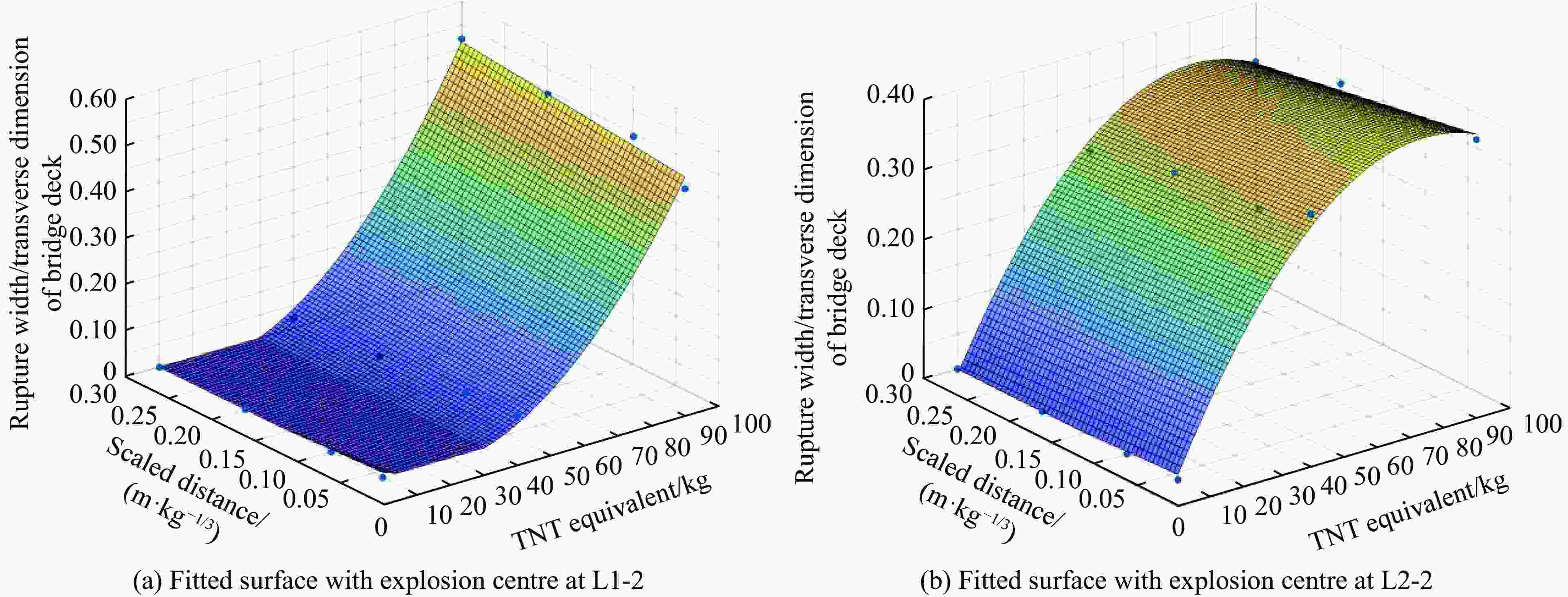

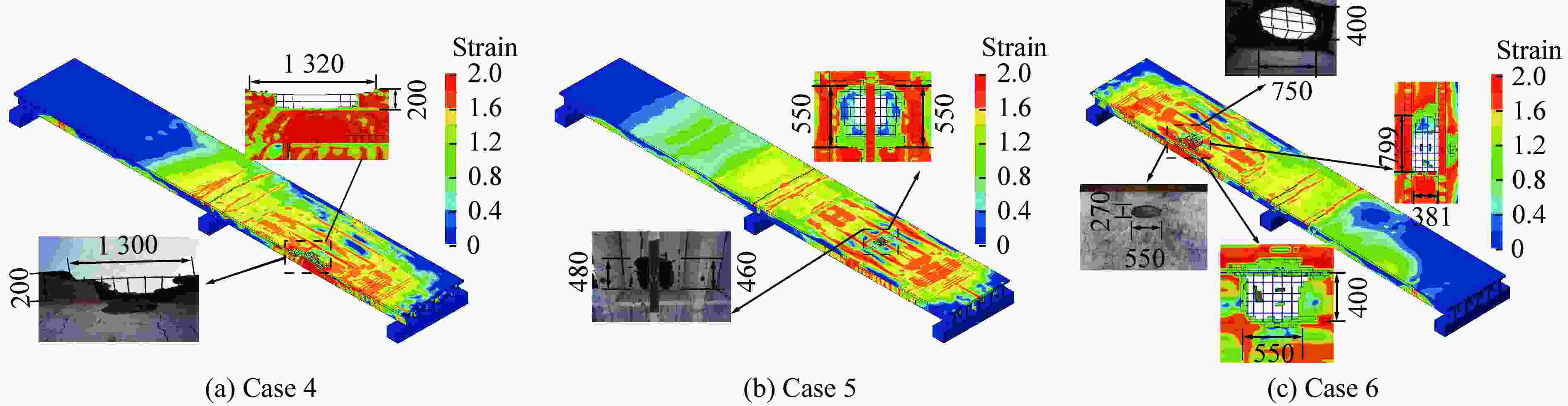

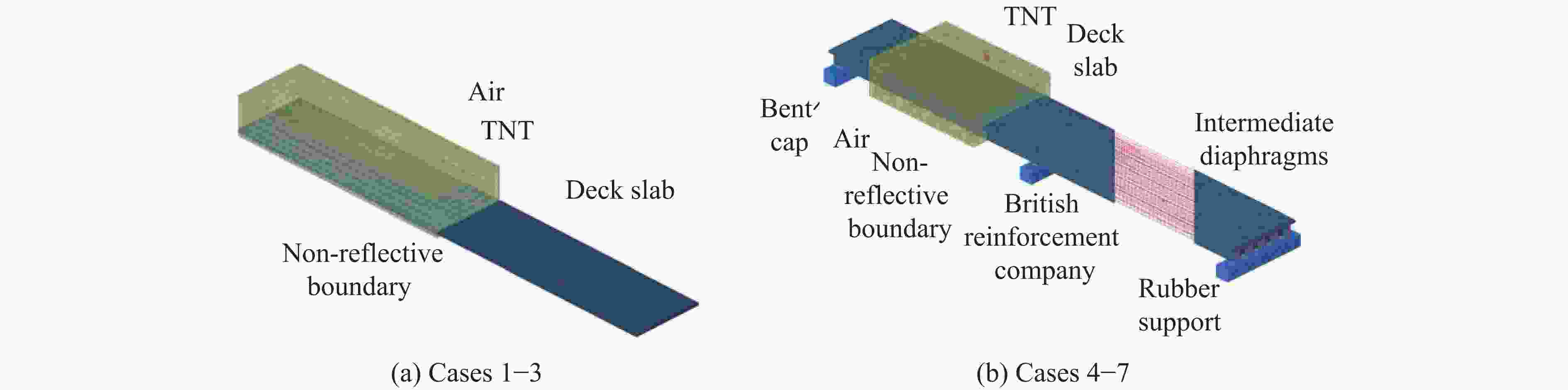

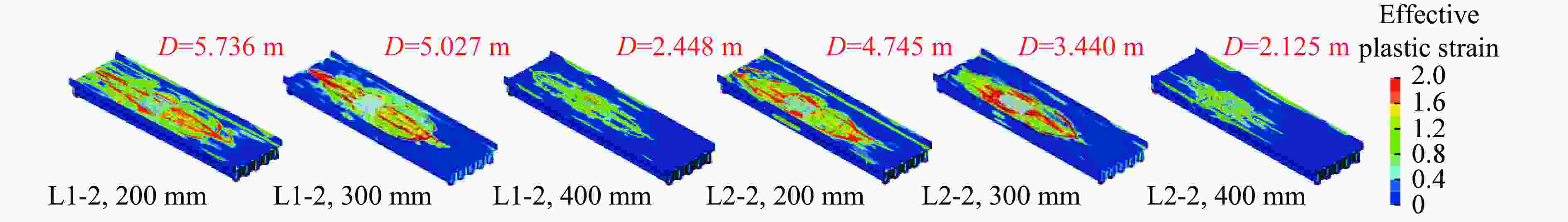

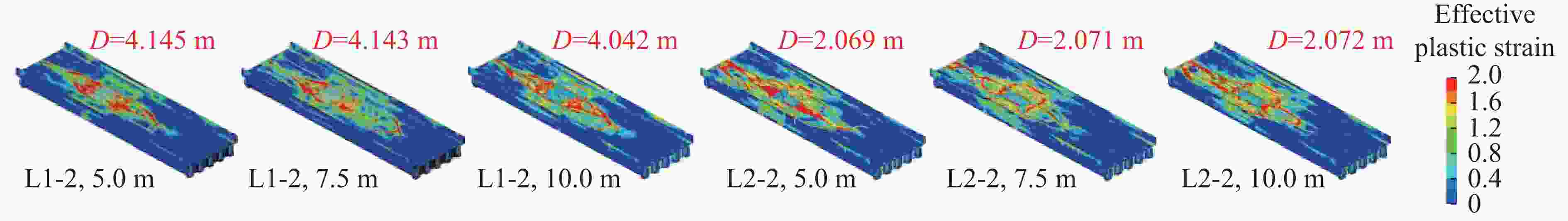

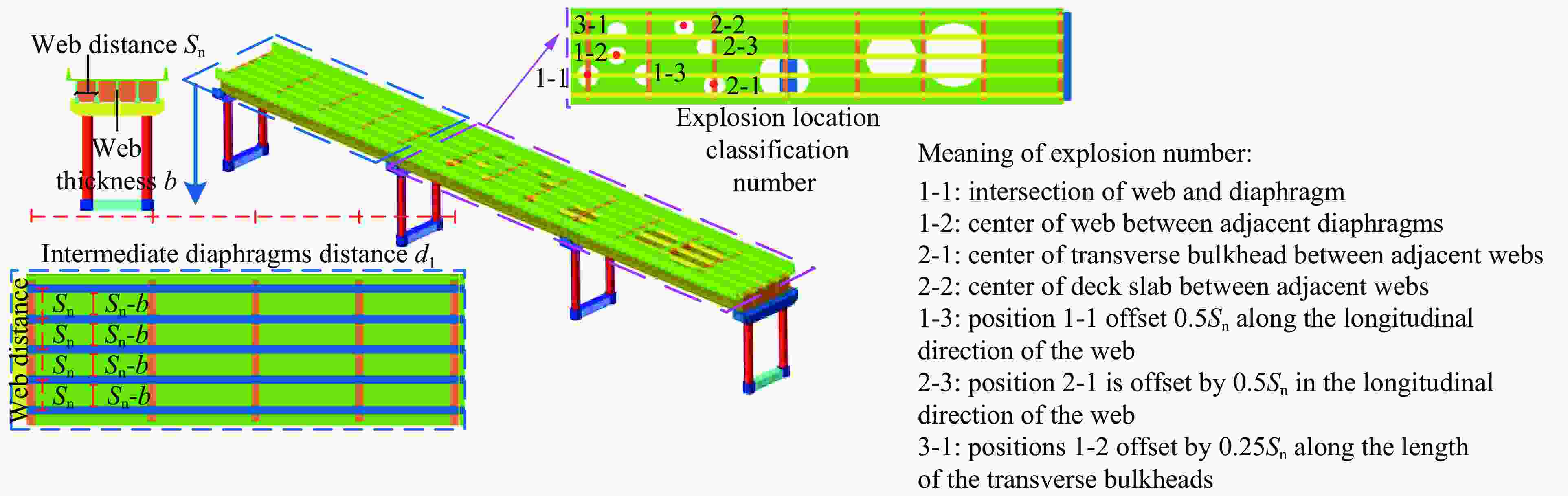

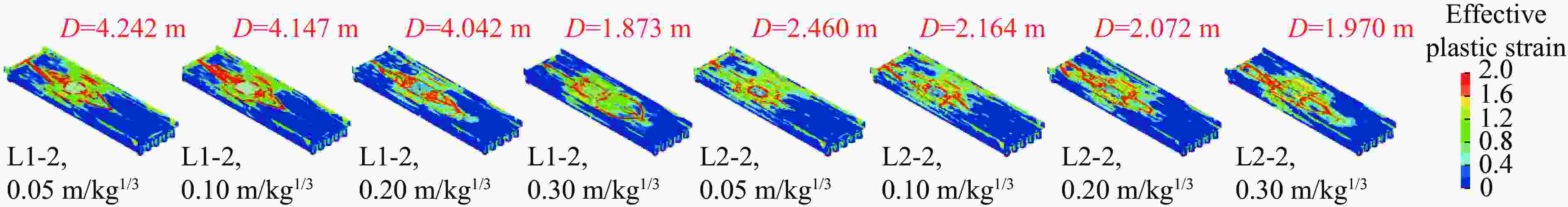

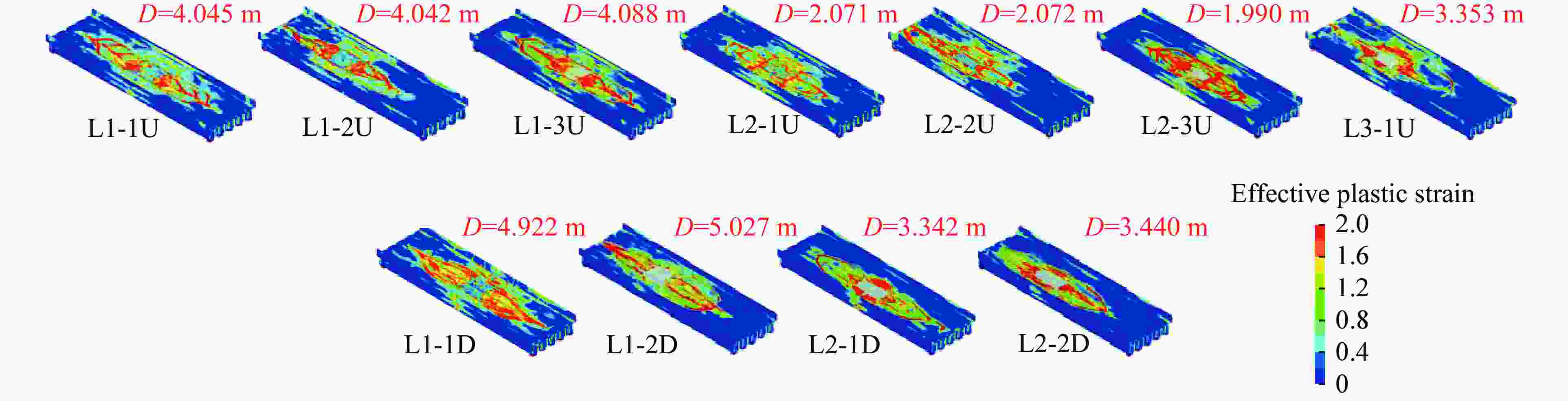

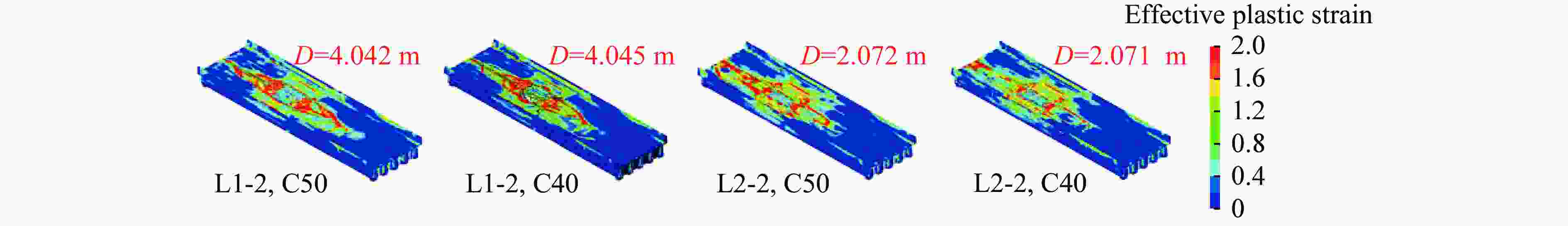

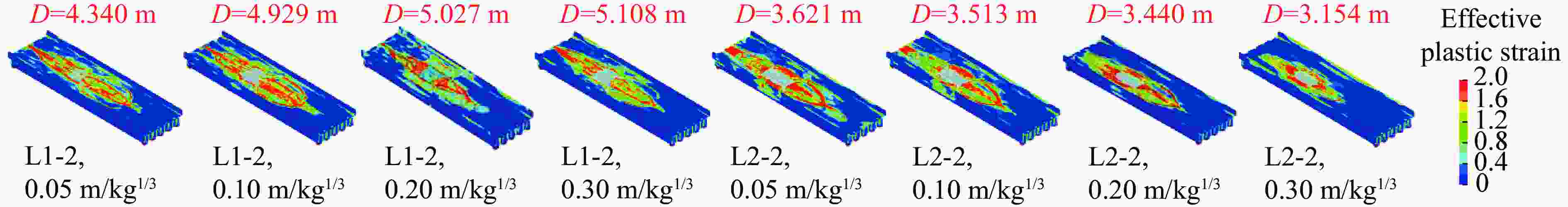

预应力钢筋混凝土(RC)T型梁桥在公路桥梁中较为常见,爆炸袭击后的桥面损伤多以破口形式存在并影响其通行能力,但已有桥梁爆炸损伤评估研究主要关注RC梁桥墩柱与主梁的炸后残余承载力,缺乏更为直观且快速判断桥梁通行能力的损伤评估方法。对此,本文以预应力RC T型梁桥桥面板经爆炸荷载作用后的破口尺寸为损伤指标,基于数值模拟与多元非线性回归分析开展桥面损伤快速评估研究。结果表明:通过比较爆炸作用下的桥面板破口横向尺寸,发现混凝土强度的影响较小,而爆炸位置、桥面厚度、横隔板间距、TNT当量和比例爆距等参数影响较大;由于腹板与横隔板对桥面板具有较强增强和约束作用,其他相同工况下,在腹板与横隔板之间的桥面板上方爆炸产生的破口横向尺寸明显小于腹板正上方爆炸产生的,桥上爆炸的损伤程度明显小于桥下爆炸的。进一步,基于上述影响较大的参数,提出以破口横向尺寸为损伤指标,建立预测桥梁炸后通行能力的爆炸快速损伤评估公式。
Abstract:
Prestressed reinforced concrete (RC) T-beam bridges are more common in highway bridges, the bridge deck damage after the explosion attack is mostly in the form of a breach and affects its ability to pass, but the existing bridge explosion damage assessment studies are mainly concerned about the RC beam bridge piers and columns and the main girder of the post-blast residual bearing capacity, the lack of a more intuitive and rapid judgement of the bridge ability to assess the damage assessment method. In this regard, this paper to pre-stressed RC T-beam bridge deck plate by the explosion load after the breach size as a damage indicator, based on numerical simulation and multivariate nonlinear regression analysis to carry out rapid assessment of bridge deck damage research. The results show that: by comparing the transverse dimensions of the breach in the bridge deck under the action of the explosion, it is found that the influence of concrete strength is relatively small, while the explosion location, deck thickness, spacing of diaphragms, TNT equivalent and proportional blast distance and other parameters have a greater impact; due to the web and diaphragms have a strong enhancement and constraint effect on the bridge deck, under the same conditions, the transverse dimensions of the breach produced by the explosion on top of the deck between the web and the diaphragms are significantly smaller than those directly above the web and the diaphragms. Size is significantly smaller than that produced by the explosion directly above the web, the damage degree of the explosion on the bridge is significantly smaller than that of the explosion under the bridge. Further, based on the above parameters that have a greater impact, it is proposed to use the transverse dimensions of the breach as a damage indicator, the establishment of a rapid damage assessment formula for predicting the capacity of the bridge after the explosion.
