地应力对岩体预裂爆破成缝过程的影响

马泗洲 蒋海明 刘科伟 王明洋

马泗洲, 蒋海明, 刘科伟, 王明洋. 地应力对岩体预裂爆破成缝过程的影响[J]. 爆炸与冲击. doi: 10.11883/bzycj-2024-0365
引用本文: 马泗洲, 蒋海明, 刘科伟, 王明洋. 地应力对岩体预裂爆破成缝过程的影响[J]. 爆炸与冲击. doi: 10.11883/bzycj-2024-0365
MA Sizhou, JIANG Haiming, LIU Kewei, WANG Mingyang. Effect of in-situ stress on fracture formation process of rock mass in presplit blasting[J]. Explosion And Shock Waves. doi: 10.11883/bzycj-2024-0365
Citation: MA Sizhou, JIANG Haiming, LIU Kewei, WANG Mingyang. Effect of in-situ stress on fracture formation process of rock mass in presplit blasting[J]. Explosion And Shock Waves. doi: 10.11883/bzycj-2024-0365

地应力对岩体预裂爆破成缝过程的影响

doi: 10.11883/bzycj-2024-0365
基金项目: 国家自然科学基金(42102331, 52334003, 52274249, 51974360)
详细信息
    作者简介:

    马泗洲(1995- ),男,博士研究生,sizhou_ma@126.com

    通讯作者:

    蒋海明(1989- ),男,博士,副教授,jhm2002@163.com

  • 中图分类号: O383

Effect of in-situ stress on fracture formation process of rock mass in presplit blasting

  • 摘要: 基于弹性力学平面应变问题假设,建立了地应力下岩体预裂爆破理论模型。通过Laplace变换和数值反演的方法分析了爆炸应力波的衰减规律,讨论了地应力对岩体预裂爆破应力场分布的影响。此外,采用显式动力学有限元方法,模拟了静水压力和非静水压力条件下岩体预裂爆破的压力演化过程和裂纹扩展行为,并通过Hough变换的方法定量表征了爆炸裂纹的分布特征。研究结果表明:深部岩体预裂爆破成缝困难主要是由于地应力削弱了爆炸引起的切向拉应力作用,孔间岩体质点因切向位移受限而无法形成拉伸破裂面,拉伸破裂成缝机制通过切向拉应力演化和质点位移矢量变化得以验证。基于应力波叠加破坏理论提出的预裂爆破孔间成缝准则可以预测岩体孔间裂纹是否贯穿,得到不同地应力条件下装药直径和孔距的关系可用于指导预裂孔布置方式,从而为深部岩体预裂爆破提供理论指导。

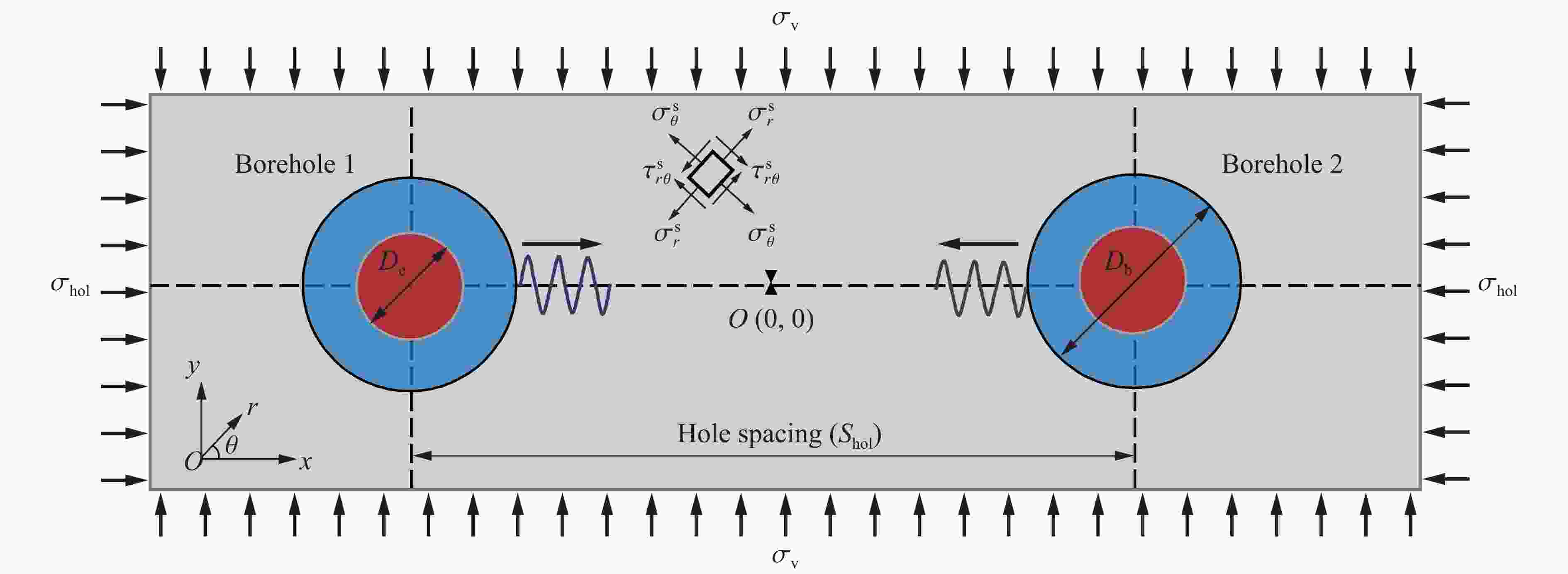

  • 图  1  预裂爆破理论模型示意图

    Figure  1.  Schematic diagram of theoretical model for presplit blasting

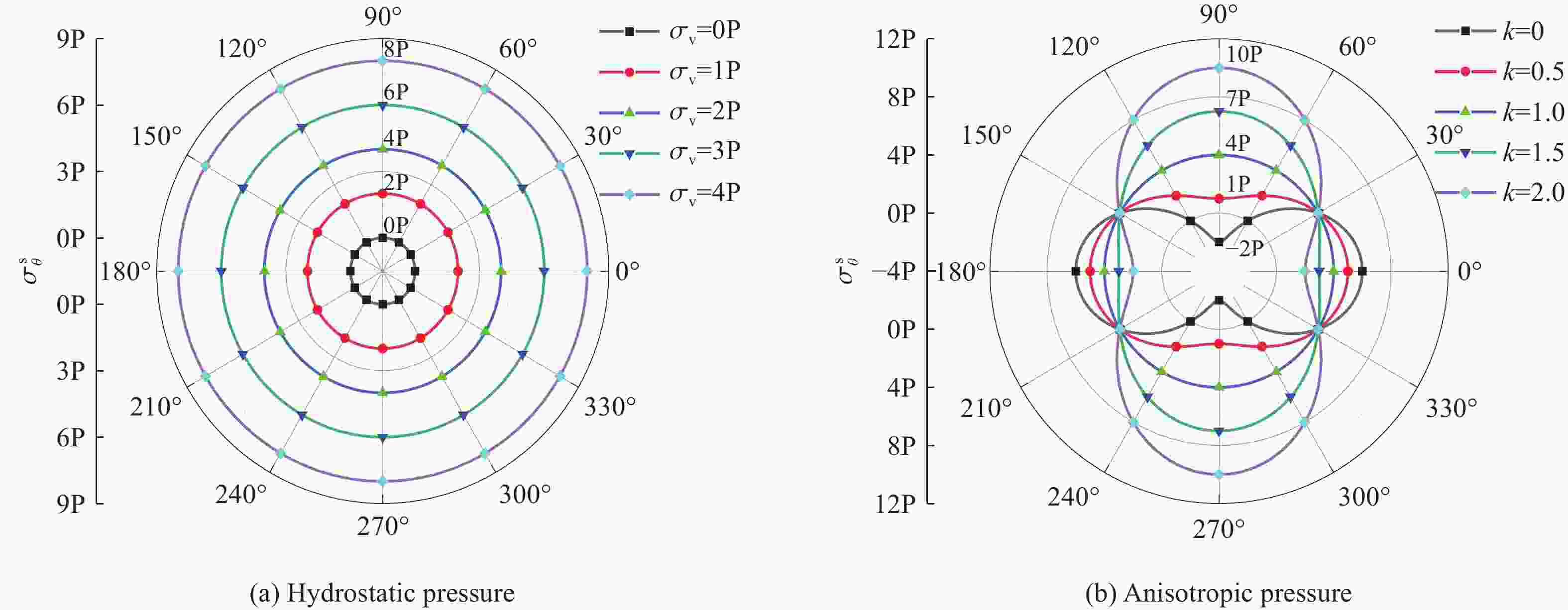

    图  2  地应力作用下炮孔周边切向应力分布

    Figure  2.  Tangential stress distribution around the borehole under in-situ stress

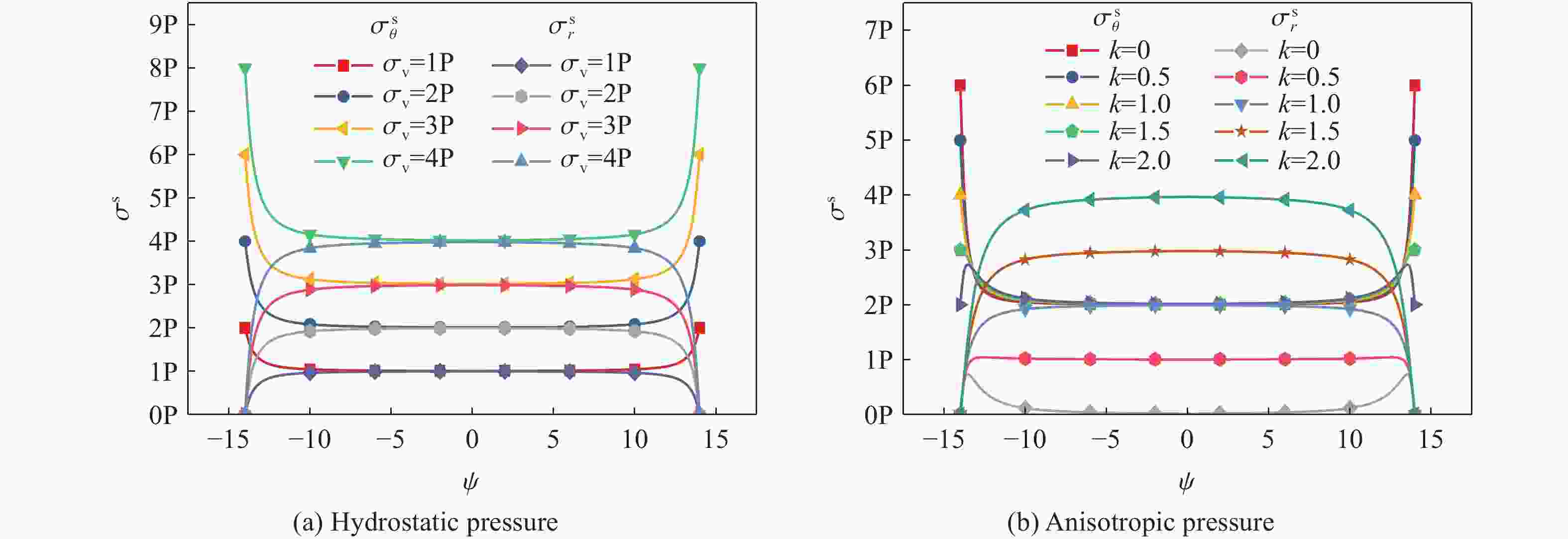

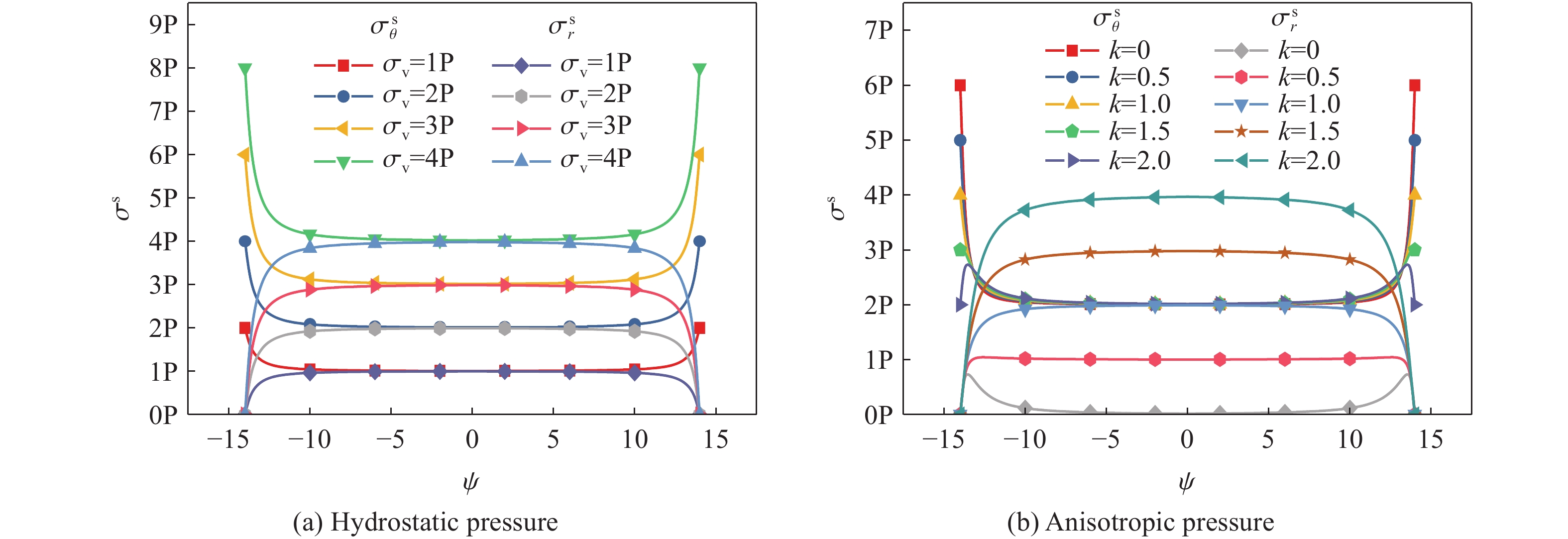

    图  3  炮孔中心连线方向上静态应力分布

    Figure  3.  Static stress distribution along the center line of two boreholes

    图  4  不同爆破荷载下动态切向应力演化

    Figure  4.  Evolution of the tangential stress under different blasting loads

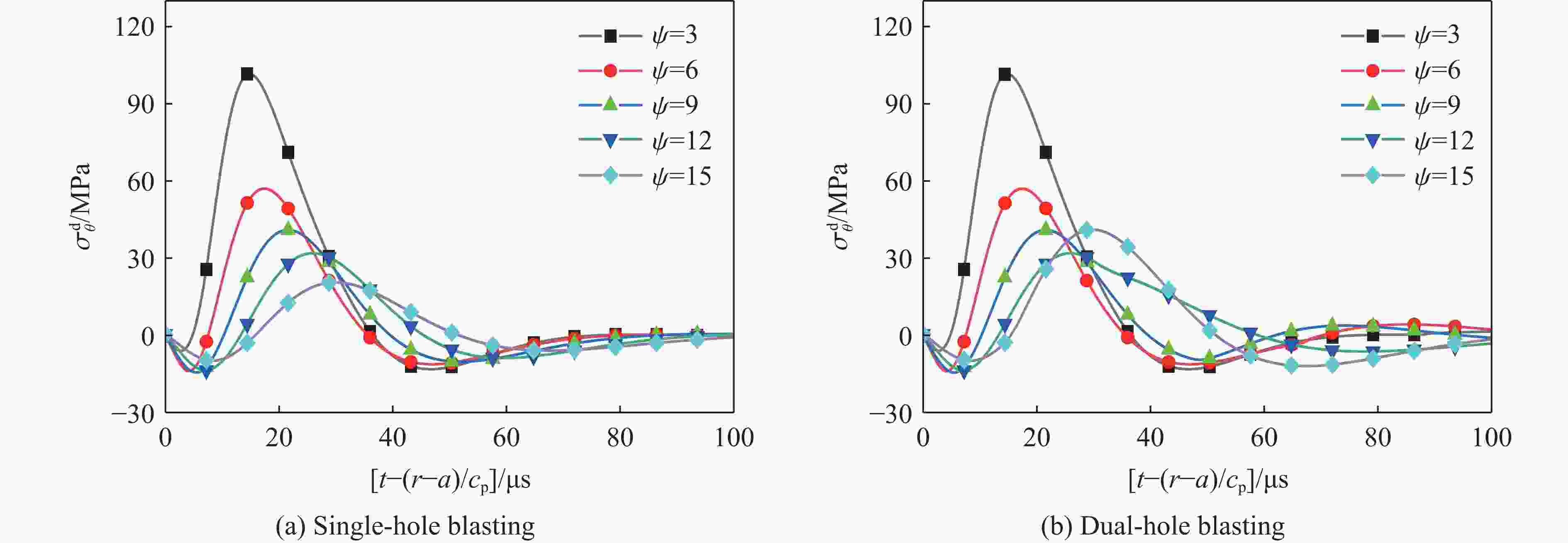

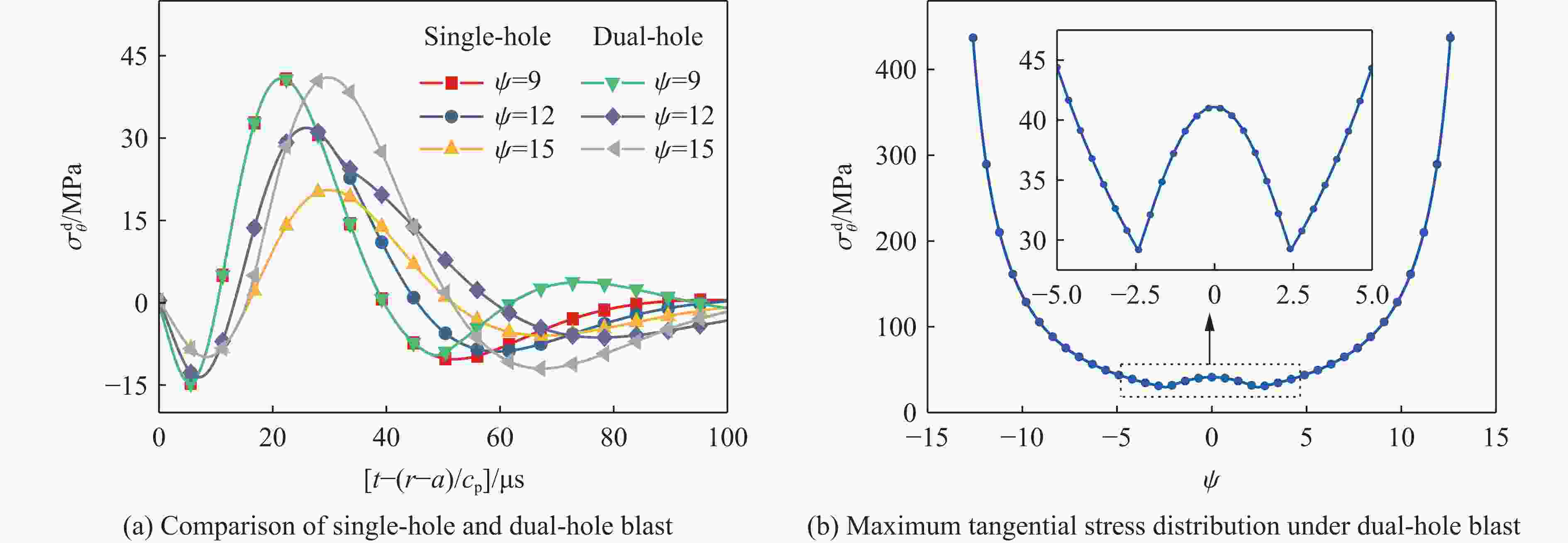

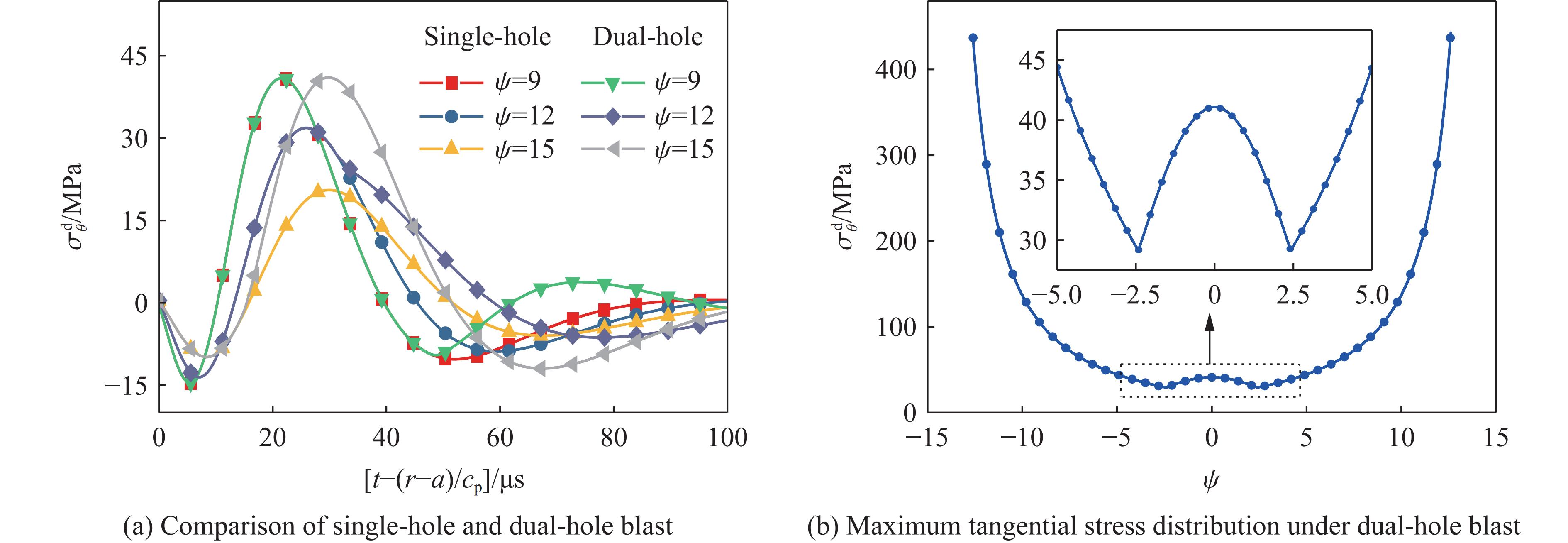

    图  5  动态切向应力的比较与孔间峰值应力分布

    Figure  5.  Dynamic tangential stresses and distribution of maximum stress in adjacent holes

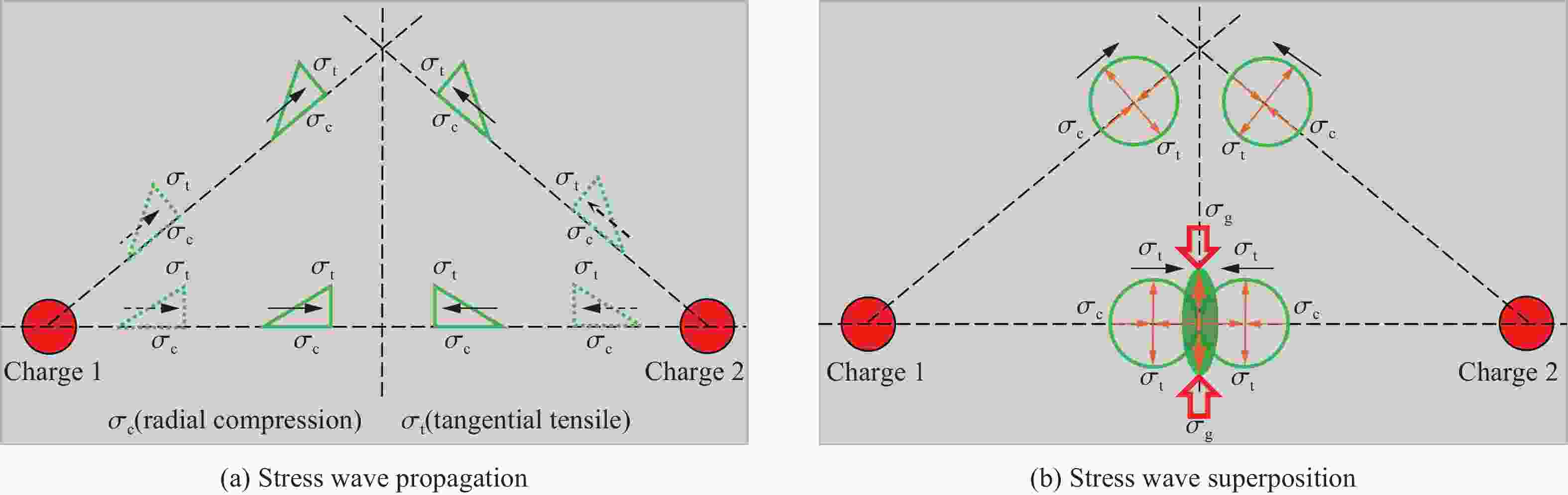

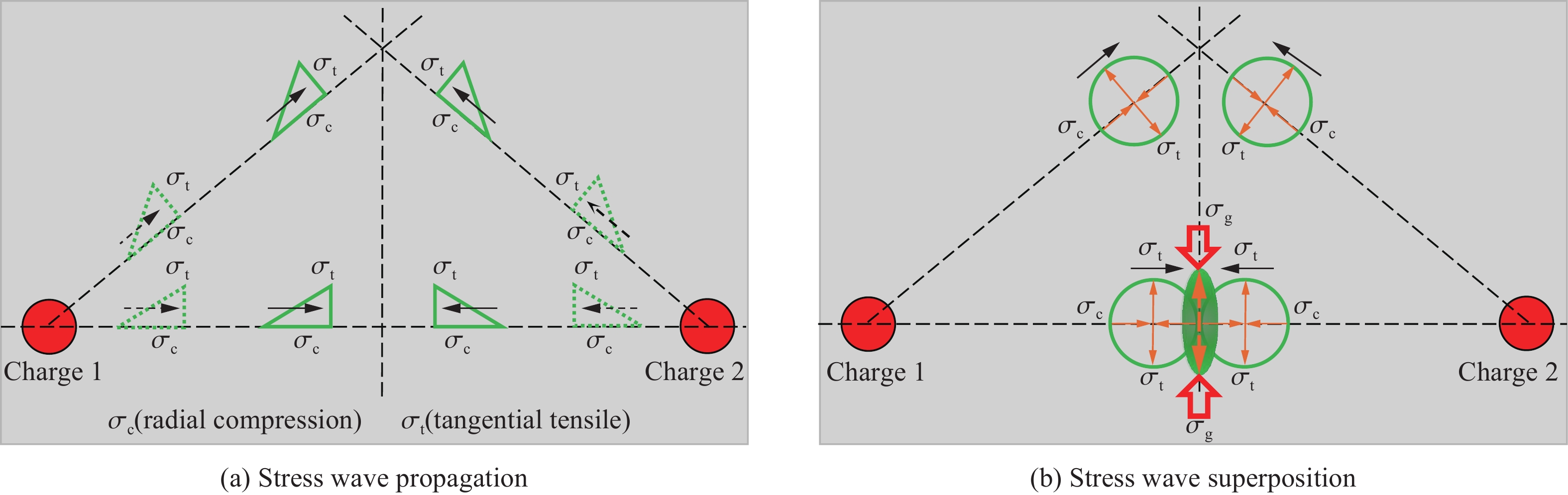

    图  6  相邻炮孔间应力波传播和叠加示意图

    Figure  6.  Diagrams of stress wave propagation and superposition in adjacent holes

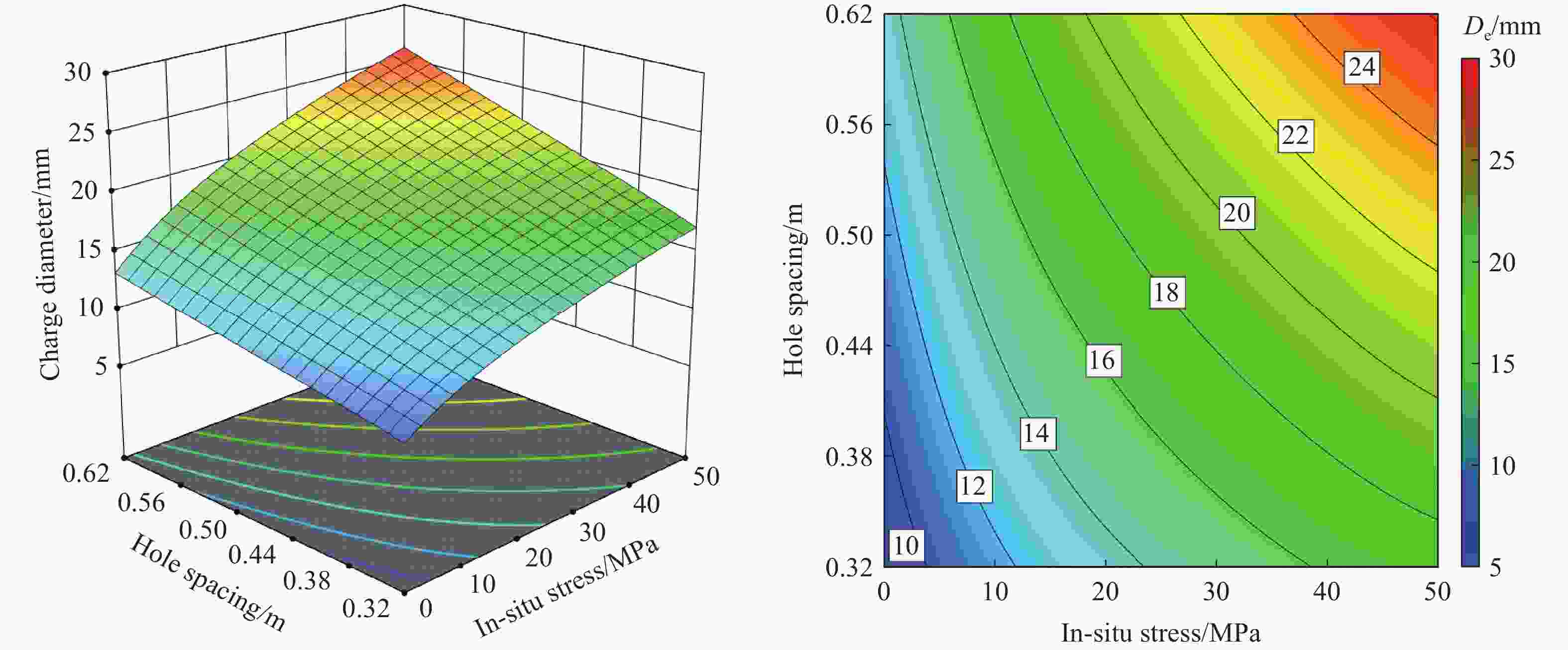

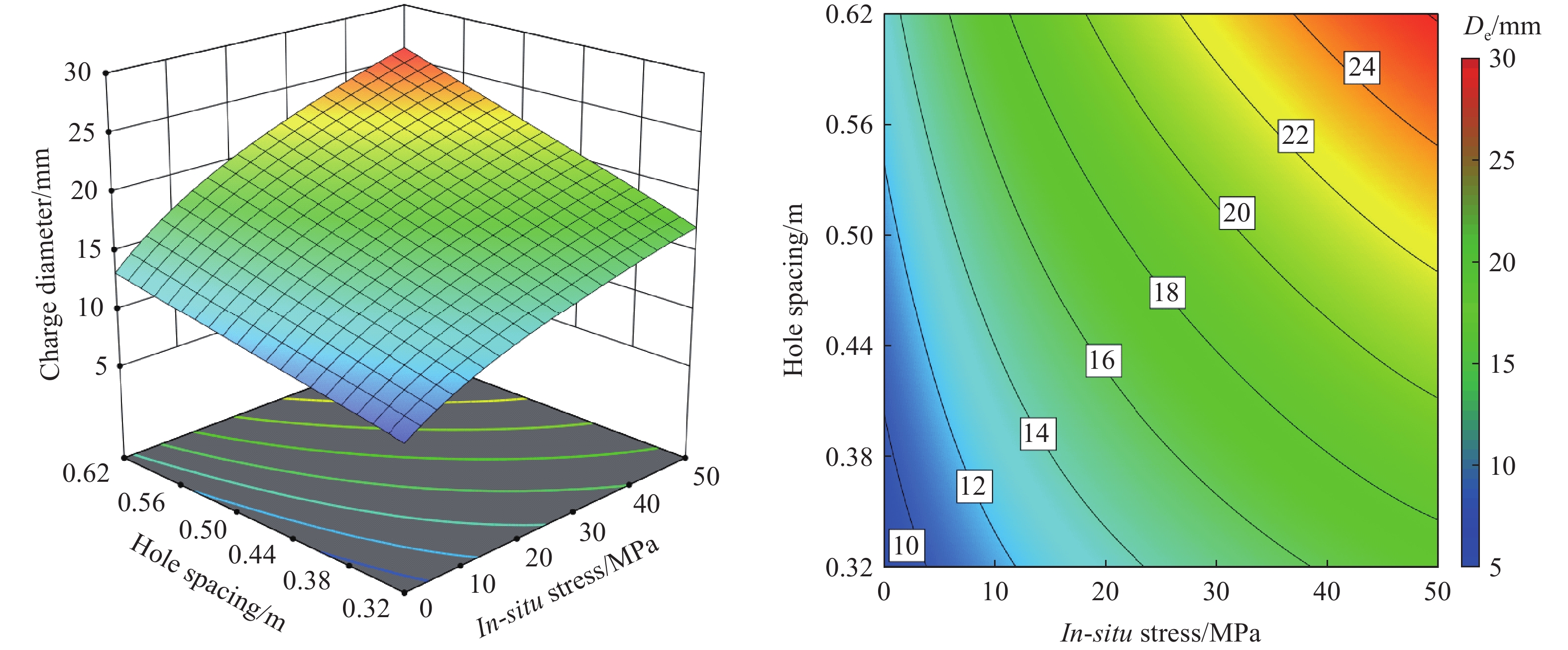

    图  7  不同地应力下孔距与装药直径之间的关系

    Figure  7.  Relationship between hole spacing and charge diameter under different in-situ stresses

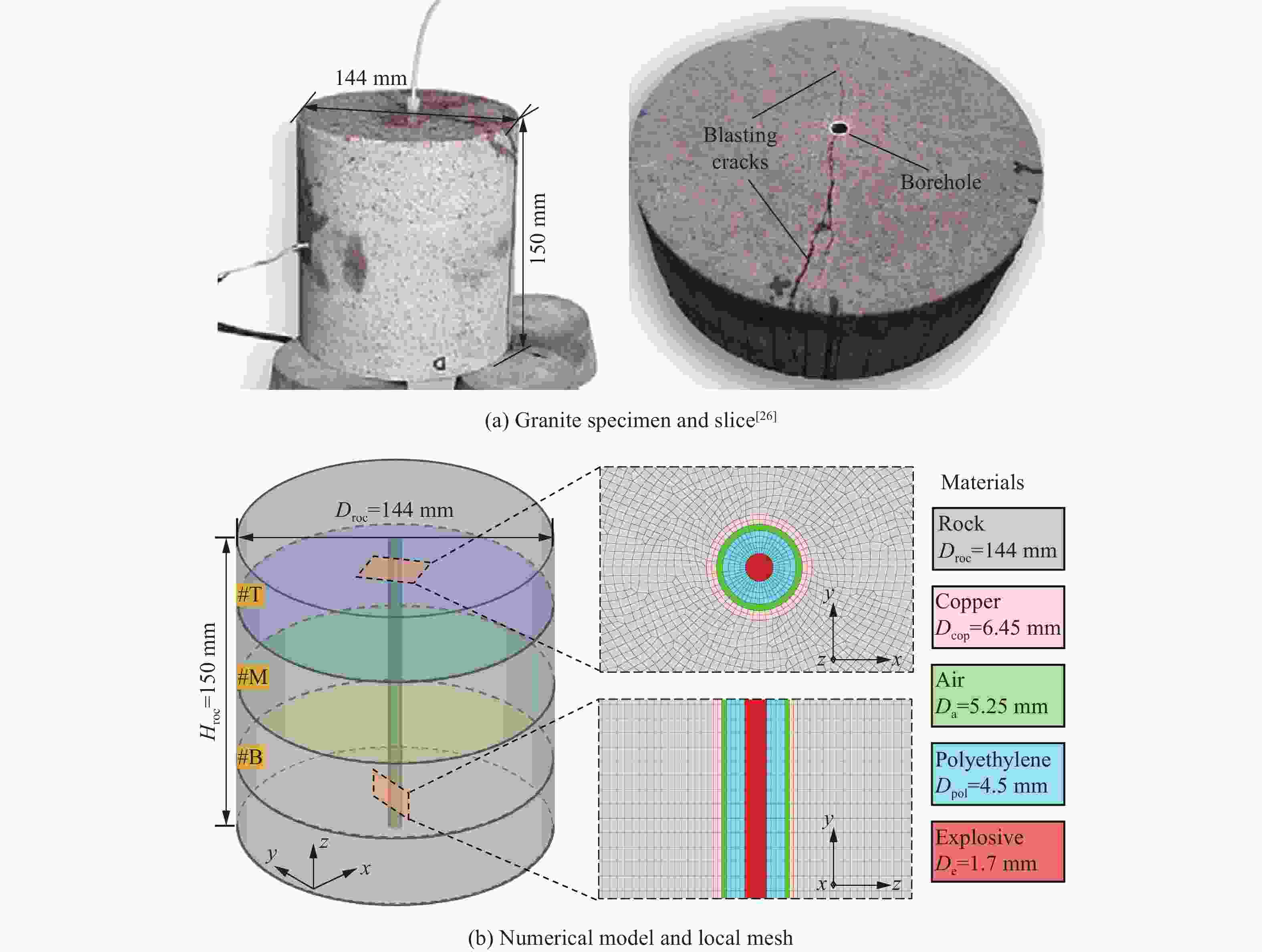

    图  8  爆破实验设置[26]及相应的有限元模型

    Figure  8.  Experimental setup for rock lab-scale blasting[26] and the corresponding finite element model

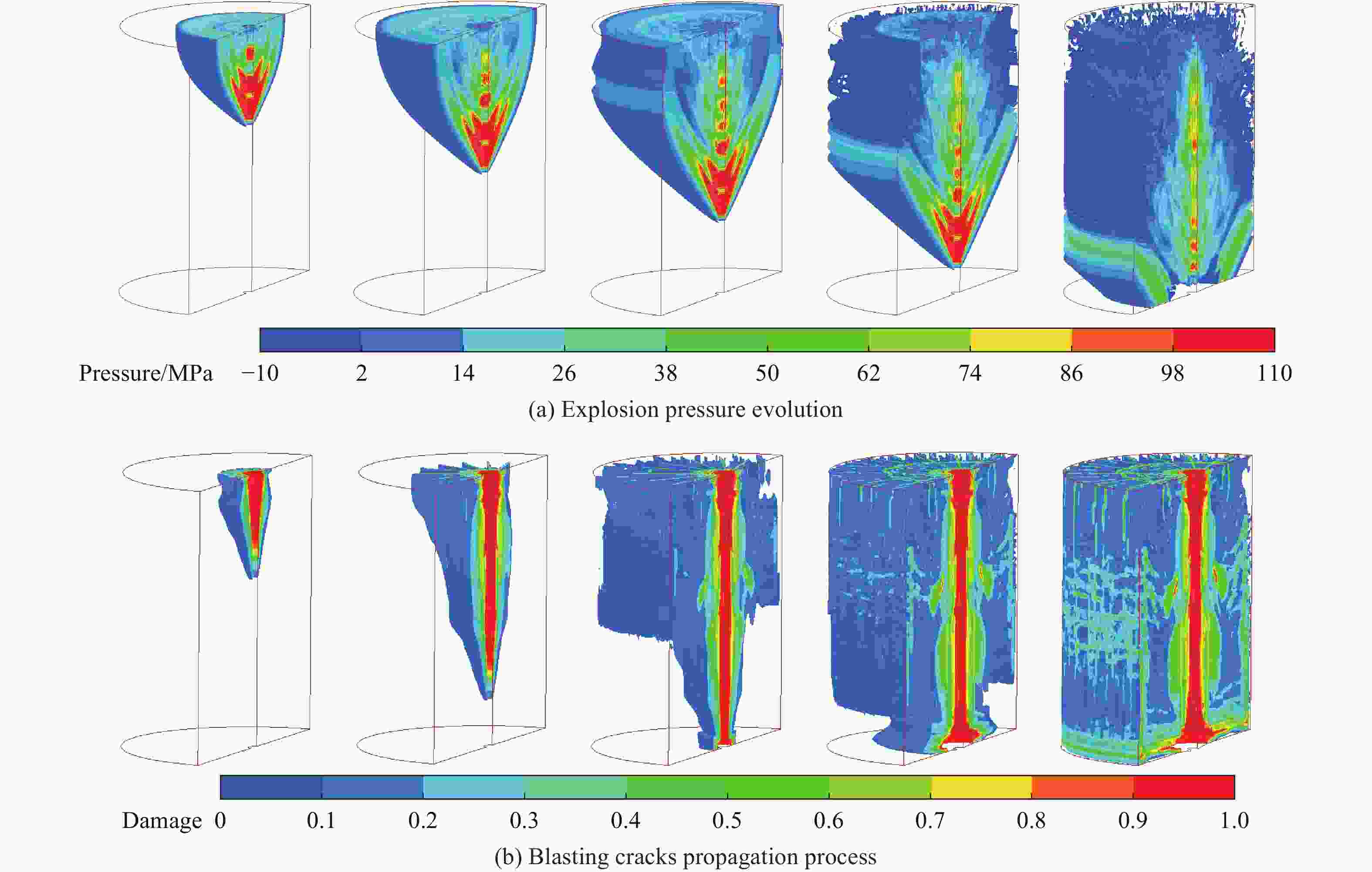

    图  9  爆破荷载下岩石压力和损伤过程

    Figure  9.  Explosion pressure and damage evolution of rock mass under blasting load

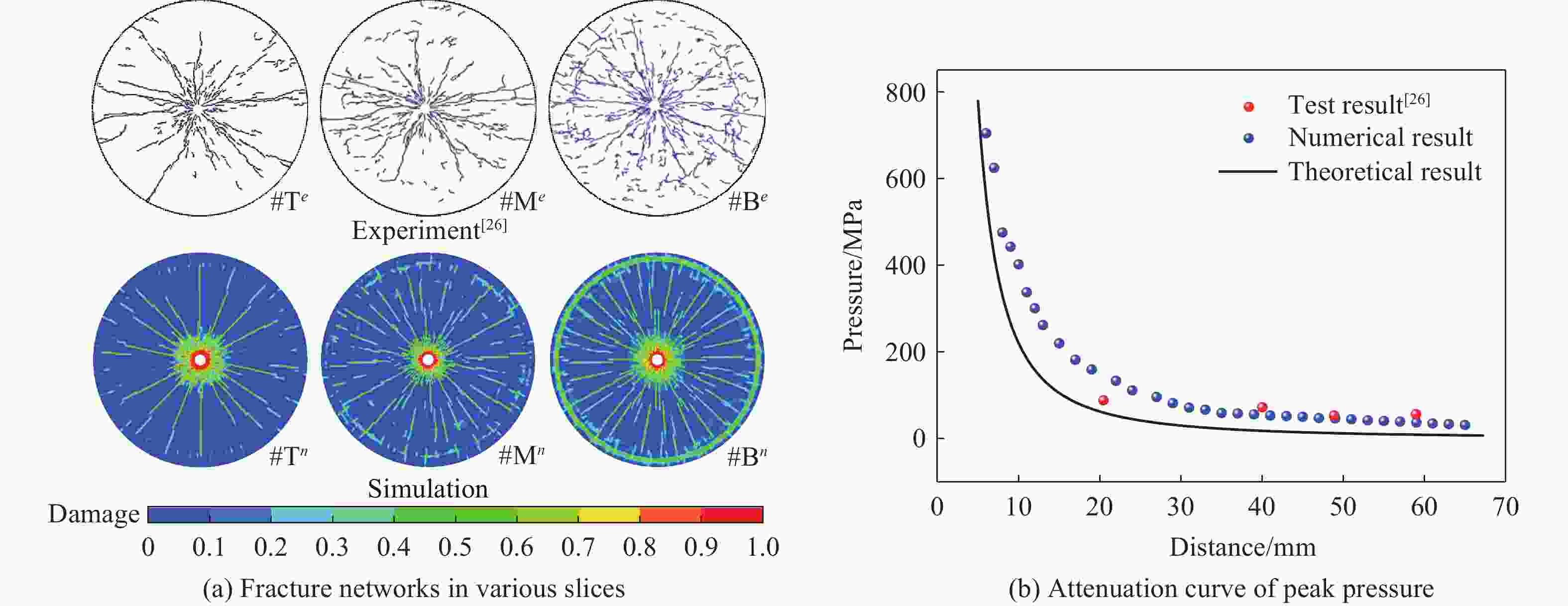

    图  10  岩样爆破实验[26]与模拟结果比较

    Figure  10.  Comparison of experimental[26] and numerical results for rock sample blasting

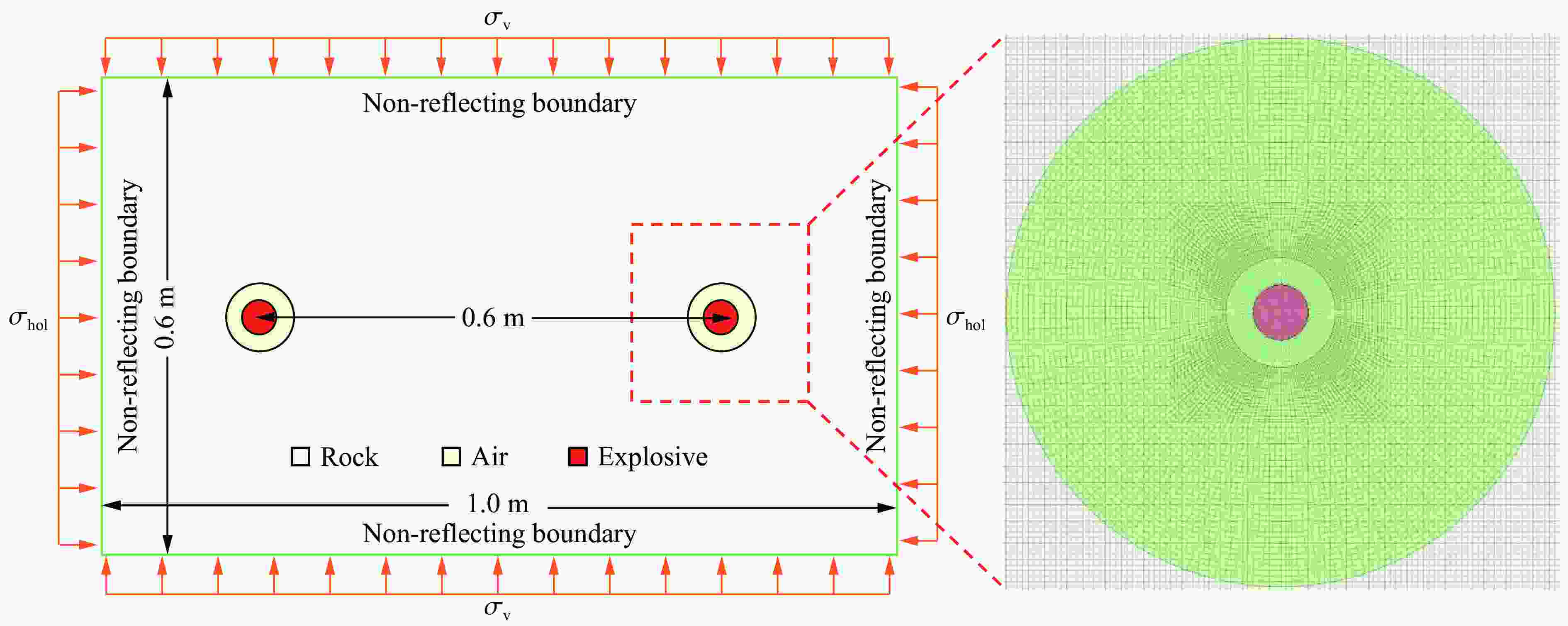

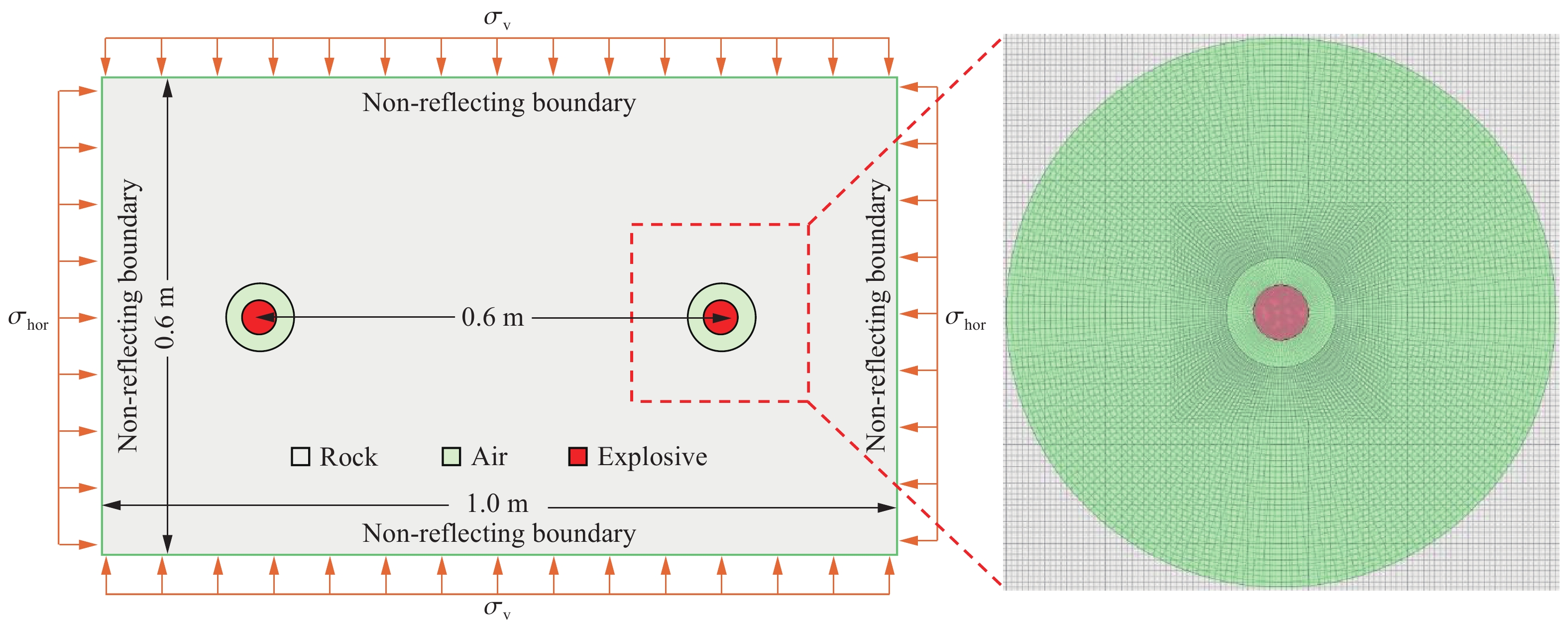

    图  11  预裂爆破数值模型及炮孔附近局部网格

    Figure  11.  Numerical model of presplit blasting and local mesh near the borehole

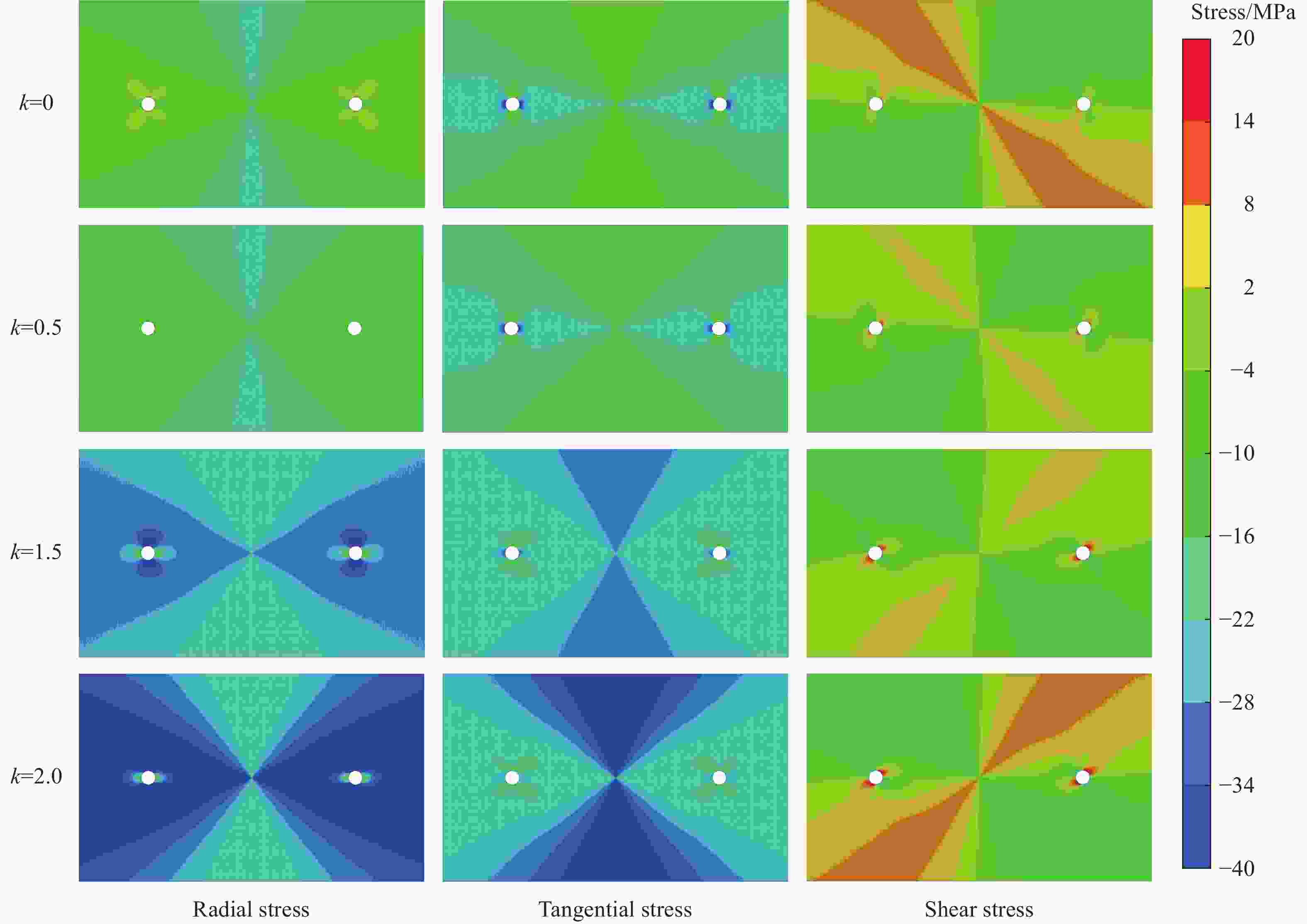

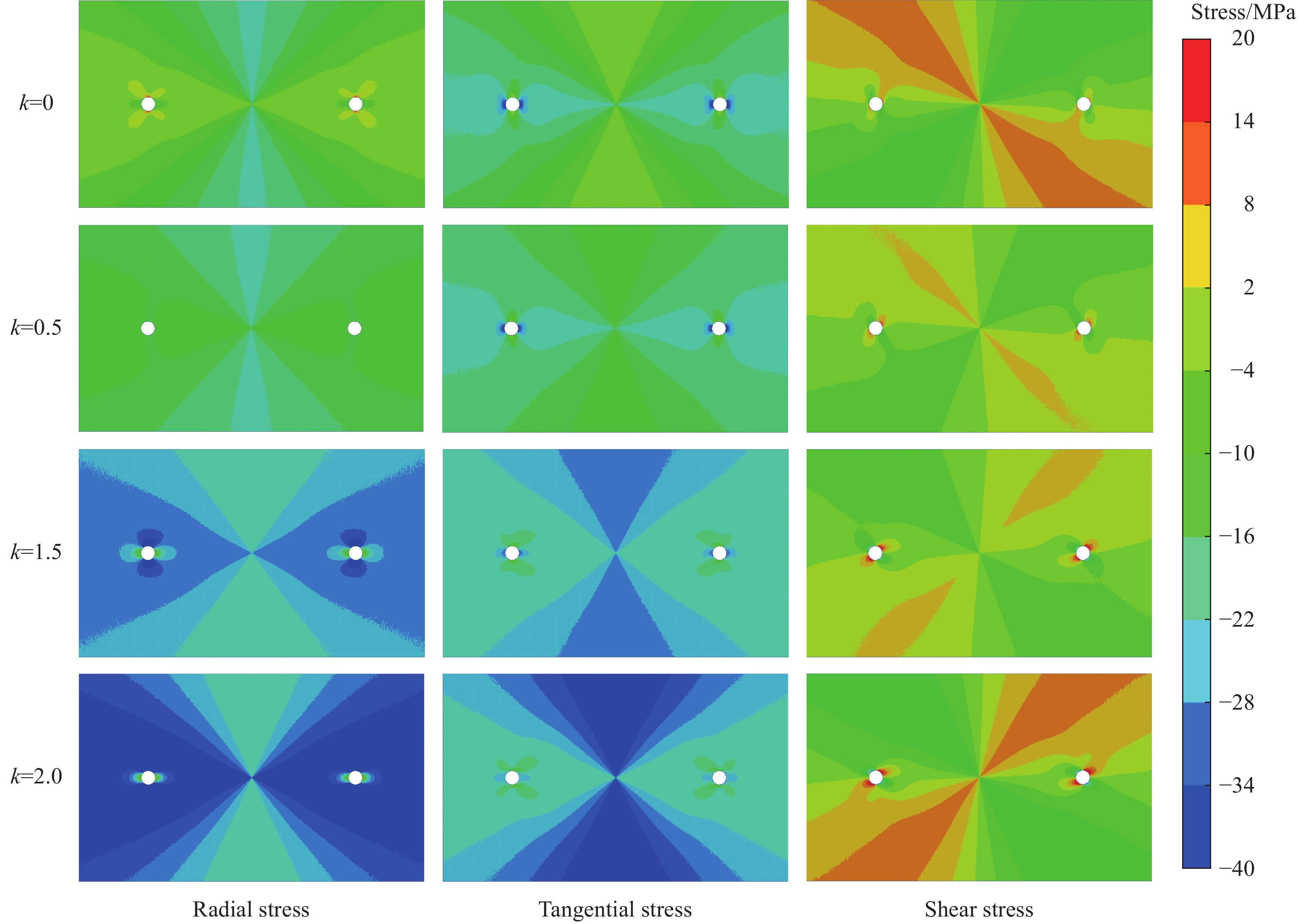

    图  12  静态应力初始化结果

    Figure  12.  Results of static stress initialization

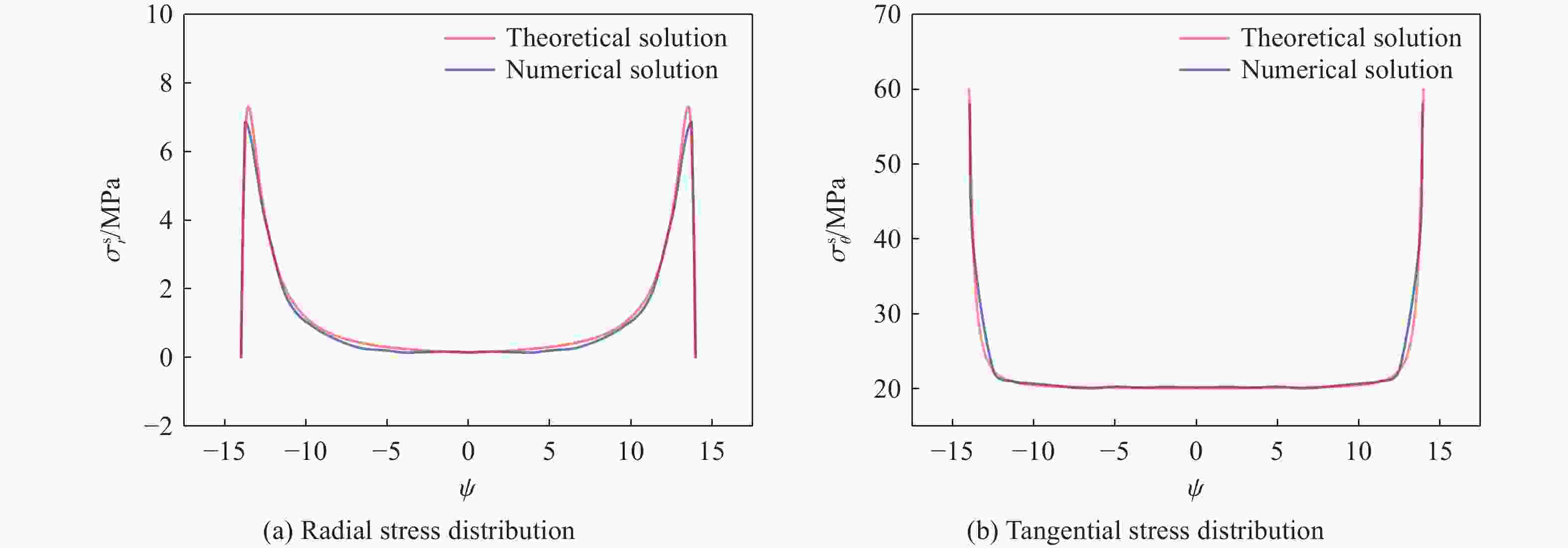

    图  13  不同方法得到的静态应力分布的比较

    Figure  13.  Comparison of static stress distributions obtained by different methods

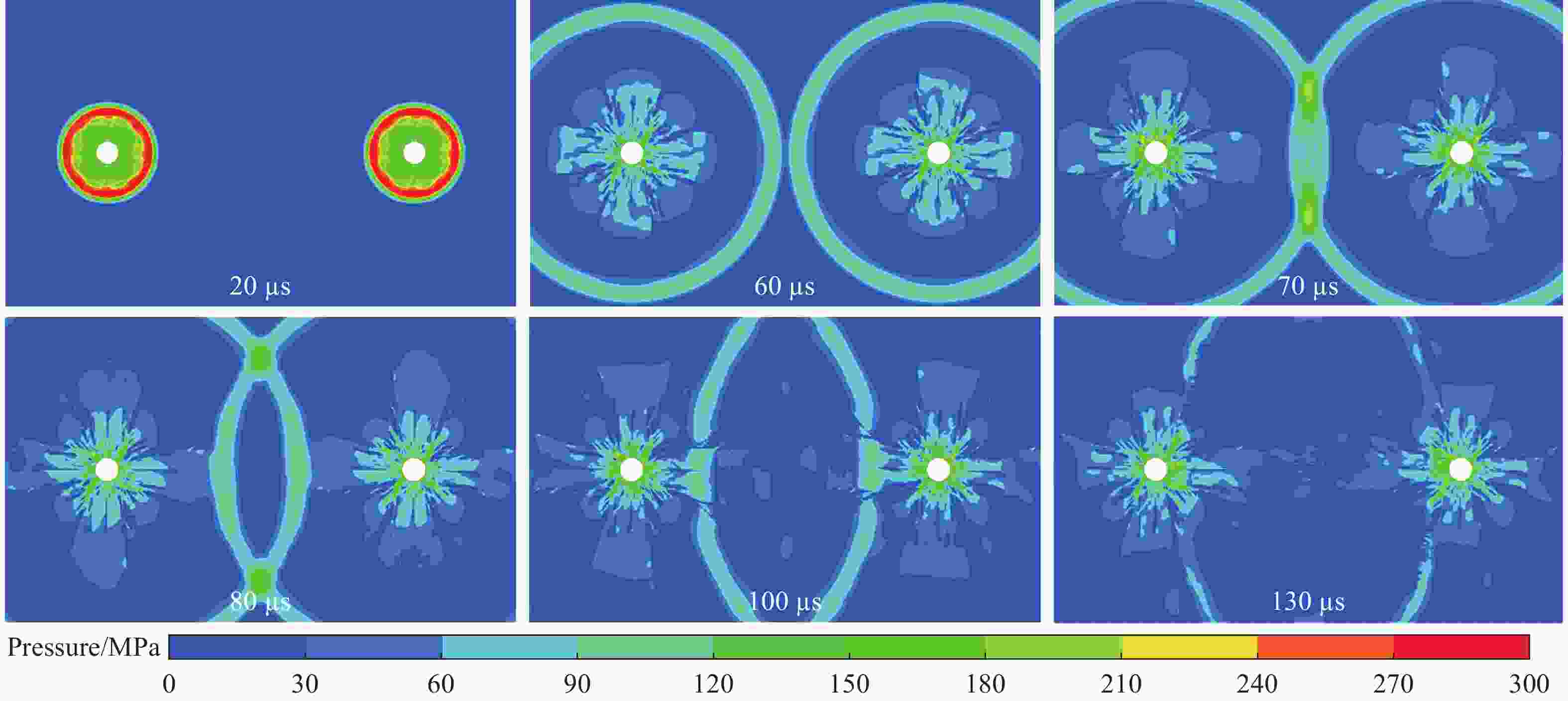

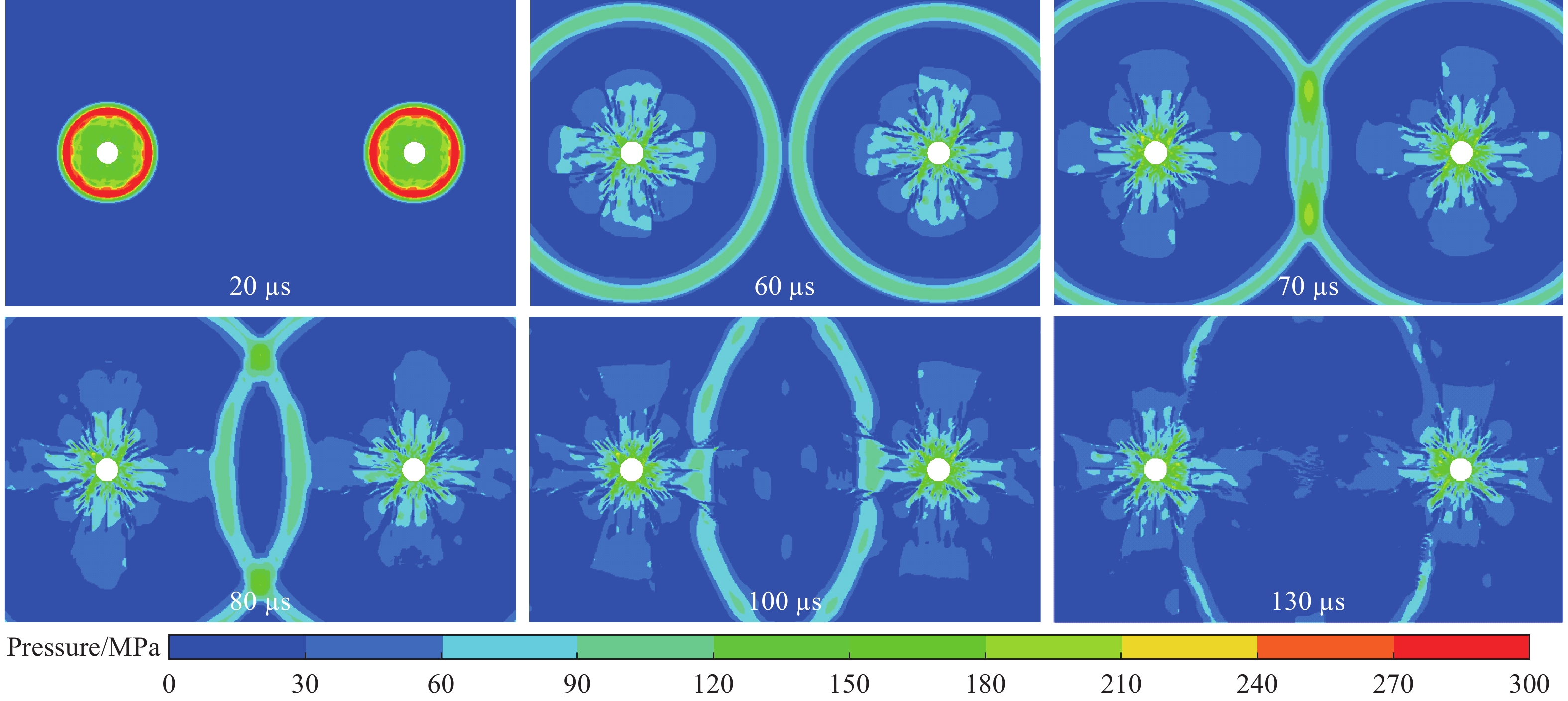

    图  14  爆炸压力演化过程

    Figure  14.  Explosion pressure evolution process

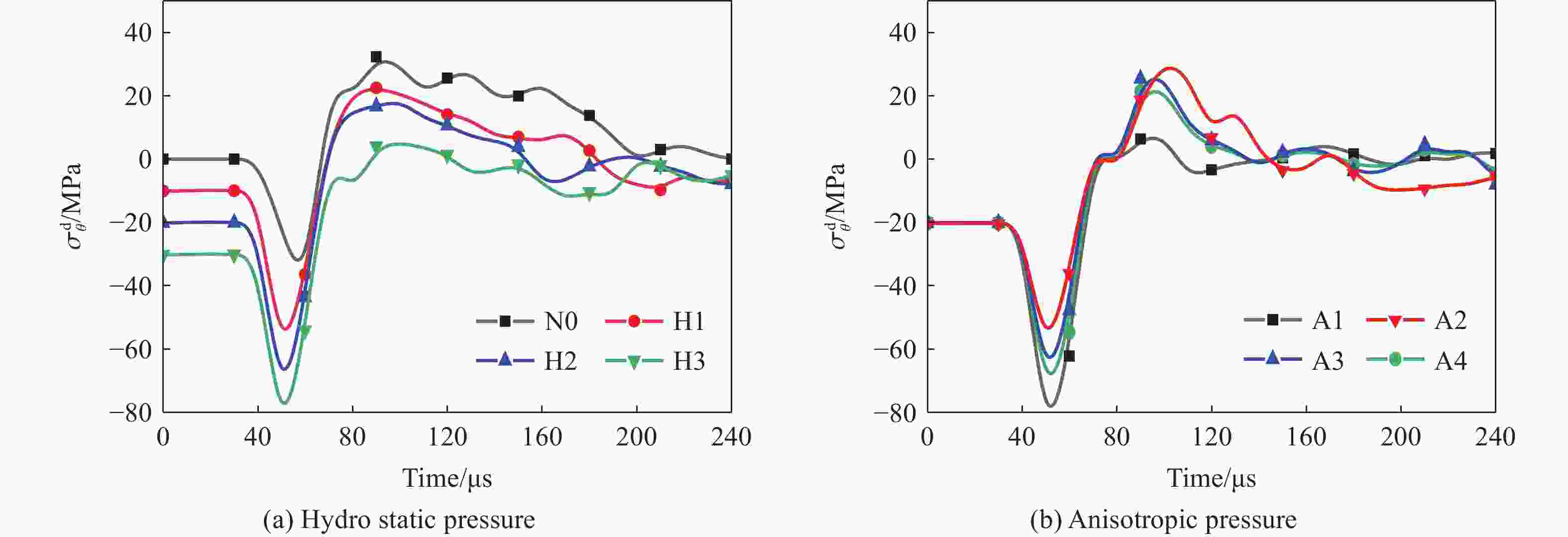

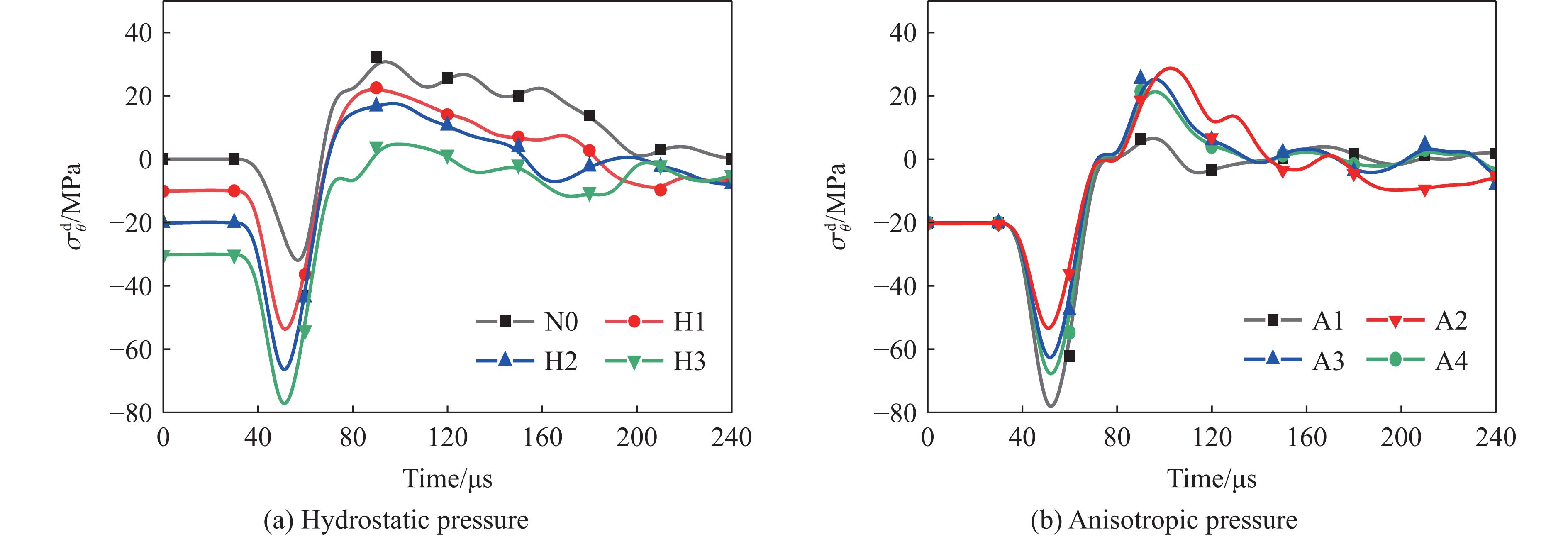

    图  15  不同工况下中点O处动态切向应力的时程曲线

    Figure  15.  Dynamical tangential stress-time curves at the middle point O under different conditions

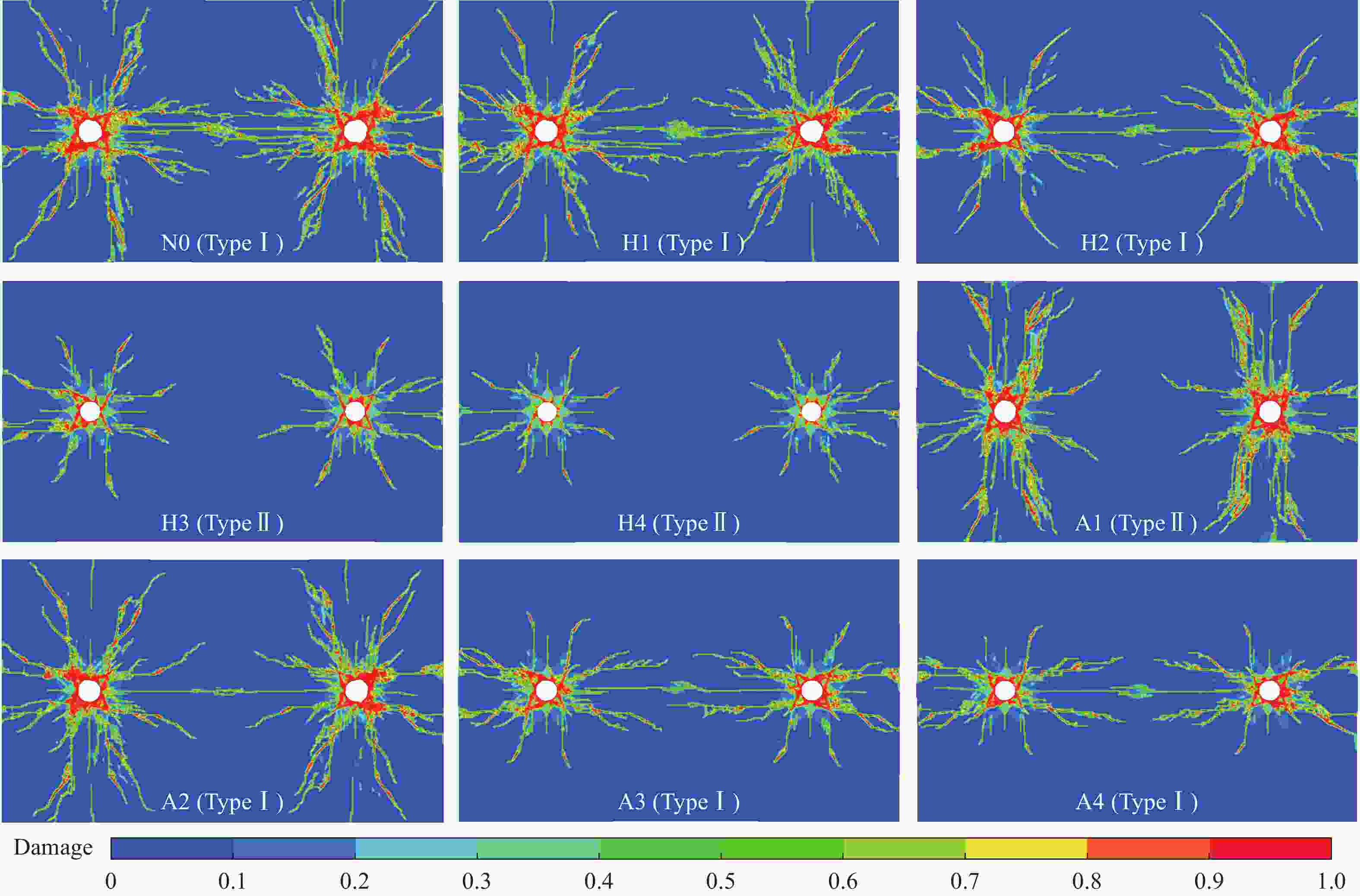

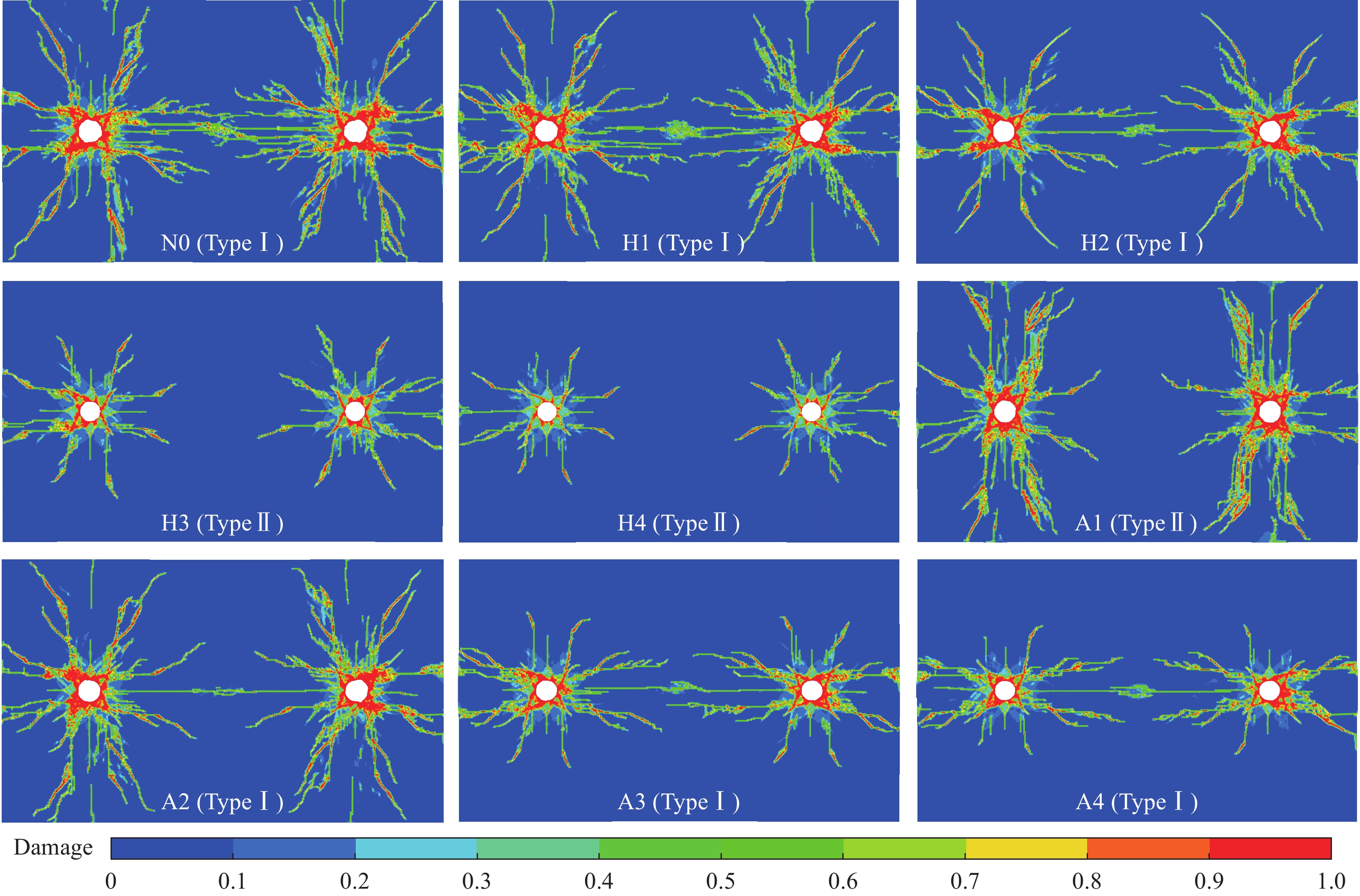

    图  16  地应力下岩体预裂爆破裂纹扩展模式

    Figure  16.  Fracture patterns in presplit blasting under in-situ stress

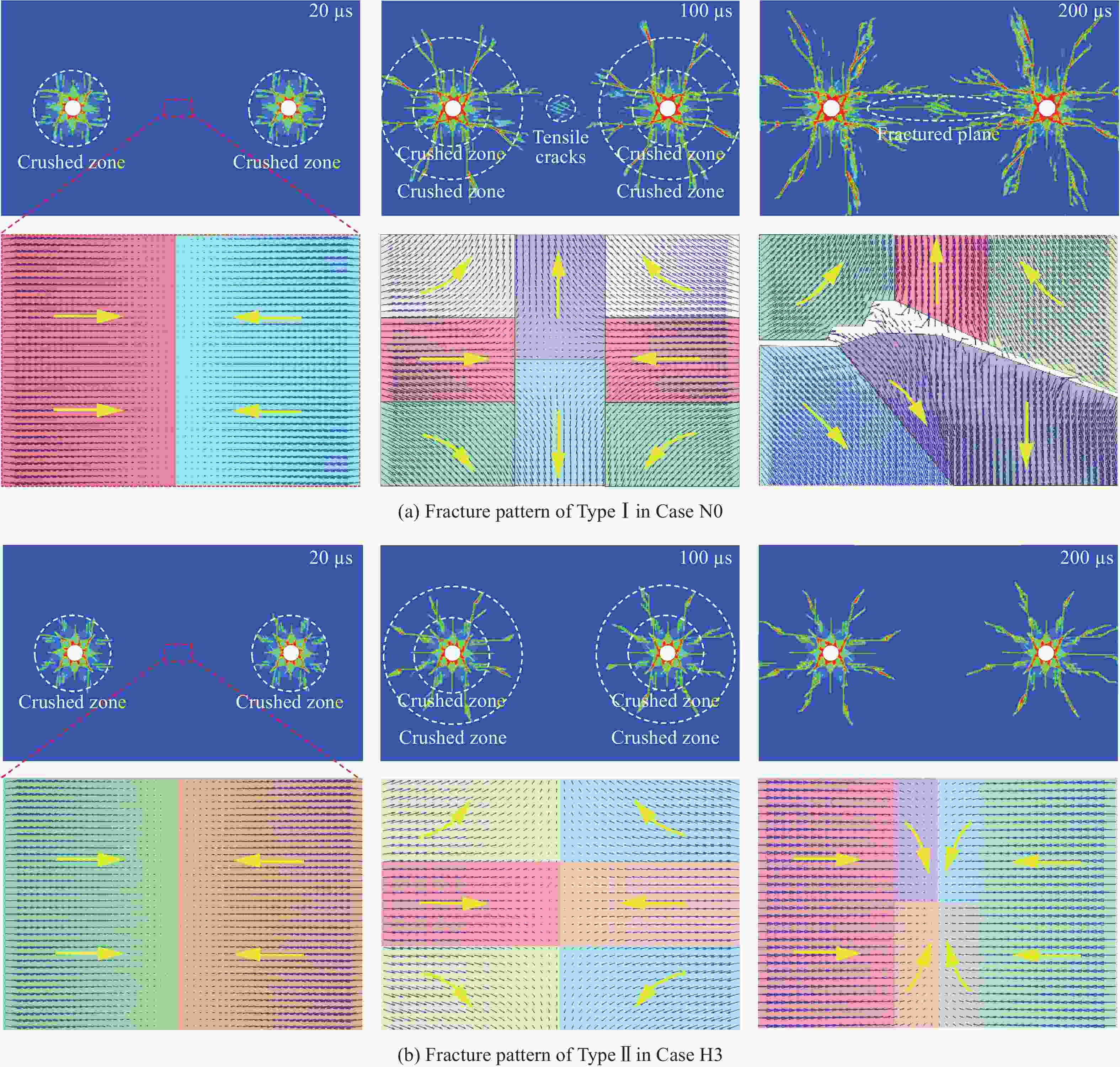

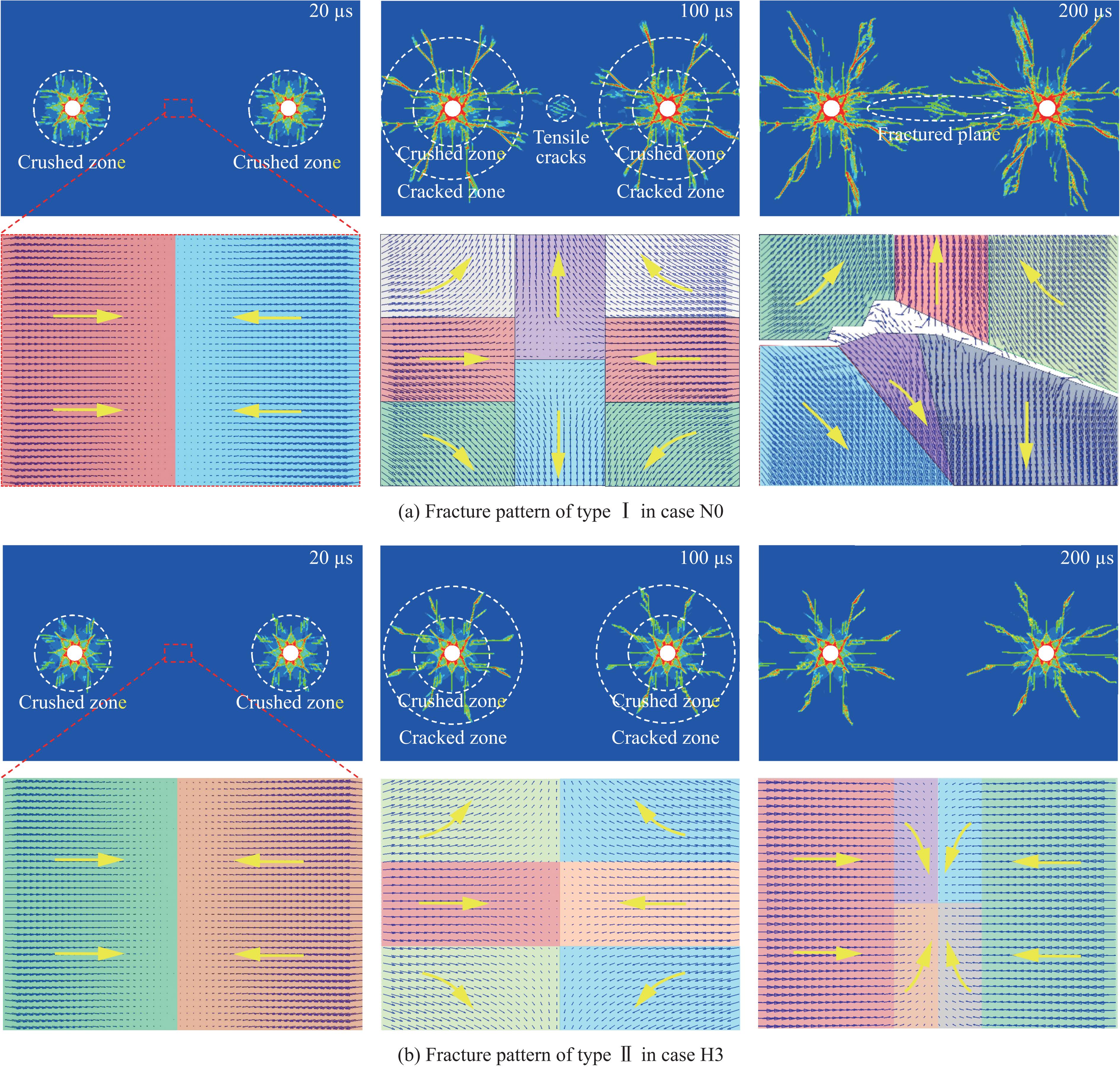

    图  17  爆破裂纹及位移矢量演化

    Figure  17.  Evolution of blasting cracks and corresponding displacement vectors

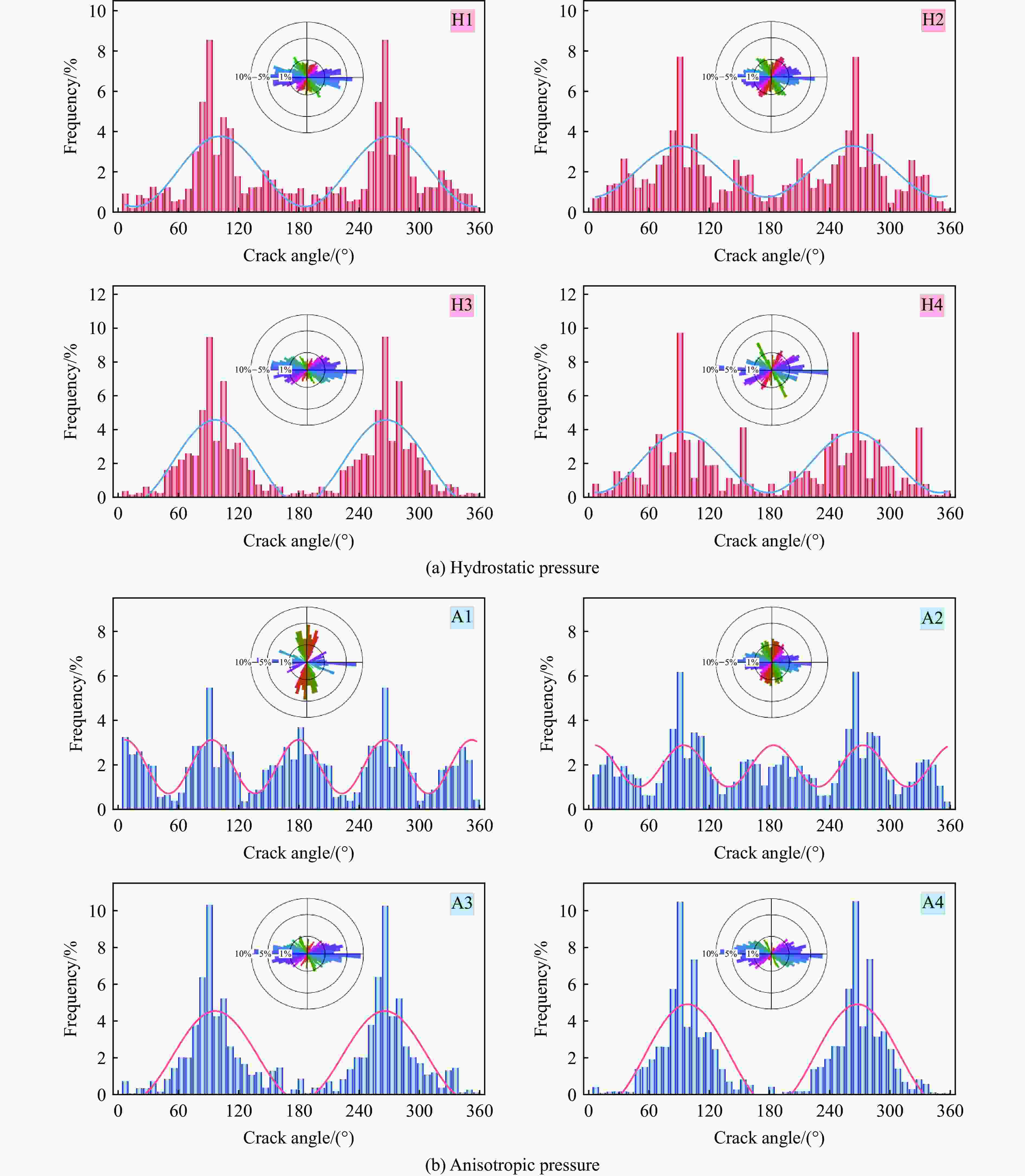

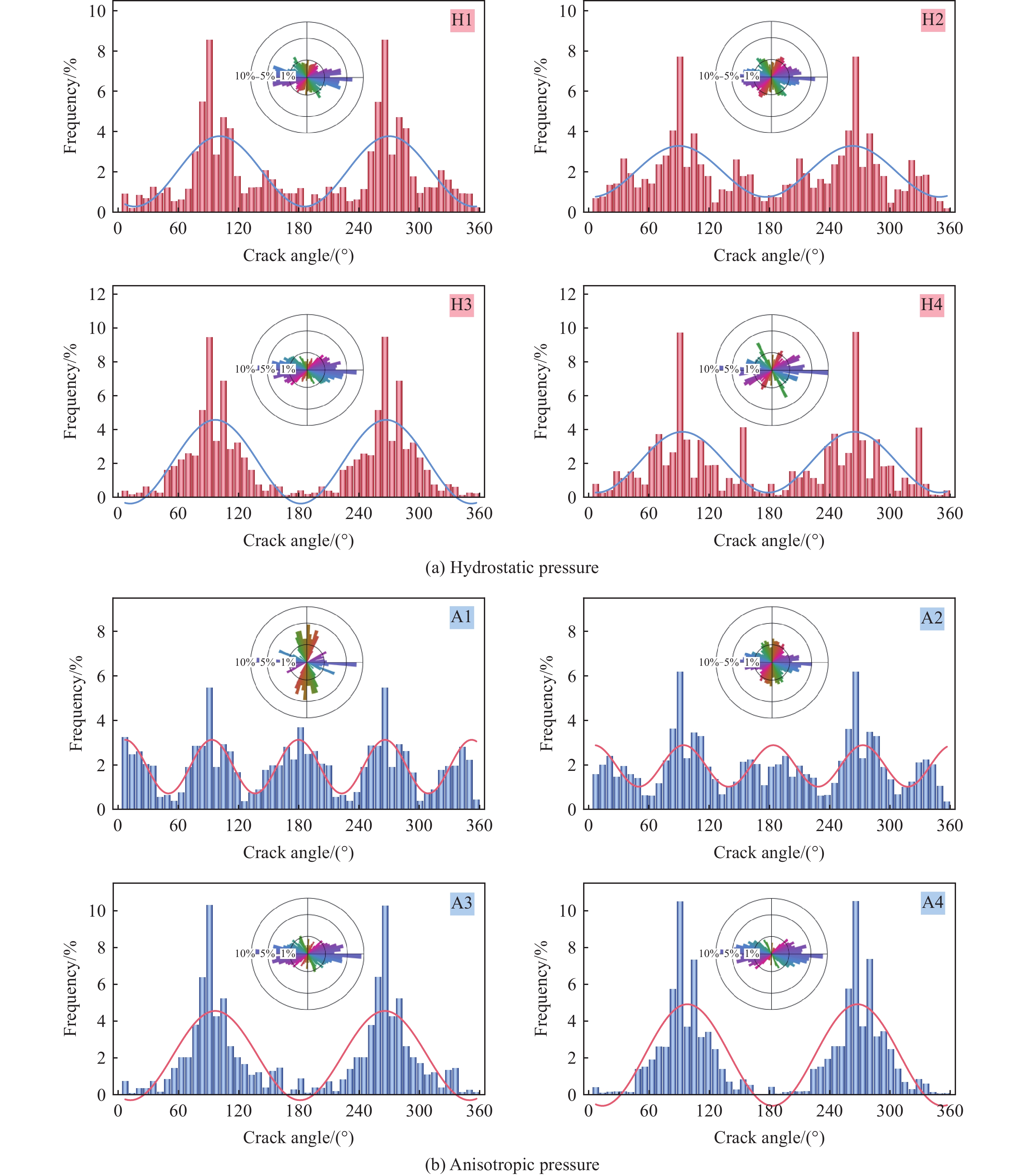

    图  18  爆破裂纹的分布特征

    Figure  18.  Distribution characteristics of blasting cracks

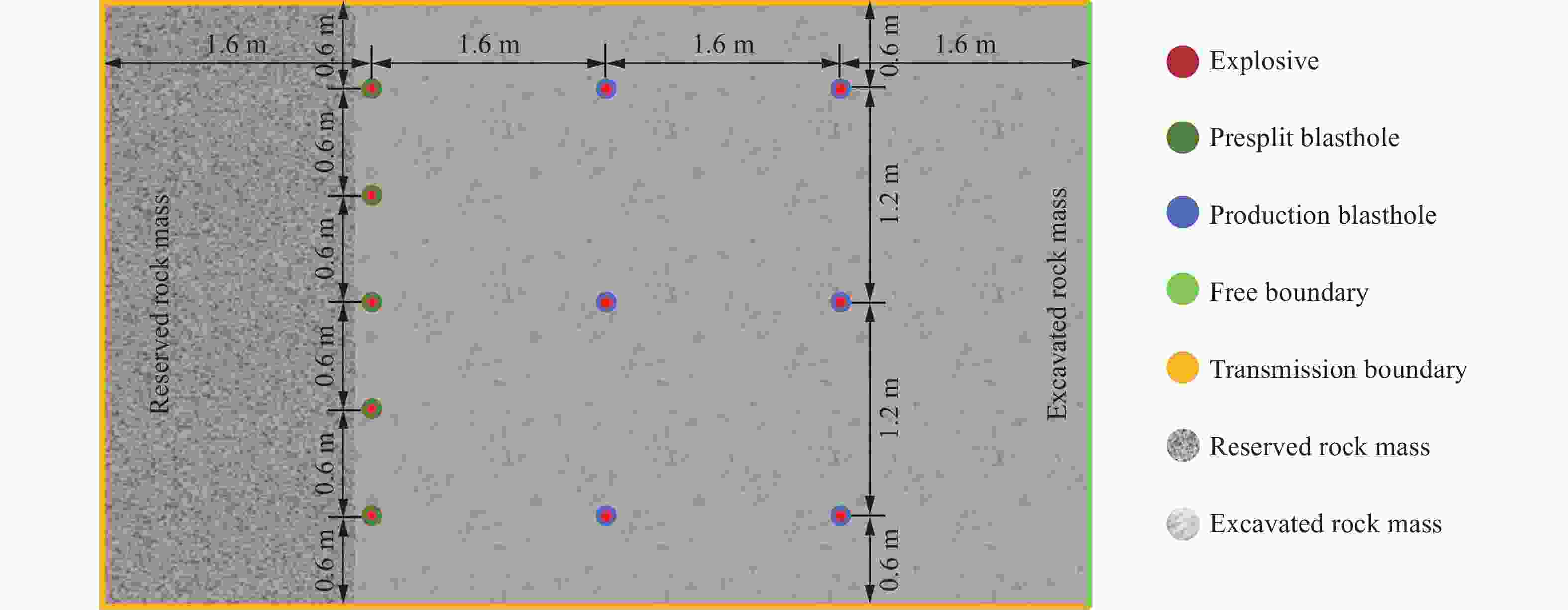

    图  19  岩石预裂爆破优化设计(单位:m)

    Figure  19.  Optimal design scheme for rock presplit blasting (unit in m)

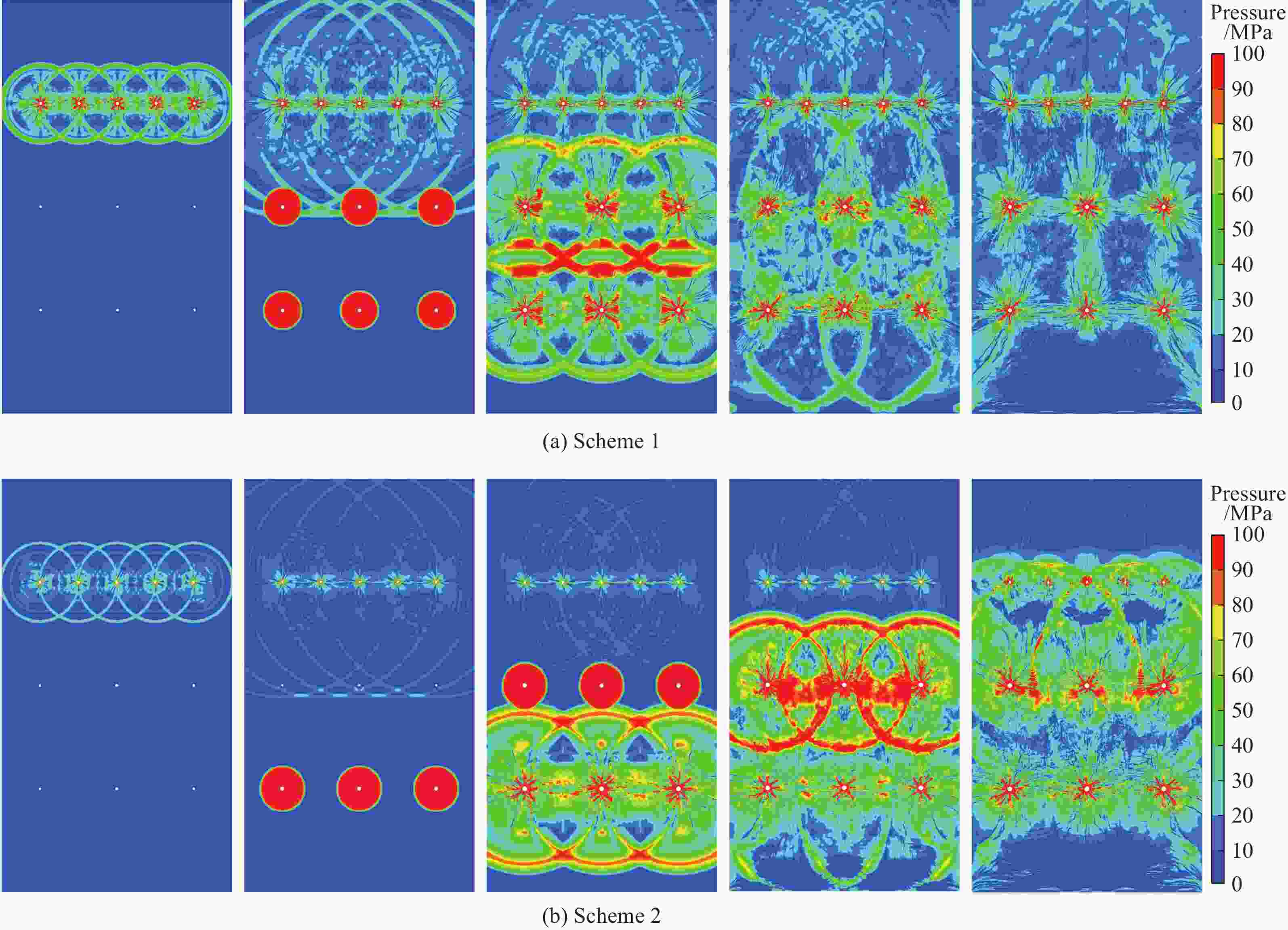

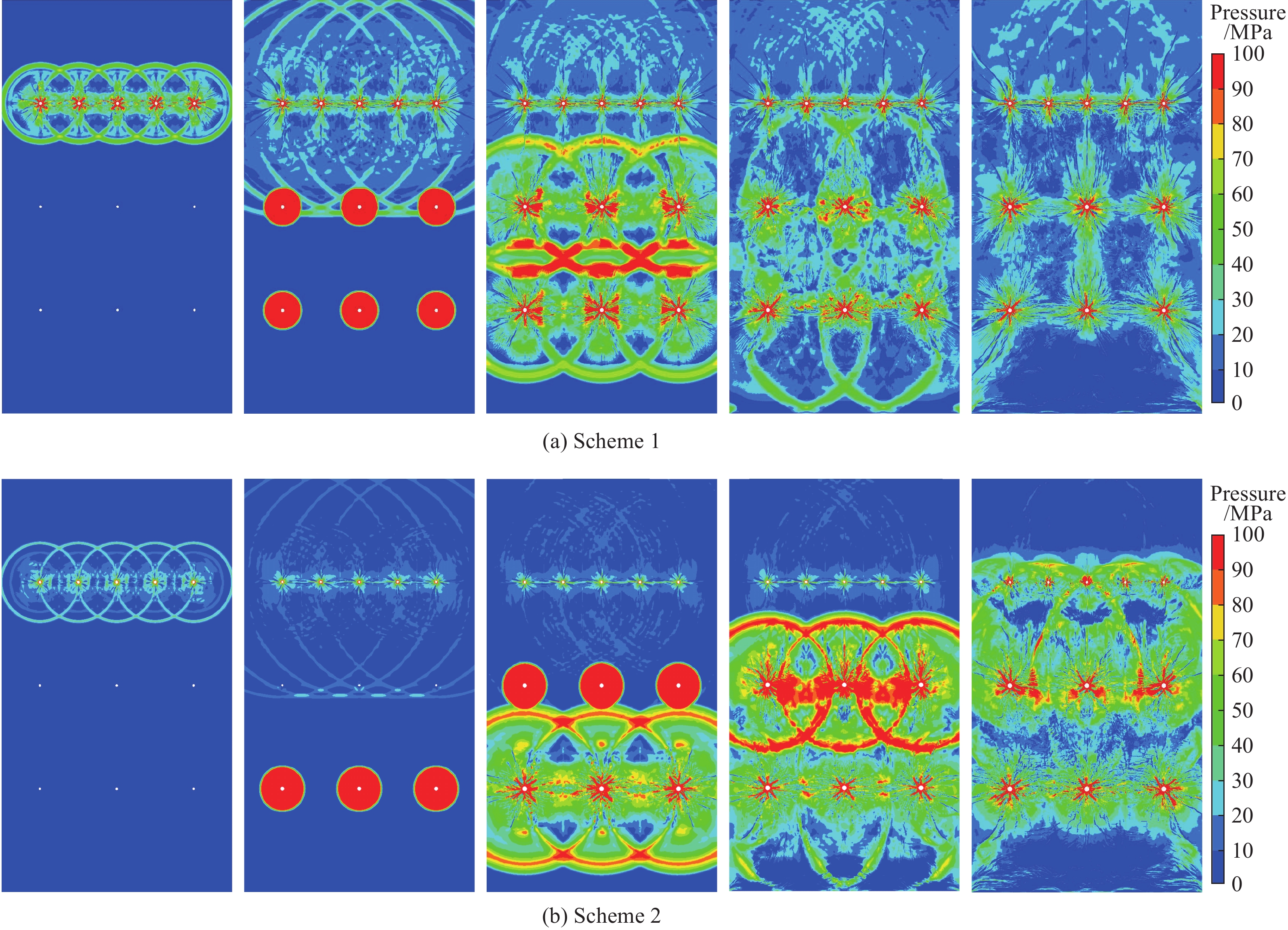

    图  20  不同方案下岩石爆炸压力演化过程

    Figure  20.  Evolution of explosion pressure in different design schemes for rock blasting

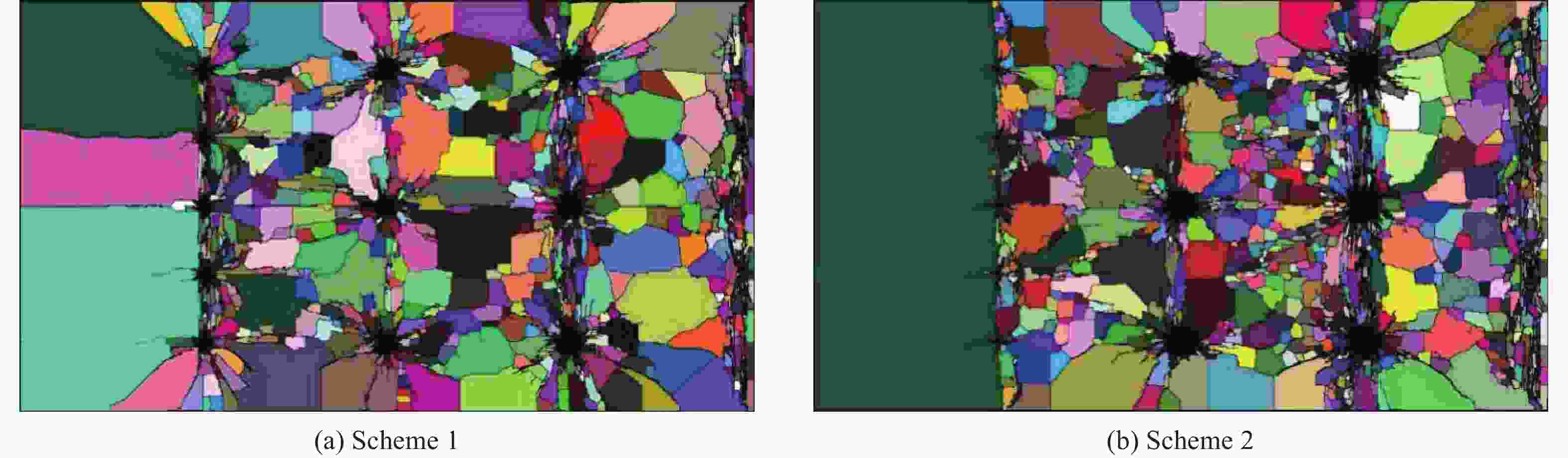

    图  21  不同方案中岩石爆破块体分布特征

    Figure  21.  Distribution characteristics of rock fragmentation induced by blasting in different schemes

    表  1  岩石RHT模型材料参数[27]

    Table  1.   Parameters of RHT model for rock mass[27]

    参数名称 取值 参数名称 取值 参数名称 取值
    密度ρroc/(kg·m−3) 2620 状态方程参数B0 1.22 剪切模量减小因子ξ 0.50
    抗压强度fc/MPa 162 状态方程参数B1 1.22 参考压缩应变率$ {\dot{\varepsilon }}_{0}^{\mathrm{c}} $/s−1 3.0×10−5
    初始孔隙度φ0 1.00 侵蚀塑性应变$ {\varepsilon }_{\mathrm{s}}^{\mathrm{f}} $ 2.00 参考拉伸应变率$ {\dot{\varepsilon }}_{0}^{\mathrm{t}} $/s−1 3.0×10−6
    损伤因子D1 0.04 压缩屈服面参数$ {G}_{\mathrm{c}}^{\mathrm{*}} $ 0.50 破坏压缩应变率$ {\dot{\varepsilon }}_{\mathrm{c}} $/s−1 3.0×1025
    损伤因子D2 1.00 拉伸屈服面参数$ {G}_{\mathrm{t}}^{\mathrm{*}} $ 0.70 破坏拉伸应变率$ {\dot{\varepsilon }}_{\mathrm{t}} $/s−1 3.0×1025
    破坏面参数A 2.48 洛德角相关因子B 0.05 最小损伤残余应变$ {\varepsilon }_{\mathrm{p}}^{\mathrm{m}\mathrm{i}\mathrm{n}} $ 0.012
    破坏面参数N 0.79 洛德角相关因子Q0 0.68 孔隙坍塌压力pcrush/MPa 108
    残余面参数Af 1.62 压缩应变率指数βc 0.008 孔隙压实压力pcomp/GPa 6.00
    残余面参数Nf 0.62 拉伸应变率指数βt 0.011 拉伸体积塑性应变分数$ {f}_{\mathrm{t}}^{\mathrm{p}} $ 0.001
    相对抗剪强度$ {F}_{\mathrm{s}}^{\mathrm{*}} $ 0.18 弹性剪切模量G/GPa 21.9 Hugoniot多项式系数A1/GPa 33.95
    相对抗拉强度$ {F}_{\mathrm{t}}^{\mathrm{*}} $ 0.06 状态方程参数T1/GPa 33.95 Hugoniot多项式系数A2/GPa 41.42
    孔隙度指数Npor 3.0 状态方程参数T2/GPa 0.00 Hugoniot多项式系数A3/GPa 8.71
    下载: 导出CSV

    表  2  聚乙烯材料参数[28]

    Table  2.   Parameters for polyethylene[28]

    ρpol/(kg·m−3) cpol/(m·s−1) S1 S2 S3 γpol αpol V0
    915 2901 1.481 0.0 0.0 1.64 0.0 1.0
    下载: 导出CSV

    表  3  铜材料参数[28]

    Table  3.   Parameters for copper[28]

    参数 参数 参数
    密度ρcop/(kg·m−3) 8330 材料常数ncop 0.31 EOS常数S1 1.49
    杨氏模量Ecop/GPa 110 材料常数mcop 1.09 EOS常数S2 0.0
    泊松比μcop 0.35 材料常数wcop 0.025 EOS常数S3 0.0
    熔化温度T/K 1357 材料常数Acop/GPa 0.089 EOS常数αcop 0.47
    初始内能E0/(m·s−1) 0.0 材料常数Bcop/GPa 0.292 EOS常数Ccop 4430
    下载: 导出CSV

    表  4  地应力加载条件

    Table  4.   In-situ stress conditions used in the numerical study

    应力
    状态
    工况 σhor/MPa σv/MPa 应力
    状态
    工况 σhor/MPa σv/MPa
    静水
    压力
    H1 10 10 非静水
    压力
    A1 0 20
    H2 20 20 A2 10 20
    H3 30 30 A3 30 20
    H4 40 40 A4 40 20
    下载: 导出CSV
