航空发动机钛合金机匣包容性数值仿真研究

曹苗; 张春阳; 刘宗兴; 赵振强; 刘军; 李玉龙

doi:10.11883/bzycj-2024-0371

航空发动机钛合金机匣包容性数值仿真研究

doi: 10.11883/bzycj-2024-0371

曹苗^{1, 2,},
张春阳^{1, 2},
刘宗兴^{1, 2},
赵振强^{1, 2},
刘军^{1, 2, ,},
李玉龙^{1, 2}

1.
西北工业大学航空学院, 陕西西安 710072
2.
强度与结构完整性全国重点实验室, 陕西西安 710072

基金项目: 国家科技重大专项（J2019-VIII-0008-0169）

详细信息

作者简介:
曹苗（1994－　），女，博士研究生，maggiec@mail.nwpu.edu.cn

通讯作者:
刘军（1979－　），男，博士，教授，liujun_top@nwpu.edu.cn

中图分类号: O347.3
计量
- 文章访问数: 138
- HTML全文浏览量: 4
- PDF下载量: 49
- 被引次数: 0
出版历程
- 收稿日期: 2024-09-30
- 修回日期: 2024-11-30
- 网络出版日期: 2024-12-10

Study on the numerical simulation of aeroengine titanium alloy casing containment

CAO Miao^{1, 2
,},
ZHANG Chunyang^{1, 2},
LIU Zongxing^{1, 2},
ZHAO Zhenqiang^{1, 2},
LIU Jun^{1, 2
, ,},
LI Yulong^{1, 2}

1.
School of Aeronautics, Northwestern Polytechnical University, Xi’an 710072, Shaanxi, China
2.
National Key Laboratory of Strength and Structural Integrity, Xi’an 710072, Shaanxi, China

摘要

摘要: 针对发动机风扇机匣包容性评估需求，提出一种结合了打靶试验和有限元分析评估机匣包容能力的方法。采用叶片形弹体冲击半环模拟机匣以获取钛合金机匣的冲击损伤基本特性，并基于接触-碰撞显式动力学分析软件建立相应的数值仿真模型，对比弹体剩余速度、靶板径向变形量以及结构损伤形貌的数值模拟结果与测试结果，二者良好的一致性表明本文数值仿真方法的准确性。然后，采用验证过的数值仿真方法建立真实断裂叶片撞击风扇机匣的计算模型，研究断叶转速及断叶尺寸对机匣包容性的影响。结果表明，旋转状态下风扇机匣的包容能力大于打靶试验中机匣所能承受的叶片冲击能量，工程设计中打靶试验可按照真实机匣临界包容速度的0.76倍进行穿透阈值设计。建立了机匣包容能力表征参量与断叶转速、尺寸的关联模型，发现机匣塑性变形能与叶片丢失转速呈四次方关系，与断叶尺寸呈平方关系；且随着断叶尺寸的增大，机匣临界包容转速呈指数形式下降。
- 航空发动机 /
- 钛合金机匣 /
- 打靶试验 /
- 接触-碰撞动力学 /
- 包容过程
Abstract: The containment process of aero-engine casing is very complex, which involves large deformation, material viscoplasticity and nonlinear dynamic response of structural elements. To meet the fan casing containment assessment requirements of engine, a new method combining ballistic impact test and finite element analysis is proposed to evaluate the casing containment capability. A blade-liked projectile was used to impact the half ring simulator to obtain the impact resistance of the titanium alloy casing. The high-speed cameras were positioned perpendicular to the projectile's trajectory to accurately capture and measure its velocities both before and after impact.. The DIC (digital image correlation) technology is used to determine the deformation field of the half ring simulator. Based on the contact-impact dynamics software, a corresponding numerical simulation model was established. The residual velocity of the projectile, radial deformation of the target, and the morphology of structural damage of numerical predictions are compared with those of experimental results. The good agreement between the two results indicated the accuracy of the numerical method. Under the low energy impact, the projectile was rebound, and the half ring absorbed energy with bulge. Whereas in the high energy impact, the projectile penetrated the half ring target and result in tear in the rear surface. Finally, the validated numerical simulation method was employed to simulate the real fan blade/casing containment process, and the effect of the blade rotate speed and the blade size on casing containment are studied. The results show that the fan casing in rotating state can contain more impact energy than that in ballistic impact test. It is suggested that the design for the ballistic impact test can be scaled to 0.76 times the size of the real containment system. Additionally, a parametric correlation model is developed between the casing containment capacity and the characteristics of the released blade, especially the rotate speed and size. It is found that the internal energy of the casing is in a quartic relationship with the blade released speed and a quadratic relationship with the blade size. Moreover, as the blade size increases, the critical containment speed of the casing decreases exponentially.
- aero-engine /
- titanium alloy casing /
- ballistic impact test /
- contact-impact dynamics /
- containment process

HTML全文

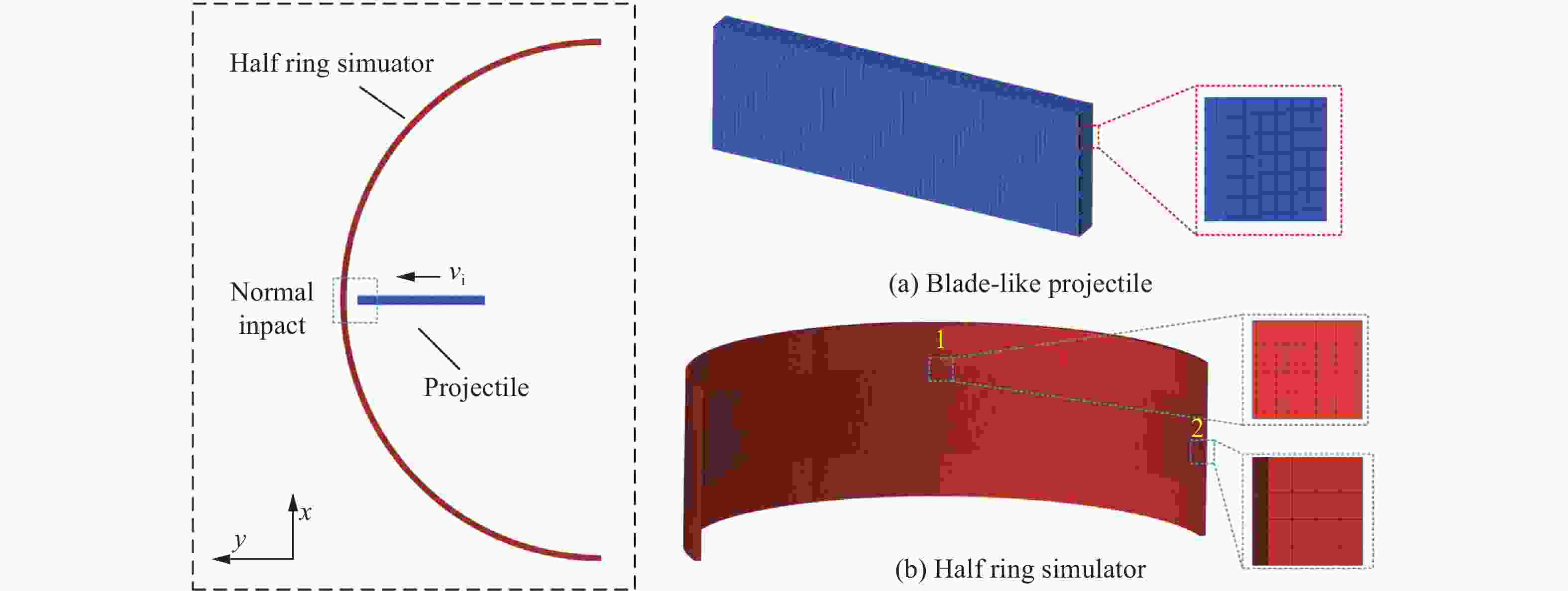

图 1 叶片冲击半环模拟机匣的网格模型

Figure 1. Finite element model of the blade-like projectile impact on the half ring simulator

下载: 全尺寸图片幻灯片

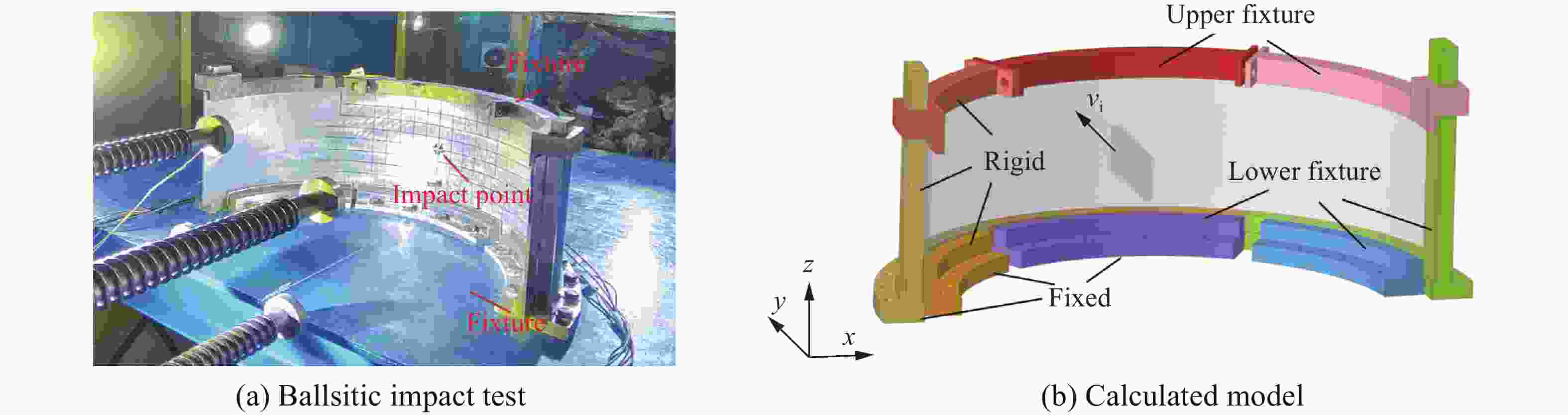

图 2 半环打靶试验的计算模型

Figure 2. Calculated model of half ring ballistic impact test

下载: 全尺寸图片幻灯片

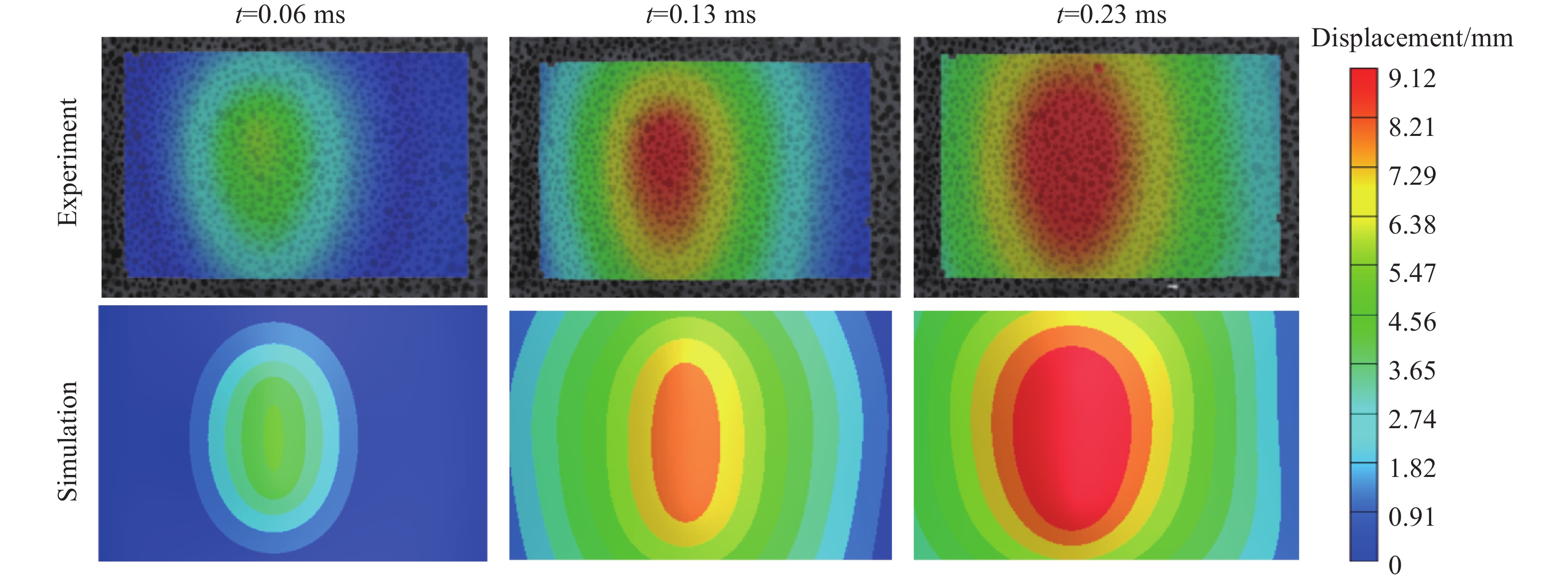

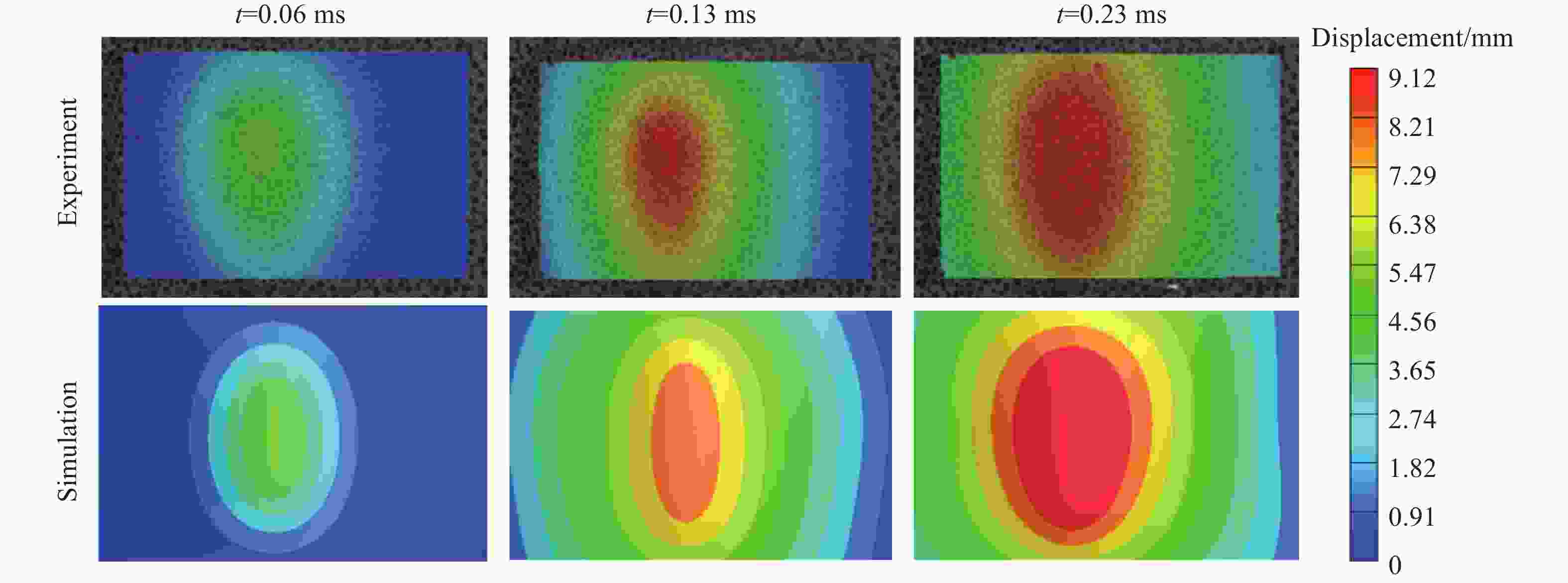

图 3 Test 1#中半环靶板径向位移的试验与仿真预测结果对比

Figure 3. Comparison of half ring target displacement field in case 1# between the numerical and experimental results

下载: 全尺寸图片幻灯片

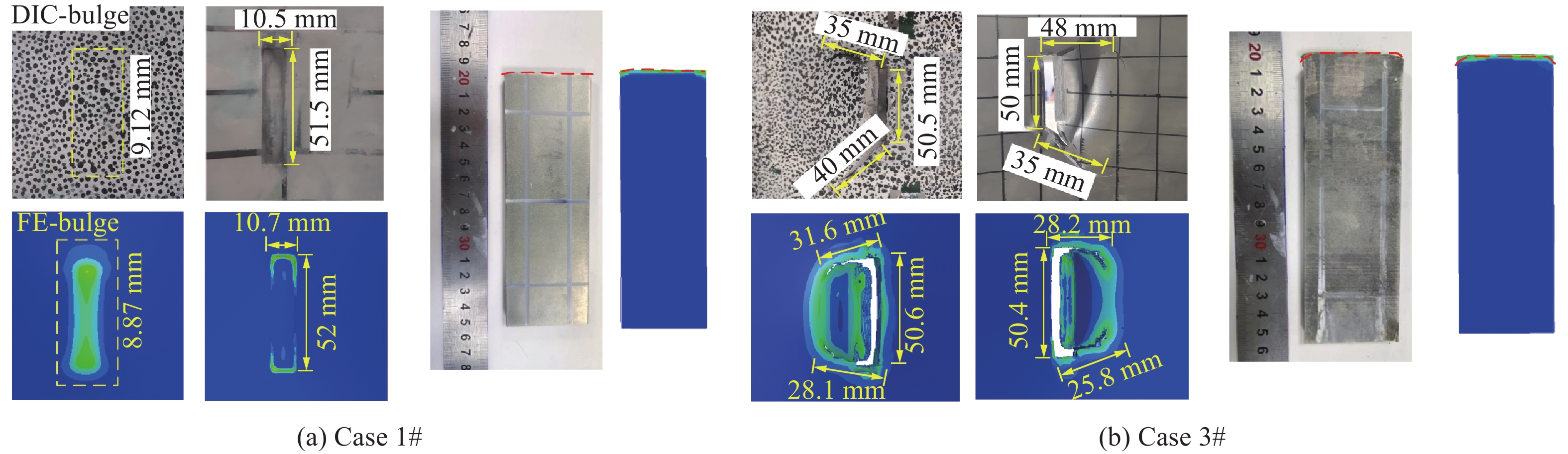

图 4 弹体与半环模拟机匣损伤对比（试验与仿真）

Figure 4. Fragmentation of the projectile and half ring simulator (experimental versus numerical)

下载: 全尺寸图片幻灯片

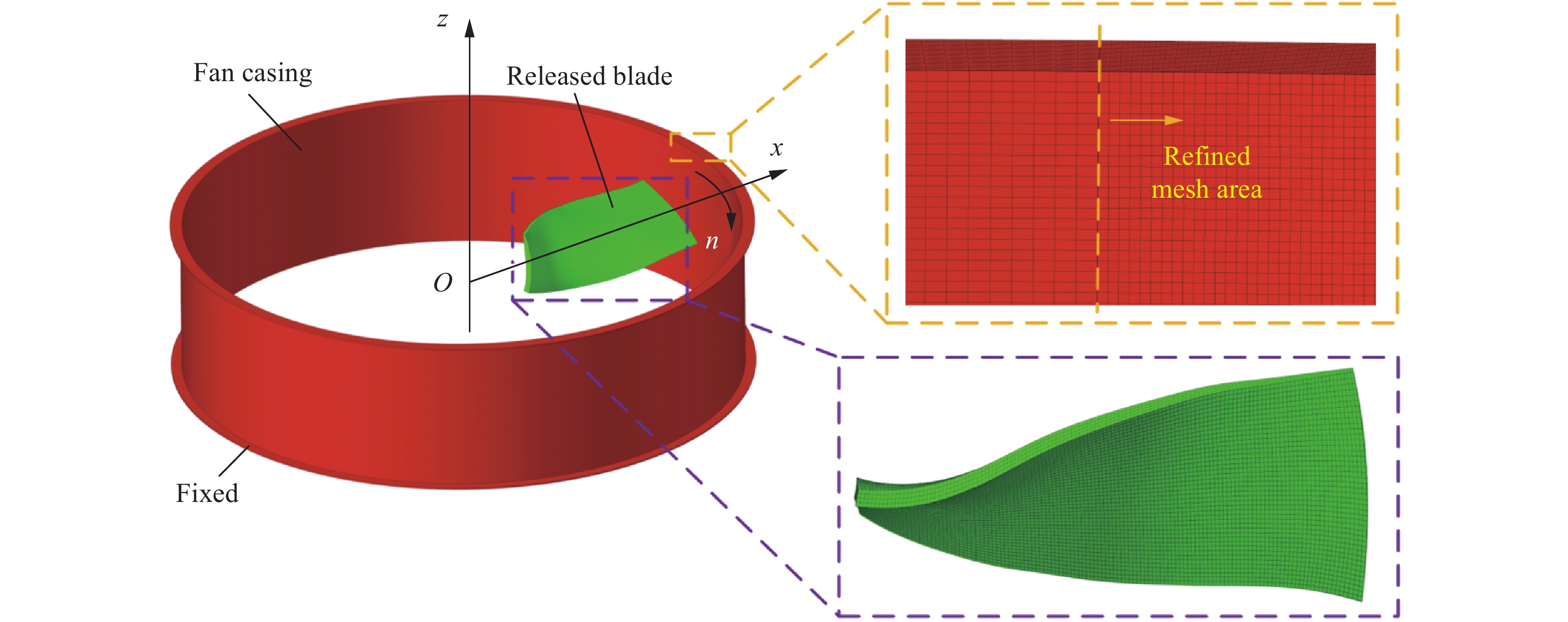

图 5 真实风扇机匣有限元模型

Figure 5. Finite element model of real fan casing

下载: 全尺寸图片幻灯片

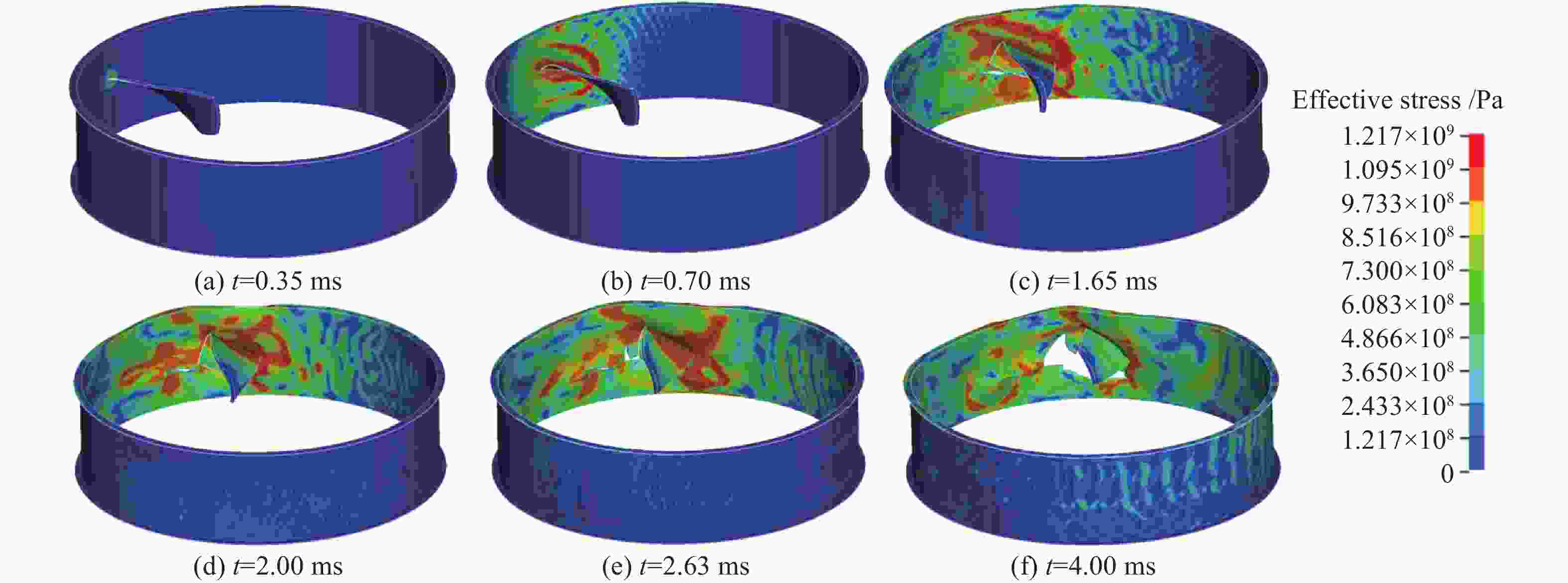

图 6 风扇叶片包容过程

Figure 6. Fan blade containment process

下载: 全尺寸图片幻灯片

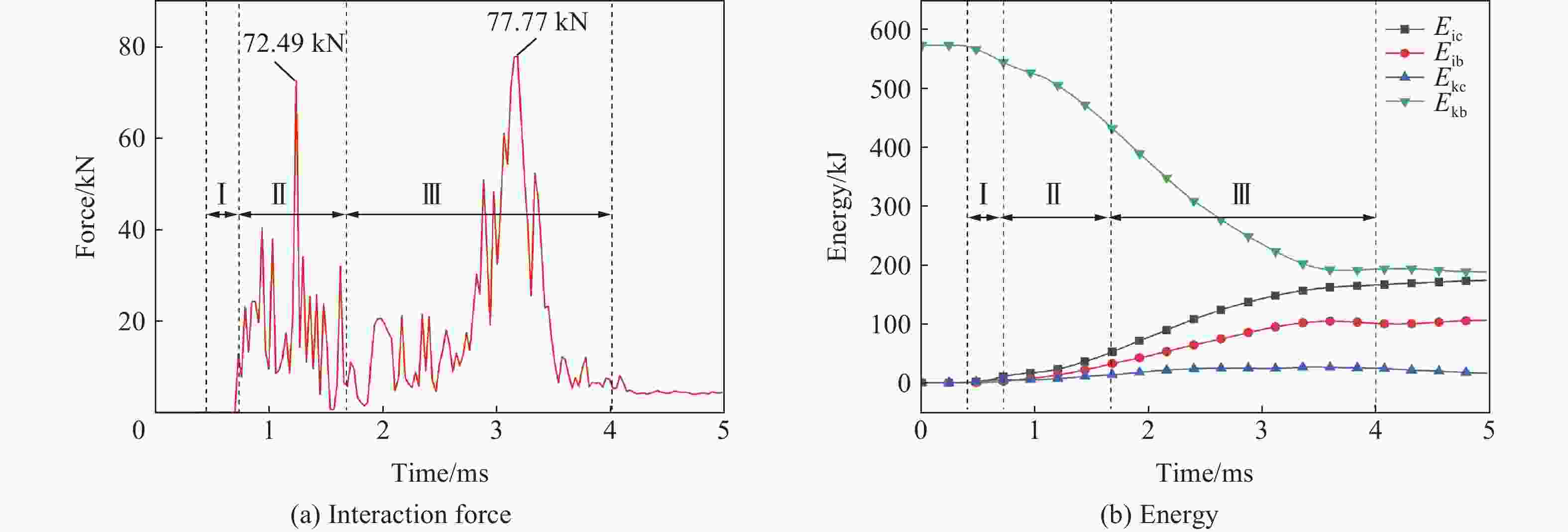

图 7 叶片包容过程中的相互作用力和能量变化历程

Figure 7. History of interaction and energy during the blade containment process

下载: 全尺寸图片幻灯片

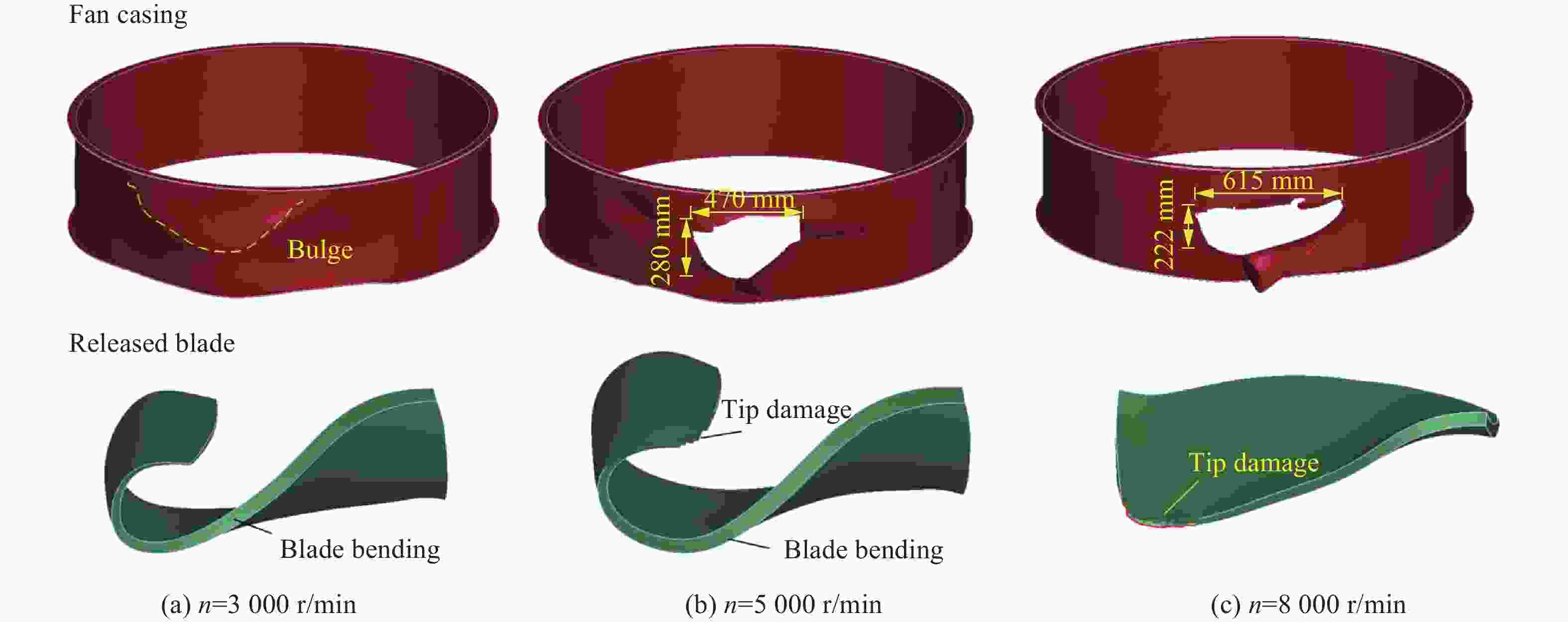

图 8 不同转速下风扇机匣与叶片的损伤形貌

Figure 8. Simulation results of fan casing and blade at different rotate speeds

下载: 全尺寸图片幻灯片

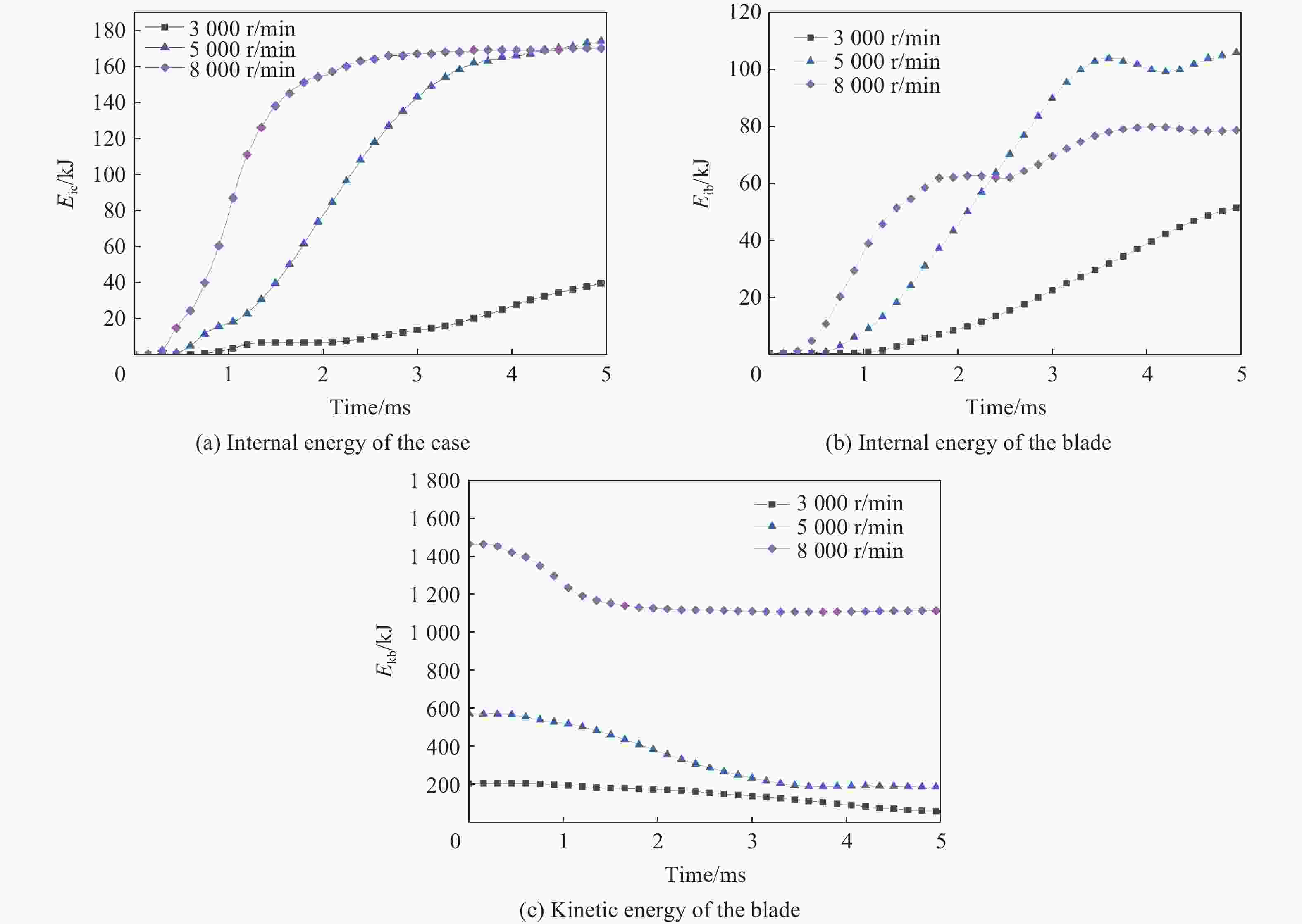

图 9 不同转速下各能量参量的变化历程

Figure 9. The energy history cures at different rotate speeds

下载: 全尺寸图片幻灯片

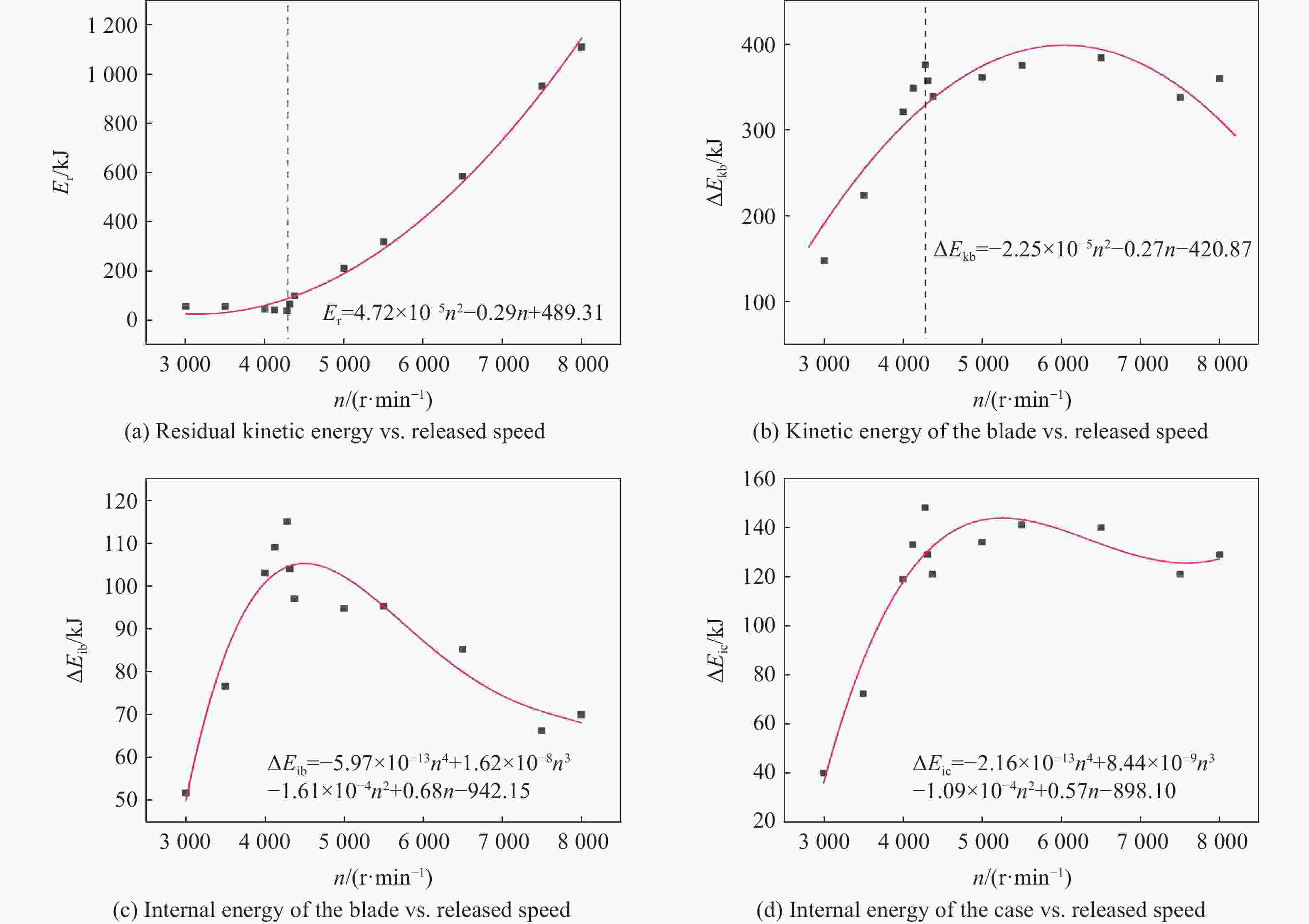

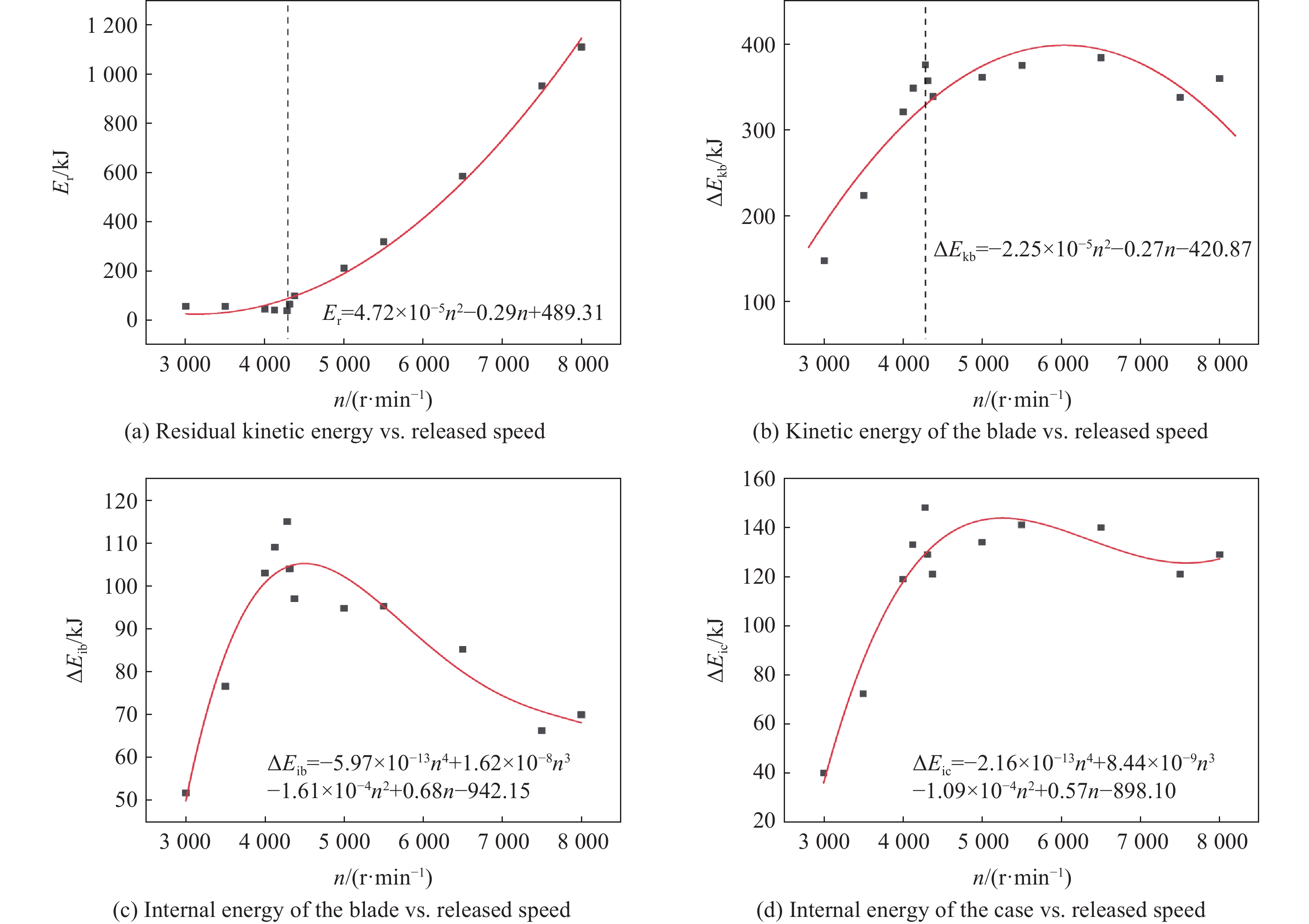

图 10 不同转速下各能量参数变化

Figure 10. Change of the energy parameters at different released speeds

下载: 全尺寸图片幻灯片

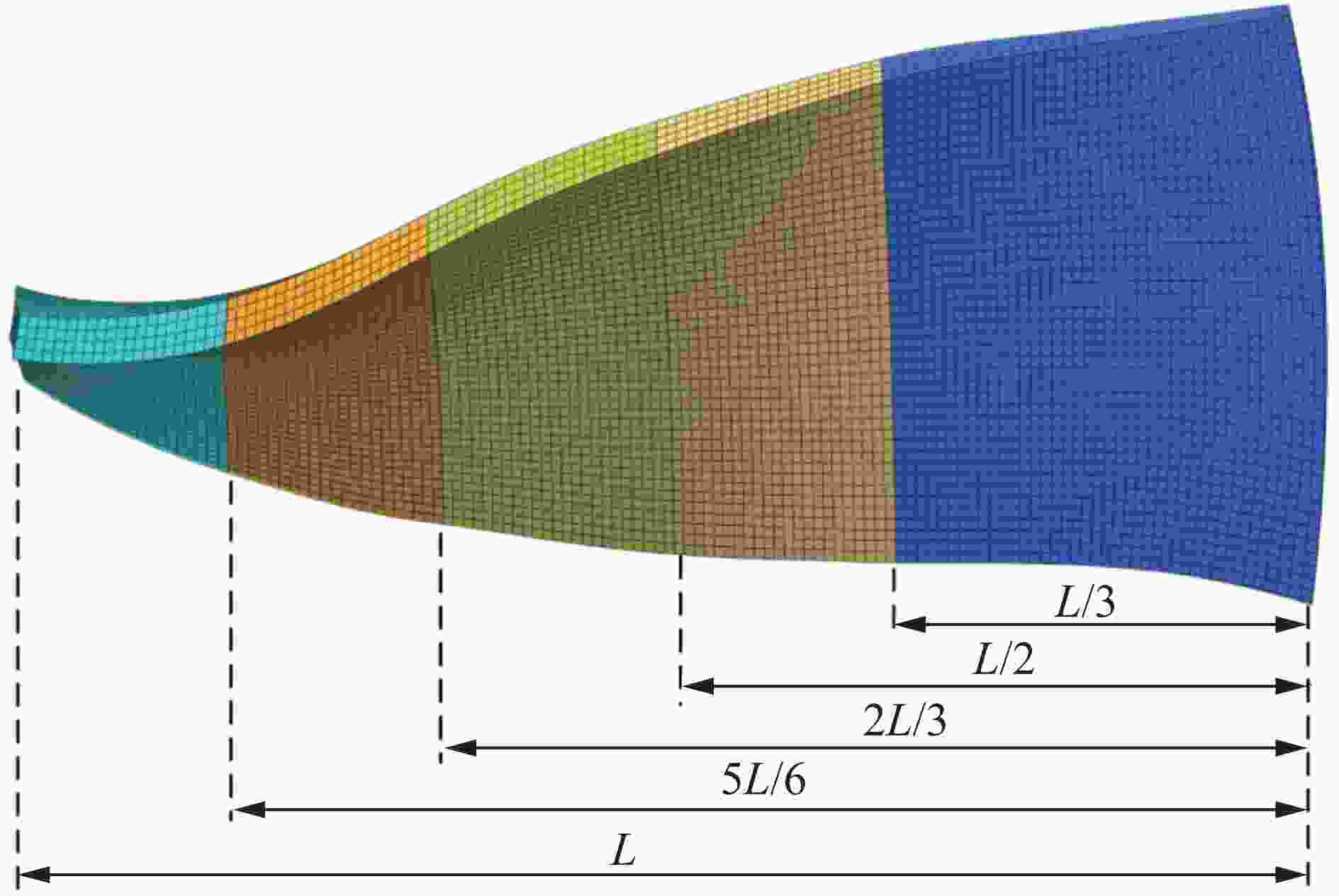

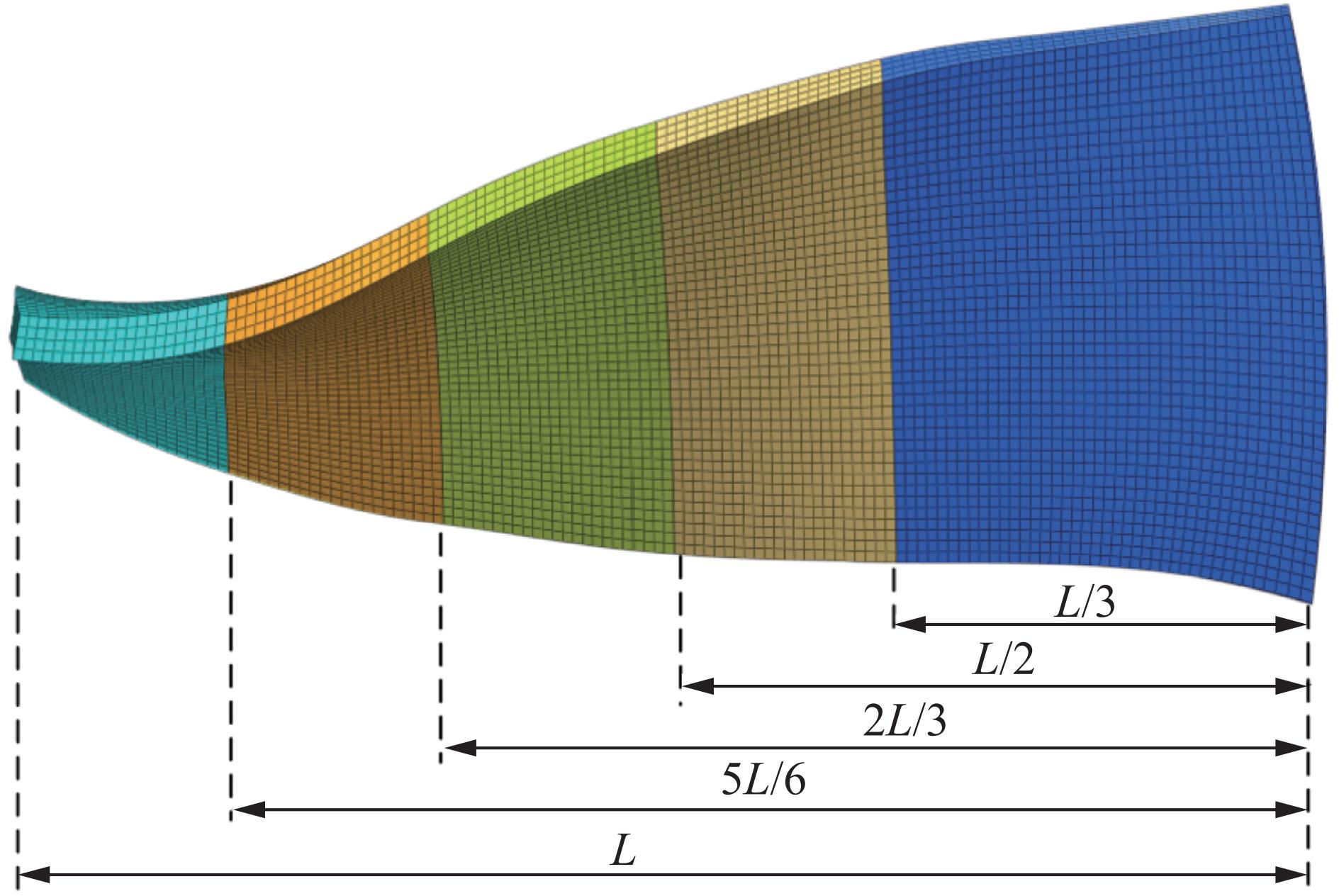

图 11 不同断叶尺寸的网格模型

Figure 11. Finite element model of fan blade with different size

下载: 全尺寸图片幻灯片

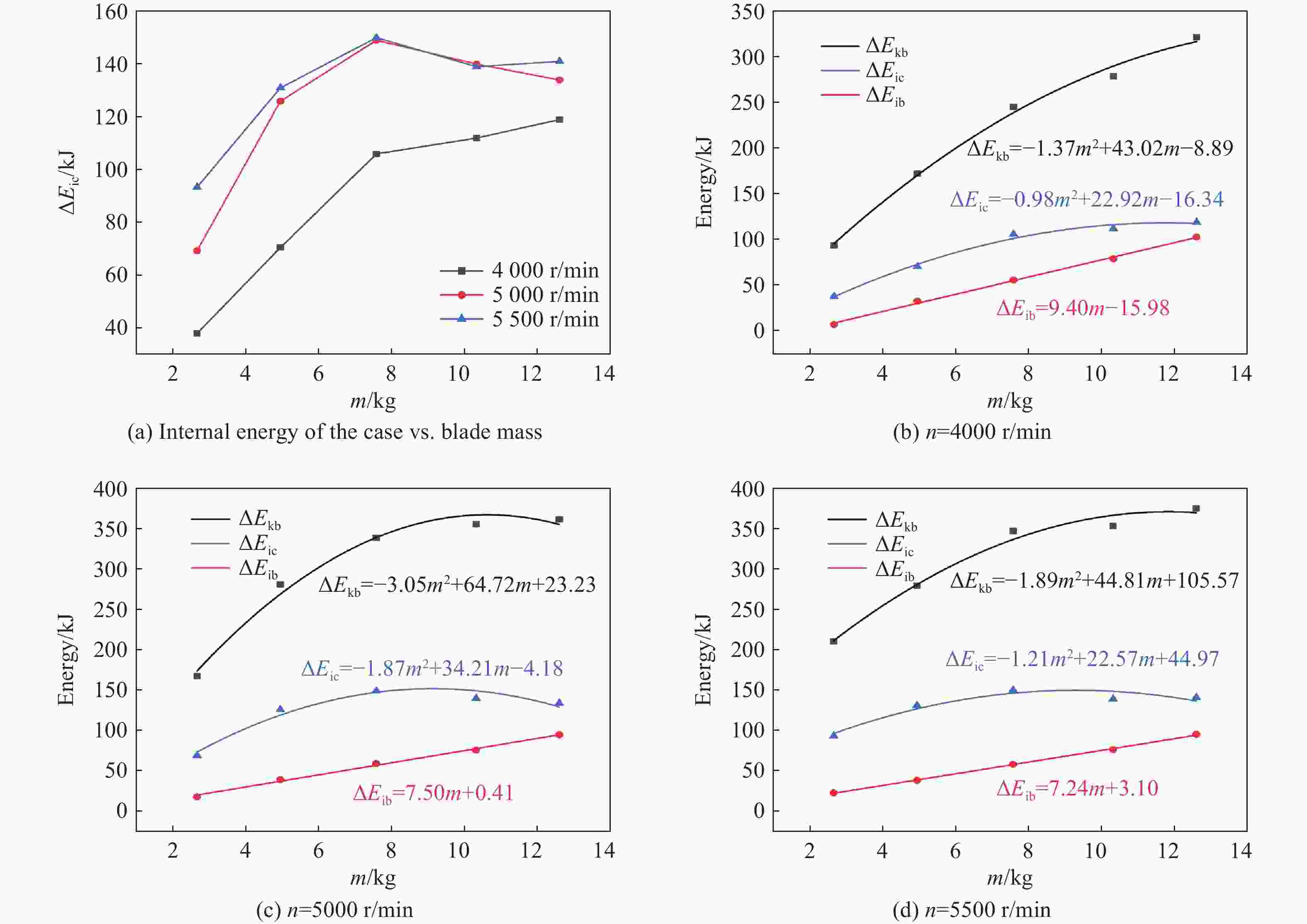

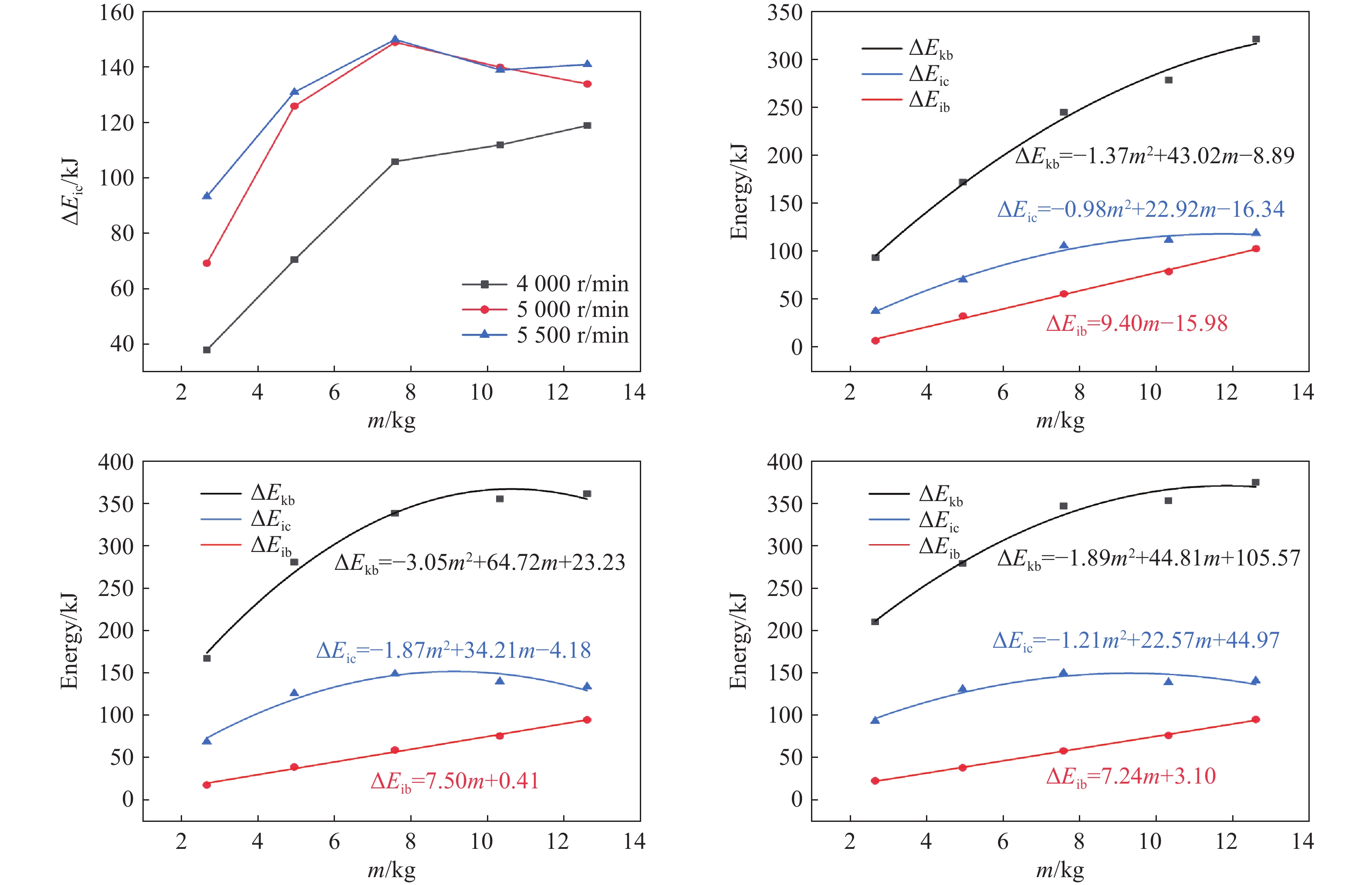

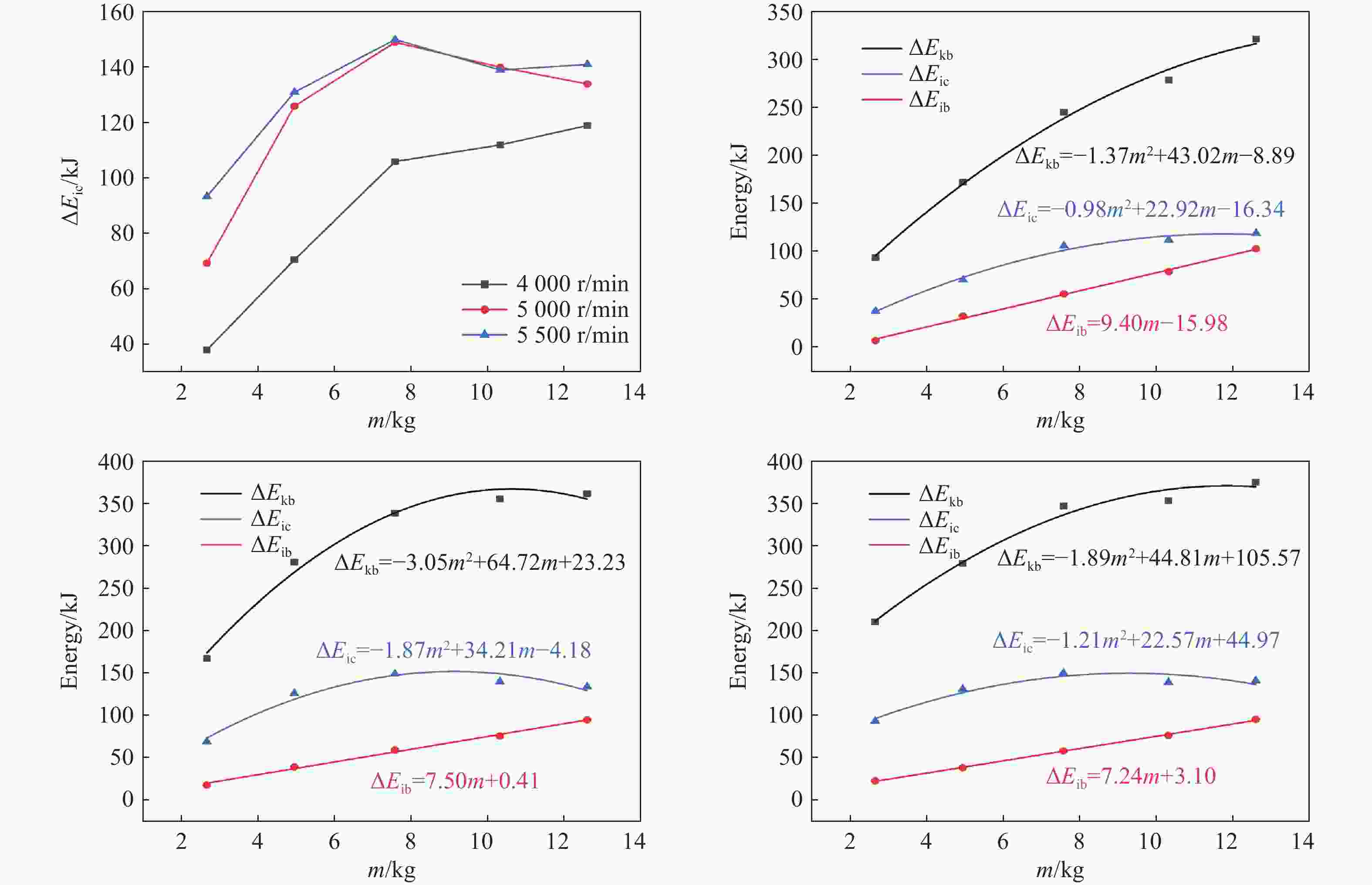

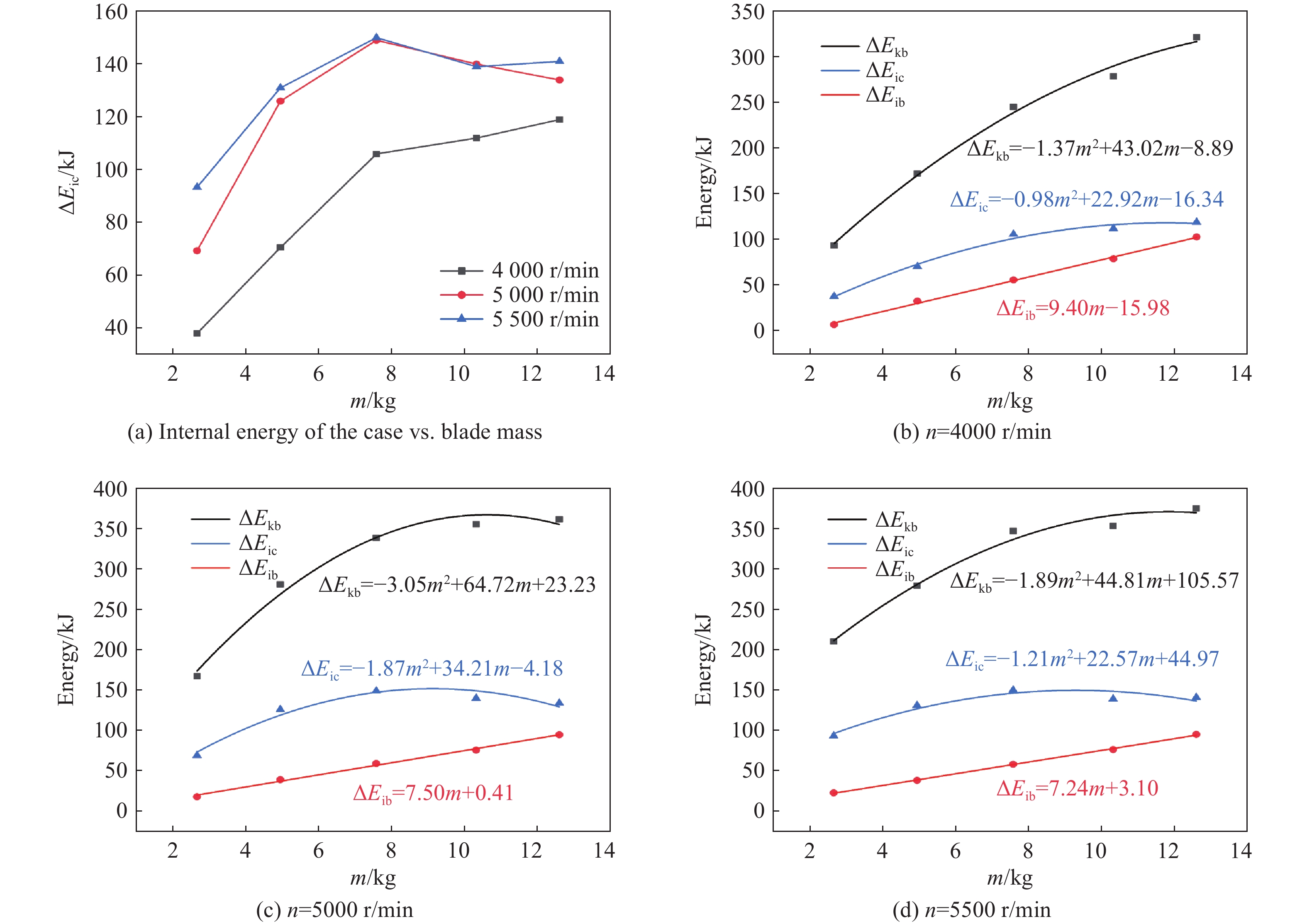

图 12 不同转速下断叶质量对能量参数的影响

Figure 12. Effect of blade mass on energy parameters at different rotate speeds

下载: 全尺寸图片幻灯片

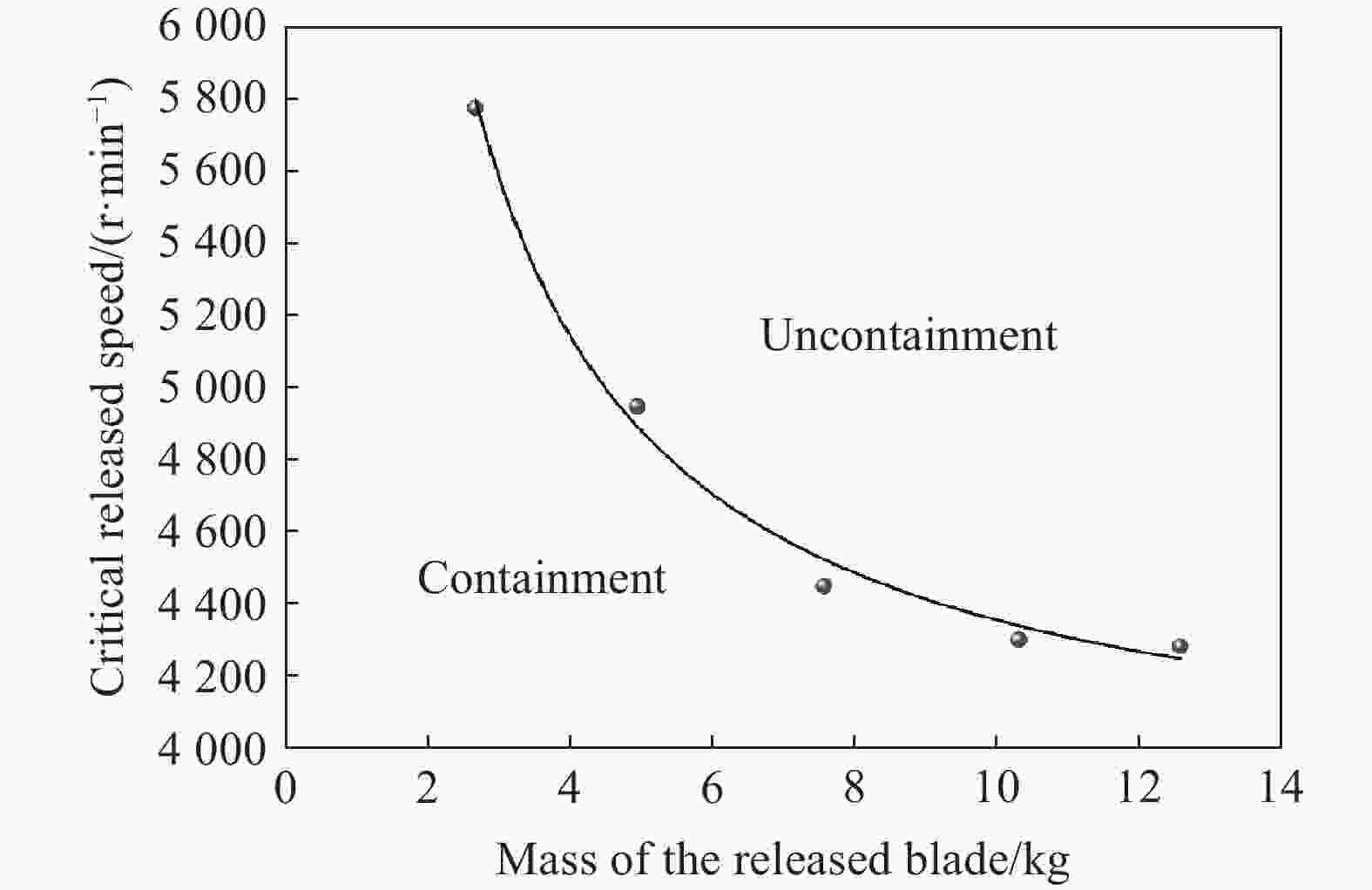

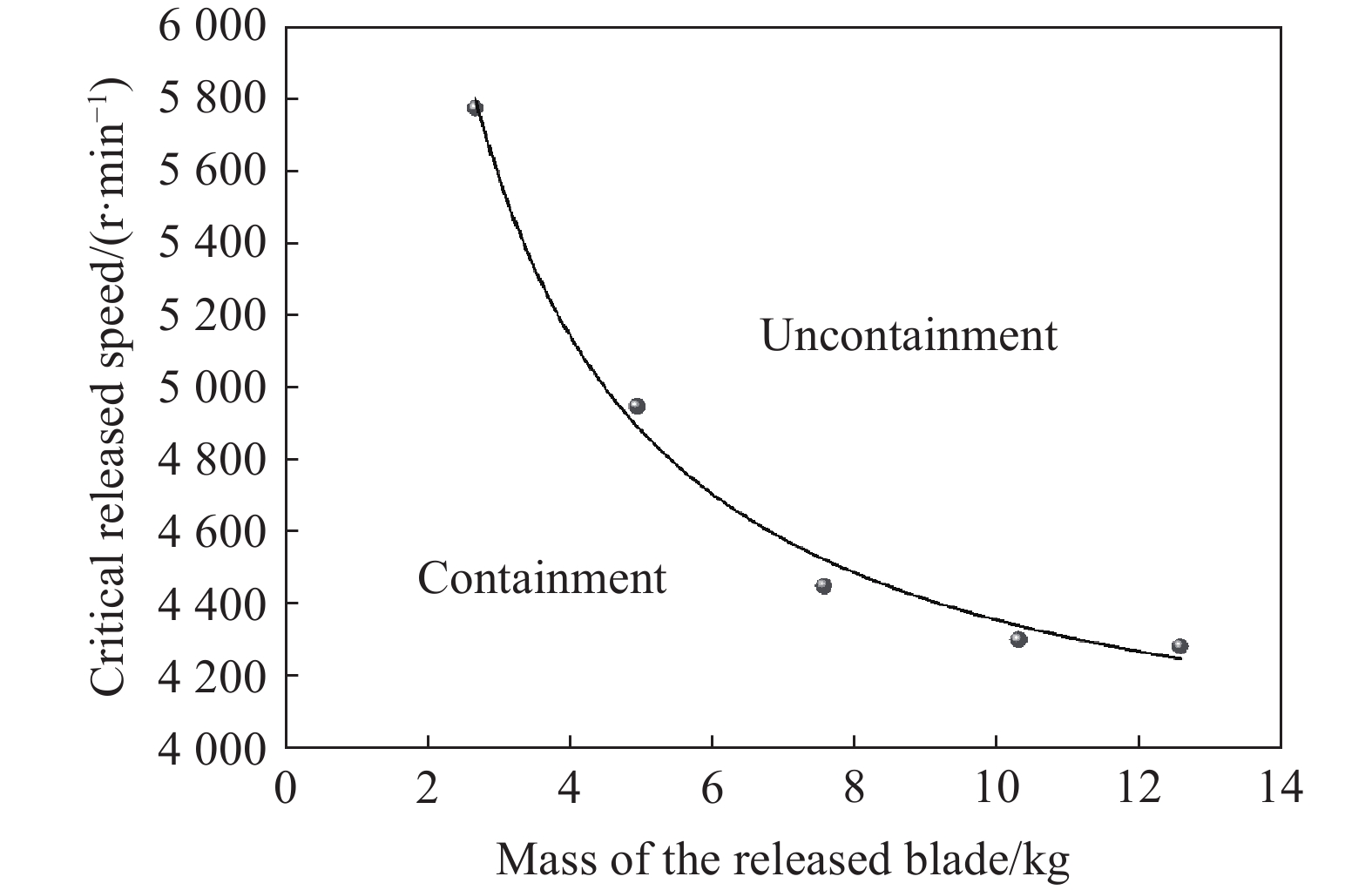

图 13 断叶质量与机匣临界包容转速的关系

Figure 13. Relationship between blade mass and critical released speed

下载: 全尺寸图片幻灯片

表 1 TC4材料参数^[10,23]

Table 1. Material parameters of TC4^[10,23]

ρ/(g·cm⁻³)	E/GPa	C_p/(J·kg⁻¹·K⁻¹)		ν	ρ/(g·cm⁻³)	a	γ₀
4.428	112.4	580		0.33	5130	0	1.23

A/MPa	B/MPa	n	C	m_T	T_m/K	T_r/K	$ {\dot{\varepsilon }}_{0} $/s⁻¹
1130	250	0.2	0.032	1	1920	293	1

D₁	D₂	D₃	D₄	D₅	S₁	S₂	S₃
−0.09	0.27	0.48	0.014	3.87	1.028	0	0
注：C_p为定压比热，ν为泊松比，ρ为密度.

下载: 导出CSV

表 2 TC4半环模拟机匣试验与仿真结果对比

Table 2. Comparison of test and simulation results of TC4 half ring simulator

工况	靶板厚度/mm	弹体质量/g	v_i/(m·s⁻¹)	结果	v_r/(m·s⁻¹)		h/mm		误差/%
工况	靶板厚度/mm	弹体质量/g	v_i/(m·s⁻¹)	结果	试验	仿真	试验	仿真	v_r	h
1#	7.00	329	120	反弹	−	−	9.12	8.87	−	2.74
2#	6.95	327	185	反弹	−	−	9.46	9.90	−	4.65
3#	7.03	332	203	穿透	53.0	50.6	−	−	4.52	−

下载: 导出CSV

表 3 不同断叶尺寸下的数值仿真结果

Table 3. Simulation results of different blade size

断叶质量/kg	结果	初始动能/kJ	剩余动能/kJ	机匣应变能/kJ	相互作用力/kN
断叶质量/kg	结果	初始动能/kJ	剩余动能/kJ	机匣应变能/kJ	第1次	第2次
2.655	包容	227	61.9	69.6	49.8	8.86
4.940	穿透	358	77.3	126	48.2	16.3
7.574	穿透	464	126	143	53.2	31.3
10.316	穿透	538	183	140	68.4	52.5
12.597	穿透	573	193	134	72.49	77.77

下载: 导出CSV
