温压炸药隧道内爆炸结构约束对冲击波及爆炸火团的影响规律

陈飞翔; 张国凯; 何勇; 吴玉欣; 刘黎旺; 邓国强

doi:10.11883/bzycj-2024-0486

温压炸药隧道内爆炸结构约束对冲击波及爆炸火团的影响规律

doi: 10.11883/bzycj-2024-0486

1.
南京理工大学机械工程学院，江苏南京 210094
2.
南京理工大学安全科学与工程学院，江苏南京 210094
3.
军事科学院国防工程研究院，北京 100850

基金项目: 国家自然科学基金（52278504）；江苏省自然科学基金（(BK20220141）；中央高校基本科研业务费专项资金（309231B8805）

详细信息

作者简介:
陈飞翔（2001－　），男，硕士研究生，fxchen@njust.edu.cn

通讯作者:
张国凯（1988－　），男，博士，教授，博士生导师，gkzhang@njust.edu.cn

中图分类号: O382
计量
- 文章访问数: 349
- HTML全文浏览量: 29
- PDF下载量: 71
- 被引次数: 0
出版历程
- 收稿日期: 2024-12-11
- 修回日期: 2025-03-05
- 网络出版日期: 2025-03-05

Influence of tunnel structural confinement on shock wave and fireball generated by explosion of a thermobaric explosive in a tunnel

1.
School of Mechanical Engineering, Nanjing University of Science and Technology, Nanjing 210094, Jiangsu, China
2.
School of Safety Science and Engineering, Nanjing University of Science and Technology, Nanjing 210094, Jiangsu, China
3.
Institute of Defense Engineering, AMS, PLA, Beijing 100850, China

摘要

摘要: 为研究温压炸药隧道内爆炸冲击波传播规律和火团热效应，基于OpenFOAM开展温压炸药隧道内爆炸数值模拟，与温压炸药隧道内爆炸试验数据对比验证数值模拟精度，研究沿隧道轴线距离、炸药质量对爆炸冲击波传播特性及火团热效应的影响。结果表明：相同装药质量条件下，沿隧道轴线距离大于1/3倍隧道等效圆直径时，爆炸冲击波超压峰值衰减规律和平面波形成距离不随沿隧道轴线距离变化而变化；冲击波平面波形成后，冲量随沿隧道轴线距离的增大先增大后不变。沿隧道轴线相同距离处爆炸，冲击波形成平面波距离随炸药质量的增加而增大；平面波形成后，冲击波超压峰值衰减规律不受装药质量影响，但冲击波冲量随装药质量的增加而增长。受隧道口泄能效应的影响，隧道内爆炸火团总是向近隧道口方向移动，隧道壁面约束使得火团沿隧道轴线垂直方向发展受限；火团轴线方向上出现高温尖端，隧道内轴线方向温度分布具有对称性。进一步建立爆炸火团不同温度轴线方向上传播最大距离与炸药质量的拟合公式，可预测典型温压炸药隧道内爆炸火球不同温度轴线方向上传播最大距离。
- 温压炸药 /
- 冲击波 /
- 泄能效应 /
- 火团温度 /
- 隧道约束
Abstract: To investigate the propagation characteristics of blast shock waves and the thermal effects of fireballs in tunnel explosions involving thermobaric explosives, numerical simulations were conducted using OpenFOAM. The simulation accuracy was validated through comparative analysis with experimental data from tunnel explosion tests. The effects of axial distance along the tunnel and explosive mass on shock wave propagation characteristics and fireball thermal effects were systematically studied. The results demonstrated that under identical charge mass conditions when the axial distance exceeds 1/3 times the equivalent tunnel diameter, the attenuation law of shock wave overpressure peak and planar wave formation distance remain independent of axial position. After planar wave formation, the impulse increases with axial distance before stabilizing. At the same axial explosion distances, the planar wave formation distance increases with explosive mass. Post planar wave formation, the attenuation pattern of the shock wave overpressure peak remains unaffected by charge mass. In contrast, the impulse exhibits a growth trend proportional to the increase in charge mass. Under the influence of the tunnel portal energy dissipation effect (tunnel effect), explosion-induced fireballs exhibit a consistent propagation tendency toward the proximal tunnel portal. The confinement imposed by tunnel walls restricts the lateral expansion of the fireball perpendicular to the tunnel axis while facilitating the formation of a high-temperature tip along the longitudinal axis. Especially, the temperature distribution along the tunnel axis maintains axial symmetry despite directional propagation biases. A fitting formula was established to characterize the relationship between the maximum axial propagation distance of explosion fireballs at different temperatures and the explosive mass, enabling the prediction of axial spread limits for fireballs at specific temperatures in typical thermobaric explosive detonations within tunnel-confined environments.
- thermobaric explosive /
- shock wave /
- energy release effect /
- fireball temperature /
- tunnel restraint

HTML全文

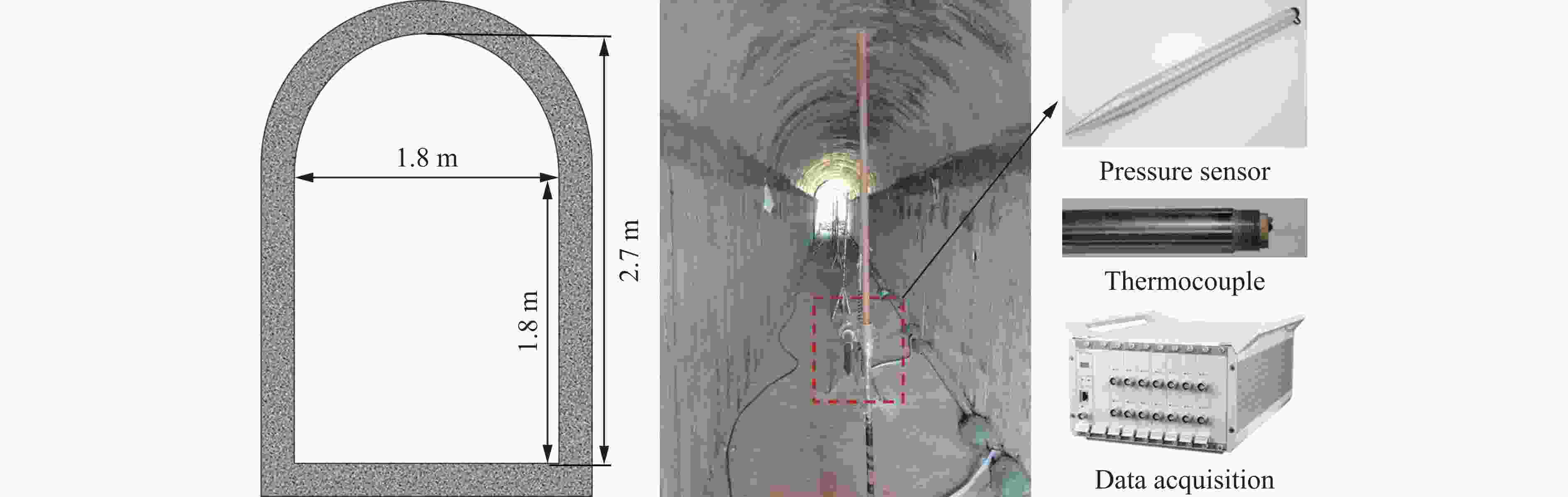

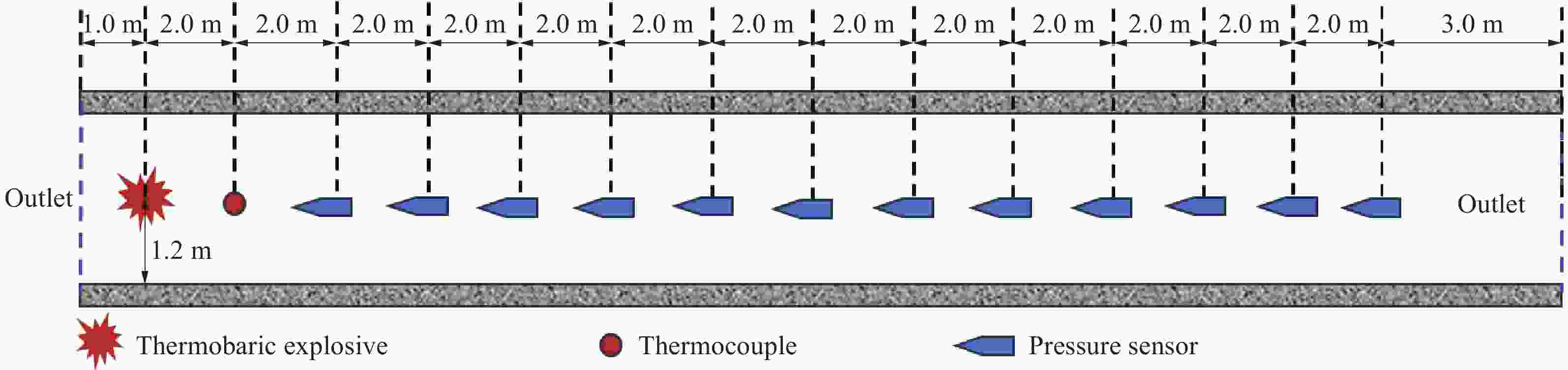

图 1 隧道截面尺寸及测量仪器设备

Figure 1. Tunnel section dimensions and measuring equipment

下载: 全尺寸图片幻灯片

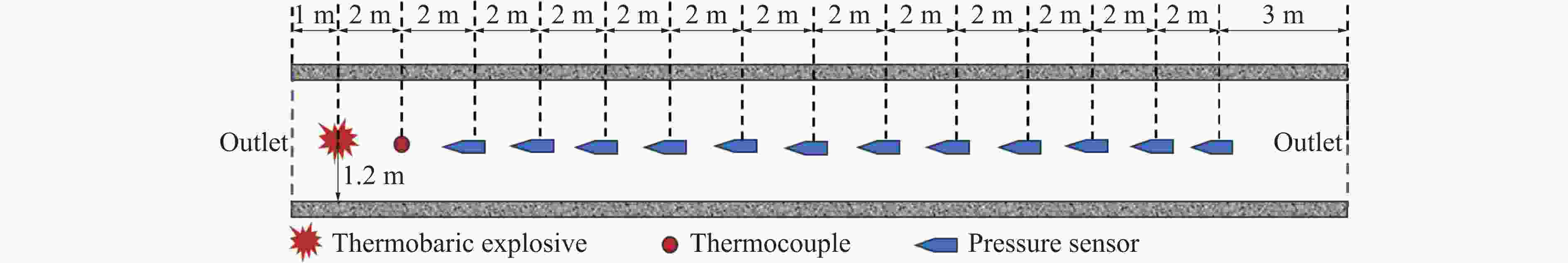

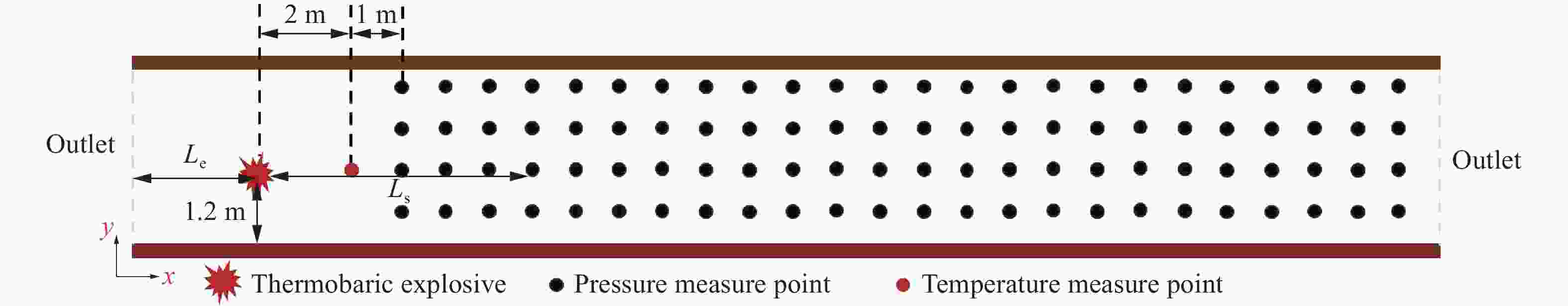

图 2 隧道内传感器布置图

Figure 2. Layout of sensors in the tunnel

下载: 全尺寸图片幻灯片

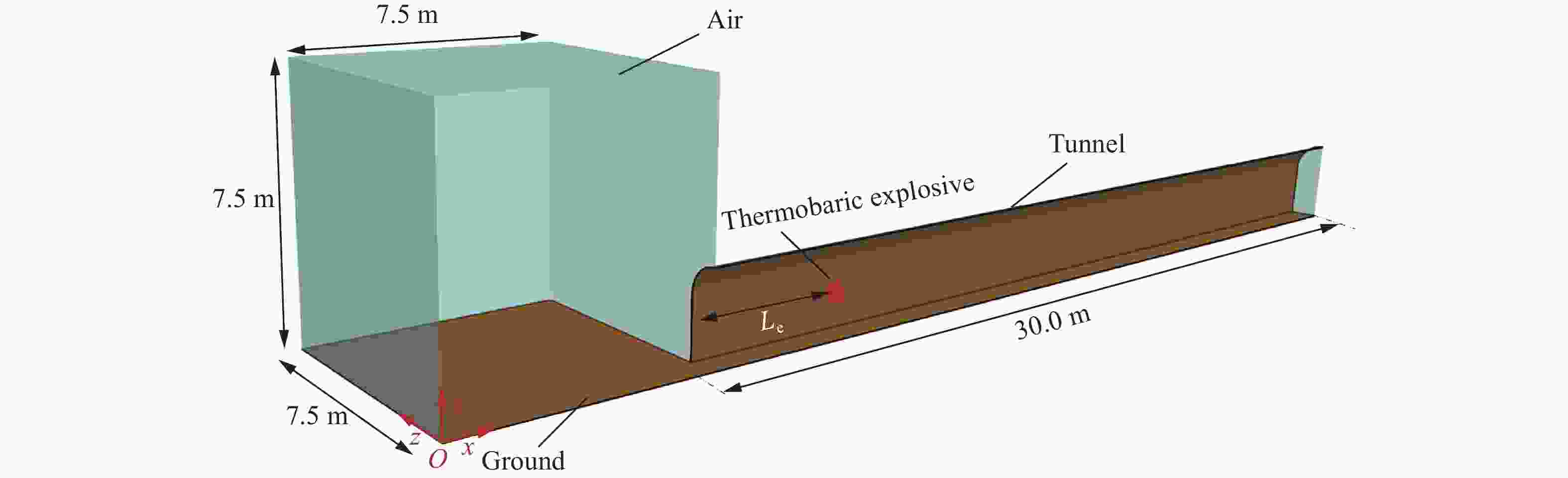

图 3 隧道内爆炸计算模型

Figure 3. Calculation model of the explosion in the tunnel

下载: 全尺寸图片幻灯片

图 4 压力计算测点布置

Figure 4. Measuring point layout for pressure calculation

下载: 全尺寸图片幻灯片

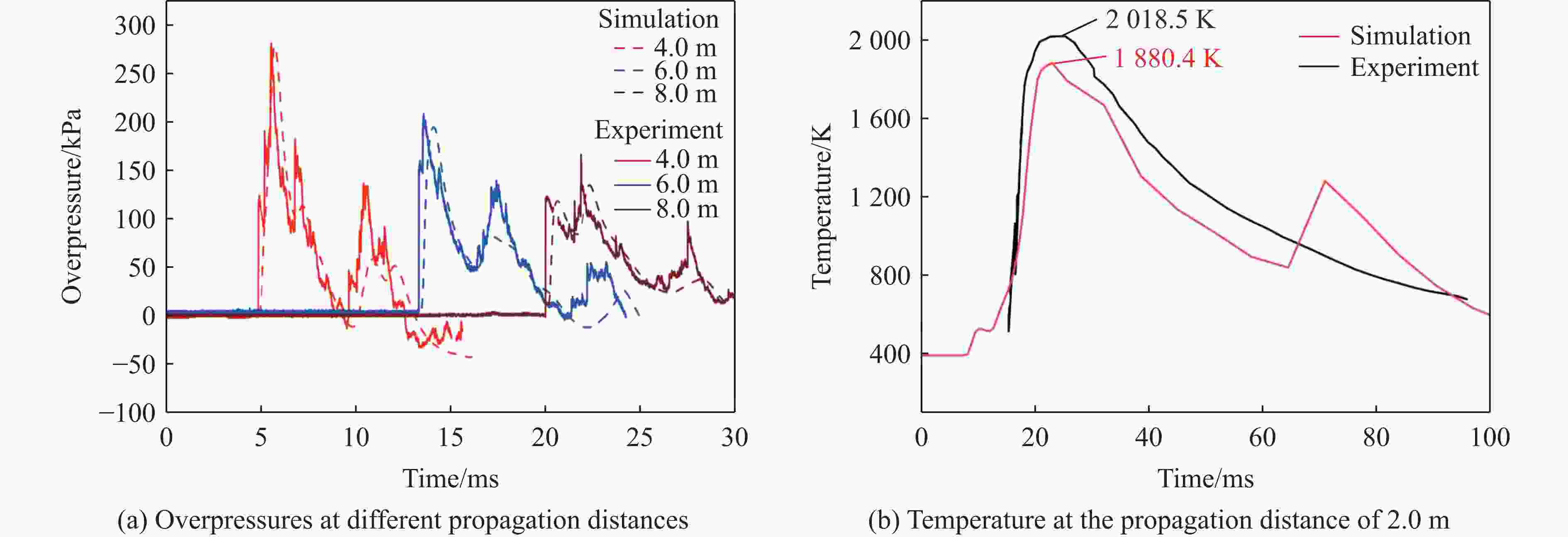

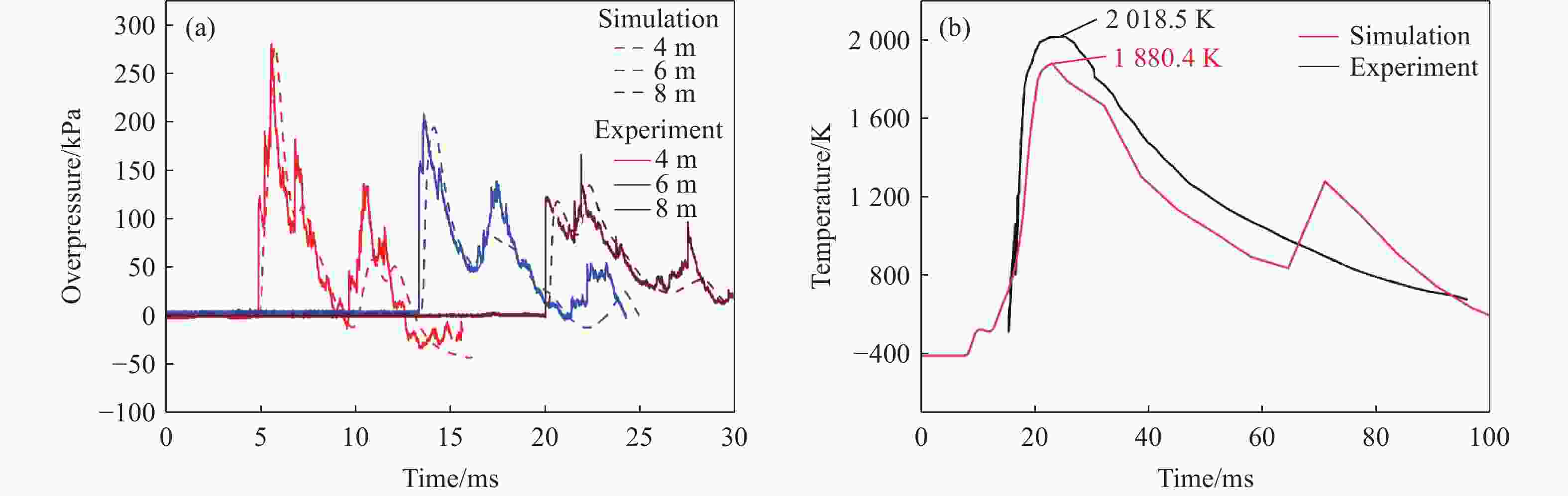

图 5 冲击波超压和温度时程曲线

Figure 5. Shock wave overpressure- and temperature-time curves

下载: 全尺寸图片幻灯片

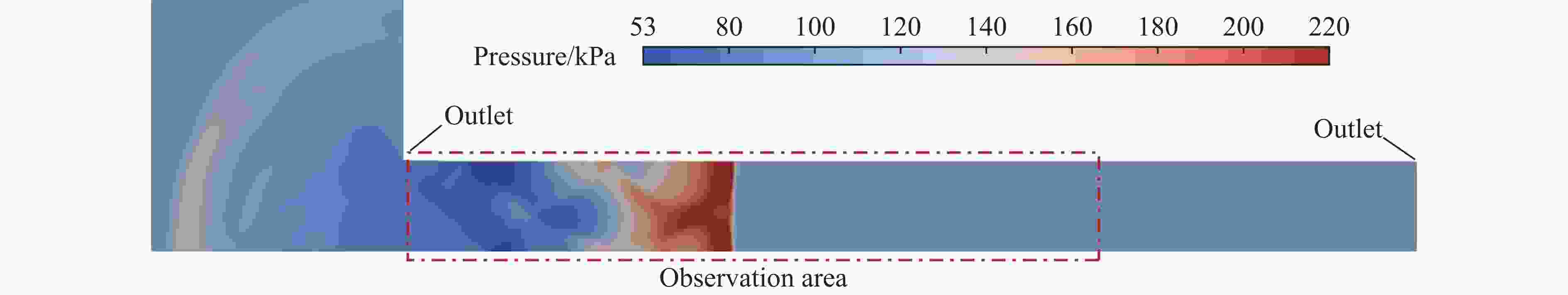

图 6 冲击波观测范围示意图

Figure 6. Schematic diagram of shock wave observation range

下载: 全尺寸图片幻灯片

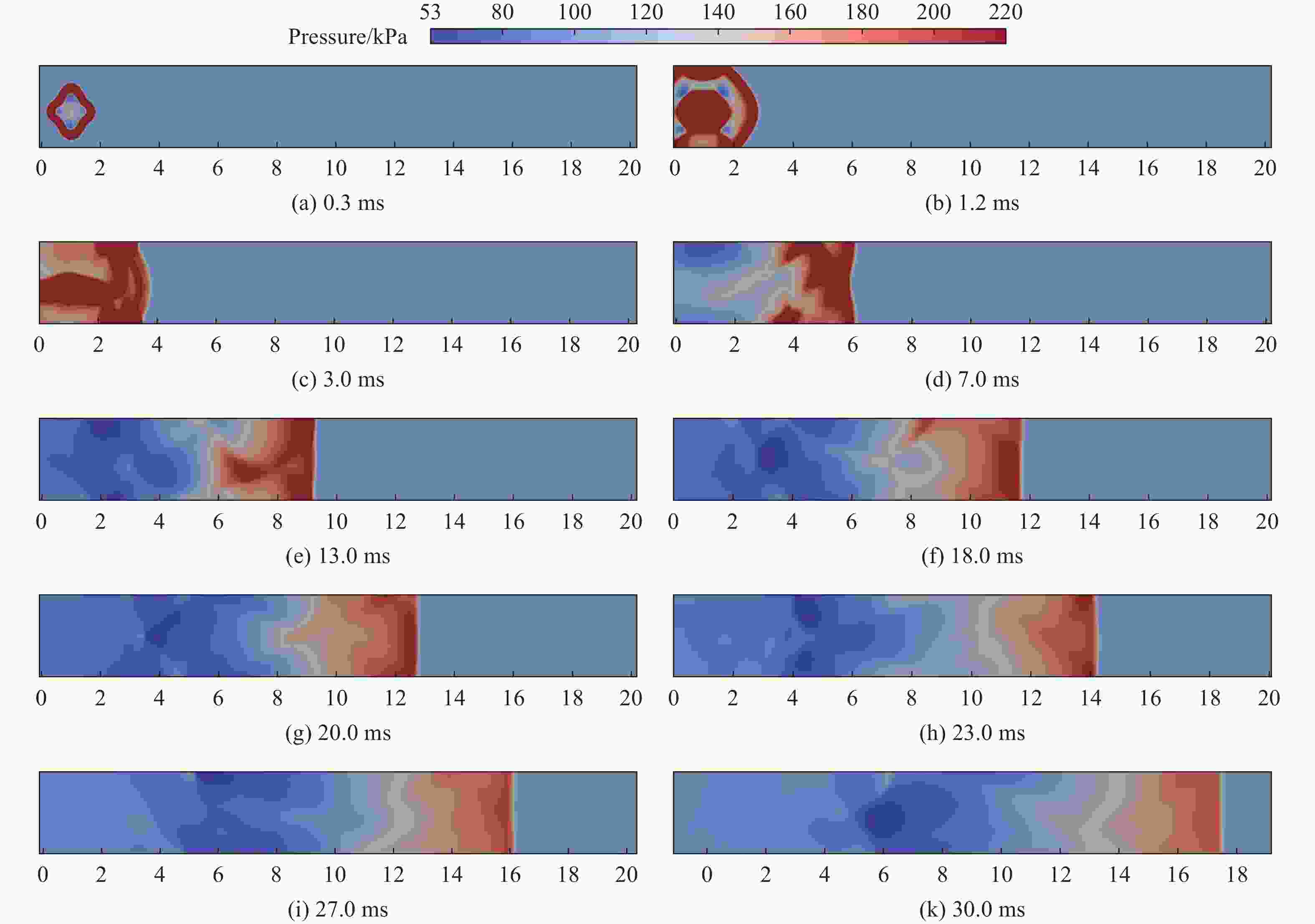

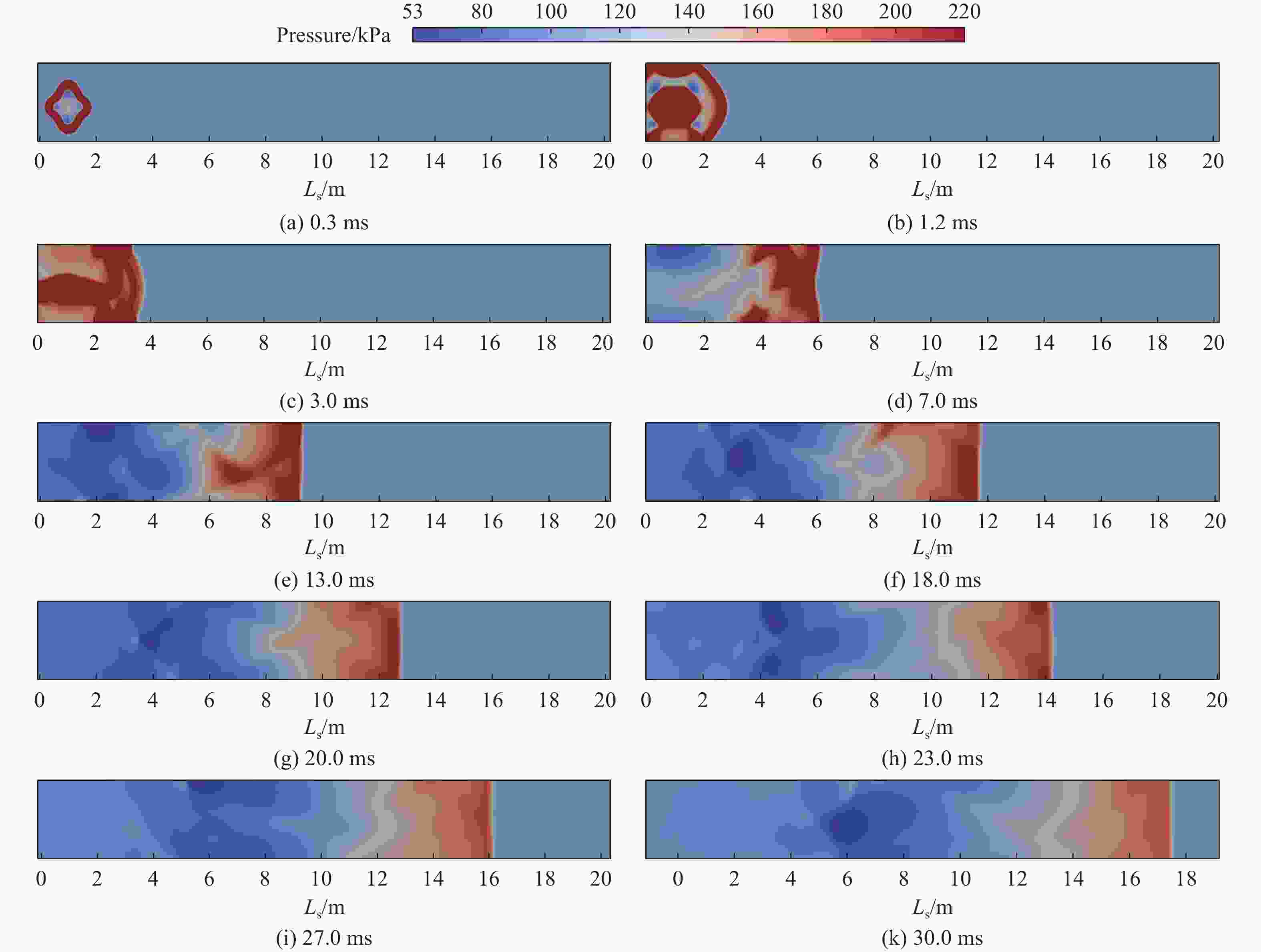

图 7 隧道内爆炸冲击波典型时刻的压力云图

Figure 7. Pressure contour plots of shock wave from an internal tunnel explosion at characteristic instants

下载: 全尺寸图片幻灯片

图 8 距隧道口不同距离处爆炸冲击波平面波形成位置

Figure 8. Location of planar wave formation for shock waves at various distances from the tunnel portal

下载: 全尺寸图片幻灯片

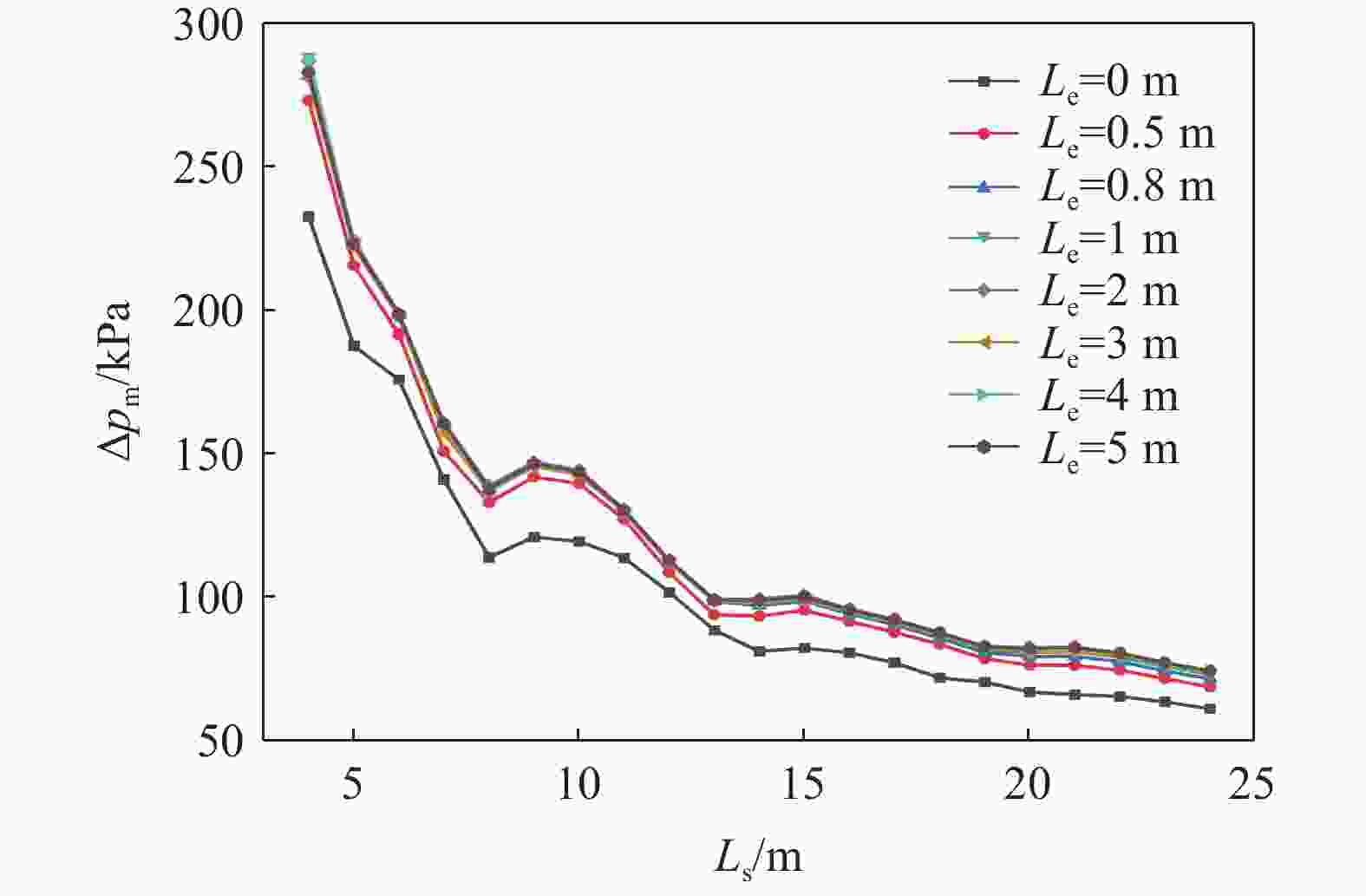

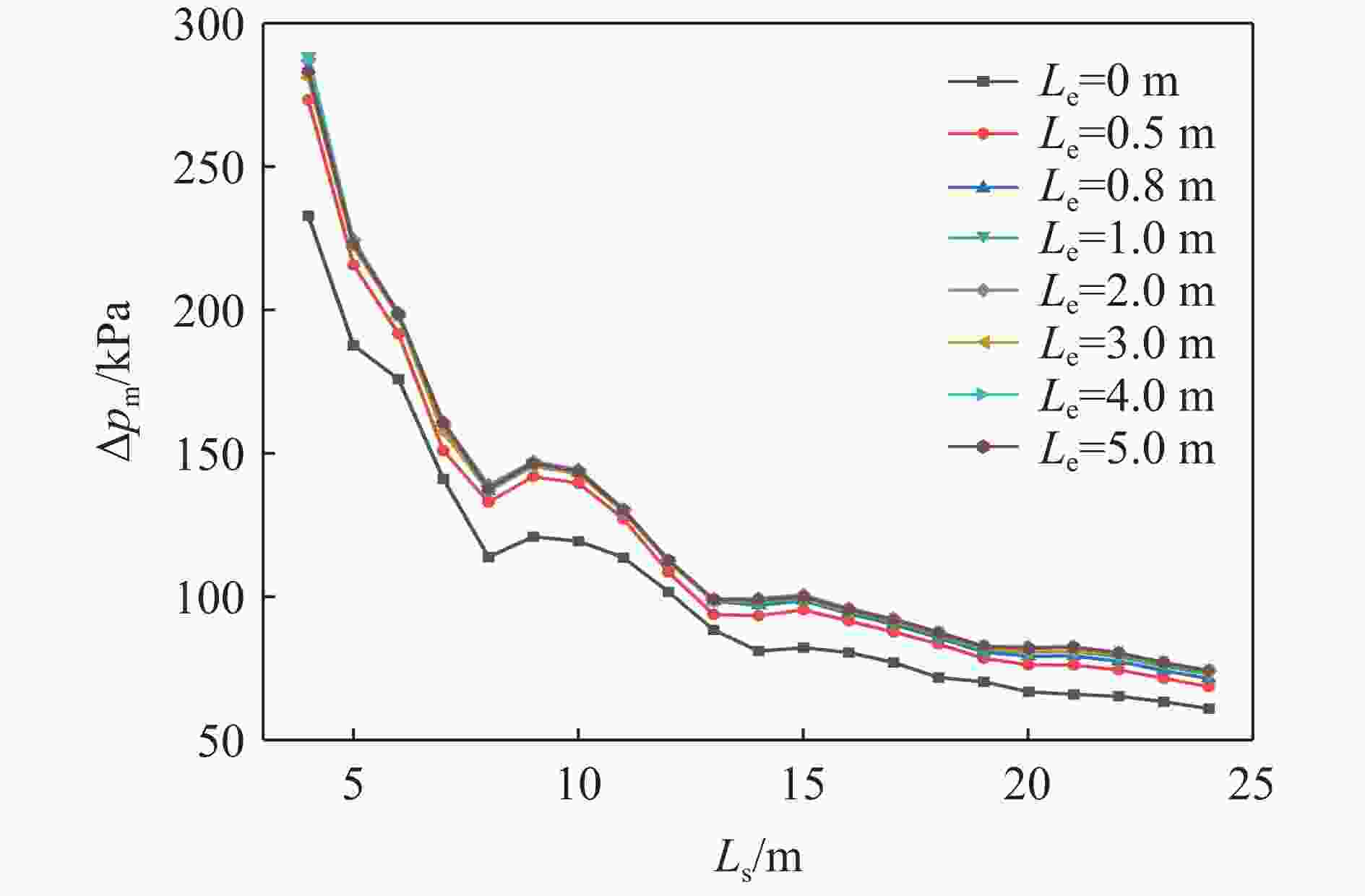

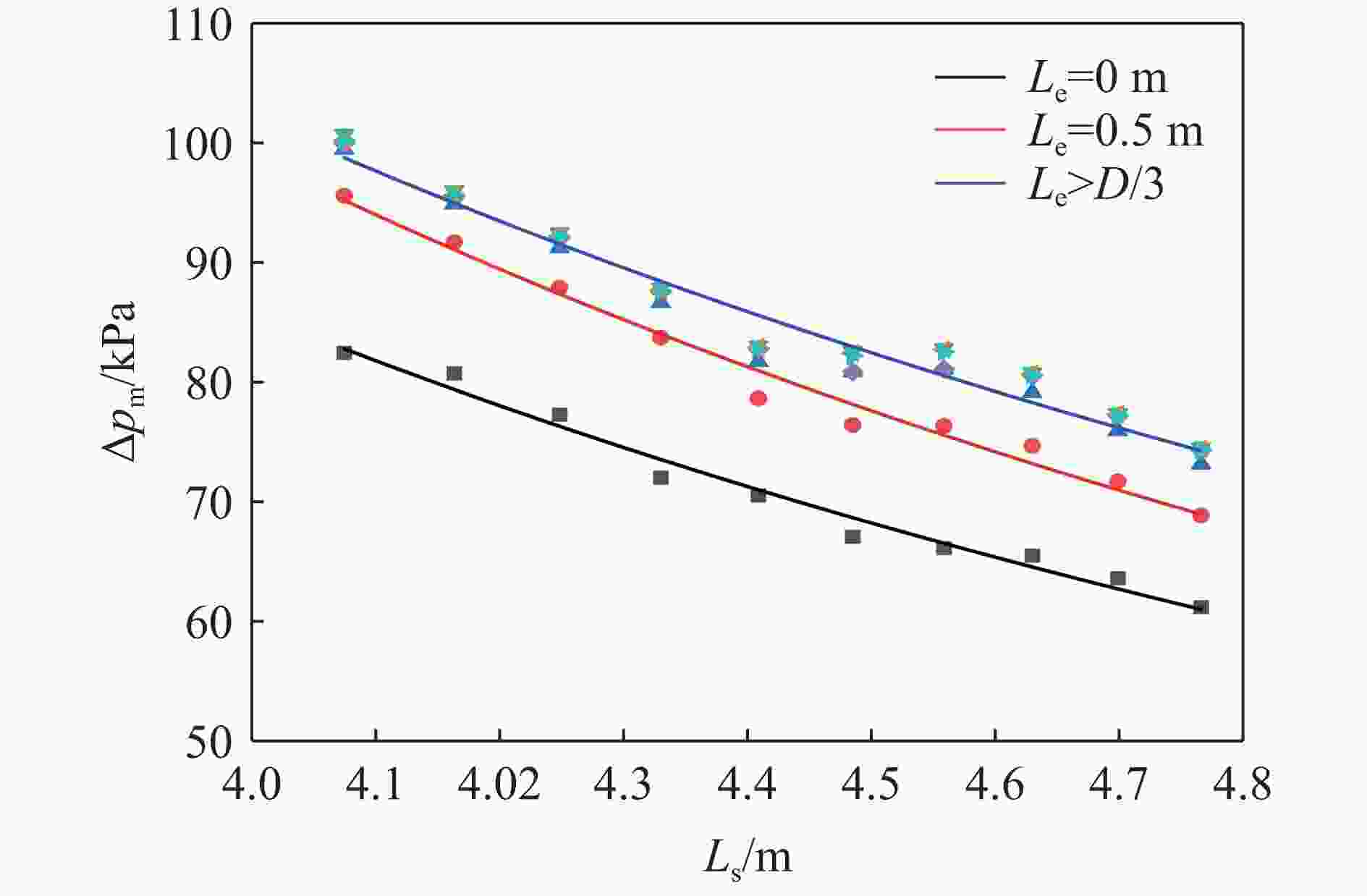

图 9 距隧道口部距离对爆炸冲击波超压峰值的影响

Figure 9. Effect of detonation position on the peak overpressure of a blast shock wave

下载: 全尺寸图片幻灯片

图 10 平面波形成后超压峰值随比例距离变化关系

Figure 10. Variation of peak overpressure with scaled distance after the formation of plane wave

下载: 全尺寸图片幻灯片

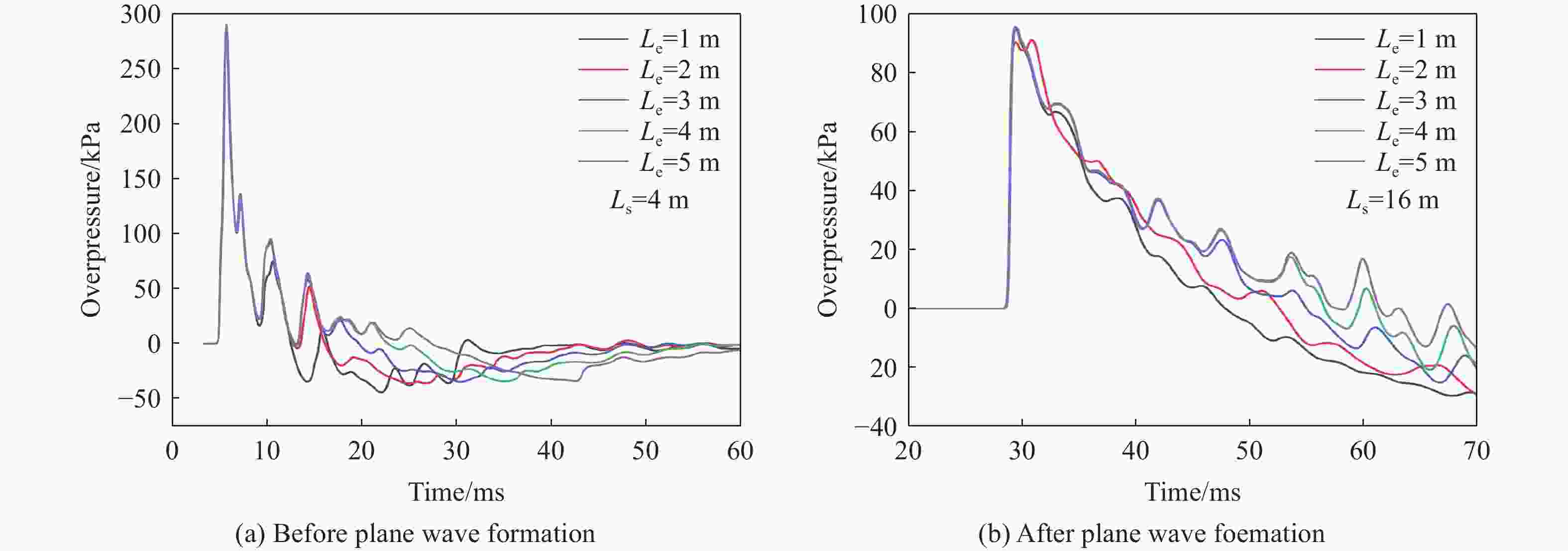

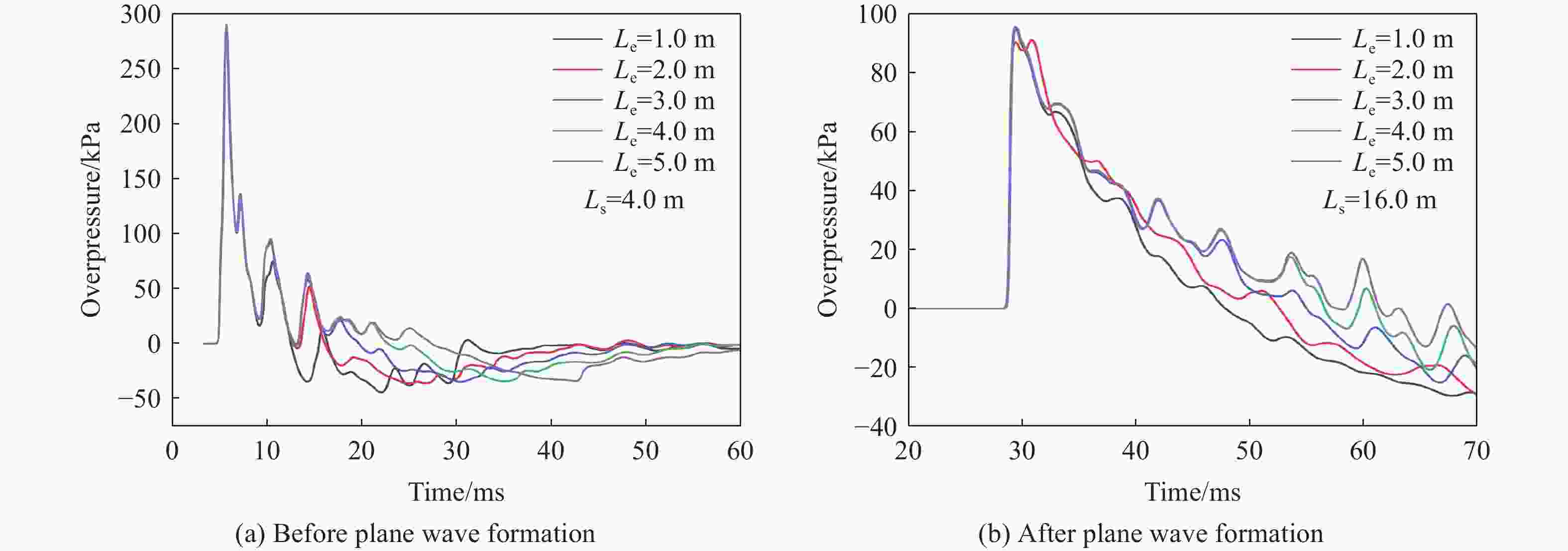

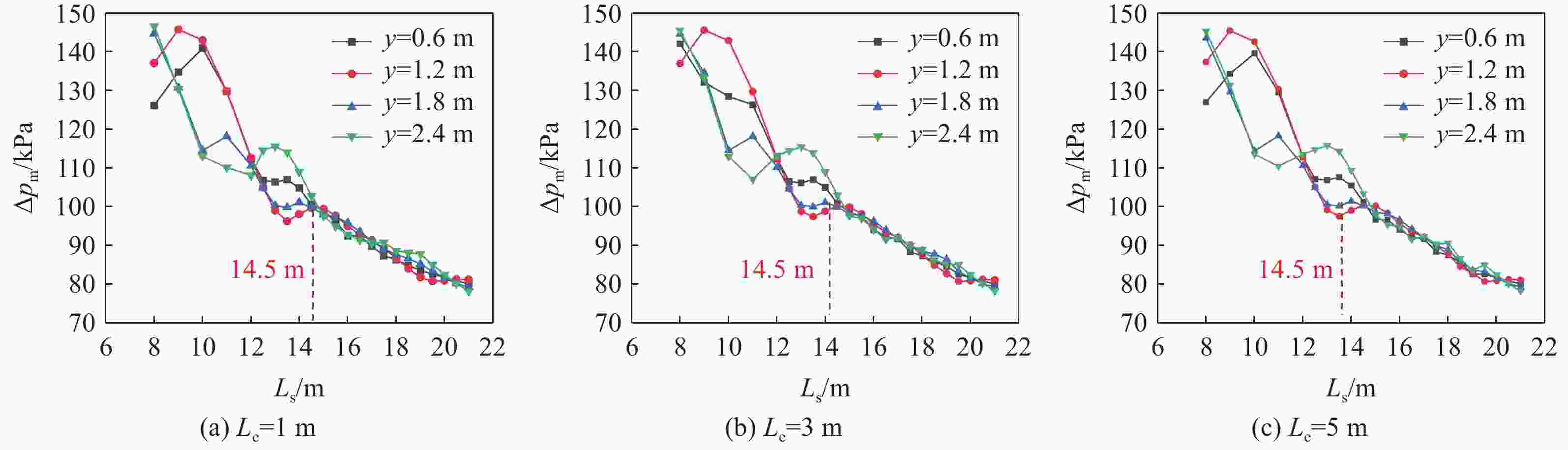

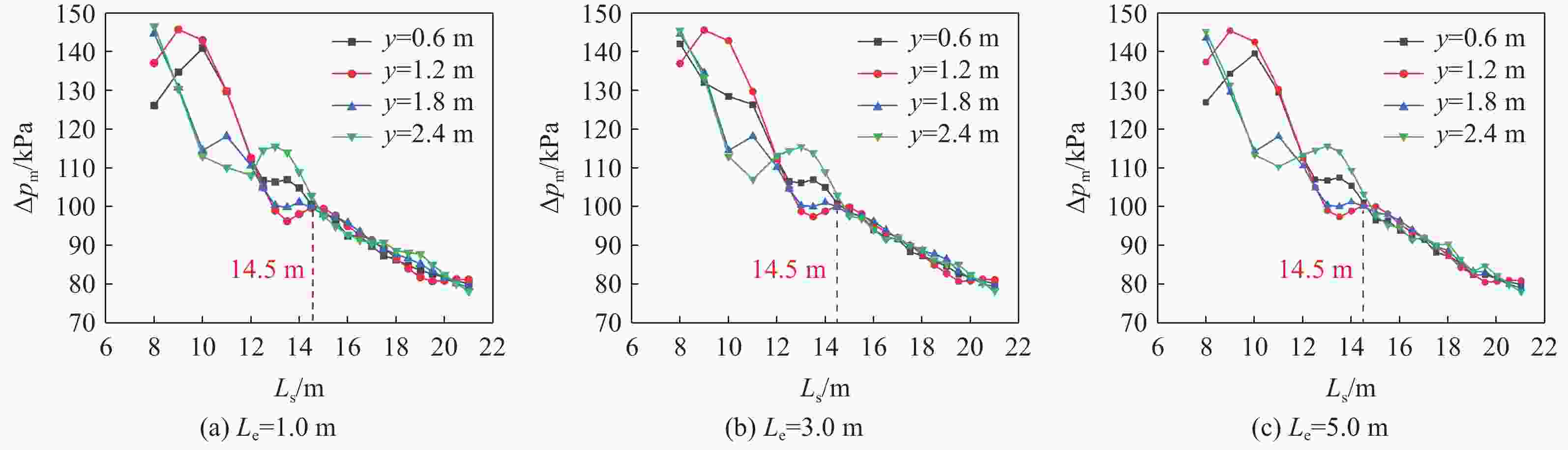

图 11 隧道轴线不同距离处平面冲击波形成前后超压曲线比较

Figure 11. Comparison of overpressure curves before and after planar shock wave formationat different distances along a tunnel axis

下载: 全尺寸图片幻灯片

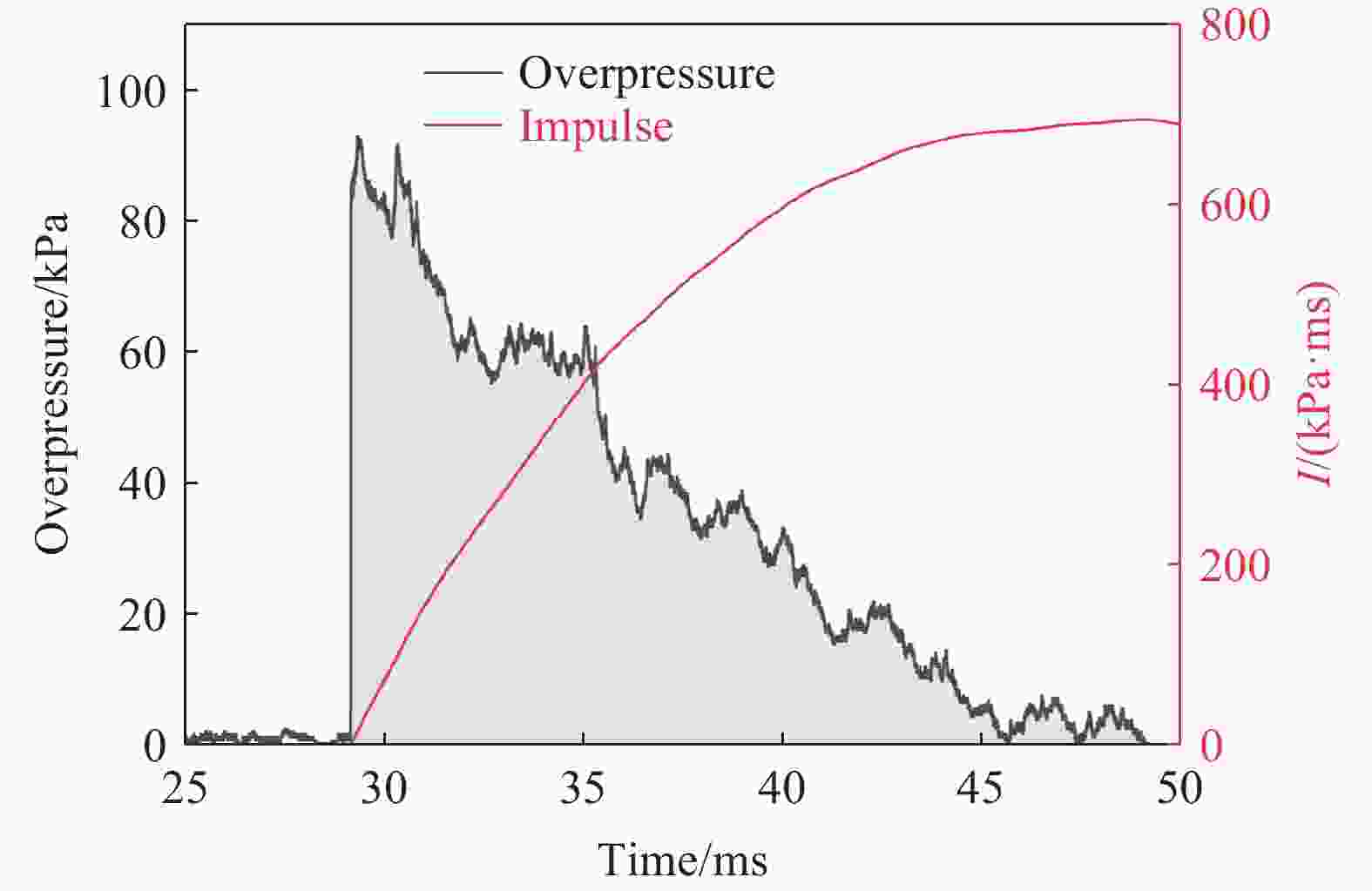

图 12 冲击波超压-时间曲线和对应的冲量积分

Figure 12. Shock wave overpressure-time curve and its corresponding impulse integral

下载: 全尺寸图片幻灯片

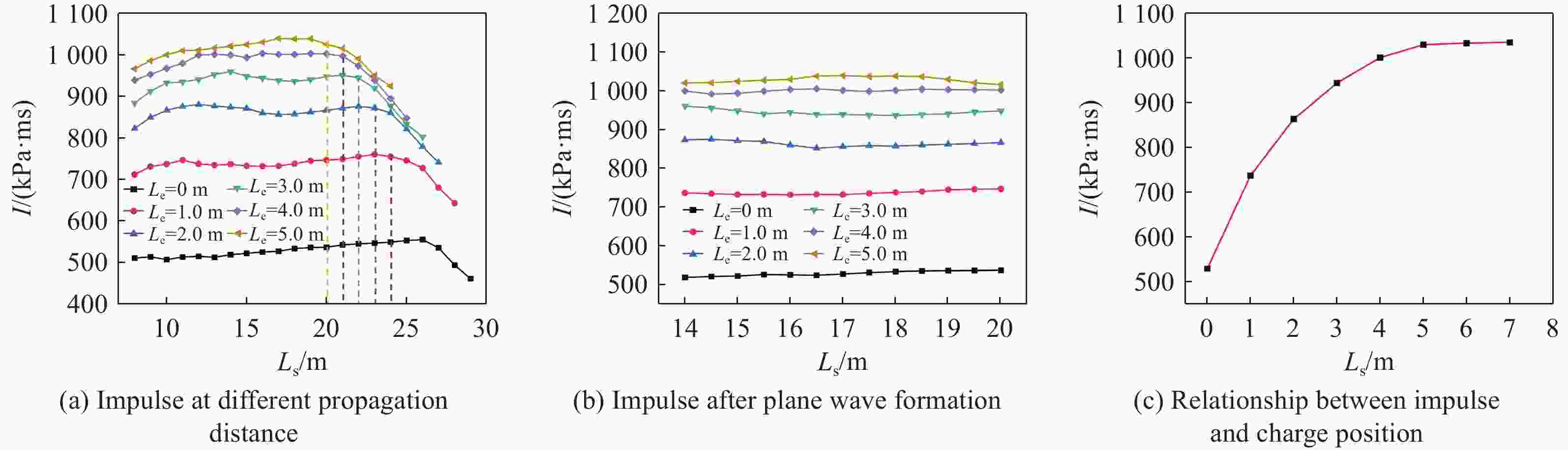

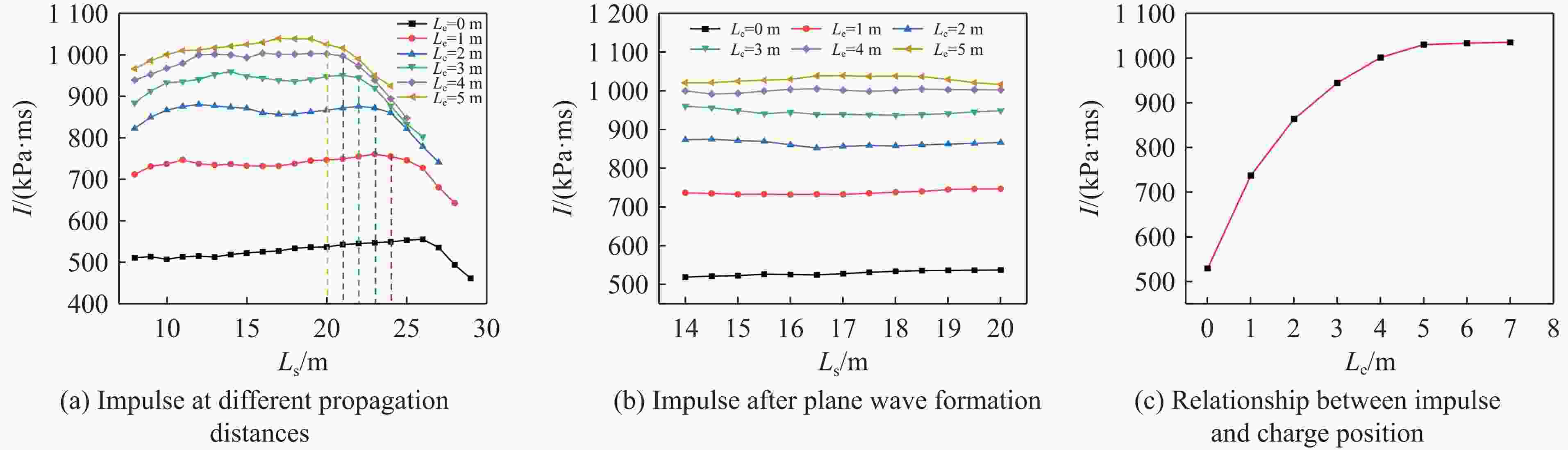

图 13 炸药距隧道口距离对爆炸冲击波冲量传播规律的影响

Figure 13. Effect of the distance from the tunnel portal on the propagation laws of shock wave impulse

下载: 全尺寸图片幻灯片

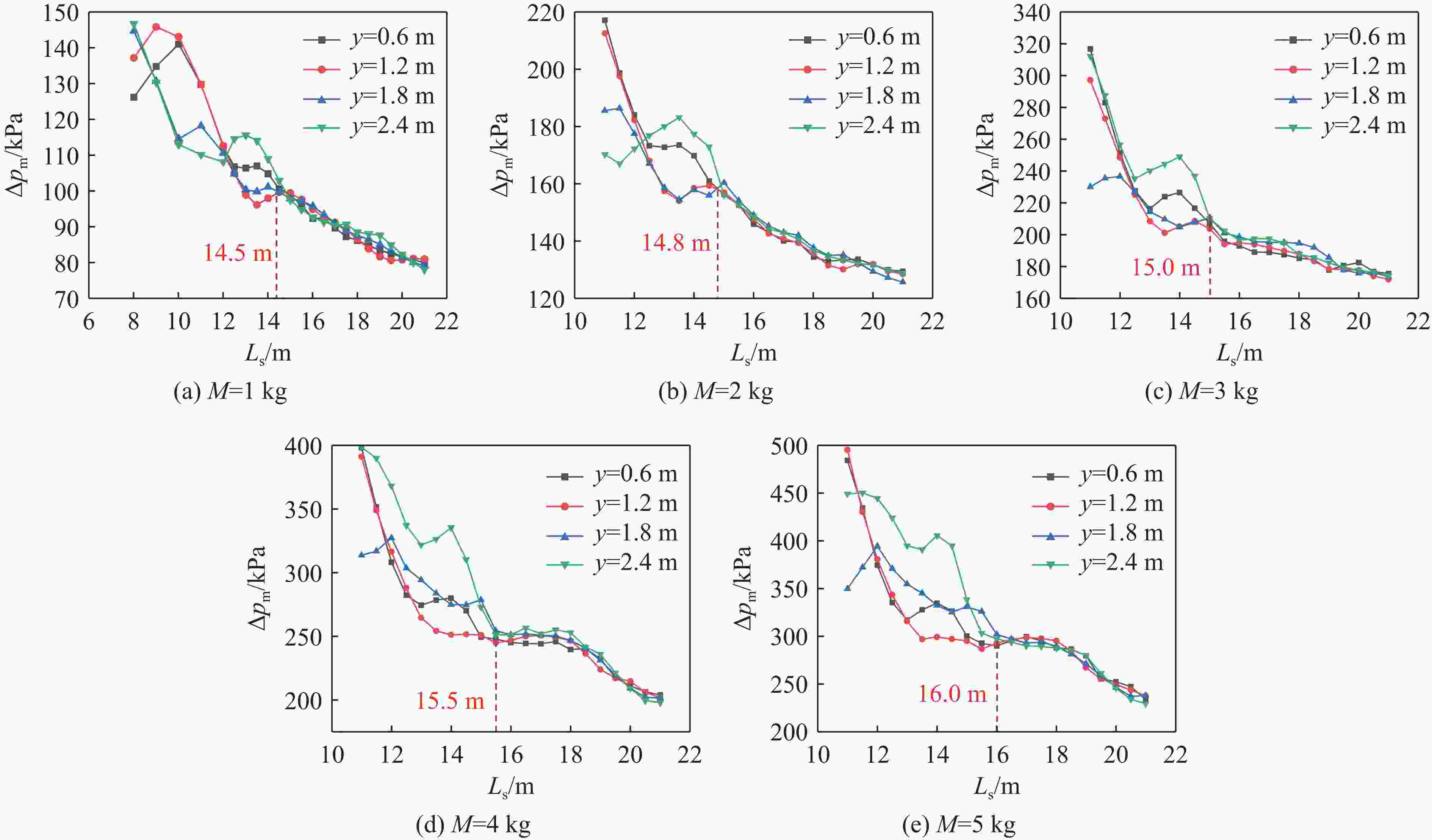

图 14 距隧道口5 m处温压炸药爆炸冲击波超压峰值随传播距离的变化

Figure 14. Variation of peak overpressure of blast shock waves from thermobaric explosives at 5 m from the tunnel entrance with propagation distance

下载: 全尺寸图片幻灯片

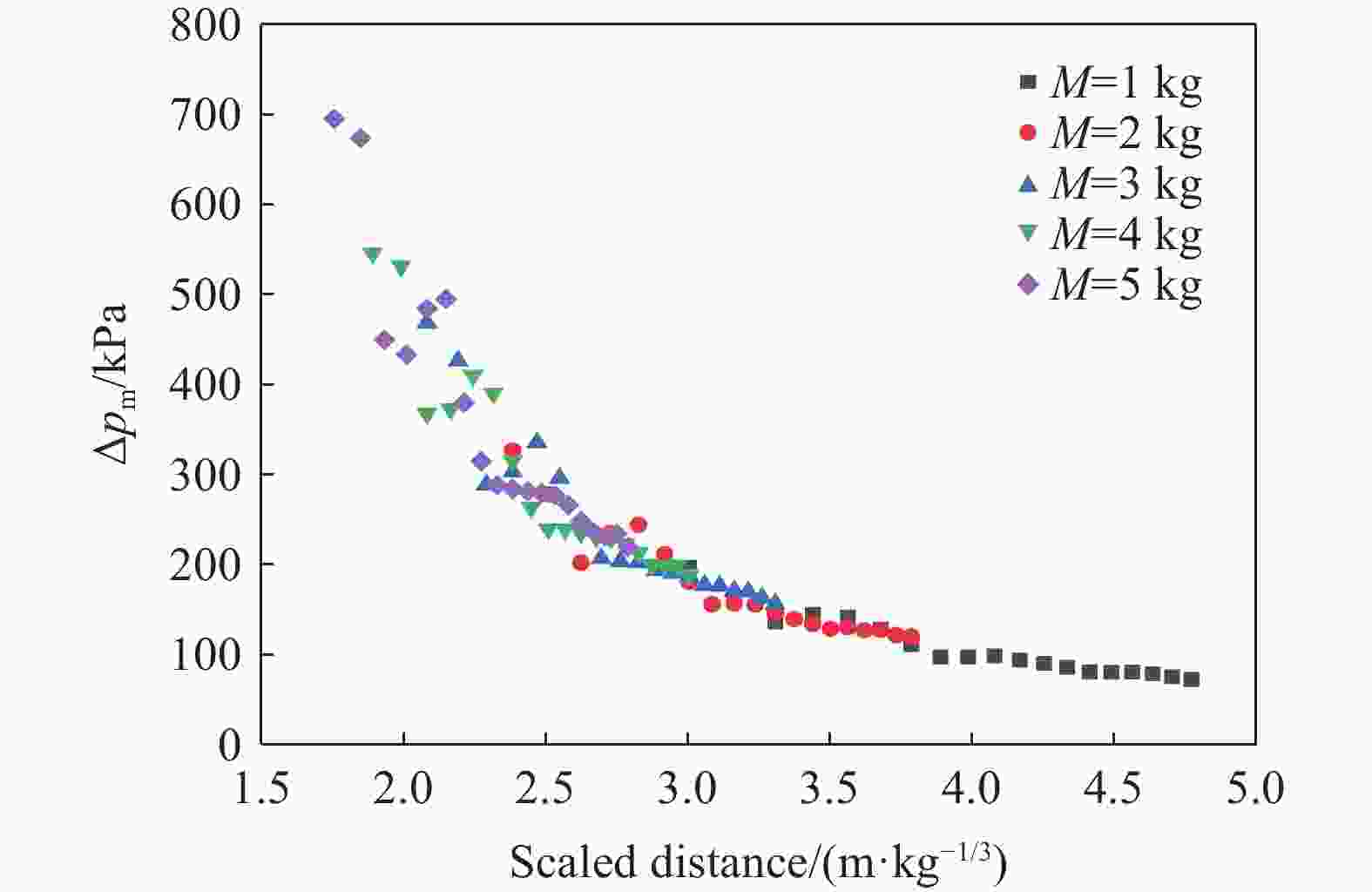

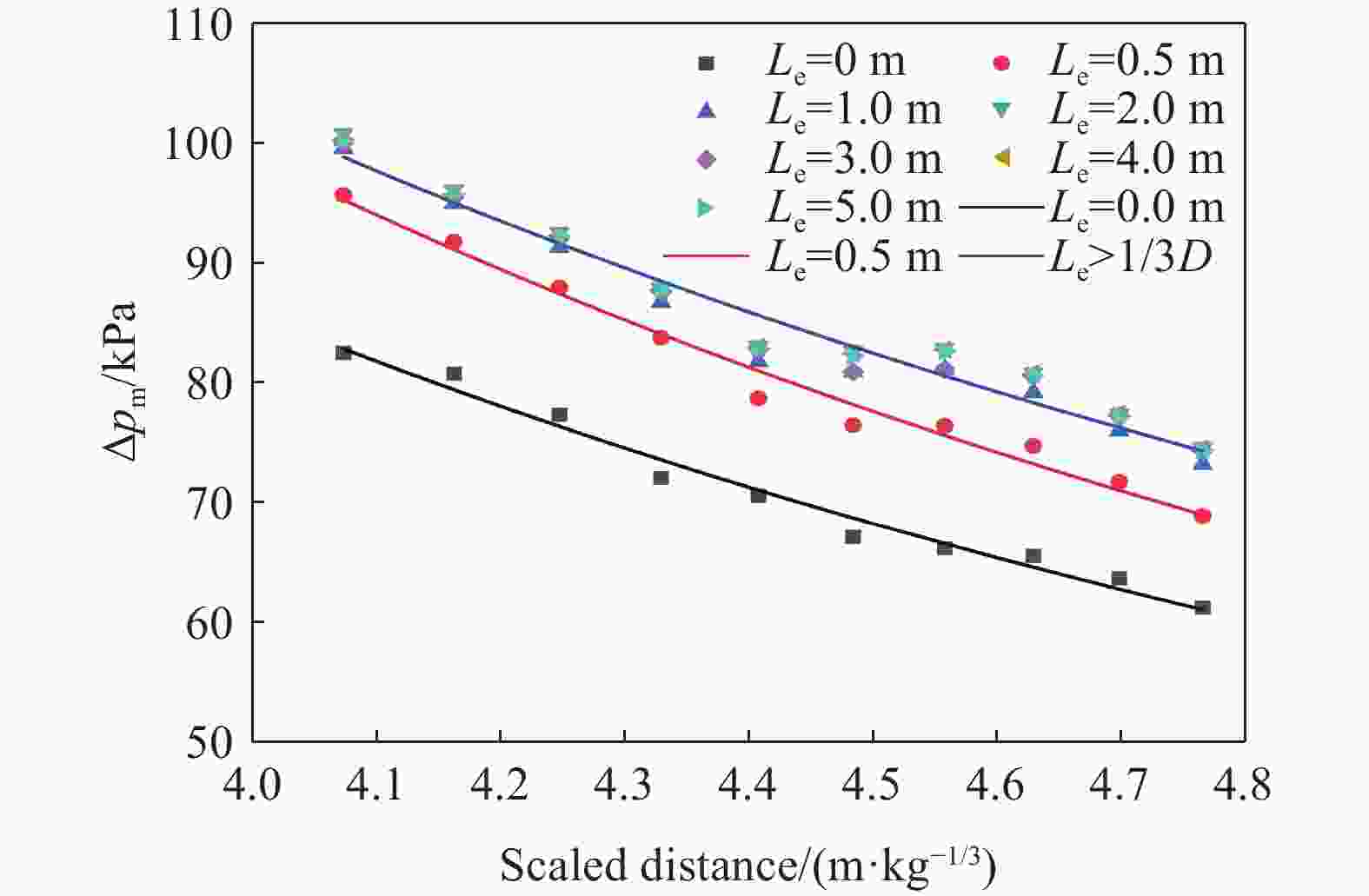

图 15 超压峰值随比例距离的变化

Figure 15. Relationship between peak overpressure and scaled distance

下载: 全尺寸图片幻灯片

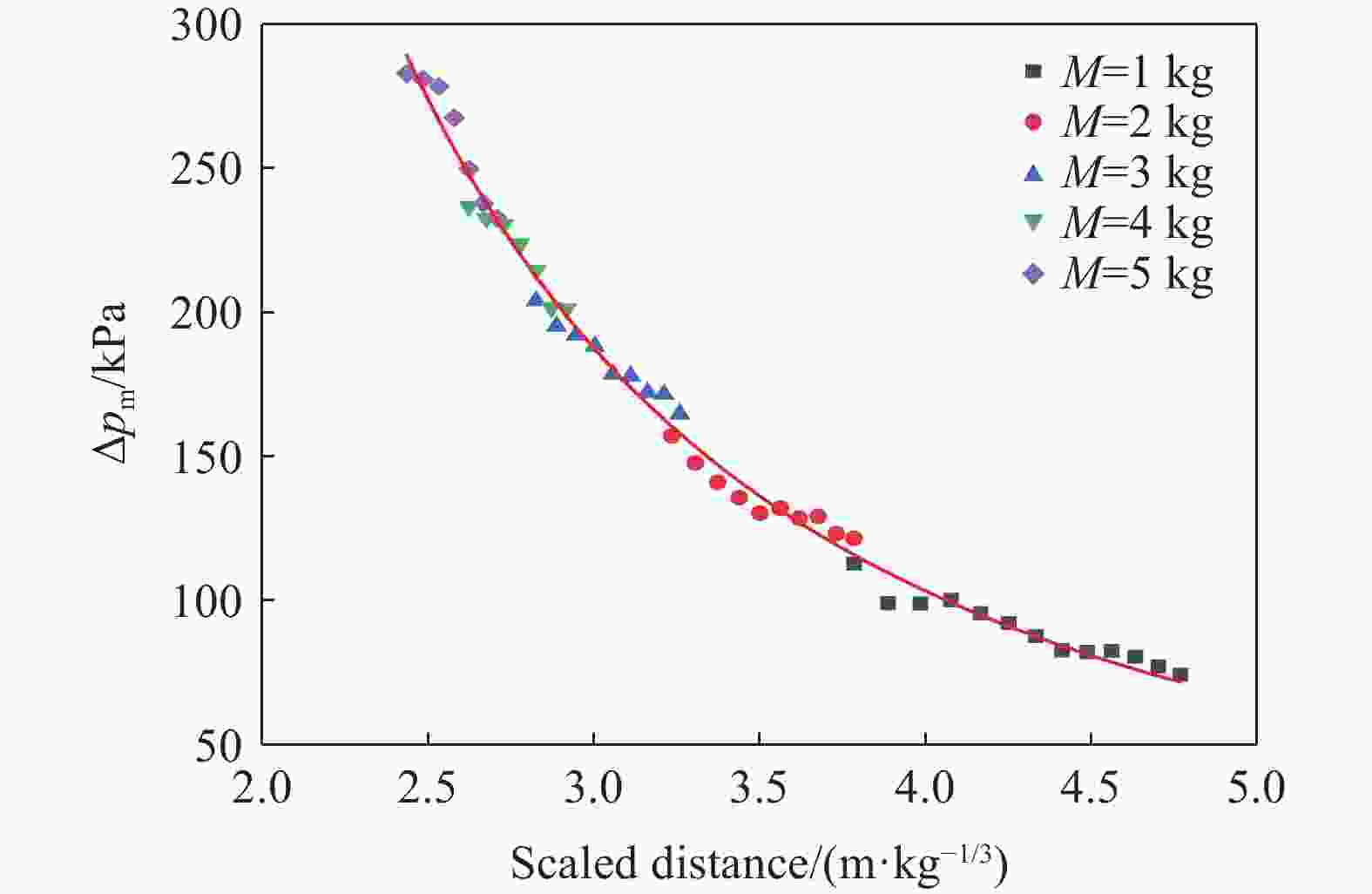

图 16 平面波形成后，超压峰值随比例距离的变化

Figure 16. Relationship between peak overpressure and scaled distance after plane wave formation

下载: 全尺寸图片幻灯片

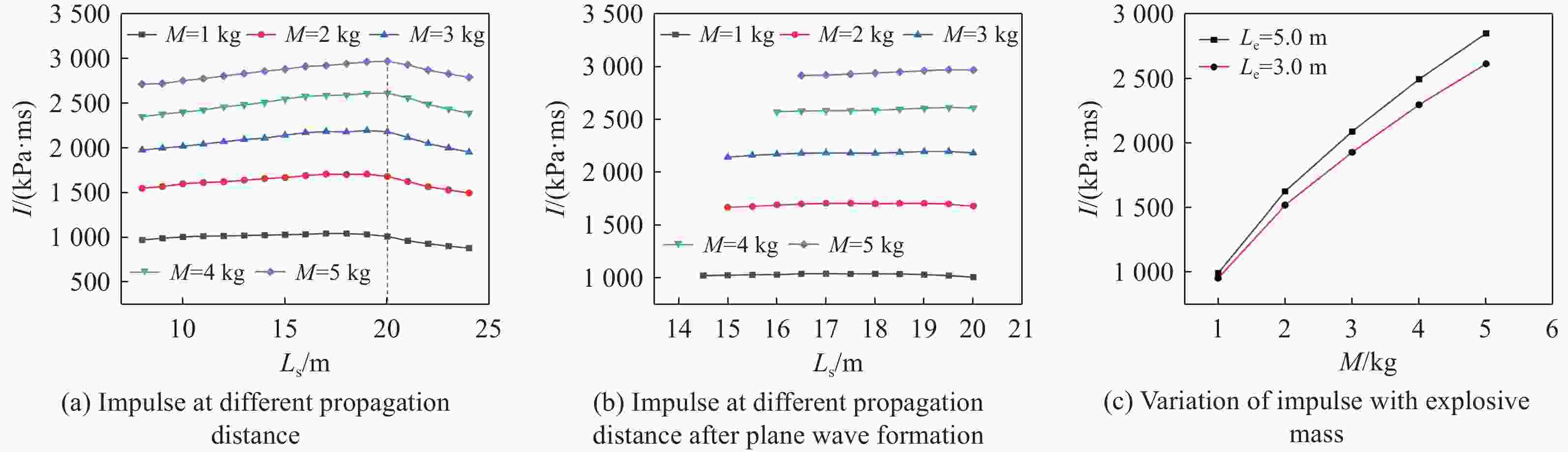

图 17 炸药质量对爆炸冲击波冲量传播规律的影响

Figure 17. Effect of the charge mass laws of shock wave impulse

下载: 全尺寸图片幻灯片

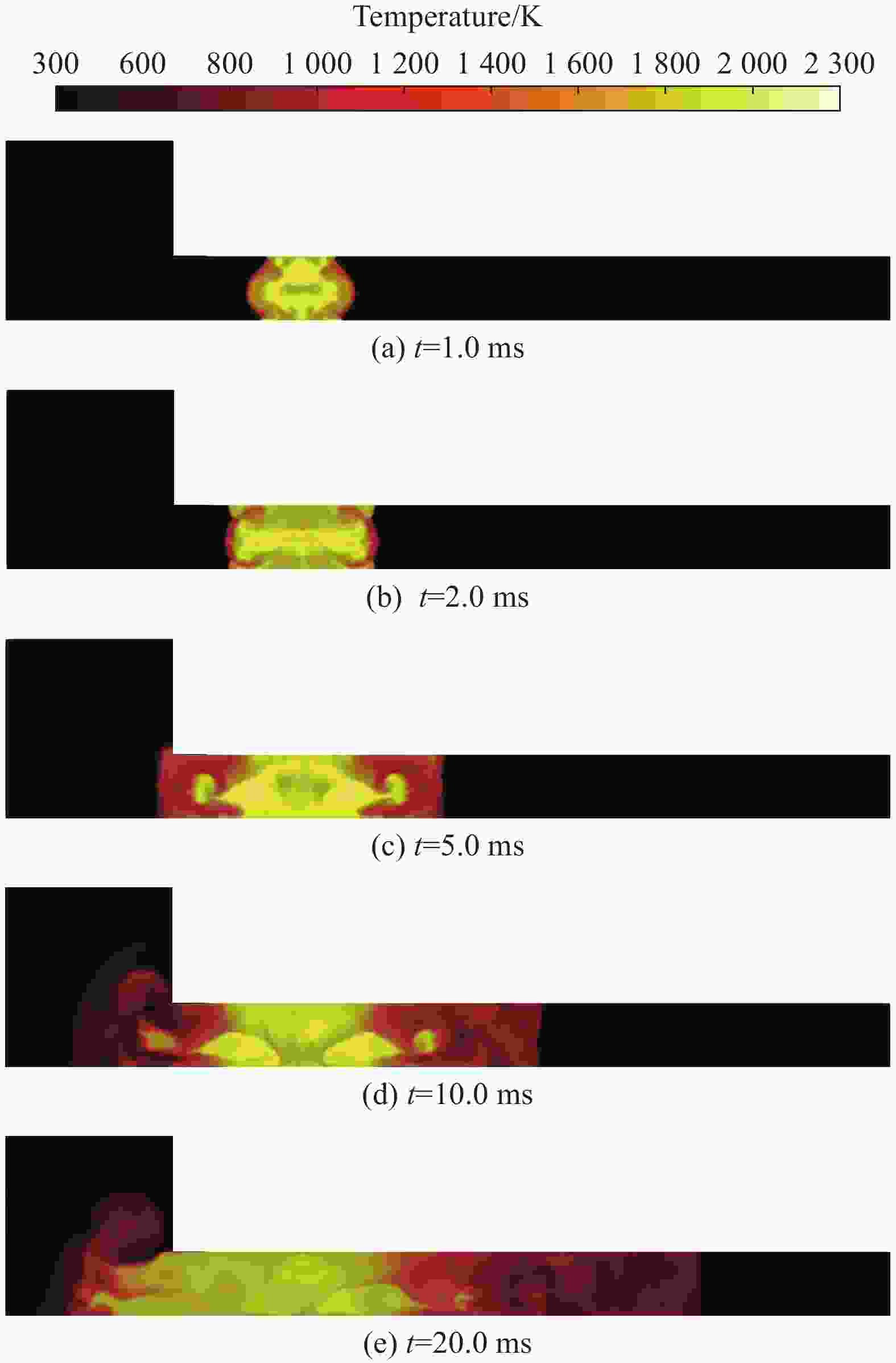

图 18 隧道内爆炸火团典型时刻云图

Figure 18. Fireball evolution in a tunnel explosion at characteristic instants

下载: 全尺寸图片幻灯片

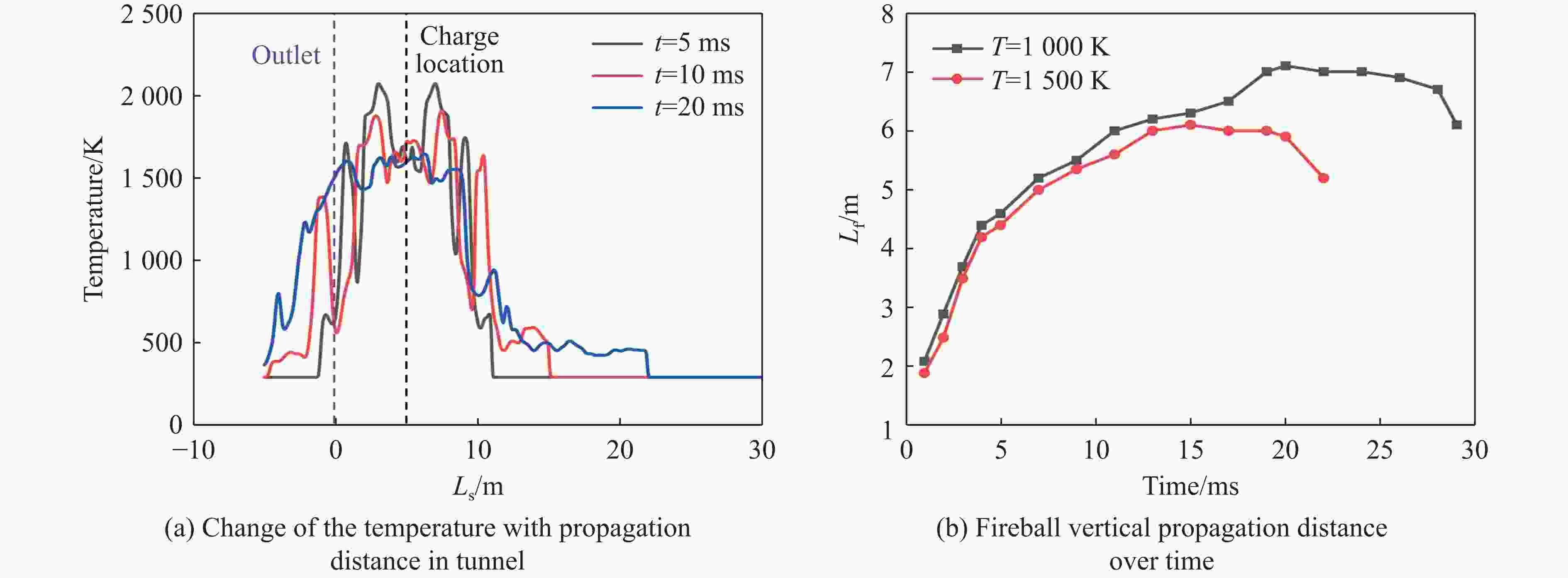

图 19 隧道内5 kg温压炸药爆炸火团温度分布

Figure 19. Temperature field of a fireball from a 5 kg thermobaric explosive detonation in a tunnel

下载: 全尺寸图片幻灯片

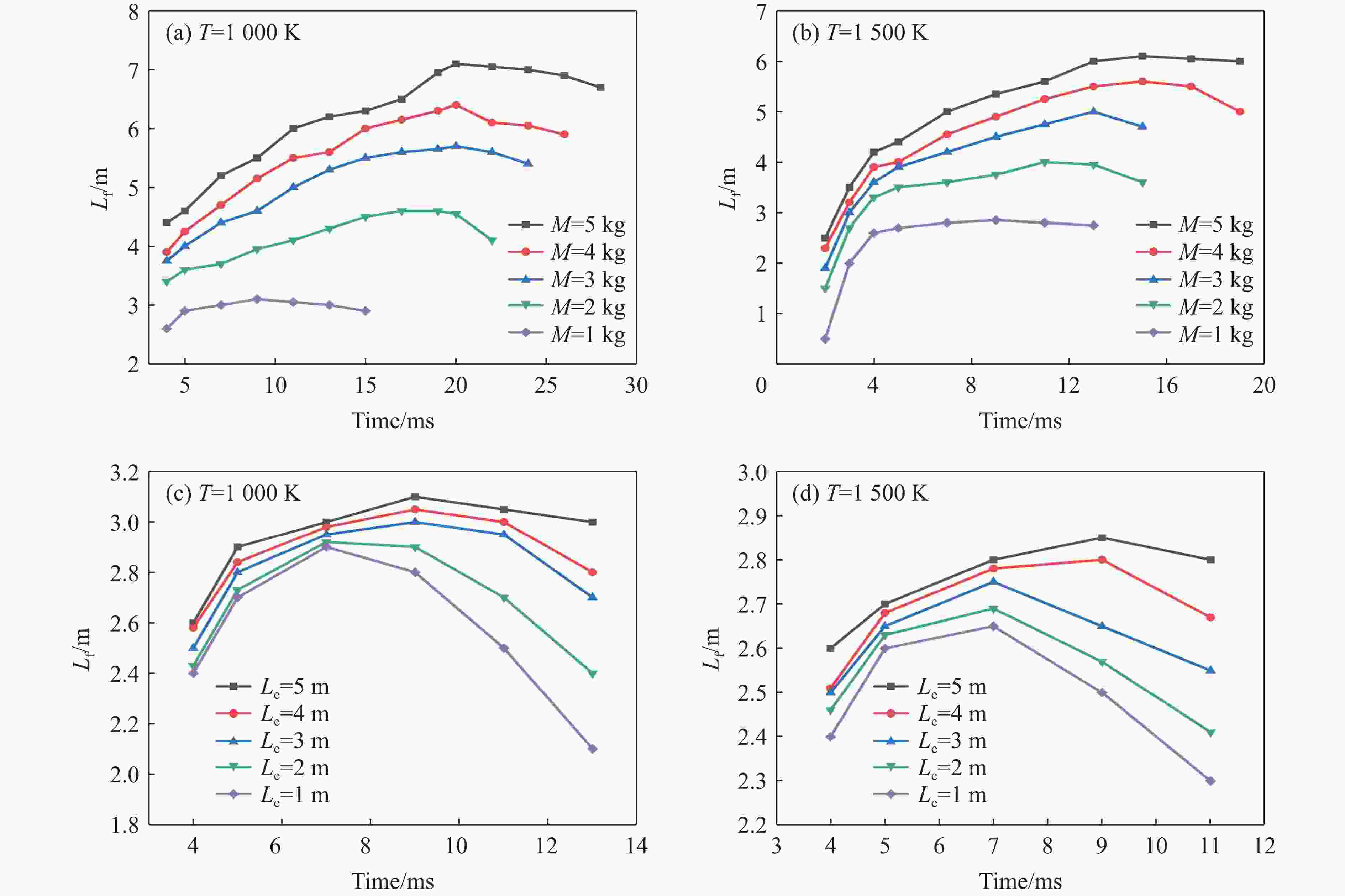

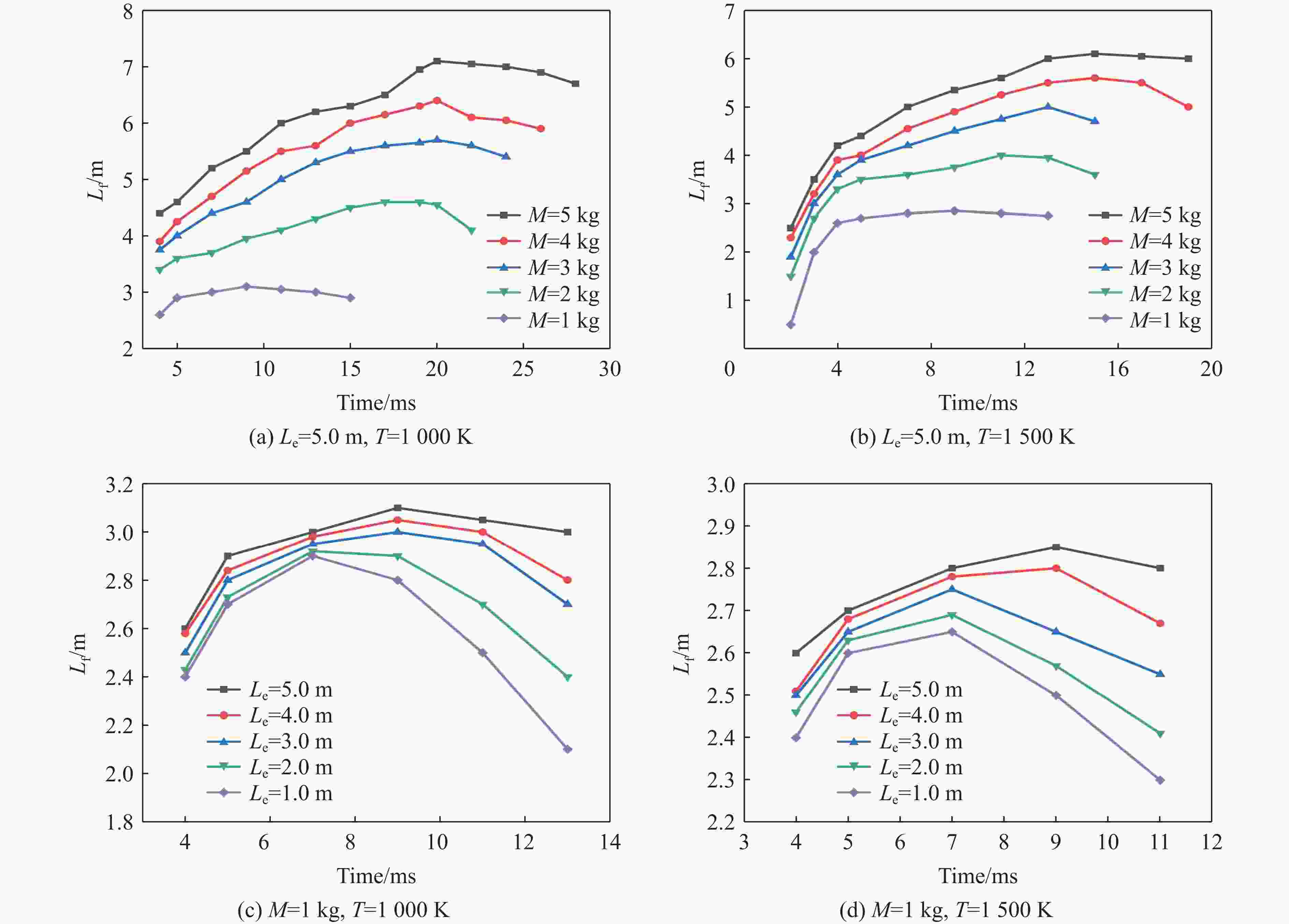

图 20 不同质量温压炸药沿隧道轴线不同距离处爆炸产生的火团在不同温度下的传播距离随时间的变化

Figure 20. Variation of propagation distance with time for fireballs at different temperatures resulted from thermobaric charges of various masses detonated at different distances along a tunnel axis

下载: 全尺寸图片幻灯片

表 1 Jones-Wilkins-Lee参数计算结果

Table 1. Jones-Wilkins-Lee parameters selection

A/GPa	B/GPa	ω	R₁	R₂	E/GPa	E_Al/(kJ∙g⁻¹)	r_Al/(kJ∙g⁻¹∙s⁻¹)
639	4.95	0.33	4.2	1.1	13.3	3.3e6	930

下载: 导出CSV

表 2 冲击波最大超压峰值和冲量的数值模拟结果与试验实测结果的对比

Table 2. Comparison of experimental and simulated results of maximum overpressure peak and impulse of shock wave

L_s/m	Δp_m			I
L_s/m	试验结果/kPa	计算结果/kPa	误差/%	试验结果/(kPa·ms)	计算结果/(kPa·ms)	误差/%
4	278.8	288.2	3.4	598.7	617.0	3.1
6	200.9	198.1	1.4	619.7	595.4	3.9
8	141.5	137.4	2.9	698.2	712.2	2.0
14	93.2	97.9	5.0	740.8	736.7	0.6
16	92.9	94.8	2.0	704.8	731.9	3.8
20	78.7	80.8	5.3	755.1	746.8	1.1
22	73.1	79.1	8.0	702.4	755.1	7.5

下载: 导出CSV

表 3 火团在不同温度下的最大传播距离L_f,max

Table 3. Maximum propagation distances of fireballs at different temperatures

M/kg	L_f,max/m		L_e/m	L_f,max/m
M/kg	1000 K	1500 K	L_e/m	1000 K	1500 K
1	3.1	2.83	1	2.9	2.65
2	4.6	4.0	2	2.92	2.69
3	5.7	5.0	3	3.0	2.75
4	6.4	5.6	4	3.05	2.80
5	7.1	6.1	5	3.1	2.83

下载: 导出CSV
