蜂窝管表层约束混凝土抗高速侵彻性能研究

李孝臣 纪玉国 李超 李杰 蒋海明 王明洋 李干

李孝臣, 纪玉国, 李超, 李杰, 蒋海明, 王明洋, 李干. 蜂窝管表层约束混凝土抗高速侵彻性能研究[J]. 爆炸与冲击. doi: 10.11883/bzycj-2025-0024
引用本文: 李孝臣, 纪玉国, 李超, 李杰, 蒋海明, 王明洋, 李干. 蜂窝管表层约束混凝土抗高速侵彻性能研究[J]. 爆炸与冲击. doi: 10.11883/bzycj-2025-0024
LI Xiaochen, JI Yuguo, LI Chao, LI Jie, JIANG Haiming, WANG Mingyang, LI Gan. Study on the high-speed penetration resistance of honeycomb tube surface constrained concrete[J]. Explosion And Shock Waves. doi: 10.11883/bzycj-2025-0024
Citation: LI Xiaochen, JI Yuguo, LI Chao, LI Jie, JIANG Haiming, WANG Mingyang, LI Gan. Study on the high-speed penetration resistance of honeycomb tube surface constrained concrete[J]. Explosion And Shock Waves. doi: 10.11883/bzycj-2025-0024

蜂窝管表层约束混凝土抗高速侵彻性能研究

doi: 10.11883/bzycj-2025-0024
基金项目: 国家自然科学基金(11972045);
详细信息
    作者简介:

    李孝臣(1997- ),男,博士生,austlxc@163.com

    通讯作者:

    李 干(1985- ),男,博士,副教授,ligan-impact@qq.com

  • 中图分类号: O347.3

Study on the high-speed penetration resistance of honeycomb tube surface constrained concrete

  • 摘要: 为研究超高速侵彻下金属蜂窝管约束混凝土结构的抗侵彻性能,利用二级轻气炮开展了1 500 m/s附近弹体侵彻试验,使用物质点法模拟侵彻过程并对靶体和弹体参数的合理性进行验证,并利用该方法研究了蜂窝管壁厚、高度、直径和材料等参数对靶体抗侵彻性能的影响规律。数值计算表明:物质点法可以准确模拟高速侵彻过程,模拟结果与实验误差小于10%;通过正交分析得到的影响侵深的因素依次为:蜂窝管特征管深、特征内径、特征壁厚、材料;影响开坑半径的因素依次为蜂窝管特征壁厚、特征管深、材料、特征内径。对于本文所采用的弹体,根据优化结果分析得到了综合因素最优的组合。

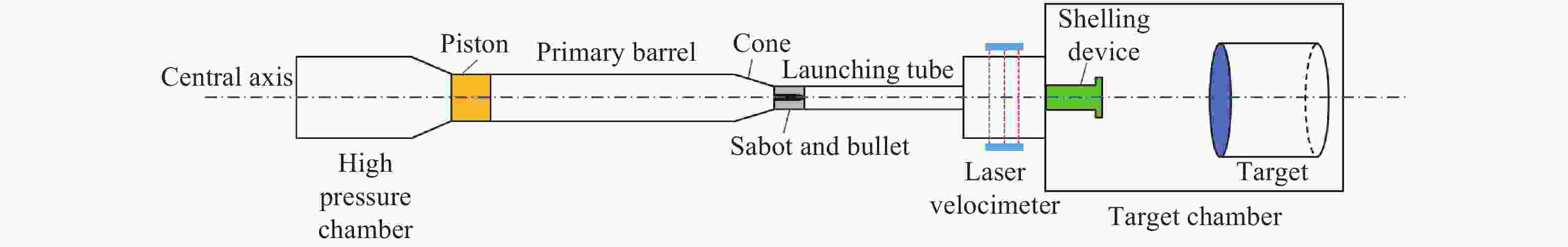

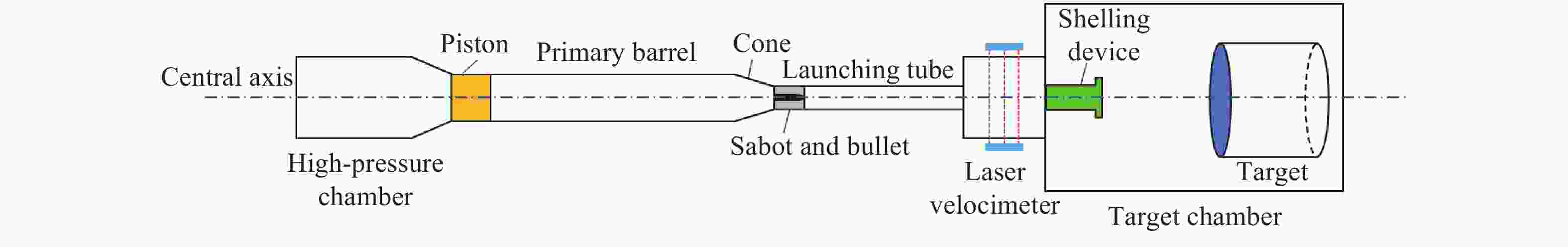

  • 图  1  试验系统示意图

    Figure  1.  Schematic diagram of experimental system

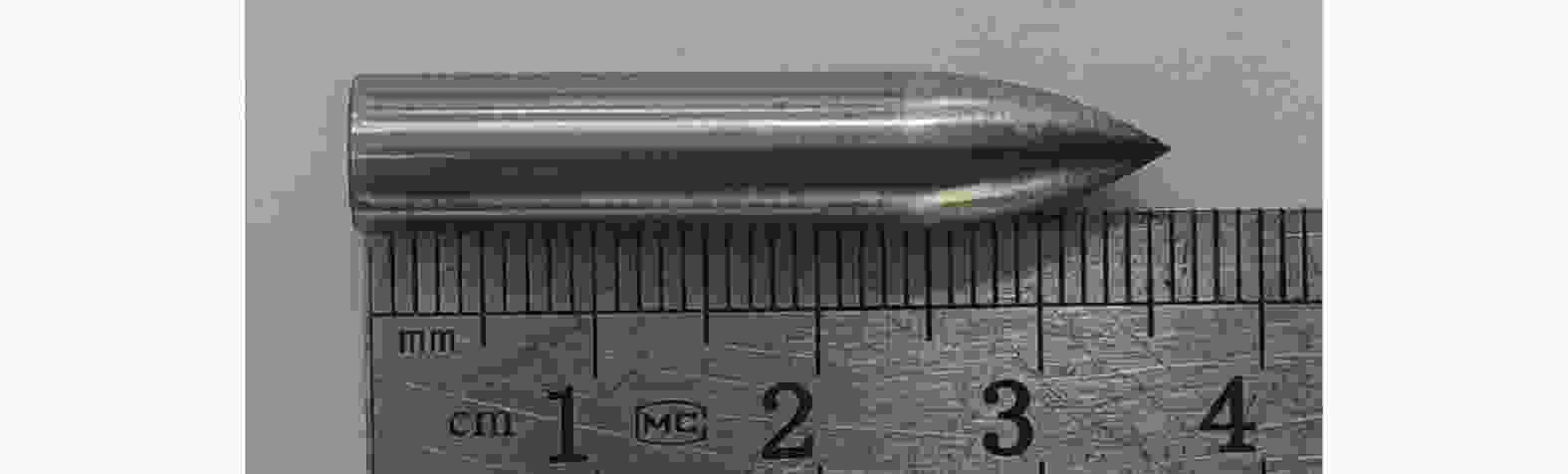

    图  2  试验弹体

    Figure  2.  Experimental projectile

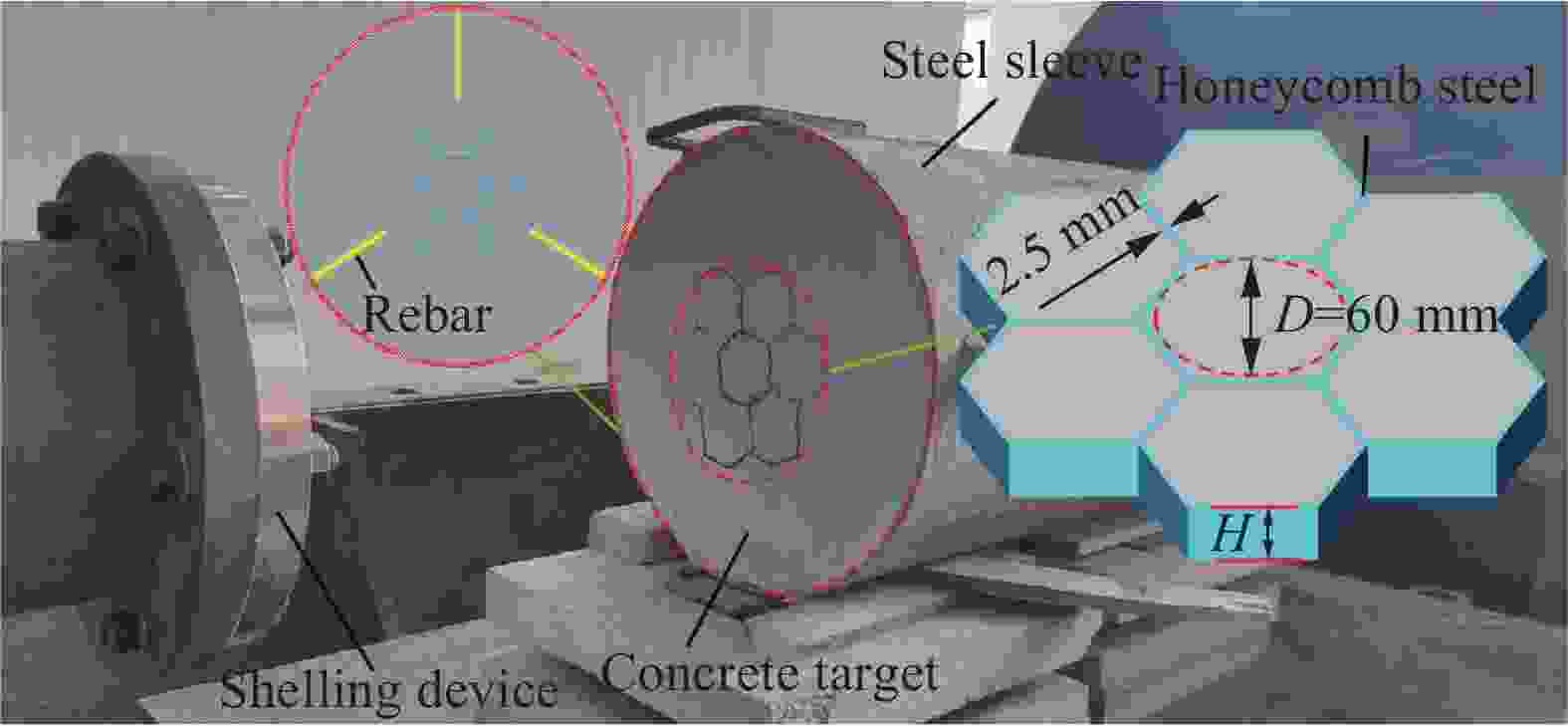

    图  3  侵彻试验靶体

    Figure  3.  Penetration test target

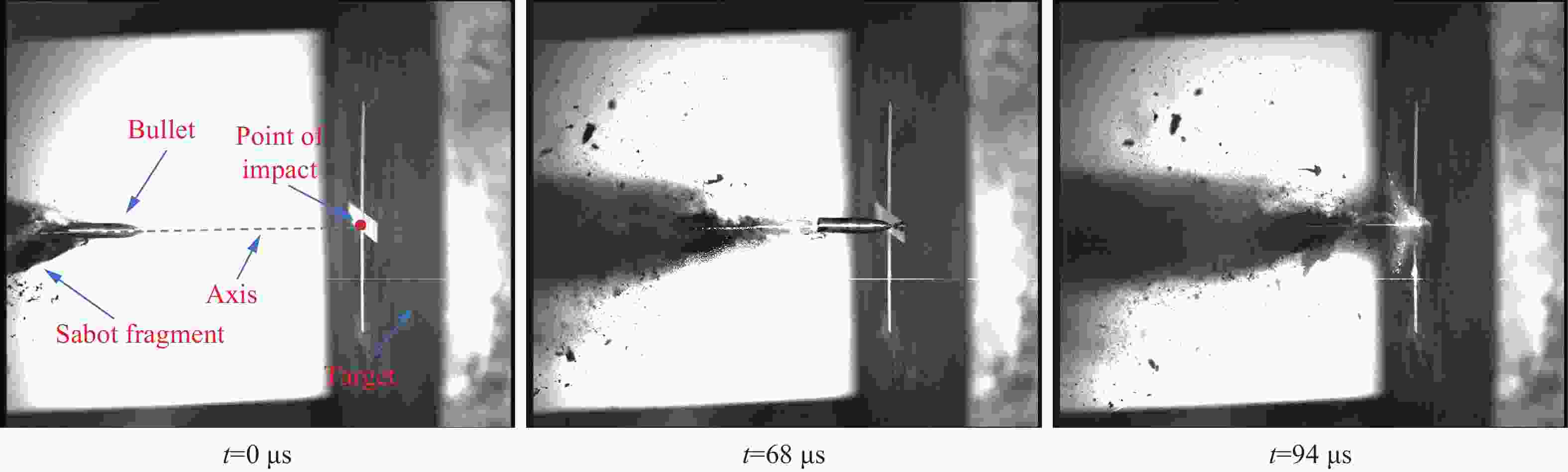

    图  4  弹体撞击蜂窝靶体过程高速摄像

    Figure  4.  High speed camera during projectile impacting honeycomb target

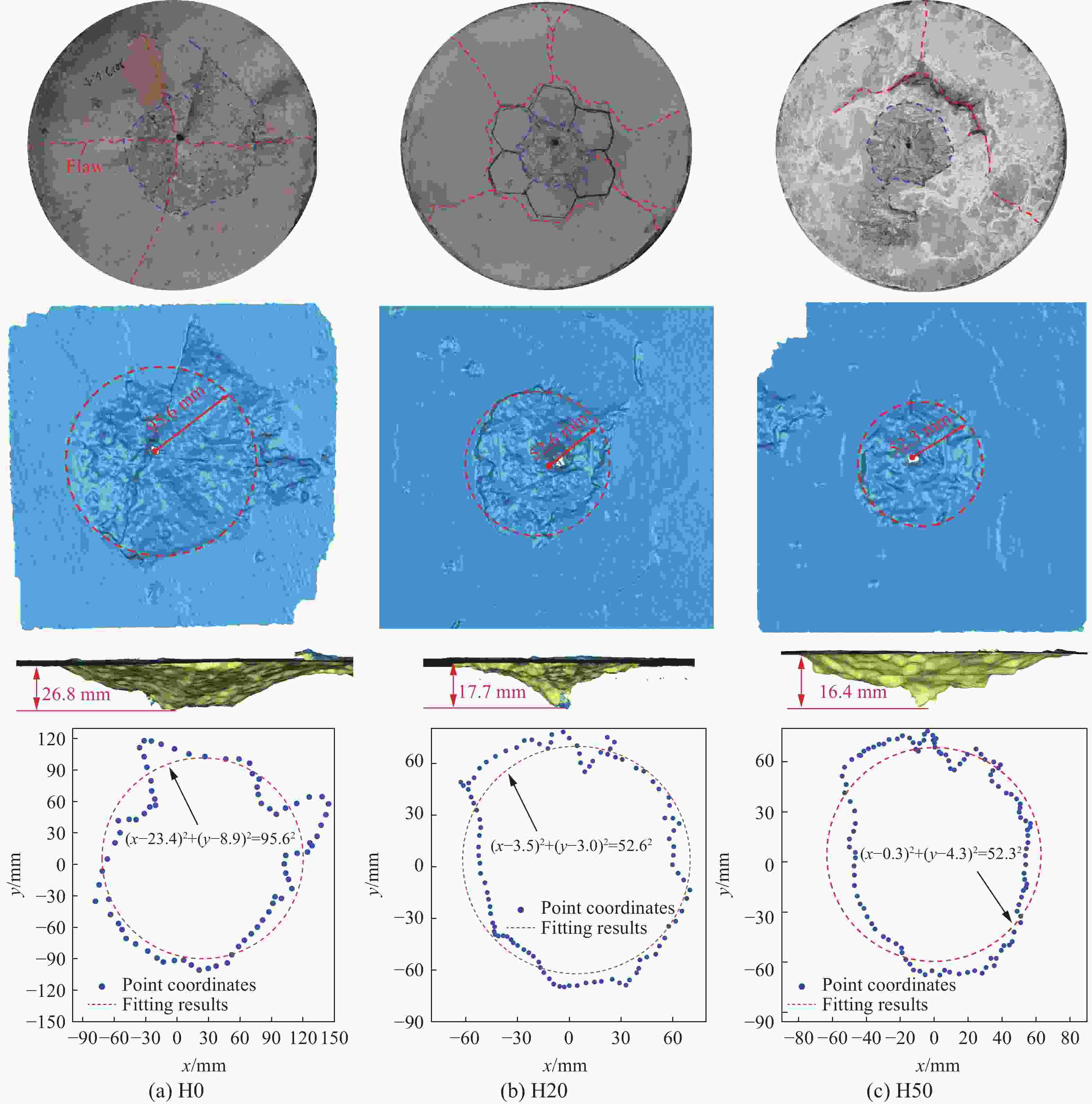

    图  5  不同靶体上表面形态

    Figure  5.  Upper surface morphology of different targets

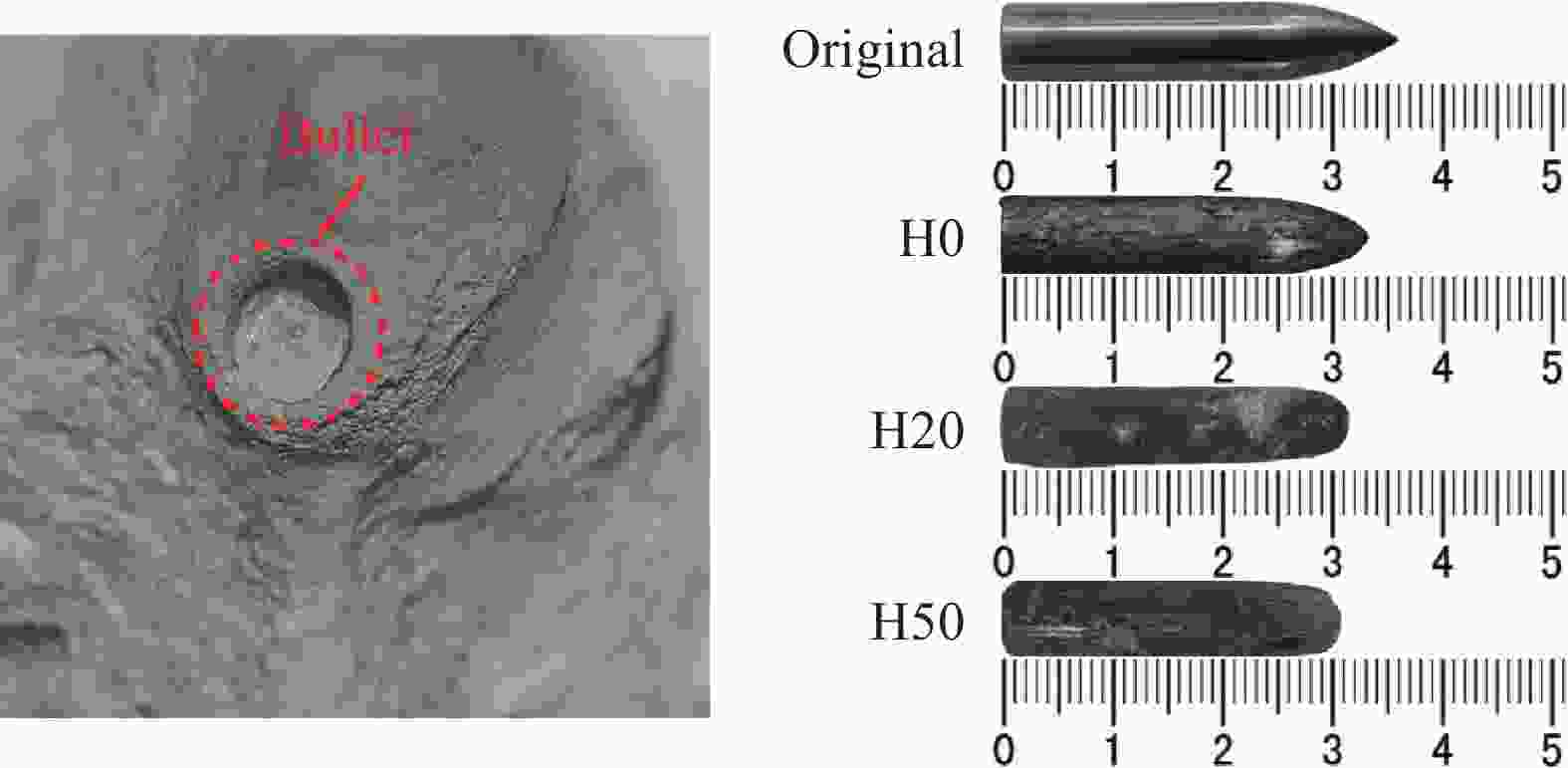

    图  6  回收的试验弹体形貌

    Figure  6.  Recovered test projectile morphology

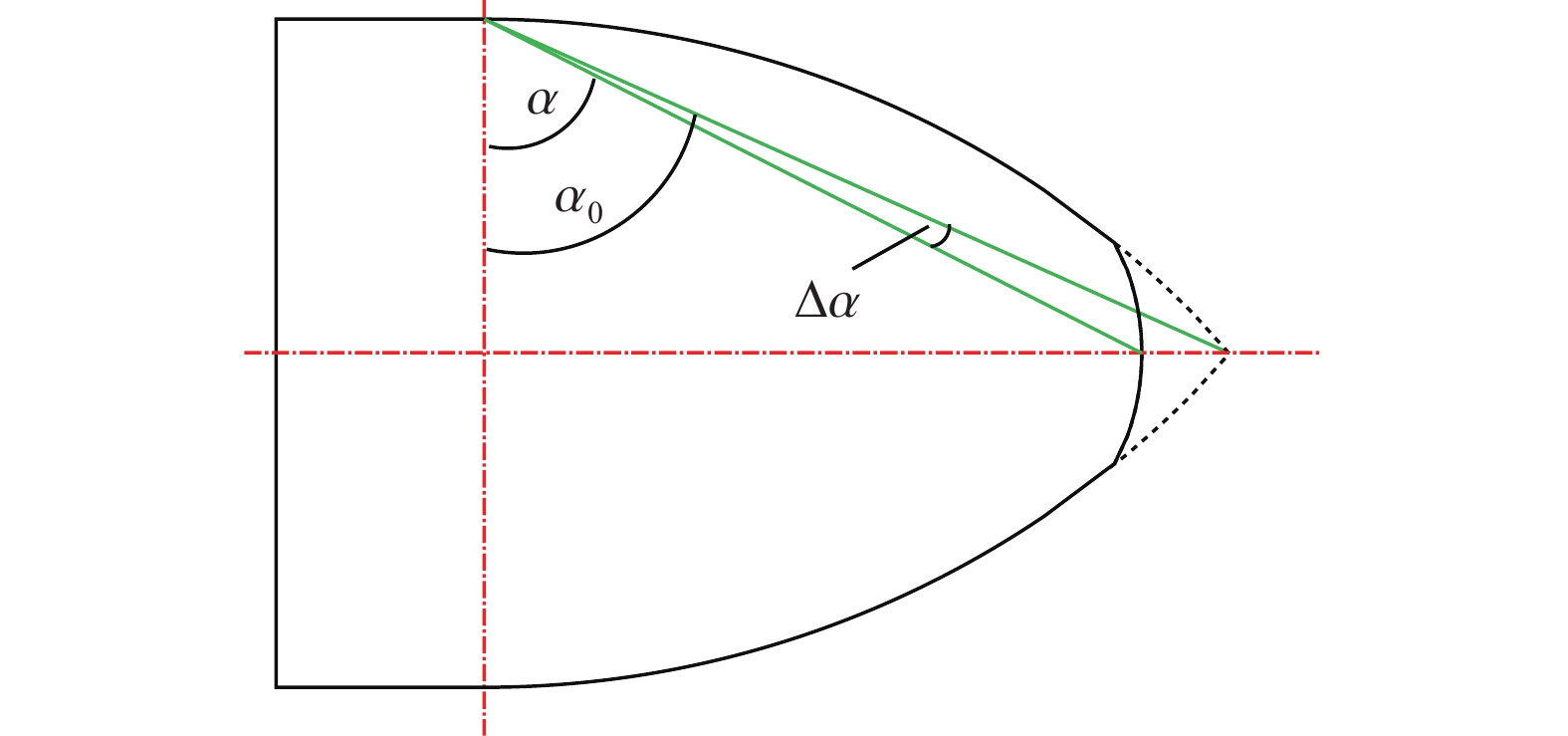

    图  7  弹头特征角度示意图

    Figure  7.  Schematic diagram of warhead characteristic angle

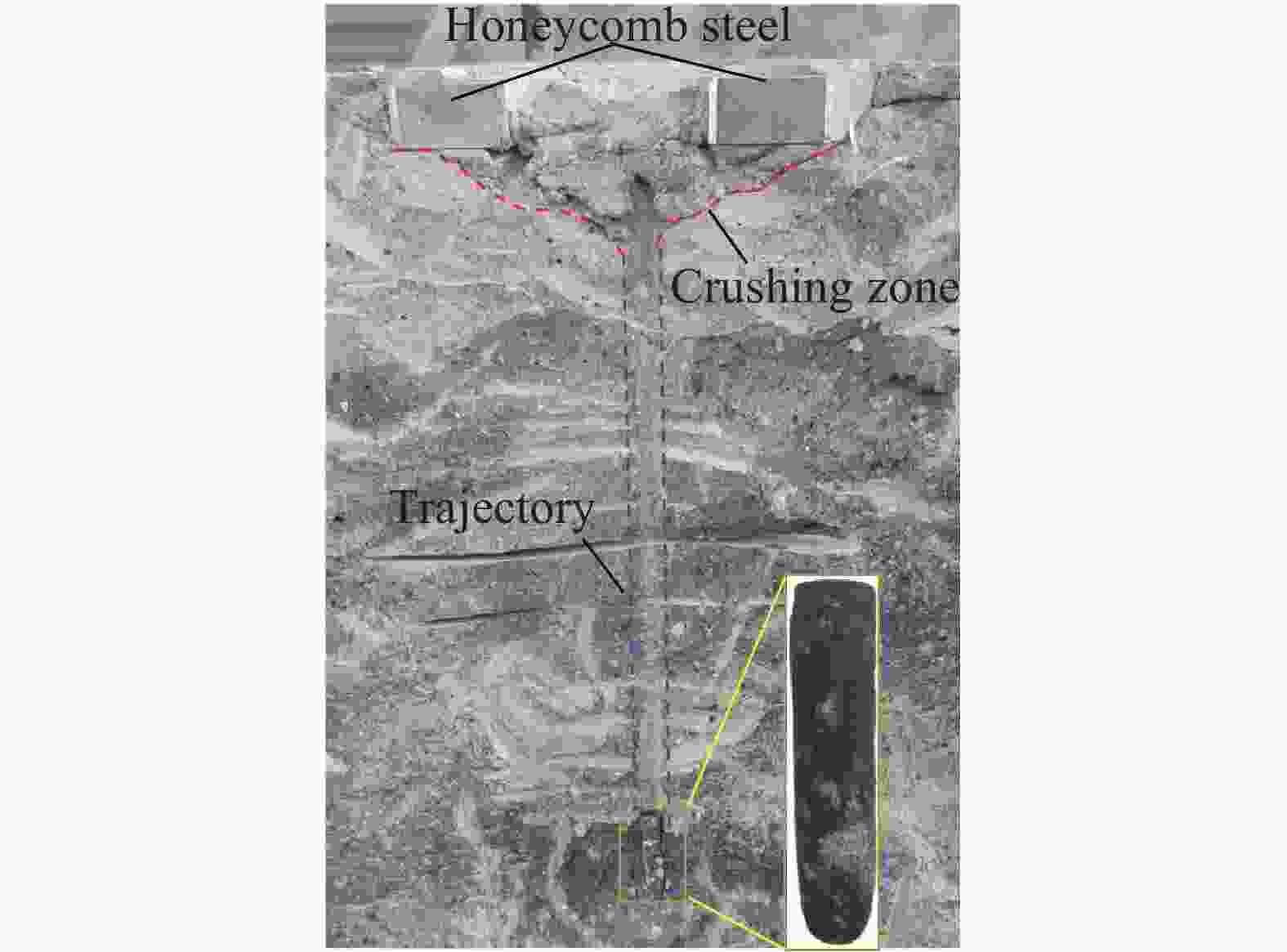

    图  8  H20靶体剖面图

    Figure  8.  Cross section of H20 target

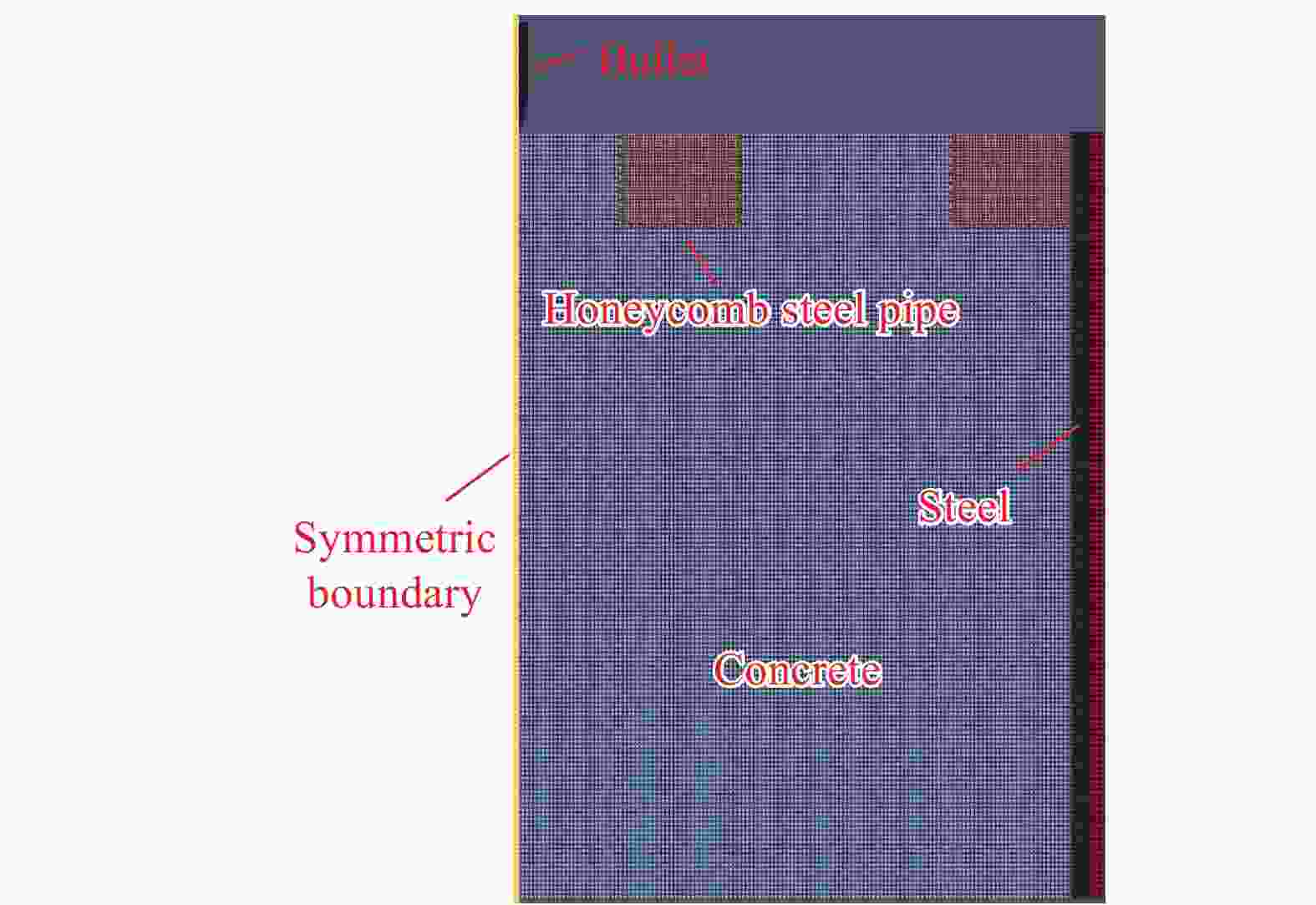

    图  9  计算模型图

    Figure  9.  Calculation model

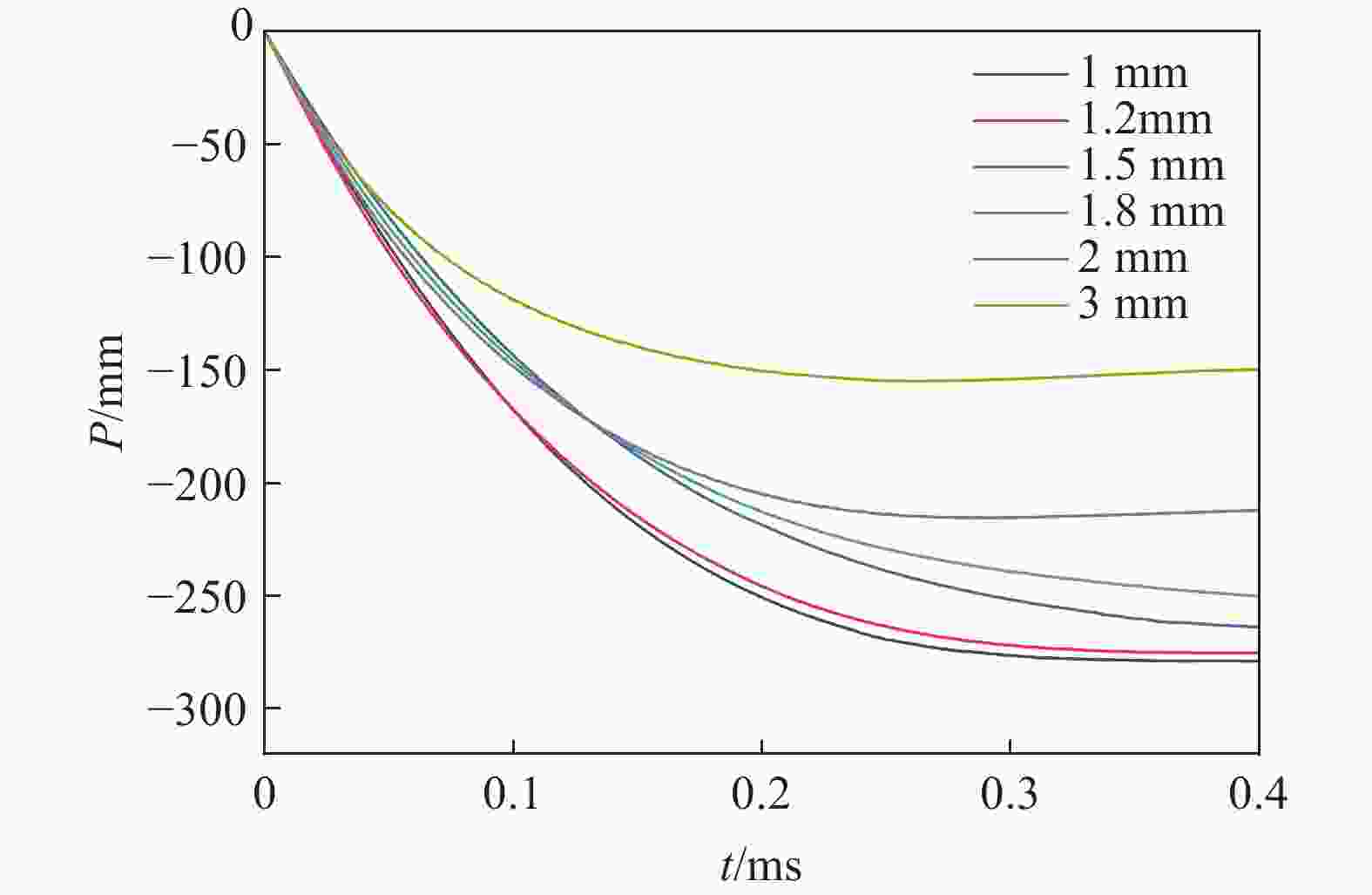

    图  10  不同背景网格尺寸弹体位移-时间曲线

    Figure  10.  Displacement time curves of projectiles with different background grid sizes

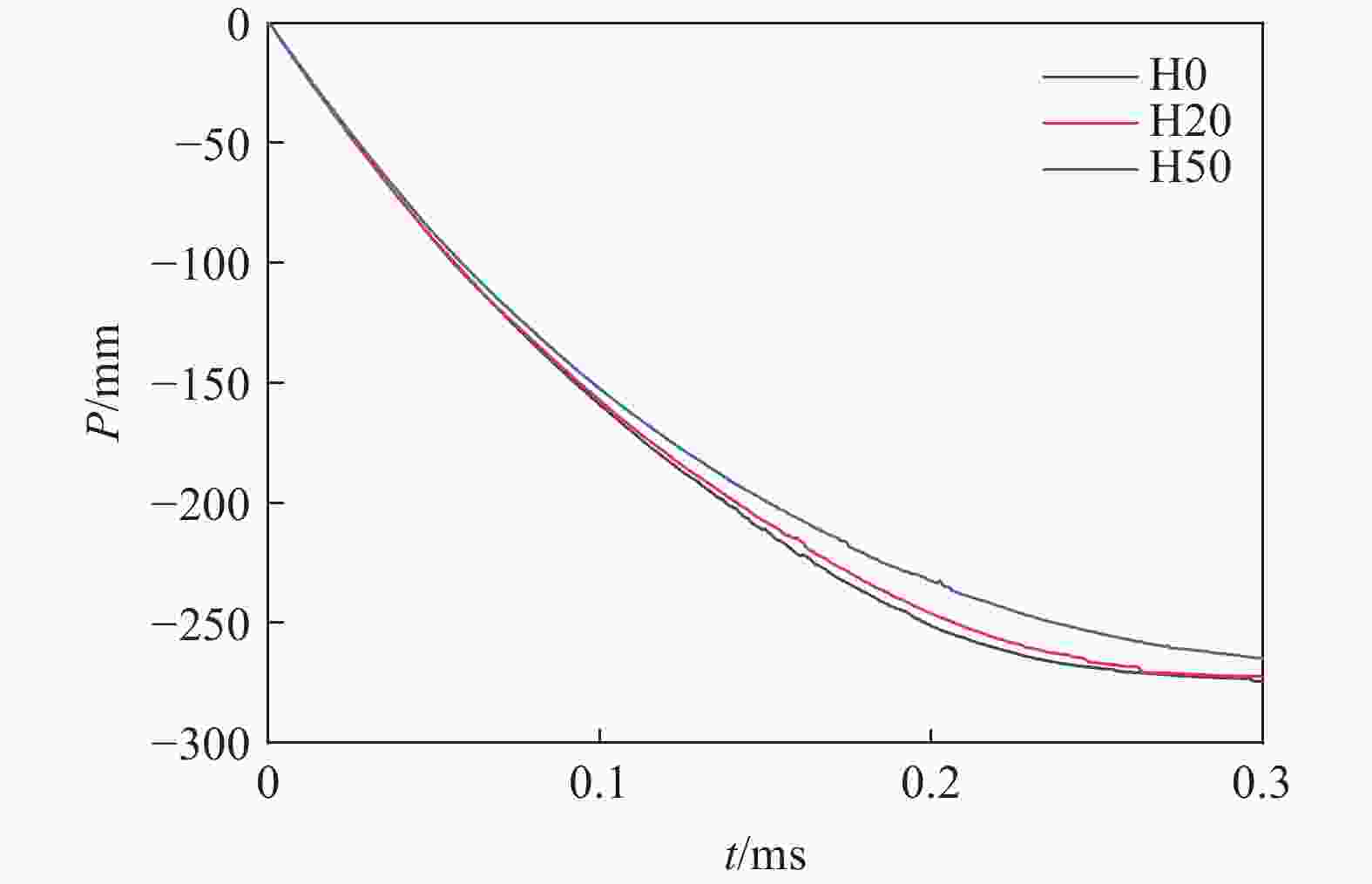

    图  11  不同工况弹体位移-时间曲线

    Figure  11.  Displacement and acceleration curves of projectile penetrating plain concrete at different times

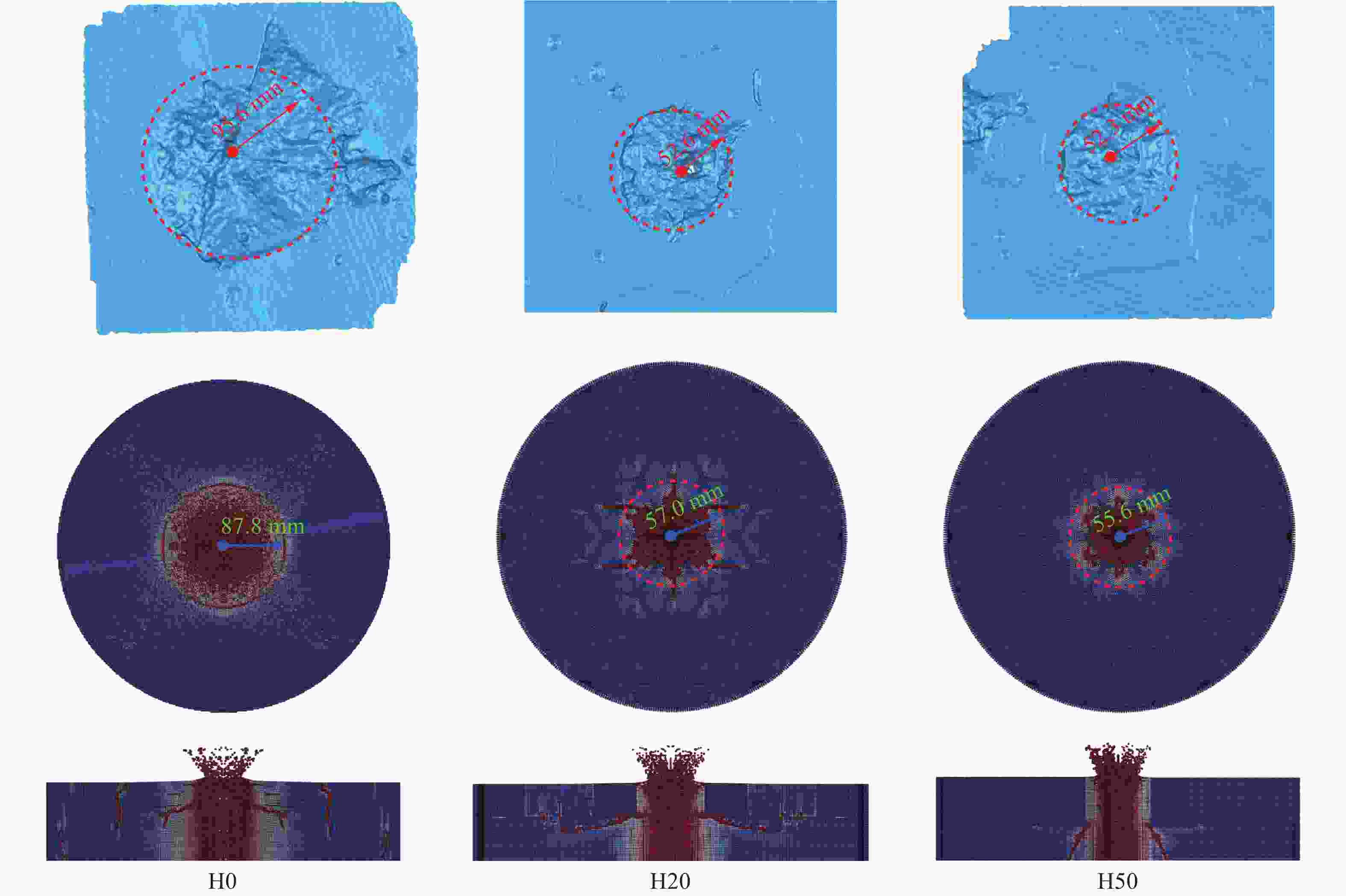

    图  12  侵彻不同靶体损伤图与试验对比

    Figure  12.  Comparison of damage patterns and experiments of penetrating different targets

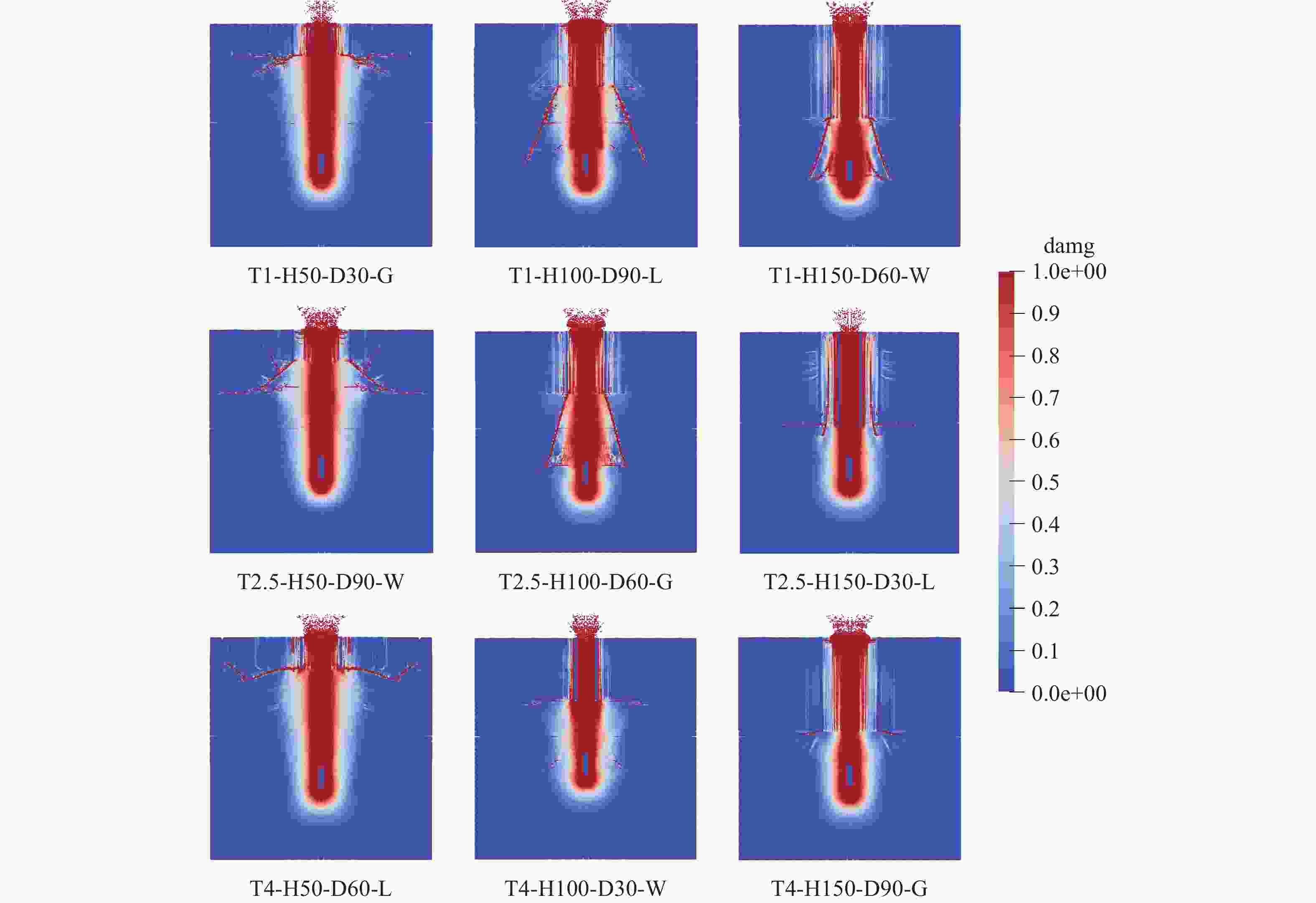

    图  13  侵彻完成侧面损伤云图对比图

    Figure  13.  Comparison of side damage nephogram after penetration

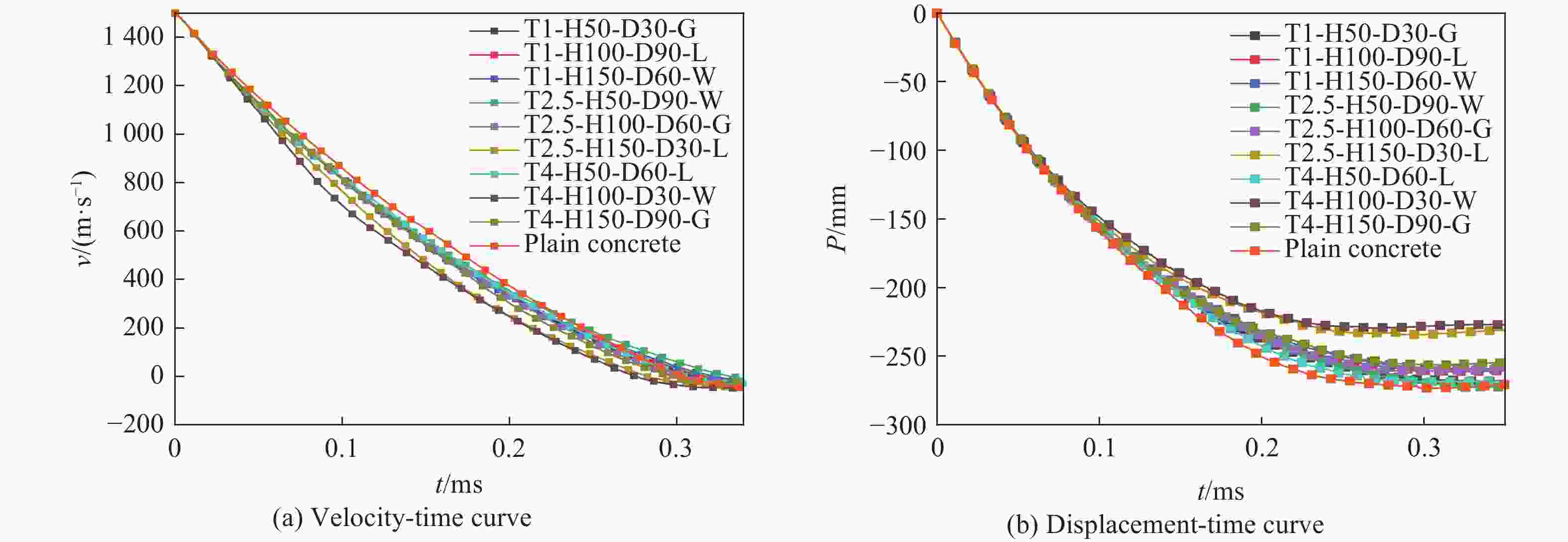

    图  14  不同侵彻工况弹体速度-时间、位移-时间变化曲线

    Figure  14.  Velocity time and displacement time curves of projectile under different penetration conditions

    图  15  侵彻钢管约束混凝土开坑对比

    Figure  15.  Comparison of penetration into confined concrete filled steel tube

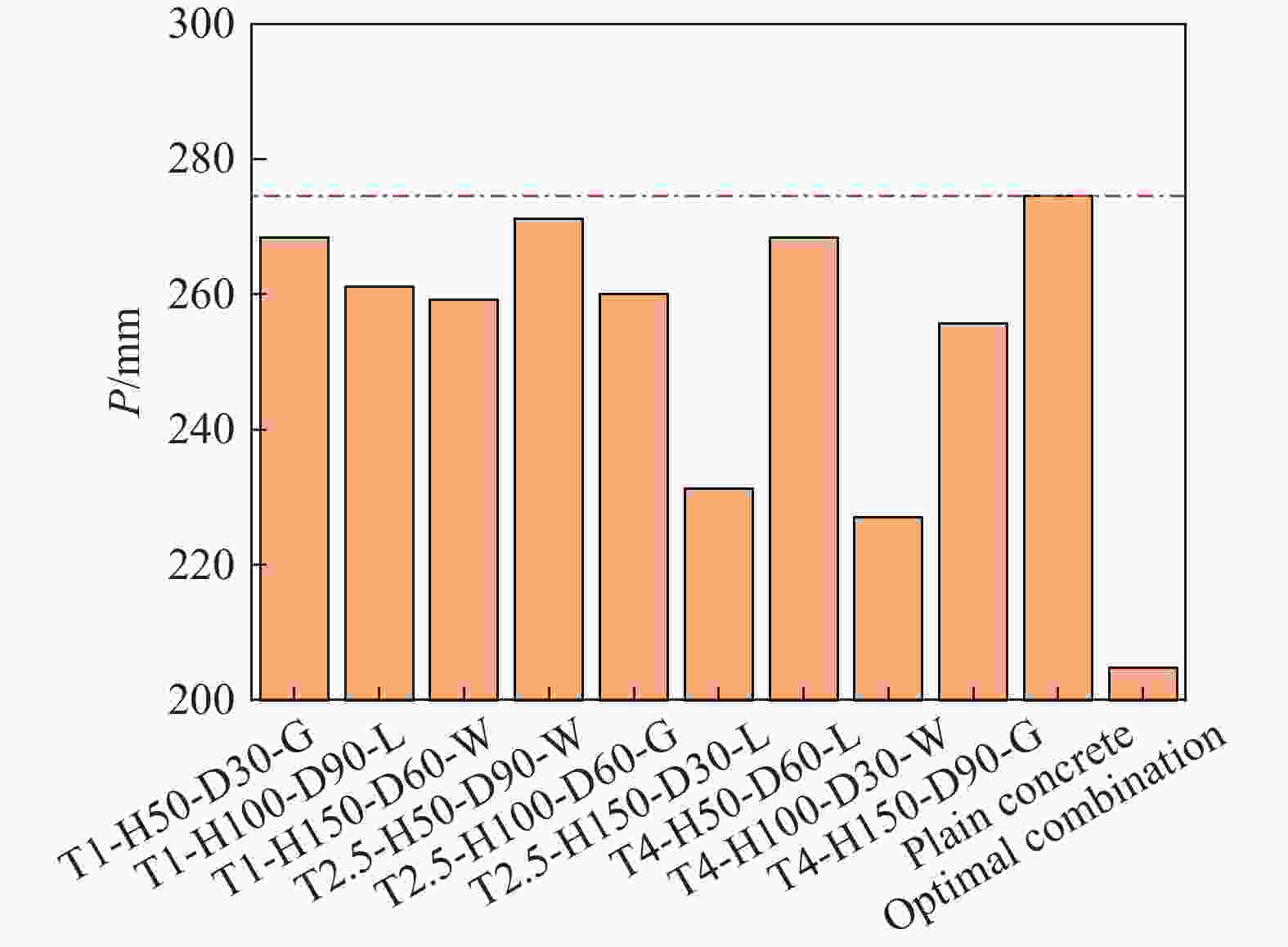

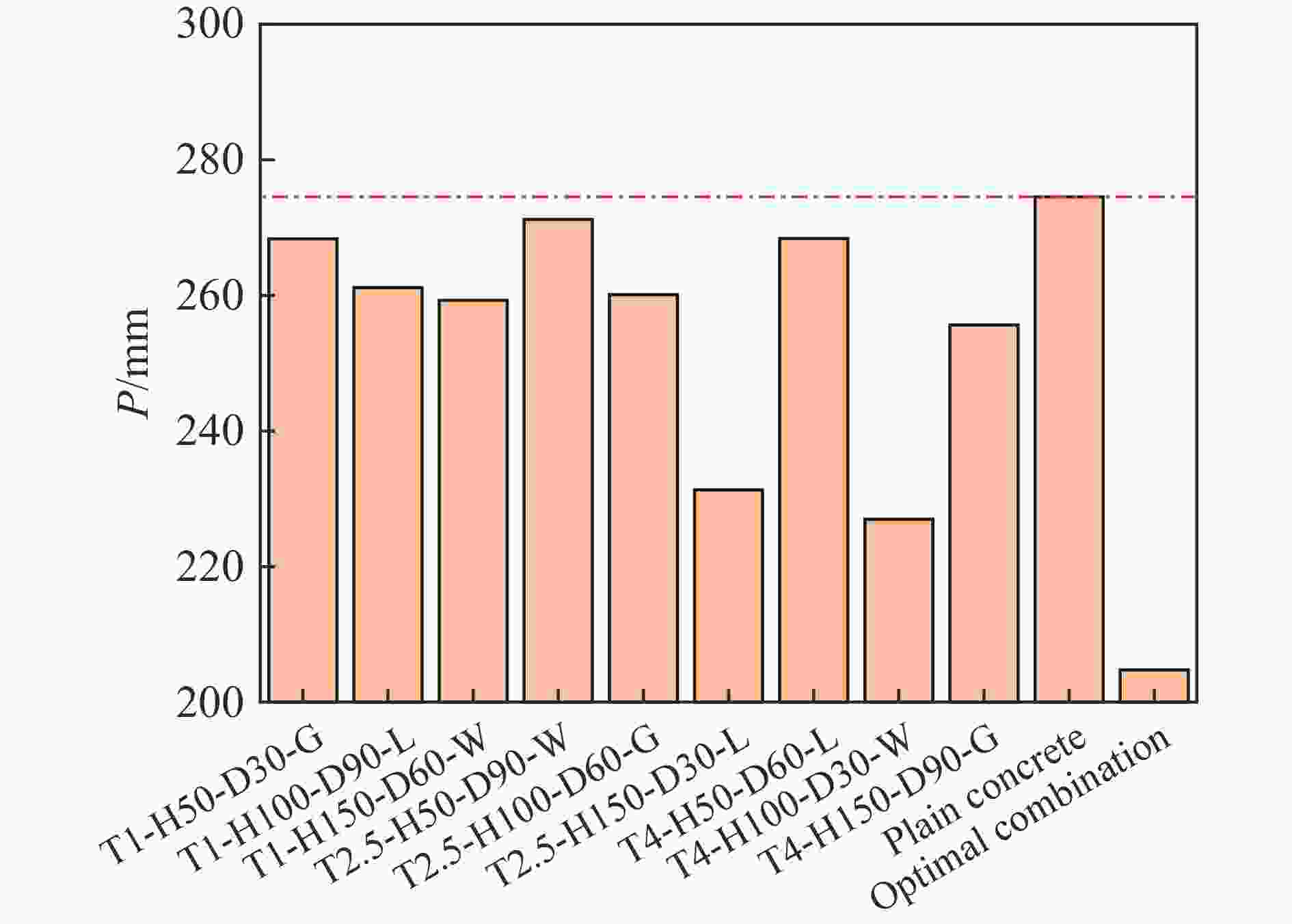

    图  16  优化组合与不同工况侵深结果对比

    Figure  16.  comparison of penetration results between optimized combination and different working conditions

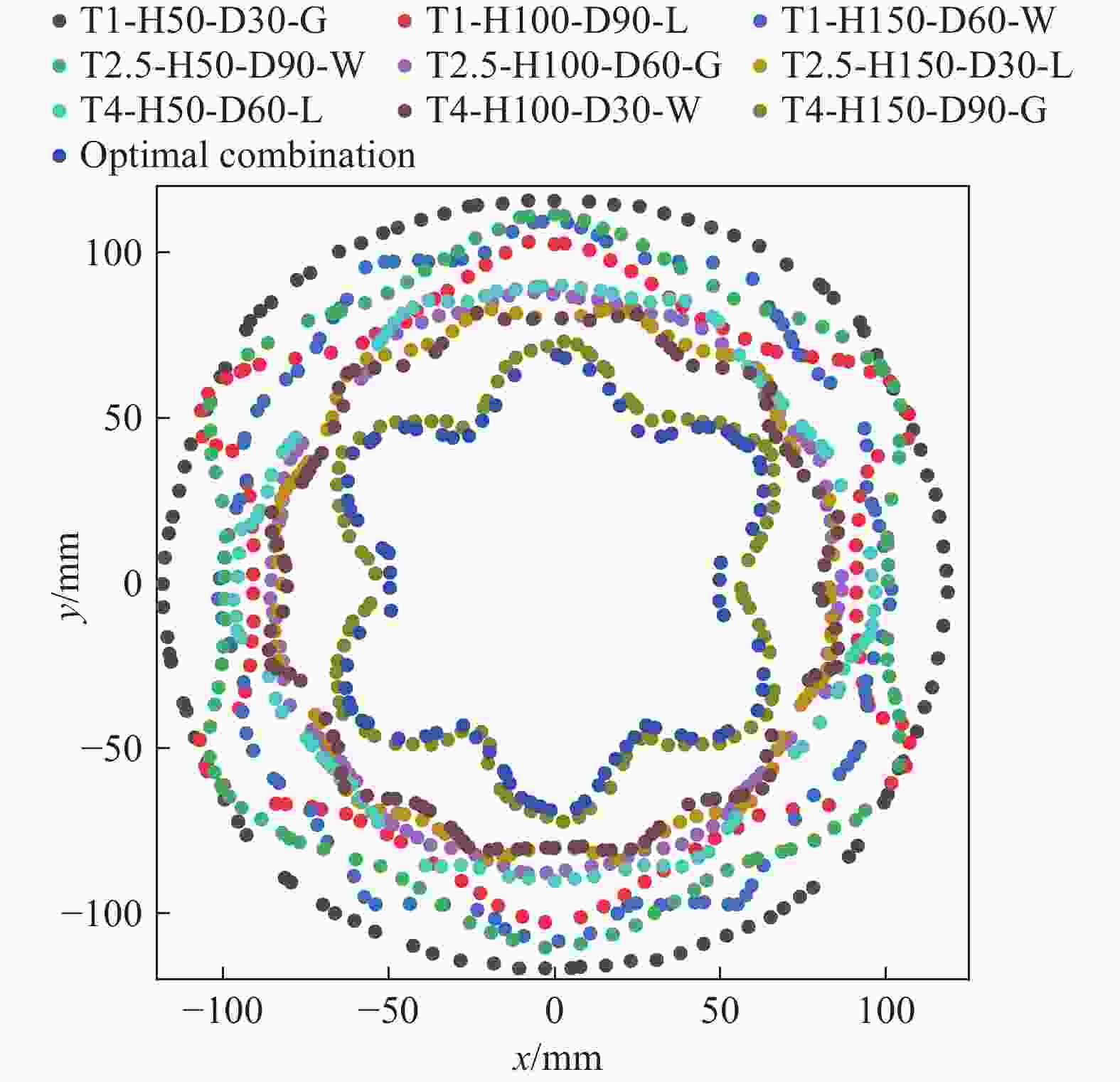

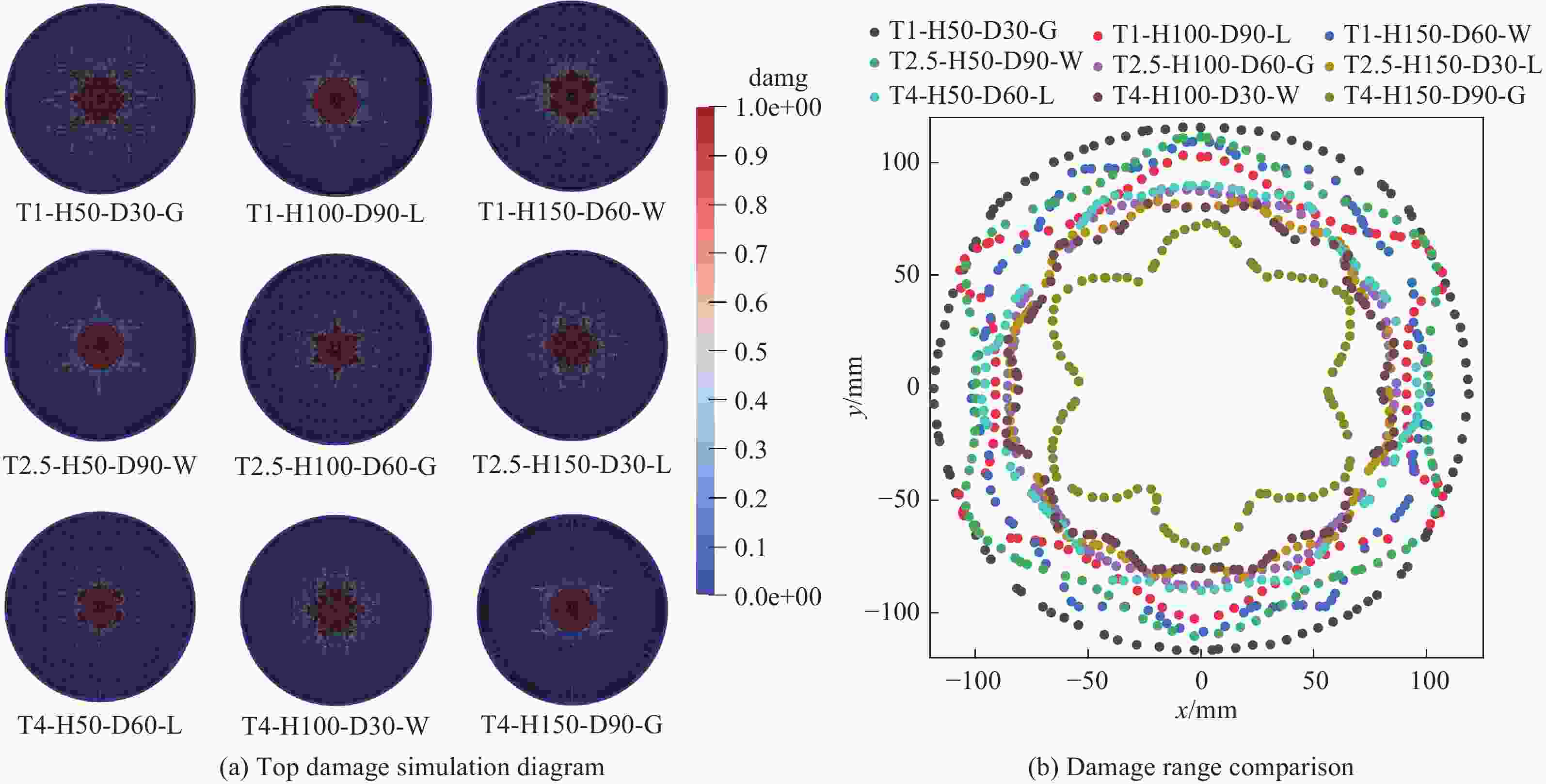

    图  17  优化组合与不同工况开坑半径对比

    Figure  17.  Comparison between optimized combination and pit opening radius under different working conditions

    表  1  不同工况条件下开坑半径和开坑深度

    Table  1.   Pit radius and depth under different working conditions

    工况开坑半径/mm开坑深度/mm
    H095.626.8
    H2052.617.7
    H5052.316.4
    下载: 导出CSV

    表  2  试验后弹体参数、侵彻深度对比

    Table  2.   Comparison of projectile parameters and penetration depth after test

    试验工况 v/(m/s) l/mm $\dfrac{{\Delta l}}{l} \times 100{\text{%}} $ m/g $\dfrac{{\Delta m}}{m} \times 100{\text{%}} $ $ \alpha $/° $\dfrac{{\Delta \alpha }}{{{\alpha _0}}} \times 100{\text{%}} $ P/mm P1500/mm
    H0 1469.8 33.2 7.8 8.7 7.4 68.5 6.4 285 291
    H20 1533.5 31.5 12.5 8.6 8.5 64.2 12.3 294 287.6
    H50 1456.7 30.4 15.6 8.4 10.6 60.6 17.2 267 275
     注:l:弹体长度;m:弹体质量;α,弹头特征角度;α0,弹头初始特征角度;P:实际侵彻深度;P15001500 m/s速度下侵彻深度。
    下载: 导出CSV

    表  3  侵彻结束弹体损伤对比

    Table  3.   Comparison of projectile damage at the end of penetration

    工况 数值模拟 试验回收
    H0
    H20
    H50
    下载: 导出CSV

    表  4  正交模拟设计表

    Table  4.   Orthogonal simulation design

    方案 T/mm H/mm D/mm 材料
    1 1 50 30
    2 1 100 90
    3 1 150 60
    4 2.5 50 90
    5 2.5 100 60
    6 2.5 150 30
    7 4 50 60
    8 4 100 30
    9 4 150 90
    下载: 导出CSV

    表  5  不同组合侵深结果极差分析

    Table  5.   Range analysis of penetration results at different times

    模拟工况 T/mm H/mm D/mm 材料 侵深P/mm
    T1-H50-D30-G 1 50 30 268.34
    T1-H100-D90-L 1 100 90 261.17
    T1-H150-D60-W 1 150 60 259.29
    T2.5-H50-D90-W 2.5 50 90 271.20
    T2.5-H100-D60-G 2.5 100 60 260.13
    T2.5-H150-D30-L 2.5 150 30 231.33
    T4-H50-D60-L 4 50 60 268.41
    T4-H100-D30-W 4 100 30 227.01
    T4-H150-D90-G 4 150 90 255.66
    侵深极差 12.57 20.56 20.45 8.88
    下载: 导出CSV

    表  6  开坑平均半径正交分析

    Table  6.   Orthogonal analysis of average radius of excavation

    模拟工况 T/mm H/mm D/mm 材料 成坑半径R/mm
    T1-H50-D30-G 1 50 30 118.4
    T1-H100-D90-L 1 100 90 101.1
    T1-H150-D60-W 1 150 60 103.7
    T2.5-H50-D90-W 2.5 50 90 107.8
    T2.5-H100-D60-G 2.5 100 60 86.4
    T2.5-H150-D30-L 2.5 150 30 84.3
    T4-H50-D60-L 4 50 60 91.0
    T4-H100-D30-W 4 100 30 78.3
    T4-H150-D90-G 4 150 90 65.3
    成坑半径极差 29.5 21.3 2.3 6.6
    下载: 导出CSV

    表  7  综合因素正交分析

    Table  7.   Orthogonal analysis of comprehensive factors

    工况 T/mm H/mm D/mm 材料 j p r F
    T1-H50-D30-G 1 50 30 0 0.94 1.00 0.65
    T1-H100-D90-L 1 100 90 9.62e−6 0.77 0.67 0.48
    T1-H150-D60-W 1 150 60 0.20 0.73 0.72 0.55
    T2.5-H50-D90-W 2.5 50 90 0.11 1.00 0.80 0.64
    T2.5-H100-D60-G 2.5 100 60 2.18e−3 0.75 0.40 0.38
    T2.5-H150-D30-L 2.5 150 30 0.02 0.10 0.36 0.16
    T4-H50-D60-L 4 50 60 3.03 e−3 0.94 0.48 0.47
    T4-H100-D30-W 4 100 30 1.00 0.00 0.24 0.41
    T4-H150-D90-G 4 150 90 4.35e−3 0.65 0.00 0.22
    综合得分极差 0.19 0.28 0.06 0.16
    下载: 导出CSV
