Experimental technology for impact compression characteristics of metal powder based on laser driving method
-
摘要: 基于激光驱动方式建立了一种面向金属粉末的冲击压缩特性研究技术。通过靶型优化设计和实验验证，在实现冲击波加载特性调控的同时，解决了粉末材料无固定几何形状对测量带来的技术困难；在靶结构中采用局部镀膜的方法，解决了粘胶对石英标准材料厚度测量的影响，保证了数据的真实性。利用三维X射线计算机断层成像技术表征实验用靶的装配质量，通过靶物理设计和改进装配方法获得了满足激光驱动金属粉末压缩特性研究的微型靶，实现了不同初始密度的研制。实验数据一致性较好，与独立计算的WEOS模拟结果吻合度高且能有效地区分不同初始密度下的数据趋势。该实验技术可拓展到其他粉末颗粒的冲击压缩特性研究中。Abstract: In order to broaden the pressure range of the research on the physical parameters of powder materials, a high-pressure physical property research technology for metal powders was established based on laser driving method. Through target optimization design and experimental verification, while achieving the regulation of shock wave loading characteristics, the technical difficulties caused by the lack of fixed geometric shapes in powder materials for measurement have been solved; The use of local coating method in the target structure solves the influence of adhesive on the thickness measurement of quartz standard material, ensuring the authenticity of the data. By utilizing three-dimensional X-Ray computed tomography imaging technology to characterize the assembly quality of experimental targets, micro targets that meet the requirements of laser driven metal powder high-pressure physical property diagnosis were obtained through improved assembly methods, and the development of targets with different initial densities was also achieved. While ensuring the accuracy of the data, the pressure range of the powder material is extended to more than 1 TPa. The experimental results show good data consistency, which is consistent with the independently calculated WEOS simulation results and can effectively distinguish the data trends under different initial densities. This experimental technique can be extended to the study of high-pressure physical properties of other powder particles.
-

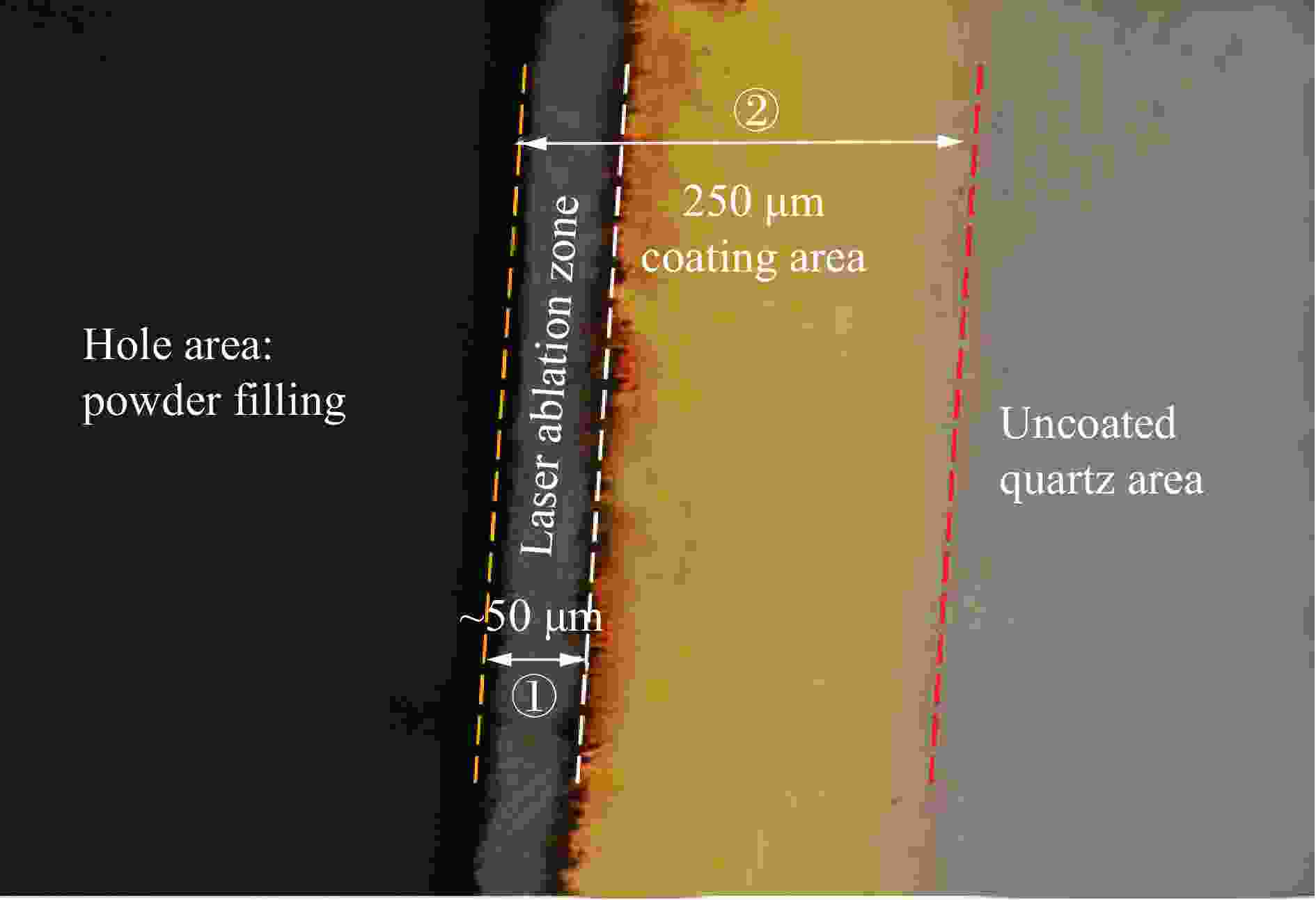

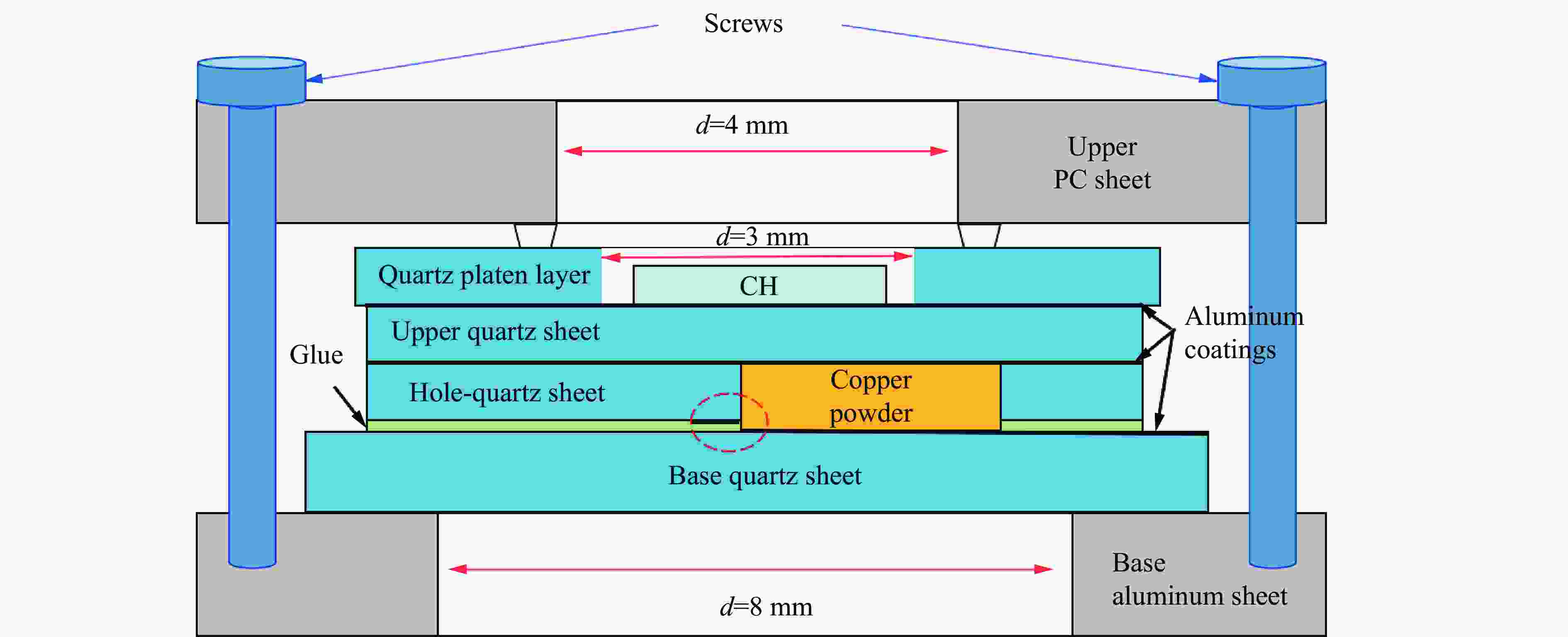

图 2 挖孔层石英边缘镀250 μm宽铝膜
Figure 2. Aluminum film with a width of 250 microns deposited on the quartz edge of the borehole layer

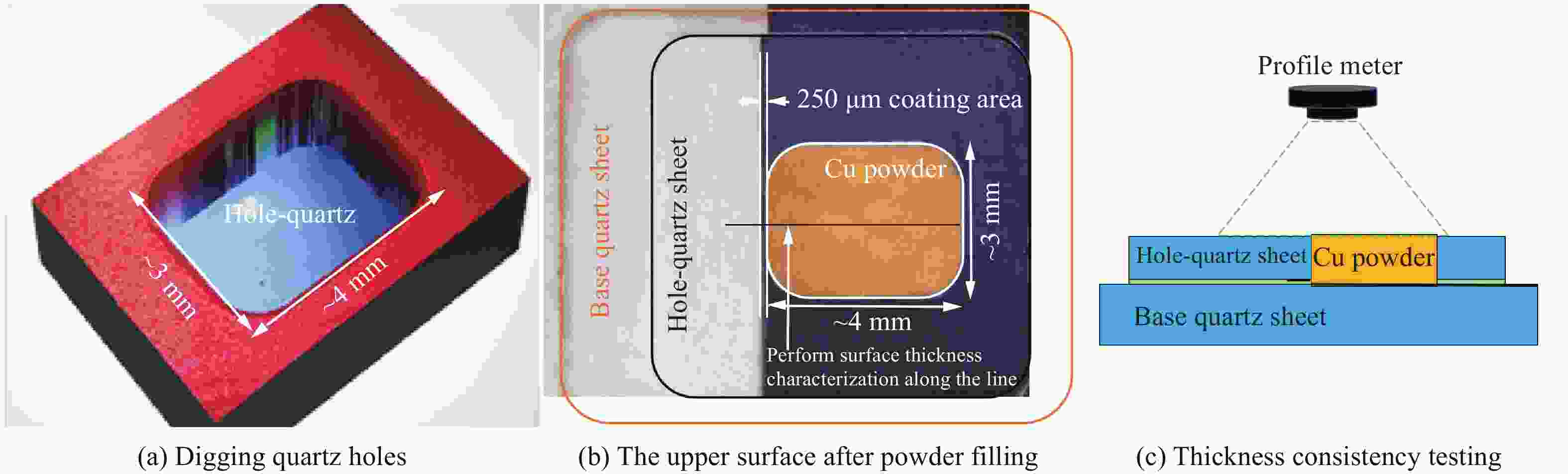

图 3 粉末材料初始密度表征流程示意
Figure 3. Schematics of the process for characterizing the initial density of powder materials

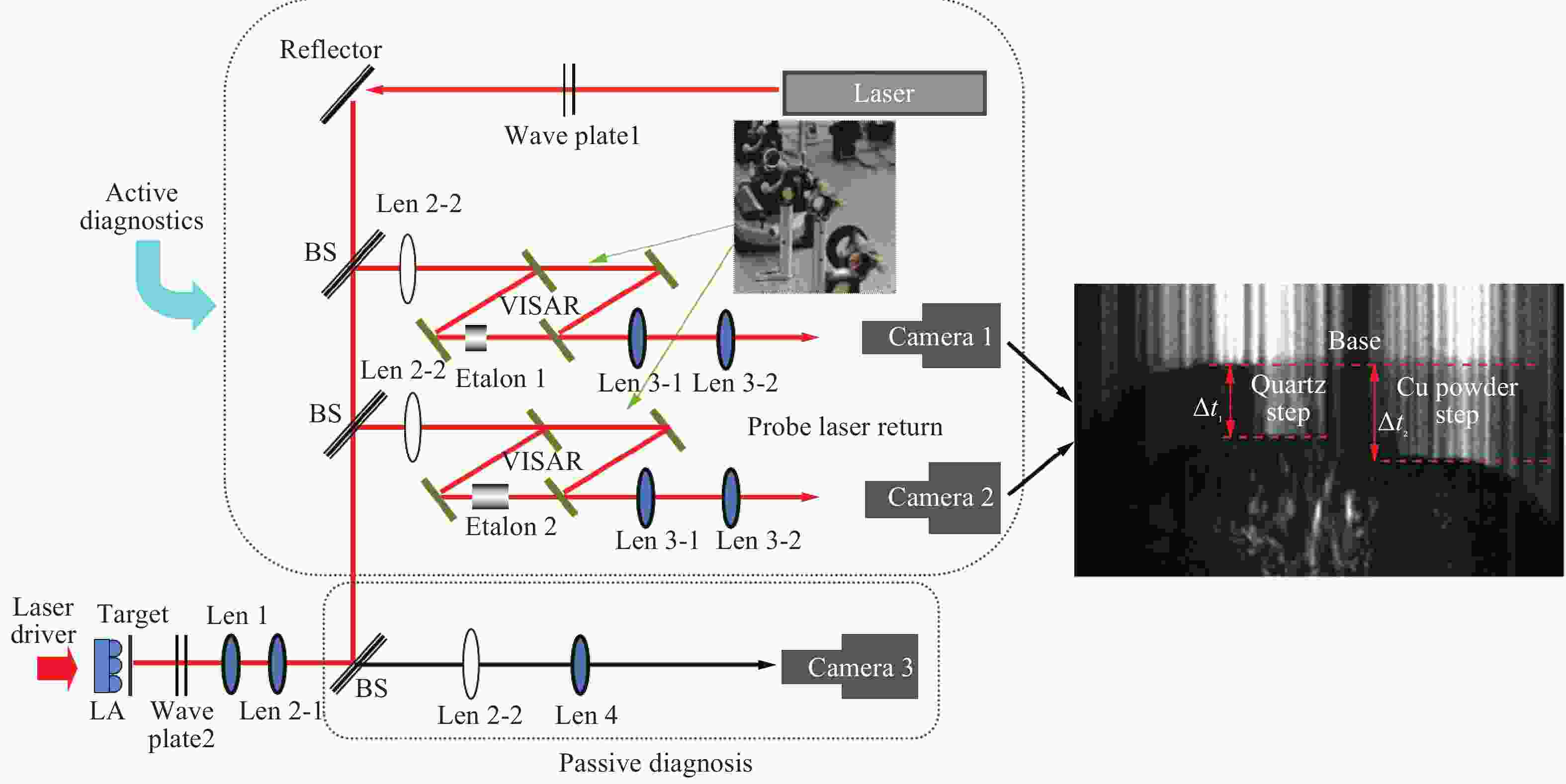

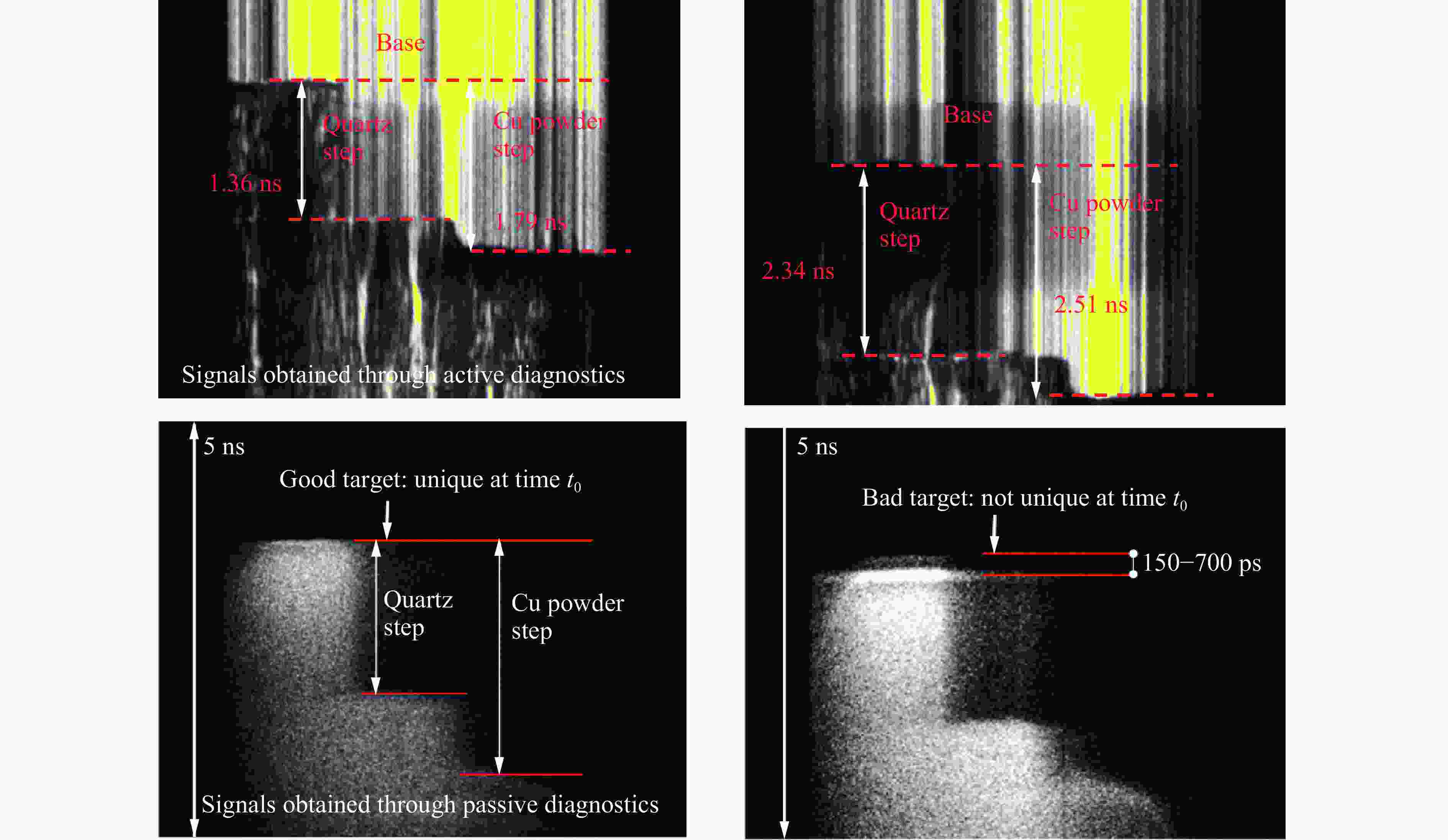

图 4 实验诊断示意图及实验图像
Figure 4. Schematic diagram and experimental image of experimental diagnosis

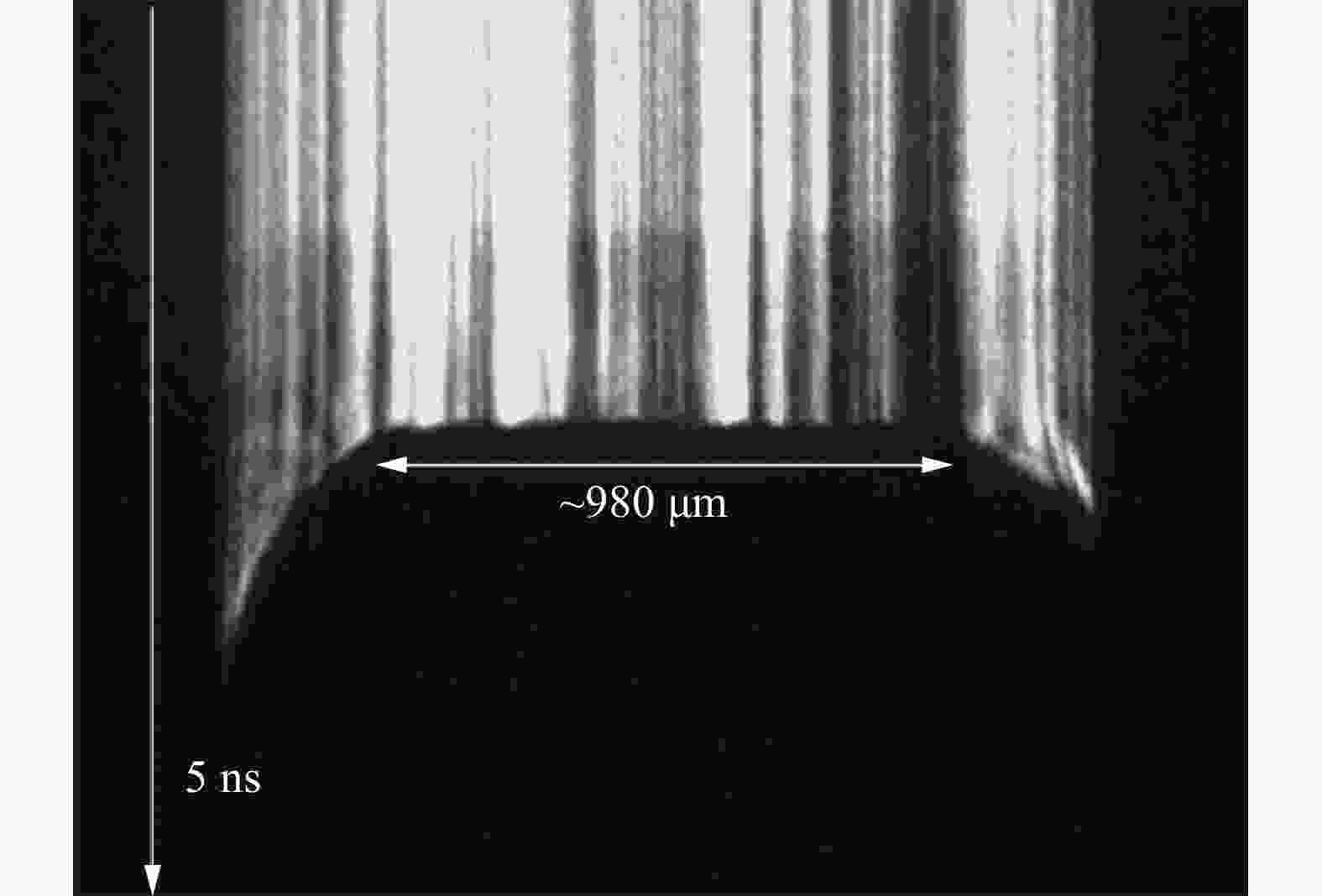

图 5 冲击波加载平面性实验测量
Figure 5. Experimental measurement of planarity under shock wave loading

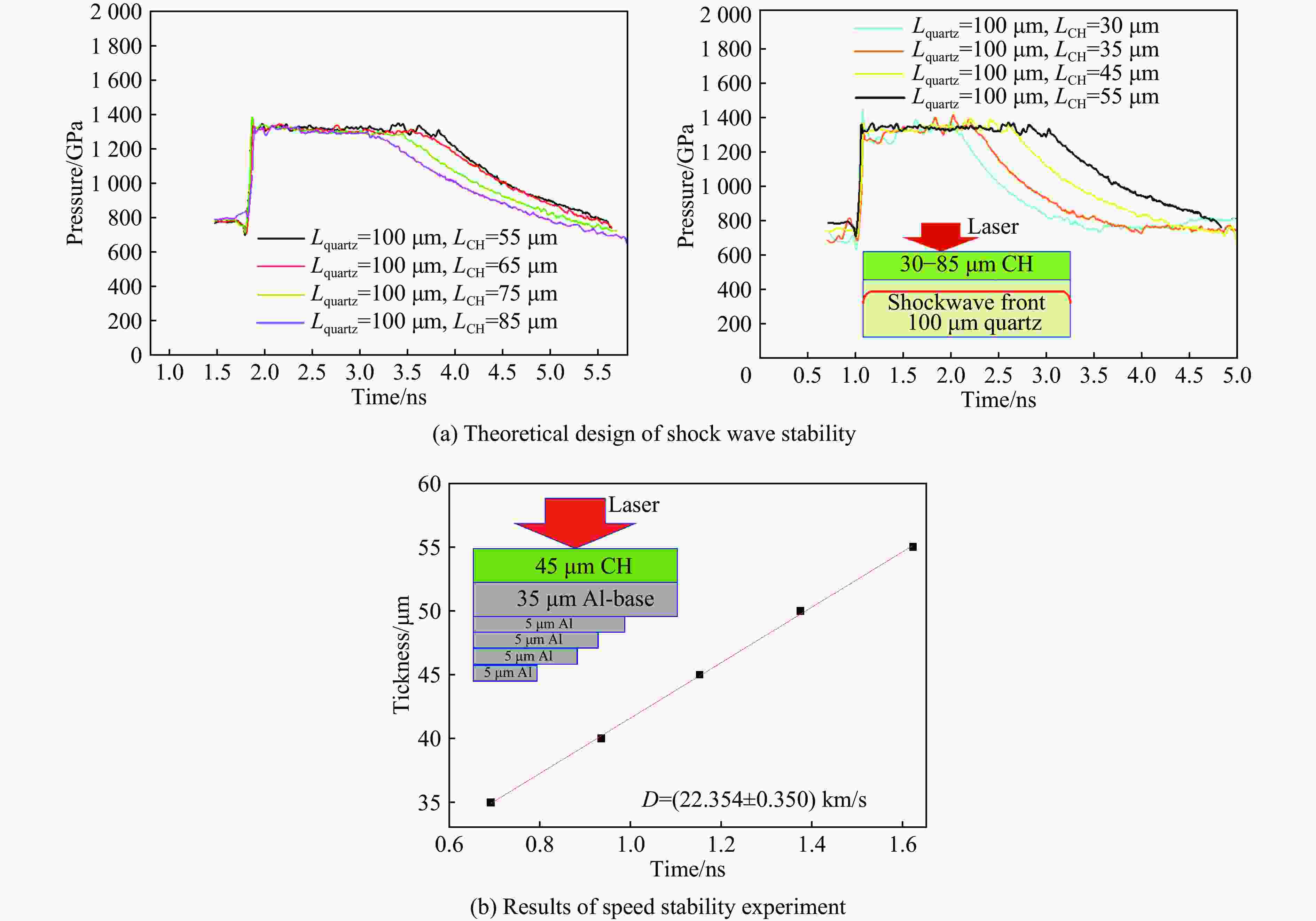

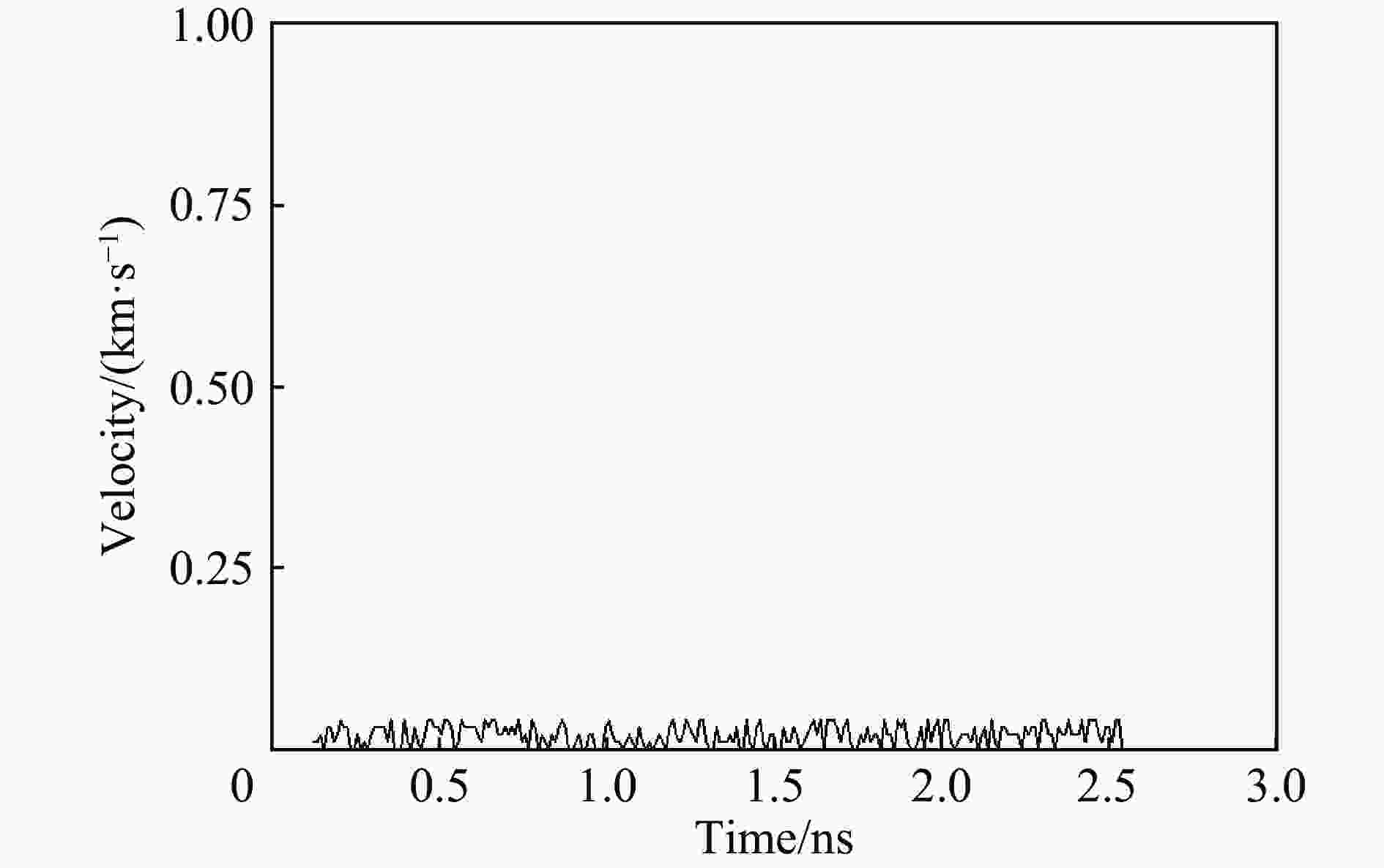

图 6 针对冲击波稳定性的理论设计和实验验证结果
Figure 6. Theoretical design for shock wave stability and experimental testing of shock wave velocity stability

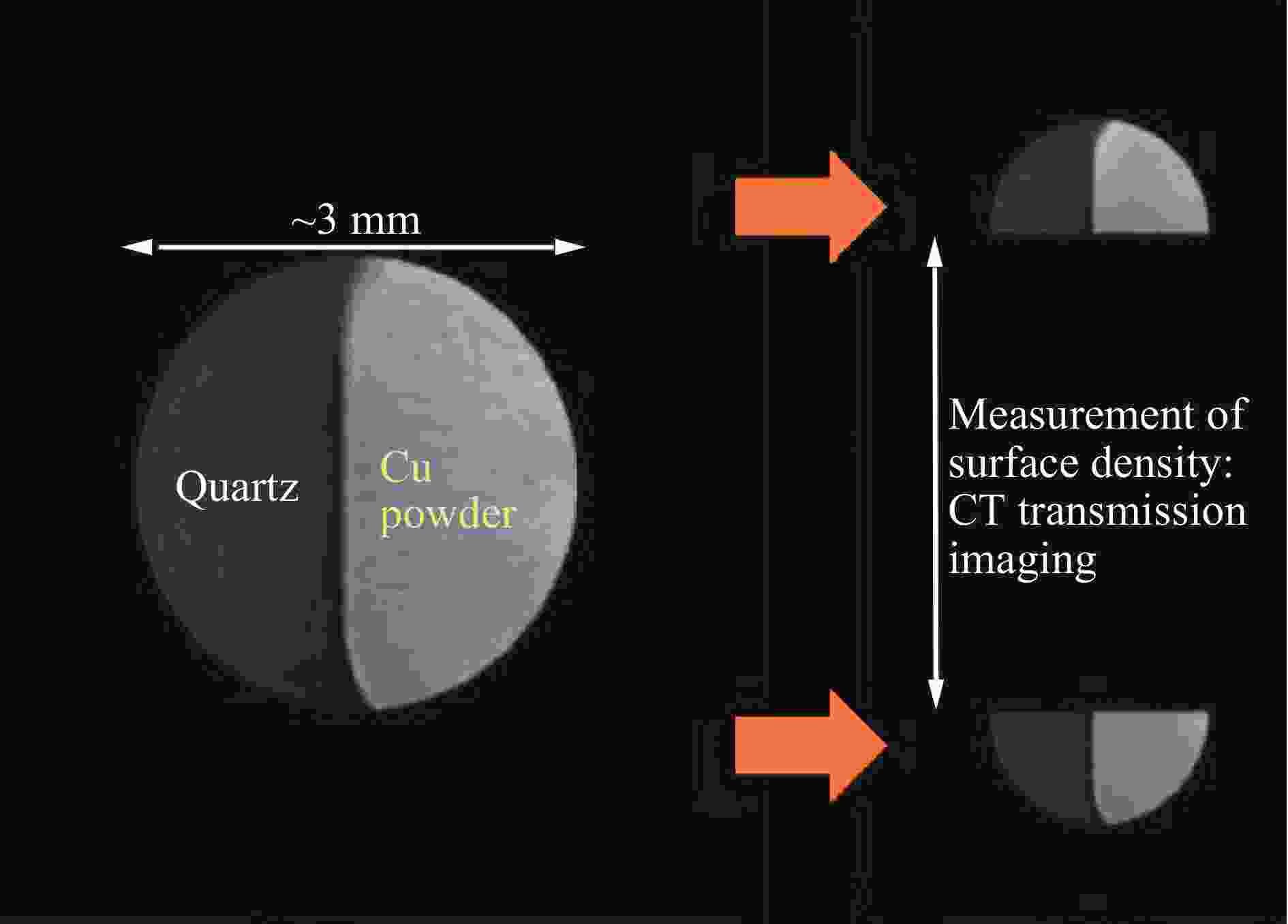

图 8 利用X光透射技术测量填粉后不同区域的面密度差异
Figure 8. Measurement of surface density differences in different areas after powder filling using X-ray transmission technology

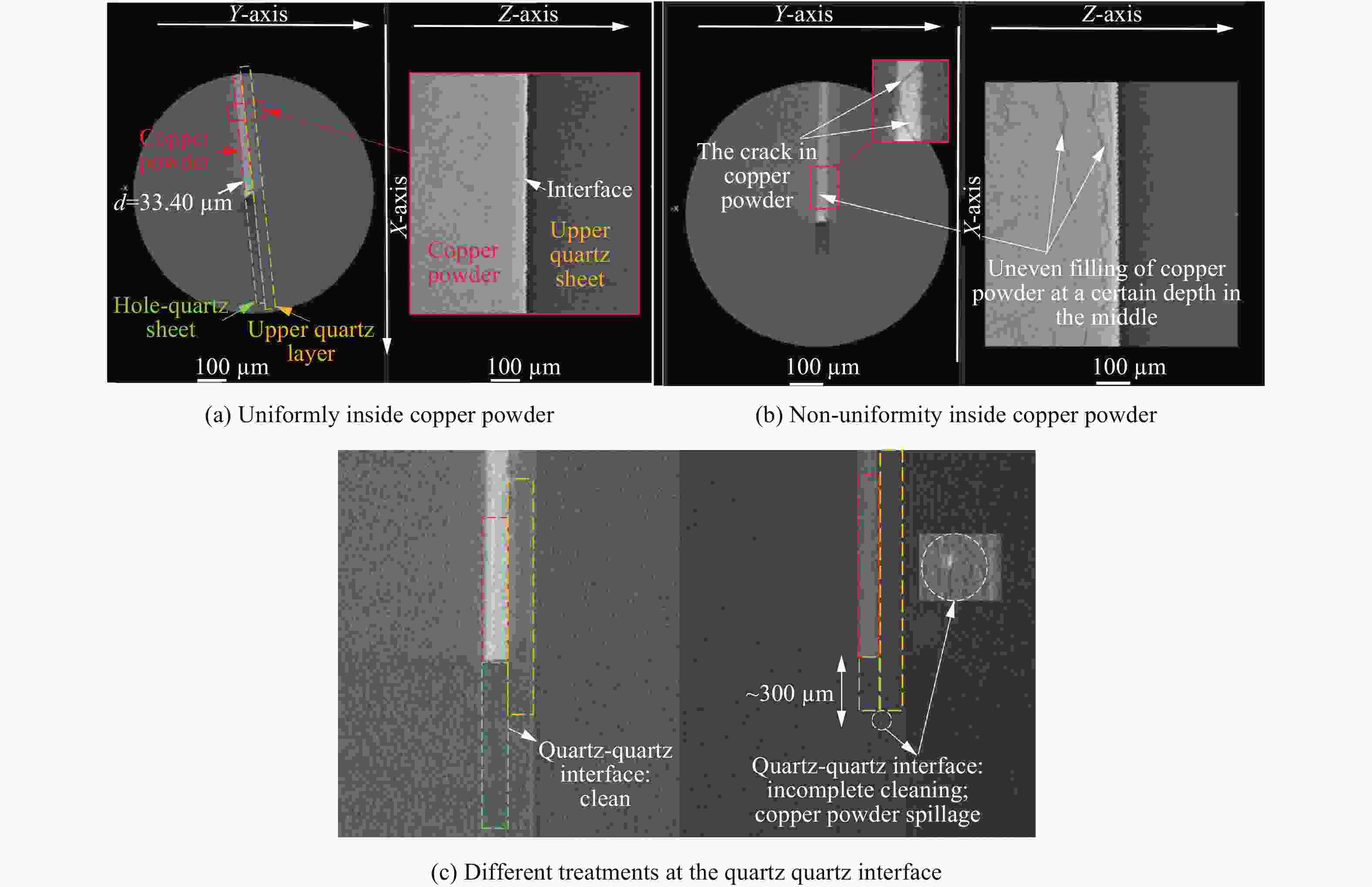

图 9 三维X光CT技术测量靶部件不同界面处的贴合情况
Figure 9. Three-dimensional X-ray CT technology measuring the adhesion of target components at different interfaces

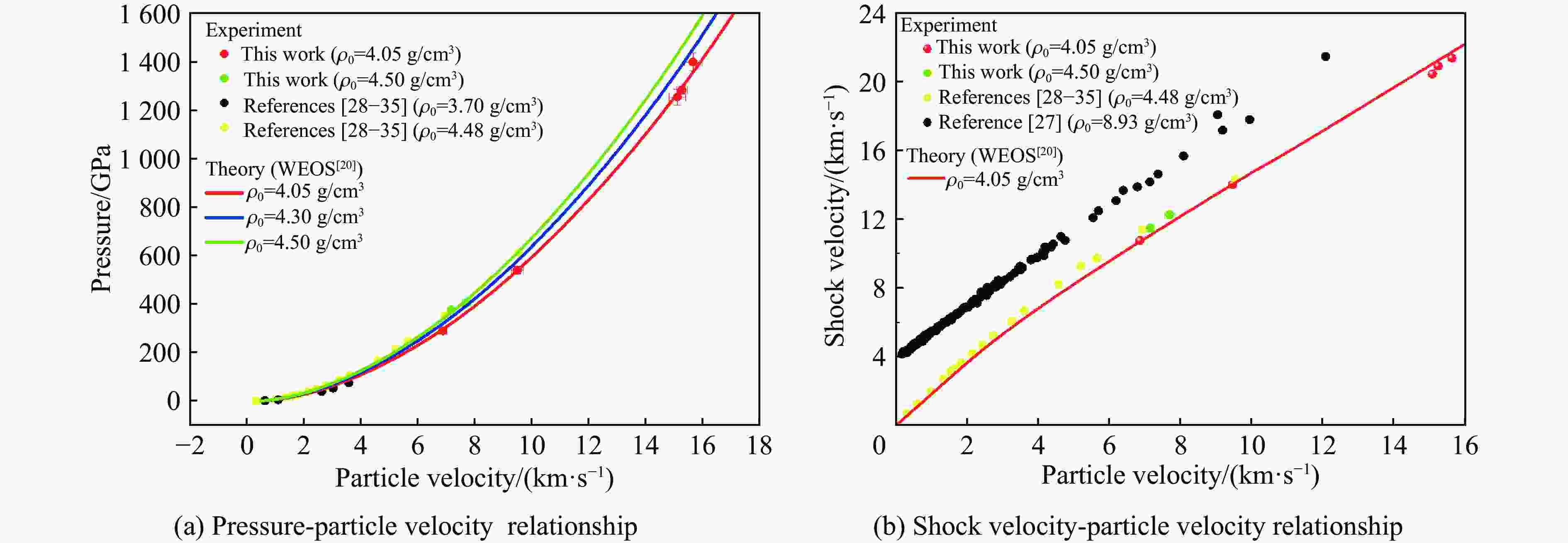

图 10 理论物态方程计算的压力-粒子速度/冲击波速度-粒子速度和实验数据的对比
Figure 10. Comparison of p-u/D-u relationships calculated by theoretical equation of state with experimental data
-
[1] BARRIOS M A , HICKS D G, BOEHLY T R, et al. High-precision measurments of the equation of station of hydrocarbons at 1–10 Mbar using laser-driven shock waves [J]. Physics of plasma, 2010, 17(5): 56307. DOI: 10.1063/1.3358144. [2] EDWARDS M J, PATEL P K, LINDLE J D, et al. Progress towards ignition on the National Ignition Facility [J]. Physics of plasma, 2013, 20(7): 070501. DOI: 10.1088/0029-5515/51/9/094024. [3] DUNNE M, BORGHESI M, IWASE A, et al. Evaluation of a foam buffer target design for spatially uniform ablation of laser-irradiated plasma [J]. Physical Review Letters, 1995, 75(21): 3858. DOI: 10.1103/PhysRevLett.75.3858. [4] KORMER S B, FUNTIKOV A I, URLIN V D, et al. Dynamic compression of porous metals and the equation of state with variable specific heat at high temperatures [J]. Soviet Physics, Journal of Experimental and Theoretical Physics, 1962, 15(3): 477. [5] VOGLER T J, LEE M Y, GRADY D E. Static and dynamic compaction of ceramic powders [J]. International Journal of Solids and Structures, 2007, 44: 636–658. DOI: 10.1016/j.ijsolstr.2006.05.00. [6] COOPER M A, BRUNDAGE A L, DUDLEY E C. Static and dynamic compaction of CL-20 powders [J]. AIP Conference Proceedings, 2009, 1195: 1385. DOI: 10.1063/1.3295068. [7] NEEL C, THADHANI N. Shock compression response of alumina-THV composites [J]. Journal of Applied Physics, 2011, 109: 013511. DOI: 10.1063/1.3525761. [8] DEMASKE B, HUDSPETH M, MANDAL A. Mesoscale simulations of melt production in porous metals under shock compression [J]. AIP Conference Proceedings, 2020, 2272: 070012. DOI: 10.1063/12.0001033. [9] MAW J R, WHITWORTH N J. Shock compression and the equation of state of fully dense and porous polyurethane [J]. AIP Conference Proceedings, 1997, 429: 111. DOI: 10.1063/1.55516. [10] FREDENBURG D A, KOLLER D D, RIGG P A, et al. High-fidelity Hugoniot analysis of porous materials [J]. Review of Scientific Instruments, 2013, 84: 013903. DOI: 10.1063/1.4774394. [11] FALIZE E, MICHAUT C, BOUQUET S. Similarity properties and scaling laws of radiation hydrodynamic flows is laboratory astrophysics [J]. The Astrophysical Journal, 2011, 730(2): 96. DOI: 10.1088/0004-637x/730/2/96. [12] VOORHEES T J, STEINER J W, KENNEDY G B, et al. The effect of initial pressed density on the dynamic densification behavior of brittle granular materials [J]. AIP Conference Proceedings, 2020, 2272: 110014. DOI: 10.1063/12.0000981. [13] CARROLL M, HOLT A C. Suggested modification of the p-ɑ model for porous materials [J]. Journal of Applied Physics, 1972, 43(2): 759–761. DOI: 10.1063/1.1661203. [14] 高明悦, 周强. 用于描述W-Cu粉末混合物冲击压缩行为的p-ɑ和p-λ模型适用性 [J]. 高压物理学报, 2020, 34(1): 012101–1. DOI: 10.11858/gywlxb.20190784.GAO M Y, ZHOU Q. P-ɑ and P-λ model for describing shock compressive behavior of W-Cu powder mixture [J]. Chinese Journal of High Pressure Physics, 2020, 34(1): 012101. DOI: 10.11858/gywlxb.20190784. [15] GENG H Y, WU Q, TAN H, et al. Extension of the Wu-Jing equation of state for highly porous materials: calculations to validate and compare the thermoelectron model [J]. Journal of Applied Physics, 2002, 92: 5917–5923. DOI: 10.1063/1.1516618. [16] DIJKEN D K, DE HOSSON J T M. Shock wave equation of state of powder material [J]. Journal of Applied Physics, 1994, 75: 809–813. DOI: 10.1063/1.356434. [17] KOBAYASHI T. Radiation of light from powder materials under shock compression [J]. Chemical Physics Letters, 2013, 565: 35–39. DOI: 10.1016/j.cplett.2013.02.012. [18] KOBAYASHI T. Shock compression behavior of low density powder materials and the double-shock Hugoniot [J]. Mechanics of Materials, 2017, 111: 15–20. DOI: 10.1016/j.mechmat.2017.05.004. [19] FREDENBURG D A, KOLLER D D, COE J D, et al. The influence of morphology on the low- and high-strain-rate compaction response of CeO2 powders [J]. Journal of Applied Physics, 2014, 115: 123511. DOI: 10.1063/1.4868356. [20] LIU H, SONG H, ZHANG Q, et al. Validation for equation of state in wide regime: copper as prototype [J]. Matter and Radiation at Extremes, 2016, 1(2): 123. DOI: 10.1016/j.mre.2016.03.002. [21] ALI S J, SWIFT D C, WU C J, et al. Development of uncertainty-aware equation-ofstate models: application to copper [J]. Journal of Applied Physics, 2020, 128: 185902. DOI: 10.1063/5.0029723. [22] WECK P F, COCHRANE K R, ROOT S, et al. Shock compression of strongly correlated oxides: a liquid-regime equation of state for cerium (Ⅳ) oxide [J]. Physical Review B, 2018, 97: 125106. DOI: 10.1103/physrevb.97.125106. [23] FU S Z, HUANG X G, MA M S, et al. Analysis of measurement error in the experiment of laser equation of state with impedance-match way and the Hugoniot data of Cu up to ~2.24 TPa with high precision [J]. Journal of Applied Physics, 2007, 101: 043517. DOI: 10.1063/1.2538097. [24] FREDENBURG D A, THADHANI N N, VOGLER T J. Shock consolidation of nanocrystalline 6061-T6 aluminum powders [J]. Materials Science and Engineering, 2010, 527: 3349–3357. DOI: 10.1016/j.msea.2010.02.036. [25] CUI Y, GAO Y Q, RAO D X, et al. High-energy low-temporal-coherence instantaneous broadband pulse system [J]. Optics Letters, 2019, 44: 2859. DOI: 10.1364/OL.44.002859. [26] DENG X, LIANG X, CHEN Z, et al. Uniform illumination of large targets using a lens array [J]. Applied Optics, 1986, 25: 377. DOI: 10.1364/ao.25.000377. [27] MCCOY C A, KNUDSON M D, ROOT S. Absolute measurement of the Hugoniot and sound velocity of liquid copper at multimegabar pressures [J]. Physical Review B, 2017, 96: 174109. DOI: 10.1103/PhysRevB.96.174109. [28] ALTSHULER L V, KORMER S B, BAKANOVA A A, et al. Equation of state for aluminum, copper, and lead in the high pressure region [J]. Soviet Physics, Journal of Experimental and Theoretical Physics, 1960, 11: 573. [29] GLUSHAK B L, ZHARKOV A P, ZHERNOKLETOV M V, et al. Experimental investigation of the thermodynamics of dense plasmas formed from metals at high energy concentrations [J]. Journal of Experimental and Theoretical Physics, 1989, 96: 1301. [30] KORMER S B, FUNTIKOV A I, URLIN V D, et al. Dynamic compression of porous metals and the equation of state with variable specific heat at high temperatures [J]. Soviet Physics, Journal of Experimental and Theoretical Physics, 1962, 15: 477. DOI: 83.149.229.155. [31] MITCHELL A C, NELLIS W J, MORIARTY J A, et al. Equation of state of Al, Cu, Mo, and Pb at shock pressures up to 2.4 TPa (24 Mbar) [J]. Journal of Applied Physics, 1991, 69: 2981. DOI: 10.1063/1.348611. [32] RAGAN C E. Shock-wave experiments at threefold compression [J]. Physical Review A, 1984, 29: 1391. DOI: 10.1103/PhysRevA.29.1391. [33] TRUNIN R F, PODURETS M A, MOISEEV B N, et al. Relative compressibility of copper, cadmium and lead at high pressures [J]. Soviet Physics, Journal of Experimental and Theoretical Physics, 1969, 29: 630. [34] WALSH J M, RICE M H, MCQUEEN R G, et al. Shock-wave compressions of twenty-seven metals. Equations of state of metals [J]. Physical Review, 1957, 108: 196. DOI: 10.1103/physrev.108.196. [35] ZHERNOKLETOV M V, ZUBAREV V N, SUTULOV Y N. Porous-specimen adiabats and solid-copper expansion isentropes [J]. Journal of Applied Mechanics and Technical Physics, 1984, 25: 107. DOI: 10.1007/bf00916877. -
