落石冲击框架T梁式RC棚洞损伤破坏评估

吴昊; 沈衢; 陈德

doi:10.11883/bzycj-2025-0060

落石冲击框架T梁式RC棚洞损伤破坏评估

doi: 10.11883/bzycj-2025-0060

吴昊^1,,
沈衢¹,
陈德^{1, 2, ,}

1.
同济大学土木工程学院，上海 200092
2.
宁波大学冲击与安全工程教育部重点实验室，浙江宁波 315211

基金项目: 国家自然科学基金（52408555）；冲击与安全工程教育部重点实验室（宁波大学）开放课题（CJ202505）

详细信息

作者简介:
吴　昊（1981－　），男，教授，wuhaocivil@tongji.edu.cn

通讯作者:
陈　德（1992－　），男，博士研究生，chende@tongji.edu.cn

中图分类号: O383; U451
计量
- 文章访问数: 450
- HTML全文浏览量: 98
- PDF下载量: 98
- 被引次数: 0
出版历程
- 收稿日期: 2025-02-23
- 修回日期: 2025-04-18
- 网络出版日期: 2025-04-25

Damage and failure assessment of framed T-beam type RC shed tunnel under rockfall impact

WU Hao^1
,,
SHEN Qu¹,
CHEN De^{1, 2
, ,}

1.
College of Civil Engineering, Tongji University, Shanghai 200092, China
2.
Key Laboratory of Impact and Safety Engineering, Ministry of Education, Ningbo University, Ningbo 315211, Zhejiang, China

摘要

摘要: 钢筋混凝土（reinforced concrete, RC）棚洞是山区公路和铁路设施抗落石冲击的有效原位防护手段，利用LS-DYNA商用有限元软件开展了落石冲击无垫层、铺设厚砂垫层以及厚砂-发泡聚乙烯泡沫（expandable polyethylene, EPE）复合缓冲垫层的原型框架T梁式RC棚洞损伤破坏评估的精细化数值模拟分析。首先，建立落石冲击沪昆铁路某原型框架T梁式RC棚洞的精细化有限元模型。其次，通过与落锤（石）冲击无垫层、带砂和EPE垫层RC板试验结果对比，充分验证了数值仿真方法的适用性和可靠性。进一步，对比分析了落石冲击下无垫层、铺设砂和砂-EPE复合垫层棚洞的损伤破坏和动态响应。最后，以落石最大侵入深度达到棚洞顶板与垫层总厚度作为棚洞失效破坏阈值，给出了棚洞失效破坏对应的落石质量与临界冲击速度关系式，实现棚洞防护性能的快速评估。结果表明：(1) 无垫层棚洞的损伤破坏集中于顶板冲击区域，铺设砂垫层以及砂-EPE复合垫层可平均分别降低落石冲击力峰值92.8%和91.6%；(2) 落石冲击速度较小时，砂-EPE复合垫层的缓冲耗能效果优于砂垫层，冲击速度增大后，复合垫层的防护效果不及砂垫层，顶板承受的冲击力和冲击能量较铺设砂垫层分别增大了89.3%和37.8%；(3) 棚洞失效破坏对应的落石临界冲击速度随落石质量增大呈幂函数衰减规律，铺设垫层可使临界冲击速度提高52%~155%，显著提升棚洞的防护性能。
- 框架RC棚洞 /
- 落石冲击 /
- 损伤破坏 /
- 砂垫层 /
- 砂-EPE复合垫层
Abstract: Reinforced concrete (RC) shed tunnel serves as an effective in-situ solution for rockfall protection along mountainous highways and railways. Using the commercial software LS-DYNA, refined numerical simulations were conducted to investigate the damage and failure assessment of a prototype framed T-beam type RC shed tunnel under rockfall impact. The simulations considered scenarios both with and without cushions, including 600 mm and 1200 mm sand cushions, as well as 1200 mm sand-expandable polyethylene (EPE) composite cushion. Firstly, a refined finite element model of a prototype framed T-beam type RC shed tunnel located on the Shanghai-Kunming railway under rockfall impact was developed, of which the rockfall masses ranging from 1 t to 30 t and impact velocities ranging from 10 m/s to 57 m/s. Secondly, by comparing with the results of existing impact tests on bare RC slab, as well as RC slabs with sand and EPE cushions, the accuracy and reliability of the adopted material constitutive model, mesh size, contact algorithm, and corresponding parameters of the finite element model were validated. Furthermore, the damage patterns and dynamic responses of the prototype shed tunnel without cushion, with sand cushion, and with sand-EPE composite cushion were compared and analyzed. Finally, taking the maximum penetration depth of the rockfall reaching the total thickness of the roof slab and cushion as the failure threshold of the shed tunnel, the corresponding relationship between the rockfall mass and the critical impact velocity was established, which enabled rapid assessment of protective performance of shed tunnel. It indicates that: (1) Under the impact of a 15 t rockfall at velocities of 10 m/s and 25 m/s, the damage to the shed tunnel without cushion is primarily concentrated in the impact area of the roof slab. On average, the use of sand cushion and sand-EPE composite cushion reduces the peak impact force by 92.8% and 91.6%, respectively; (2) At impact velocity of 10 m/s, the sand-EPE composite cushion exhibits superior buffering and energy dissipation performance compared to the sand cushion. However, with impact velocity increasing to 25 m/s, the EPE in the composite cushion is rapidly compacted, leading to a diminished protective effect. In this scenario, the impact force and energy transferred to the roof slab with the composite cushion are 89.3% and 37.8% higher than those with the sand cushion, respectively; (3) The critical impact velocity of rockfall corresponding to the failure damage of the shed tunnel follows an exponential decay trend as the rockfall mass increases. The application of cushions can increase the critical impact velocity by 52% to 155%, significantly improving the protective performance of the shed tunnel.
- framed RC shed tunnel /
- rockfall impact /
- damage and failure /
- sand cushion /
- sand-EPE composite cushion

HTML全文

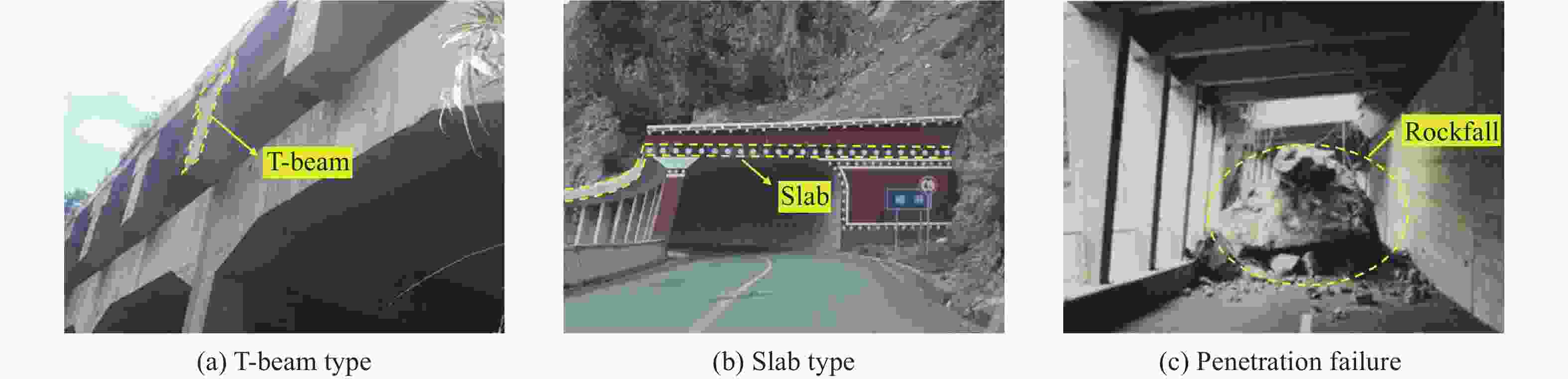

图 1 钢筋混凝土棚洞

Figure 1. RC shed tunnel

下载: 全尺寸图片幻灯片

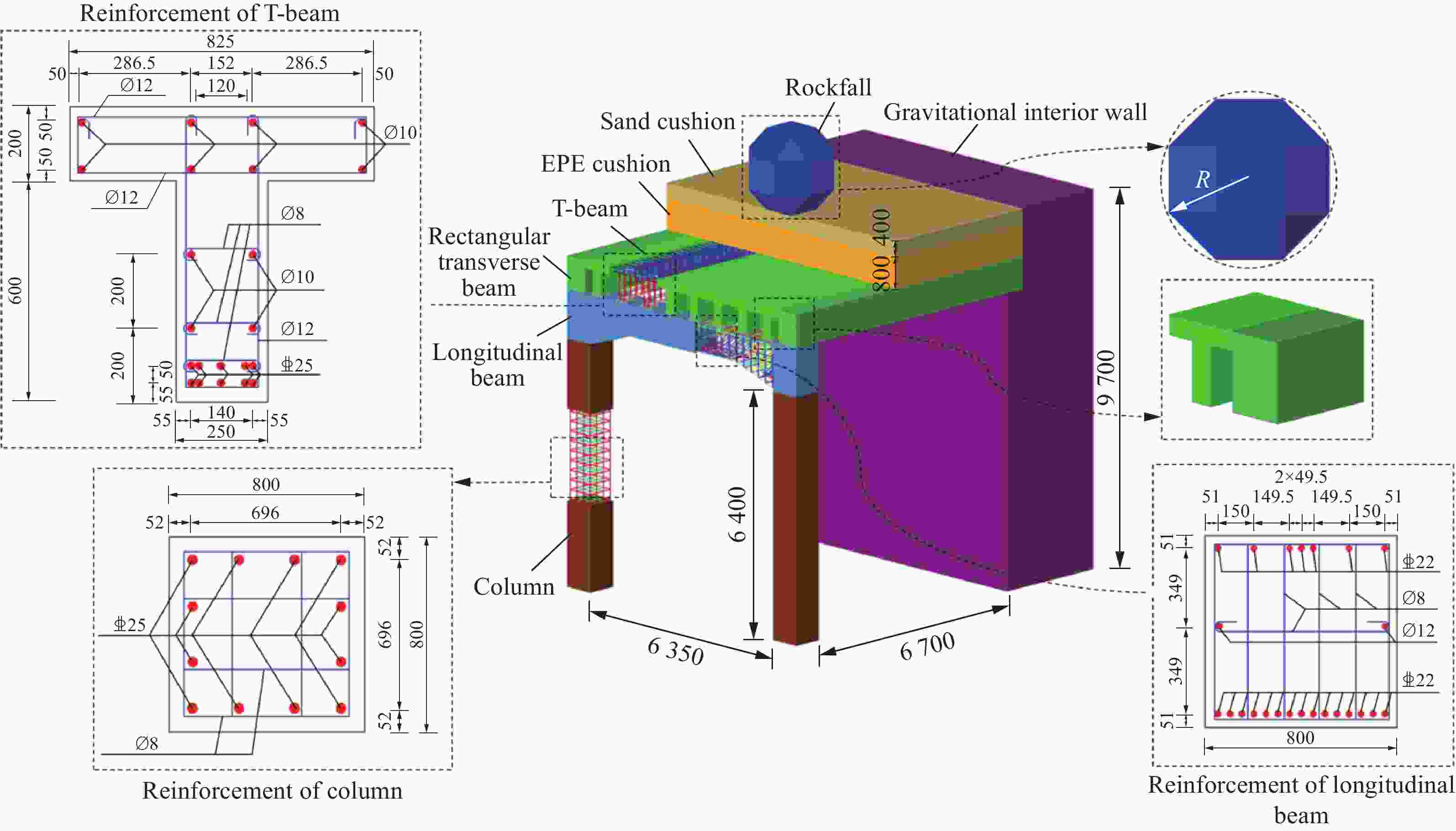

图 2 原型框架T型梁式RC棚洞有限元模型（单位：mm）

Figure 2. Finite element model of prototype framed T-beam type RC shed tunnel (unit: mm)

下载: 全尺寸图片幻灯片

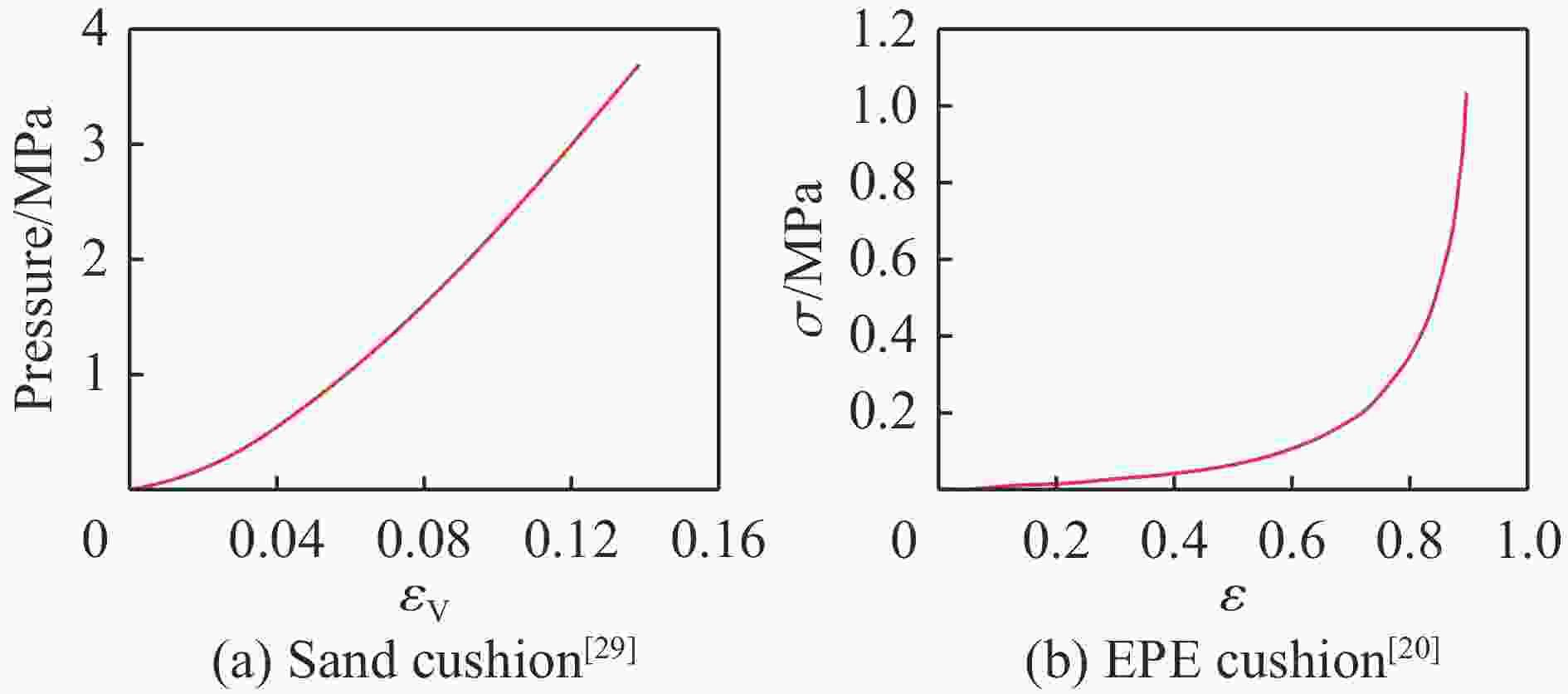

图 3 垫层材料的应力-应变曲线

Figure 3. Stress-strain curves of cushion materials

下载: 全尺寸图片幻灯片

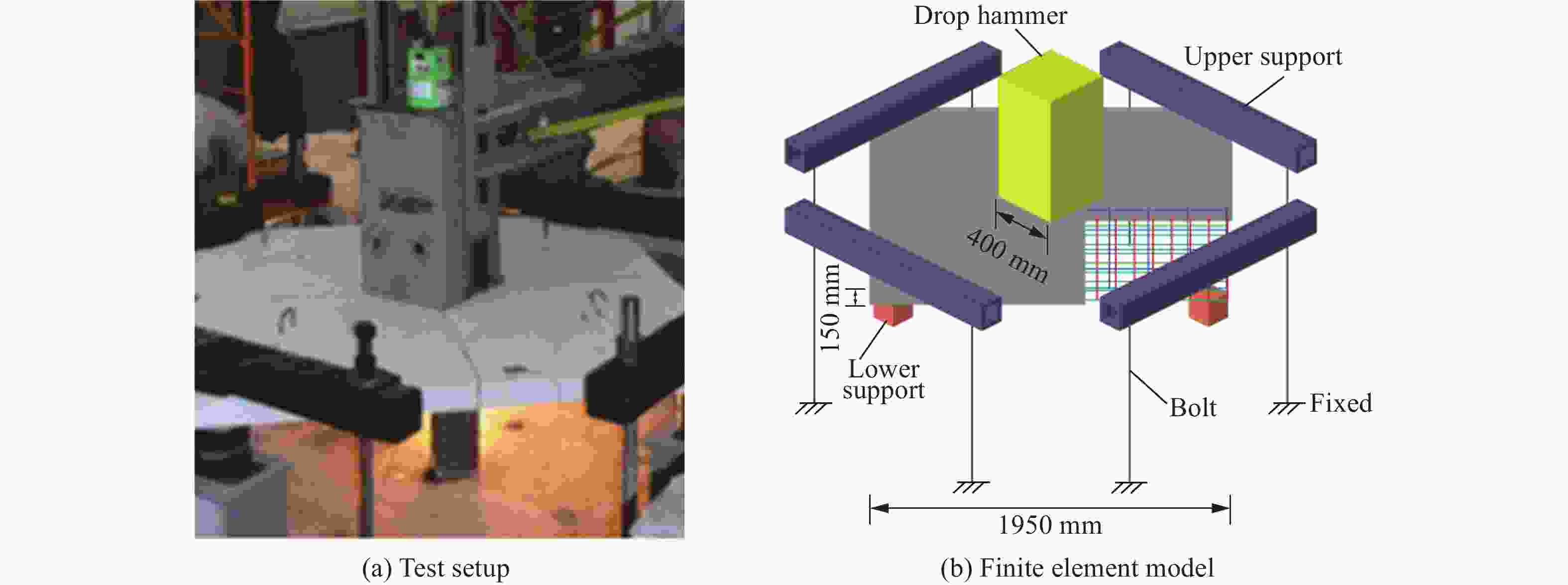

图 4 RC板落锤多次冲击试验^[14]和有限元模型

Figure 4. Multiple impact test on RC slab^[14] and finite element model

下载: 全尺寸图片幻灯片

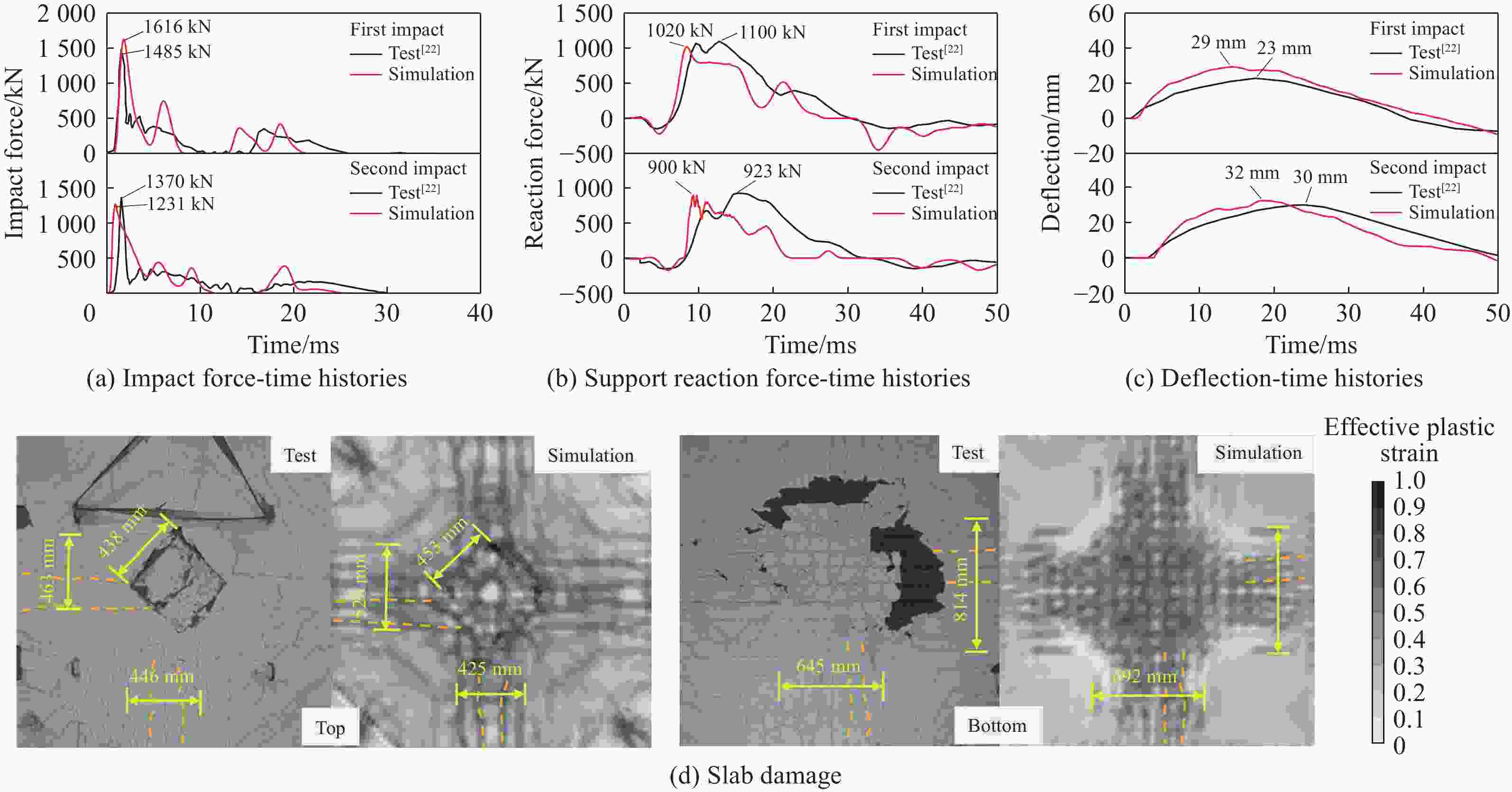

图 5 冲击试验^[22]与数值模拟结果对比

Figure 5. Comparisons of impact test^[22] and simulated results

下载: 全尺寸图片幻灯片

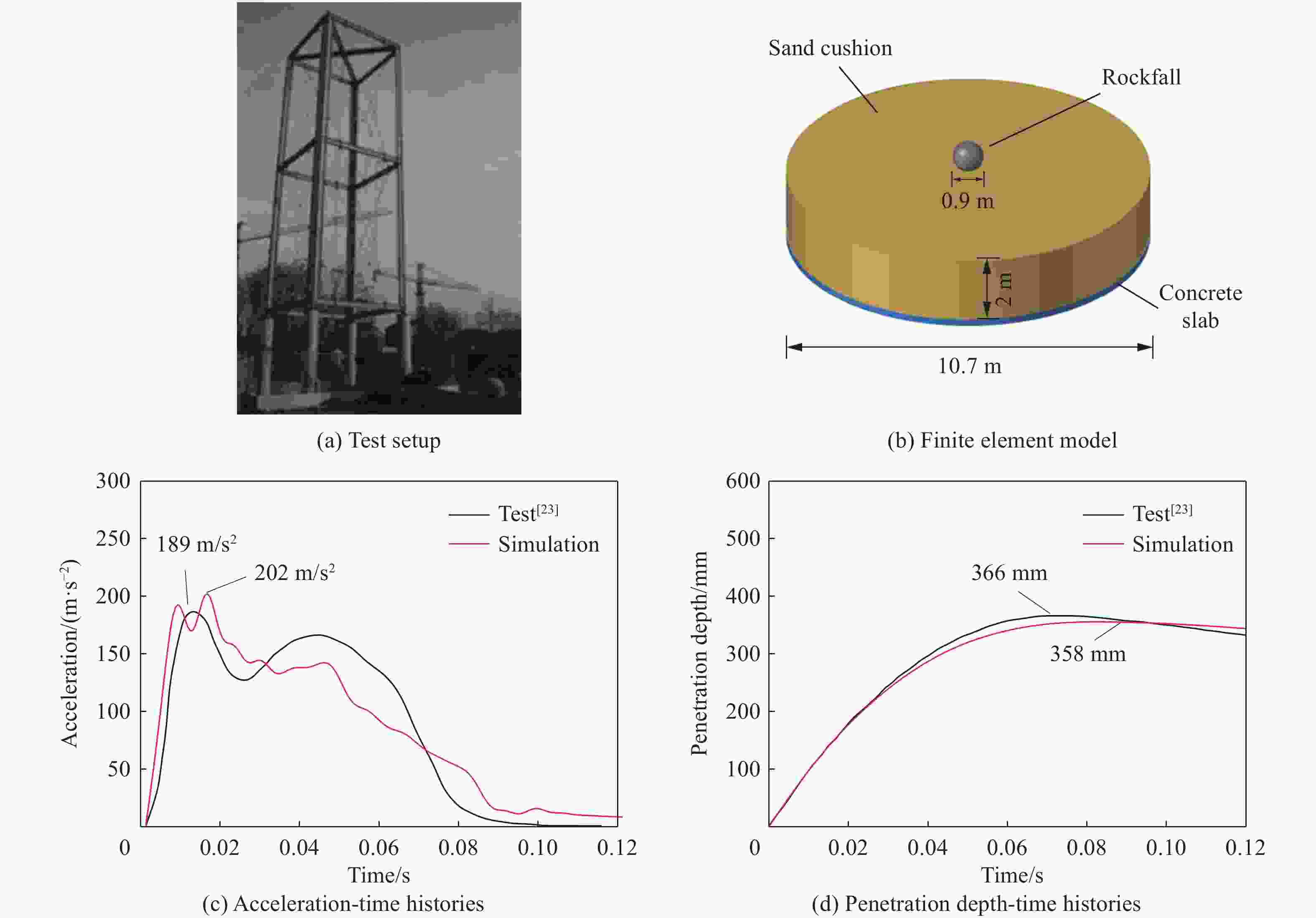

图 6 砂垫层冲击试验^[23]与数值模拟

Figure 6. Sand cushion impact test^[23] and numerical simulation

下载: 全尺寸图片幻灯片

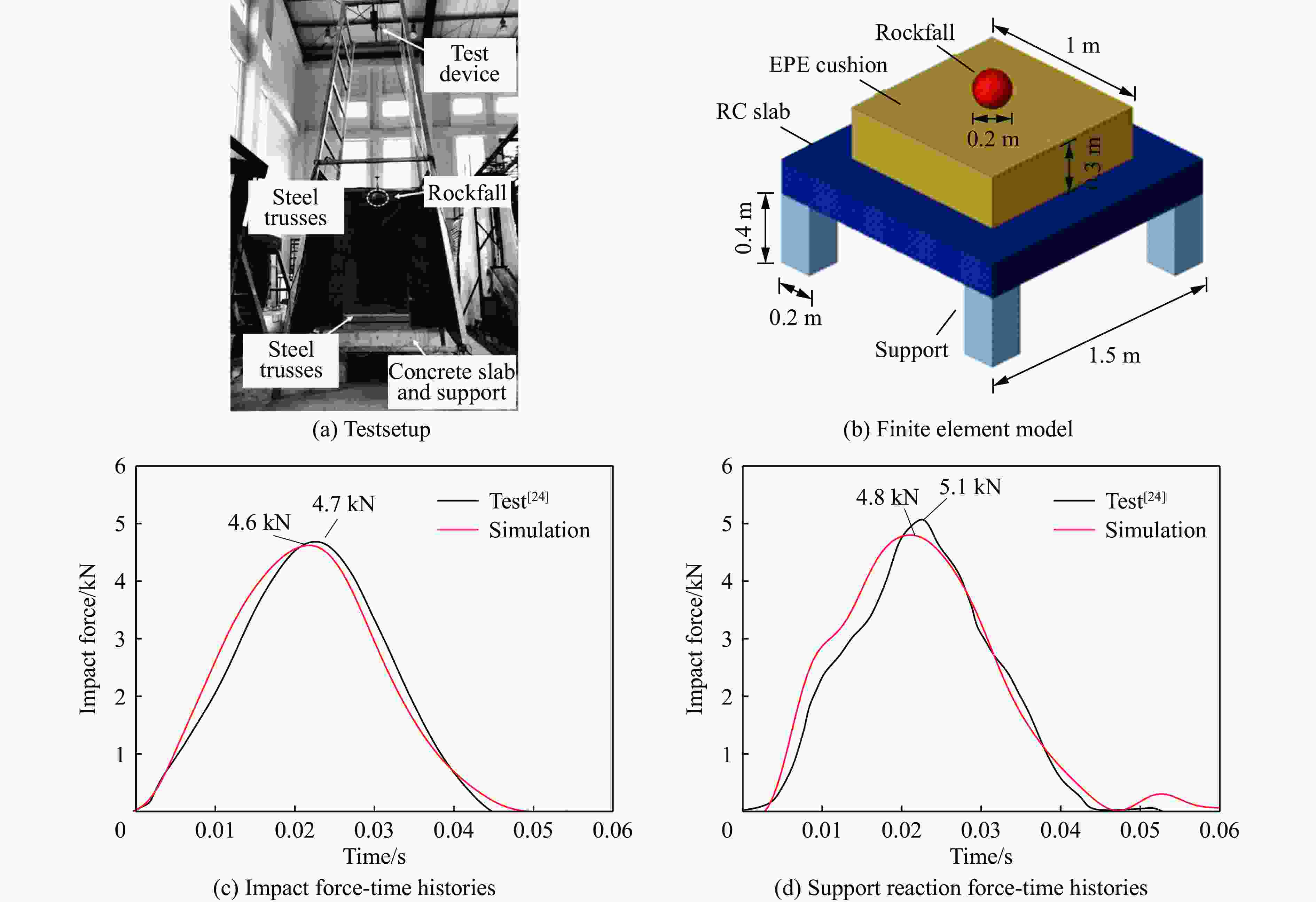

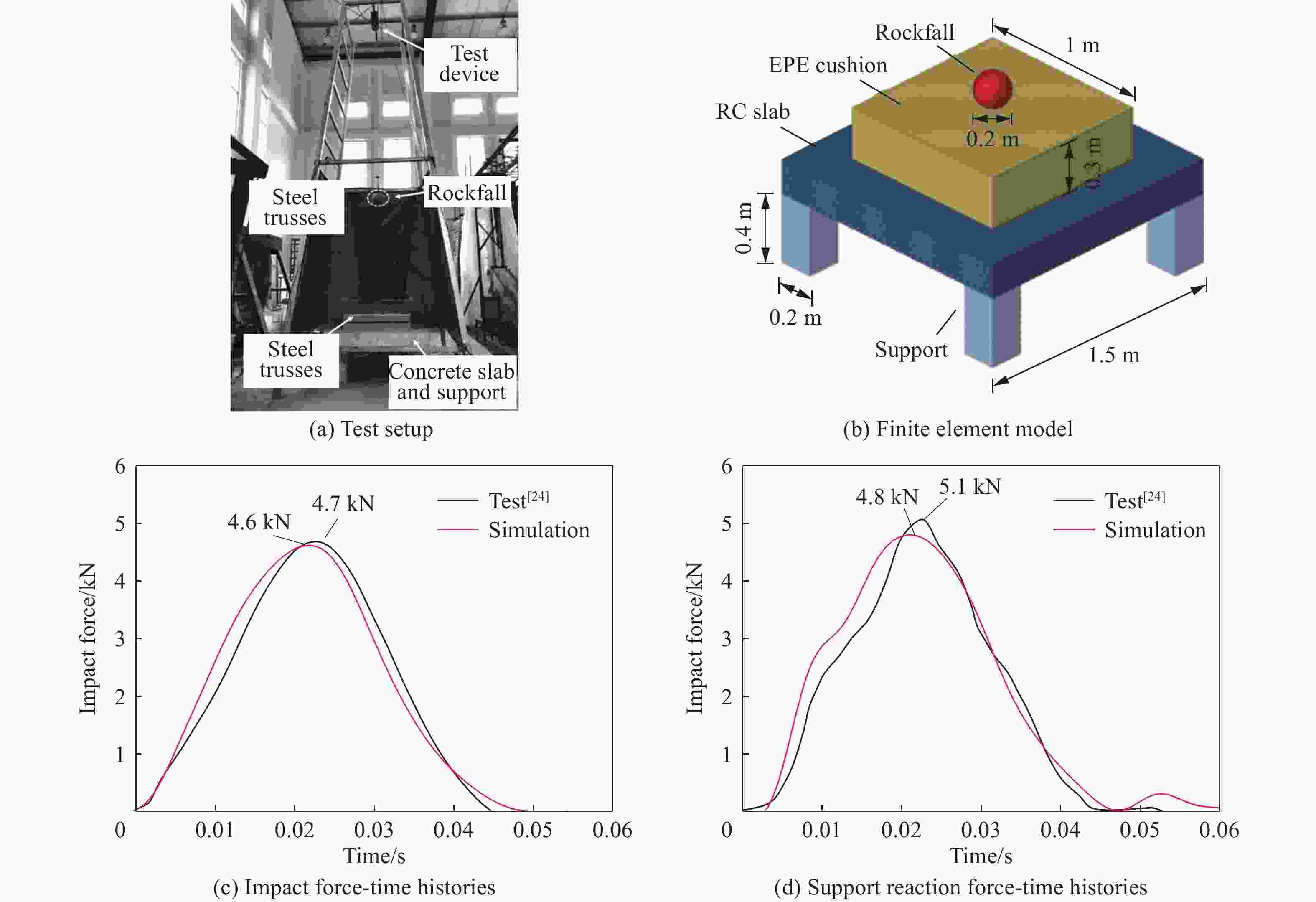

图 7 EPE垫层冲击试验^[24]与数值模拟

Figure 7. EPE cushion impact test^[24] and numerical simulation

下载: 全尺寸图片幻灯片

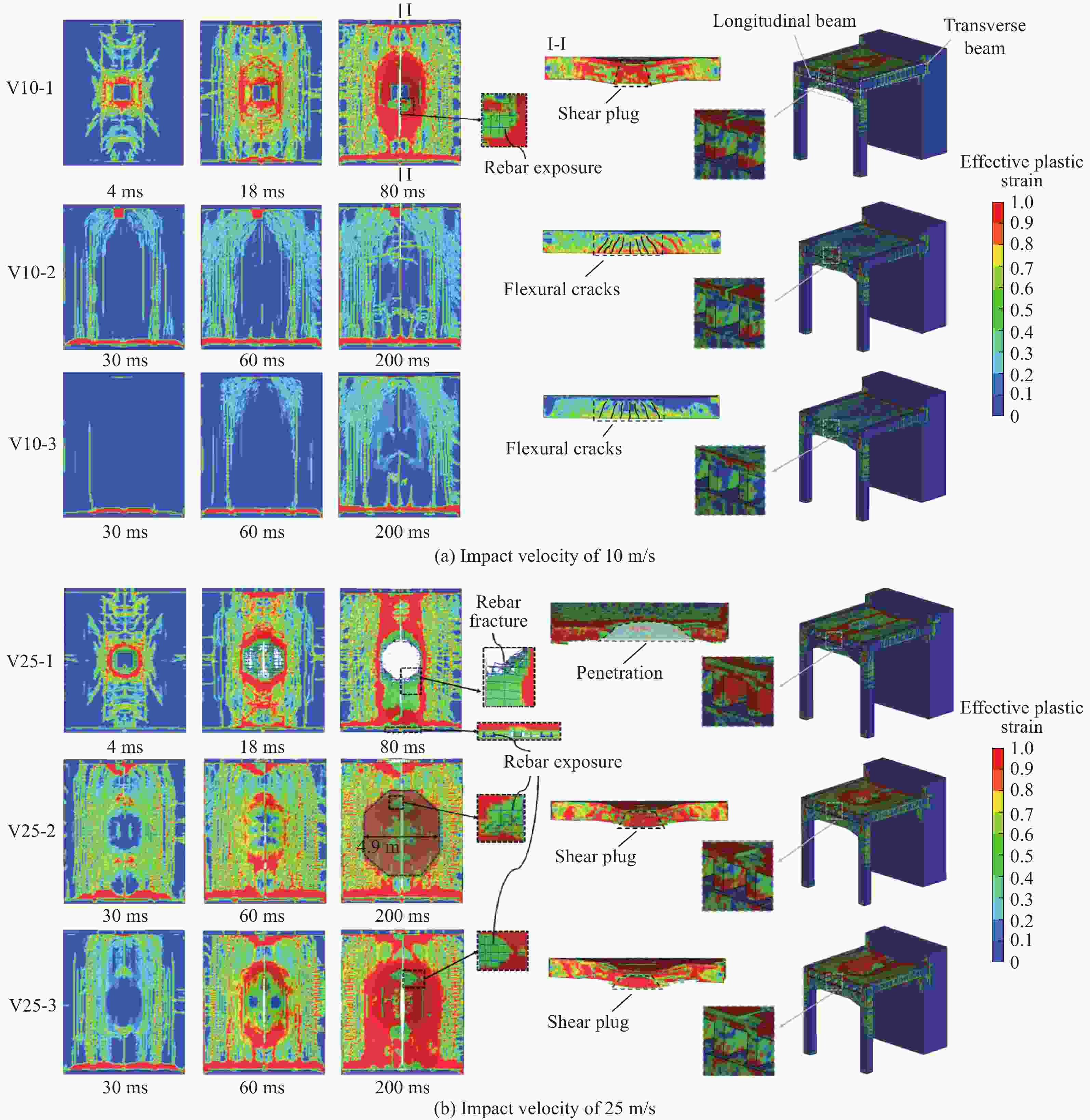

图 8 落石冲击下RC棚洞的损伤破坏

Figure 8. Damage and failure of RC shed tunnel

下载: 全尺寸图片幻灯片

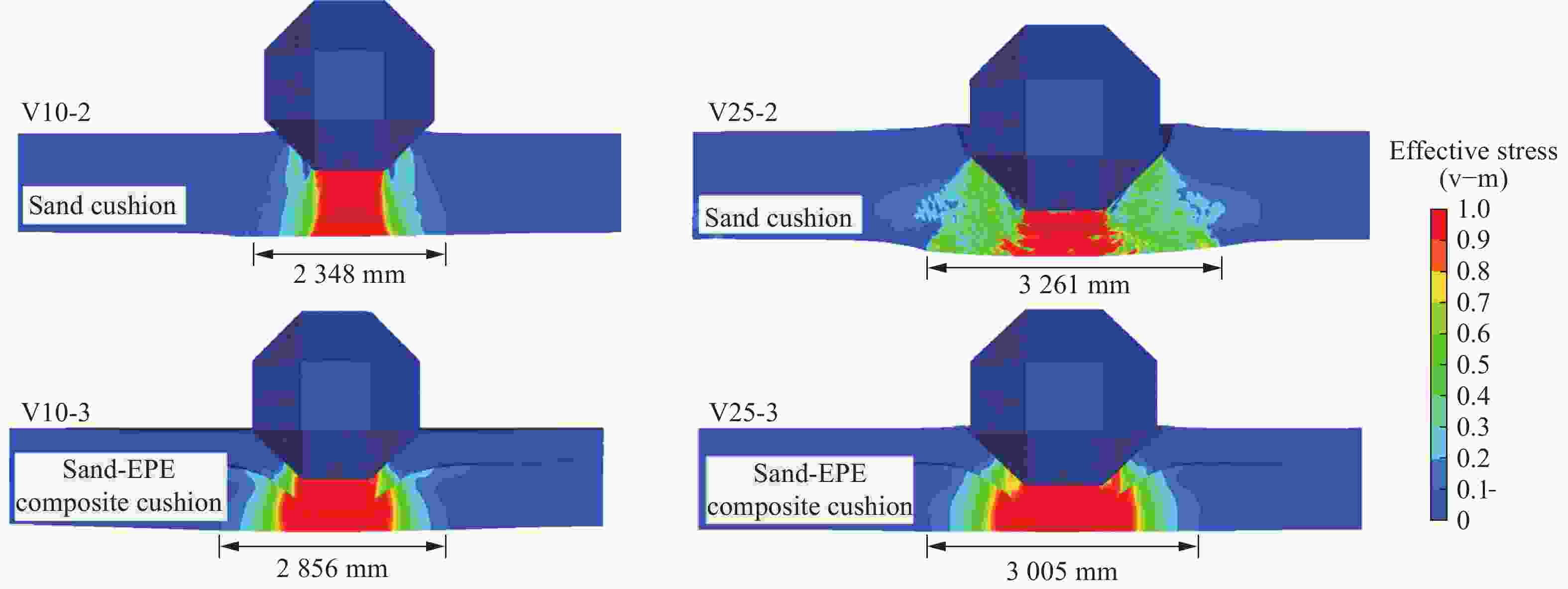

图 9 不同冲击工况下垫层的应力扩散范围

Figure 9. Stress diffusion range of cushion in different impact scenarios

下载: 全尺寸图片幻灯片

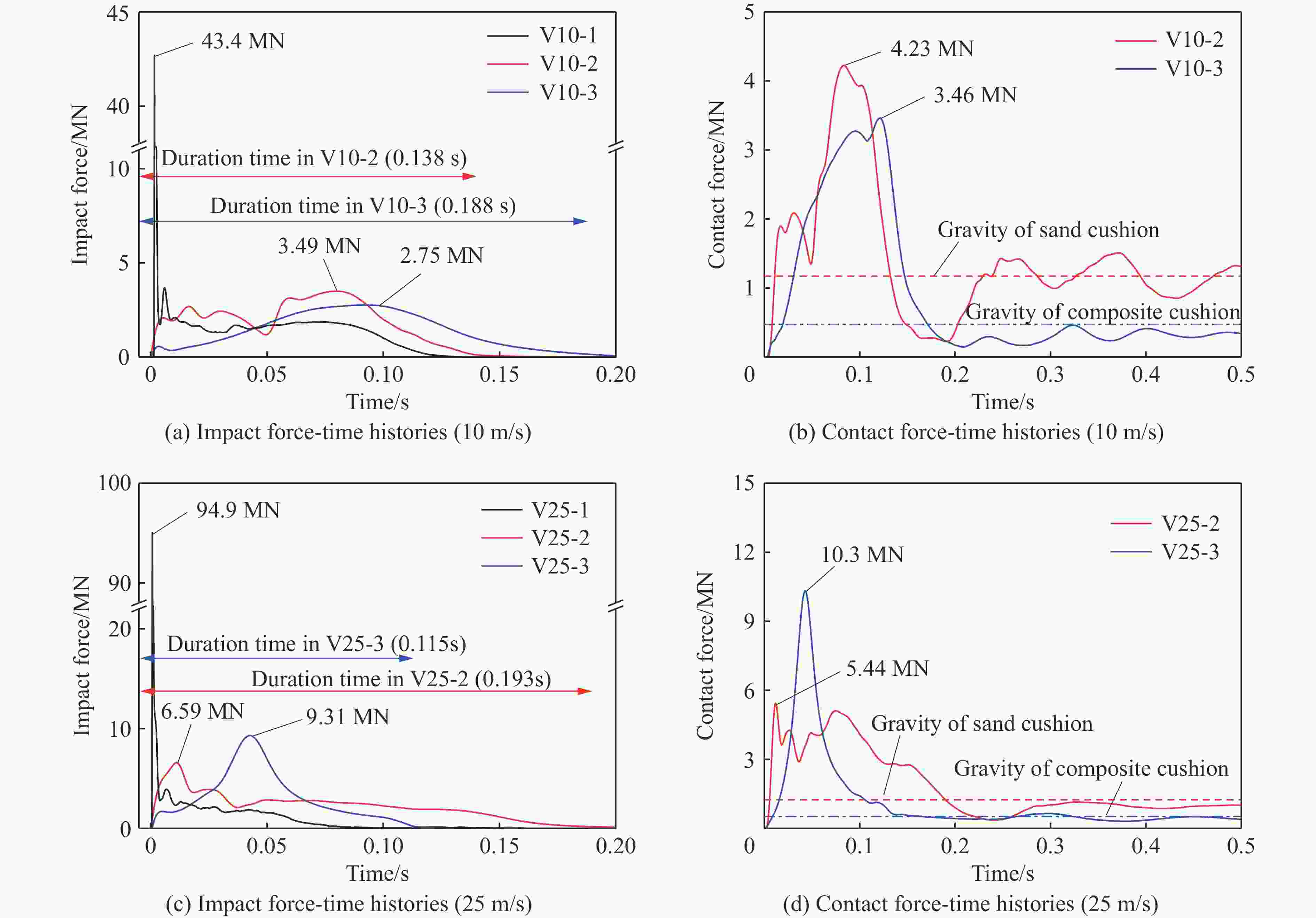

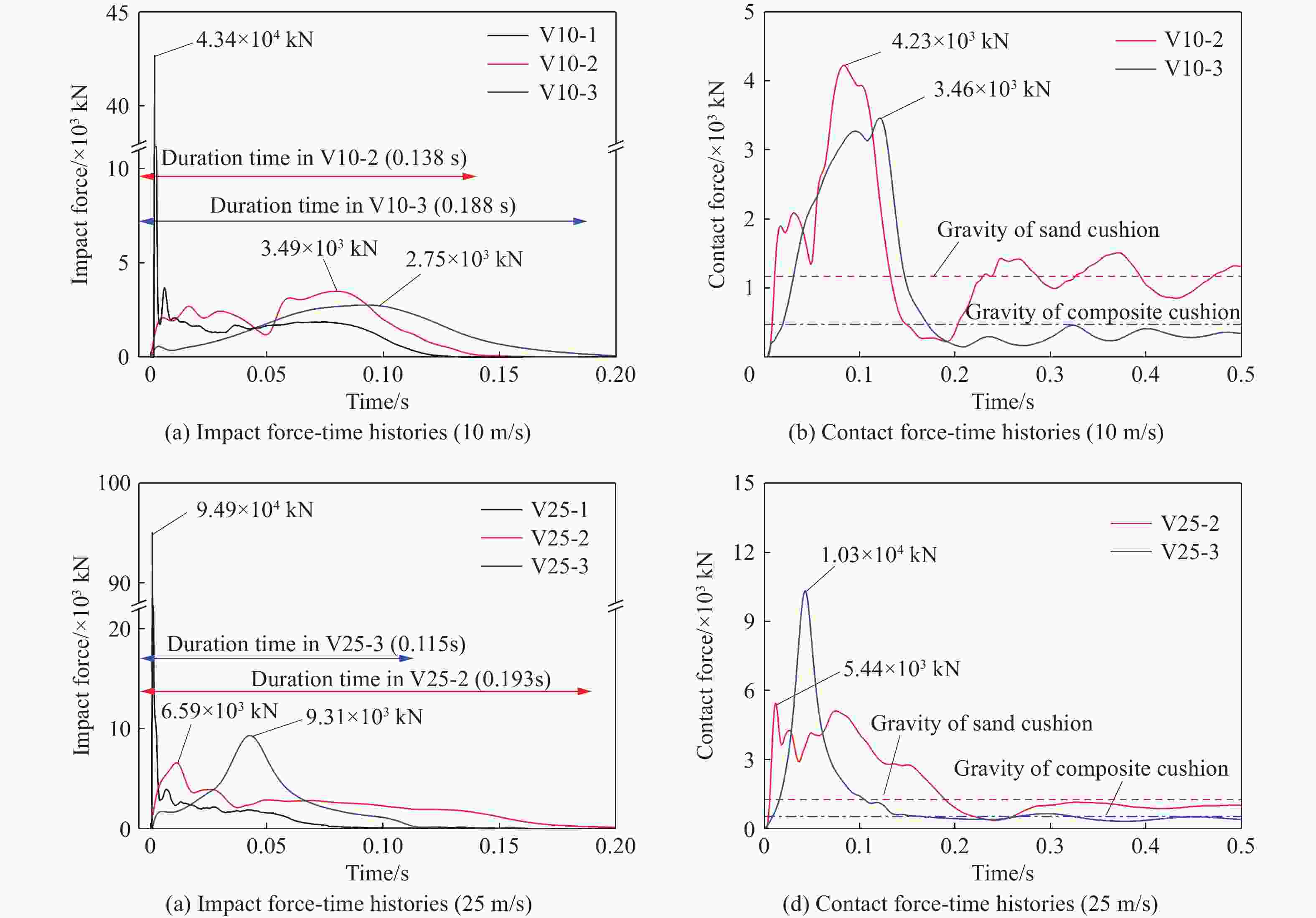

图 10 冲击力与接触力时程对比

Figure 10. Comparisons of impact force and contact force-time histories

下载: 全尺寸图片幻灯片

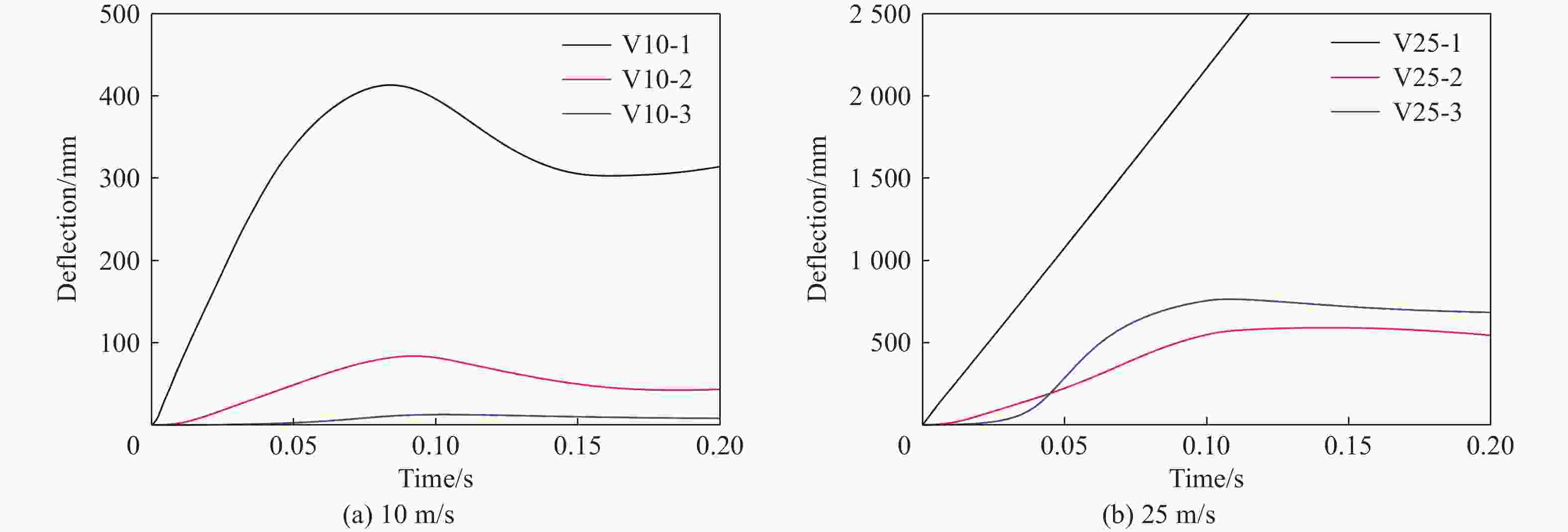

图 11 棚洞顶板中心挠度时程

Figure 11. Deflection-time histories of shed tunnel roof slab

下载: 全尺寸图片幻灯片

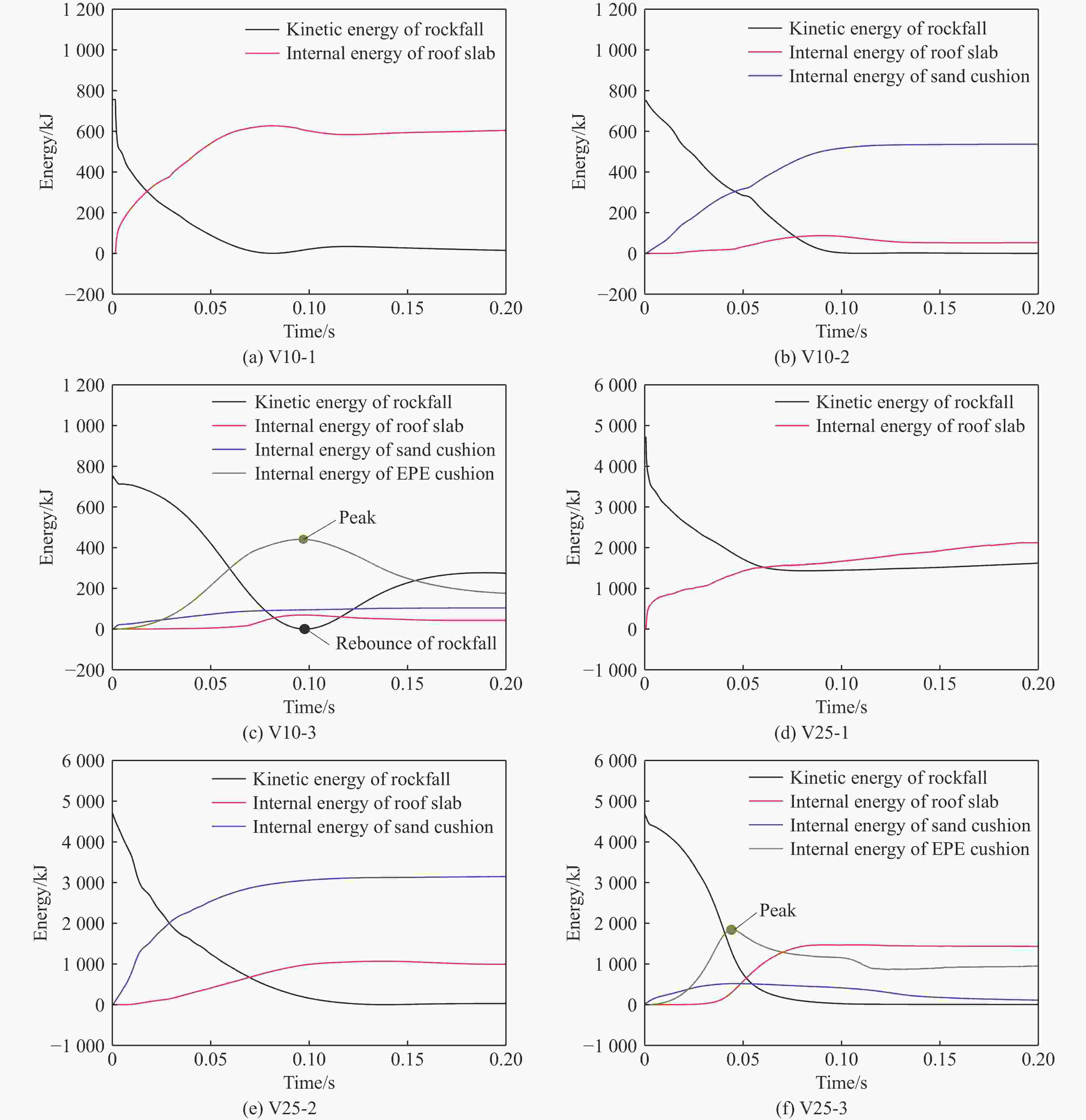

图 12 各冲击工况下的能量转化时程曲线

Figure 12. Energy-time histories of each impact scenario

下载: 全尺寸图片幻灯片

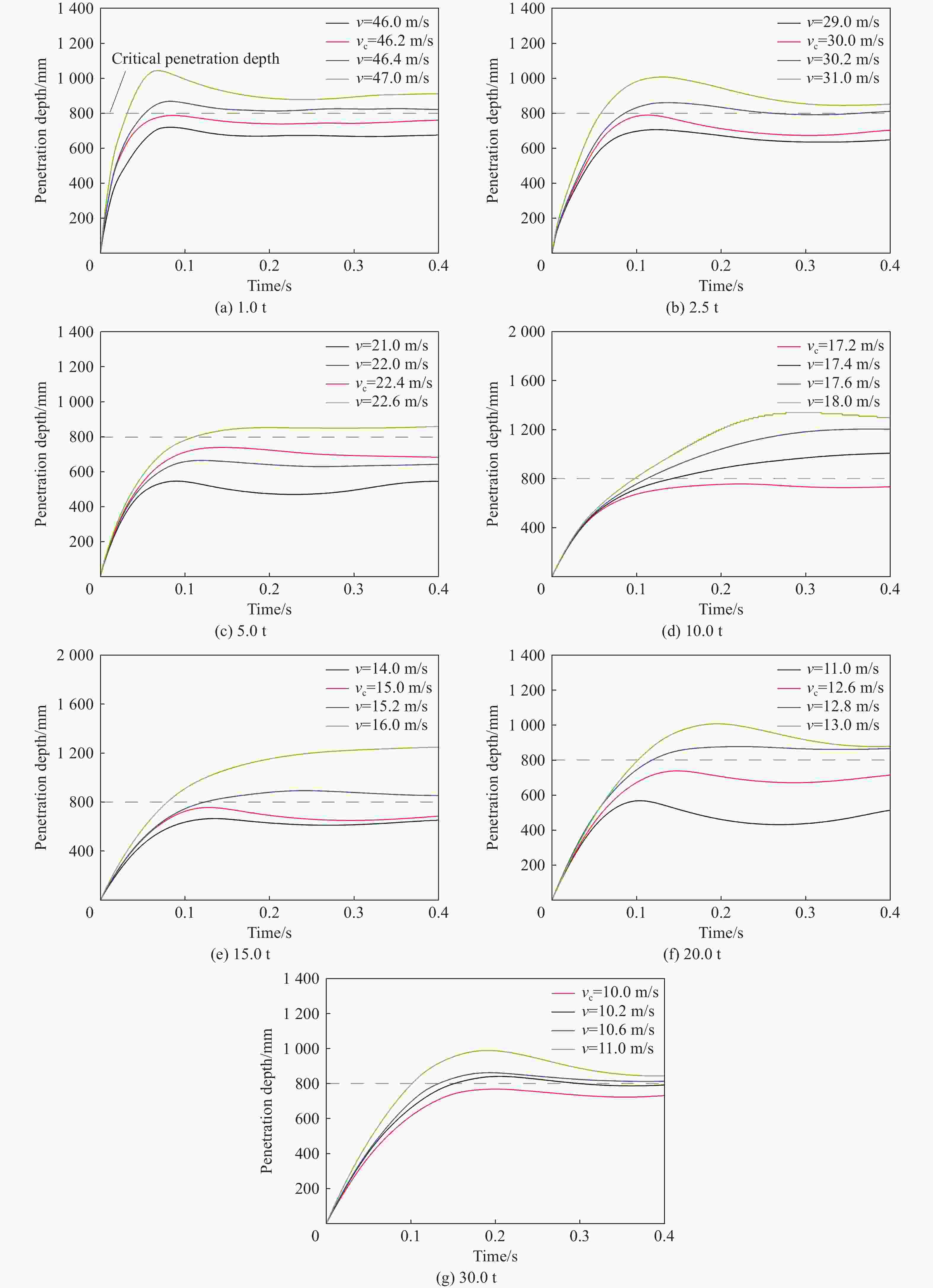

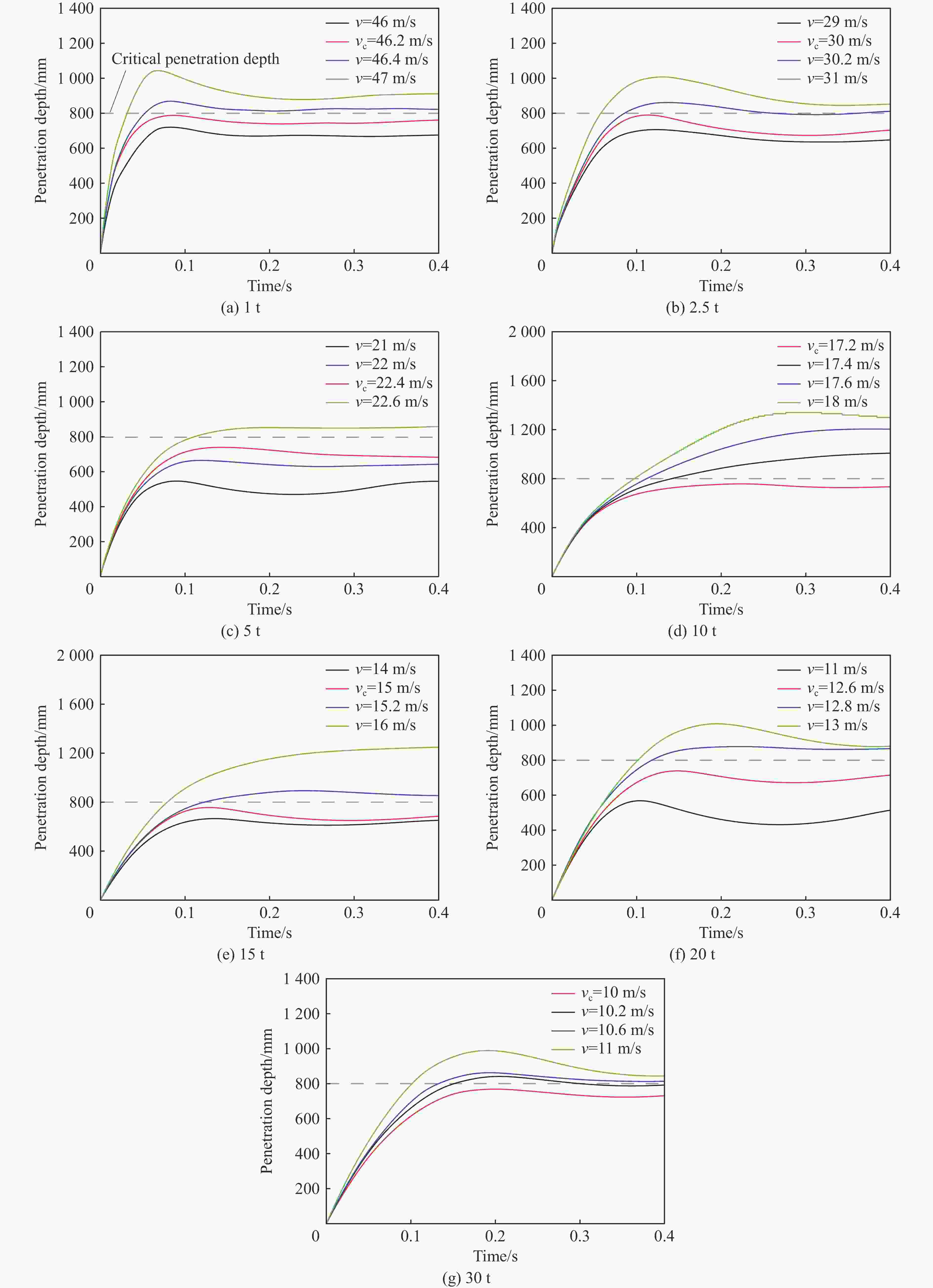

图 13 不同质量落石冲击无垫层RC棚洞的侵入深度时程

Figure 13. Penetration depth-time histories of rockfall with different masses impacting RC shed tunnel

下载: 全尺寸图片幻灯片

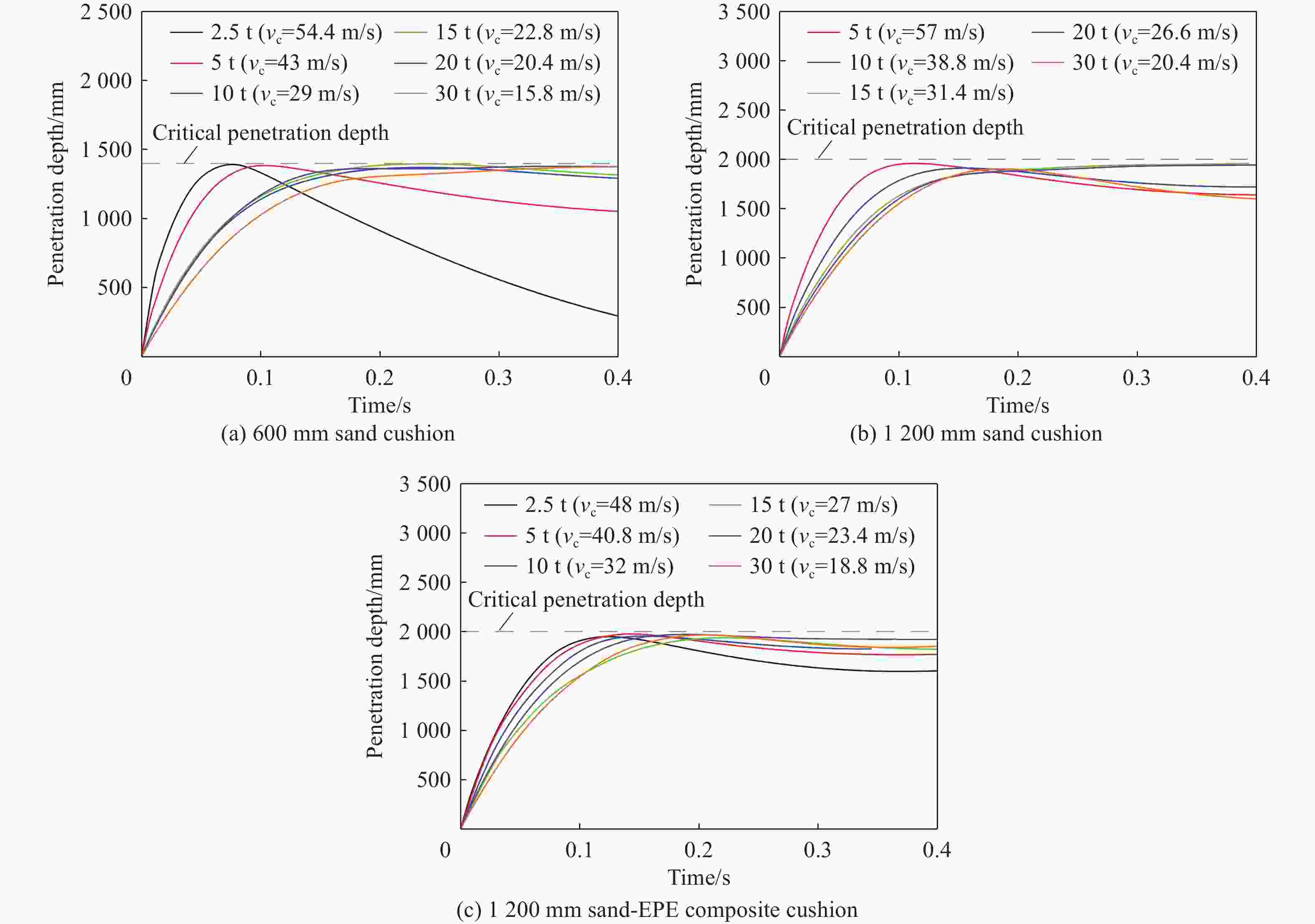

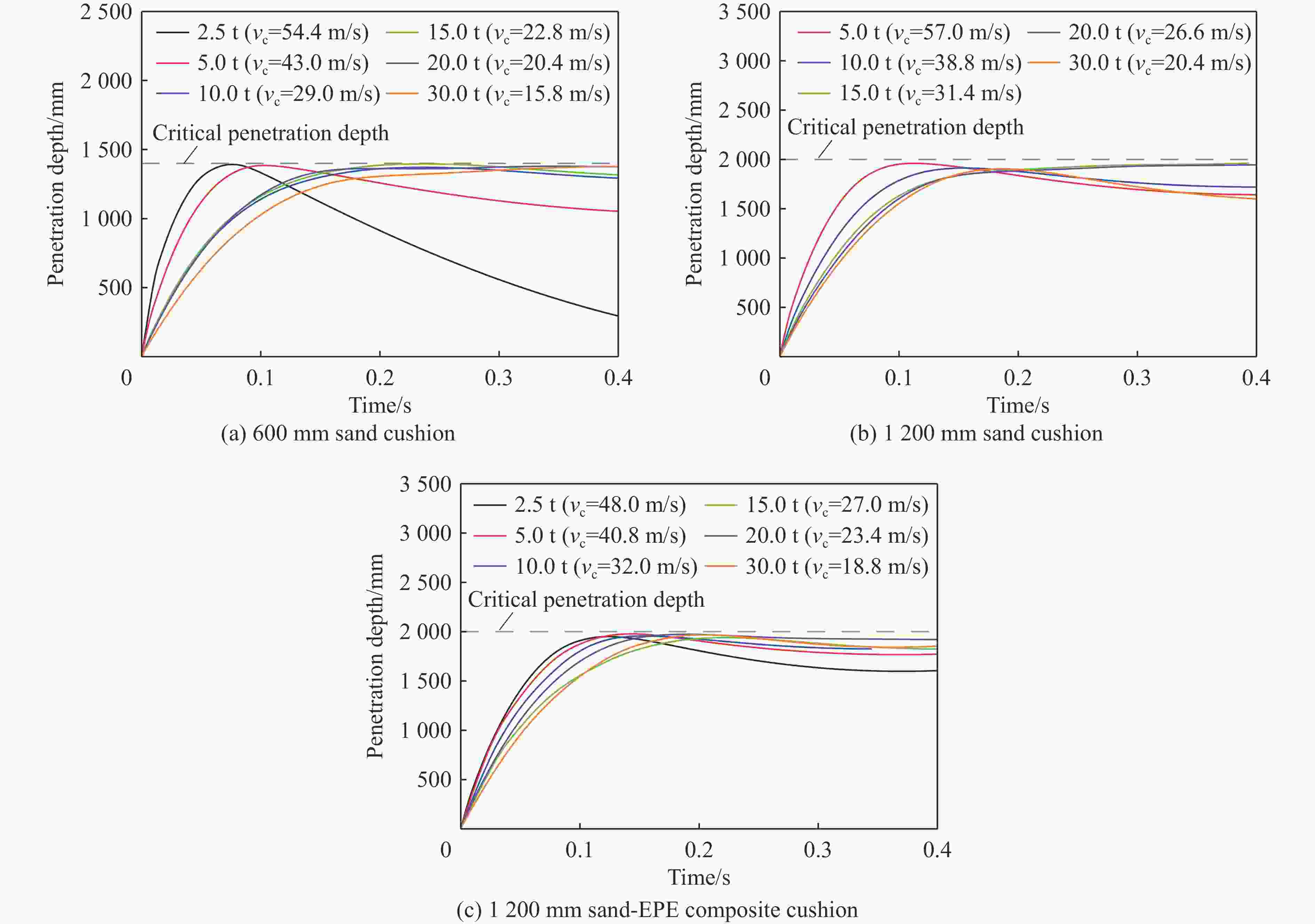

图 14 不同质量落石侵入深度时程

Figure 14. Penetration depth-time histories of rockfall with different masses

下载: 全尺寸图片幻灯片

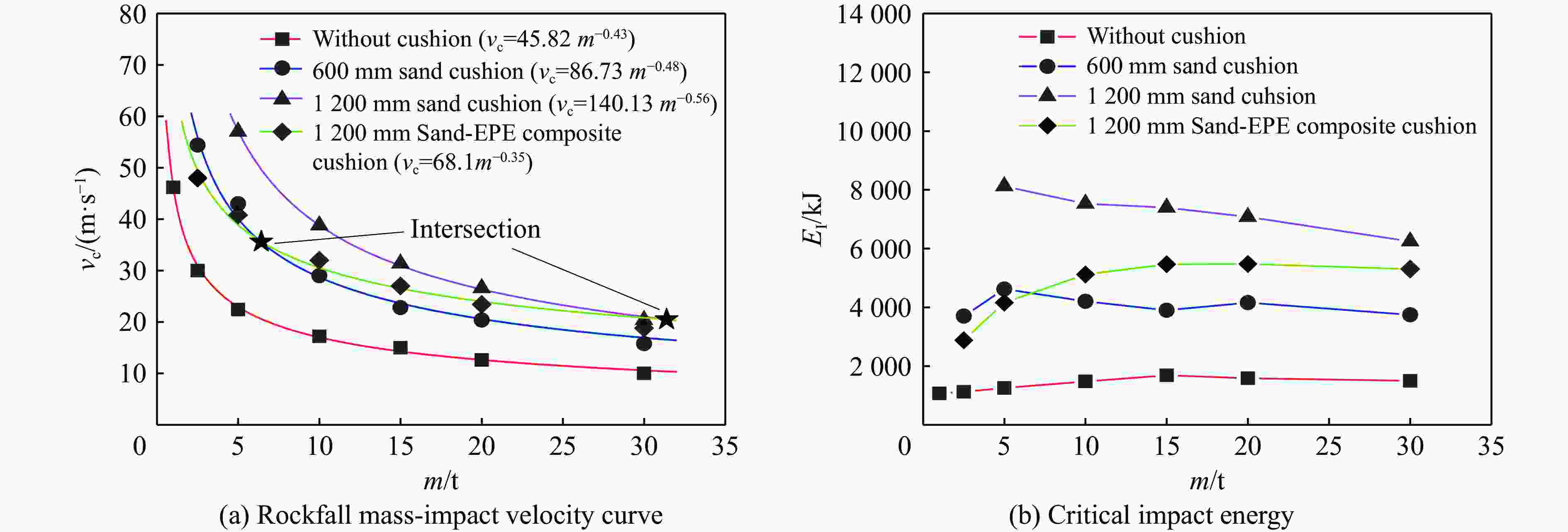

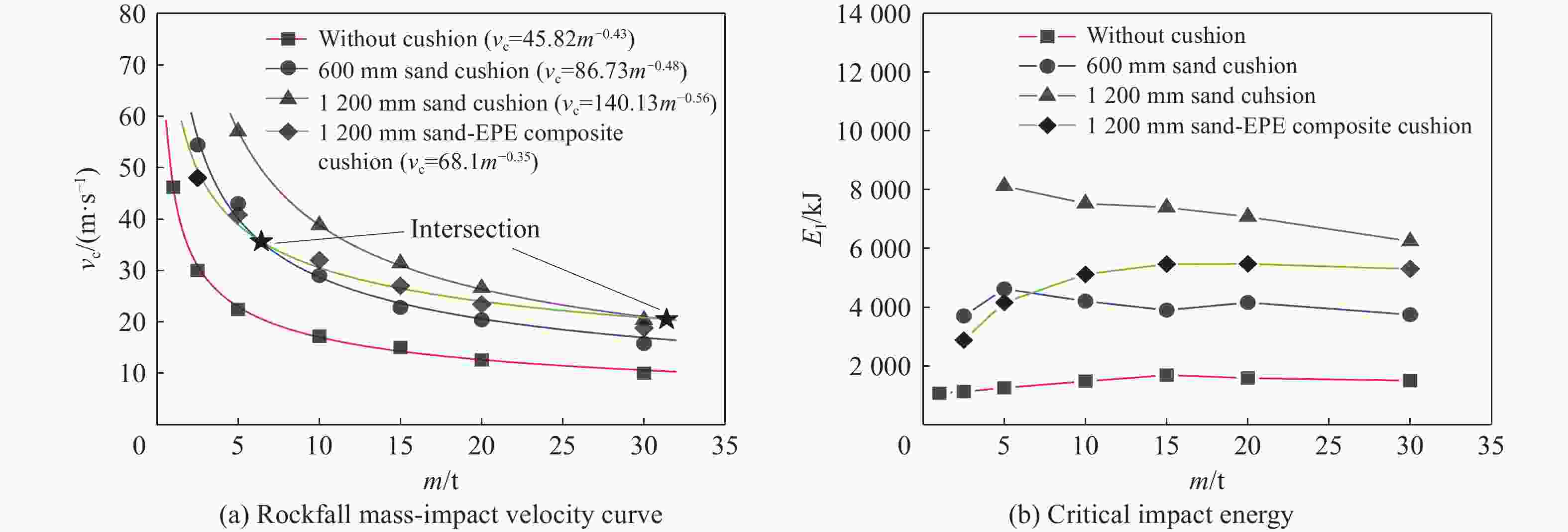

图 15 落石质量-冲击速度曲线和临界冲击能量

Figure 15. Rockfall mass-impact velocity curve and critical impact energy

下载: 全尺寸图片幻灯片

表 1 混凝土本构模型参数

Table 1. Constitutive model parameters of concrete

参数类别	特征值	混凝土强度等级
参数类别	特征值	C25	C30	C35
模量参数	剪切模量G/MPa	8199	8981	9701
模量参数	体积模量K/MPa	10932	11975	12935
剪切破坏面参数	三轴压缩面常数项α/MPa	4.80	5.92	7.10
	三轴压缩面线性项θ	0.3511	0.3503	0.3494
	三轴压缩面非线性项λ/MPa	1.3393	1.9765	2.6808
	三轴压缩面指数项β/MPa⁻¹	0.1118	0.0820	0.0631
	扭转面常数项α₁	0.82	0.82	0.82
	扭转面线性项θ₁/MPa⁻¹	0	0	0
	扭转面非线性项λ₁	0.2407	0.2407	0.2407
	扭转伸面指数项β₁/MPa⁻¹	0.0193	0.0162	0.0140
	三轴拉伸面常数项α₂	0.76	0.76	0.76
	三轴拉伸面线性项θ₂/MPa⁻¹	0	0	0
	三轴拉伸面非线性项λ₂	0.26	0.26	0.26
	三轴拉伸面指数项β₂/MPa⁻¹	0.0166	0.0140	0.0121
帽盖函数参数	帽盖椭圆度比R	2.74	2.51	2.34
	帽盖初始位置X₀/MPa	54.927	62.495	70.063
	最大塑性体积应变W	0.065	0.065	0.065
	线性形状参数D₁/MPa⁻¹	6.11×10⁻⁴	6.11×10⁻⁴	6.11×10⁻⁴
	二次项形状参数D₂/MPa⁻²	2.23×10⁻⁶	2.23×10⁻⁶	2.23×10⁻⁶
损伤参数	压缩断裂能/(MPa·mm)	3.19	3.62	4.04
	延性软化参数B	20	20	20
	脆性软化参数D	0.1	0.1	0.1
	拉伸断裂能/(MPa·mm)	0.0638	0.0725	0.0808
	剪切断裂能/(MPa·mm)	0.0638	0.0725	0.0808
	剪-压过渡段参数	5	5	5
	剪-拉过渡段参数	1	1	1
	中等压力修正软化参数	4.8	4.8	4.8
应变率效应参数	压缩应变率参数η_0c	1.34×10⁻⁴	1.15×10⁻⁴	1.05×10⁻⁴
	压缩应变率指数项参数N_c	0.78	0.78	0.78
	拉伸应变率参数η_0t	1.15×10⁻⁵	1.10×10⁻⁵	1.05×10⁻⁵
	拉伸应变率指数项参数N_t	0.36	0.36	0.36
	最大允许压缩过应力OVERC/MPa	18.83	19.57	20.72
	最大允许拉伸过应力OVERT/MPa	18.83	19.57	20.72
	剪切与拉伸有效流动系数比值	1	1	1
	断裂能应变率指数参数	1	1	1

下载: 导出CSV

表 2 砂垫层模型参数^[29]

Table 2. Model parameters of sand cushion^[29]

参数	剪切模量G/Pa	卸载体积模量K_u/Pa	塑性屈服函数常数项a₀/Pa²	塑性屈服函数线性项a₁/Pa	塑性屈服函数二次项a₂
	7.69×10⁷	3×10⁸	1.76×10⁷	5820	0.48

下载: 导出CSV

表 3 冲击工况

Table 3. Impact scenarios

工况编号	垫层类型	落石质量/t	冲击速度/(m·s⁻¹)
V10-1	无垫层	15	10
V10-2	砂垫层	15	10
V10-3	砂-EPE复合垫层	15	10
V25-1	无垫层	15	25
V25-2	砂垫层	15	25
V25-3	砂-EPE复合垫层	15	25

下载: 导出CSV

表 4 不同质量落石冲击RC棚洞的临界冲击速度和最大侵入深度

Table 4. Critical impact velocities and maximal penetration depth of rockfall with different masses impacting RC shed tunnel

落石质量/t	无垫层		600 mm砂垫层		1 200 mm砂垫层		砂-EPE复合垫层
落石质量/t	临界冲击速度/(m·s⁻¹)	落石最大侵入深度/mm	临界冲击速度/(m·s⁻¹)	落石最大侵入深度/mm	临界冲击速度/(m·s⁻¹)	落石最大侵入深度/mm	临界冲击速度/(m·s⁻¹)	落石最大侵入深度/mm
1.0	46.2	788	-	-	-	-	-	-
2.5	30.0	789	54.4	1392	-	-	48.0	1948
5.0	22.4	739	43.0	1384	57.0	1960	40.8	1976
10.0	17.2	757	29.0	1370	38.8	1912	32.0	1955
15.0	15.0	756	22.8	1396	31.4	1961	27.0	1938
20.0	12.6	739	20.4	1382	26.6	1951	23.4	1972
30.0	10.0	768	15.8	1376	20.4	1903	18.8	1967

下载: 导出CSV
