射流侵彻混凝土预损伤对弹体侵彻性能的影响

董建才; 王冕; 刘闯; 李辰晖; 马路遥; 张先锋

doi:10.11883/bzycj-2025-0108

射流侵彻混凝土预损伤对弹体侵彻性能的影响

doi: 10.11883/bzycj-2025-0108

董建才^{1, 2,},
王冕^{1, 2},
刘闯¹,
李辰晖¹,
马路遥¹,
张先锋^1, ,

1.
南京理工大学机械工程学院，江苏南京 210094
2.
西北工业集团有限公司，陕西西安 710043

基金项目: 国家自然科学基金（12202205，12141202）

详细信息

作者简介:
董建才（2001－　），男，硕士，dxx_millet@163.com

通讯作者:
张先锋（1978－　），男，博士，教授，lynx@njust.edu.cn

中图分类号: TJ41
计量
- 文章访问数: 396
- HTML全文浏览量: 60
- PDF下载量: 116
- 被引次数: 0
出版历程
- 收稿日期: 2025-04-08
- 修回日期: 2025-05-15
- 网络出版日期: 2025-05-16

Study on the influence of concrete pre-damage on the performance of projectile penetration

DONG Jiancai^{1, 2
,},
WANG Mian^{1, 2},
LIU Chuang¹,
LI Chenhui¹,
MA Luyao¹,
ZHANG Xianfeng^{1
, ,}

1.
School of Mechanical Engineering, Nanjing University of Science and Technology, Nanjing 210094, China
2.
Northwest Industries Group Company Ltd., Xi’an 710043, China

摘要

摘要: 为研究混凝土靶体损伤对弹体侵彻性能的影响效果，基于空腔膨胀理论，完善了弹体侵彻预损伤混凝土半经验模型，采用前级射流、后级动能弹体对混凝土靶进行了连续侵彻试验，获得了影响弹体侵彻预损伤混凝土性能的关键因素，结合预损伤混凝土靶体中混凝土材料强度变化关系，分析了弹靶参数对弹体二次侵彻性能的影响规律。结果表明：靶体预损伤对弹体侵彻深度的增益效果由开坑体积差及混凝土损伤共同影响，且混凝土损伤为主要影响因素；当靶体内存在有限长损伤区，靶体开孔直径是弹体直径的0.3~0.5倍时，靶体损伤对弹体侵彻深度增益最为明显；当靶体内存在贯穿损伤区，靶体开孔直径与弹体直径的比值为0.3时，预损伤靶体与预开孔靶体中弹体侵彻深度差异较为明显，且随着比值进一步增加，两者差异逐渐增加；当靶体损伤状态一定时，减小弹体直径或增大尖卵形弹体头部CRH对增加侵彻深度更为有利。
- 预损伤混凝土 /
- 空腔膨胀理论 /
- 聚能装药 /
- 高速侵彻
Abstract: In order to investigate the impact of target damage on projectile penetration performance, a series of penetration experiments were conducted on a concrete target utilising a former jet and a subsequent kinetic energy projectile. The critical factors influencing the performance of pre-damaged concrete penetrated by the projectile were analyzed. The relationship between the strength of the concrete materials in the pre-damaged concrete target was determined. Based on this, a semi-empirical model of projectile penetration of pre-damaged concrete was established by combining the aforementioned cavity expansion theory with the results of the preceding analysis. The impact of projectile and target parameters on the performance of secondary penetration of the projectile was then analyzed. The findings indicate that the impact of pre-damaged concrete on the depth of projectile penetration is contingent upon the discrepancy in crater volume and concrete damage. It can be posited that the damage to the target is the predominant influencing factor. When there is a finite-length damage zone within the concrete target and the diameter of the cavity of the target is between 0.3 and 0.5 time the diameter of the projectile, the effect is even less pronounced. When a finite-length damage zone exists within the target, the pre-damage cavity is 0.3-0.5 times the diameter of the projectile. In this instance, the gain in depth of penetration is most pronounced. In the event of penetrating damage to the target, a ratio of 0.3 between the diameter of the target tunnel and that of the projectile is observed. The difference in penetration depth between the pre-damaged target and the pre-drilled target is found to be greater, with a gradual increase in this difference as the ratio increases further. When the damage state of the target is certain, decreasing the projectile diameter or increasing the CRH of the ogive-nosed projectile is more advantageous to increase the depth of penetration.
- pre-damaged concrete /
- numerical simulation /
- shaped charge /
- high-speed penetration

HTML全文

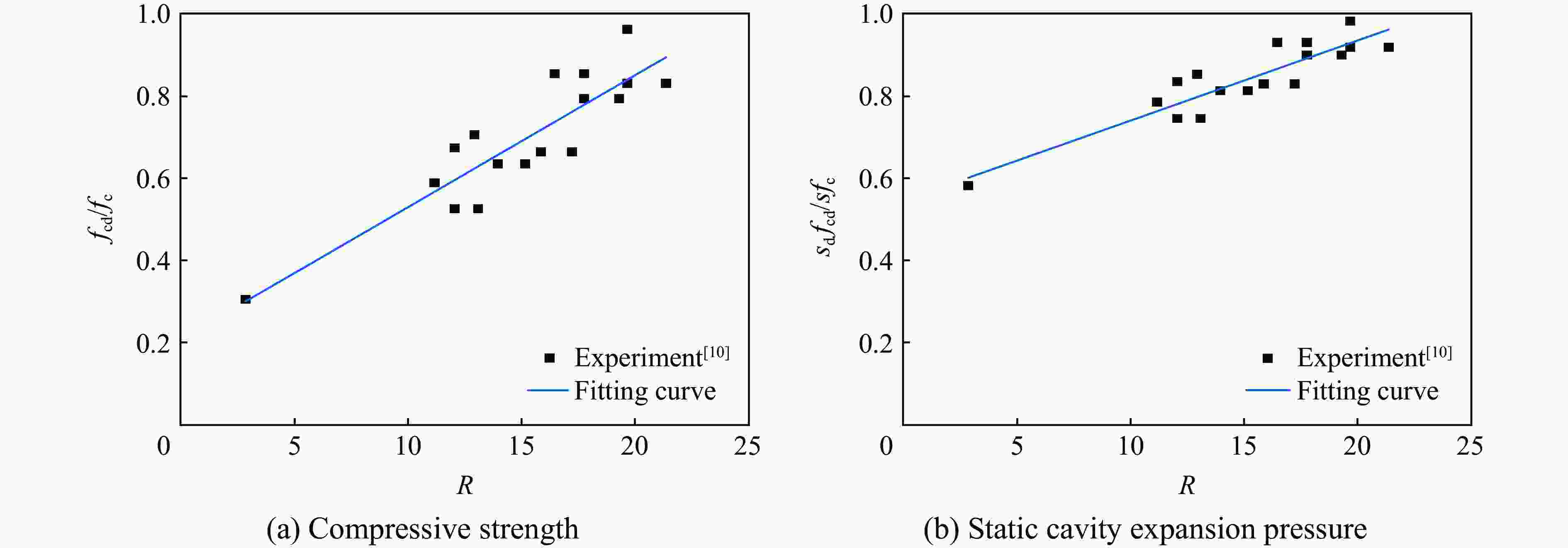

图 1 预损伤混凝土强度变化关系

Figure 1. Pre-damaged concrete strength change relationships

下载: 全尺寸图片幻灯片

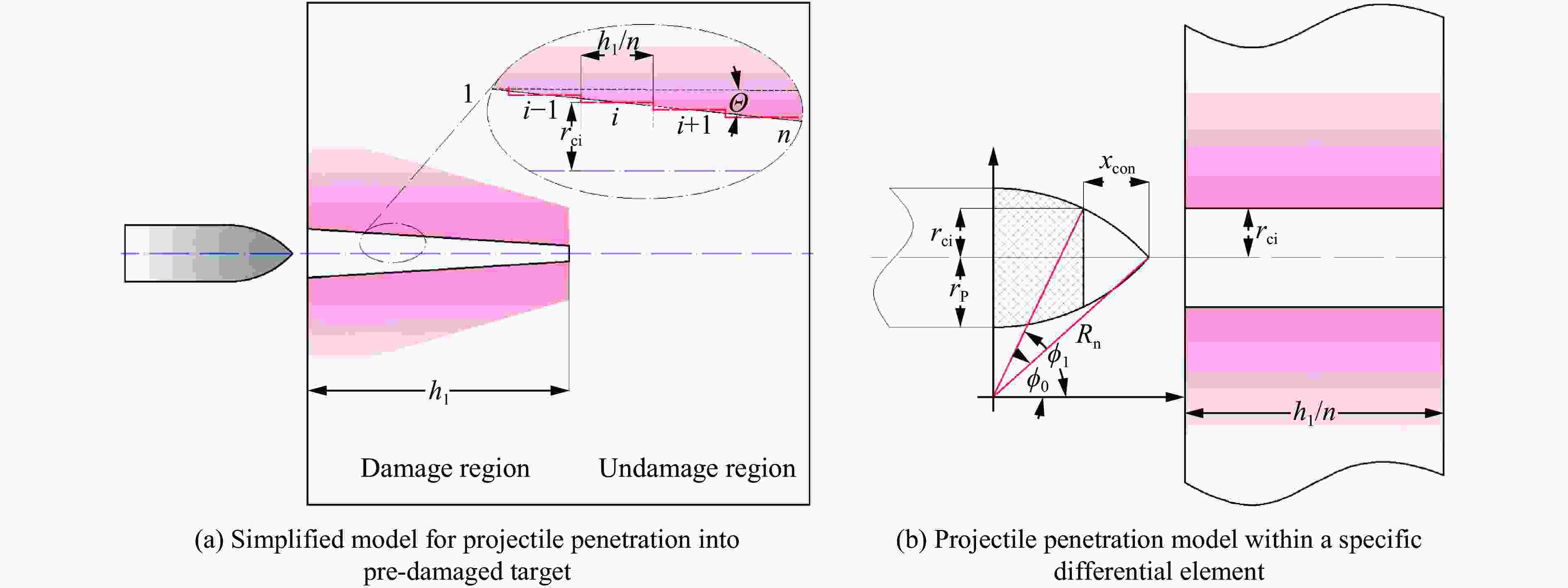

图 2 弹体侵彻预损伤混凝土示意图

Figure 2. Schematic of penetration of projectile into pre-damaged concrete target

下载: 全尺寸图片幻灯片

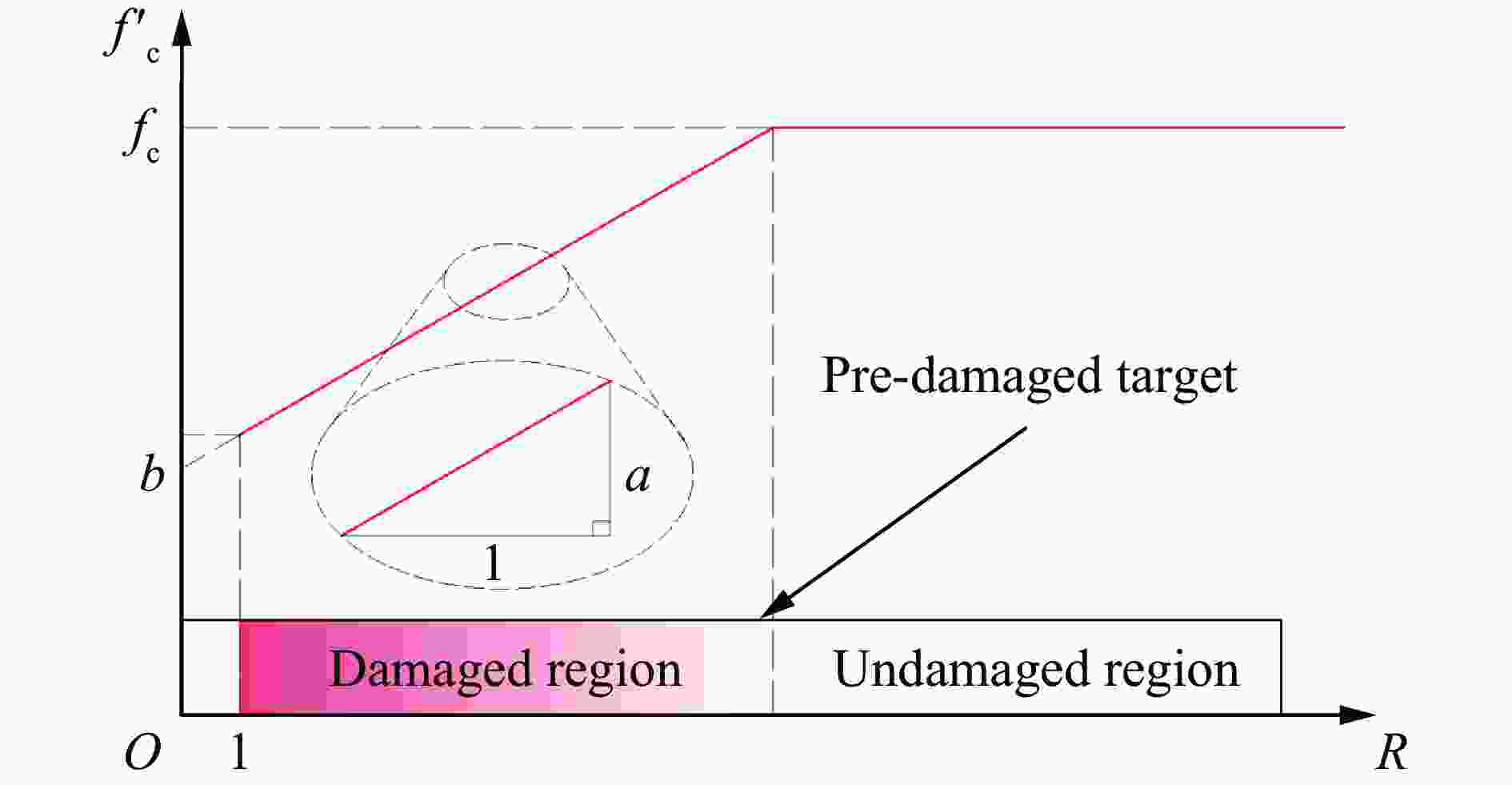

图 3 预损伤混凝土靶体强度变化曲线

Figure 3. Strength curve of pre-damaged concrete target

下载: 全尺寸图片幻灯片

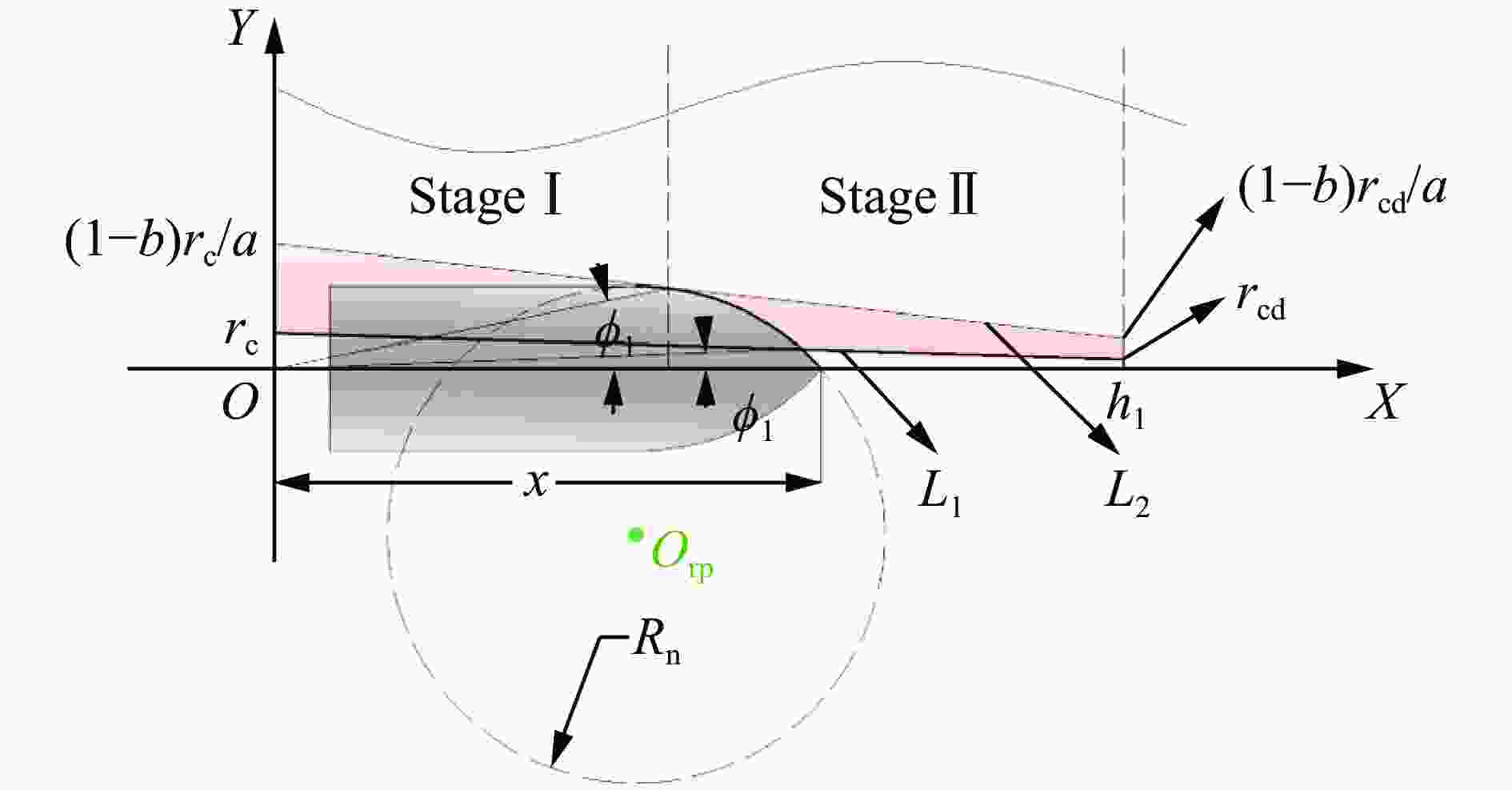

图 4 弹体侵彻锥型开孔损伤靶体示意图

Figure 4. Schematic diagram of projectile penetration into a conical drilled target

下载: 全尺寸图片幻灯片

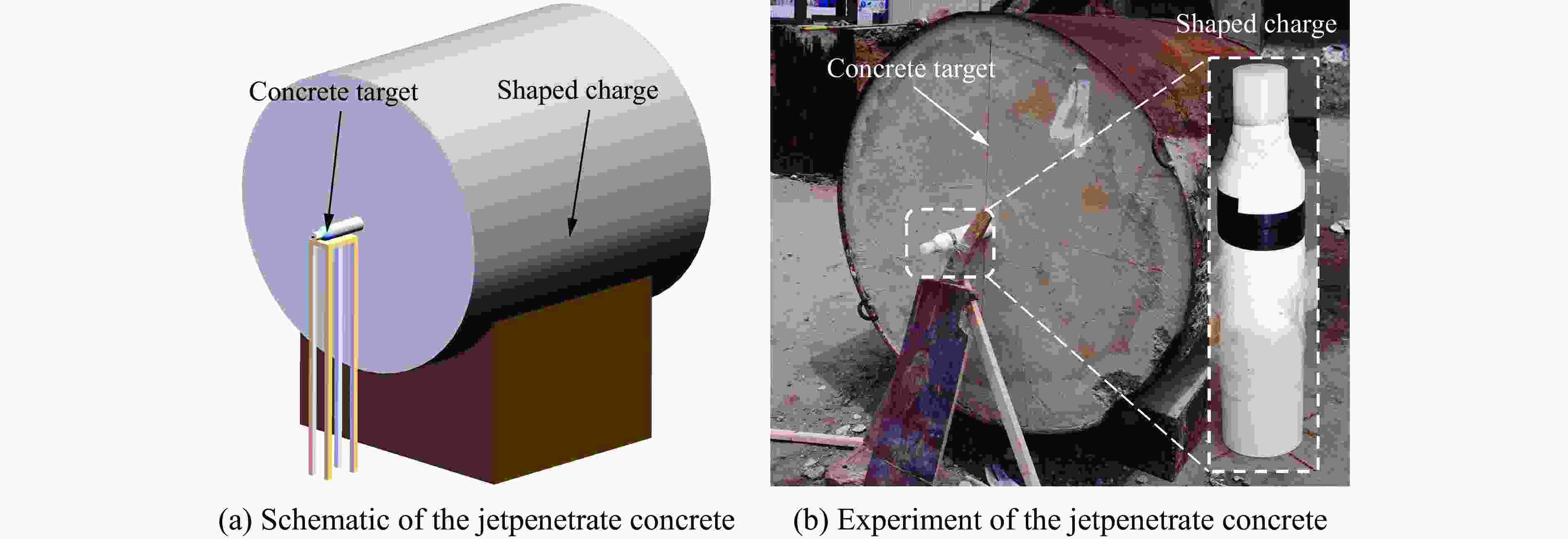

图 5 射流侵彻混凝土试验布局

Figure 5. Experimental configuration for jet penetration into concrete

下载: 全尺寸图片幻灯片

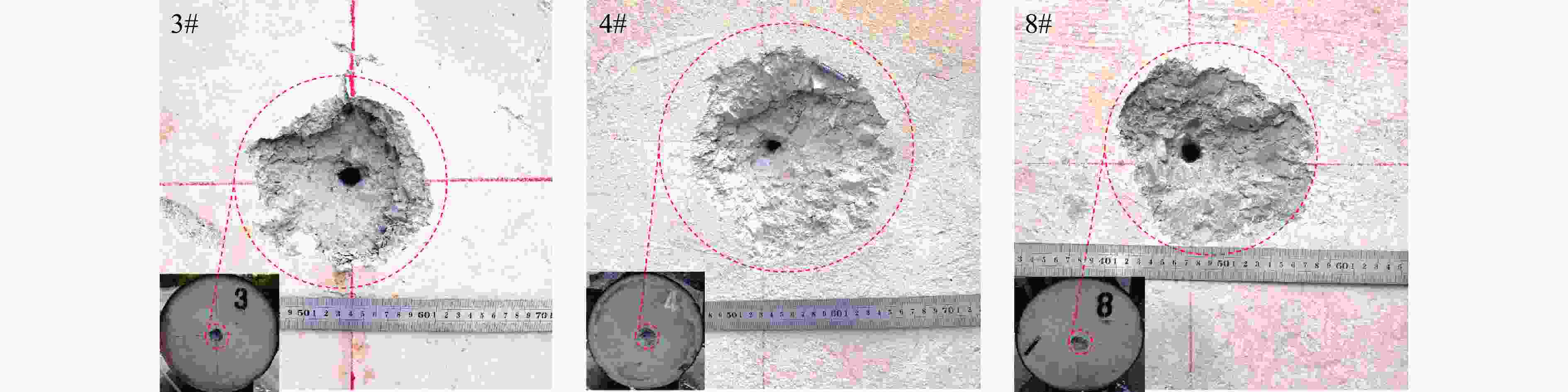

图 6 靶体表面开孔损伤形态

Figure 6. Damage of the target surface after the test

下载: 全尺寸图片幻灯片

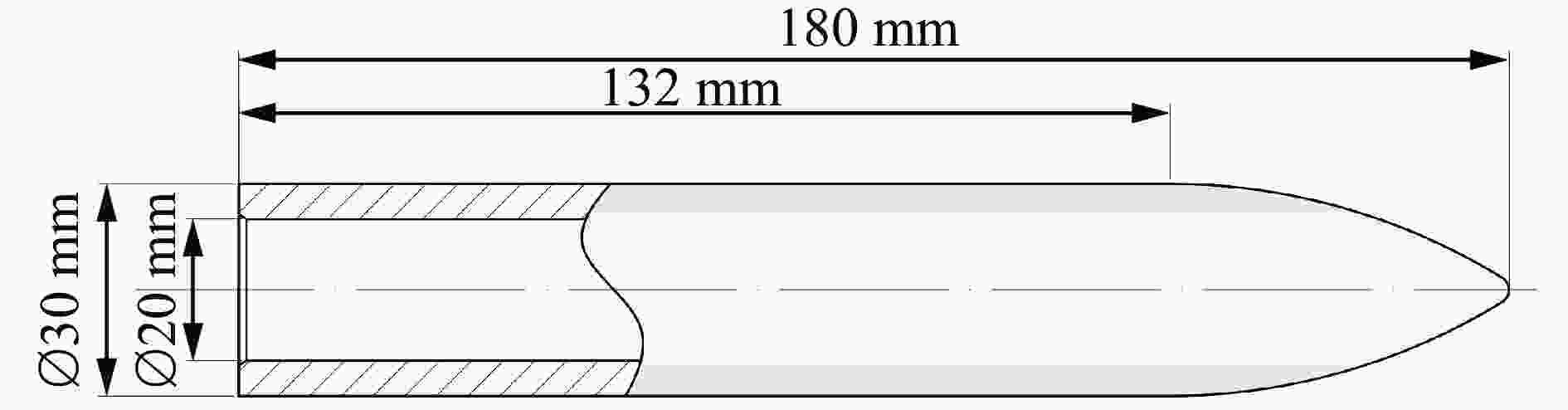

图 7 试验弹体尺寸

Figure 7. Size of projectile

下载: 全尺寸图片幻灯片

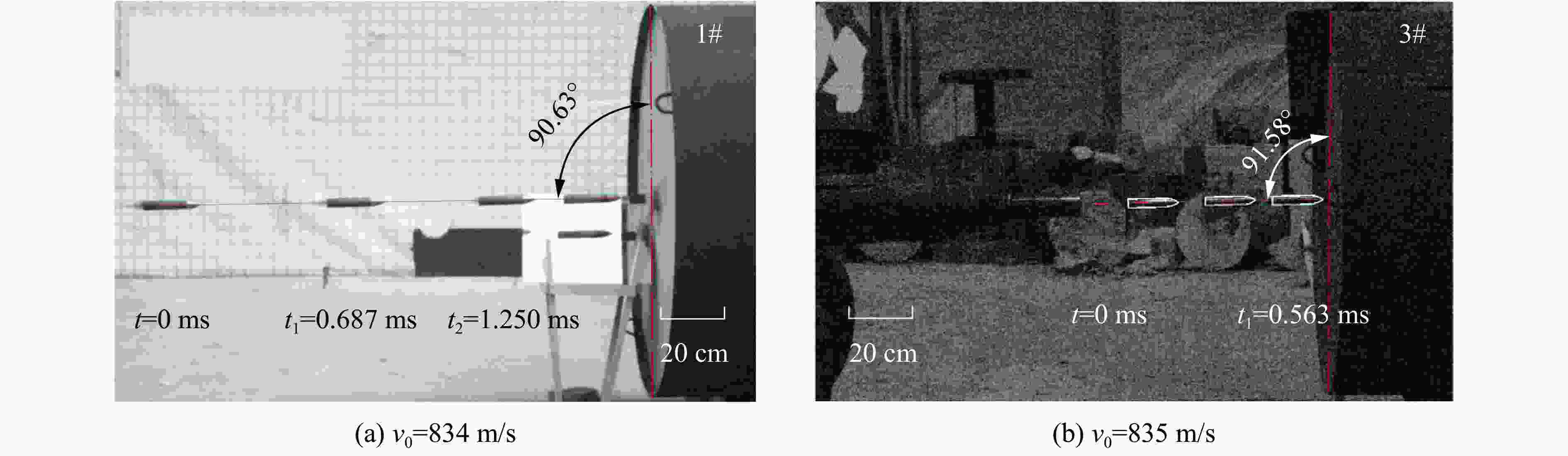

图 8 弹体飞行姿态

Figure 8. Projectile flight attitude

下载: 全尺寸图片幻灯片

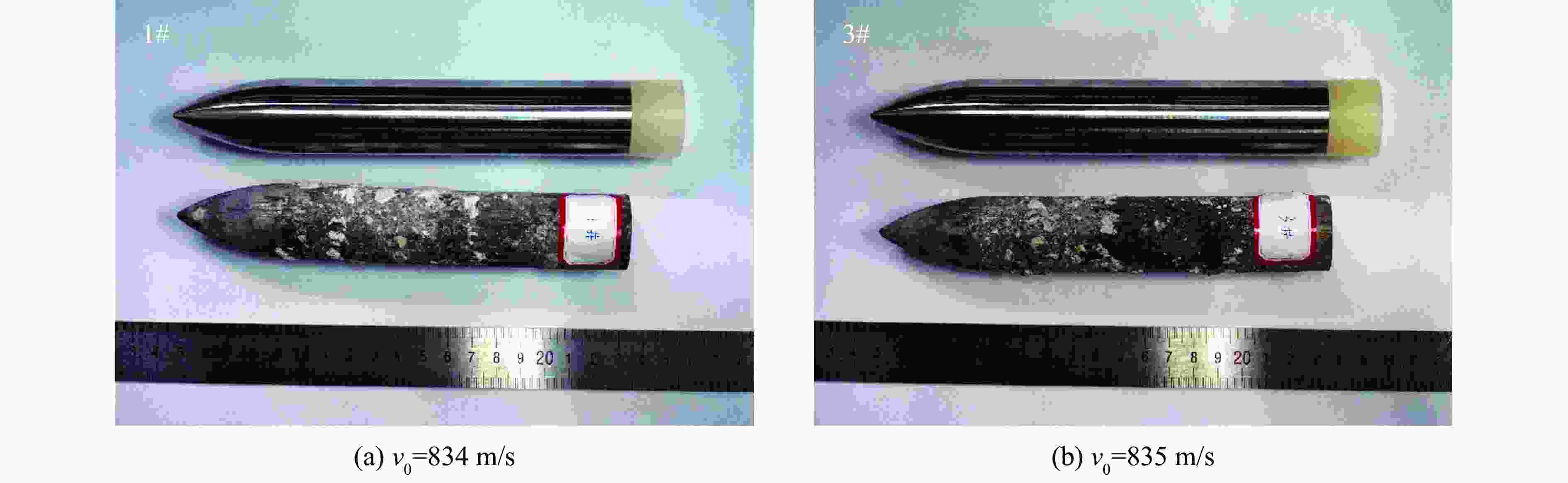

图 9 试验后回收的弹体

Figure 9. Recovered projectile after the test

下载: 全尺寸图片幻灯片

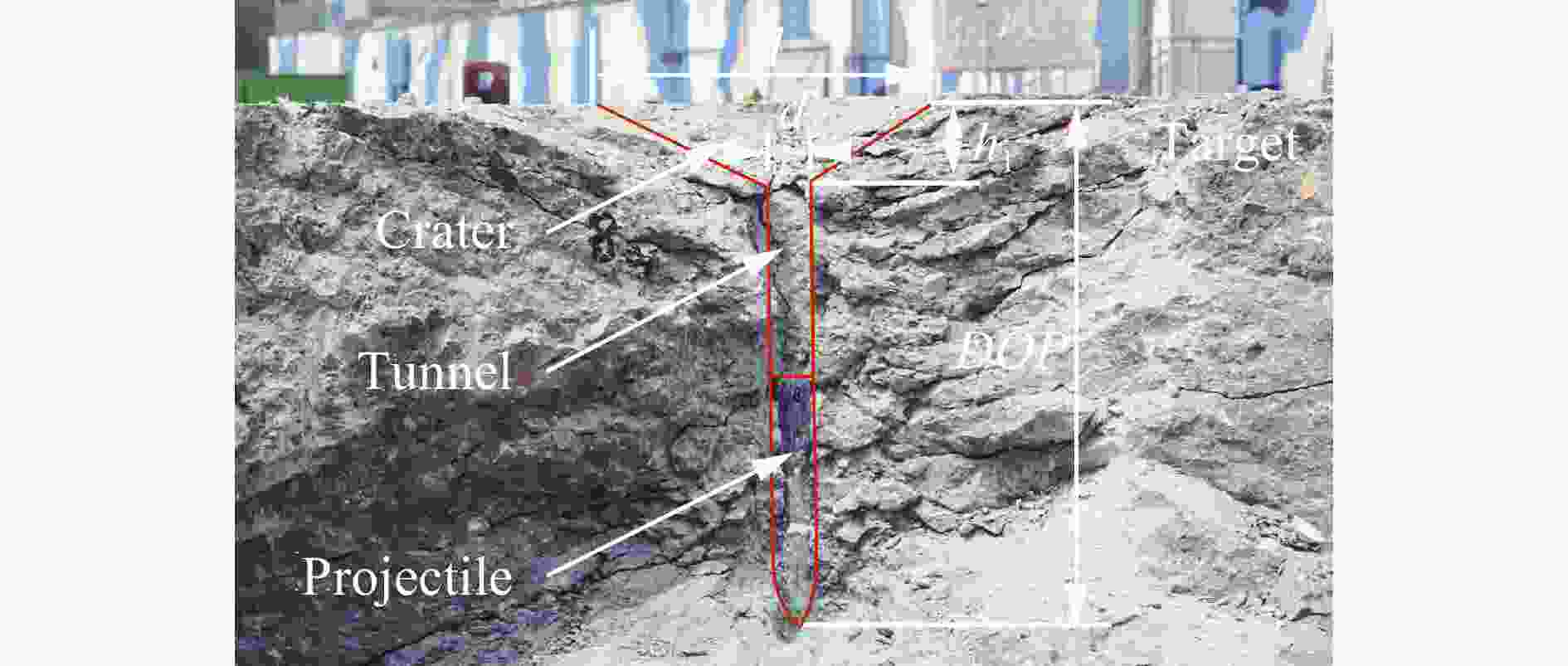

图 10 靶体剖面图

Figure 10. View of concrete target section

下载: 全尺寸图片幻灯片

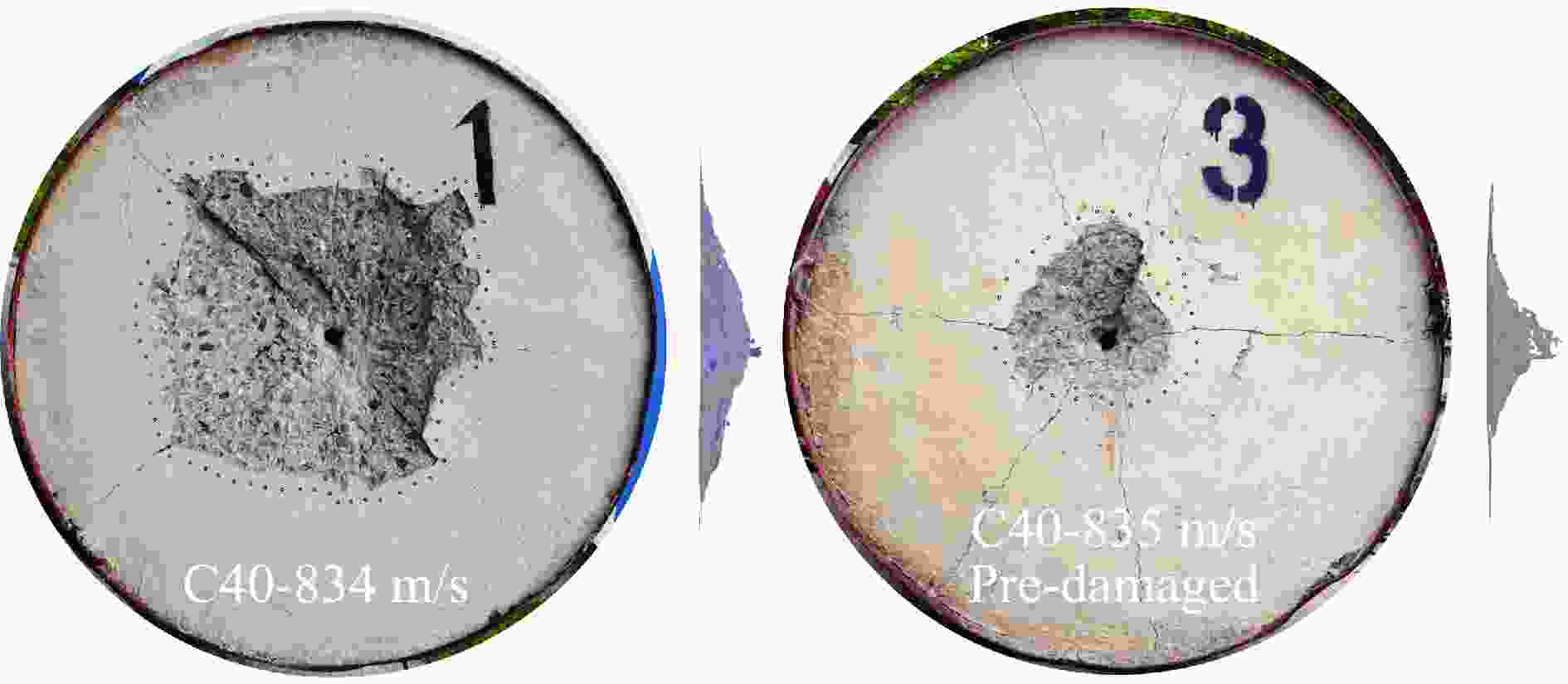

图 11 弹体侵彻混凝土靶面破坏形态

Figure 11. Damage of projectiles penetrating concrete targets

下载: 全尺寸图片幻灯片

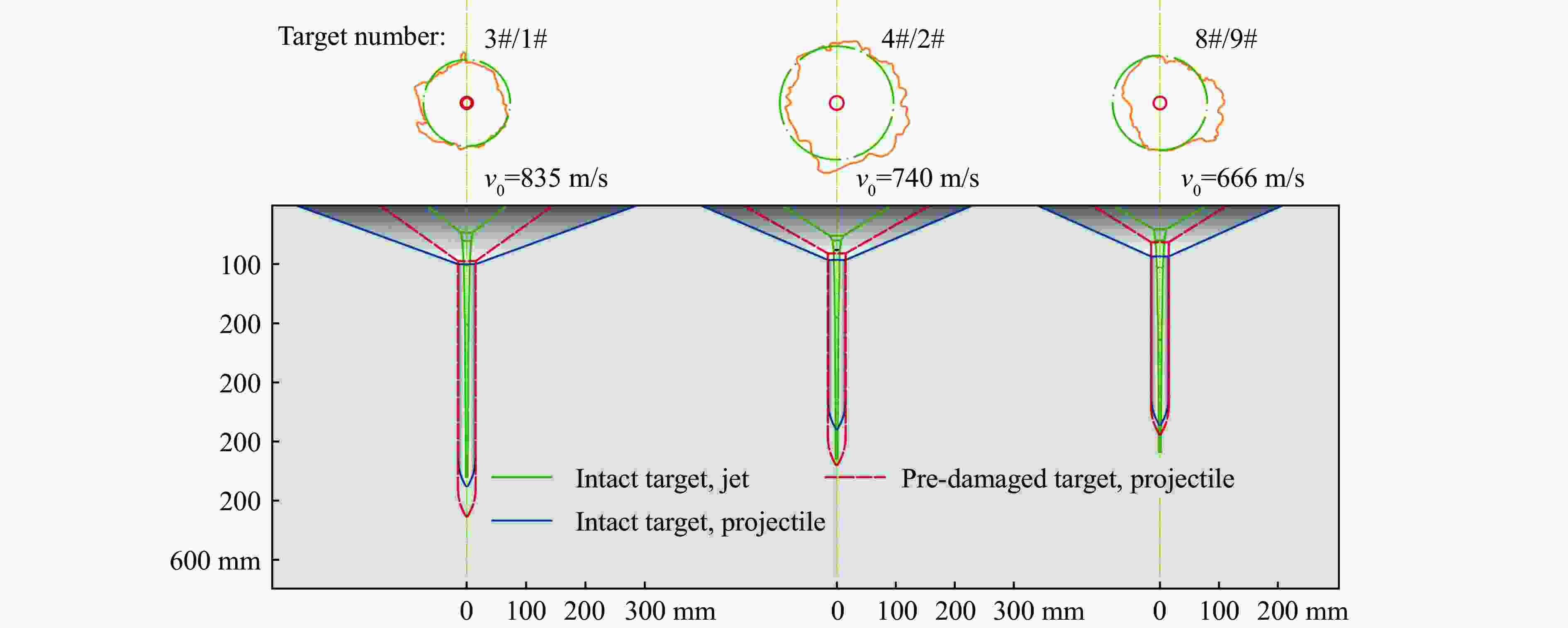

图 12 不同侵彻条件下靶体开孔形态

Figure 12. Aperture morphology of concrete target under different penetration conditions

下载: 全尺寸图片幻灯片

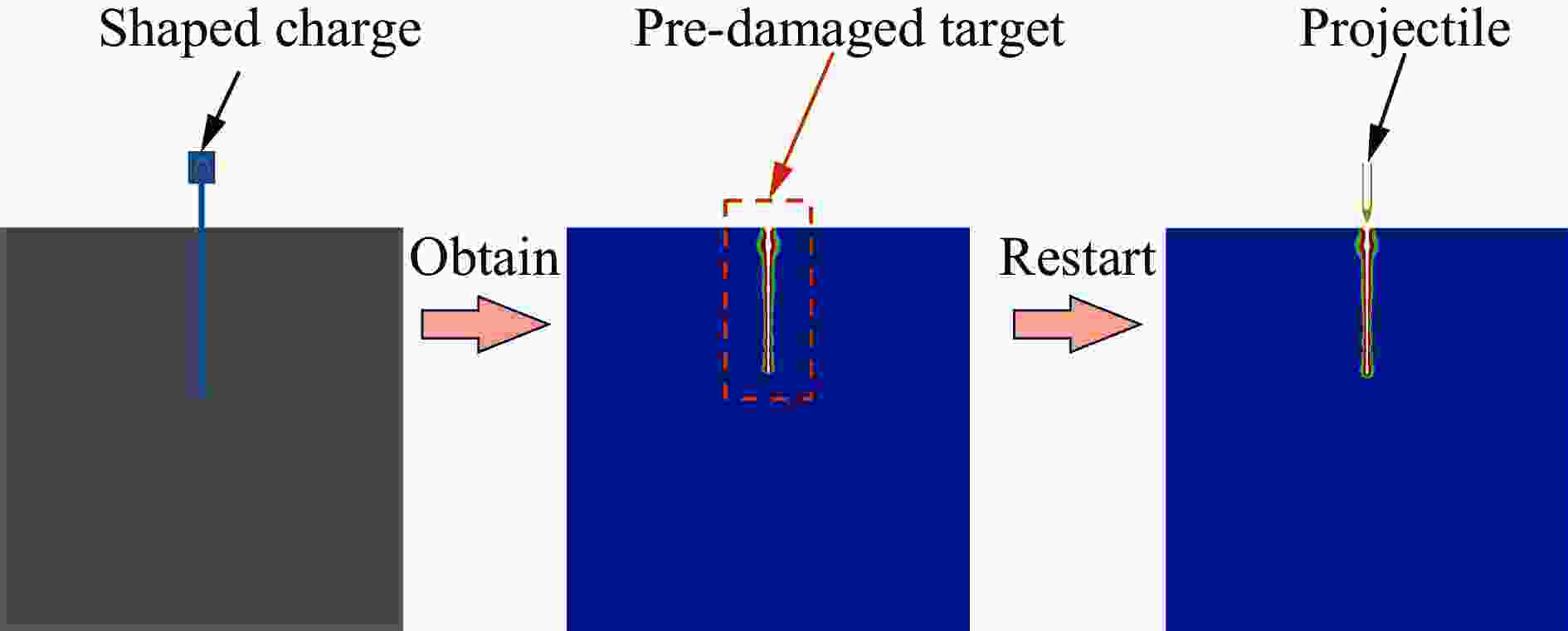

图 13 弹体侵彻预损伤混凝土数值模拟模型建立过程

Figure 13. Development of a numerical simulation model for projectile penetration into pre-damaged concrete

下载: 全尺寸图片幻灯片

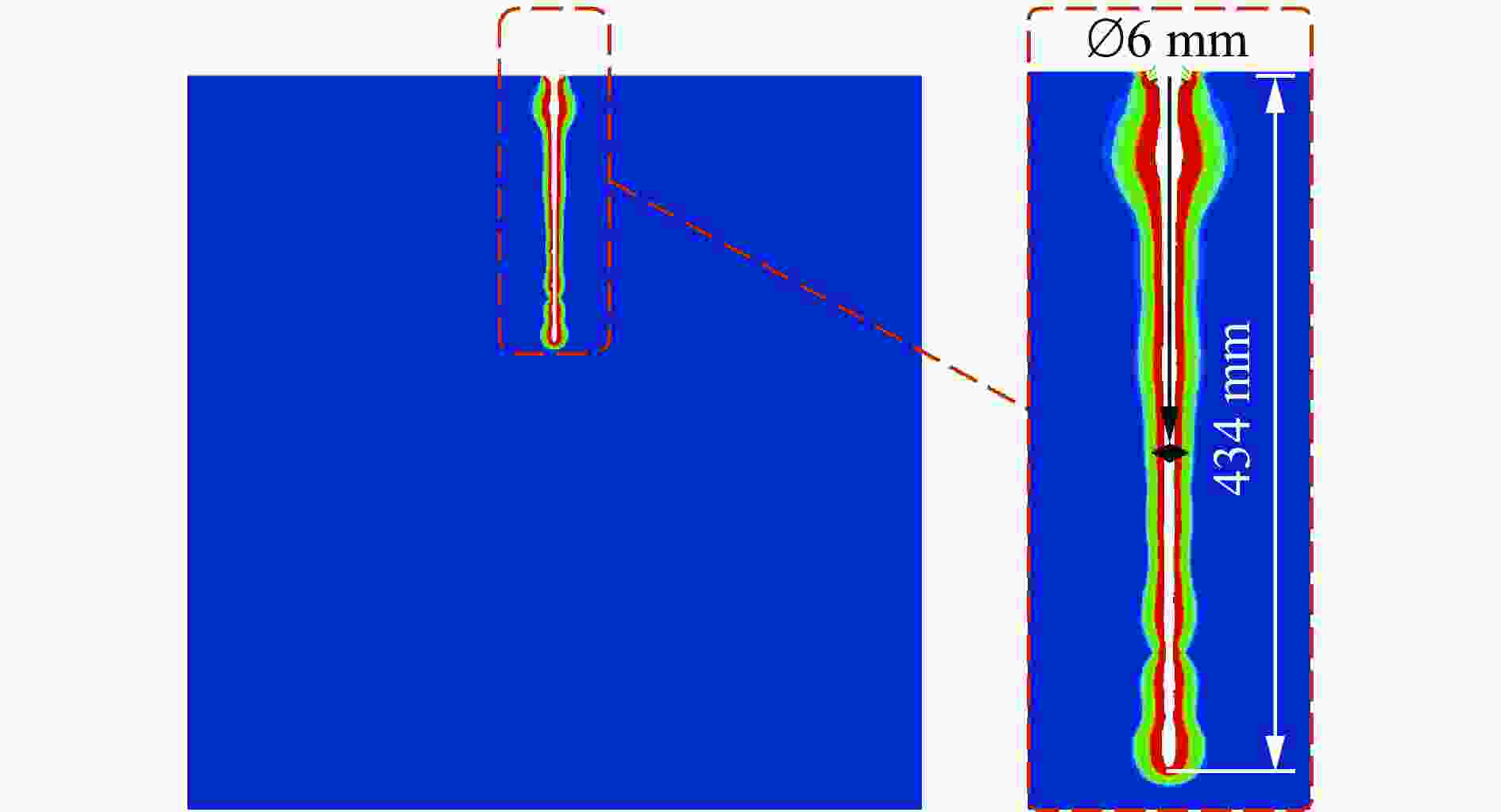

图 14 射流侵彻后靶体损伤状态

Figure 14. Concrete damage after jet penetration

下载: 全尺寸图片幻灯片

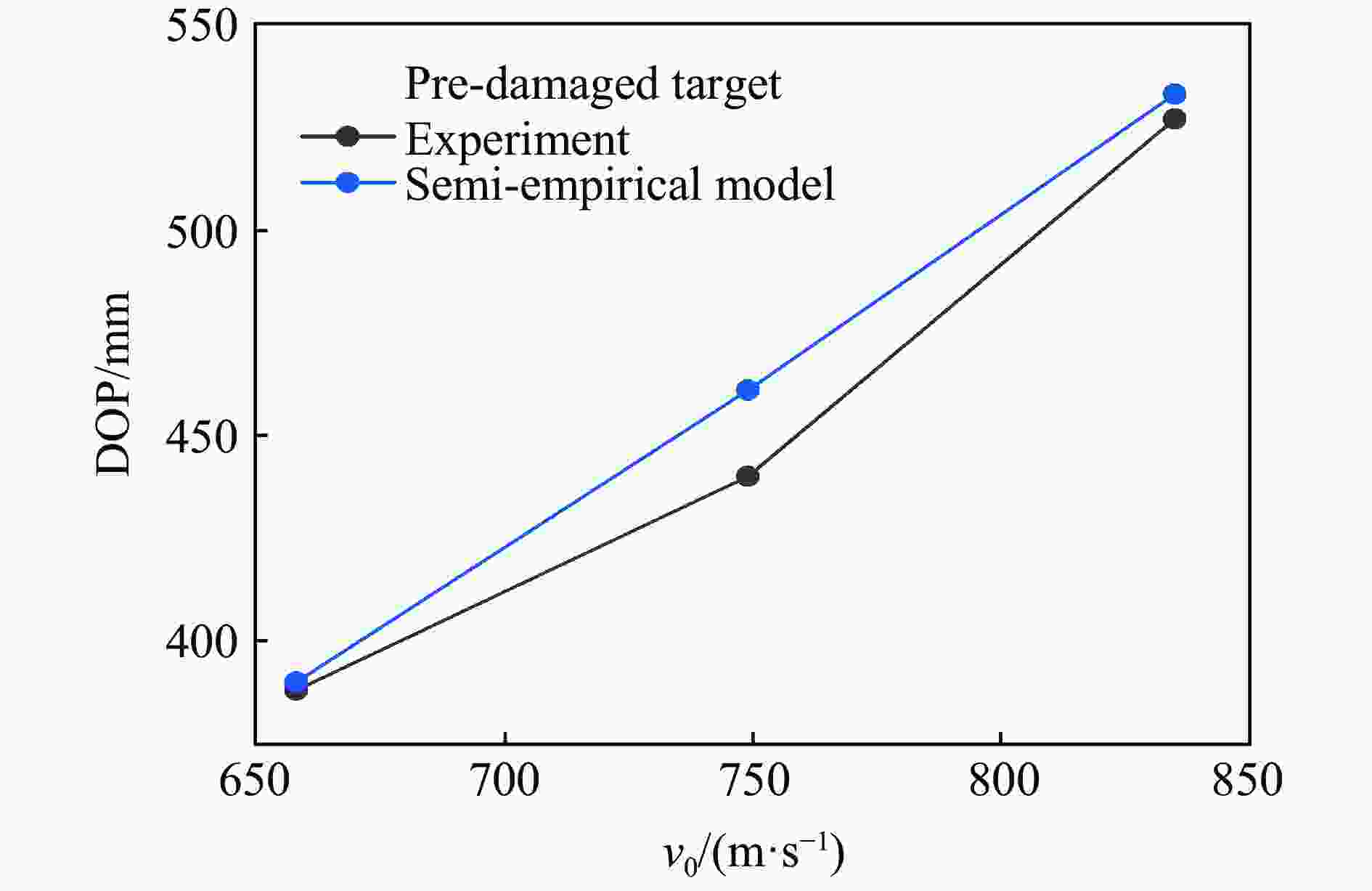

图 15 预损伤靶体中侵彻深度对比

Figure 15. Comparison of penetration depth in pre-damaged target

下载: 全尺寸图片幻灯片

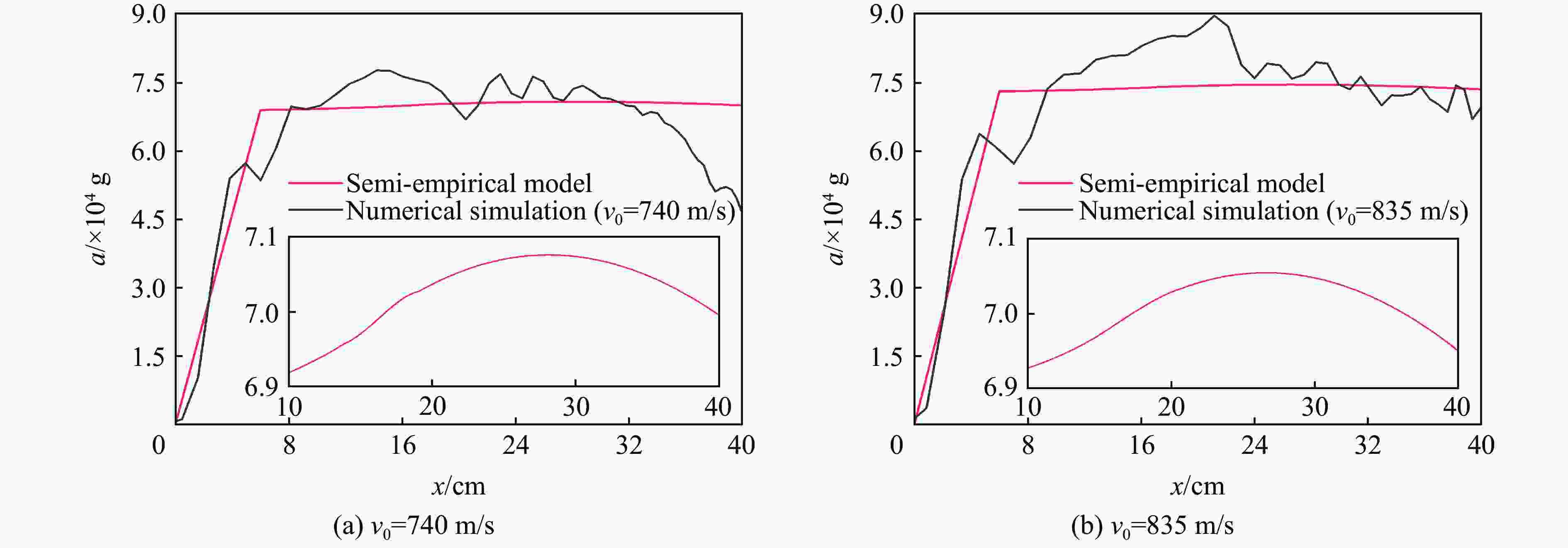

图 16 弹体过载对比

Figure 16. Comparison of projectile deceleration

下载: 全尺寸图片幻灯片

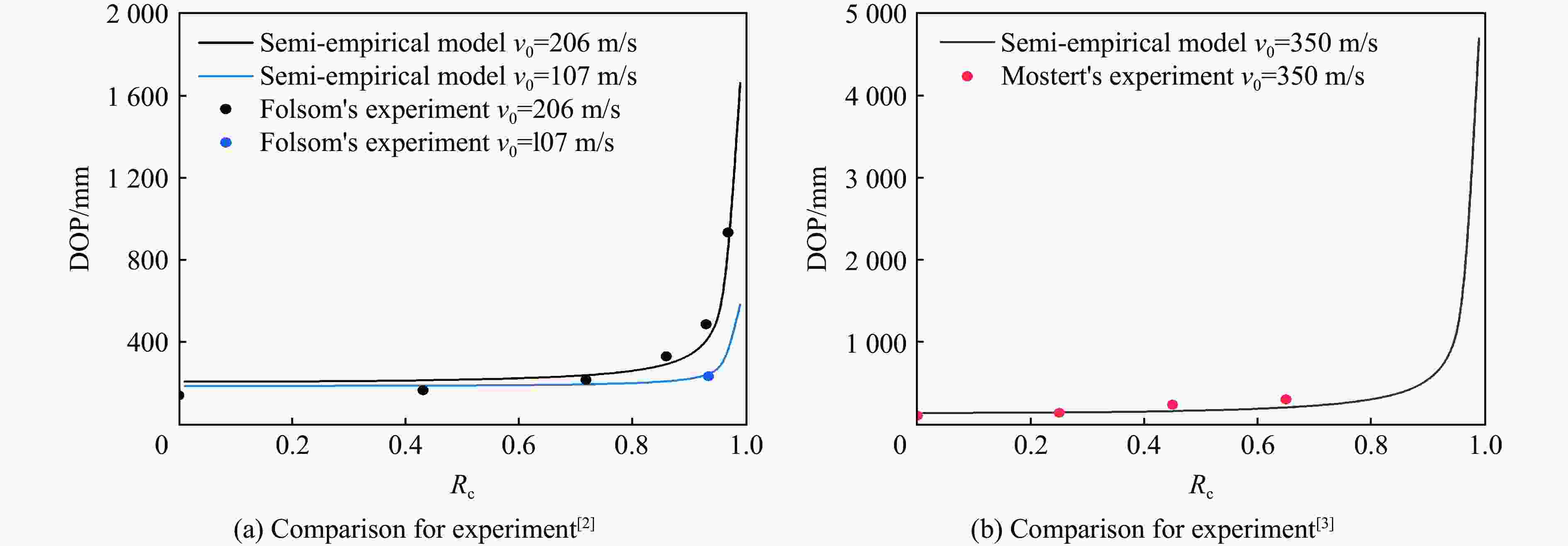

图 17 弹体侵彻预开孔混凝土结果对比

Figure 17. Comparison of projectile penetration results into pre-drilled concrete

下载: 全尺寸图片幻灯片

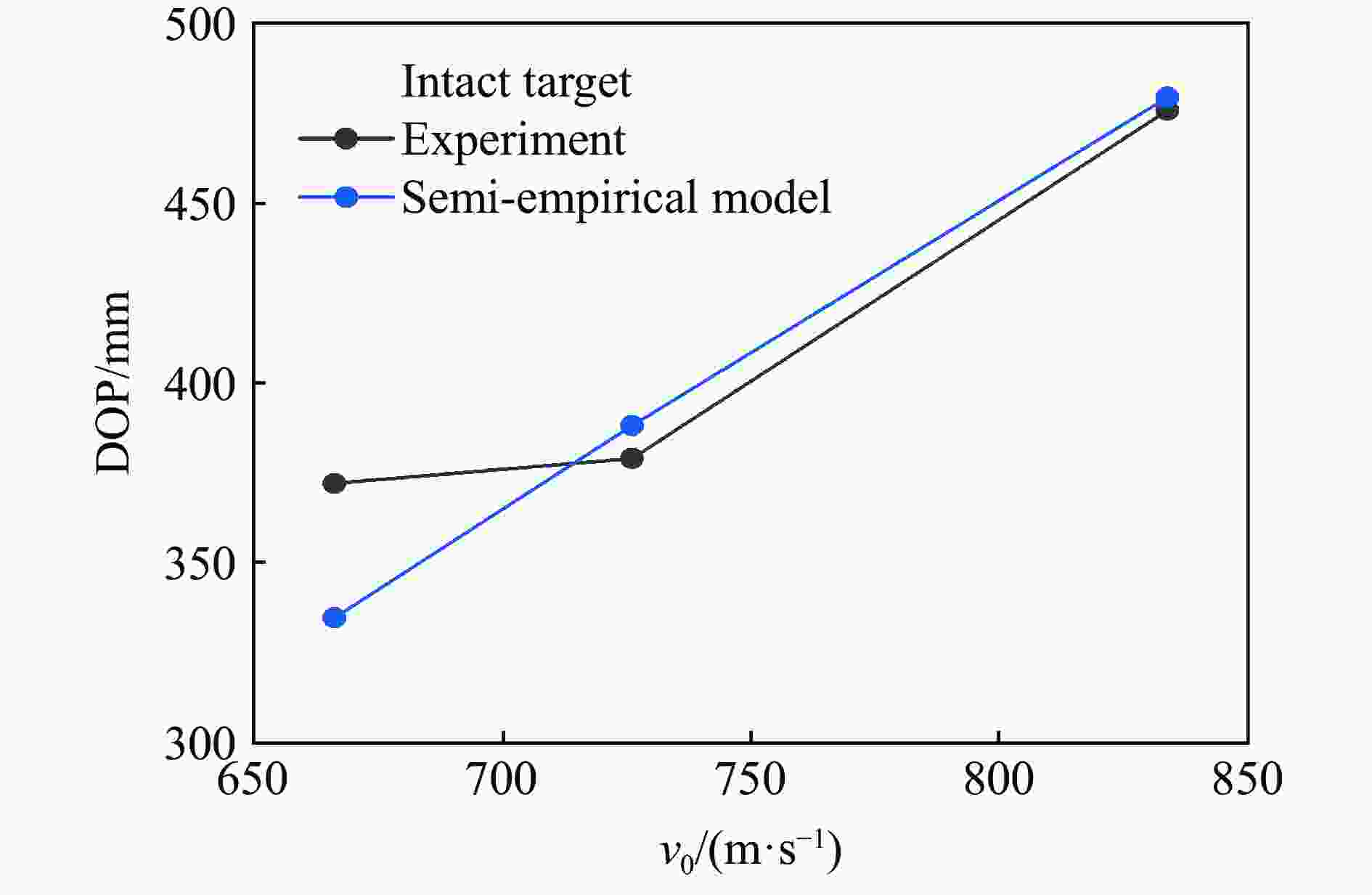

图 18 完整靶体中侵彻深度对比

Figure 18. Comparison of penetration depth in intact target

下载: 全尺寸图片幻灯片

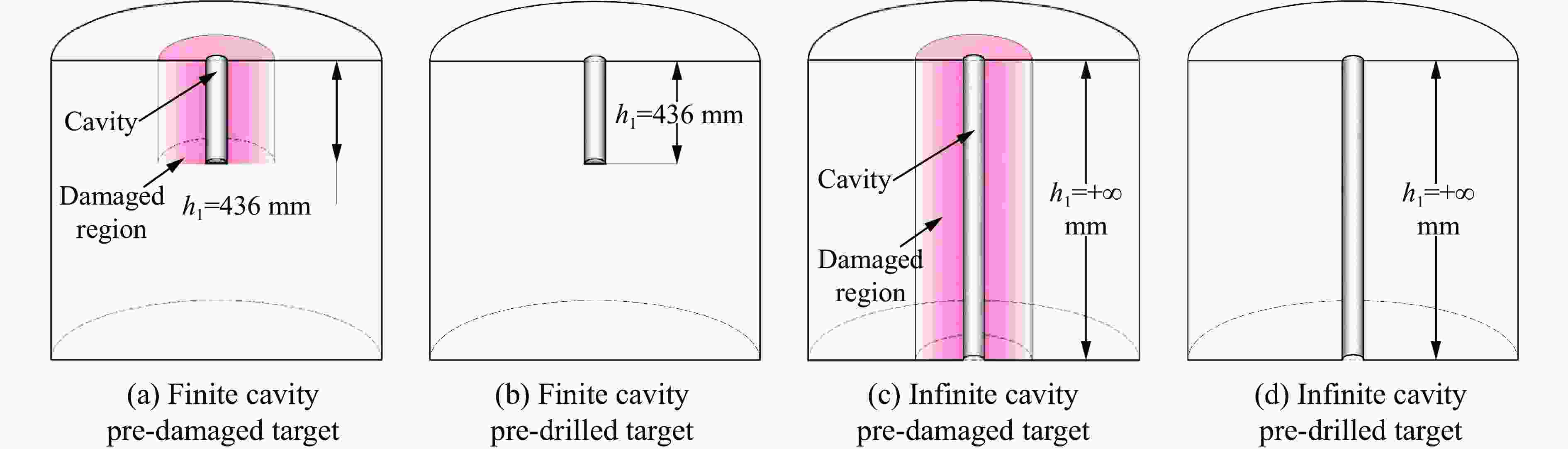

图 19 模型计算各类靶体示意图

Figure 19. Schematic diagram of concrete targets

下载: 全尺寸图片幻灯片

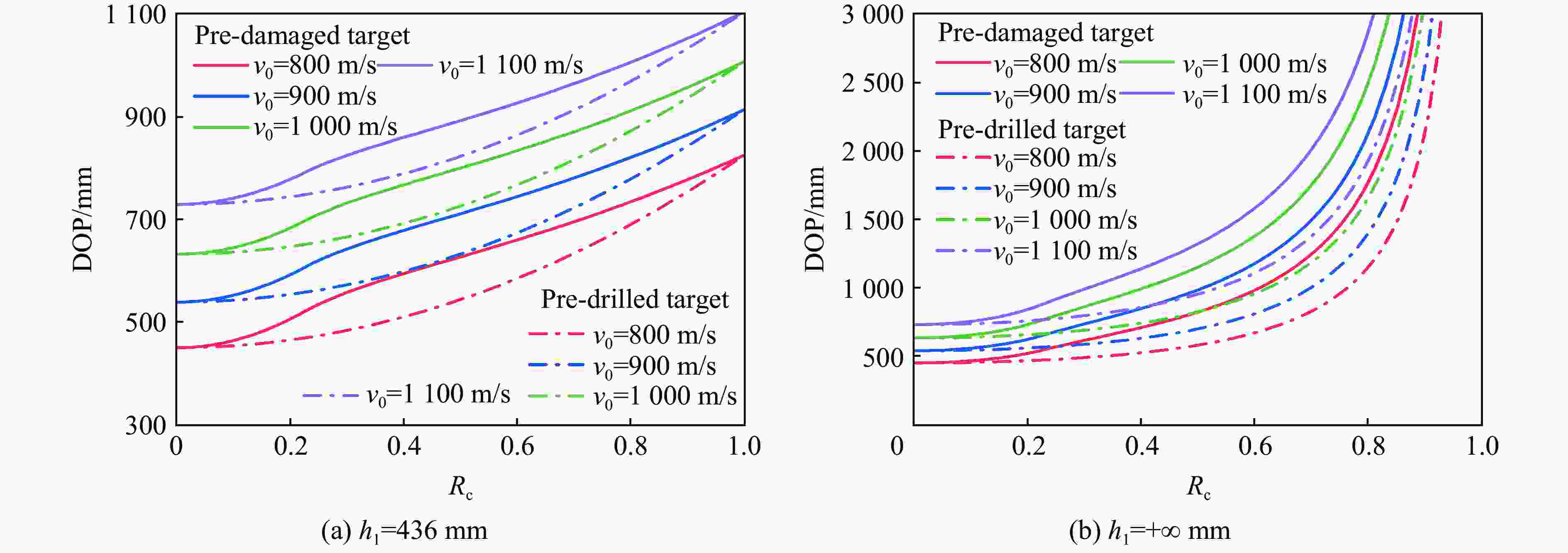

图 20 相对空腔半径与侵彻深度变化关系

Figure 20. Relationship between relative cavity radius and penetration depth

下载: 全尺寸图片幻灯片

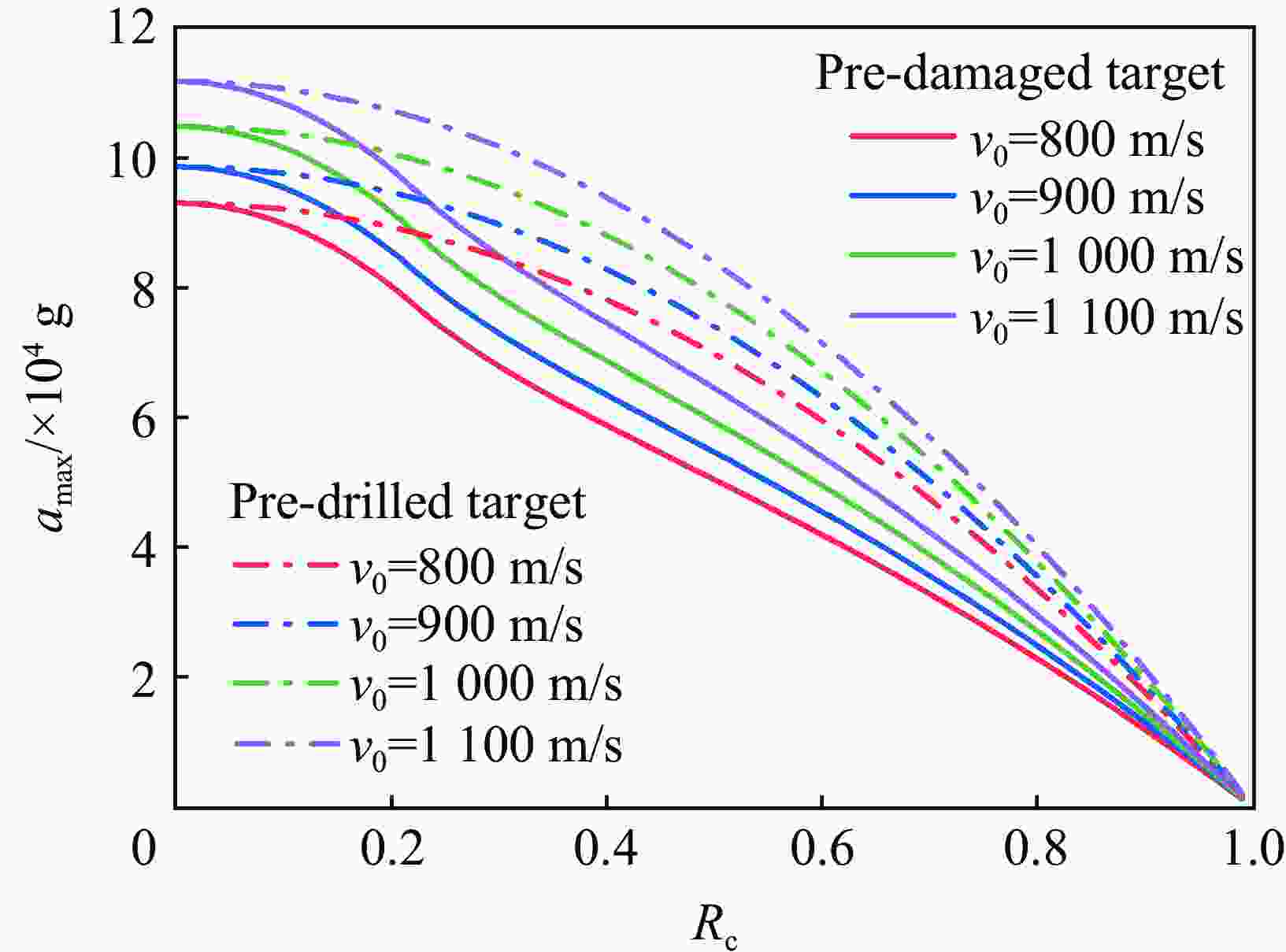

图 21 相对空腔半径与弹体过载峰值变化关系

Figure 21. Relationship between relative cavity radius and the peak of deceleration

下载: 全尺寸图片幻灯片

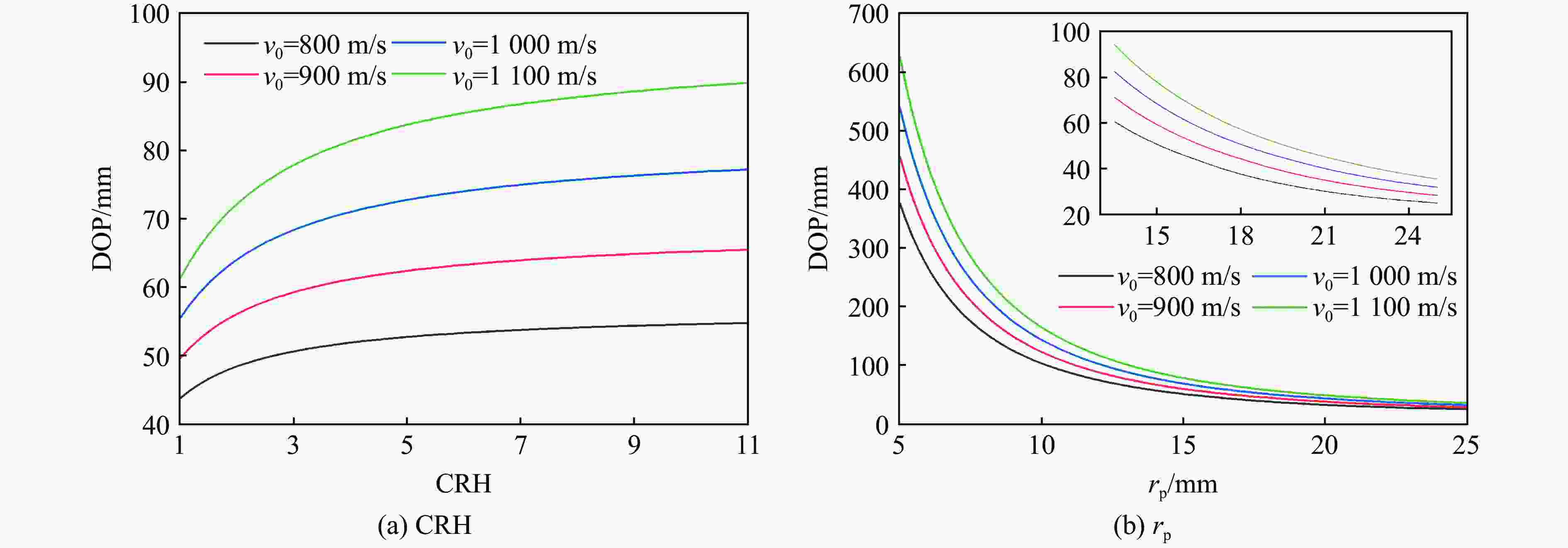

图 22 弹体参数对侵彻深度的影响规律

Figure 22. The effect of projectile parameters on penetration depth

下载: 全尺寸图片幻灯片

图 23 弹体参数对过载峰值的影响规律

Figure 23. The effect of projectile parameters on the peak of deceleration

下载: 全尺寸图片幻灯片

表 1 射流侵彻混凝土试验结果

Table 1. Jet penetration test results

靶体编号	侵彻深度/ mm	不同孔径对应深度/ mm			开坑直径/ mm	开坑深度/ mm	开坑体积/L
靶体编号	侵彻深度/ mm	Φ6 mm	Φ10 mm	Φ15 mm	开坑直径/ mm	开坑深度/ mm	开坑体积/L
3#	460	203	102	61	137	47	0.22
4#	430	190	76	53	187	52	0.35
8#	418	228	106	60	180	41	0.22

下载: 导出CSV

表 2 弹体侵彻预损伤混凝土试验结果

Table 2. Test results of pre-damage concrete penetrated by projectile

靶体编号	v₀/ (m·s⁻¹)	d/mm		h₁/mm		DOP/mm		开坑容积/L
靶体编号	v₀/ (m·s⁻¹)	射流	弹体侵彻预损伤靶	射流	弹体侵彻预损伤靶	射流	弹体侵彻预损伤靶	射流	弹体侵彻预损伤靶
3#	835	137	295	47	95	460	527	0.22	1.47
4#	740	187	318	52	82	430	440	0.35	2.08
8#	666	180	229	41	63	418	388	0.22	0.80

下载: 导出CSV

表 3 弹体侵彻完整混凝土试验结果

Table 3. Test results of intact concrete penetrated by projectile

靶体编号	v₀/(m·s⁻¹)	d/mm	h₁/mm	DOP/mm	开坑容积/L
1#	834	580	100	476	10.56
2#	726	463	93	379	5.11
9#	658	418	87	372	2.42

下载: 导出CSV

表 4 混凝土靶体侵彻深度对比

Table 4. Comparative analysis of penetration depth in concrete targets under projectile impact

初始速度/ m·s⁻¹	侵彻深度/ mm
	试验		数值模拟
	射流侵彻	弹体侵彻预损伤靶体	射流侵彻	弹体侵彻预损伤靶体
835	460	527	434(−5.6 %)	520(−1.3 %)
740	430	440		428(−2.7 %)
666	418	388		387(0.3 %)

下载: 导出CSV

表 5 侵彻预损伤混凝土理论模型计算输入参数

Table 5. Input parameters for the theoretical model of penetration into pre-damaged concrete

参数	靶体参数					弹体参数
参数	r_cd/ mm	r_c/ mm	h₁/ mm	a	b	r_p/ mm	CRH	m/ g
取值	1.5	4.5	436	0.1125	0.4375	15	3	550

下载: 导出CSV

表 6 侵彻预开孔混凝土理论模型计算输入参数

Table 6. Input parameters for the theoretical model of penetration into pre-drilled concrete

参数来源	弹体参数				靶体参数
参数来源	v₀/m·s⁻¹	r_p/mm	CRH	m/g	a	b	f_c/MPa
Folsom^[2]	107、206	44.3	1.25	5930.0	0	1	48.5
Mostert^[3]	350	10.0	2.11	141.6	0	1	20.0

下载: 导出CSV

表 7 侵彻混凝土理论模型计算输入参数

Table 7. Input parameters for the theoretical model of penetration into concrete

参数	靶体参数				弹体参数
参数	r_cd/mm	r_c/mm	a	b	r_p/mm	CRH	m/g
取值	0	0	0	1	15	3	550

下载: 导出CSV

表 8 模型计算输入参数

Table 8. Input parameters for model simulation

参数	靶体参数						弹体参数
	预损伤靶体			预开孔靶体			r_p/mm	CRH	m/g
	a	b	h₁	a	b	h₁	r_p/mm	CRH	m/g
取值	0.1125	0.4375	436、+∞	0	1	436、+∞	15	3	550

下载: 导出CSV

表 9 模型计算输入参数

Table 9. Input parameters for model simulation

参数	靶体参数					弹体参数
参数	r_cd/mm	r_c/mm	h₁/mm	a	b	r_p/mm	CRH	m/g
取值	3	3	436	0.1125	0.4375	\	\	550

下载: 导出CSV
