高压储氢气瓶爆炸能量演化机制及威力评估

李贝; 于浩申; 韩冰; 戴行涛; 李广印; 刘岩

doi:10.11883/bzycj-2025-0128

高压储氢气瓶爆炸能量演化机制及威力评估

doi: 10.11883/bzycj-2025-0128

李贝^{1, 3,},
于浩申³,
韩冰^{1, 2, ,},
戴行涛^{1, 2},
李广印⁴,
刘岩^{1, 2}

1.
国家市场监督管理总局重点实验室（气瓶安全技术），辽宁大连 116012
2.
大连锅炉压力容器检验检测研究院有限公司，辽宁大连 116012
3.
大连理工大学化工学院，辽宁大连 116024
4.
甘肃省特种设备检验检测研究院，甘肃兰州 730050

基金项目: 国家市场监督管理总局重点实验室（气瓶安全技术）开放课题（2023K01）；国家市场监管总局科技计划项目（2024MK131）

详细信息

作者简介:
李　贝（1989－　），男，副教授，libei422@dlut.edu.cn

通讯作者:
韩　冰（1979－　），女，正高级工程师，hb_dbpvi@126.com

中图分类号: O389
计量
- 文章访问数: 186
- HTML全文浏览量: 21
- PDF下载量: 45
- 被引次数: 0
出版历程
- 收稿日期: 2025-04-29
- 修回日期: 2025-06-23
- 网络出版日期: 2025-06-24

Energy dynamics and power evaluation method of high pressure hydrogen storage tank explosion

LI Bei^{1, 3
,},
YU Haoshen³,
HAN Bing^{1, 2
, ,},
DAI Xingtao^{1, 2},
LI Guangyin⁴,
LIU Yan^{1, 2}

1.
Key Laboratory of Gas Cylinders Safety Technology, State Administration for Market Regulation, Dalian 116012, Liaoning, China
2.
Dalian Boiler and Pressure Vessel Inspection & Detection Institute Co., Ltd., Dalian 116012, Liaoning, China
3.
School of Chemical Engineering, Dalian University of Technology, Dalian 116024, Liaoning, China
4.
Gansu Province Special Equipment Inspection and Testing Institute, Lanzhou, 730050, Gansu, China

摘要

摘要: 为掌握火灾环境下高压储氢气瓶爆炸能量产生、转化及耗散机制对气瓶爆炸的影响，以充装氢气和氮气的6.8L-30MPa Ⅲ型高压气瓶爆炸引发试验为基础，开展了气瓶极限承压判据、爆炸动力学行为及威力评估研究。结果表明：火灾可显著降低气瓶承压能力，气瓶的临界爆破压力由常温时的125.1 MPa降至火灾时的46.8 MPa，承压能力下降约62.6%。储氢气瓶爆炸呈现典型的物理-化学复合特征，产生了直径约9 m的火球，冲击波峰值压力在距离爆源2 m处达882.47 kPa，正压持续时间为168.11 ms；相同位置处的氮气瓶爆炸冲击波峰值为59.42 kPa，正压持续时间为2.17 ms，爆炸威力远小于氢气瓶。探讨了开敞环境下氢气瓶与氮气瓶爆炸能量的转化路径，建立了开敞环境下储氢气瓶爆炸威力评估方法，研究结果可对完善高压储氢气瓶爆炸事故风险评估提供参考。
- 爆炸 /
- 储氢气瓶 /
- Ⅲ型瓶 /
- 风险评估
Abstract: Understanding the generation, transformation, and dissipation mechanisms of energy in high-pressure tanks during fire scenarios is of critical significance for the consequence assessment of explosion accidents. This study investigates the differences in properties between high-pressure hydrogen storage tanks and nitrogen tanks under fire conditions through comparative experiments. Fire tests were conducted using 6.8L-30MPa Type Ⅲ tanks. The results indicate that fire exposure can significantly impair the pressure-bearing capacity of the tanks. Specifically, the critical bursting pressure decreased from 125.1 MPa at room temperature to 46.8 MPa under fire conditions, representing a reduction of 62.6%. The explosion dynamics of hydrogen tanks were characterized by typical physical-chemical composite features. A fireball with a diameter of 9m was formed during the explosion. The peak shockwave pressure measured at a distance of 2 m reached 882.47 kPa, with a positive pressure duration of 168.11 ms. In contrast, nitrogen tanks experienced only physical explosions, with a peak shockwave pressure of 59.42 kPa and a positive pressure duration of merely 2.17 ms. This study analyzed the energy conversion pathways during explosions of high-compressed gas tanks (H₂ and N₂) in open environments. A novel method for assessing the blast power of hydrogen storage cylinder explosions in unconfined spaces was developed. Initially, the physical explosion energy was calculated based on fundamental parameters such as critical burst pressure, nominal volume, and initial filling pressure of the high-pressure tanks. The applicability of five mechanical energy calculation models was compared. Subsequently, the mass of hydrogen was determined using the actual gas equation, and the total chemical explosion energy was derived by integrating the heat of combustion of hydrogen. Finally, considering the contributions of mechanical and chemical energy to the shock wave intensity, the total explosion energy was converted into shock wave energy using an open space energy correction factor. Quantitative analysis and error verification were conducted in conjunction with measured data. The findings of this research provide essential support for enhancing risk assessment of explosion accidents involving high-pressure hydrogen storage devices.
- explosion /
- hydrogen storage tank /
- type ⅢI tank /
- hazards assessment

HTML全文

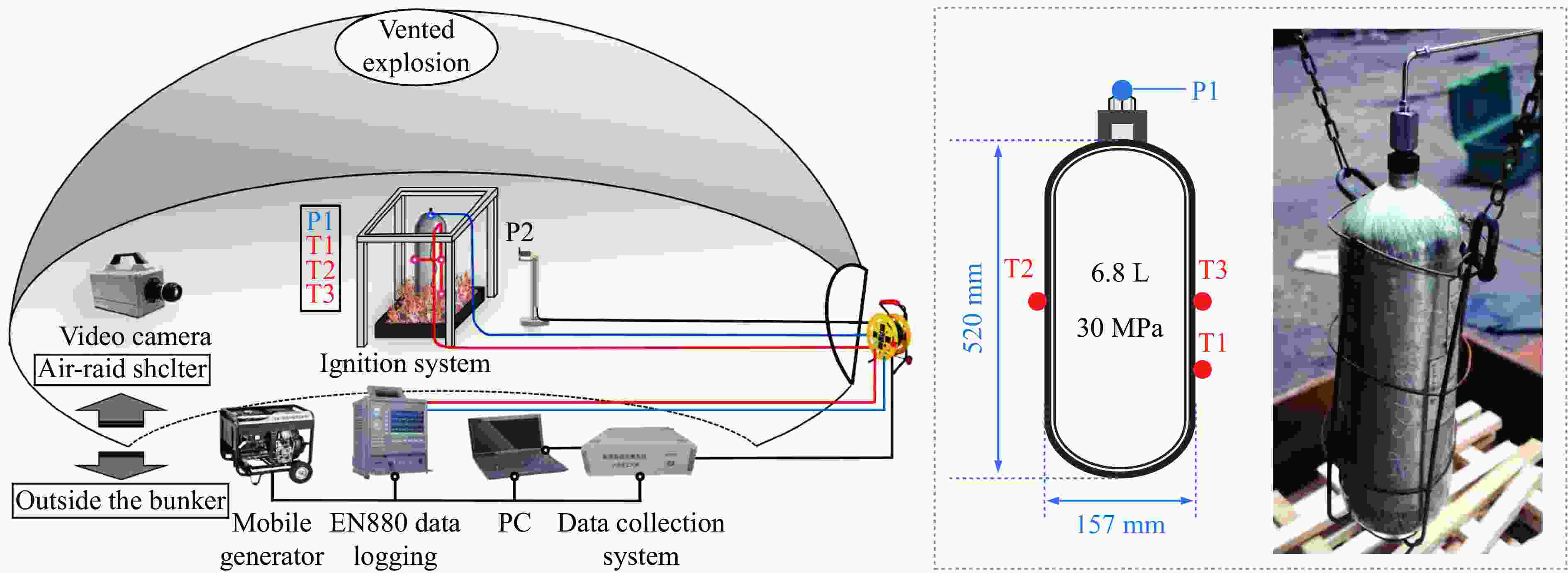

图 1 储氢气瓶爆炸引发试验系统示意图

Figure 1. Schematic of explosion initiation test system for hydrogen storage tank

下载: 全尺寸图片幻灯片

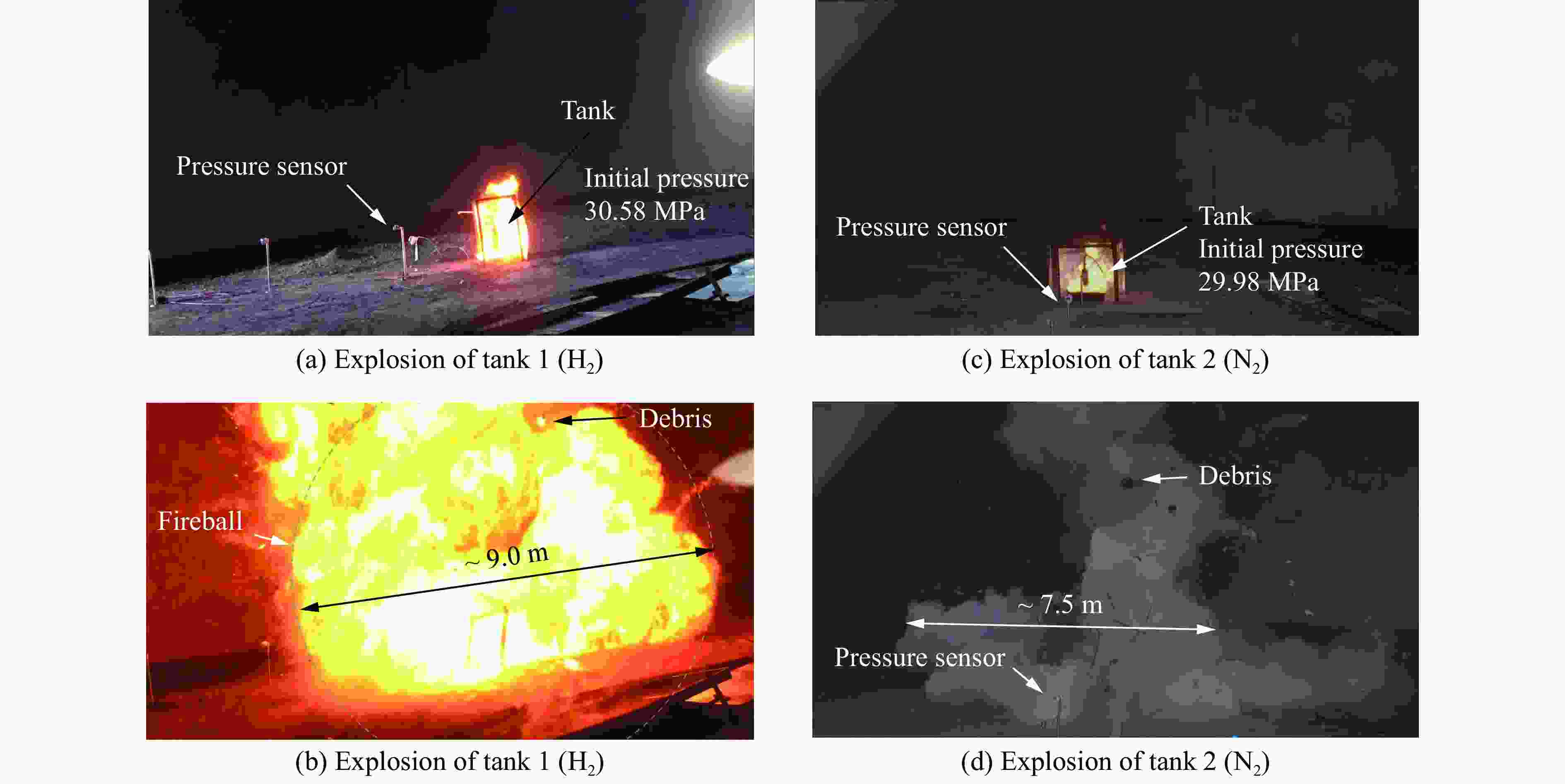

图 2 充装不同介质(H₂和N₂)的高压气瓶爆炸形态

Figure 2. Explosion morphologies of high-pressure tanks filled with different gas media (H₂ and N₂)

下载: 全尺寸图片幻灯片

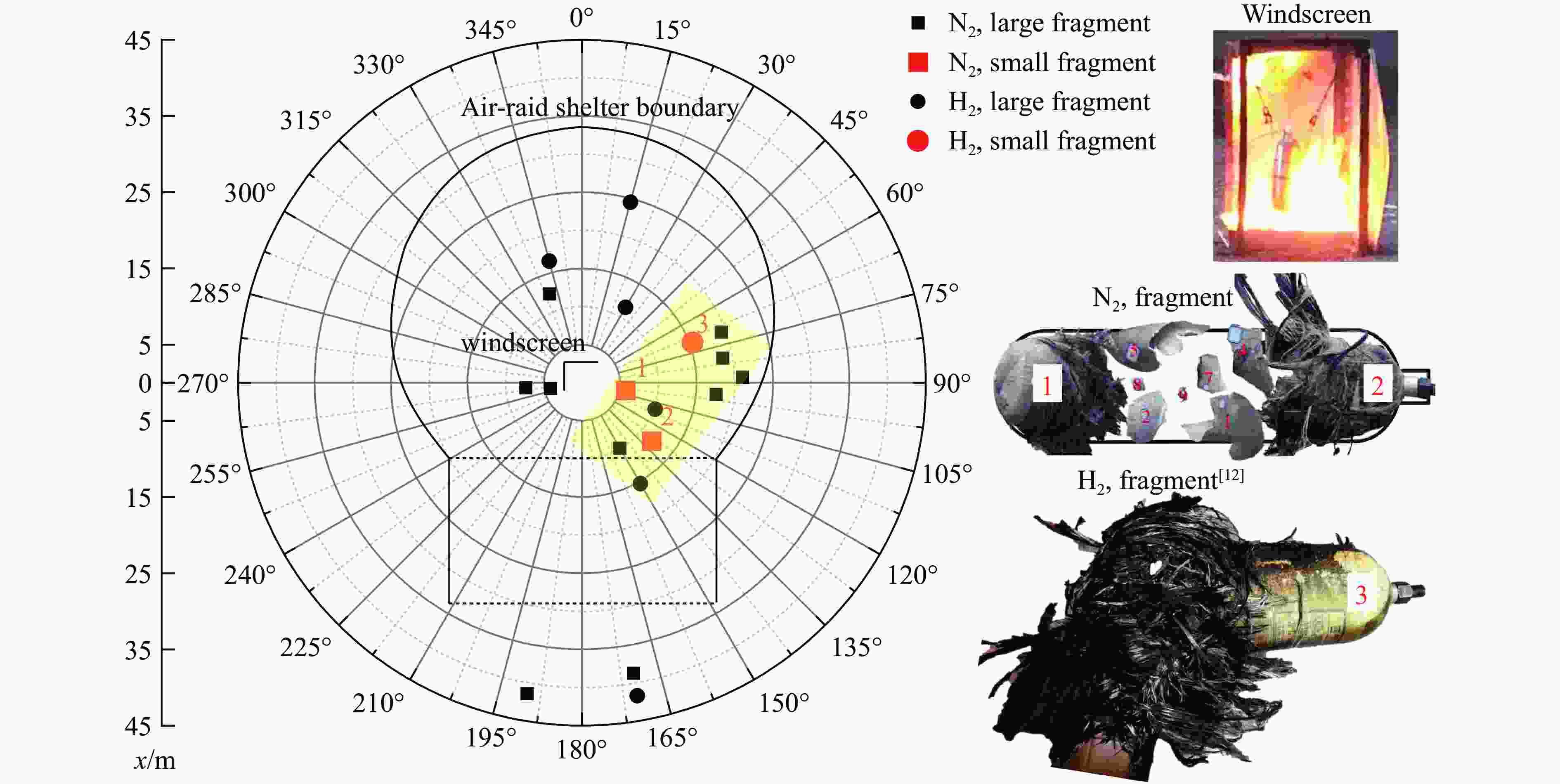

图 3 气瓶爆炸后破片的分布特征

Figure 3. Distribution characteristics of fragments after the gas tank explosion

下载: 全尺寸图片幻灯片

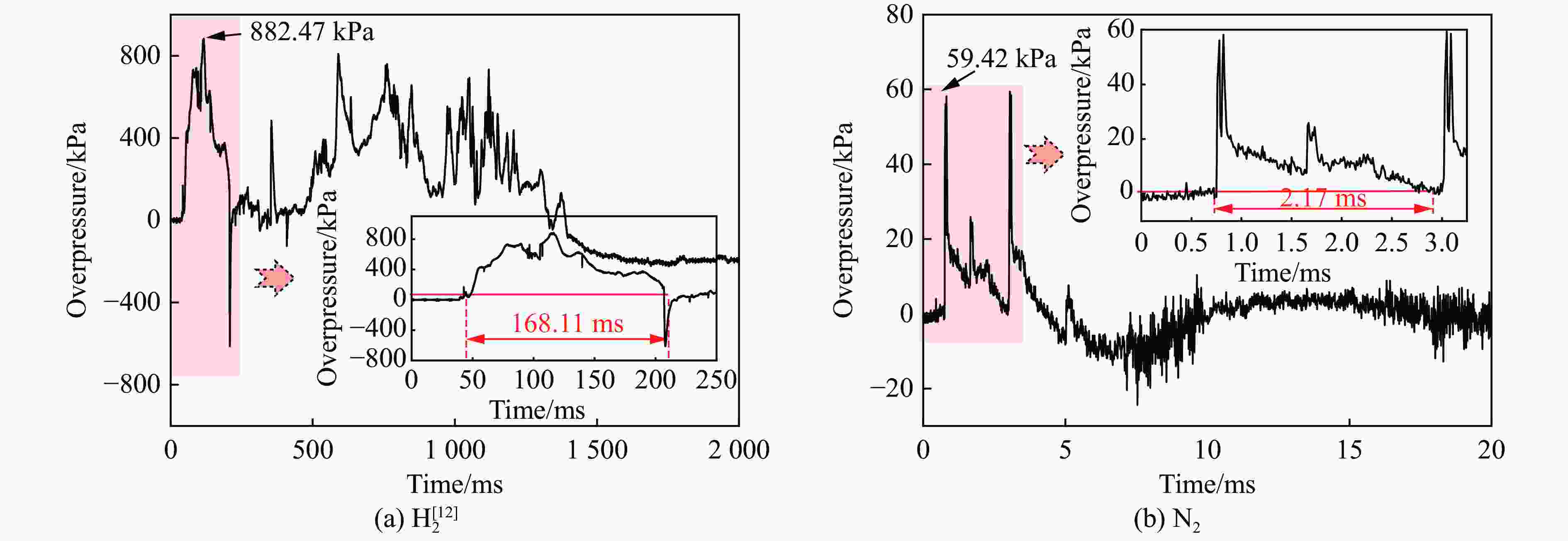

图 4 距离爆源2 m处的爆炸冲击波超压-时间曲线

Figure 4. Pressure transient at a distance of 2 m from the explosion source

下载: 全尺寸图片幻灯片

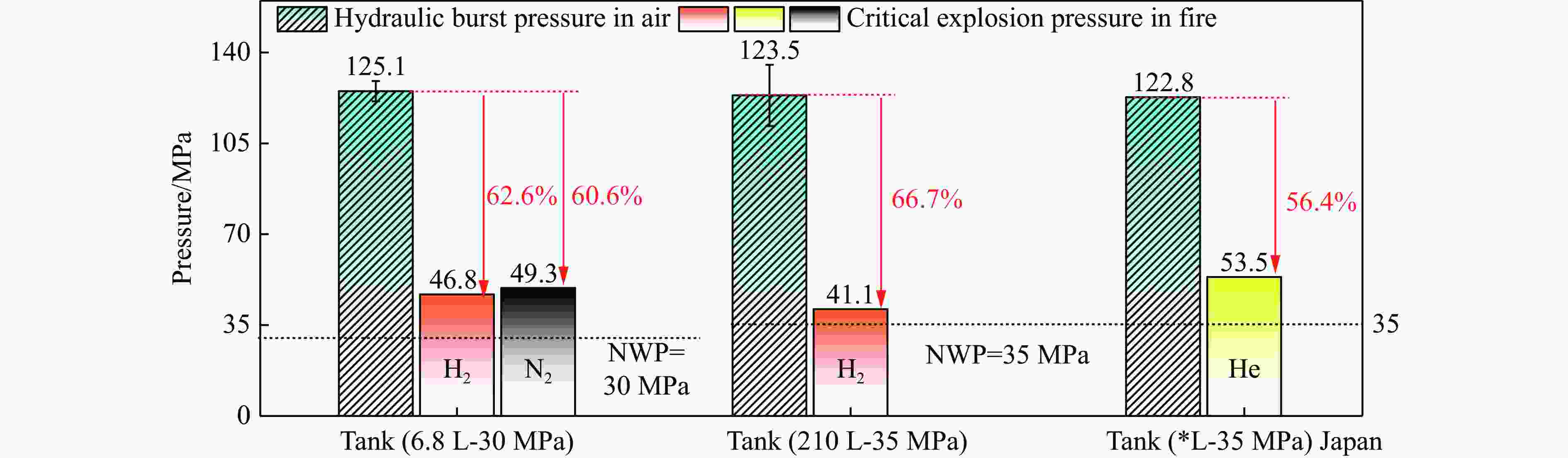

图 5 典型Ⅲ型瓶常温及火灾环境下的承压极限判据^[2,8,12]

Figure 5. The criteria for the ultimate bursting pressure-bearing capacity of typical type Ⅲ tanks under normal temperature and fire environment ^[2,8,12]

下载: 全尺寸图片幻灯片

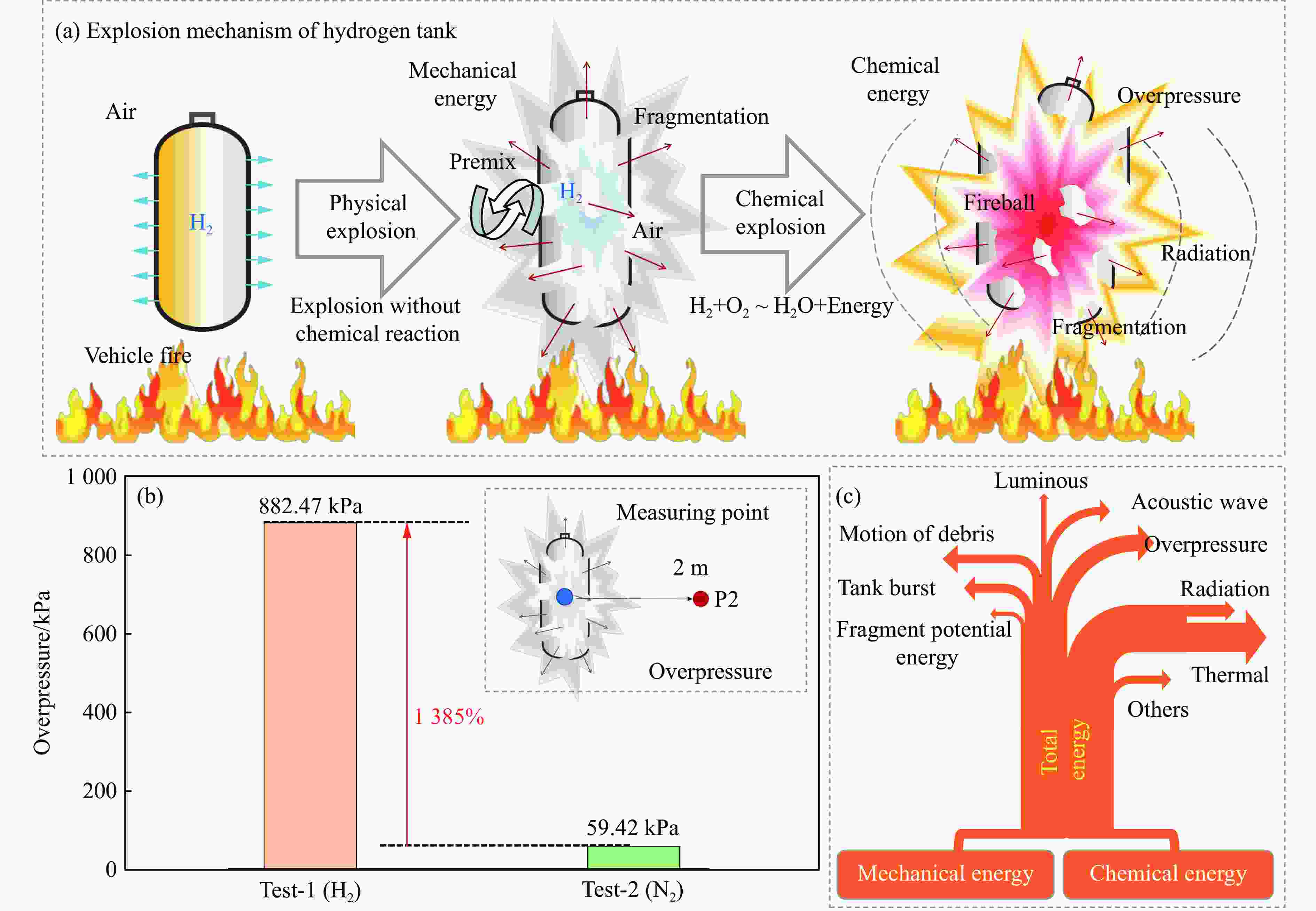

图 6 火灾环境下高压储氢瓶爆炸机理

Figure 6. The explosion mechanism of high-pressure hydrogen storage tanks in a fire environment

下载: 全尺寸图片幻灯片

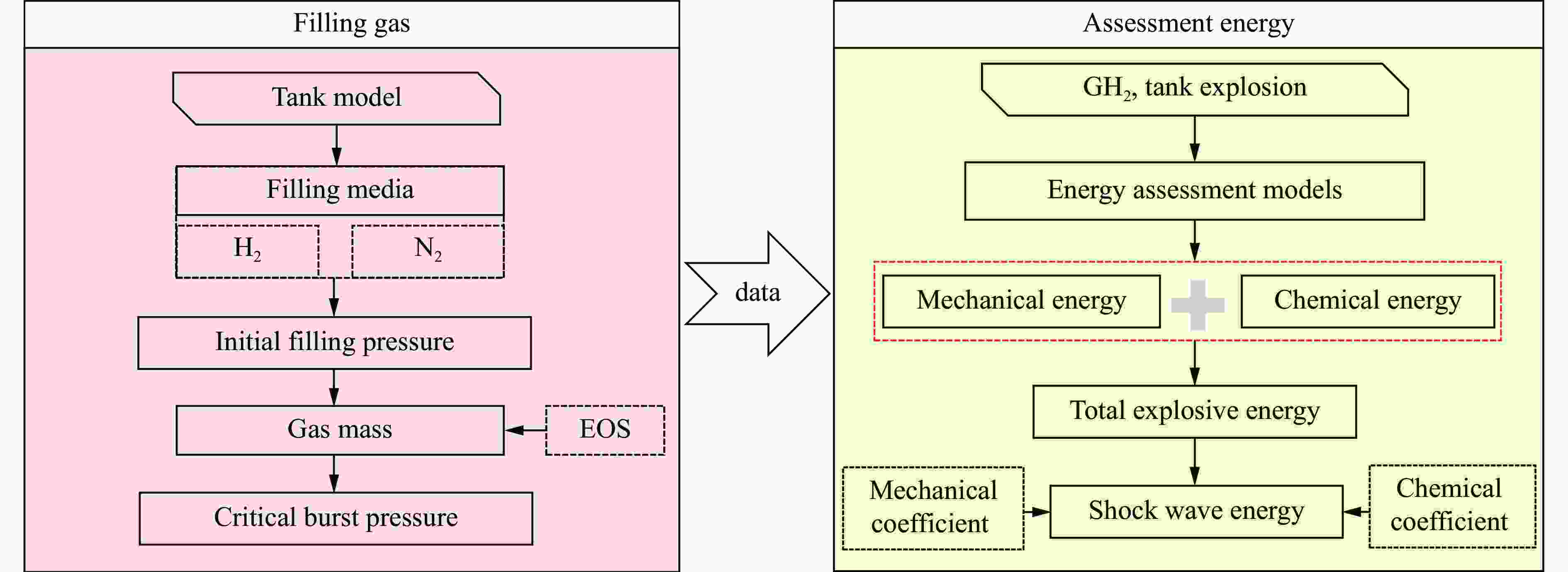

图 7 能量评估的步骤和方法

Figure 7. Steps and methodology for energy assessment

下载: 全尺寸图片幻灯片

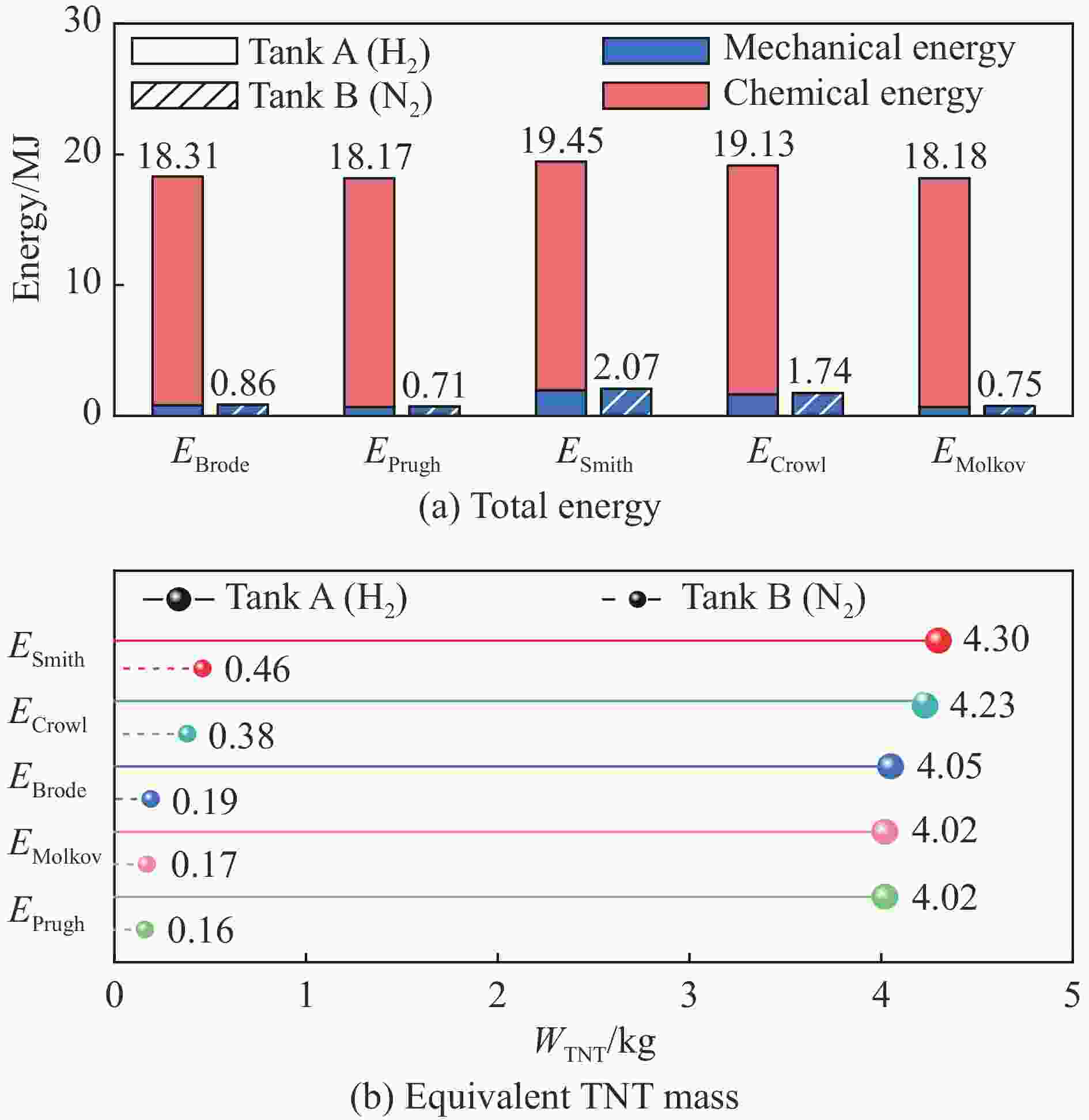

图 8 不同模型下6.8L储氢罐的总能量与等效TNT当量质量

Figure 8. The total energy and equivalent TNT mass of the 6.8 L hydrogen storage tank under different models

下载: 全尺寸图片幻灯片

表 1 火灾环境下典型Ⅲ型瓶极限承压判据

Table 1. Criteria for the pressure-bearing limit of typical type Ⅲ tanks

公称容积-公称工作压力	6.8L-30MPa	6.8L-30MPa	210L-35MPa	*L-35MPa
数据来源	文献[12]	本研究	文献[2]	文献[8]
气瓶水爆压力/MPa	125.07(±3.85)	125.07(±3.85)	123.5(±11.75)	122.8
火源	油池	油池	油池	丙烷燃烧器
火烧燃爆引发方式	整体	整体	局部+整体	整体
放置方式	垂直	垂直	水平	水平
充装介质	H₂	N₂	H₂	He
初始充装压力/MPa	30.58	29.98	32.2	25
爆炸临界压力/MPa	46.8	49.3	41.1	53.5
火灾中承压性能下降幅度	62.60%	60.60%	66.70%	56.40%
注：文献[8]为日本汽车研究所气瓶火烧爆炸试验研究数据，气瓶编号为9#，未查阅到公称容积等信息。

下载: 导出CSV

表 2 气瓶爆炸超压能量计算结果

Table 2. Tank explosion overpressure energy calculation results

气瓶	介质	p_b/MPa	m_gas/kg	E_am/MJ		E_ac/MJ	E/MJ	W_TNT/kg
气瓶A （6.8L-30MPa）	氢气	46.8	0.15	E_Brode	1.46	0.91	2.37	0.52
				E_Prugh	1.21		2.12	0.47
				E_Smith	3.51		4.42	0.98
				E_Crowl	2.94		3.85	0.85
				E_Molkov	1.22		2.13	0.47
气瓶B （6.8L-30MPa）	氮气	49.3	0.11	E_Brode	1.55	0	1.55	0.34
				E_Prugh	1.28		1.28	0.28
				E_Smith	3.73		3.73	0.83
				E_Crowl	3.13		3.13	0.69
				E_Molkov	1.46		1.46	0.32
气瓶C^[19] （165L-35MPa）	氢气	44.0	3.89	E_Brode	33.43	23.74	57.17	12.65
				E_Prugh	27.41		51.15	11.32
				E_Smith	79.37		103.11	22.81
				E_Crowl	66.33		90.07	19.93
				E_Molkov	27.37		51.11	11.31
				文献[19]	21.32	24.04	45.36	10.04

下载: 导出CSV
