不同双金属超分子化合物抑制镁粉爆燃火焰的实验研究

王慧婷; 韩志跃; 余子明

doi:10.11883/bzycj-2025-0294

不同双金属超分子化合物抑制镁粉爆燃火焰的实验研究

doi: 10.11883/bzycj-2025-0294

1.
北京理工大学爆炸科学与安全防护全国重点实验室，北京 100081

基金项目: 国家重点研发计划课题资助（2023YFC3010604）

详细信息

作者简介:
王慧婷（2003－　），女，硕士研究生，1418246822@qq.com

通讯作者:
韩志跃（1984－　），男，博士，副教授，hanzhiyue@bit.edu.cn

中图分类号: X932
计量
- 文章访问数: 465
- HTML全文浏览量: 84
- PDF下载量: 37
- 被引次数: 0
出版历程
- 收稿日期: 2025-09-09
- 修回日期: 2025-10-11
- 网络出版日期: 2025-10-16

Experiment on suppression of magnesium powder deflagration flame with different bimetallic supramolecular compounds

1.
Beijing Institute of Technology, State Key Laboratory of Explosion Science and Safety Protection, Beijing 100081, China

摘要

摘要: 镁粉作为一种常用金属材料，生产过程中具有极大爆炸风险，亟需开发高效靶向抑爆剂。本研究通过共沉淀法成功合成了不同类型的双金属超分子化合物抑爆剂，并利用哈特曼管实验研究了其对镁粉爆炸的抑制效果。发现双金属超分子化合物材料的抑爆效果优于传统抑爆剂碳酸氢钠，且当金属阳离子一致时，碳酸根离子抑爆效果优于氯离子。抑爆效果钙铁碳酸根材料优于铜铝碳酸根材料优于镁铝碳酸根材料优于钙铁氯离子材料优于锌铬碳酸根材料优于镁铝氯离子材料。明确其抑爆机理为吸热分解、物理包裹、惰性气体稀释及金属阳离子/层间阴离子协同清除关键自由基从而实现物理-化学的双重抑爆。本研究对比了不同双金属超分子化合材料对镁粉燃爆的抑制效果，为镁粉意外燃爆的安全防护提供了新思路。
- 双金属超分子化合物 /
- 镁粉爆炸 /
- 火焰传播 /
- 爆炸抑制
Abstract: Magnesium powder, as a commonly used metallic material, poses a significant explosion risk during its production process, necessitating the urgent development of efficient and targeted explosion suppressants. In this study, different types of bimetallic supramolecular compound suppressants were successfully synthesized via the coprecipitation method, and their suppression effects on magnesium powder explosions were investigated using Hartmann tube experiments. It was found that the bimetallic supramolecular compounds exhibited superior explosion suppression performance compared to the traditional suppressant sodium bicarbonate. Moreover, when the metal cations were identical, carbonate ions demonstrated better suppression efficiency than chloride ions. The suppression effectiveness followed the order: CaFe-carbonate > CuAl-carbonate > MgAl-carbonate > CaFe-chloride > ZnCr-carbonate > MgAl-chloride materials. The suppression mechanism was identified as a combination of endothermic decomposition, physical encapsulation, inert gas dilution, and synergistic scavenging of key free radicals by metal cations and interlayer anions, thereby achieving a dual physical–chemical explosion suppression effect. This study compares the suppression performance of different bimetallic supramolecular compounds on magnesium powder deflagration, offering new insights for the safety protection against accidental magnesium powder explosions.
- bimetallic supramolecular compound /
- magnesium powder explosion /
- flame propagation /
- explosion suppression

HTML全文

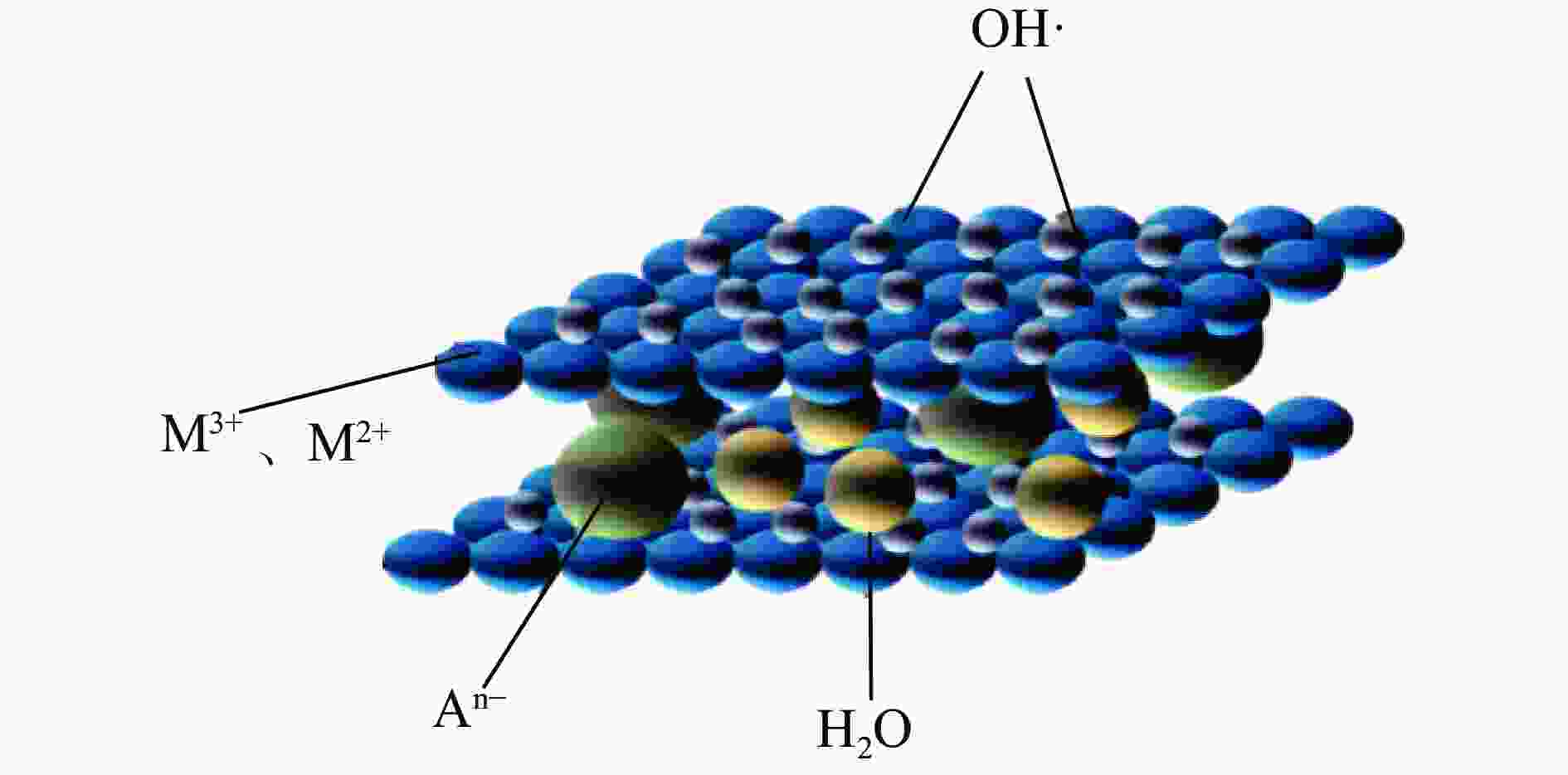

图 1 双金属超分子化合物结构图

Figure 1. Structure diagram of bimetallic supramolecular compound

下载: 全尺寸图片幻灯片

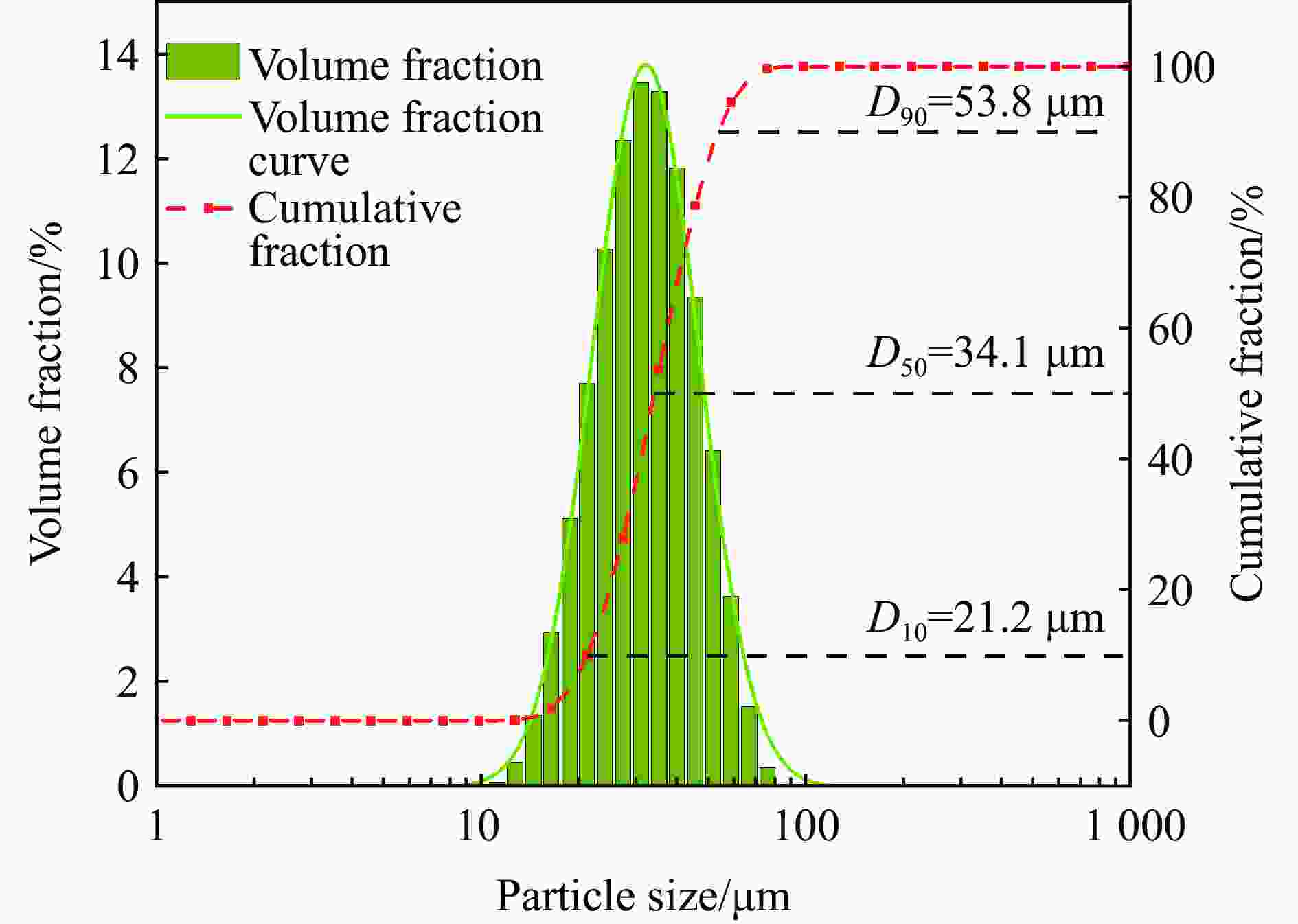

图 2 镁粉粒径分布

Figure 2. Particle size distribution of magnesium powder

下载: 全尺寸图片幻灯片

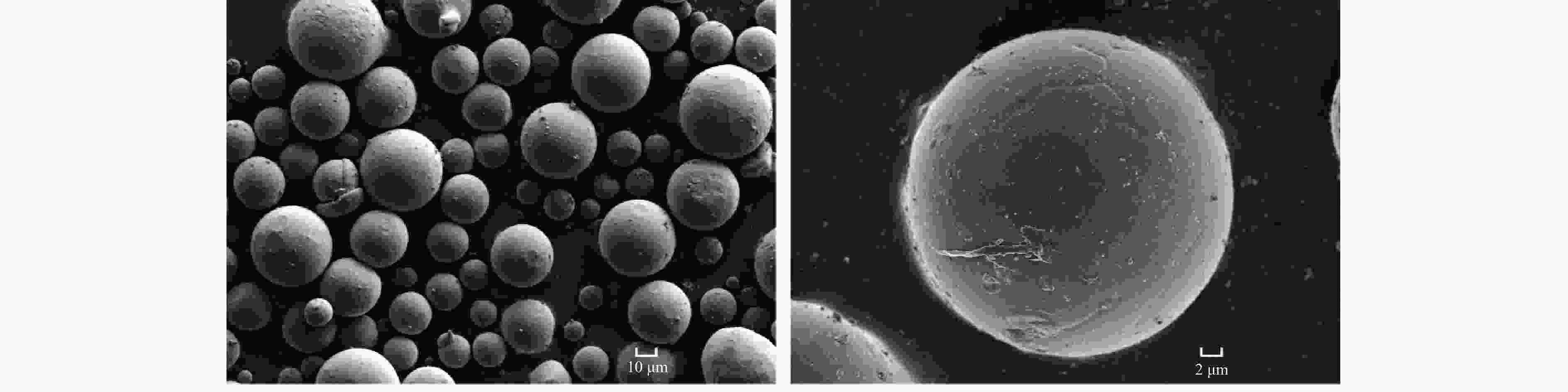

图 3 镁粉扫描电镜图

Figure 3. Scanning electron microscopy of magnesium powder

下载: 全尺寸图片幻灯片

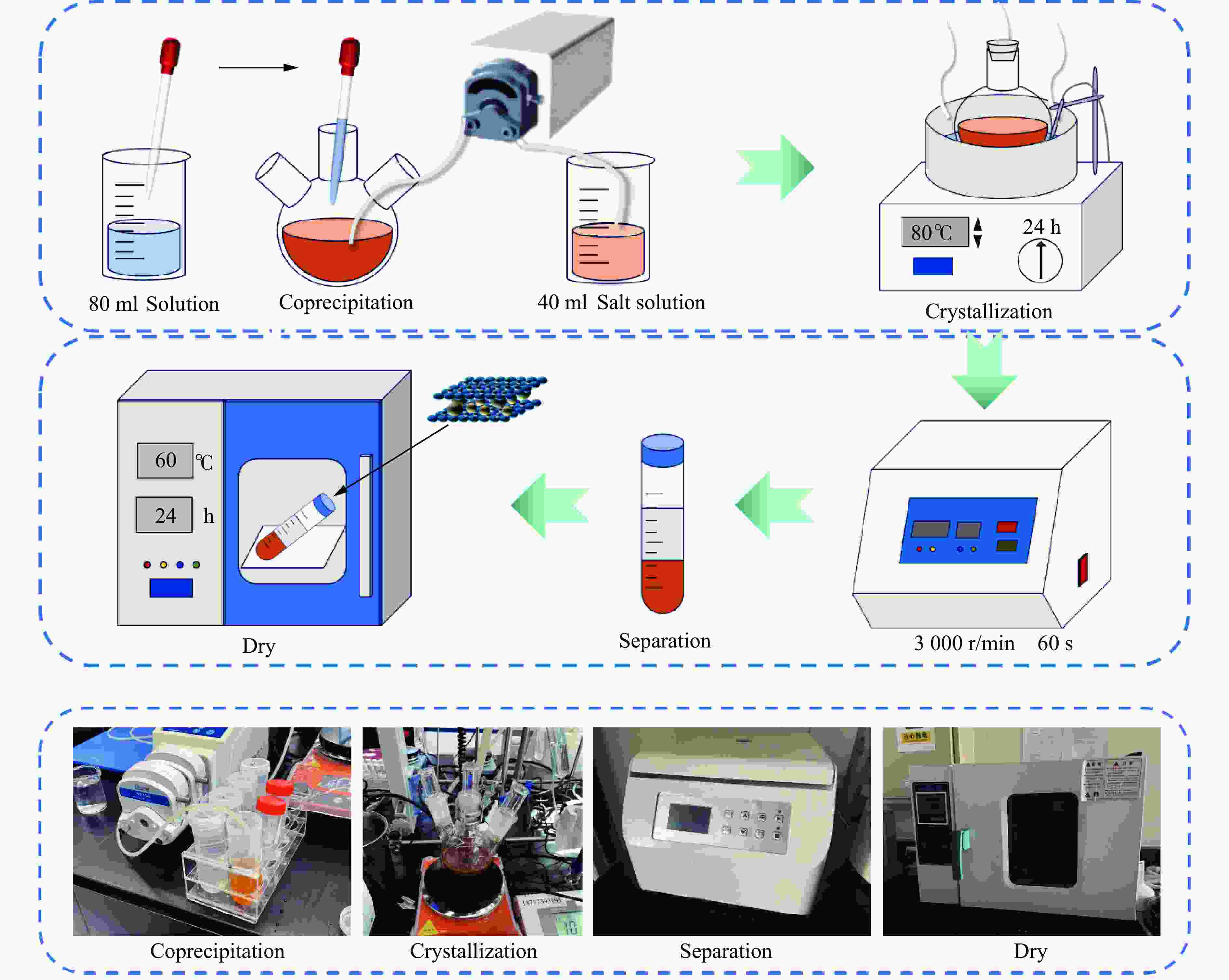

图 4 双金属超分子化合物的制备流程

Figure 4. Preparation process of bimetallic supramolecular compound

下载: 全尺寸图片幻灯片

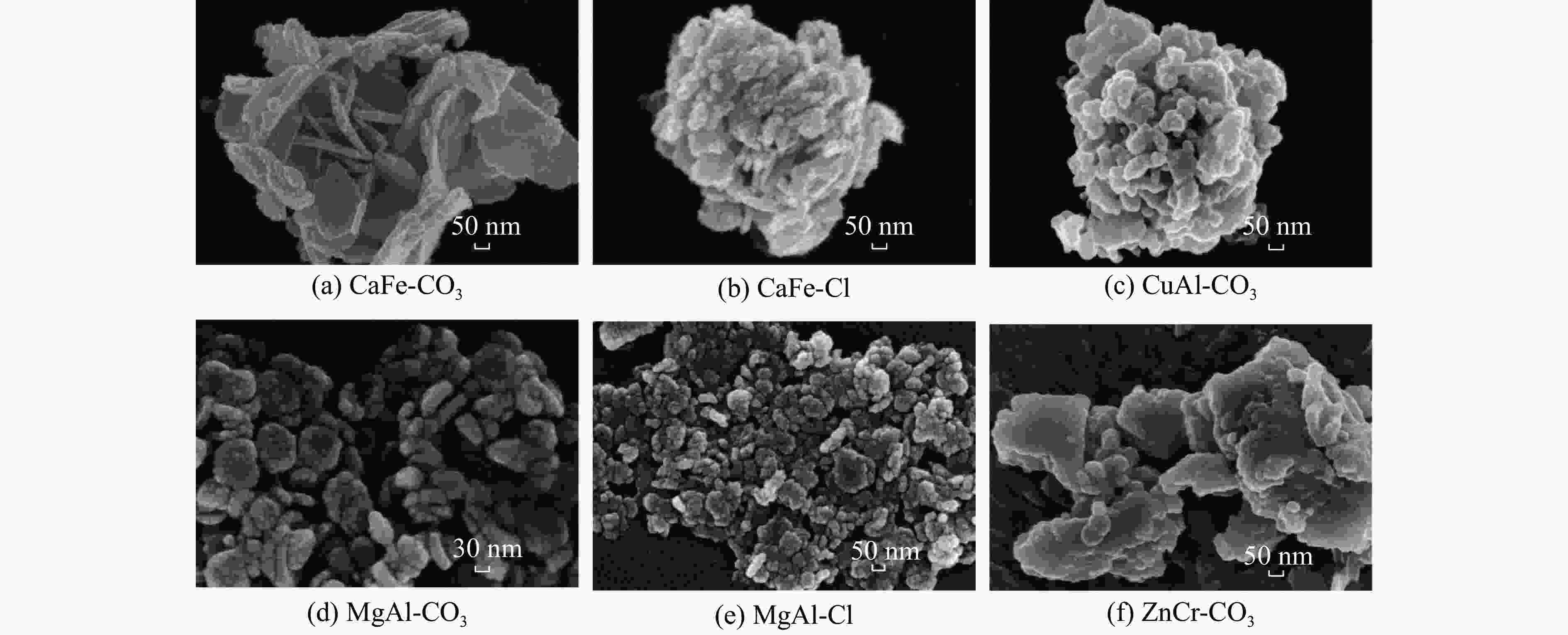

图 5 六种双金属超分子化合物材料的扫描电镜图

Figure 5. Scanning electron microscopy of six types of bimetallic supramolecular compound

下载: 全尺寸图片幻灯片

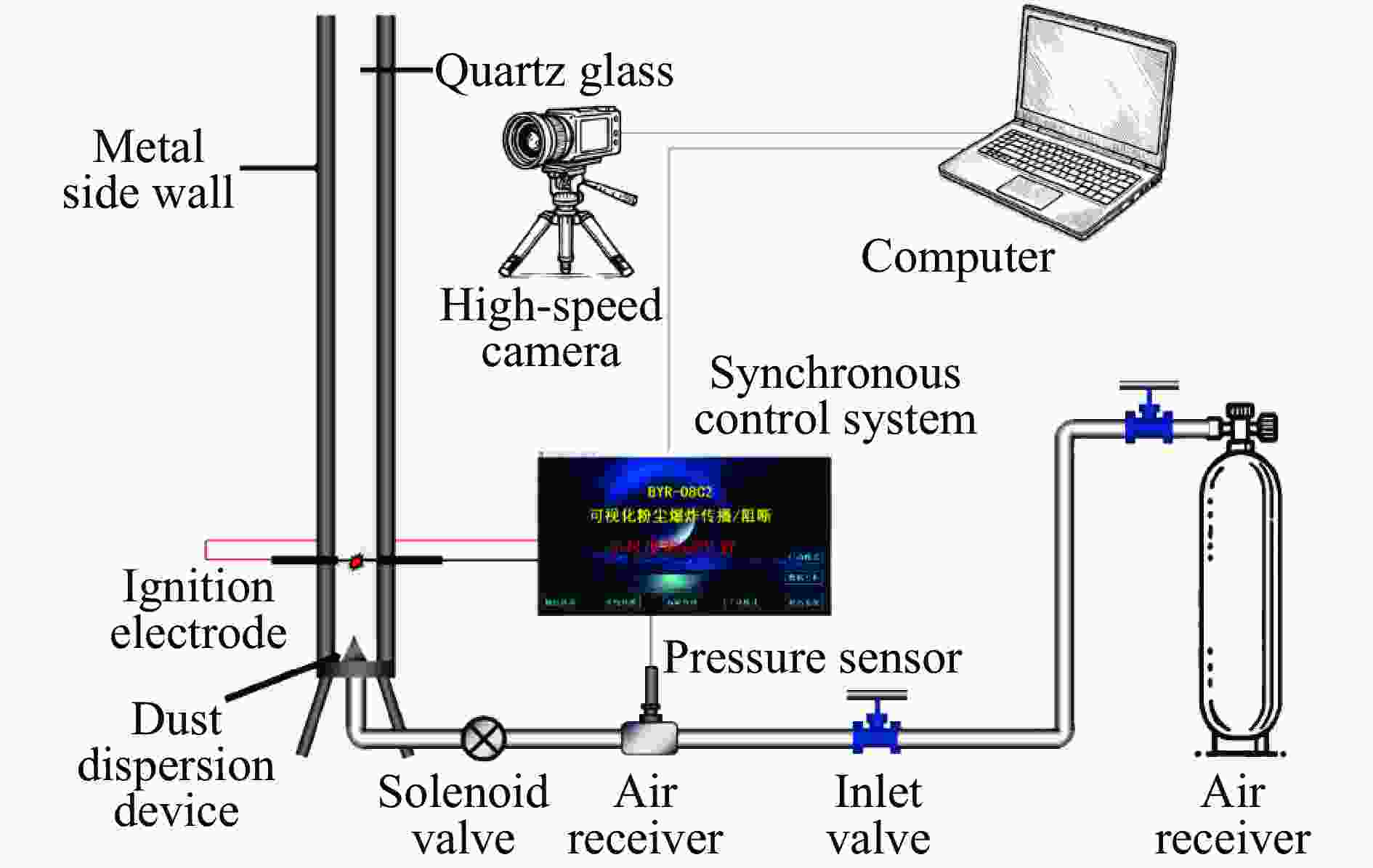

图 6 火焰传播实验系统

Figure 6. Flame propagation test system

下载: 全尺寸图片幻灯片

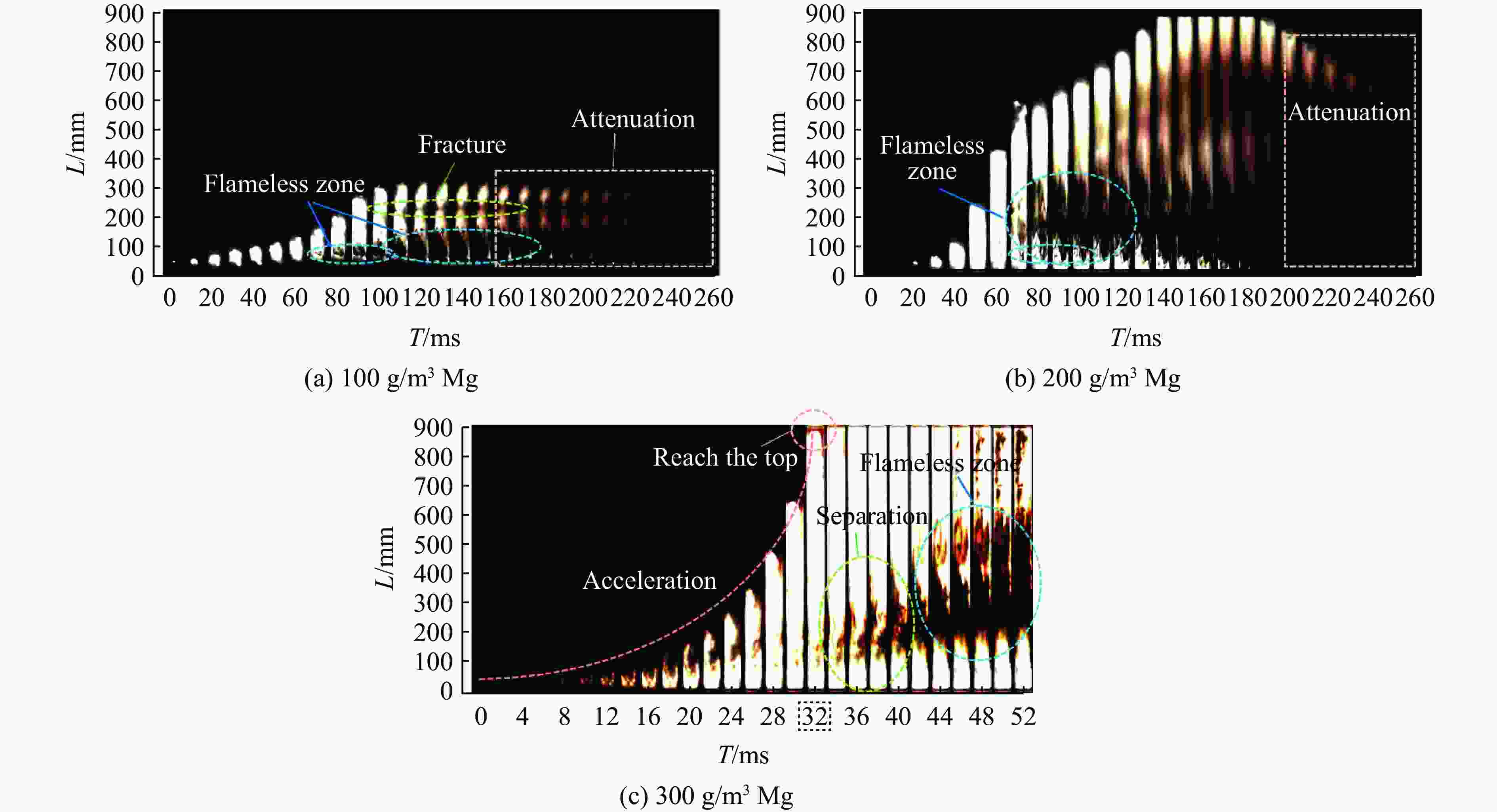

图 7 不同质量浓度镁粉的火焰传播

Figure 7. Flame propagation of magnesium powder with different mass concentrations

下载: 全尺寸图片幻灯片

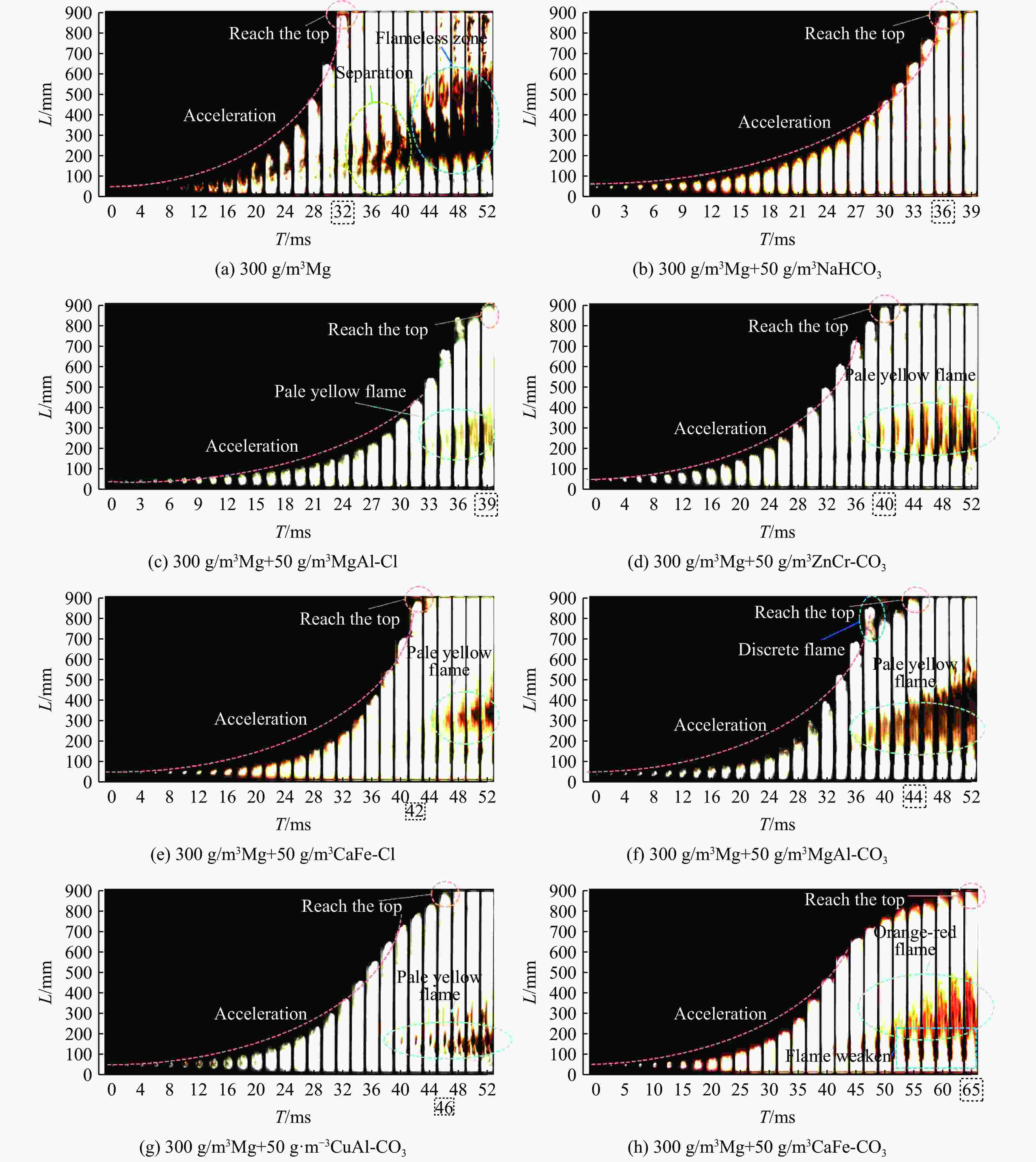

图 8 加入不同抑爆剂后的火焰传播

Figure 8. Flame propagation with different explosion suppressants

下载: 全尺寸图片幻灯片

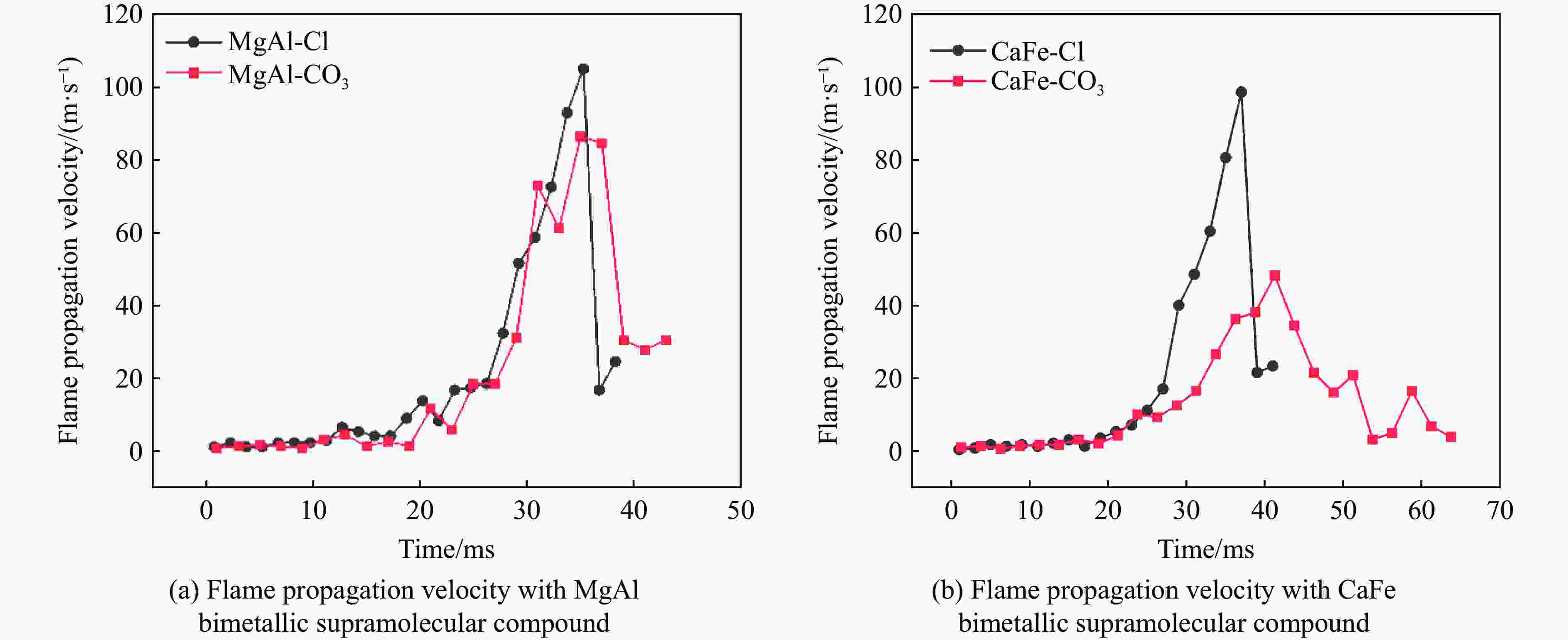

图 9 加入不同双金属超分子化合物的火焰速度

Figure 9. Flame velocity with different types of bimetallic supramolecular compound

下载: 全尺寸图片幻灯片

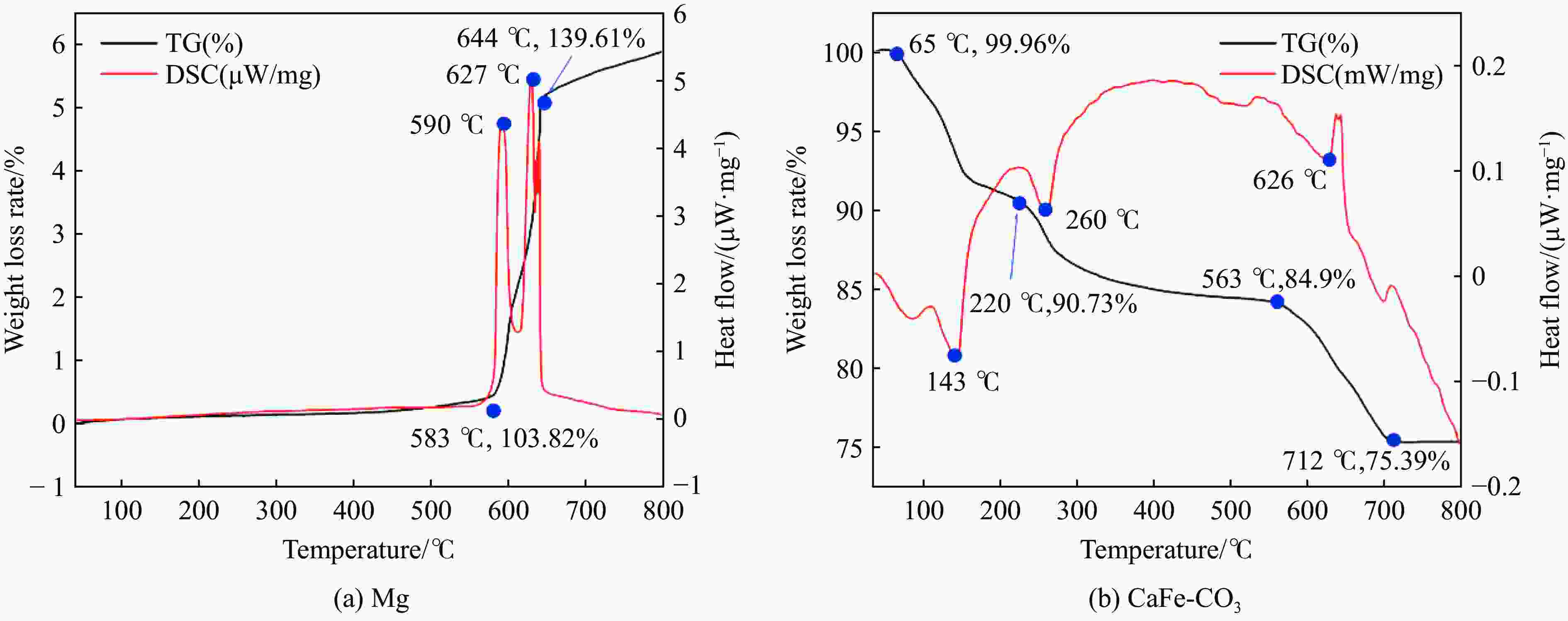

图 10 Mg与CaFe-CO₃的热分解特性曲线

Figure 10. Thermal decomposition characteristic curves of Mg and CaFe-CO₃

下载: 全尺寸图片幻灯片

表 1 加入不同抑爆剂后的火焰平均速度

Table 1. Average flame velocity with different explosion suppressants added

管长/mm	抑爆剂	到达管顶时间/ms	平均速度/(m·s⁻¹)	降幅
900	无	32	28.13	0
	NaHCO₃	36	25.00	11.13%
	MgAl-Cl	39	23.08	17.95%
	ZnCr-CO₃	40	22.50	20.01%
	CaFe-Cl	42	21.43	23.82%
	MgAl-CO₃	44	20.45	27.30%
	CuAl-CO₃	46	19.57	30.43%
	CaFe-CO₃	65	13.85	50.76%

下载: 导出CSV

表 2 加入不同抑爆剂后的火焰最大速度

Table 2. Maximum flame velocity with different explosion suppressants

抑爆剂	平均速度/ (m·s⁻¹)	到达管顶时间/ms	锋面最大速度/(m·s⁻¹)	最大速度时刻/ms
无	28.13	32	126.45	31.00
NaHCO₃	25.00	36	87.00	35.25
MgAl-Cl	23.08	39	105.00	35.25
ZnCr-CO₃	22.50	40	57.60	33.00
CaFe-Cl	21.43	42	98.55	39.00
MgAl-CO₃	20.45	44	86.40	35.00
CuAl-CO₃	19.57	46	49.05	37.00
CaFe-CO₃	13.85	65	48.24	41.25

下载: 导出CSV

参考文献(33)

[1]	李鹏业. 盐湖电解炼镁原料无水氯化镁中碱式氯化镁对镁电解的影响研究 [J]. 轻金属, 2023(10): 45–48. DOI: 10.13662/j.cnki.qjs.2023.10.009. LI P Y. Impact of basic magnesium chloride in anhydrous magnesium chloride from salt lake electrolysis on magnesium electrolysis [J]. Light Metals, 2023(10): 45–48. DOI: 10.13662/j.cnki.qjs.2023.10.009.
[2]	吴国华, 陈玉狮, 丁文江. 镁合金在航空航天领域研究应用现状与展望 [J]. 载人航天, 2016, 22(3): 281–292. DOI: 10.16329/j.cnki.zrht.2016.03.002. WU G H, CHEN Y S, DING W J. Research status and prospects of magnesium alloys in aerospace applications [J]. Manned Spaceflight, 2016, 22(3): 281–292. DOI: 10.16329/j.cnki.zrht.2016.03.002.
[3]	康鸿跃, 陈善华, 等. 镁合金在军事装备中的应用 [J]. 金属世界, 2008(1): 61–64. DOI: CNKI:SUN:JSSJ.0.2008-01-025. KANG H Y, CHEN S H, et al. Application of magnesium alloys in military equipment [J]. Metal World, 2008(1): 61–64. DOI: CNKI:SUN:JSSJ.0.2008-01-025.
[4]	谭军, 王芳磊, 蒋斌, 等. 镁合金结构材料应用现状与展望 [J]. 自然杂志, 2023, 45(2): 93–105. DOI: CNKI:SUN:ZRZZ.0.2023-02-003. TAN J, WANG F L, JIANG B, et al. Application status and prospects of magnesium alloy structural materials [J]. Chinese Journal of Nature, 2023, 45(2): 93–105. DOI: CNKI:SUN:ZRZZ.0.2023-02-003.
[5]	王超. 基于智能化技术的有色金属冶炼安全管理方法 [J]. 产品可靠性报告, 2025(2): 43–45. DOI: CNKI:SUN:JDXZ.0.2025-02-003. WANG C. Safety management methodology for nonferrous metal smelting based on intelligent technology [J]. Product Reliability Report, 2025(2): 43–45. DOI: CNKI:SUN:JDXZ.0.2025-02-003.
[6]	高志光, 何国平. 高校消防安全管理现状及对策研究 [J]. 今日消防, 2024, 9(7): 96–99. DOI: CNKI:SUN:JRXF.0.2024-07-029. GAO Z G, HE G P. Current status and countermeasures for fire safety management in universities [J]. Fire Protection Today, 2024, 9(7): 96–99. DOI: CNKI:SUN:JRXF.0.2024-07-029.
[7]	郭红娟. 粉尘爆炸安全防护研究现状分析与探讨 [J]. 化工管理, 2025(9): 93–97. DOI: 10.19900/j.cnki.ISSN1008-4800.2025.09.024. GUO H J. Analysis and discussion on current research status of dust explosion safety protection [J]. Chemical Enterprise Management, 2025(9): 93–97. DOI: 10.19900/j.cnki.ISSN1008-4800.2025.09.024.
[8]	谢波, 范宝春. 大型管道中主动式粉尘抑爆现象的实验研究 [J]. 煤炭学报, 2006(1): 54–57. DOI: CNKI:SUN:MTXB.0.2006-01-011. XIE B, FAN B C. Experimental study on active dust explosion suppression in large-scale pipelines [J]. Journal of China Coal Society, 2006(1): 54–57. DOI: CNKI:SUN:MTXB.0.2006-01-011.
[9]	NIFUKU M, KOYANAKA S, OHYA H, et al. Ignitability characteristics of aluminium and magnesium dusts that are generated during the shredding of post-consumer wastes [J]. Journal of Loss Prevention in the Process Industries, 2007, 20(4): 322–329. DOI: 10.1016/j.jlp.2007.04.034.
[10]	陈金健, 胡双启, 胡立双, 等. 镁粉尘云最低着火温度及抑制技术的实验研究 [J]. 科学技术与工程, 2015, 15(16): 96–100. CHEN J J, HU S Q, HU L S, et al. Experimental study on minimum ignition temperature and suppression technology of magnesium dust cloud [J]. Science Technology and Engineering, 2015, 15(16): 96–100.
[11]	李亚男. 磷酸二氢铵对金属粉尘的爆炸抑制研究[D]. 山西: 中北大学. 2015; 37–41.
[12]	LI H, ZHENG L, SU Y, et al. Initial temperature effect on NaHCO₃-inhibited hydrogen/methane/air flames [J]. International Journal of Hydrogen Energy, 2025, 105: 156–168. DOI: 10.1016/j.ijhydene.2025.01.250.
[13]	WANG J, CHEN J, ZHU H, et al. Experimental study on methane explosion suppression by CO₂-driven NaHCO₃ powder[J/OL]. Fuel, 2025, 386: 134241. DOI: 10.1016/j.fuel.2024.134241.
[14]	WANG J, LI H, ZHAI F, et al. Inhibition effect and reaction mechanism of NaHCO₃ and NH₄H₂PO₄ on the deflagration of methane/coal dust mixtures [J]. Advanced Powder Technology, 2025, 36(5): 104866. DOI: 10.1016/j.apt.2025.104866.
[15]	凤文桢. 镁粉尘的爆炸特性及抑爆研究[D]. 江苏: 南京理工大学, 2021: 46–56.
[16]	孟祥豹, 王俊峰, 张延松, 等. 惰性粉体对油页岩粉尘爆炸火焰的抑制性能和作用机理研究 [J]. 爆炸与冲击, 2021, 41(10): 166–177. MENG X B, WANG J F, ZHANG Y S, et al. Suppression performance and mechanism of inert powder on oil shale dust explosion flame [J]. Explosion and Shock Waves, 2021, 41(10): 166–177.
[17]	FRACHE A, MONTICELLI O, NOCCHETTI M, et al. Thermal properties of epoxy resin nanocomposites based on hydrotalcites[J/OL]. Polymer Degradation and Stability, 2011, 96(1): 164–169.
[18]	张新可. 改性锌铝水滑石的制备及其协同膨胀阻燃聚烯烃的研究[D]. 黑龙江: 哈尔滨理工大学. 2015: 39–42.
[19]	ZHANG T, WANG C, WANG Y, et al. Effects of modified layered double hydroxides on the thermal degradation and combustion behaviors of intumescent flame retardant polyethylene nanocomposites: 8[Z]//Polymers: vol 14. MDPI, 2022.
[20]	FAN K, XU P, LI Z, et al. Layered double hydroxides: next promising materials for energy storage and conversion [J]. Next Materials, 2023, 1(4): 100040. DOI: 10.1016/j.nxmate.2023.100040.
[21]	朱玉刚. 基于类水滑石的环境友好阻燃剂的研究与应用[D]. 江苏: 苏州科技学院. 2012: 45–50.
[22]	史翎, 李殿卿. Zn-Mg-Al-CO₃LDHs的结构及其抑烟和阻燃性能 [J]. 科学通报, 2005(4): 327–330. SHI L, LI D Q. Structure, Smoke suppression and flame retardancy of Zn-Mg-Al-CO₃ layered double hydroxides [J]. Chinese Science Bulletin, 2005(4): 327–330.
[23]	吴忧, 秦路彦, 王艳华, 等. 水滑石的功能化改性及其应用研究 [J]. 功能材料, 2021, 52(8): 8060–8067. WU Y, QIN L Y, WANG Y H, et al. Functional modification of layered double hydroxides and their applications [J]. Journal of Functional Materials, 2021, 52(8): 8060–8067.
[24]	ZHANG T, WANG C, WANG Y, et al. Effects of modified layered double hydroxides on the thermal degradation and combustion behaviors of intumescent flame retardant polyethylene nanocomposites[Z]//Polymers: vol 14. MDPI, 2022. DOI: 10.3390/polym14081616.
[25]	纪文涛, 郭潇潇, 陈志滔, 等. 镁铝水滑石抑制聚乙烯粉尘爆炸特性与机理 [J]. 爆炸与冲击, 2024, 44(4): 159–170. JI W T, GUO X X, CHEN Z T, et al. Characteristics and Mechanism of MgAl-layered double hydroxides in suppressing polyethylene dust explosions [J]. Explosion and Shock Waves, 2024, 44(4): 159–170.
[26]	LIN S, LIU Z, QIAN J, et al. Inertant effects and mechanism of Al(OH)₃ powder on polyethylene dust explosions based on flame propagation behavior and thermal analysis [J]. Fire Safety Journal, 2021, 124: 103392. DOI: 10.1016/j.firesaf.2021.103392.
[27]	QIU D, CHEN X, HAO L, et al. Partial suppression of acetaminophen dust explosion by synergistic multiphase inhibitors [J]. Process Safety and Environmental Protection, 2023, 172: 262–272. DOI: 10.1016/j.psep.2023.02.021.
[28]	WANG Z, MENG X, YAN K, et al. Inhibition effects of Al(OH)₃ and Mg(OH)₂ on Al-Mg alloy dust explosion [J]. Journal of Loss Prevention in the Process Industries, 2020, 66: 104206. DOI: 10.1016/j.jlp.2020.104206.
[29]	王燕, 何佳, 杨晶晶, 等. 草酸盐和碳酸氢盐抑制聚乙烯粉尘爆炸特性 [J]. 化工学报, 2022, 73(9): 4207–4216. DOI: 10.11949/0438-1157.20220790. WANG Y, HE J, YANG J J, et al. Suppression characteristics of oxalate and bicarbonate on polyethylene dust explosions [J]. CIESC Journal, 2022, 73(9): 4207–4216. DOI: 10.11949/0438-1157.20220790.
[30]	刘中麟. 新型水基添加剂灭火有效性研究[D]. 郑州: 郑州大学, 2015: 25–29.
[31]	TIANWEI Z, HAO L, HAN Z, et al. Experimental study on the synergistic effect of fire extinguishing by water and potassium salts [J]. Journal of Thermal Analysis and Calorimetry, 2019, 138(1): 857–867. DOI: 10.1007/s10973-019-08234-4.
[32]	裴蓓, 胡紫维, 韩谕良, 等. 含改性氯化合物对N₂/细水雾抑制LPG爆炸影响研究 [J]. 爆炸与冲击, 2024, 44(11): 171–182. DOI: 10.11883/bzycj-2023-0340. PEI B, HU Z W, HAN Y L, et al. Influence of modified chlorine compounds on LPG explosion suppression by N₂/Fine water mist [J]. Explosion and Shock Waves, 2024, 44(11): 171–182. DOI: 10.11883/bzycj-2023-0340.
[33]	王志峰. 碳酸盐及其改性粉体抑制烟酸粉尘爆炸实验研究[D]. 山东: 山东科技大学, 2023: 45–52.
