摘要:

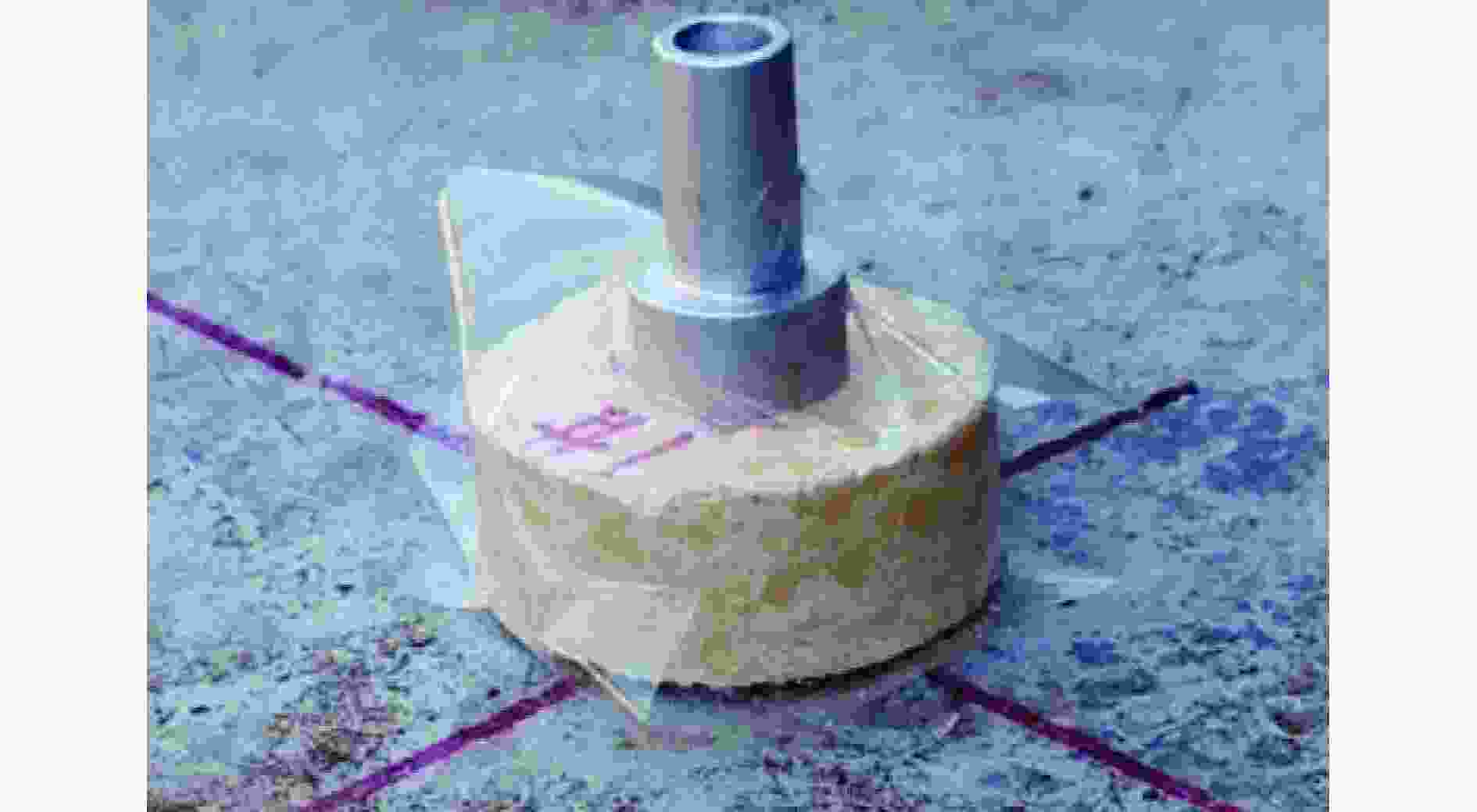

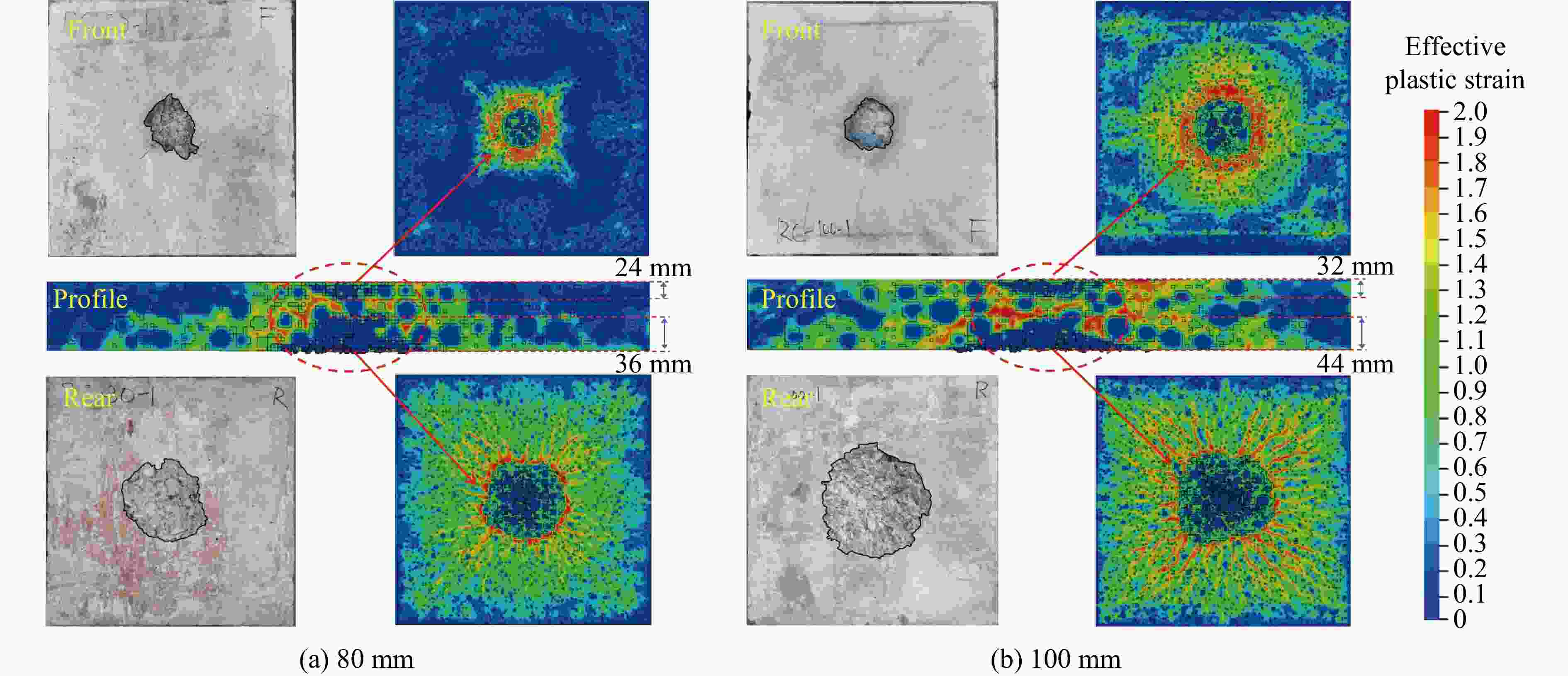

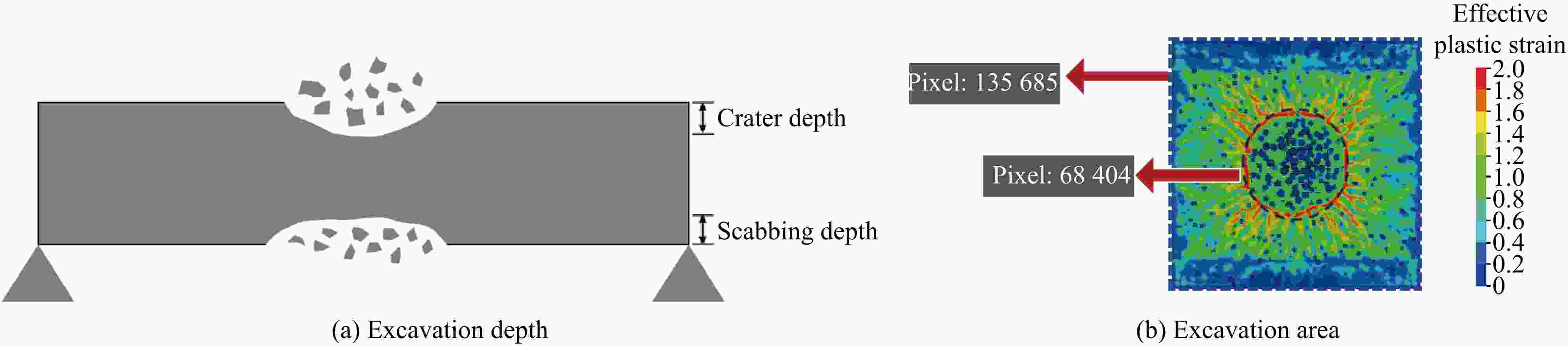

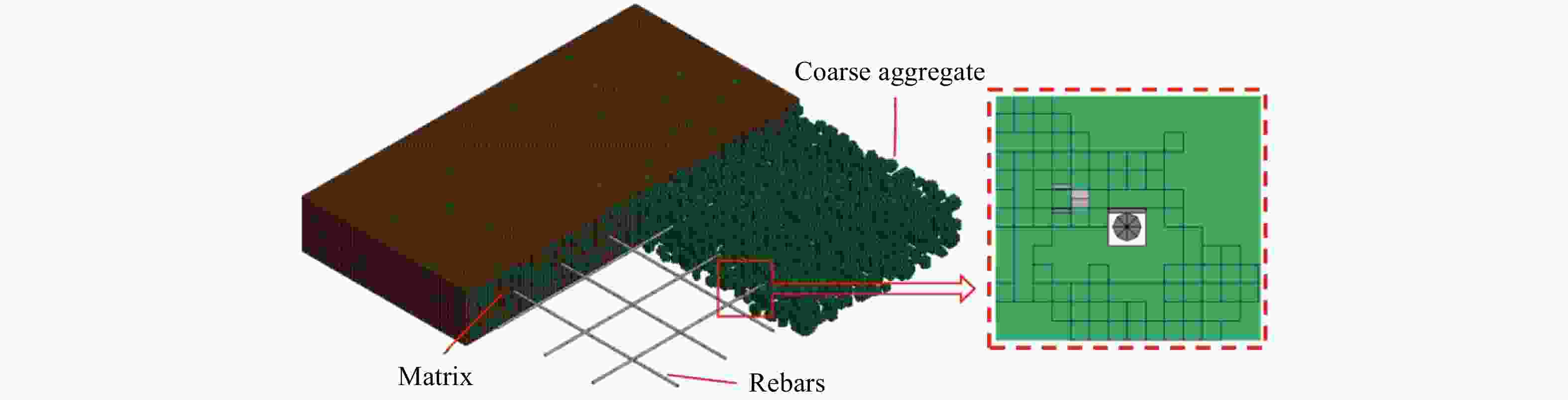

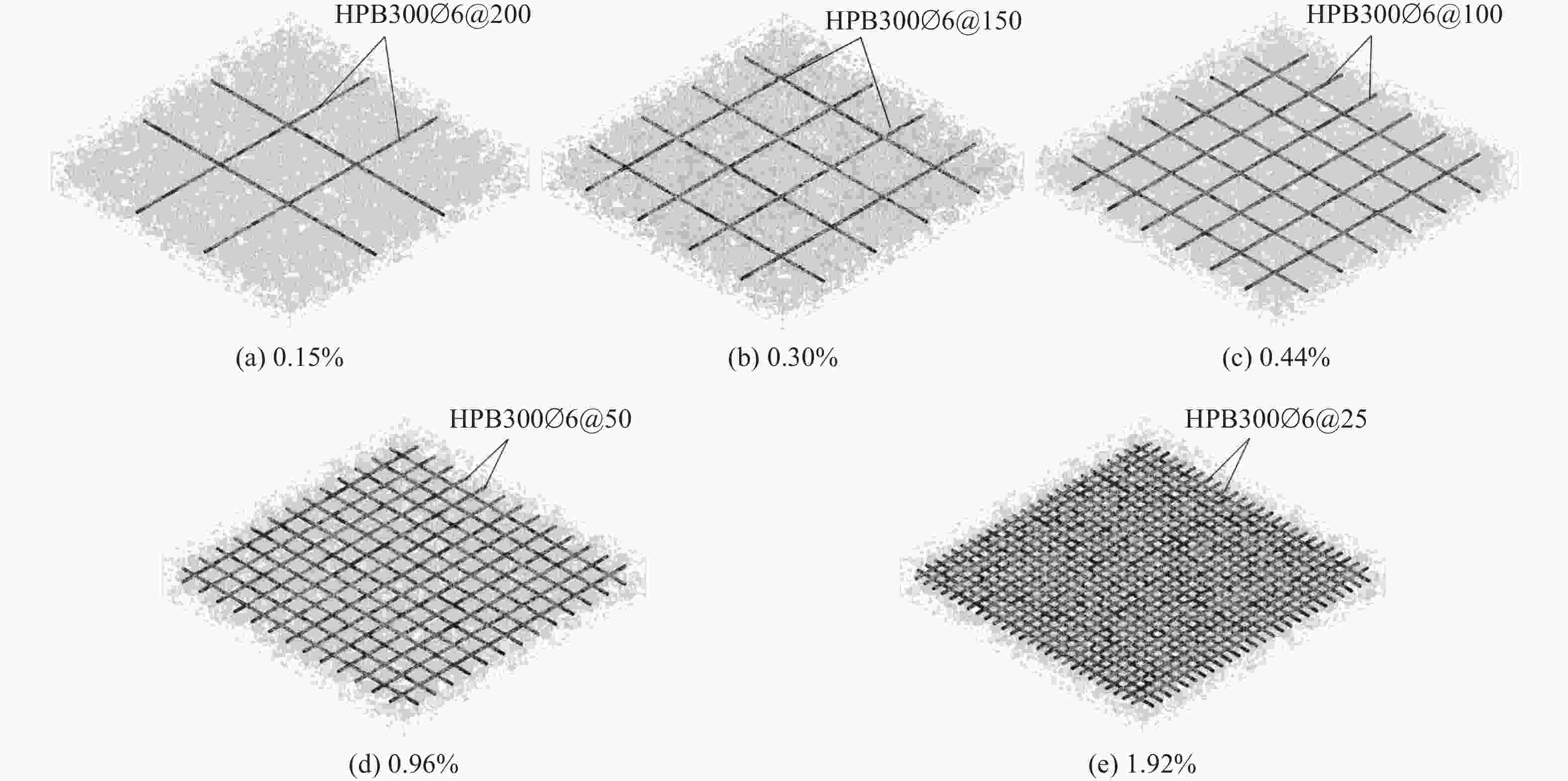

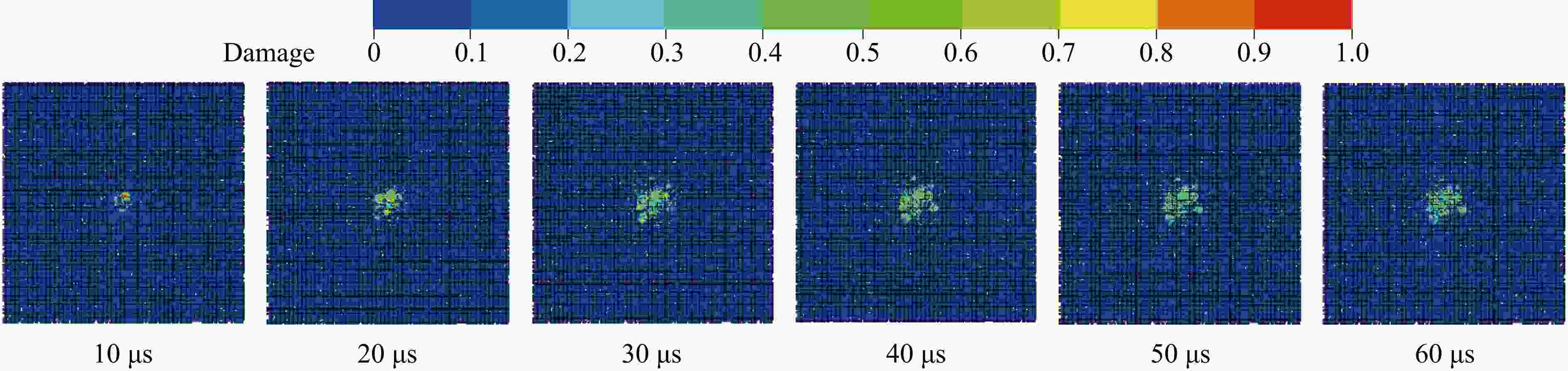

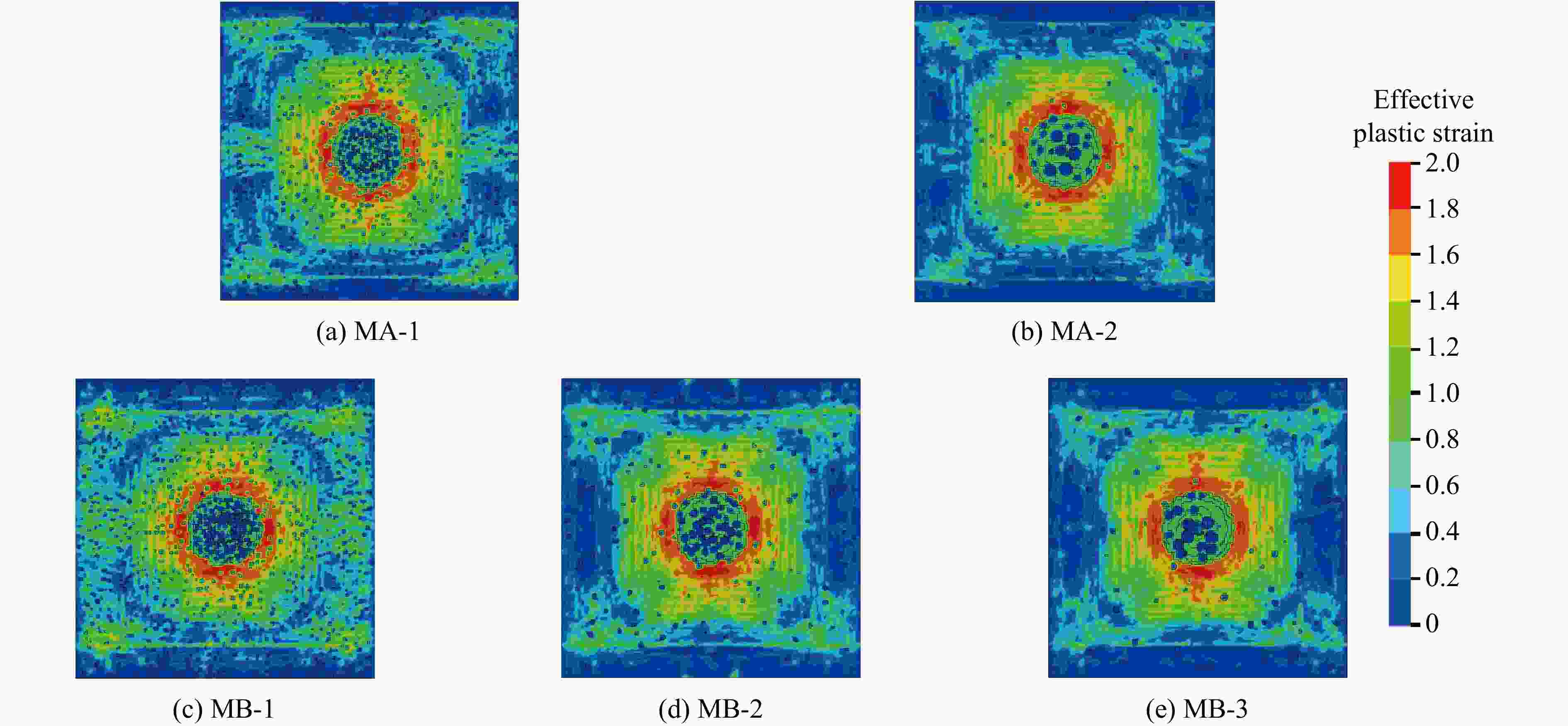

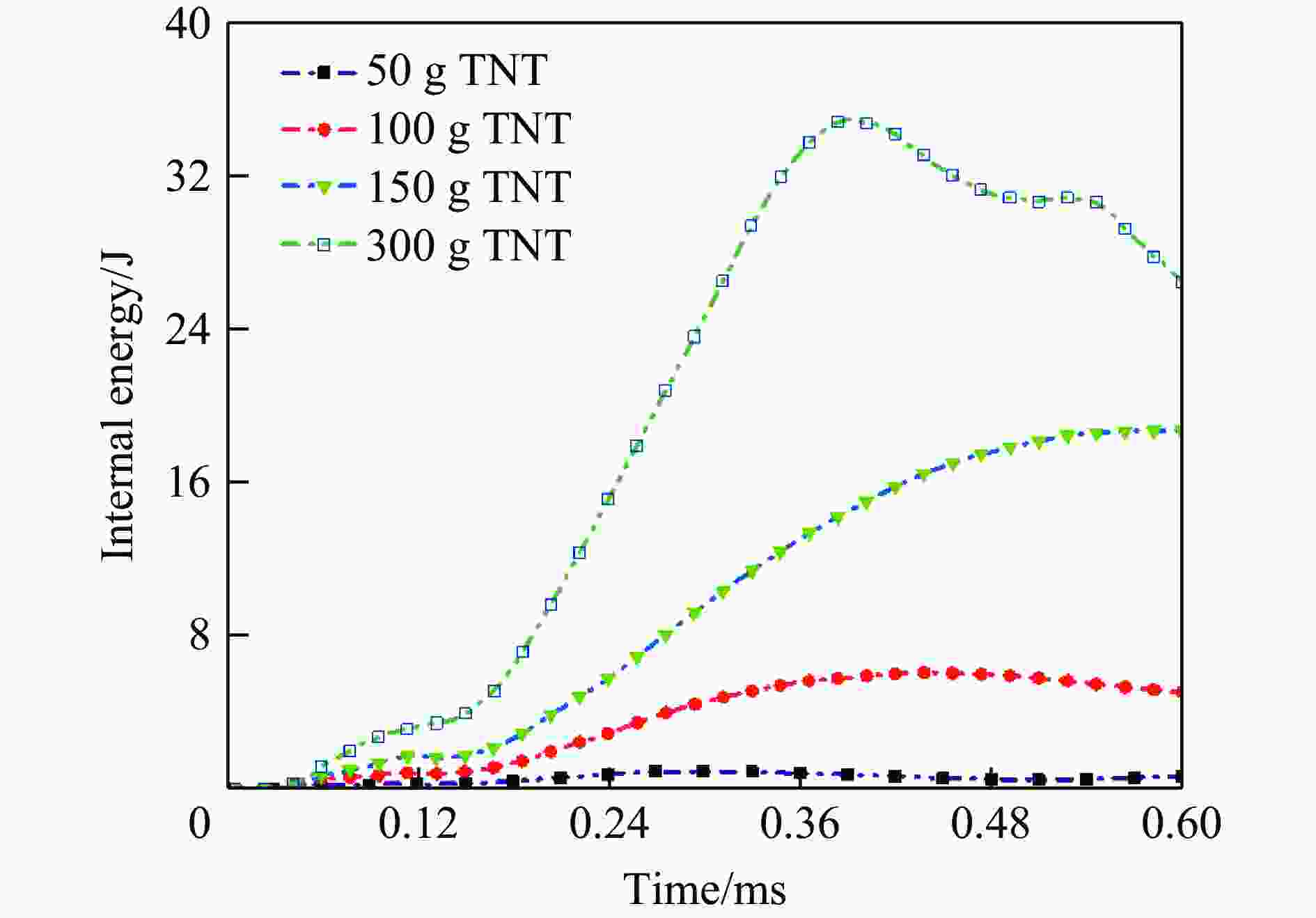

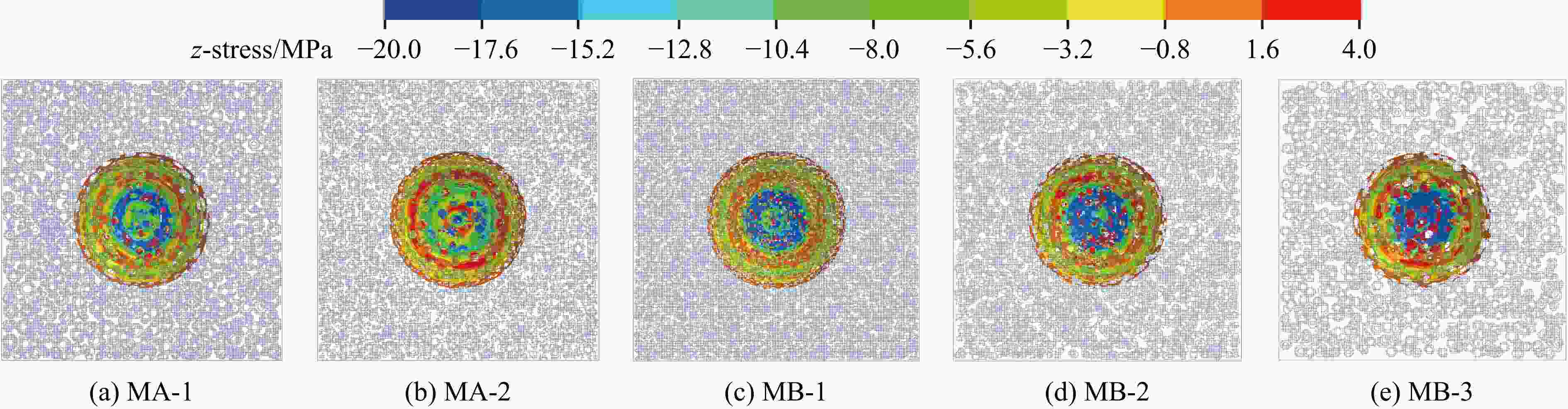

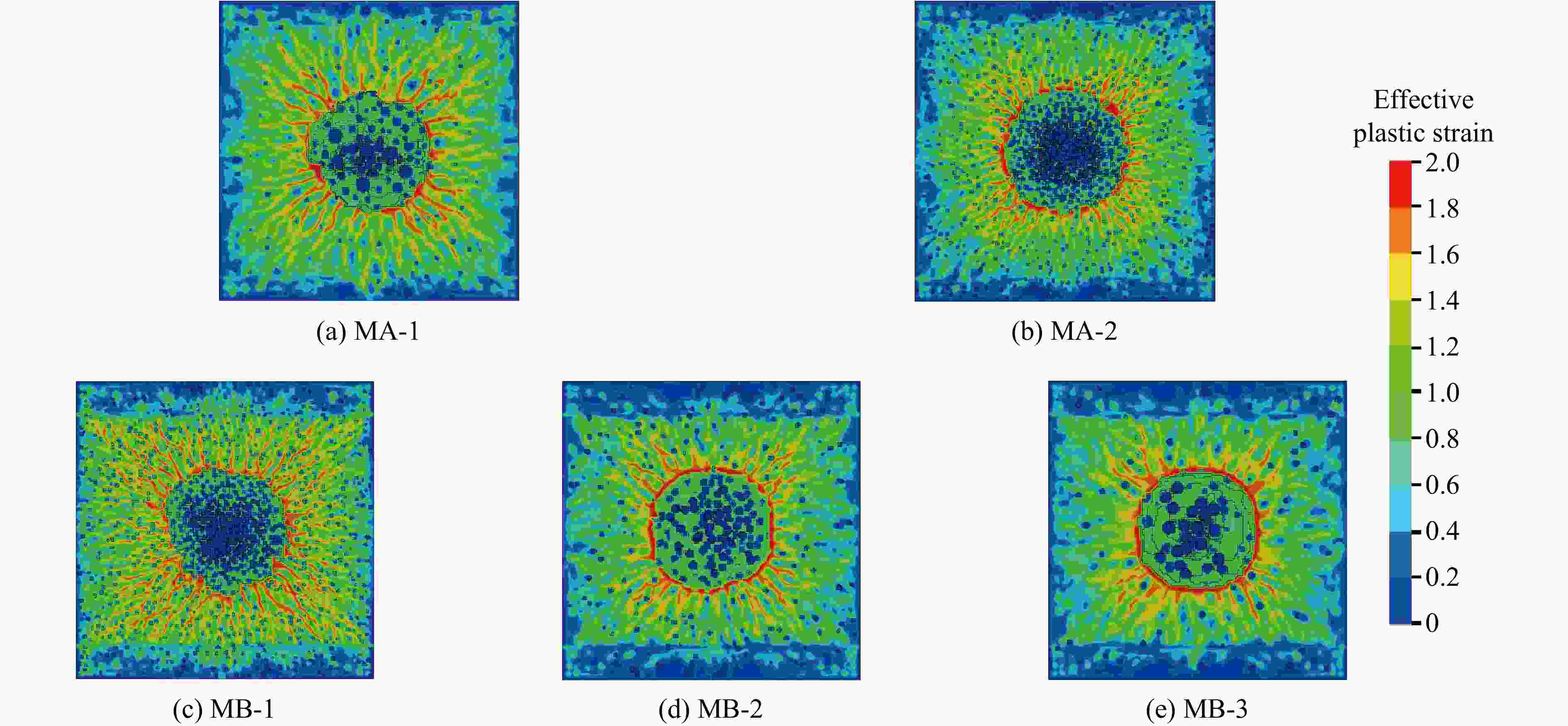

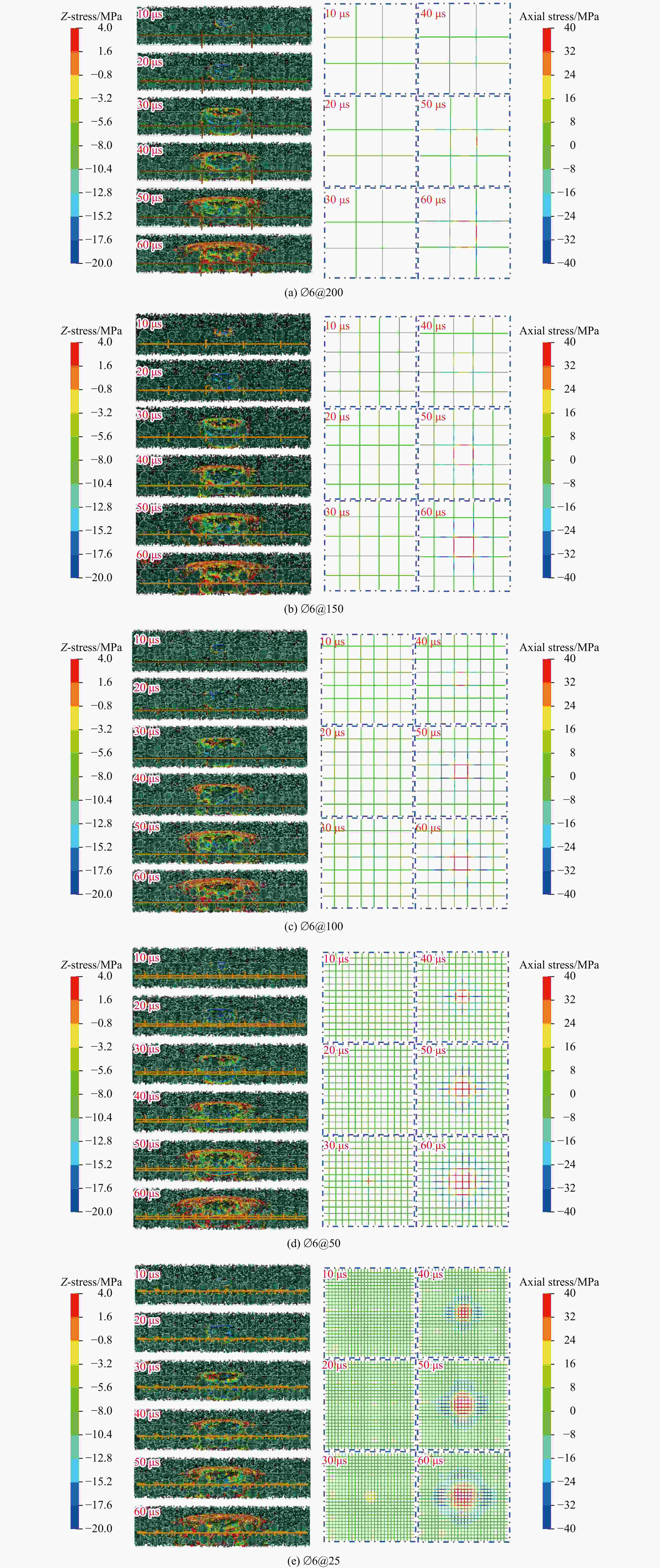

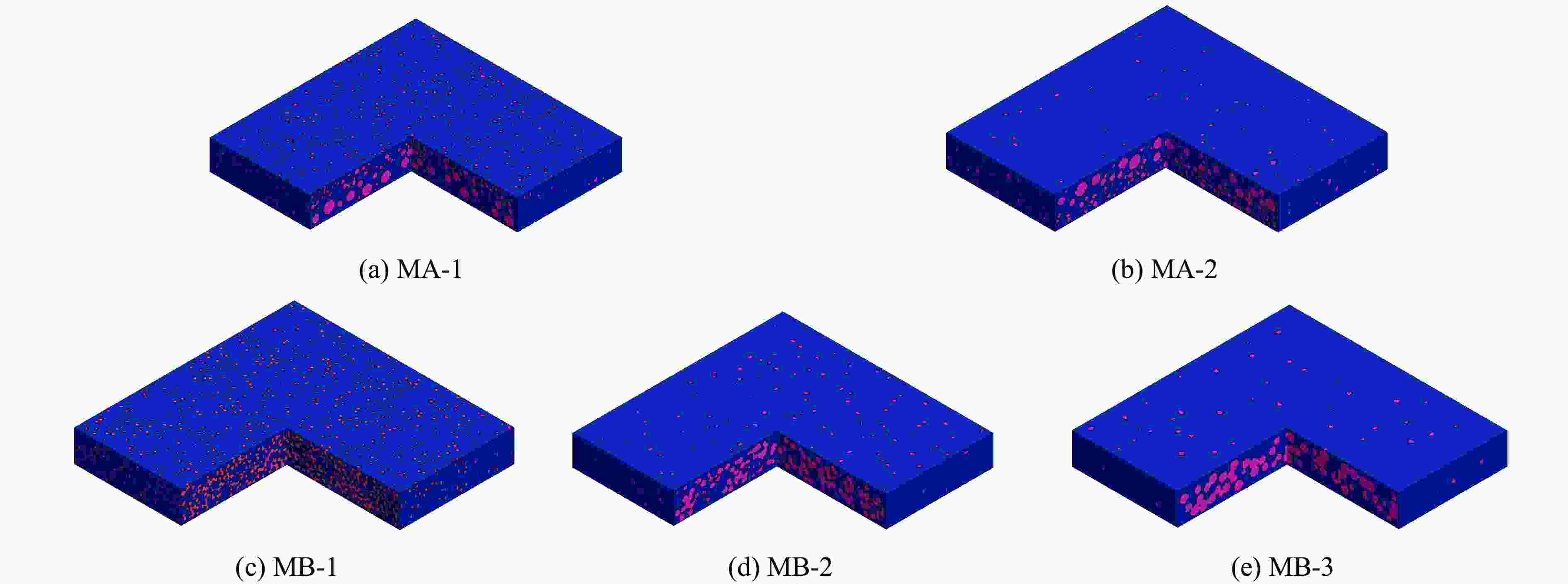

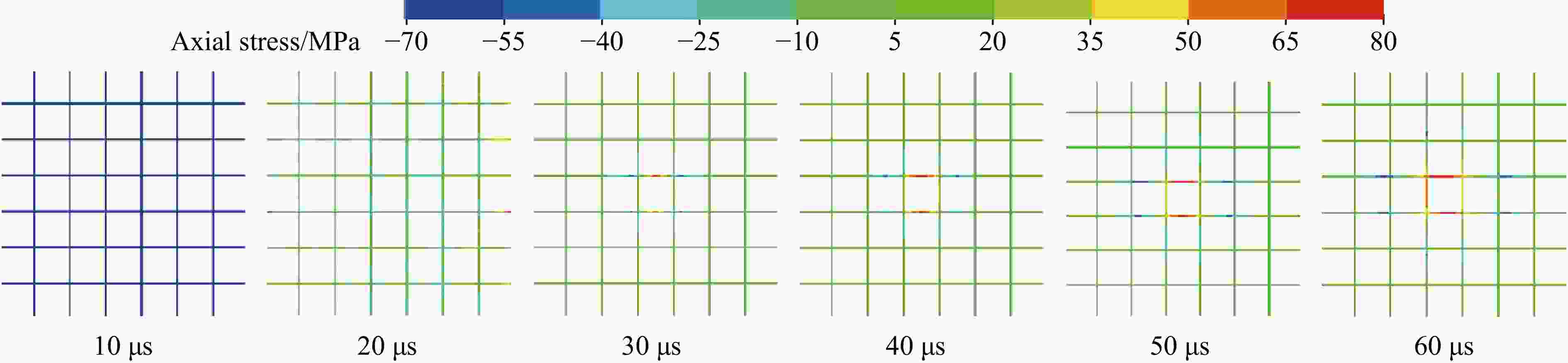

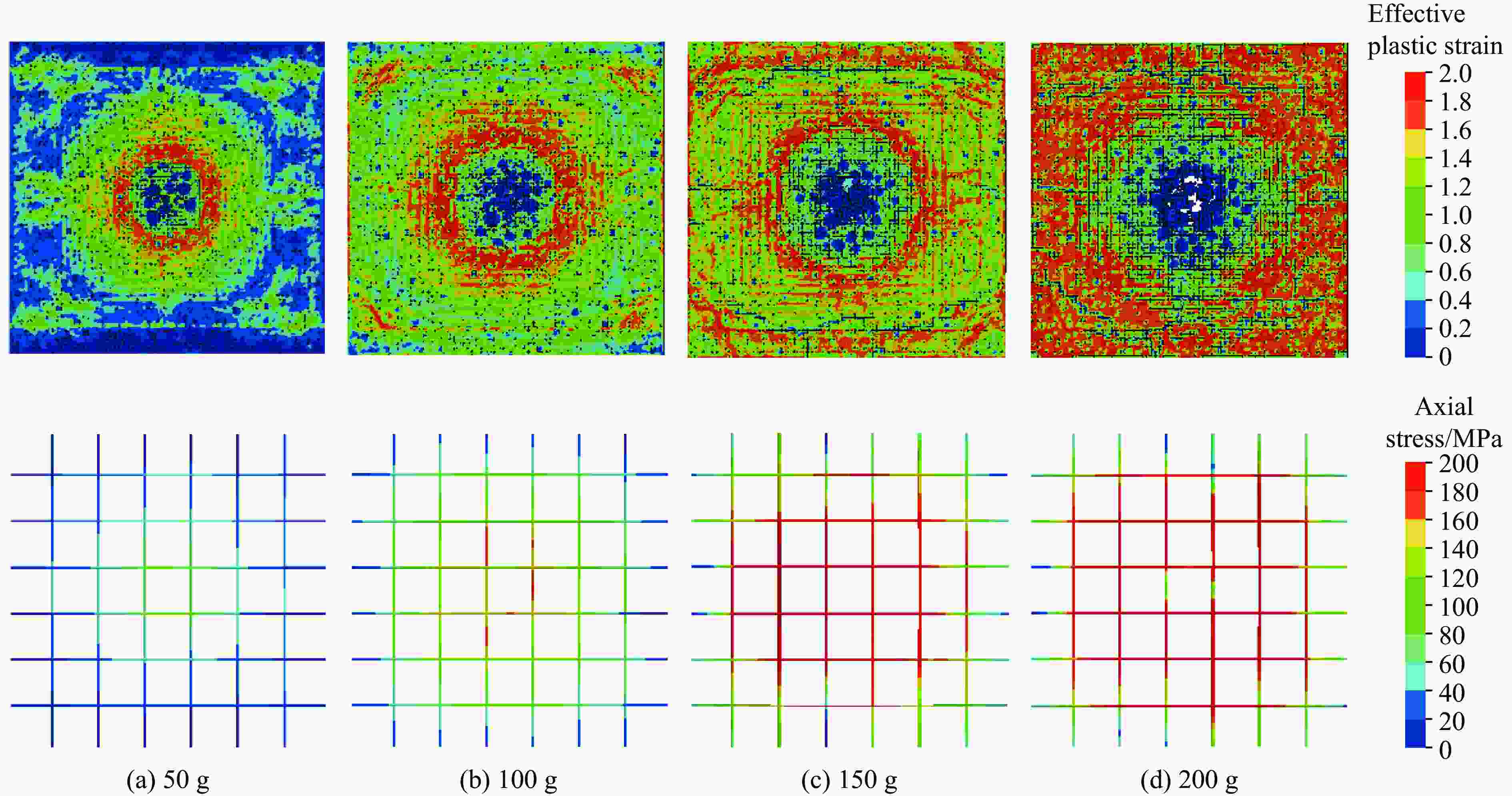

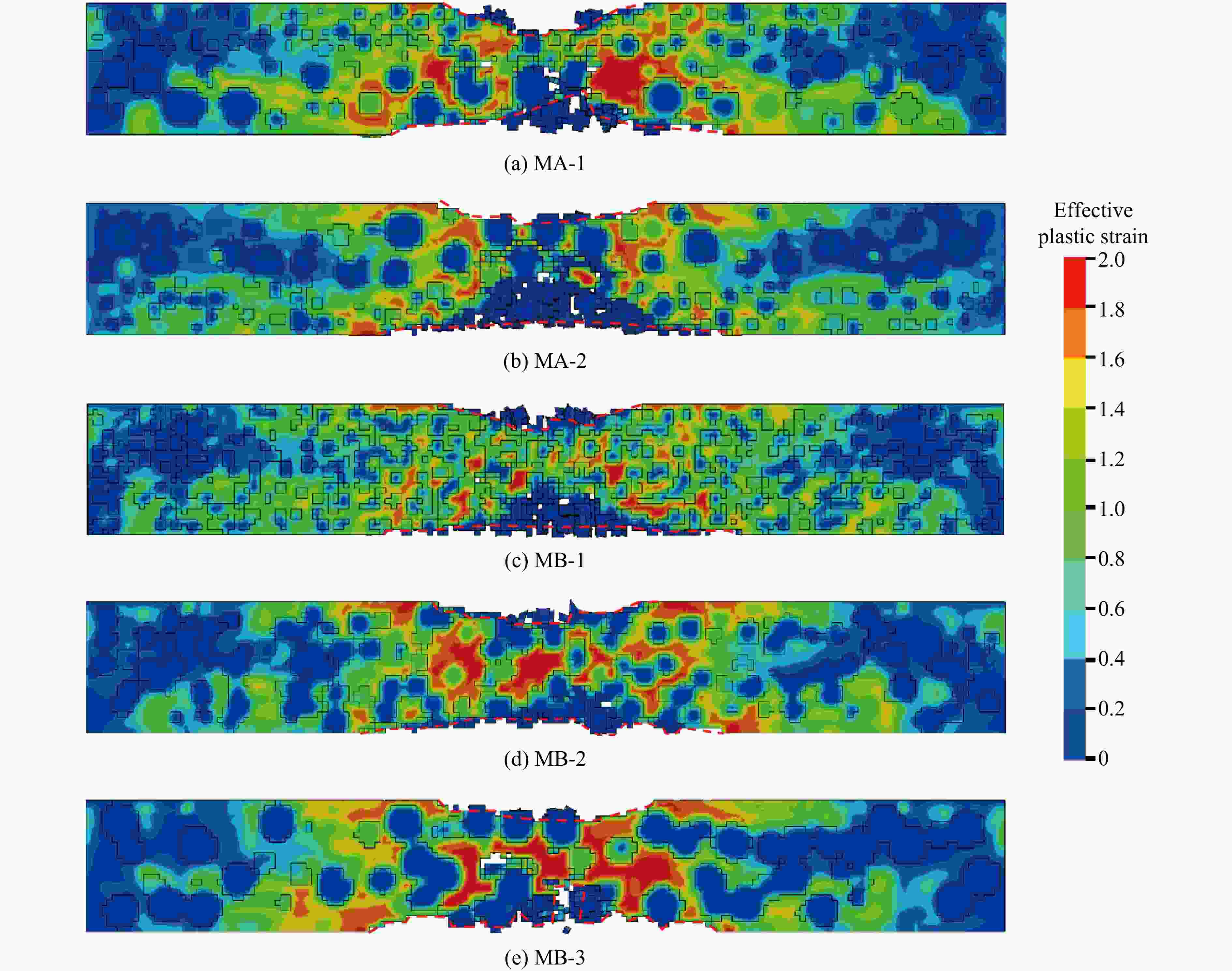

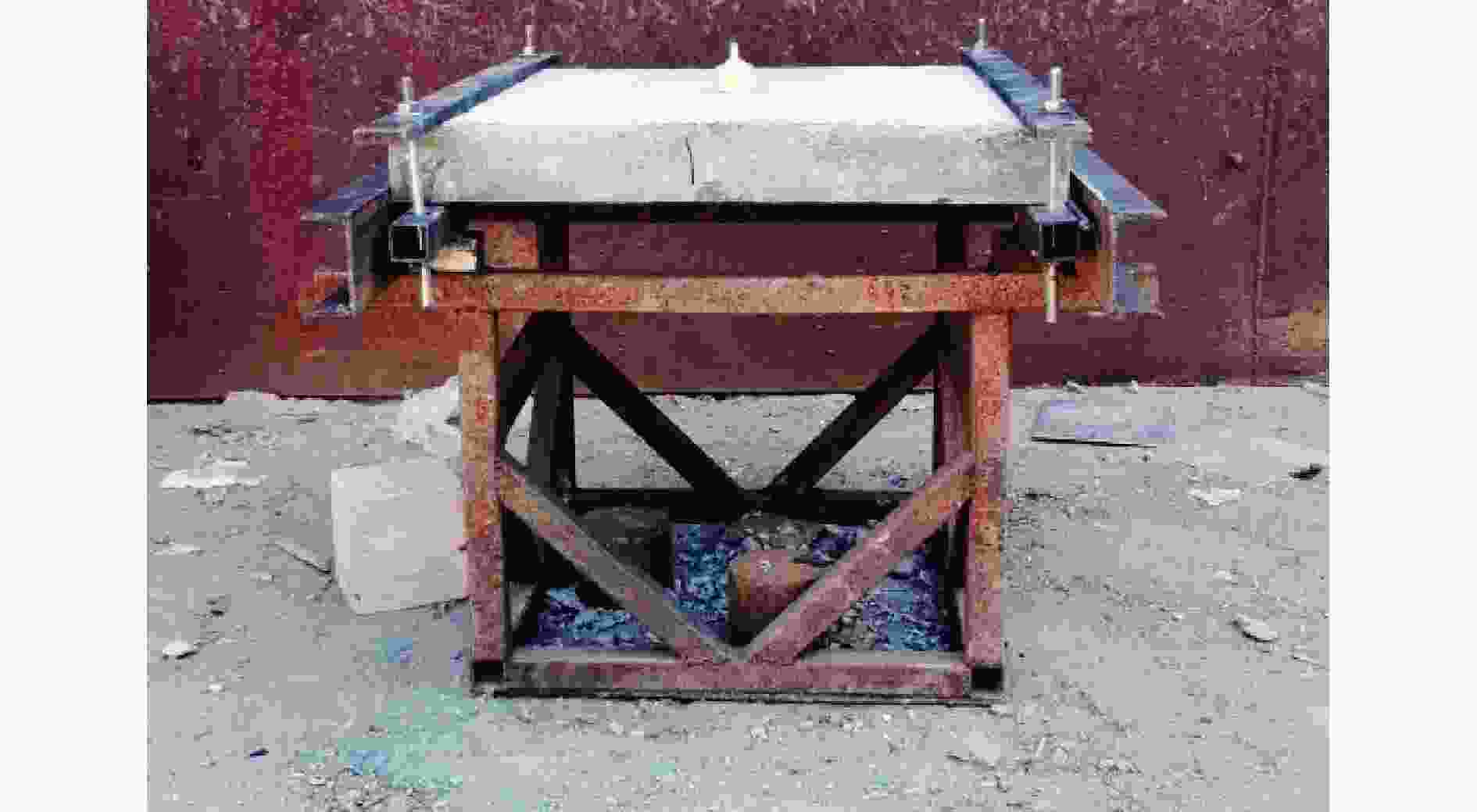

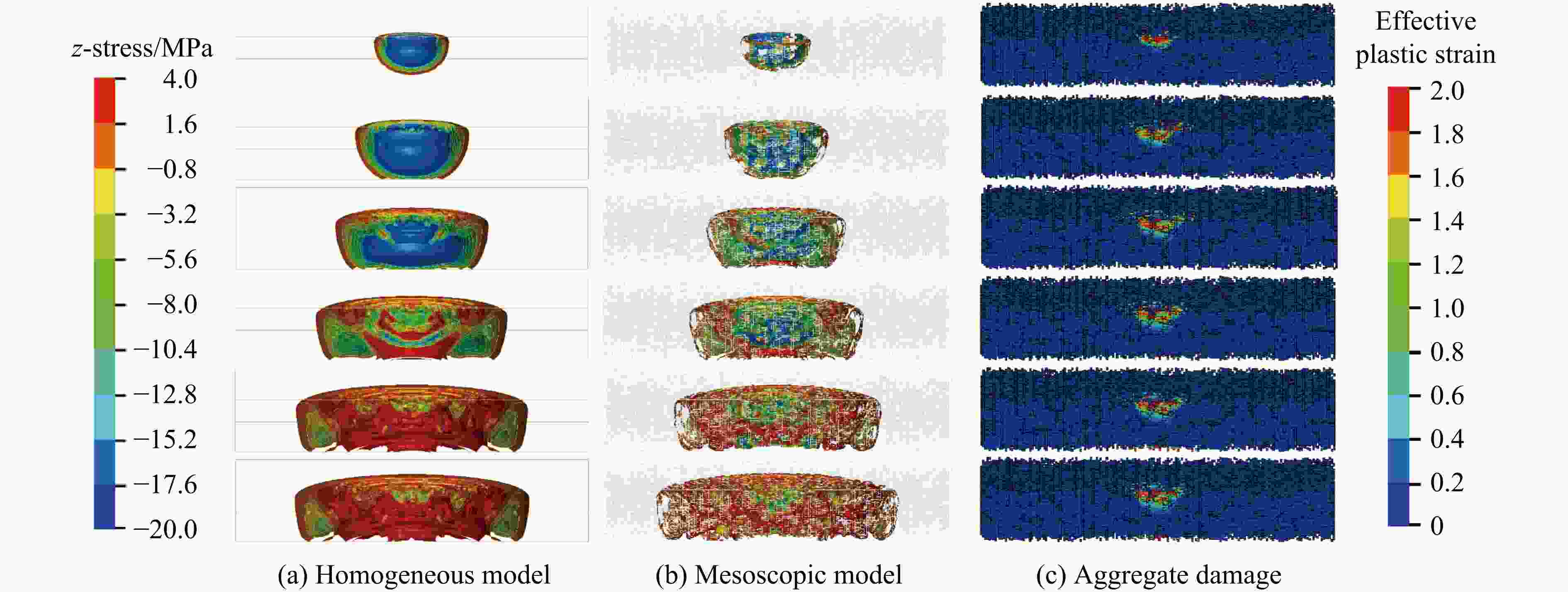

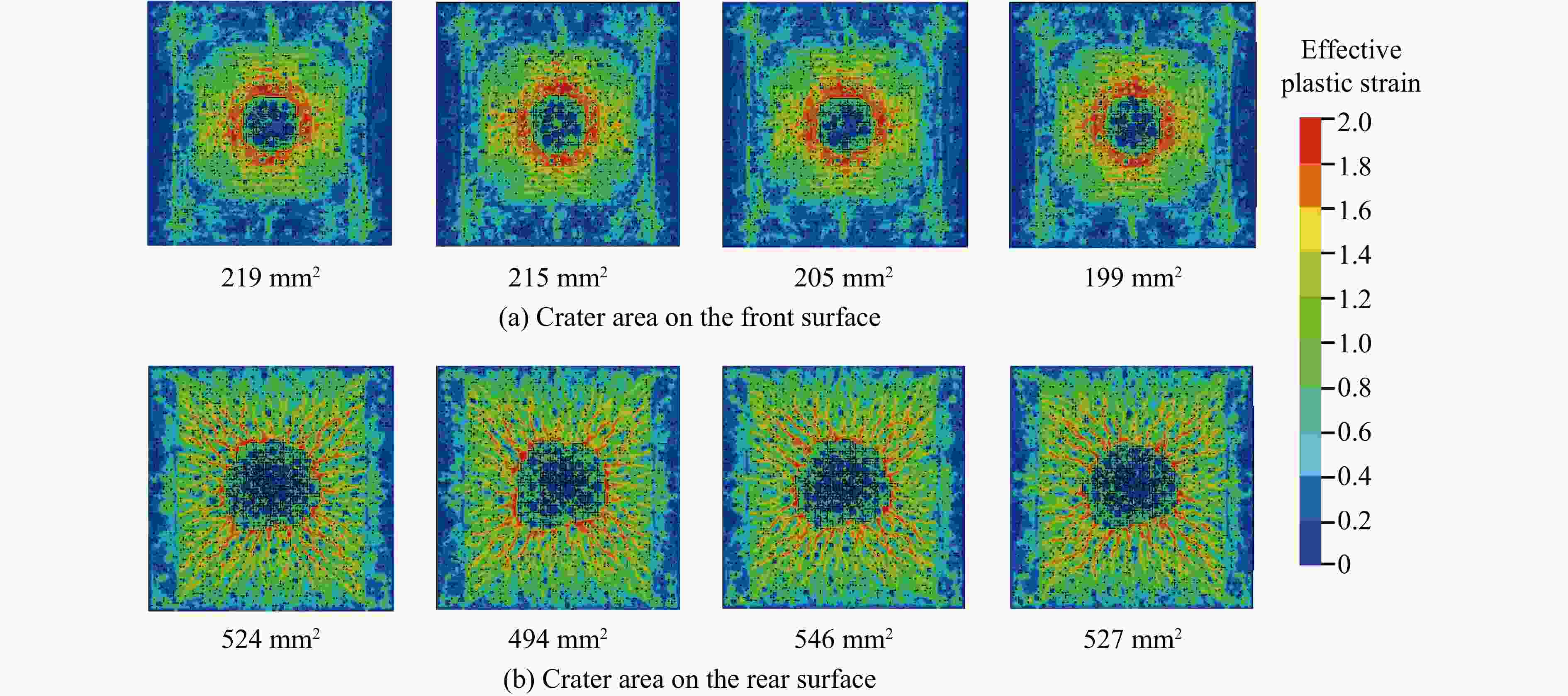

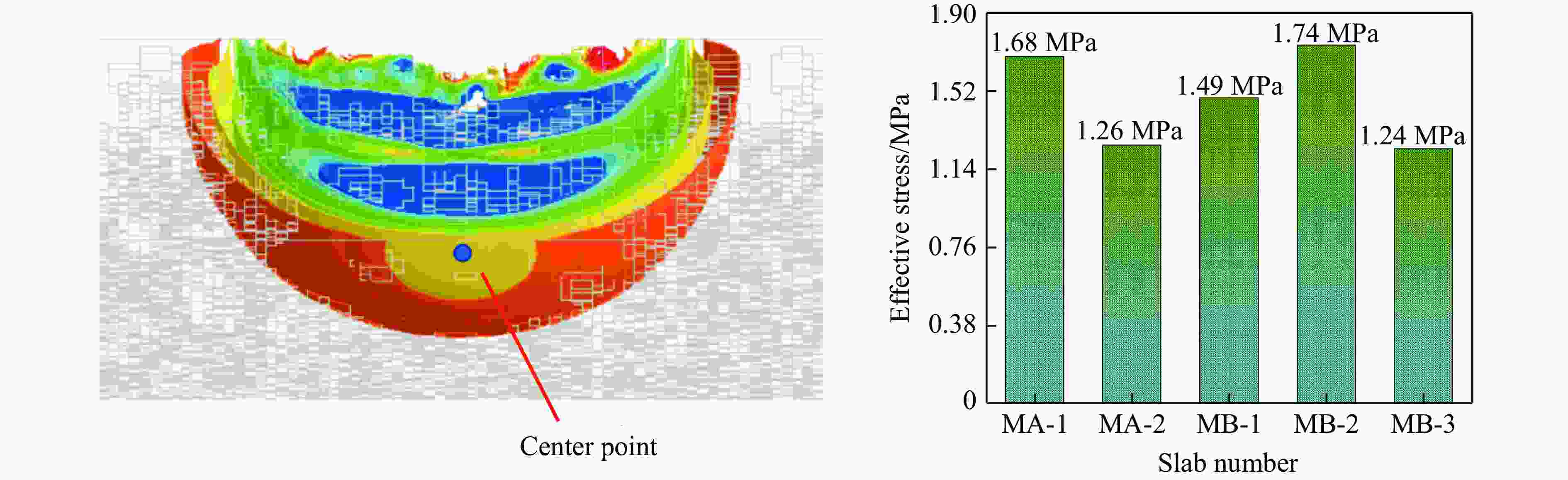

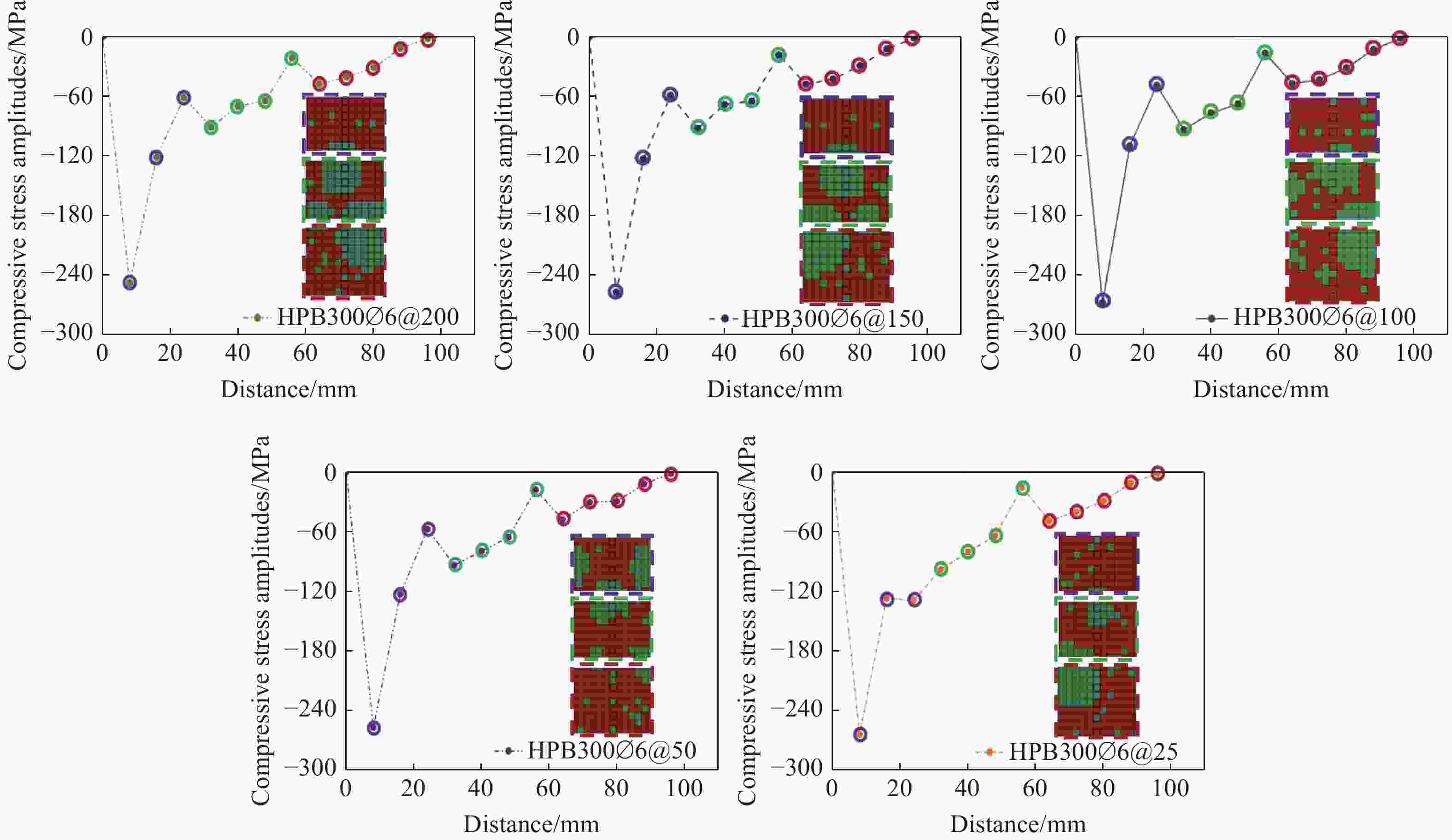

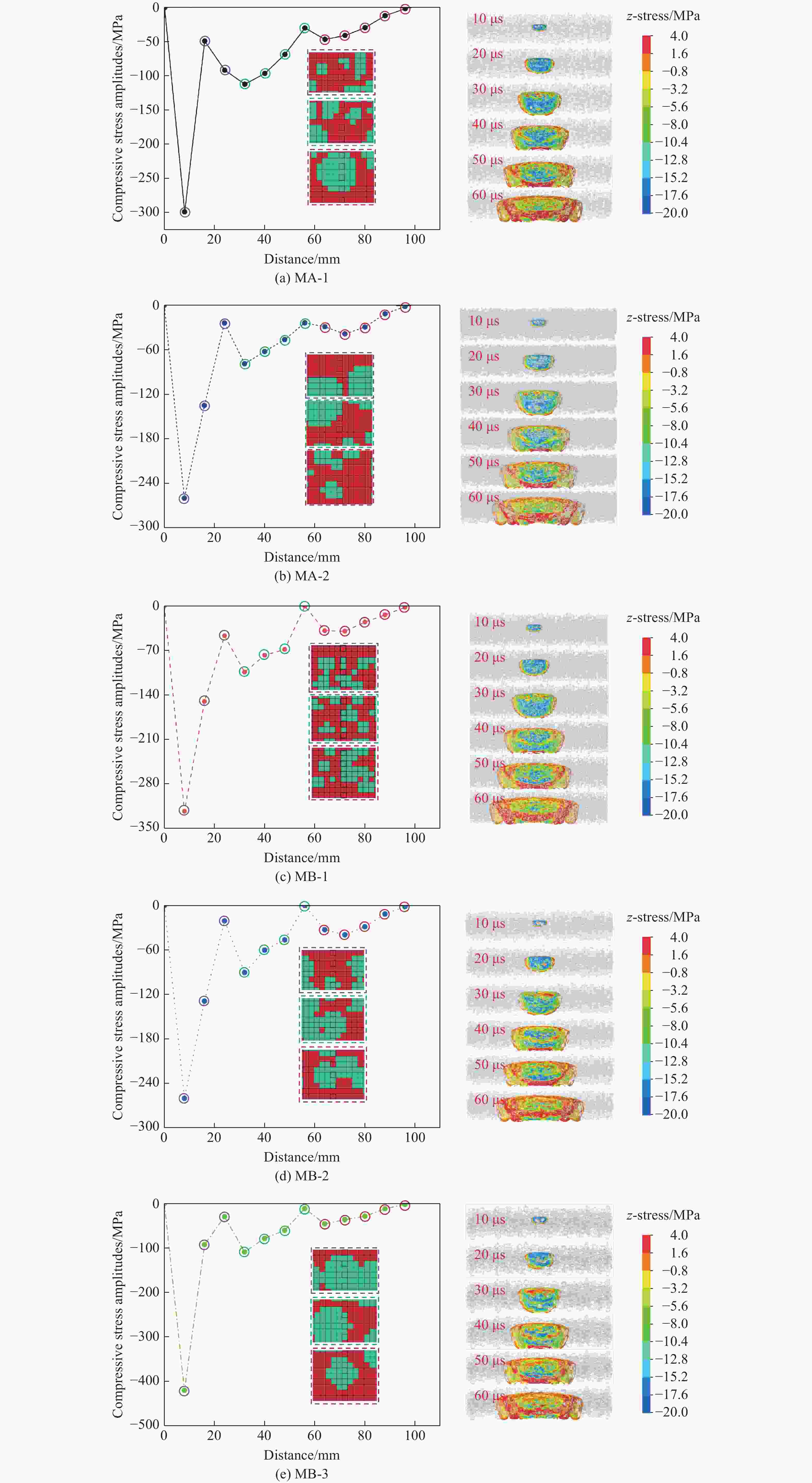

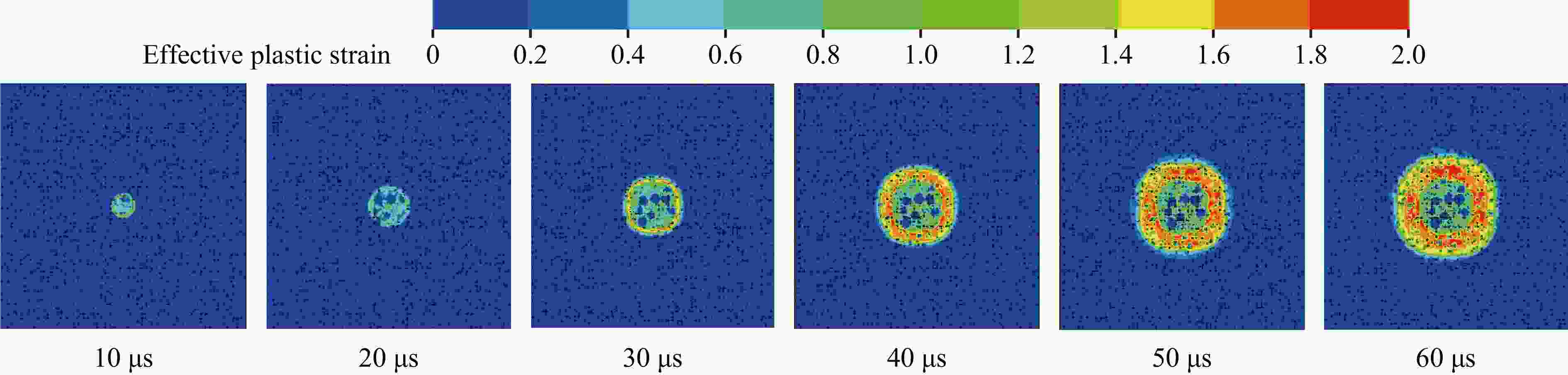

传统均质化模型难以准确描述混凝土中骨料分布、骨料粒径与钢筋配置对应力波传播路径及能量耗散机制的细观影响,限制了对钢筋混凝土靶板抗爆破坏机理的深入理解。针对这一问题,基于MATLAB与LS-DYNA联合建立了包含钢筋、骨料和基体的钢筋混凝土靶板三维细观有限元模型,并通过接触爆炸试验对模型进行了对比验证,结果表明该模型可以较为准确地预测钢筋混凝土板在接触爆炸荷载作用下的破坏模式和开坑尺寸。在此基础上,通过细观数值模拟参数分析,研究了骨料(分布模式、粒径)与钢筋布置对钢筋混凝土抗爆性能及应力波传播的影响。对于骨料参数,骨料的粒径分布特征与粒径大小确定了应力波的演化规律及能量耗散特征,进而影响混凝土迎爆面开坑与背爆面层裂坑的几何尺寸。当骨料粒径沿迎爆面至背爆面方向呈递减分布时,可有效抑制迎爆面开坑扩展及背爆面层裂发展,呈递增分布则会加剧表面开坑与内部层裂损伤。粒径方面,小粒径骨料靶板背爆面层裂坑呈现浅而广特征,大粒径骨料靶板则表现为深而小形态。相较于骨料,钢筋对靶板整体破坏模式及应力波传播的影响弱,低配筋率下钢筋几乎不影响压应力峰值的动态传递过程,而在高爆炸荷载下钢筋抑制了靶板的碎裂进程并缓解了弯曲破坏,提升了靶板的结构完整性与抗毁伤能力。
Abstract:

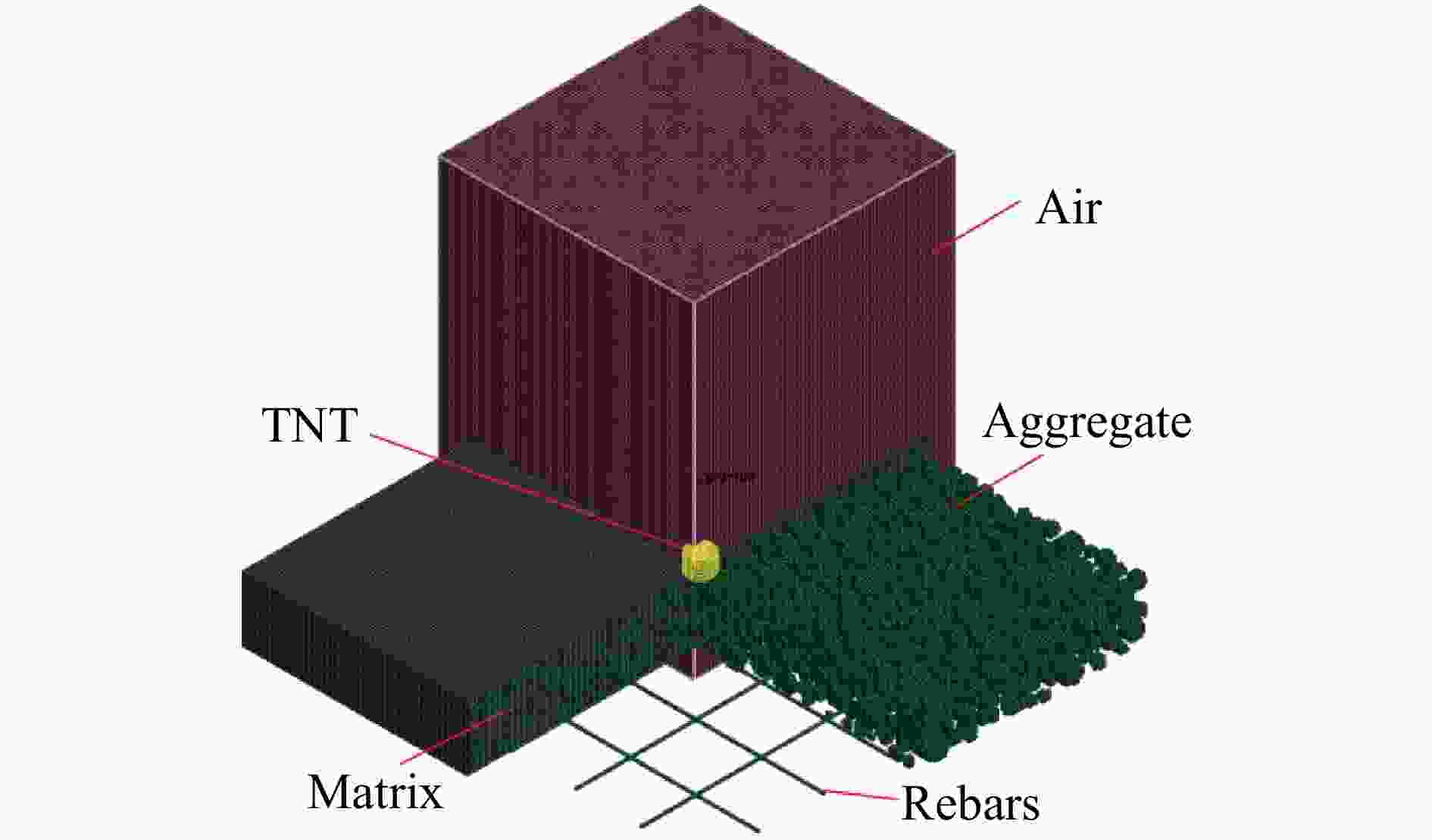

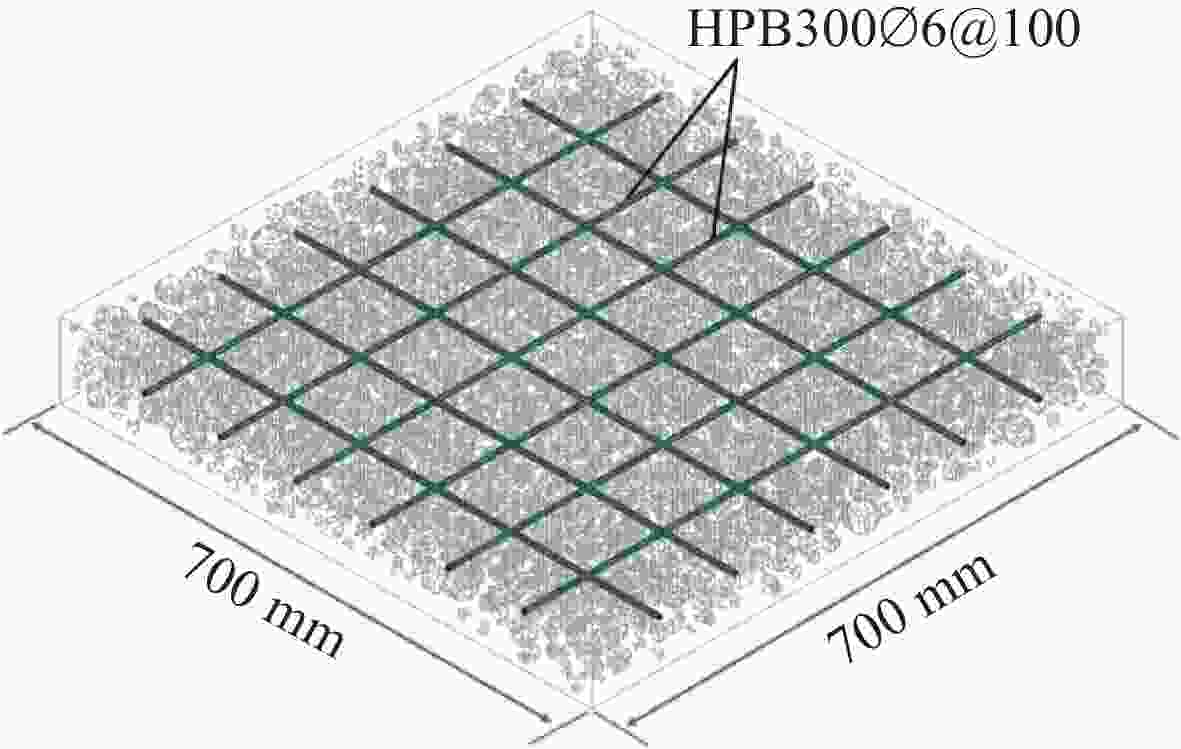

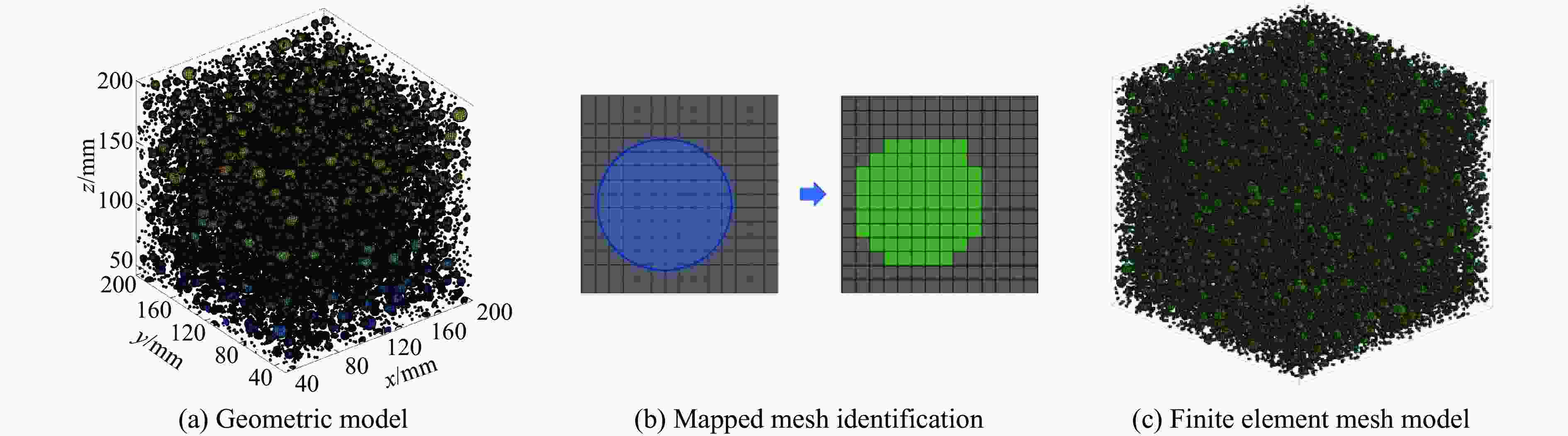

Traditional homogenization models are difficult to accurately describe the mesoscopic effects of aggregate distribution, aggregate particle size, and steel bar configuration on stress wave propagation paths and energy dissipation mechanisms in concrete, which limits the in-depth understanding of the anti-explosion failure mechanism of reinforced concrete slabs. To address this issue, a three-dimensional mesoscopic finite element model of reinforced concrete slabs including steel bars, aggregates, and matrix was established based on the combination of MATLAB and LS-DYNA. Among them, aggregates were modeled using real aggregate gradation characteristics, steel bars were accurately arranged according to actual engineering layout parameters, and a reasonable contact algorithm was adopted between the matrix, aggregates, and steel bars to simulate interface effects. The model was verified by comparison through contact explosion tests, and the results show that this model can relatively accurately predict the failure mode and crater size of reinforced concrete slabs under contact explosion loads. On this basis, the effects of aggregate (distribution mode, particle size) and steel bar arrangement on the anti-explosion performance and stress wave propagation of reinforced concrete were studied through mesoscopic numerical simulation parameter analysis. For aggregate parameters, the particle size distribution characteristics and particle size of aggregates determine the evolution law of stress waves and energy dissipation characteristics, thereby affecting the geometric dimensions of craters on the TOP surface and spalling craters on the bottom surface of concrete. When the aggregate particle size is distributed in a decreasing manner from the TOP surface to the bottom surface, it can effectively inhibit the expansion of craters on the TOP surface and the development of spalling on the bottom surface; an increasing distribution will aggravate surface cratering and internal spalling damage. In terms of particle size, the spalling craters on the bottom surface of slabs with small particle size aggregates show shallow and wide characteristics, while those with large particle size aggregates show deep and small morphology. Compared with aggregates, steel bars have a weaker impact on the overall failure mode and stress wave propagation of the slab; under low reinforcement ratio, steel bars hardly affect the dynamic transmission process of compressive stress peaks, while under high explosion loads, steel bars inhibit the fragmentation process of the slab, alleviate bending damage, and improve the structural integrity and anti-damage capacity of the slab.
