数据驱动的箍筋加密钢筋混凝土柱爆炸损伤预测与评估模型

王帅帅; 赵春风; 邬成勇; 李晓杰

doi:10.11883/bzycj-2025-0409

数据驱动的箍筋加密钢筋混凝土柱爆炸损伤预测与评估模型

doi: 10.11883/bzycj-2025-0409

王帅帅^1,,
赵春风^{1, 2, 3, ,},
邬成勇¹,
李晓杰³

1.
合肥工业大学土木与水利工程学院，安徽合肥 230009
2.
合肥工业大学安徽省土木工程结构与材料重点实验室，安徽合肥 230009
3.
大连理工大学工业装备结构分析优化与CAE软件全国重点实验室，辽宁大连 116024

基金项目: 工业装备结构分析优化与CAE软件全国重点实验室开放基金（GZ24120）；新疆维吾尔自治区自然科学重点基金（2022D01D33）

详细信息

作者简介:
王帅帅（2000－　），男，硕士研究生，2024171090@mail.hfut.edu.cn

通讯作者:
赵春风（1983－　），男，博士，教授，zhaowindy@hfut.edu.cn

中图分类号: O389
计量
- 文章访问数: 244
- HTML全文浏览量: 30
- PDF下载量: 89
- 被引次数: 0
出版历程
- 收稿日期: 2025-12-18
- 修回日期: 2026-07-18
- 网络出版日期: 2026-07-21

Data-driven prediction and evaluation model for explosion damage in reinforced concrete columns with densified stirrups

1.
College of Civil Engineering, Hefei University of Technology, Hefei 230009, Anhui, China
2.
Anhui Provincial Key Laboratory of Civil Engineering Structures and Materials, Hefei University of Technology, Hefei 230009, Anhui, China
3.
State Key Laboratory of Structural Analysis, Optimization and CAE Software for Industrial Equipment, Dalian University of Technology, Dalian 116024, Liaoning, China

摘要

摘要: 为了快速且准确地评估爆炸作用下钢筋混凝土（reinforced concrete, RC）柱的损伤状态，提出了一种基于机器学习（machine learning, ML）的数据驱动模型，用于预测爆炸荷载作用下RC柱的损伤指标。为训练该模型，构建了一个包含3133个样本的综合数据库，融合了259个文献数据样本和2874个数值模拟补充数据样本。该数据集不仅包含了RC箍筋均匀分布柱，还包含了符合抗震设计要求的RC箍筋加密柱。选用11个关键参数作为输入特征，并将钢筋混凝土柱的损伤指数作为输出特征。利用6个ML模型对爆炸荷载作用下钢筋混凝土柱的损伤指标进行预测，并采用四项回归评价指标对6种模型的预测精度进行对比分析。结果表明，表格先验数据拟合网络（tabular prior-data fitted network, TabPFN）展现出最优的预测精度和泛化能力，其在测试集上的决定系数高达0.989，平均绝对误差和均方根误差仅分别为0.018和0.030。进一步利用SHAP (Shapley additive explanations)方法对TabPFN模型进行可解释性分析。分析表明，炸药质量、爆炸距离及柱截面深度是主导RC柱损伤程度的关键特征。值得注意的是，体积配箍率在提升RC柱抗爆性能方面的贡献度显著优于纵筋配筋率。最后，通过与独立有限元模拟工况的对比分析，表明TabPFN模型能够较好地拟合数值计算结果，作为代理模型在未见工况下具备良好的预测稳定性。在计算效能方面，该模型单次损伤预测耗时仅约0.5 s，较传统数值模拟方法的计算效率显著提升了近4个数量级。
- 钢筋混凝土柱 /
- 爆炸荷载 /
- 机器学习 /
- 损伤评估
Abstract: Reinforced concrete (RC) columns are critical load-bearing members in engineering structures. Under explosive loading, they may sustain severe damage and potentially trigger the collapse of the entire structure. Therefore, rapid and accurate assessment of the damage state of RC columns subjected to explosive loading is essential for ensuring structural safety and implementing effective protective measures. Accordingly, a data-driven machine learning (ML) model is proposed to predict the damage indices of RC columns under explosive loading. To train the model, a comprehensive database comprising 3133 samples was established by integrating 259 samples collected from the literature and 2874 supplementary samples generated through numerical simulations. The database includes both RC columns with uniformly spaced stirrups and those with densified stirrups satisfying seismic design requirements. Eleven key parameters were selected as input features, with the RC column damage index taken as the output. Six ML models were employed to predict the damage indices under explosive loading, and their predictive performance was comparatively evaluated using four regression metrics. The results indicate that the tabular prior-data fitted network (TabPFN) achieved the best predictive accuracy and generalization performance, with a coefficient of determination of 0.989 on the test set and a mean absolute error and a root mean square error of 0.018 and 0.030, respectively. The interpretability of the TabPFN model was further analyzed using SHAP (Shapley additive explanations). The results show that charge mass, standoff distance, and column cross-sectional depth are the key features governing the damage severity of RC columns. Notably, the volumetric stirrup reinforcement ratio contributes more significantly to improving the blast resistance of RC columns than the longitudinal reinforcement ratio. Finally, comparison with independent finite element simulation results confirmed that the TabPFN model exhibits good predictive stability as a surrogate model under unseen loading conditions. In terms of computational efficiency, the proposed model achieves a single-prediction inference time of approximately 0.5 s, representing an efficiency improvement of nearly four orders of magnitude compared with conventional numerical simulation methods. The established model enables rapid surrogate prediction of RC column damage under explosive loading and provides guidance for preliminary parameter analysis in blast-resistant structural optimization design.
- reinforced concrete columns /
- explosive loading /
- machine learning /
- damage assessment

HTML全文

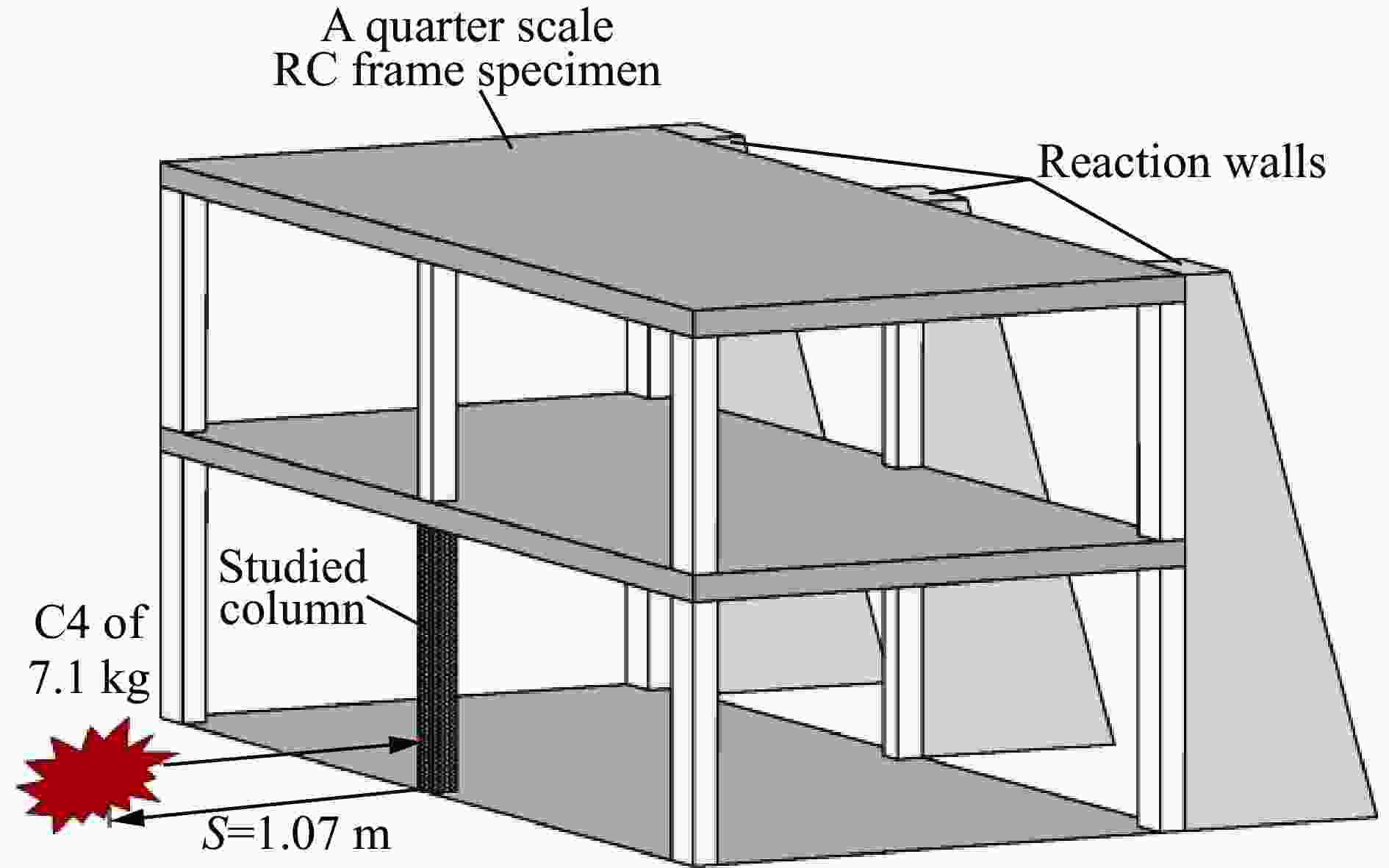

图 1 现场试验示意图^[23]

Figure 1. Sketch of field test^[23]

下载: 全尺寸图片幻灯片

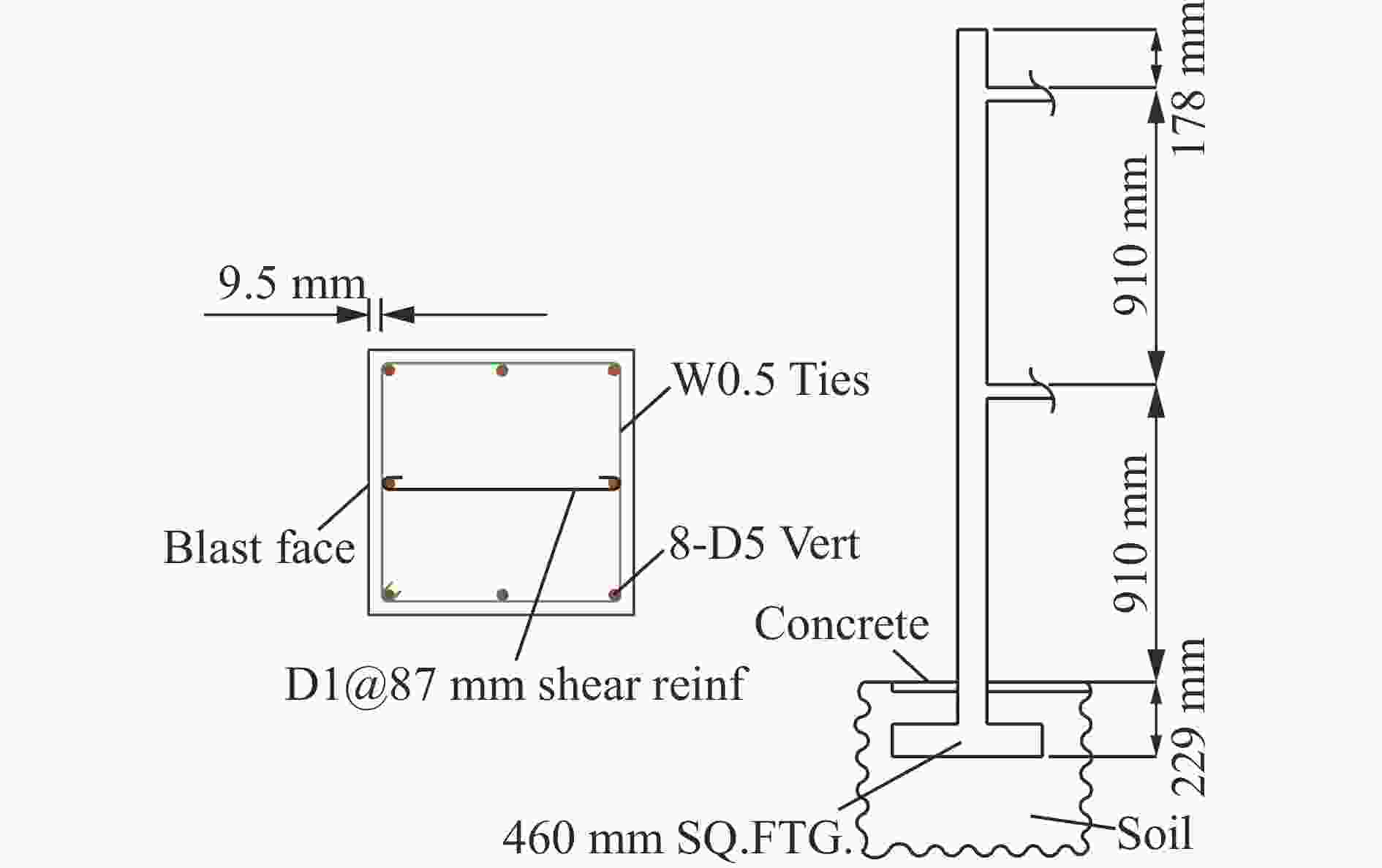

图 2 外部中柱细节^[24]

Figure 2. External center column detail^[24]

下载: 全尺寸图片幻灯片

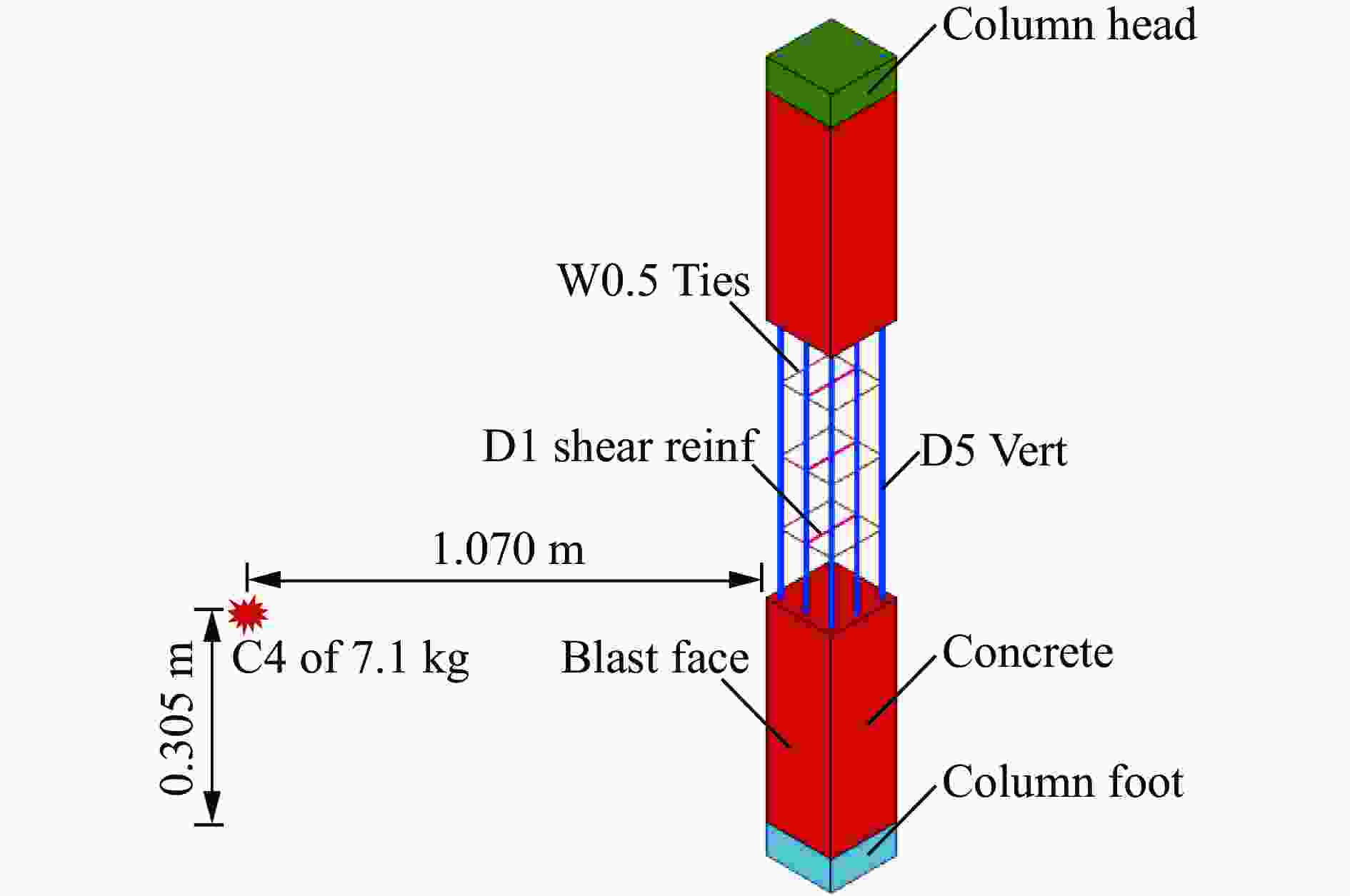

图 3 中柱有限元模型

Figure 3. Finite element model of the central column

下载: 全尺寸图片幻灯片

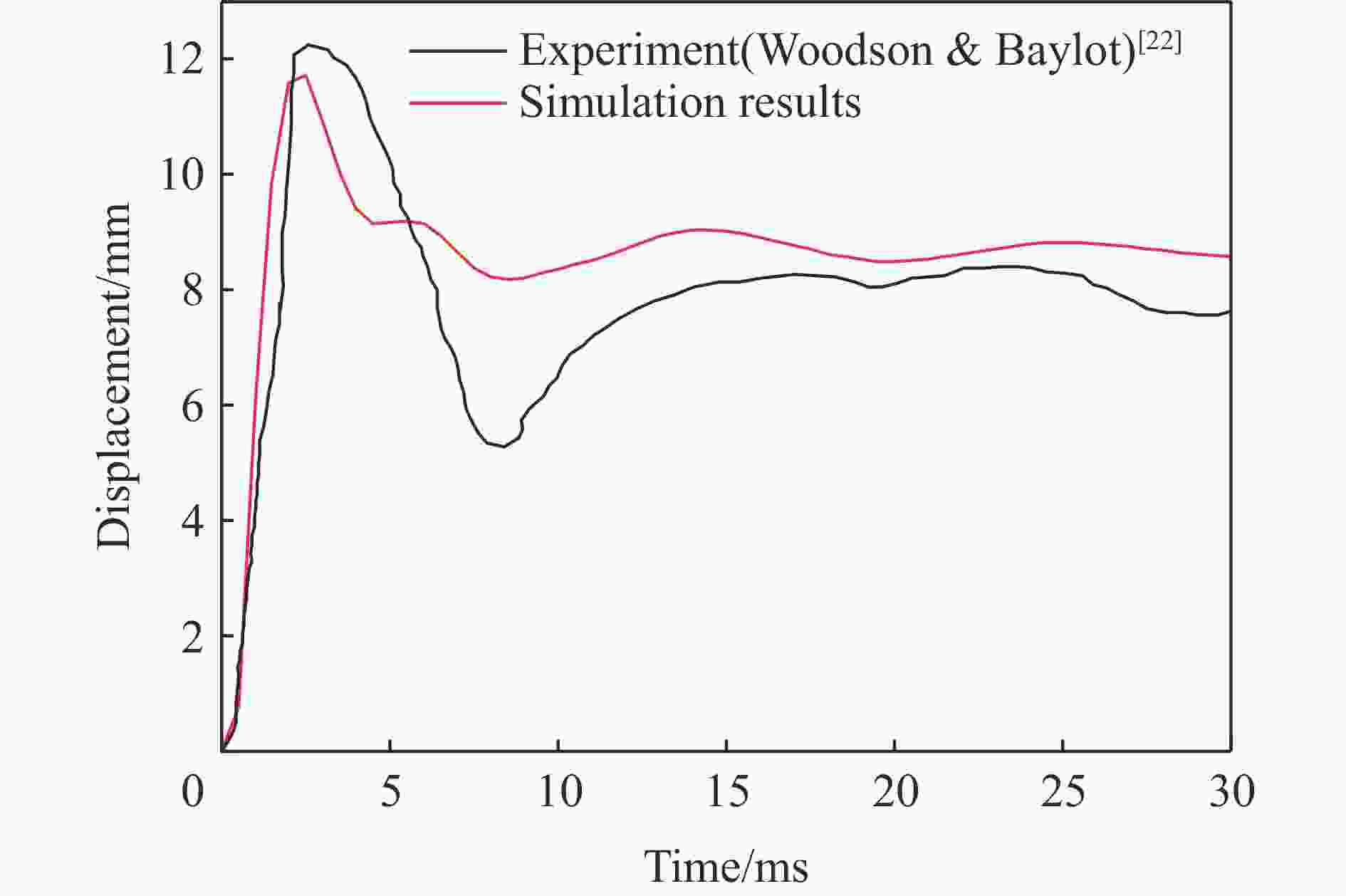

图 4 跨中最大位移对比

Figure 4. Comparison of maximum mid-span displacements

下载: 全尺寸图片幻灯片

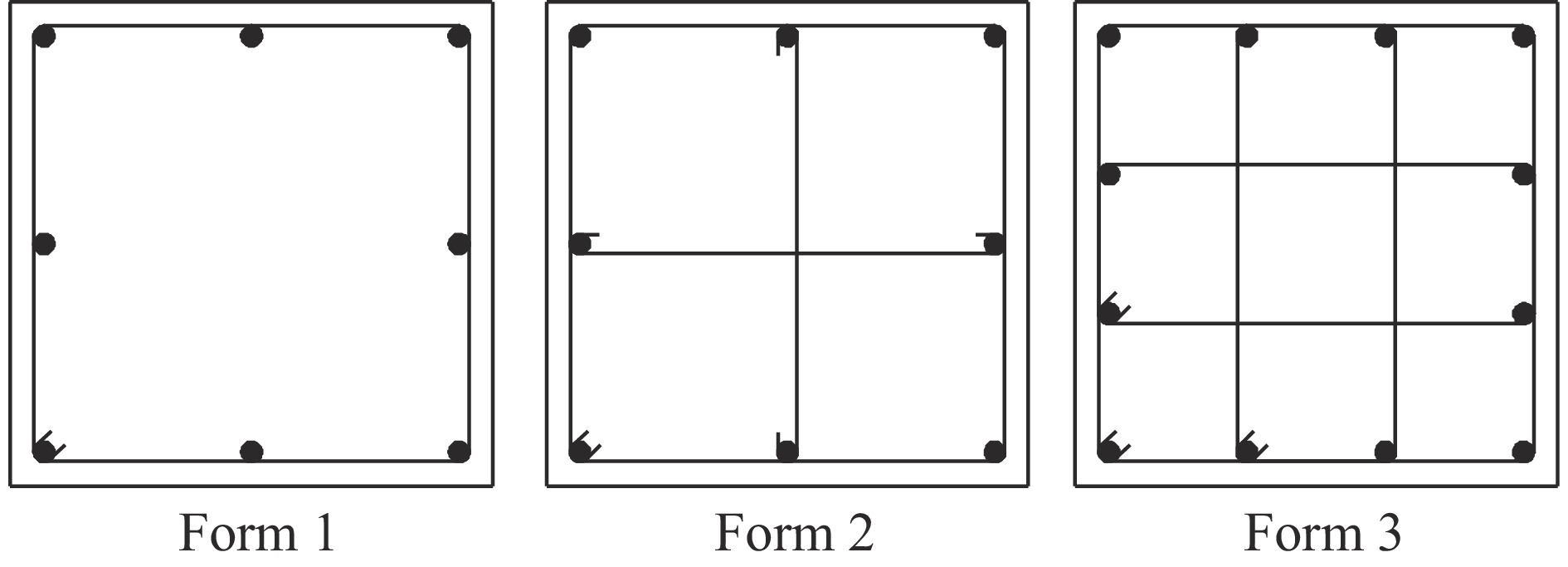

图 5 钢筋混凝土柱的截面配筋构造形式

Figure 5. Cross-sectional reinforcement forms for reinforced concrete columns

下载: 全尺寸图片幻灯片

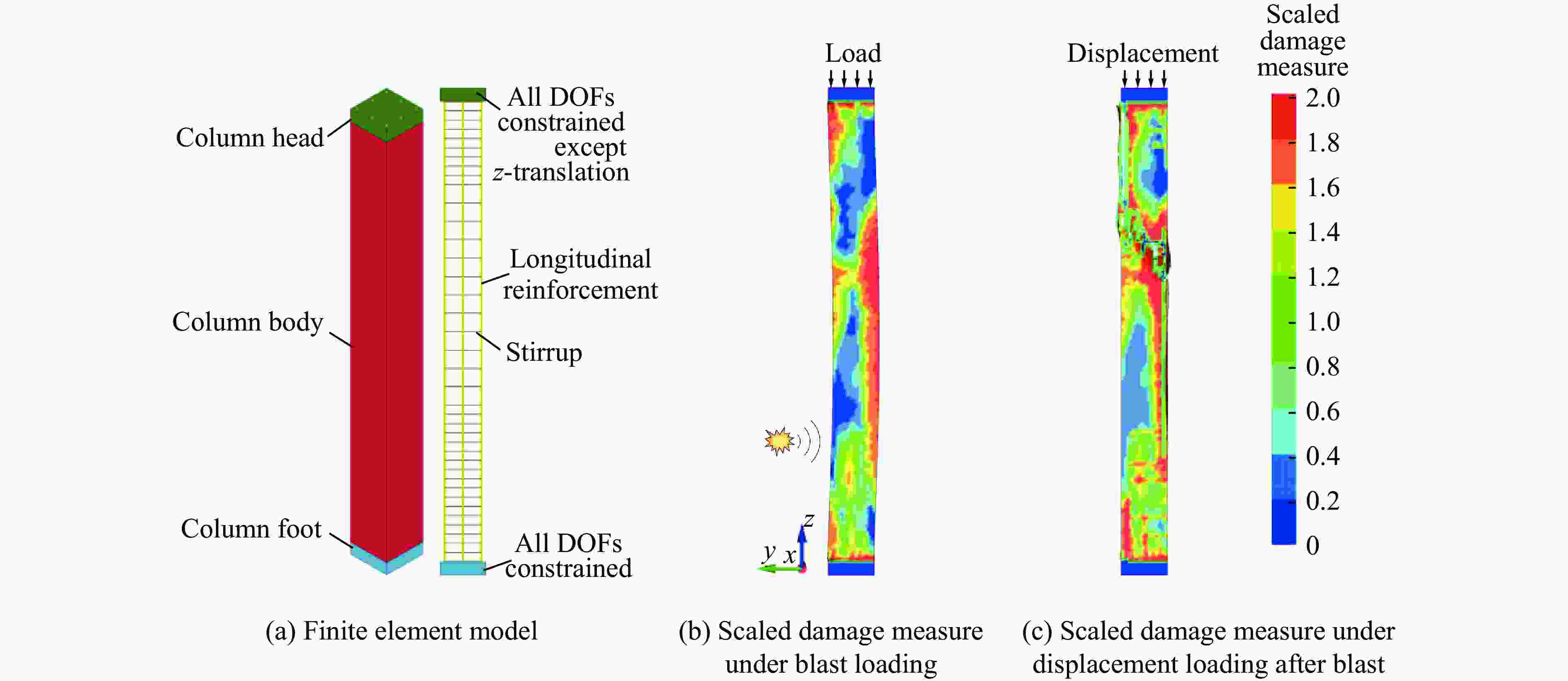

图 6 有限元模拟

Figure 6. Finite element simulation

下载: 全尺寸图片幻灯片

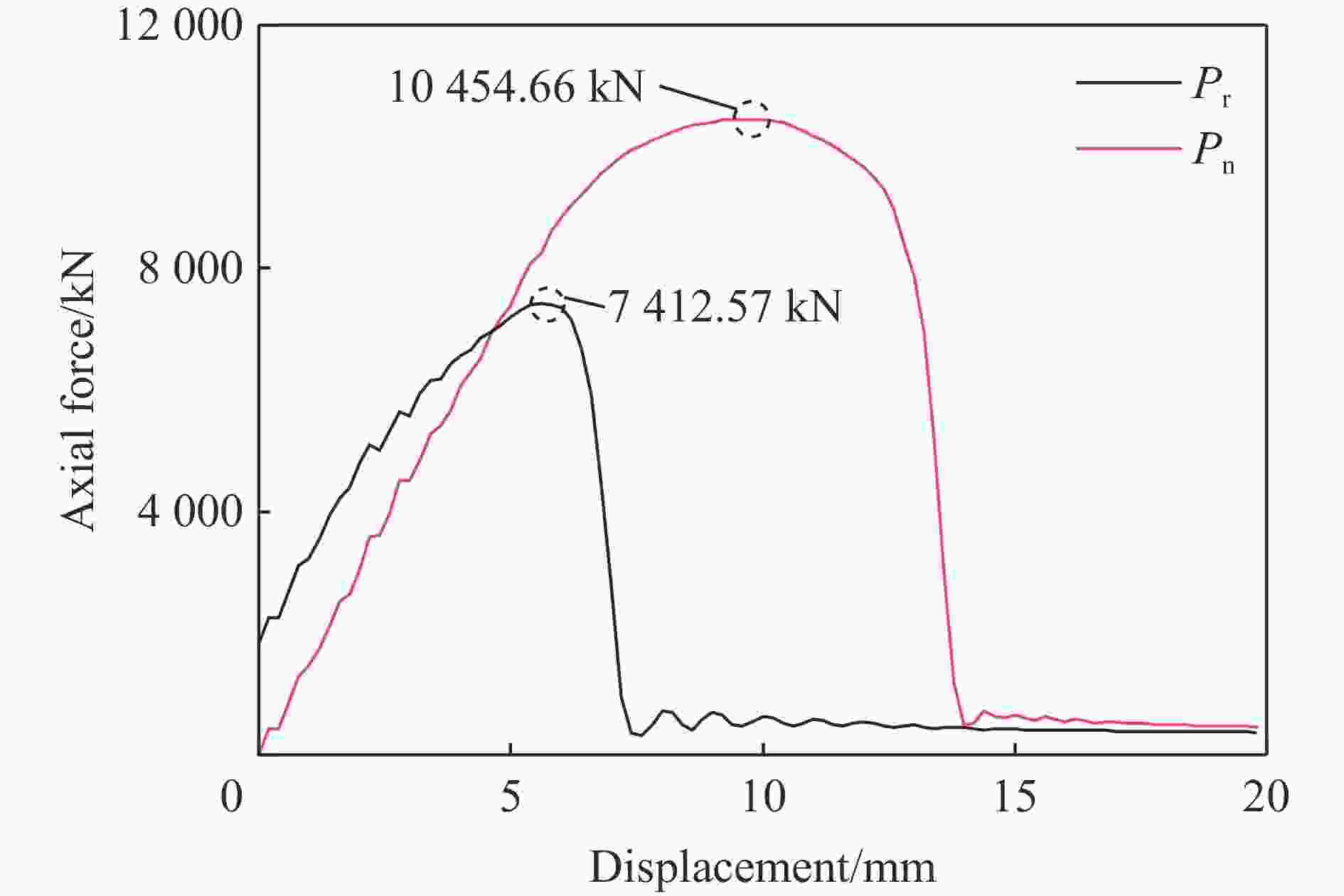

图 7 无损柱和爆炸受损柱轴力-位移曲线

Figure 7. Axial force-displacement curves of undamaged and blast-damaged columns

下载: 全尺寸图片幻灯片

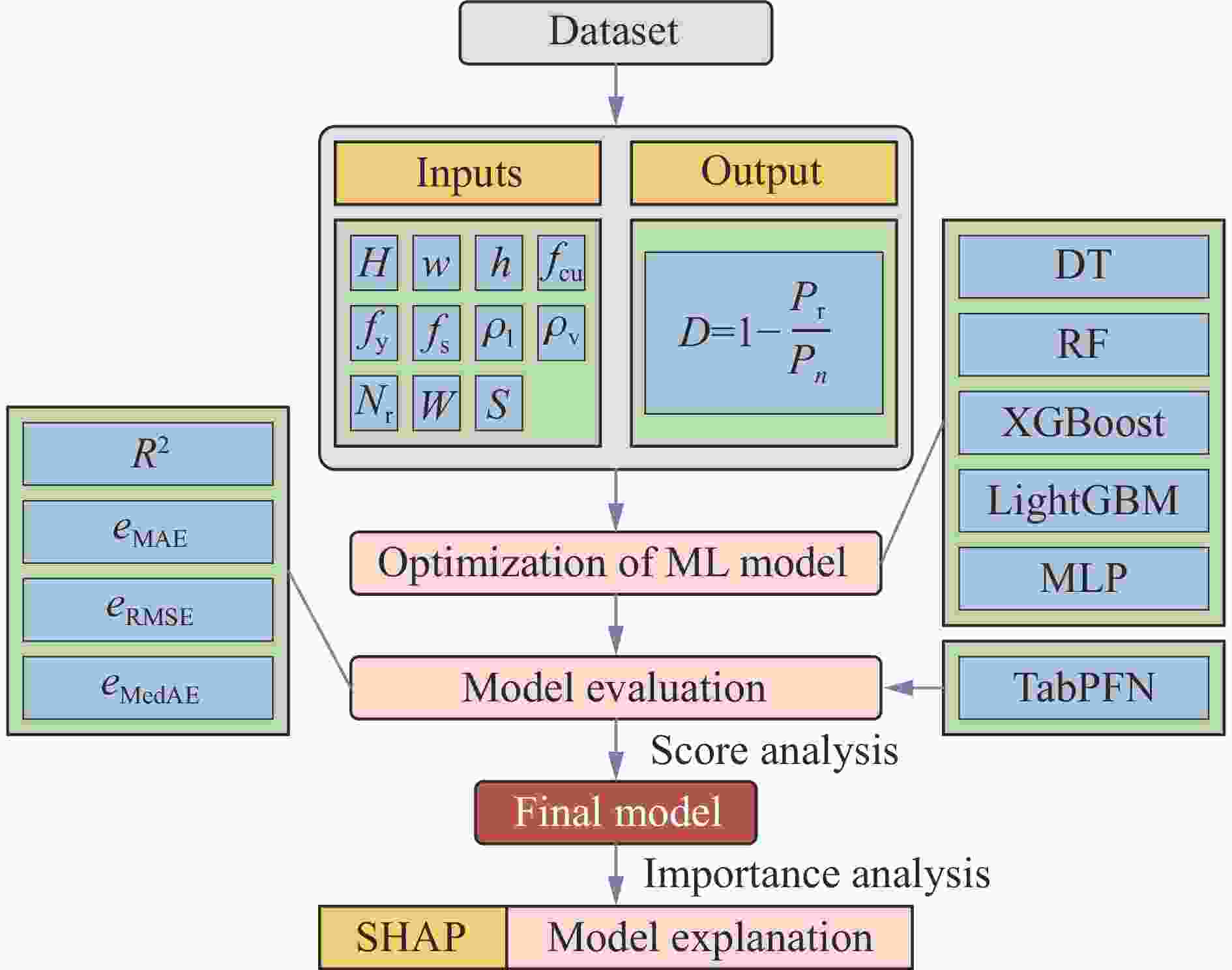

图 8 方法流程图

Figure 8. Method flowchart

下载: 全尺寸图片幻灯片

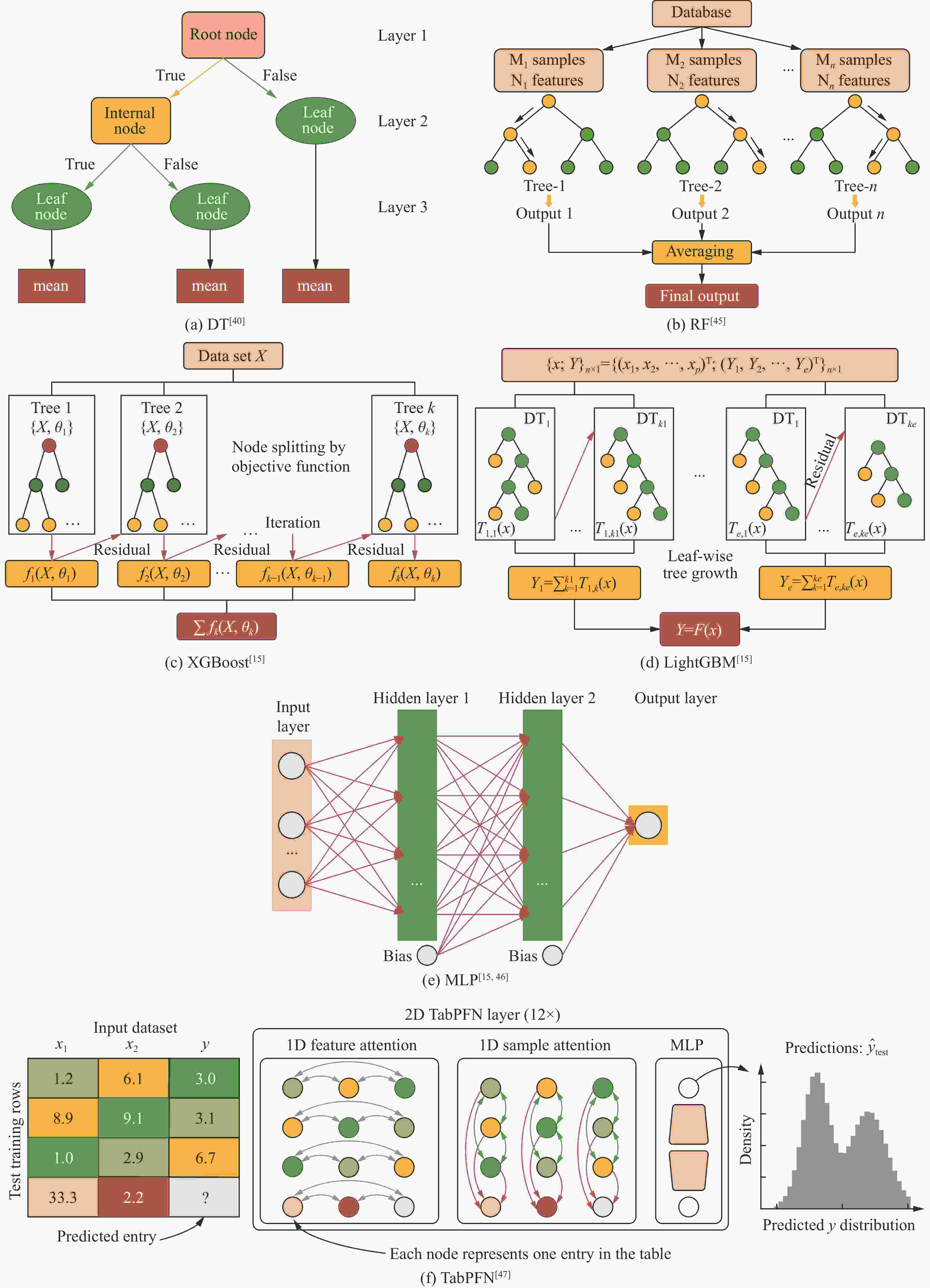

图 9 算法模型示意图

Figure 9. Schematic diagram of the algorithm model

下载: 全尺寸图片幻灯片

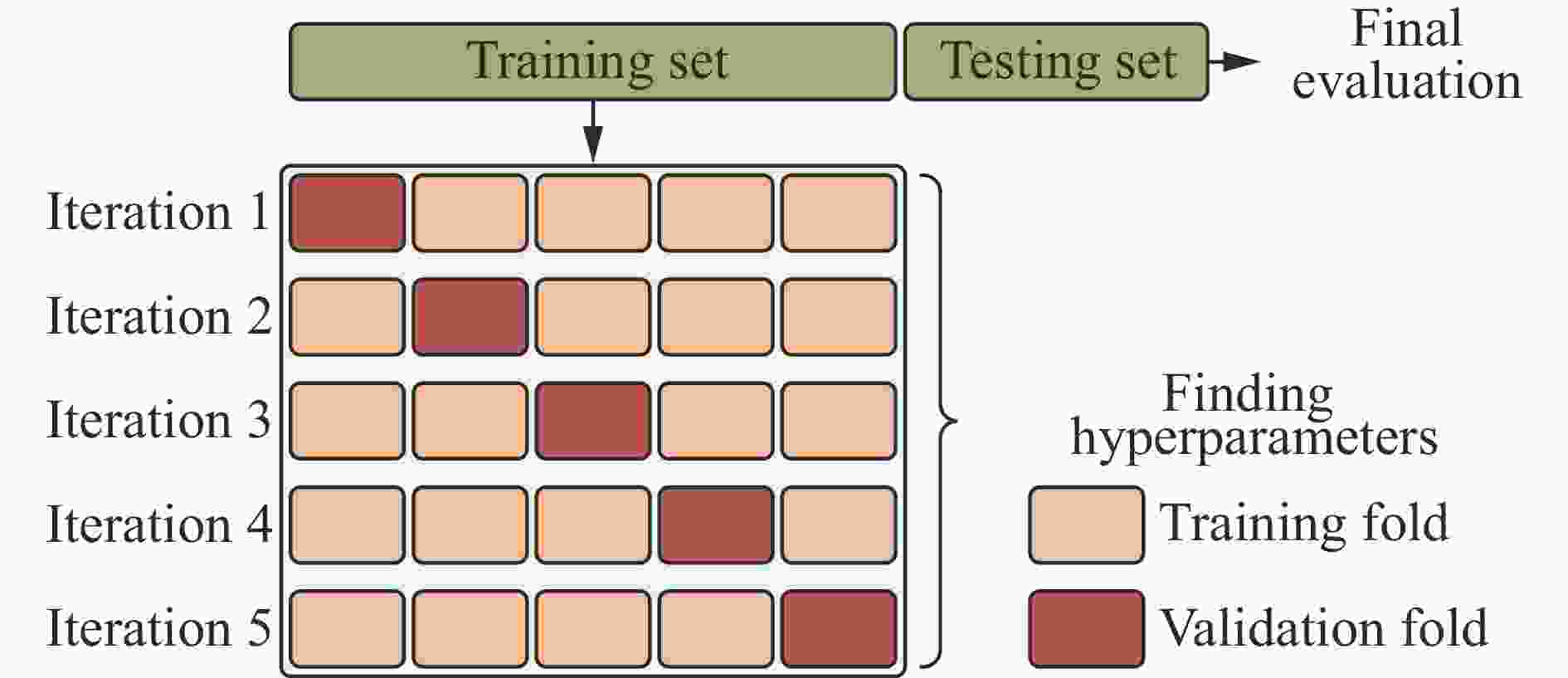

图 10 5折交叉验证

Figure 10. 5-fold cross-validation

下载: 全尺寸图片幻灯片

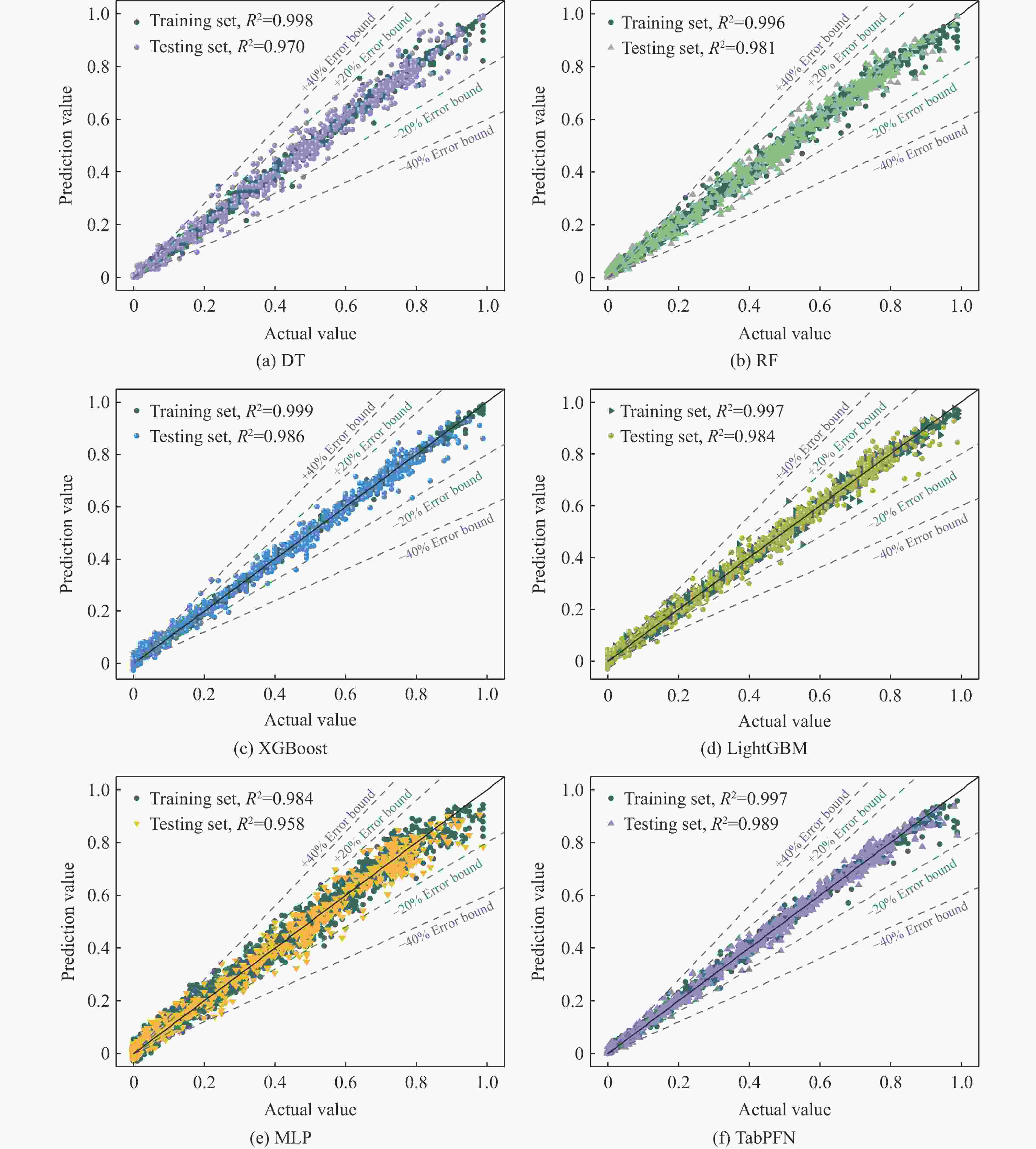

图 11 6种算法的预测值与真实值的比较

Figure 11. Comparison of predicted value and actual value for six algorithms

下载: 全尺寸图片幻灯片

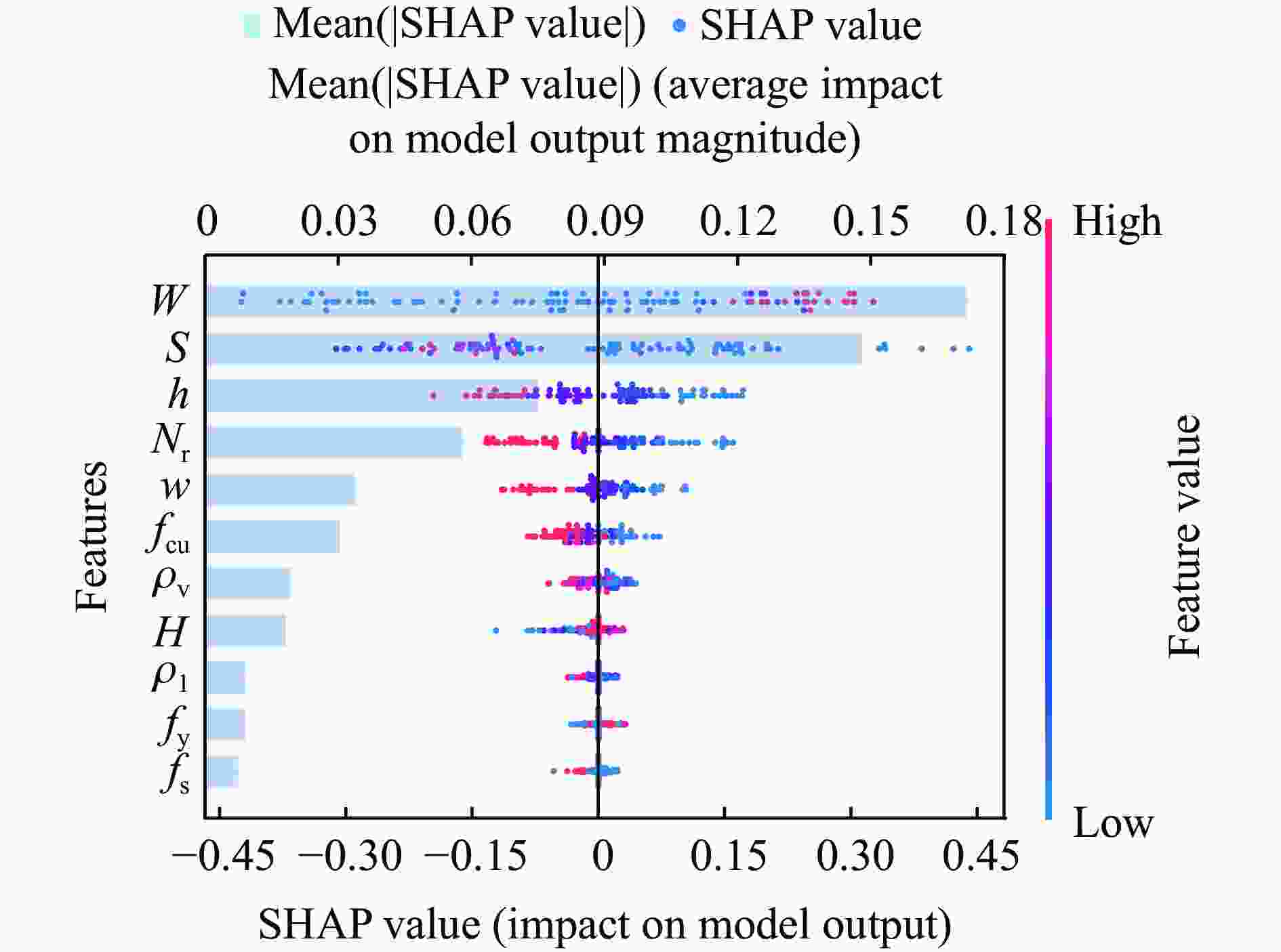

图 12 TabPFN模型的SHAP值

Figure 12. SHAP values for the TabPFN model

下载: 全尺寸图片幻灯片

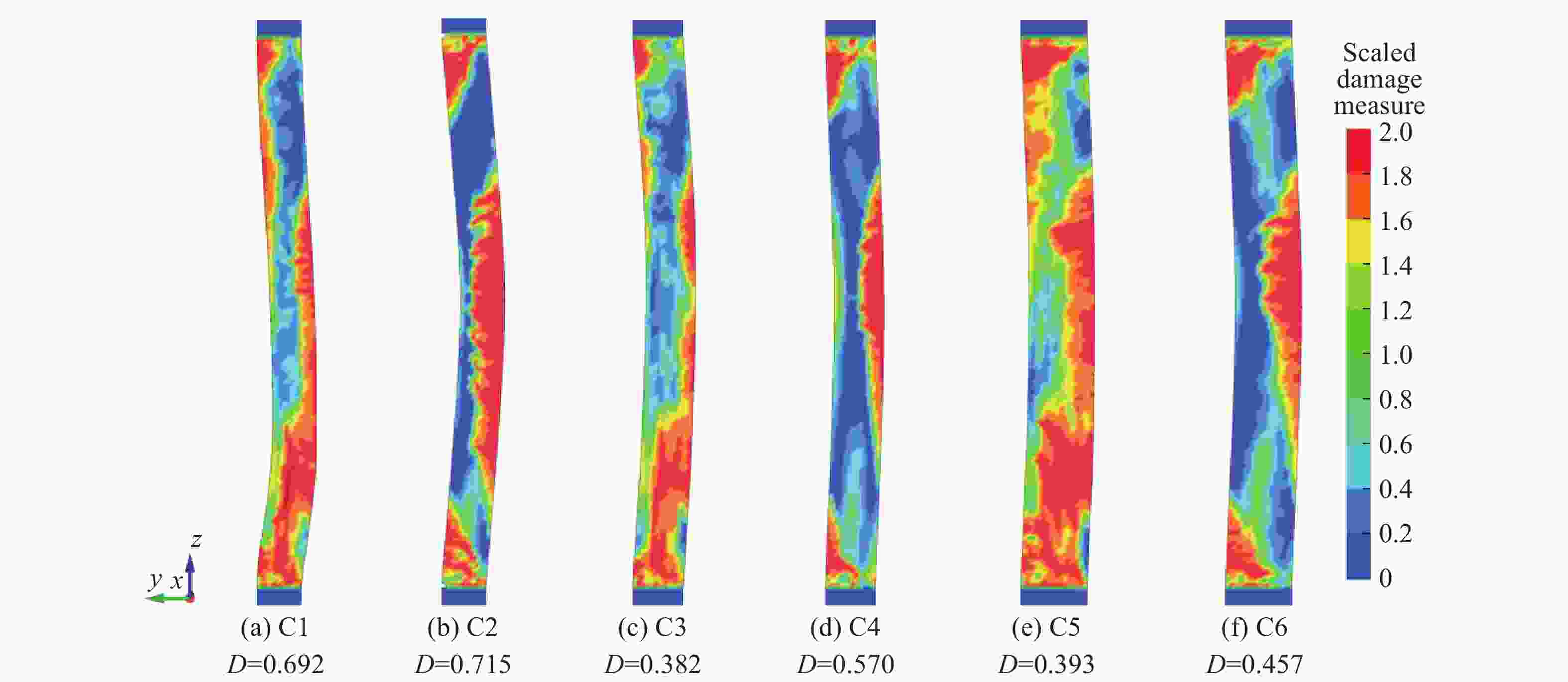

图 13 6组测试工况下的RC柱有限元归一化损伤指标云图（侧视图）

Figure 13. Finite element scaled damage measure contours of RC columns under six test cases (side view)

下载: 全尺寸图片幻灯片

表 1 钢筋材料参数

Table 1. Reinforcing steel material parameters

钢筋	截面面积/mm²	屈服强度/MPa	极限强度/MPa
W0.5	3.22	441	513
D1	6.45	399	610
D5	32.20	449	513
注：W0.5表示0.005 in²，D1表示0.01 in²，D5表示0.05 in²。

下载: 导出CSV

表 2 收集的文献数据统计

Table 2. Statistics of collected literature data

方法	数量	年份	来源
数值模拟	9	2018	文献[25]
数值模拟	28	2021	文献[26]
数值模拟	36	2021	文献[27]
试验	4	2022	文献[8]
试验+数值模拟	2+180	2023	文献[10]

下载: 导出CSV

表 3 收集数据的参数范围

Table 3. Parameter ranges for data collection

参数	范围	参数	范围
柱高	500～6000 mm	纵筋配筋率	0.2%～3.2%
柱宽	80～1200 mm	体积配箍率	0.2%～2.4%
柱深	80～800 mm	轴压比	0～0.8
混凝土立方体抗压强度	30～60 MPa	炸药质量	0.15～120000 kg
纵筋屈服强度	400～500 MPa	爆炸距离	0.09～80 m
箍筋屈服强度	335～500 MPa

下载: 导出CSV

表 4 数值模拟的钢筋混凝土柱参数范围

Table 4. Parameter ranges for reinforced concrete columns in numerical simulation

参数	单位	符号	选择值或范围
柱高	mm	H	3000，4000，5000
柱宽	mm	w	300，400，500，700
柱深	mm	h	300，400，500，600，700
混凝土立方体抗压强度	MPa	f_cu	30，45，60
纵筋屈服强度	MPa	f_y	400，500
箍筋屈服强度	MPa	f_s	335，400
纵筋配筋率	%	ρ_l	1～2.79
体积配箍率	%	ρ_v	0.48～1.67
轴压比		N_r	0，0.1，0.2，0.4

下载: 导出CSV

表 5 钢筋混凝土柱爆炸参数范围

Table 5. Range of explosion parameters for reinforced concrete columns

参数	符号	单位	选择值
炸药质量	W	kg	5, 10, 15, 20, 35, 50, 100, 200, 250, 400, 500, 700, 1000, 1500, 2000, 4000
爆炸距离	S	m	1，2，4，6，8，10，15，30

下载: 导出CSV

表 6 模型中的关键超参数

Table 6. Key hyperparameters in the model

模型	超参数	搜索范围	最优值
DT	max_depth	（3, 21）	20
	min_samples_leaf	（1, 10）	1
	min_samples_split	（2, 10）	3
	Splitter	{best, random}	best
RF	n_estimators	（100, 500）	500
	max_depth	（3, 16）	16
	min_samples_leaf	（1, 10）	1
	min_samples_split	（2, 10）	2
XGBoost	max_depth	（3, 16）	8
	learning_rate	（0.05, 0.3）	0.05
	n_estimators	（100, 1200）	700
LightGBM	num_leaves	（6, 50）	44
	min_data_in_leaf	（1, 10）	3
	learning_rate	（0.05, 0.3）	0.05
	n_estimators	（100, 1000）	700
MLP	hidden_layers	（1, 5）	3
	nodes	（12, 24）	16
	solver	{adam, sgd}	adam

下载: 导出CSV

表 7 每个机器学习模型的性能指标

Table 7. Performance metrics for each machine learning model

模型	数据集	R²	e_MAE	e_RMSE	e_MedAE
DT	Training set	0.998	0.007	0.014	0.005
DT	Testing set	0.970	0.029	0.050	0.015
RF	Training set	0.996	0.010	0.017	0.006
RF	Testing set	0.981	0.026	0.040	0.018
XGBoost	Training set	0.999	0.006	0.008	0.004
XGBoost	Testing set	0.986	0.024	0.034	0.018
LightGBM	Training set	0.997	0.011	0.016	0.008
LightGBM	Testing set	0.984	0.024	0.036	0.018
MLP	Training set	0.984	0.026	0.036	0.019
MLP	Testing set	0.958	0.039	0.059	0.024
TabPFN	Training set	0.997	0.008	0.015	0.005
TabPFN	Testing set	0.989	0.018	0.030	0.011
注：粗体值表示模型在这方面表现最佳

下载: 导出CSV

表 8 6组测试工况的几何尺寸及爆炸荷载参数

Table 8. Geometric dimensions and explosion load parameters for six test conditions

工况	H/mm	w/mm	h/mm	f_cu/MPa	f_y/MPa	f_s/MPa	ρ_l/%	ρ_v/%	N_r	W/kg	S/m
C1	5000	400	400	45	400	335	1.57	0.97	0.3	30	1
C2	5000	400	400	45	400	335	1.57	0.97	0.1	300	5
C3	5000	450	450	45	400	335	1.50	1.30	0.4	30	1
C4	5000	450	450	45	400	335	1.50	1.30	0.4	300	5
C5	5000	600	600	40	400	335	1.64	1.76	0.1	30	1
C6	5000	600	600	40	400	335	1.64	1.76	0.2	300	5

下载: 导出CSV

表 9 TabPFN模型预测值与有限元模拟结果的对比

Table 9. Comparison of TabPFN model predictions with finite element simulation results

工况		D		损伤程度
工况	有限元模拟值	TabPFN模型预测值	相对误差/%	损伤程度
C1	0.692	0.683	1.30	重度破坏
C2	0.715	0.722	0.98	重度破坏
C3	0.382	0.376	1.57	中度破坏
C4	0.570	0.555	2.63	重度破坏
C5	0.393	0.415	5.60	中度破坏
C6	0.457	0.451	1.31	中度破坏

下载: 导出CSV
