Failure mode and residual bearing capacity of steel truss bridge under contact explosions
-
摘要: 钢桁梁桥通常由大量细长杆件构成,是铁路桥梁的主要形式之一,在服役过程中面临由无人机爆炸袭击引发的整桥倒塌破坏威胁。针对铁路钢桁梁桥在接触爆炸作用下的破坏模式及剩余承载力劣化规律开展了数值模拟分析。首先,通过对加劲钢板与钢箱拱的爆炸试验以及工字钢柱爆炸后剩余承载力进行数值模拟,验证了分析方法的可靠性;其次,针对接触爆炸下上弦杆构件的损伤破坏和整桥剩余承载力开展了网格敏感性分析;然后,明确了典型钢桁梁桥的最不利杆件,探究了爆炸当量对剩余承载力的影响规律。最后,探讨了多点爆炸作用下整桥损伤破坏演变机制。结果表明:接触爆炸作用下钢桁梁桥以杆件局部损伤为主要破坏形式,在100 kg炸药当量工况下,上弦杆侧面与顶面爆炸下整桥承载力分别降低了29.8%和18.0%,上弦杆侧面爆炸为最不利工况;随着上弦杆侧面爆炸炸药当量由25 kg增加至150 kg,整桥剩余承载力降幅由8.8%扩大至33.4%,以承载力损失与完好桥梁极限承载力之比为损伤因子,建立了整桥损伤因子-炸药当量定量关系;多点爆炸工况下损伤因子增大至0.452,结构冗余度与剩余承载性能较单点爆炸工况显著降低。
-
关键词:

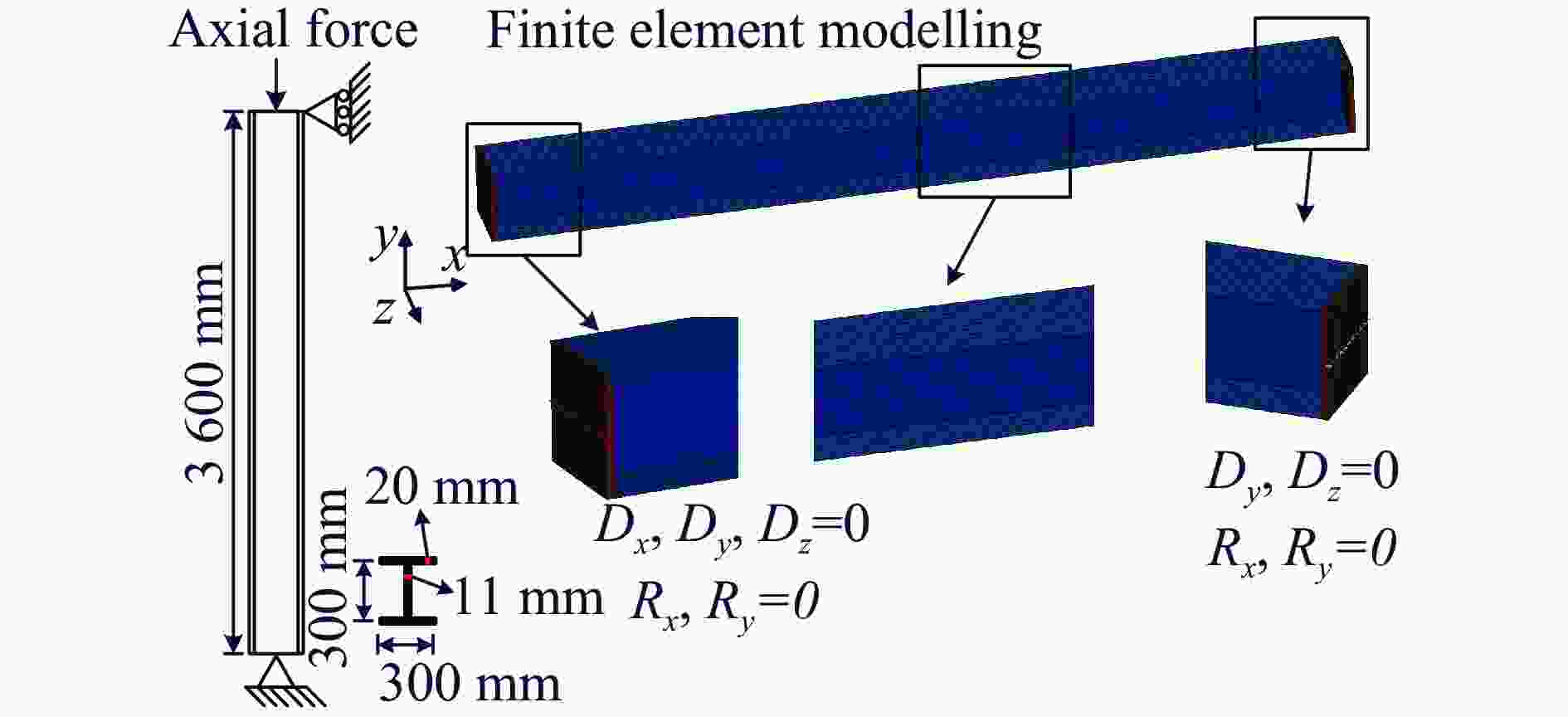

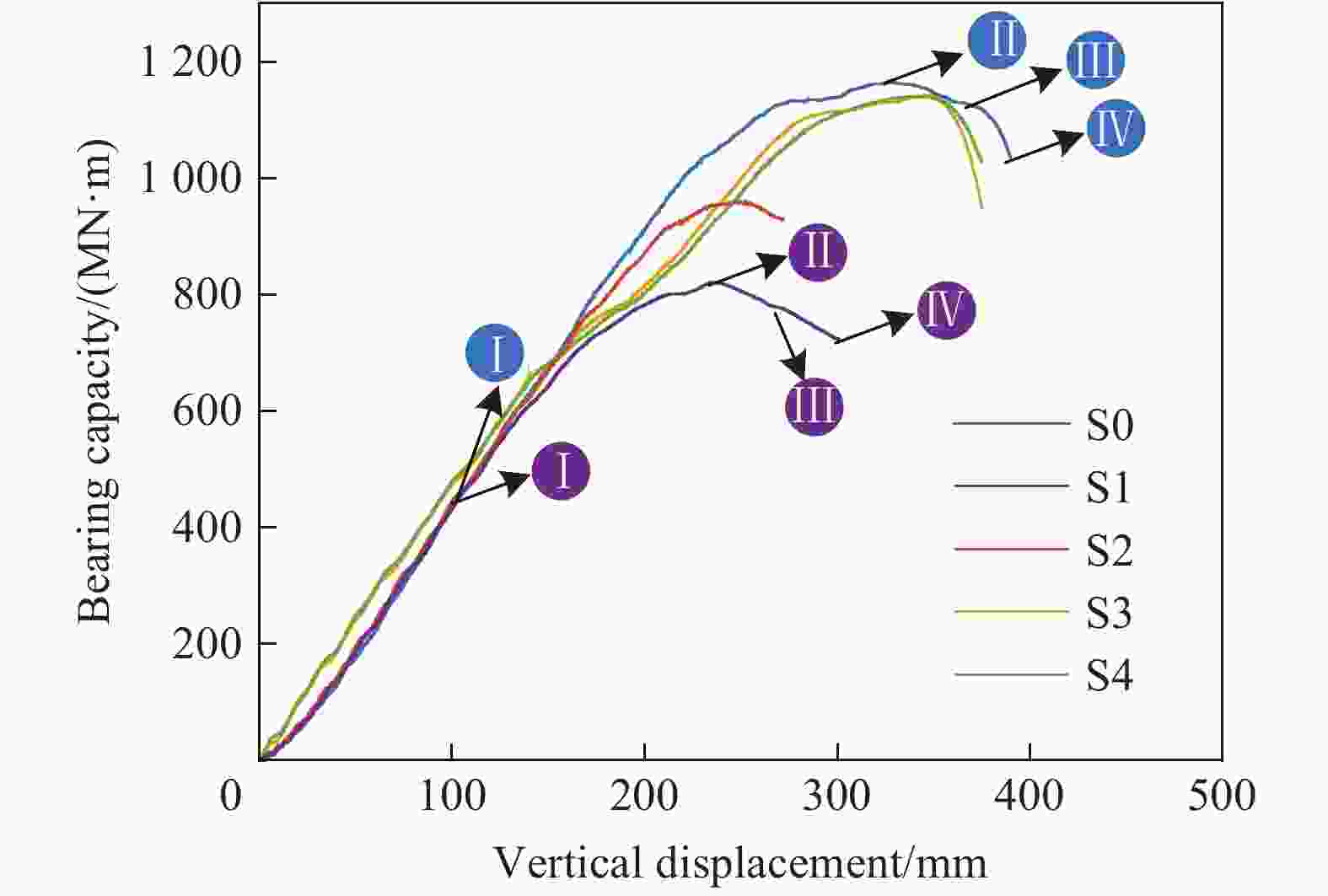

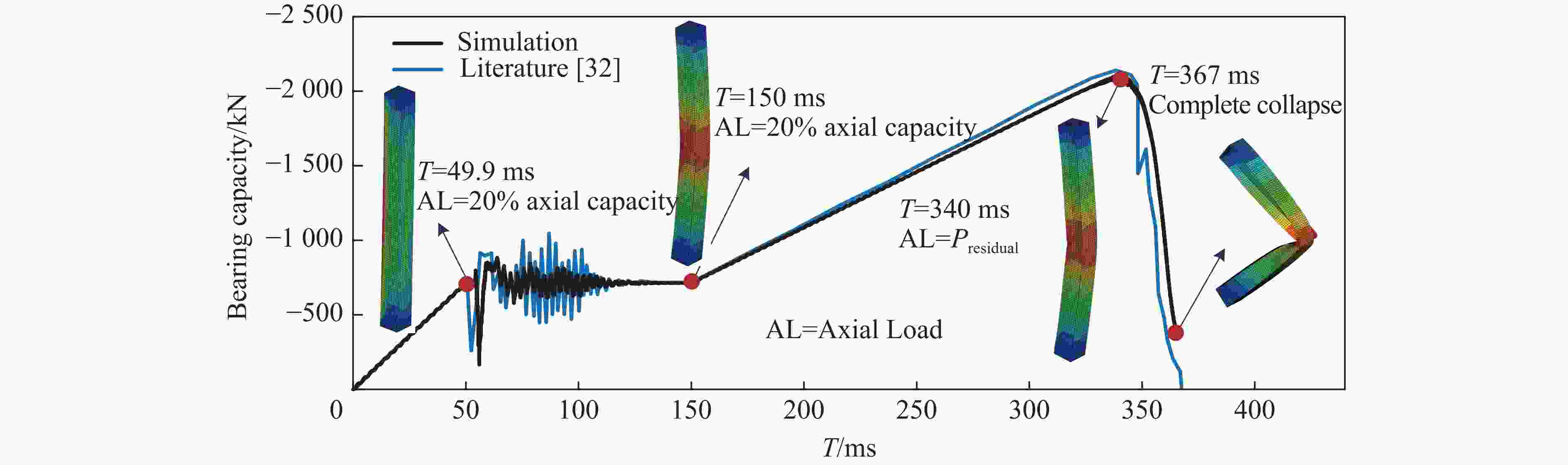

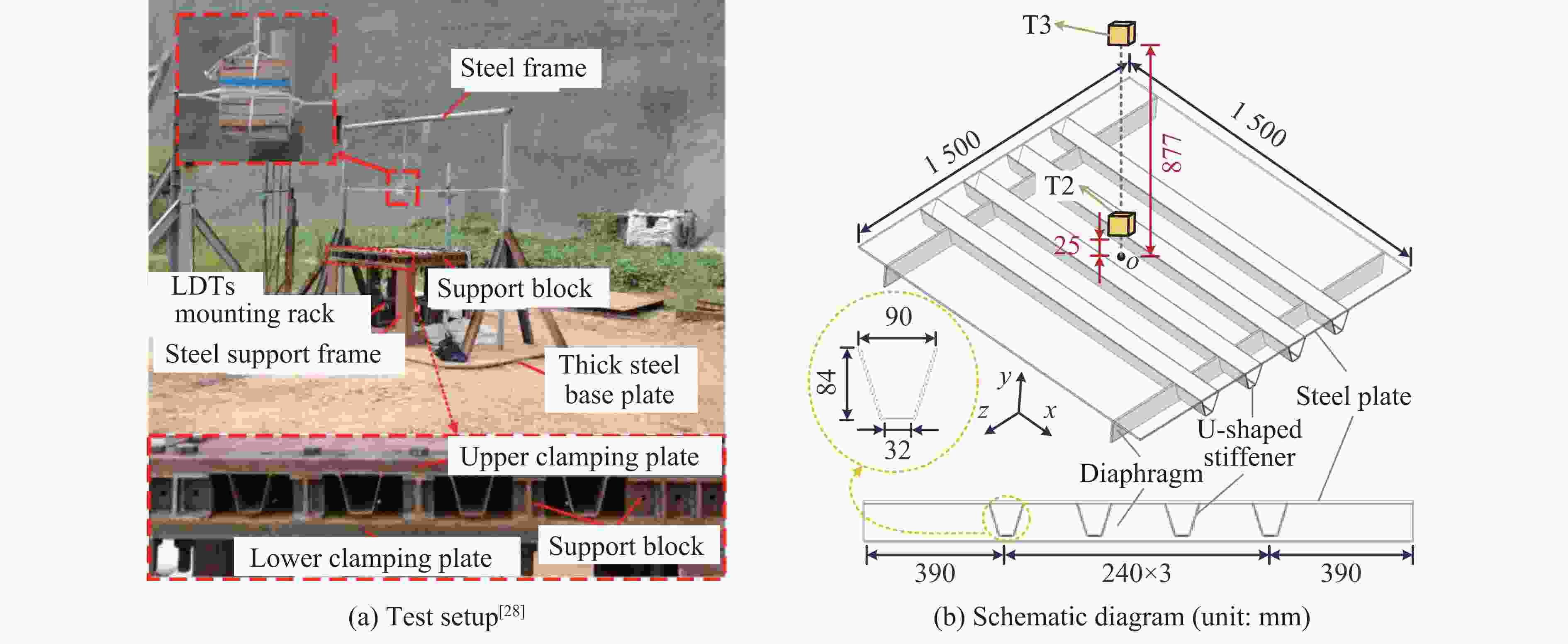

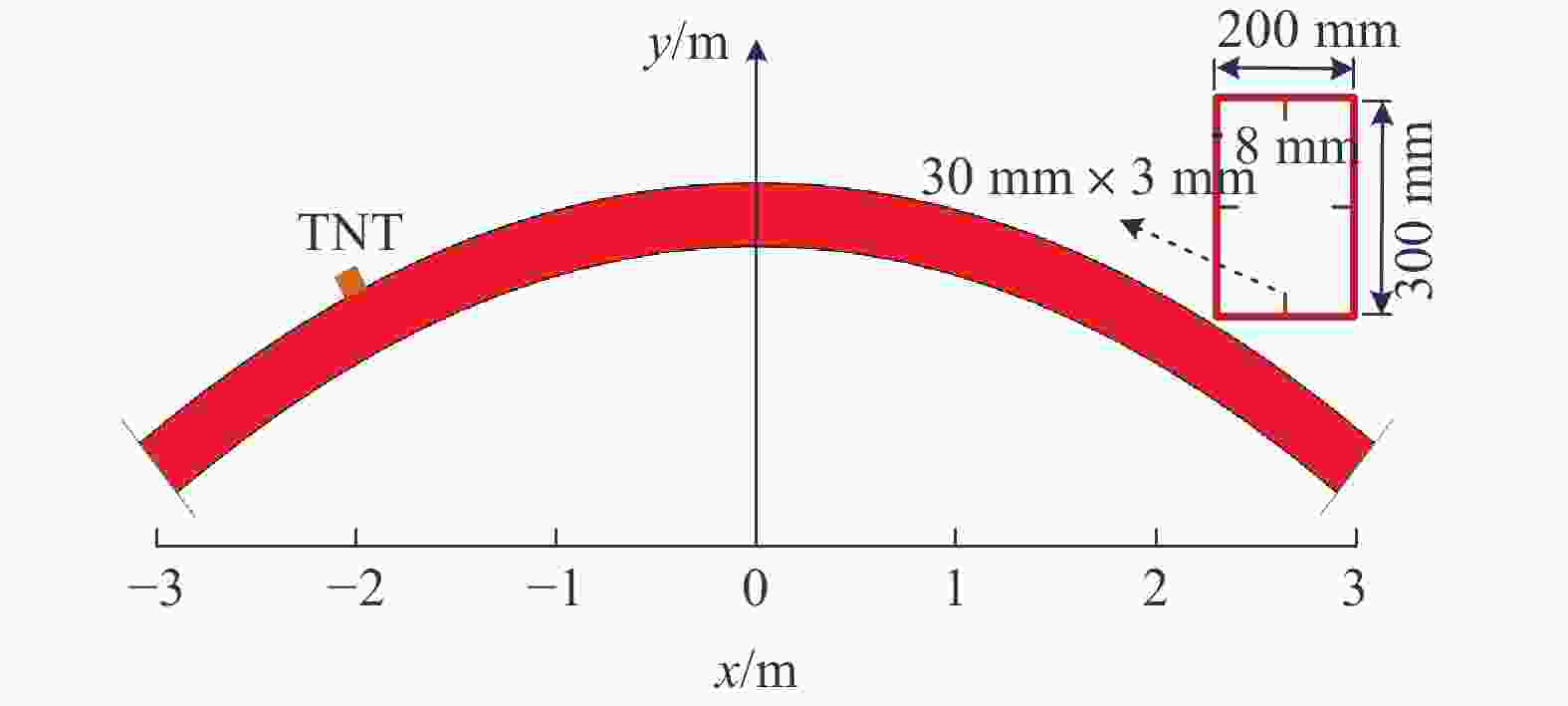

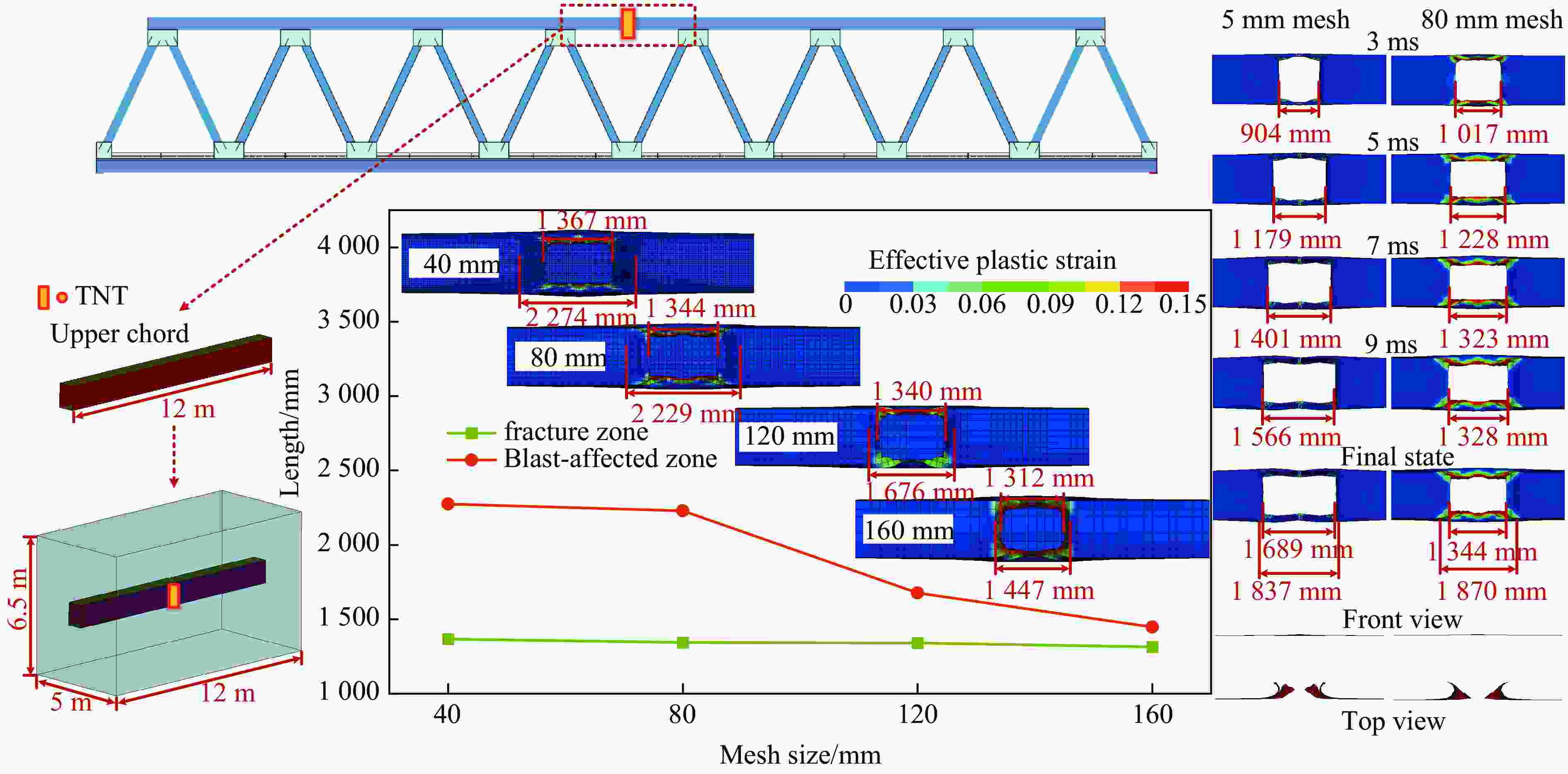

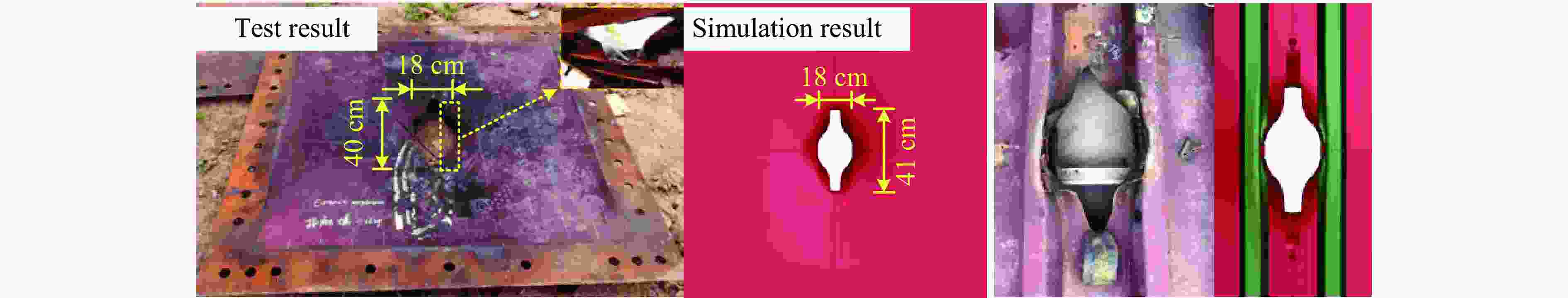

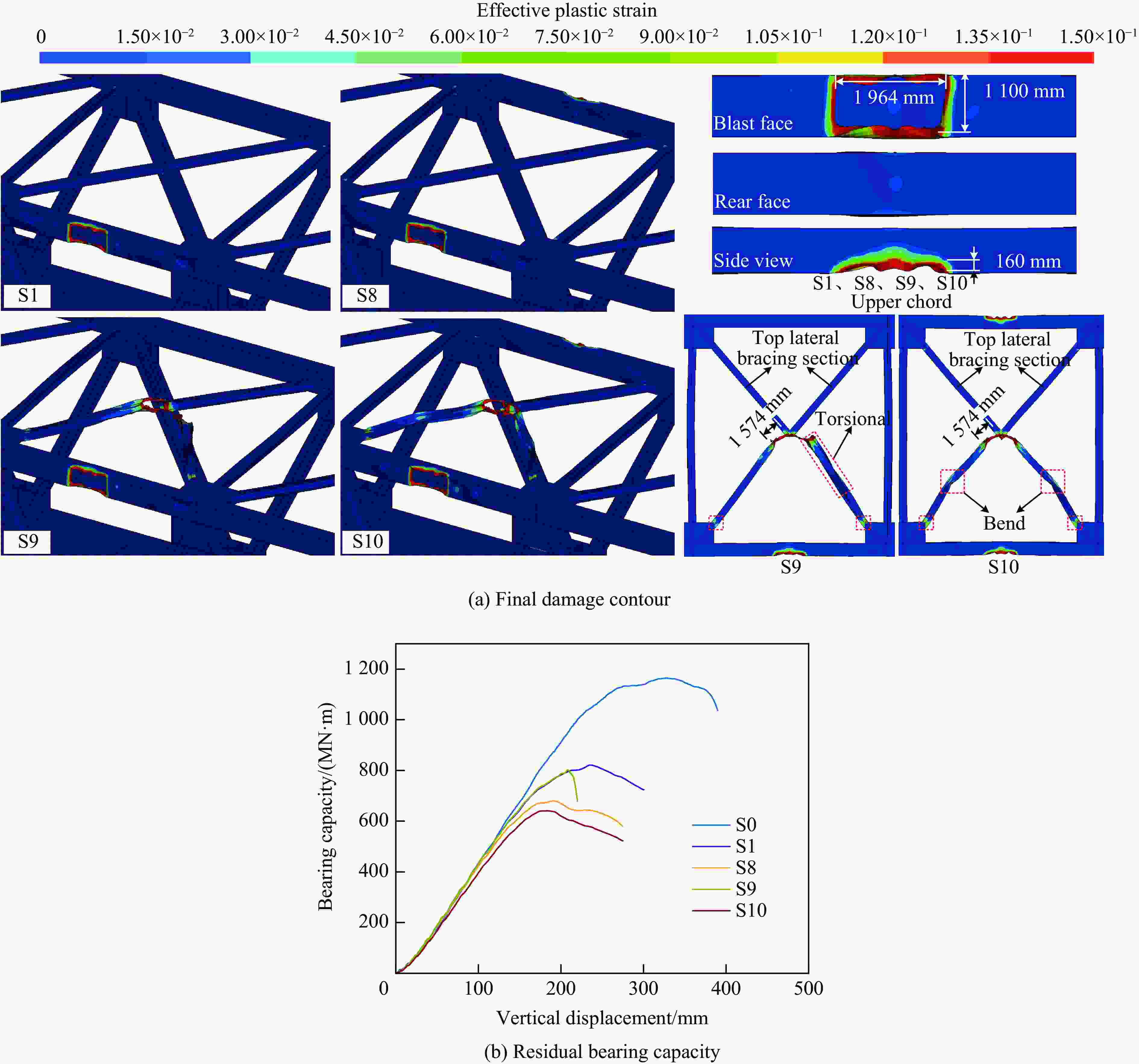

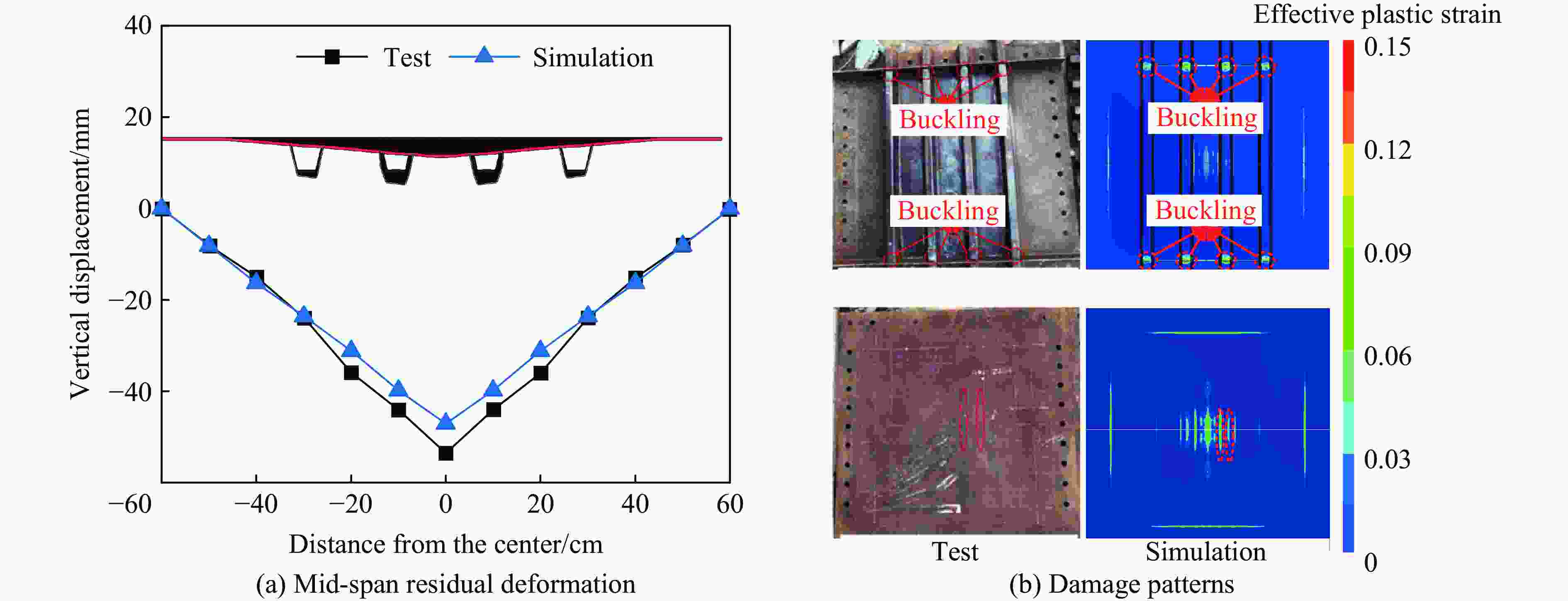

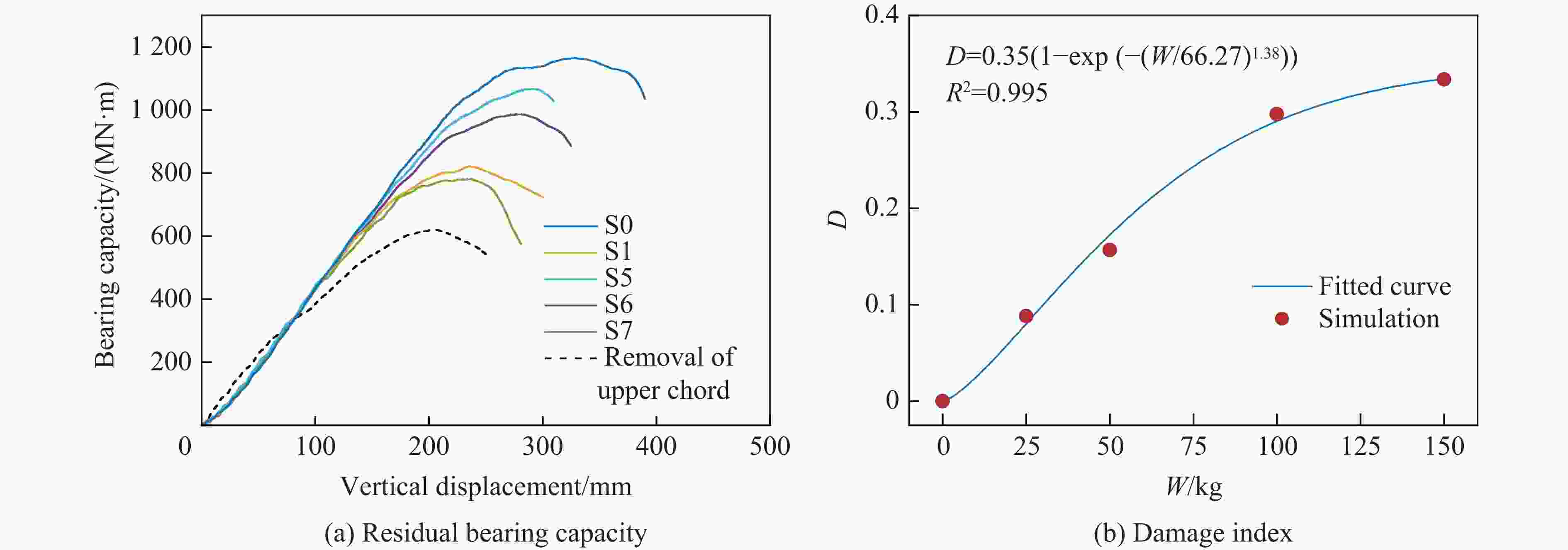

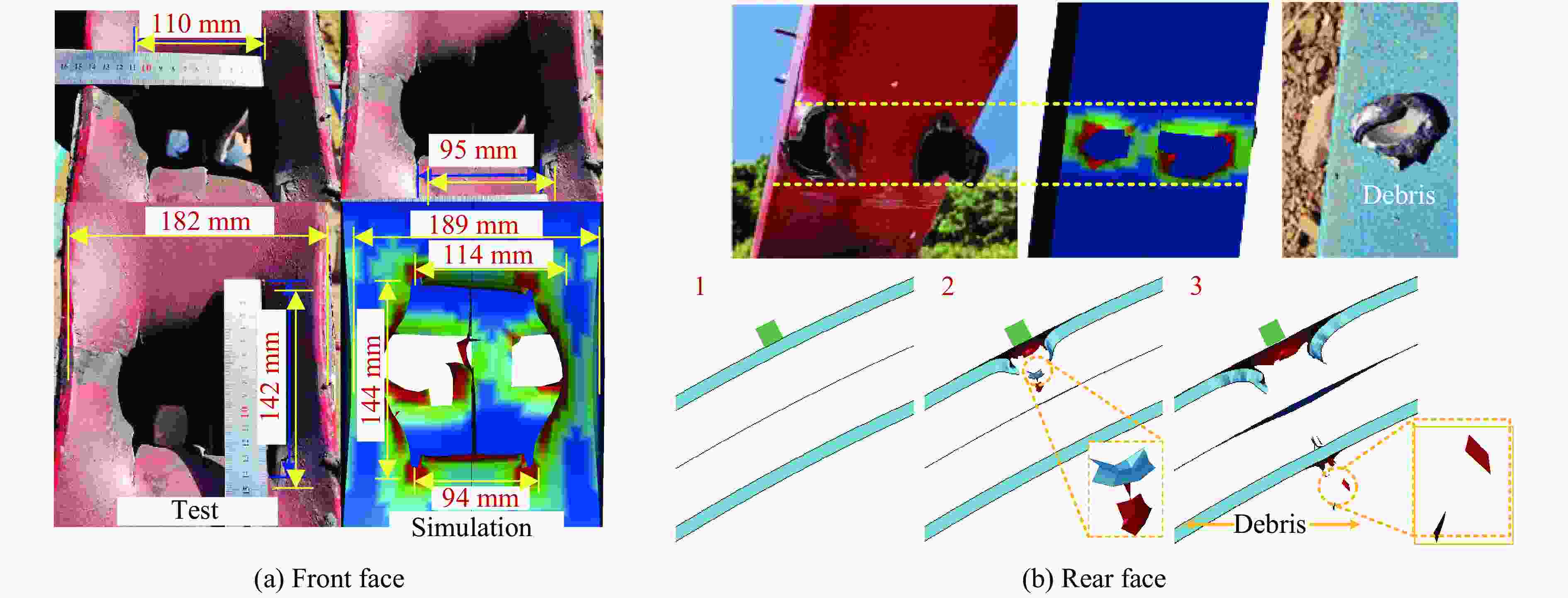

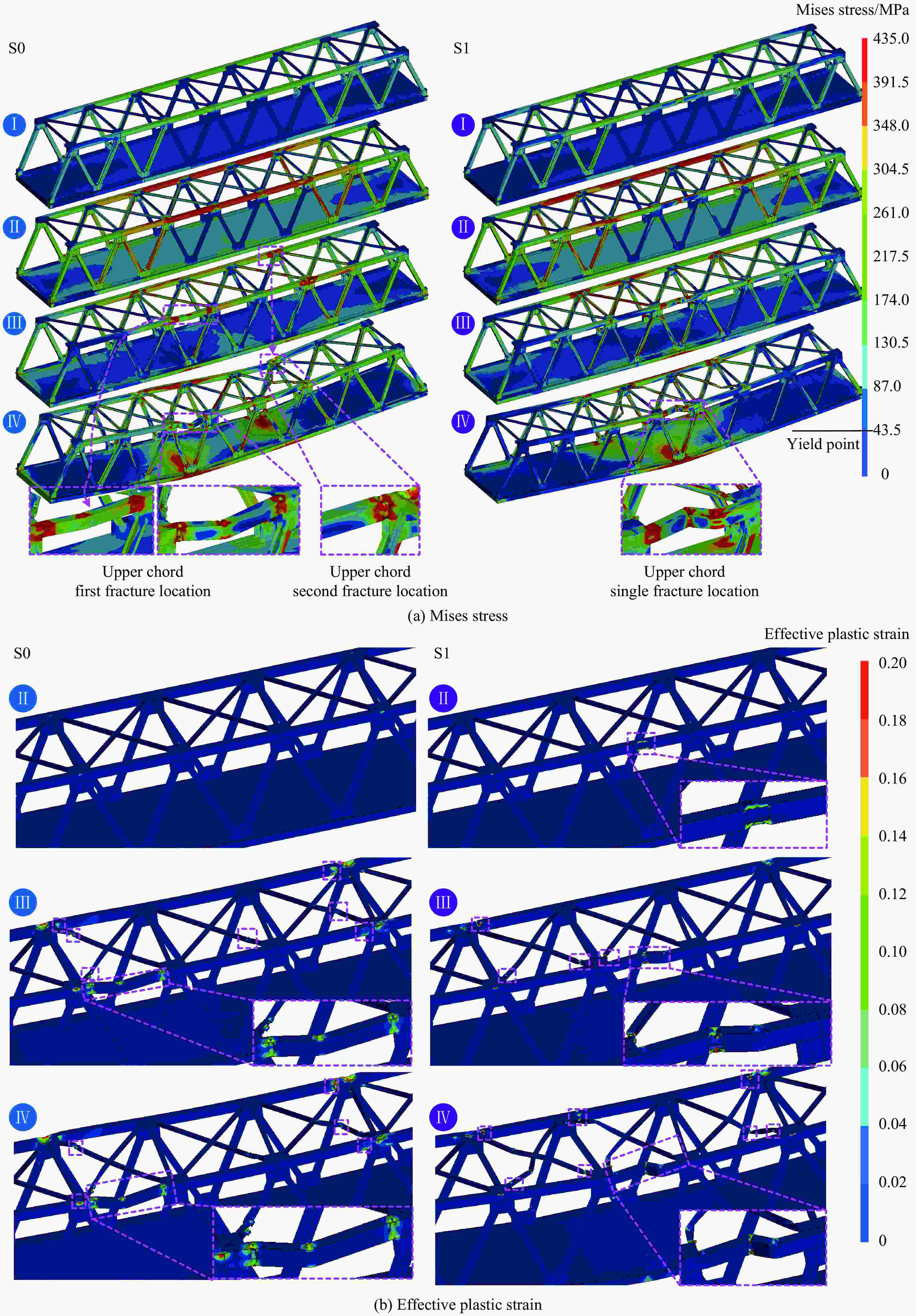

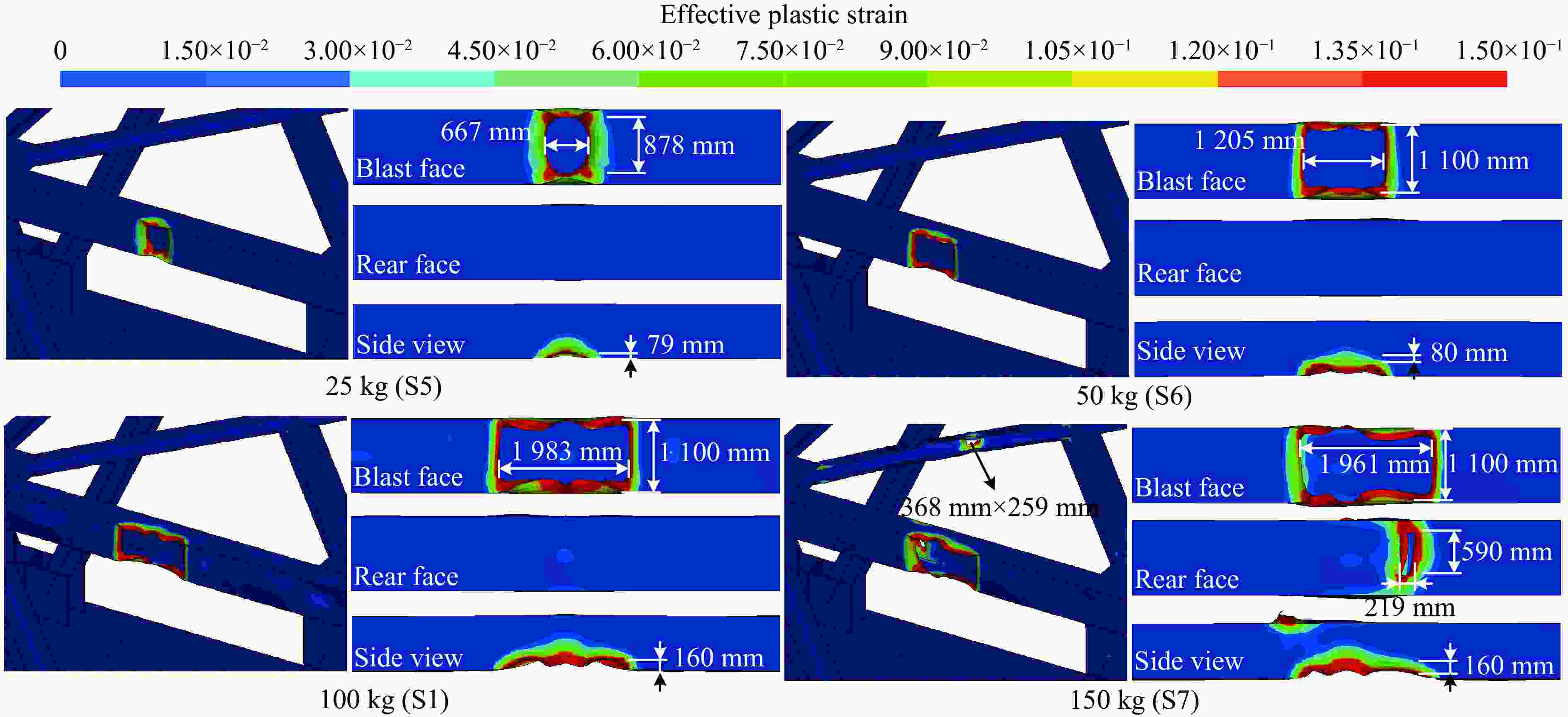

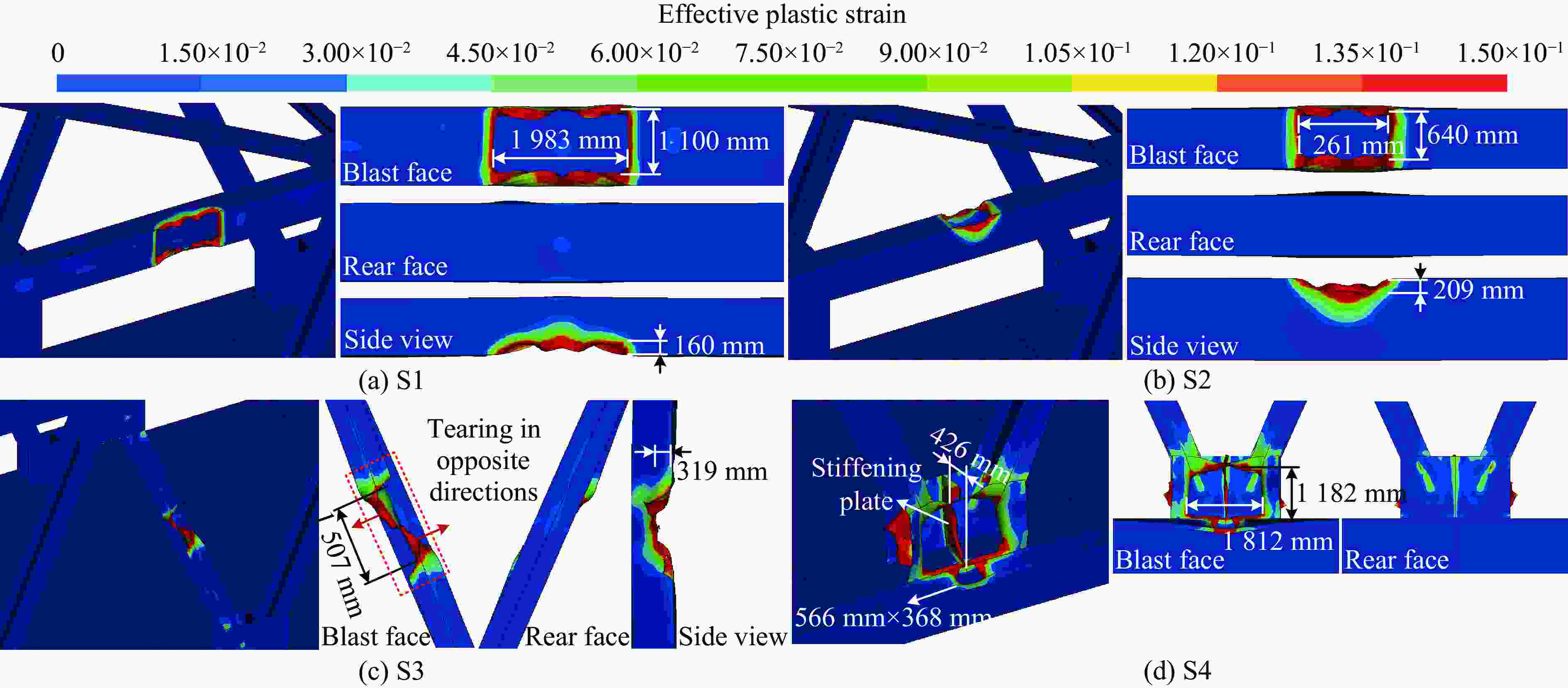

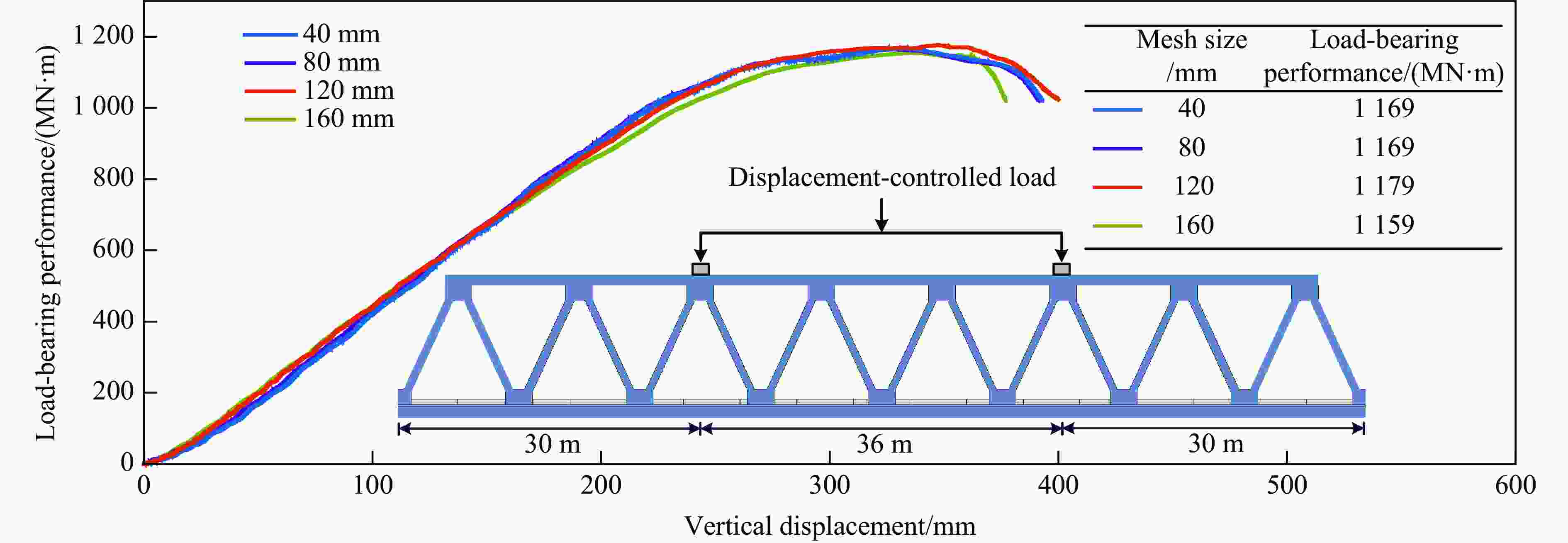

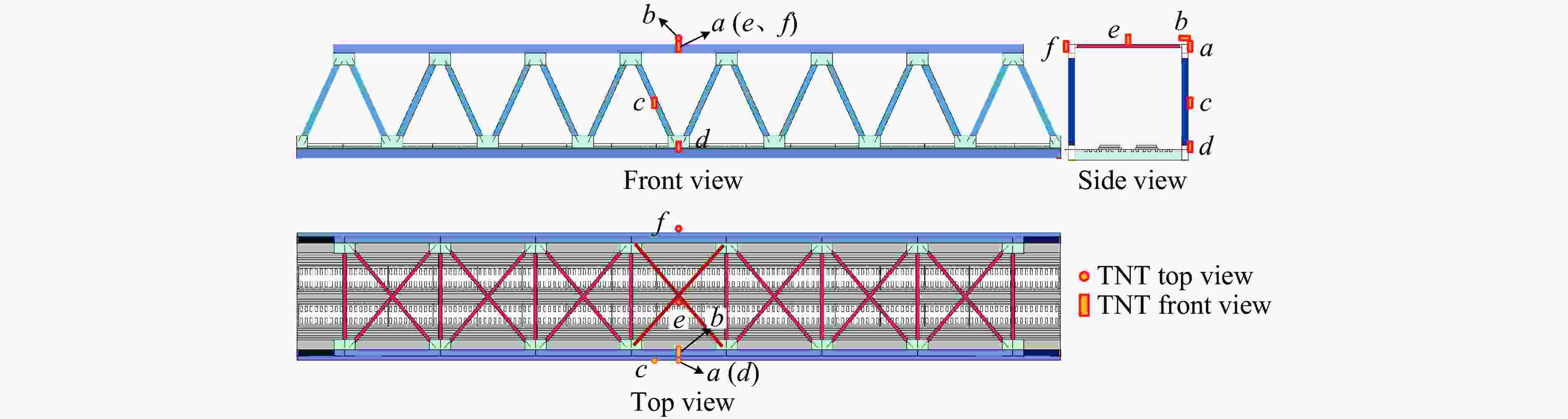

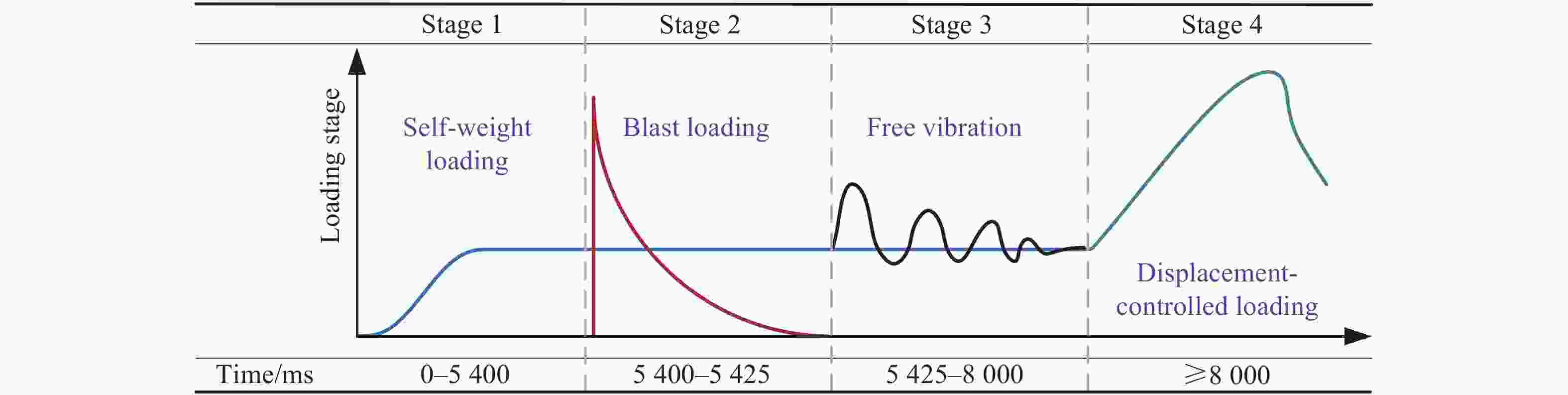

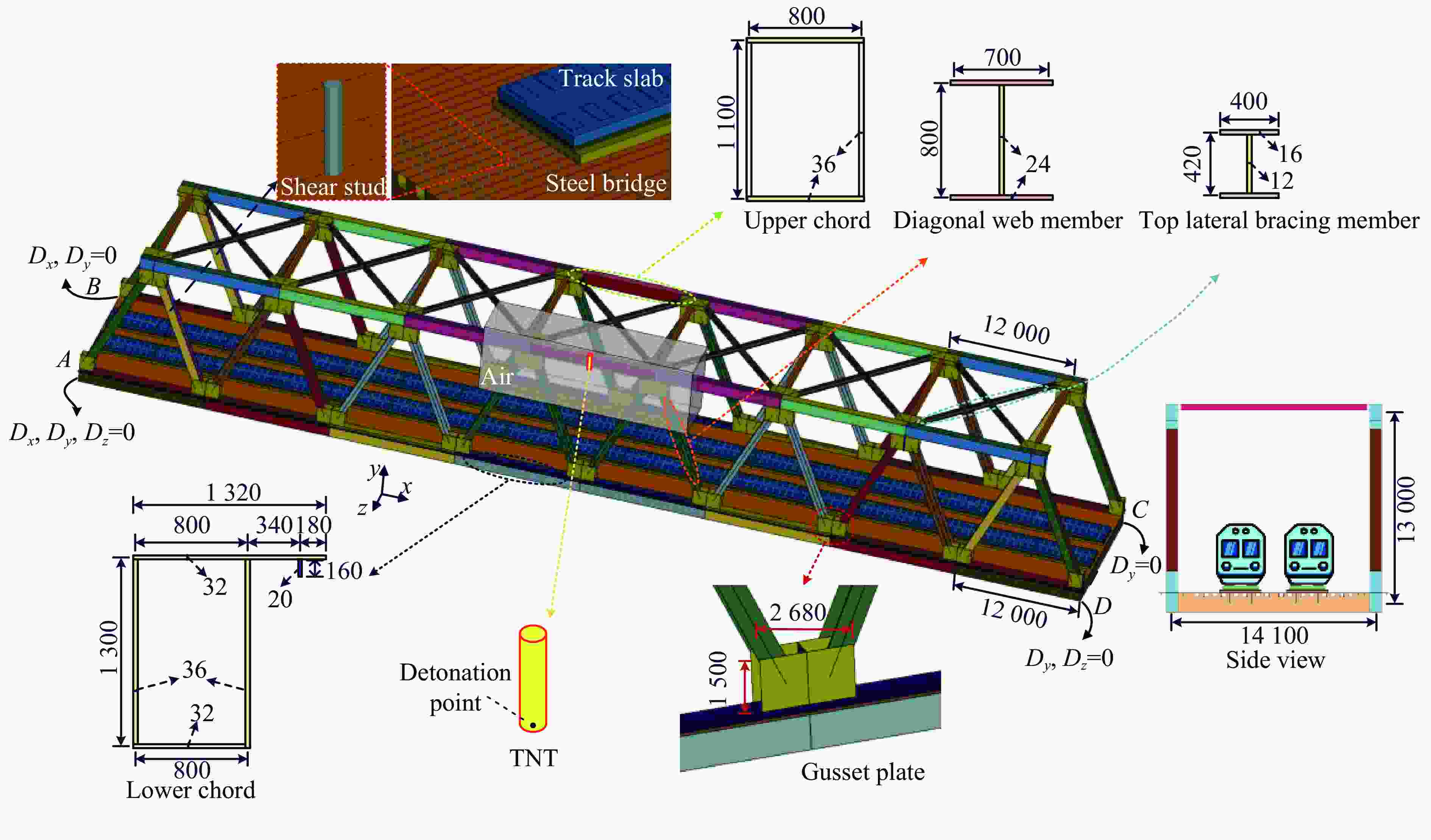

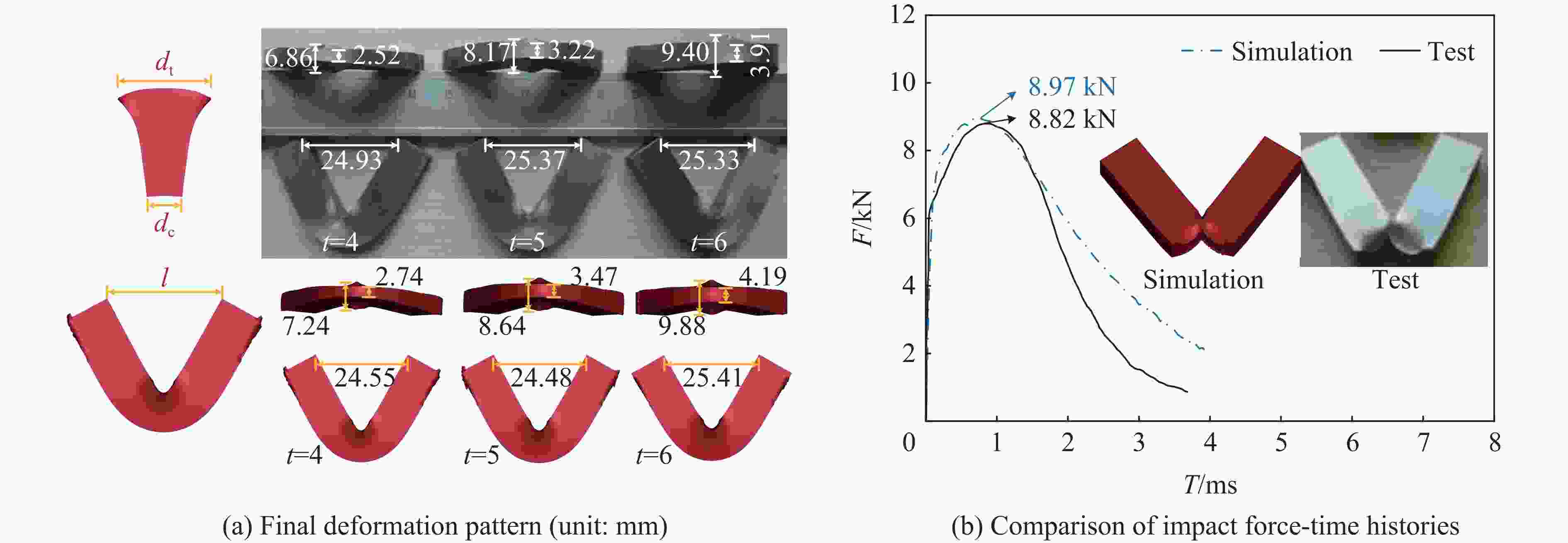

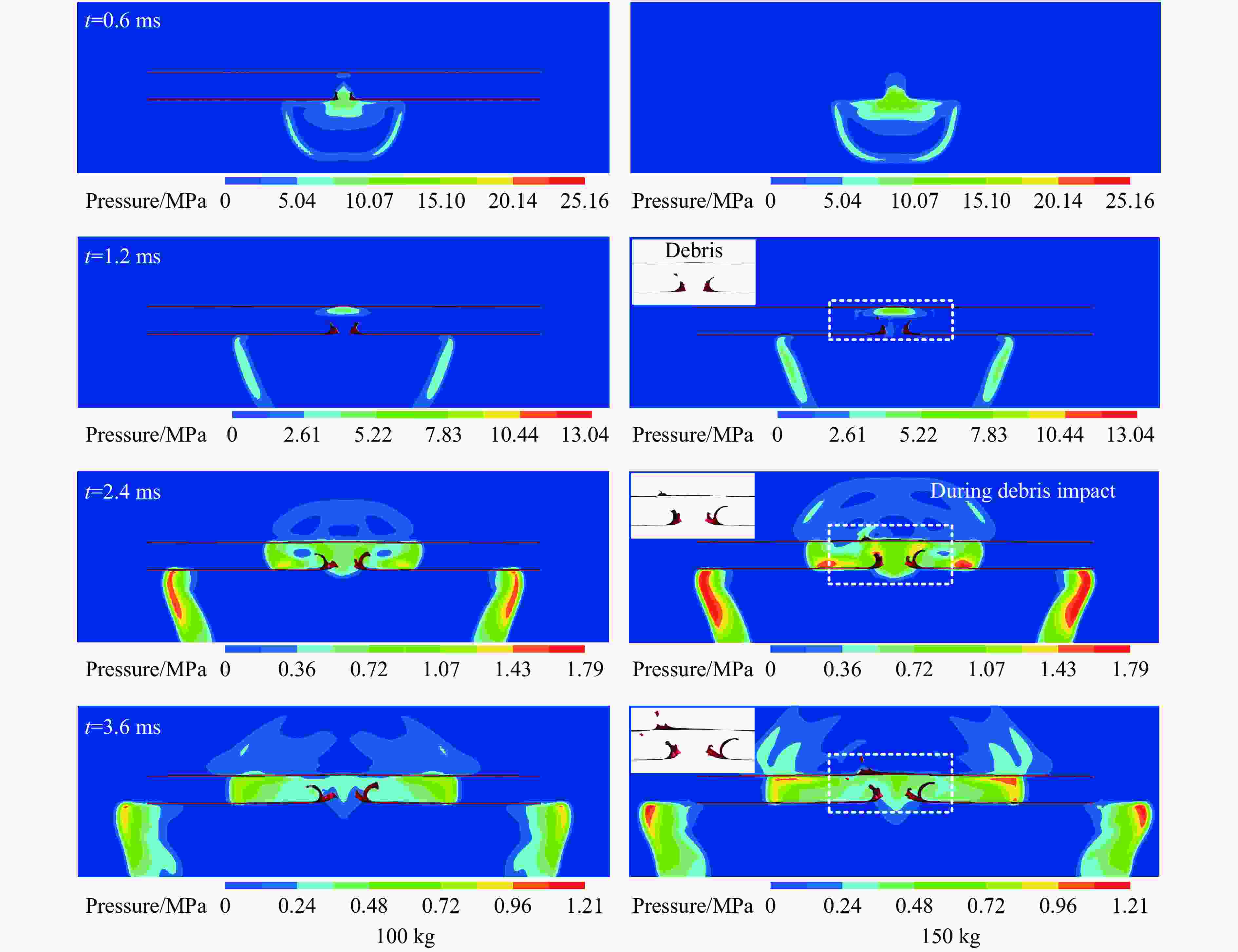

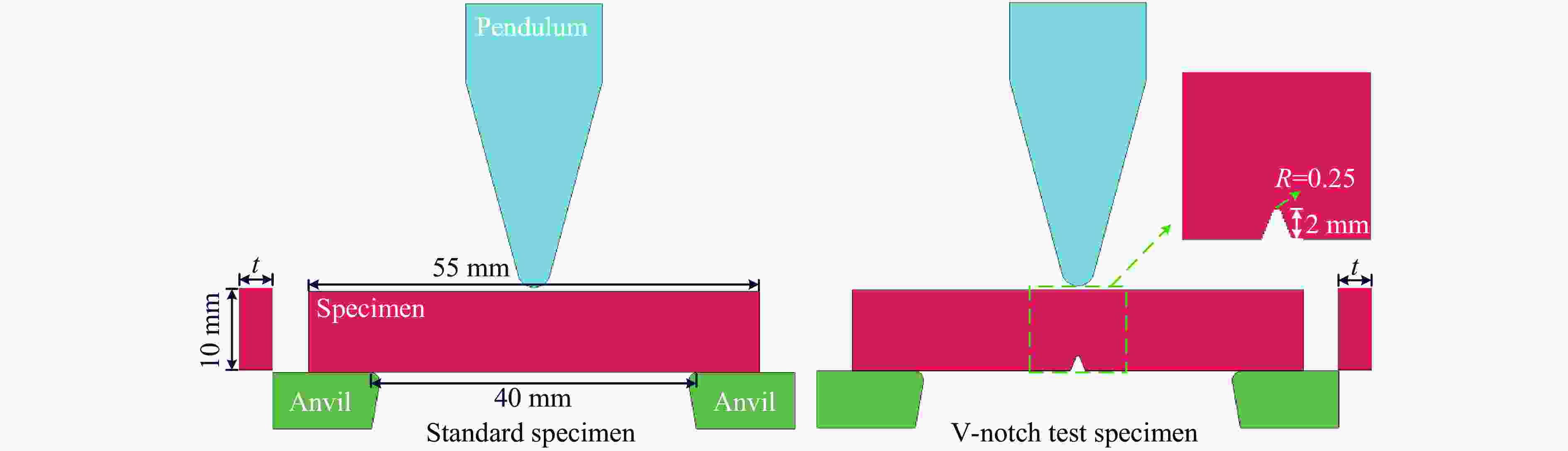

Abstract: Steel truss bridges are typically composed of a large number of slender members and represent one of the primary structural forms of railway bridges, facing the threat of overall collapse caused by explosions from unmanned aerial vehicles. Numerical simulation analysis was conducted on the failure mode and residual bearing capacity degradation law of railway steel truss bridges subjected to contact explosions at the present work. Firstly, the reliability of the numerical simulation method was verified by existing explosion tests on stiffened steel plates and steel box arches, as well as the residual bearing capacity of I-shaped steel column after explosion. Subsequently, mesh sensitivity analyses were performed for the damage and failure of upper chord member under contact explosions and for the residual bearing capacity of the entire bridge. Then, the most unfavorable member of the typical steel truss bridge was identified, and the influence of explosion yield on the residual bearing capacity was explored. Finally, the evolution mechanism of damage and failure of the entire bridge under multi-point explosions was discussed. The results show that, (i) under contact explosions, steel truss girder bridges are mainly characterized by localized member damage. For an explosive charge of 100 kg, the overall bridge bearing capacity decreases by 29.8% and 18.0% when the explosion occurs on the side and top surfaces of the upper chord member. The side explosion on the upper chord is the most unfavorable scenario. (ii) As the charge weight for side explosion on upper chord increases from 25 kg to 150 kg, the reduction in residual bearing capacity of the entire bridge increases from 8.8% to 33.4%. Taking the ratio of bearing capacity loss to the ultimate bearing capacity of intact bridge as the damage index, a quantitative relationship between the entire bridge damage index and the explosive charge weight is established. (iii) Under multi-point explosion scenarios, the damage factor increases to 0.452, indicating the structural redundancy and residual bearing capacity are significantly reduced compared with those under single-point explosion conditions. -
